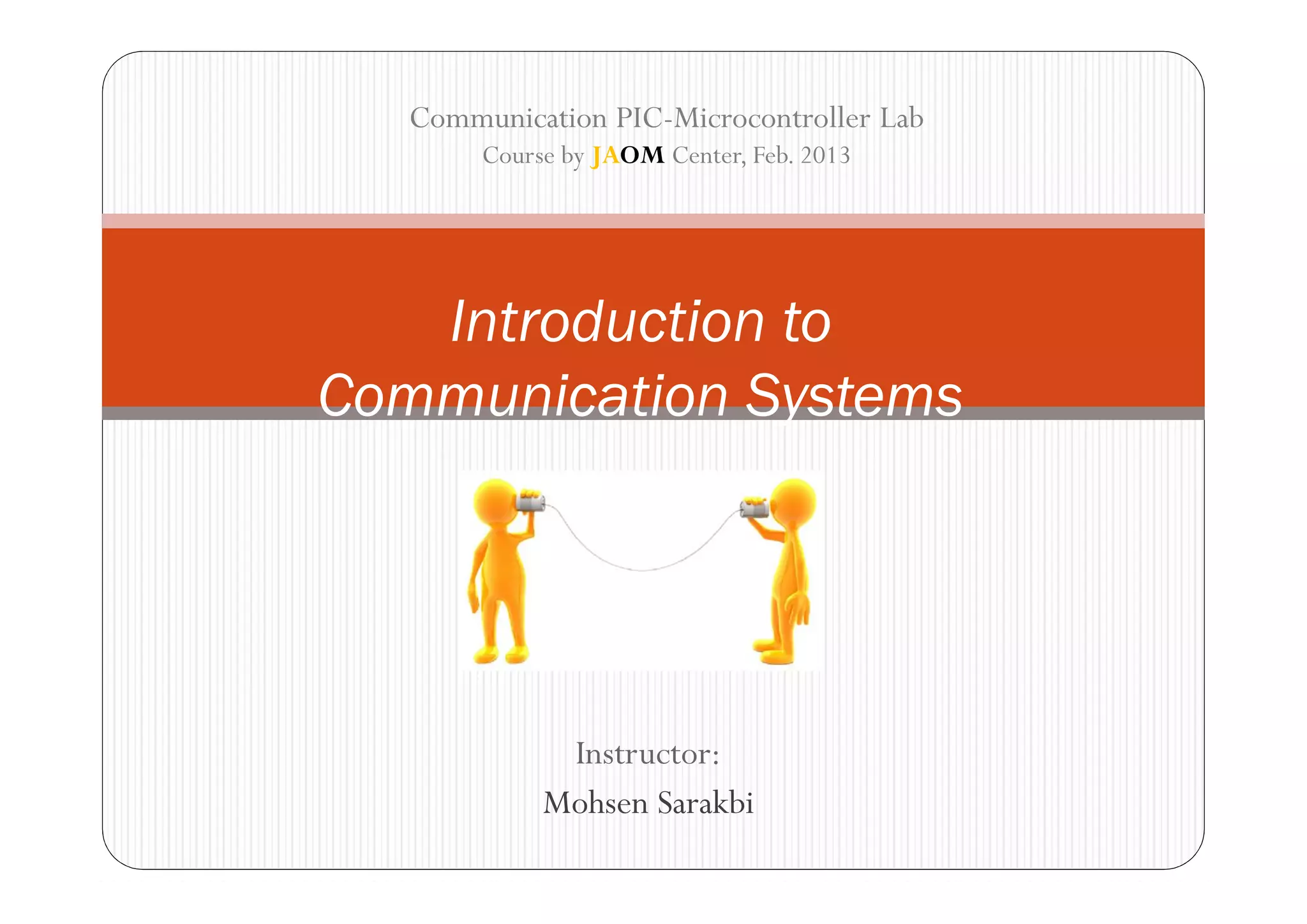

Communication PIC-Microcontroller Lab
       Course by JAOM Center, Feb. 2013




   Introduction to
Communication Systems




             Instructor:
            Mohsen Sarakbi

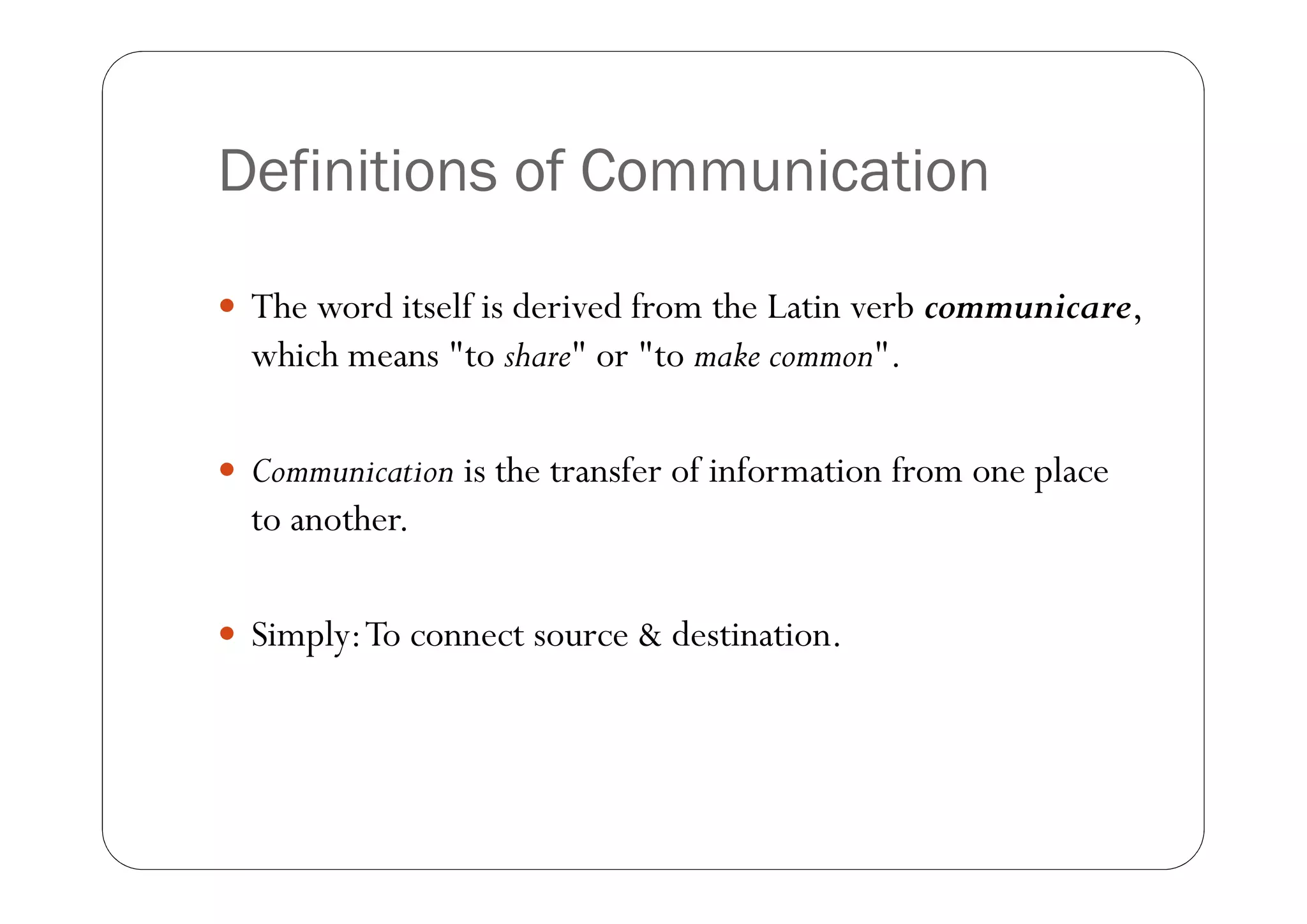

Definitions of Communication

 The word itself is derived from the Latin verb communicare,
  which means "to share" or "to make common".

 Communication is the transfer of information from one place
  to another.

 Simply: To connect source & destination.
Definitions of Communication

     For a best communication, connection should be:

  o As efficiently as possible
  o With as much fidelity/reliability as possible
  o As securely as possible
Communication System

 Communication Systems became essential, and gained an
  important position in our lives, we can touch its effect in
  every aspects of life.

 Examples: Networks, internet, satellites, mobile phone
  system, GPS, Radar ….. etc).
Parts of Communication System

 Communication systems consist of five parts:
   Source, Transmitter, Channel, Receiver, and Destination.




                Shannons Model of Communication
Parts of Communication System
 Source (input signal):
o The source originates a message, such as (human voice, the
  television picture, data).
o If the data is non-electrical (analogue) it must be converted by an
  input transducer (microphone, camera…) into an electrical
  waveform (baseband modulation) referred to as the baseband
  signal or message signal.
Parts of Communication System
 Transmitter (TX):
o The transmitter modifies the base-band signal for efficient
  transmission.
o Characteristics: Modulation, amplification, transmission frequency
  (TX), transmission power, coding...
o MW modem,WiFi Card, Bluetooth Card, RF transmitter..
Parts of Communication System
 Channel:
o The Channel is a medium, such as wire, coaxial cable, a
  waveguide, an optical fiber or a radio link (air interface), through
  which the transmitter output is sent.
o Channel characteristics, ability for transmission, noise,
  interference, power needed, fading, multipath...
Parts of Communication System
 Receiver (RX):
o The receiver reprocesses the signal received from the channel by
  undoing the signal modifications made at the transmitter and the
  channel.
o Characteristics: Demodulation, receiver frequency (RX),
  receiving power (threshold), decoding...
o MW modem,WiFi Card, Bluetooth Card, RF receiver..
Parts of Communication System
 Destination (output signal):


The destination is the unit to which the message is communicated.
The receiver output is fed to the output transducer (Monitor,
Speaker…), which converts the electrical signal to its original form.
Parts of Communication System
 Transmitted/Received Signal
o Modulated signal or encapsulated signal.
This signal is modified by the transmitter/receiver

o Examples:
Ethernet frame:




MW frame:
Parts of Communication System
 Transceiver
Is a One devices (transmitter/receiver) that do the role of
the two devices.
o Bidirectional communication.
o Higher Cost!
Modes of Channel Operation
 Simplex:
o Simplex is one direction of communication, it requires only one line of communication.
o Simplex channels are not often used in communication systems because it is not possible to send back
  error or control signals to the transmit end.
o A good example would be TV or Radio


 Half-Duplex:
o Two directions of communication (can send & receive) but only one direction is allowed through at a time.
o Only one end transmits at a time, the other end receives. In addition, it is possible to send feedbacks.
o An advantage is that the single lane is cheaper then the double lane (less connecters).
o Example of half-duplex is talk-back radio, and CB Radio (Citizens Band).

 Full Duplex:
o Two ways of communication with data can travel in both directions simultaneously. This is the most
  common channel operation in communication systems and networking.
o It can perform feedbacks.
o The most expensive (special devices and more connecters, as in case of fiber optics SFPs)
o Example, is mobile phone line.
Modes of Channel Operation
Real Life Example, Telecommunication
Real Life Example, Satellite System
Our Course


             Data Transmission

                RF, Bluetooth,
                 XBEE, Wi-Fi,
                     GSM
Transmission


                              Technology
                                  RF
                               Bluetooth
                                 XBEE
                                 Wi-Fi
                                 GSM


o All transmission methods are using TX/RX modules.
o GSM, is not P-t-P directly connected channel (over existing mobile network)
Transmission
Transmission


What is Transmission?
Where is the Transmission Network exist (Topology)?
What to Transmit (Media)?
Transmission


What is Transmission?

   Transporting
     Traffic: Voice, Data, Signaling ...

   Connecting
Transmission

Where is the Transmission
Network exist?


Between Network Elements

   Mobile Network
Transmission
How to Transmit?
 Radio Link (Microwave)
   + Rapid installation
   + No "right of way" required
   -limited capacity Up to 1,2 GB/s IP capacity
   - Sensitive to ambient disturbance
     (rain and multipath fading)
   - Radio license fees

 Fiber Optics
   + High transmission capacity
   + High transmission quality
   + Resistant to ambient disturbance
   +Maximum distances 100 up 150 km
   between repeaters
   -Long implementation time
Transmission
How to Transmit?

Direct Cables (Coax)
  +Reliable
  -Low medium distance
   (decrease with capacity)


Leased Lines
  High Cost!
Electromagnetic Spectrum

• Transmission should be done using EM waves
Electromagnetic Spectrum
Signal Bandwidth

The bandwidth of a composite signal is the difference between the highest and the
lowest frequencies contained in that signal.
History of communication systems
Advanced electrical and electronic signals::

1893: Wireless telegraphy
1896: Radio
1927: Television
1927: First commercial radio-telephone service, U.K.–U.S.
1936: World's first public videophone network
1946: Limited capacity Mobile Telephone Service for automobiles
1962: Commercial telecommunications satellite
1964: Fiber optical telecommunications
1969: Computer networking
1973: First modern-era mobile (cellular) phone
1981: First mobile (cellular) phone network
1982: SMTP email
1983: Internet
1998: Mobile satellite hand-held phones
2003: Skype Internet telephony
