HBaseCon 2013: Apache HBase Table Snapshots
The document presents an overview of HBase table snapshots, detailing their purpose as mechanisms for data backup, recovery from user errors, and replication. It describes the differences between old backup methods and the new snapshot-based backups, highlighting their efficiency and minimal impact on performance. Additionally, it covers usage instructions, including configurations, commands, restoration processes, and considerations for online snapshots.
More Related Content
Similar to HBaseCon 2013: Apache HBase Table Snapshots
More from Cloudera, Inc.
HBaseCon 2013: Apache HBase Table Snapshots
- 1. Apache HBase TableSnapshots Matteo Bertozzi | Cloudera | Software Engineer / HBase Committer Jonathan Hsieh | Cloudera | Software Engineer / HBase Committer Jesse Yates | Salesforce.com | Software Engineer / HBase Committer June 13, 2013 HBaseCon 2013

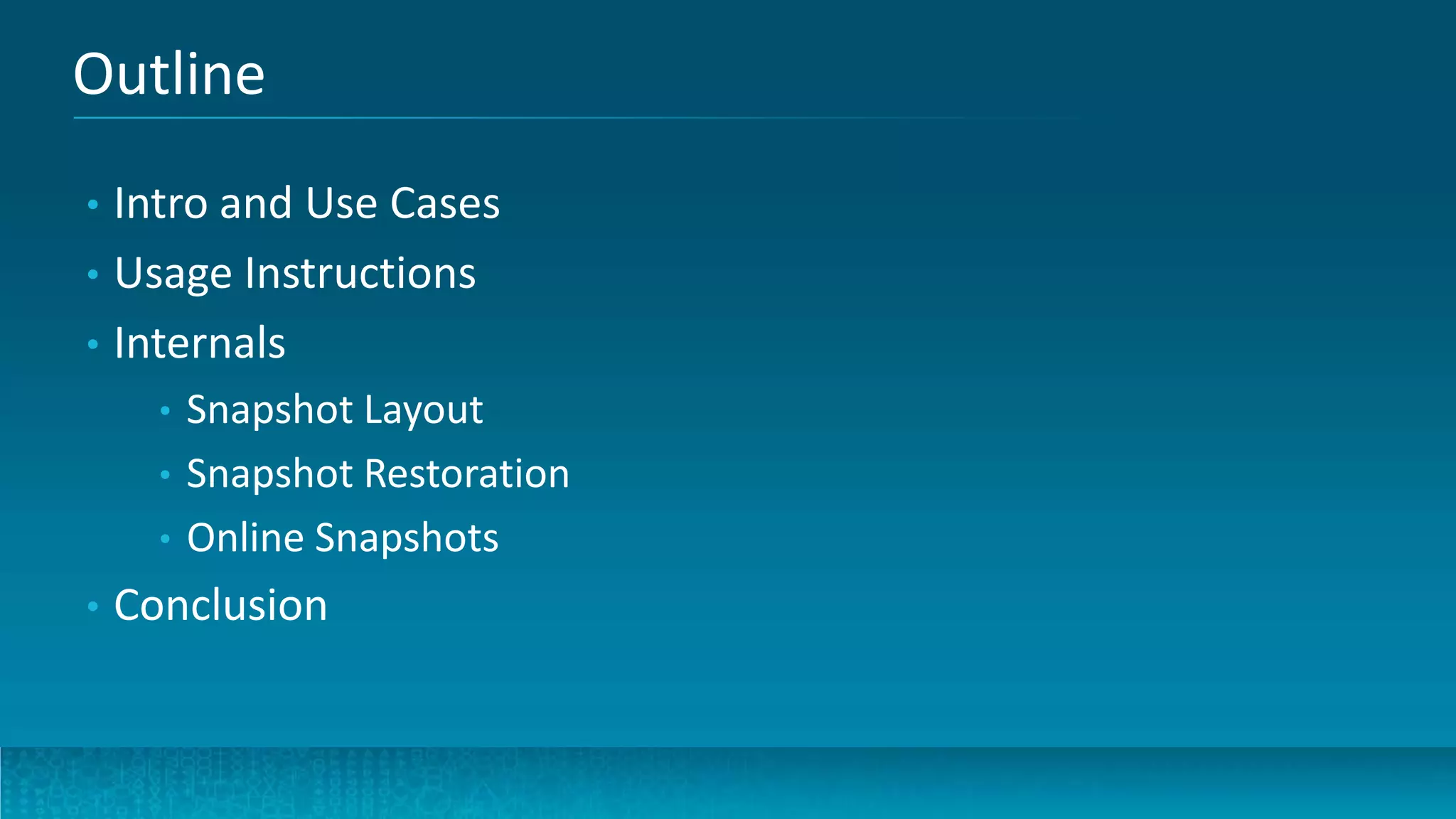

- 2. Outline • Intro andUse Cases • Usage Instructions • Internals • Snapshot Layout • Snapshot Restoration • Online Snapshots • Conclusion

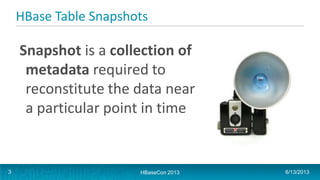

- 3. HBase Table Snapshots Snapshotis a collection of metadata required to reconstitute the data near a particular point in time HBaseCon 2013 6/13/20133

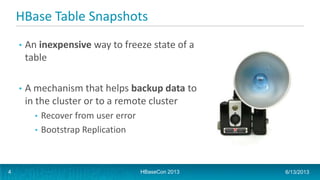

- 4. HBase Table Snapshots •An inexpensive way to freeze state of a table • A mechanism that helps backup data to in the cluster or to a remote cluster • Recover from user error • Bootstrap Replication HBaseCon 2013 6/13/20134

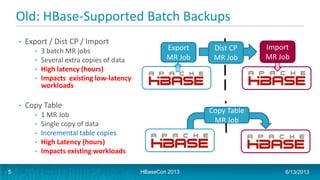

- 5. Old: HBase-Supported BatchBackups • Export / Dist CP / Import • 3 batch MR jobs • Several extra copies of data • High latency (hours) • Impacts existing low-latency workloads • Copy Table • 1 MR Job • Single copy of data • Incremental table copies • High Latency (hours) • Impacts existing workloads Export MR Job Import MR Job Dist CP MR Job Copy Table MR Job HBaseCon 2013 6/13/20135

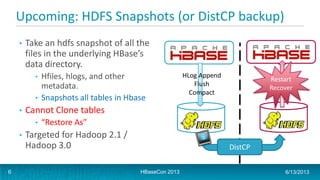

- 6. Upcoming: HDFS Snapshots(or DistCP backup) • Take an hdfs snapshot of all the files in the underlying HBase’s data directory. • Hfiles, hlogs, and other metadata. • Snapshots all tables in Hbase • Cannot Clone tables • “Restore As” • Targeted for Hadoop 2.1 / Hadoop 3.0 DistCP HLog Append Flush Compact Restart Recover HBaseCon 2013 6/13/20136

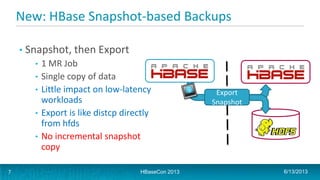

- 7. New: HBase Snapshot-basedBackups • Snapshot, then Export • 1 MR Job • Single copy of data • Little impact on low-latency workloads • Export is like distcp directly from hfds • No incremental snapshot copy HBaseCon 2013 Export Snapshot 6/13/20137

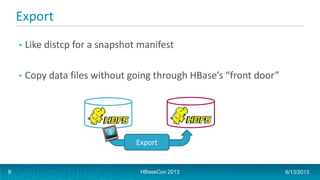

- 8. Export • Like distcpfor a snapshot manifest • Copy data files without going through HBase’s “front door” Export HBaseCon 2013 6/13/20138

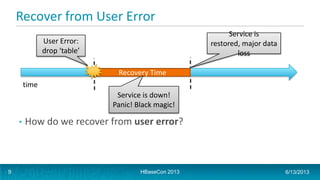

- 9. Recover from UserError • How do we recover from user error? Recovery Time time User Error: drop ‘table’ Service is restored, major data loss Service is down! Panic! Black magic! HBaseCon 2013 6/13/20139
- 10. Recovering from UserMistakes: Table Snapshots • Snapshot the state of a table at a certain moment in time • Restore it or Clone it later, creating a new read write table • Export it to another cluster with minimal impact on HBase time User Error: drop ‘table’ Service restored, Minor data loss. Carry on. Periodic snapshot Service is down! Keep calm! restore Periodic snapshot HBaseCon 2013 6/13/201310
- 11. Usage What an Adminneeds to know

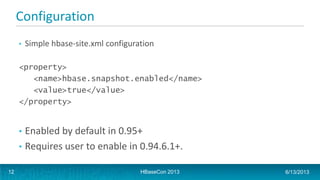

- 12. Configuration • Simple hbase-site.xmlconfiguration <property> <name>hbase.snapshot.enabled</name> <value>true</value> </property> • Enabled by default in 0.95+ • Requires user to enable in 0.94.6.1+. HBaseCon 2013 6/13/201312

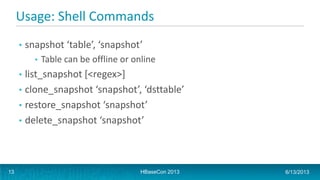

- 13. Usage: Shell Commands •snapshot ‘table’, ‘snapshot’ • Table can be offline or online • list_snapshot [<regex>] • clone_snapshot ‘snapshot’, ‘dsttable’ • restore_snapshot ‘snapshot’ • delete_snapshot ‘snapshot’ HBaseCon 2013 6/13/201313

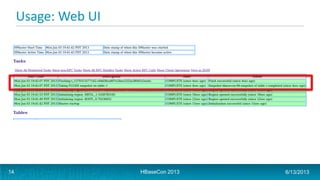

- 14. Usage: Web UI HBaseCon2013 6/13/201314

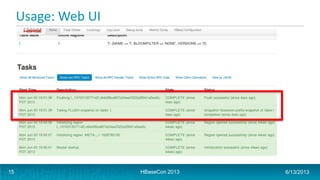

- 15. Usage: Web UI HBaseCon2013 6/13/201315

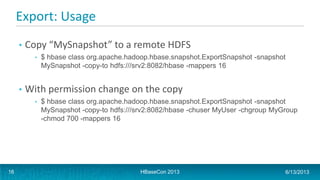

- 16. Export: Usage • Copy“MySnapshot” to a remote HDFS • $ hbase class org.apache.hadoop.hbase.snapshot.ExportSnapshot -snapshot MySnapshot -copy-to hdfs:///srv2:8082/hbase -mappers 16 • With permission change on the copy • $ hbase class org.apache.hadoop.hbase.snapshot.ExportSnapshot -snapshot MySnapshot -copy-to hdfs:///srv2:8082/hbase -chuser MyUser -chgroup MyGroup -chmod 700 -mappers 16 HBaseCon 2013 6/13/201316

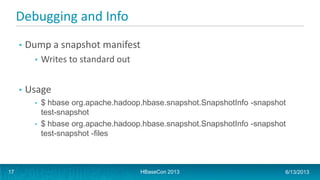

- 17. Debugging and Info •Dump a snapshot manifest • Writes to standard out • Usage • $ hbase org.apache.hadoop.hbase.snapshot.SnapshotInfo -snapshot test-snapshot • $ hbase org.apache.hadoop.hbase.snapshot.SnapshotInfo -snapshot test-snapshot -files HBaseCon 2013 6/13/201317

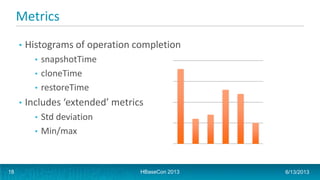

- 18. Metrics • Histograms ofoperation completion • snapshotTime • cloneTime • restoreTime • Includes ‘extended’ metrics • Std deviation • Min/max HBaseCon 2013 6/13/201318
- 19.

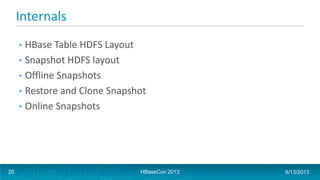

- 20. Internals • HBase TableHDFS Layout • Snapshot HDFS layout • Offline Snapshots • Restore and Clone Snapshot • Online Snapshots HBaseCon 2013 6/13/201320

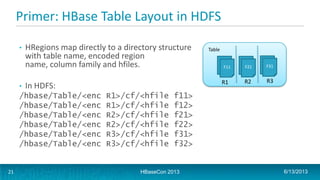

- 21. Primer: HBase TableLayout in HDFS • HRegions map directly to a directory structure with table name, encoded region name, column family and hfiles. • In HDFS: /hbase/Table/<enc R1>/cf/<hfile f11> /hbase/Table/<enc R1>/cf/<hfile f12> /hbase/Table/<enc R2>/cf/<hfile f21> /hbase/Table/<enc R2>/cf/<hfile f22> /hbase/Table/<enc R3>/cf/<hfile f31> /hbase/Table/<enc R3>/cf/<hfile f32> Table F11 F21 F31 R1 R2 R3 6/13/2013HBaseCon 201321

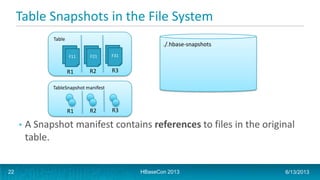

- 22. Table Snapshots inthe File System • A Snapshot manifest contains references to files in the original table. ./.hbase-snapshots Table F11 F21 F31 R1 R2 R3 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201322

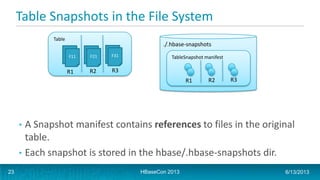

- 23. Table Snapshots inthe File System • A Snapshot manifest contains references to files in the original table. • Each snapshot is stored in the hbase/.hbase-snapshots dir. ./.hbase-snapshots Table F11 F21 F31 R1 R2 R3 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201323
- 24. Offline Snapshots • Disabletable, then create Snapshot Manifest • Created in temporary dir to guarantee snapshot creation atomicity • Includes • Snapshot Metadata • Table Metadata/Schema (.tableinfo) • References to original HFiles • Master-only file system operation HBaseCon 2013 6/13/201324
- 25. HFile Life Cycle •Splits and Compactions remove hfiles • What happens to references to these files? ./.hbase-snapshots Table F11 F21 F31 R1 R2 R3 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201325

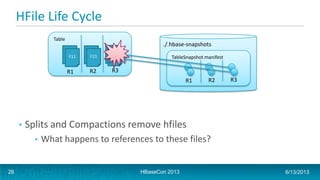

- 26. HFile Life Cycle •Splits and Compactions remove hfiles • What happens to references to these files? ./.hbase-snapshots Table F11 F21 F31 R1 R2 R3 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201326
- 27. HFile Life Cycle •Splits and Compactions remove hfiles • What happens to references to these files? ./.hbase-snapshots Table F11 F21 F31 +32 R1 R2 R3 TableSnapshot manifest R1 R2 R3 No more Hfile?? HBaseCon 2013 6/13/201327
- 28. HFile Archiver ./.hbase-snapshots ./.archive Table F11 F21 R1R2 R3 TableSnapshot manifest R1 R2 R3 Table files F31 HBaseCon 2013 6/13/201328 • We archive old HFiles from compactions (HBASE-5547)

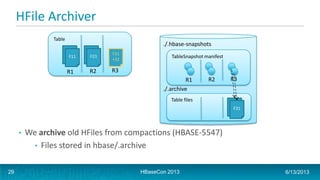

- 29. HFile Archiver ./.hbase-snapshots ./.archive Table F11 F21 R1R2 R3 TableSnapshot manifest R1 R2 R3 F31 +32 Table files F31 HBaseCon 2013 6/13/201329 • We archive old HFiles from compactions (HBASE-5547) • Files stored in hbase/.archive

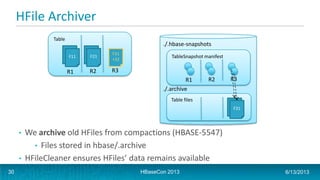

- 30. HFile Archiver ./.hbase-snapshots ./.archive Table F11 F21 R1R2 R3 TableSnapshot manifest R1 R2 R3 F31 +32 Table files F31 • We archive old HFiles from compactions (HBASE-5547) • Files stored in hbase/.archive • HFileCleaner ensures HFiles’ data remains available HBaseCon 2013 6/13/201330
- 31.

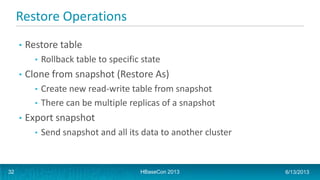

- 32. Restore Operations • Restoretable • Rollback table to specific state • Clone from snapshot (Restore As) • Create new read-write table from snapshot • There can be multiple replicas of a snapshot • Export snapshot • Send snapshot and all its data to another cluster HBaseCon 2013 6/13/201332

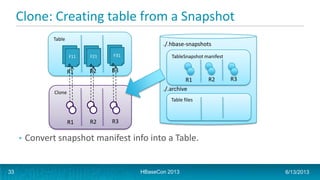

- 33. Clone: Creating tablefrom a Snapshot • Convert snapshot manifest info into a Table. ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 TableSnapshot manifest R1 R2 R3 Table files Clone R1 R2 R3 F31 HBaseCon 2013 6/13/201333

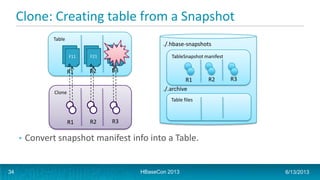

- 34. Clone: Creating tablefrom a Snapshot • Convert snapshot manifest info into a Table. ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 TableSnapshot manifest R1 R2 R3 Table files Clone R1 R2 R3 F31 HBaseCon 2013 6/13/201334

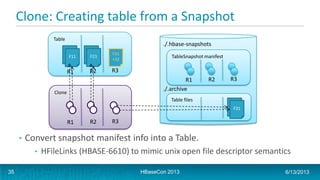

- 35. Clone: Creating tablefrom a Snapshot ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 TableSnapshot manifest R1 R2 R3 F31 +32 Table files F31 Clone R1 R2 R3 • Convert snapshot manifest info into a Table. • HFileLinks (HBASE-6610) to mimic unix open file descriptor semantics HBaseCon 2013 6/13/201335

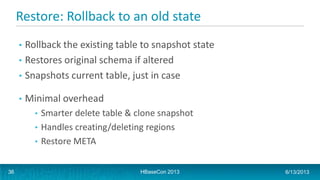

- 36. Restore: Rollback toan old state • Rollback the existing table to snapshot state • Restores original schema if altered • Snapshots current table, just in case • Minimal overhead • Smarter delete table & clone snapshot • Handles creating/deleting regions • Restore META HBaseCon 2013 6/13/201336

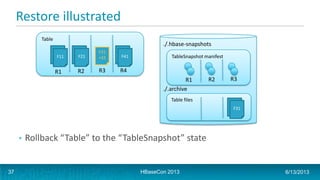

- 37. Restore illustrated ./.hbase-snapshots ./.archive TableSnapshot manifest R1R2 R3 Table files F31 Table F11 F21 R1 R2 R3 F31 +32 F41 R4 • Rollback “Table” to the “TableSnapshot” state HBaseCon 2013 6/13/201337

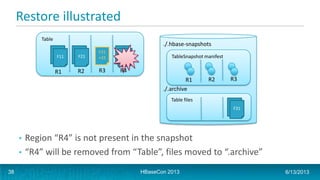

- 38. Restore illustrated ./.hbase-snapshots ./.archive TableSnapshot manifest R1R2 R3 Table files F31 Table F11 F21 R1 R2 R3 F31 +32 F41 R4 • Region “R4” is not present in the snapshot • “R4” will be removed from “Table”, files moved to “.archive” HBaseCon 2013 6/13/201338

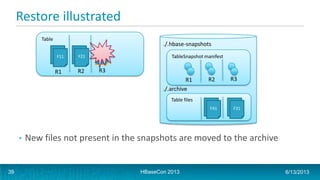

- 39. Restore illustrated ./.hbase-snapshots ./.archive TableSnapshot manifest R1R2 R3 Table files F31 Table F11 F21 R1 R2 R3 F31 +32 F41 • New files not present in the snapshots are moved to the archive HBaseCon 2013 6/13/201339

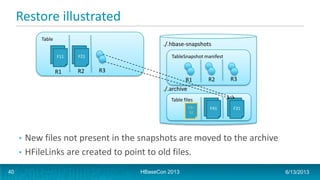

- 40. Restore illustrated ./.hbase-snapshots ./.archive TableSnapshot manifest R1R2 R3 Table files F31 Table F11 F21 R1 R2 R3 F41F3+ 32 • New files not present in the snapshots are moved to the archive • HFileLinks are created to point to old files. HBaseCon 2013 6/13/201340

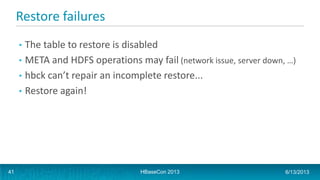

- 41. Restore failures • Thetable to restore is disabled • META and HDFS operations may fail (network issue, server down, …) • hbck can’t repair an incomplete restore... • Restore again! HBaseCon 2013 6/13/201341

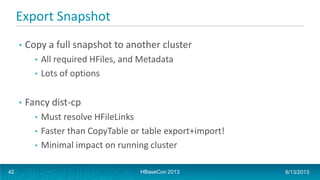

- 42. Export Snapshot • Copya full snapshot to another cluster • All required HFiles, and Metadata • Lots of options • Fancy dist-cp • Must resolve HFileLinks • Faster than CopyTable or table export+import! • Minimal impact on running cluster HBaseCon 2013 6/13/201342
- 43.
- 44. Online snapshots • Takea snapshot without making the table unavailable • No need to disable the table • Continue accepting reads and writes from clients • Challenges • Coordinating Region Servers • Data is in memory • Consistency HBaseCon 2013 6/13/201344

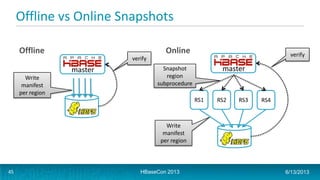

- 45. Offline vs OnlineSnapshots Offline Online mastermaster RS1 RS2 RS3 RS4 verify Snapshot region subprocedure Write manifest per region verify Write manifest per region 6/13/2013HBaseCon 201345

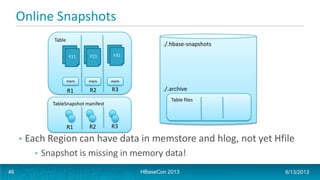

- 46. Online Snapshots • EachRegion can have data in memstore and hlog, not yet Hfile • Snapshot is missing in memory data! ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 TableSnapshot manifest R1 R2 R3 Table files F31 mem mem mem HBaseCon 2013 6/13/201346

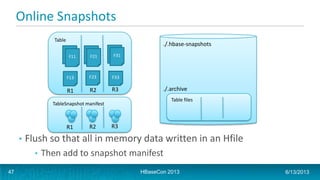

- 47. Online Snapshots • Flushso that all in memory data written in an Hfile • Then add to snapshot manifest ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 Table files F31 F13 F23 F33 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201347
- 48. Online Snapshots • Flushso that all in memory data in an Hfile • Then add to snapshot manifest ./.hbase-snapshots ./.archive Table F11 F21 R1 R2 R3 Table files F31 F13 F23 F33 TableSnapshot manifest R1 R2 R3 HBaseCon 2013 6/13/201348

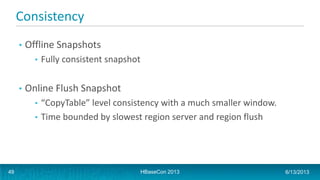

- 49. Consistency • Offline Snapshots •Fully consistent snapshot • Online Flush Snapshot • “CopyTable” level consistency with a much smaller window. • Time bounded by slowest region server and region flush HBaseCon 2013 6/13/201349

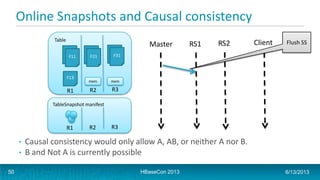

- 50. Online Snapshots andCausal consistency • Causal consistency would only allow A, AB, or neither A nor B. • B and Not A is currently possible Table F11 F21 R1 R2 R3 F31 TableSnapshot manifest R1 R2 R3 Master RS1 RS2 Client mem mem Flush SS F13 HBaseCon 2013 6/13/201350
- 51. Online Snapshots andCausal consistency • Causal consistency would only allow A, AB, or neither A nor B. • B and Not A is currently possible Table F11 F21 R1 R2 R3 F31 TableSnapshot manifest R1 R2 R3 Master RS1 RS2 Client mem mem Put A … … then Put B F13 mem HBaseCon 2013 6/13/201351
- 52. Online Snapshots andCausal consistency • Causal consistency would allow A, AB, or neither A nor B. • B and Not A is possible with Flush Snapshots Table F11 F21 R1 R2 R3 F31 TableSnapshot manifest R1 R2 R3 Master RS1 RS2 Client mem F23 F13 Flush SS Put B is in but Put A is not! F33 HBaseCon 2013 6/13/201352

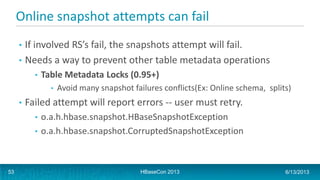

- 53. Online snapshot attemptscan fail • If involved RS’s fail, the snapshots attempt will fail. • Needs a way to prevent other table metadata operations • Table Metadata Locks (0.95+) • Avoid many snapshot failures conflicts(Ex: Online schema, splits) • Failed attempt will report errors -- user must retry. • o.a.h.hbase.snapshot.HBaseSnapshotException • o.a.h.hbase.snapshot.CorruptedSnapshotException HBaseCon 2013 6/13/201353
- 54. Development Notes How wecollaborated, built, and tested

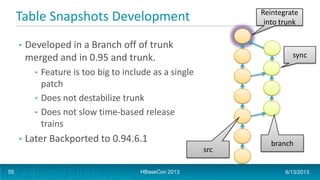

- 55. Table Snapshots Development •Developed in a Branch off of trunk merged and in 0.95 and trunk. • Feature is too big to include as a single patch • Does not destabilize trunk • Does not slow time-based release trains • Later Backported to 0.94.6.1 src branch Reintegrate into trunk sync HBaseCon 2013 6/13/201355

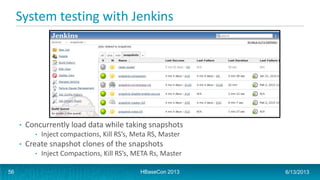

- 56. System testing withJenkins • Concurrently load data while taking snapshots • Inject compactions, Kill RS’s, Meta RS, Master • Create snapshot clones of the snapshots • Inject Compactions, Kill RS’s, META Rs, Master HBaseCon 2013 6/13/201356

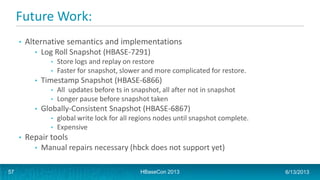

- 57. Future Work: • Alternativesemantics and implementations • Log Roll Snapshot (HBASE-7291) • Store logs and replay on restore • Faster for snapshot, slower and more complicated for restore. • Timestamp Snapshot (HBASE-6866) • All updates before ts in snapshot, all after not in snapshot • Longer pause before snapshot taken • Globally-Consistent Snapshot (HBASE-6867) • global write lock for all regions nodes until snapshot complete. • Expensive • Repair tools • Manual repairs necessary (hbck does not support yet) HBaseCon 2013 6/13/201357
- 58.

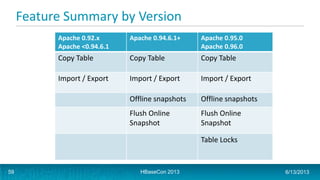

- 59. Feature Summary byVersion Apache 0.92.x Apache <0.94.6.1 Apache 0.94.6.1+ Apache 0.95.0 Apache 0.96.0 Copy Table Copy Table Copy Table Import / Export Import / Export Import / Export Offline snapshots Offline snapshots Flush Online Snapshot Flush Online Snapshot Table Locks HBaseCon 2013 6/13/201359

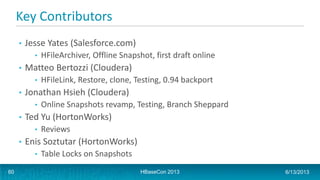

- 60. Key Contributors • JesseYates (Salesforce.com) • HFileArchiver, Offline Snapshot, first draft online • Matteo Bertozzi (Cloudera) • HFileLink, Restore, clone, Testing, 0.94 backport • Jonathan Hsieh (Cloudera) • Online Snapshots revamp, Testing, Branch Sheppard • Ted Yu (HortonWorks) • Reviews • Enis Soztutar (HortonWorks) • Table Locks on Snapshots HBaseCon 2013 6/13/201360
- 61. Thanks! Questions? Matteo Bertozzi @th30z matteo.bertozzi@cloudera.com JonathanHsieh @jmhsieh jon@cloudera.com Jesse Yates @jesse_yates jesse.k.yates@gmail.com HBaseCon 2013 6/13/201361
Editor's Notes
- #3 Talk about everything! Don’t glaze over internals
- #6 Why does it cause extra latency? What “crushes” the cluster?
- #7 Causes move expensive backups. Have a bunch of ‘write optimized files’ – HLogs and have to convert them to ‘read optimized files’ – HFIles. This isn’t a cheap process.
- #11 Don’t over sell! Just say what it is.
- #19 Add a quick summary of what just talked about BEFORE handoff!!!
