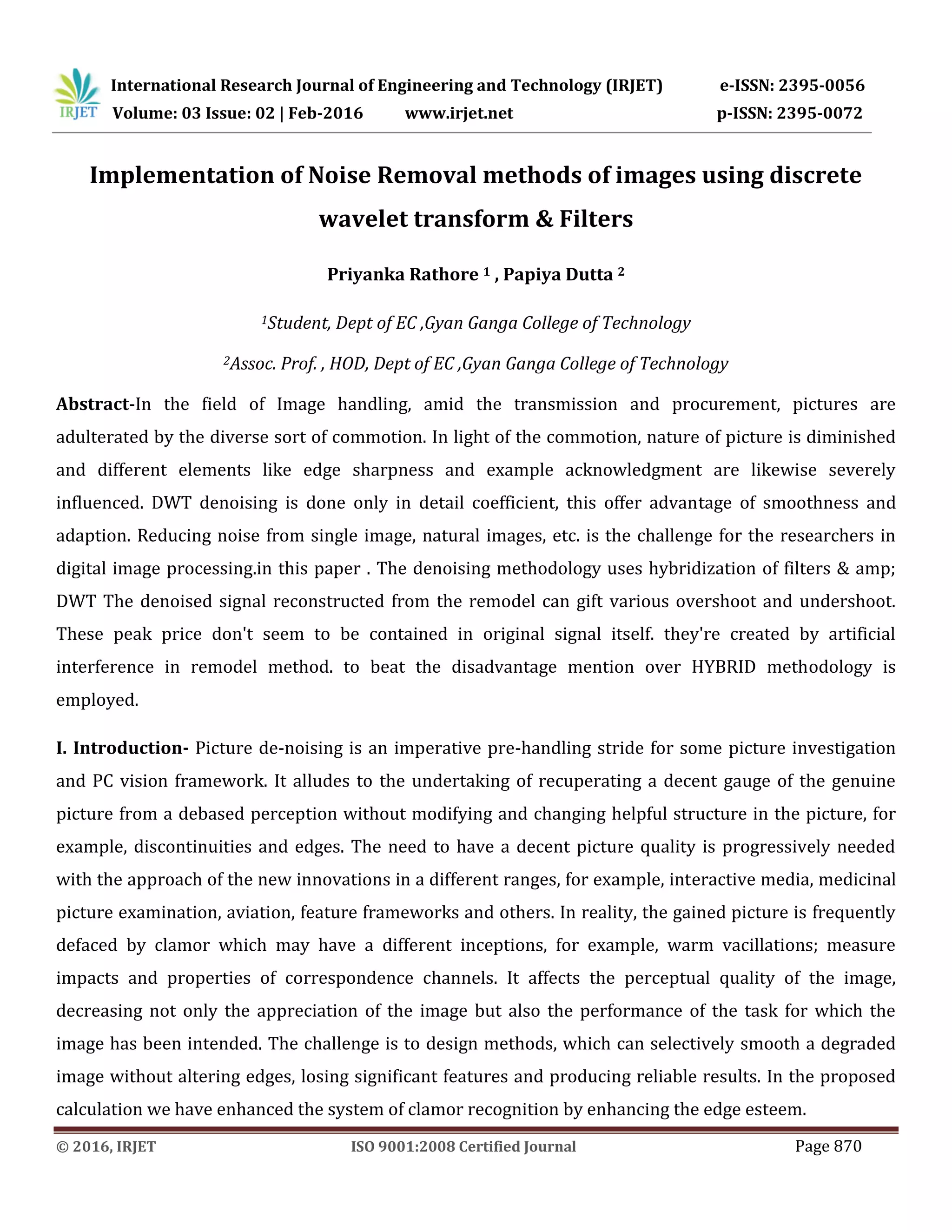

Implementation of Noise Removal methods of images using discrete
wavelet transform & Filters
Priyanka Rathore 1 , Papiya Dutta 2
1Student, Dept of EC ,Gyan Ganga College of Technology
2Assoc. Prof. , HOD, Dept of EC ,Gyan Ganga College of Technology
Abstract-In the field of Image handling, amid the transmission and procurement, pictures are
adulterated by the diverse sort of commotion. In light of the commotion, nature of picture is diminished
and different elements like edge sharpness and example acknowledgment are likewise severely
influenced. DWT denoising is done only in detail coefficient, this offer advantage of smoothness and
adaption. Reducing noise from single image, natural images, etc. is the challenge for the researchers in
digital image processing.in this paper . The denoising methodology uses hybridization of filters & amp;
DWT The denoised signal reconstructed from the remodel can gift various overshoot and undershoot.
These peak price don't seem to be contained in original signal itself. they're created by artificial
interference in remodel method. to beat the disadvantage mention over HYBRID methodology is
employed.
I. Introduction- Picture de-noising is an imperative pre-handling stride for some picture investigation
and PC vision framework. It alludes to the undertaking of recuperating a decent gauge of the genuine
picture from a debased perception without modifying and changing helpful structure in the picture, for
example, discontinuities and edges. The need to have a decent picture quality is progressively needed
with the approach of the new innovations in a different ranges, for example, interactive media, medicinal
picture examination, aviation, feature frameworks and others. In reality, the gained picture is frequently
defaced by clamor which may have a different inceptions, for example, warm vacillations; measure
impacts and properties of correspondence channels. It affects the perceptual quality of the image,
decreasing not only the appreciation of the image but also the performance of the task for which the
image has been intended. The challenge is to design methods, which can selectively smooth a degraded
image without altering edges, losing significant features and producing reliable results. In the proposed
calculation we have enhanced the system of clamor recognition by enhancing the edge esteem.

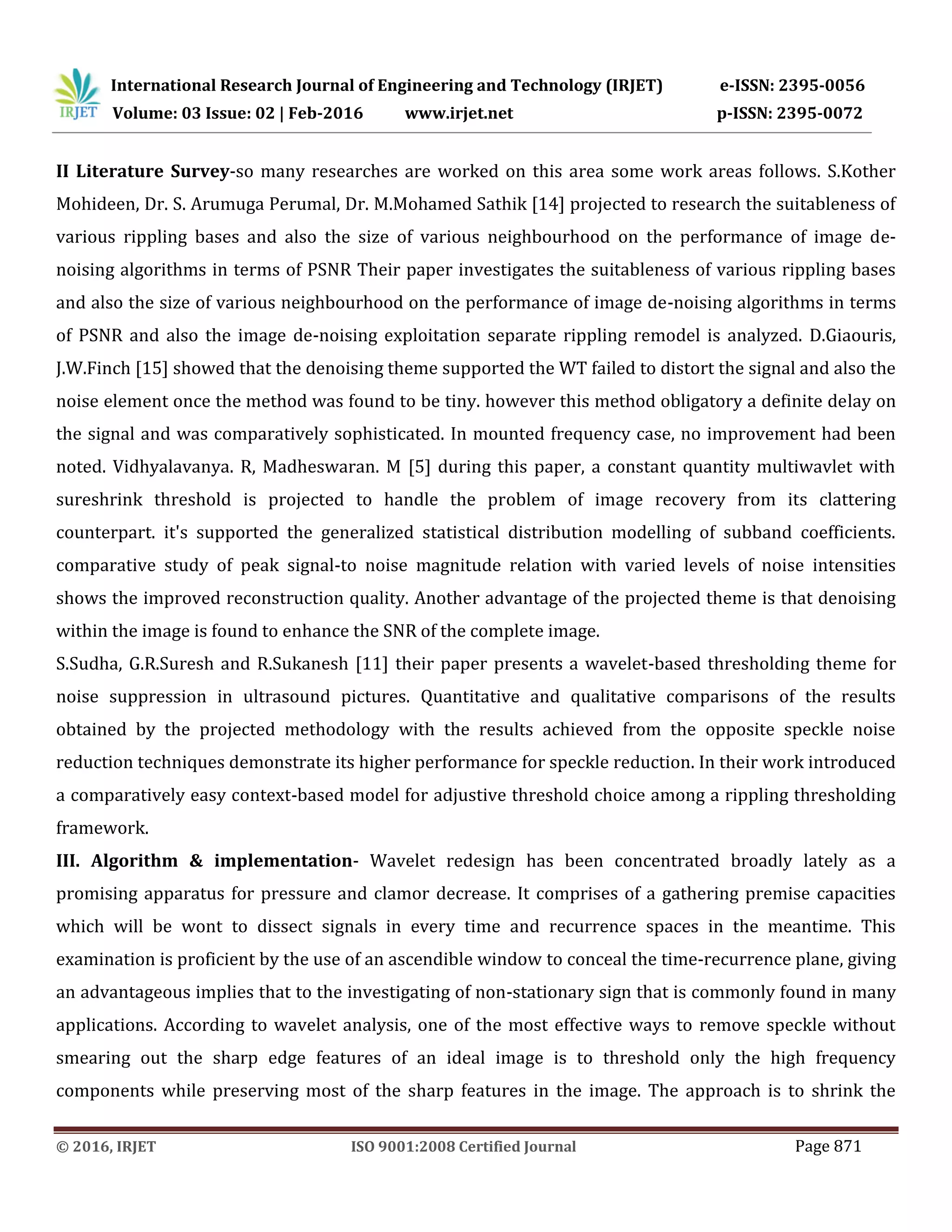

II Literature Survey-so many researches are worked on this area some work areas follows. S.Kother
Mohideen, Dr. S. Arumuga Perumal, Dr. M.Mohamed Sathik [14] projected to research the suitableness of
various rippling bases and also the size of various neighbourhood on the performance of image de-
noising algorithms in terms of PSNR Their paper investigates the suitableness of various rippling bases
and also the size of various neighbourhood on the performance of image de-noising algorithms in terms
of PSNR and also the image de-noising exploitation separate rippling remodel is analyzed. D.Giaouris,
J.W.Finch [15] showed that the denoising theme supported the WT failed to distort the signal and also the
noise element once the method was found to be tiny. however this method obligatory a definite delay on
the signal and was comparatively sophisticated. In mounted frequency case, no improvement had been
noted. Vidhyalavanya. R, Madheswaran. M [5] during this paper, a constant quantity multiwavlet with
sureshrink threshold is projected to handle the problem of image recovery from its clattering
counterpart. it's supported the generalized statistical distribution modelling of subband coefficients.
comparative study of peak signal-to noise magnitude relation with varied levels of noise intensities
shows the improved reconstruction quality. Another advantage of the projected theme is that denoising
within the image is found to enhance the SNR of the complete image.
S.Sudha, G.R.Suresh and R.Sukanesh [11] their paper presents a wavelet-based thresholding theme for
noise suppression in ultrasound pictures. Quantitative and qualitative comparisons of the results
obtained by the projected methodology with the results achieved from the opposite speckle noise
reduction techniques demonstrate its higher performance for speckle reduction. In their work introduced
a comparatively easy context-based model for adjustive threshold choice among a rippling thresholding
framework.
III. Algorithm & implementation- Wavelet redesign has been concentrated broadly lately as a
promising apparatus for pressure and clamor decrease. It comprises of a gathering premise capacities
which will be wont to dissect signals in every time and recurrence spaces in the meantime. This
examination is proficient by the use of an ascendible window to conceal the time-recurrence plane, giving
an advantageous implies that to the investigating of non-stationary sign that is commonly found in many
applications. According to wavelet analysis, one of the most effective ways to remove speckle without
smearing out the sharp edge features of an ideal image is to threshold only the high frequency
components while preserving most of the sharp features in the image. The approach is to shrink the

detailed coefficients (high frequency components) whose amplitudes are smaller than a certain statistical
threshold value to zero while retaining the smoother detailed coefficients to reconstruct the ideal image
without much loss in its details.
Proposed Algorithm
RGB to 2-D (Gray)Input image
1st
level decomposition of
LL band for filtering
DWT (Decomposition)
2nd
level decomposition
of 1st
level LL band
3rd
level decomposition
of 2nd
level LL band
Inverse transform of all
Y2 DWT w.r.t order
Inverse transform of all
Y1 DWT w.r.t order
Inverse transform of all Y
DWT w.r.t order
Ym=Median(Y)
Ya=Filter (Ym, FSa)Yd=Diffusion (Ya)

Algorithm for Denoising Block
I=Input Image
Taking I into the Denoising Block
Convert I from RGB to Gray Colour MAP say Igray
(Because the multidimensional matrix not supported by many digital filters & functions)
Let, dwt=Wavelet transform and THfilt=Wavelet filtering with respect to threshold
(cA, cH, cV, cD)= dwt(Igray);
Here, cA, cH, cV and cD are approximation, Horizontal, Vertical and Diagonal Coefficients
respectively.Update the approximation coefficients by filtering it.
cA=THfilt(cA);
THfilt is the thresholding function that we considered, by taking following points as a filtering criteria
 Eliminate in the wavelet representation those elements with small coefficients, and
 Decrease the impact of elements with large coefficients.
 In mathematical terms, all we are doing is thresholding the absolute value of wavelet
coefficients by an appropriate function.Similar operation will be perform for multi-level
decomposition
For second level
(cA1, cH, cV, cD)= dwt(cA);
cA1=THfilt(cA1);
For third level
(cA2, cH, cV, cD)= dwt(cA1);
cA2=THfilt(cA2);

IV. Results- At first we evaluated various types of noise which causes the ill effect in the image and
produces a undesired effect in the readability of exact information that need to be extracted from the
image taken from different sources. A comparative study of various types of noise is done and their effect
is studied under different types of images.
discussion, data and analysis which carried out for four different images (Salt & pepper, Gaussion,
Speckle and Poisson noise) for standard variance of 0.01 and different values of PSNR, MSE, WPSNR, SSIM
for various noise types are found. We observed that the test images has shown some improvement in
most of the parameter in consideration (PSNR, MSE,
Figure-1 Resulted Images

IMAGE 1
RECENT
PSNR
PREVIOUS
PSNR
RECENT
MSE
PREVIOUS
MSE
Salt & Pepper 31.71 31.83 43.81 42.59
Gaussion 29.81 28.15 67.85 91.43
Speckle 29.42 29.16 74.18 78.81
Poission 30.81 30.12 53.84 63.2
Tabel 1: Comparision of new (filters applied in sequence Median, Average & Diffussion) PSNR, MSE,
IMAGE 2
PSNR %
Improvementor
Degradation
MSE %
Improvementor
Degradation
Salt & Pepper -0.4 -2.9
Gaussion 5.9 25.8
Speckle 0.9 5.9
Poission 2.3 14.8
Table 2: Table showing percentage improvementor degradation in PSNR, MSE

V.Conclusion- From the simulation analysis, the wavelet transform in image denoising in particular
stationary images, can effectively remove noise and improve SNR. With regard to complexity of image
structure wavelet transform denoising can play the advantages compared to traditional denoising,
wavelet can better demonstrate its advantages. From the simulation results, we also obtain that use the
principle can effectively reduce noise, and can retain a useful component of image. capability of
Attenuating Gibbs oscillation and adaptation to discontinuities gave an advantage to provide better
result.
Refrences-
[1] Sachin D Ruikar, Dharmpal D Doye “Wavelet Based Image Denoising Technique” (IJACSA)
International Journal of Advanced Computer Science and Applications,Vol. 2, No.3, March 2011
[2] Abhishek Raj, Alankrita, Akansha Srivastava, and Vikrant Bhateja “Computer Aided Detection of
Brain Tumor in Magnetic Resonance Images” IACSIT International Journal of Engineering and
Technology, Vol. 3, No. 5, October 2011
[3] Manish Goyal , Glenetan singh sekhon/ “Hybrid Threshold Technique for Speckle Noise Reduction
using wavelets for Grey scale images” IJCST Vol. 2, Issue 2, June 2011.
[4] Kother Mohideen, Arumuga Perumal, Krishnan and Mohamed Sathik, “Image Denoising And
Enhancement Using Multiwavelet With Hard Threshold In Digital Mammographic Images”
International Arab Journal of e-Technology, Vol. 2, No. 1, January 2011
[5] Vidhyalavanya. R, and Madheswaran.M “An Improved Denoising Algorithm using Parametric
Multiwavelets for Image Enhancement” International Journal of Advanced Science and Technology
Vol. 16, March, 2010.
[6] Sudipta Roy, Nidul Sinha, Asoke K. Sen “A new hybrid image denoising methode” International
Journal of Information Technology and Knowledge Management Volume 2, No. 2, pp. 491-497 July-
December 2010.

[7] S.S.Patil, A.B.Patil, S.C.Deshmukh, M.N.Chavan” Wavelet Shrinkage Techniques for Images”
International Journal of Computer Applications (0975 – 8887) Volume 7– No.1, September 2010
[8] Sachin Ruikar D D Doye “Image Denoising Using Wavelet Transform” 2010 International
Conference on Mechanical and Electrical Technology (ICMET 2010).
[9] J S Bhat, B N Jagadale, Lakshminarayan H K “Image De-noising with an Optimal Threshold using
Wavelets” International Conference on Image and signal processing (ICSIP) 2010
[10] LIU Wei “New Method for Image Denoising while Keeping Edge Information” 2nd International
conference on image processing CISP 2009.
[11] S.Sudha , G.R.Suresh and R. Sukanesh, “Speckle Noise Reduction in Ultrasound Images by Wavelet
Thresholding based on Weighted Variance” International Journal of Computer Theory and
Engineering, Vol. 1, No. 1, pp.1793-8201, April 2009
[12] Ioana Firoiu, Corina Nafornita, Jean-Marc Boucher, Alexandru Isar “Image Denoising Using a New
Implementation of the Hyperanalytic Wavelet Transform” IEEE TRANSACTIONS ON
INSTRUMENTATION AND MEASUREMENT, VOL. 58, NO. 8, AUGUST 2009
