Impedance Spectroscopy

1. The document discusses advances in impedance spectroscopy for analyzing solar energy conversion devices like dye-sensitized solar cells. 2. Impedance spectroscopy allows measurement of resistances and capacitances in solar cells, which provides insight into recombination, diffusion lengths, and energetics. 3. Parameters like the chemical capacitance, recombination resistance, and diffusion coefficient can be extracted and related to performance factors like open-circuit voltage, short-circuit current, and fill factor.

Embed presentation

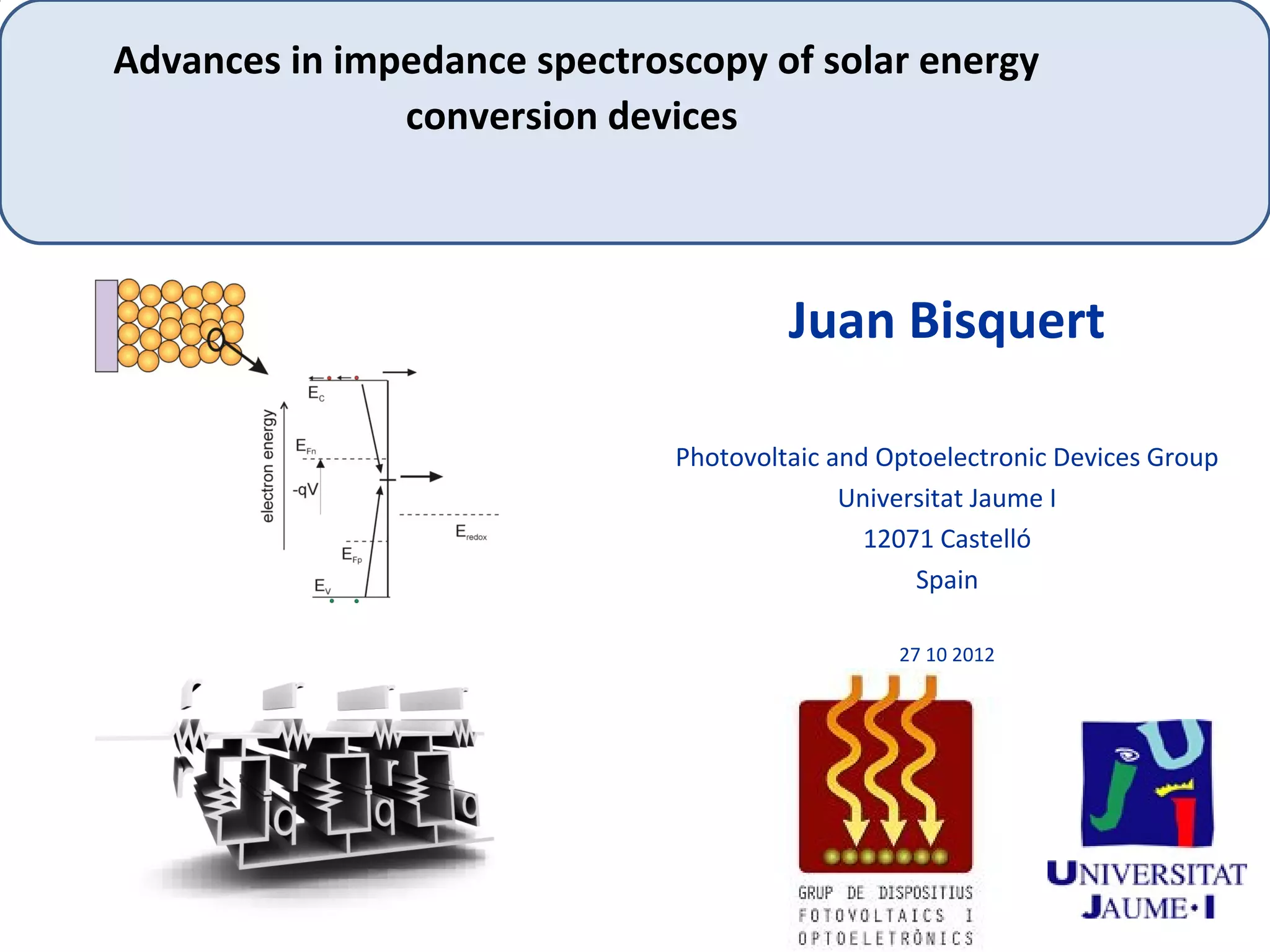

Advances in impedance spectroscopy of solar energy conversion devices Juan Bisquert Photovoltaic and Optoelectronic Devices Group Universitat Jaume I 12071 Castelló Spain 27 10 2012
Solar cell concepts

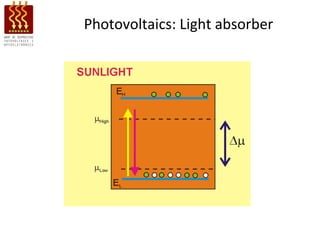

Photovoltaics: Light absorber

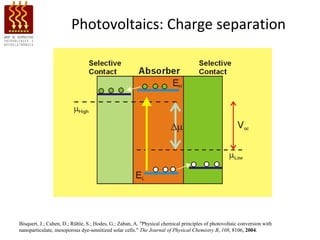

Photovoltaics: Charge separation Bisquert, J.; Cahen, D.; Rühle, S.; Hodes, G.; Zaban, A. "Physical chemical principles of photovoltaic conversion with nanoparticulate, mesoporous dye-sensitized solar cells." The Journal of Physical Chemistry B, 108, 8106, 2004.

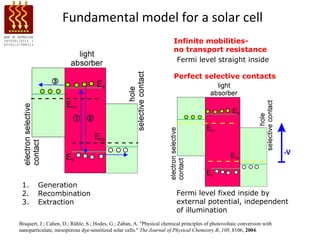

Fundamental model for a solar cell Infinite mobilities- no transport resistance Fermi level straight inside Perfect selective contacts 1. Generation 2. Recombination Fermi level fixed inside by 3. Extraction external potential, independent of illumination Bisquert, J.; Cahen, D.; Rühle, S.; Hodes, G.; Zaban, A. "Physical chemical principles of photovoltaic conversion with nanoparticulate, mesoporous dye-sensitized solar cells." The Journal of Physical Chemistry B, 108, 8106, 2004.

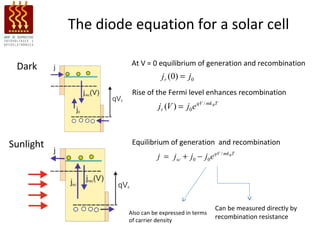

The diode equation for a solar cell Dark At V = 0 equilibrium of generation and recombination jr (0) = j0 Rise of the Fermi level enhances recombination jr (V ) = j0 e qV / mk BT Sunlight Equilibrium of generation and recombination j = jsc + j0 − j0 e qV / mk BT Can be measured directly by Also can be expressed in terms of carrier density recombination resistance

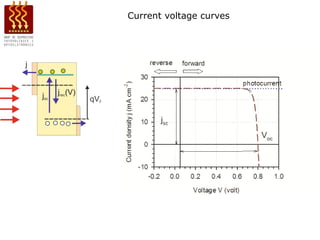

Current voltage curves
Solar cell concepts

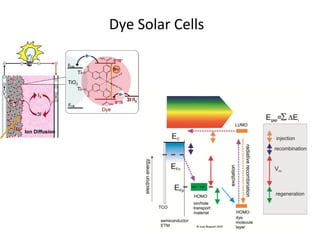

Dye Solar Cells

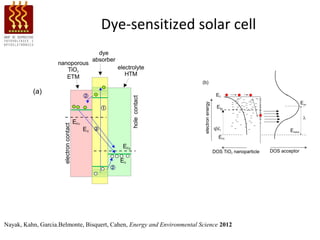

Dye-sensitized solar cell Nayak, Kahn, Garcia.Belmonte, Bisquert, Cahen, Energy and Environmental Science 2012
Limitation to efficiency The DSC It is a 3 –materials solar cell There is a price of energy differences, but more versatile and potentially cheap

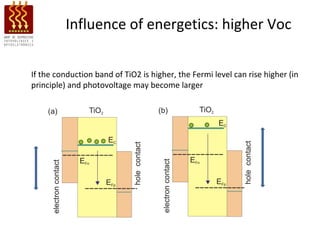

Influence of energetics: higher Voc If the conduction band of TiO2 is higher, the Fermi level can rise higher (in principle) and photovoltage may become larger

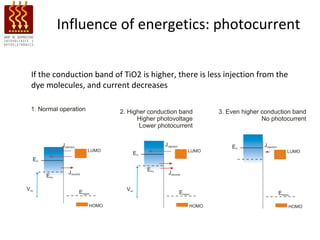

Influence of energetics: photocurrent If the conduction band of TiO2 is higher, there is less injection from the dye molecules, and current decreases

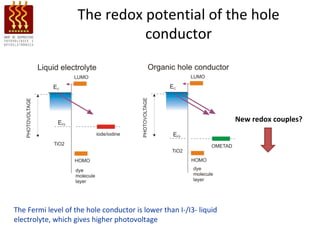

The redox potential of the hole conductor New redox couples? The Fermi level of the hole conductor is lower than I-/I3- liquid electrolyte, which gives higher photovoltage

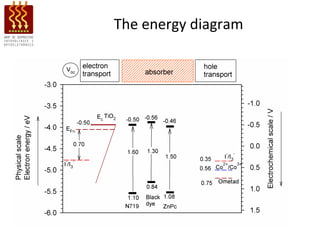

The energy diagram

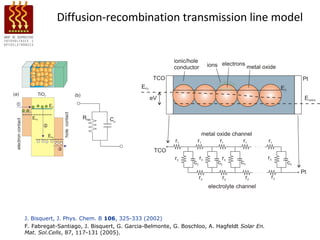

Diffusion-recombination transmission line model J. Bisquert, J. Phys. Chem. B 106, 325-333 (2002) F. Fabregat-Santiago, J. Bisquert, G. Garcia-Belmonte, G. Boschloo, A. Hagfeldt Solar En. Mat. Sol.Cells, 87, 117-131 (2005).

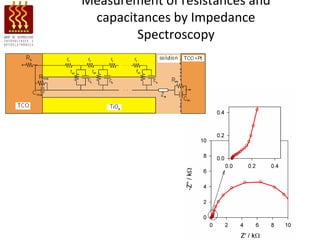

Measurement of resistances and capacitances by Impedance Spectroscopy

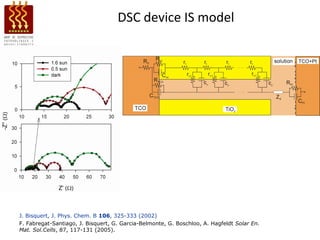

DSC device IS model J. Bisquert, J. Phys. Chem. B 106, 325-333 (2002) F. Fabregat-Santiago, J. Bisquert, G. Garcia-Belmonte, G. Boschloo, A. Hagfeldt Solar En. Mat. Sol.Cells, 87, 117-131 (2005).

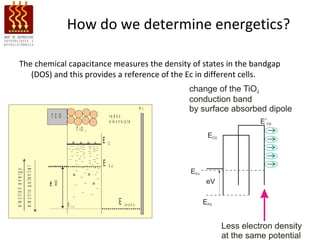

How do we determine energetics? The chemical capacitance measures the density of states in the bandgap (DOS) and this provides a reference of the Ec in different cells. Pt TCO re d o x e le c t r o ly t e T iO 2 E C E Fn e le c tr ic p o te n tia l e le c tr o n e n e r g y eV E F0 E re d o x

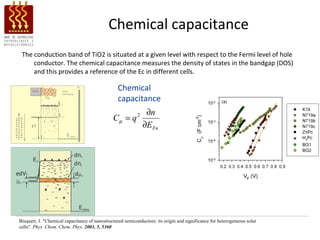

Chemical capacitance The conduction band of TiO2 is situated at a given level with respect to the Fermi level of hole conductor. The chemical capacitance measures the density of states in the bandgap (DOS) and this provides a reference of the Ec in different cells. TC O re d o x Pt Chemical capacitance e le c t r o ly t e T iO 2 E C ∂n E Fn Cµ = q 2 e le c t r ic p o t e n t ia l e le c t r o n e n e r g y eV ∂E Fn E F0 E re d o x Bisquert, J. "Chemical capacitance of nanostructured semiconductors: its origin and significance for heterogeneous solar cells". Phys. Chem. Chem. Phys. 2003, 5, 5360

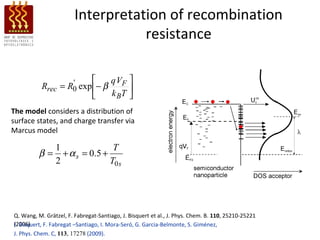

Interpretation of recombination resistance '  q VF  Rrec = R0 exp − β  k BT   The model considers a distribution of surface states, and charge transfer via Marcus model 1 T β= + α s = 0. 5 + 2 T0 s Q. Wang, M. Grätzel, F. Fabregat-Santiago, J. Bisquert et al., J. Phys. Chem. B. 110, 25210-25221 (2006) J. Bisquert, F. Fabregat –Santiago, I. Mora-Seró, G. Garcia-Belmonte, S. Giménez, J. Phys. Chem. C, 113, 17278 (2009).

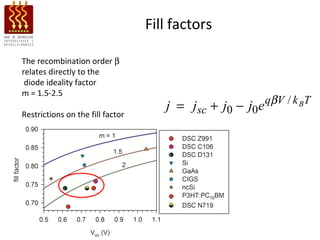

Fill factors The recombination order β relates directly to the diode ideality factor m = 1.5-2.5 j = jsc + j0 − j0e qβV / k BT Restrictions on the fill factor
Shif of the band changes the diode factor Jennings and Wang show that the diode factor changes when the conduction band is brought down by the addition of lithium. m = 1 at high lithium content (low cb position) Because electron transfer is from conduction band and linear recombination occurs J. Jennings, Q. Wang J. Phys. Chem. C, 114, 1715 (2010).

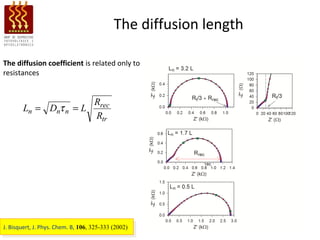

The diffusion length The diffusion coefficient is related only to resistances Rrec Ln = Dnτ n = L Rtr J. Bisquert, J. Phys. Chem. B, 106, 325-333 (2002)

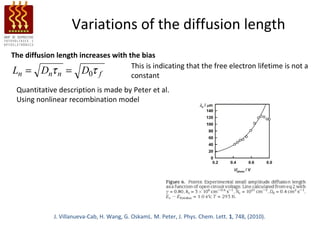

Variations of the diffusion length The diffusion length increases with the bias This is indicating that the free electron lifetime is not a Ln = Dnτ n = D0τ f constant Quantitative description is made by Peter et al. Using nonlinear recombination model J. Villanueva-Cab, H. Wang, G. OskamL. M. Peter, J. Phys. Chem. Lett. 1, 748, (2010).
Phtalocyanine dyes O O O O O O O O N N N N N N H N Zn N N N H N N N N N N O O O O O O O O O O ZnPc-1 H2Pc-2 Barea, E. M.; Ortiz, J.; Payá, F. J.; Fernández-Lázaro, F.; Fabregat-Santiago, F.; Sastre-Santos, A.; Bisquert, J. "Energetic factors governing injection, regeneration and recombination in dye solar cells with phthalocyanine sensitizers". Energy and Environmental Science 2010, 3, 1985
Phtalocyanine dyes n at VOC EC EC - EFn Voc jsc η Sample FF (cm-3) (eV) (eV) (V) (mA/cm2) (%) ZnPc-1 0.44 3.48 0.66 1.01 4.2 x 1017 -4.00 0.31 H2Pc-2 0.35 5.71 0.57 1.14 1.5 x 1018 -4.13 0.27 N719 0.45 10.90 0.51 2.50 3.0 x 1018 -4.11 0.19 Barea, E. M.; Ortiz, J.; Payá, F. J.; Fernández-Lázaro, F.; Fabregat-Santiago, F.; Sastre-Santos, A.; Bisquert, J. "Energetic factors governing injection, regeneration and recombination in dye solar cells with phthalocyanine sensitizers". Energy and Environmental Science 2010, 3, 1985

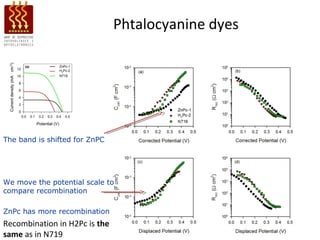

Phtalocyanine dyes The band is shifted for ZnPC We move the potential scale to compare recombination ZnPc has more recombination Recombination in H2Pc is the same as in N719
Phtalocianyne dyes Recombination in H2Pc is the same as in N719 With the same current it would give the same voltage Barea, E. M.; Ortiz, J.; Payá, F. J.; Fernández-Lázaro, F.; Fabregat-Santiago, F.; Sastre-Santos, A.; Bisquert, J. "Energetic factors governing injection, regeneration and recombination in dye solar cells with phthalocyanine sensitizers". Energy and Environmental Science 2010, 3, 1985

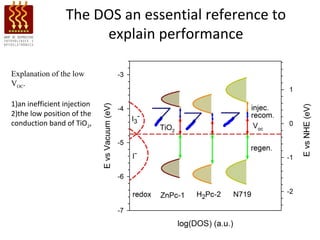

The DOS an essential reference to explain performance Explanation of the low VOC. 1)an inefficient injection 2)the low position of the conduction band of TiO2,

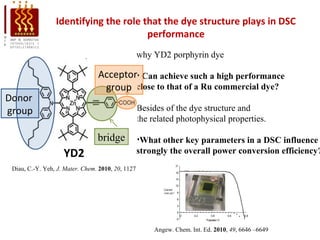

Identifying the role that the dye structure plays in DSC performance why YD2 porphyrin dye Acceptor• Can achieve such a high performance group close to that of a Ru commercial dye? Donor group Besides of the dye structure and the related photophysical properties. bridge •What other key parameters in a DSC influence YD2 strongly the overall power conversion efficiency? Diau, C.-Y. Yeh, J. Mater. Chem. 2010, 20, 1127 Angew. Chem. Int. Ed. 2010, 49, 6646 –6649

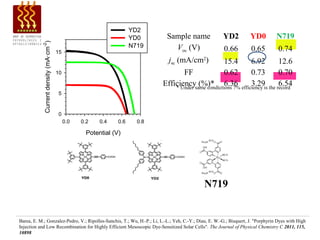

YD2 YD0 Sample name YD2 YD0 N719 Current density (mA·cm ) N719 Voc (V) -2 15 0.66 0.65 0.74 jsc (mA/cm2) 15.4 6.92 12.6 10 FF 0.62 0.73 0.70 Efficiencysame condictions 7% efficiency is the record * Under (%)* 6.36 3.29 6.54 5 0 0.0 0.2 0.4 0.6 0.8 Potential (V) N719 Barea, E. M.; Gonzalez-Pedro, V.; Ripolles-Sanchis, T.; Wu, H.-P.; Li, L.-L.; Yeh, C.-Y.; Diau, E. W.-G.; Bisquert, J. "Porphyrin Dyes with High Injection and Low Recombination for Highly Efficient Mesoscopic Dye-Sensitized Solar Cells". The Journal of Physical Chemistry C 2011, 115, 10898

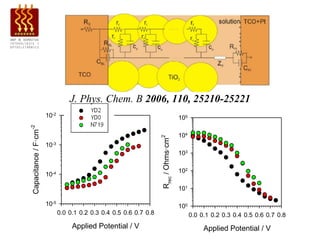

J. Phys. Chem. B 2006, 110, 25210-25221 10-2 105 (a) (b) -2 Capacitance / F·cm 104 2 Rrec / Ohms·cm 10-3 103 102 10-4 101 10-5 100 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Applied Potential / V Applied Potential / V

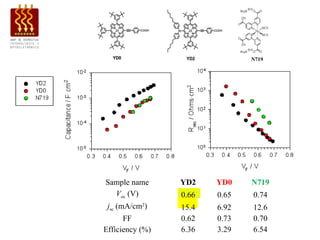

N719 Sample name YD2 YD0 N719 Voc (V) 0.66 0.65 0.74 jsc (mA/cm2) 15.4 6.92 12.6 FF 0.62 0.73 0.70 Efficiency (%) 6.36 3.29 6.54

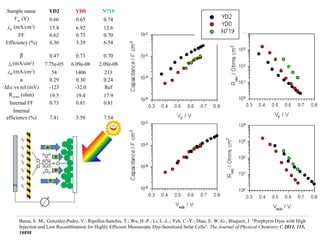

Sample name YD2 YD0 N719 Voc (V) 0.66 0.65 0.74 jsc (mA/cm2) 15.4 6.92 12.6 FF 0.62 0.73 0.70 Efficiency (%) 6.36 3.29 6.54 β 0.47 0.73 0.70 j0 (mA/cm2) 7.75e-05 6.09e-08 2.09e-08 j0k (mA/cm ) 2 54 1406 213 α 0.29 0.30 0.24 ∆Ec vs ref (mV) -123 -32.0 Ref Rseries (ohm) 19.5 19.4 17.9 Internal FF 0.73 0.81 0.81 Internal efficiency (%) 7.41 3.58 7.54 Barea, E. M.; Gonzalez-Pedro, V.; Ripolles-Sanchis, T.; Wu, H.-P.; Li, L.-L.; Yeh, C.-Y.; Diau, E. W.-G.; Bisquert, J. "Porphyrin Dyes with High Injection and Low Recombination for Highly Efficient Mesoscopic Dye-Sensitized Solar Cells". The Journal of Physical Chemistry C 2011, 115, 10898

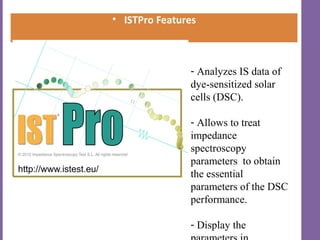

• ISTPro Features - Analyzes IS data of dye-sensitized solar cells (DSC). - Allows to treat impedance spectroscopy parameters to obtain the essential parameters of the DSC performance. - Display the

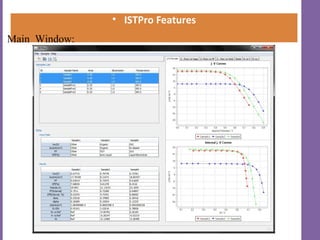

• ISTPro Features Main Window:

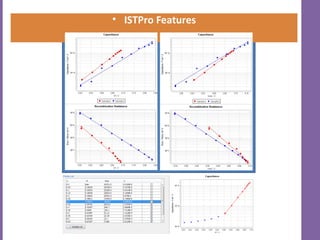

• ISTPro Features

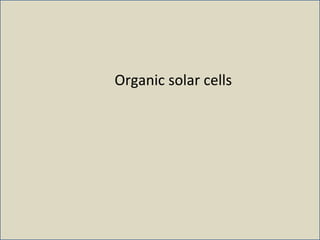

Organic solar cells

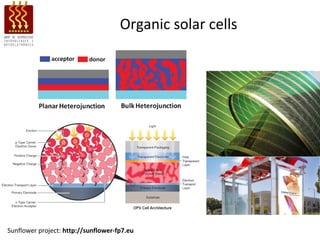

Organic solar cells Sunflower project: http://sunflower-fp7.eu

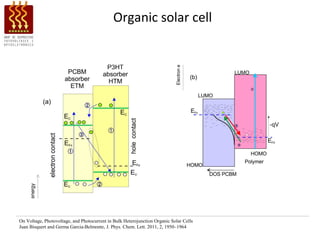

Organic solar cell On Voltage, Photovoltage, and Photocurrent in Bulk Heterojunction Organic Solar Cells Juan Bisquert and Germa Garcia-Belmonte, J. Phys. Chem. Lett. 2011, 2, 1950–1964

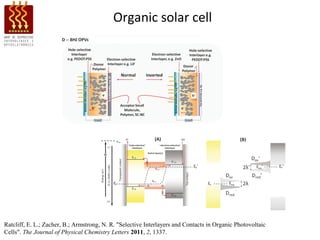

Organic solar cell Ratcliff, E. L.; Zacher, B.; Armstrong, N. R. "Selective Interlayers and Contacts in Organic Photovoltaic Cells". The Journal of Physical Chemistry Letters 2011, 2, 1337.

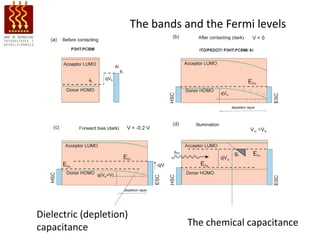

The bands and the Fermi levels Dielectric (depletion) capacitance The chemical capacitance

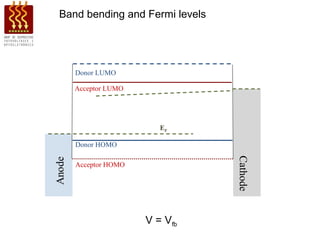

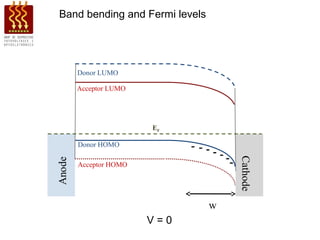

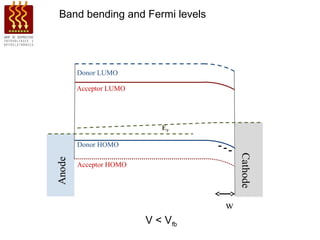

Band bending and Fermi levels Donor LUMO Acceptor LUMO EF Donor HOMO --- -- -- Cathode Acceptor HOMO w V=0

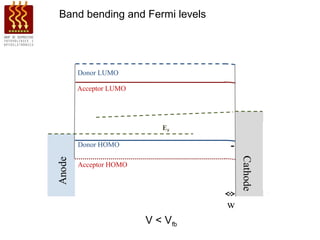

Band bending and Fermi levels Donor LUMO Acceptor LUMO EF Donor HOMO -- -- Cathode Acceptor HOMO w V < Vfb
Band bending and Fermi levels Donor LUMO Acceptor LUMO EF Donor HOMO --- Cathode Cathode Acceptor HOMO w V < Vfb
Band bending and Fermi levels Donor LUMO Acceptor LUMO EF Donor HOMO - Cathode Acceptor HOMO w V < Vfb
Band bending and Fermi levels Donor LUMO Acceptor LUMO EF Donor HOMO Cathode Acceptor HOMO V = Vfb
Depletion region – Mott Schottky plots Increase in the capacitance caused by the reduction of the depletion zone Characterization of nanostructured hybrid and organic solar cells by impedance spectroscopyw Francisco Fabregat-Santiago, Germa Garcia-Belmonte, Ivan Mora-Sero´ and Juan Bisquert Phys. Chem. Chem. Phys., 2011, 13, 9083–9118
Depletion region -P. P. Boix, G. Garcia-Belmonte, U. Muñecas, M.Neophytou, C. Waldauf, R. Pacios, Appl Phys. Lett 95, 1, (2009)

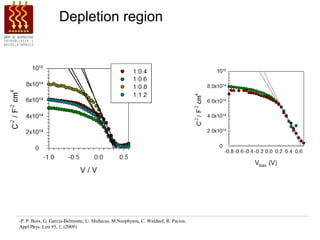

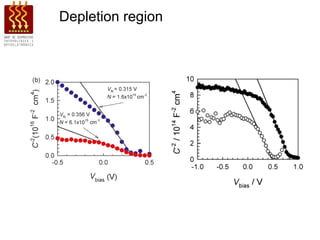

Depletion region

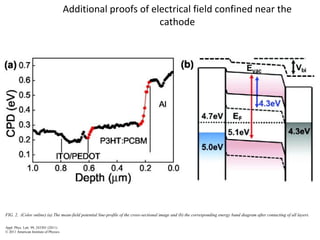

Additional proofs of electrical field confined near the cathode FIG. 2. (Color online) (a) The mean-field potential line-profile of the cross-sectional image and (b) the corresponding energy band diagram after contacting of all layers. Appl. Phys. Lett. 99, 243301 (2011) © 2011 American Institute of Physics

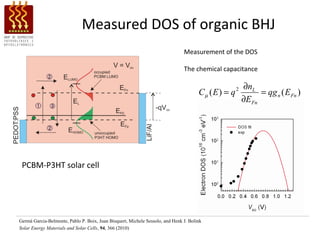

Measured DOS of organic BHJ Measurement of the DOS The chemical capacitance ∂nL Cµ ( E ) = q 2 = qg n ( E Fn ) ∂EFn PCBM-P3HT solar cell Germà Garcia-Belmonte, Pablo P. Boix, Juan Bisquert, Michele Sessolo, and Henk J. Bolink Solar Energy Materials and Solar Cells, 94, 366 (2010)
Comparison of different fullerenes with similar reduction potential but different DOS DPM6 PCBM Higher Voc related to full occupancy of intermediate electronic band G. Gar Germa Garcia-Belmonte Pablo P. Boix, Juan Bisquert, Martijn Lenes, Henk J. Bolink, Andrea La Rosa, Salvatore Filippone,and Nazario Martín§,J. Phys. Chem. Lett. 1 (2010) 2566-2571
Carrier diffusion in organic BHJ PCBM-P3HT solar cell Diffusion-Recombination Determines Collected Current and Voltage in Polymer:Fullerene Solar Cells Teresa Ripolles-Sanchis, Antonio Guerrero, Juan Bisquert, and Germà Garcia-Belmonte, J. Phys. Chem. C 2012, 116, 16925−16933

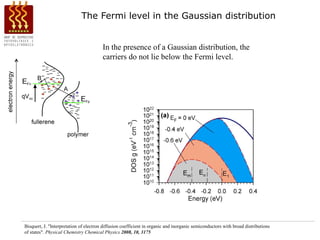

The Fermi level in the Gaussian distribution In the presence of a Gaussian distribution, the carriers do not lie below the Fermi level. Bisquert, J. "Interpretation of electron diffusion coefficient in organic and inorganic semiconductors with broad distributions of states". Physical Chemistry Chemical Physics 2008, 10, 3175
Why is Voc less than HOMO-LUMO difference? This is explained by disorder qVoc = E Fn − E Fp σ n2 + σ p2  Nn N p  qVoc = E g − − k BT ln  np   2k BT   This formula derived by G. Garcia-Belmonte quantifies the energy loss related to disorder Garcia-Belmonte, G. "Temperature dependence of open-circuit voltage inorganic solar cells from generation–recombination kinetic balance". Solar Energy Materials and Solar Cells 2010, 94, 2166
Recombination in organic BHJ

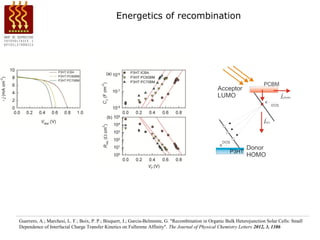

Energetics of recombination Guerrero, A.; Marchesi, L. F.; Boix, P. P.; Bisquert, J.; Garcia-Belmonte, G. "Recombination in Organic Bulk Heterojunction Solar Cells: Small Dependence of Interfacial Charge Transfer Kinetics on Fullerene Affinity". The Journal of Physical Chemistry Letters 2012, 3, 1386

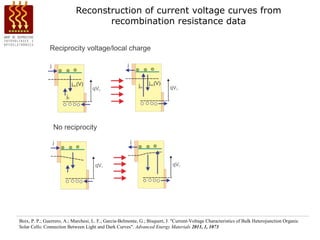

Reconstruction of current voltage curves from recombination resistance data Boix, P. P.; Guerrero, A.; Marchesi, L. F.; Garcia-Belmonte, G.; Bisquert, J. "Current-Voltage Characteristics of Bulk Heterojunction Organic Solar Cells: Connection Between Light and Dark Curves". Advanced Energy Materials 2011, 1, 1073

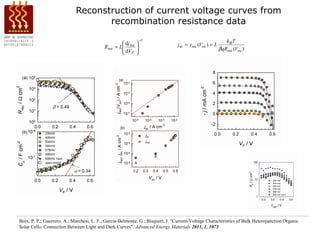

Reconstruction of current voltage curves from recombination resistance data −1 k BT  dj  jsc = j rec (Voc ) = L Rrec = L rec   dV  βqRrec (Voc )  F  Boix, P. P.; Guerrero, A.; Marchesi, L. F.; Garcia-Belmonte, G.; Bisquert, J. "Current-Voltage Characteristics of Bulk Heterojunction Organic Solar Cells: Connection Between Light and Dark Curves". Advanced Energy Materials 2011, 1, 1073
Quantum dot solar cells

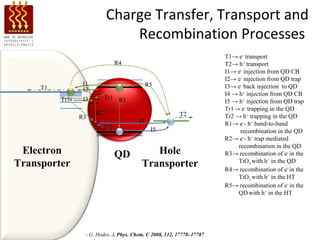

Charge Transfer, Transport and Recombination Processes T1→ e- transport R4 T2→ h+ transport I1→ e- injection from QD CB I2→ e- injection from QD trap I1 R5 I3→ e- back injection to QD T1 I2 I4 → h+ injection from QD CB Tr3 I3 Tr1 R1 I5 → h+ injection from QD trap Tr1→ e- trapping in the QD R2 T2 R3 Tr2 → h+ trapping in the QD I4 R1→ e-- h+ band-to-band Tr2 I5 recombination in the QD R2→ e-- h+ trap mediated recombination in the QD Electron QD Hole R3→ recombination of e- in the Transporter Transporter TiO2 with h+ in the QD R4→ recombination of e- in the TiO2 with h+ in the HT R5→ recombination of e- in the QD with h+ in the HT - G. Hodes, J. Phys. Chem. C 2008, 112, 17778–17787

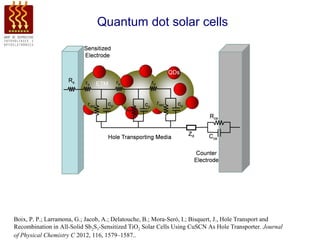

Quantum dot solar cells Boix, P. P.; Larramona, G.; Jacob, A.; Delatouche, B.; Mora-Seró, I.; Bisquert, J., Hole Transport and Recombination in All-Solid Sb2S3-Sensitized TiO2 Solar Cells Using CuSCN As Hole Transporter. Journal of Physical Chemistry C 2012, 116, 1579–1587..

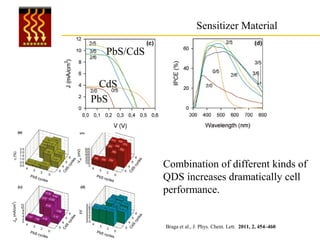

Sensitizer Material PbS/CdS CdS PbS Combination of different kinds of QDS increases dramatically cell performance. Braga et al., J. Phys. Chem. Lett. 2011, 2, 454–460

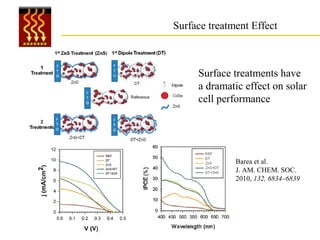

Surface treatment Effect Surface treatments have a dramatic effect on solar cell performance Barea et al. J. AM. CHEM. SOC. 2010, 132, 6834–6839
Water splitting with sunlight

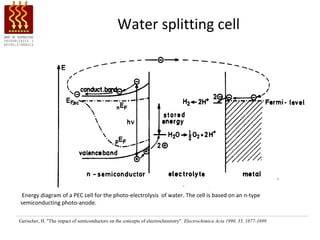

Water splitting cell Energy diagram of a PEC cell for the photo-electrolysis of water. The cell is based on an n-type semiconducting photo-anode. Gerischer, H. "The impact of semiconductors on the concepts of electrochemistry". Electrochimica Acta 1990, 35, 1677-1699

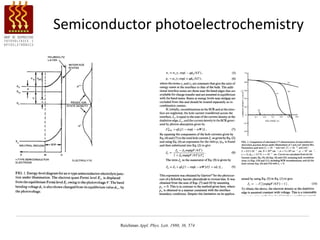

Semiconductor photoelectrochemistry Reichman Appl. Phys. Lett. 1980, 36, 574

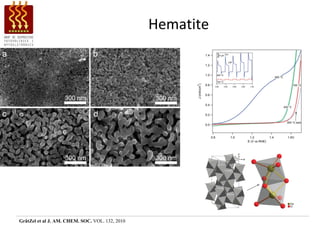

Hematite GrätZel et al J. AM. CHEM. SOC. VOL. 132, 2010
Photogeneration of electrons and holes Charge transfer via surface states Carrier density and interfacial kinetics in mesoporous TiO 2 during water splitting determined by impedance spectroscopy Sixto Giménez, J. Electroanal Chem 2012

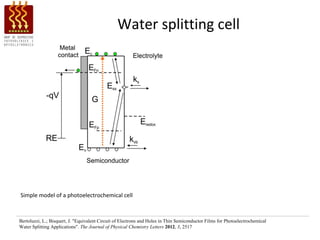

Water splitting cell Simple model of a photoelectrochemical cell Bertoluzzi, L.; Bisquert, J. "Equivalent Circuit of Electrons and Holes in Thin Semiconductor Films for Photoelectrochemical Water Splitting Applications". The Journal of Physical Chemistry Letters 2012, 3, 2517

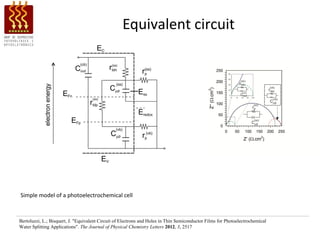

Equivalent circuit Simple model of a photoelectrochemical cell Bertoluzzi, L.; Bisquert, J. "Equivalent Circuit of Electrons and Holes in Thin Semiconductor Films for Photoelectrochemical Water Splitting Applications". The Journal of Physical Chemistry Letters 2012, 3, 2517

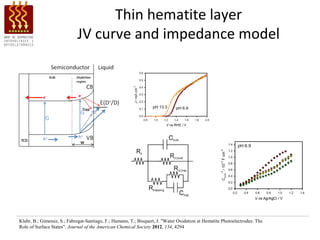

Thin hematite layer JV curve and impedance model Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Hamann, T.; Bisquert, J. "Water Oxidation at Hematite Photoelectrodes: The Role of Surface States". Journal of the American Chemical Society 2012, 134, 4294
impedance results Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Hamann, T.; Bisquert, J. "Water Oxidation at Hematite Photoelectrodes: The Role of Surface States". Journal of the American Chemical Society 2012, 134, 4294

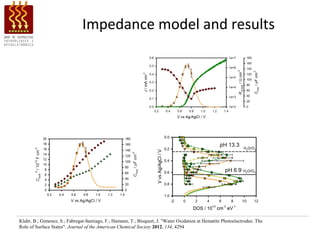

Impedance model and results Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Hamann, T.; Bisquert, J. "Water Oxidation at Hematite Photoelectrodes: The Role of Surface States". Journal of the American Chemical Society 2012, 134, 4294

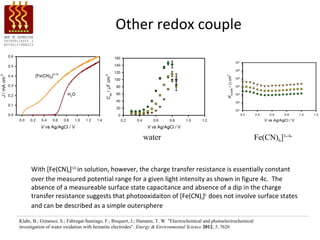

Other redox couple water Fe(CN)6]3-/4- With [Fe(CN)6]3-/4- in solution, however, the charge transfer resistance is essentially constant over the measured potential range for a given light intensity as shown in figure 4c. The absence of a measureable surface state capacitance and absence of a dip in the charge transfer resistance suggests that photooxidaiton of [Fe(CN)6]4- does not involve surface states and can be described as a simple outersphere Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Bisquert, J.; Hamann, T. W. "Electrochemical and photoelectrochemical investigation of water oxidation with hematite electrodes". Energy & Environmental Science 2012, 5, 7626

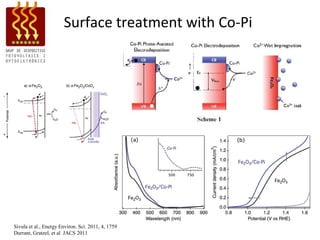

Surface treatment with Co-Pi Sivula et al., Energy Environ. Sci. 2011, 4, 1759 Durrant, Gratzel, et al JACS 2011

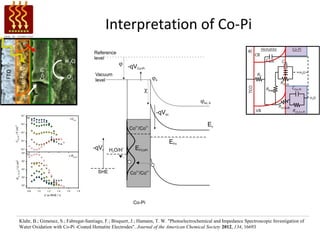

Interpretation of Co-Pi Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Bisquert, J.; Hamann, T. W. "Photoelectrochemical and Impedance Spectroscopic Investigation of Water Oxidation with Co-Pi -Coated Hematite Electrodes". Journal of the American Chemical Society 2012, 134, 16693
Thank you
