I phone programming project report

IPhone Programming Project
UNSW’s Map and Videos

7/25/2010
The University of New South Wales

Supervisor:

Dr. Salil Kanhere
Senior Lecturer
School of Computer Science and Engineering
The University of New South Wales
Email: salilk@cse.unsw.edu.au

Supervisee:

Dhara Manojkumar Shah
Email: dhara.shah@student.unsw.edu.au
Student Id: 3299353

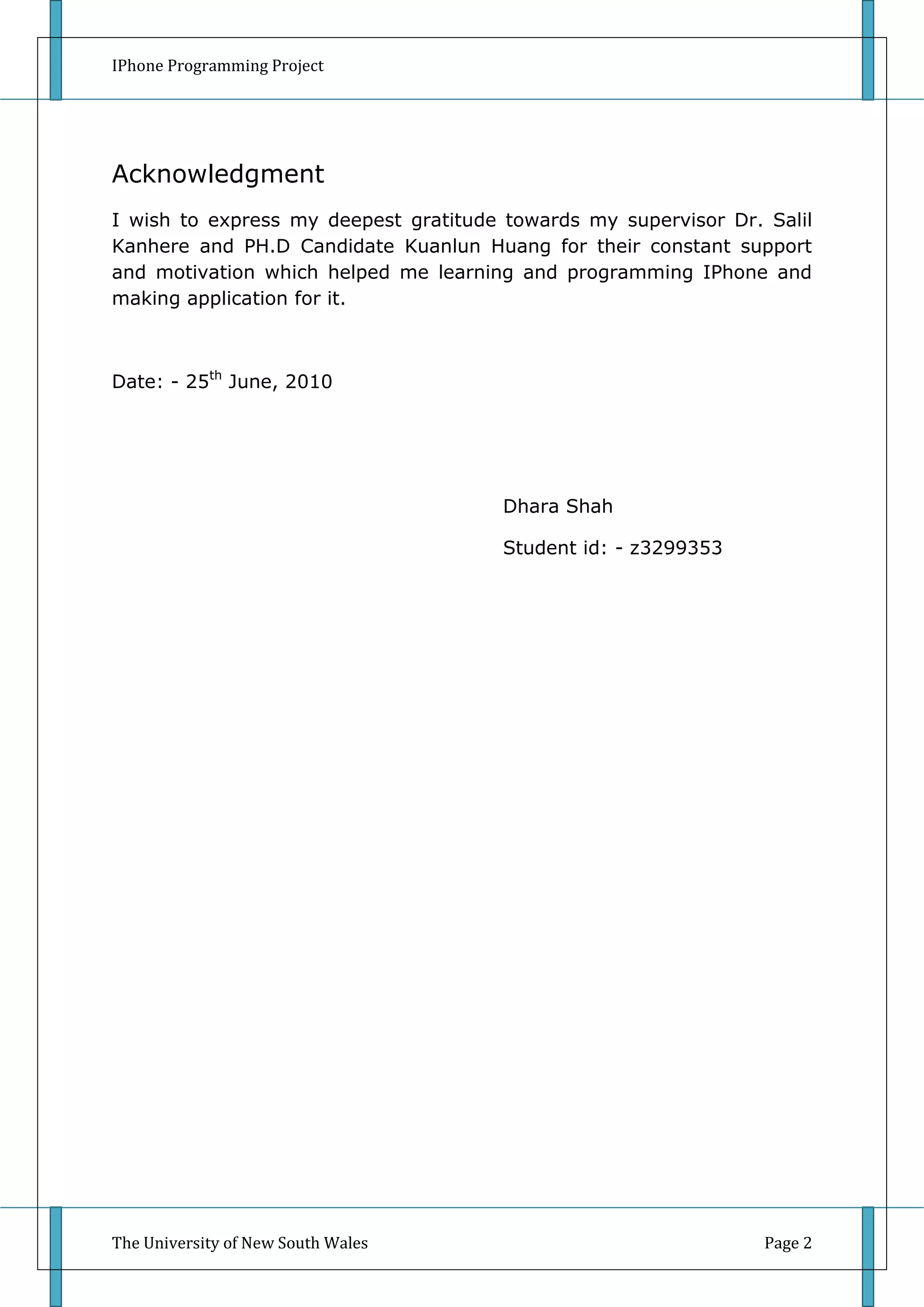

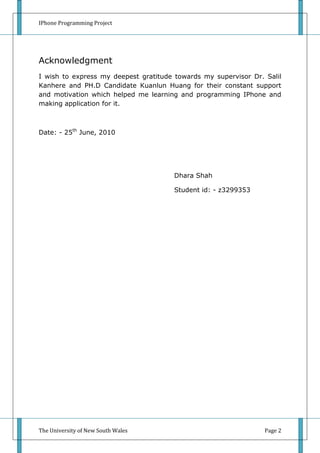

Acknowledgment
I wish to express my deepest gratitude towards my supervisor Dr. Salil
Kanhere and PH.D Candidate Kuanlun Huang for their constant support
and motivation which helped me learning and programming IPhone and
making application for it.

Date: - 25th June, 2010

Dhara Shah

Student id: - z3299353

The University of New South Wales Page 2

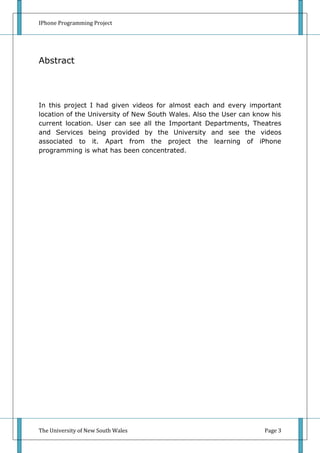

Abstract

In this project I had given videos for almost each and every important
location of the University of New South Wales. Also the User can know his
current location. User can see all the Important Departments, Theatres
and Services being provided by the University and see the videos
associated to it. Apart from the project the learning of iPhone
programming is what has been concentrated.

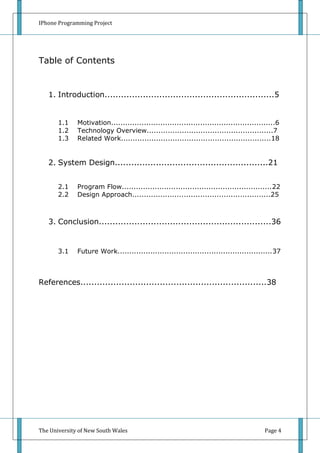

Table of Contents

1. Introduction..............................................................5

1.1 Motivation......................................................................6
1.2 Technology Overview......................................................7
1.3 Related Work................................................................18

2. System Design........................................................21

2.1 Program Flow................................................................22
2.2 Design Approach...........................................................25

3. Conclusion...............................................................36

3.1 Future Work..................................................................37

References....................................................................38

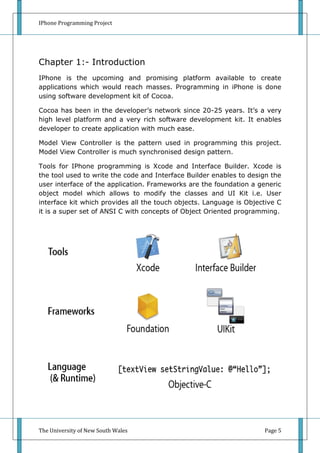

Chapter 1:- Introduction
IPhone is the upcoming and promising platform available to create
applications which would reach masses. Programming in iPhone is done
using software development kit of Cocoa.

Cocoa has been in the developer’s network since 20-25 years. It’s a very
high level platform and a very rich software development kit. It enables
developer to create application with much ease.

Model View Controller is the pattern used in programming this project.
Model View Controller is much synchronised design pattern.

Tools for IPhone programming is Xcode and Interface Builder. Xcode is
the tool used to write the code and Interface Builder enables to design the
user interface of the application. Frameworks are the foundation a generic
object model which allows to modify the classes and UI Kit i.e. User
interface kit which provides all the touch objects. Language is Objective C
it is a super set of ANSI C with concepts of Object Oriented programming.

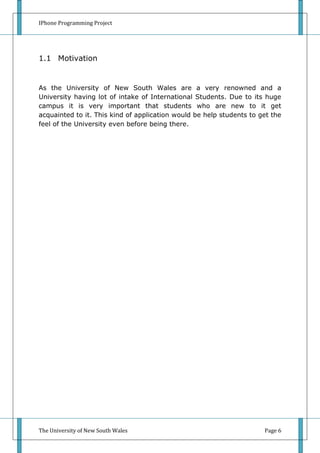

1.1 Motivation

As the University of New South Wales are a very renowned and a
University having lot of intake of International Students. Due to its huge
campus it is very important that students who are new to it get
acquainted to it. This kind of application would be help students to get the
feel of the University even before being there.

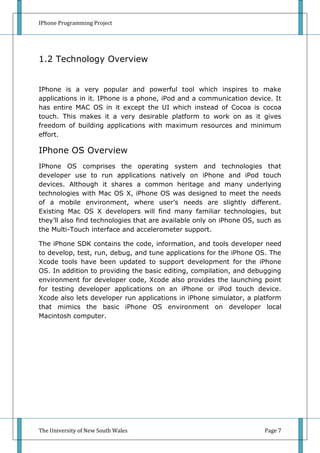

1.2 Technology Overview

IPhone is a very popular and powerful tool which inspires to make
applications in it. IPhone is a phone, iPod and a communication device. It
has entire MAC OS in it except the UI which instead of Cocoa is cocoa
touch. This makes it a very desirable platform to work on as it gives
freedom of building applications with maximum resources and minimum
effort.

IPhone OS Overview
IPhone OS comprises the operating system and technologies that
developer use to run applications natively on iPhone and iPod touch
devices. Although it shares a common heritage and many underlying
technologies with Mac OS X, iPhone OS was designed to meet the needs
of a mobile environment, where user’s needs are slightly different.
Existing Mac OS X developers will find many familiar technologies, but
they’ll also find technologies that are available only on iPhone OS, such as
the Multi-Touch interface and accelerometer support.

The iPhone SDK contains the code, information, and tools developer need
to develop, test, run, debug, and tune applications for the iPhone OS. The
Xcode tools have been updated to support development for the iPhone
OS. In addition to providing the basic editing, compilation, and debugging
environment for developer code, Xcode also provides the launching point
for testing developer applications on an iPhone or iPod touch device.
Xcode also lets developer run applications in iPhone simulator, a platform
that mimics the basic iPhone OS environment on developer local
Macintosh computer.

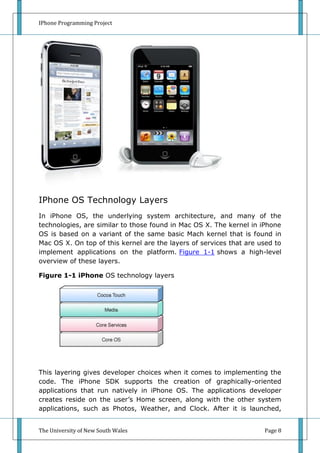

IPhone OS Technology Layers
In iPhone OS, the underlying system architecture, and many of the
technologies, are similar to those found in Mac OS X. The kernel in iPhone
OS is based on a variant of the same basic Mach kernel that is found in
Mac OS X. On top of this kernel are the layers of services that are used to
implement applications on the platform. Figure 1-1 shows a high-level
overview of these layers.

Figure 1-1 iPhone OS technology layers

This layering gives developer choices when it comes to implementing the
code. The iPhone SDK supports the creation of graphically-oriented
applications that run natively in iPhone OS. The applications developer
creates reside on the user’s Home screen, along with the other system
applications, such as Photos, Weather, and Clock. After it is launched,



aside from the kernel and a few low-level daemons, developer application
is the only application running on the system. While running, developer
application occupies the entire screen and is the focus of the user’s
attention. And when the user presses the Home button, developer
application quits and the system displays the Home screen again. Having
the system to developer self is advantageous because it gives developer
full access to the underlying system resources. Developer can take
advantage of built-in hardware such as the accelerometers, camera, and
graphics hardware to run just developer code.

Because the way users interact with iPhone and iPod touch devices is
fundamentally different from the way users interact with Mac OS X, the
way developer design developer applications must also be different. In an
iPhone application, there is no concept of separate document windows for
displaying content. Instead, all of the application’s data is displayed in a
single window. This has led to the creation of new views and controls that
allow developer to present developer application’s data in an organized
manner. In addition, many of the standard views and controls may
behave a little differently than their Mac OS X counterparts. Most of these
changes should be transparent but some may require developer to rethink
the way developer organize and present developer data.

The event-handling model in iPhone OS also represents a significant
departure from traditional desktop applications. Instead of relying on the
traditional mouse and keyboard events, iPhone OS introduces the idea of
touch events. A touch event can occur at any time and in combination
with one or more additional touch events. Touches can be used to detect
simple interactions with content, such as selecting or dragging items, or
they can be used to detect complex gestures and interactions, such as
swipes or the pinch-open and pinch-close gestures (used, for example, to
zoom in and out in the Photos application).

Beyond considering the basic structure of developer application, developer
needs to think about how users will actually use it. IPhone applications
should be clean, and focused on what the user needs in the moment.
Remember that users who are on-the-go want to get at information
quickly and not spend a lot of time looking through several layers of
screens. Providing a simple layout that highlights the key information the
user needs is important. For games and other fun applications, developer
should also consider how the users might want to interact with developer
application and take advantage of technologies such as the
accelerometers and camera where appropriate.

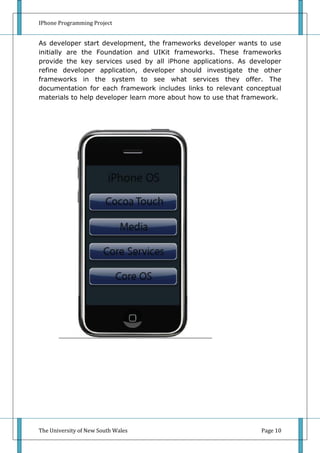

As developer start development, the frameworks developer wants to use
initially are the Foundation and UIKit frameworks. These frameworks
provide the key services used by all iPhone applications. As developer
refine developer application, developer should investigate the other
frameworks in the system to see what services they offer. The
documentation for each framework includes links to relevant conceptual
materials to help developer learn more about how to use that framework.

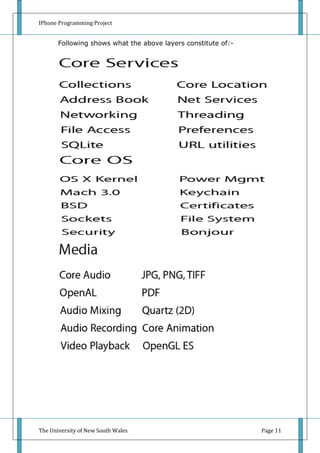

Following shows what the above layers constitute of:-

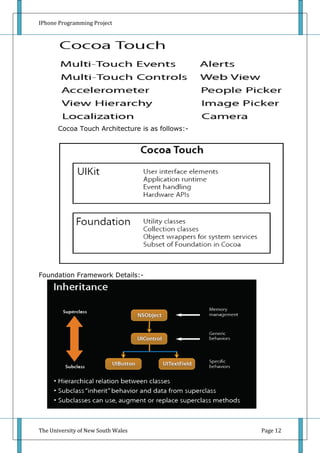

Cocoa Touch Architecture is as follows:-

Foundation Framework Details:-

Objective – C:-



Objective-C extends the standard ANSI C language by providing syntax
for defining classes, and methods, as well as other constructs that
promote dynamic extension of classes.

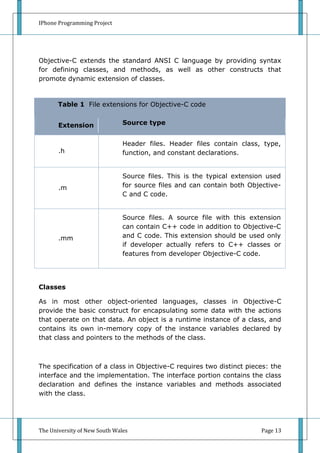

Table 1 File extensions for Objective-C code

Extension Source type

Header files. Header files contain class, type,
.h function, and constant declarations.

Source files. This is the typical extension used
.m for source files and can contain both Objective-
C and C code.

Source files. A source file with this extension
can contain C++ code in addition to Objective-C
.mm and C code. This extension should be used only
if developer actually refers to C++ classes or
features from developer Objective-C code.

Classes

As in most other object-oriented languages, classes in Objective-C
provide the basic construct for encapsulating some data with the actions
that operate on that data. An object is a runtime instance of a class, and
contains its own in-memory copy of the instance variables declared by
that class and pointers to the methods of the class.

The specification of a class in Objective-C requires two distinct pieces: the
interface and the implementation. The interface portion contains the class
declaration and defines the instance variables and methods associated
with the class.



The interface is usually in an .h file. The implementation portion contains
the actual code for the methods of the class. The implementation is
usually in an .m file.

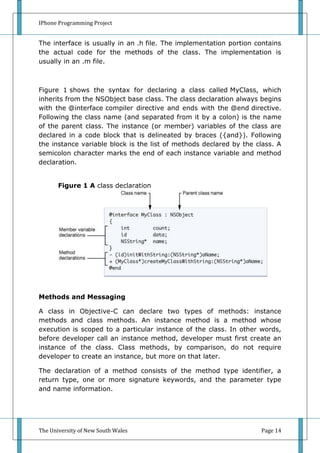

Figure 1 shows the syntax for declaring a class called MyClass, which
inherits from the NSObject base class. The class declaration always begins
with the @interface compiler directive and ends with the @end directive.
Following the class name (and separated from it by a colon) is the name
of the parent class. The instance (or member) variables of the class are
declared in a code block that is delineated by braces ({and}). Following
the instance variable block is the list of methods declared by the class. A
semicolon character marks the end of each instance variable and method
declaration.

Figure 1 A class declaration

Methods and Messaging

A class in Objective-C can declare two types of methods: instance
methods and class methods. An instance method is a method whose
execution is scoped to a particular instance of the class. In other words,
before developer call an instance method, developer must first create an
instance of the class. Class methods, by comparison, do not require
developer to create an instance, but more on that later.

The declaration of a method consists of the method type identifier, a
return type, one or more signature keywords, and the parameter type
and name information.



Figure 2 shows the declaration of theinsertObject: atIndex: instance
method.

Figure 2 Method declaration syntax

This declaration is preceded by a minus (-) sign, which indicates that this
is an instance method. The method’s actual name (insertObject: atIndex
:) is a concatenation of all of the signature keywords, including colon
characters. The colon characters declare the presence of a parameter.

When developer wants to call a method, developer does so
by messaging an object. A message is the method signature, along with
the parameter information the method needs. All messages developer
send to an object are dispatched dynamically, thus facilitating the
polymorphic behaviour of Objective-C classes.

Listing 1 shows the implementation of MyClass from the preceding
example. Like the class declaration, the class implementation is identified
by two compiler directives—here, @implementation and@end. These
directives provide the scoping information the compiler needs to associate
the enclosed methods with the corresponding class. A method’s definition
therefore matches its corresponding declaration in the interface, except
for the inclusion of a code block.

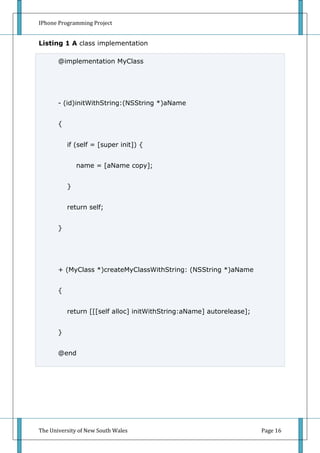

Listing 1 A class implementation

@implementation MyClass

- (id)initWithString:(NSString *)aName

{

if (self = [super init]) {

name = [aName copy];

}

return self;

}

+ (MyClass *)createMyClassWithString: (NSString *)aName

{

return [[[self alloc] initWithString:aName] autorelease];

}

@end

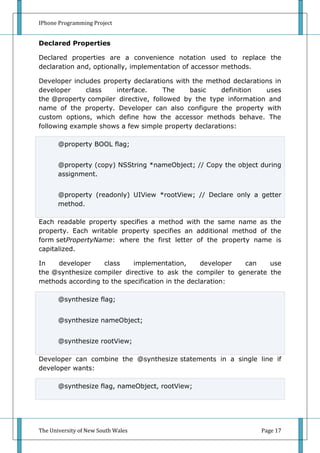

Declared Properties

Declared properties are a convenience notation used to replace the
declaration and, optionally, implementation of accessor methods.

Developer includes property declarations with the method declarations in
developer class interface. The basic definition uses
the @property compiler directive, followed by the type information and
name of the property. Developer can also configure the property with
custom options, which define how the accessor methods behave. The
following example shows a few simple property declarations:

@property BOOL flag;

@property (copy) NSString *nameObject; // Copy the object during
assignment.

@property (readonly) UIView *rootView; // Declare only a getter
method.

Each readable property specifies a method with the same name as the
property. Each writable property specifies an additional method of the
form setPropertyName: where the first letter of the property name is
capitalized.

In developer class implementation, developer can use
the @synthesize compiler directive to ask the compiler to generate the
methods according to the specification in the declaration:

@synthesize flag;

@synthesize nameObject;

@synthesize rootView;

Developer can combine the @synthesize statements in a single line if
developer wants:

@synthesize flag, nameObject, rootView;

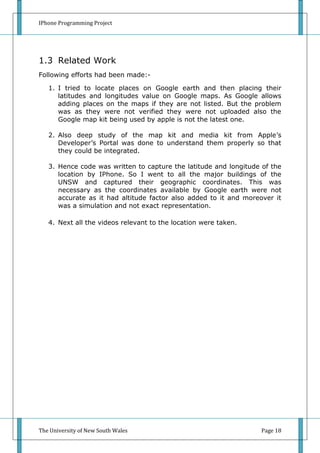

1.3 Related Work
Following efforts had been made:-

1. I tried to locate places on Google earth and then placing their
latitudes and longitudes value on Google maps. As Google allows
adding places on the maps if they are not listed. But the problem
was as they were not verified they were not uploaded also the
Google map kit being used by apple is not the latest one.

2. Also deep study of the map kit and media kit from Apple’s
Developer’s Portal was done to understand them properly so that
they could be integrated.

3. Hence code was written to capture the latitude and longitude of the
location by IPhone. So I went to all the major buildings of the
UNSW and captured their geographic coordinates. This was
necessary as the coordinates available by Google earth were not
accurate as it had altitude factor also added to it and moreover it
was a simulation and not exact representation.

4. Next all the videos relevant to the location were taken.

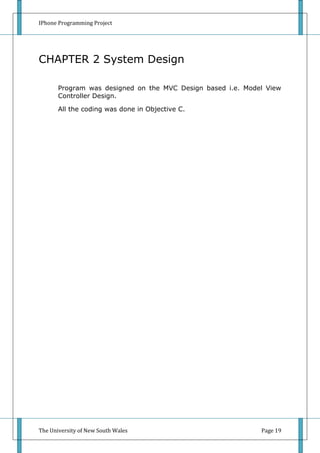

CHAPTER 2 System Design

Program was designed on the MVC Design based i.e. Model View
Controller Design.

All the coding was done in Objective C.



2.1 Program Flow

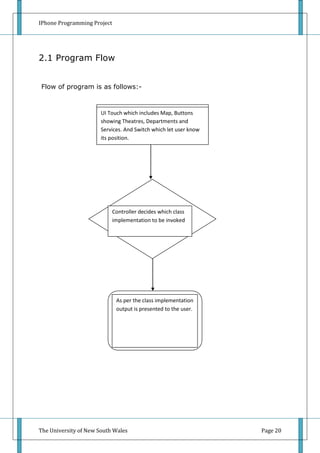

Flow of program is as follows:-

UI Touch which includes Map, Buttons
showing Theatres, Departments and
Services. And Switch which let user know
its position.

Controller decides which class
implementation to be invoked

As per the class implementation
output is presented to the user.



2.2 Design Approach
Designing had been completed independent and reusable. All the
annotations correspond to their respective interfaces which are
implemented in their respective classes.

Hence in future if more annotations are required to be implemented they
can be done by simply adding new interfaces and implementing them in
classes.

Annotation’s right callout button has been overwritten to show specific
video regarding that department, services or theatres.

Prior their used to be trouble that threads were colliding one showing the
map and other showing the video. But with this independent approach
both could be shown without colliding their thread times.



3.0 Conclusion
Overall the project gave completely new experience of learning
IPhone programming. It made me release that it’s so powerful
platform that very powerful applications can be made through it
with minimal effort once it’s fully understood.

It took me time to understand it properly but the end result was
that it could program it very easily and with minimum amount of
effort.

Had there been more amount of time lot more improvements could
have been possible in the application.

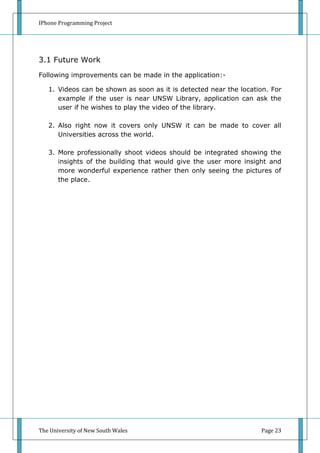

3.1 Future Work
Following improvements can be made in the application:-

1. Videos can be shown as soon as it is detected near the location. For
example if the user is near UNSW Library, application can ask the
user if he wishes to play the video of the library.

2. Also right now it covers only UNSW it can be made to cover all
Universities across the world.

3. More professionally shoot videos should be integrated showing the
insights of the building that would give the user more insight and
more wonderful experience rather then only seeing the pictures of
the place.



References

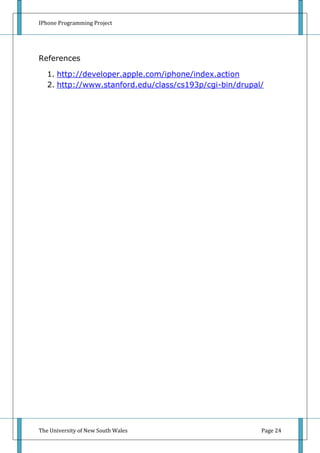

1. http://developer.apple.com/iphone/index.action
2. http://www.stanford.edu/class/cs193p/cgi-bin/drupal/


I phone programming project report

More Related Content

What's hot

Viewers also liked

Similar to I phone programming project report

More from Dhara Shah

I phone programming project report
