Huffman's algorithm is a lossless data compression algorithm that assigns variable-length binary codes to characters based on their frequencies, with more common characters getting shorter codes. It builds a Huffman tree by starting with individual leaf nodes for each unique character and their frequencies, then combining the two lowest frequency nodes into an internal node until only one node remains as the root. Codes are then assigned by traversing paths from the root to leaves.

2. Huffman’s Algorithm

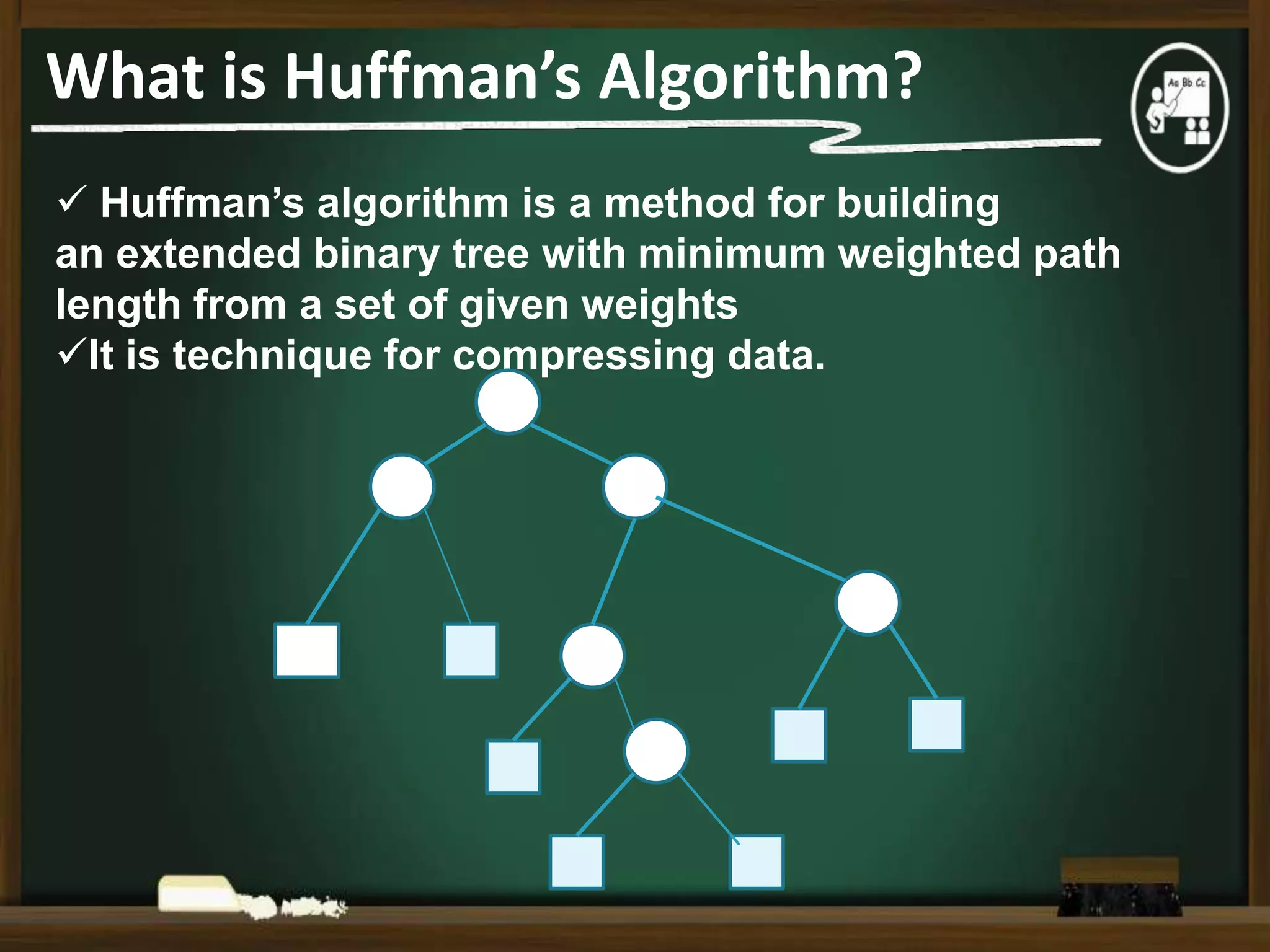

3. What is Huffman’s Algorithm?
 Huffman’s algorithm is a method for building
an extended binary tree with minimum weighted path
length from a set of given weights
It is technique for compressing data.

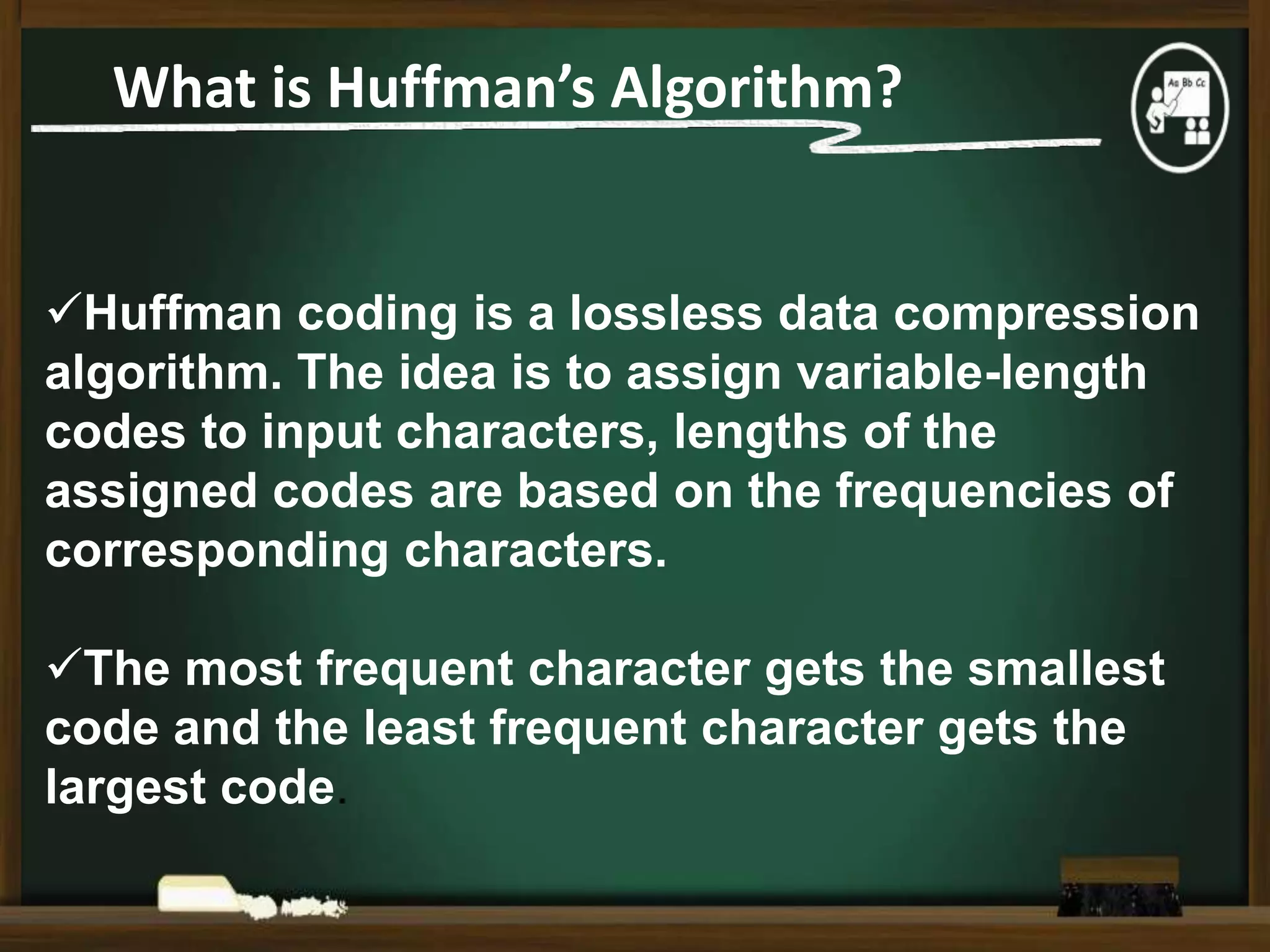

4. What is Huffman’s Algorithm?
Huffman coding is a lossless data compression
algorithm. The idea is to assign variable-length
codes to input characters, lengths of the
assigned codes are based on the frequencies of
corresponding characters.
The most frequent character gets the smallest
code and the least frequent character gets the
largest code.

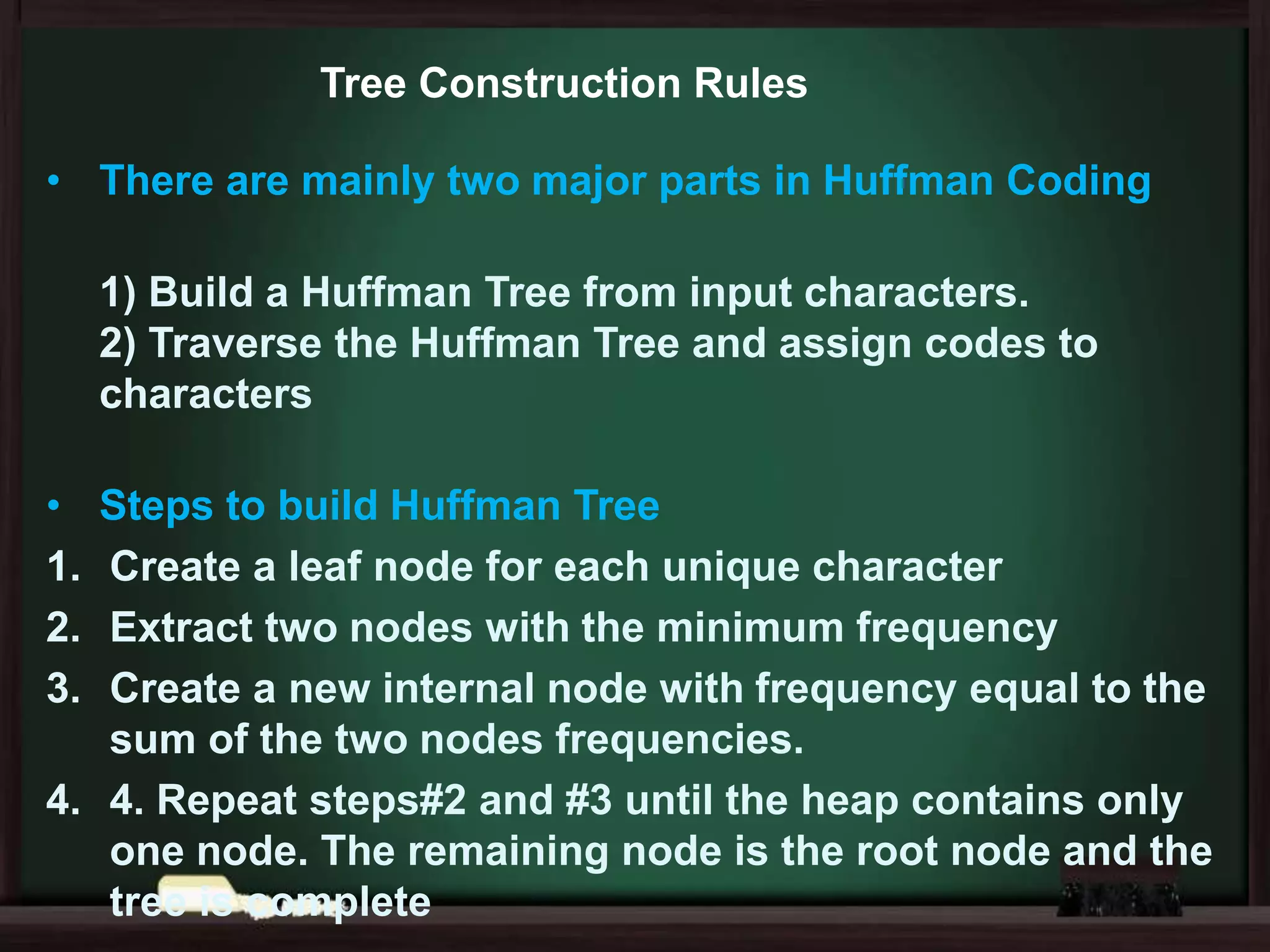

5. Tree Construction Rules
• There are mainly two major parts in Huffman Coding
1) Build a Huffman Tree from input characters.
2) Traverse the Huffman Tree and assign codes to
characters
•
1.
2.
3.
Steps to build Huffman Tree
Create a leaf node for each unique character
Extract two nodes with the minimum frequency
Create a new internal node with frequency equal to the
sum of the two nodes frequencies.
4. 4. Repeat steps#2 and #3 until the heap contains only
one node. The remaining node is the root node and the
tree is complete

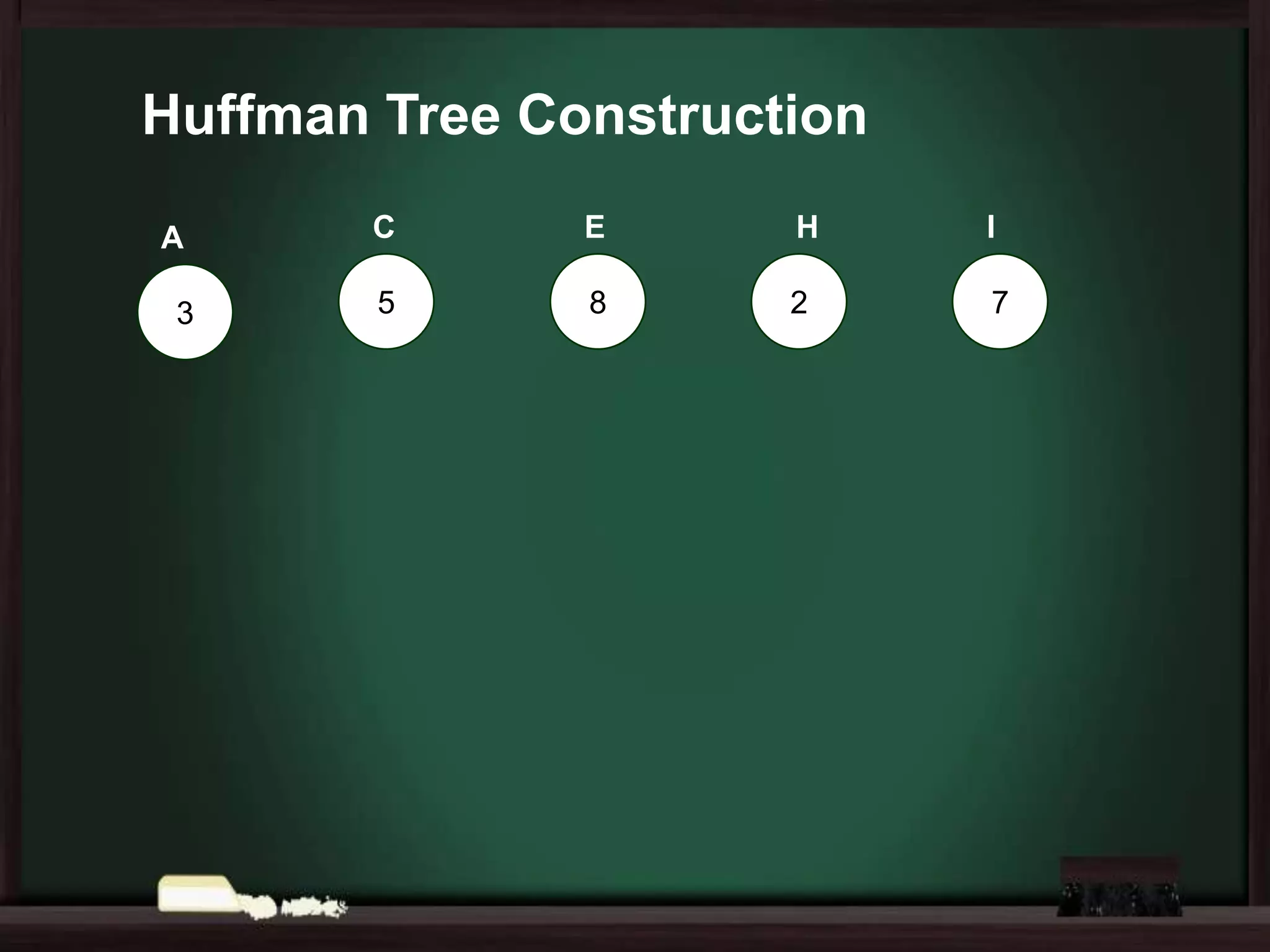

6. Huffman Tree Construction
A
3
C
E
H
I
5
8
2
7

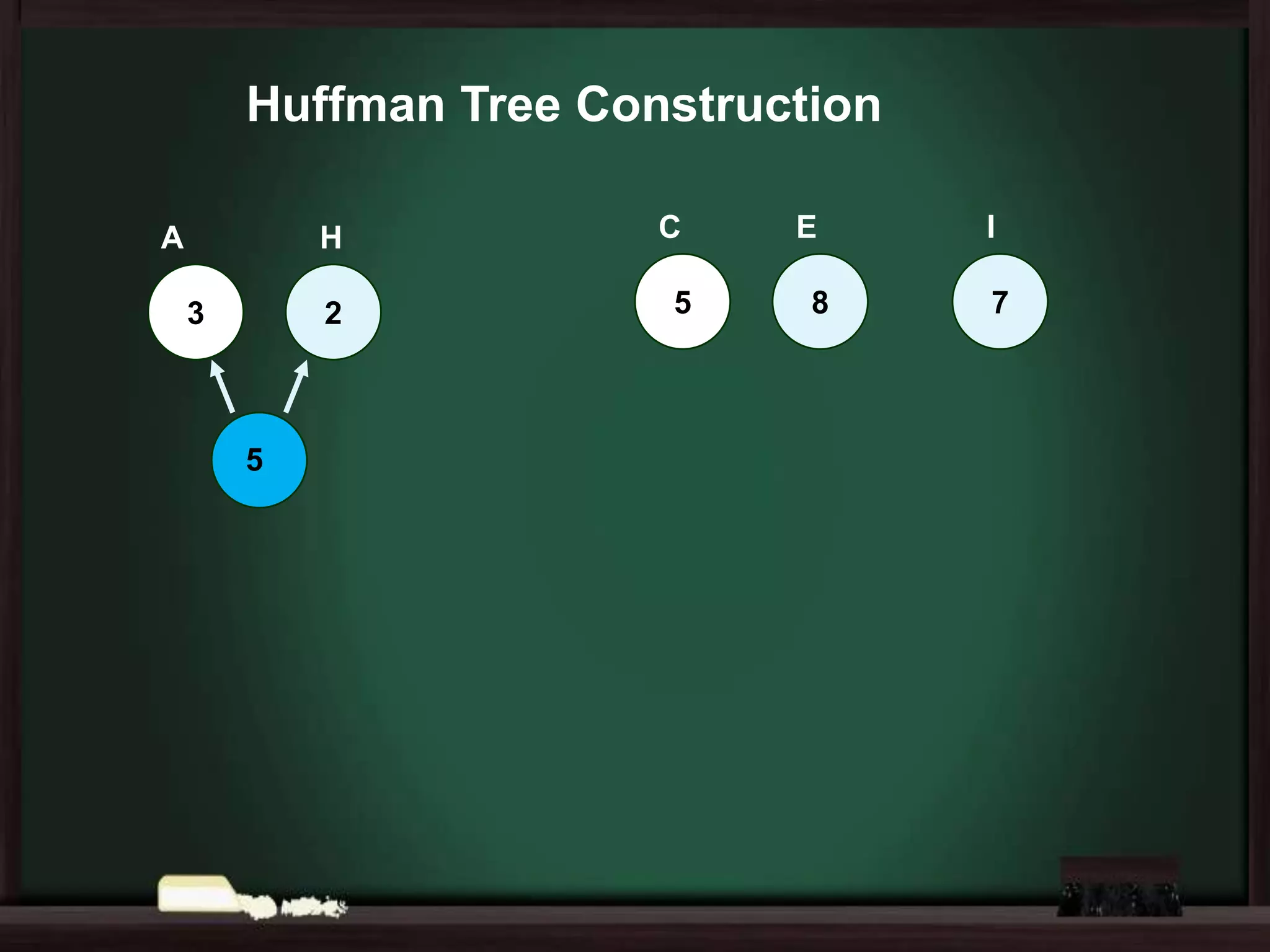

7. Huffman Tree Construction
A
H
3
2
5
C
5
E
8
I
7

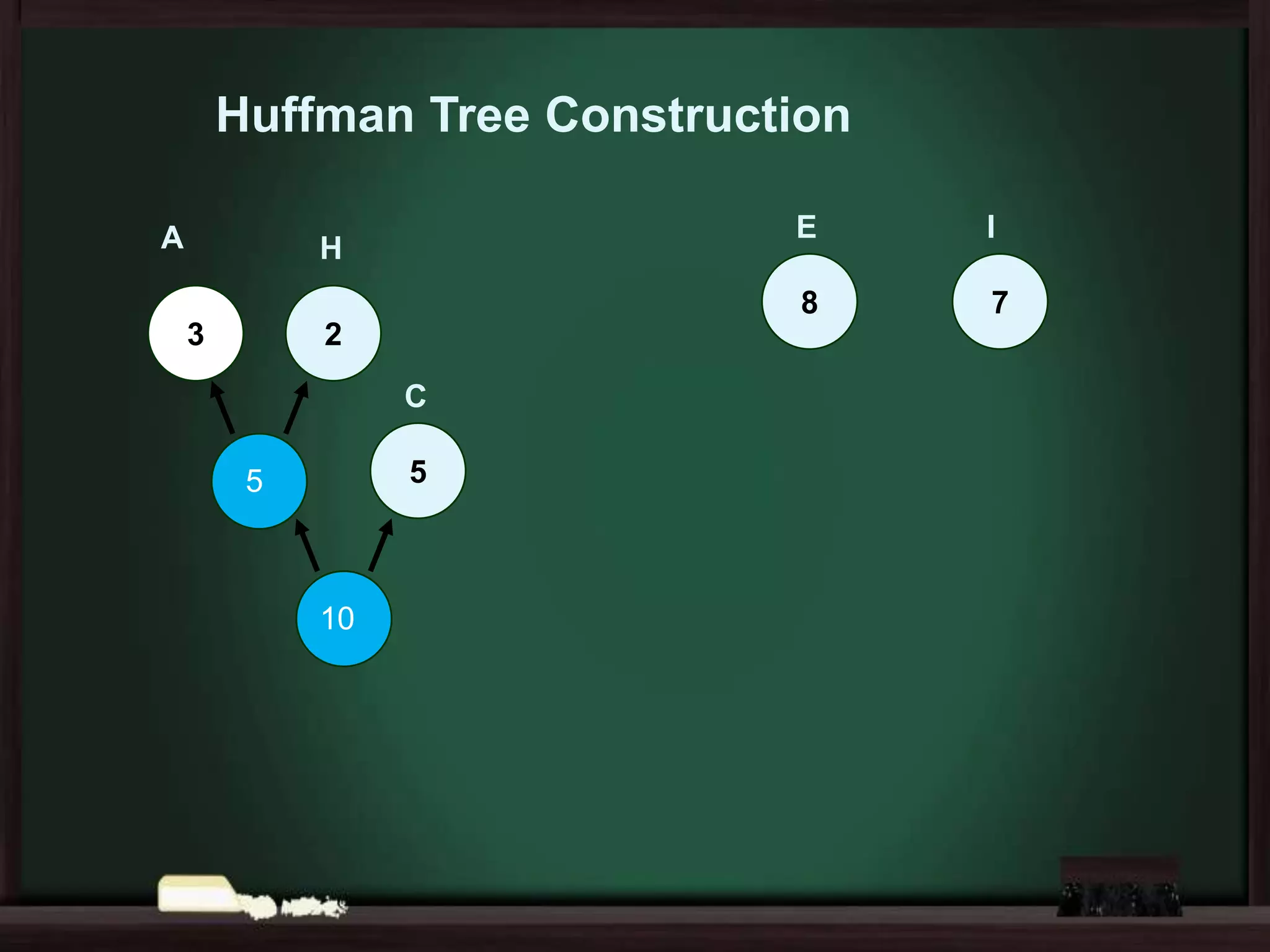

8. Huffman Tree Construction
E
H
3
2
C
5
5
10
I
8
A
7

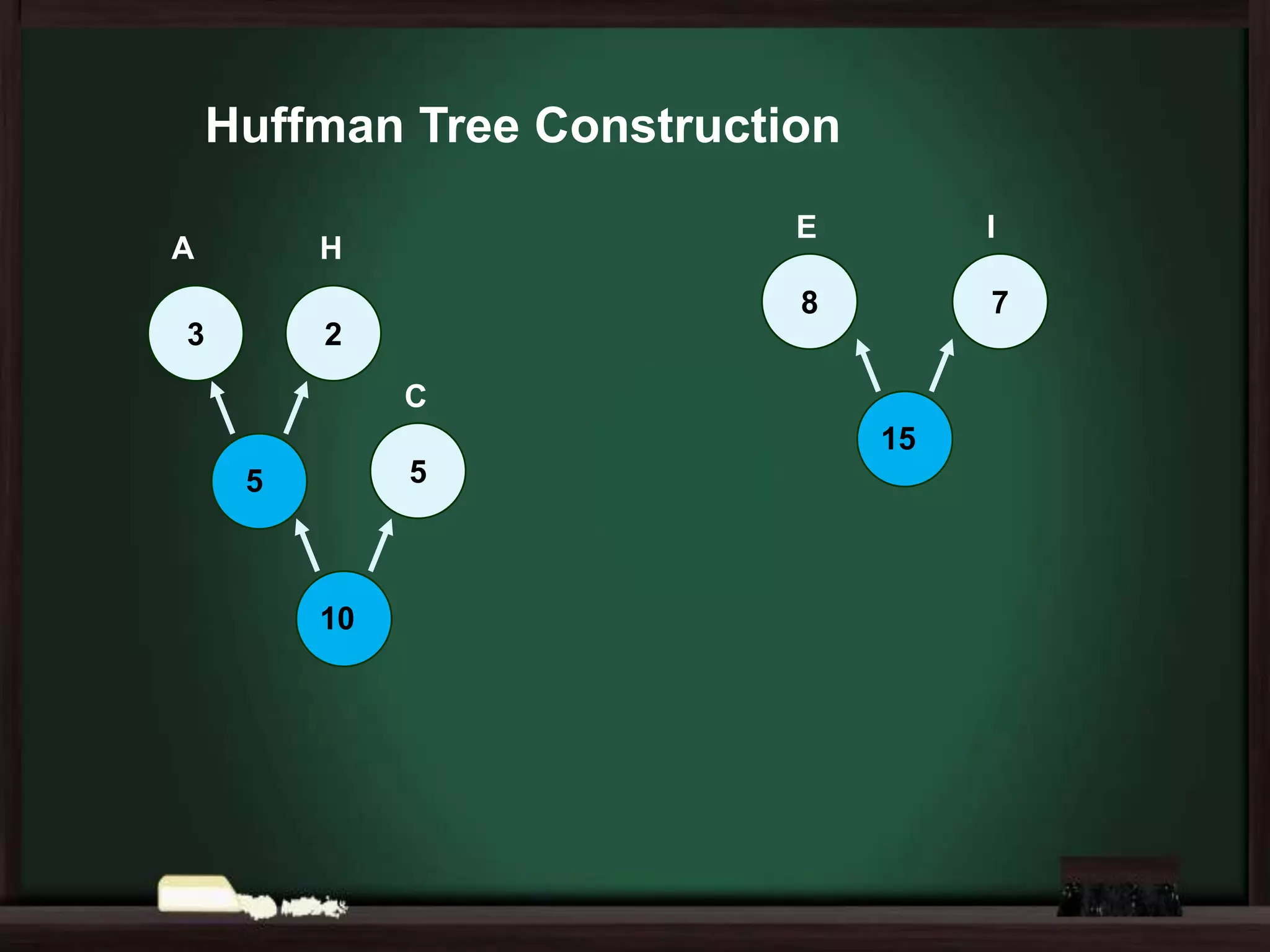

9. Huffman Tree Construction
E
H
3
I
8
A
7
2
C
15
5
5
10

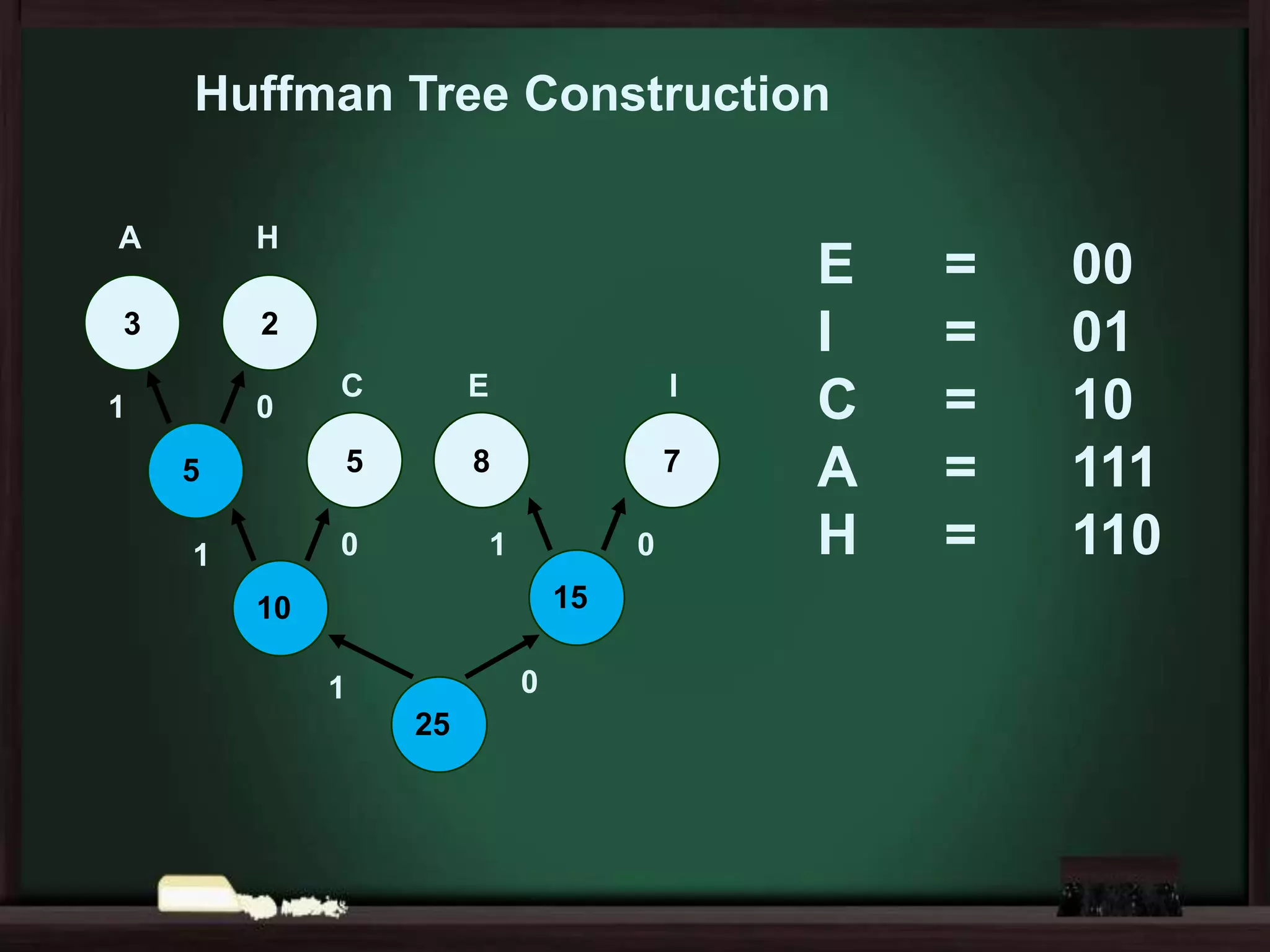

10. Huffman Tree Construction
A
H
3
2
1
5
C
E
I
5
0
8
7
0
1
1
0
15
10
0
1
25
E
I
C
A
H
=
=
=
=
=
00
01
10
111
110
