This document provides an overview of cryptography concepts and best practices for implementing cryptography securely in Android applications. It discusses encryption algorithms like AES and RSA, key management practices, and the Android Keystore system which allows storing cryptographic keys in a hardware-backed secure container. It highlights that the hardest part of encryption is key management and outlines practices to avoid like storing keys with encrypted data or in plain text in code.

1. Dance like
nobody's watching
Encrypt like everyone is
How to do cryptography right in android
Part #1
Arash Ramez

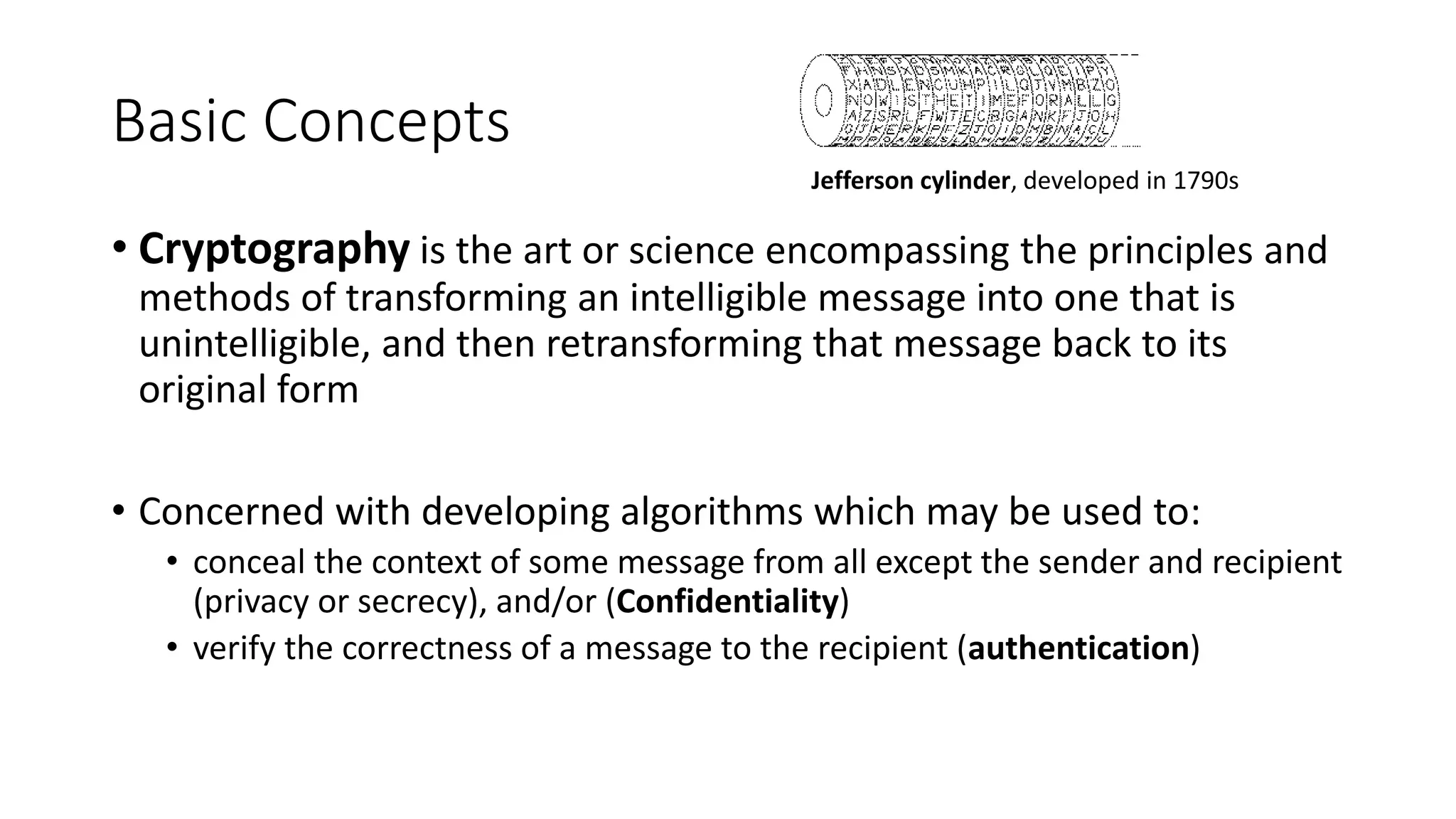

2. Basic Concepts
• Cryptography is the art or science encompassing the principles and
methods of transforming an intelligible message into one that is
unintelligible, and then retransforming that message back to its
original form
• Concerned with developing algorithms which may be used to:
• conceal the context of some message from all except the sender and recipient
(privacy or secrecy), and/or (Confidentiality)
• verify the correctness of a message to the recipient (authentication)
Jefferson cylinder, developed in 1790s

3. Basic Concepts
Plaintext
the original intelligible message
Ciphertext
the transformed message
Cipher an algorithm for transforming an intelligible message into one that is unintelligible
by transposition and/or substitution methods
Key
some critical information used by the cipher, known only to the sender & receiver
encipher (encode)
the process of converting plaintext to ciphertext using a cipher and a key
decipher (decode)
the process of converting ciphertext back into plaintext using a cipher and a key
cryptanalysis
the study of principles and methods of transforming an unintelligible message back into
an intelligible message without knowledge of the key. Also called codebreaking
code
an algorithm for transforming an intelligible message into an unintelligible one using a code-book

4. Two very important truisms
1. Cryptography is harder than it looks.
2. Complexity is the worst enemy of security.
Enigma Rotor machine

6. Common pitfalls
• Rolling your own cryptographic algorithms or implementations.
• Misuse of libraries and algorithms.
• Poor key management.
• Randomness that is not random.
• Failure to centralize cryptography.
• Failure to allow for algorithm adaptation and evolution.

7. Regulations
• HIPPA Breach Notification Rule
• PCIDSS
• GDPR : Article 17
• GDPR, RIGHT OF ERASURE (RIGHT TO BE FORGOTTEN), AND ENCRYPTION KEY
MANAGEMENT (https://gdpr-info.eu/art-17-gdpr/)
• Encryption is one of the most well understood mechanisms for data privacy
• FIPS 140-2
• HTTPS://CSRC.NIST.GOV/PROJECTS/CRYPTOGRAPHIC-MODULE-VALIDATION-
PROGRAM/VALIDATED-MODULES/SEARCH

9. Type of Algorithms
• Hashing
• One-way, irreversible, Key-less (e.g. SHA-512,SHA1,MD5)
• HMAC
• One-way, irreversible, Keyed-Hash (e.g. HMACSHA512)
• Symmetric
• One Key encrypt and decrypt (e.g. DES,3DES,AES,RC4)
• Asymmetric
• Two mathematically related Keys; one key reverses transformations of the other.
(e.g. RSA, ECC)
• Random Number Generation
• Generate a random sequence of numbers

10. One-Way Hashing
- MD5(banned) / 128bit
- SHA0/SHA1 (banned 2014) /
160bit
- SHA-1 shall not be used for
digital signature
generation after December
31, 2013. (NIST)
- SHA-256
- SHA-384
- SHA-512
- SHA3

11. HMAC (Hash-based Message Authentication
Code)

12. Symmetric Cryptography

13. Symmetric Algorithms
• RC4 (unsafe)
• DES (unsafe) : 56-bit Key
• TwoFish
• 3DES : 64 / 112 / 168 bit
• AES (Rijndael) : 128/192/256 bit

15. Block Cipher vs Stream Cipher
• A block cipher encrypts data in specific-sized blocks, such as 64-bit
blocks or 128-bit blocks. The block cipher divides large files or
messages into these blocks and then encrypts each individual block
separately. (DES/3DES/AES-ECB/CBC)
• Encrypting a file or a specific-sized database field.
• Stream ciphers encrypt data as a stream of bits or bytes rather than
dividing it into blocks. (RC4/AES-GCM)
• the size of the data is unknown or sent in a continuous stream, such as when
streaming audio and video over a network
• Important Note : Encryption keys should never be reused.

16. Block Ciphers
• ECB ( Electronic Codebook)
• CBC (Cipher Block Chaining)

17. Asymmetric Cryptography
• Public Key Cryptography
• PKI
• PKE

18. Asymmetric Cryptography (Public Key
Cryptography)
• Rivest Shamir Adleman (RSA) /1978
• The basic RSA algorithm for confidentiality
• Ciphertext = (plaintext)^e mod n
Plaintext = (ciphertext)^d mod n
Private Key = {d, n}
Public Key = {e, n}
• The basic RSA algorithm for authentication
• ciphertext = (plaintext)^d mod n
plaintext = (ciphertext)^e mod n
private key = {d, n}
public key = {e, n}

19. Asymmetric Cryptography (Public Key
Cryptography)
• Diffie-Hellman key agreement (Dr. Whitfield Diffie and Dr. Martin
Hellman) / 1976

20. Elliptic Curve Cryptography (ECC)
• provides similar functionality to RSA. Elliptic Curve Cryptography
(ECC) is being implemented in smaller devices like cell phones. It
requires less computing power compared with RSA. ECC encryption
systems are based on the idea of using points on a curve to define the
public/private key pair.

21. Asymmetric Cryptography

22. Asymmetric Sign Algorithm

23. Keys
• Bits of Protection(Key length)

24. Key Management : The ways to do it wrong
• The hardest part of getting encryption right has to do with creating,
protecting, and deploying encryption keys. It is probably the hardest
part of getting an encryption strategy right.
• Storing the unprotected encryption key with the protected data
• Using weak protection methods to secure encryption keys
• Storing the encryption key directly in application code
• Using a weak encryption key - a password is an example of a weak key
• Not using strong, industry standard methods of generating an encryption key
• Not providing separation of duties and dual control around key management

25. Android Keystore

26. Android Keystore
• KeyStore (API 1) / JKS or BKS based keystores
• You will have to create a KeyStore file and you will also have to manage the
secret to access to it. This secret is very sensitive and difficult to hide from
attackers.
• Android KeyStore Provider (API 18)
• TEE based keystore
• check KeyInfo#isInsideSecureHardware() method to see whether the key is saved there
or not
• significantly enhanced in Android 6.0 (API level 23)
• Android 9 (API level 28)
• StrongBox (Titan M on Google Pixel 3)

27. Android keystore system
• The Android Keystore system lets you store cryptographic keys in a
container to make it more difficult to extract from the device. Once keys
are in the keystore, they can be used for cryptographic operations with the
key material remaining non-exportable
• introduced in Android 4.3 (API level 18)
• Firstly, Android Keystore mitigates unauthorized use of key material outside
of the Android device by preventing extraction of the key material from
application processes and from the Android device as a whole
• Secondly, Android KeyStore mitigates unauthorized use of key material on
the Android device by making apps specify authorized uses of their keys
and then enforcing these restrictions outside of the apps' processes.

28. Security Features: Extraction prevention
• Key material never enters the application process.
• Key material may be bound to the secure hardware.
• (e.g., Trusted Execution Environment (TEE), Secure Element (SE)) of
the Android device

29. Why does Hardware-Based Cryptography
matter?
• The software solution is often more accessible to an attacker
• In contrast, the IP running on an FPGA is physically fully internal.
• The second reason is performance.
• FPGAs excel at massively parallel processing, and it’s easy to get duplex
throughputs of 10 Gbps with modest clocks
• Using faster silicon, higher clock speeds and more FPGA resources can push
the throughput up to 100 Gbps or beyond.

30. Secure Storage of keys
• Android also now supports hardware-backed storage for your KeyChain
credentials, providing more security by making the keys unavailable for
extraction. That is, once keys are in a hardware-backed key store (Secure
Element, TPM, or TrustZone), they can be used for cryptographic operations
but the private key material cannot be exported. Even the OS kernel cannot
access this key material. While not all Android-powered devices support
storage on hardware, you can check at runtime if hardware-backed storage
is available by calling KeyChain.IsBoundKeyAlgorithm()
• Android Keystore Nasty Bug(more common before Android 5):
• if the user changes the lock screen pattern into a password or just deletes the
pattern, the KeyStore will be fully corrupted.
• https://doridori.github.io/android-security-the-forgetful-
keystore/#sthash.G3v7Ei7g.Myhj1R0a.dpbs

31. Keystore API
• Encryption/Decryption
• https://gist.github.com/aramezx/f69bbd897cc19f29e68008659f8ed653
• https://gist.github.com/aramezx/8cc5922a9602694a02fa905149f02a63

32. Keystore API(cont.)
• Sign/Verify
• https://gist.github.com/aramezx/885cc89be75a3838c26b7b3975e4f667

33. Keystore API(cont.)
• Key Exchange
• https://gist.github.com/aramezx/e50d90af51877e6608c981e03d371a76

34. Keystore redesign in Android M
• New symmetric cryptography API based on JCA
• Requiring use authentication
• Keymaster redesign
• Key blob storage

35. Symmetric API
• https://gist.github.com/aramezx/7a9ae46fa02dc1875b311323ef68abab

36. Improvements in API 23 & N
• keys can be generated within the secure hardware, and then used to
perform cryptographic operations on user data, without the keys
ever leaving the secure hardware.
• High Maturity Cipher suites support
• Android N :
• CrytpoProvider is deprecated
• Hardware-backed keystore is mandatory
