This document outlines the process of converting custom PL/SQL into web services in Oracle applications. It includes steps for creating a custom business entity through PL/SQL packages, uploading the necessary files via FTP, generating WSDL, and testing the web service using tools like SOAPUI and Postman. The document provides detailed commands and configurations for both REST and SOAP web services, including permissions and cache management.

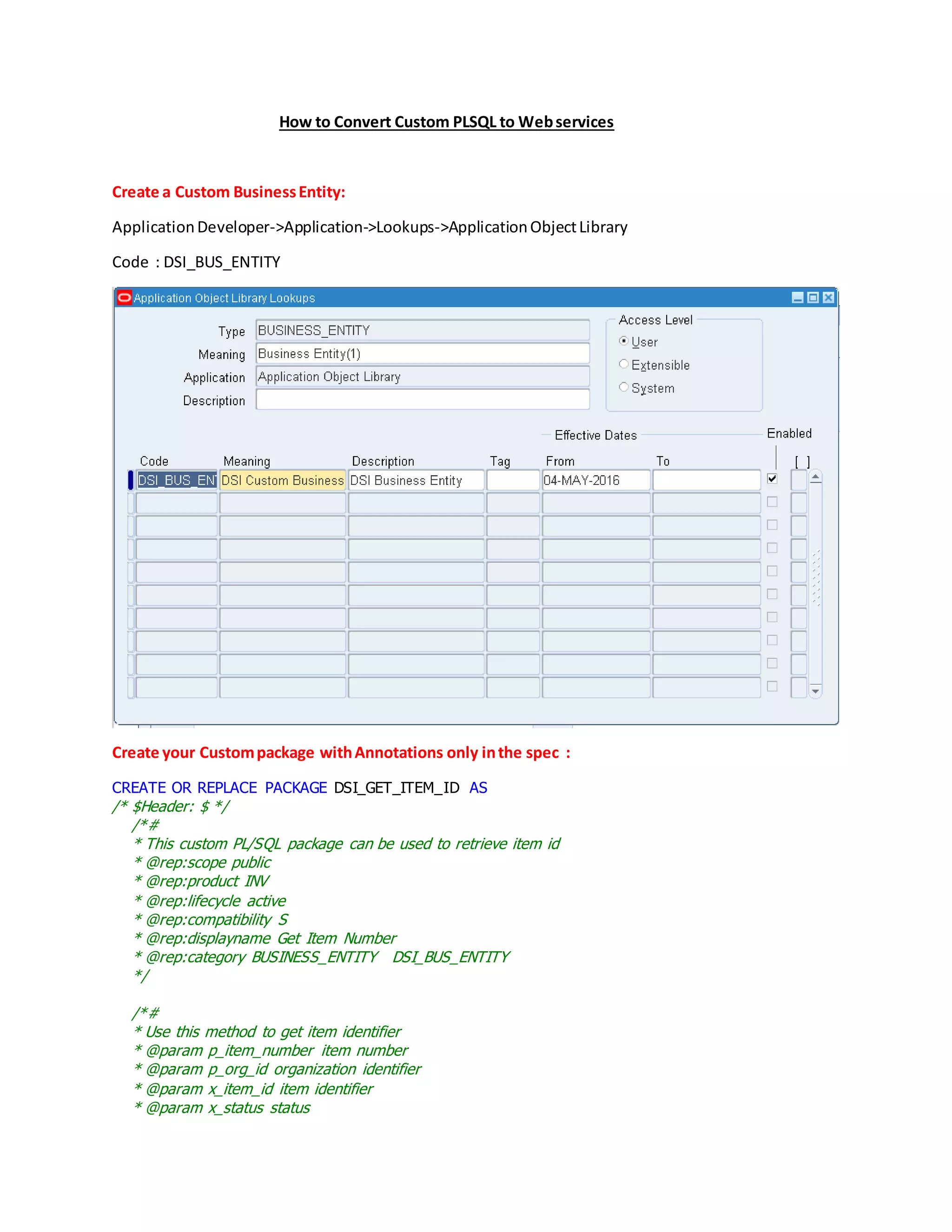

1. How to Convert Custom PLSQL to Webservices
Create a Custom BusinessEntity:
ApplicationDeveloper->Application->Lookups->ApplicationObjectLibrary
Code : DSI_BUS_ENTITY
Create your Custompackage withAnnotations only inthe spec :
CREATE OR REPLACE PACKAGE DSI_GET_ITEM_ID AS
/* $Header: $ */
/*#
* This custom PL/SQL package can be used to retrieve item id
* @rep:scope public
* @rep:product INV
* @rep:lifecycle active
* @rep:compatibility S
* @rep:displayname Get Item Number
* @rep:category BUSINESS_ENTITY DSI_BUS_ENTITY
*/
/*#
* Use this method to get item identifier
* @param p_item_number item number
* @param p_org_id organization identifier
* @param x_item_id item identifier
* @param x_status status

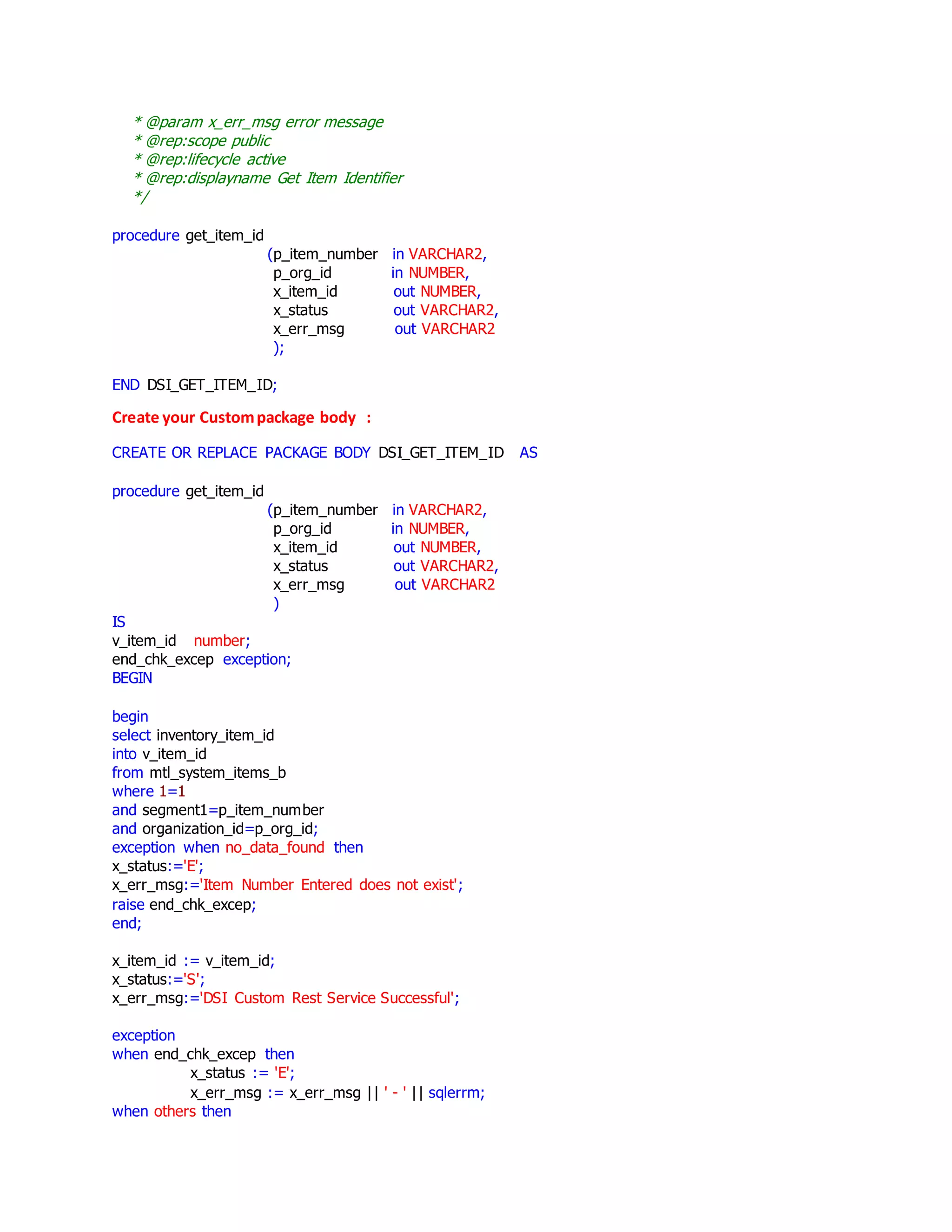

2. * @param x_err_msg error message
* @rep:scope public
* @rep:lifecycle active
* @rep:displayname Get Item Identifier
*/
procedure get_item_id
(p_item_number in VARCHAR2,
p_org_id in NUMBER,
x_item_id out NUMBER,
x_status out VARCHAR2,
x_err_msg out VARCHAR2
);
END DSI_GET_ITEM_ID;
Create your Custompackage body :
CREATE OR REPLACE PACKAGE BODY DSI_GET_ITEM_ID AS
procedure get_item_id
(p_item_number in VARCHAR2,
p_org_id in NUMBER,
x_item_id out NUMBER,
x_status out VARCHAR2,
x_err_msg out VARCHAR2
)
IS
v_item_id number;
end_chk_excep exception;
BEGIN
begin
select inventory_item_id
into v_item_id
from mtl_system_items_b
where 1=1
and segment1=p_item_number
and organization_id=p_org_id;
exception when no_data_found then
x_status:='E';
x_err_msg:='Item Number Entered does not exist';
raise end_chk_excep;
end;
x_item_id := v_item_id;
x_status:='S';
x_err_msg:='DSI Custom Rest Service Successful';
exception
when end_chk_excep then
x_status := 'E';
x_err_msg := x_err_msg || ' - ' || sqlerrm;
when others then

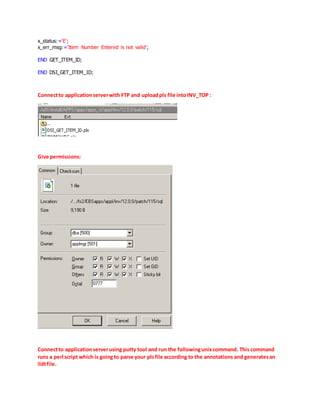

3. x_status:='E';
x_err_msg:='Item Number Entered is not valid';
END GET_ITEM_ID;
END DSI_GET_ITEM_ID;
Connectto applicationserverwith FTP and uploadpls file intoINV_TOP :
Give permissions:
Connectto applicationserverusing putty tool and run the followingunixcommand. This command
runs a perl script which is goingto parse your plsfile according to the annotations and generatesan
ildtfile.

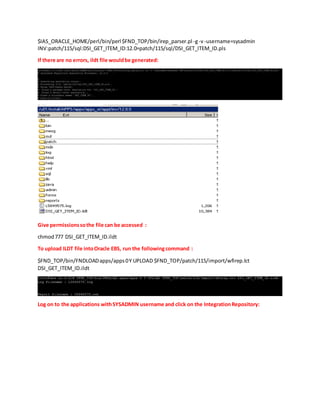

4. $IAS_ORACLE_HOME/perl/bin/perl $FND_TOP/bin/irep_parser.pl -g-v-username=sysadmin
INV:patch/115/sql:DSI_GET_ITEM_ID:12.0=patch/115/sql/DSI_GET_ITEM_ID.pls
If there are no errors, ildt file wouldbe generated:
Give permissionssothe file can be accessed :
chmod777 DSI_GET_ITEM_ID.ildt
To upload ILDT file intoOracle EBS, run the followingcommand :
$FND_TOP/bin/FNDLOADapps/apps0Y UPLOAD $FND_TOP/patch/115/import/wfirep.lct
DSI_GET_ITEM_ID.ildt
Log on to the applications withSYSADMIN username and click on the IntegrationRepository:

5. Navigate to Oracle SupplyChain ManagementFamily->Oracle InventoryManagement:
Clickon DSI Custom Business Entity

6. Clickon the ‘Generate WSDL’button and once the WSDL isgeneratedyou can click on the ‘Create
Grant’ button and give Grants :
You can ‘Deploy’the webservice by clicking the ‘Deploy’button, you can always redeployor un
deploythe service:

7. Before Invokingthe Webservice :
cd $INST_TOP/admin/scripts
adoafmctl.shstop
adoacorectl.shstop
adoafmctl.shstart
adoacorectl.shstart
Clear cache
Use responsibilityFunctional Administratorandgoto Core Services ->CachingFramework ->Global
Configuration ->Clearall cache.
Now to test the web service , you can use tools like SOAPUI :
The url to be passedinto the SOAPUI can be seenin the WSDL File generated : (lookfor soap address
location)
Pass in the parameters correctly :
ResponsibilityKey:INVENTORY_VISION_OPERATIONS
RespApplication : INV
SecurityGroup : STANDARD
NLSLanguage : AMERICAN
Org_Id : 204
For Authentication,enterthe username/passwordin the request propertiesand click on the ‘Green
arrow-Submit Requestto specifiedUrl) buttonon the SOAP UI

9. USING REST WEBSERVICES :
Followsame stepsabove till you log on to the Applications.
Log on to the applications withSYSADMIN username and click on the IntegrationRepository:
Navigate to Oracle SupplyChain ManagementFamily->Oracle InventoryManagement:
Clickon DSI Custom Business
Clickon REST WebService Tab , selectthe methodyou want to POST and click on ‘DEPLOY’ :
Clickon GrantsTab:
SelectGroupof Usersand select‘InventoryVisionOperations(USA)’and thenclick on the WADL link:

10. Copy the link for XSD File and paste in the browser :
Now to test it download‘POST MAN’ a google chrome extensionand the URL wouldbe combination
of linksfrom WADL file above .
URL – RESOURCES BASE + RESOURCE PATH

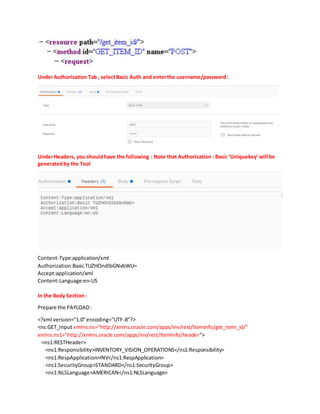

11. UnderAuthorization Tab , selectBasic Auth and enterthe username/password:
UnderHeaders, you shouldhave the following : Note that Authorization : Basic ‘Uniquekey’will be
generatedby the Tool
Content-Type:application/xml
Authorization:BasicTUZHOndlbGNvbWU=
Accept:application/xml
Content-Language:en-US
In the Body Section:
Prepare the PAYLOAD:
<?xml version="1.0"encoding="UTF-8"?>
<ns:GET_Input xmlns:ns="http://xmlns.oracle.com/apps/inv/rest/ItemInfo/get_item_id/"
xmlns:ns1="http://xmlns.oracle.com/apps/inv/rest/ItemInfo/header">
<ns1:RESTHeader>
<ns1:Responsibility>INVENTORY_VISION_OPERATIONS</ns1:Responsibility>
<ns1:RespApplication>INV</ns1:RespApplication>
<ns1:SecurityGroup>STANDARD</ns1:SecurityGroup>
<ns1:NLSLanguage>AMERICAN</ns1:NLSLanguage>

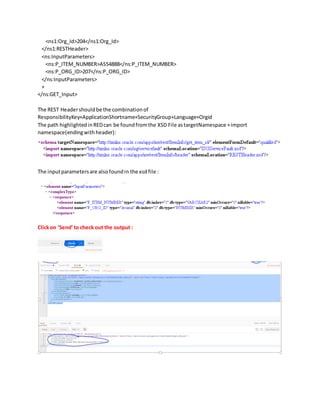

12. <ns1:Org_Id>204</ns1:Org_Id>
</ns1:RESTHeader>
<ns:InputParameters>
<ns:P_ITEM_NUMBER>AS54888</ns:P_ITEM_NUMBER>
<ns:P_ORG_ID>207</ns:P_ORG_ID>
</ns:InputParameters>
+
</ns:GET_Input>
The REST Headershouldbe the combinationof
ResponsibilityKey+ApplicationShortname+SecurityGroup+Language+Orgid
The path highlightedinREDcan be foundfromthe XSD File astargetNamespace +import
namespace(endingwithheader):
The inputparametersare alsofoundin the xsdfile :
Clickon ‘Send’to check out the output :
