This document outlines the steps to create a WebADI integration for uploading master item data in Oracle Applications. It involves: 1. Creating tables and packages to stage and process the data 2. Defining the API interface and mapping fields 3. Creating a template for the WebADI upload sheet 4. Setting lookups and validation for fields 5. Assigning a function to launch the WebADI from a menu The integration will allow master item records to be uploaded via a WebADI spreadsheet, with the data staged and validated before inserting into the target interface table for processing. Lookup codes are set up for fields like organization and template to standardize input.

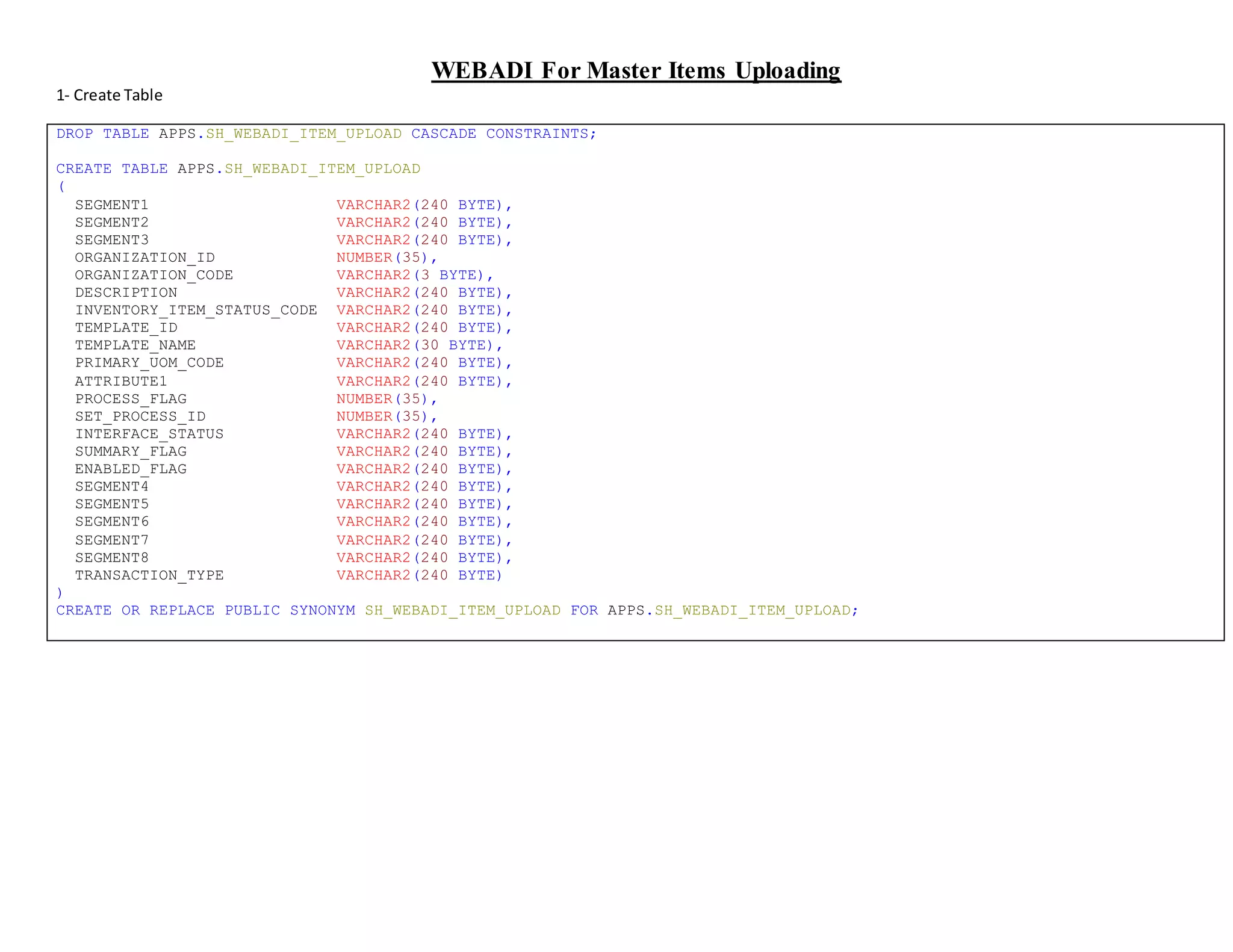

1. WEBADI For Master Items Uploading
1- Create Table
DROP TABLE APPS.SH_WEBADI_ITEM_UPLOAD CASCADE CONSTRAINTS;
CREATE TABLE APPS.SH_WEBADI_ITEM_UPLOAD
(
SEGMENT1 VARCHAR2(240 BYTE),
SEGMENT2 VARCHAR2(240 BYTE),
SEGMENT3 VARCHAR2(240 BYTE),
ORGANIZATION_ID NUMBER(35),
ORGANIZATION_CODE VARCHAR2(3 BYTE),
DESCRIPTION VARCHAR2(240 BYTE),
INVENTORY_ITEM_STATUS_CODE VARCHAR2(240 BYTE),
TEMPLATE_ID VARCHAR2(240 BYTE),
TEMPLATE_NAME VARCHAR2(30 BYTE),
PRIMARY_UOM_CODE VARCHAR2(240 BYTE),
ATTRIBUTE1 VARCHAR2(240 BYTE),
PROCESS_FLAG NUMBER(35),
SET_PROCESS_ID NUMBER(35),
INTERFACE_STATUS VARCHAR2(240 BYTE),
SUMMARY_FLAG VARCHAR2(240 BYTE),
ENABLED_FLAG VARCHAR2(240 BYTE),
SEGMENT4 VARCHAR2(240 BYTE),
SEGMENT5 VARCHAR2(240 BYTE),
SEGMENT6 VARCHAR2(240 BYTE),
SEGMENT7 VARCHAR2(240 BYTE),
SEGMENT8 VARCHAR2(240 BYTE),
TRANSACTION_TYPE VARCHAR2(240 BYTE)
)
CREATE OR REPLACE PUBLIC SYNONYM SH_WEBADI_ITEM_UPLOAD FOR APPS.SH_WEBADI_ITEM_UPLOAD;

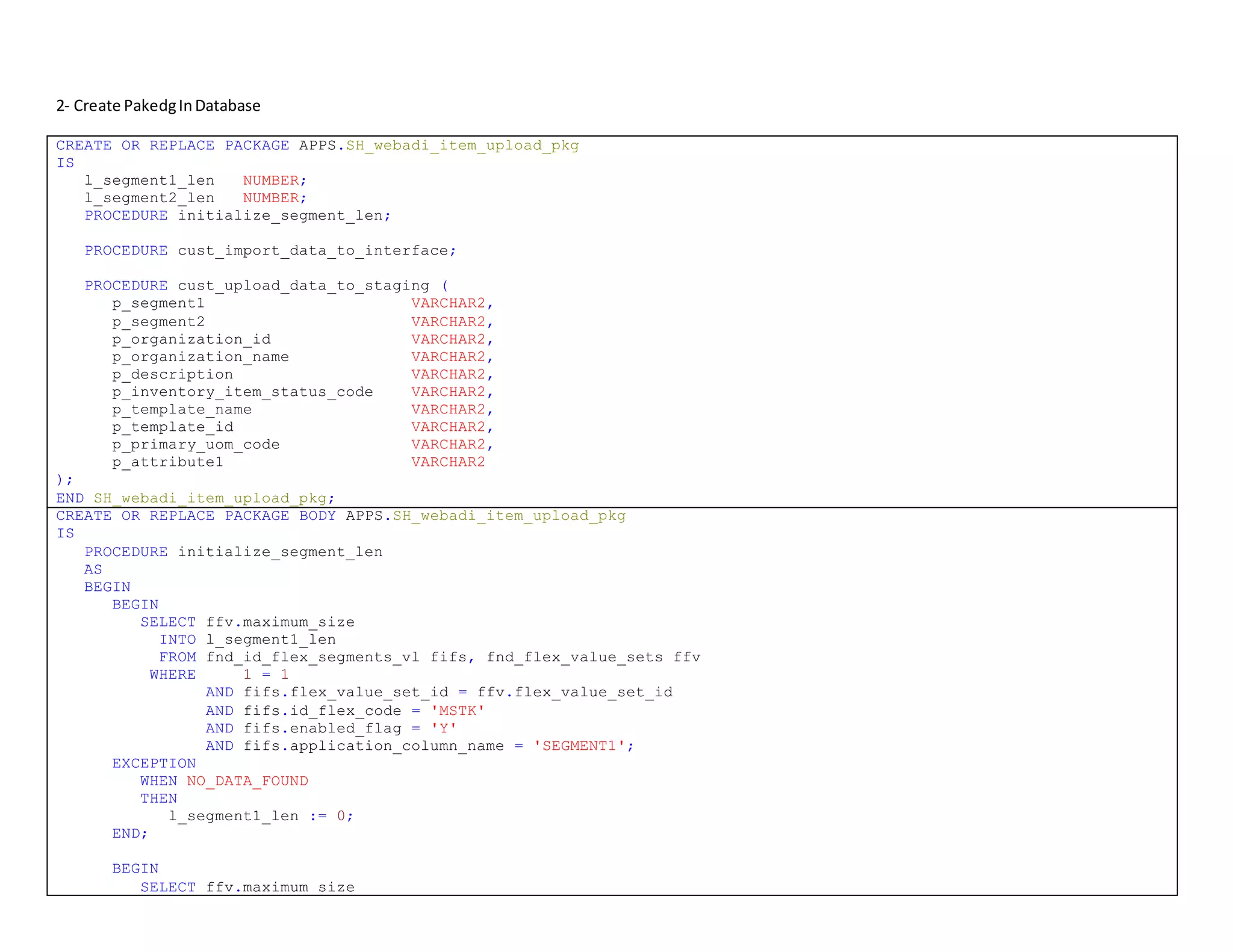

2. 2- Create PakedgInDatabase
CREATE OR REPLACE PACKAGE APPS.SH_webadi_item_upload_pkg
IS
l_segment1_len NUMBER;
l_segment2_len NUMBER;
PROCEDURE initialize_segment_len;
PROCEDURE cust_import_data_to_interface;
PROCEDURE cust_upload_data_to_staging (
p_segment1 VARCHAR2,
p_segment2 VARCHAR2,
p_organization_id VARCHAR2,
p_organization_name VARCHAR2,
p_description VARCHAR2,
p_inventory_item_status_code VARCHAR2,
p_template_name VARCHAR2,
p_template_id VARCHAR2,
p_primary_uom_code VARCHAR2,
p_attribute1 VARCHAR2
);
END SH_webadi_item_upload_pkg;
CREATE OR REPLACE PACKAGE BODY APPS.SH_webadi_item_upload_pkg
IS
PROCEDURE initialize_segment_len
AS
BEGIN
BEGIN
SELECT ffv.maximum_size
INTO l_segment1_len
FROM fnd_id_flex_segments_vl fifs, fnd_flex_value_sets ffv
WHERE 1 = 1
AND fifs.flex_value_set_id = ffv.flex_value_set_id
AND fifs.id_flex_code = 'MSTK'
AND fifs.enabled_flag = 'Y'
AND fifs.application_column_name = 'SEGMENT1';
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_segment1_len := 0;
END;
BEGIN
SELECT ffv.maximum_size

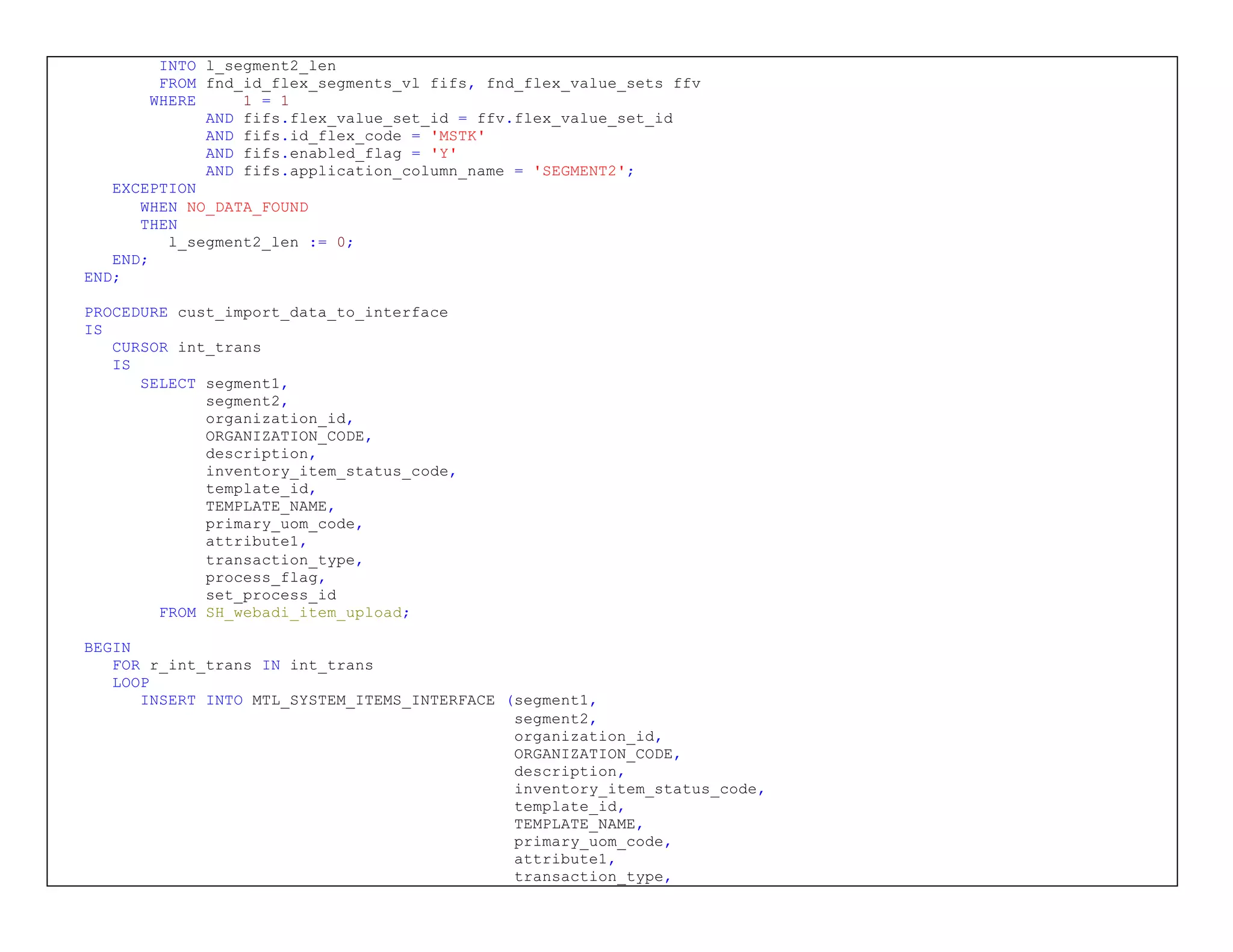

3. INTO l_segment2_len
FROM fnd_id_flex_segments_vl fifs, fnd_flex_value_sets ffv
WHERE 1 = 1
AND fifs.flex_value_set_id = ffv.flex_value_set_id
AND fifs.id_flex_code = 'MSTK'
AND fifs.enabled_flag = 'Y'
AND fifs.application_column_name = 'SEGMENT2';
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_segment2_len := 0;
END;
END;
PROCEDURE cust_import_data_to_interface
IS
CURSOR int_trans
IS
SELECT segment1,
segment2,
organization_id,
ORGANIZATION_CODE,
description,
inventory_item_status_code,
template_id,
TEMPLATE_NAME,
primary_uom_code,
attribute1,
transaction_type,
process_flag,
set_process_id
FROM SH_webadi_item_upload;
BEGIN
FOR r_int_trans IN int_trans
LOOP
INSERT INTO MTL_SYSTEM_ITEMS_INTERFACE (segment1,
segment2,
organization_id,
ORGANIZATION_CODE,
description,
inventory_item_status_code,
template_id,
TEMPLATE_NAME,
primary_uom_code,
attribute1,
transaction_type,

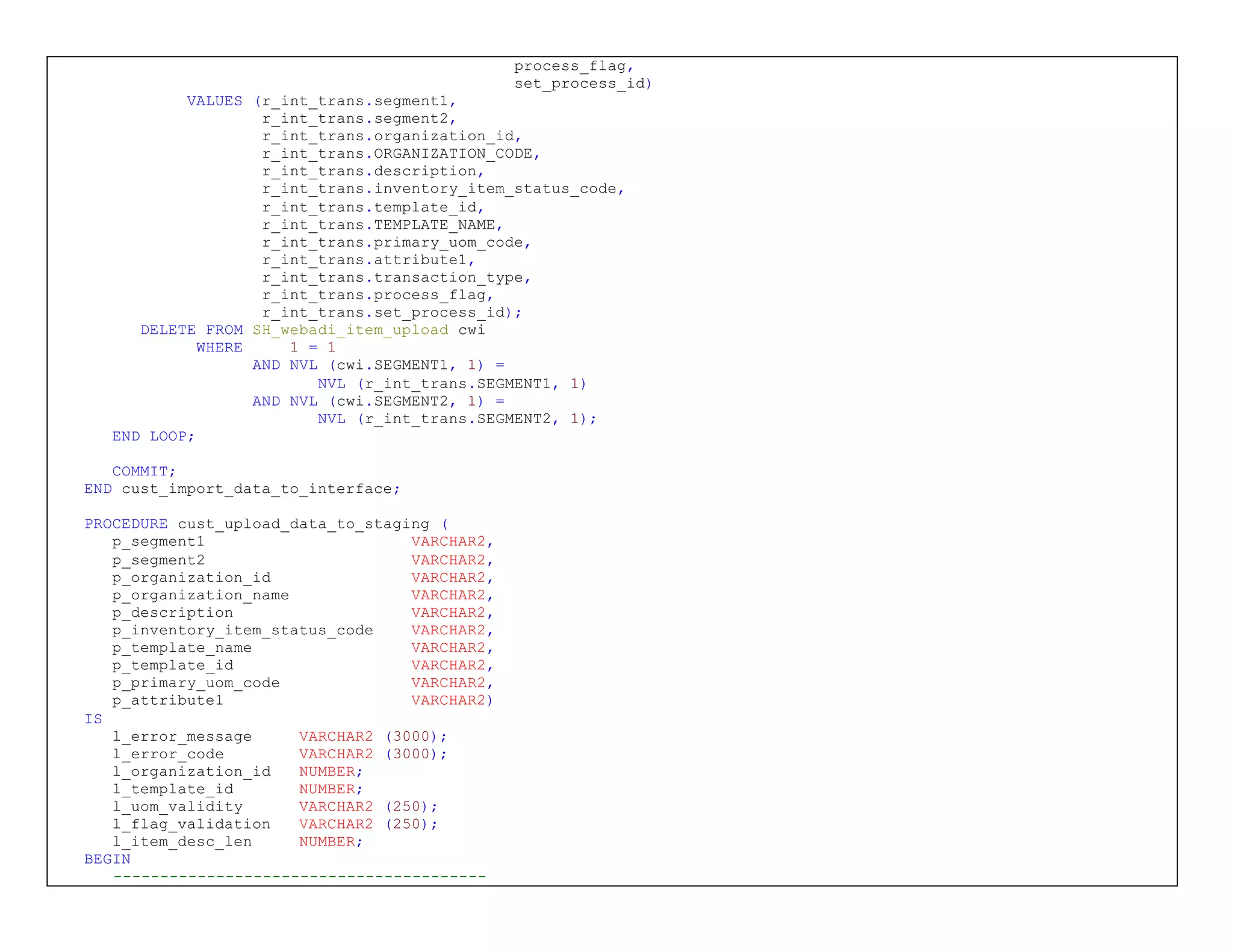

4. process_flag,
set_process_id)
VALUES (r_int_trans.segment1,
r_int_trans.segment2,
r_int_trans.organization_id,
r_int_trans.ORGANIZATION_CODE,
r_int_trans.description,
r_int_trans.inventory_item_status_code,
r_int_trans.template_id,
r_int_trans.TEMPLATE_NAME,
r_int_trans.primary_uom_code,
r_int_trans.attribute1,
r_int_trans.transaction_type,
r_int_trans.process_flag,
r_int_trans.set_process_id);
DELETE FROM SH_webadi_item_upload cwi
WHERE 1 = 1
AND NVL (cwi.SEGMENT1, 1) =
NVL (r_int_trans.SEGMENT1, 1)
AND NVL (cwi.SEGMENT2, 1) =
NVL (r_int_trans.SEGMENT2, 1);
END LOOP;
COMMIT;
END cust_import_data_to_interface;
PROCEDURE cust_upload_data_to_staging (
p_segment1 VARCHAR2,
p_segment2 VARCHAR2,
p_organization_id VARCHAR2,
p_organization_name VARCHAR2,
p_description VARCHAR2,
p_inventory_item_status_code VARCHAR2,
p_template_name VARCHAR2,
p_template_id VARCHAR2,
p_primary_uom_code VARCHAR2,
p_attribute1 VARCHAR2)
IS
l_error_message VARCHAR2 (3000);
l_error_code VARCHAR2 (3000);
l_organization_id NUMBER;
l_template_id NUMBER;
l_uom_validity VARCHAR2 (250);
l_flag_validation VARCHAR2 (250);
l_item_desc_len NUMBER;
BEGIN
----------------------------------------

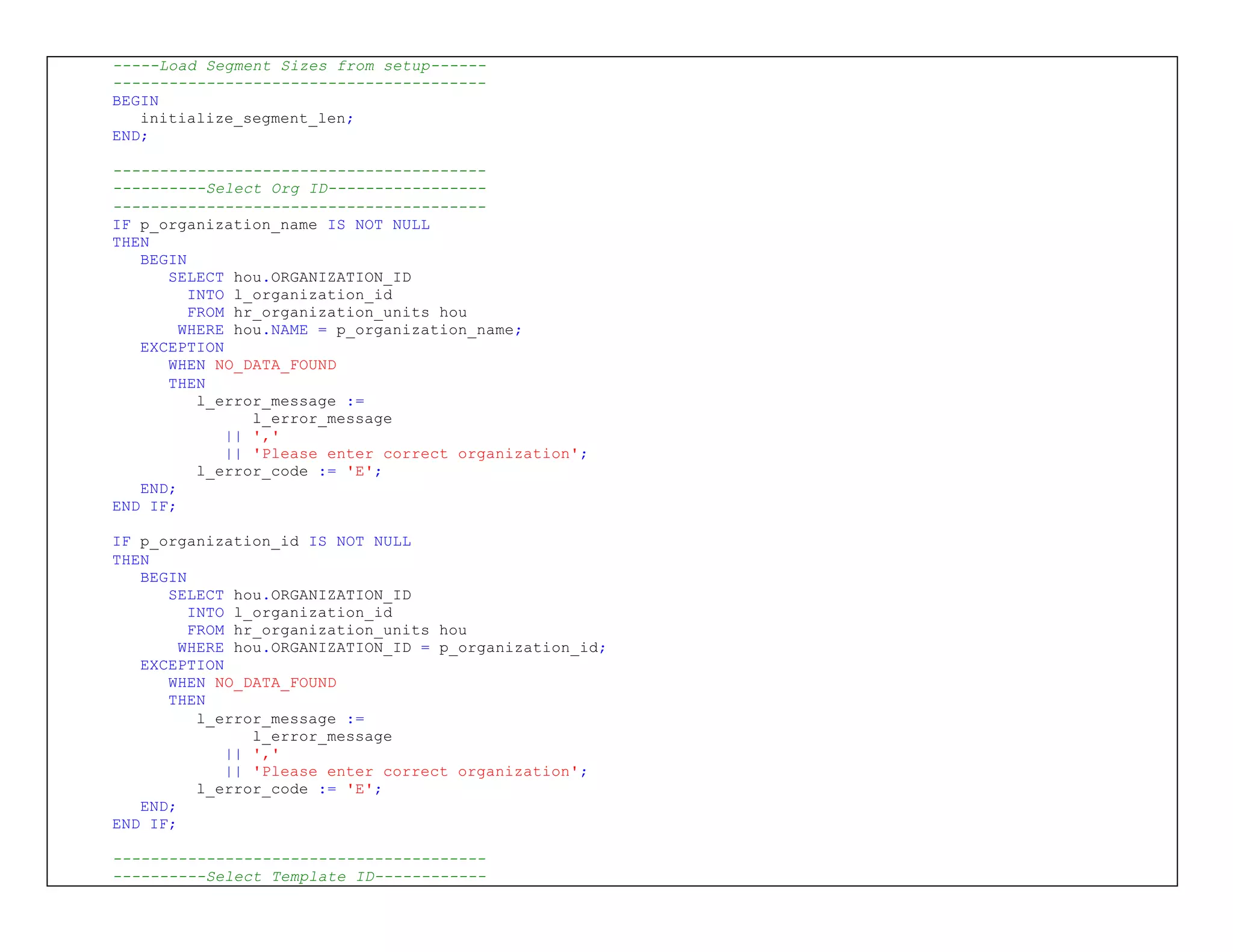

5. -----Load Segment Sizes from setup------
----------------------------------------
BEGIN
initialize_segment_len;
END;
----------------------------------------
----------Select Org ID-----------------
----------------------------------------
IF p_organization_name IS NOT NULL
THEN
BEGIN
SELECT hou.ORGANIZATION_ID
INTO l_organization_id
FROM hr_organization_units hou
WHERE hou.NAME = p_organization_name;
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_error_message :=
l_error_message
|| ','
|| 'Please enter correct organization';
l_error_code := 'E';
END;
END IF;
IF p_organization_id IS NOT NULL
THEN
BEGIN
SELECT hou.ORGANIZATION_ID
INTO l_organization_id
FROM hr_organization_units hou
WHERE hou.ORGANIZATION_ID = p_organization_id;
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_error_message :=
l_error_message
|| ','
|| 'Please enter correct organization';
l_error_code := 'E';
END;
END IF;
----------------------------------------

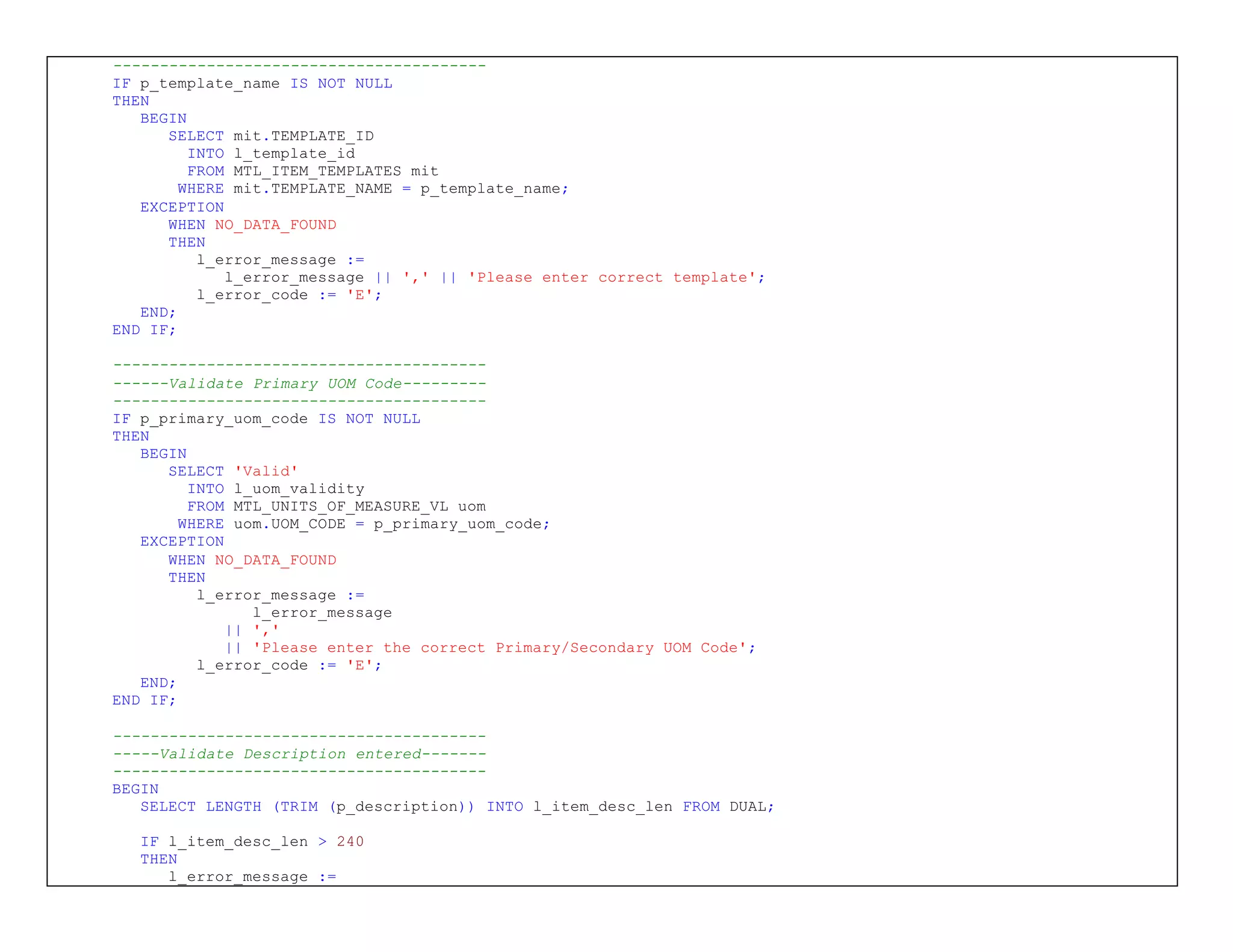

----------Select Template ID------------

6. ----------------------------------------
IF p_template_name IS NOT NULL
THEN
BEGIN
SELECT mit.TEMPLATE_ID
INTO l_template_id
FROM MTL_ITEM_TEMPLATES mit
WHERE mit.TEMPLATE_NAME = p_template_name;
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_error_message :=
l_error_message || ',' || 'Please enter correct template';
l_error_code := 'E';
END;
END IF;
----------------------------------------
------Validate Primary UOM Code---------
----------------------------------------
IF p_primary_uom_code IS NOT NULL
THEN
BEGIN
SELECT 'Valid'
INTO l_uom_validity
FROM MTL_UNITS_OF_MEASURE_VL uom
WHERE uom.UOM_CODE = p_primary_uom_code;
EXCEPTION
WHEN NO_DATA_FOUND
THEN
l_error_message :=
l_error_message
|| ','
|| 'Please enter the correct Primary/Secondary UOM Code';
l_error_code := 'E';
END;
END IF;
----------------------------------------
-----Validate Description entered-------
----------------------------------------
BEGIN
SELECT LENGTH (TRIM (p_description)) INTO l_item_desc_len FROM DUAL;
IF l_item_desc_len > 240
THEN

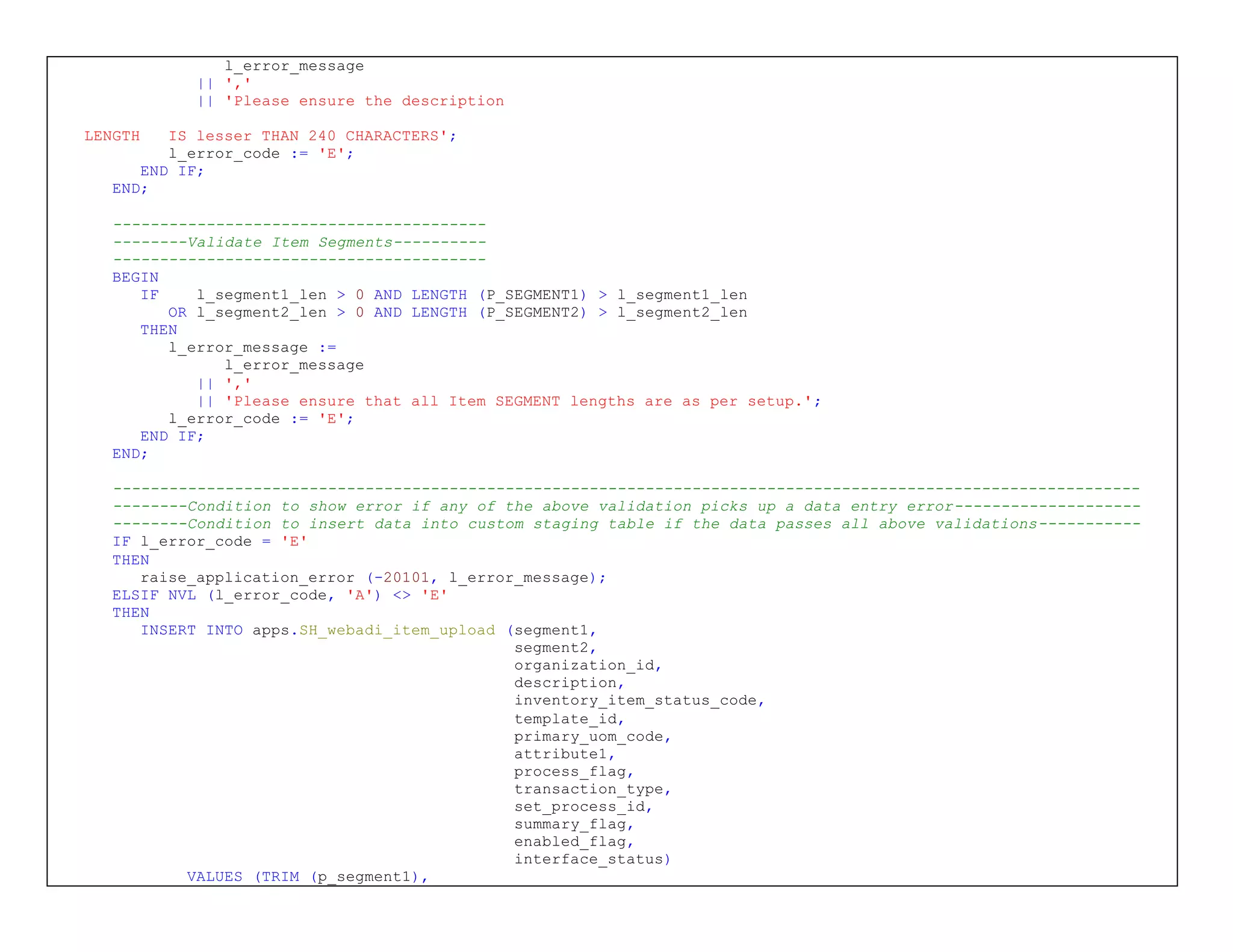

l_error_message :=

7. l_error_message
|| ','
|| 'Please ensure the description
LENGTH IS lesser THAN 240 CHARACTERS';
l_error_code := 'E';
END IF;
END;
----------------------------------------
--------Validate Item Segments----------
----------------------------------------
BEGIN
IF l_segment1_len > 0 AND LENGTH (P_SEGMENT1) > l_segment1_len
OR l_segment2_len > 0 AND LENGTH (P_SEGMENT2) > l_segment2_len
THEN
l_error_message :=
l_error_message
|| ','
|| 'Please ensure that all Item SEGMENT lengths are as per setup.';
l_error_code := 'E';
END IF;
END;
--------------------------------------------------------------------------------------------------------------
--------Condition to show error if any of the above validation picks up a data entry error--------------------
--------Condition to insert data into custom staging table if the data passes all above validations-----------
IF l_error_code = 'E'
THEN
raise_application_error (-20101, l_error_message);
ELSIF NVL (l_error_code, 'A') <> 'E'
THEN
INSERT INTO apps.SH_webadi_item_upload (segment1,
segment2,
organization_id,
description,
inventory_item_status_code,
template_id,
primary_uom_code,
attribute1,
process_flag,
transaction_type,
set_process_id,
summary_flag,
enabled_flag,
interface_status)
VALUES (TRIM (p_segment1),

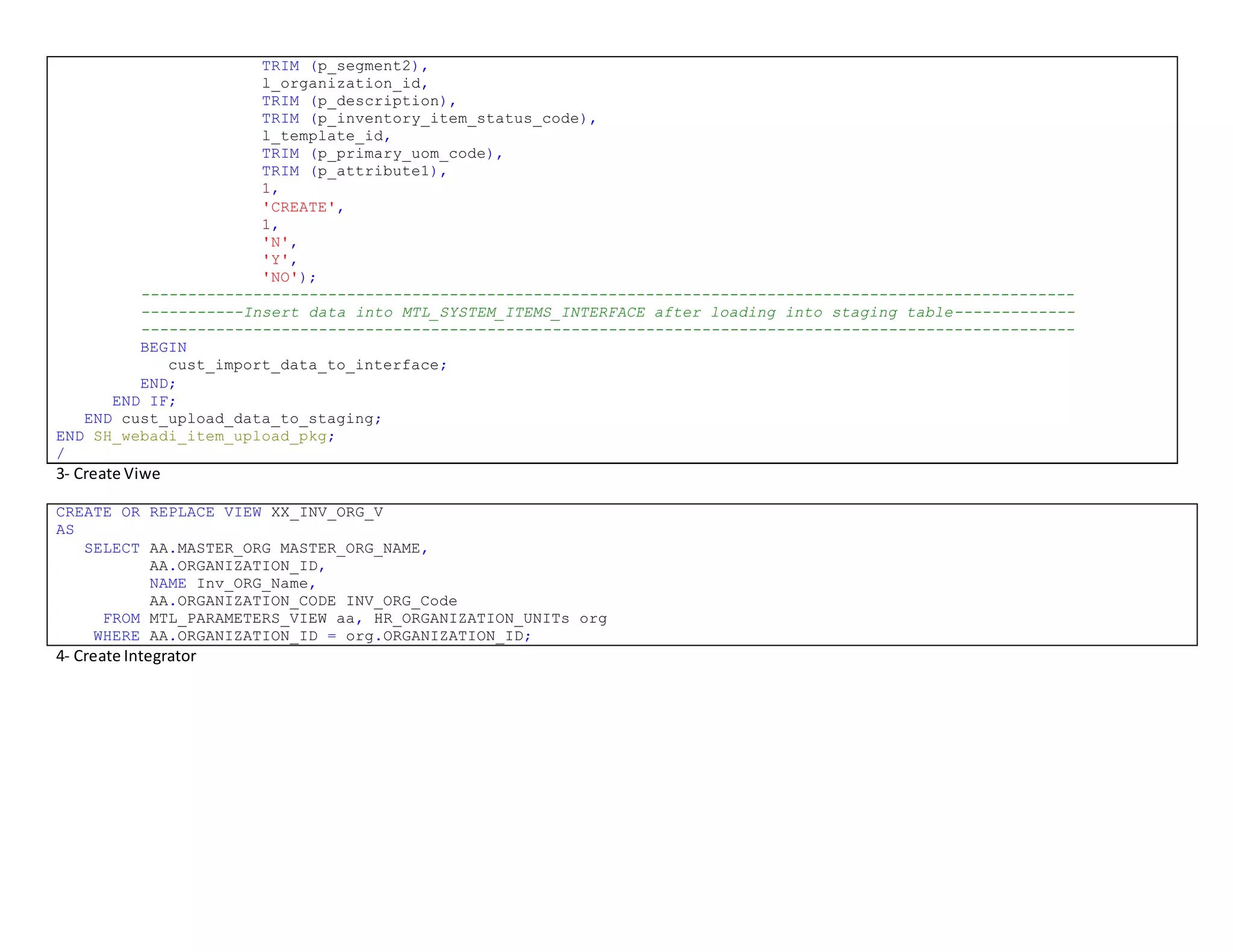

8. TRIM (p_segment2),
l_organization_id,
TRIM (p_description),
TRIM (p_inventory_item_status_code),
l_template_id,
TRIM (p_primary_uom_code),
TRIM (p_attribute1),
1,
'CREATE',
1,
'N',
'Y',
'NO');
----------------------------------------------------------------------------------------------------
-----------Insert data into MTL_SYSTEM_ITEMS_INTERFACE after loading into staging table-------------
----------------------------------------------------------------------------------------------------
BEGIN
cust_import_data_to_interface;
END;
END IF;
END cust_upload_data_to_staging;
END SH_webadi_item_upload_pkg;
/
3- Create Viwe
CREATE OR REPLACE VIEW XX_INV_ORG_V
AS
SELECT AA.MASTER_ORG MASTER_ORG_NAME,
AA.ORGANIZATION_ID,
NAME Inv_ORG_Name,
AA.ORGANIZATION_CODE INV_ORG_Code
FROM MTL_PARAMETERS_VIEW aa, HR_ORGANIZATION_UNITs org
WHERE AA.ORGANIZATION_ID = org.ORGANIZATION_ID;
4- Create Integrator

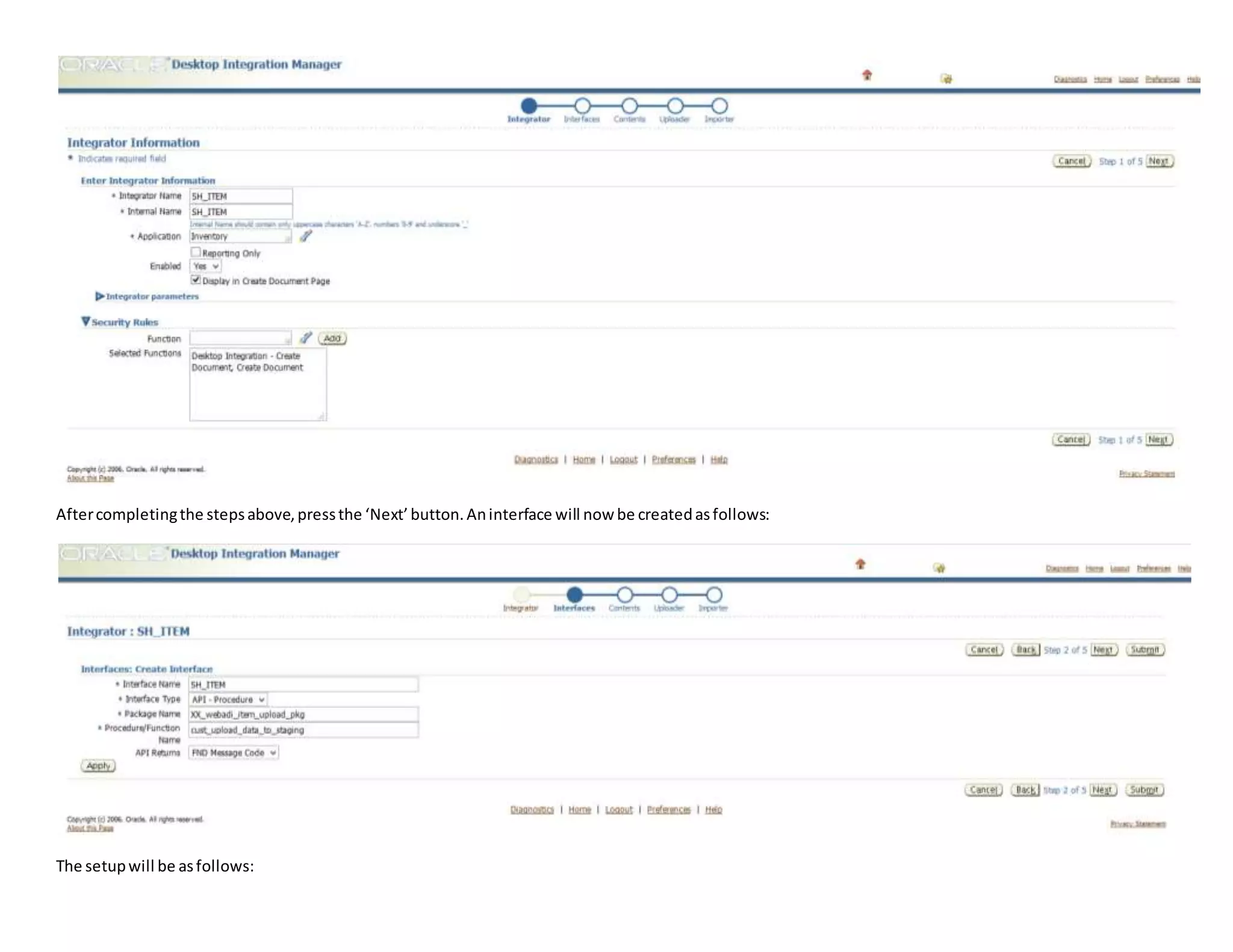

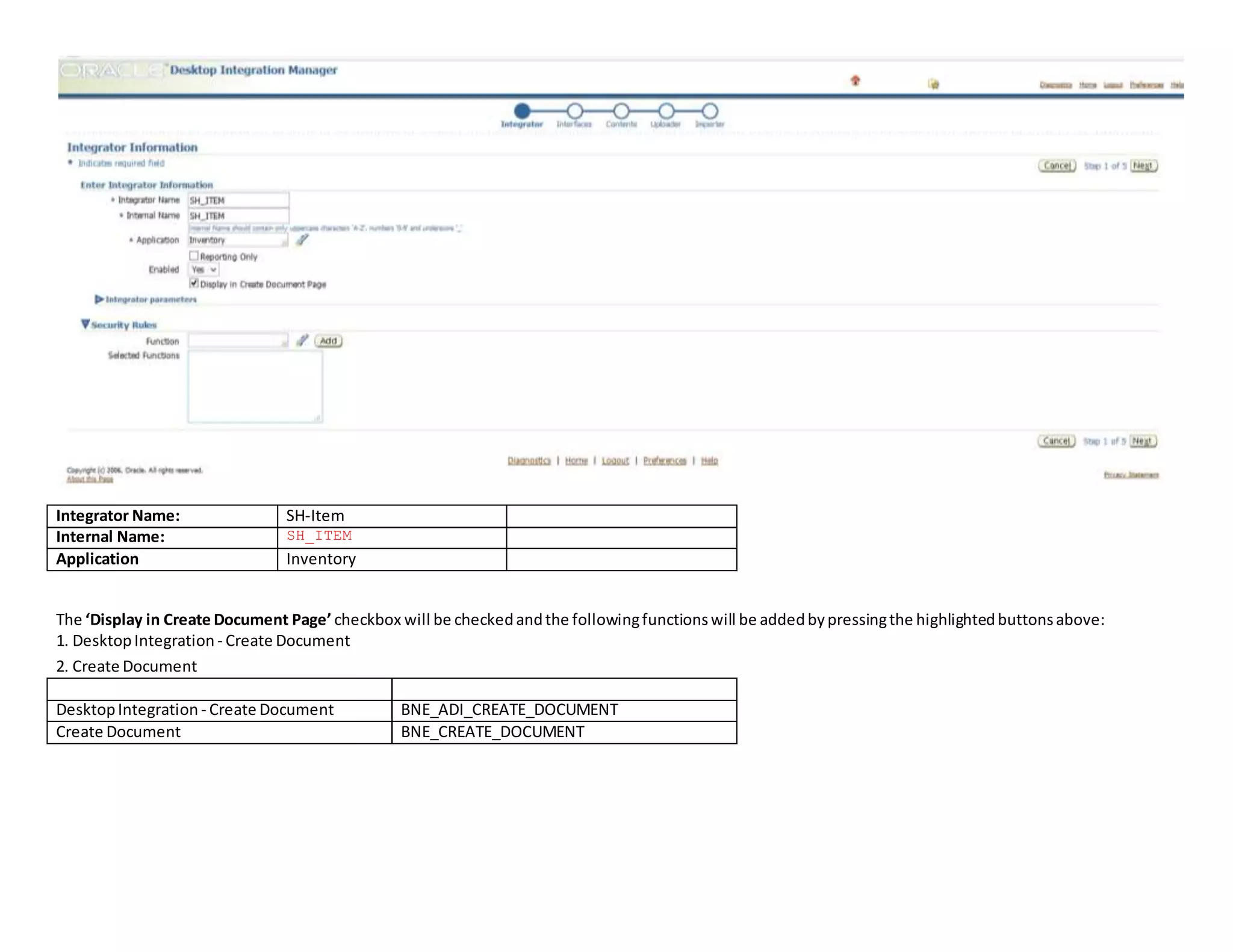

9. Integrator Name: SH-Item
Internal Name: SH_ITEM
Application Inventory
The ‘Display in Create Document Page’ checkbox will be checkedandthe followingfunctionswill be addedbypressingthe highlightedbuttonsabove:
1. DesktopIntegration - Create Document
2. Create Document
DesktopIntegration - Create Document BNE_ADI_CREATE_DOCUMENT
Create Document BNE_CREATE_DOCUMENT

10. Aftercompletingthe stepsabove,pressthe ‘Next’button.Aninterface will nowbe createdasfollows:
The setupwill be asfollows:

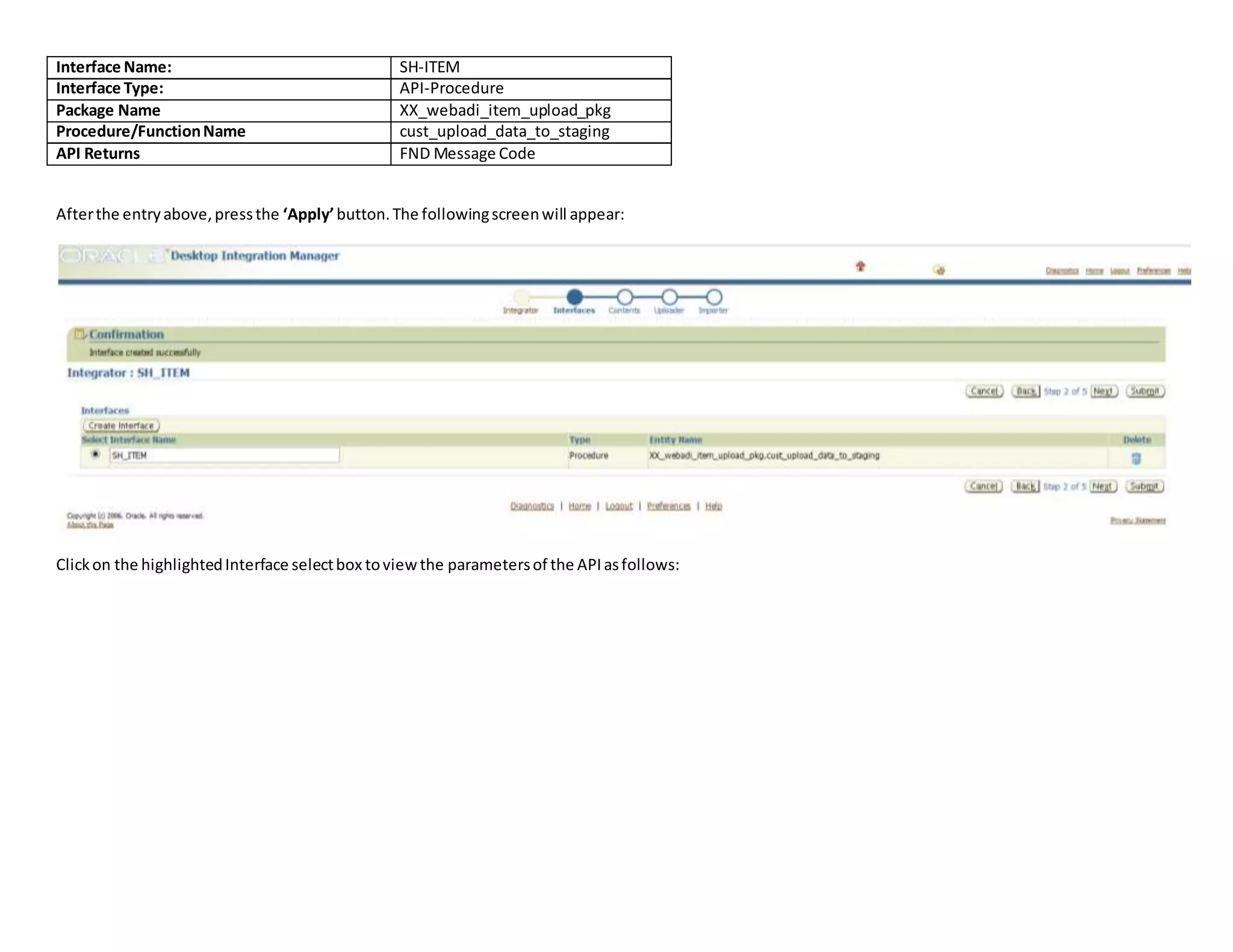

11. Interface Name: SH-ITEM
Interface Type: API-Procedure
Package Name XX_webadi_item_upload_pkg
Procedure/FunctionName cust_upload_data_to_staging
API Returns FND Message Code
Afterthe entryabove,pressthe ‘Apply’button.The followingscreenwill appear:

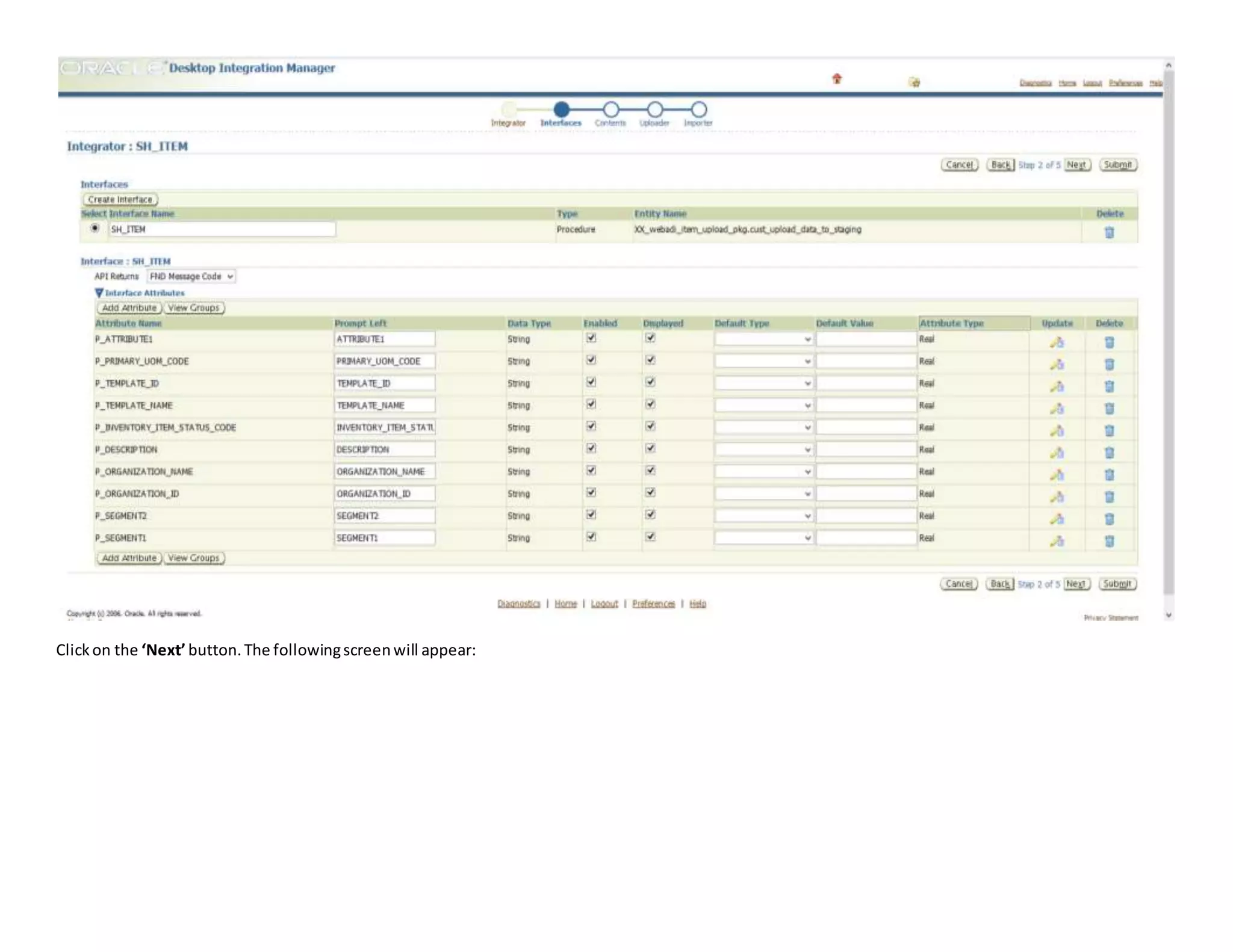

Clickon the highlightedInterface selectbox toviewthe parametersof the APIasfollows:

12. Clickon the ‘Next’button.The followingscreenwill appear:

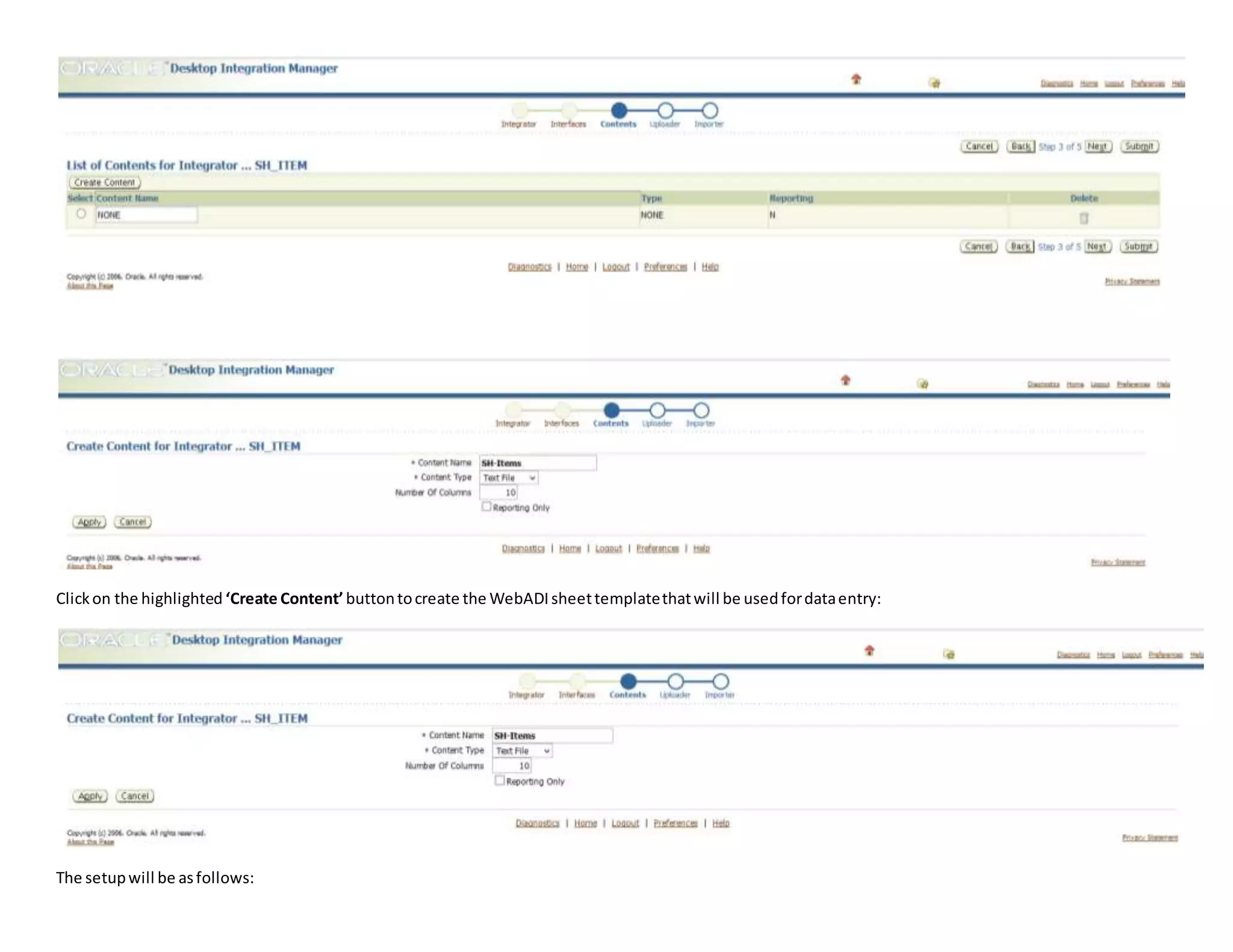

13. Clickon the highlighted ‘Create Content’ buttontocreate the WebADIsheettemplatethatwill be usedfordataentry:
The setupwill be asfollows:

14. ContentName: SH-Items
ContentType: TextFile
Numberof Columns 10
Clickon the ‘Apply’button.
The contentwill be createdas follows:

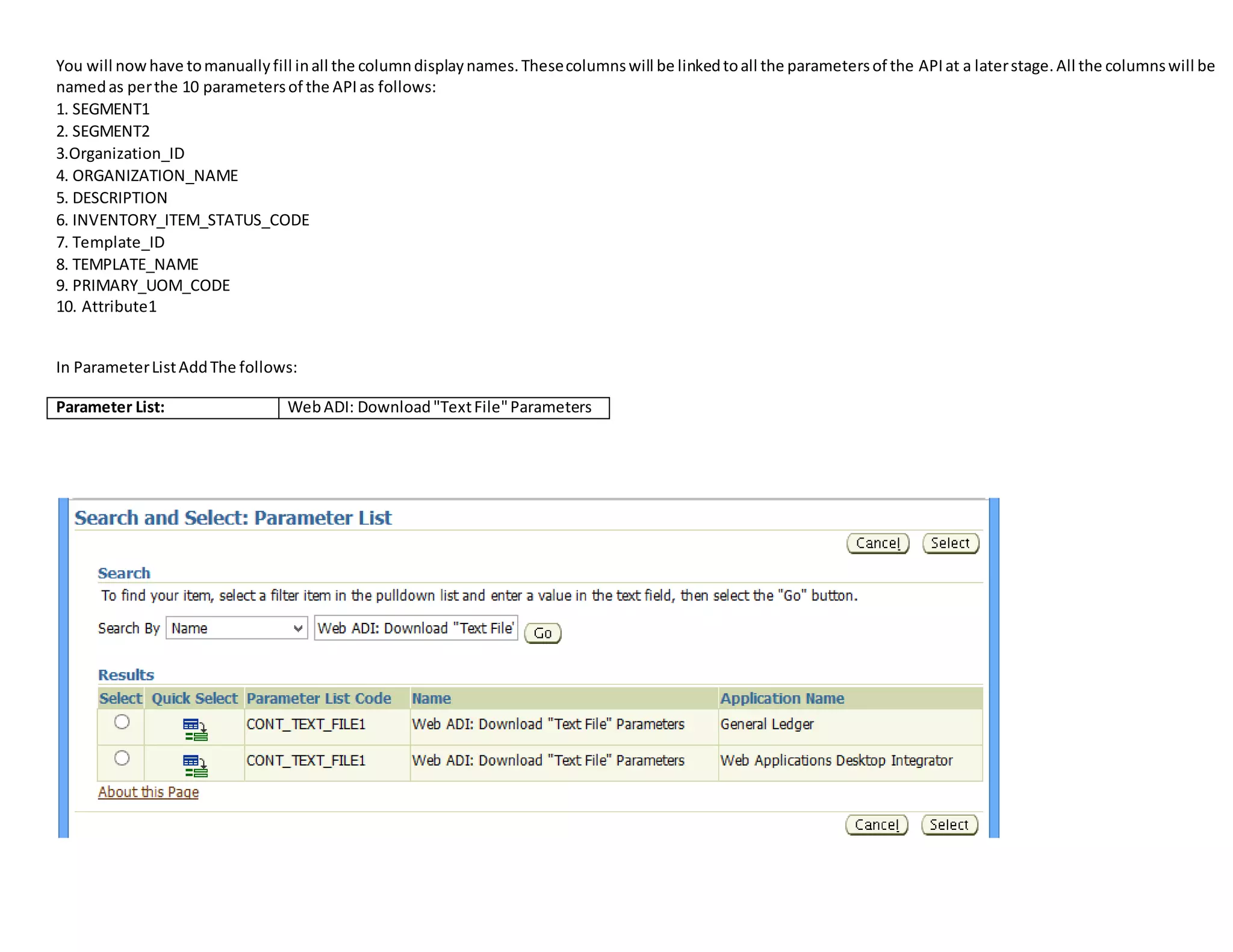

15. You will nowhave tomanuallyfill inall the columndisplaynames.Thesecolumnswill be linkedtoall the parametersof the APIat a laterstage.All the columnswill be
namedas perthe 10 parametersof the APIas follows:
1. SEGMENT1
2. SEGMENT2
3.Organization_ID
4. ORGANIZATION_NAME
5. DESCRIPTION
6. INVENTORY_ITEM_STATUS_CODE
7. Template_ID
8. TEMPLATE_NAME
9. PRIMARY_UOM_CODE
10. Attribute1
In ParameterListAddThe follows:
Parameter List: WebADI: Download"TextFile"Parameters

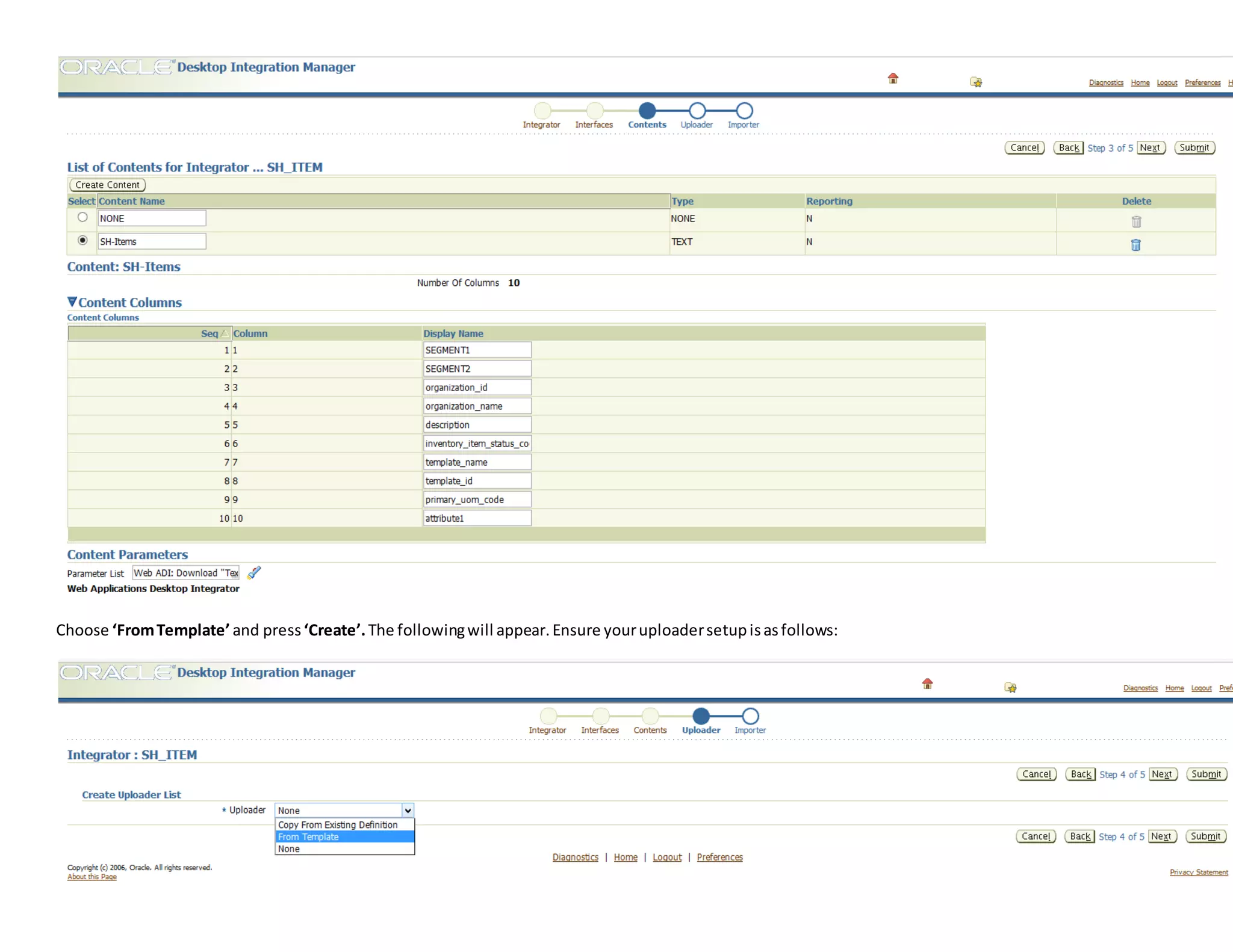

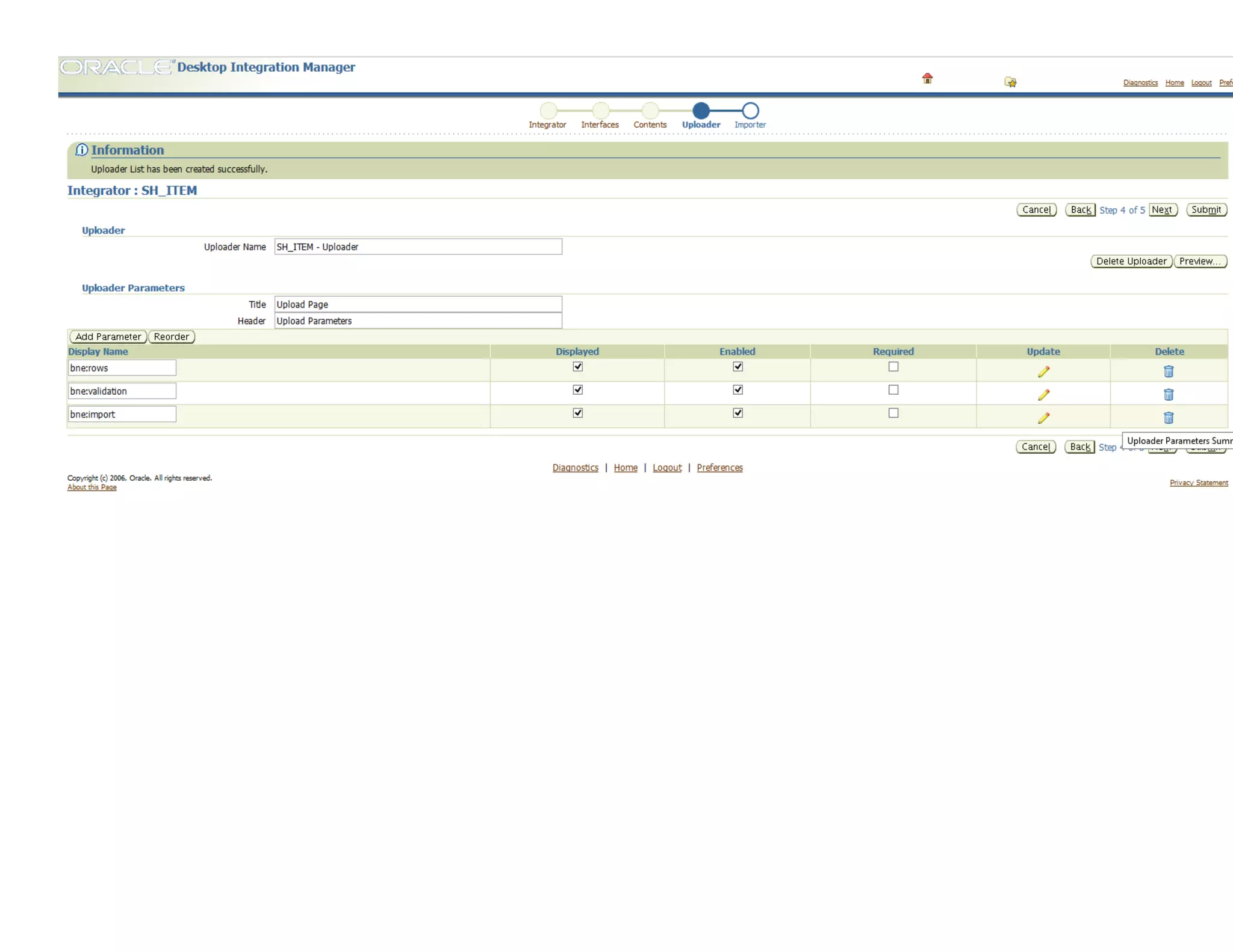

16. Choose ‘FromTemplate’ and press‘Create’.The followingwill appear.Ensure youruploadersetupisasfollows:

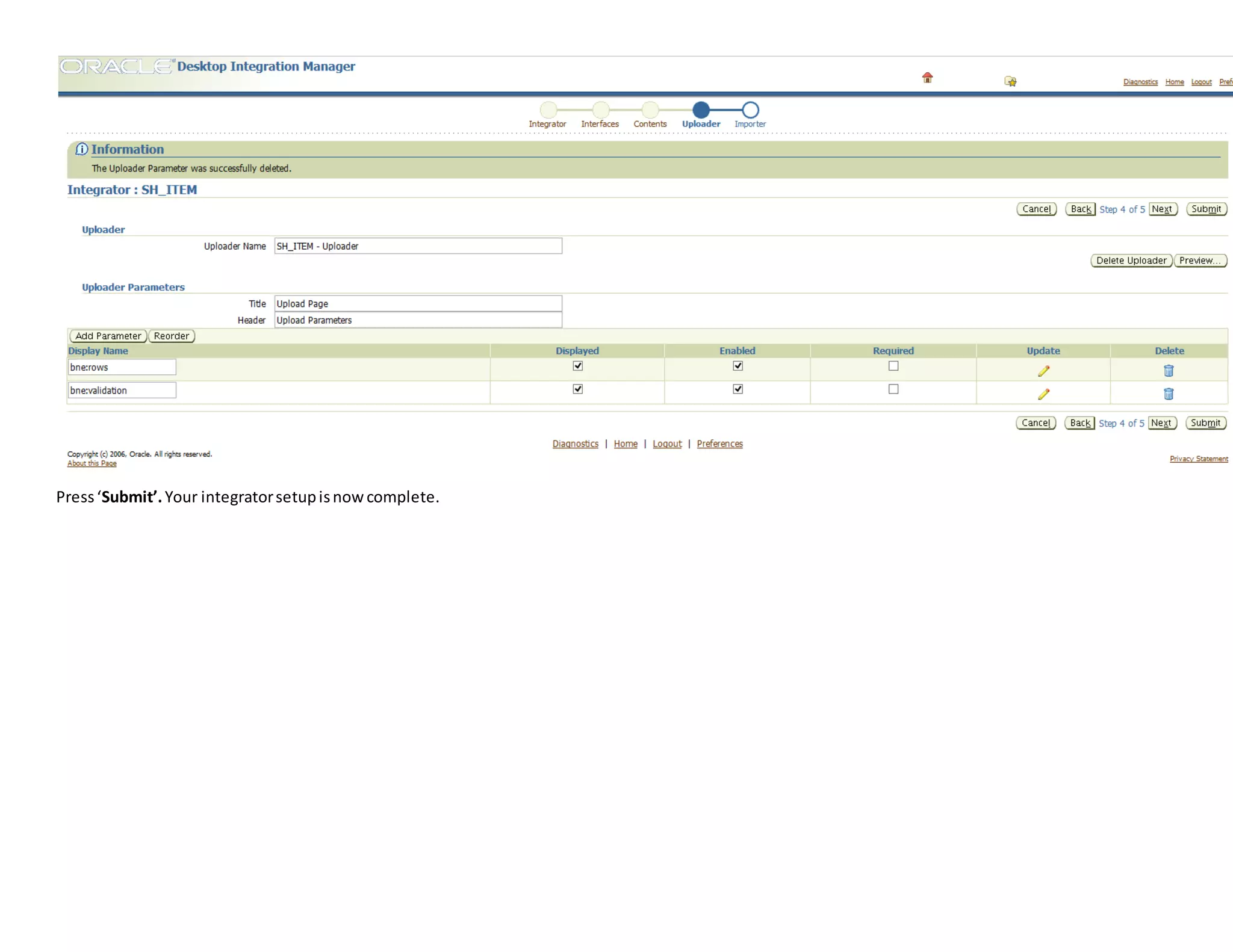

18. Press‘Submit’.Your integratorsetupisnowcomplete.

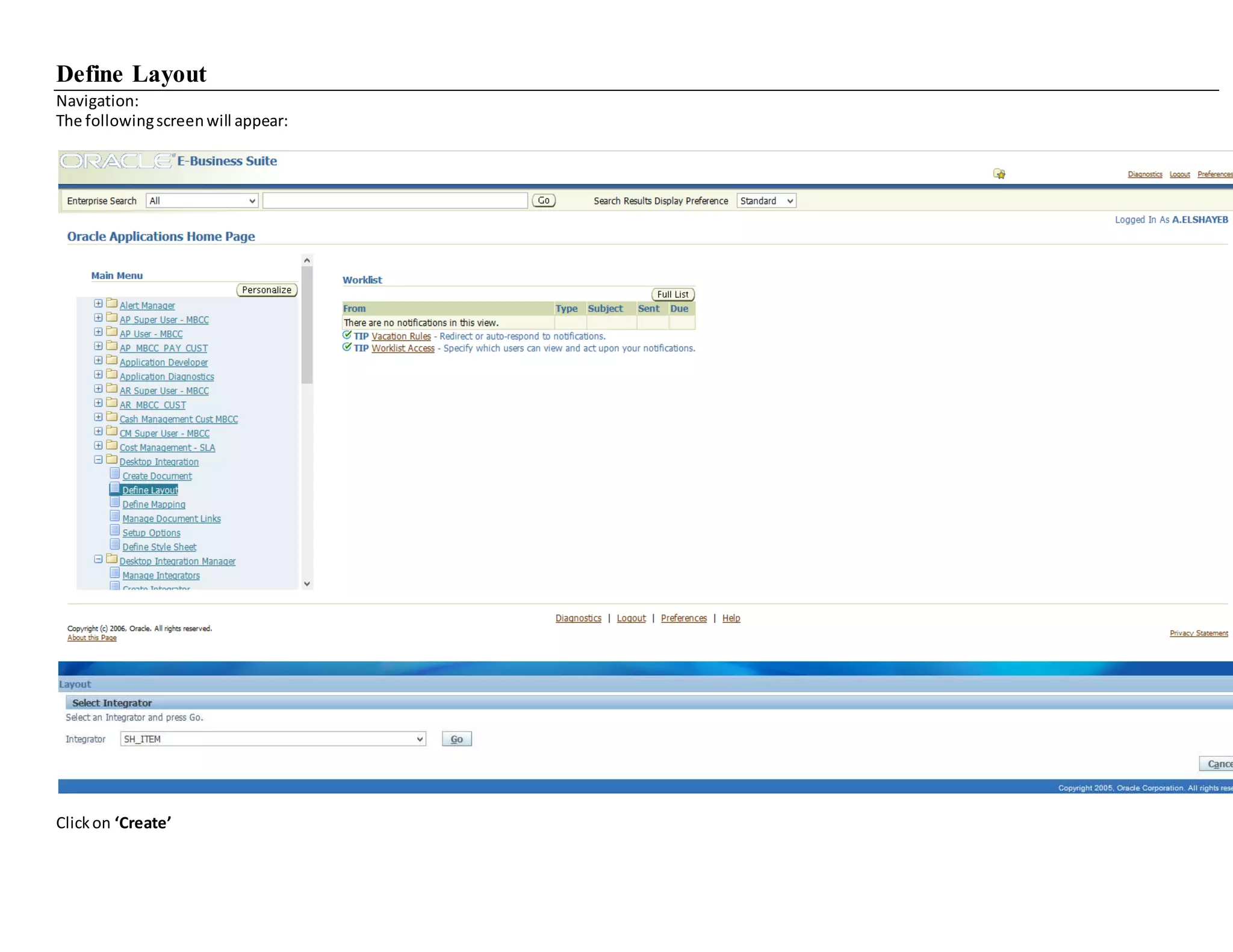

19. Define Layout
Navigation:
The followingscreenwill appear:
Clickon ‘Create’

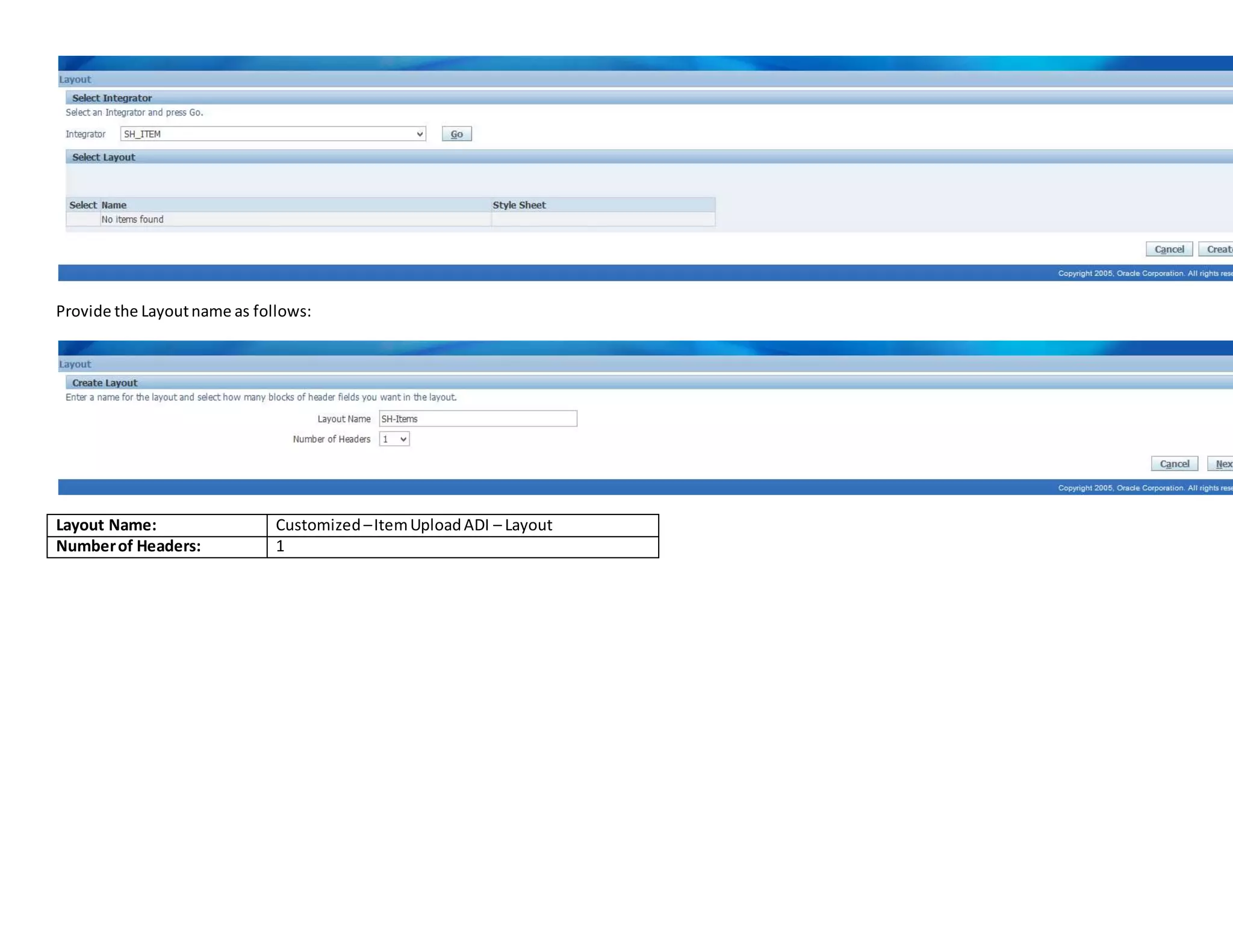

20. Provide the Layoutname as follows:
Layout Name: Customized –ItemUploadADI – Layout
Numberof Headers: 1

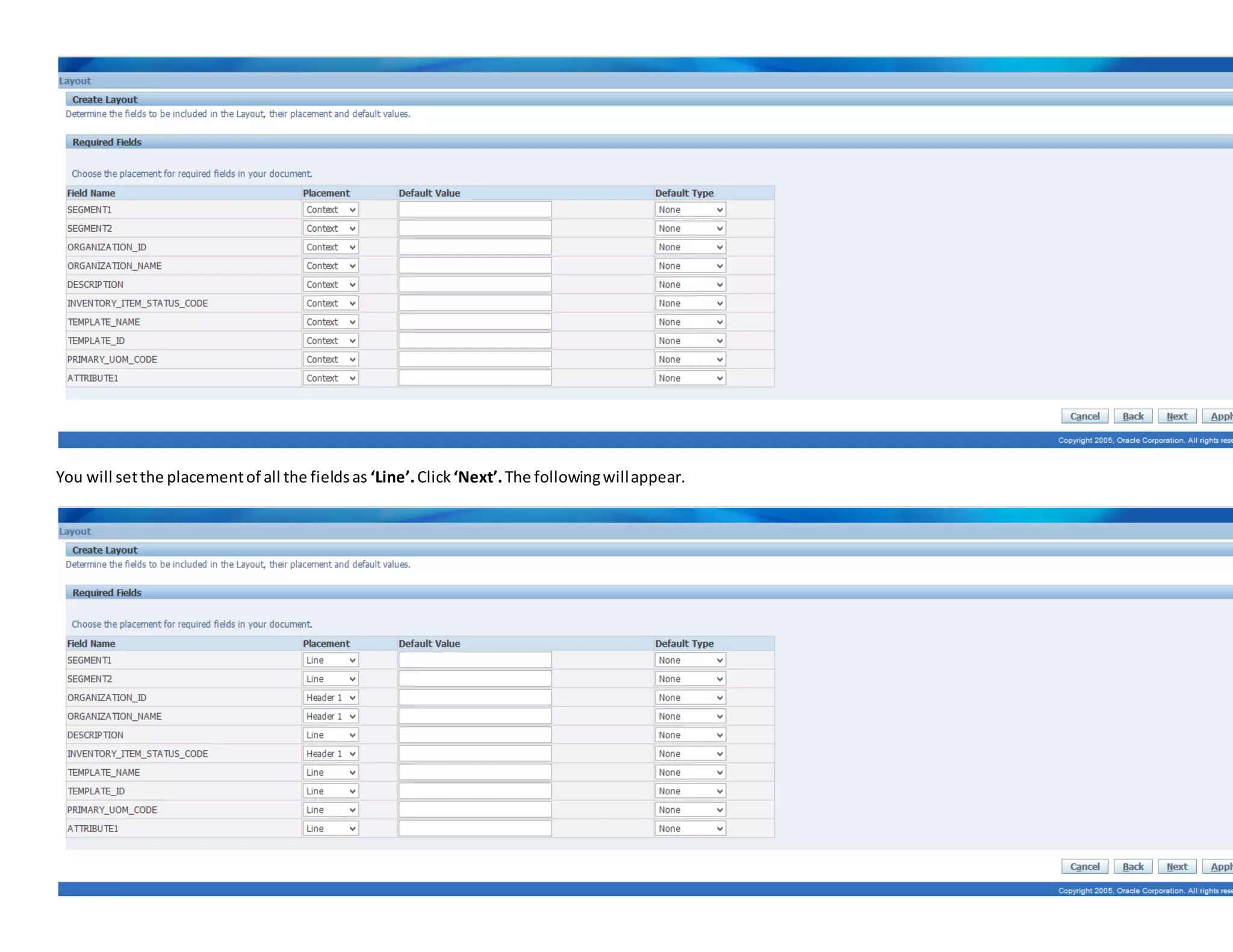

21. You will setthe placementof all the fieldsas ‘Line’.Click‘Next’.The followingwillappear.

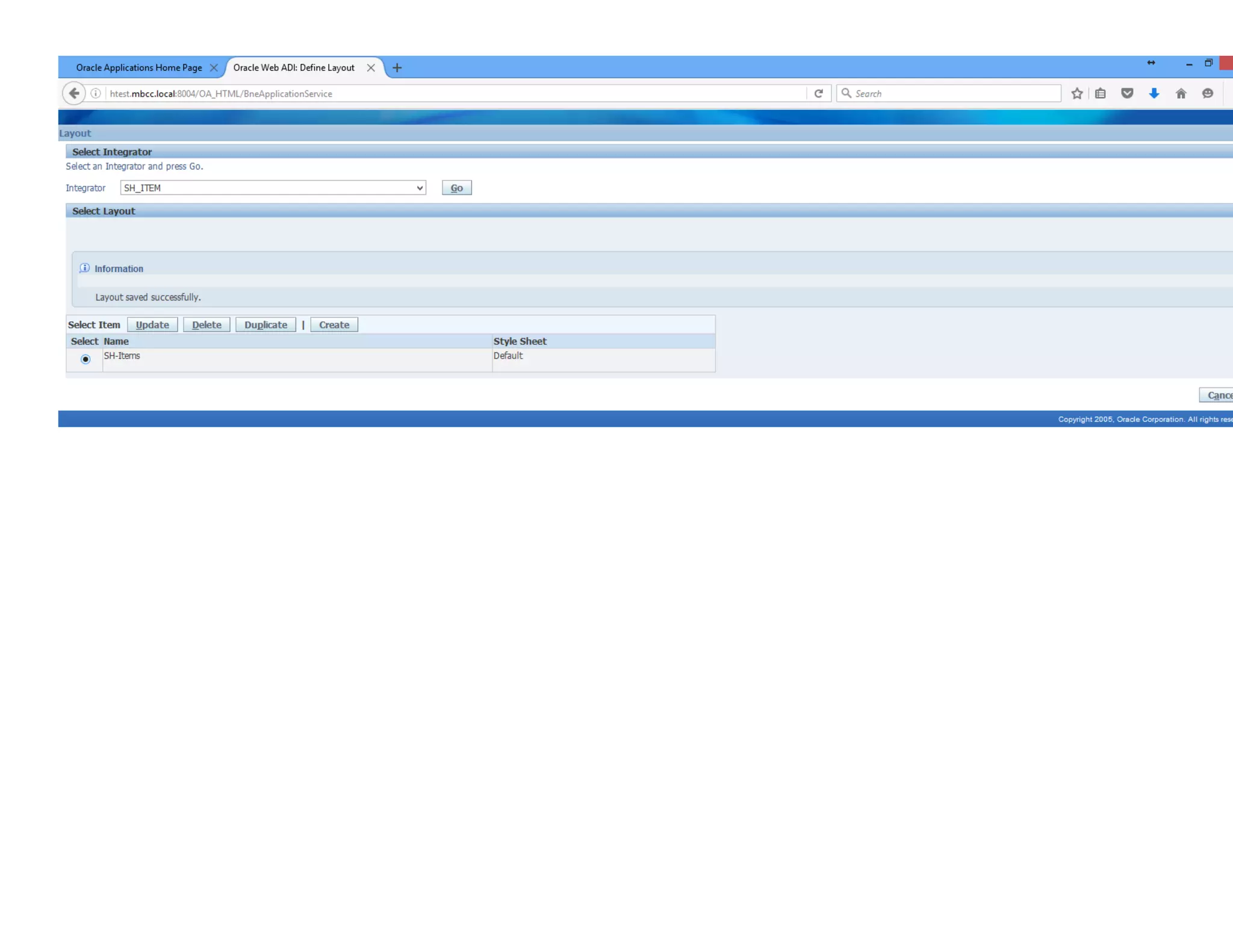

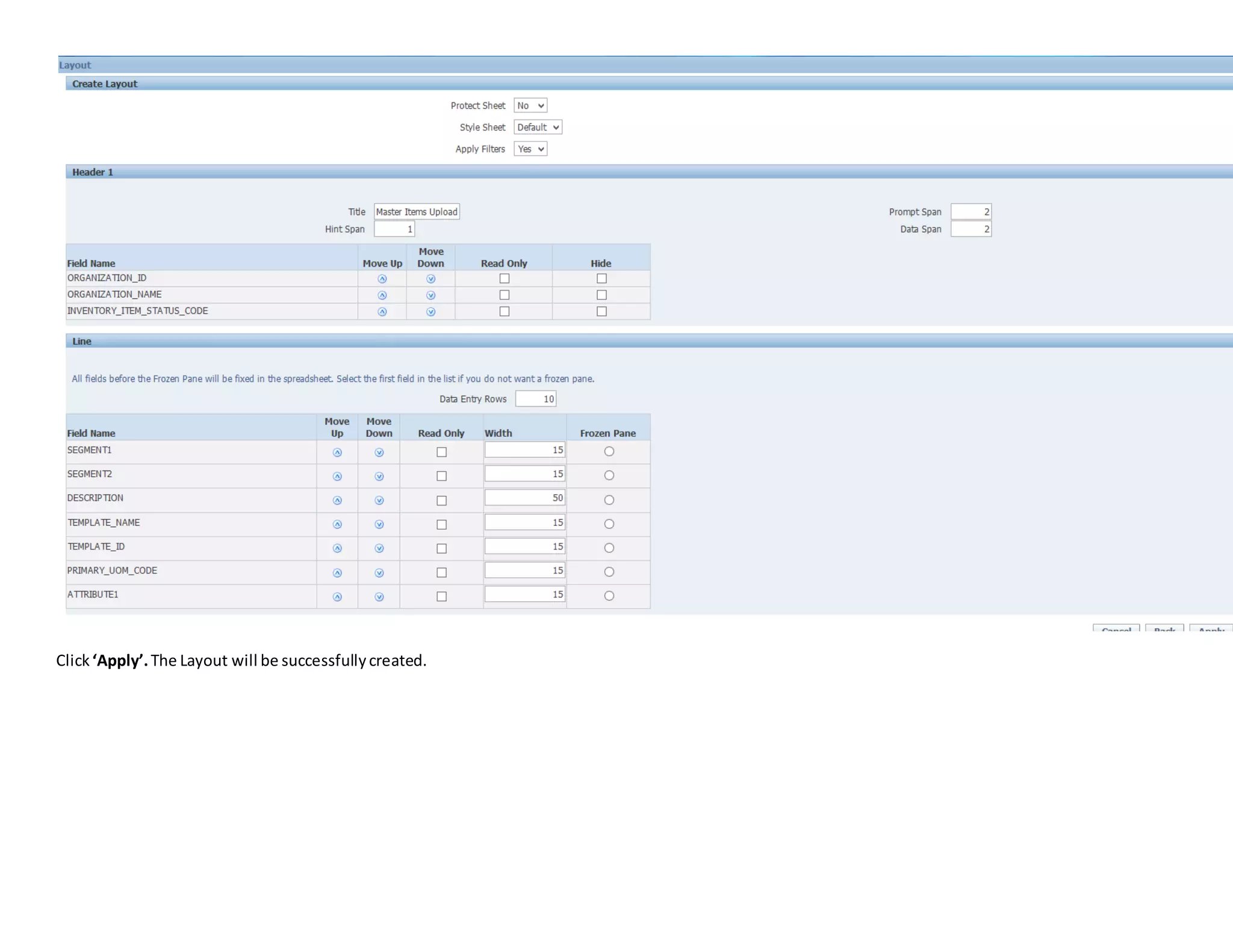

22. Click‘Apply’.The Layout will be successfullycreated.

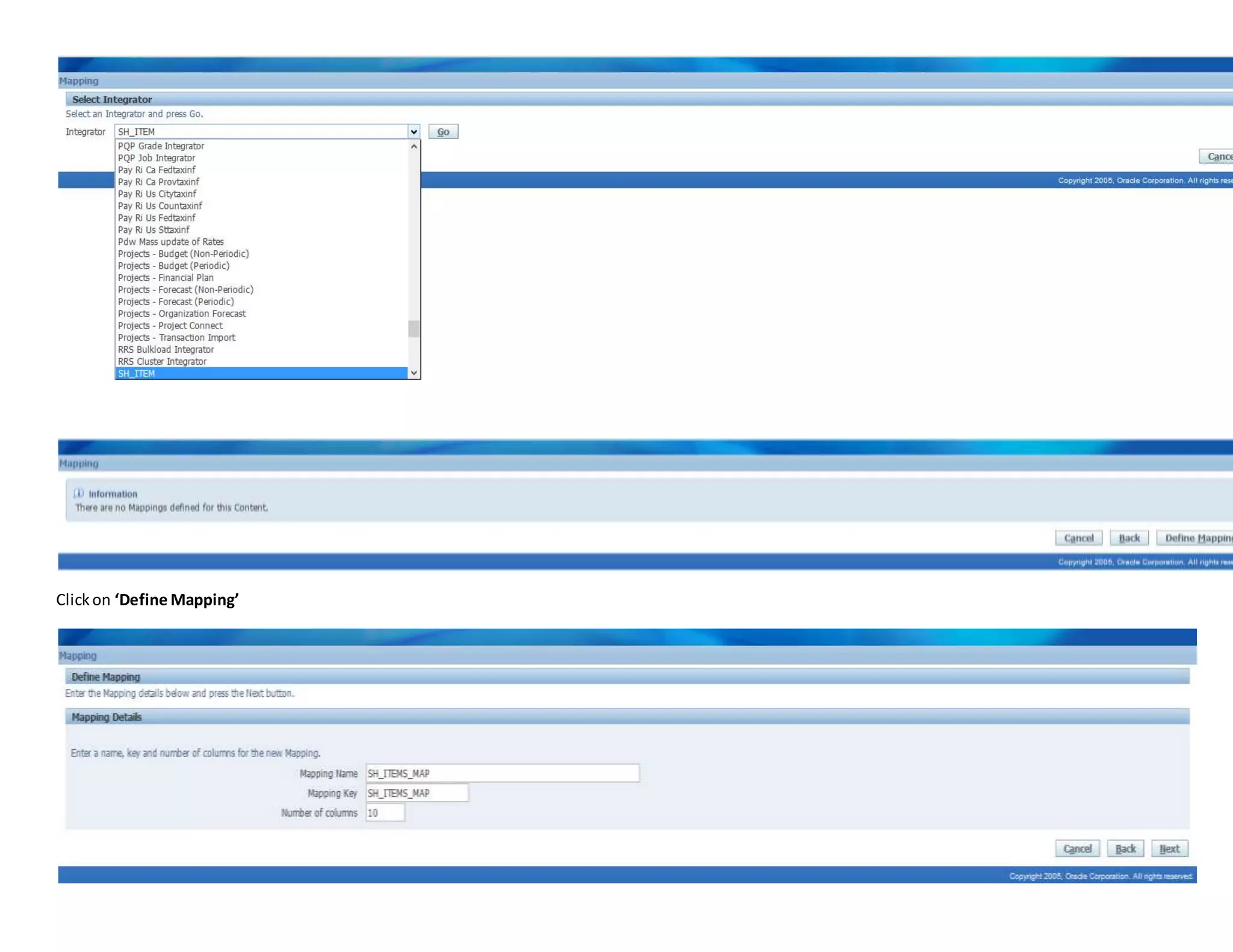

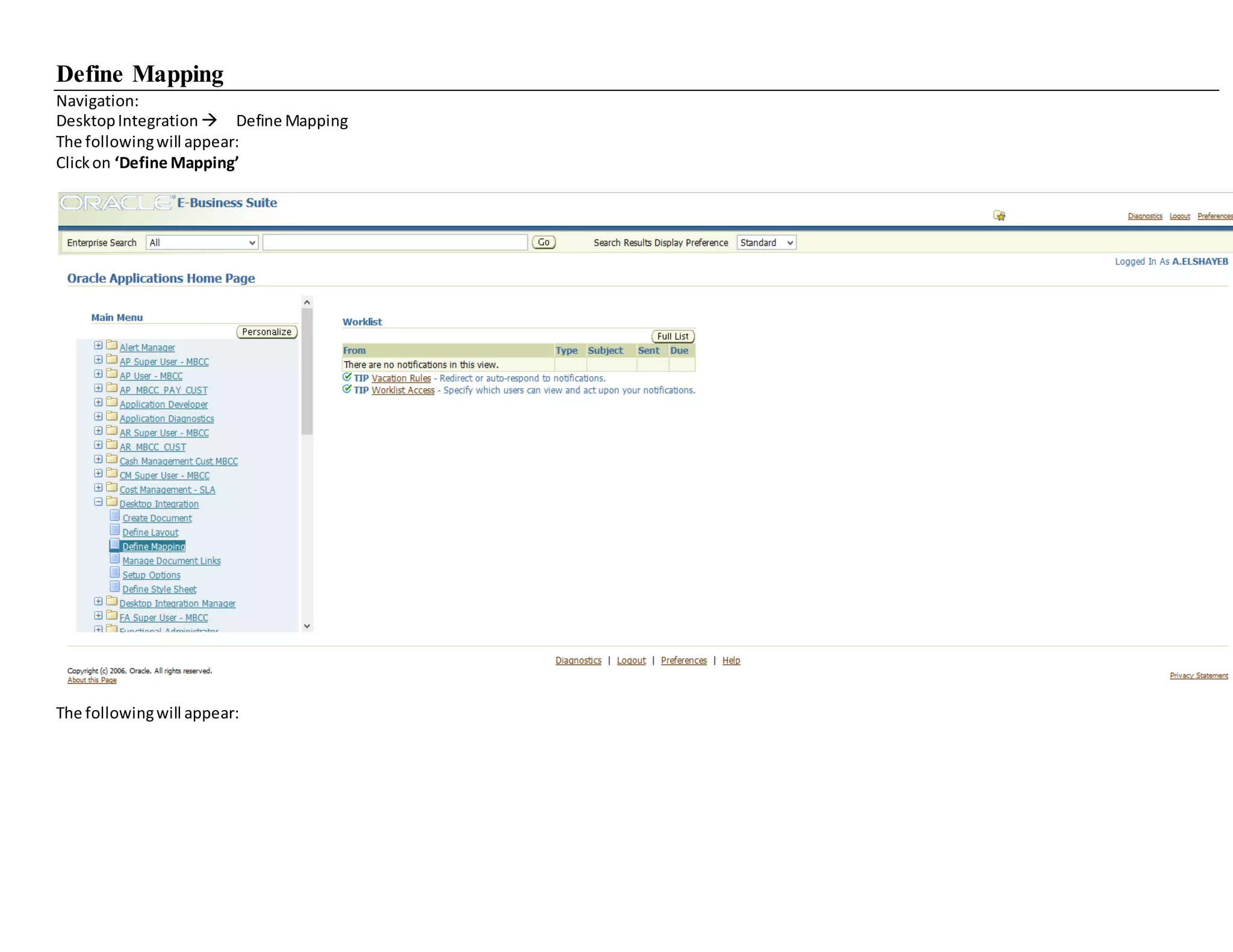

24. Define Mapping
Navigation:
DesktopIntegration Define Mapping
The followingwill appear:
Clickon ‘Define Mapping’
The followingwill appear:

25. Clickon ‘Define Mapping’

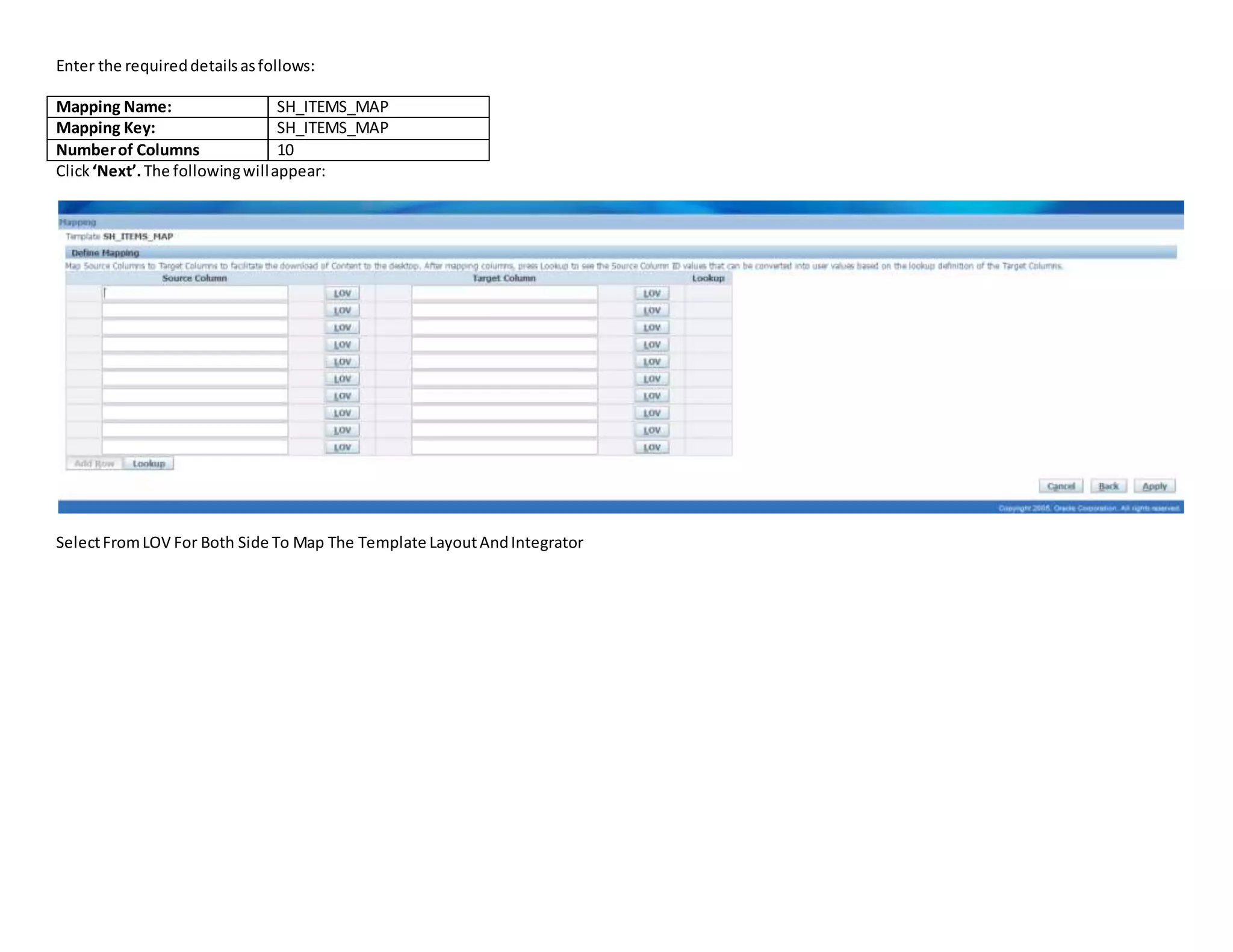

26. Enter the requireddetailsasfollows:
Mapping Name: SH_ITEMS_MAP
Mapping Key: SH_ITEMS_MAP
Numberof Columns 10
Click‘Next’.The followingwillappear:
SelectFromLOV For Both Side To Map The Template LayoutAndIntegrator

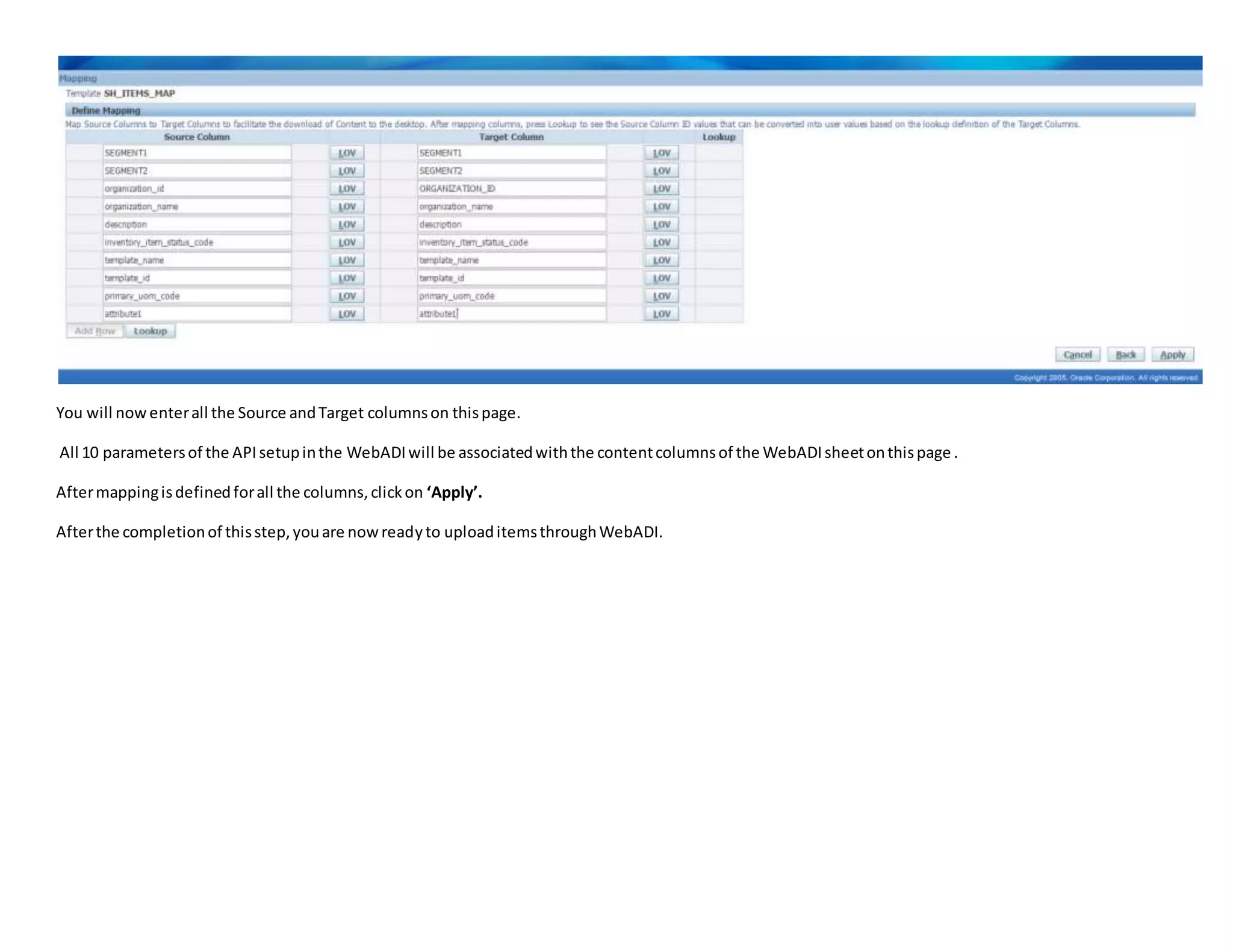

27. You will nowenterall the Source andTarget columnson thispage.
All 10 parametersof the APIsetupinthe WebADIwill be associatedwiththe contentcolumnsof the WebADIsheetonthispage.
Aftermappingisdefinedforall the columns,clickon ‘Apply’.
Afterthe completionof thisstep,youare nowreadyto uploaditemsthroughWebADI.

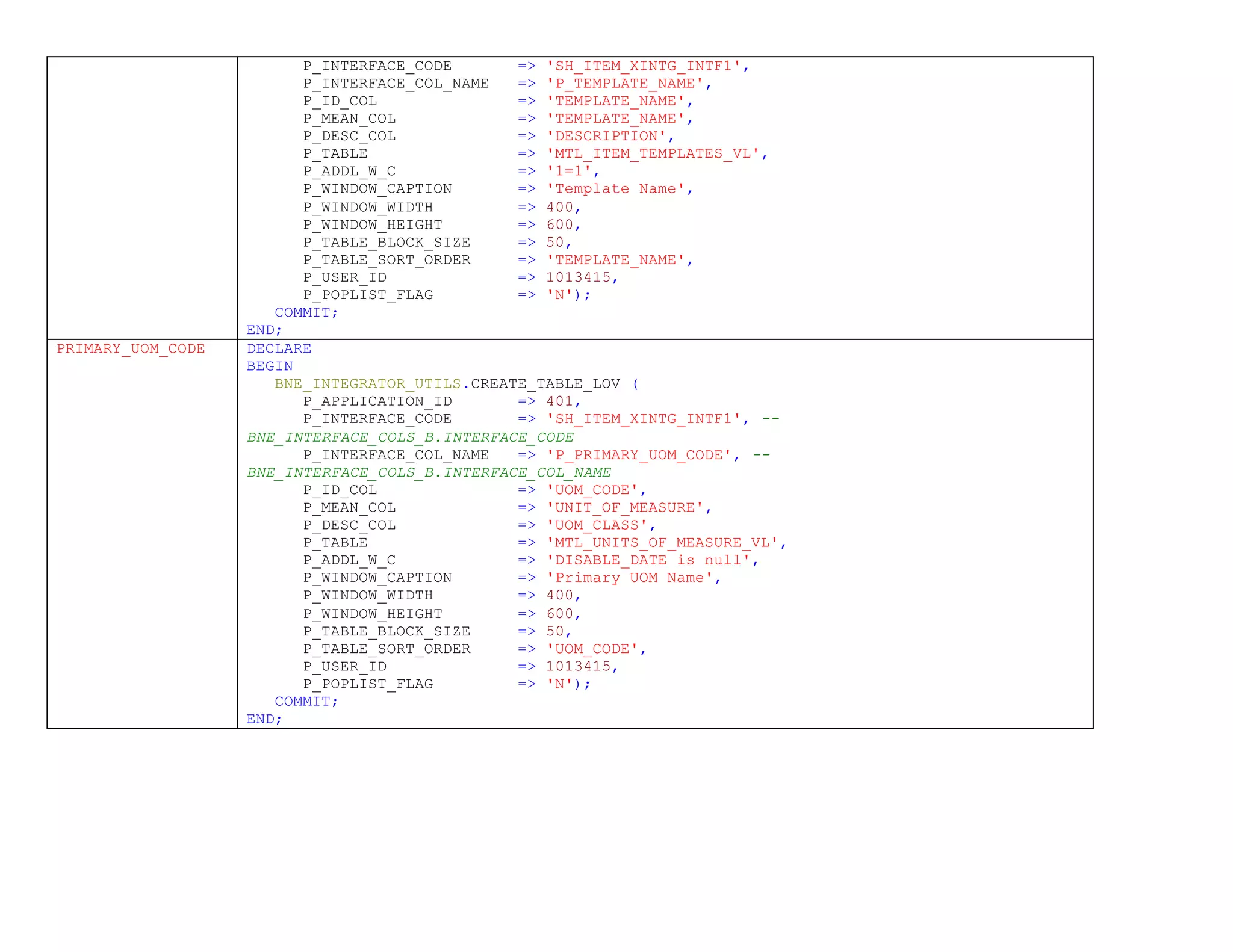

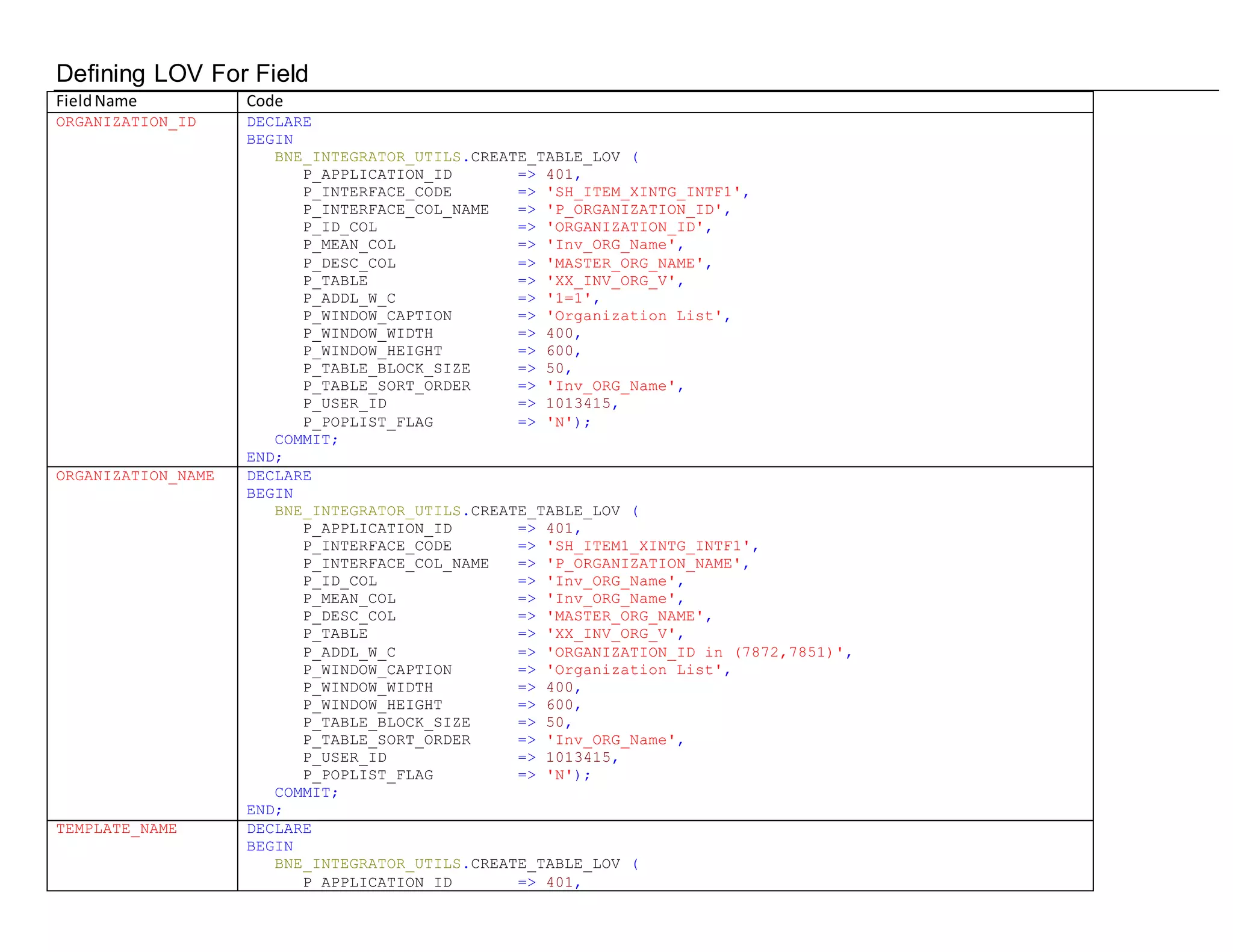

28. Defining LOV For Field
FieldName Code
ORGANIZATION_ID DECLARE
BEGIN
BNE_INTEGRATOR_UTILS.CREATE_TABLE_LOV (
P_APPLICATION_ID => 401,
P_INTERFACE_CODE => 'SH_ITEM_XINTG_INTF1',
P_INTERFACE_COL_NAME => 'P_ORGANIZATION_ID',
P_ID_COL => 'ORGANIZATION_ID',
P_MEAN_COL => 'Inv_ORG_Name',
P_DESC_COL => 'MASTER_ORG_NAME',
P_TABLE => 'XX_INV_ORG_V',
P_ADDL_W_C => '1=1',
P_WINDOW_CAPTION => 'Organization List',
P_WINDOW_WIDTH => 400,
P_WINDOW_HEIGHT => 600,
P_TABLE_BLOCK_SIZE => 50,
P_TABLE_SORT_ORDER => 'Inv_ORG_Name',
P_USER_ID => 1013415,
P_POPLIST_FLAG => 'N');
COMMIT;
END;
ORGANIZATION_NAME DECLARE
BEGIN
BNE_INTEGRATOR_UTILS.CREATE_TABLE_LOV (
P_APPLICATION_ID => 401,
P_INTERFACE_CODE => 'SH_ITEM1_XINTG_INTF1',
P_INTERFACE_COL_NAME => 'P_ORGANIZATION_NAME',
P_ID_COL => 'Inv_ORG_Name',
P_MEAN_COL => 'Inv_ORG_Name',
P_DESC_COL => 'MASTER_ORG_NAME',
P_TABLE => 'XX_INV_ORG_V',
P_ADDL_W_C => 'ORGANIZATION_ID in (7872,7851)',
P_WINDOW_CAPTION => 'Organization List',
P_WINDOW_WIDTH => 400,
P_WINDOW_HEIGHT => 600,
P_TABLE_BLOCK_SIZE => 50,
P_TABLE_SORT_ORDER => 'Inv_ORG_Name',
P_USER_ID => 1013415,
P_POPLIST_FLAG => 'N');
COMMIT;
END;
TEMPLATE_NAME DECLARE
BEGIN
BNE_INTEGRATOR_UTILS.CREATE_TABLE_LOV (
P_APPLICATION_ID => 401,

29. P_INTERFACE_CODE => 'SH_ITEM_XINTG_INTF1',
P_INTERFACE_COL_NAME => 'P_TEMPLATE_NAME',
P_ID_COL => 'TEMPLATE_NAME',
P_MEAN_COL => 'TEMPLATE_NAME',
P_DESC_COL => 'DESCRIPTION',
P_TABLE => 'MTL_ITEM_TEMPLATES_VL',
P_ADDL_W_C => '1=1',
P_WINDOW_CAPTION => 'Template Name',
P_WINDOW_WIDTH => 400,
P_WINDOW_HEIGHT => 600,
P_TABLE_BLOCK_SIZE => 50,
P_TABLE_SORT_ORDER => 'TEMPLATE_NAME',
P_USER_ID => 1013415,
P_POPLIST_FLAG => 'N');
COMMIT;
END;
PRIMARY_UOM_CODE DECLARE
BEGIN
BNE_INTEGRATOR_UTILS.CREATE_TABLE_LOV (
P_APPLICATION_ID => 401,
P_INTERFACE_CODE => 'SH_ITEM_XINTG_INTF1', --
BNE_INTERFACE_COLS_B.INTERFACE_CODE
P_INTERFACE_COL_NAME => 'P_PRIMARY_UOM_CODE', --
BNE_INTERFACE_COLS_B.INTERFACE_COL_NAME
P_ID_COL => 'UOM_CODE',
P_MEAN_COL => 'UNIT_OF_MEASURE',
P_DESC_COL => 'UOM_CLASS',
P_TABLE => 'MTL_UNITS_OF_MEASURE_VL',
P_ADDL_W_C => 'DISABLE_DATE is null',
P_WINDOW_CAPTION => 'Primary UOM Name',
P_WINDOW_WIDTH => 400,
P_WINDOW_HEIGHT => 600,
P_TABLE_BLOCK_SIZE => 50,
P_TABLE_SORT_ORDER => 'UOM_CODE',
P_USER_ID => 1013415,
P_POPLIST_FLAG => 'N');
COMMIT;
END;

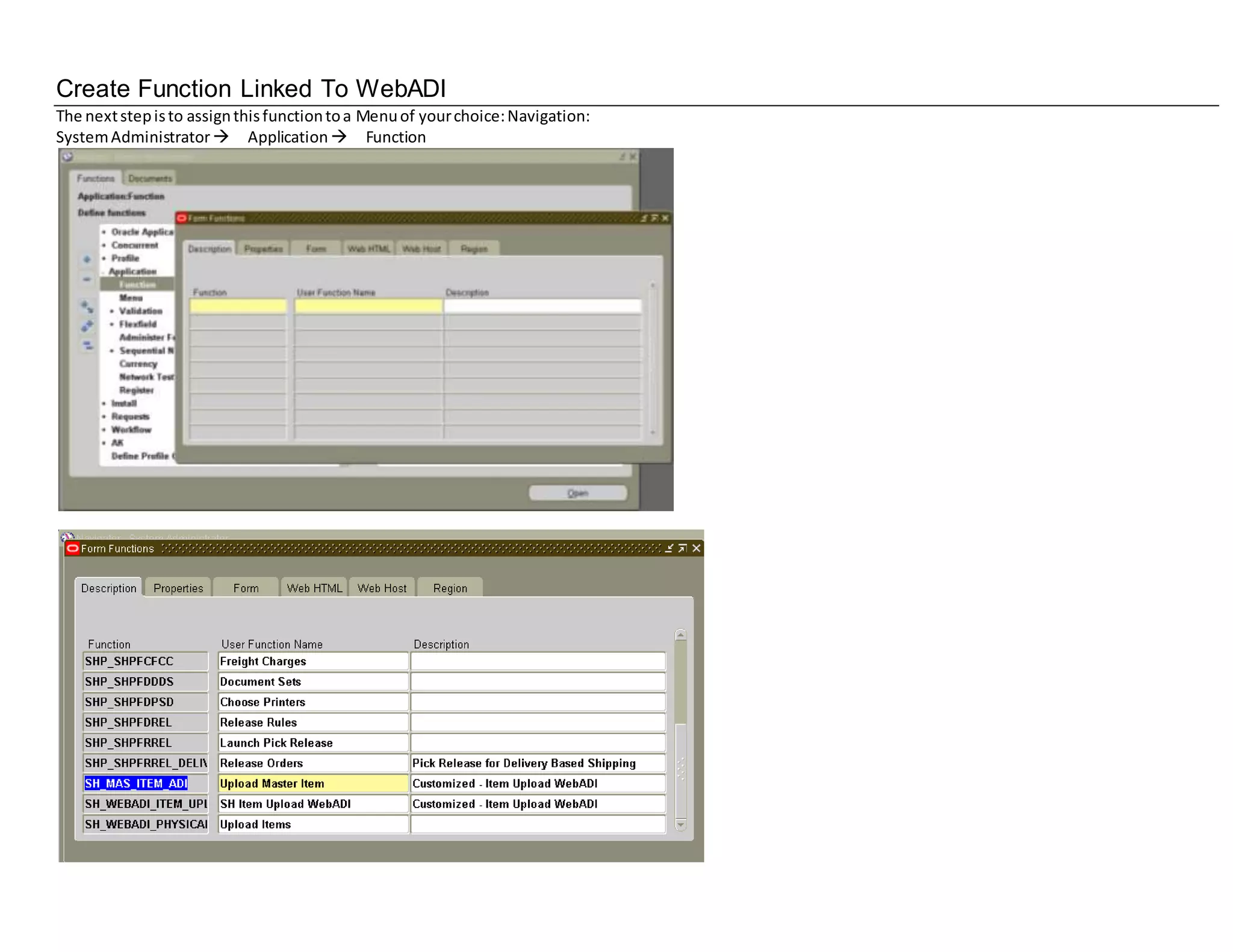

30. Create Function Linked To WebADI
The nextstepisto assignthisfunctiontoa Menuof yourchoice:Navigation:
SystemAdministratorApplicationFunction

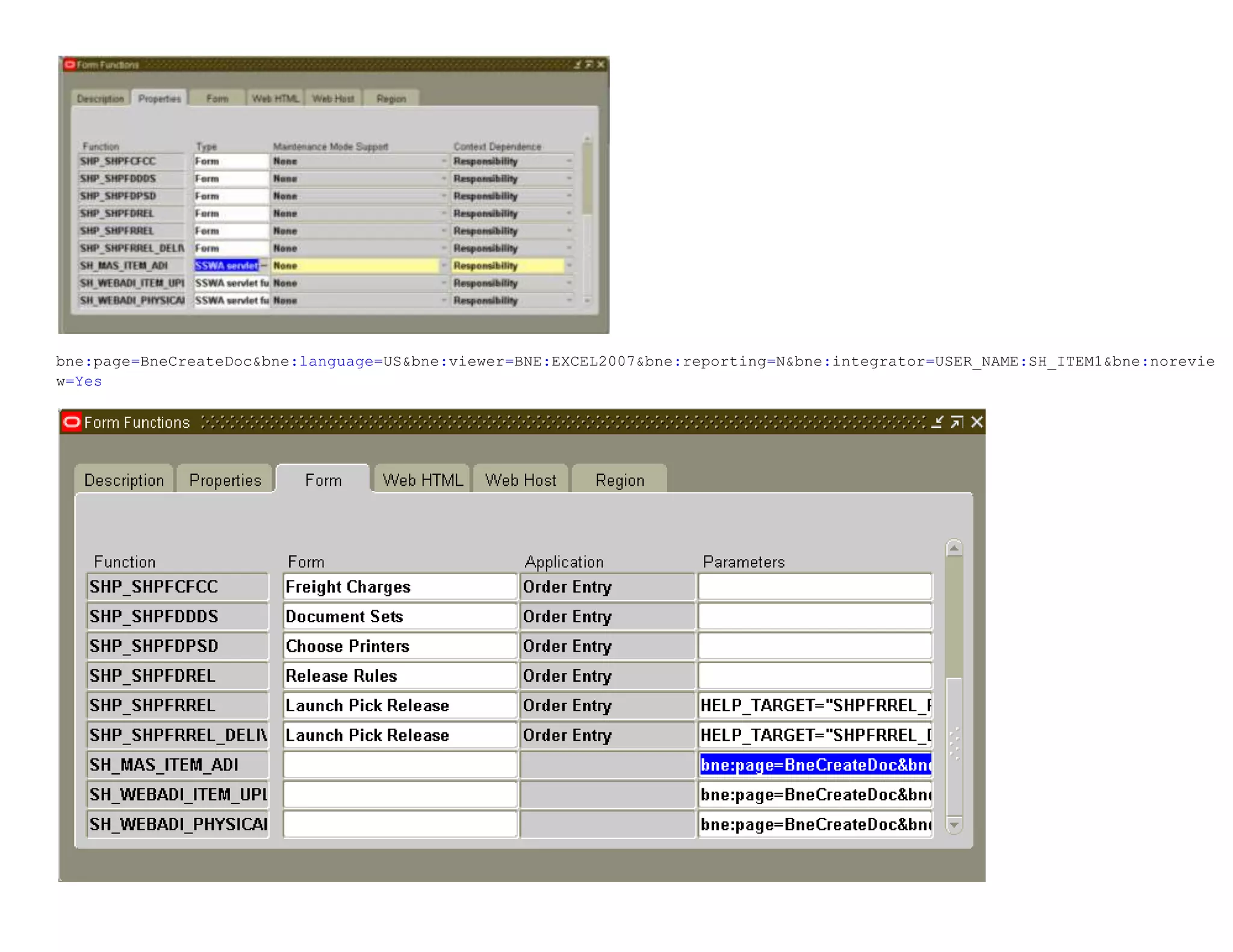

31. bne:page=BneCreateDoc&bne:language=US&bne:viewer=BNE:EXCEL2007&bne:reporting=N&bne:integrator=USER_NAME:SH_ITEM1&bne:norevie
w=Yes

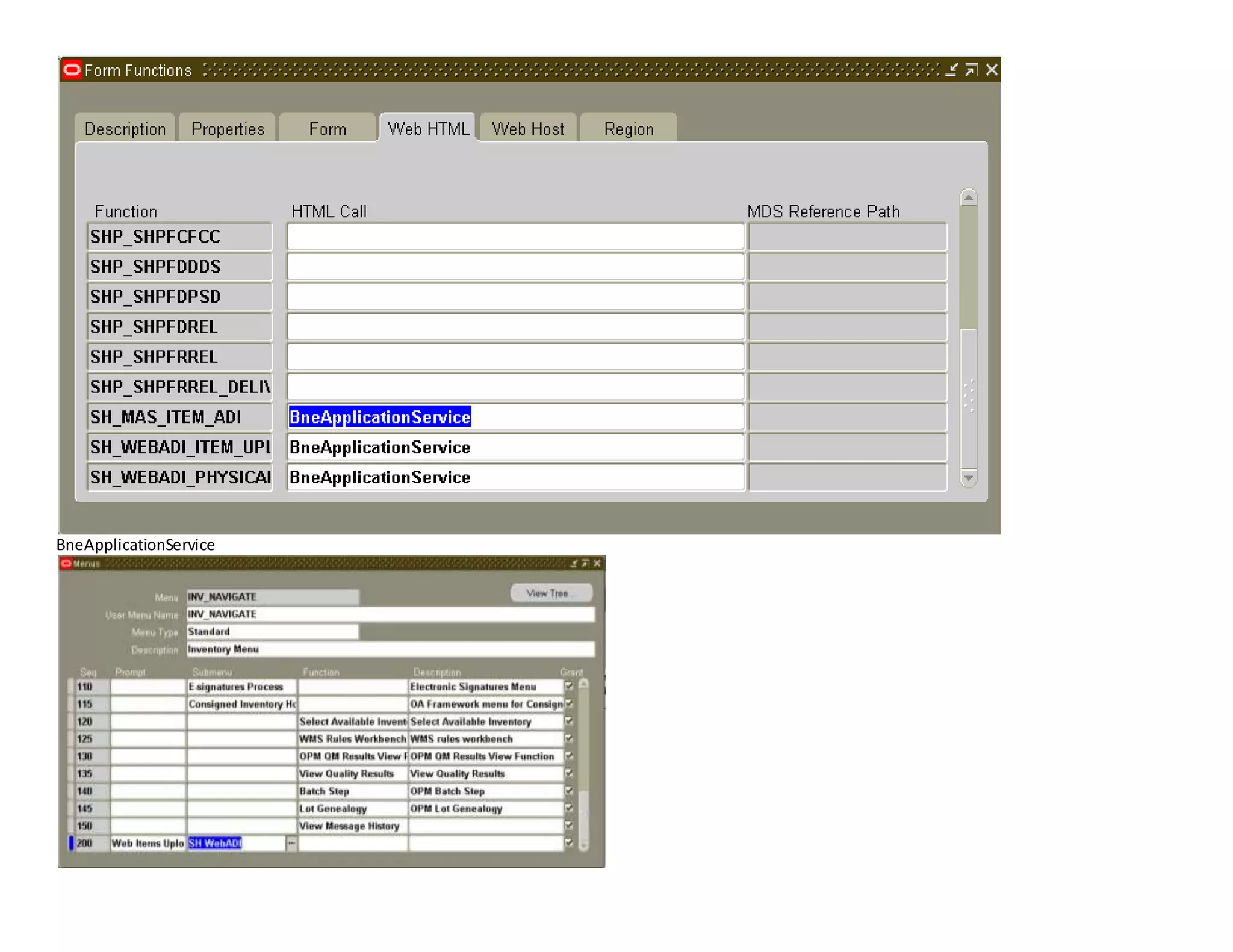

32. BneApplicationService

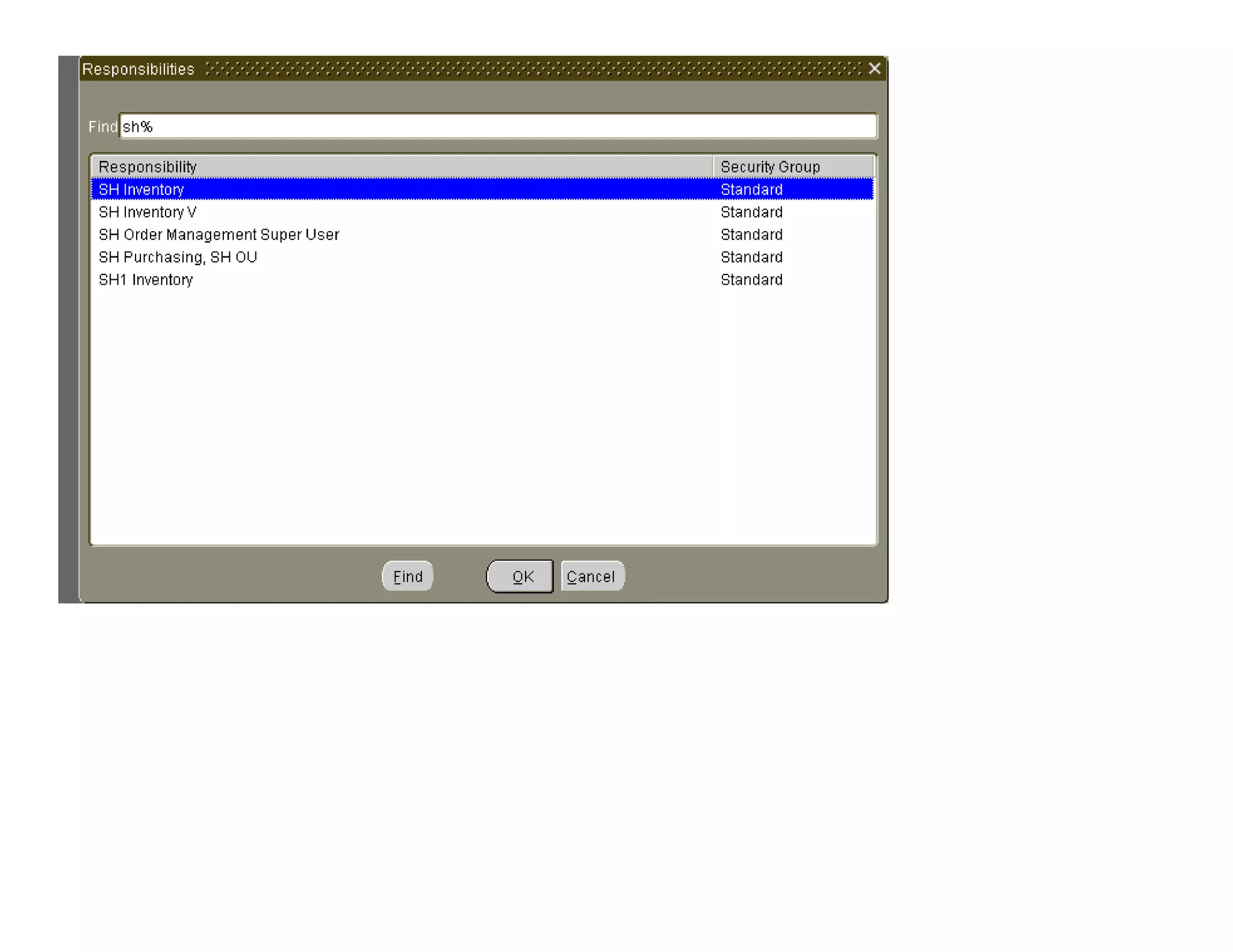

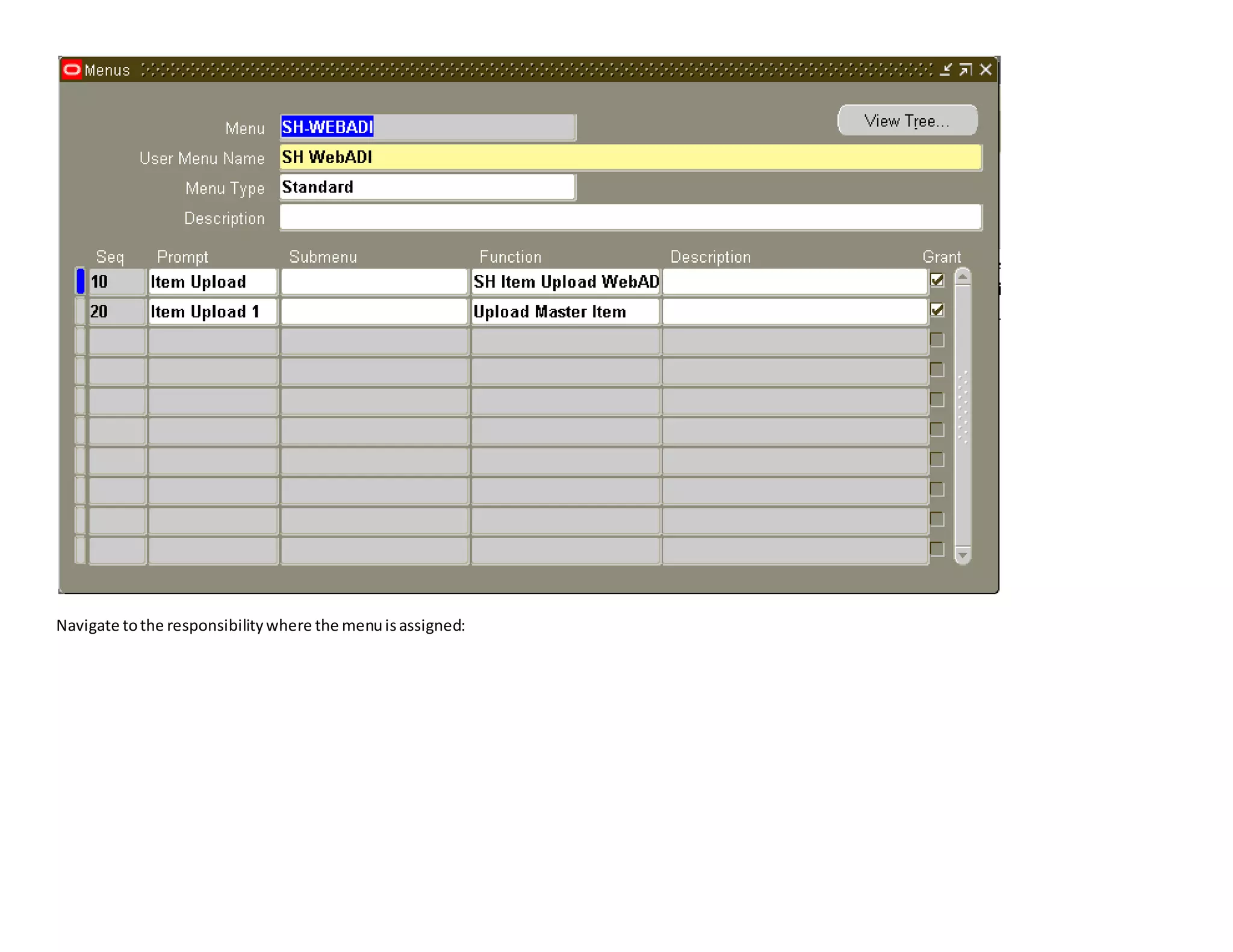

33. Navigate tothe responsibilitywhere the menuisassigned:

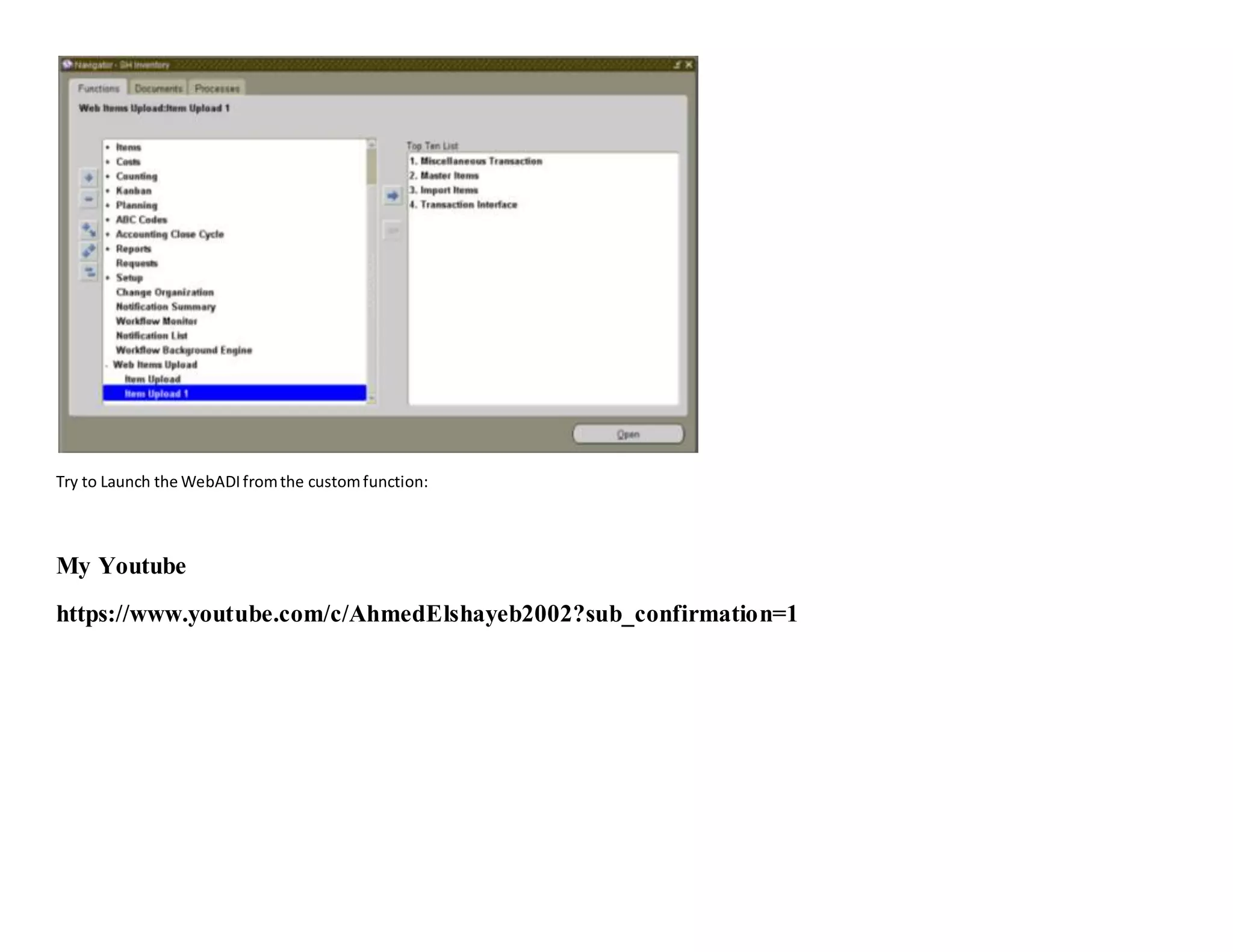

35. Try to Launch the WebADIfromthe customfunction:
My Youtube
https://www.youtube.com/c/AhmedElshayeb2002?sub_confirmation=1
