High Accuracy Distance Measurement for Bluetooth Based on Phase Ranging

The GCT Semiconductor workshop discusses high accuracy distance measurement for Bluetooth using phase ranging techniques. It covers the technology's applications in location-based services and features such as indoor positioning and relay attack protection. The presentation also addresses implementation challenges, standardization history, and future outlooks for the High-Accuracy Distance Measurement (HADM) technology.

Embed presentation

Download as PDF, PPTX
GCT Semiconductor, Inc.TTA - Workshop 2019 High Accuracy Distance Measurement for Bluetooth Based on Phase Ranging Ealwan Lee GCT Semiconductor, Inc. Session : De-facto Standard Development Organization #3 May 24, 2019 (11:40 am ~ 12:00 pm) 2019 ICT 표준화포럼/전문가 합동워크숍

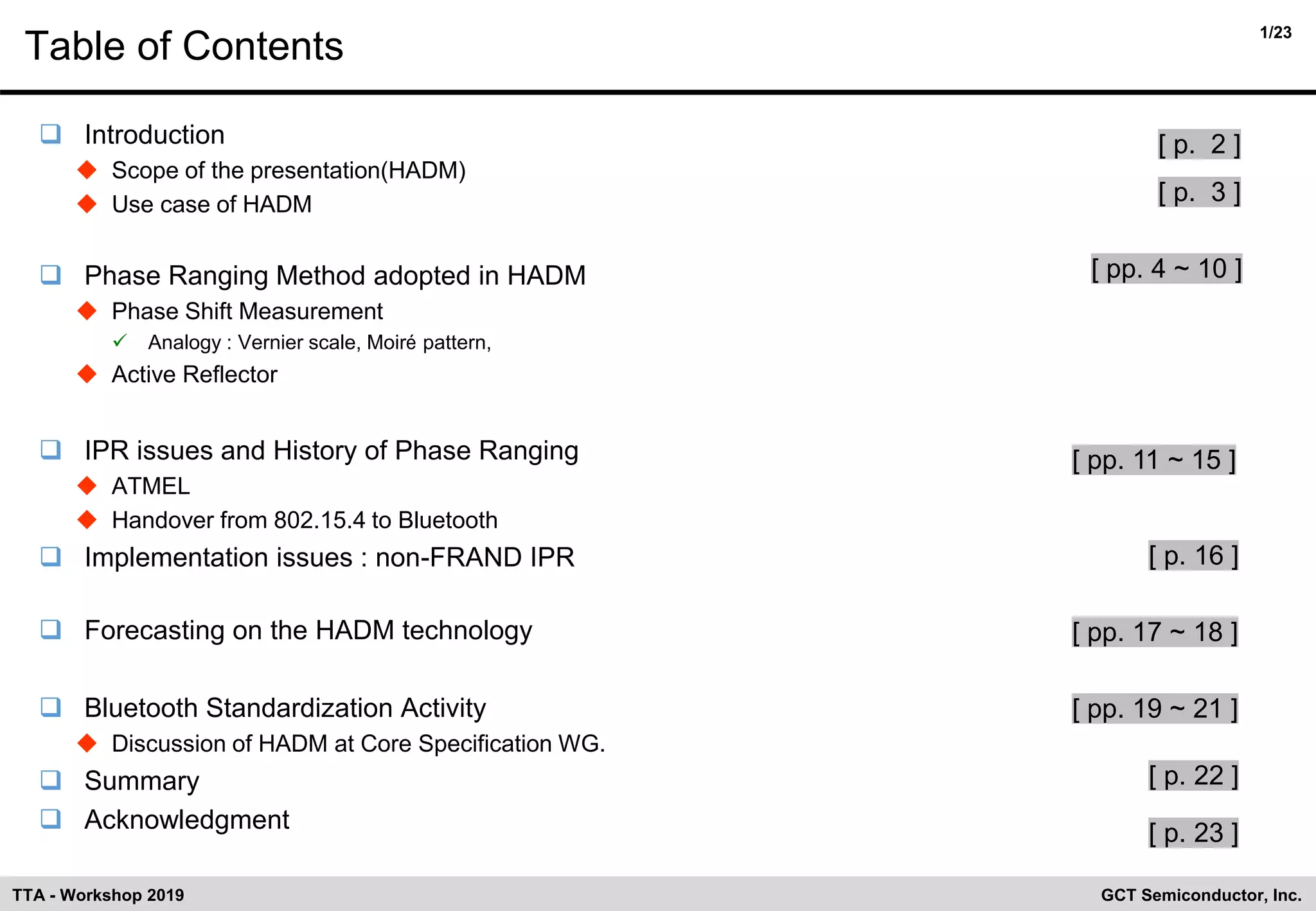

1/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Table of Contents ❑ Introduction ◆ Scope of the presentation(HADM) ◆ Use case of HADM ❑ Phase Ranging Method adopted in HADM ◆ Phase Shift Measurement ✓ Analogy : Vernier scale, Moiré pattern, ◆ Active Reflector ❑ IPR issues and History of Phase Ranging ◆ ATMEL ◆ Handover from 802.15.4 to Bluetooth ❑ Implementation issues : non-FRAND IPR ❑ Forecasting on the HADM technology ❑ Bluetooth Standardization Activity ◆ Discussion of HADM at Core Specification WG. ❑ Summary ❑ Acknowledgment [ pp. 4 ~ 10 ] [ pp. 11 ~ 15 ] [ p. 22 ] [ p. 23 ] [ p. 2 ] [ p. 16 ] [ pp. 19 ~ 21 ] [ pp. 17 ~ 18 ] [ p. 3 ]

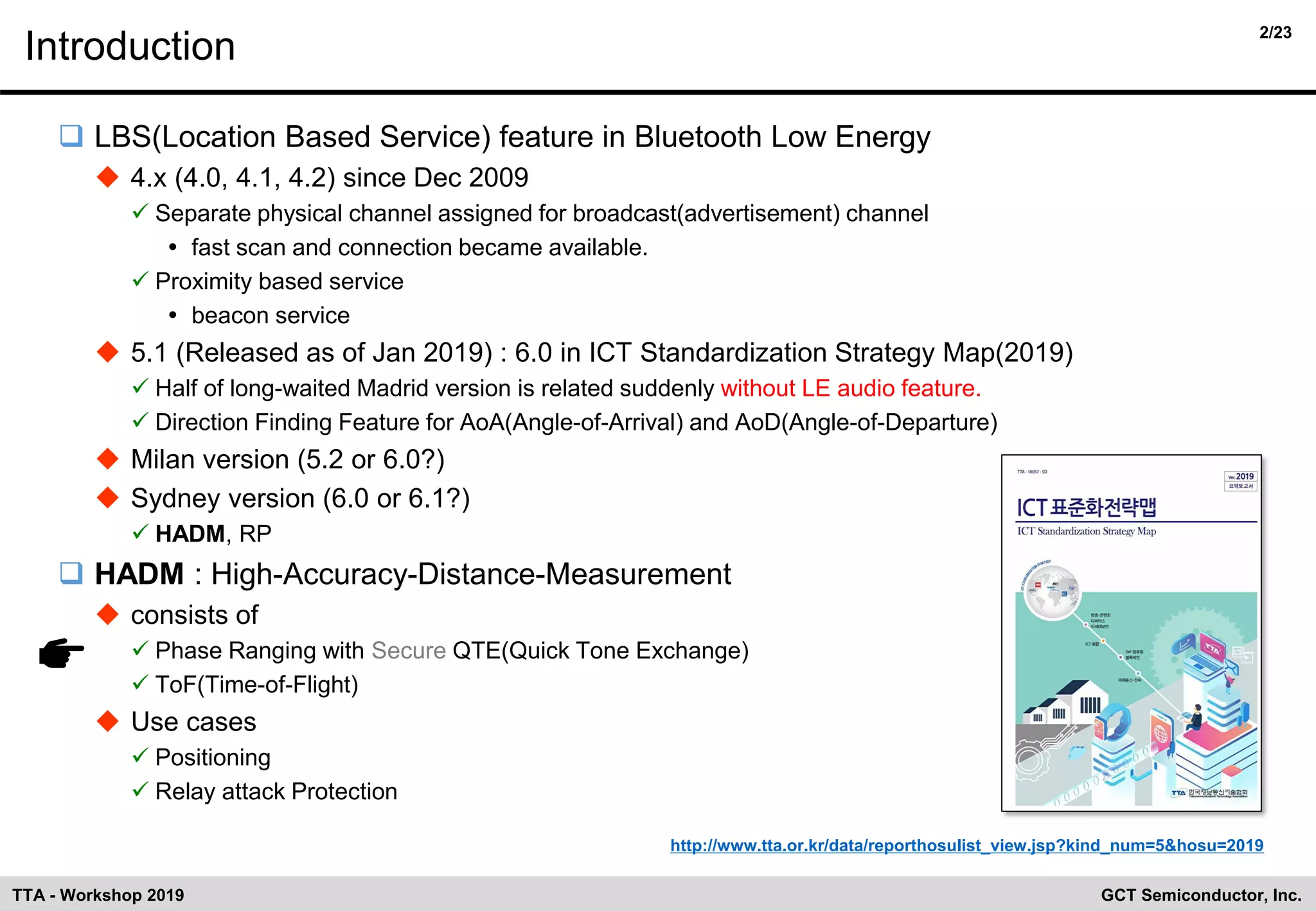

2/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Introduction ❑ LBS(Location Based Service) feature in Bluetooth Low Energy ◆ 4.x (4.0, 4.1, 4.2) since Dec 2009 ✓ Separate physical channel assigned for broadcast(advertisement) channel  fast scan and connection became available. ✓ Proximity based service  beacon service ◆ 5.1 (Released as of Jan 2019) : 6.0 in ICT Standardization Strategy Map(2019) ✓ Half of long-waited Madrid version is related suddenly without LE audio feature. ✓ Direction Finding Feature for AoA(Angle-of-Arrival) and AoD(Angle-of-Departure) ◆ Milan version (5.2 or 6.0?) ◆ Sydney version (6.0 or 6.1?) ✓ HADM, RP ❑ HADM : High-Accuracy-Distance-Measurement ◆ consists of ✓ Phase Ranging with Secure QTE(Quick Tone Exchange) ✓ ToF(Time-of-Flight) ◆ Use cases ✓ Positioning ✓ Relay attack Protection http://www.tta.or.kr/data/reporthosulist_view.jsp?kind_num=5&hosu=2019

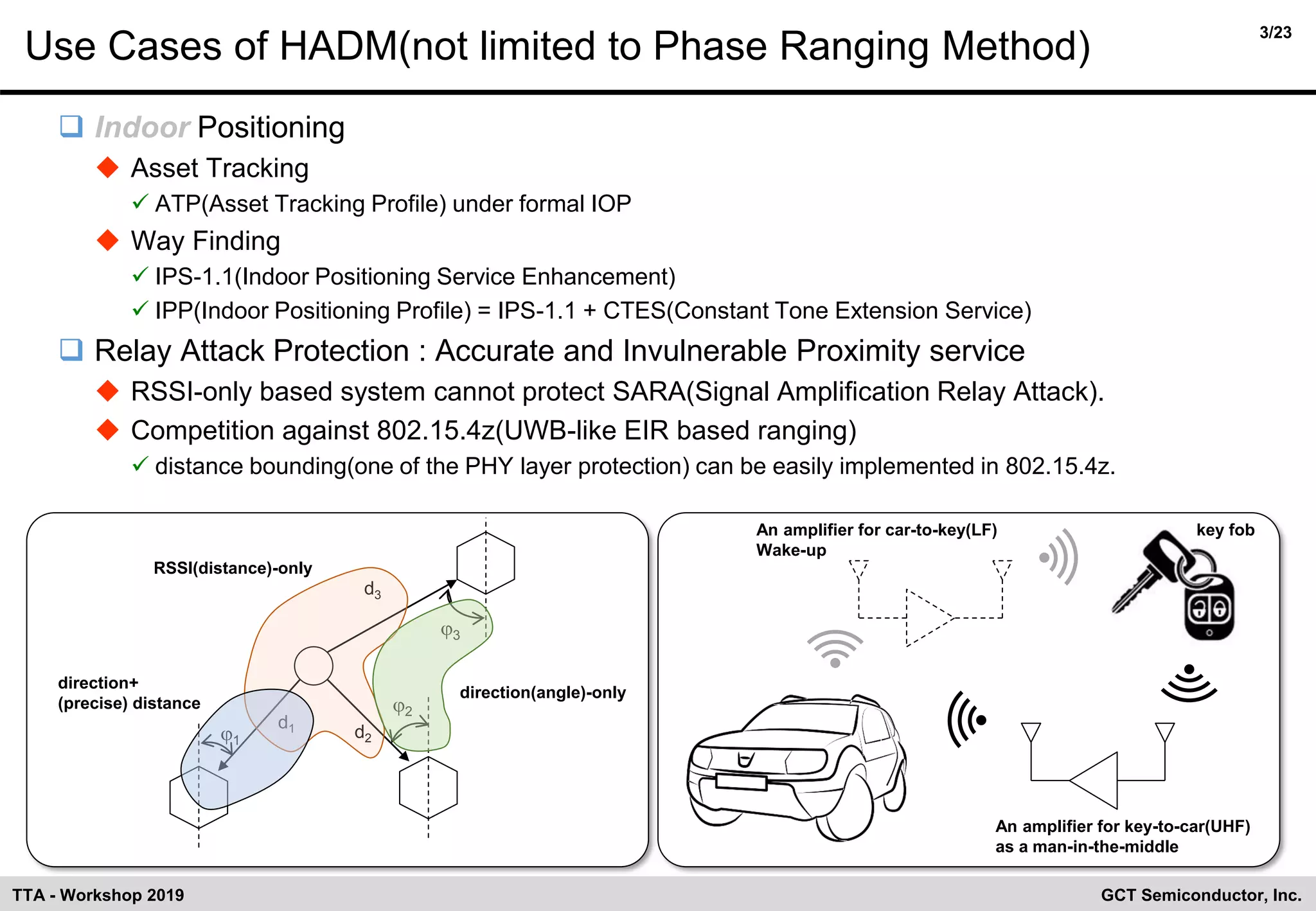

3/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Use Cases of HADM(not limited to Phase Ranging Method) ❑ Indoor Positioning ◆ Asset Tracking ✓ ATP(Asset Tracking Profile) under formal IOP ◆ Way Finding ✓ IPS-1.1(Indoor Positioning Service Enhancement) ✓ IPP(Indoor Positioning Profile) = IPS-1.1 + CTES(Constant Tone Extension Service) ❑ Relay Attack Protection : Accurate and Invulnerable Proximity service ◆ RSSI-only based system cannot protect SARA(Signal Amplification Relay Attack). ◆ Competition against 802.15.4z(UWB-like EIR based ranging) ✓ distance bounding(one of the PHY layer protection) can be easily implemented in 802.15.4z. An amplifier for key-to-car(UHF) as a man-in-the-middle An amplifier for car-to-key(LF) Wake-up d1 1 d2 2 d3 3 RSSI(distance)-only direction(angle)-only direction+ (precise) distance key fob

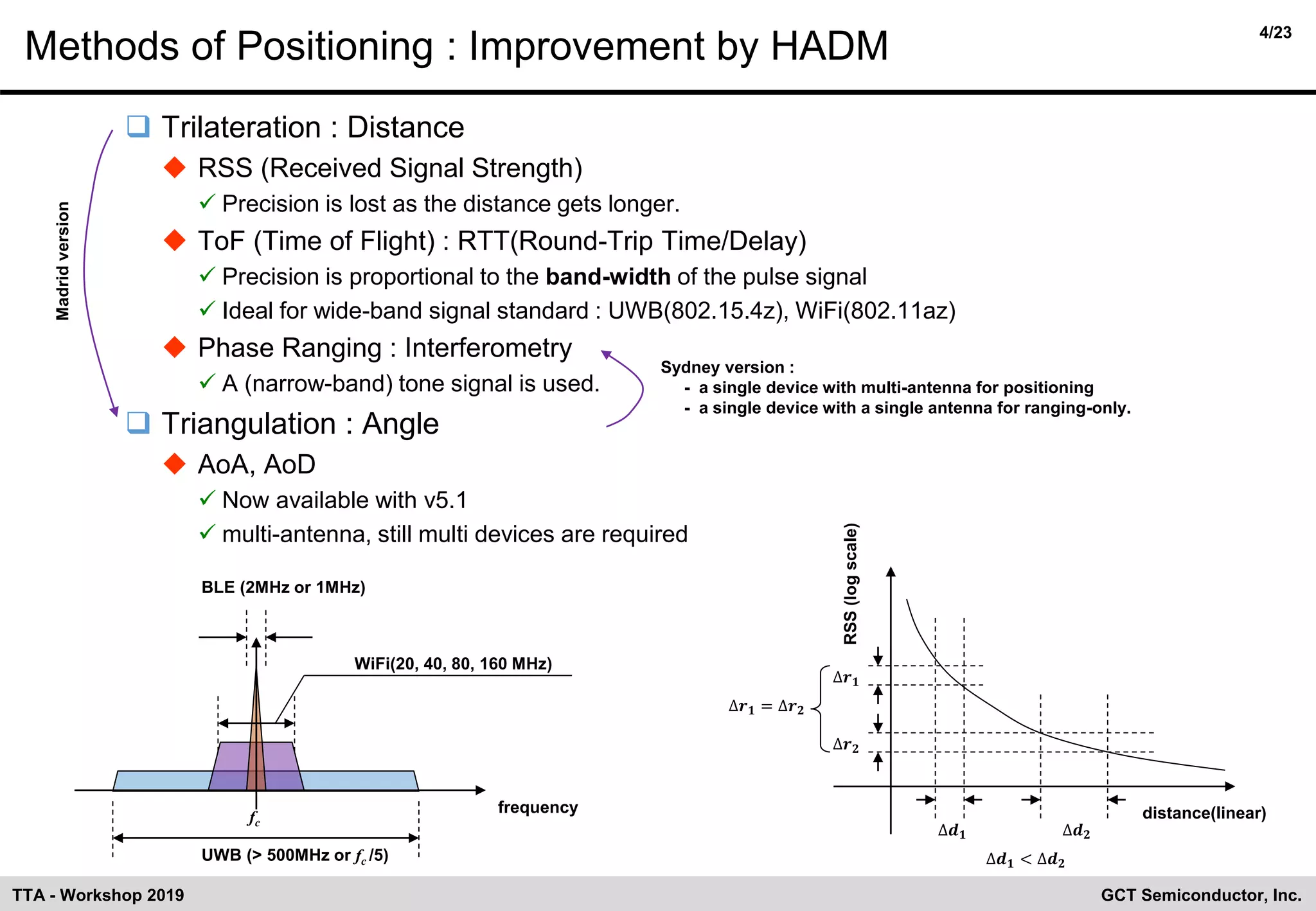

4/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Methods of Positioning : Improvement by HADM ❑ Trilateration : Distance ◆ RSS (Received Signal Strength) ✓ Precision is lost as the distance gets longer. ◆ ToF (Time of Flight) : RTT(Round-Trip Time/Delay) ✓ Precision is proportional to the band-width of the pulse signal ✓ Ideal for wide-band signal standard : UWB(802.15.4z), WiFi(802.11az) ◆ Phase Ranging : Interferometry ✓ A (narrow-band) tone signal is used. ❑ Triangulation : Angle ◆ AoA, AoD ✓ Now available with v5.1 ✓ multi-antenna, still multi devices are required RSS(logscale) distance(linear) Madridversion Sydney version : - a single device with multi-antenna for positioning - a single device with a single antenna for ranging-only. BLE (2MHz or 1MHz) frequency fc UWB (> 500MHz or fc /5) WiFi(20, 40, 80, 160 MHz) ∆𝒓 𝟏 = ∆𝒓 𝟐 ∆𝒓 𝟏 ∆𝒓 𝟐 ∆𝒅 𝟏 ∆𝒅 𝟐 ∆𝒅 𝟏 < ∆𝒅 𝟐

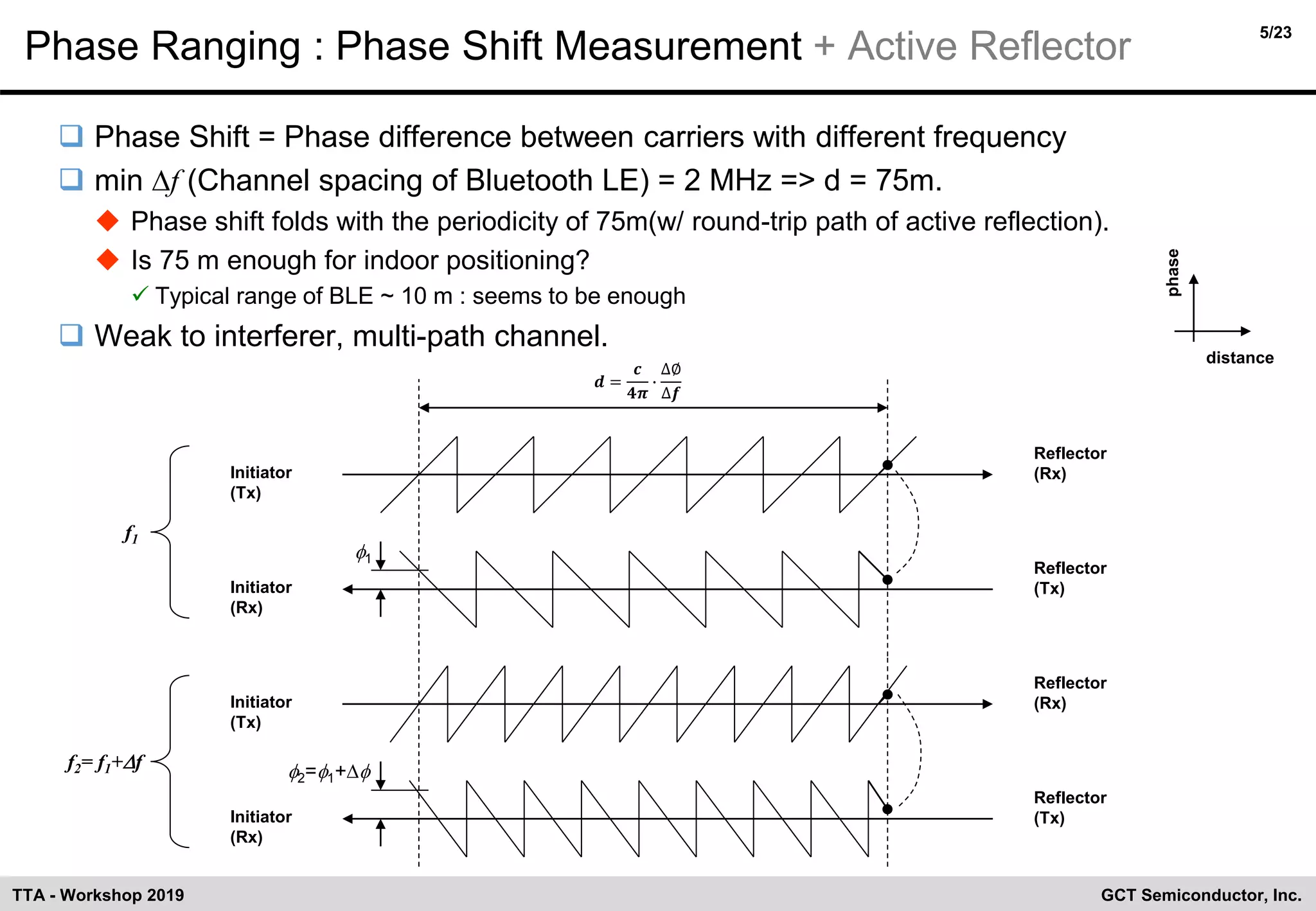

5/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Phase Ranging : Phase Shift Measurement + Active Reflector ❑ Phase Shift = Phase difference between carriers with different frequency ❑ min f (Channel spacing of Bluetooth LE) = 2 MHz => d = 75m. ◆ Phase shift folds with the periodicity of 75m(w/ round-trip path of active reflection). ◆ Is 75 m enough for indoor positioning? ✓ Typical range of BLE ~ 10 m : seems to be enough ❑ Weak to interferer, multi-path channel. Initiator (Tx) Reflector (Rx) Initiator (Rx) Reflector (Tx) Initiator (Tx) Reflector (Rx) Initiator (Rx) Reflector (Tx) f1 f2= f1+f 1 2=1+ 𝒅 = 𝒄 𝟒𝝅 ∙ ∆∅ ∆𝒇 distance phase

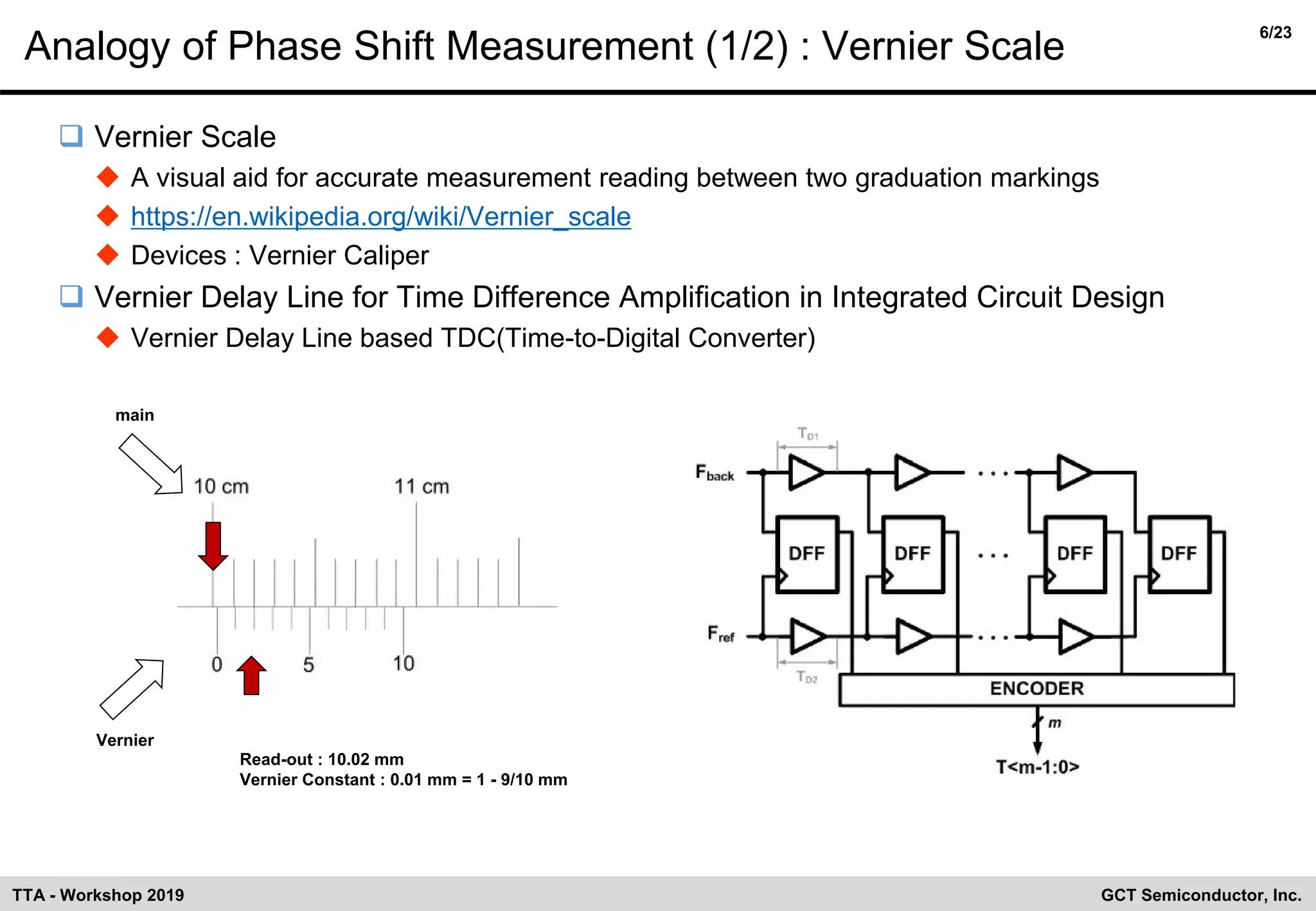

6/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Analogy of Phase Shift Measurement (1/2) : Vernier Scale ❑ Vernier Scale ◆ A visual aid for accurate measurement reading between two graduation markings ◆ https://en.wikipedia.org/wiki/Vernier_scale ◆ Devices : Vernier Caliper ❑ Vernier Delay Line for Time Difference Amplification in Integrated Circuit Design ◆ Vernier Delay Line based TDC(Time-to-Digital Converter) main Vernier Read-out : 10.02 mm Vernier Constant : 0.01 mm = 1 - 9/10 mm

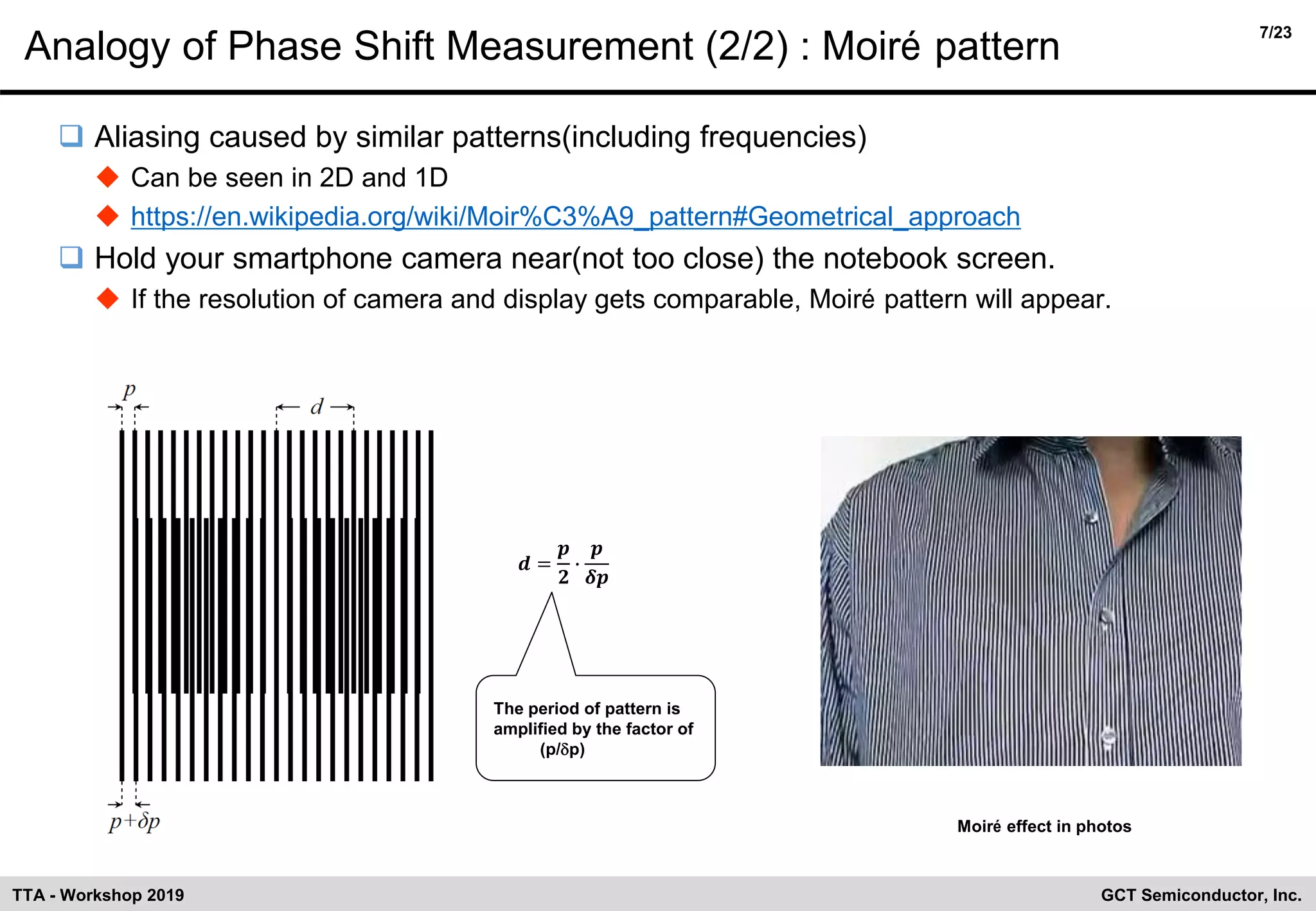

7/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Analogy of Phase Shift Measurement (2/2) : Moiré pattern ❑ Aliasing caused by similar patterns(including frequencies) ◆ Can be seen in 2D and 1D ◆ https://en.wikipedia.org/wiki/Moir%C3%A9_pattern#Geometrical_approach ❑ Hold your smartphone camera near(not too close) the notebook screen. ◆ If the resolution of camera and display gets comparable, Moiré pattern will appear. Moiré effect in photos 𝒅 = 𝒑 𝟐 ∙ 𝒑 𝜹𝒑 The period of pattern is amplified by the factor of (p/dp)

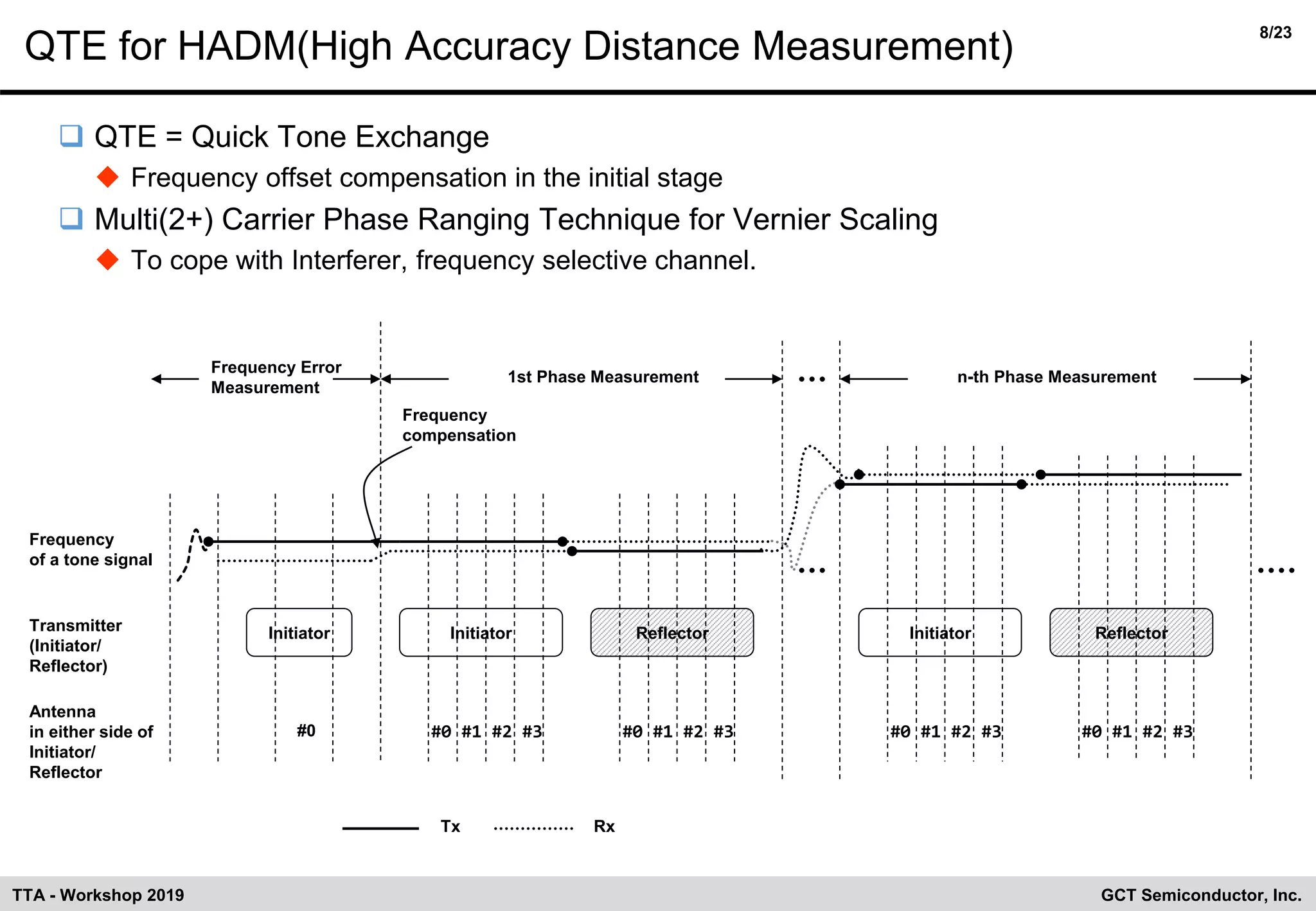

8/23 GCT Semiconductor, Inc.TTA - Workshop 2019 QTE for HADM(High Accuracy Distance Measurement) ❑ QTE = Quick Tone Exchange ◆ Frequency offset compensation in the initial stage ❑ Multi(2+) Carrier Phase Ranging Technique for Vernier Scaling ◆ To cope with Interferer, frequency selective channel. Reflector Frequency of a tone signal Transmitter (Initiator/ Reflector) Frequency Error Measurement Antenna in either side of Initiator/ Reflector #0 Initiator Initiator 1st Phase Measurement #0 #1 #2 #3 #0 #1 #2 #3 n-th Phase Measurement ReflectorInitiator #0 #1 #2 #3 #0 #1 #2 #3 Tx Rx Frequency compensation

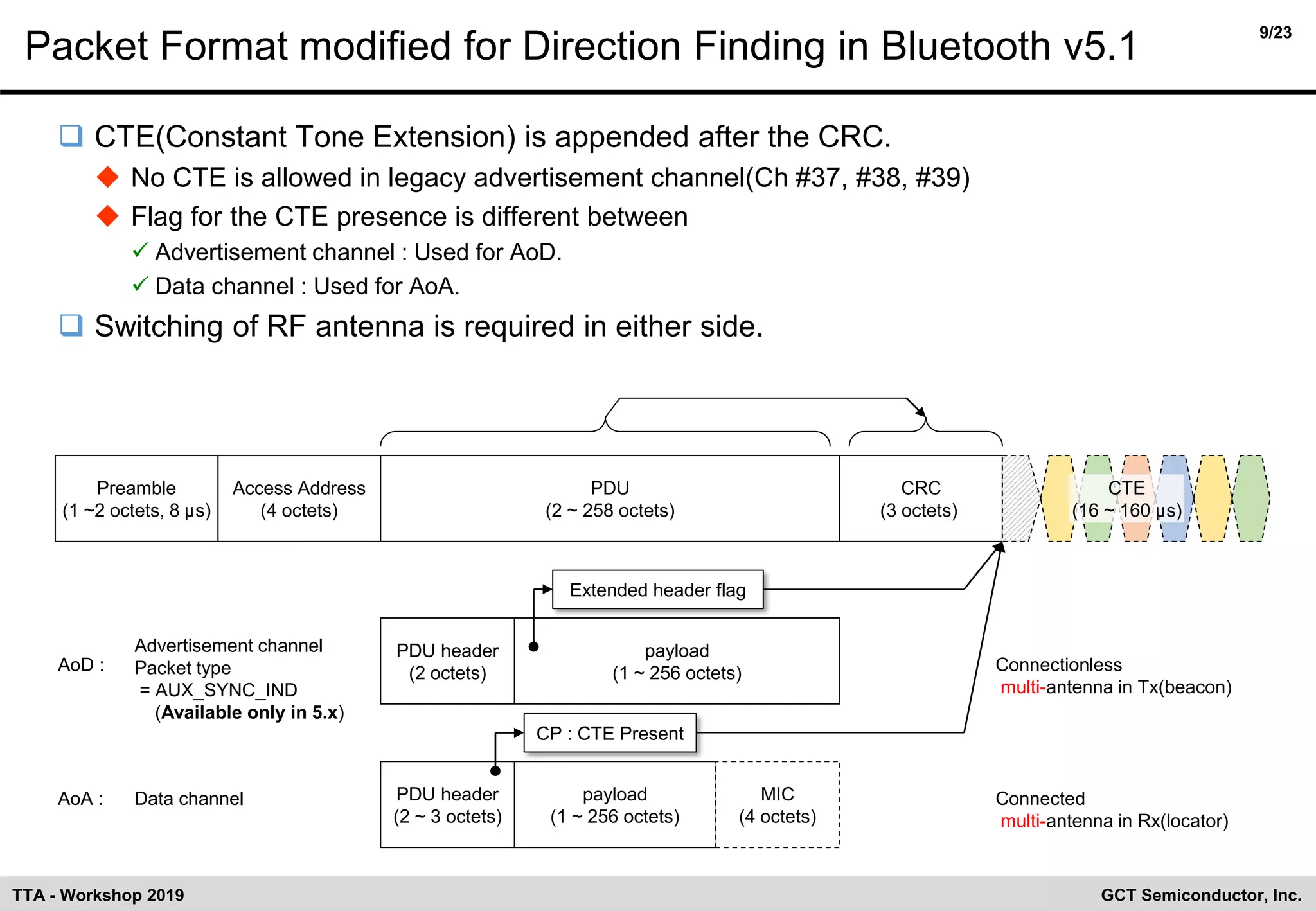

9/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Packet Format modified for Direction Finding in Bluetooth v5.1 ❑ CTE(Constant Tone Extension) is appended after the CRC. ◆ No CTE is allowed in legacy advertisement channel(Ch #37, #38, #39) ◆ Flag for the CTE presence is different between ✓ Advertisement channel : Used for AoD. ✓ Data channel : Used for AoA. ❑ Switching of RF antenna is required in either side. Preamble (1 ~2 octets, 8 µs) Access Address (4 octets) PDU (2 ~ 258 octets) CRC (3 octets) PDU header (2 octets) payload (1 ~ 256 octets) Advertisement channel Packet type = AUX_SYNC_IND (Available only in 5.x) Data channel PDU header (2 ~ 3 octets) payload (1 ~ 256 octets) MIC (4 octets) AoD : AoA : Connectionless multi-antenna in Tx(beacon) Connected multi-antenna in Rx(locator) Extended header flag CP : CTE Present CTE (16 ~ 160 µs)

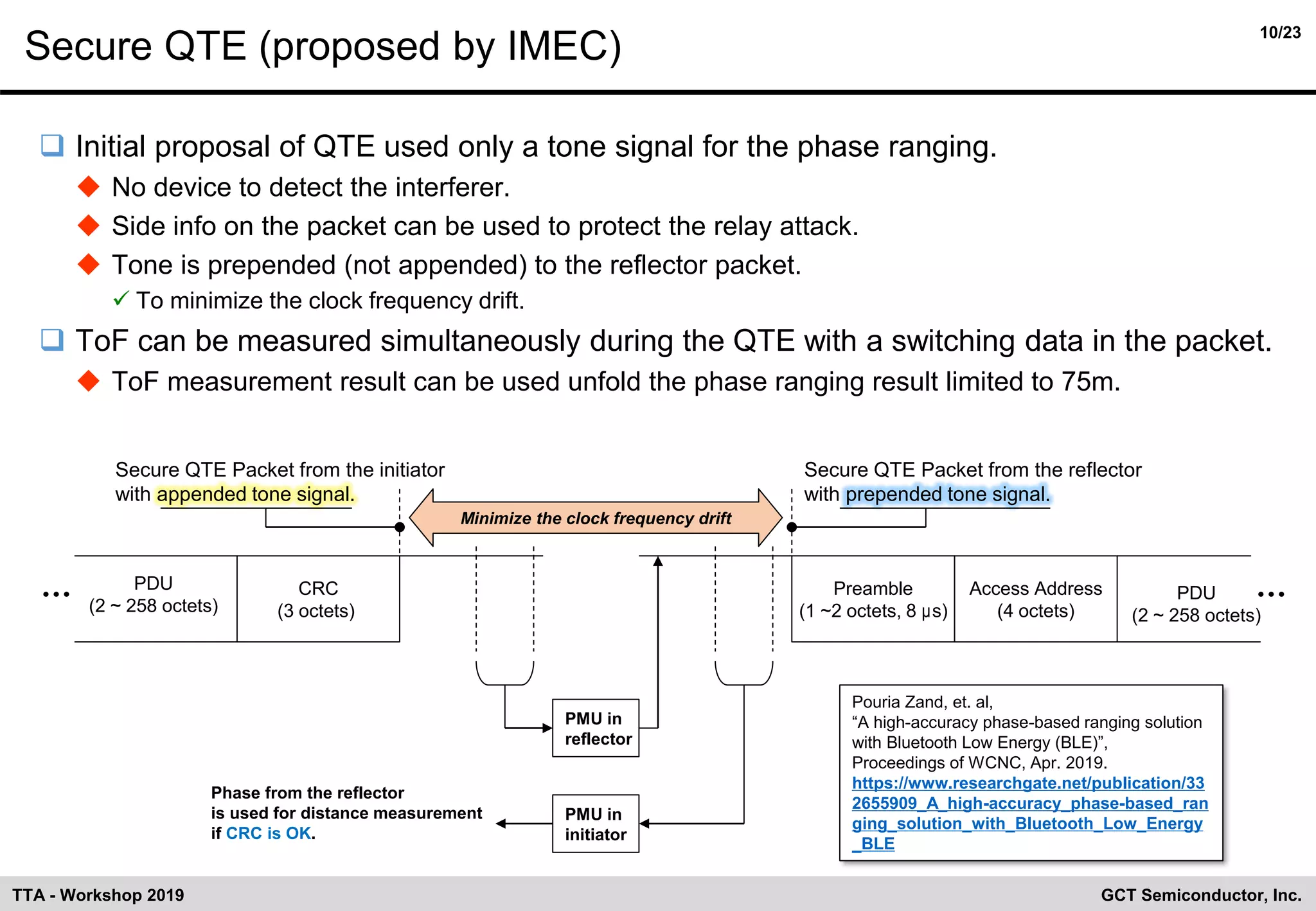

10/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Secure QTE (proposed by IMEC) ❑ Initial proposal of QTE used only a tone signal for the phase ranging. ◆ No device to detect the interferer. ◆ Side info on the packet can be used to protect the relay attack. ◆ Tone is prepended (not appended) to the reflector packet. ✓ To minimize the clock frequency drift. ❑ ToF can be measured simultaneously during the QTE with a switching data in the packet. ◆ ToF measurement result can be used unfold the phase ranging result limited to 75m. Preamble (1 ~2 octets, 8 µs) Access Address (4 octets) CRC (3 octets) PDU (2 ~ 258 octets) PDU (2 ~ 258 octets) Secure QTE Packet from the initiator with appended tone signal. Secure QTE Packet from the reflector with prepended tone signal. PMU in reflector PMU in initiator Phase from the reflector is used for distance measurement if CRC is OK. Minimize the clock frequency drift Pouria Zand, et. al, “A high-accuracy phase-based ranging solution with Bluetooth Low Energy (BLE)”, Proceedings of WCNC, Apr. 2019. https://www.researchgate.net/publication/33 2655909_A_high-accuracy_phase-based_ran ging_solution_with_Bluetooth_Low_Energy _BLE

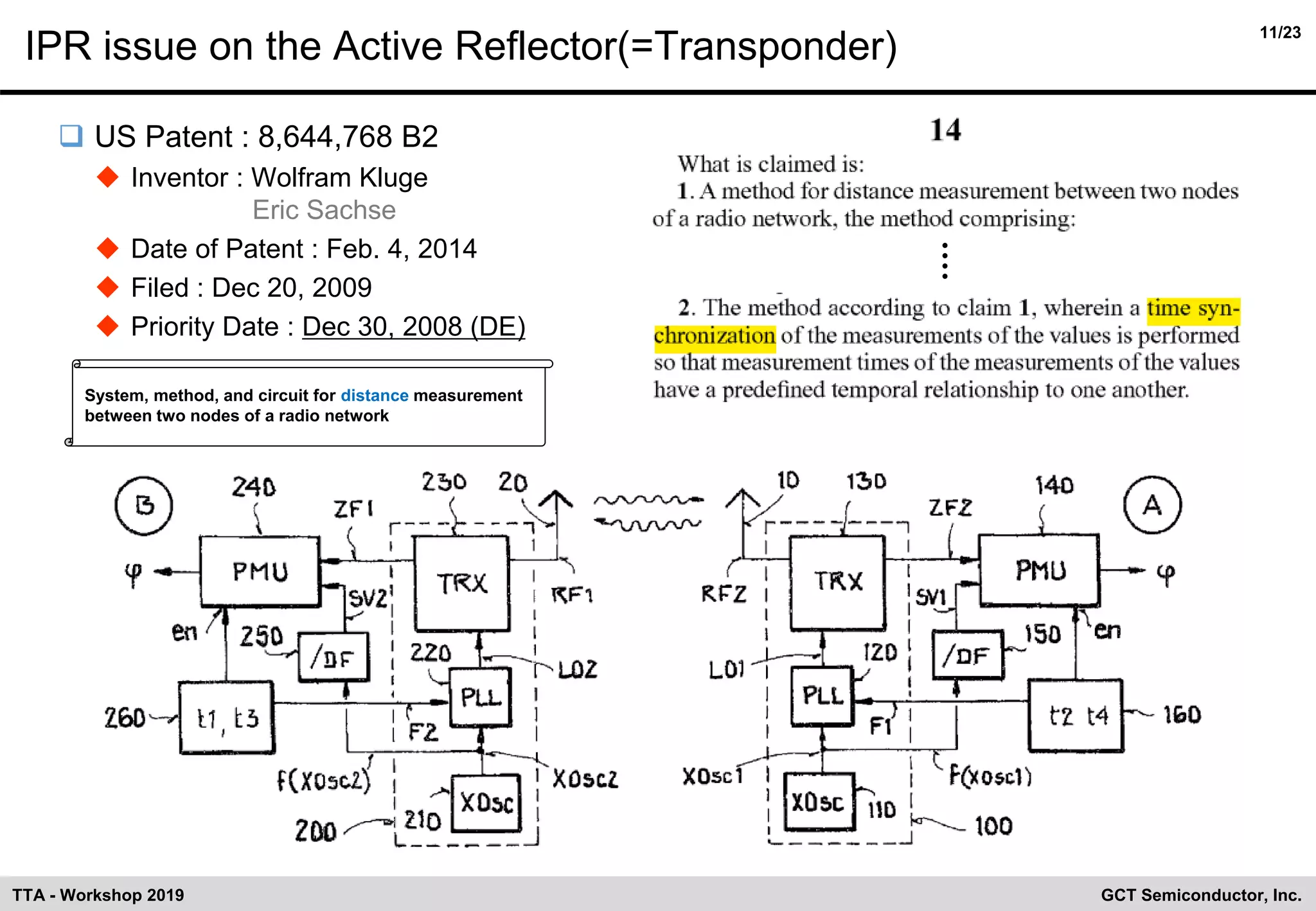

11/23 GCT Semiconductor, Inc.TTA - Workshop 2019 IPR issue on the Active Reflector(=Transponder) ❑ US Patent : 8,644,768 B2 ◆ Inventor : Wolfram Kluge Eric Sachse ◆ Date of Patent : Feb. 4, 2014 ◆ Filed : Dec 20, 2009 ◆ Priority Date : Dec 30, 2008 (DE) System, method, and circuit for distance measurement between two nodes of a radio network
12/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Past Standardization Process of Phase Ranging ❑ Knocked the door of 802.15.4 ◆ ATMEL ✓ https://mentor.ieee.org/802.15/documents ✓ No comments on the base document is found. ❑ Failed to be standardized. 15-09-0613-01-004f-ranging-with-ieee-802-15-4-narrow-band-phy.ppt 15-12-0651-00-004n-ranging-with-ieee-802-15-4-narrow-band-phy.pptx 15-13-0180-00-004n-integration-of-ranging-capabilities-with-phy-supporting-cmb.pptx https://www.microchip.co m/announcements/micro chip-technology-inc-acqu ires-atmel Acquisition of ATMEL by Microchip in 2016 System, method, and circuit for distance me asurement between tw o nodes of a radio net work US Patent 8 644 768 Morgan Stanley JP Morgan Chase Wells Fargo Patents on using active reflector to Phase Ranging Pending IPR issue on HADM Still active 2009 2012 2013 Patent filed to EU @ DE (2008) The inventor still works in microchip.

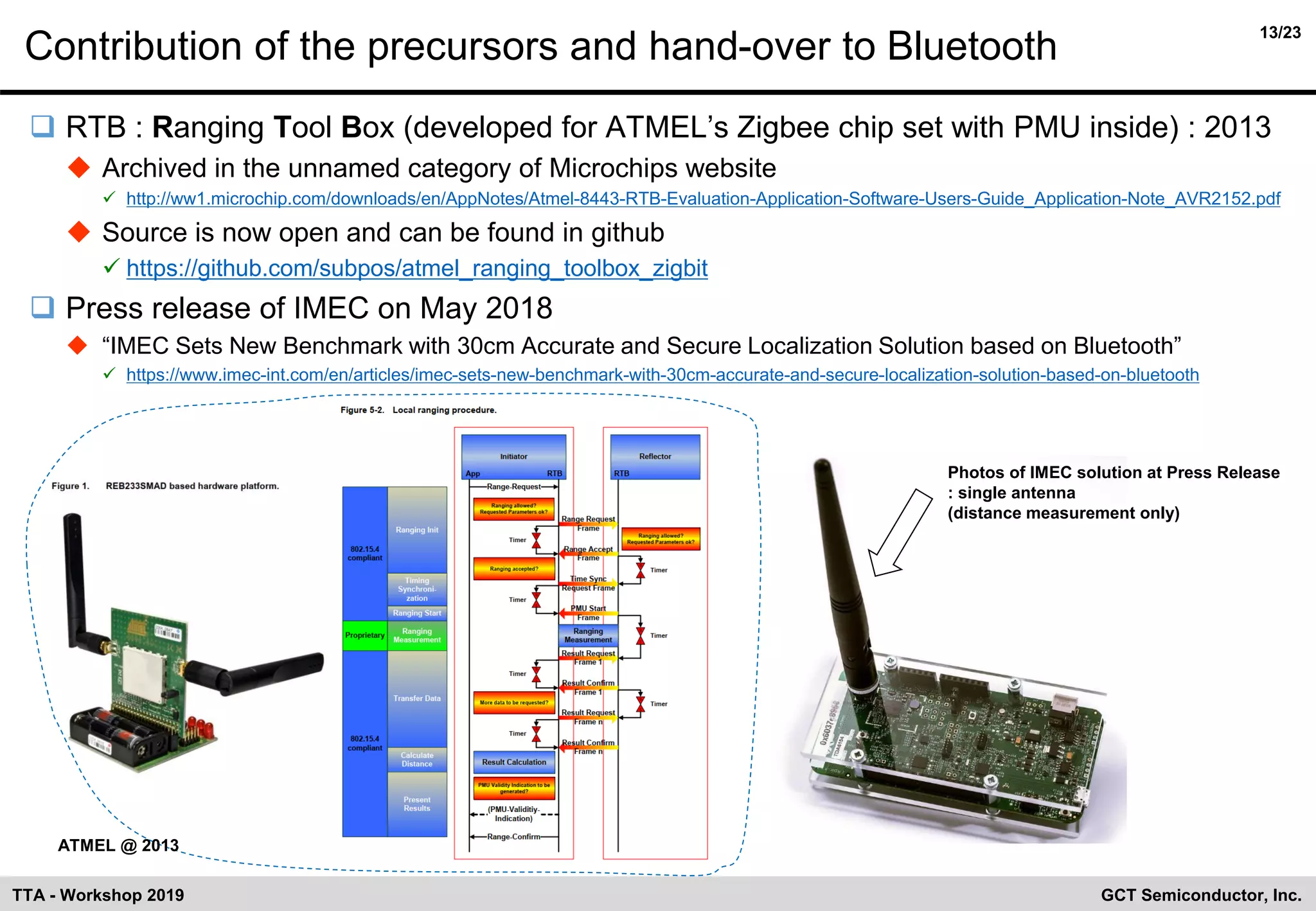

13/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Contribution of the precursors and hand-over to Bluetooth ❑ RTB : Ranging Tool Box (developed for ATMEL’s Zigbee chip set with PMU inside) : 2013 ◆ Archived in the unnamed category of Microchips website ✓ http://ww1.microchip.com/downloads/en/AppNotes/Atmel-8443-RTB-Evaluation-Application-Software-Users-Guide_Application-Note_AVR2152.pdf ◆ Source is now open and can be found in github ✓ https://github.com/subpos/atmel_ranging_toolbox_zigbit ❑ Press release of IMEC on May 2018 ◆ “IMEC Sets New Benchmark with 30cm Accurate and Secure Localization Solution based on Bluetooth” ✓ https://www.imec-int.com/en/articles/imec-sets-new-benchmark-with-30cm-accurate-and-secure-localization-solution-based-on-bluetooth Photos of IMEC solution at Press Release : single antenna (distance measurement only) ATMEL @ 2013

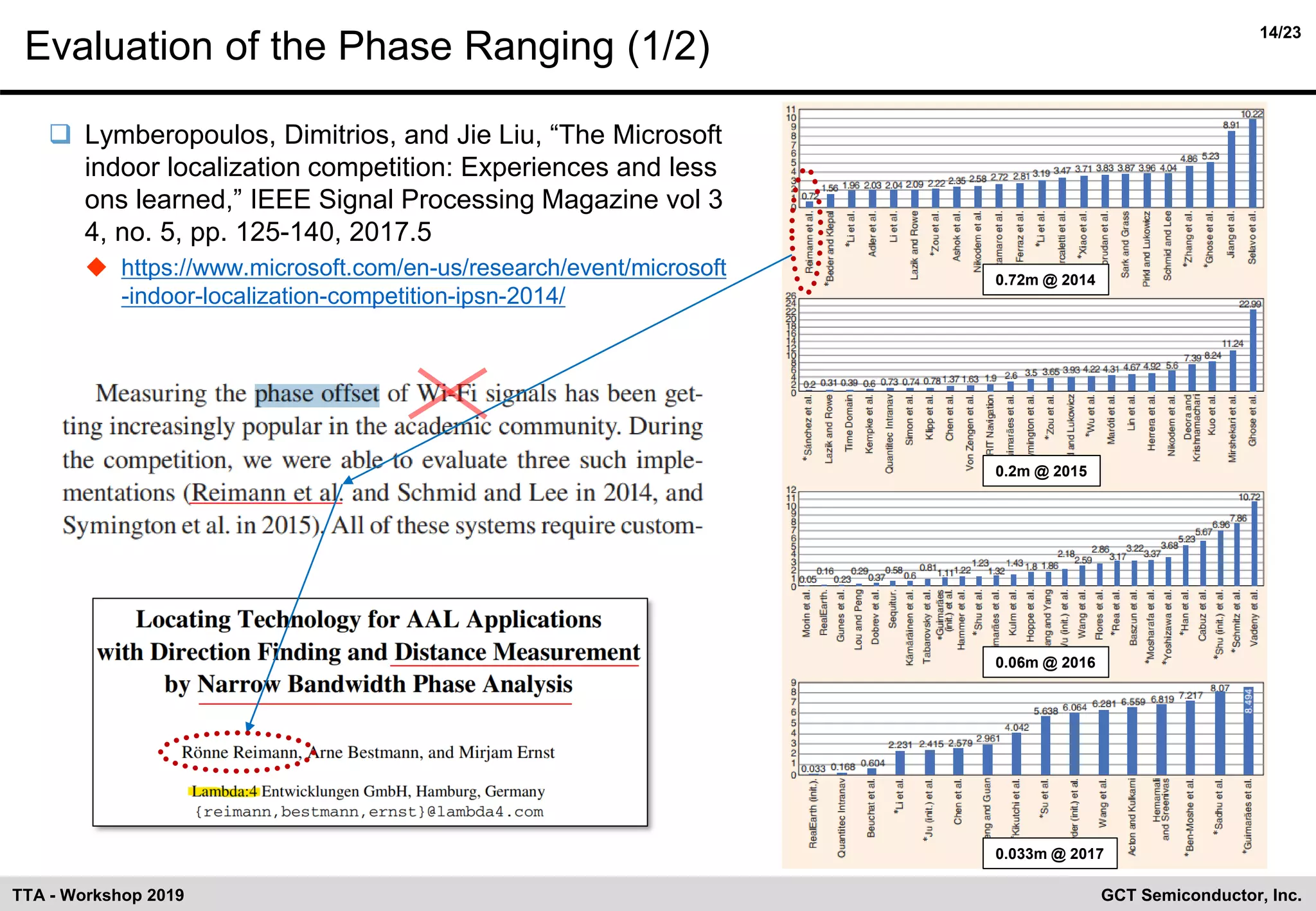

14/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Evaluation of the Phase Ranging (1/2) ❑ Lymberopoulos, Dimitrios, and Jie Liu, “The Microsoft indoor localization competition: Experiences and less ons learned,” IEEE Signal Processing Magazine vol 3 4, no. 5, pp. 125-140, 2017.5 ◆ https://www.microsoft.com/en-us/research/event/microsoft -indoor-localization-competition-ipsn-2014/ 0.72m @ 2014 0.2m @ 2015 0.06m @ 2016 0.033m @ 2017

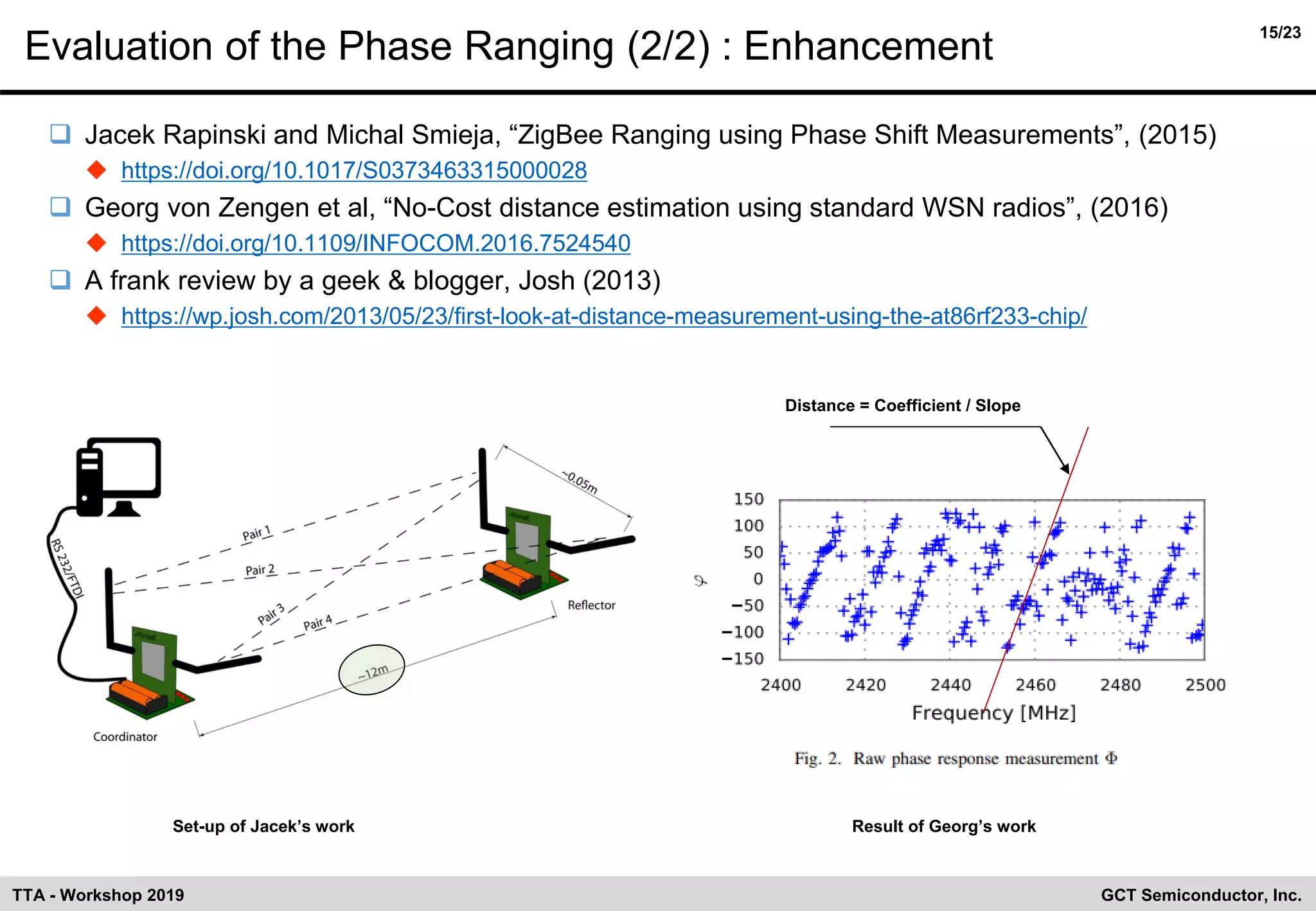

15/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Evaluation of the Phase Ranging (2/2) : Enhancement ❑ Jacek Rapinski and Michal Smieja, “ZigBee Ranging using Phase Shift Measurements”, (2015) ◆ https://doi.org/10.1017/S0373463315000028 ❑ Georg von Zengen et al, “No-Cost distance estimation using standard WSN radios”, (2016) ◆ https://doi.org/10.1109/INFOCOM.2016.7524540 ❑ A frank review by a geek & blogger, Josh (2013) ◆ https://wp.josh.com/2013/05/23/first-look-at-distance-measurement-using-the-at86rf233-chip/ Set-up of Jacek’s work Distance = Coefficient / Slope Result of Georg’s work

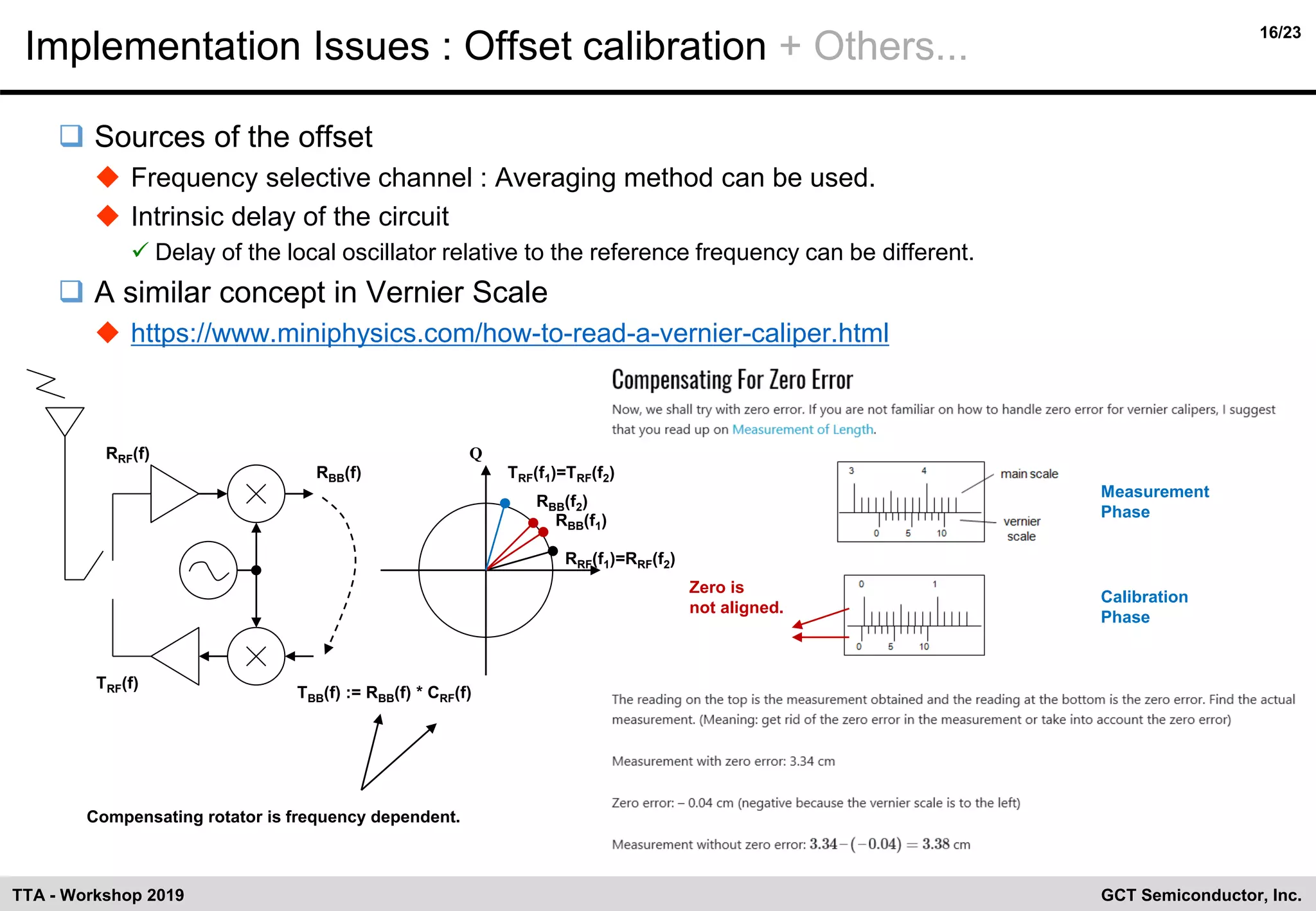

16/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Implementation Issues : Offset calibration + Others... ❑ Sources of the offset ◆ Frequency selective channel : Averaging method can be used. ◆ Intrinsic delay of the circuit ✓ Delay of the local oscillator relative to the reference frequency can be different. ❑ A similar concept in Vernier Scale ◆ https://www.miniphysics.com/how-to-read-a-vernier-caliper.html I Q Zero is not aligned. Measurement Phase Calibration Phase RBB(f1) RBB(f2) RBB(f) TBB(f) := RBB(f) * CRF(f) TRF(f) TRF(f1)=TRF(f2) RRF(f) RRF(f1)=RRF(f2) Compensating rotator is frequency dependent.

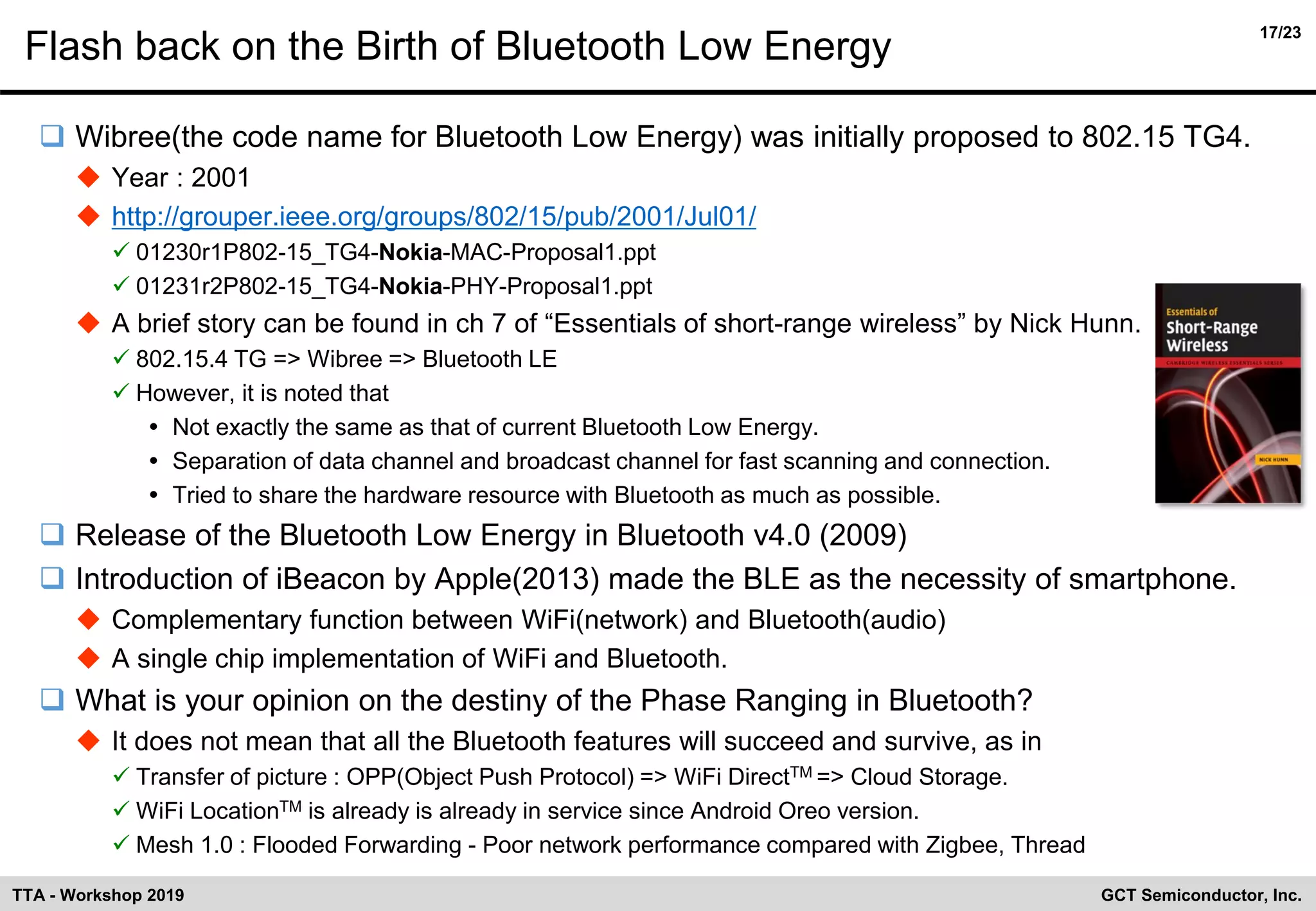

17/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Flash back on the Birth of Bluetooth Low Energy ❑ Wibree(the code name for Bluetooth Low Energy) was initially proposed to 802.15 TG4. ◆ Year : 2001 ◆ http://grouper.ieee.org/groups/802/15/pub/2001/Jul01/ ✓ 01230r1P802-15_TG4-Nokia-MAC-Proposal1.ppt ✓ 01231r2P802-15_TG4-Nokia-PHY-Proposal1.ppt ◆ A brief story can be found in ch 7 of “Essentials of short-range wireless” by Nick Hunn. ✓ 802.15.4 TG => Wibree => Bluetooth LE ✓ However, it is noted that  Not exactly the same as that of current Bluetooth Low Energy.  Separation of data channel and broadcast channel for fast scanning and connection.  Tried to share the hardware resource with Bluetooth as much as possible. ❑ Release of the Bluetooth Low Energy in Bluetooth v4.0 (2009) ❑ Introduction of iBeacon by Apple(2013) made the BLE as the necessity of smartphone. ◆ Complementary function between WiFi(network) and Bluetooth(audio) ◆ A single chip implementation of WiFi and Bluetooth. ❑ What is your opinion on the destiny of the Phase Ranging in Bluetooth? ◆ It does not mean that all the Bluetooth features will succeed and survive, as in ✓ Transfer of picture : OPP(Object Push Protocol) => WiFi DirectTM => Cloud Storage. ✓ WiFi LocationTM is already is already in service since Android Oreo version. ✓ Mesh 1.0 : Flooded Forwarding - Poor network performance compared with Zigbee, Thread

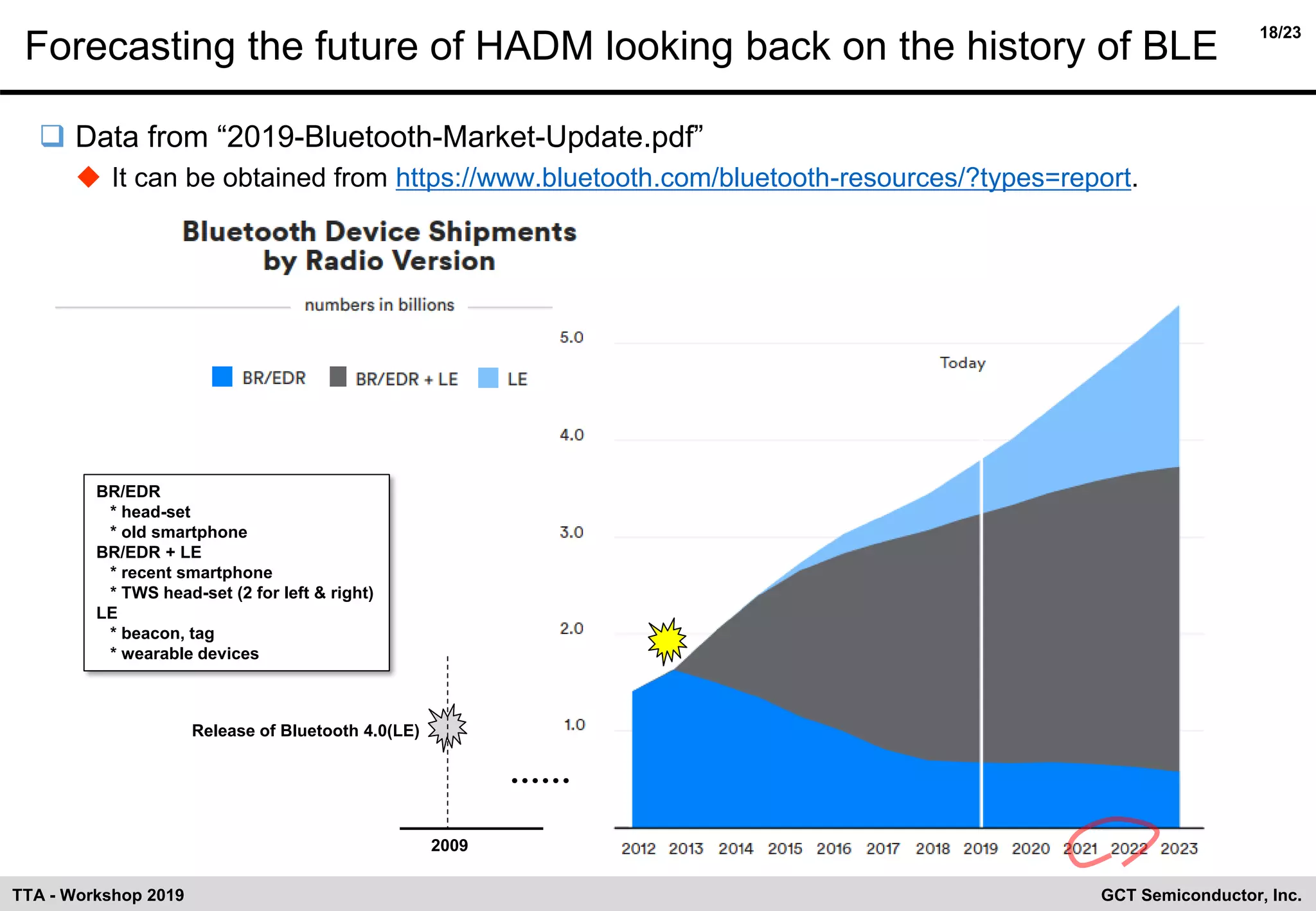

18/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Forecasting the future of HADM looking back on the history of BLE ❑ Data from “2019-Bluetooth-Market-Update.pdf” ◆ It can be obtained from https://www.bluetooth.com/bluetooth-resources/?types=report. 2009 BR/EDR * head-set * old smartphone BR/EDR + LE * recent smartphone * TWS head-set (2 for left & right) LE * beacon, tag * wearable devices Release of Bluetooth 4.0(LE)

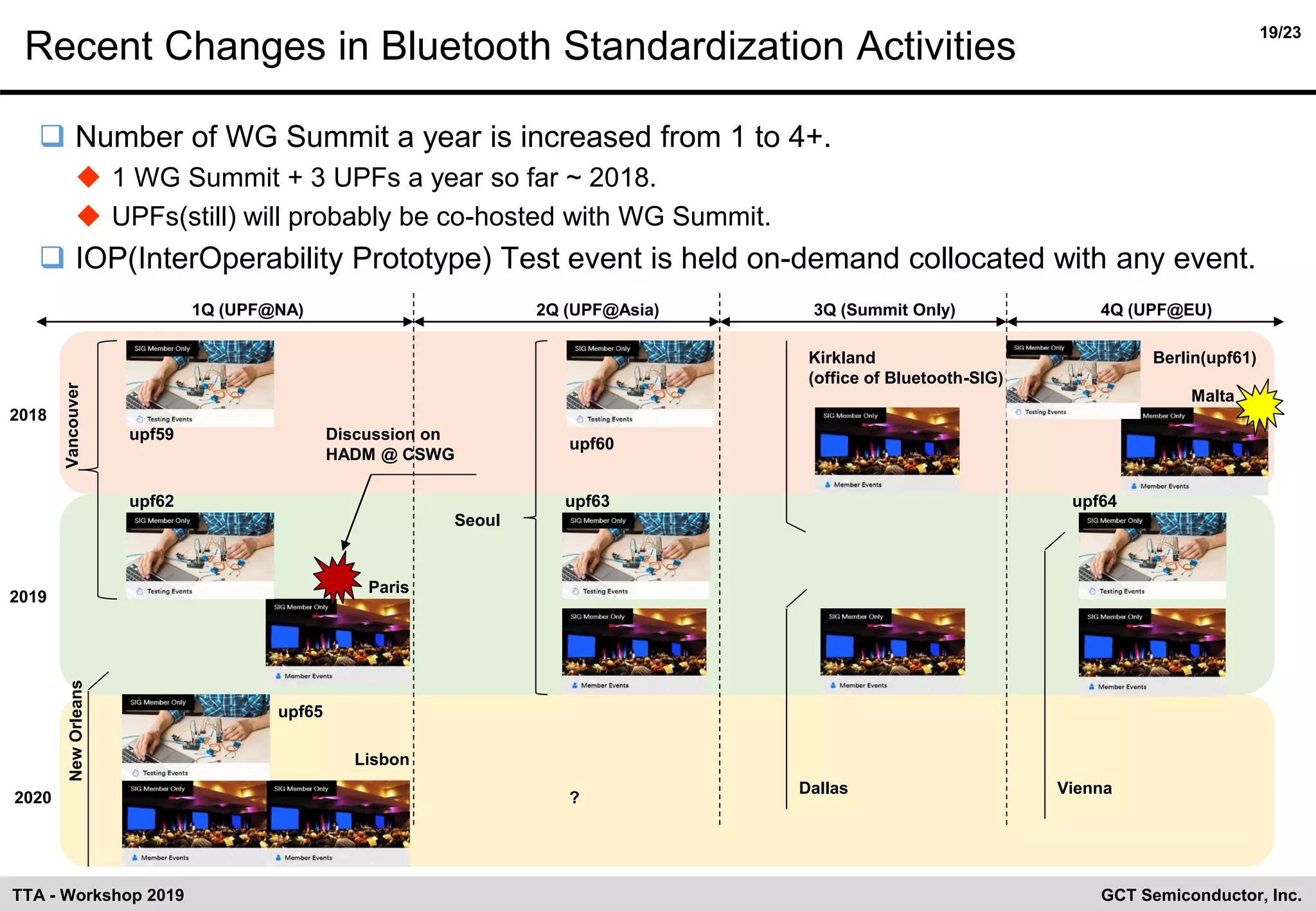

19/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Recent Changes in Bluetooth Standardization Activities ❑ Number of WG Summit a year is increased from 1 to 4+. ◆ 1 WG Summit + 3 UPFs a year so far ~ 2018. ◆ UPFs(still) will probably be co-hosted with WG Summit. ❑ IOP(InterOperability Prototype) Test event is held on-demand collocated with any event. 2018 2019 Paris 1Q (UPF@NA) 2Q (UPF@Asia) 3Q (Summit Only) Seoul 2020 Dallas Vienna Malta Kirkland (office of Bluetooth-SIG) 4Q (UPF@EU) upf62 Lisbon NewOrleans upf60 upf63 Berlin(upf61) ? upf59 Discussion on HADM @ CSWG upf64 upf65 Vancouver

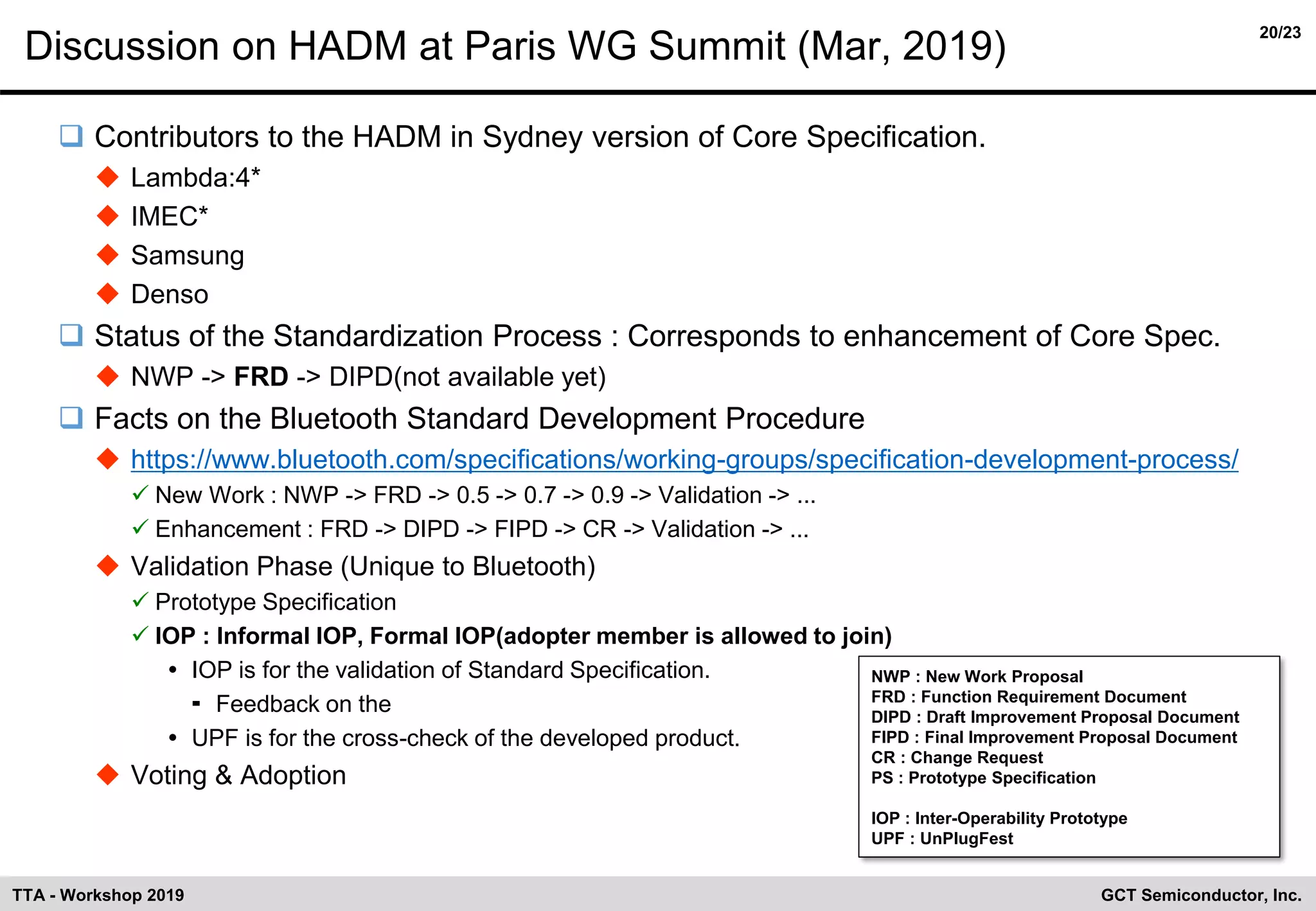

20/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Discussion on HADM at Paris WG Summit (Mar, 2019) ❑ Contributors to the HADM in Sydney version of Core Specification. ◆ Lambda:4* ◆ IMEC* ◆ Samsung ◆ Denso ❑ Status of the Standardization Process : Corresponds to enhancement of Core Spec. ◆ NWP -> FRD -> DIPD(not available yet) ❑ Facts on the Bluetooth Standard Development Procedure ◆ https://www.bluetooth.com/specifications/working-groups/specification-development-process/ ✓ New Work : NWP -> FRD -> 0.5 -> 0.7 -> 0.9 -> Validation -> ... ✓ Enhancement : FRD -> DIPD -> FIPD -> CR -> Validation -> ... ◆ Validation Phase (Unique to Bluetooth) ✓ Prototype Specification ✓ IOP : Informal IOP, Formal IOP(adopter member is allowed to join)  IOP is for the validation of Standard Specification.  Feedback on the  UPF is for the cross-check of the developed product. ◆ Voting & Adoption NWP : New Work Proposal FRD : Function Requirement Document DIPD : Draft Improvement Proposal Document FIPD : Final Improvement Proposal Document CR : Change Request PS : Prototype Specification IOP : Inter-Operability Prototype UPF : UnPlugFest

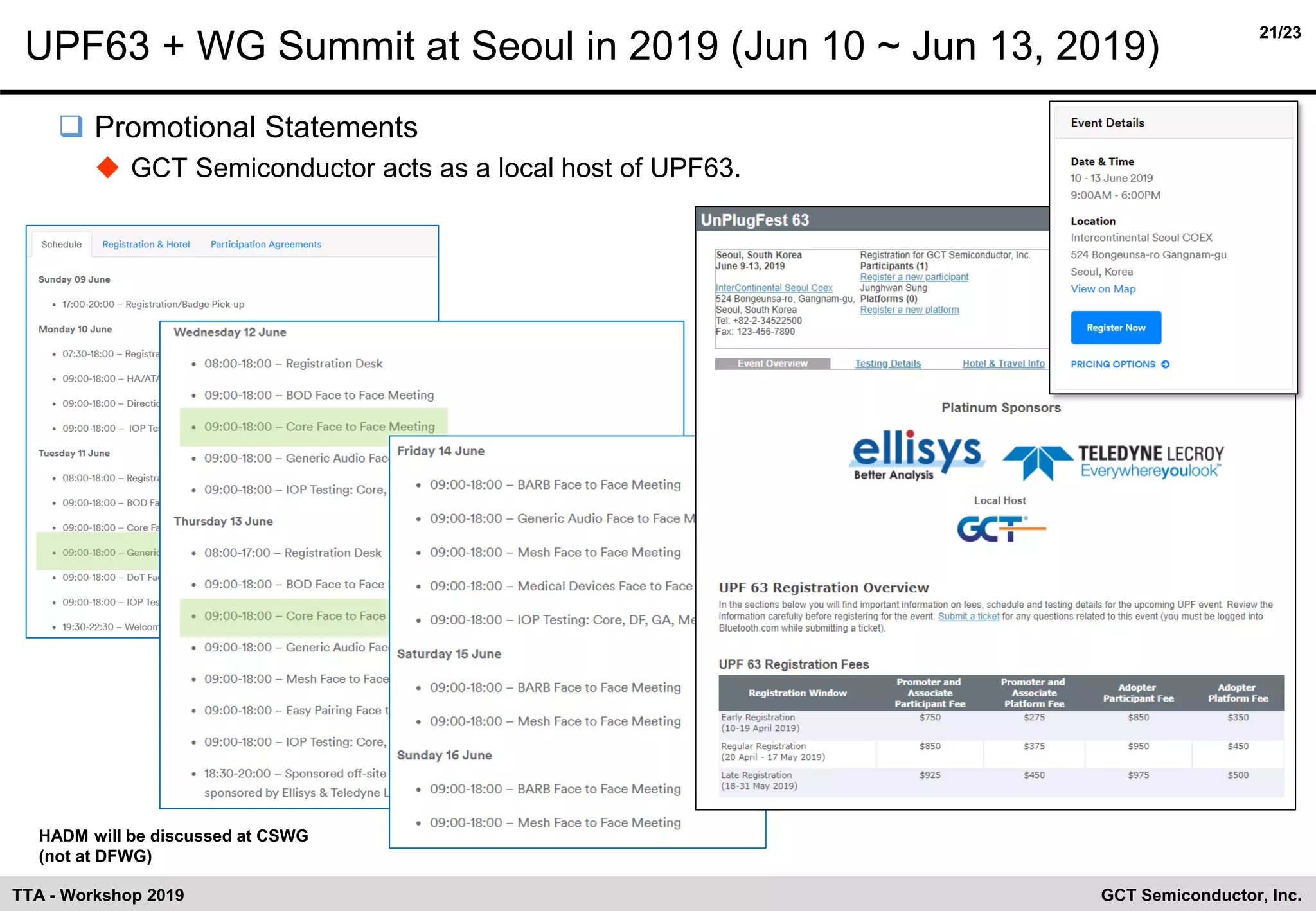

21/23 GCT Semiconductor, Inc.TTA - Workshop 2019 UPF63 + WG Summit at Seoul in 2019 (Jun 10 ~ Jun 13, 2019) ❑ Promotional Statements ◆ GCT Semiconductor acts as a local host of UPF63. HADM will be discussed at CSWG (not at DFWG)

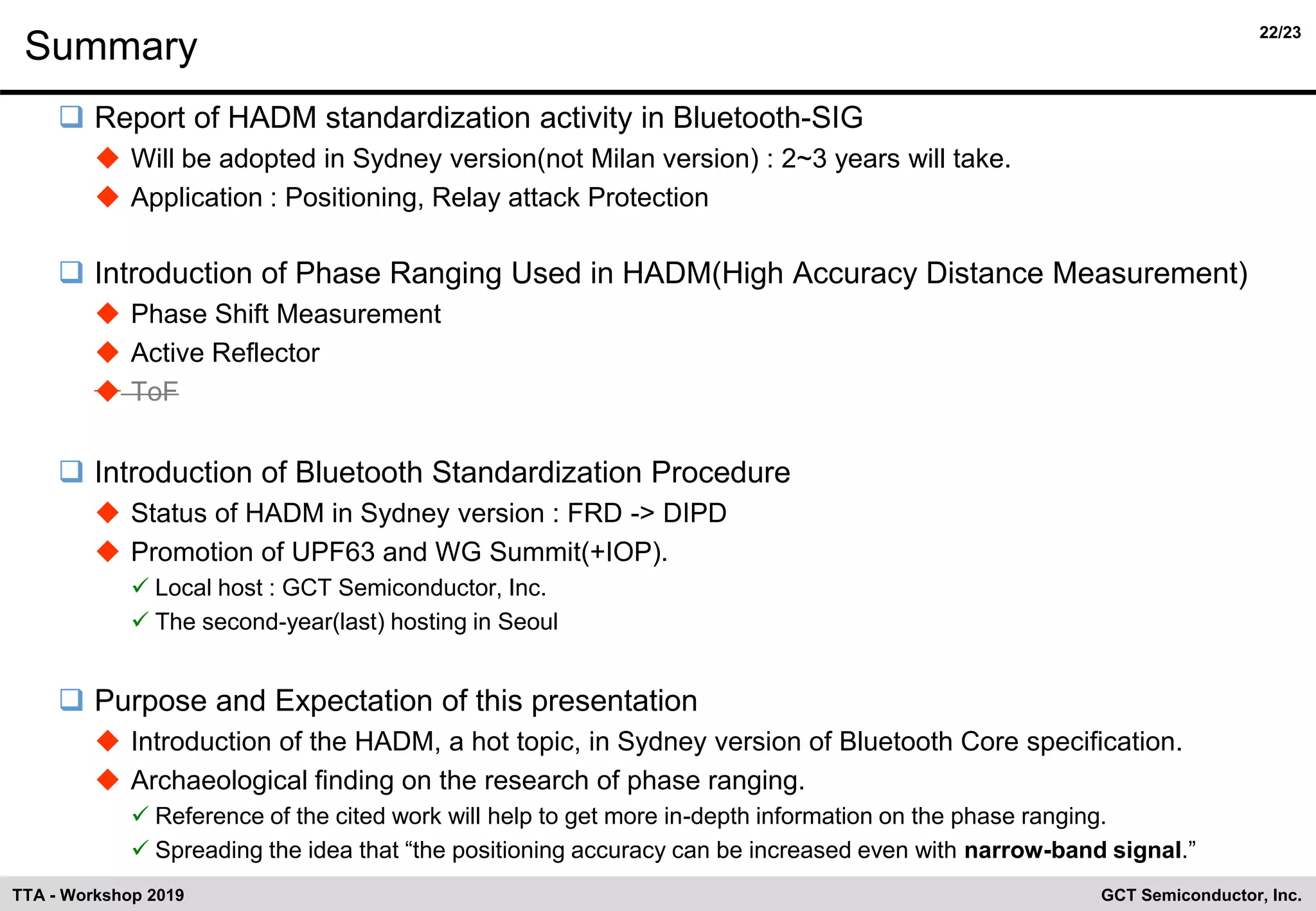

22/23 GCT Semiconductor, Inc.TTA - Workshop 2019 Summary ❑ Report of HADM standardization activity in Bluetooth-SIG ◆ Will be adopted in Sydney version(not Milan version) : 2~3 years will take. ◆ Application : Positioning, Relay attack Protection ❑ Introduction of Phase Ranging Used in HADM(High Accuracy Distance Measurement) ◆ Phase Shift Measurement ◆ Active Reflector ◆ ToF ❑ Introduction of Bluetooth Standardization Procedure ◆ Status of HADM in Sydney version : FRD -> DIPD ◆ Promotion of UPF63 and WG Summit(+IOP). ✓ Local host : GCT Semiconductor, Inc. ✓ The second-year(last) hosting in Seoul ❑ Purpose and Expectation of this presentation ◆ Introduction of the HADM, a hot topic, in Sydney version of Bluetooth Core specification. ◆ Archaeological finding on the research of phase ranging. ✓ Reference of the cited work will help to get more in-depth information on the phase ranging. ✓ Spreading the idea that “the positioning accuracy can be increased even with narrow-band signal.”

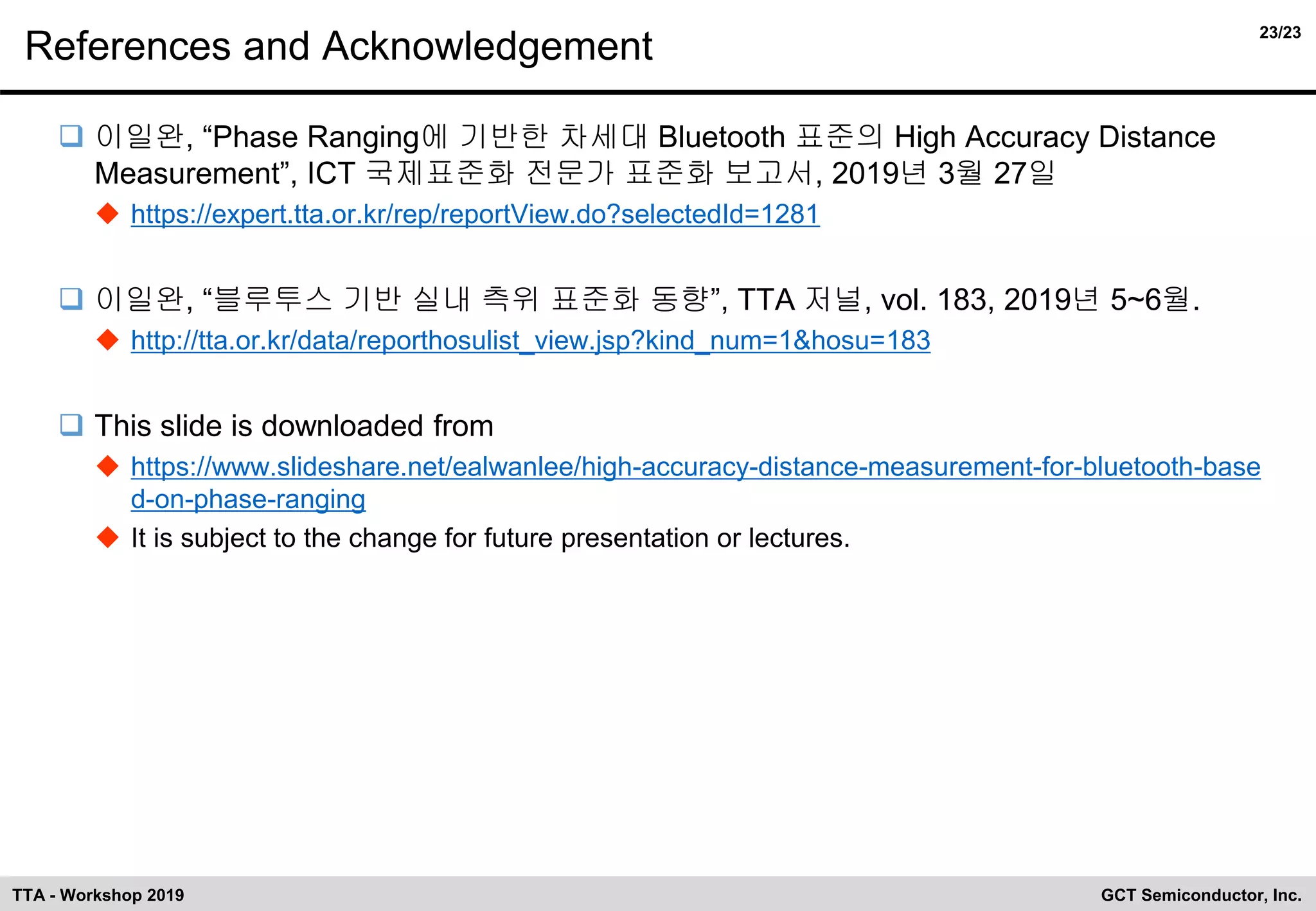

23/23 GCT Semiconductor, Inc.TTA - Workshop 2019 References and Acknowledgement ❑ 이일완, “Phase Ranging에 기반한 차세대 Bluetooth 표준의 High Accuracy Distance Measurement”, ICT 국제표준화 전문가 표준화 보고서, 2019년 3월 27일 ◆ https://expert.tta.or.kr/rep/reportView.do?selectedId=1281 ❑ 이일완, “블루투스 기반 실내 측위 표준화 동향”, TTA 저널, vol. 183, 2019년 5~6월. ◆ http://tta.or.kr/data/reporthosulist_view.jsp?kind_num=1&hosu=183 ❑ This slide is downloaded from ◆ https://www.slideshare.net/ealwanlee/high-accuracy-distance-measurement-for-bluetooth-base d-on-phase-ranging ◆ It is subject to the change for future presentation or lectures.

More Related Content

PDF
A CMOS 79GHz PMCW radar SOC
byDr. Jianying Guo

PDF
5G 기술과 활용 (5G technology and services) - 2019.05.11
byHakyong Kim

PDF
An Introduction to RF Design, Live presentation at EELive 2014
byRohde & Schwarz North America

PPT
Fundamentals of RF Systems
byYong Heui Cho

PPTX
Ultra wide band
byjalal hussein

PPTX
Ultra wide band technology
byBrati Sundar Nanda

PPTX
Ultra wideband technology (UWB)
byMustafa Khaleel

PDF
Device-level AI for 5G and beyond
by3G4G

A CMOS 79GHz PMCW radar SOC
byDr. Jianying Guo

5G 기술과 활용 (5G technology and services) - 2019.05.11
byHakyong Kim

An Introduction to RF Design, Live presentation at EELive 2014
byRohde & Schwarz North America

Fundamentals of RF Systems
byYong Heui Cho

Ultra wide band
byjalal hussein

Ultra wide band technology
byBrati Sundar Nanda

Ultra wideband technology (UWB)
byMustafa Khaleel

Device-level AI for 5G and beyond
by3G4G


What's hot

PDF
Design and Simulation Microstrip patch Antenna using CST Microwave Studio
byAymen Al-obaidi

PDF
Multiband Transceivers - [Chapter 5] Software-Defined Radios
bySimen Li

PDF
Introduction To Antenna Impedance Tuner And Aperture Switch
bycriterion123

PDF
Microwave Huawei RTN Hardware Structure
byibrahimnabil17

DOCX
Packaging of vlsi devices
byAshu0711

PDF
LTE Features, Link Budget & Basic Principle
byMd Mustafizur Rahman

PDF
RF Module Design - [Chapter 3] Linearity
bySimen Li

PDF
Phase-locked Loops - Theory and Design
bySimen Li

PDF
Wireless Communication short talk
byPei-Che Chang

PPTX
LTE Planning Basic
byMohamed Shaamiq

PPT
RF Transceivers
byRitul Sonania

PDF
射頻電子實驗手冊 [實驗1 ~ 5] ADS入門, 傳輸線模擬, 直流模擬, 暫態模擬, 交流模擬
bySimen Li

PDF
Differential stripline impedance calculate
byPei-Che Chang

PPTX
Printed Yagi uda Antenna
byHarshpreet Singh

PDF
Design of two stage OPAMP
byVishal Pathak

PPT
Rf planning for lte using atoll v1
byMuhammad Rizki

PDF
C-V characteristics of MOS Capacitor
byRCC Institute of Information Technology

PPTX
Directional couplers ppt for microwave engineering
byDivya Shree

PDF
Relationships Among EVM, BER and SNR + WiFi minimum SNR consideration
byPei-Che Chang

PPTX
continuos phase frequency shift keying(cpfsk)
byMoka Dinesh

Design and Simulation Microstrip patch Antenna using CST Microwave Studio
byAymen Al-obaidi

Multiband Transceivers - [Chapter 5] Software-Defined Radios
bySimen Li

Introduction To Antenna Impedance Tuner And Aperture Switch
bycriterion123

Microwave Huawei RTN Hardware Structure
byibrahimnabil17

Packaging of vlsi devices
byAshu0711

LTE Features, Link Budget & Basic Principle
byMd Mustafizur Rahman

RF Module Design - [Chapter 3] Linearity
bySimen Li

Phase-locked Loops - Theory and Design
bySimen Li

Wireless Communication short talk
byPei-Che Chang

LTE Planning Basic
byMohamed Shaamiq

RF Transceivers
byRitul Sonania

射頻電子實驗手冊 [實驗1 ~ 5] ADS入門, 傳輸線模擬, 直流模擬, 暫態模擬, 交流模擬
bySimen Li

Differential stripline impedance calculate
byPei-Che Chang

Printed Yagi uda Antenna
byHarshpreet Singh

Design of two stage OPAMP
byVishal Pathak

Rf planning for lte using atoll v1
byMuhammad Rizki

C-V characteristics of MOS Capacitor
byRCC Institute of Information Technology

Directional couplers ppt for microwave engineering
byDivya Shree

Relationships Among EVM, BER and SNR + WiFi minimum SNR consideration
byPei-Che Chang

continuos phase frequency shift keying(cpfsk)
byMoka Dinesh


Similar to High Accuracy Distance Measurement for Bluetooth Based on Phase Ranging

PDF
Standardization of BLE-based Connectionless AoA
byEalwan Lee

PDF
A Lecture Note on Bluetooth v5.2 in TTA Education Program(2020)
byEalwan Lee

PDF
A Lecture Note on Bluetooth v5.3 in TTA Education Program(2021)
byEalwan Lee

PPT
Vig tutorial 8.5.2.0
byNagesh Maley

PDF
JOINT SENSING RADAR AND SENSING USING RADAR
bydgofficesameer

PDF
RISE-6G-ICT-52-and-Hexa-X-Workshop-on-6G.pdf
byNagarajuChowdary1

PDF
Tone-based Measurement of Excess Group Delay in Programmable Gain Receiver Ch...
byEalwan Lee

PDF
Comparison of 7 Common Positioning Technologies.pdf
byAntenna Manufacturer Coco

PDF
User equipment geolocation depended on long-term evolutionsignal-level measur...
byIJECEIAES

PDF
Novel Position Estimation using Differential Timing Information for Asynchron...
byIJCNCJournal

PDF
Wireless Localization: Ranging (first part)
byStefano Severi

PDF
What is UWB?
byAntenna Manufacturer Coco

PDF
Distance Measurements using Ultra Wide-Band (UWB)
byIqbal Hossain

PDF
Kealy fidaforever
byQUT (Queensland University of Technology)

PDF
DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

PDF
DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

PDF
DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

PDF
NOVEL POSITION ESTIMATION USING DIFFERENTIAL TIMING INFORMATION FOR ASYNCHRON...
byIJCNCJournal

PDF
Next Generation Positioning T181063, ETE, IIUC
bychaaderchayaa69

PDF
Space Awareness Technologies for Service Discovery in Mobile Computing
byYurong (Kevin) Xu

Standardization of BLE-based Connectionless AoA
byEalwan Lee

A Lecture Note on Bluetooth v5.2 in TTA Education Program(2020)
byEalwan Lee

A Lecture Note on Bluetooth v5.3 in TTA Education Program(2021)
byEalwan Lee

Vig tutorial 8.5.2.0
byNagesh Maley

JOINT SENSING RADAR AND SENSING USING RADAR
bydgofficesameer

RISE-6G-ICT-52-and-Hexa-X-Workshop-on-6G.pdf
byNagarajuChowdary1

Tone-based Measurement of Excess Group Delay in Programmable Gain Receiver Ch...
byEalwan Lee

Comparison of 7 Common Positioning Technologies.pdf
byAntenna Manufacturer Coco

User equipment geolocation depended on long-term evolutionsignal-level measur...
byIJECEIAES

Novel Position Estimation using Differential Timing Information for Asynchron...
byIJCNCJournal

Wireless Localization: Ranging (first part)
byStefano Severi

What is UWB?
byAntenna Manufacturer Coco

Distance Measurements using Ultra Wide-Band (UWB)
byIqbal Hossain

Kealy fidaforever
byQUT (Queensland University of Technology)

DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

DUAL BAND GNSS ANTENNA PHASE CENTER CHARACTERIZATION FOR AUTOMOTIVE APPLICATIONS
byjantjournal

NOVEL POSITION ESTIMATION USING DIFFERENTIAL TIMING INFORMATION FOR ASYNCHRON...
byIJCNCJournal

Next Generation Positioning T181063, ETE, IIUC
bychaaderchayaa69

Space Awareness Technologies for Service Discovery in Mobile Computing
byYurong (Kevin) Xu


More from Ealwan Lee

PDF
Joint Compensation of CIM3 and I/Q Imbalance in the Up-conversion Mixer with ...
byEalwan Lee

PDF
A Refined Skew Matrix Model of the CIM3 in the Up-Mixer Extending the Duality...
byEalwan Lee

PDF
Boosting the Performance of Nested Spatial Mapping with Unequal Modulation in...
byEalwan Lee

PDF
A 4-Terminal Approach to Validating Charge Conservation in MOSFET Compact Models
byEalwan Lee

PDF
A Lecture Note on Nested MIMO in 2017, Seoul
byEalwan Lee

PDF
블루투스 기반 실내 측위 표준화 동향(2019)
byEalwan Lee

PDF
Practical issues to be considered in PHY layer of 802.11 standard spec
byEalwan Lee

PDF
A Method to Derate the Rate-Dependency in the Pass-Band Droop of Comb Decimators
byEalwan Lee

Joint Compensation of CIM3 and I/Q Imbalance in the Up-conversion Mixer with ...
byEalwan Lee

A Refined Skew Matrix Model of the CIM3 in the Up-Mixer Extending the Duality...
byEalwan Lee

Boosting the Performance of Nested Spatial Mapping with Unequal Modulation in...
byEalwan Lee

A 4-Terminal Approach to Validating Charge Conservation in MOSFET Compact Models
byEalwan Lee

A Lecture Note on Nested MIMO in 2017, Seoul
byEalwan Lee

블루투스 기반 실내 측위 표준화 동향(2019)
byEalwan Lee

Practical issues to be considered in PHY layer of 802.11 standard spec
byEalwan Lee

A Method to Derate the Rate-Dependency in the Pass-Band Droop of Comb Decimators
byEalwan Lee


Recently uploaded

PDF
December Patch Tuesday
byIvanti

PDF
Internet_of_Things_IoT_for_Next_Generation_Smart_Systems_Utilizing.pdf
byRoshanSyed12

PPTX
Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity

PDF
Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

PPTX
Cloud-and-AI-Platform-FY26-Partner-Playbook.pptx
byiuiuiuiu1

PPTX
Unit-4-ARTIFICIAL NEURAL NETWORKS.pptx ANN ppt Artificial neural network
byssuserd4481a

PDF
Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi

PPTX
From Backup to Resilience: How MSPs Are Preparing for 2026
byMSP360

PDF
The year in review - MarvelClient in 2025
bypanagenda

PDF
Six Shifts For 2026 (And The Next Six Years)
byDavid Armano

PPTX
Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

PDF
Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

PDF
Cybersecurity: Safeguarding Digital Assets
byYasir Naveed Riaz

PPTX
Cybercrime in the Digital Age: Risks, Impact & Protection
byYasir Naveed Riaz

PPTX
Chapter 3 Introduction to number system.pptx
byGetachewAbera9

PPTX
Data Privacy and Protection: Safeguarding Information in a Connected World
byYasir Naveed Riaz

PDF
Day 1 - Cloud Security Strategy and Planning ~ 2nd Sight Lab ~ Cloud Security...
by2nd Sight Lab

PPTX
Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz

PDF
Unser Jahresrückblick – MarvelClient in 2025
bypanagenda

PDF
The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner

December Patch Tuesday
byIvanti

Internet_of_Things_IoT_for_Next_Generation_Smart_Systems_Utilizing.pdf
byRoshanSyed12

Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity

Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

Cloud-and-AI-Platform-FY26-Partner-Playbook.pptx
byiuiuiuiu1

Unit-4-ARTIFICIAL NEURAL NETWORKS.pptx ANN ppt Artificial neural network
byssuserd4481a

Is It Possible to Have Wi-Fi Without an Internet Provider
bySidra Jefferi

From Backup to Resilience: How MSPs Are Preparing for 2026
byMSP360

The year in review - MarvelClient in 2025
bypanagenda

Six Shifts For 2026 (And The Next Six Years)
byDavid Armano

Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

Cybersecurity: Safeguarding Digital Assets
byYasir Naveed Riaz

Cybercrime in the Digital Age: Risks, Impact & Protection
byYasir Naveed Riaz

Chapter 3 Introduction to number system.pptx
byGetachewAbera9

Data Privacy and Protection: Safeguarding Information in a Connected World
byYasir Naveed Riaz

Day 1 - Cloud Security Strategy and Planning ~ 2nd Sight Lab ~ Cloud Security...
by2nd Sight Lab

Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz

Unser Jahresrückblick – MarvelClient in 2025
bypanagenda

The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner


High Accuracy Distance Measurement for Bluetooth Based on Phase Ranging

  • 1.
    GCT Semiconductor, Inc.TTA- Workshop 2019 High Accuracy Distance Measurement for Bluetooth Based on Phase Ranging Ealwan Lee GCT Semiconductor, Inc. Session : De-facto Standard Development Organization #3 May 24, 2019 (11:40 am ~ 12:00 pm) 2019 ICT 표준화포럼/전문가 합동워크숍
  • 2.
    1/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Table of Contents ❑ Introduction ◆ Scope of the presentation(HADM) ◆ Use case of HADM ❑ Phase Ranging Method adopted in HADM ◆ Phase Shift Measurement ✓ Analogy : Vernier scale, Moiré pattern, ◆ Active Reflector ❑ IPR issues and History of Phase Ranging ◆ ATMEL ◆ Handover from 802.15.4 to Bluetooth ❑ Implementation issues : non-FRAND IPR ❑ Forecasting on the HADM technology ❑ Bluetooth Standardization Activity ◆ Discussion of HADM at Core Specification WG. ❑ Summary ❑ Acknowledgment [ pp. 4 ~ 10 ] [ pp. 11 ~ 15 ] [ p. 22 ] [ p. 23 ] [ p. 2 ] [ p. 16 ] [ pp. 19 ~ 21 ] [ pp. 17 ~ 18 ] [ p. 3 ]
  • 3.
    2/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Introduction ❑ LBS(Location Based Service) feature in Bluetooth Low Energy ◆ 4.x (4.0, 4.1, 4.2) since Dec 2009 ✓ Separate physical channel assigned for broadcast(advertisement) channel  fast scan and connection became available. ✓ Proximity based service  beacon service ◆ 5.1 (Released as of Jan 2019) : 6.0 in ICT Standardization Strategy Map(2019) ✓ Half of long-waited Madrid version is related suddenly without LE audio feature. ✓ Direction Finding Feature for AoA(Angle-of-Arrival) and AoD(Angle-of-Departure) ◆ Milan version (5.2 or 6.0?) ◆ Sydney version (6.0 or 6.1?) ✓ HADM, RP ❑ HADM : High-Accuracy-Distance-Measurement ◆ consists of ✓ Phase Ranging with Secure QTE(Quick Tone Exchange) ✓ ToF(Time-of-Flight) ◆ Use cases ✓ Positioning ✓ Relay attack Protection http://www.tta.or.kr/data/reporthosulist_view.jsp?kind_num=5&hosu=2019
  • 4.
    3/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Use Cases of HADM(not limited to Phase Ranging Method) ❑ Indoor Positioning ◆ Asset Tracking ✓ ATP(Asset Tracking Profile) under formal IOP ◆ Way Finding ✓ IPS-1.1(Indoor Positioning Service Enhancement) ✓ IPP(Indoor Positioning Profile) = IPS-1.1 + CTES(Constant Tone Extension Service) ❑ Relay Attack Protection : Accurate and Invulnerable Proximity service ◆ RSSI-only based system cannot protect SARA(Signal Amplification Relay Attack). ◆ Competition against 802.15.4z(UWB-like EIR based ranging) ✓ distance bounding(one of the PHY layer protection) can be easily implemented in 802.15.4z. An amplifier for key-to-car(UHF) as a man-in-the-middle An amplifier for car-to-key(LF) Wake-up d1 1 d2 2 d3 3 RSSI(distance)-only direction(angle)-only direction+ (precise) distance key fob
  • 5.
    4/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Methods of Positioning : Improvement by HADM ❑ Trilateration : Distance ◆ RSS (Received Signal Strength) ✓ Precision is lost as the distance gets longer. ◆ ToF (Time of Flight) : RTT(Round-Trip Time/Delay) ✓ Precision is proportional to the band-width of the pulse signal ✓ Ideal for wide-band signal standard : UWB(802.15.4z), WiFi(802.11az) ◆ Phase Ranging : Interferometry ✓ A (narrow-band) tone signal is used. ❑ Triangulation : Angle ◆ AoA, AoD ✓ Now available with v5.1 ✓ multi-antenna, still multi devices are required RSS(logscale) distance(linear) Madridversion Sydney version : - a single device with multi-antenna for positioning - a single device with a single antenna for ranging-only. BLE (2MHz or 1MHz) frequency fc UWB (> 500MHz or fc /5) WiFi(20, 40, 80, 160 MHz) ∆𝒓 𝟏 = ∆𝒓 𝟐 ∆𝒓 𝟏 ∆𝒓 𝟐 ∆𝒅 𝟏 ∆𝒅 𝟐 ∆𝒅 𝟏 < ∆𝒅 𝟐
  • 6.
    5/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Phase Ranging : Phase Shift Measurement + Active Reflector ❑ Phase Shift = Phase difference between carriers with different frequency ❑ min f (Channel spacing of Bluetooth LE) = 2 MHz => d = 75m. ◆ Phase shift folds with the periodicity of 75m(w/ round-trip path of active reflection). ◆ Is 75 m enough for indoor positioning? ✓ Typical range of BLE ~ 10 m : seems to be enough ❑ Weak to interferer, multi-path channel. Initiator (Tx) Reflector (Rx) Initiator (Rx) Reflector (Tx) Initiator (Tx) Reflector (Rx) Initiator (Rx) Reflector (Tx) f1 f2= f1+f 1 2=1+ 𝒅 = 𝒄 𝟒𝝅 ∙ ∆∅ ∆𝒇 distance phase
  • 7.
    6/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Analogy of Phase Shift Measurement (1/2) : Vernier Scale ❑ Vernier Scale ◆ A visual aid for accurate measurement reading between two graduation markings ◆ https://en.wikipedia.org/wiki/Vernier_scale ◆ Devices : Vernier Caliper ❑ Vernier Delay Line for Time Difference Amplification in Integrated Circuit Design ◆ Vernier Delay Line based TDC(Time-to-Digital Converter) main Vernier Read-out : 10.02 mm Vernier Constant : 0.01 mm = 1 - 9/10 mm
  • 8.
    7/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Analogy of Phase Shift Measurement (2/2) : Moiré pattern ❑ Aliasing caused by similar patterns(including frequencies) ◆ Can be seen in 2D and 1D ◆ https://en.wikipedia.org/wiki/Moir%C3%A9_pattern#Geometrical_approach ❑ Hold your smartphone camera near(not too close) the notebook screen. ◆ If the resolution of camera and display gets comparable, Moiré pattern will appear. Moiré effect in photos 𝒅 = 𝒑 𝟐 ∙ 𝒑 𝜹𝒑 The period of pattern is amplified by the factor of (p/dp)
  • 9.
    8/23 GCT Semiconductor, Inc.TTA- Workshop 2019 QTE for HADM(High Accuracy Distance Measurement) ❑ QTE = Quick Tone Exchange ◆ Frequency offset compensation in the initial stage ❑ Multi(2+) Carrier Phase Ranging Technique for Vernier Scaling ◆ To cope with Interferer, frequency selective channel. Reflector Frequency of a tone signal Transmitter (Initiator/ Reflector) Frequency Error Measurement Antenna in either side of Initiator/ Reflector #0 Initiator Initiator 1st Phase Measurement #0 #1 #2 #3 #0 #1 #2 #3 n-th Phase Measurement ReflectorInitiator #0 #1 #2 #3 #0 #1 #2 #3 Tx Rx Frequency compensation
  • 10.
    9/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Packet Format modified for Direction Finding in Bluetooth v5.1 ❑ CTE(Constant Tone Extension) is appended after the CRC. ◆ No CTE is allowed in legacy advertisement channel(Ch #37, #38, #39) ◆ Flag for the CTE presence is different between ✓ Advertisement channel : Used for AoD. ✓ Data channel : Used for AoA. ❑ Switching of RF antenna is required in either side. Preamble (1 ~2 octets, 8 µs) Access Address (4 octets) PDU (2 ~ 258 octets) CRC (3 octets) PDU header (2 octets) payload (1 ~ 256 octets) Advertisement channel Packet type = AUX_SYNC_IND (Available only in 5.x) Data channel PDU header (2 ~ 3 octets) payload (1 ~ 256 octets) MIC (4 octets) AoD : AoA : Connectionless multi-antenna in Tx(beacon) Connected multi-antenna in Rx(locator) Extended header flag CP : CTE Present CTE (16 ~ 160 µs)
  • 11.
    10/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Secure QTE (proposed by IMEC) ❑ Initial proposal of QTE used only a tone signal for the phase ranging. ◆ No device to detect the interferer. ◆ Side info on the packet can be used to protect the relay attack. ◆ Tone is prepended (not appended) to the reflector packet. ✓ To minimize the clock frequency drift. ❑ ToF can be measured simultaneously during the QTE with a switching data in the packet. ◆ ToF measurement result can be used unfold the phase ranging result limited to 75m. Preamble (1 ~2 octets, 8 µs) Access Address (4 octets) CRC (3 octets) PDU (2 ~ 258 octets) PDU (2 ~ 258 octets) Secure QTE Packet from the initiator with appended tone signal. Secure QTE Packet from the reflector with prepended tone signal. PMU in reflector PMU in initiator Phase from the reflector is used for distance measurement if CRC is OK. Minimize the clock frequency drift Pouria Zand, et. al, “A high-accuracy phase-based ranging solution with Bluetooth Low Energy (BLE)”, Proceedings of WCNC, Apr. 2019. https://www.researchgate.net/publication/33 2655909_A_high-accuracy_phase-based_ran ging_solution_with_Bluetooth_Low_Energy _BLE
  • 12.
    11/23 GCT Semiconductor, Inc.TTA- Workshop 2019 IPR issue on the Active Reflector(=Transponder) ❑ US Patent : 8,644,768 B2 ◆ Inventor : Wolfram Kluge Eric Sachse ◆ Date of Patent : Feb. 4, 2014 ◆ Filed : Dec 20, 2009 ◆ Priority Date : Dec 30, 2008 (DE) System, method, and circuit for distance measurement between two nodes of a radio network
  • 13.
    12/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Past Standardization Process of Phase Ranging ❑ Knocked the door of 802.15.4 ◆ ATMEL ✓ https://mentor.ieee.org/802.15/documents ✓ No comments on the base document is found. ❑ Failed to be standardized. 15-09-0613-01-004f-ranging-with-ieee-802-15-4-narrow-band-phy.ppt 15-12-0651-00-004n-ranging-with-ieee-802-15-4-narrow-band-phy.pptx 15-13-0180-00-004n-integration-of-ranging-capabilities-with-phy-supporting-cmb.pptx https://www.microchip.co m/announcements/micro chip-technology-inc-acqu ires-atmel Acquisition of ATMEL by Microchip in 2016 System, method, and circuit for distance me asurement between tw o nodes of a radio net work US Patent 8 644 768 Morgan Stanley JP Morgan Chase Wells Fargo Patents on using active reflector to Phase Ranging Pending IPR issue on HADM Still active 2009 2012 2013 Patent filed to EU @ DE (2008) The inventor still works in microchip.
  • 14.
    13/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Contribution of the precursors and hand-over to Bluetooth ❑ RTB : Ranging Tool Box (developed for ATMEL’s Zigbee chip set with PMU inside) : 2013 ◆ Archived in the unnamed category of Microchips website ✓ http://ww1.microchip.com/downloads/en/AppNotes/Atmel-8443-RTB-Evaluation-Application-Software-Users-Guide_Application-Note_AVR2152.pdf ◆ Source is now open and can be found in github ✓ https://github.com/subpos/atmel_ranging_toolbox_zigbit ❑ Press release of IMEC on May 2018 ◆ “IMEC Sets New Benchmark with 30cm Accurate and Secure Localization Solution based on Bluetooth” ✓ https://www.imec-int.com/en/articles/imec-sets-new-benchmark-with-30cm-accurate-and-secure-localization-solution-based-on-bluetooth Photos of IMEC solution at Press Release : single antenna (distance measurement only) ATMEL @ 2013
  • 15.
    14/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Evaluation of the Phase Ranging (1/2) ❑ Lymberopoulos, Dimitrios, and Jie Liu, “The Microsoft indoor localization competition: Experiences and less ons learned,” IEEE Signal Processing Magazine vol 3 4, no. 5, pp. 125-140, 2017.5 ◆ https://www.microsoft.com/en-us/research/event/microsoft -indoor-localization-competition-ipsn-2014/ 0.72m @ 2014 0.2m @ 2015 0.06m @ 2016 0.033m @ 2017
  • 16.
    15/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Evaluation of the Phase Ranging (2/2) : Enhancement ❑ Jacek Rapinski and Michal Smieja, “ZigBee Ranging using Phase Shift Measurements”, (2015) ◆ https://doi.org/10.1017/S0373463315000028 ❑ Georg von Zengen et al, “No-Cost distance estimation using standard WSN radios”, (2016) ◆ https://doi.org/10.1109/INFOCOM.2016.7524540 ❑ A frank review by a geek & blogger, Josh (2013) ◆ https://wp.josh.com/2013/05/23/first-look-at-distance-measurement-using-the-at86rf233-chip/ Set-up of Jacek’s work Distance = Coefficient / Slope Result of Georg’s work
  • 17.
    16/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Implementation Issues : Offset calibration + Others... ❑ Sources of the offset ◆ Frequency selective channel : Averaging method can be used. ◆ Intrinsic delay of the circuit ✓ Delay of the local oscillator relative to the reference frequency can be different. ❑ A similar concept in Vernier Scale ◆ https://www.miniphysics.com/how-to-read-a-vernier-caliper.html I Q Zero is not aligned. Measurement Phase Calibration Phase RBB(f1) RBB(f2) RBB(f) TBB(f) := RBB(f) * CRF(f) TRF(f) TRF(f1)=TRF(f2) RRF(f) RRF(f1)=RRF(f2) Compensating rotator is frequency dependent.
  • 18.
    17/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Flash back on the Birth of Bluetooth Low Energy ❑ Wibree(the code name for Bluetooth Low Energy) was initially proposed to 802.15 TG4. ◆ Year : 2001 ◆ http://grouper.ieee.org/groups/802/15/pub/2001/Jul01/ ✓ 01230r1P802-15_TG4-Nokia-MAC-Proposal1.ppt ✓ 01231r2P802-15_TG4-Nokia-PHY-Proposal1.ppt ◆ A brief story can be found in ch 7 of “Essentials of short-range wireless” by Nick Hunn. ✓ 802.15.4 TG => Wibree => Bluetooth LE ✓ However, it is noted that  Not exactly the same as that of current Bluetooth Low Energy.  Separation of data channel and broadcast channel for fast scanning and connection.  Tried to share the hardware resource with Bluetooth as much as possible. ❑ Release of the Bluetooth Low Energy in Bluetooth v4.0 (2009) ❑ Introduction of iBeacon by Apple(2013) made the BLE as the necessity of smartphone. ◆ Complementary function between WiFi(network) and Bluetooth(audio) ◆ A single chip implementation of WiFi and Bluetooth. ❑ What is your opinion on the destiny of the Phase Ranging in Bluetooth? ◆ It does not mean that all the Bluetooth features will succeed and survive, as in ✓ Transfer of picture : OPP(Object Push Protocol) => WiFi DirectTM => Cloud Storage. ✓ WiFi LocationTM is already is already in service since Android Oreo version. ✓ Mesh 1.0 : Flooded Forwarding - Poor network performance compared with Zigbee, Thread
  • 19.
    18/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Forecasting the future of HADM looking back on the history of BLE ❑ Data from “2019-Bluetooth-Market-Update.pdf” ◆ It can be obtained from https://www.bluetooth.com/bluetooth-resources/?types=report. 2009 BR/EDR * head-set * old smartphone BR/EDR + LE * recent smartphone * TWS head-set (2 for left & right) LE * beacon, tag * wearable devices Release of Bluetooth 4.0(LE)
  • 20.
    19/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Recent Changes in Bluetooth Standardization Activities ❑ Number of WG Summit a year is increased from 1 to 4+. ◆ 1 WG Summit + 3 UPFs a year so far ~ 2018. ◆ UPFs(still) will probably be co-hosted with WG Summit. ❑ IOP(InterOperability Prototype) Test event is held on-demand collocated with any event. 2018 2019 Paris 1Q (UPF@NA) 2Q (UPF@Asia) 3Q (Summit Only) Seoul 2020 Dallas Vienna Malta Kirkland (office of Bluetooth-SIG) 4Q (UPF@EU) upf62 Lisbon NewOrleans upf60 upf63 Berlin(upf61) ? upf59 Discussion on HADM @ CSWG upf64 upf65 Vancouver
  • 21.
    20/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Discussion on HADM at Paris WG Summit (Mar, 2019) ❑ Contributors to the HADM in Sydney version of Core Specification. ◆ Lambda:4* ◆ IMEC* ◆ Samsung ◆ Denso ❑ Status of the Standardization Process : Corresponds to enhancement of Core Spec. ◆ NWP -> FRD -> DIPD(not available yet) ❑ Facts on the Bluetooth Standard Development Procedure ◆ https://www.bluetooth.com/specifications/working-groups/specification-development-process/ ✓ New Work : NWP -> FRD -> 0.5 -> 0.7 -> 0.9 -> Validation -> ... ✓ Enhancement : FRD -> DIPD -> FIPD -> CR -> Validation -> ... ◆ Validation Phase (Unique to Bluetooth) ✓ Prototype Specification ✓ IOP : Informal IOP, Formal IOP(adopter member is allowed to join)  IOP is for the validation of Standard Specification.  Feedback on the  UPF is for the cross-check of the developed product. ◆ Voting & Adoption NWP : New Work Proposal FRD : Function Requirement Document DIPD : Draft Improvement Proposal Document FIPD : Final Improvement Proposal Document CR : Change Request PS : Prototype Specification IOP : Inter-Operability Prototype UPF : UnPlugFest
  • 22.
    21/23 GCT Semiconductor, Inc.TTA- Workshop 2019 UPF63 + WG Summit at Seoul in 2019 (Jun 10 ~ Jun 13, 2019) ❑ Promotional Statements ◆ GCT Semiconductor acts as a local host of UPF63. HADM will be discussed at CSWG (not at DFWG)
  • 23.
    22/23 GCT Semiconductor, Inc.TTA- Workshop 2019 Summary ❑ Report of HADM standardization activity in Bluetooth-SIG ◆ Will be adopted in Sydney version(not Milan version) : 2~3 years will take. ◆ Application : Positioning, Relay attack Protection ❑ Introduction of Phase Ranging Used in HADM(High Accuracy Distance Measurement) ◆ Phase Shift Measurement ◆ Active Reflector ◆ ToF ❑ Introduction of Bluetooth Standardization Procedure ◆ Status of HADM in Sydney version : FRD -> DIPD ◆ Promotion of UPF63 and WG Summit(+IOP). ✓ Local host : GCT Semiconductor, Inc. ✓ The second-year(last) hosting in Seoul ❑ Purpose and Expectation of this presentation ◆ Introduction of the HADM, a hot topic, in Sydney version of Bluetooth Core specification. ◆ Archaeological finding on the research of phase ranging. ✓ Reference of the cited work will help to get more in-depth information on the phase ranging. ✓ Spreading the idea that “the positioning accuracy can be increased even with narrow-band signal.”
  • 24.
    23/23 GCT Semiconductor, Inc.TTA- Workshop 2019 References and Acknowledgement ❑ 이일완, “Phase Ranging에 기반한 차세대 Bluetooth 표준의 High Accuracy Distance Measurement”, ICT 국제표준화 전문가 표준화 보고서, 2019년 3월 27일 ◆ https://expert.tta.or.kr/rep/reportView.do?selectedId=1281 ❑ 이일완, “블루투스 기반 실내 측위 표준화 동향”, TTA 저널, vol. 183, 2019년 5~6월. ◆ http://tta.or.kr/data/reporthosulist_view.jsp?kind_num=1&hosu=183 ❑ This slide is downloaded from ◆ https://www.slideshare.net/ealwanlee/high-accuracy-distance-measurement-for-bluetooth-base d-on-phase-ranging ◆ It is subject to the change for future presentation or lectures.
