GraphFrames provides a unified API for graph queries and algorithms in Spark SQL. It translates graph patterns and algorithms to relational operations optimized by the Spark SQL query optimizer. Materializing the right views, such as the triplet view for GraphX algorithms or user-defined views for queries, can improve performance. An evaluation shows GraphFrames outperforms Neo4j for unanchored queries and approaches GraphX performance for graph algorithms using Spark SQL. Future work includes automatically suggesting optimal views and exploiting attribute-based partitioning.

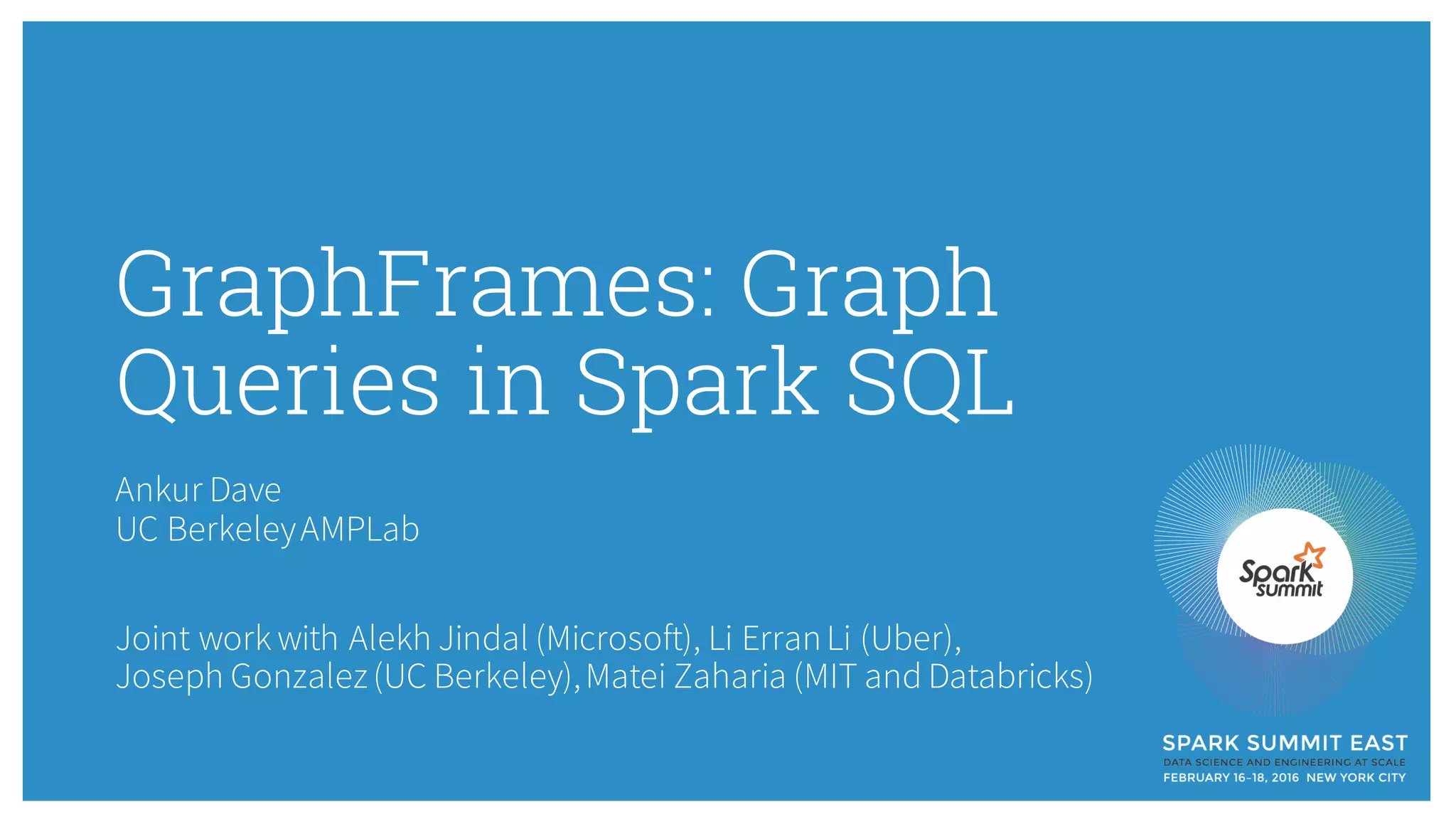

1. GraphFrames: Graph
Queries in Spark SQL
Ankur Dave
UC BerkeleyAMPLab
Joint work with Alekh Jindal (Microsoft), Li ErranLi (Uber),
Joseph Gonzalez(UC Berkeley),Matei Zaharia (MIT and Databricks)

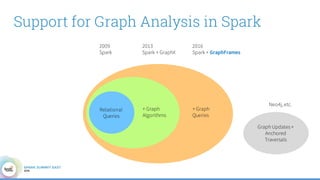

2. + Graph
Queries
2016

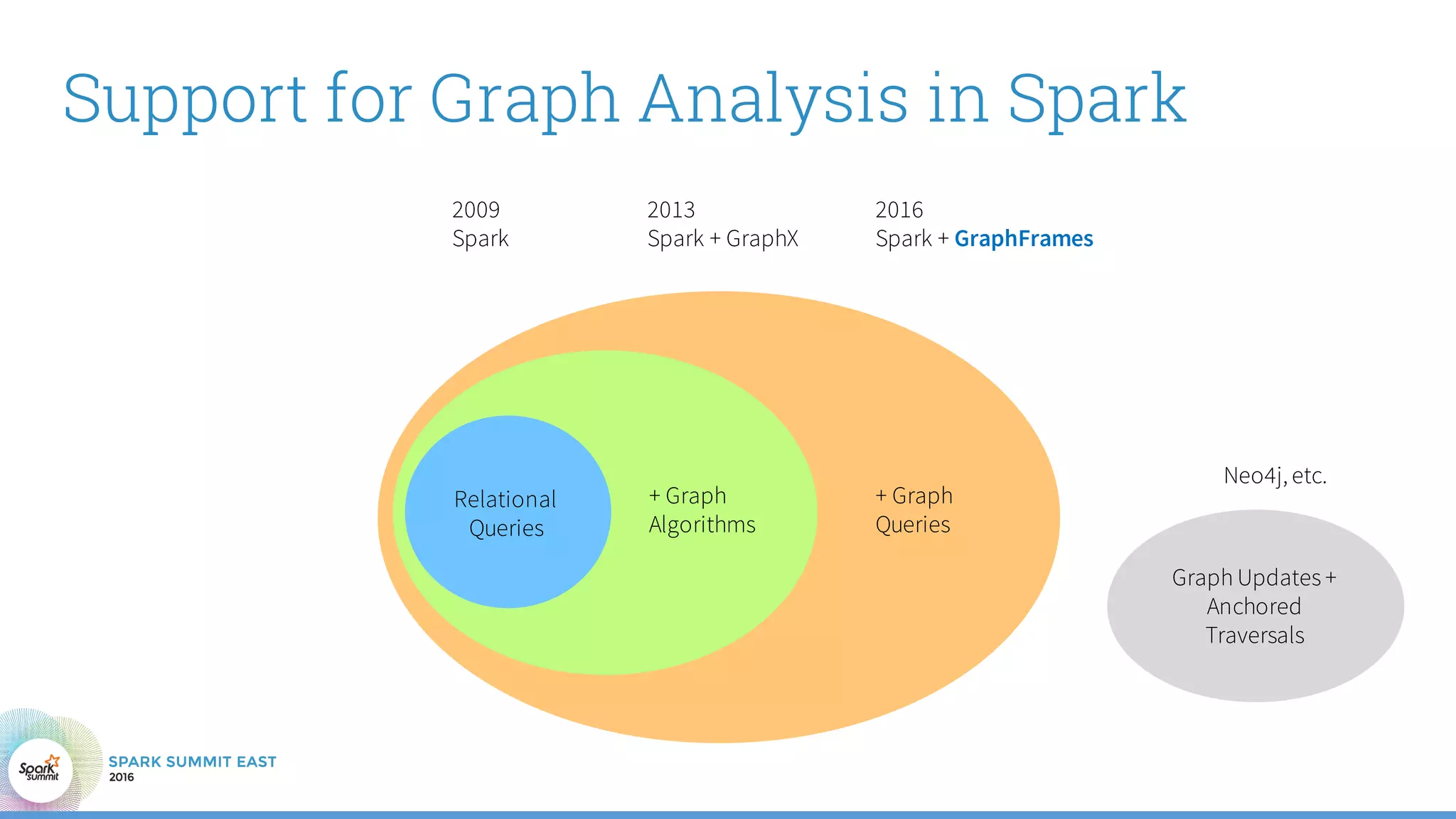

Spark + GraphFrames
Support for Graph Analysis in Spark
+ Graph
Algorithms
2013
Spark + GraphX
Relational
Queries
2009
Spark
Graph Updates +
Anchored
Traversals
Neo4j, etc.

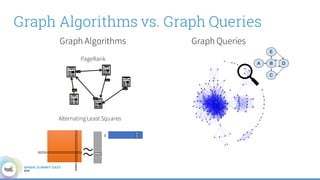

3. Graph Algorithms vs. Graph Queries
≈
x
PageRank
Alternating Least Squares
Graph Algorithms Graph Queries

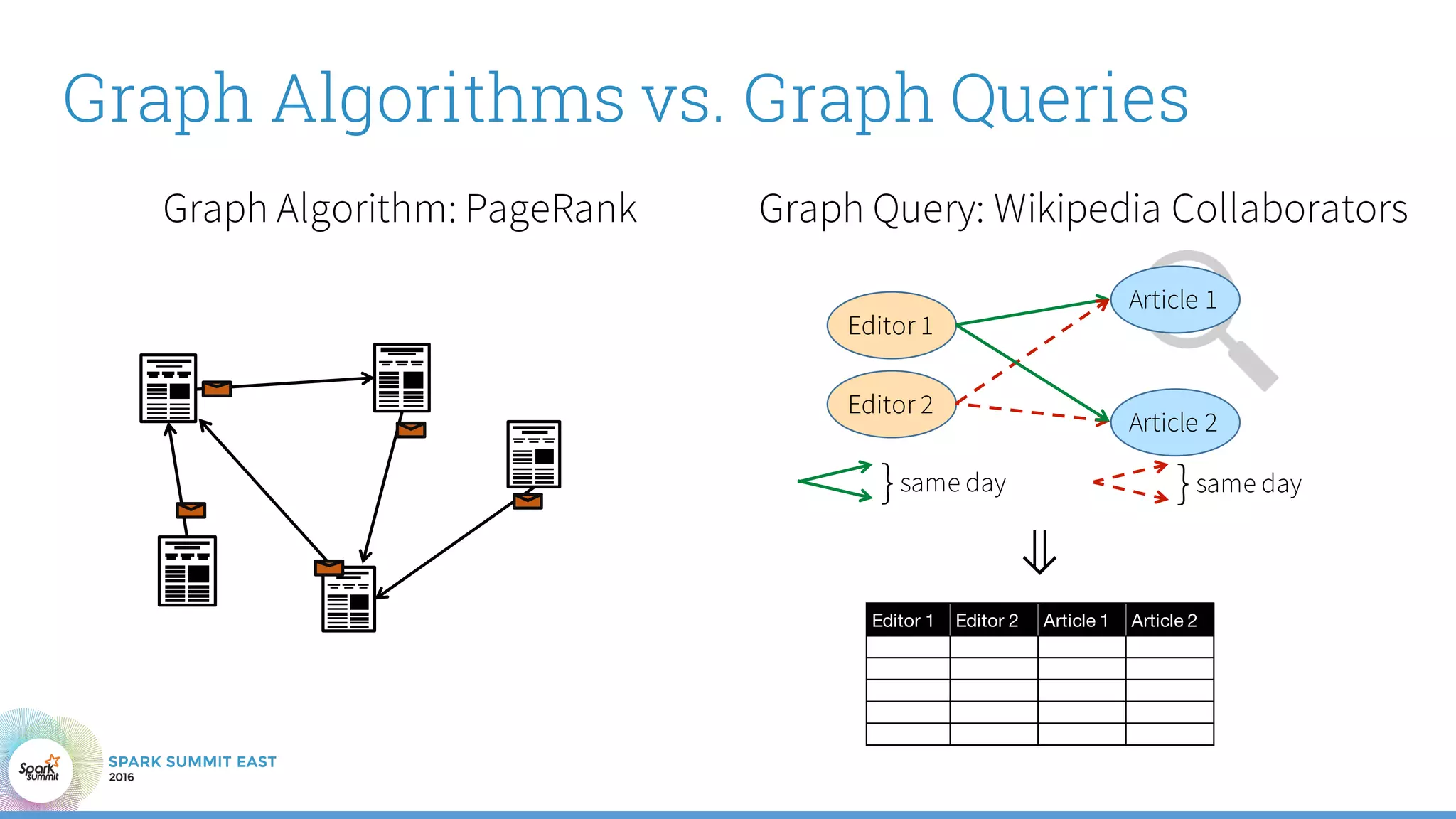

4. Graph Algorithms vs. Graph Queries

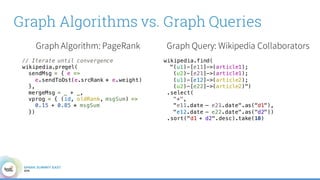

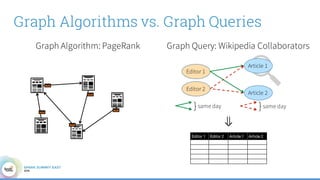

Graph Algorithm: PageRank Graph Query: Wikipedia Collaborators
Editor 1 Editor 2 Article 1 Article 2
⇓
Article 1
Article 2
Editor 1
Editor 2
same day} same day}

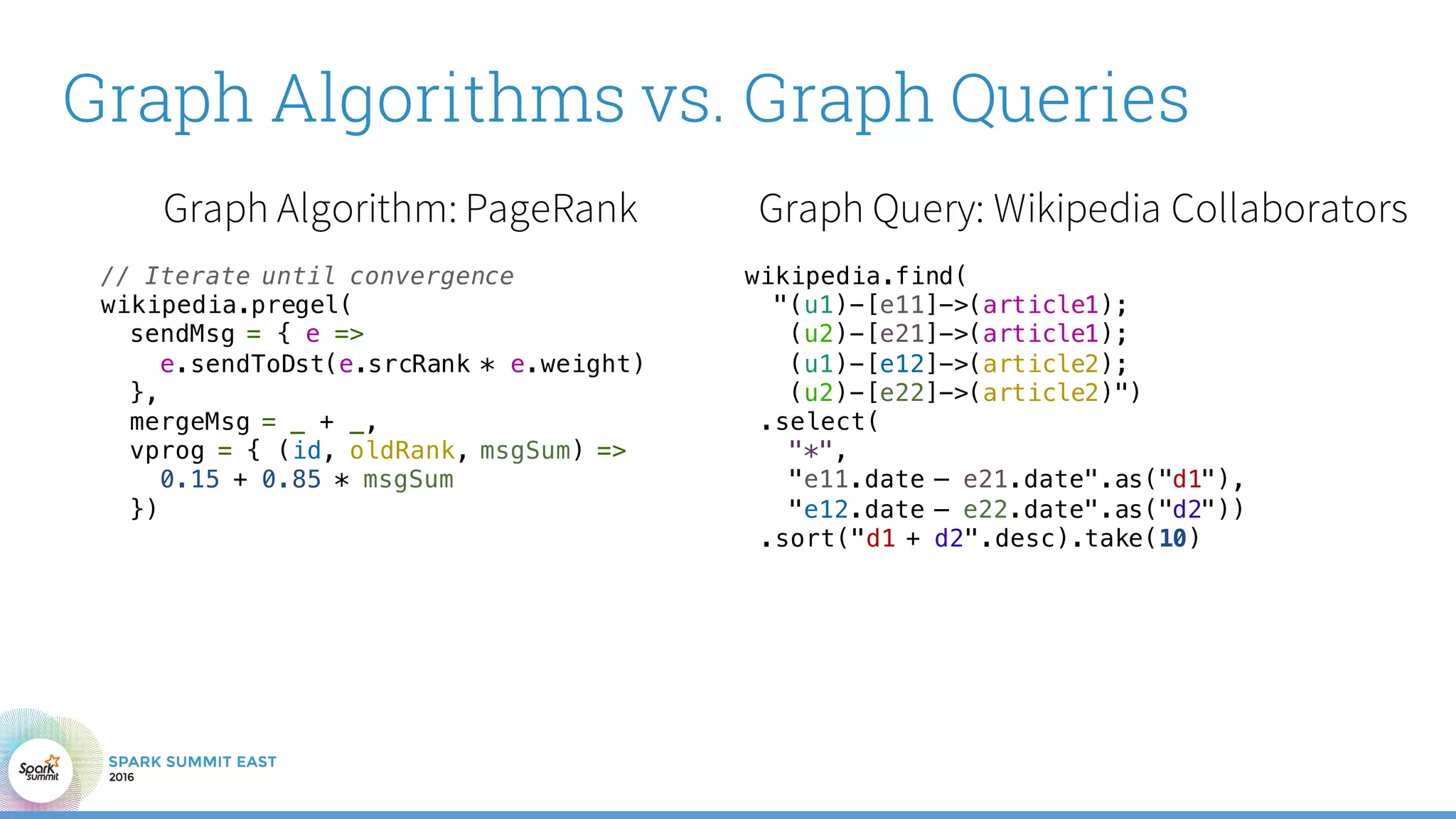

5. Graph Algorithms vs. Graph Queries
Graph Algorithm: PageRank
// Iterate until convergence
wikipedia.pregel(
sendMsg = { e =>
e.sendToDst(e.srcRank * e.weight)
},
mergeMsg = _ + _,
vprog = { (id, oldRank, msgSum) =>
0.15 + 0.85 * msgSum
})
Graph Query: Wikipedia Collaborators
wikipedia.find(
"(u1)-[e11]->(article1);
(u2)-[e21]->(article1);
(u1)-[e12]->(article2);
(u2)-[e22]->(article2)")
.select(
"*",
"e11.date – e21.date".as("d1"),
"e12.date – e22.date".as("d2"))
.sort("d1 + d2".desc).take(10)

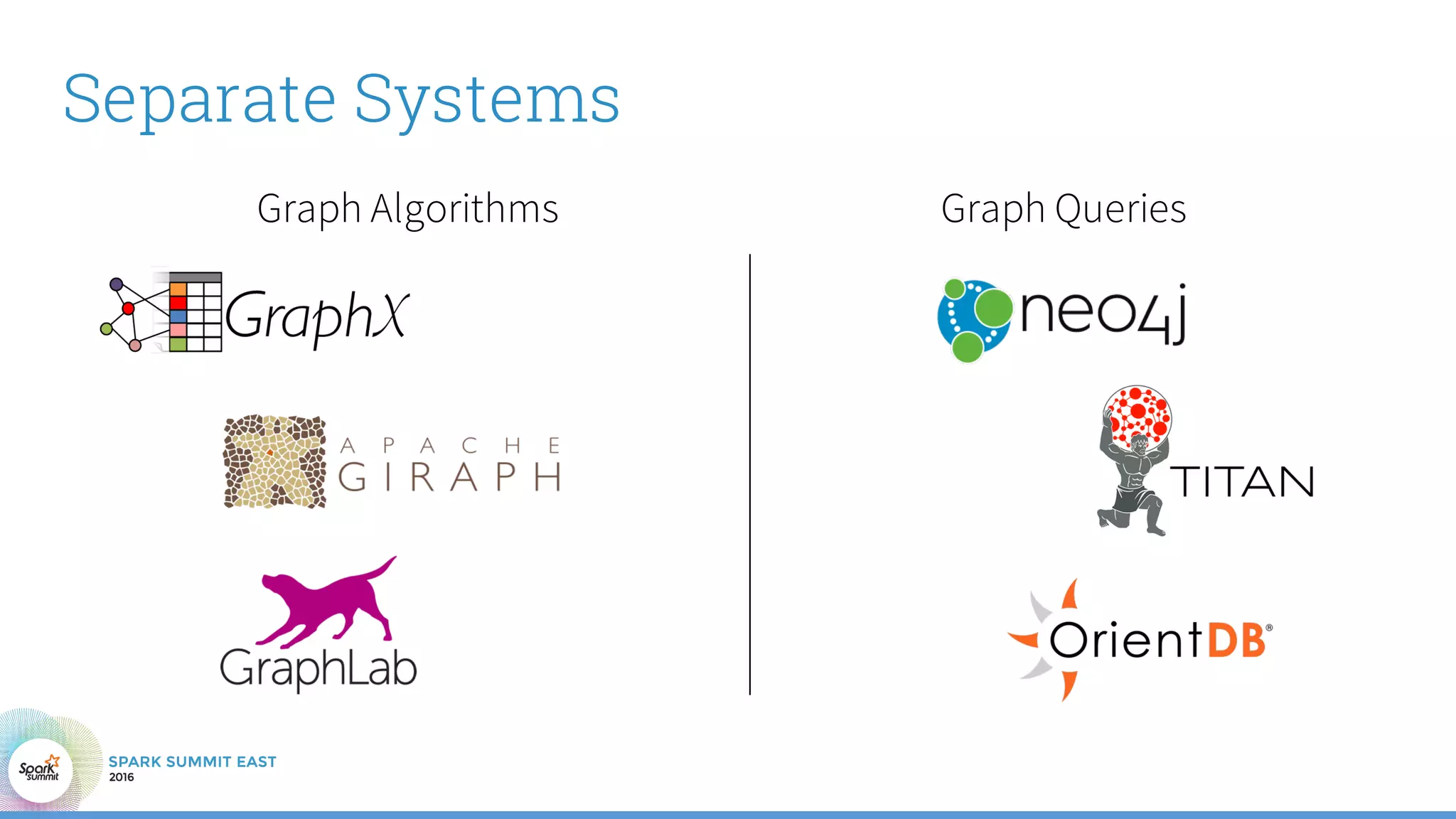

6. Separate Systems
Graph Algorithms Graph Queries

7. Raw Wikipedia
< / >< / >< / >
XML
Text Table
Edit Graph
Edit Table
Frequent
Collaborators

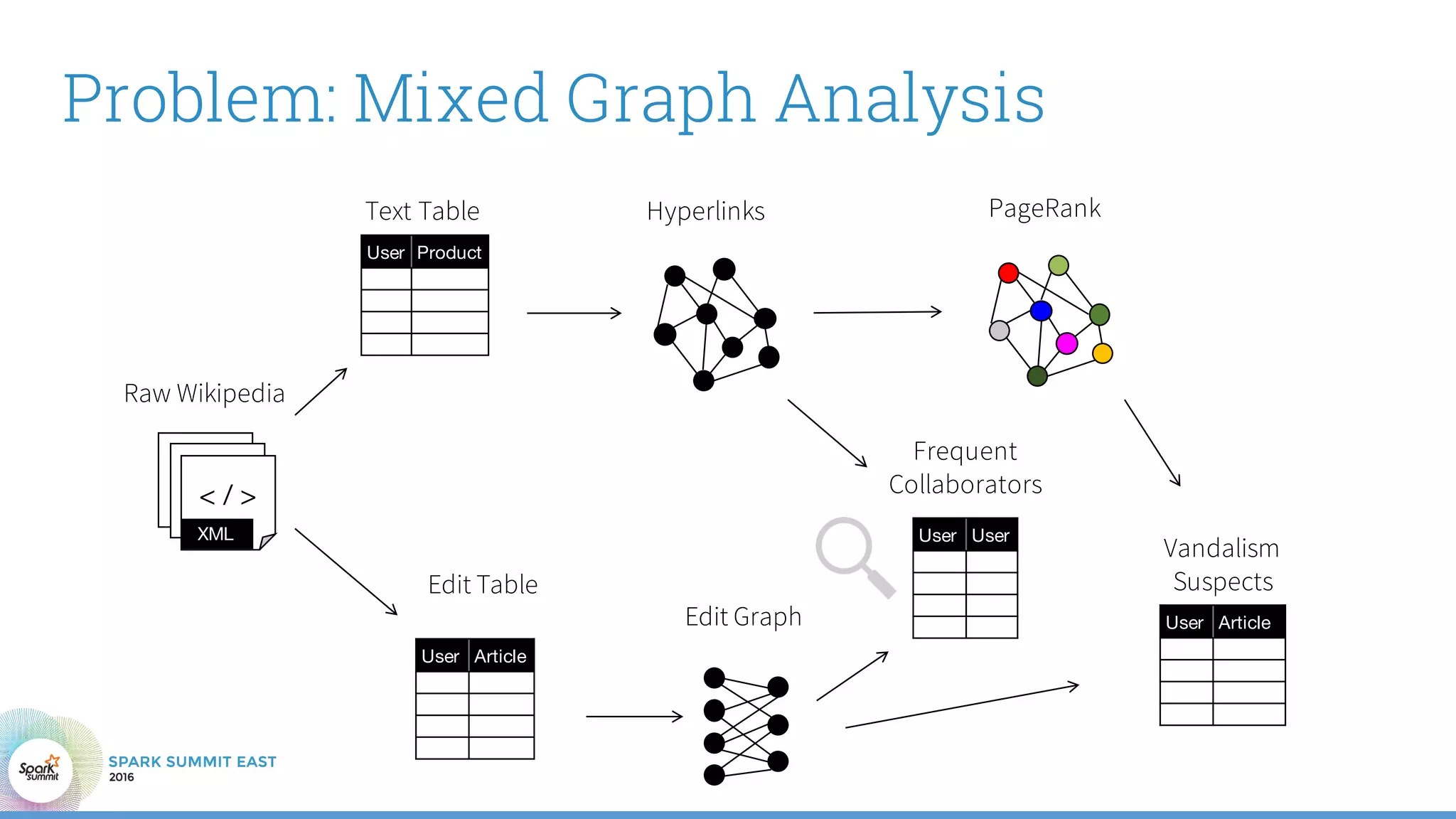

Problem: Mixed Graph Analysis
Hyperlinks PageRank
User Product
User Article
Vandalism
Suspects
User User
User Article

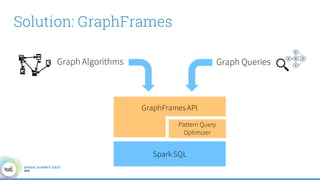

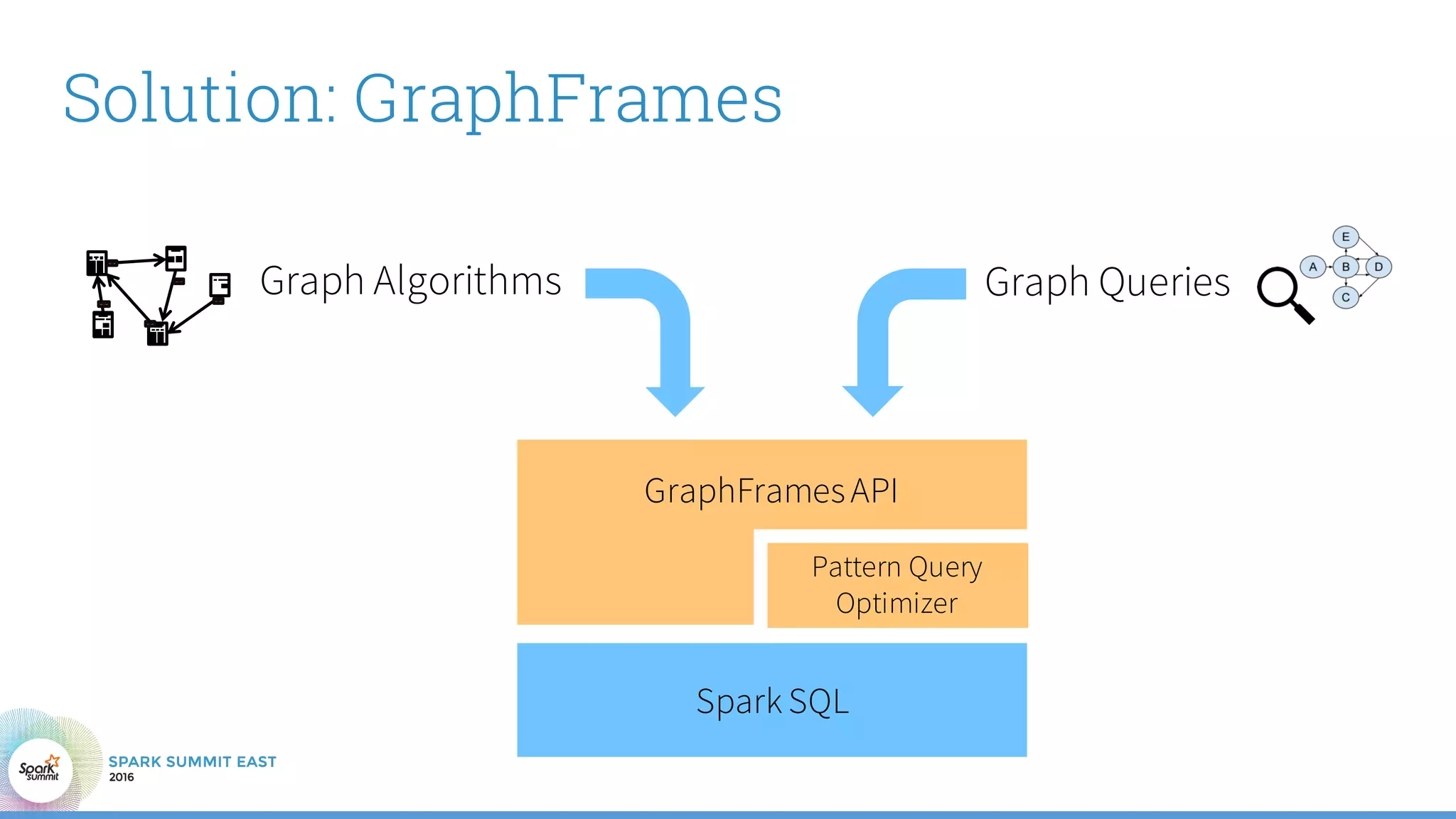

8. Solution: GraphFrames
Graph Algorithms Graph Queries
Spark SQL
GraphFramesAPI
Pattern Query
Optimizer

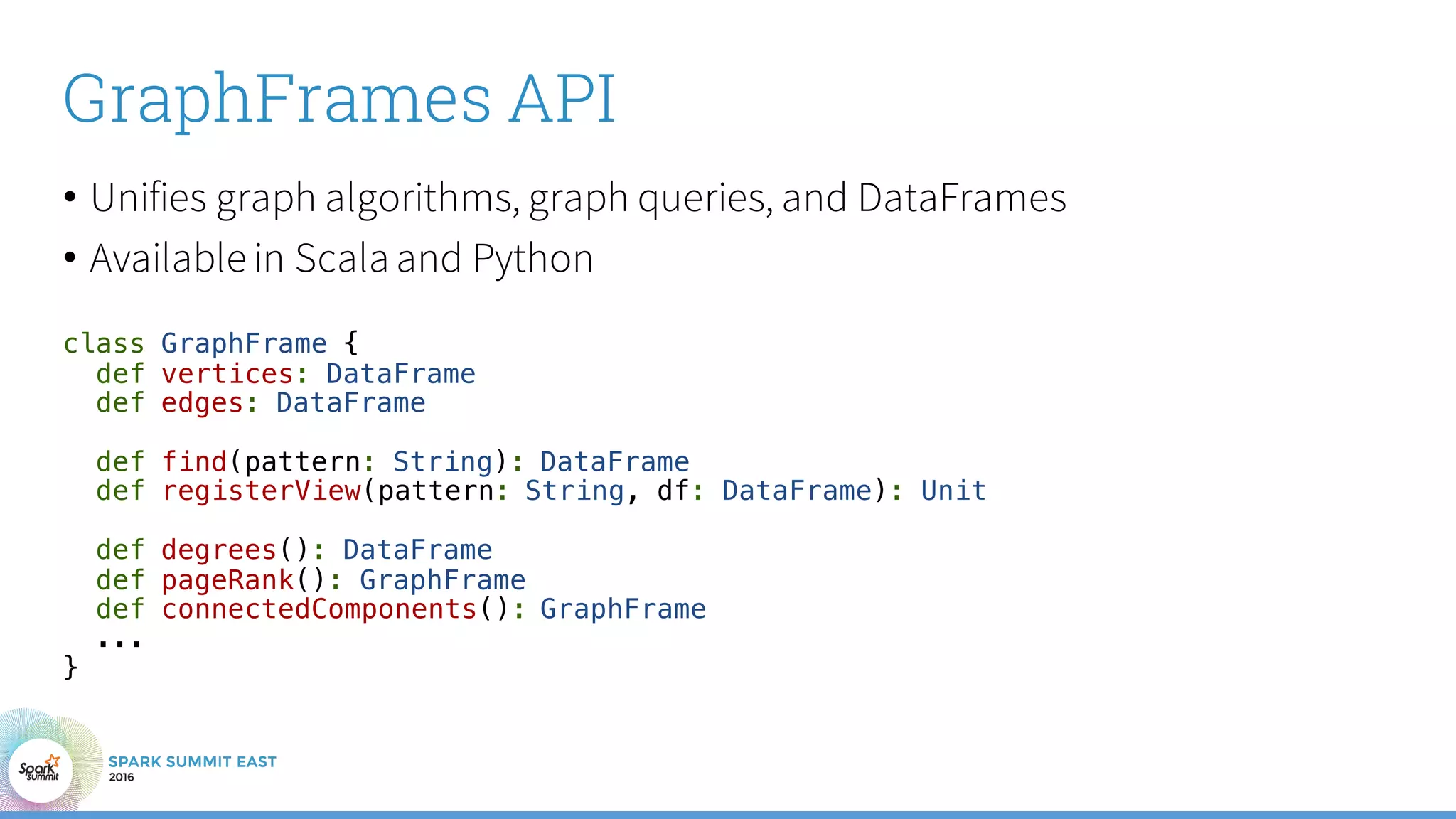

9. GraphFrames API
• Unifies graph algorithms, graph queries, and DataFrames
• Available in Scala and Python
class GraphFrame {
def vertices: DataFrame
def edges: DataFrame
def find(pattern: String): DataFrame
def registerView(pattern: String, df: DataFrame): Unit
def degrees(): DataFrame
def pageRank(): GraphFrame
def connectedComponents(): GraphFrame
...
}

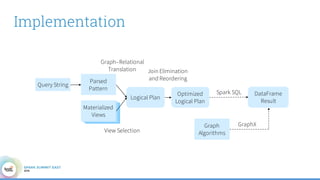

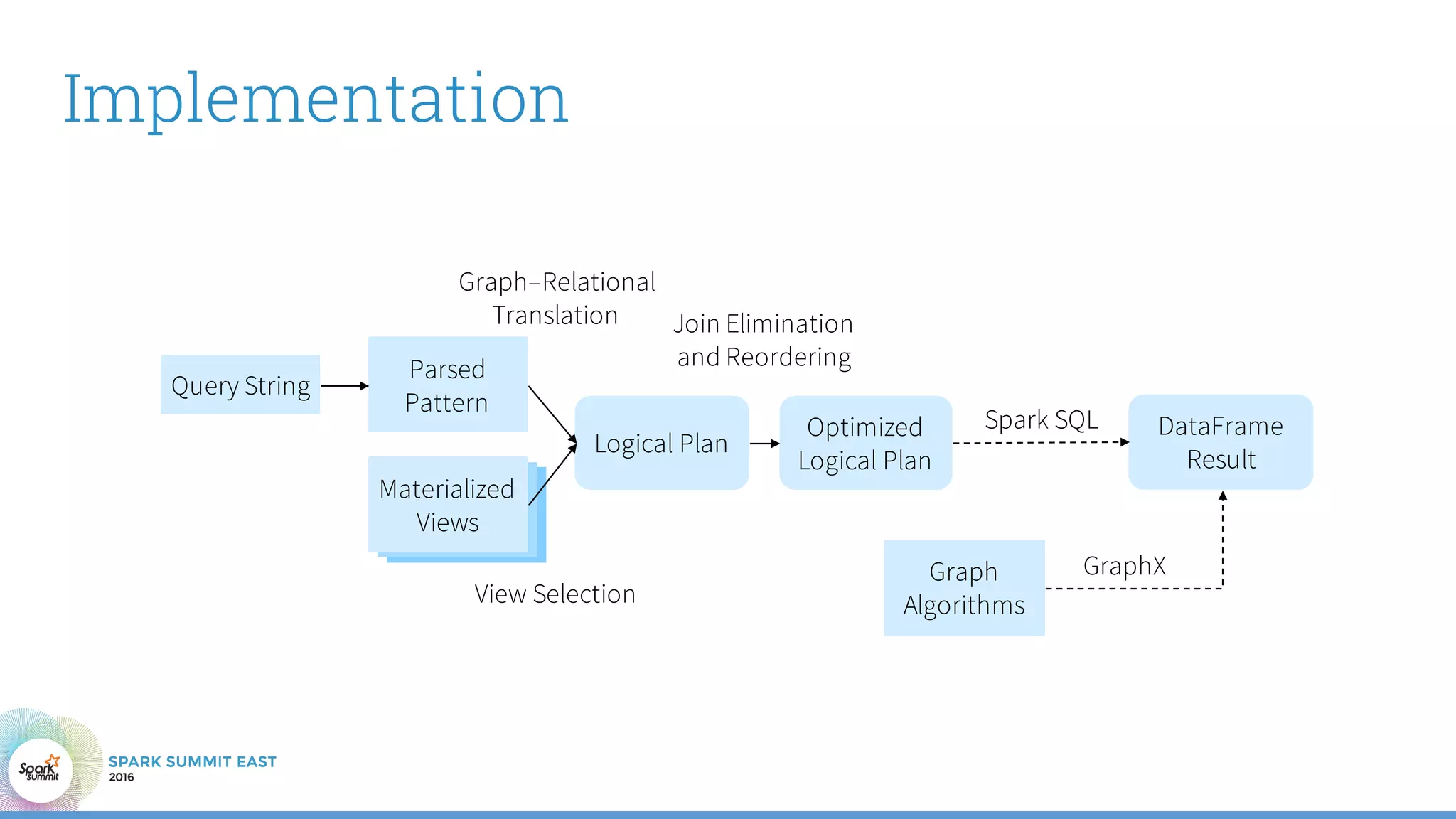

10. Implementation
Parsed
Pattern
Logical Plan
Materialized
Views
Optimized
Logical Plan
DataFrame
Result
Query String
Graph–Relational
Translation Join Elimination
and Reordering
Spark SQL
View Selection
Graph
Algorithms
GraphX

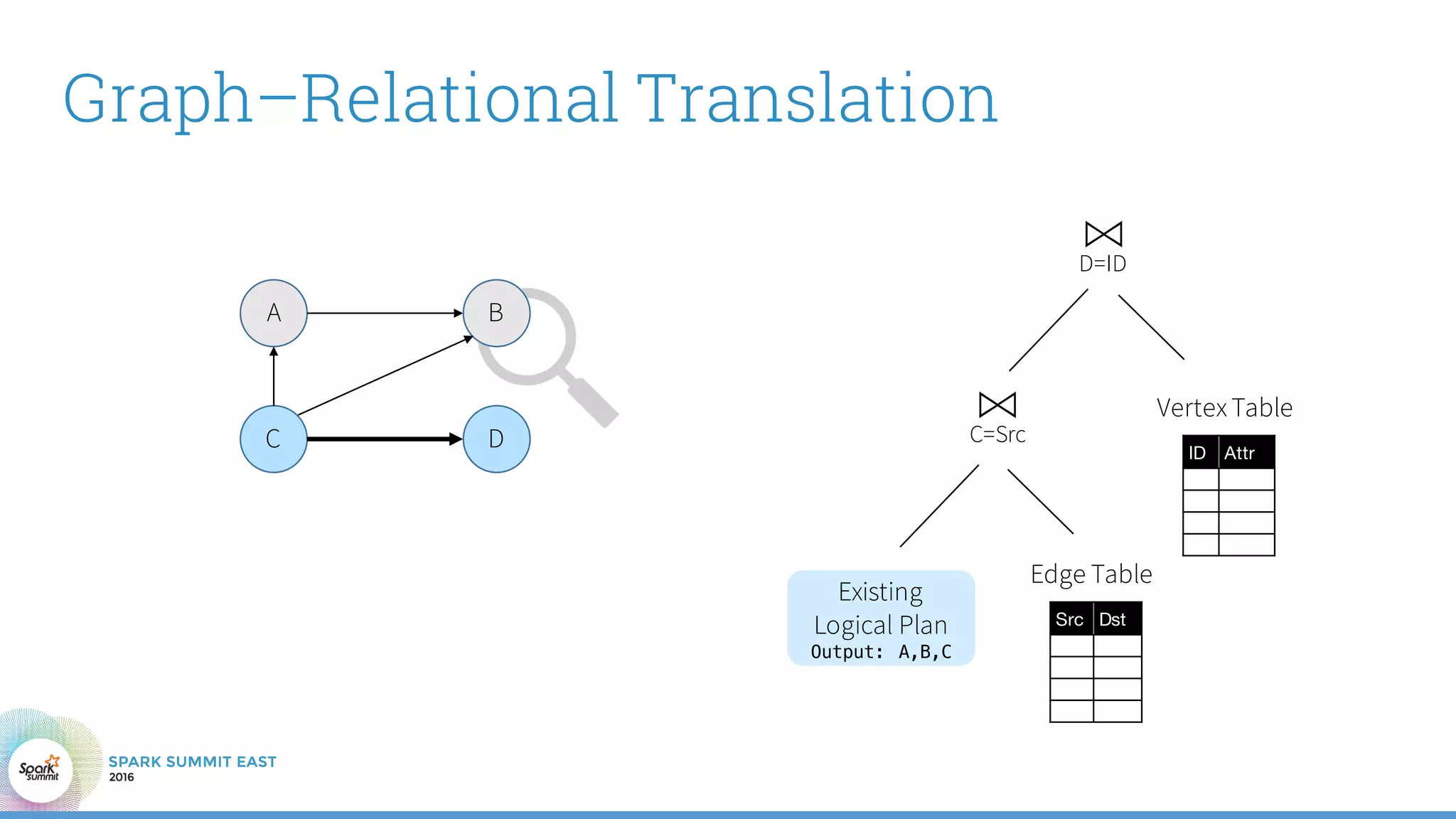

11. Graph–Relational Translation
B
D
A
C
Existing
Logical Plan
Output: A,B,C
Src Dst
⋈C=Src
Edge Table
ID Attr
VertexTable
⋈D=ID

12. Materialized View Selection

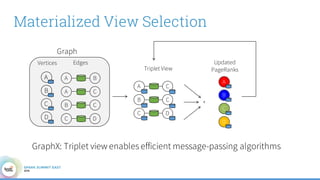

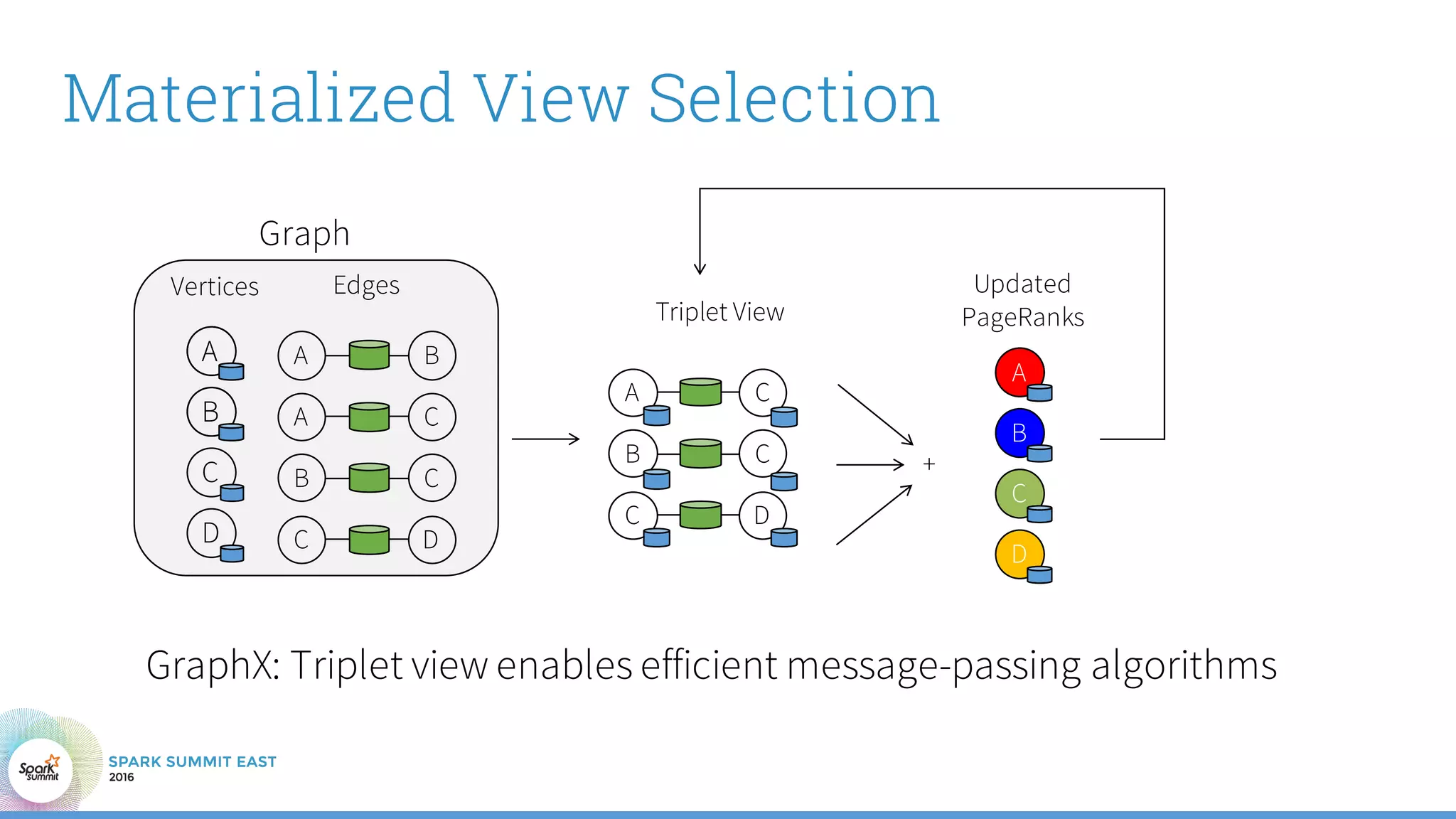

GraphX: Triplet view enables efficient message-passing algorithms
Vertices
B
A
C
D
Edges
A B
A C
B C
C D
A
B
Triplet View
A C
B C
C D
Graph
+
Updated
PageRanks
B
A
C
D
A

13. Materialized View Selection

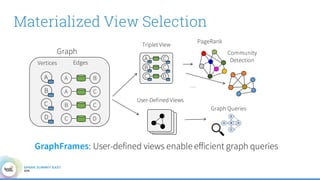

GraphFrames: User-defined views enable efficient graph queries
Vertices
B
A
C
D
Edges
A B
A C
B C
C D
A
B
Triplet View
A C
B C
C D
Graph
User-Defined Views
PageRank
Community
Detection
…
Graph Queries

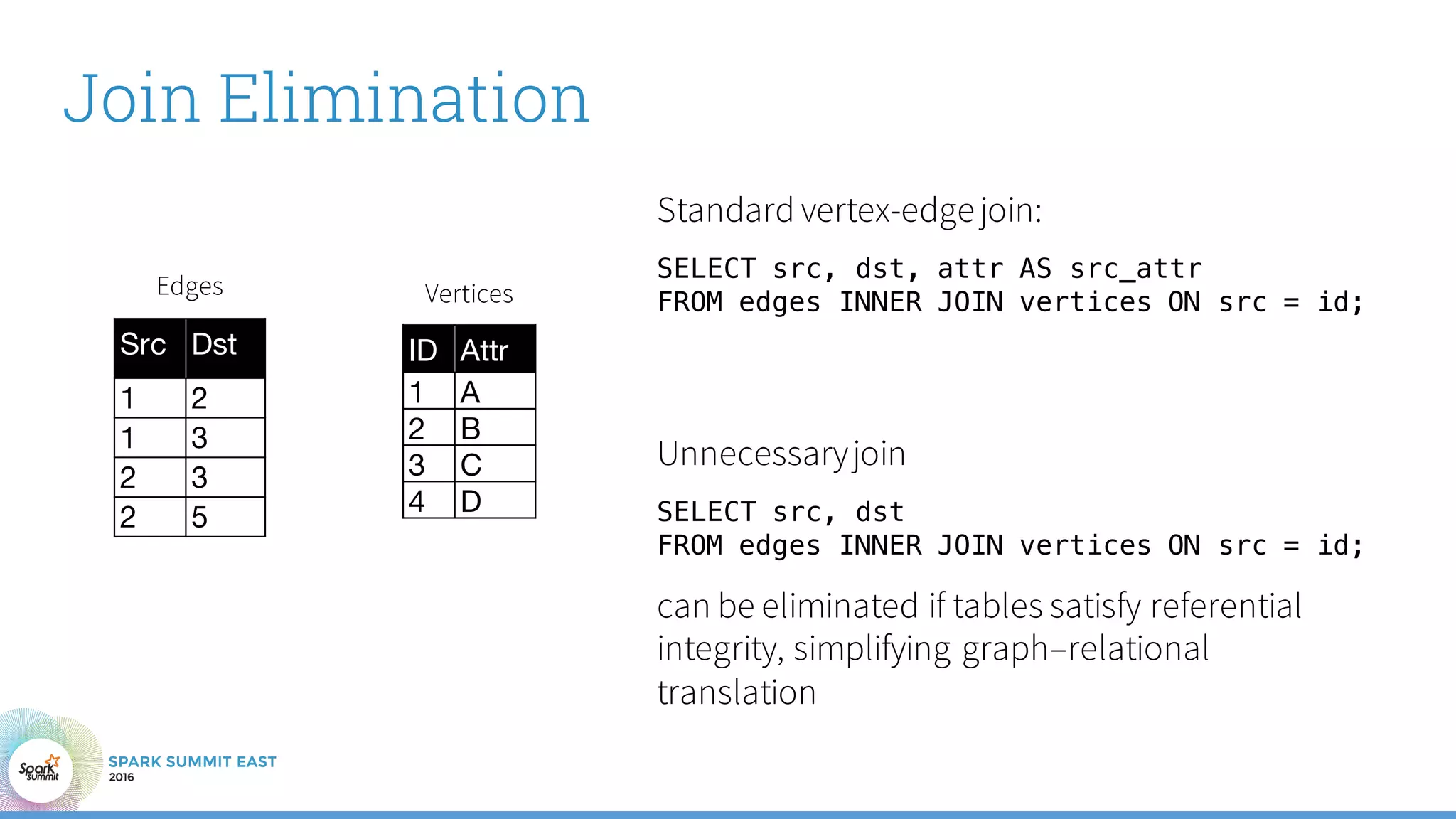

14. Join Elimination
Src Dst
1 2
1 3
2 3
2 5
Edges
ID Attr
1 A
2 B
3 C
4 D
Vertices
SELECT src, dst, attr AS src_attr
FROM edges INNER JOIN vertices ON src = id;
Standard vertex-edgejoin:
SELECT src, dst
FROM edges INNER JOIN vertices ON src = id;
Unnecessaryjoin
can be eliminated if tables satisfy referential
integrity, simplifying graph–relational
translation

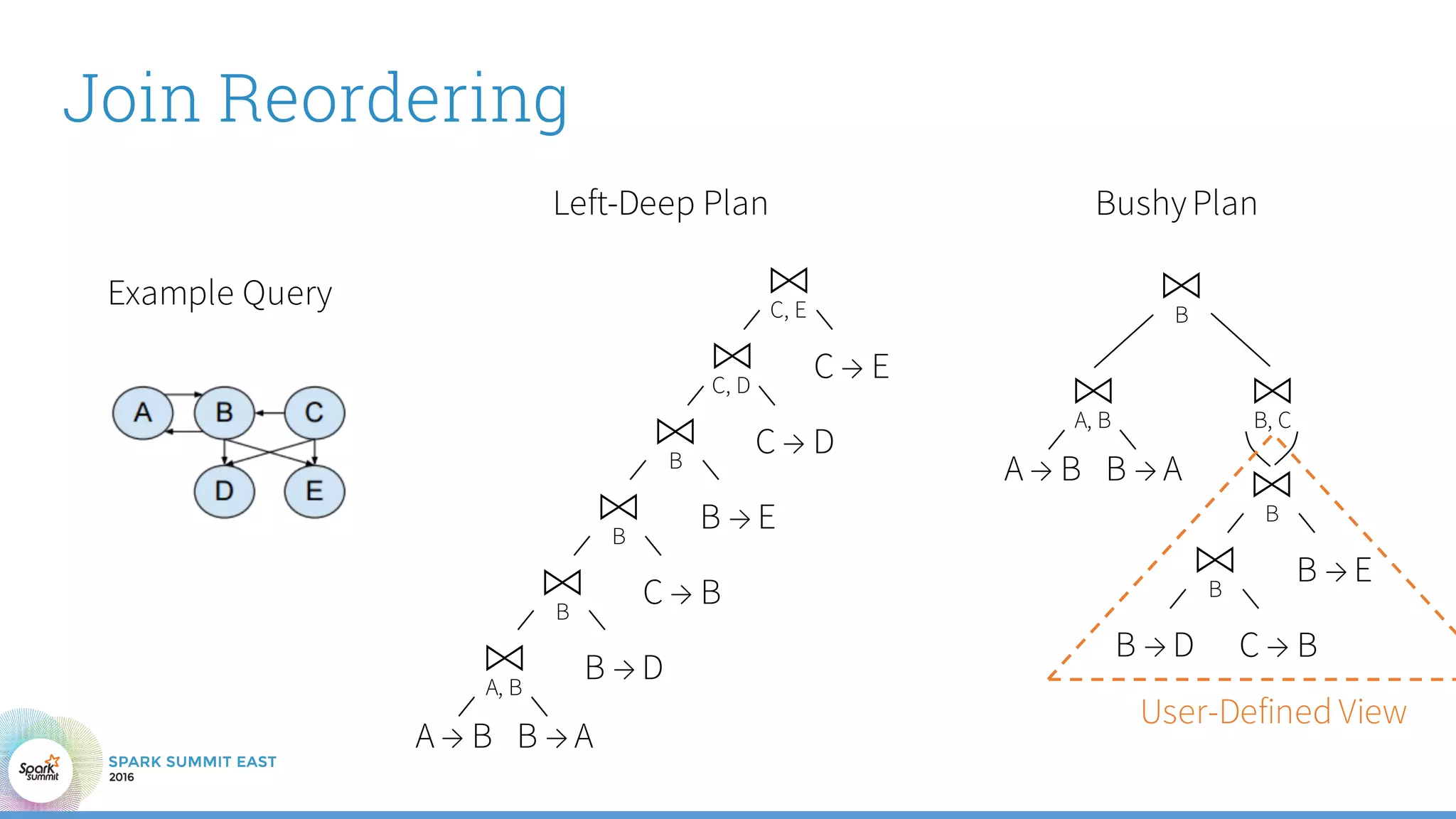

15. Join Reordering
A → B B → A
⋈A, B
B → D
C → B⋈B
B → E⋈B
C → D⋈B
C → E⋈C, D
⋈C, E
Example Query
Left-Deep Plan BushyPlan
A → B B → A
⋈A, B
B → D C → B
⋈B
B → E⋈B
⋈B
⋈B, C
User-Defined View

16. Evaluation

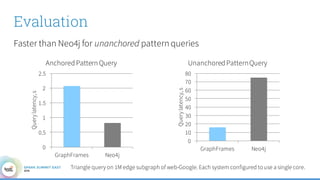

Faster than Neo4j for unanchored patternqueries
0
0.5
1
1.5
2
2.5
GraphFrames Neo4j
Querylatency,s
AnchoredPatternQuery
0
10
20
30
40
50
60
70
80
GraphFrames Neo4j
Querylatency,s
UnanchoredPatternQuery
Triangle query on 1M edge subgraph of web-Google. Each system configured touse a single core.

17. Evaluation

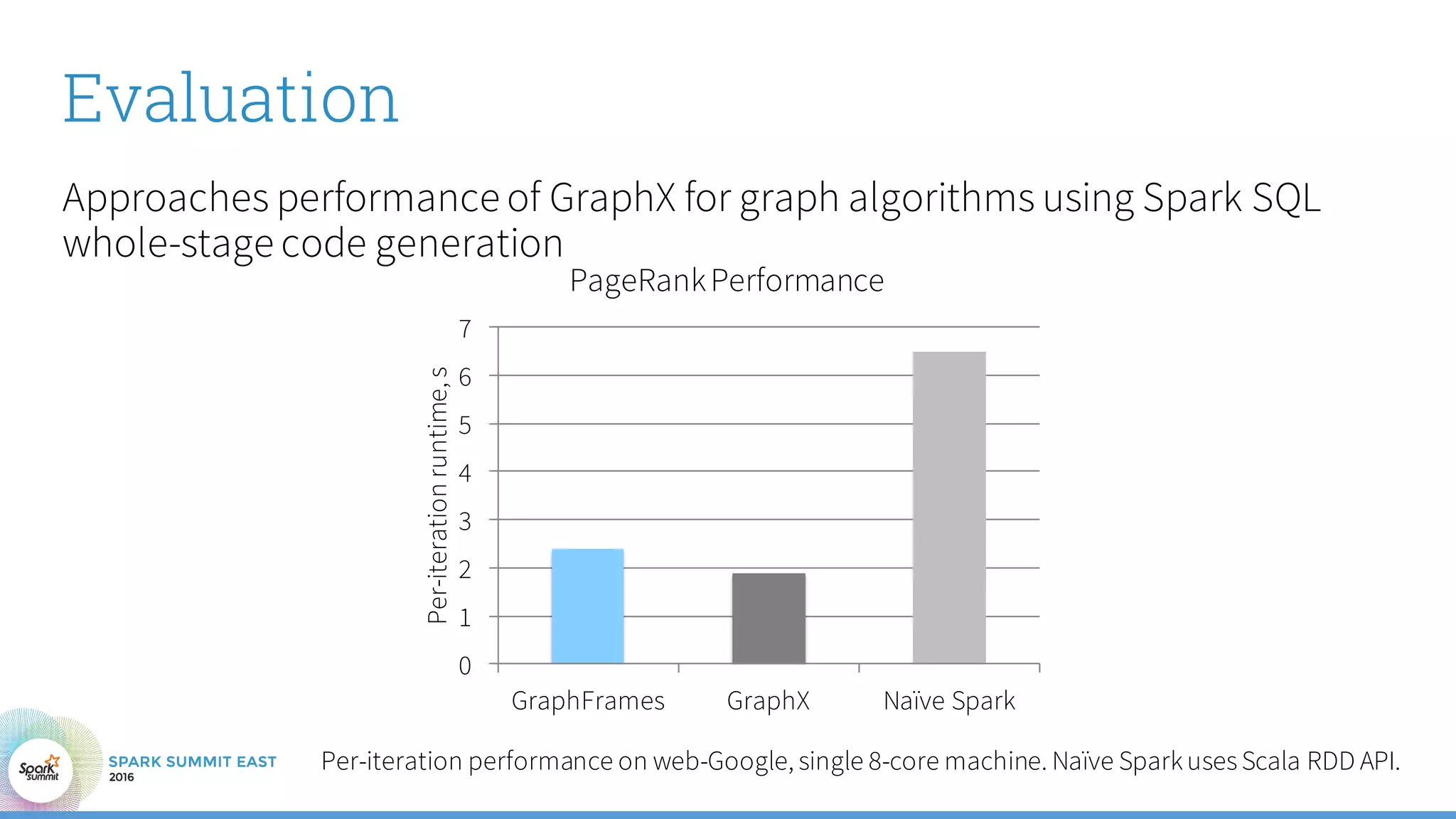

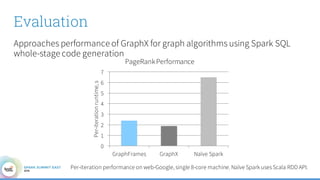

Approaches performance of GraphX for graph algorithms using Spark SQL
whole-stage code generation
0
1
2
3
4
5
6
7
GraphFrames GraphX Naïve Spark
Per-iterationruntime,s
PageRankPerformance
Per-iteration performance on web-Google, single 8-core machine. Naïve SparkusesScala RDD API.

18. Evaluation

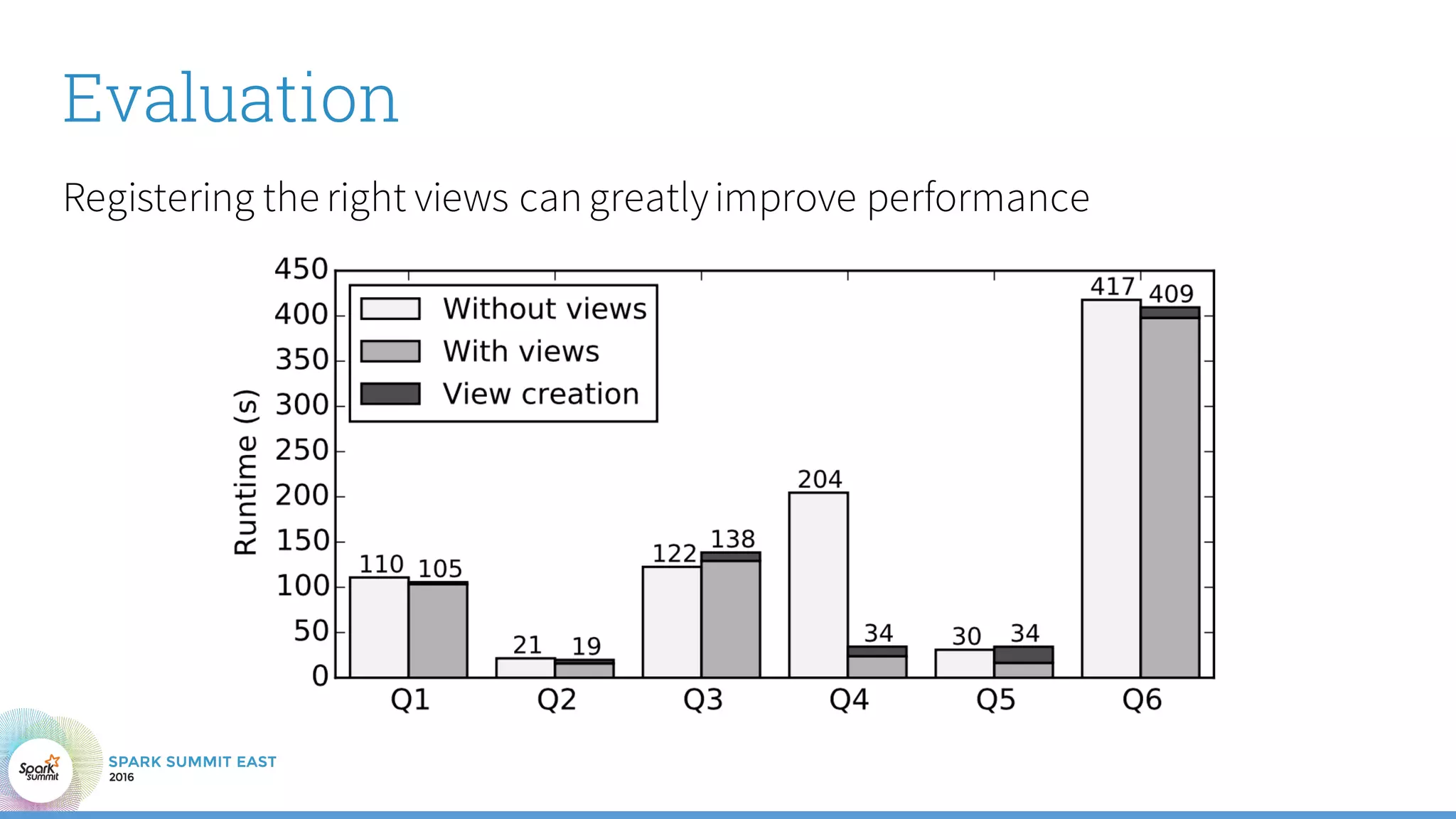

Registering the right views cangreatlyimprove performance

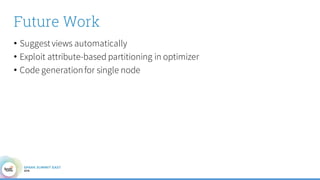

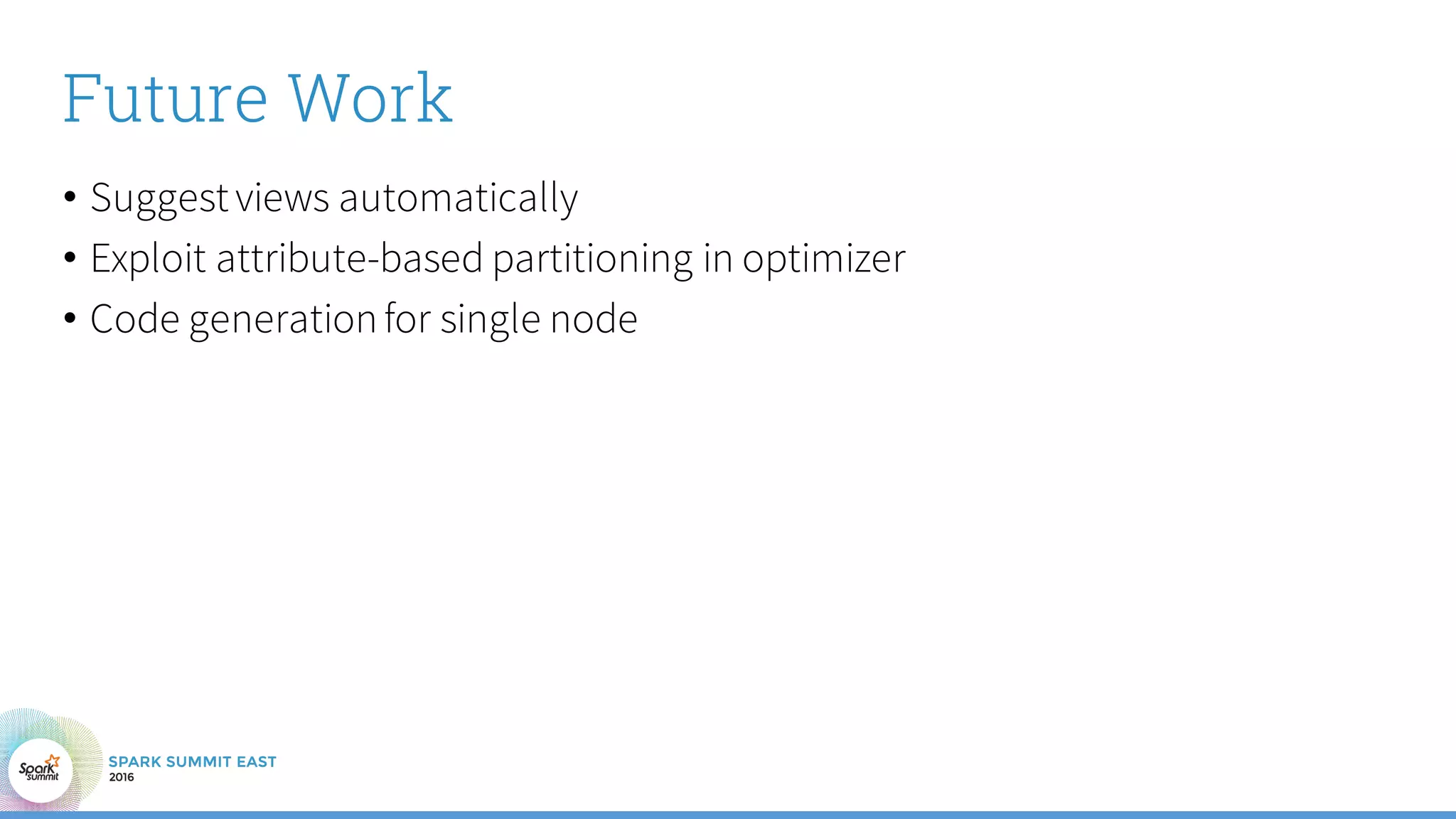

19. Future Work
• Suggest views automatically
• Exploit attribute-based partitioning in optimizer
• Code generationfor single node

20. Try It Out!
Preview available for Spark 1.4+ at:
https://github.com/graphframes/graphframes
Thanks to Databricks contributors Joseph Bradley,Xiangrui Meng,and Timothy Hunter.
Watch for the release on Spark Packages in the coming weeks.
