Giab aug2015 intro and update 150821.pptx
The Genome in a Bottle Consortium aims to develop reference materials, reference methods, and reference data to assess confidence in human whole genome sequencing variants. This will enable performance assessment of clinical sequencing. The consortium has released a pilot genome reference material (RM 8398) and is working to characterize additional genomes from diverse populations. Efforts include developing high-confidence calls for SNPs, indels, and structural variants; evaluating analysis methods; and establishing benchmarking tools to define performance metrics. The consortium seeks to support the use of reference materials for analytical validation and regulated clinical applications of genome sequencing.
More Related Content
Similar to Giab aug2015 intro and update 150821.pptx
Giab aug2015 intro and update 150821.pptx
- 1. genomeinabottle.org Genome in aBottle Consortium August 2015 NIST, Gaithersburg, MD Reference Materials for Clinical Applications of Human Genome Sequencing Marc Salit, Ph.D. and Justin Zook, Ph.D National Institute of Standards and Technology

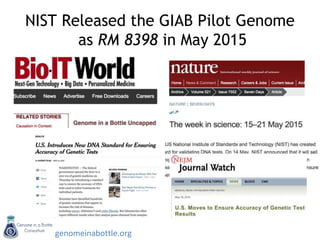

- 2. genomeinabottle.org NIST Released theGIAB Pilot Genome as RM 8398 in May 2015

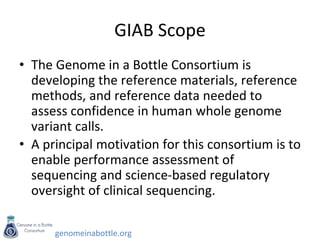

- 3. genomeinabottle.org GIAB Scope • TheGenome in a Bottle Consortium is developing the reference materials, reference methods, and reference data needed to assess confidence in human whole genome variant calls. • A principal motivation for this consortium is to enable performance assessment of sequencing and science-based regulatory oversight of clinical sequencing.

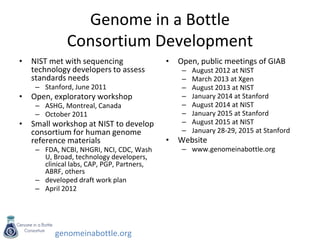

- 4. genomeinabottle.org Genome in aBottle Consortium Development • NIST met with sequencing technology developers to assess standards needs – Stanford, June 2011 • Open, exploratory workshop – ASHG, Montreal, Canada – October 2011 • Small workshop at NIST to develop consortium for human genome reference materials – FDA, NCBI, NHGRI, NCI, CDC, Wash U, Broad, technology developers, clinical labs, CAP, PGP, Partners, ABRF, others – developed draft work plan – April 2012 • Open, public meetings of GIAB – August 2012 at NIST – March 2013 at Xgen – August 2013 at NIST – January 2014 at Stanford – August 2014 at NIST – January 2015 at Stanford – August 2015 at NIST – January 28-29, 2015 at Stanford • Website – www.genomeinabottle.org

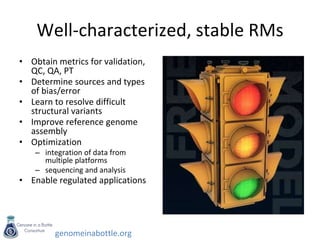

- 5. genomeinabottle.org Well-characterized, stable RMs •Obtain metrics for validation, QC, QA, PT • Determine sources and types of bias/error • Learn to resolve difficult structural variants • Improve reference genome assembly • Optimization – integration of data from multiple platforms – sequencing and analysis • Enable regulated applications Comparison of SNP Calls for NA12878 on 2 platforms, 3 analysis methods

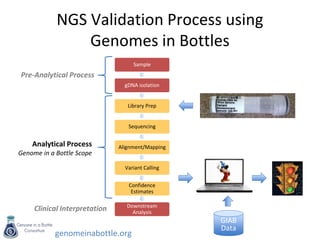

- 6. genomeinabottle.org NGS Validation Processusing Genomes in Bottles Sample gDNA isolation Library Prep Sequencing Alignment/Mapping Variant Calling Confidence Estimates Downstream Analysis Analytical Process Genome in a Bottle Scope Pre-Analytical Process Clinical Interpretation GIAB Data

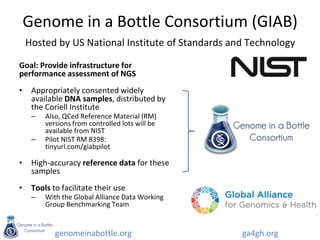

- 7. genomeinabottle.org Genome in aBottle Consortium (GIAB) Hosted by US National Institute of Standards and Technology Goal: Provide infrastructure for performance assessment of NGS • Appropriately consented widely available DNA samples, distributed by the Coriell Institute – Also, QCed Reference Material (RM) versions from controlled lots will be available from NIST – Pilot NIST RM 8398: tinyurl.com/giabpilot • High-accuracy reference data for these samples • Tools to facilitate their use – With the Global Alliance Data Working Group Benchmarking Team ga4gh.org

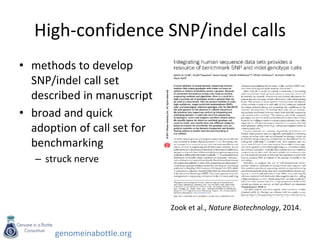

- 8. genomeinabottle.org High-confidence SNP/indel calls Zooket al., Nature Biotechnology, 2014. • methods to develop SNP/indel call set described in manuscript • broad and quick adoption of call set for benchmarking – struck nerve

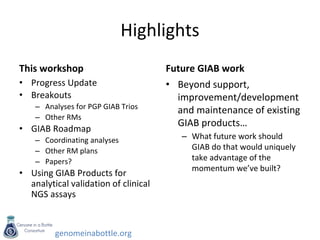

- 9. genomeinabottle.org Highlights This workshop • ProgressUpdate • Breakouts – Analyses for PGP GIAB Trios – Other RMs • GIAB Roadmap – Coordinating analyses – Other RM plans – Papers? • Using GIAB Products for analytical validation of clinical NGS assays Future GIAB work • Beyond support, improvement/development and maintenance of existing GIAB products… – What future work should GIAB do that would uniquely take advantage of the momentum we’ve built?

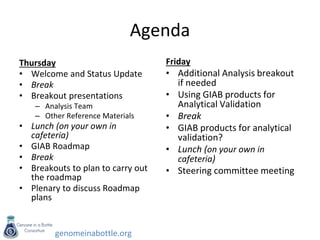

- 10. genomeinabottle.org Agenda Thursday • Welcome andStatus Update • Break • Breakout presentations – Analysis Team – Other Reference Materials • Lunch (on your own in cafeteria) • GIAB Roadmap • Break • Breakouts to plan to carry out the roadmap • Plenary to discuss Roadmap plans Friday • Additional Analysis breakout if needed • Using GIAB products for Analytical Validation • Break • GIAB products for analytical validation? • Lunch (on your own in cafeteria) • Steering committee meeting
- 11. genomeinabottle.org Agenda Monday • Breakfast andregistration • Welcome and Context Setting • NIST RM Update and Status Report • Charge to Working Groups • Coffee Break • Working Group Breakout Discussions • Lunch (provided) • Informal Working Group Reports • Coffee Break • Breakout Topical Discussions – Topic #1: Moving beyond the 'easy' variants and regions of the genome – Topic #2: Selecting future genomes for Reference Materials Tuesday • Breakfast and registration • Use cases: Experiences using the pilot Reference Material • Discussion of plans to release pilot Reference Material • Coffee Break • Working Group Breakout discussions • Lunch (provided) • Working Group leaders present plans and discussion • Steering committee Overview • First meeting of the Steering Committee (others adjourn) Please Note Slides will be made available on SlideShare after the workshop (see genomeinabottle.org). Tweets are welcome unless the speaker requests otherwise. Please use #giab as the hashtag.

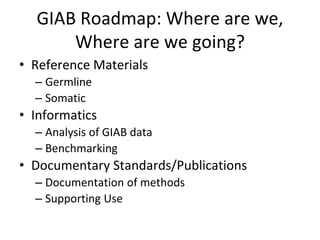

- 12. GIAB Roadmap: Whereare we, Where are we going? • Reference Materials – Germline – Somatic • Informatics – Analysis of GIAB data – Benchmarking • Documentary Standards/Publications – Documentation of methods – Supporting Use
- 13. GIAB Germline Genomes Pilot RM High-confidence SNPs/indels RMRelease High-confidence SVs PGP RMs High-confidence SNPs/indels RM Release High-confidence SVs Other ancestries Do we need trios? Other large families? Sample panels Many samples with clinically important mutations Pharmacogenomics In depth analyses Characterize harder parts of the genome Diploid de novo assemblies Assign confidence scores to variants in RMs Somatic mutation RMs Interlaboratory study ctDNA/cfDNA/fetal DNA Whole cancer genomes Benchmarking tools Define performance metrics Stratification - Assign confidence to types of variants Documents/Publica tions Analyses Best practices/analytic validation Documentary standards

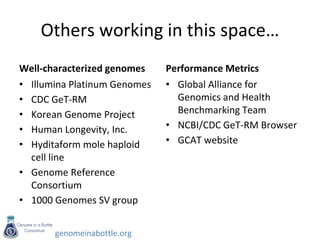

- 14. genomeinabottle.org Others working inthis space… Well-characterized genomes • Illumina Platinum Genomes • CDC GeT-RM • Korean Genome Project • Human Longevity, Inc. • Hyditaform mole haploid cell line • Genome Reference Consortium • 1000 Genomes SV group Performance Metrics • Global Alliance for Genomics and Health Benchmarking Team • NCBI/CDC GeT-RM Browser • GCAT website
- 15. What should GIABdo? • Beyond support, improvement/development and maintenance of existing in--process GIAB products… – What future work should GIAB do that would take advantage of the momentum and unique community we’ve built?
- 16.

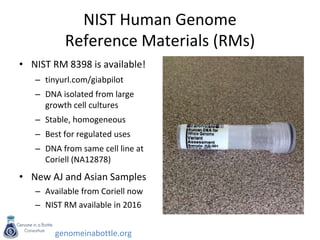

- 17. genomeinabottle.org NIST Human Genome ReferenceMaterials (RMs) • NIST RM 8398 is available! – tinyurl.com/giabpilot – DNA isolated from large growth cell cultures – Stable, homogeneous – Best for regulated uses – DNA from same cell line at Coriell (NA12878) • New AJ and Asian Samples – Available from Coriell now – NIST RM available in 2016

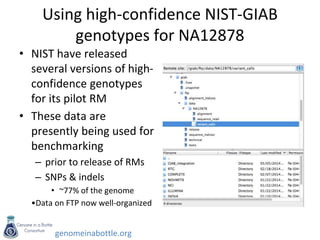

- 18. genomeinabottle.org Using high-confidence NIST-GIAB genotypesfor NA12878 • NIST have released several versions of high- confidence genotypes for its pilot RM • These data are presently being used for benchmarking – prior to release of RMs – SNPs & indels • ~77% of the genome •Data on FTP now well-organized
- 19.

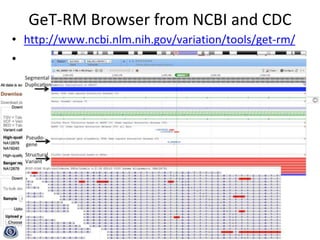

- 20. genomeinabottle.org GeT-RM Browser fromNCBI and CDC • http://www.ncbi.nlm.nih.gov/variation/tools/get-rm/ • Allows visualization of data underlying call each call

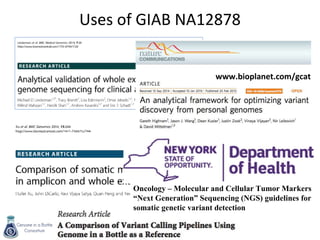

- 21. genomeinabottle.org Uses of GIABNA12878 Oncology – Molecular and Cellular Tumor Markers “Next Generation” Sequencing (NGS) guidelines for somatic genetic variant detection www.bioplanet.com/gcat

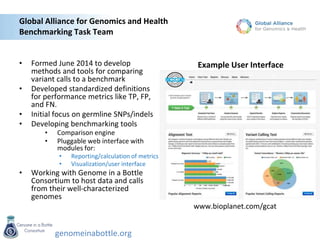

- 22. genomeinabottle.org Global Alliance forGenomics and Health Benchmarking Task Team • Formed June 2014 to develop methods and tools for comparing variant calls to a benchmark • Developed standardized definitions for performance metrics like TP, FP, and FN. • Initial focus on germline SNPs/indels • Developing benchmarking tools • Comparison engine • Pluggable web interface with modules for: • Reporting/calculation of metrics • Visualization/user interface • Working with Genome in a Bottle Consortium to host data and calls from their well-characterized genomes www.bioplanet.com/gcat Example User Interface

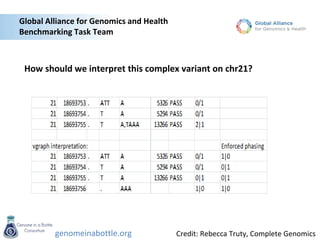

- 23. genomeinabottle.org Global Alliance forGenomics and Health Benchmarking Task Team Credit: Rebecca Truty, Complete Genomics How should we interpret this complex variant on chr21?

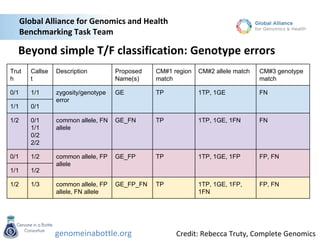

- 24. genomeinabottle.org Global Alliance forGenomics and Health Benchmarking Task Team Credit: Rebecca Truty, Complete Genomics Beyond simple T/F classification: Genotype errors Trut h Callse t Description Proposed Name(s) CM#1 region match CM#2 allele match CM#3 genotype match 0/1 1/1 zygosity/genotype error GE TP 1TP, 1GE FN 1/1 0/1 1/2 0/1 1/1 0/2 2/2 common allele, FN allele GE_FN TP 1TP, 1GE, 1FN FN 0/1 1/2 common allele, FP allele GE_FP TP 1TP, 1GE, 1FP FP, FN 1/1 1/2 1/2 1/3 common allele, FP allele, FN allele GE_FP_FN TP 1TP, 1GE, 1FP, 1FN FP, FN

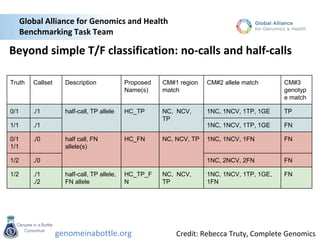

- 25. genomeinabottle.org Global Alliance forGenomics and Health Benchmarking Task Team Credit: Rebecca Truty, Complete Genomics Beyond simple T/F classification: no-calls and half-calls Truth Callset Description Proposed Name(s) CM#1 region match CM#2 allele match CM#3 genotyp e match 0/1 ./1 half-call, TP allele HC_TP NC, NCV, TP 1NC, 1NCV, 1TP, 1GE TP 1/1 ./1 1NC, 1NCV, 1TP, 1GE FN 0/1 1/1 ./0 half call, FN allele(s) HC_FN NC, NCV, TP 1NC, 1NCV, 1FN FN 1/2 ./0 1NC, 2NCV, 2FN FN 1/2 ./1 ./2 half-call, TP allele, FN allele HC_TP_F N NC, NCV, TP 1NC, 1NCV, 1TP, 1GE, 1FN FN

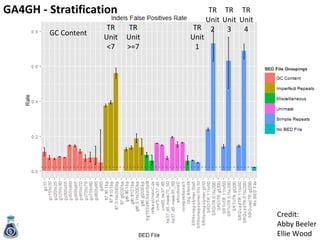

- 26. genomeinabottle.org Stratifying False PositivesGCContent TR Unit <7 TR Unit >=7 TR Unit 2TR Unit 1 TR Unit 3 TR Unit 4 Credit: Abby Beeler Ellie Wood GA4GH - Stratification

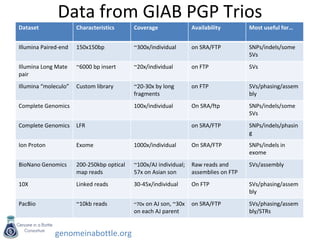

- 27. genomeinabottle.org Data from GIABPGP Trios Dataset Characteristics Coverage Availability Most useful for… Illumina Paired-end 150x150bp ~300x/individual on SRA/FTP SNPs/indels/some SVs Illumina Long Mate pair ~6000 bp insert ~20x/individual on FTP SVs Illumina “moleculo” Custom library ~20-30x by long fragments on FTP SVs/phasing/assem bly Complete Genomics 100x/individual On SRA/ftp SNPs/indels/some SVs Complete Genomics LFR on SRA/FTP SNPs/indels/phasin g Ion Proton Exome 1000x/individual On SRA/FTP SNPs/indels in exome BioNano Genomics 200-250kbp optical map reads ~100x/AJ individual; 57x on Asian son Raw reads and assemblies on FTP SVs/assembly 10X Linked reads 30-45x/individual On FTP SVs/phasing/assem bly PacBio ~10kb reads ~70x on AJ son, ~30x on each AJ parent on SRA/FTP SVs/phasing/assem bly/STRs

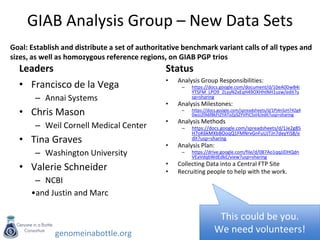

- 28. genomeinabottle.org GIAB Analysis Group– New Data Sets Leaders • Francisco de la Vega – Annai Systems • Chris Mason – Weil Cornell Medical Center • Tina Graves – Washington University • Valerie Schneider – NCBI •and Justin and Marc Status • Analysis Group Responsibilities: – https://docs.google.com/document/d/10eA0DwB4i YTSFM_LPO9_2LyyN2xEqH49OXHhtNH1uzw/edit?u sp=sharing • Analysis Milestones: – https://docs.google.com/spreadsheets/d/1Pj4nSzH742g4 0wJz2fA6f8kFtZYAToZpSZYVPiC5st4/edit?usp=sharing • Analysis Methods – https://docs.google.com/spreadsheets/d/1Je2g85 H7oK6kMXbBOoqQ1FMNrvGnFuUJTJn7deyYiS8/e dit?usp=sharing • Analysis Plan: – https://drive.google.com/file/d/0B7Ao1qqJJDHQdn VEaVdqbWdEdkE/view?usp=sharing • Collecting Data into a Central FTP Site • Recruiting people to help with the work. This could be you. We need volunteers! Goal: Establish and distribute a set of authoritative benchmark variant calls of all types and sizes, as well as homozygous reference regions, on GIAB PGP trios

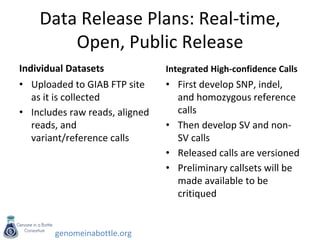

- 29. genomeinabottle.org Data Release Plans:Real-time, Open, Public Release Individual Datasets • Uploaded to GIAB FTP site as it is collected • Includes raw reads, aligned reads, and variant/reference calls Integrated High-confidence Calls • First develop SNP, indel, and homozygous reference calls • Then develop SV and non- SV calls • Released calls are versioned • Preliminary callsets will be made available to be critiqued

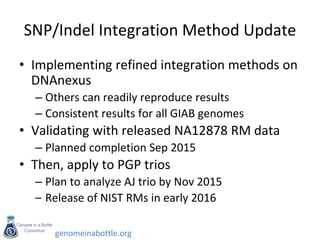

- 30. genomeinabottle.org SNP/Indel Integration MethodUpdate • Implementing refined integration methods on DNAnexus – Others can readily reproduce results – Consistent results for all GIAB genomes • Validating with released NA12878 RM data – Planned completion Sep 2015 • Then, apply to PGP trios – Plan to analyze AJ trio by Nov 2015 – Release of NIST RMs in early 2016

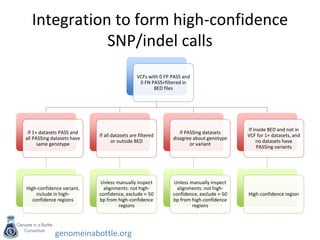

- 31. genomeinabottle.org Integration to formhigh-confidence SNP/indel calls VCFs with 0 FP PASS and 0 FN PASS+filtered in BED files If 1+ datasets PASS and all PASSing datasets have same genotype High-confidence variant, include in high- confidence regions If all datasets are filtered or outside BED Unless manually inspect alignments: not high- confidence, exclude +-50 bp from high-confidence regions If PASSing datasets disagree about genotype or variant Unless manually inspect alignments: not high- confidence, exclude +-50 bp from high-confidence regions If inside BED and not in VCF for 1+ datasets, and no datasets have PASSing variants High-confidence region

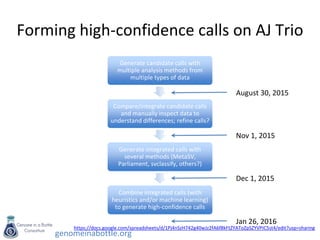

- 32. genomeinabottle.org Forming high-confidence callson AJ Trio Generate candidate calls with multiple analysis methods from multiple types of data Compare/integrate candidate calls and manually inspect data to understand differences; refine calls? Generate integrated calls with several methods (MetaSV, Parliament, svclassify, others?) Combine integrated calls (with heuristics and/or machine learning) to generate high-confidence calls https://docs.google.com/spreadsheets/d/1Pj4nSzH742g40wJz2fA6f8kFtZYAToZpSZYVPiC5st4/edit?usp=sharing August 30, 2015 Nov 1, 2015 Dec 1, 2015 Jan 26, 2016

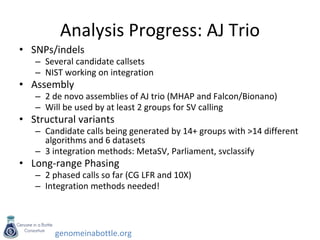

- 33. genomeinabottle.org Analysis Progress: AJTrio • SNPs/indels – Several candidate callsets – NIST working on integration • Assembly – 2 de novo assemblies of AJ trio (MHAP and Falcon/Bionano) – Will be used by at least 2 groups for SV calling • Structural variants – Candidate calls being generated by 14+ groups with >14 different algorithms and 6 datasets – 3 integration methods: MetaSV, Parliament, svclassify • Long-range Phasing – 2 phased calls so far (CG LFR and 10X) – Integration methods needed!
