Uploaded byGenomeInABottle
GIAB GRC Workshop slides
The document discusses the Genome in a Bottle Consortium's efforts to develop reference materials, data, methods, and performance metrics for evaluating whole genome sequencing and variant calling. It provides details on newly released reference materials, including additional Genome in a Bottle reference genomes from the Personal Genome Project consisting of an Ashkenazi Jewish trio and their Asian son. The materials are extensively characterized and are intended to help validate and improve sequencing and analysis methods.
More Related Content
Similar to GIAB GRC Workshop slides
GIAB GRC Workshop slides

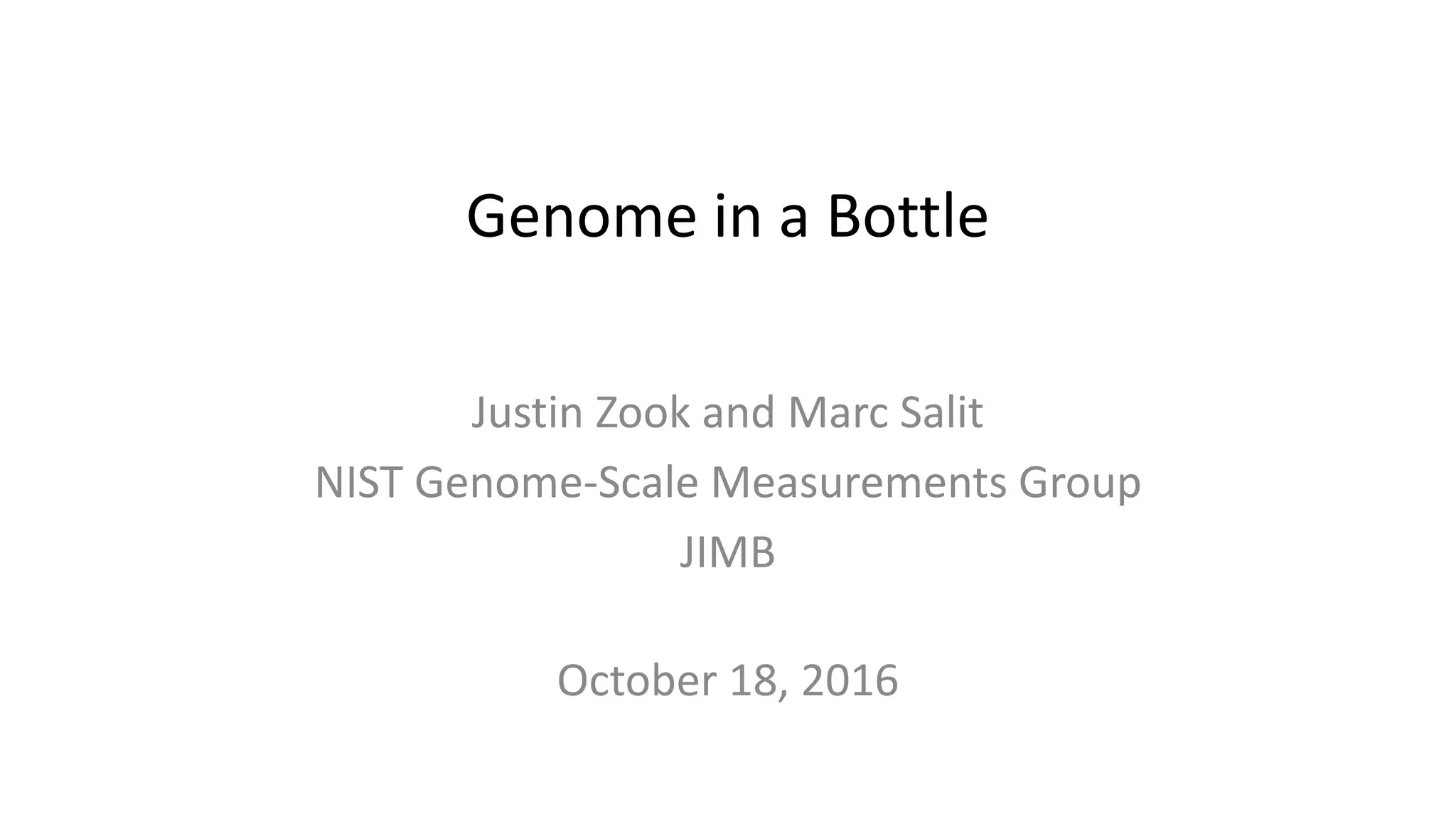

- 1. Genome in aBottle Justin Zook and Marc Salit NIST Genome-Scale Measurements Group JIMB October 18, 2016

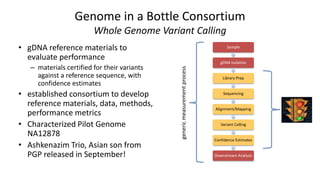

- 2. Genome in aBottle Consortium Whole Genome Variant Calling Sample gDNA isolation Library Prep Sequencing Alignment/Mapping Variant Calling Confidence Estimates Downstream Analysis • gDNA reference materials to evaluate performance – materials certified for their variants against a reference sequence, with confidence estimates • established consortium to develop reference materials, data, methods, performance metrics • Characterized Pilot Genome NA12878 • Ashkenazim Trio, Asian son from PGP released in September! genericmeasurementprocess

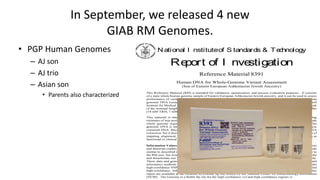

- 3. In September, wereleased 4 new GIAB RM Genomes. • PGP Human Genomes – AJ son – AJ trio – Asian son • Parents also characterized National I nstituteof S tandards & Technology Report of I nvestigation Reference Material 8391 Human DNA for Whole-Genome Variant Assessment (Son of Eastern European Ashkenazim Jewish Ancestry) This Reference Material (RM) is intended for validation, optimization, and process evaluation purposes. It consists of a male whole human genome sample of Eastern European Ashkenazim Jewish ancestry, and it can be used to assess performance of variant calling from genome sequencing. A unit of RM 8391 consists of a vial containing human genomic DNA extracted from a single large growth of human lymphoblastoid cell line GM24385 from the Coriell Institute for Medical Research (Camden, NJ). The vial contains approximately 10 µg of genomic DNA, with the peak of the nominal length distribution longer than 48.5 kb, as referenced by Lambda DNA, and the DNA is in TE buffer (10 mM TRIS, 1 mM EDTA, pH 8.0). This material is intended for assessing performance of human genome sequencing variant calling by obtaining estimates of true positives, false positives, true negatives, and false negatives. Sequencing applications could include whole genome sequencing, whole exome sequencing, and more targeted sequencing such as gene panels. This genomic DNA is intended to be analyzed in the same way as any other sample a lab would process and analyze extracted DNA. Because the RM is extracted DNA, it is not useful for assessing pre-analytical steps such as DNA extraction, but it does challenge sequencing library preparation, sequencing machines, and the bioinformatics steps of mapping, alignment, and variant calling. This RM is not intended to assess subsequent bioinformatics steps such as functional or clinical interpretation. Information Values: Information values are provided for single nucleotide polymorphisms (SNPs), small insertions and deletions (indels), and homozygous reference genotypes for approximately 88 % of the genome, using methods similar to described in reference 1. An information value is considered to be a value that will be of interest and use to the RM user, but insufficient information is available to assess the uncertainty associated with the value. We describe and disseminate our best, most confident, estimate of the genotypes using the data and methods currently available. These data and genomic characterizations will be maintained over time as new data accrue and measurement and informatics methods become available. The information values are given as a variant call file (vcf) that contains the high-confidence SNPs and small indels, as well as a tab-delimited “bed” file that describes the regions that are called high-confidence. Information values cannot be used to establish metrological traceability. The files referenced in this report are available at the Genome in a Bottle ftp site hosted by the National Center for Biotechnology Information (NCBI). The Genome in a Bottle ftp site for the high-confidence vcf and high confidence regions is:
- 4. We’re also releasinga Microbial Genome RM National I nstituteof S tandards & Technology Report of I nvestigation Reference Material 8375 Microbial Genomic DNA Standards for Sequencing Performance Assessment (MG-001, MG-002, MG-003, MG-004) This Reference Material (RM) is intended for validation, optimization, process evaluation, and performance assessment of whole genome sequencing. A unit of RM 8375 consists of four vials. Each vial contains a different microbial genomic DNA sample (MG-001 Salmonella Typhimurium LT2, MG-002 Staphylococcus aureus, MG-003 Pseudomonas aeruginosa, and MG-004 Clostridium sporogenes). Each vial contains approximately 2 µg of microbial genomic DNA; with the peak of the nominal length distribution longer than 48.5 kb, as referenced by Lambda DNA; in TE buffer (10 mM TRIS, 0.1 mM EDTA, pH 8.0). This material is intended to help assess performance of high-throughput DNA sequencing methods. This genomic DNA is intended to be analyzed in the same way as any other sample a laboratory would analyze extracted DNA, such as through the use of a genome assembly or variant calling bioinformatics pipelines. Because the RM is extracted DNA, it does not assess pre-analytical steps such as DNA extraction. It does, however, challenge sequencing library preparation, sequencing machines, base calling algorithms, and the subsequent bioinformatics analyses such as variant calling. This RM is not intended to assess other bioinformatics steps such as genome assembly, strain identification, phylogenetic analysis, or genome annotation. Information Values: Information values are currently provided for the whole genome sequence to enable performance assessment of variant calling and assembly methods. An information value is considered to be a value that will be of interest and use to the RM user, but insufficient information is available to assess the uncertainty associated with the value. We describe and disseminate our best, most confident, estimate of the assembly using the data and methods available at present [1]. Information values cannot be used to establish metrological traceability. The genome sequence files referenced in this Report of Investigation are available at: MG-001 Salmonella Typhimurium LT2 https://github.com/usnistgov/NIST_Micro_Genomic_RM_Data/MG001/ref_genome/MG001_v1.00.fasta MG-002 Staphylococcus aureus This Reference Material (RM) is intended for validation, optimization, process evaluation, and performance assessment of whole genome sequencing. • Salmonella Typhimurium • Pseudomonas aeruginosa • Staphylococcus aureus • Clostridium sporogenes
- 5. Bringing Principles ofMetrology to the Genome • Reference materials – DNA in a tube you can buy from NIST – NA12878 pilot sample, now 2 PGP- sourced trios • Extensive state-of-the-art characterization – as good as we can get for small variants – arbitrated “gold standard” calls for SNPs, small indels • “Upgradable” as technology develops • Analysis of all samples ongoing as technology develops • PGP genomes suitable for commercial derived products • Developing benchmarking tools and software – with GA4GH • Samples being used to develop and demonstrate new technology

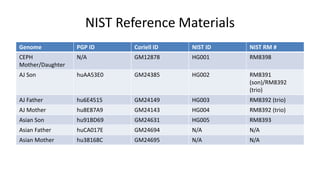

- 6. NIST Reference Materials GenomePGP ID Coriell ID NIST ID NIST RM # CEPH Mother/Daughter N/A GM12878 HG001 RM8398 AJ Son huAA53E0 GM24385 HG002 RM8391 (son)/RM8392 (trio) AJ Father hu6E4515 GM24149 HG003 RM8392 (trio) AJ Mother hu8E87A9 GM24143 HG004 RM8392 (trio) Asian Son hu91BD69 GM24631 HG005 RM8393 Asian Father huCA017E GM24694 N/A N/A Asian Mother hu38168C GM24695 N/A N/A

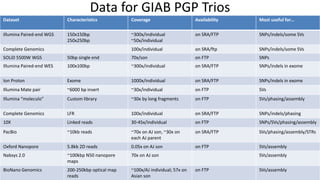

- 7. Data for GIABPGP Trios Dataset Characteristics Coverage Availability Most useful for… Illumina Paired-end WGS 150x150bp 250x250bp ~300x/individual ~50x/individual on SRA/FTP SNPs/indels/some SVs Complete Genomics 100x/individual on SRA/ftp SNPs/indels/some SVs SOLiD 5500W WGS 50bp single end 70x/son on FTP SNPs Illumina Paired-end WES 100x100bp ~300x/individual on SRA/FTP SNPs/indels in exome Ion Proton Exome 1000x/individual on SRA/FTP SNPs/indels in exome Illumina Mate pair ~6000 bp insert ~30x/individual on FTP SVs Illumina “moleculo” Custom library ~30x by long fragments on FTP SVs/phasing/assembly Complete Genomics LFR 100x/individual on SRA/FTP SNPs/indels/phasing 10X Linked reads 30-45x/individual on FTP SNPs/SVs/phasing/assembly PacBio ~10kb reads ~70x on AJ son, ~30x on each AJ parent on SRA/FTP SVs/phasing/assembly/STRs Oxford Nanopore 5.8kb 2D reads 0.05x on AJ son on FTP SVs/assembly Nabsys 2.0 ~100kbp N50 nanopore maps 70x on AJ son SVs/assembly BioNano Genomics 200-250kbp optical map reads ~100x/AJ individual; 57x on Asian son on FTP SVs/assembly

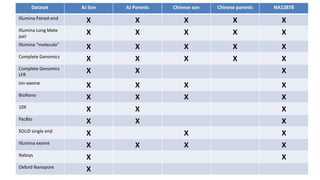

- 8. Dataset AJ SonAJ Parents Chinese son Chinese parents NA12878 Illumina Paired-end X X X X X Illumina Long Mate pair X X X X X Illumina “moleculo” X X X X X Complete Genomics X X X X X Complete Genomics LFR X X X Ion exome X X X X BioNano X X X X 10X X X X PacBio X X X SOLiD single end X X X Illumina exome X X X X Nabsys X X Oxford Nanopore X

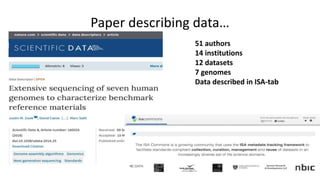

- 9. Paper describing data… 51authors 14 institutions 12 datasets 7 genomes Data described in ISA-tab

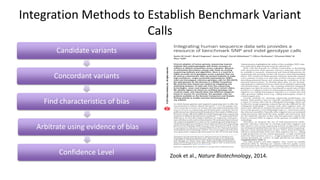

- 10. Integration Methods toEstablish Benchmark Variant Calls Candidate variants Concordant variants Find characteristics of bias Arbitrate using evidence of bias Confidence Level Zook et al., Nature Biotechnology, 2014.
- 11. Integration Methods toEstablish Benchmark Variant Calls Candidate variants Concordant variants Find characteristics of bias Arbitrate using evidence of bias Confidence Level Zook et al., Nature Biotechnology, 2014.

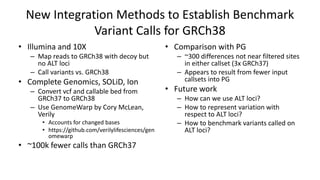

- 12. New Integration Methodsto Establish Benchmark Variant Calls for GRCh38 • Comparison with PG – ~300 differences not near filtered sites in either callset (3x GRCh37) – Appears to result from fewer input callsets into PG • Future work – How can we use ALT loci? – How to represent variation with respect to ALT loci? – How to benchmark variants called on ALT loci? • Illumina and 10X – Map reads to GRCh38 with decoy but no ALT loci – Call variants vs. GRCh38 • Complete Genomics, SOLiD, Ion – Convert vcf and callable bed from GRCh37 to GRCh38 – Use GenomeWarp by Cory McLean, Verily • Accounts for changed bases • https://github.com/verilylifesciences/gen omewarp • ~100k fewer calls than GRCh37

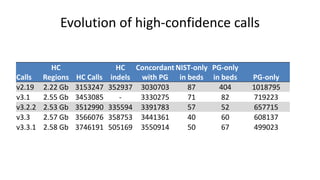

- 13. Evolution of high-confidencecalls Calls HC Regions HC Calls HC indels Concordant with PG NIST-only in beds PG-only in beds PG-only v2.19 2.22 Gb 3153247 352937 3030703 87 404 1018795 v3.1 2.55 Gb 3453085 - 3330275 71 82 719223 v3.2.2 2.53 Gb 3512990 335594 3391783 57 52 657715 v3.3 2.57 Gb 3566076 358753 3441361 40 60 608137 v3.3.1 2.58 Gb 3746191 505169 3550914 50 67 499023

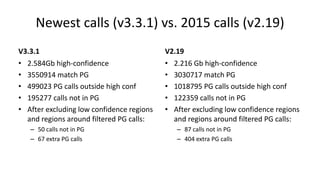

- 14. Newest calls (v3.3.1)vs. 2015 calls (v2.19) V3.3.1 • 2.584Gb high-confidence • 3550914 match PG • 499023 PG calls outside high conf • 195277 calls not in PG • After excluding low confidence regions and regions around filtered PG calls: – 50 calls not in PG – 67 extra PG calls V2.19 • 2.216 Gb high-confidence • 3030717 match PG • 1018795 PG calls outside high conf • 122359 calls not in PG • After excluding low confidence regions and regions around filtered PG calls: – 87 calls not in PG – 404 extra PG calls

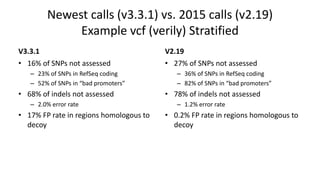

- 15. Newest calls (v3.3.1)vs. 2015 calls (v2.19) Example vcf (verily) Stratified V3.3.1 • 16% of SNPs not assessed – 23% of SNPs in RefSeq coding – 52% of SNPs in “bad promoters” • 68% of indels not assessed – 2.0% error rate • 17% FP rate in regions homologous to decoy V2.19 • 27% of SNPs not assessed – 36% of SNPs in RefSeq coding – 82% of SNPs in “bad promoters” • 78% of indels not assessed – 1.2% error rate • 0.2% FP rate in regions homologous to decoy

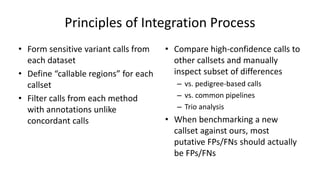

- 16. Principles of IntegrationProcess • Form sensitive variant calls from each dataset • Define “callable regions” for each callset • Filter calls from each method with annotations unlike concordant calls • Compare high-confidence calls to other callsets and manually inspect subset of differences – vs. pedigree-based calls – vs. common pipelines – Trio analysis • When benchmarking a new callset against ours, most putative FPs/FNs should actually be FPs/FNs

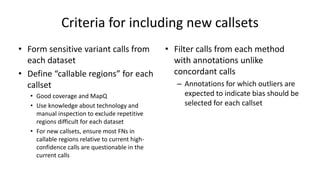

- 17. Criteria for includingnew callsets • Form sensitive variant calls from each dataset • Define “callable regions” for each callset • Good coverage and MapQ • Use knowledge about technology and manual inspection to exclude repetitive regions difficult for each dataset • For new callsets, ensure most FNs in callable regions relative to current high- confidence calls are questionable in the current calls • Filter calls from each method with annotations unlike concordant calls – Annotations for which outliers are expected to indicate bias should be selected for each callset

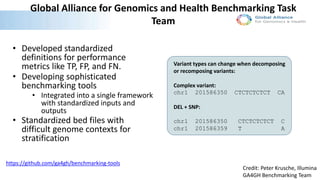

- 18. Global Alliance forGenomics and Health Benchmarking Task Team • Developed standardized definitions for performance metrics like TP, FP, and FN. • Developing sophisticated benchmarking tools • Integrated into a single framework with standardized inputs and outputs • Standardized bed files with difficult genome contexts for stratification https://github.com/ga4gh/benchmarking-tools Variant types can change when decomposing or recomposing variants: Complex variant: chr1 201586350 CTCTCTCTCT CA DEL + SNP: chr1 201586350 CTCTCTCTCT C chr1 201586359 T A Credit: Peter Krusche, Illumina GA4GH Benchmarking Team

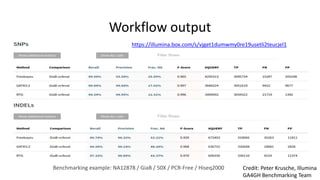

- 19. Workflow output Benchmarking example:NA12878 / GiaB / 50X / PCR-Free / Hiseq2000 https://illumina.box.com/s/vjget1dumwmy0re19usetli2teucjel1 Credit: Peter Krusche, Illumina GA4GH Benchmarking Team
- 20. GA4GH benchmarking onGithub In-progress benchmarking standards document: doc/standards Description of intermediate formats: doc/ref-impl Truthset descriptions and download links: resources/high-confidence-sets Stratification bed files and descriptions: resources/stratification-bed-files Python-code for HTML reporting and running benchmarks: reporting/basic Please contribute / join the discussion! https://github.com/ga4gh/benchmarking-tools Credit: Peter Krusche, Illumina GA4GH Benchmarking Team

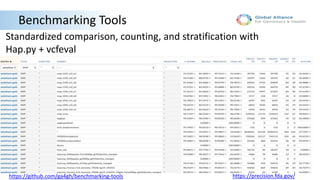

- 21. Benchmarking Tools Standardized comparison,counting, and stratification with Hap.py + vcfeval https://precision.fda.gov/https://github.com/ga4gh/benchmarking-tools

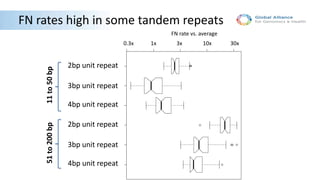

- 22. FN rates highin some tandem repeats 1x0.3x 10x3x 30x 11to50bp51to200bp 2bp unit repeat 3bp unit repeat 4bp unit repeat 2bp unit repeat 3bp unit repeat 4bp unit repeat FN rate vs. average

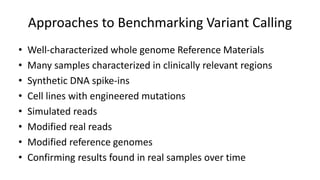

- 23. Approaches to BenchmarkingVariant Calling • Well-characterized whole genome Reference Materials • Many samples characterized in clinically relevant regions • Synthetic DNA spike-ins • Cell lines with engineered mutations • Simulated reads • Modified real reads • Modified reference genomes • Confirming results found in real samples over time

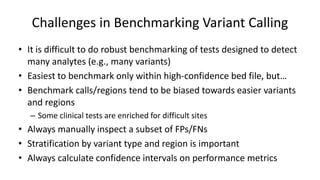

- 24. Challenges in BenchmarkingVariant Calling • It is difficult to do robust benchmarking of tests designed to detect many analytes (e.g., many variants) • Easiest to benchmark only within high-confidence bed file, but… • Benchmark calls/regions tend to be biased towards easier variants and regions – Some clinical tests are enriched for difficult sites • Always manually inspect a subset of FPs/FNs • Stratification by variant type and region is important • Always calculate confidence intervals on performance metrics

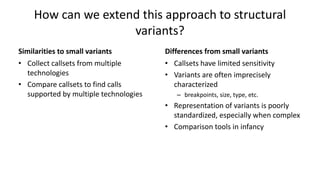

- 25. How can weextend this approach to structural variants? Similarities to small variants • Collect callsets from multiple technologies • Compare callsets to find calls supported by multiple technologies Differences from small variants • Callsets have limited sensitivity • Variants are often imprecisely characterized – breakpoints, size, type, etc. • Representation of variants is poorly standardized, especially when complex • Comparison tools in infancy

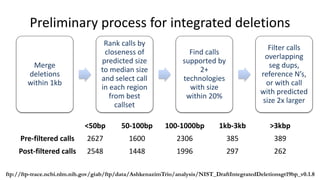

- 26. Preliminary process forintegrated deletions Merge deletions within 1kb Rank calls by closeness of predicted size to median size and select call in each region from best callset Find calls supported by 2+ technologies with size within 20% Filter calls overlapping seg dups, reference N’s, or with call with predicted size 2x larger ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/data/AshkenazimTrio/analysis/NIST_DraftIntegratedDeletionsgt19bp_v0.1.8 <50bp 50-100bp 100-1000bp 1kb-3kb >3kbp Pre-filtered calls 2627 1600 2306 385 389 Post-filtered calls 2548 1448 1996 297 262

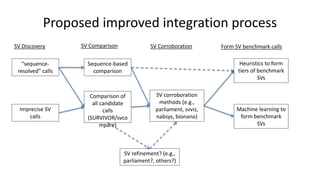

- 27. Proposed improved integrationprocess “sequence- resolved” calls SV Discovery Imprecise SV calls Sequence-based comparison SV corroboration methods (e.g., parliament, svviz, nabsys, bionano) Heuristics to form tiers of benchmark SVs Machine learning to form benchmark SVs Comparison of all candidate calls (SURVIVOR/svco mpare) SV Comparison SV Corroboration Form SV benchmark calls SV refinement? (e.g., parliament?, others?)

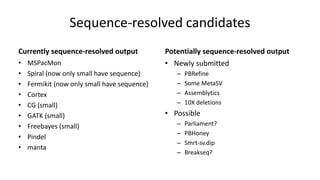

- 28. Sequence-resolved candidates Currently sequence-resolvedoutput • MSPacMon • Spiral (now only small have sequence) • Fermikit (now only small have sequence) • Cortex • CG (small) • GATK (small) • Freebayes (small) • Pindel • manta Potentially sequence-resolved output • Newly submitted – PBRefine – Some MetaSV – Assemblytics – 10X deletions • Possible – Parliament? – PBHoney – Smrt-sv.dip – Breakseq?

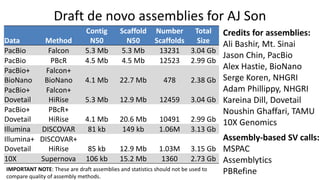

- 29. Draft de novoassemblies for AJ Son Data Method Contig N50 Scaffold N50 Number Scaffolds Total Size PacBio Falcon 5.3 Mb 5.3 Mb 13231 3.04 Gb PacBio PBcR 4.5 Mb 4.5 Mb 12523 2.99 Gb PacBio+ BioNano Falcon+ BioNano 4.1 Mb 22.7 Mb 478 2.38 Gb PacBio+ Dovetail Falcon+ HiRise 5.3 Mb 12.9 Mb 12459 3.04 Gb PacBio+ Dovetail PBcR+ HiRise 4.1 Mb 20.6 Mb 10491 2.99 Gb Illumina DISCOVAR 81 kb 149 kb 1.06M 3.13 Gb Illumina+ Dovetail DISCOVAR+ HiRise 85 kb 12.9 Mb 1.03M 3.15 Gb 10X Supernova 106 kb 15.2 Mb 1360 2.73 Gb Credits for assemblies: Ali Bashir, Mt. Sinai Jason Chin, PacBio Alex Hastie, BioNano Serge Koren, NHGRI Adam Phillippy, NHGRI Kareina Dill, Dovetail Noushin Ghaffari, TAMU 10X Genomics Assembly-based SV calls: MSPAC Assemblytics PBRefineIMPORTANT NOTE: These are draft assemblies and statistics should not be used to compare quality of assembly methods.
- 30. New Samples Additional ancestries •Shorter term – Use existing PGP individual samples – Use existing integration pipeline • Data-based selection – E.g., PCA of existing samples • 3 to 8 new samples • Longer term – Recruit large family – Recruit trios from other ancestry groups Cancer samples • Longer term • Make PGP-consented tumor and normal cell lines from same individual • Select tumor with diversity of mutation types

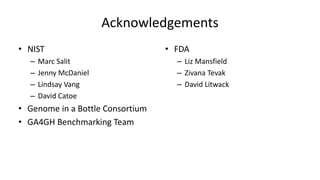

- 32. Acknowledgements • NIST – MarcSalit – Jenny McDaniel – Lindsay Vang – David Catoe • Genome in a Bottle Consortium • GA4GH Benchmarking Team • FDA – Liz Mansfield – Zivana Tevak – David Litwack

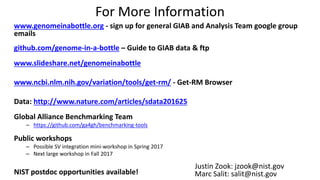

- 33. For More Information www.genomeinabottle.org- sign up for general GIAB and Analysis Team google group emails github.com/genome-in-a-bottle – Guide to GIAB data & ftp www.slideshare.net/genomeinabottle www.ncbi.nlm.nih.gov/variation/tools/get-rm/ - Get-RM Browser Data: http://www.nature.com/articles/sdata201625 Global Alliance Benchmarking Team – https://github.com/ga4gh/benchmarking-tools Public workshops – Possible SV integration mini-workshop in Spring 2017 – Next large workshop in Fall 2017 NIST postdoc opportunities available! Justin Zook: jzook@nist.gov Marc Salit: salit@nist.gov
