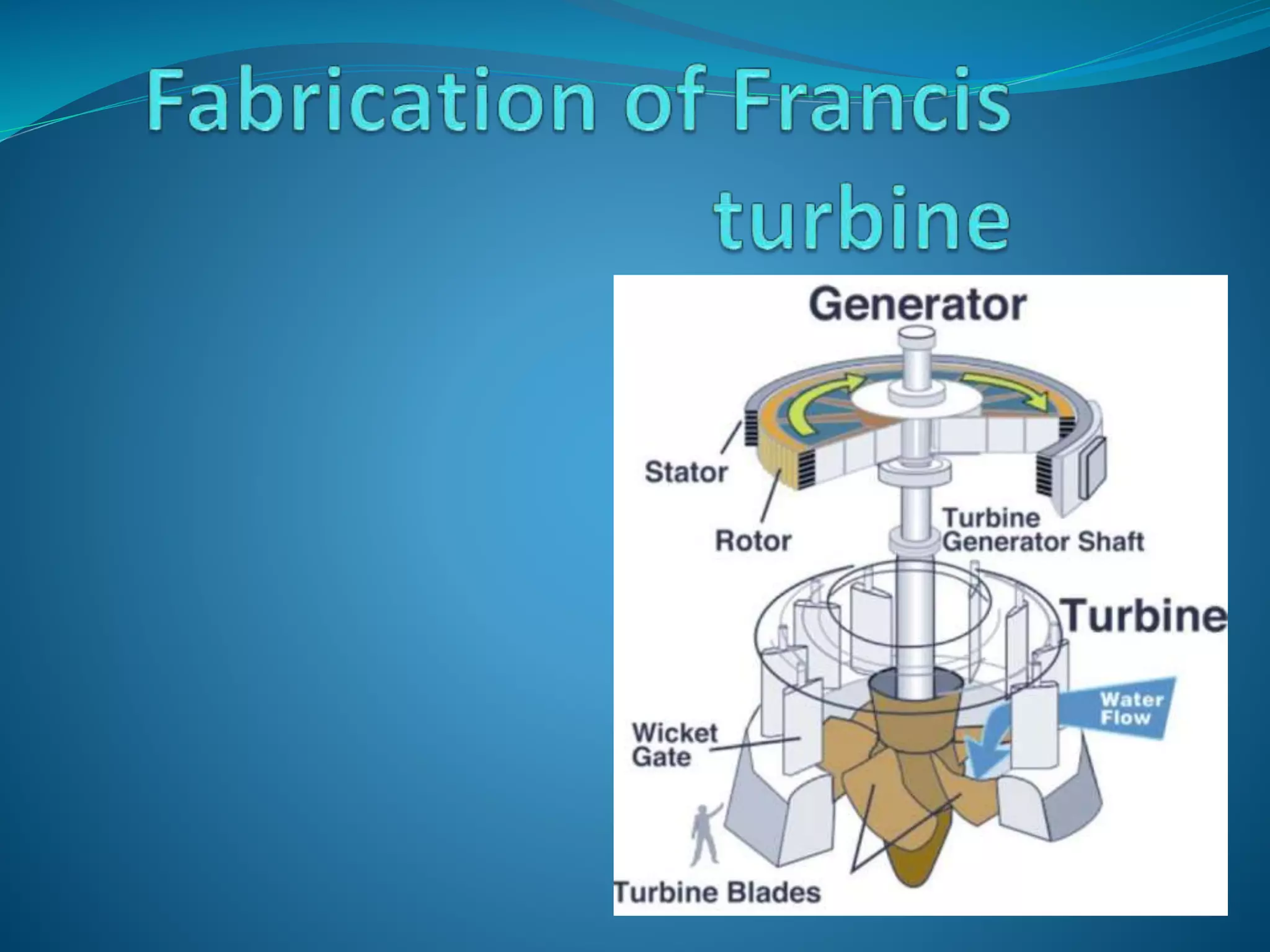

francis turbine.pptx
•Download as PPTX, PDF•
0 likes•117 views

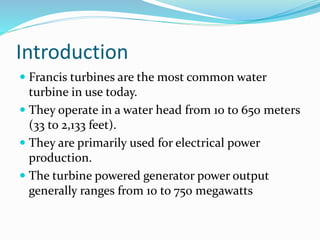

The Francis turbine is the most commonly used water turbine today. It was invented in the 1800s by James Francis who was able to redesign an earlier Boyden turbine to achieve 88% efficiency compared to the earlier 65% efficiency. The Francis turbine uses both the kinetic energy and pressure energy of flowing water to drive the turbine's runner blades and convert the energy into useful work, making it highly efficient. It is primarily used to generate electricity through water power.
