This document discusses using Fluentd and AWS together. It provides an overview of how Treasure Data uses Fluentd to collect log data from applications on AWS and forwards it to various AWS services like S3, DynamoDB, and Redshift for storage and analysis. It also describes how Fluentd can be used to collect logs from EC2 instances to monitor them and address issues. The document highlights Fluentd's pluggable architecture and some of its core plugins for buffering, routing, and input/output of log data.

1. Mar 21, 2014
www.treasuredata.com/
Fluentd &
AWS!
Masahiro Nakagawa
Treasure Data, Inc
1

2. Who are you?
• Masahiro Nakagawa
• @repeatedly
• Treasure Data, Inc
• Senior Software Engineer
• Fluentd, td-agent, etc...
• Dlang, MessagePack, ...
2

4. Treasure Data on AWS
4

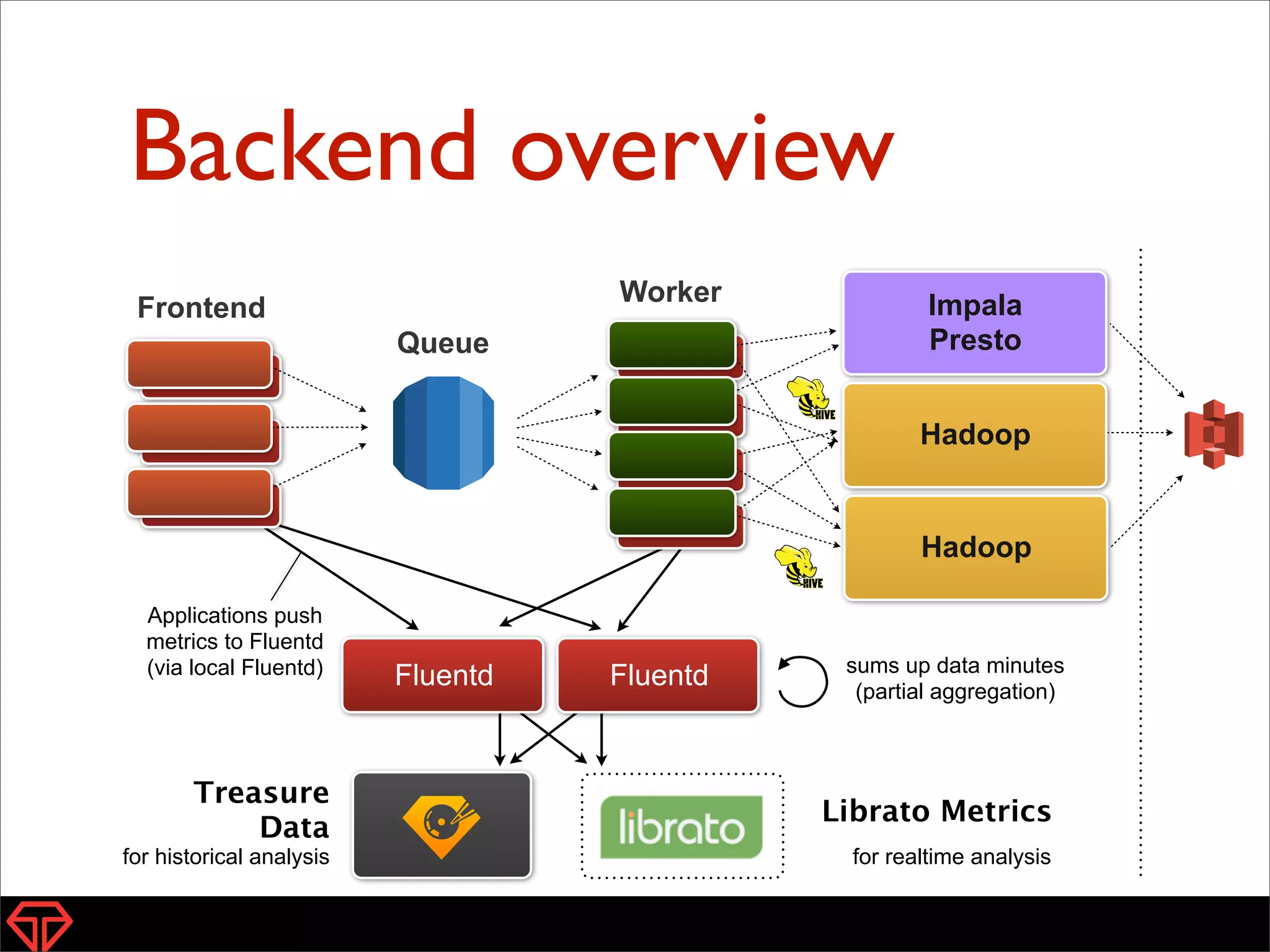

5. Frontend
Queue
Worker
Hadoop
Fluentd
Applications push
metrics to Fluentd
(via local Fluentd)
Librato Metrics
for realtime analysis
Treasure
Data
for historical analysis
Fluentd sums up data minutes
(partial aggregation)
Backend overview
Impala
Presto
Hadoop

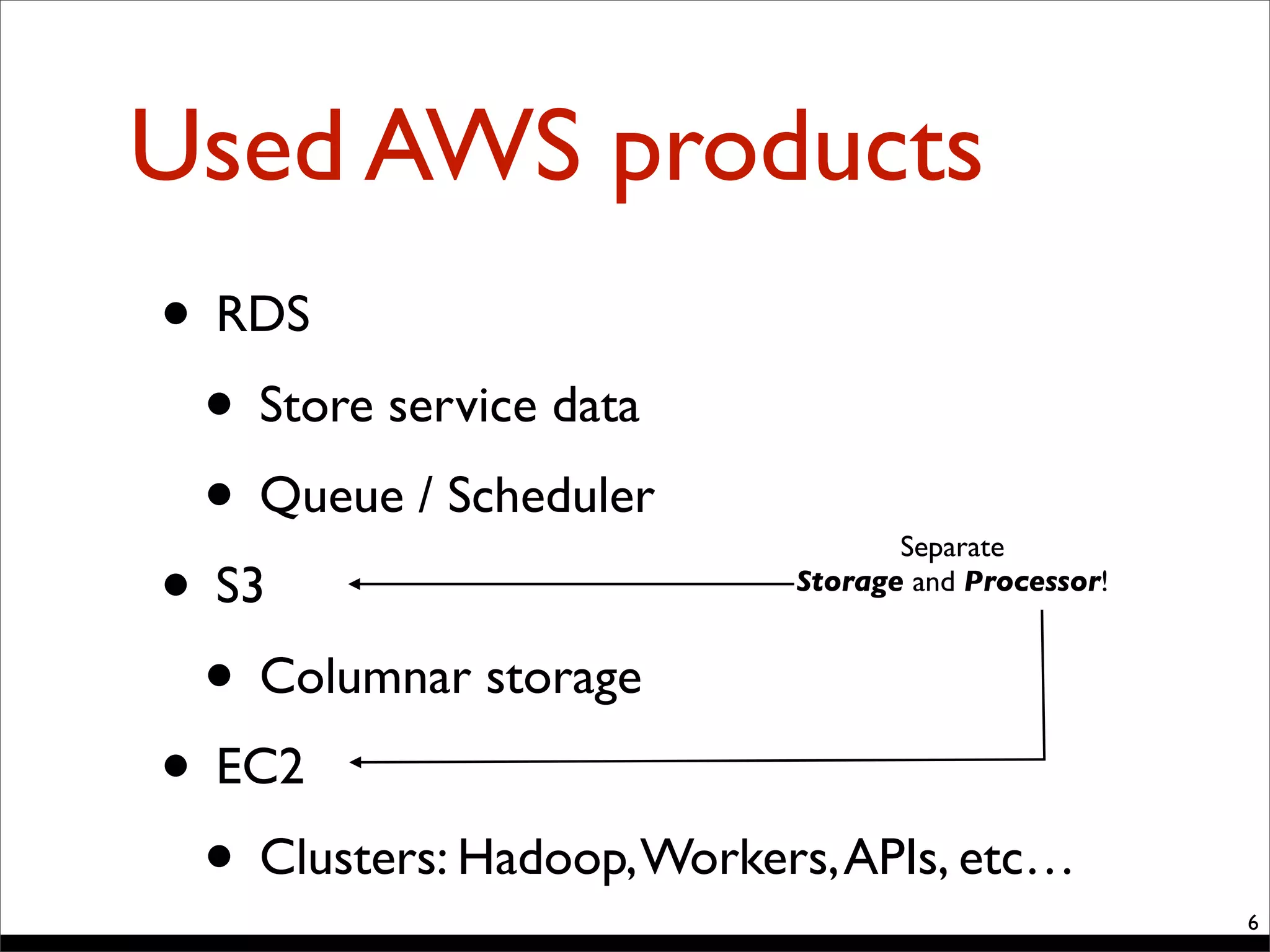

6. Used AWS products
• RDS
• Store service data
• Queue / Scheduler
• S3
• Columnar storage
• EC2
• Clusters: Hadoop,Workers,APIs, etc…
6
Separate
Storage and Processor!

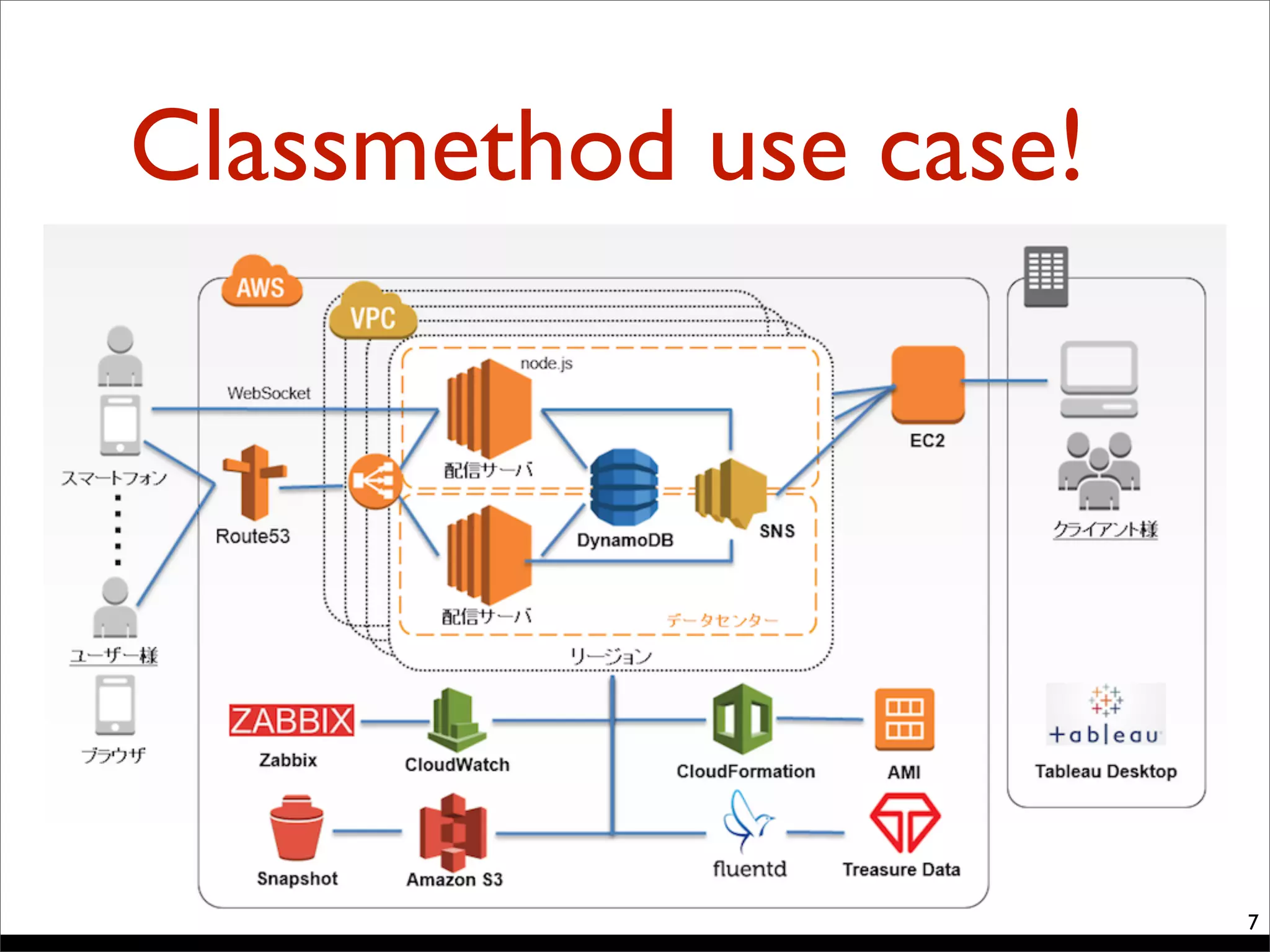

7. Classmethod use case!
7

8. Fluentd
(Treasure Agent)
8

9. Structured logging
Reliable forwarding
Pluggable architecture
http://fluentd.org/

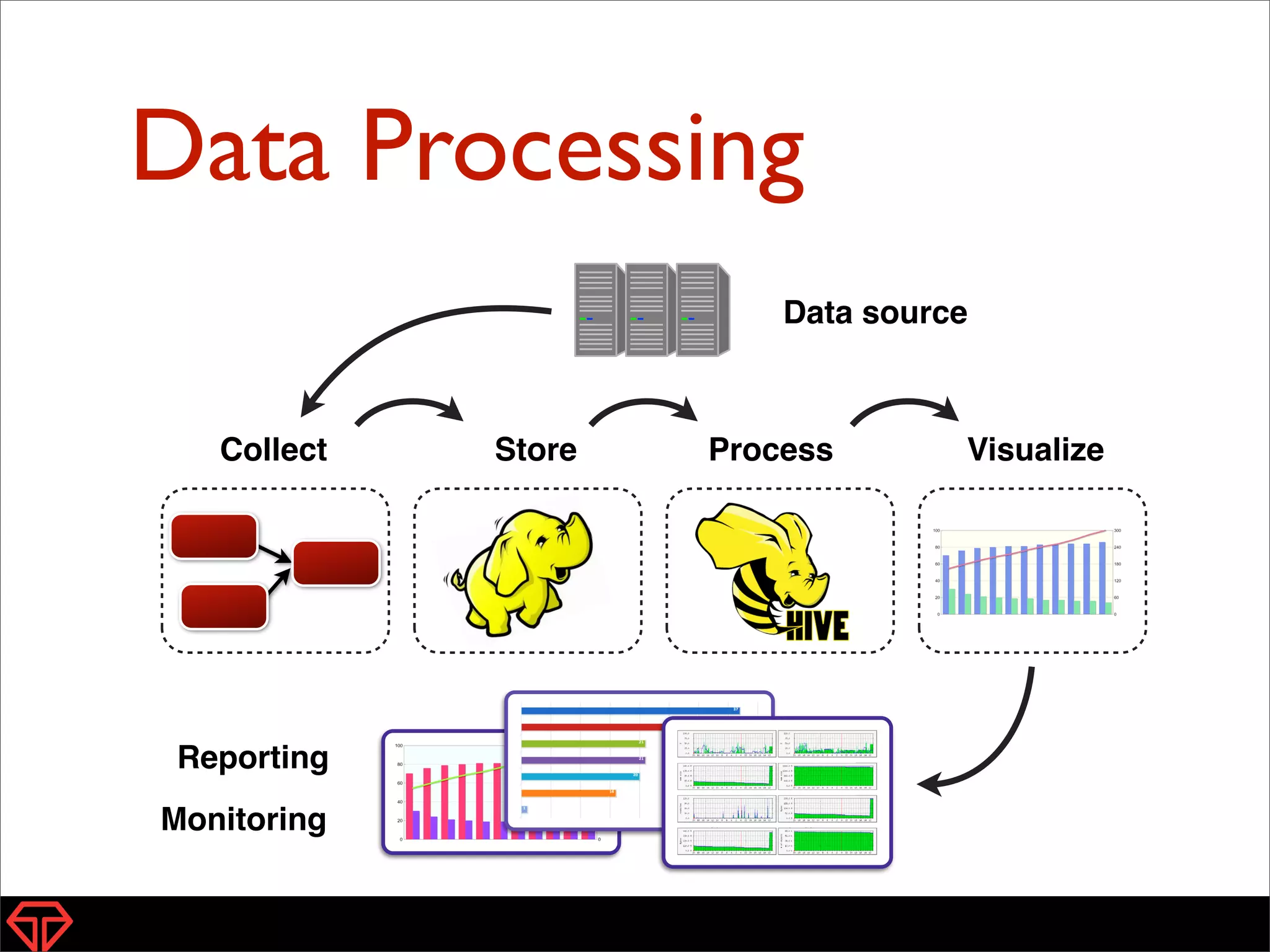

10. Collect Store Process Visualize
Data source
Reporting
Monitoring
Data Processing

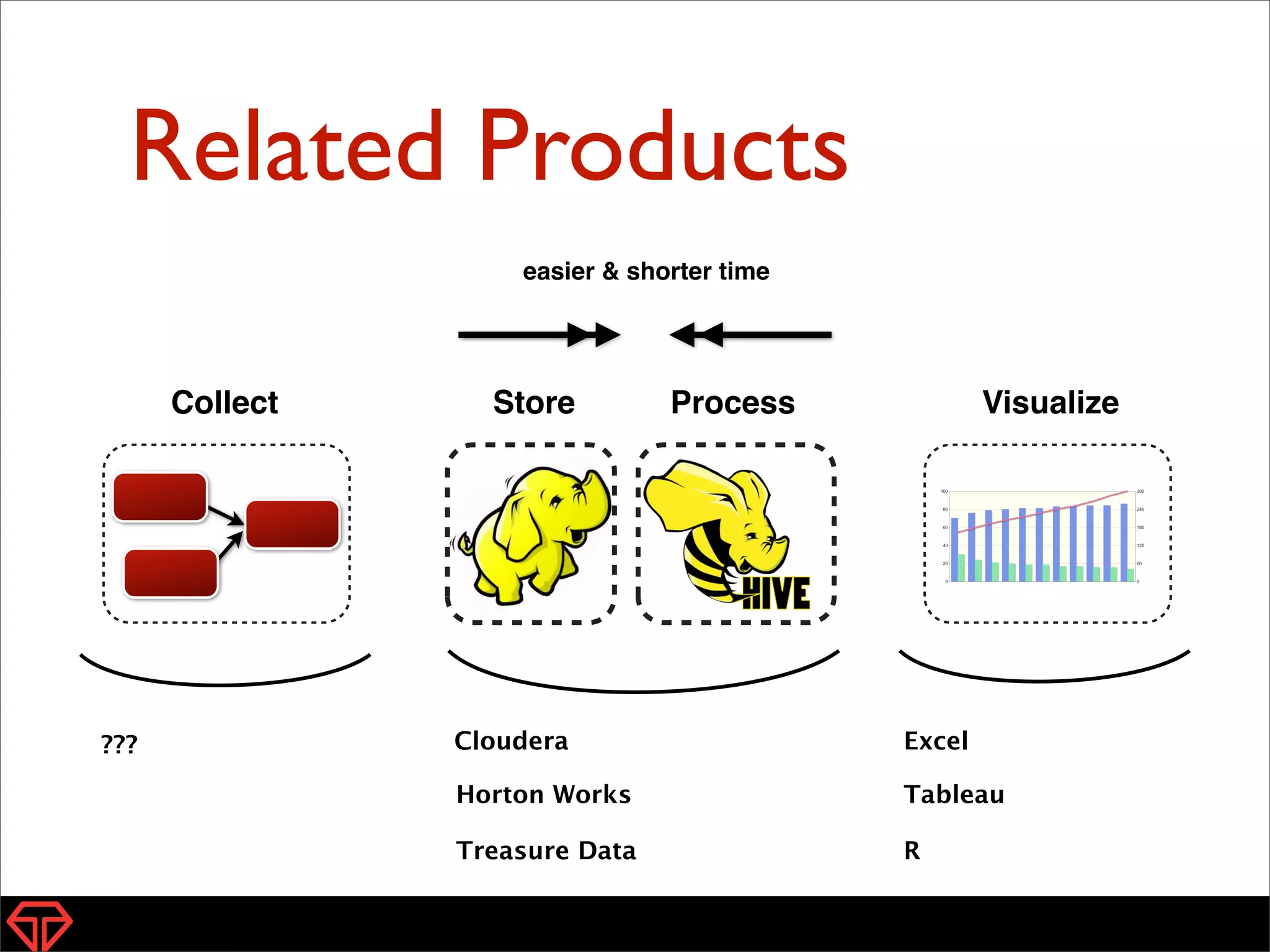

11. Related Products
Store Process
Cloudera
Horton Works
Treasure Data
Collect Visualize
Tableau
Excel
R
easier & shorter time
???

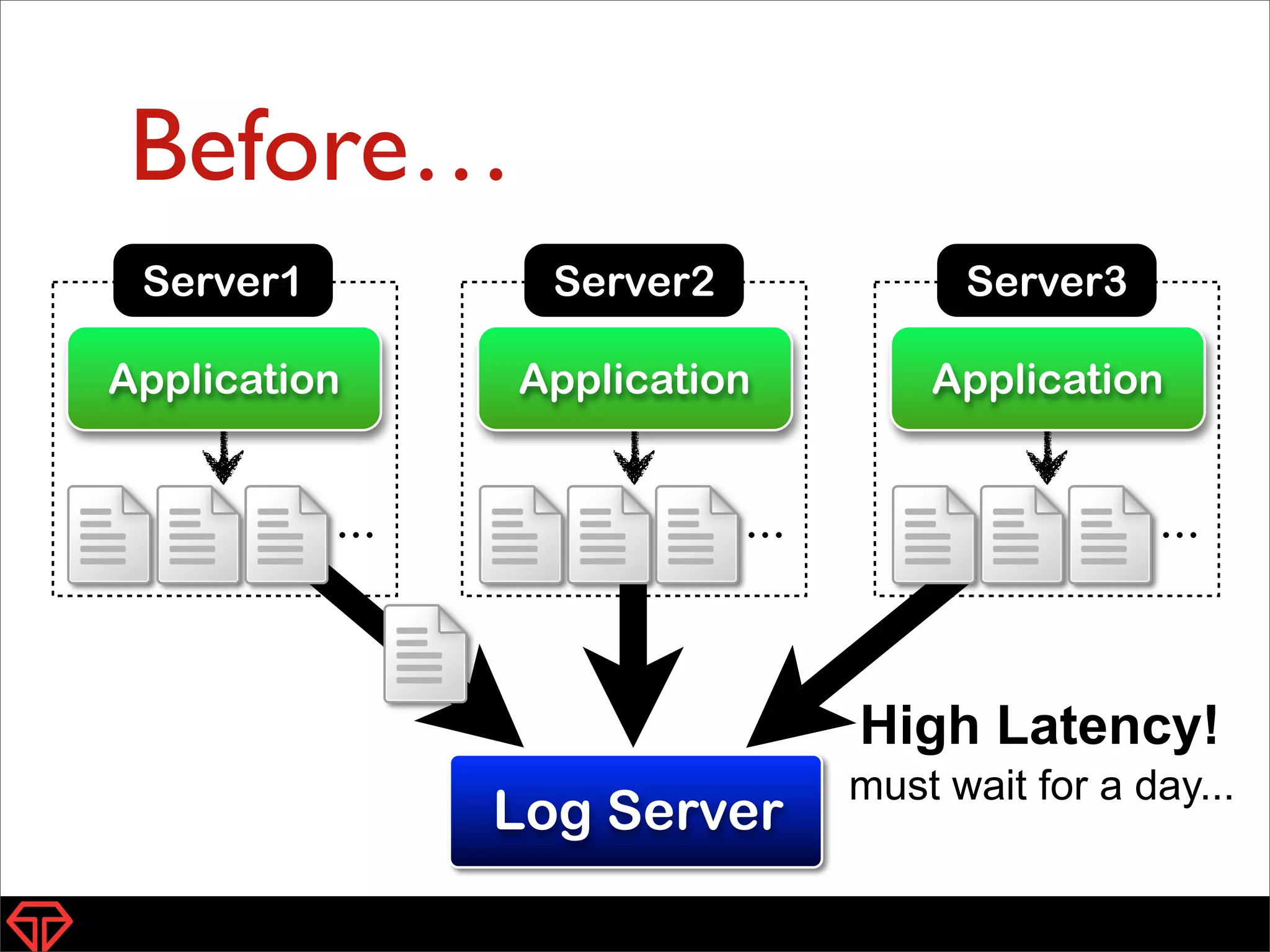

12. Before…
12
Application
･･･
Server2
Application
･･･
Server3
Application
･･･
Server1
FluentLog Server
High Latency!
must wait for a day...

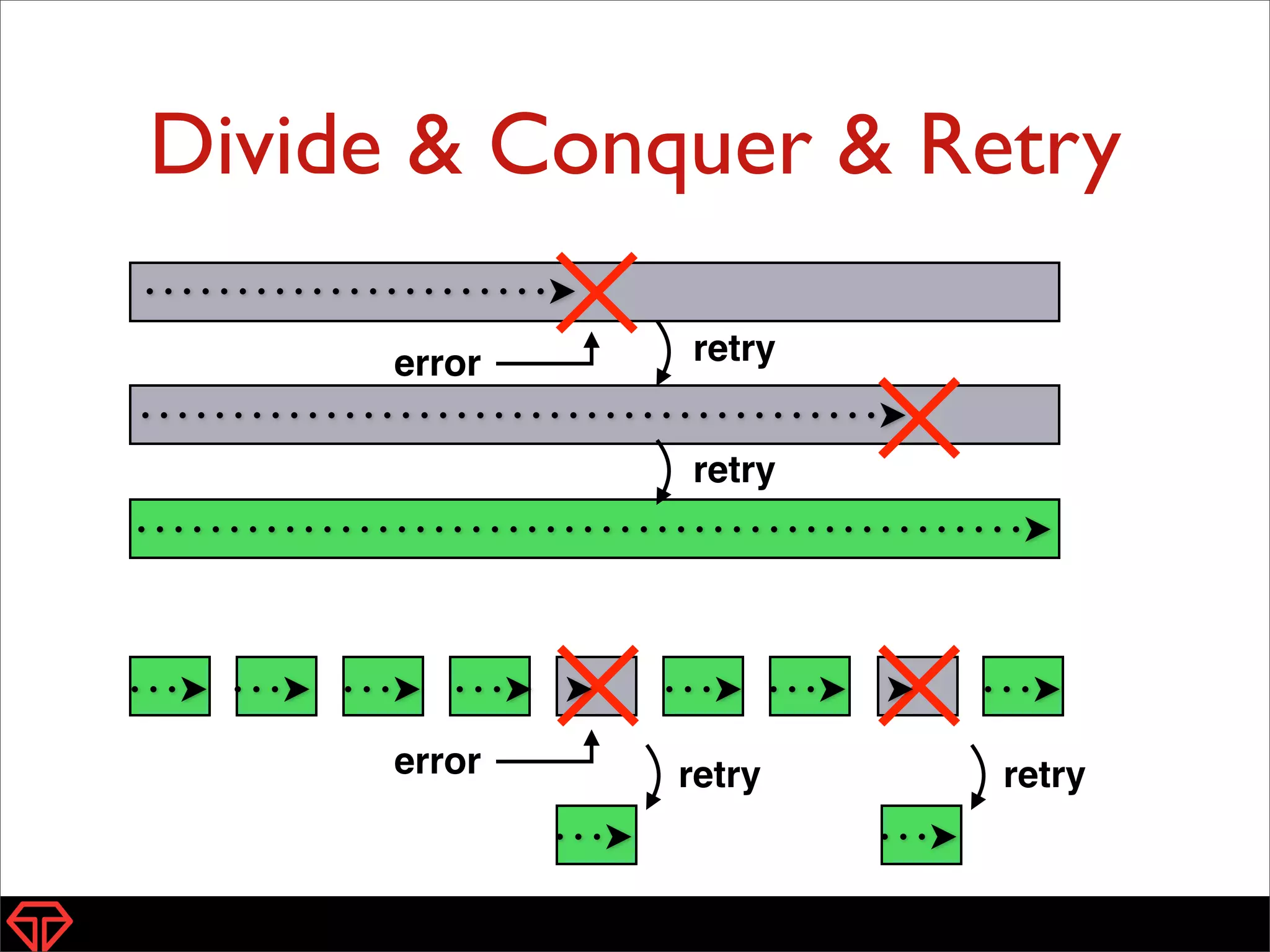

13. Divide & Conquer & Retry
13
error retry
error retry retry
retry

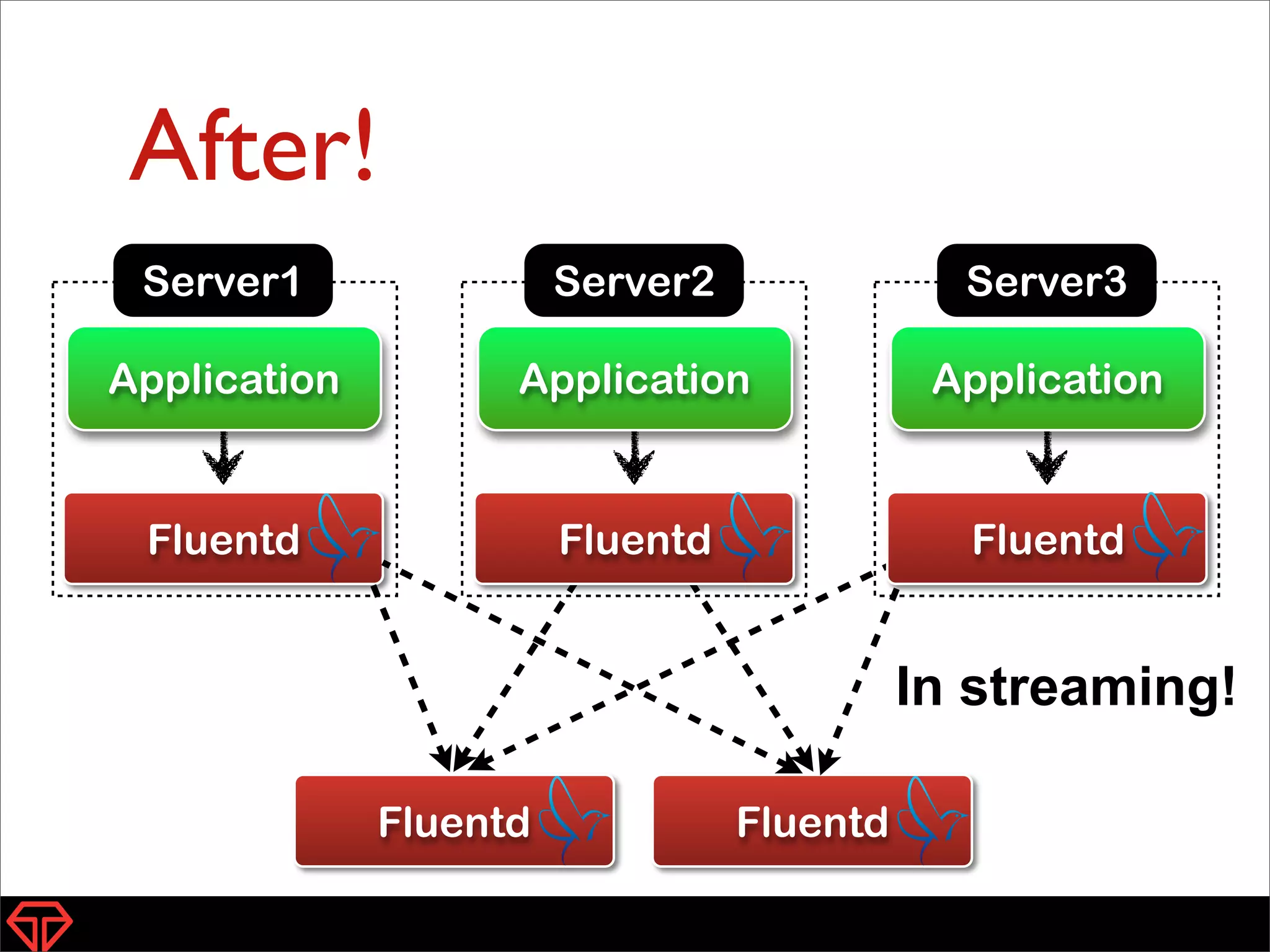

14. After!
14
Application
･･･
Server2
Application
･･･
Server3
Application
･･･
Server1
Fluentd Fluentd Fluentd
Fluentd Fluentd
In streaming!

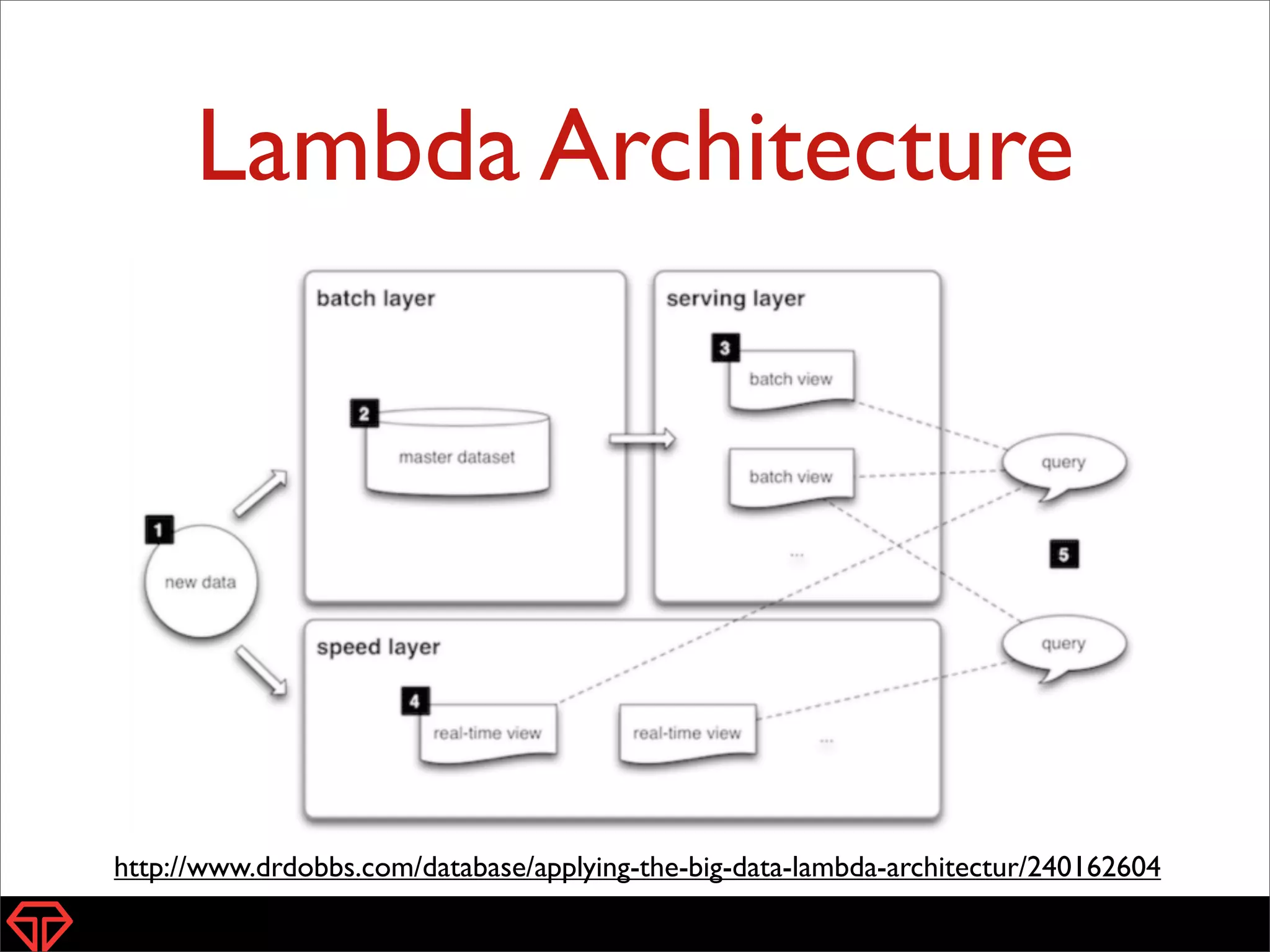

15. Lambda Architecture
15
http://www.drdobbs.com/database/applying-the-big-data-lambda-architectur/240162604

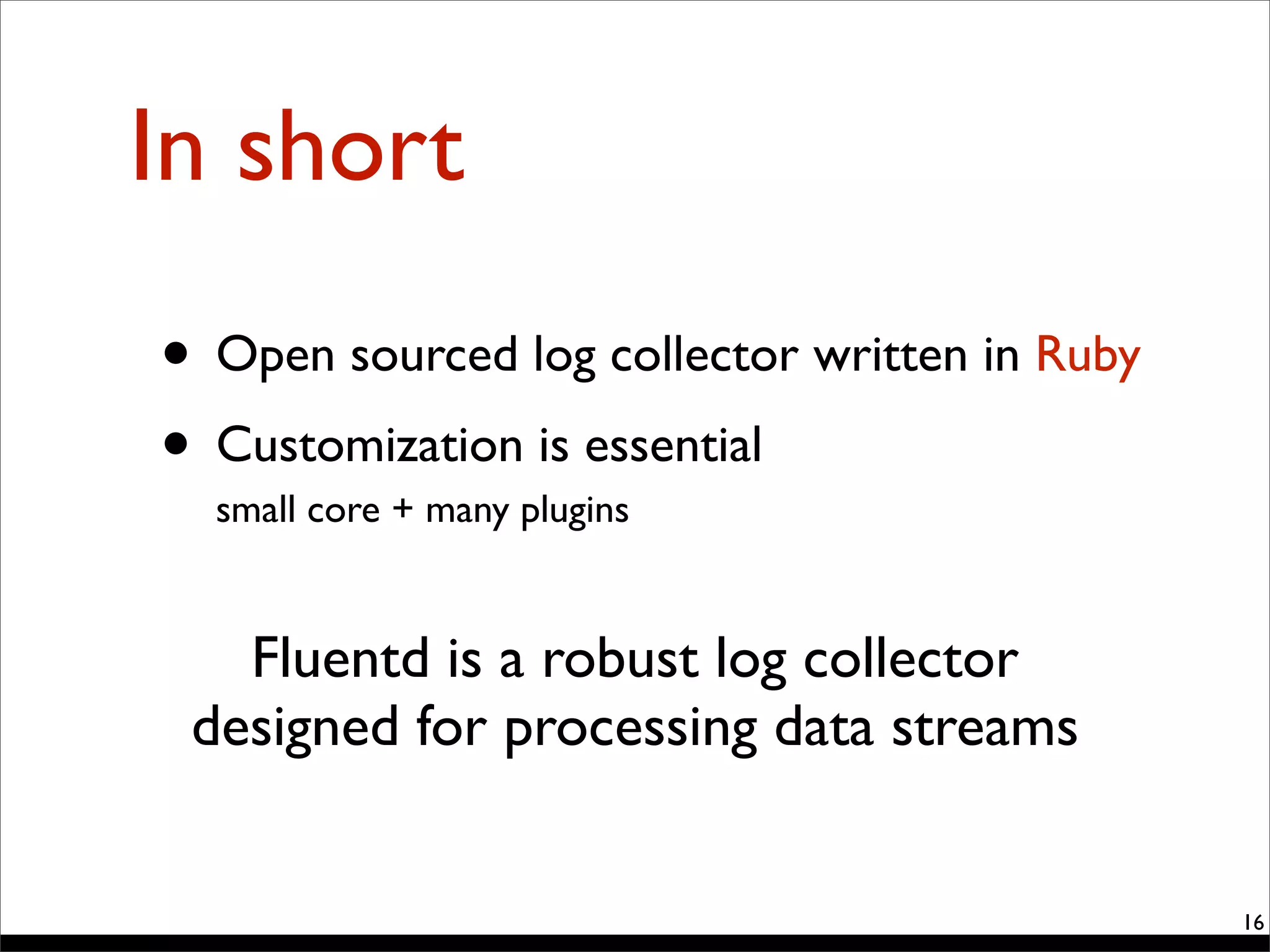

16. In short
• Open sourced log collector written in Ruby
• Customization is essential
small core + many plugins
16
Fluentd is a robust log collector
designed for processing data streams

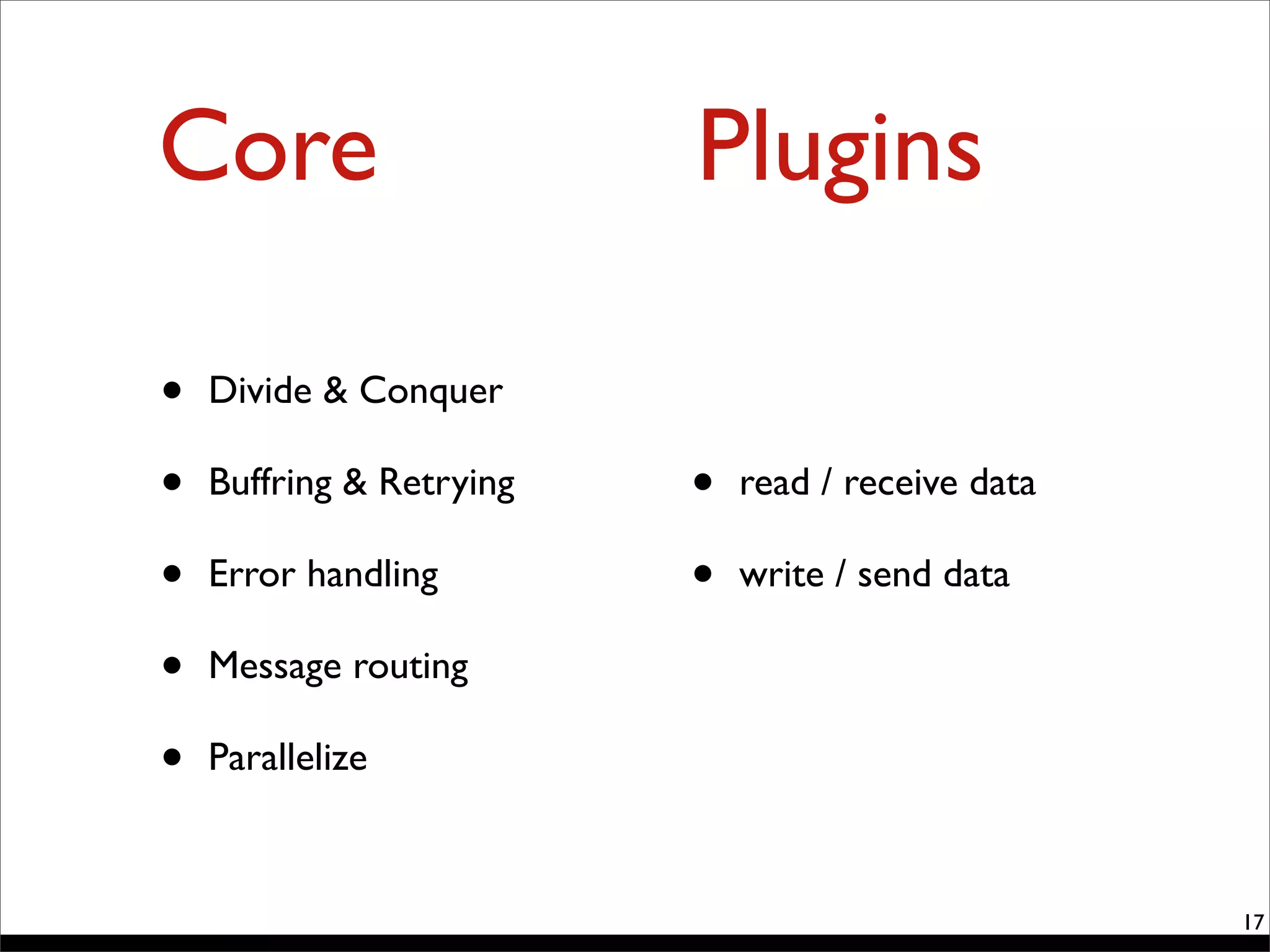

17. Core Plugins
• Divide & Conquer
• Buffring & Retrying
• Error handling
• Message routing
• Parallelize
• read / receive data
• write / send data
17

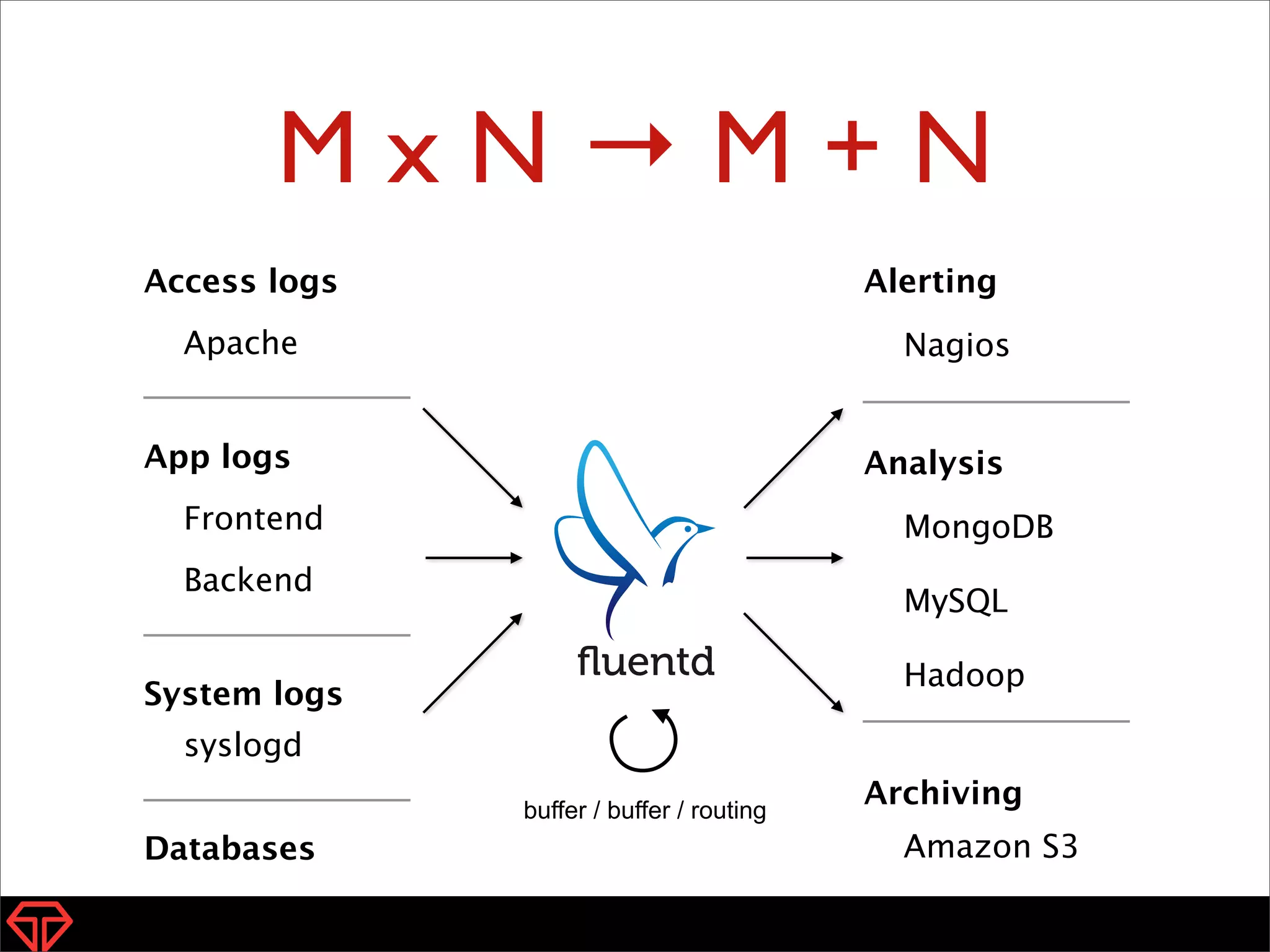

18. M x N → M + N
18
Nagios
MongoDB
Hadoop
Alerting
Amazon S3
Analysis
Archiving
MySQL
Apache
Frontend
Access logs
syslogd
App logs
System logs
Backend
Databases
buffer / buffer / routing

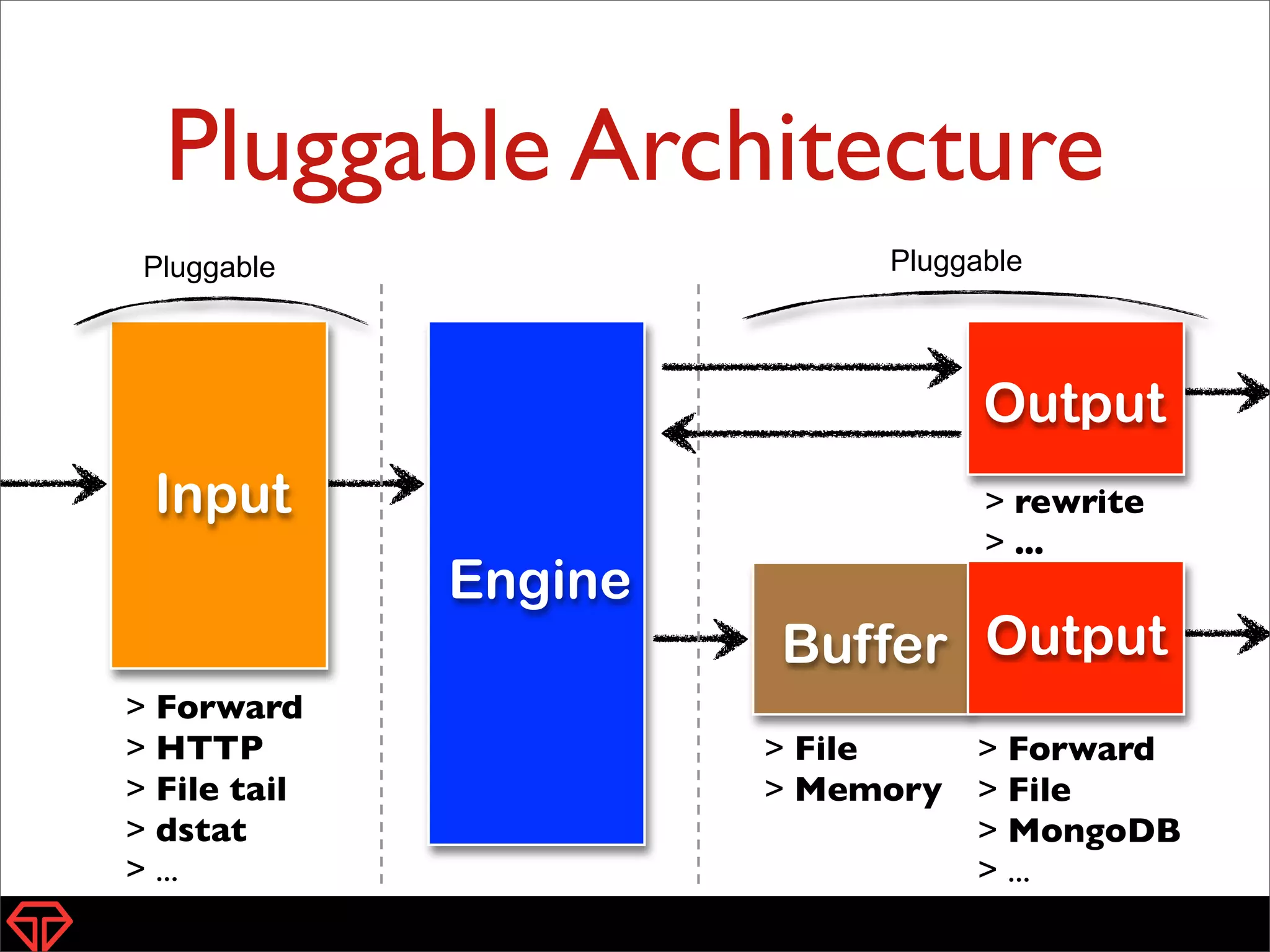

19. Pluggable Architecture
19
Buffer Output
Input
> Forward
> HTTP
> File tail
> dstat
> ...
> Forward
> File
> MongoDB
> ...
> File
> Memory
Engine
Output
> rewrite
> ...
Pluggable Pluggable

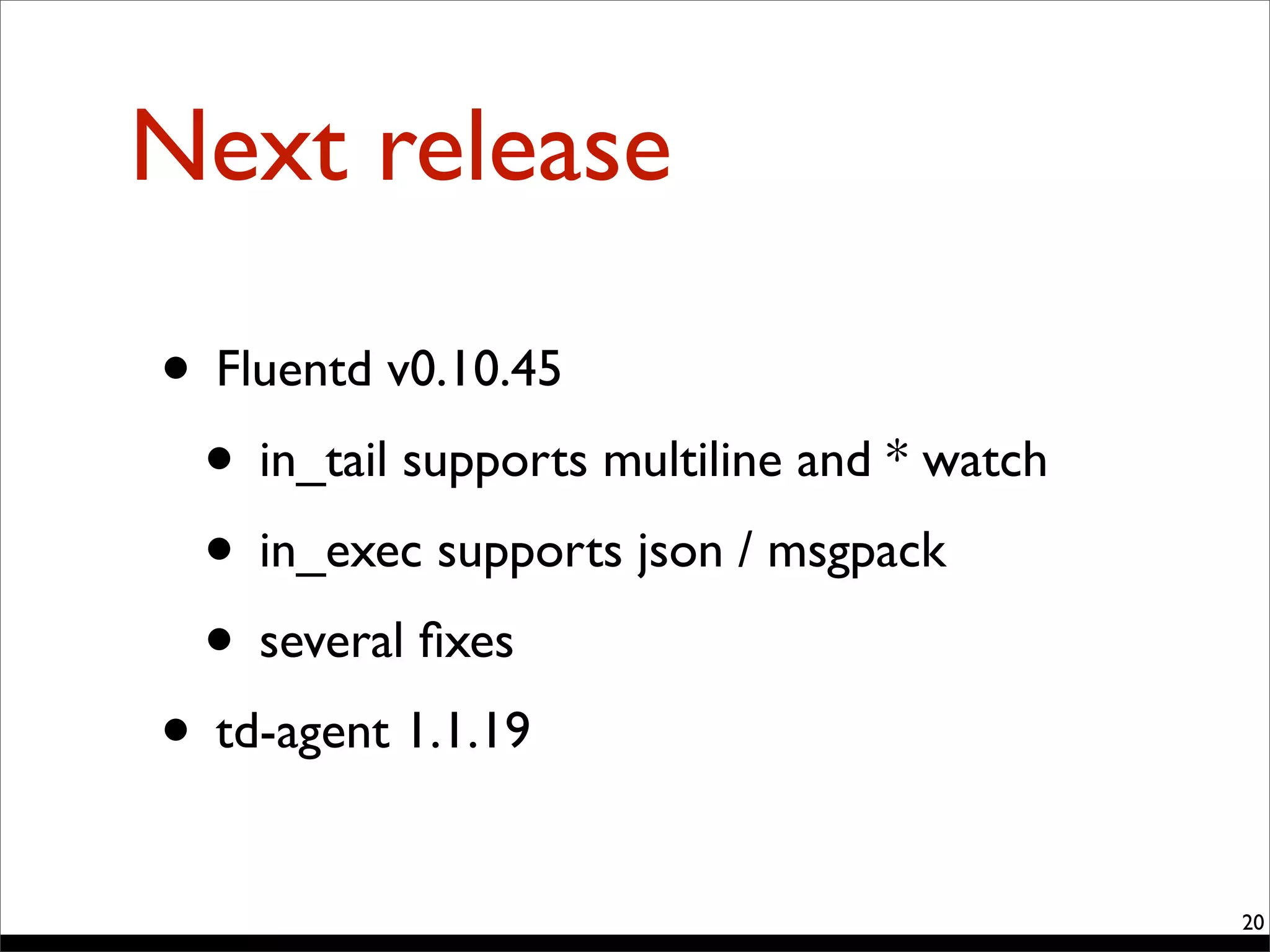

20. Next release
20
• Fluentd v0.10.45
• in_tail supports multiline and * watch
• in_exec supports json / msgpack
• several fixes
• td-agent 1.1.19

21. AWS use cases
21

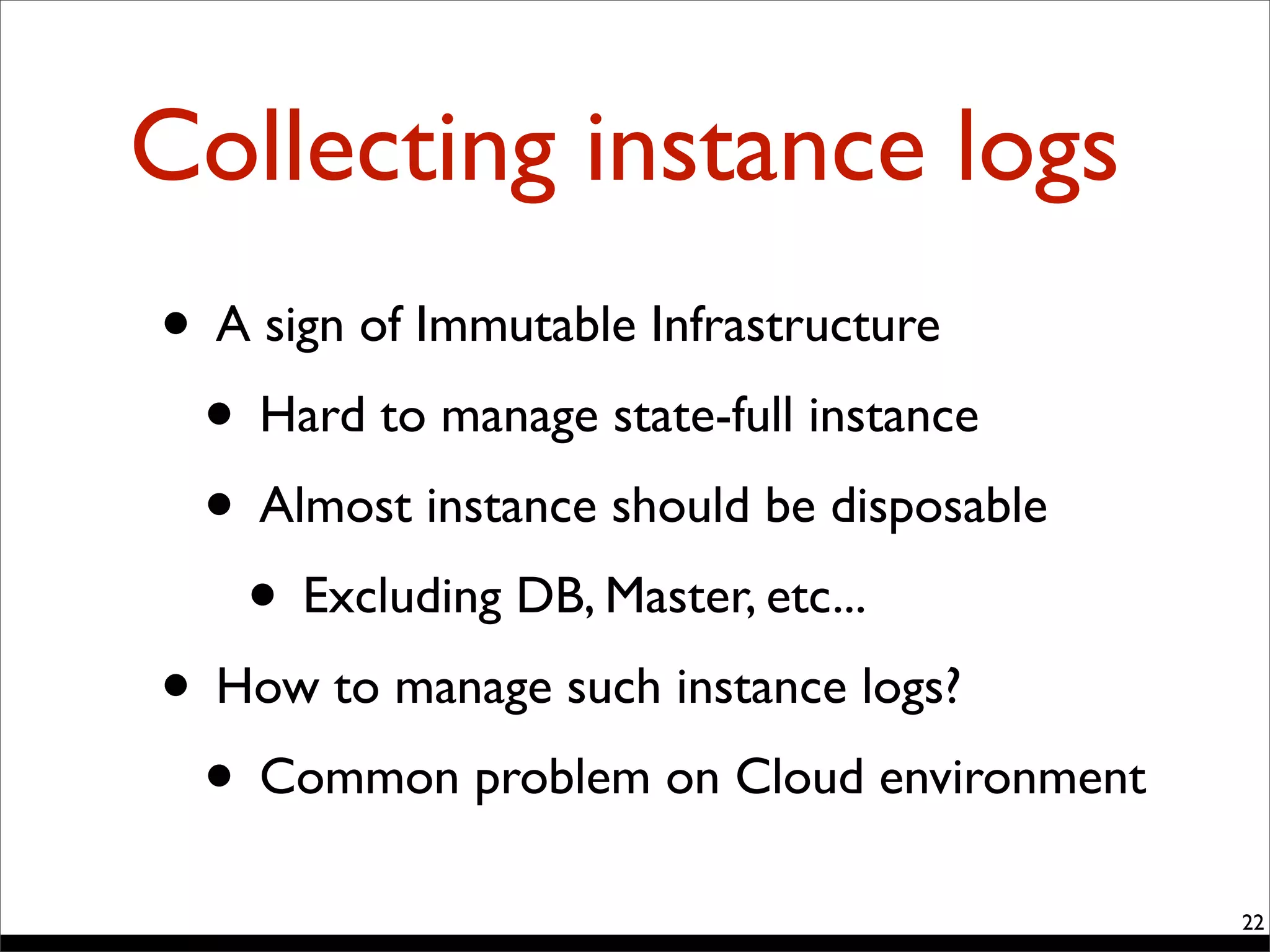

22. Collecting instance logs
22
• A sign of Immutable Infrastructure
• Hard to manage state-full instance
• Almost instance should be disposable
• Excluding DB, Master, etc...
• How to manage such instance logs?
• Common problem on Cloud environment

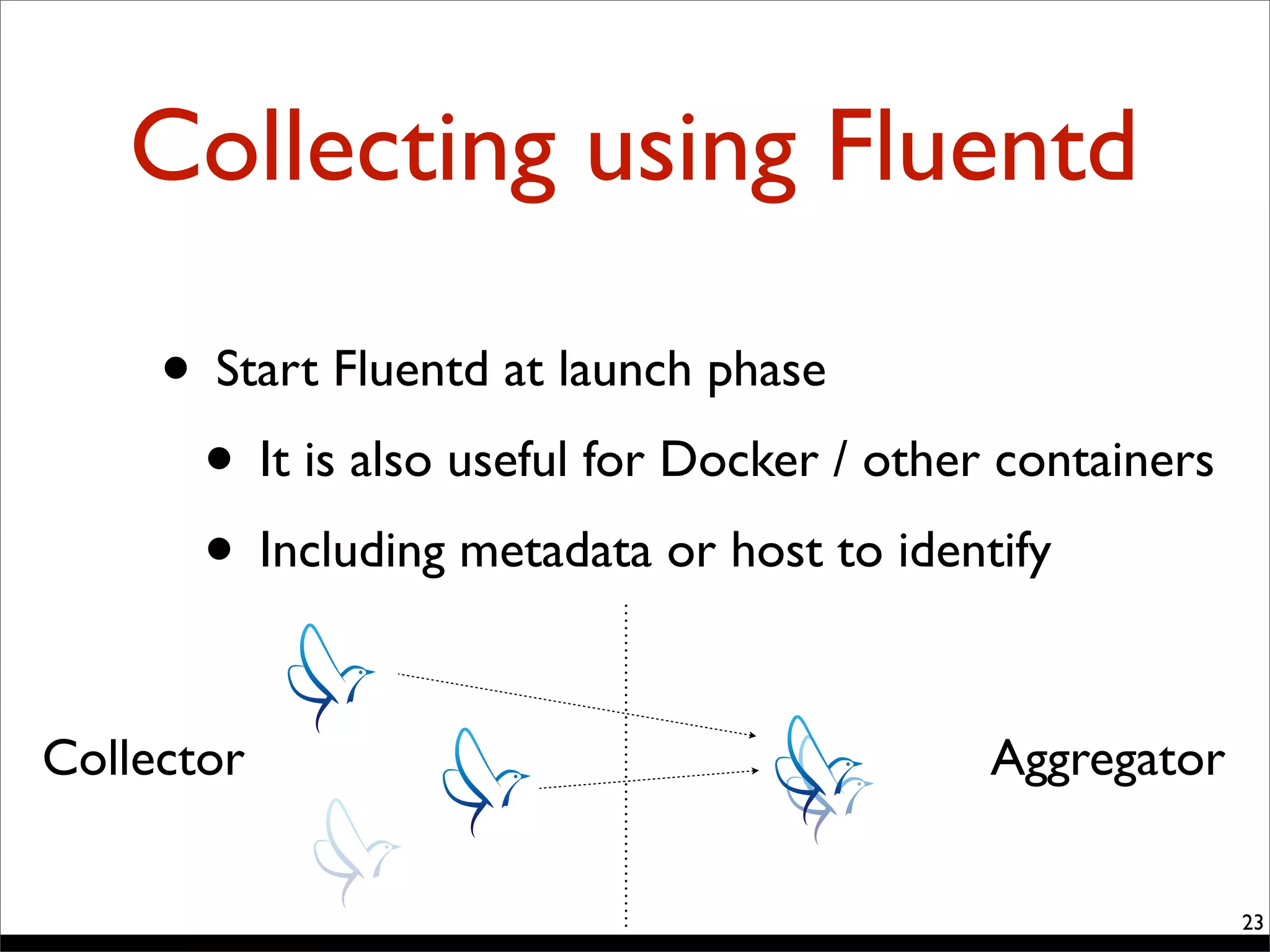

23. • Start Fluentd at launch phase
• It is also useful for Docker / other containers
• Including metadata or host to identify
Collecting using Fluentd
23
Collector Aggregator

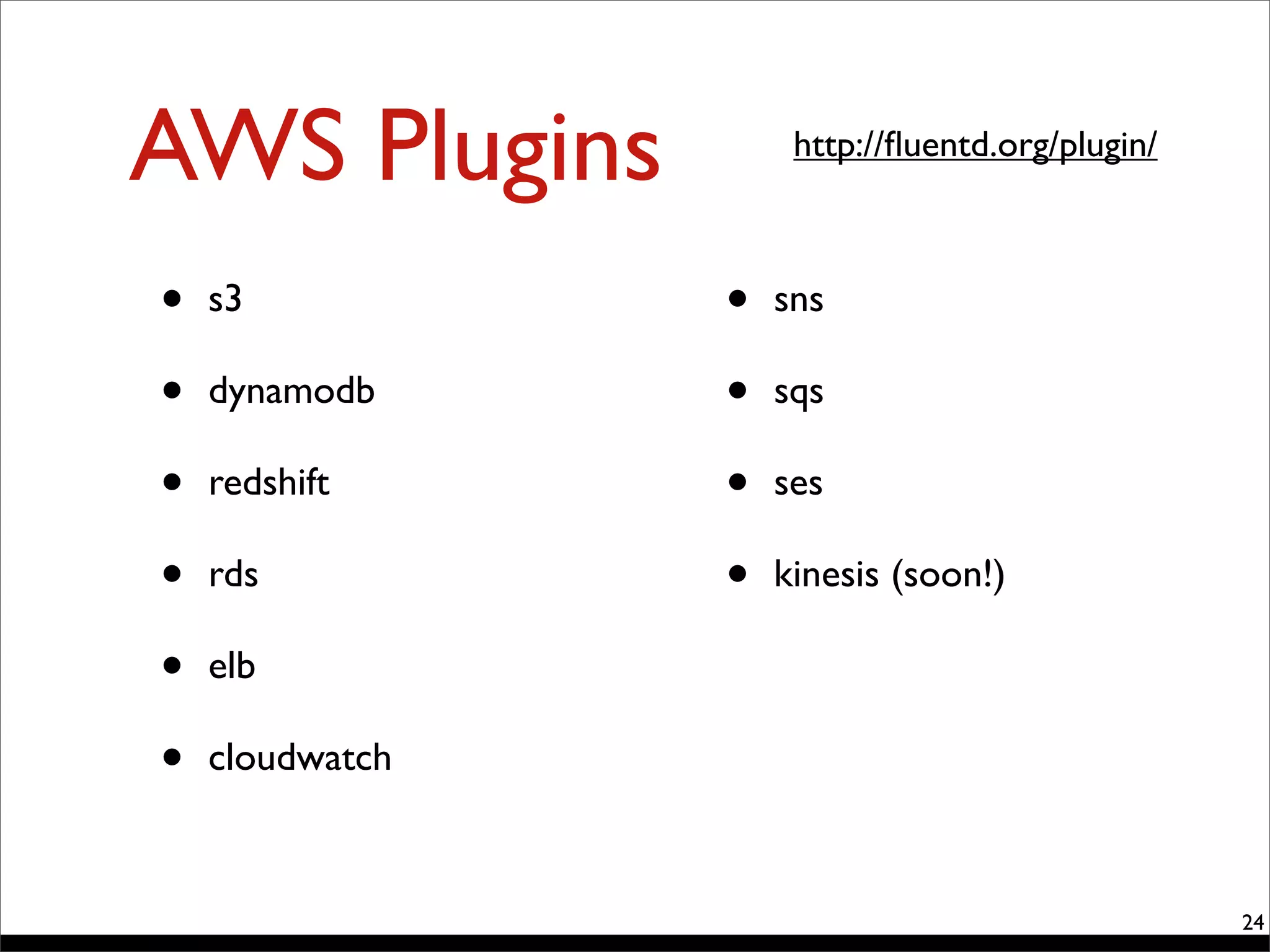

24. AWS Plugins
24
http://fluentd.org/plugin/
• s3
• dynamodb
• redshift
• rds
• elb
• cloudwatch
• sns
• sqs
• ses
• kinesis (soon!)
