This document provides an overview of Fluentd, an open source data collector for structured logging. Fluentd uses a pluggable architecture and JSON format for log messages, allowing logs to be filtered, buffered, and reliably forwarded to storage. It provides client libraries for integrating with applications in languages like Ruby, Perl, PHP, Python and Java. Fluentd is positioned as an alternative to other log collection systems like Scribe and Flume, with advantages of being easier to install, configure, extend with plugins, and smaller footprint.

1. Fluentd
Structured logging
Pluggable architecture
Reliable forwarding
The Event Collector Service
Sadayuki Furuhashi
Treasure Data, Inc.
@frsyuki

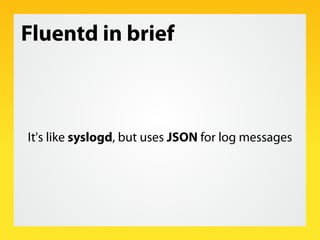

2. Fluentd in brief
It's like syslogd, but uses JSON for log messages

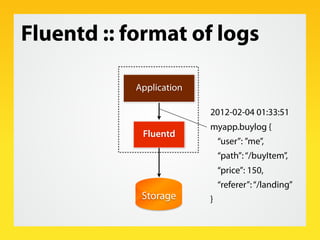

3. Fluentd :: format of logs
Application
2012-02-04 01:33:51
myapp.buylog {
Fluentd
“user”: ”me”,
“path”: “/buyItem”,
“price”: 150,
“referer”: “/landing”
Storage }

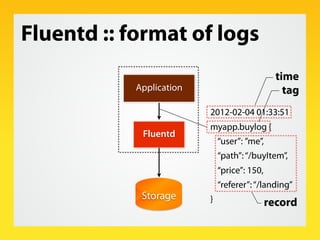

4. Fluentd :: format of logs
time
Application tag
2012-02-04 01:33:51
myapp.buylog {
Fluentd
“user”: ”me”,
“path”: “/buyItem”,
“price”: 150,
“referer”: “/landing”
Storage } record

5. Fluentd :: plugins
Application
Fluentd filter / buffer / routing
SaaS Storage Fluentd
Plug-in Plug-in Plug-in

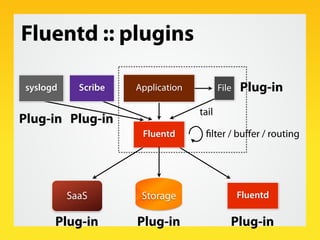

6. Fluentd :: plugins
syslogd Scribe Application File Plug-in
tail
Plug-in Plug-in
Fluentd filter / buffer / routing
SaaS Storage Fluentd
Plug-in Plug-in Plug-in

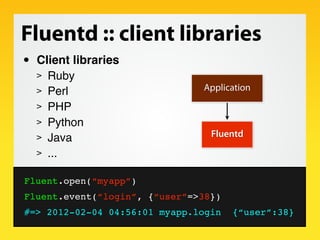

7. Fluentd :: client libraries
• Client libraries
> Ruby
> Perl Application
> PHP
> Python
> Java Fluentd
> ...
Fluent.open(“myapp”)
Fluent.event(“login”, {“user”=>38})
#=> 2012-02-04 04:56:01 myapp.login {“user”:38}

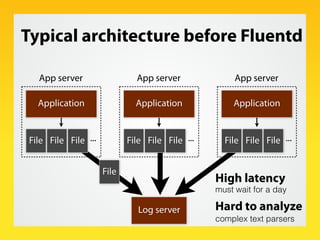

8. Typical architecture before Fluentd
App server App server App server
Application Application Application
File File File ... File File File ... File File File ...
File
High latency
must wait for a day
Log server Hard to analyze
complex text parsers

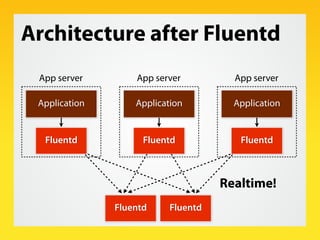

9. Architecture after Fluentd
App server App server App server
Application Application Application
Fluentd Fluentd Fluentd
Realtime!
Fluentd Fluentd

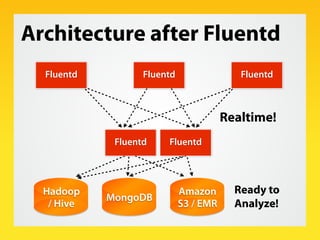

10. Architecture after Fluentd
Fluentd Fluentd Fluentd
Realtime!
Fluentd Fluentd
Hadoop Amazon Ready to
MongoDB
/ Hive S3 / EMR Analyze!

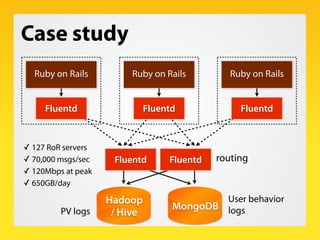

11. Case study
Ruby on Rails Ruby on Rails Ruby on Rails
Fluentd Fluentd Fluentd
✓ 127 RoR servers
✓ 70,000 msgs/sec Fluentd Fluentd routing
✓ 120Mbps at peak
✓ 650GB/day
Hadoop User behavior
PV logs MongoDB logs
/ Hive

12. # read logs from a file # forward other logs to servers
<source> # (load-balancing + fail-over)
type tail <match **>
path /var/log/httpd.log type forward
format apache <server>
tag apache.access host 192.168.0.11
</source> weight 20
</server>
# save access logs to MongoDB <server>
<match apache.access> host 192.168.0.12
type mongo weight 60
host 127.0.0.1 </server>
</match> </match>

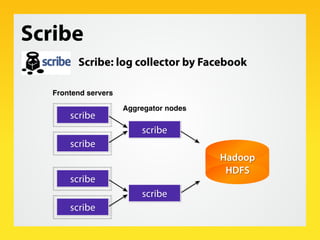

13. Scribe
Scribe: log collector by Facebook
Frontend servers
Aggregator nodes
scribe
scribe
scribe
Hadoop
HDFS
scribe
scribe
scribe

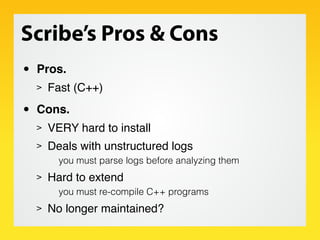

14. Scribe’s Pros & Cons
• Pros.
> Fast (C++)
• Cons.
> VERY hard to install
> Deals with unstructured logs
you must parse logs before analyzing them
> Hard to extend
you must re-compile C++ programs
> No longer maintained?

15. Fluentd vs Scribe
• Easy to install
> “gem install fluentd”
> stable RPM and DEB packages
http://packages.treasure-data.com/
• Easy to write plugins
> you can use Ruby
• Easy to distribute plugins
> “gem search -rd fluent-plugin”

16. Flume
Flume: distributed log collector by Cloudera
Phisical Flume Master
Topology
Flume Flume Flume
Logical
Topology Hadoop
HDFS

17. Flume’s Pros & Cons
• Pros.
> Central master server manages all nodes
• Cons.
> Difficult to understand
logical topologies, phisical servers and a configuration of
the logical/phisical mapping
> Dificult to configure
replicated master servers, log servers and agents
> Big footprint
50,000 lines of Java codes

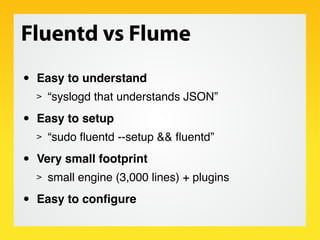

18. Fluentd vs Flume
• Easy to understand
> “syslogd that understands JSON”
• Easy to setup
> “sudo fluentd --setup && fluentd”
• Very small footprint
> small engine (3,000 lines) + plugins
• Easy to configure

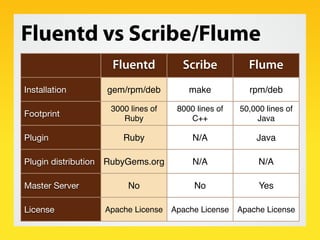

19. Fluentd vs Scribe/Flume
Fluentd Scribe Flume
Installation gem/rpm/deb make rpm/deb
3000 lines of 8000 lines of 50,000 lines of
Footprint Ruby C++ Java
Plugin Ruby N/A Java
Plugin distribution RubyGems.org N/A N/A
Master Server No No Yes
License Apache License Apache License Apache License

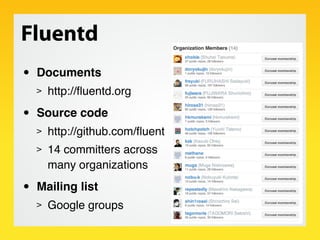

20. Fluentd
• Documents
> http://fluentd.org
• Source code
> http://github.com/fluent
> 14 committers across
many organizations
• Mailing list
> Google groups

21. • Sadayuki Furuhashi
> twitter: @frsyuki
• Treasure Data, Inc.
> Software Engineer; founder
• Author of MessagePack
• Author of Fluentd
