1. Kafka & message bus
Robin GRAILLON & Alexandre ANDRÉ
12/10/2016

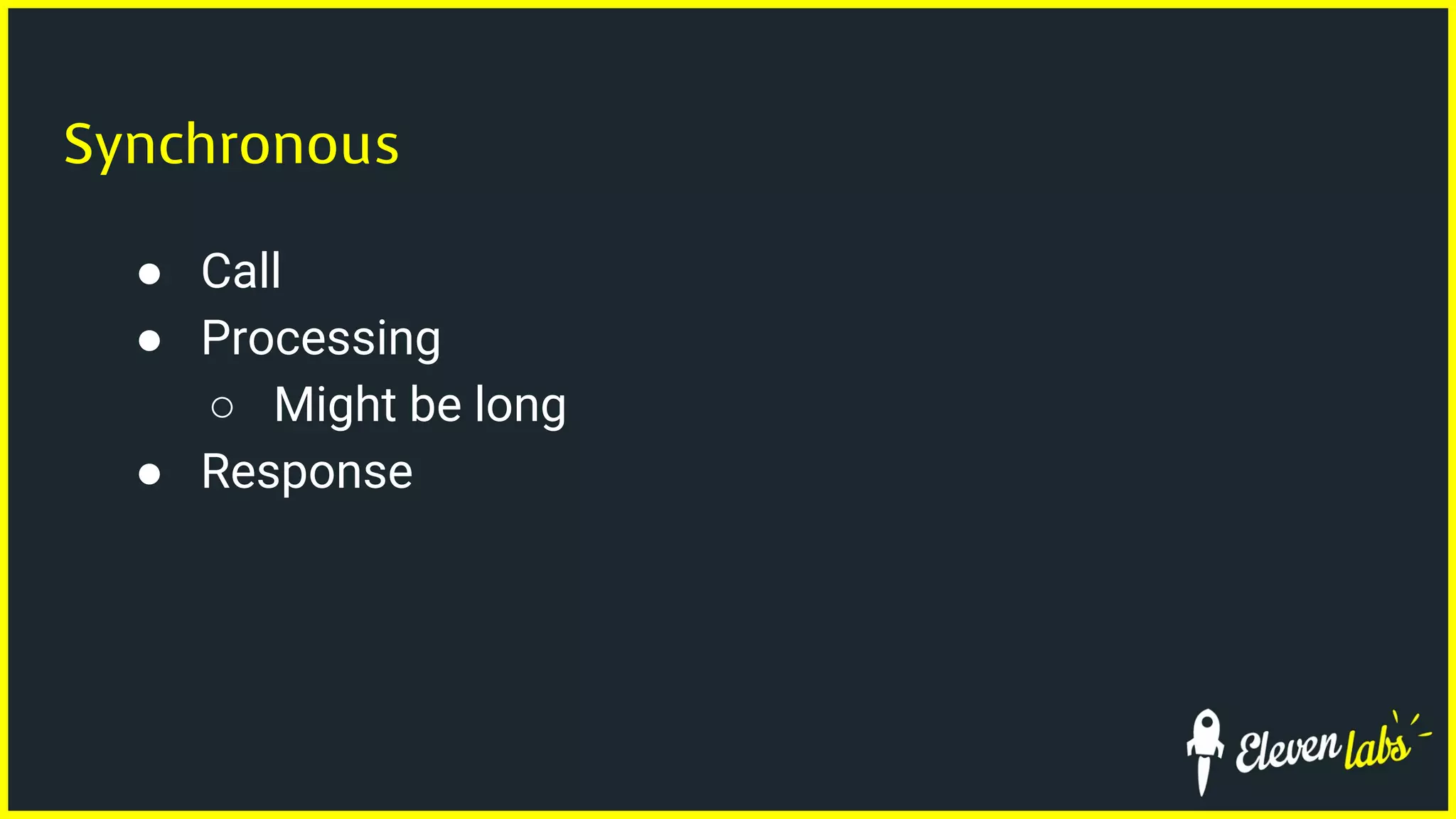

2. Synchronous
● Call
● Processing
○ Might be long
● Response

3. Asynchronous
● Call
● Response
● Post-Processing

4. Message Bus
● Events aggregation
● CQRS oriented
● µS oriented
● Event sourcing oriented
● Language agnostic
● Multiple implementations
○ RabbitMQ
○ Kafka
○ etc.

5. Apache Kafka
● LinkedIn creation
● Open sourced in 2011
● Filesystem oriented
● Wrote in Scala
● Highly scalable
● Used by big companies
○ LinkedIn
○ Netflix
○ Spotify
○ Meetic

6. LinkedIn statistics
● 800 billion m/day
○ 175 TB
● 13 million m/sec
○ 2.75 GB
● 1100 kafka instances
○ 60 clusters

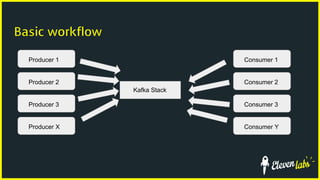

7. Basic workflow
Producer 1
Producer 2
Producer 3
Producer X
Consumer 1
Consumer 2
Consumer 3
Consumer Y
Kafka Stack

8. Kafka stack
● Zookeeper : scalability, manager
● Kafka broker : kafka server instance
● Consumer : consumes events and do things
● Producer : produces events (like user as connected)
● topic : event name
● partition : way to split messages between brokers

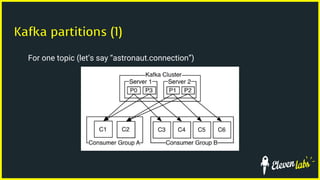

9. Kafka partitions (1)
For one topic (let’s say “astronaut.connection”)

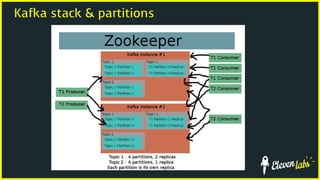

10. Kafka stack & partitions

11. Let’s play...

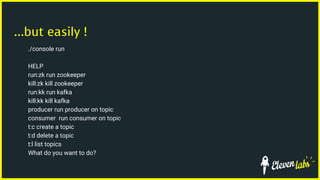

12. ...but easily !
./console run
HELP
run:zk run zookeeper
kill:zk kill zookeeper
run:kk run kafka
kill:kk kill kafka
producer run producer on topic
consumer run consumer on topic
t:c create a topic
t:d delete a topic
t:l list topics
What do you want to do?

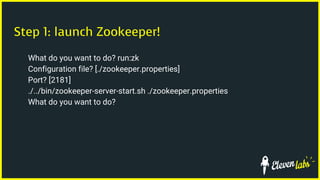

13. Step 1: launch Zookeeper!
What do you want to do? run:zk
Configuration file? [./zookeeper.properties]
Port? [2181]
./../bin/zookeeper-server-start.sh ./zookeeper.properties
What do you want to do?

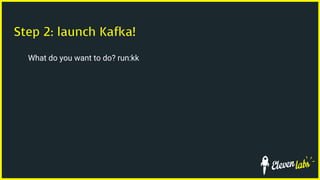

14. Step 2: launch Kafka!
What do you want to do? run:kk

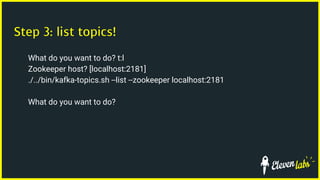

15. Step 3: list topics!
What do you want to do? t:l
Zookeeper host? [localhost:2181]
./../bin/kafka-topics.sh --list --zookeeper localhost:2181
What do you want to do?

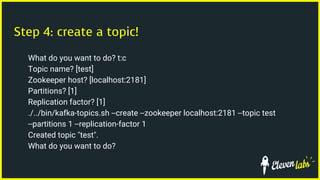

16. Step 4: create a topic!
What do you want to do? t:c
Topic name? [test]
Zookeeper host? [localhost:2181]
Partitions? [1]
Replication factor? [1]
./../bin/kafka-topics.sh --create --zookeeper localhost:2181 --topic test
--partitions 1 --replication-factor 1
Created topic "test".
What do you want to do?

17. Step 5: list topics AGAIIIIN!
What do you want to do? t:l
Zookeeper host? [localhost:2181]
./../bin/kafka-topics.sh --list --zookeeper localhost:2181
test
What do you want to do?

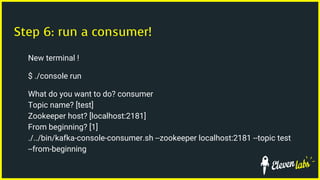

18. Step 6: run a consumer!
New terminal !
$ ./console run
What do you want to do? consumer
Topic name? [test]
Zookeeper host? [localhost:2181]
From beginning? [1]
./../bin/kafka-console-consumer.sh --zookeeper localhost:2181 --topic test
--from-beginning

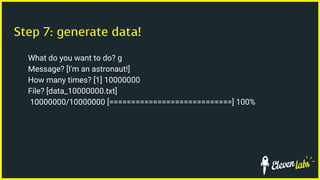

19. Step 7: generate data!
What do you want to do? g
Message? [I'm an astronaut!]
How many times? [1] 10000000
File? [data_10000000.txt]
10000000/10000000 [============================] 100%

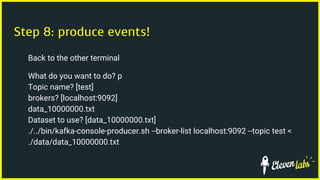

20. Step 8: produce events!
Back to the other terminal
What do you want to do? p
Topic name? [test]
brokers? [localhost:9092]
data_10000000.txt
Dataset to use? [data_10000000.txt]
./../bin/kafka-console-producer.sh --broker-list localhost:9092 --topic test <
./data/data_10000000.txt

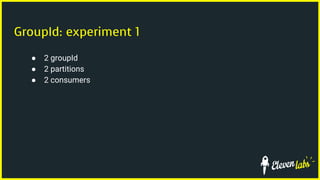

21. GroupId: experiment 1
● 2 groupId
● 2 partitions
● 2 consumers

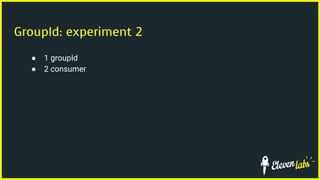

22. GroupId: experiment 2
● 1 groupId
● 2 consumer

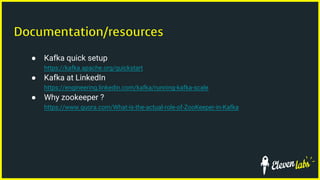

23. Documentation/resources
● Kafka quick setup
https://kafka.apache.org/quickstart
● Kafka at LinkedIn
https://engineering.linkedin.com/kafka/running-kafka-scale
● Why zookeeper ?
https://www.quora.com/What-is-the-actual-role-of-ZooKeeper-in-Kafka
