1. Docker Logging
Webinar
20% OFF 201509WNR20S 201509WNR20L
sematext.com/spm sematext.com/logsene

2. Housekeeping / Questions

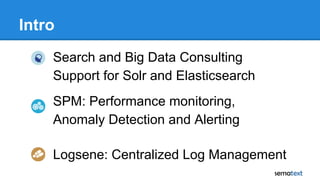

3. Intro
Logsene: Centralized Log Management
Search and Big Data Consulting
Support for Solr and Elasticsearch
SPM: Performance monitoring,
Anomaly Detection and Alerting

4. SPM - Performance Monitoring

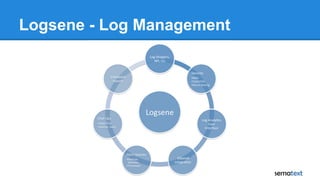

5. Logsene - Log Management

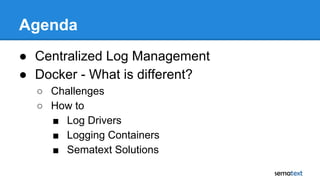

6. Agenda
● Centralized Log Management
● Docker - What is different?
○ Challenges
○ How to
■ Log Drivers
■ Logging Containers
■ Sematext Solutions

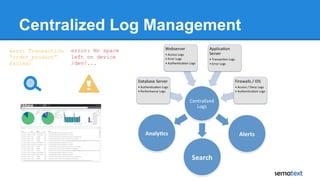

7. Centralized Log Management
error: No space
left on device
/dev/...
?
warn: Transaction
“order_product”
failed!

8. a few steps to go ...
Log Shippers Centralized Log Management / Logsene
Server,
Container,
Application
Use
JSON,
Luke

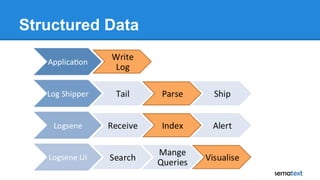

9. Structured Data

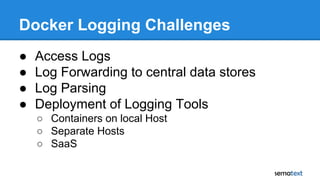

10. Docker Logging Challenges
● Access Logs
● Log Forwarding to central data stores
● Log Parsing
● Deployment of Logging Tools
○ Containers on local Host
○ Separate Hosts
○ SaaS

11. What are Docker Logs?
● Traditionally separate files for
each Application and Log-Type
○ error.log
○ access.log
● Docker Logs are stdout / stderr of
processes running in a container
● Most official images log to console

12. Mixed Log Formats in one Container

13. Docker Logging Options
- Docker Log Drivers
- json-file, syslog, fluentd,
journald, gelf
- Docker API based Logging
Containers
- Logspout
- Sematext Docker Container
- Custom images with installed
log shipper (syslog)

14. Docker Log Drivers
Cons:
- No Log Parser - only Log Forwarding
- “docker logs” command works only
with Log-Driver “JSON-files”
- Containers terminate when the TCP
Server (e.g. syslog or fluentd) is not
reachable
- No TLS encryption for syslog
Pros:
- Simple way to forward logs to remote
destinations
- Setup per container or global setting
for Docker

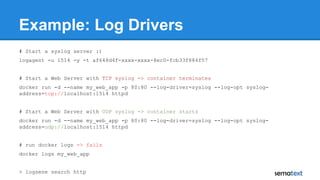

15. Example: Log Drivers
# Start a syslog server :)
logagent -u 1514 -y -t af648d4f-xxxx-xxxx-8ec0-fcb33f884f57
# Start a Web Server with TCP syslog -> container terminates
docker run -d --name my_web_app -p 80:80 --log-driver=syslog --log-opt syslog-
address=tcp://localhost:1514 httpd
# Start a Web Server with UDP syslog -> container starts
docker run -d --name my_web_app -p 80:80 --log-driver=syslog --log-opt syslog-
address=udp://localhost:1514 httpd
# run docker logs -> fails
docker logs my_web_app
> logsene search http

16. Logging Containers: Logspout
Pros:
- Logging does not affect app
container
- ANSI Escape Sequence removal
- TLS support
- Real-time View with HTTP API
- Config for Filters and Syslog-Tags
- Log-Driver Files / journald Logs
are available on the Host
Cons:
- Logging Container must be online
- Only forwarding, no Log Parser,
rsyslog could be used for parsing
- Limited to log collection

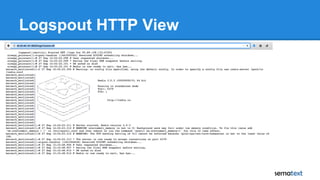

17. Logspout HTTP View

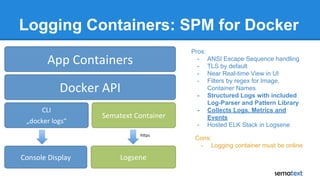

18. Logging Containers: SPM for Docker
Pros:
- ANSI Escape Sequence handling
- TLS by default
- Near Real-time View in UI
- Filters by regex for Image,
Container Names
- Structured Logs with included
Log-Parser and Pattern Library
- Collects Logs, Metrics and
Events
- Hosted ELK Stack in Logsene
Cons:
- Logging container must be online

19. Demo
docker run -d --name sematext-agent
-v /var/run/docker.sock:/var/run/docker.sock
-v $PWD/patterns.yml:/etc/logagent/patterns.yml
-e HOSTNAME=$HOSTNAME
-e LOGSENE_TOKEN=53a6c7e7-xxxx-4725-962e-ea47cebxxx
-e SPM_TOKEN=fe31fc3a-xxxx-47c6-b83c-be376bfxxx
sematext/spm-agent-docker
docker run --name webapp -p 80:80 httpd
siege localhost:80/unknow_page.html
logsene search error

20. Logs
Logsene
Token
Metrics +
Events
Docker logs on CoreOS
Web UI
Sematext Container
Logsene
(https)
SPM
(https)
Log forwarding
service
stores status in etcd
Logging
Gateway
(TCP 9000)
Docker Daemon
API / unix-socket
Events
Metrics
Logs
etcd
journald
Configuration in etcd
- Logsene Token
- SPM Token
Logging gateway port,
Logging status per host
Journald
Logs
SPM
Token

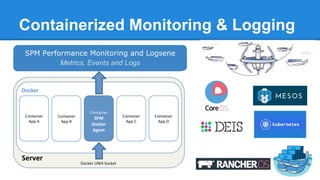

21. Containerized Monitoring & Logging
SPM Performance Monitoring and Logsene
Metrics, Events and Logs

22. SPM Logsene
METRICS + LOGS ⇒ BETTER TOGETHER

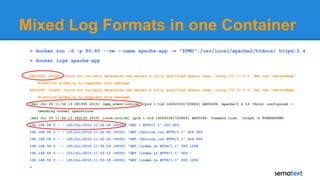

23. Mixed Log Formats in one Container

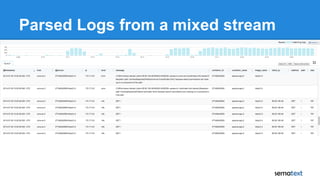

24. Parsed Logs from a mixed stream

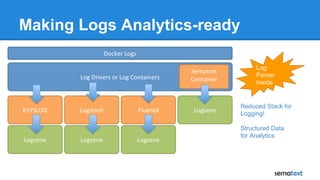

25. Making Logs Analytics-ready
Log
Parser
Inside
Reduced Stack for
Logging!
Structured Data
for Analytics

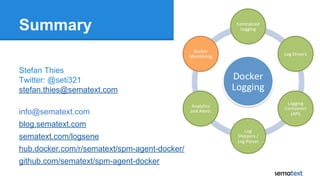

26. Summary
Stefan Thies
Twitter: @seti321
stefan.thies@sematext.com
info@sematext.com
blog.sematext.com
sematext.com/logsene
hub.docker.com/r/sematext/spm-agent-docker/
github.com/sematext/spm-agent-docker

27. Docker Logging
Webinar
20% OFF 201509WNR20S 201509WNR20L
sematext.com/spm sematext.com/logsene

28. Thank you for your attention
