Fluentd is an open source data collector that provides a unified logging layer between data sources and backend systems. It decouples these systems by collecting and processing logs and events in a flexible and scalable way. Fluentd uses plugins and buffers to make data collection reliable even in the case of errors or failures. It can forward data between Fluentd nodes for high availability and load balancing.

1. FLUENTD 101
BOOTSTRAP OF UNIFIED LOGGING
Open Source Summit Japan 2017
Fluentd Mini Summit / June 1, 2017
Satoshi Tagomori (@tagomoris)
Treasure Data, Inc.

2. Satoshi "Moris" Tagomori
(@tagomoris)
Fluentd, MessagePack-Ruby, Norikra, ...
Treasure Data, Inc.

4. What is Fluentd?

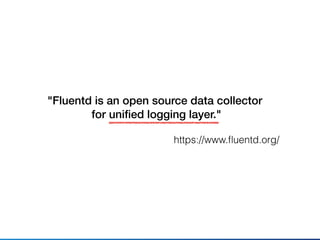

7. "Fluentd is an open source data collector
for unified logging layer."
https://www.fluentd.org/

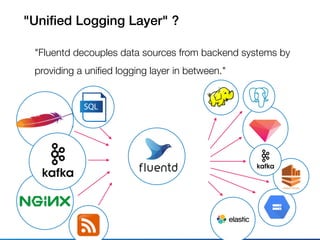

8. "Unified Logging Layer" ?
"Fluentd decouples data sources from backend systems by
providing a unified logging layer in between."
SQL

9. "Unified Logging Layer" ?
"Fluentd decouples data sources from backend systems by
providing a unified logging layer in between."
SQL
Unified
Logging
Layer

10. "Unified Logging Layer" ?
"Fluentd decouples data sources from backend systems by
providing a unified logging layer in between."
SQL

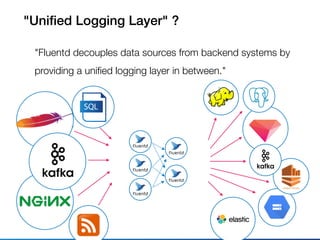

11. "Unified Logging Layer" ?
"Fluentd decouples data sources from backend systems by
providing a unified logging layer in between."
SQL

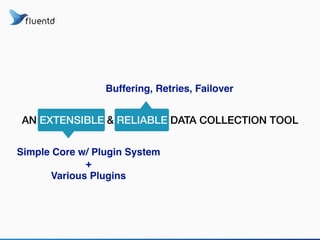

12. AN EXTENSIBLE & RELIABLE DATA COLLECTION TOOL
Simple Core w/ Plugin System
+
Various Plugins
Buffering, Retries, Failover

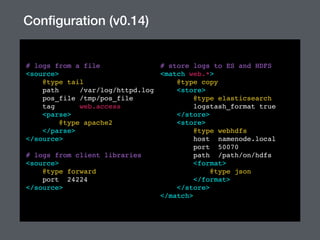

13. # logs from a file
<source>
@type tail
path /var/log/httpd.log
pos_file /tmp/pos_file
tag web.access
<parse>
@type apache2
</parse>
</source>
# logs from client libraries
<source>
@type forward
port 24224
</source>
# store logs to ES and HDFS
<match web.*>
@type copy
<store>
@type elasticsearch
logstash_format true
</store>
<store>
@type webhdfs
host namenode.local
port 50070
path /path/on/hdfs
<format>
@type json
</format>
</store>
</match>
Configuration (v0.14)

14. Implementation / Performance
• Fluentd is written in Ruby
• C extension libraries for performance requirement
• cool.io: Asynchronous I/O
• msgpack: Serialization/Deserialization for MessagePack
• Plugins in Ruby - easy to join the community
• Scaling for CPU cores
• multiprocess plugin (~ v0.12)
• multi process workers (v0.14 ~)

15. Package / Deployment
• Fluentd released on RubyGems.org
• rpm/deb package
• td-agent by Treasure Data
• Fluentd + some widely-used plugins
• td-agent2: Fluentd v0.12
• td-agent3 (beta now): Fluentd v0.14 (or v1)
• + msi package for Windows
• Docker images
• https://hub.docker.com/r/fluent/fluentd/

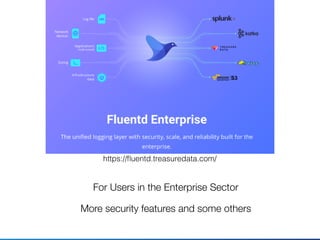

16. For Users in the Enterprise Sector
More security features and some others
https://fluentd.treasuredata.com/

17. Plugin System

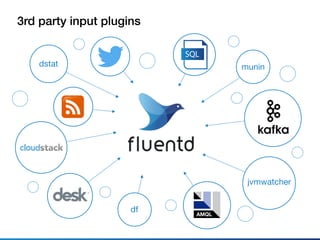

18. 3rd party input plugins
dstat
df AMQL
munin
jvmwatcher
SQL

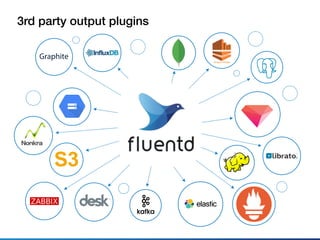

19. 3rd party output plugins
Graphite

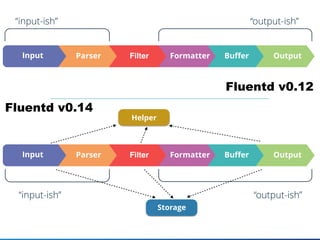

20. Buffer OutputParserInput FormatterFilter
“output-ish”“input-ish”
“output-ish”“input-ish”
Storage
Helper
Buffer OutputParserInput FormatterFilter
Fluentd v0.14
Fluentd v0.12

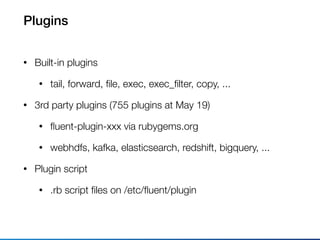

21. Plugins
• Built-in plugins
• tail, forward, file, exec, exec_filter, copy, ...
• 3rd party plugins (755 plugins at May 19)
• fluent-plugin-xxx via rubygems.org
• webhdfs, kafka, elasticsearch, redshift, bigquery, ...
• Plugin script
• .rb script files on /etc/fluent/plugin

22. Ecosystem

26. Events

27. Events: Structured Logs
ec_service.shopping_cart
2017-03-30 16:35:37 +0100
{
"container_id": "bfdd5b9....",
"container_name": "/infallible_mayer",
"source": "stdout",
"event": "put an item to cart",
"item_id": 101,
"items": 10,
"client": "web"
}
tag
timestamp
record

28. Event: tag, timestamp and record
• Tag
• A dot-separated string
• to show what the event is / where the event from
• Timestamp
• An integer of unix time (~ v0.12)
• A structured timestamp with nano seconds (v0.14 ~)
• Record
• Key-value pairs

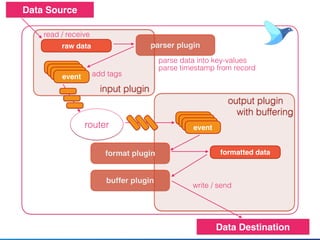

29. Data Source
router
input plugin
read / receive
raw data
eventeventeventevent
parser plugin
parse data into key-values
parse timestamp from record
add tags
output plugin
with buffering
eventeventeventevent
format plugin
buffer plugin
formatted data
Data Destination
write / send

30. Buffers and Retries

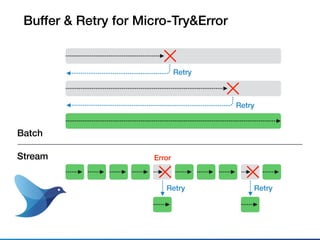

31. Buffer & Retry for Micro-Try&Error
Retry
Retry
Batch
Stream Error
Retry
Retry

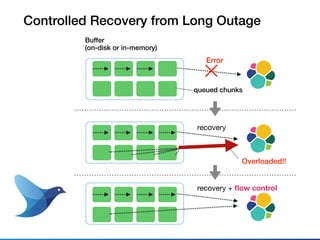

32. Controlled Recovery from Long Outage
Buffer
(on-disk or in-memory)
Error
Overloaded!!
recovery
recovery + flow control
queued chunks

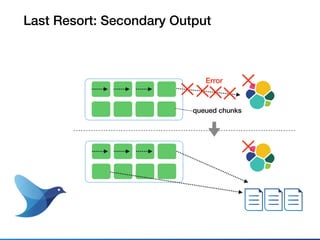

33. Last Resort: Secondary Output
Error
queued chunks

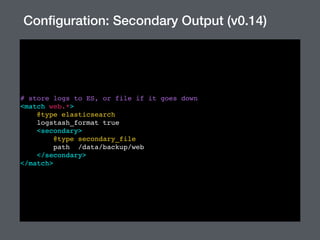

34. # store logs to ES, or file if it goes down
<match web.*>
@type elasticsearch
logstash_format true
<secondary>
@type secondary_file
path /data/backup/web
</secondary>
</match>
Configuration: Secondary Output (v0.14)

35. Forwarding Data via Network

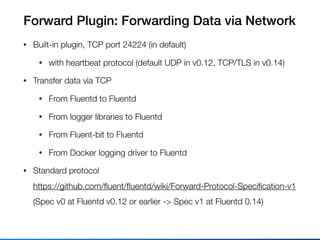

36. Forward Plugin: Forwarding Data via Network
• Built-in plugin, TCP port 24224 (in default)
• with heartbeat protocol (default UDP in v0.12, TCP/TLS in v0.14)
• Transfer data via TCP
• From Fluentd to Fluentd
• From logger libraries to Fluentd
• From Fluent-bit to Fluentd
• From Docker logging driver to Fluentd
• Standard protocol
https://github.com/fluent/fluentd/wiki/Forward-Protocol-Specification-v1
(Spec v0 at Fluentd v0.12 or earlier -> Spec v1 at Fluentd 0.14)

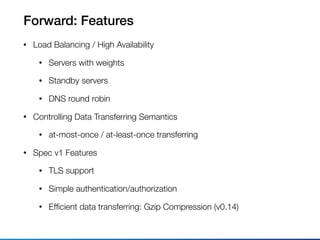

37. Forward: Features
• Load Balancing / High Availability
• Servers with weights
• Standby servers
• DNS round robin
• Controlling Data Transferring Semantics
• at-most-once / at-least-once transferring
• Spec v1 Features
• TLS support
• Simple authentication/authorization
• Efficient data transferring: Gzip Compression (v0.14)

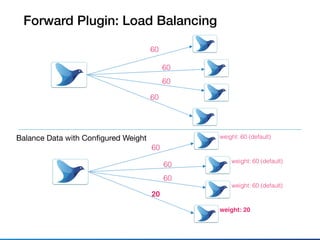

38. Forward Plugin: Load Balancing
60
60
60
60
60
60
60
20
weight: 60 (default)
weight: 60 (default)
weight: 60 (default)
weight: 20
Balance Data with Configured Weight

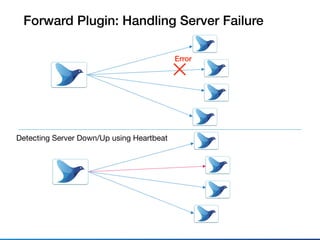

39. Forward Plugin: Handling Server Failure
Detecting Server Down/Up using Heartbeat
Error

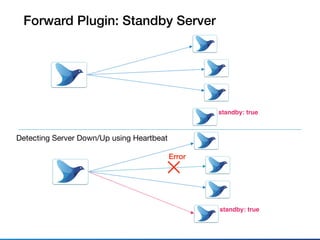

40. Forward Plugin: Standby Server
Detecting Server Down/Up using Heartbeat
standby: true
Error
standby: true

41. Forward Plugin: Without ACK (at-most-once)
forward output
buffer
forward input any output
forward output forward input any output
bufferbuffer
Without any troubles
With troubles about buffers in destination
forward output
buffer
forward input any output
forward output forward input any output
buffer buffer
Events will be lost in this case :(

42. Forward Plugin: With ACK (at-least-once)
forward output
buffer
forward input any output
forward output forward input any output
buffer
Forward output:
require_ack_response: true
forward output forward input any output
buffer
buffer
buffer ACK
with chunk id
forward output forward input any output
buffer
buffer
with chunk id

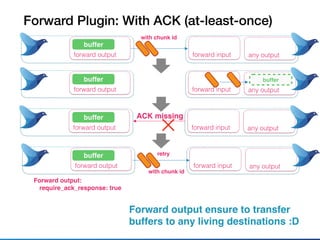

43. Forward Plugin: With ACK (at-least-once)
forward output
buffer
forward input any output
forward output forward input any output
Forward output:
require_ack_response: true
forward output forward input any output
buffer
buffer ACK missing
forward output forward input any output
with chunk id
buffer
buffer
with chunk id
retry
Forward output ensure to transfer
buffers to any living destinations :D

44. Fluentd has many good stuffs
for logging.
Discover more on docs.fluentd.org!
Happy Logging!
@tagomoris
