This document provides an overview of XML, including what it is, its syntax and structure, common technologies used with XML, and advantages of using XML. XML is a markup language that uses tags to structure information to make it readable, unambiguous, and extensible. It allows data exchange between applications and includes elements, attributes, and comments. Related technologies include DTDs, schemas, and stylesheets.

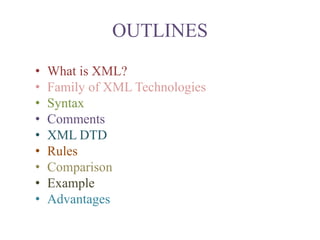

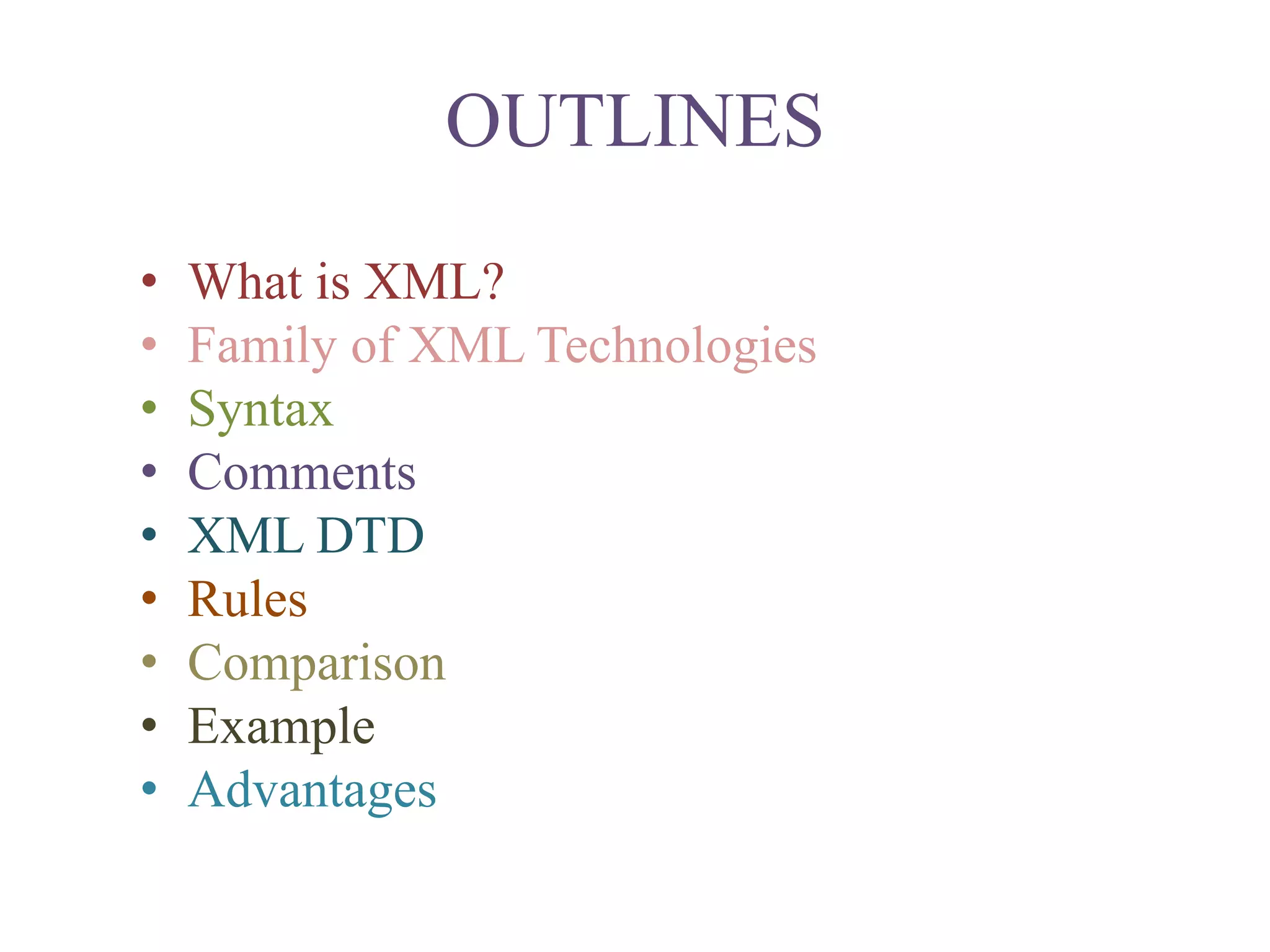

2. OUTLINES
• What is XML?
• Family of XML Technologies
• Syntax
• Comments
• XML DTD
• Rules
• Comparison
• Example
• Advantages

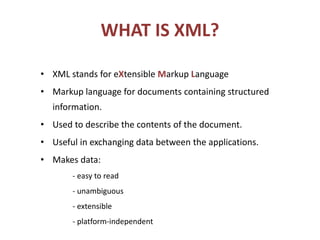

3. WHAT IS XML?
• XML stands for eXtensible Markup Language
• Markup language for documents containing structured
information.
• Used to describe the contents of the document.
• Useful in exchanging data between the applications.
• Makes data:
- easy to read
- unambiguous
- extensible
- platform-independent

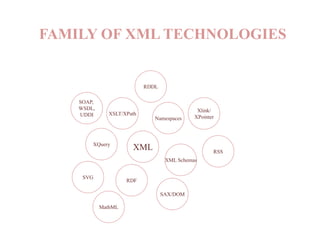

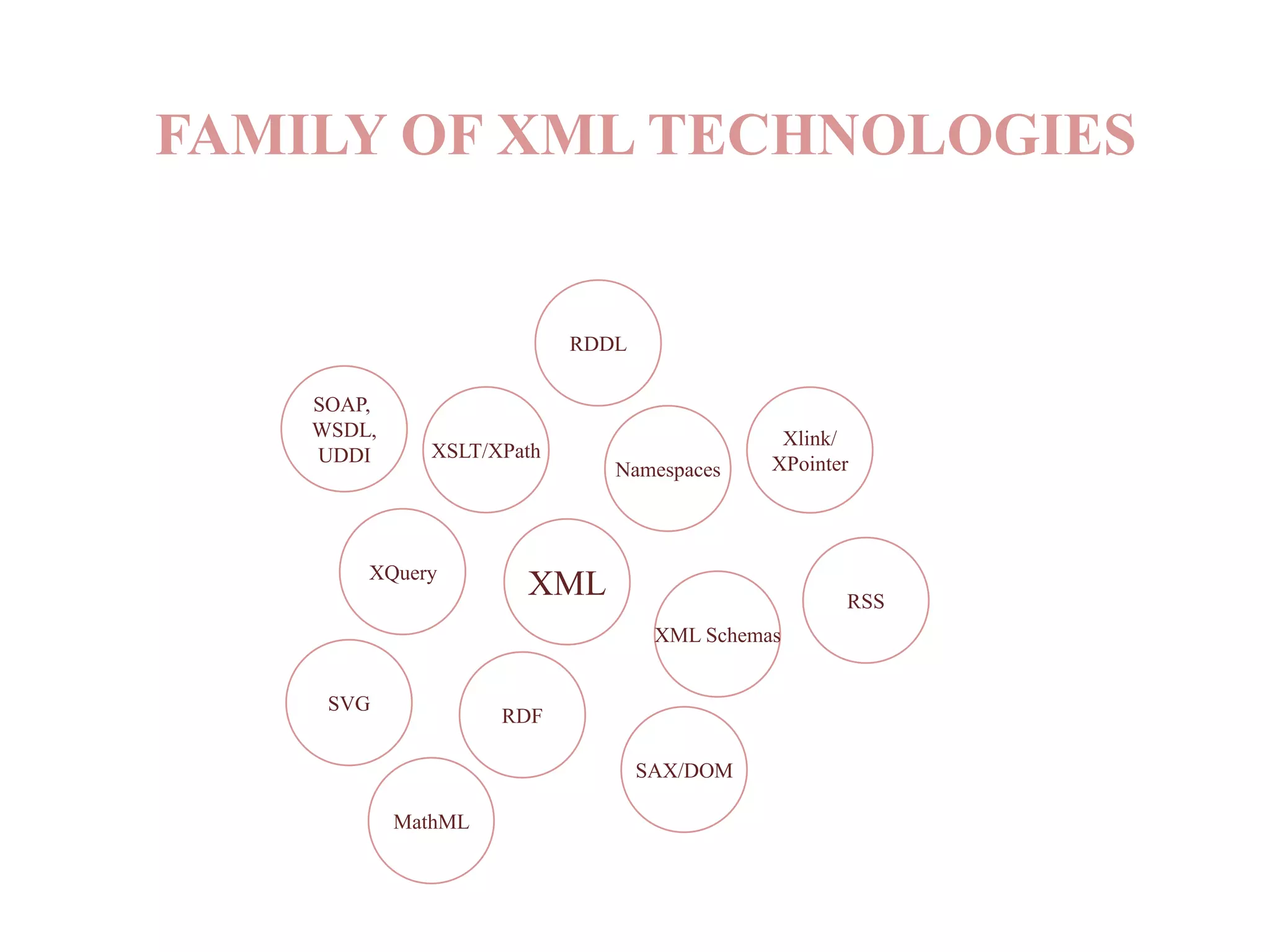

4. FAMILY OF XML TECHNOLOGIES
XML
Namespaces
XSLT/XPath
XML Schemas
RDF
XQuery
SVG
SAX/DOM
SOAP,
WSDL,
UDDI
Xlink/
XPointer
RDDL
MathML
RSS

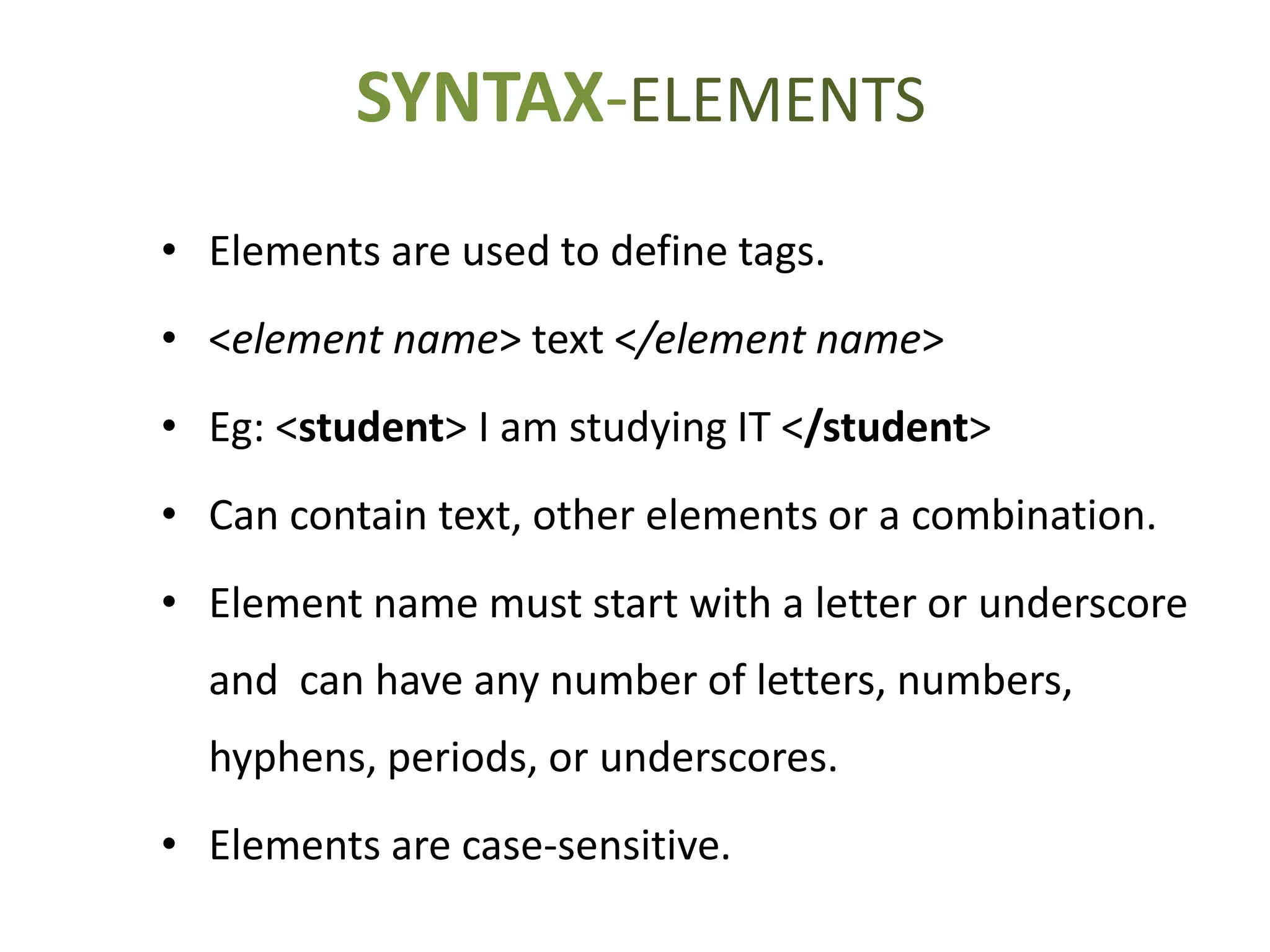

5. SYNTAX-ELEMENTS
• Elements are used to define tags.
• <element name> text </element name>
• Eg: <student> I am studying IT </student>
• Can contain text, other elements or a combination.
• Element name must start with a letter or underscore
and can have any number of letters, numbers,
hyphens, periods, or underscores.
• Elements are case-sensitive.

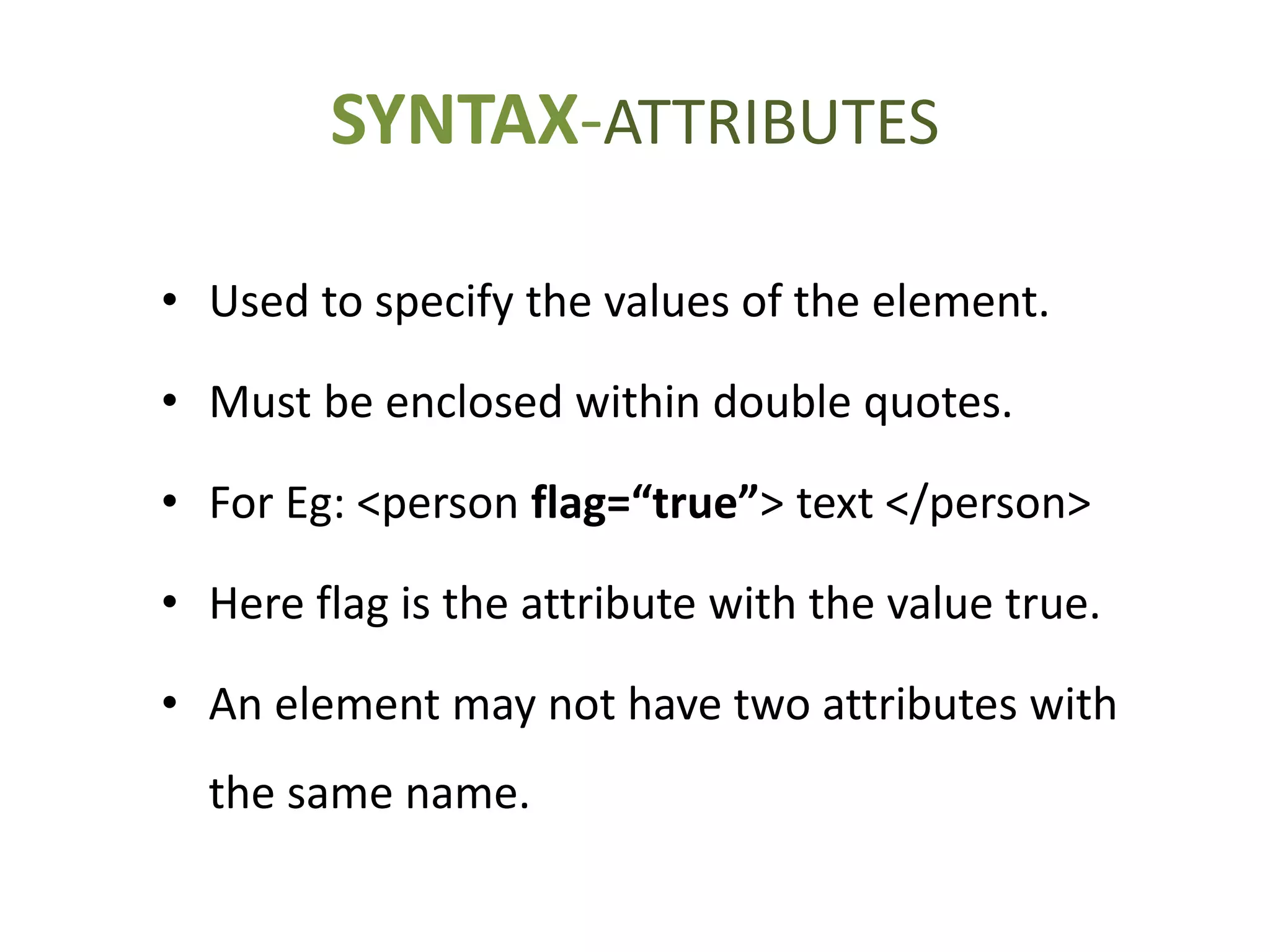

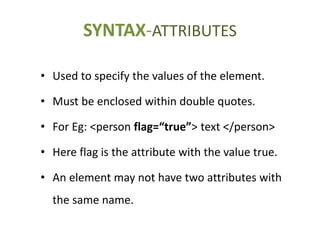

6. • Used to specify the values of the element.
• Must be enclosed within double quotes.
• For Eg: <person flag=“true”> text </person>
• Here flag is the attribute with the value true.
• An element may not have two attributes with
the same name.
SYNTAX-ATTRIBUTES

7. 7

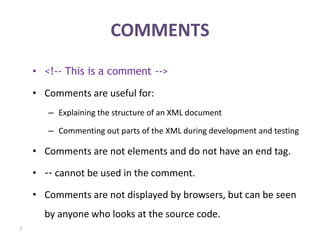

COMMENTS
• <!-- This is a comment -->
• Comments are useful for:
– Explaining the structure of an XML document
– Commenting out parts of the XML during development and testing
• Comments are not elements and do not have an end tag.
• -- cannot be used in the comment.
• Comments are not displayed by browsers, but can be seen
by anyone who looks at the source code.

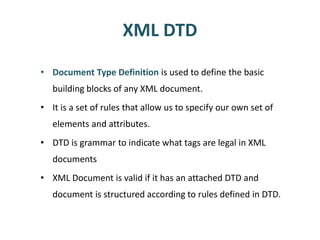

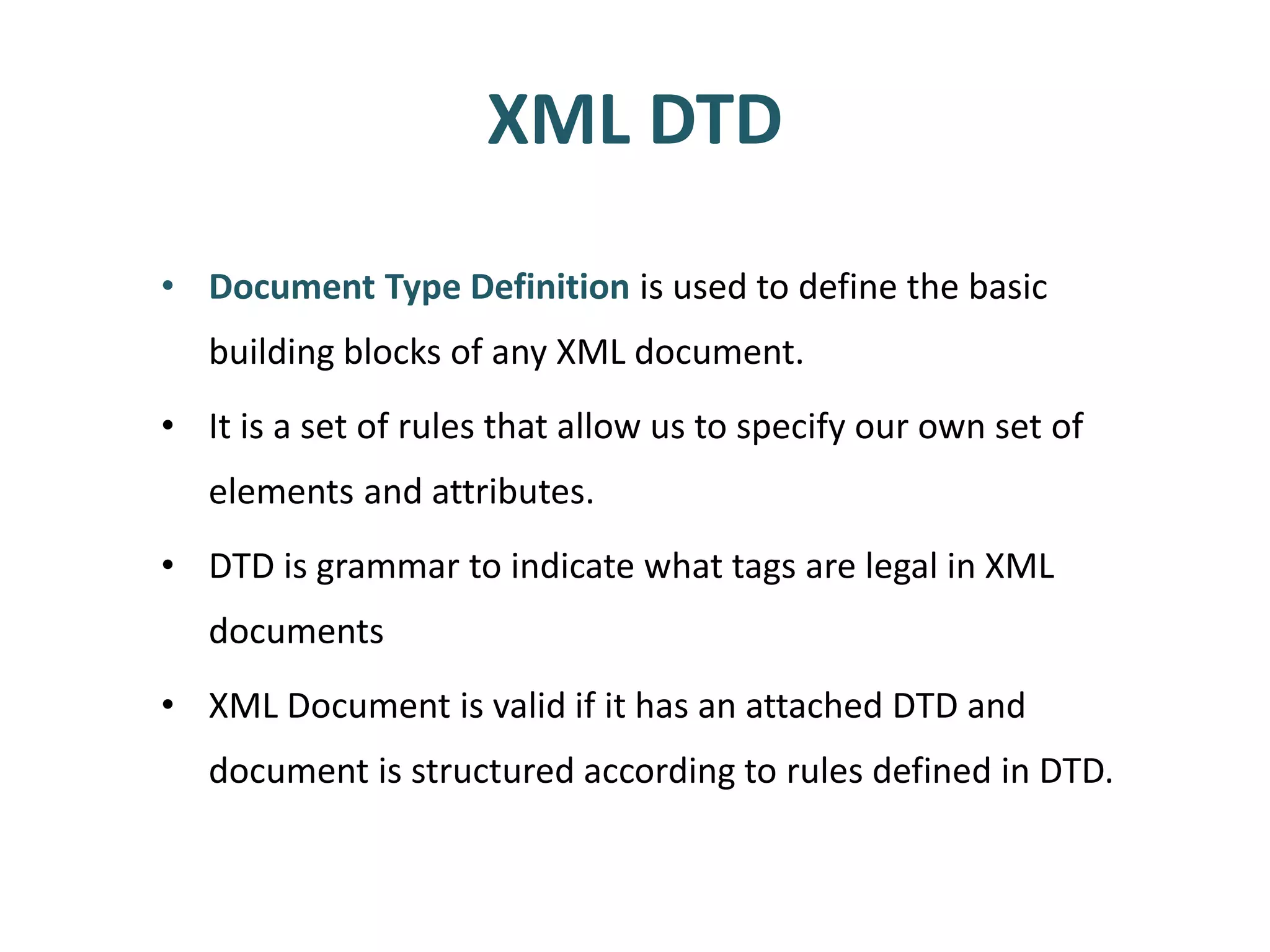

8. XML DTD
• Document Type Definition is used to define the basic
building blocks of any XML document.
• It is a set of rules that allow us to specify our own set of
elements and attributes.
• DTD is grammar to indicate what tags are legal in XML
documents
• XML Document is valid if it has an attached DTD and
document is structured according to rules defined in DTD.

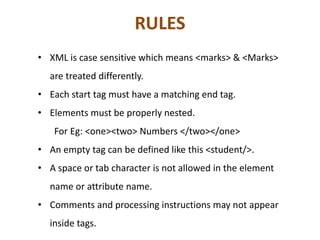

9. RULES
• XML is case sensitive which means <marks> & <Marks>
are treated differently.
• Each start tag must have a matching end tag.
• Elements must be properly nested.
For Eg: <one><two> Numbers </two></one>
• An empty tag can be defined like this <student/>.
• A space or tab character is not allowed in the element
name or attribute name.
• Comments and processing instructions may not appear
inside tags.

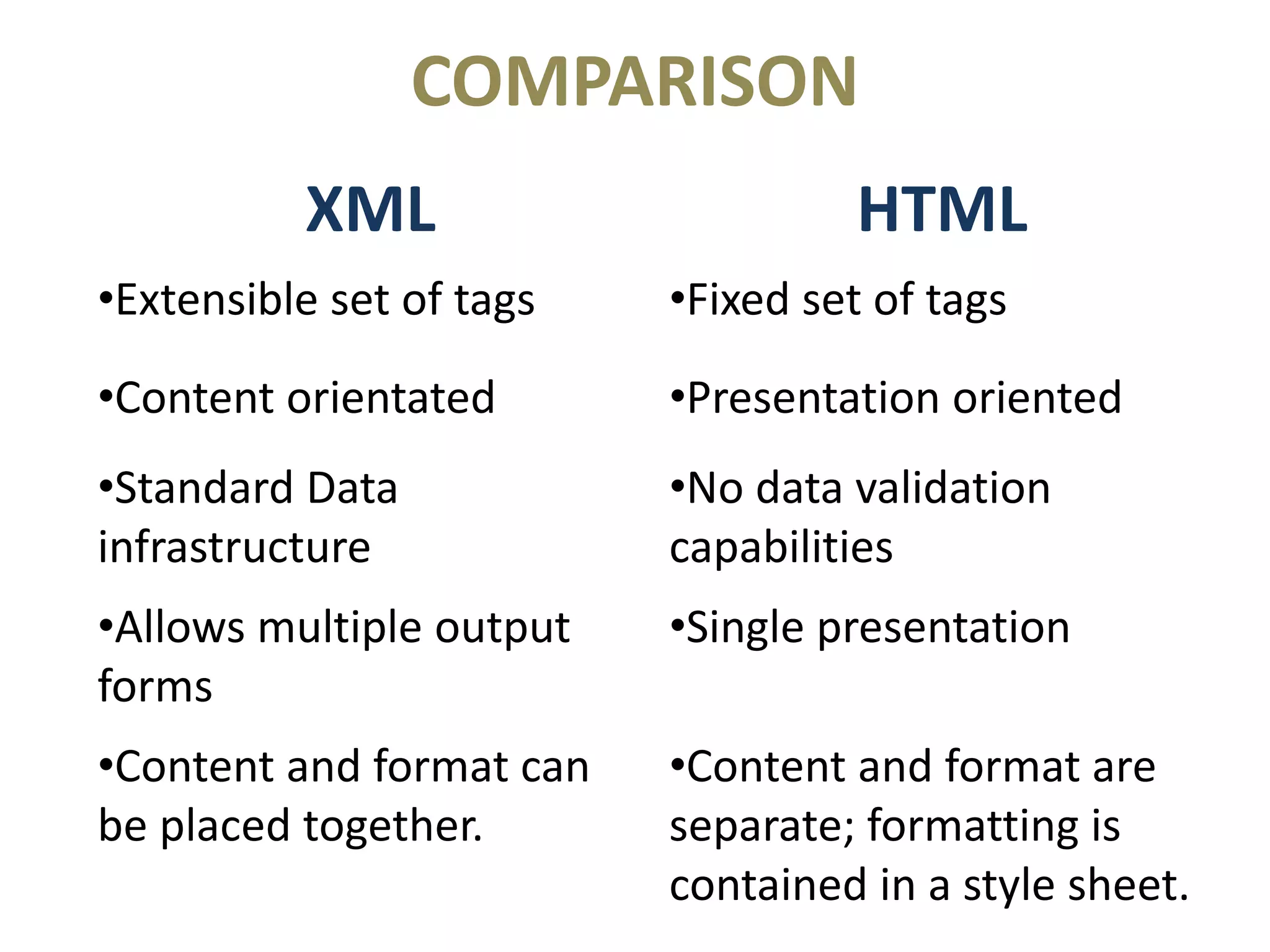

10. COMPARISON
XML HTML
•Extensible set of tags •Fixed set of tags
•Content orientated •Presentation oriented
•Standard Data
infrastructure
•No data validation
capabilities
•Allows multiple output
forms
•Single presentation
•Content and format can
be placed together.
•Content and format are
separate; formatting is
contained in a style sheet.

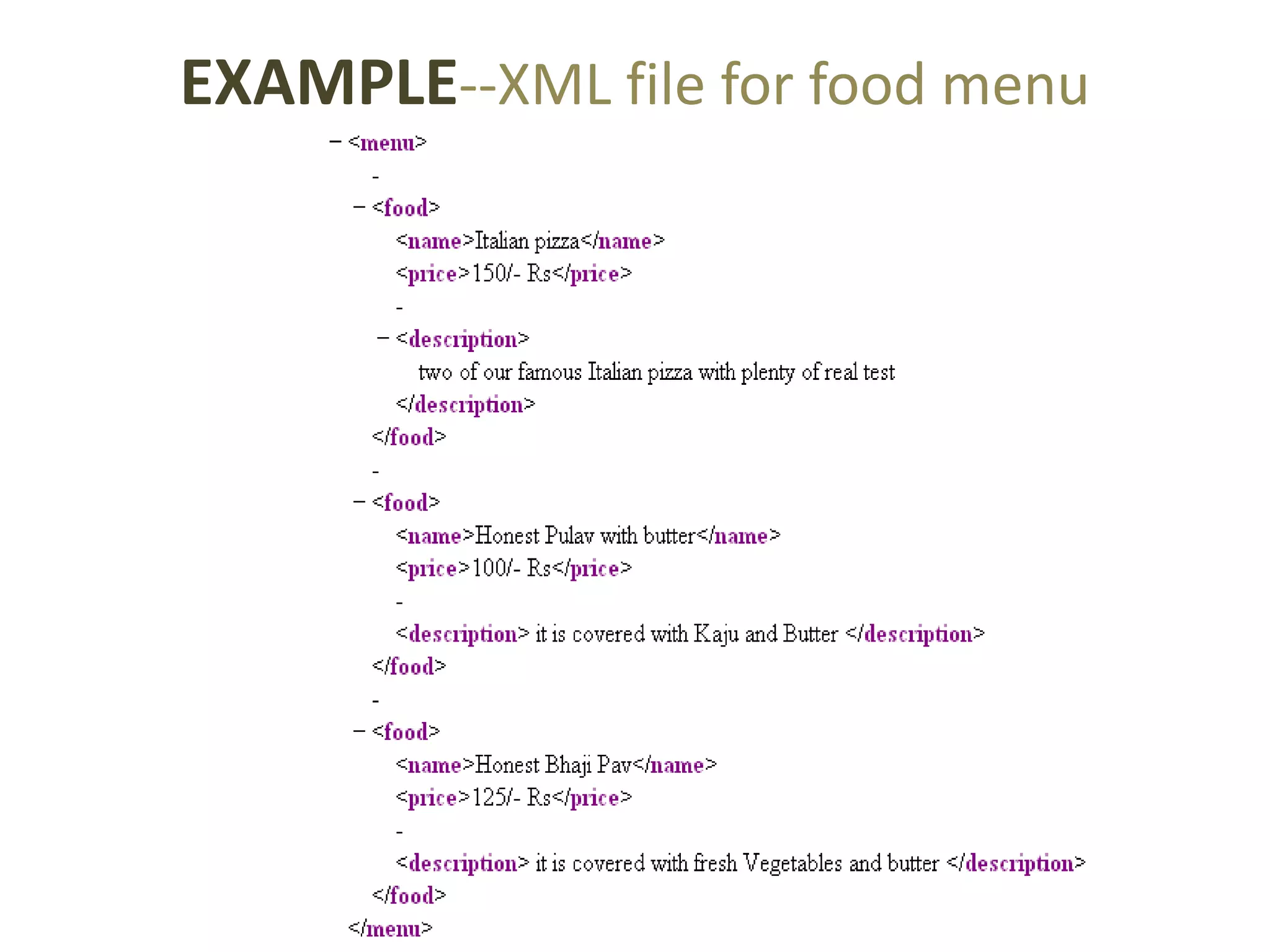

11. EXAMPLE--XML file for food menu

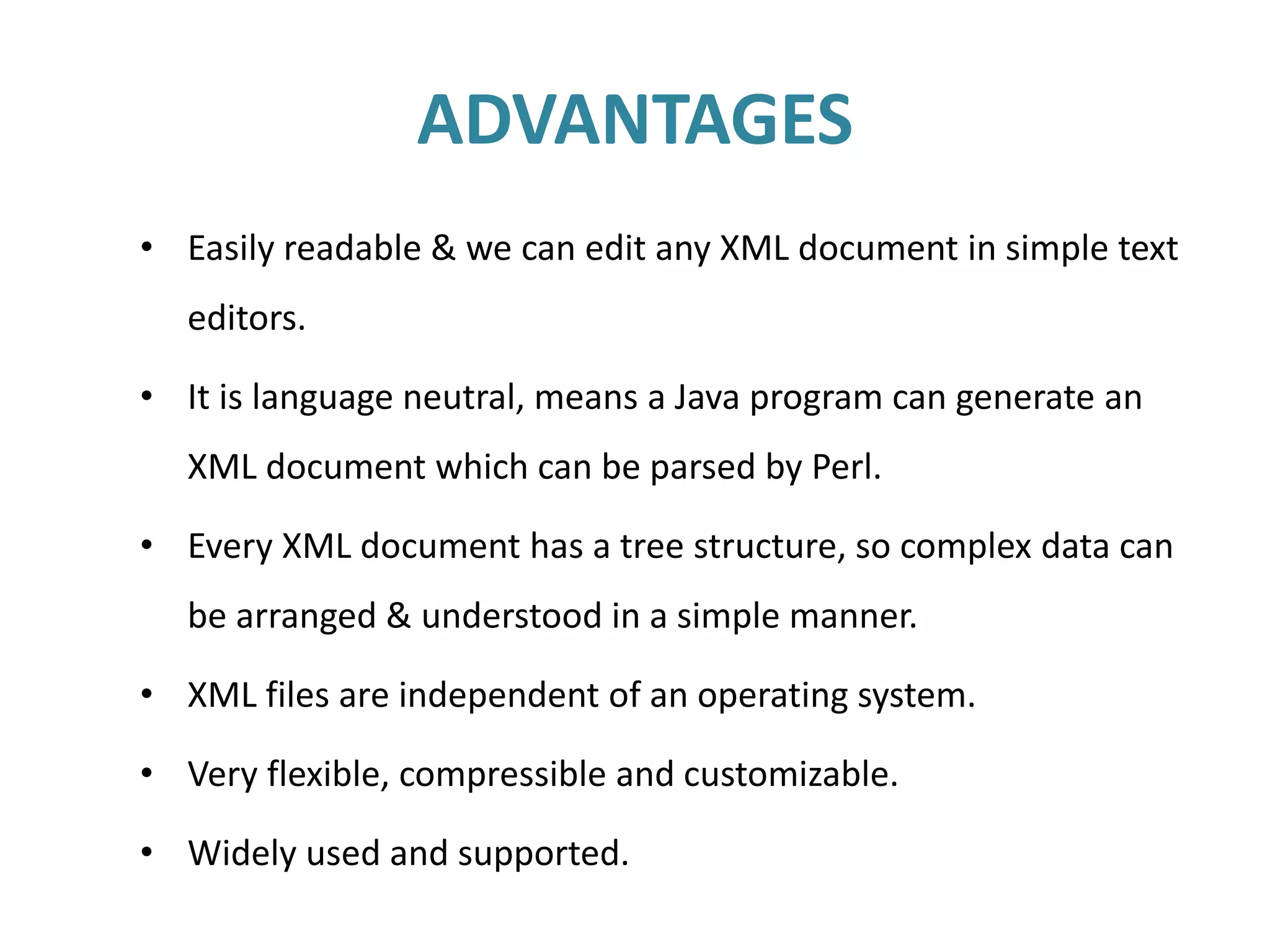

12. ADVANTAGES
• Easily readable & we can edit any XML document in simple text
editors.
• It is language neutral, means a Java program can generate an
XML document which can be parsed by Perl.
• Every XML document has a tree structure, so complex data can
be arranged & understood in a simple manner.
• XML files are independent of an operating system.
• Very flexible, compressible and customizable.
• Widely used and supported.
