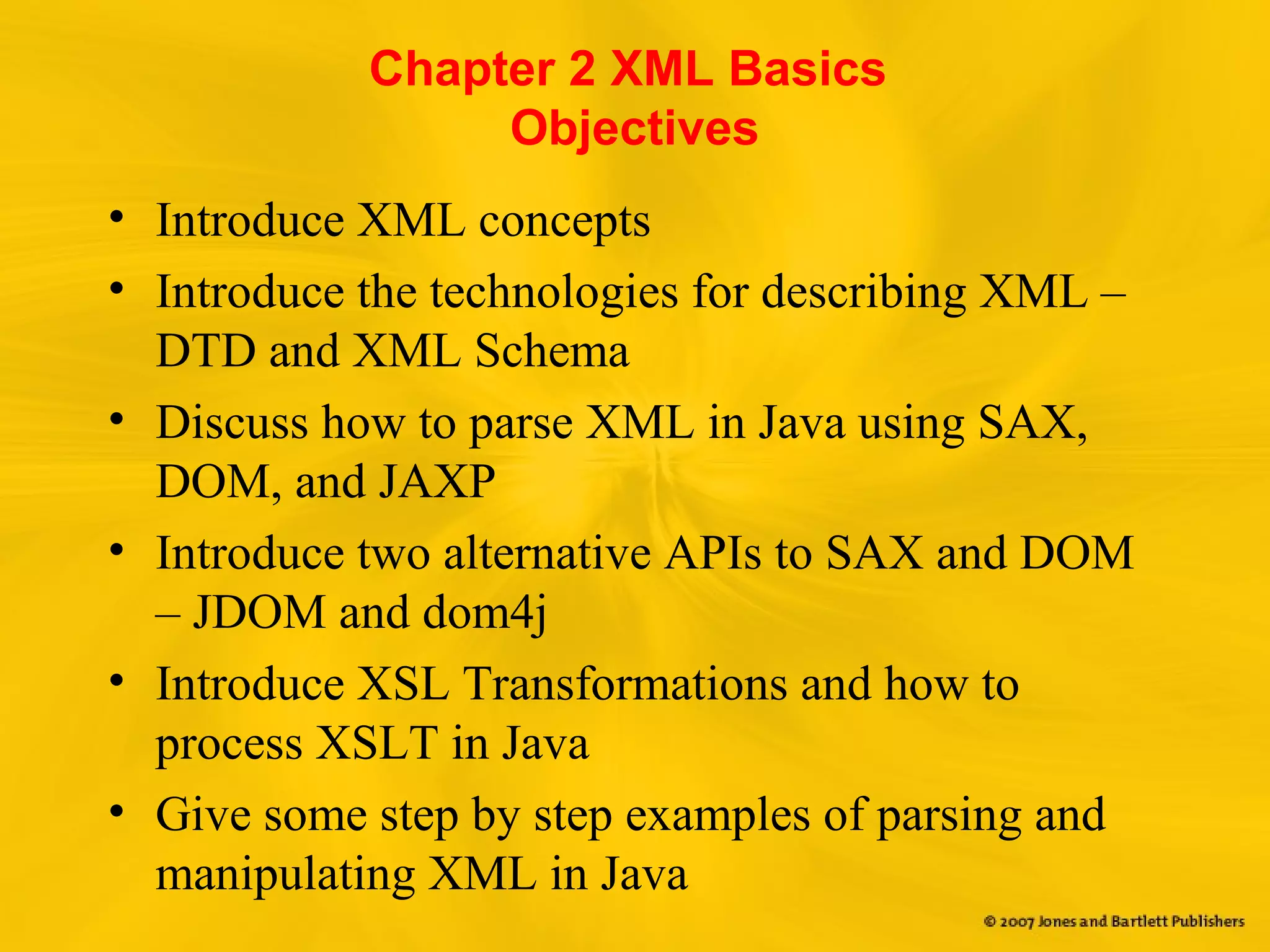

Chapter 2 XML Basics
Objectives
• Introduce XML concepts
• Introduce the technologies for describing XML –
DTD and XML Schema
• Discuss how to parse XML in Java using SAX,
DOM, and JAXP
• Introduce two alternative APIs to SAX and DOM
– JDOM and dom4j
• Introduce XSL Transformations and how to
process XSLT in Java
• Give some step by step examples of parsing and
manipulating XML in Java

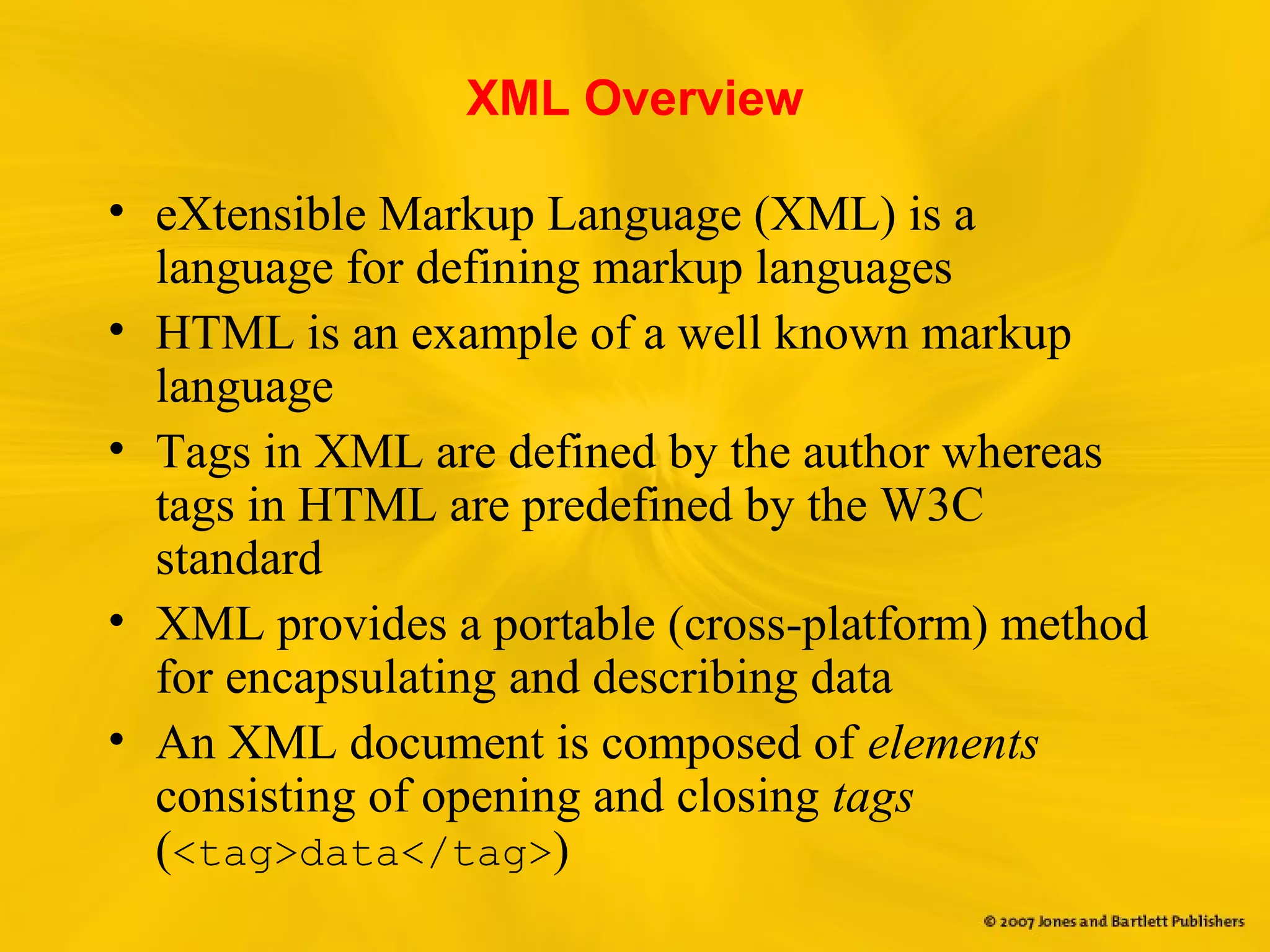

XML Overview
• eXtensible Markup Language (XML) is a
language for defining markup languages
• HTML is an example of a well known markup
language
• Tags in XML are defined by the author whereas
tags in HTML are predefined by the W3C
standard
• XML provides a portable (cross-platform) method
for encapsulating and describing data
• An XML document is composed of elements
consisting of opening and closing tags
(<tag>data</tag>)

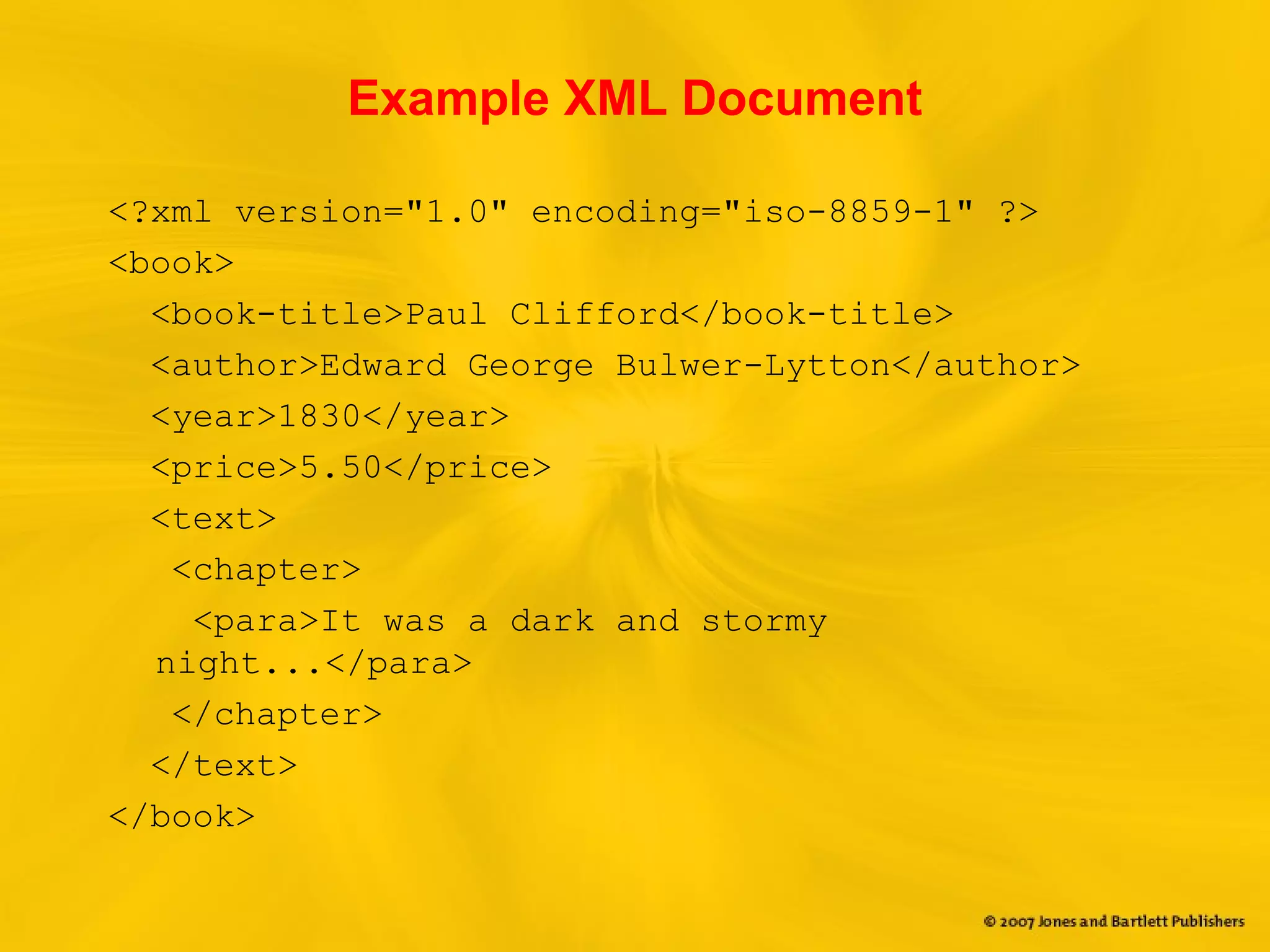

Example XML Document
<?xml version="1.0" encoding="iso-8859-1" ?>
<book>
<book-title>Paul Clifford</book-title>
<author>Edward George Bulwer-Lytton</author>
<year>1830</year>
<price>5.50</price>
<text>
<chapter>
<para>It was a dark and stormy
night...</para>
</chapter>
</text>
</book>

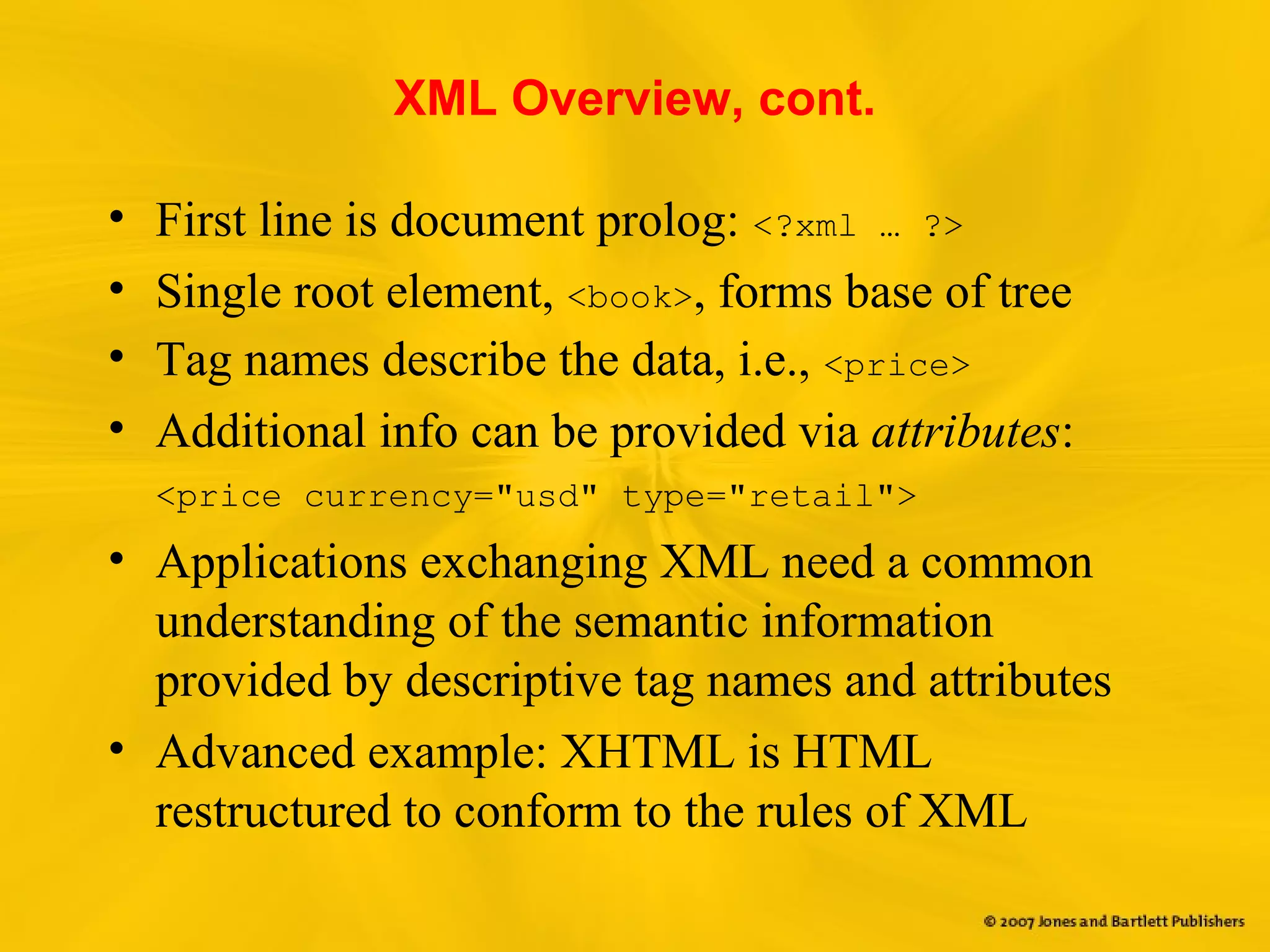

XML Overview, cont.
• First line is document prolog: <?xml … ?>
• Single root element, <book>, forms base of tree
• Tag names describe the data, i.e., <price>
• Additional info can be provided via attributes:
<price currency="usd" type="retail">
• Applications exchanging XML need a common
understanding of the semantic information
provided by descriptive tag names and attributes
• Advanced example: XHTML is HTML
restructured to conform to the rules of XML

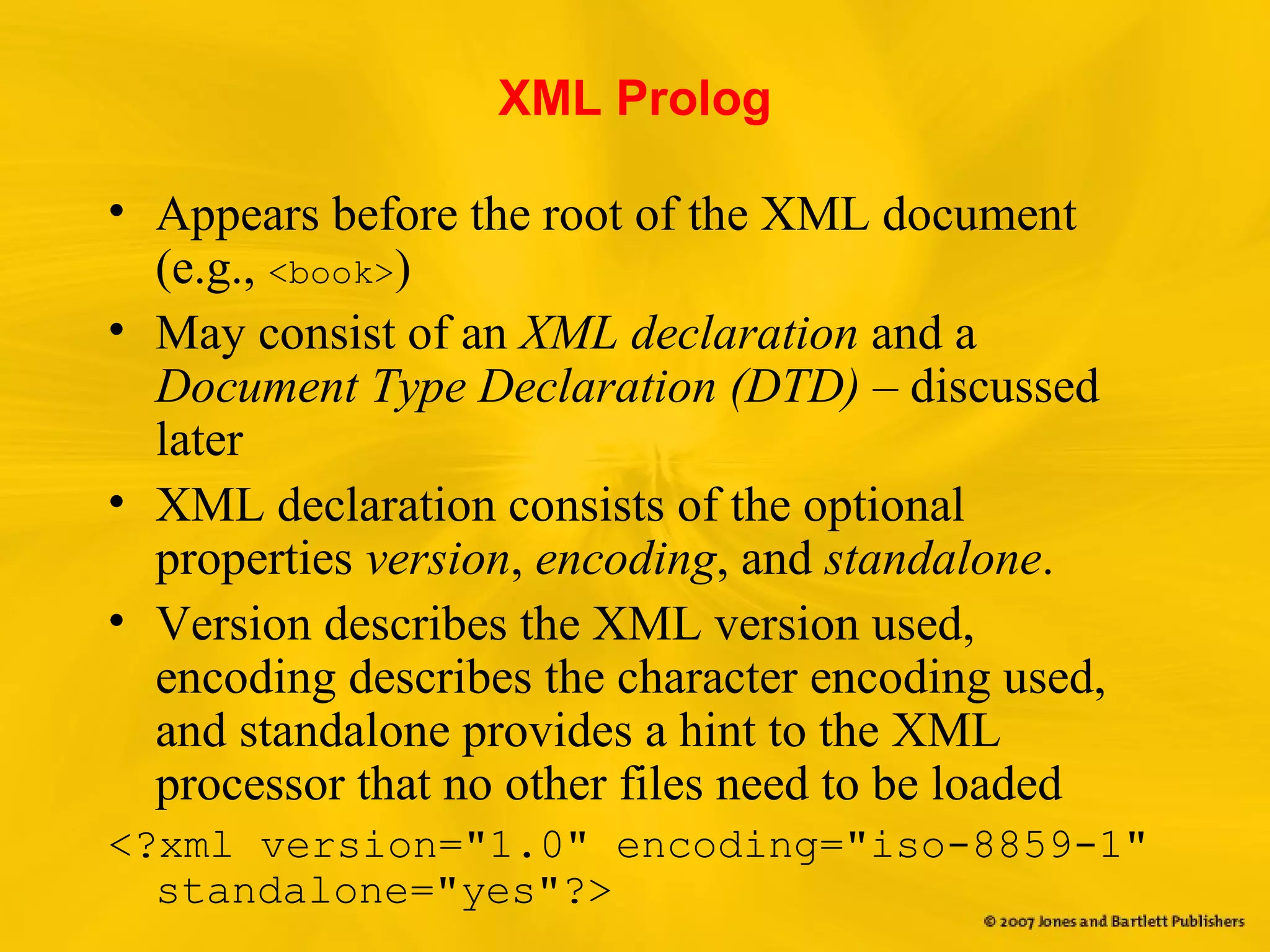

XML Prolog
• Appears before the root of the XML document
(e.g., <book>)
• May consist of an XML declaration and a
Document Type Declaration (DTD) – discussed
later
• XML declaration consists of the optional
properties version, encoding, and standalone.
• Version describes the XML version used,
encoding describes the character encoding used,
and standalone provides a hint to the XML
processor that no other files need to be loaded
<?xml version="1.0" encoding="iso-8859-1"
standalone="yes"?>

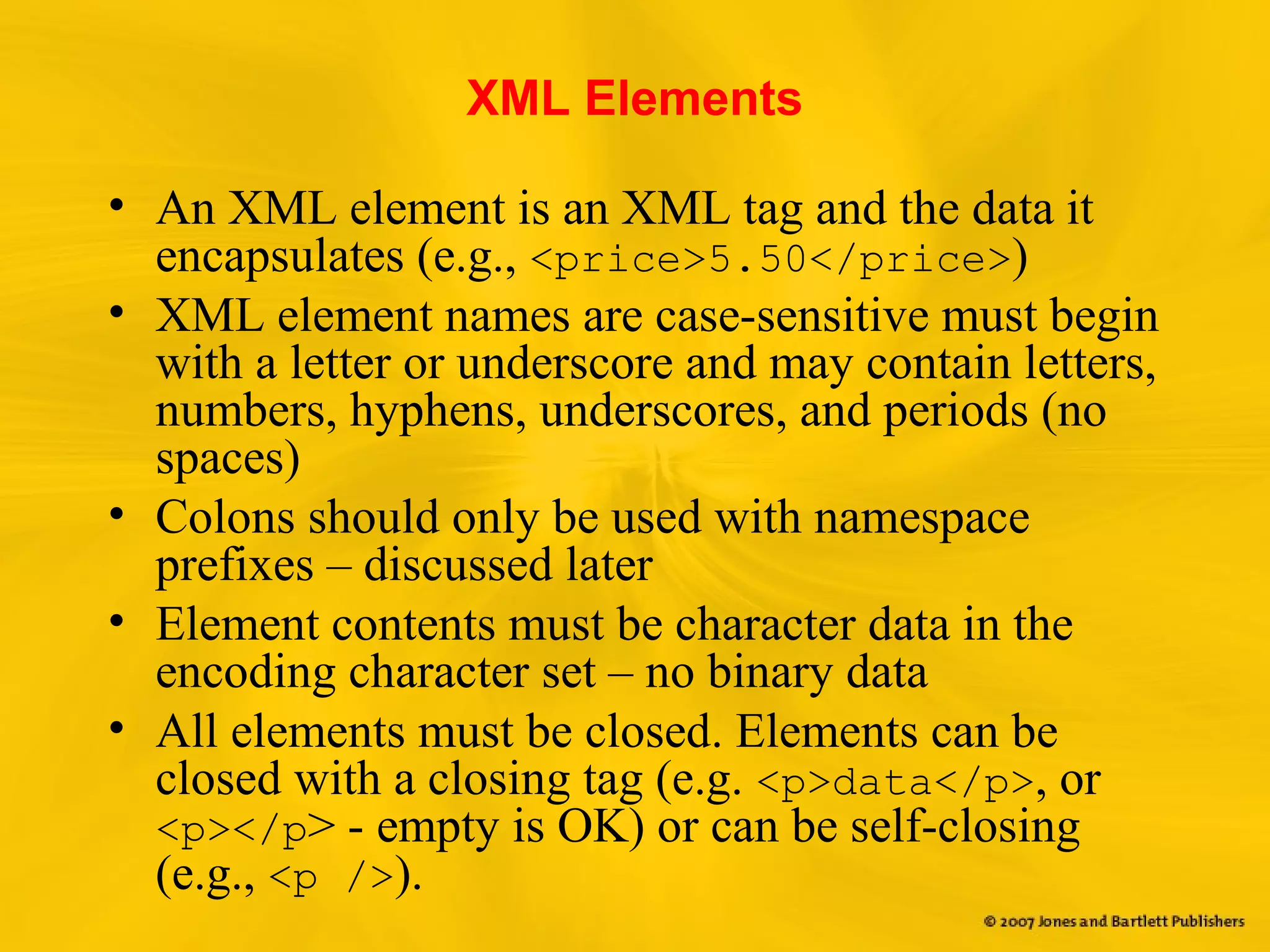

XML Elements
• An XML element is an XML tag and the data it
encapsulates (e.g., <price>5.50</price>)
• XML element names are case-sensitive must begin
with a letter or underscore and may contain letters,
numbers, hyphens, underscores, and periods (no
spaces)
• Colons should only be used with namespace
prefixes – discussed later
• Element contents must be character data in the
encoding character set – no binary data
• All elements must be closed. Elements can be
closed with a closing tag (e.g. data, or
 - empty is OK) or can be self-closing
(e.g., ).

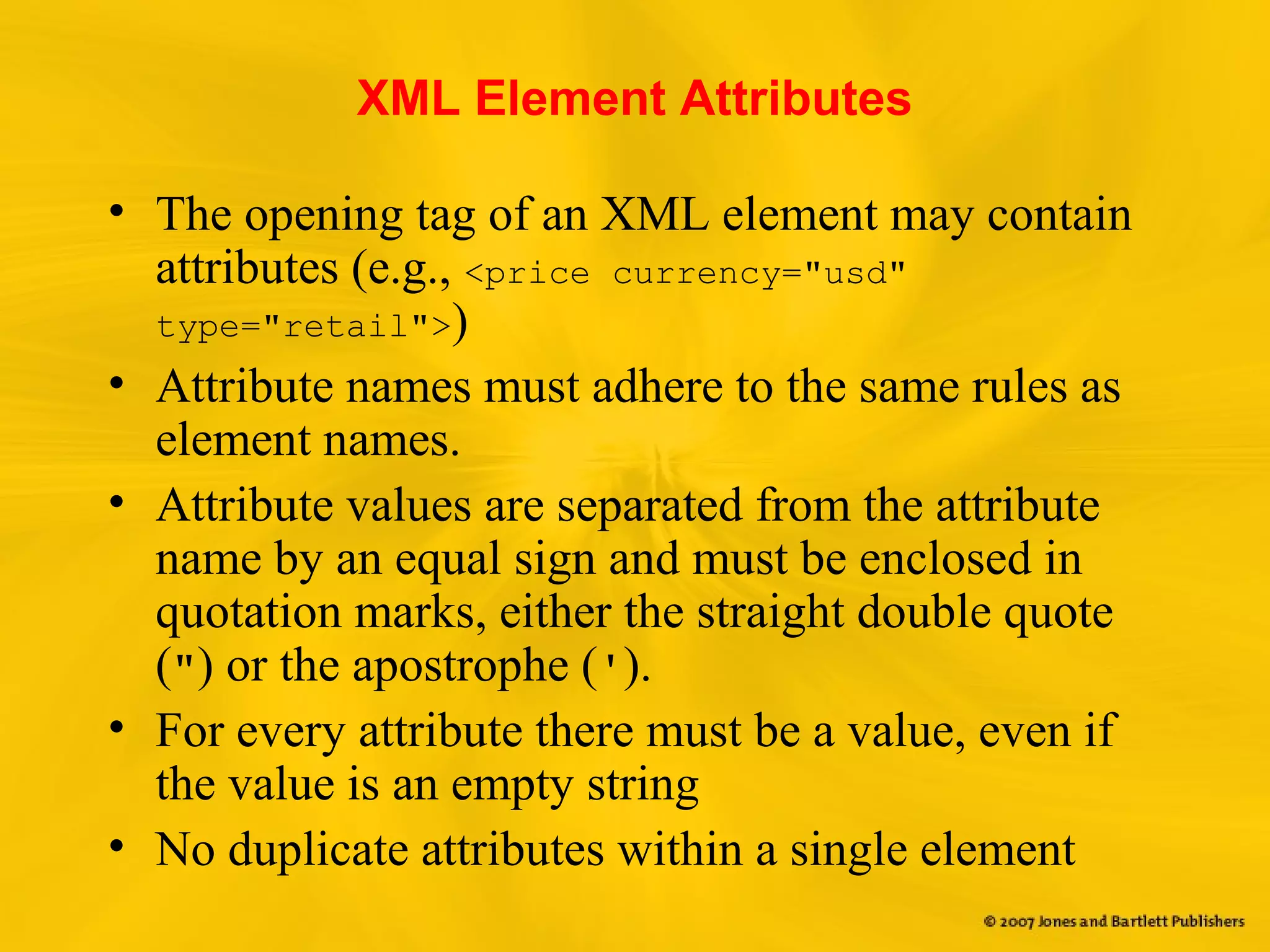

XML Element Attributes
• The opening tag of an XML element may contain
attributes (e.g., <price currency="usd"
type="retail">)
• Attribute names must adhere to the same rules as
element names.
• Attribute values are separated from the attribute
name by an equal sign and must be enclosed in
quotation marks, either the straight double quote
(") or the apostrophe (').
• For every attribute there must be a value, even if
the value is an empty string
• No duplicate attributes within a single element

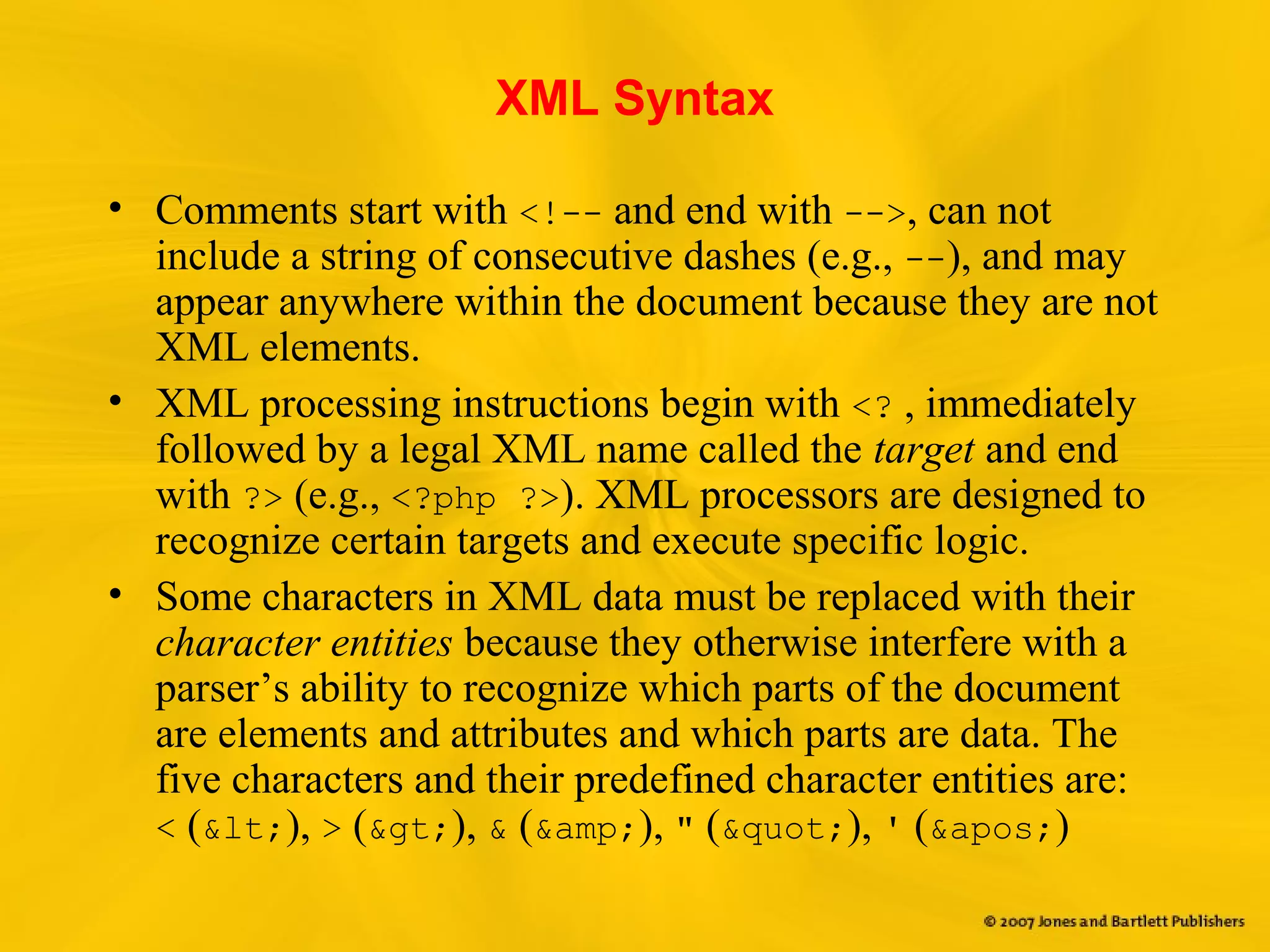

XML Syntax
• Comments start with , can not
include a string of consecutive dashes (e.g., --), and may
appear anywhere within the document because they are not
XML elements.
• XML processing instructions begin with <? , immediately
followed by a legal XML name called the target and end
with ?> (e.g., <?php ?>). XML processors are designed to
recognize certain targets and execute specific logic.
• Some characters in XML data must be replaced with their
character entities because they otherwise interfere with a
parser’s ability to recognize which parts of the document
are elements and attributes and which parts are data. The
five characters and their predefined character entities are:
< (<), > (>), & (&), " ("), ' (')

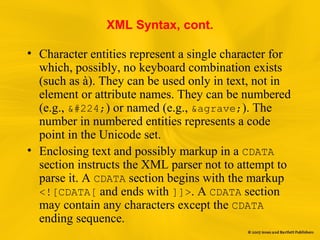

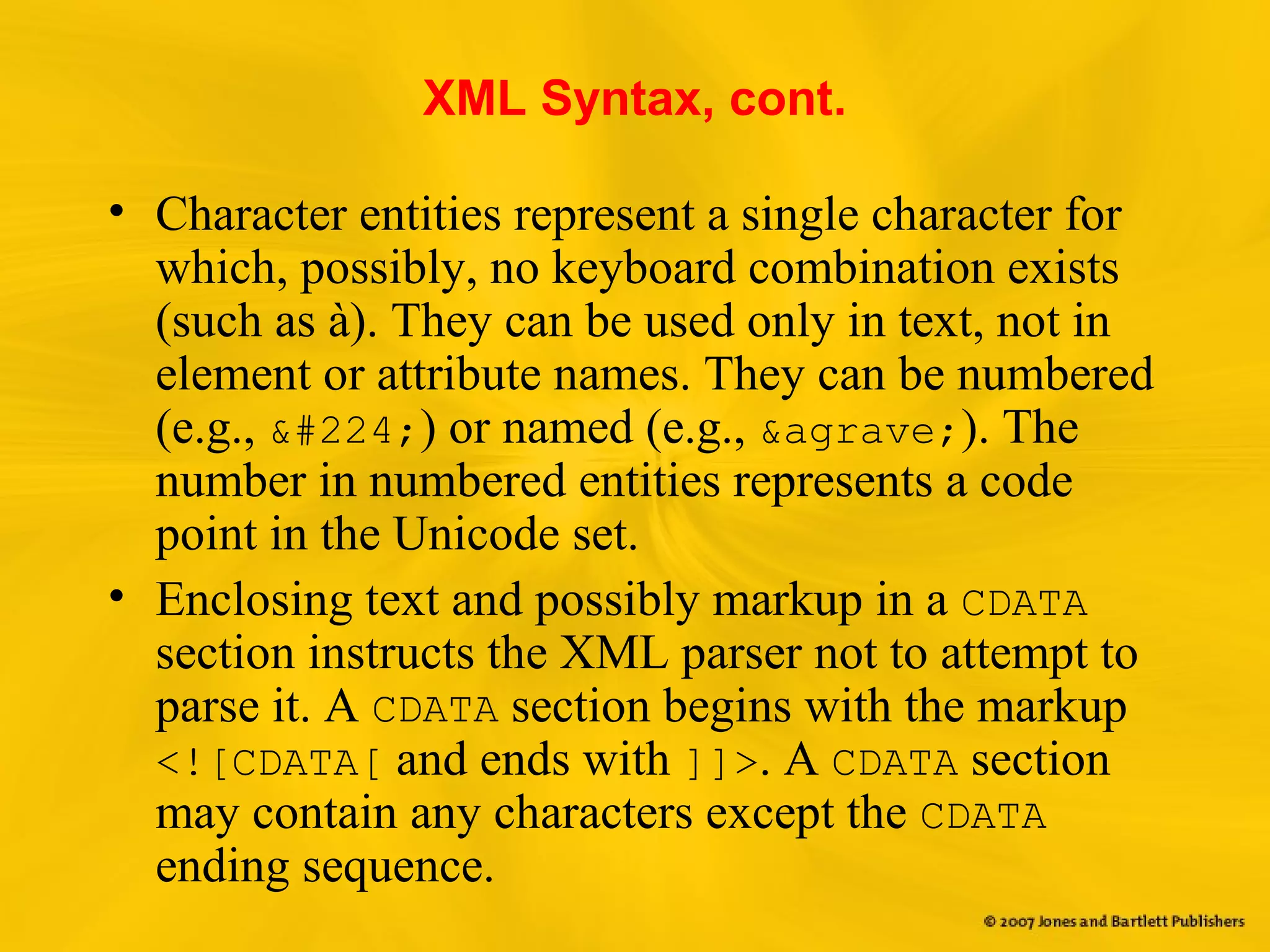

XML Syntax, cont.
• Character entities represent a single character for
which, possibly, no keyboard combination exists
(such as à). They can be used only in text, not in
element or attribute names. They can be numbered
(e.g., à) or named (e.g., à). The
number in numbered entities represents a code
point in the Unicode set.
• Enclosing text and possibly markup in a CDATA
section instructs the XML parser not to attempt to
parse it. A CDATA section begins with the markup
<![CDATA[ and ends with ]]>. A CDATA section
may contain any characters except the CDATA
ending sequence.

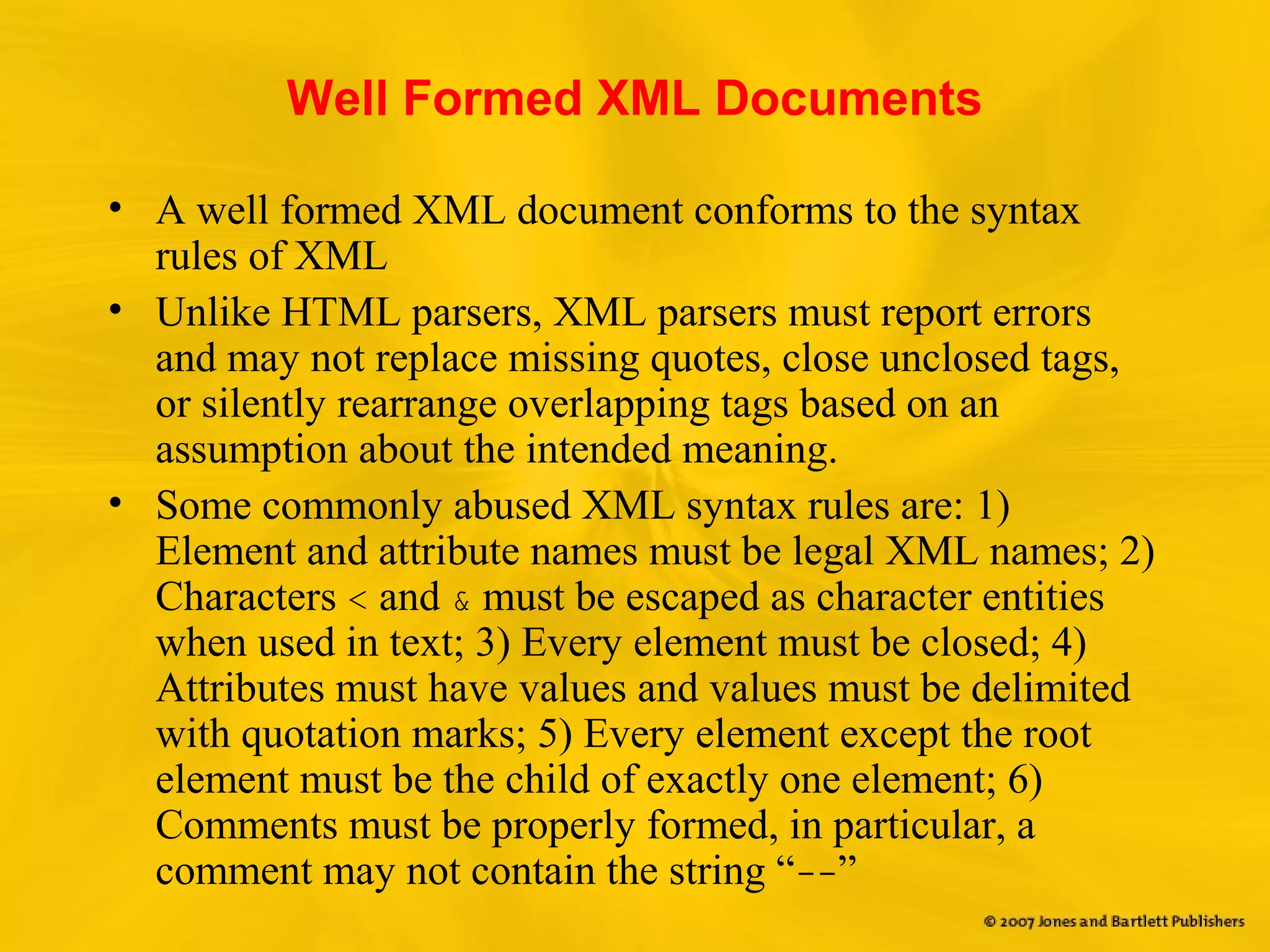

Well Formed XML Documents
• A well formed XML document conforms to the syntax
rules of XML
• Unlike HTML parsers, XML parsers must report errors
and may not replace missing quotes, close unclosed tags,
or silently rearrange overlapping tags based on an
assumption about the intended meaning.
• Some commonly abused XML syntax rules are: 1)
Element and attribute names must be legal XML names; 2)
Characters < and & must be escaped as character entities
when used in text; 3) Every element must be closed; 4)
Attributes must have values and values must be delimited
with quotation marks; 5) Every element except the root
element must be the child of exactly one element; 6)
Comments must be properly formed, in particular, a
comment may not contain the string “--”

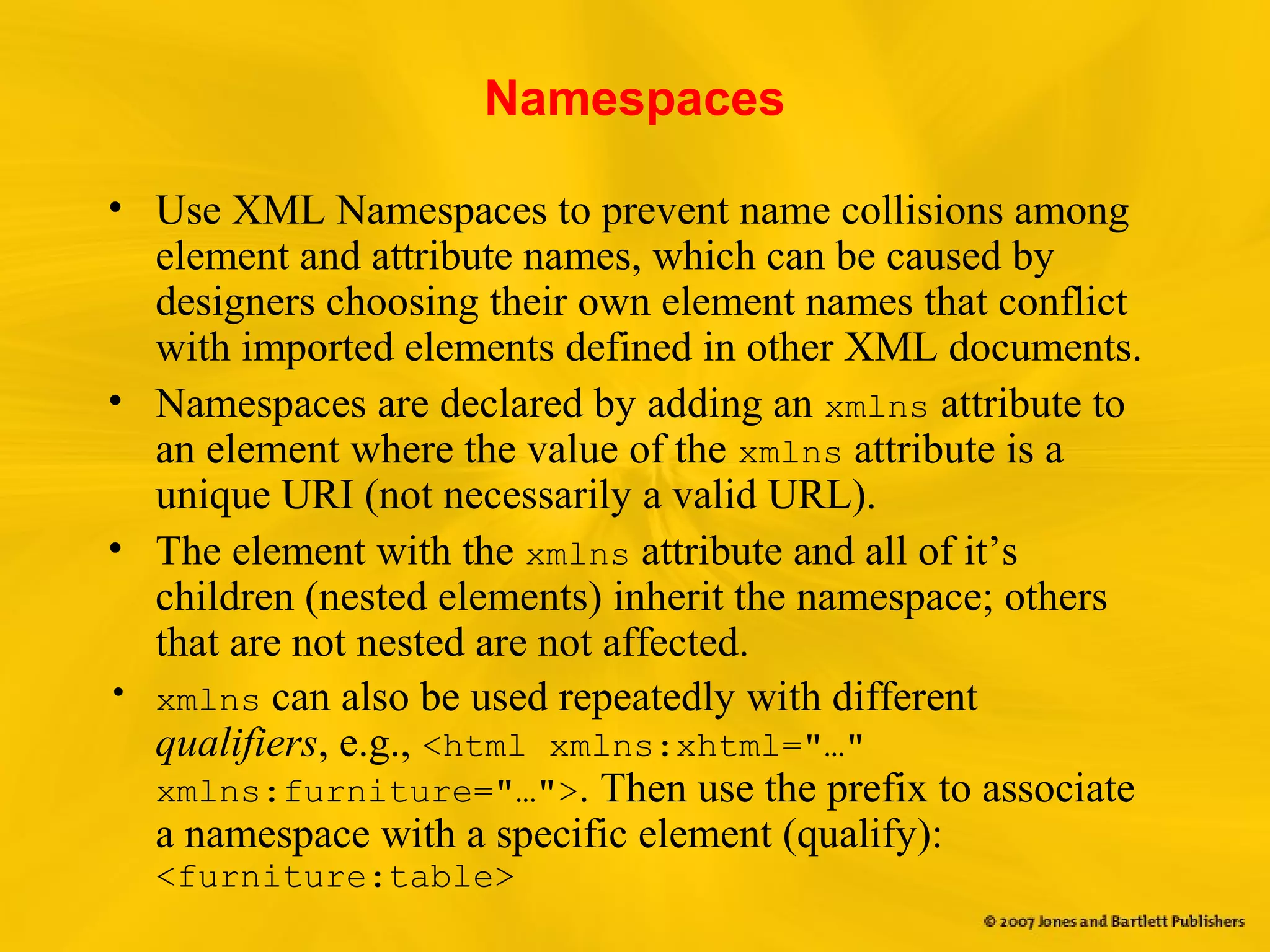

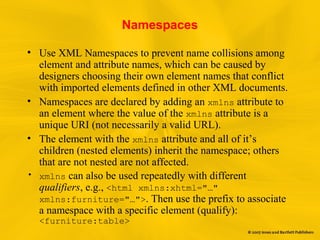

Namespaces
• Use XML Namespaces to prevent name collisions among
element and attribute names, which can be caused by
designers choosing their own element names that conflict
with imported elements defined in other XML documents.
• Namespaces are declared by adding an xmlns attribute to
an element where the value of the xmlns attribute is a
unique URI (not necessarily a valid URL).
• The element with the xmlns attribute and all of it’s
children (nested elements) inherit the namespace; others
that are not nested are not affected.
• xmlns can also be used repeatedly with different
qualifiers, e.g., <html xmlns:xhtml="…"
xmlns:furniture="…">. Then use the prefix to associate
a namespace with a specific element (qualify):
<furniture:table>

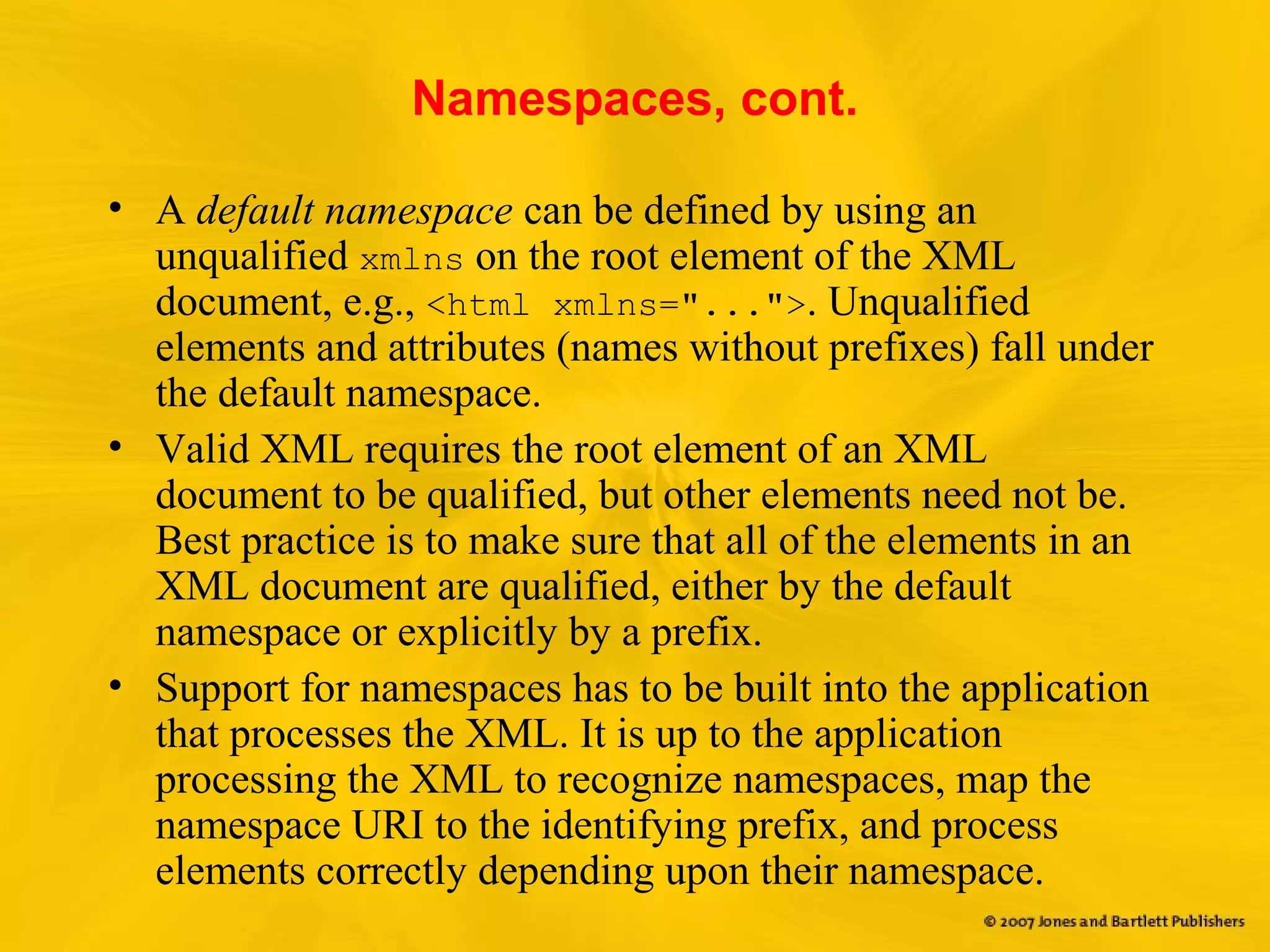

Namespaces, cont.
• A default namespace can be defined by using an
unqualified xmlns on the root element of the XML
document, e.g., <html xmlns="...">. Unqualified
elements and attributes (names without prefixes) fall under
the default namespace.
• Valid XML requires the root element of an XML
document to be qualified, but other elements need not be.
Best practice is to make sure that all of the elements in an
XML document are qualified, either by the default
namespace or explicitly by a prefix.
• Support for namespaces has to be built into the application
that processes the XML. It is up to the application
processing the XML to recognize namespaces, map the
namespace URI to the identifying prefix, and process
elements correctly depending upon their namespace.

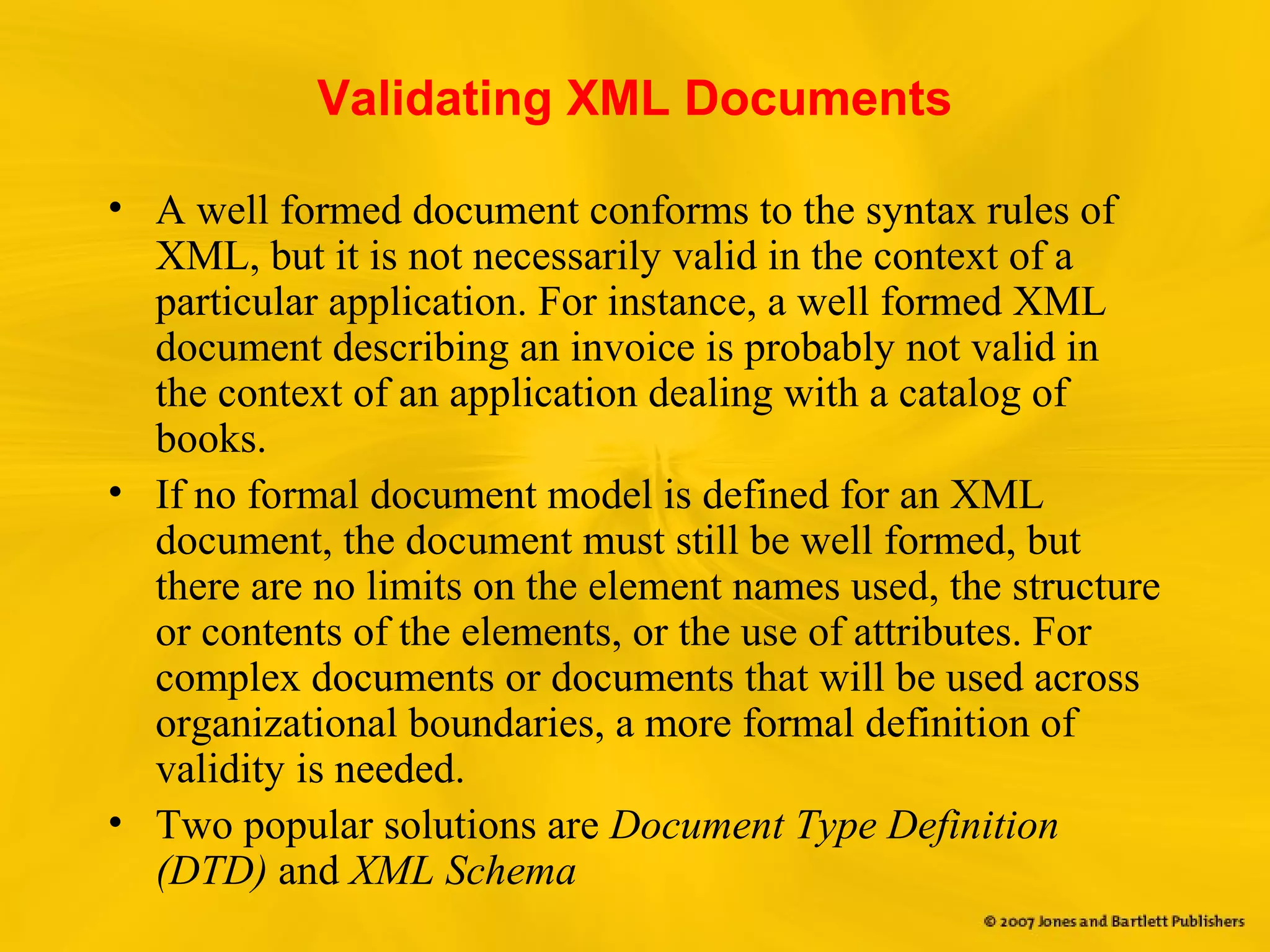

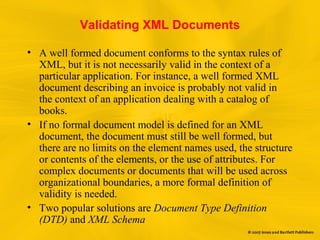

Validating XML Documents
• A well formed document conforms to the syntax rules of
XML, but it is not necessarily valid in the context of a
particular application. For instance, a well formed XML
document describing an invoice is probably not valid in
the context of an application dealing with a catalog of
books.
• If no formal document model is defined for an XML
document, the document must still be well formed, but
there are no limits on the element names used, the structure
or contents of the elements, or the use of attributes. For
complex documents or documents that will be used across
organizational boundaries, a more formal definition of
validity is needed.
• Two popular solutions are Document Type Definition
(DTD) and XML Schema

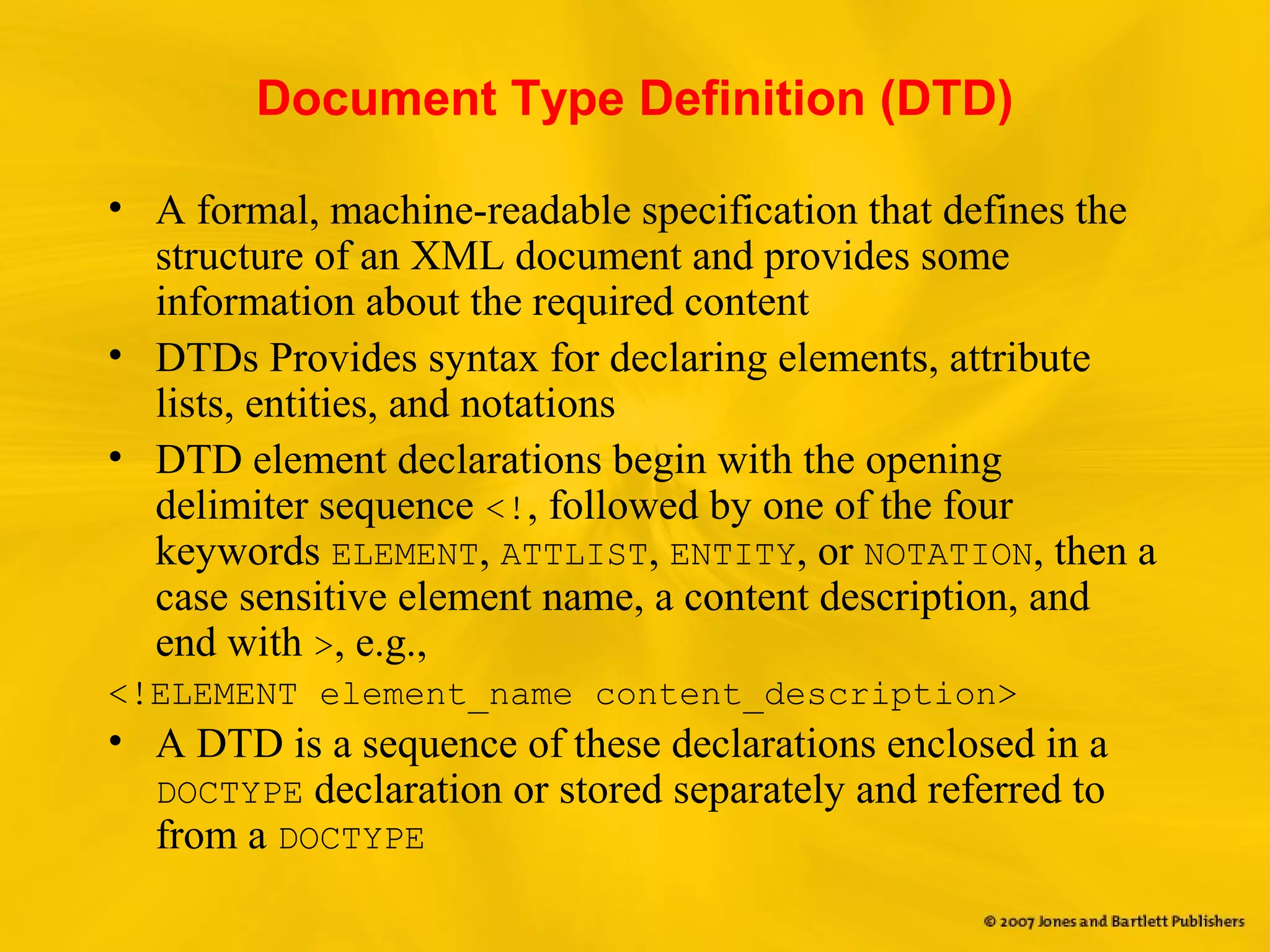

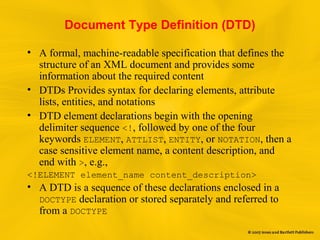

Document Type Definition (DTD)
• A formal, machine-readable specification that defines the
structure of an XML document and provides some
information about the required content
• DTDs Provides syntax for declaring elements, attribute
lists, entities, and notations
• DTD element declarations begin with the opening
delimiter sequence <!, followed by one of the four
keywords ELEMENT, ATTLIST, ENTITY, or NOTATION, then a
case sensitive element name, a content description, and
end with >, e.g.,
<!ELEMENT element_name content_description>
• A DTD is a sequence of these declarations enclosed in a
DOCTYPE declaration or stored separately and referred to
from a DOCTYPE

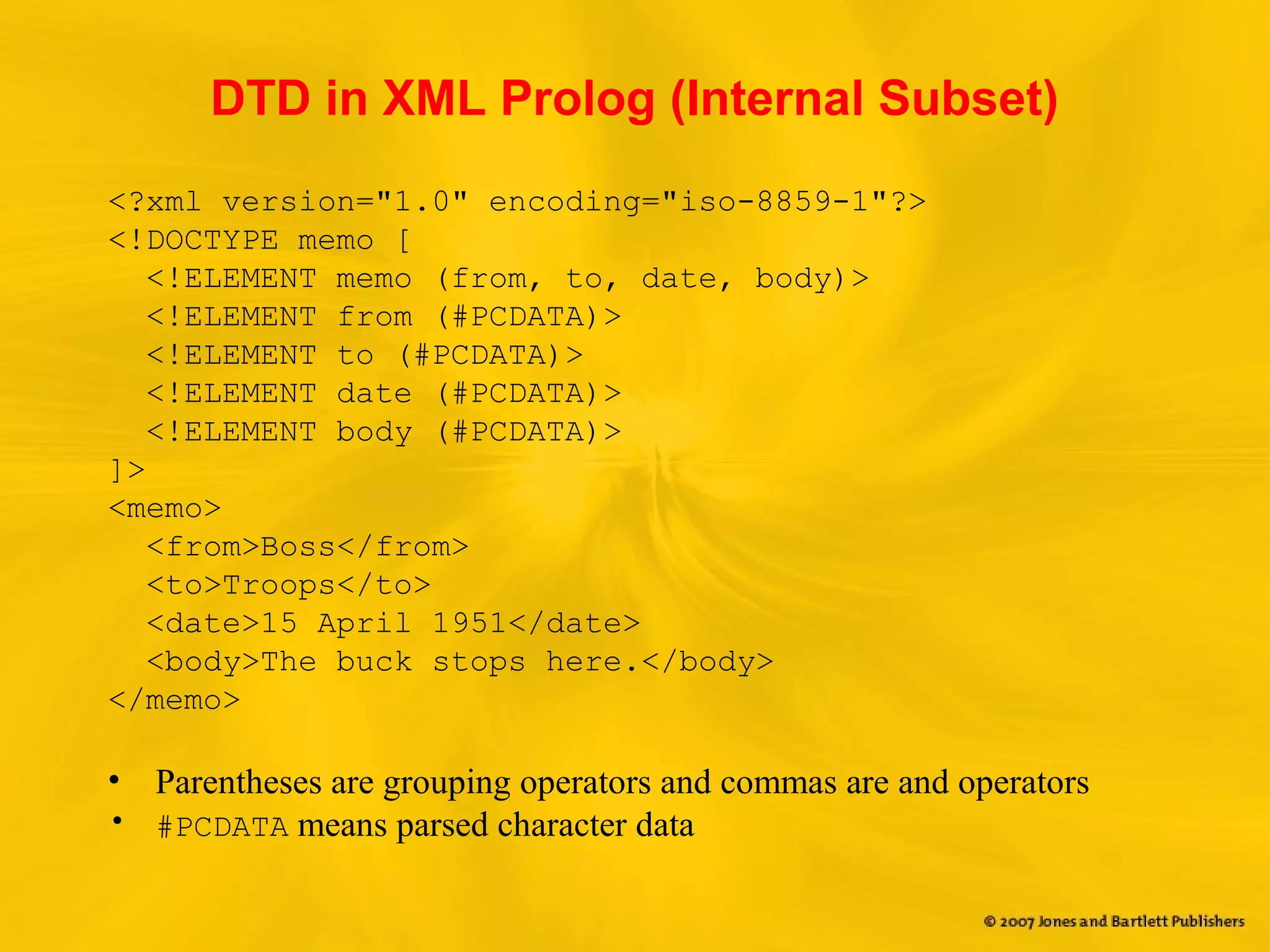

DTD in XML Prolog (Internal Subset)
<?xml version="1.0" encoding="iso-8859-1"?>
<!DOCTYPE memo [
<!ELEMENT memo (from, to, date, body)>
<!ELEMENT from (#PCDATA)>
<!ELEMENT to (#PCDATA)>
<!ELEMENT date (#PCDATA)>
<!ELEMENT body (#PCDATA)>
]>
<memo>
<from>Boss</from>
<to>Troops</to>
<date>15 April 1951</date>
<body>The buck stops here.</body>
</memo>
• Parentheses are grouping operators and commas are and operators
• #PCDATA means parsed character data

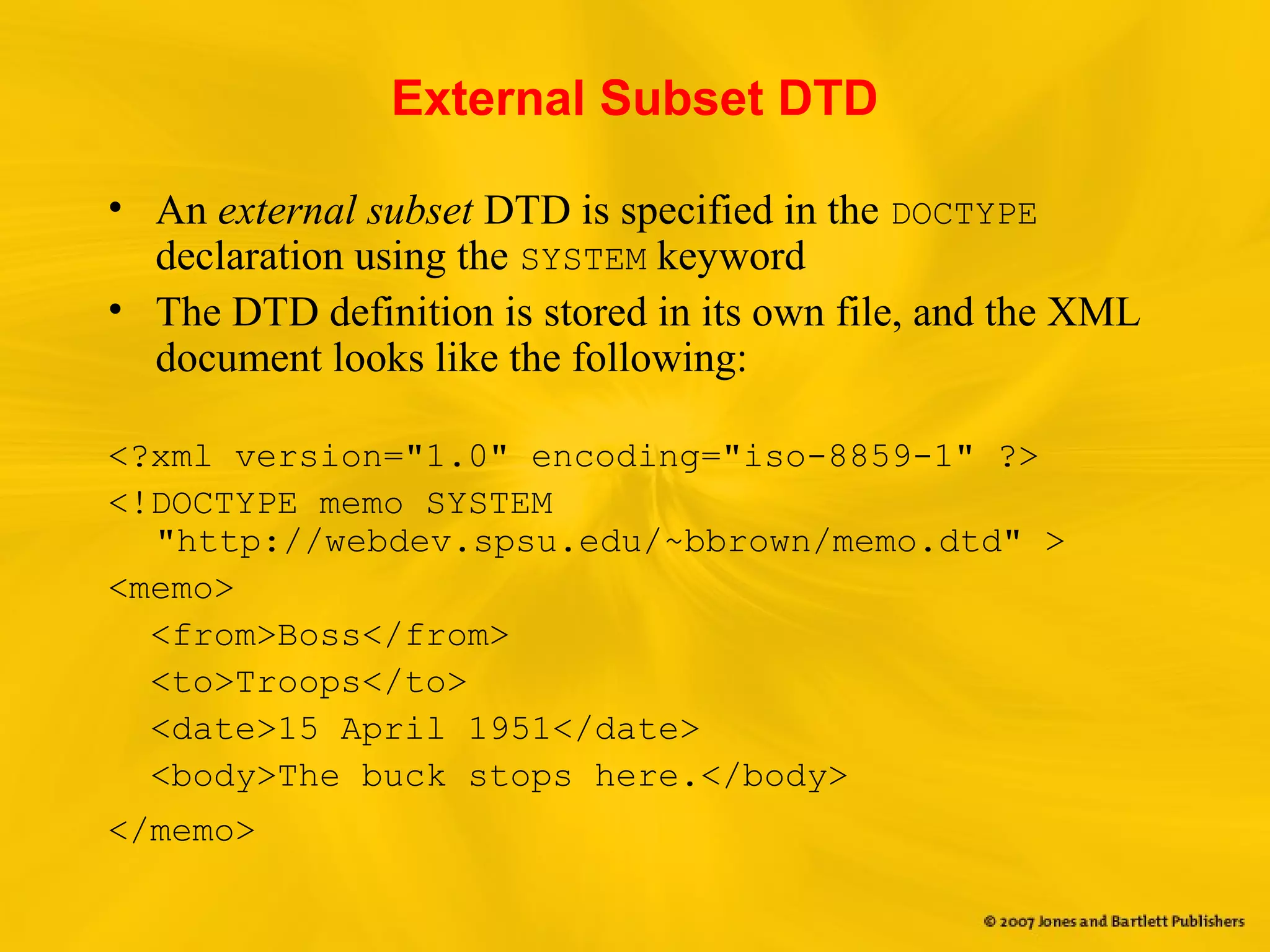

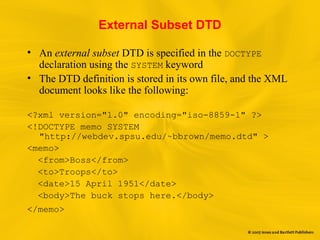

External Subset DTD
• An external subset DTD is specified in the DOCTYPE
declaration using the SYSTEM keyword
• The DTD definition is stored in its own file, and the XML
document looks like the following:
<!DOCTYPE memo SYSTEM
"http://webdev.spsu.edu/~bbrown/memo.dtd" >
<memo>
<from>Boss</from>
<to>Troops</to>
</memo>

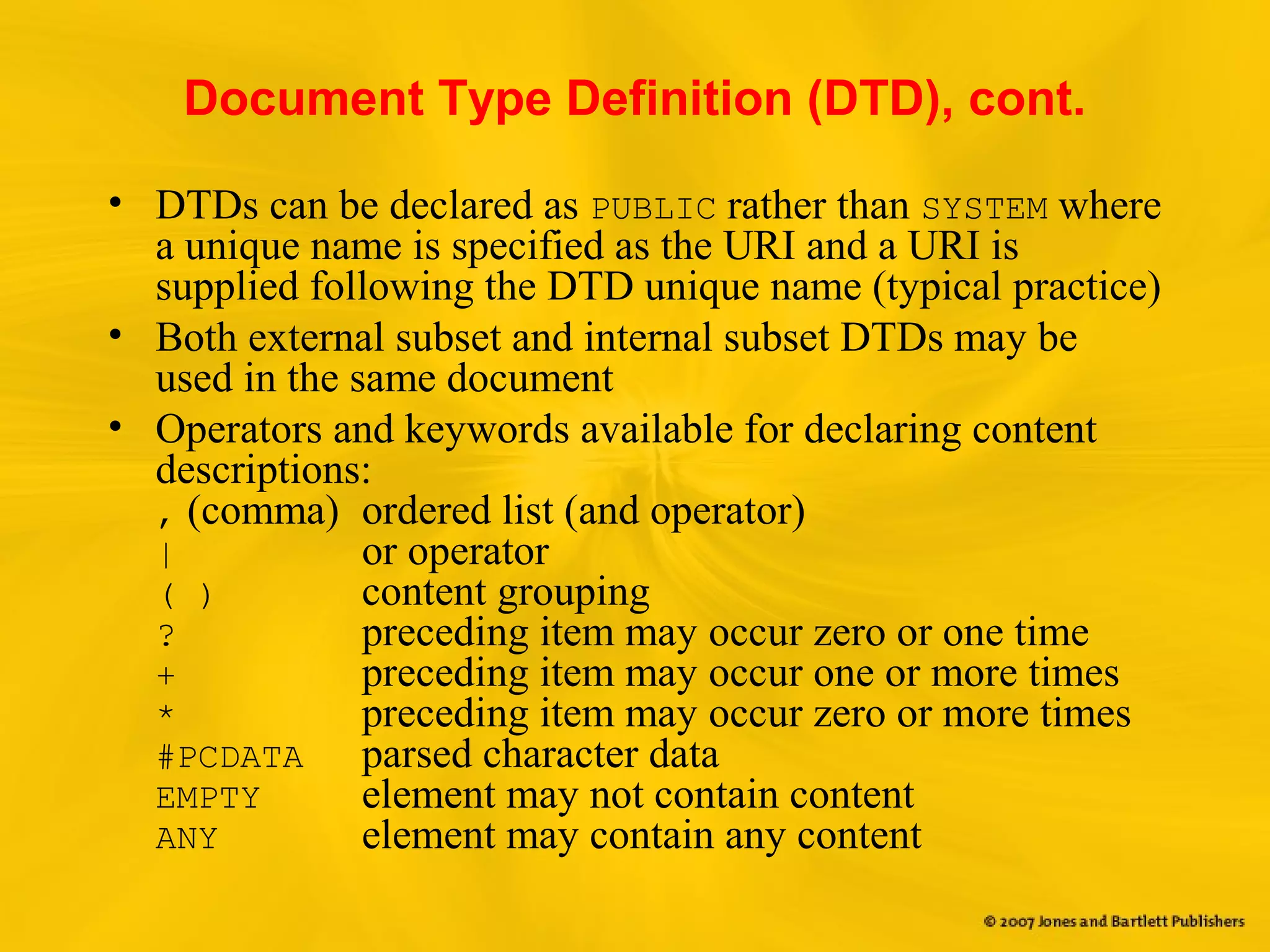

Document Type Definition (DTD), cont.
• DTDs can be declared as PUBLIC rather than SYSTEM where
a unique name is specified as the URI and a URI is
supplied following the DTD unique name (typical practice)
• Both external subset and internal subset DTDs may be
used in the same document
• Operators and keywords available for declaring content
descriptions:
, (comma) ordered list (and operator)
| or operator
( ) content grouping
? preceding item may occur zero or one time
+ preceding item may occur one or more times
* preceding item may occur zero or more times
#PCDATA parsed character data
EMPTY element may not contain content
ANY element may contain any content

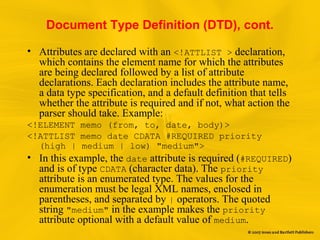

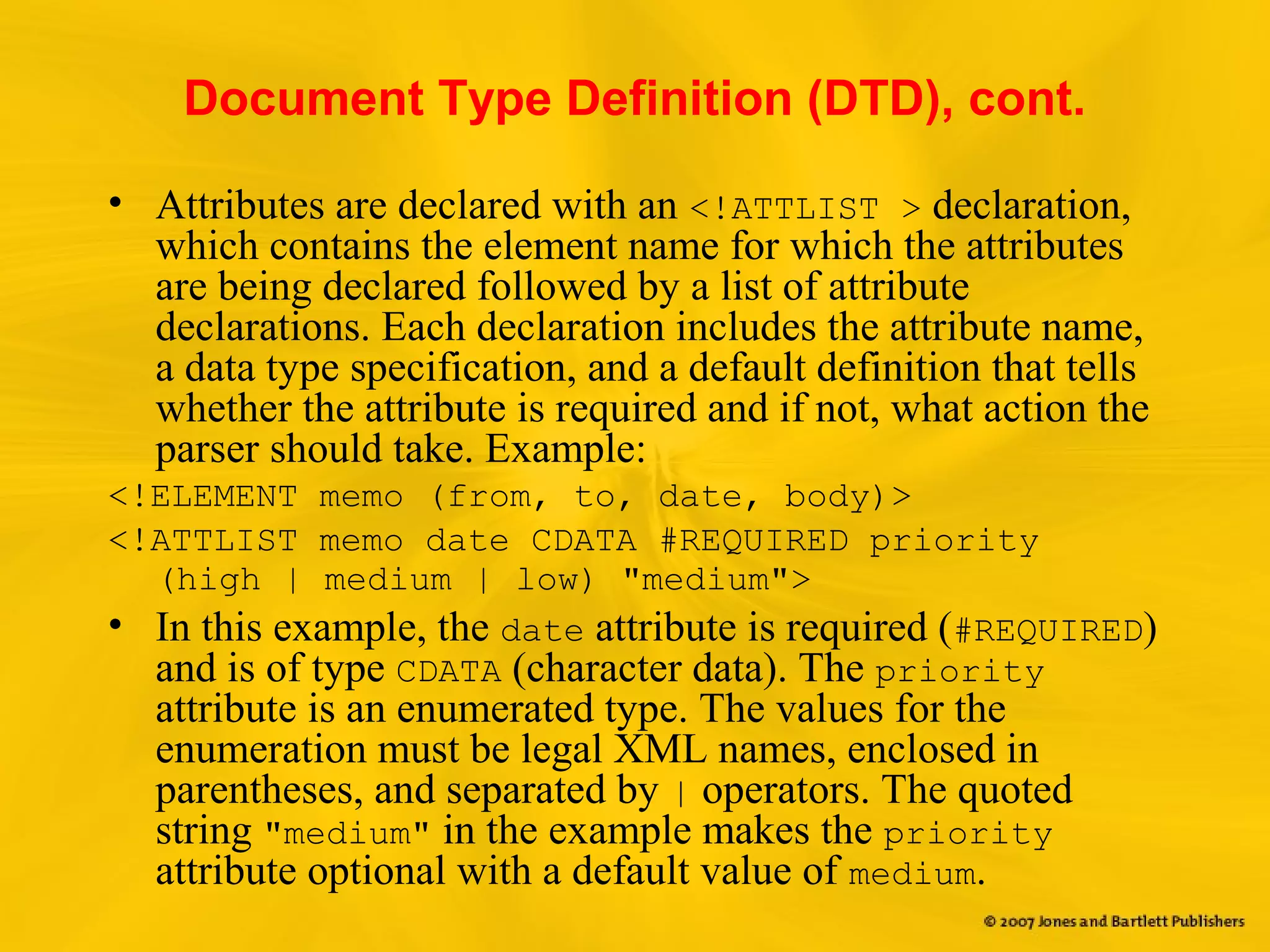

• Attributes are declared with an <!ATTLIST > declaration,
which contains the element name for which the attributes
are being declared followed by a list of attribute
declarations. Each declaration includes the attribute name,
a data type specification, and a default definition that tells
whether the attribute is required and if not, what action the
parser should take. Example:
<!ELEMENT memo (from, to, date, body)>
<!ATTLIST memo date CDATA #REQUIRED priority
(high | medium | low) "medium">
• In this example, the date attribute is required (#REQUIRED)
and is of type CDATA (character data). The priority
attribute is an enumerated type. The values for the
enumeration must be legal XML names, enclosed in
parentheses, and separated by | operators. The quoted
string "medium" in the example makes the priority
attribute optional with a default value of medium.

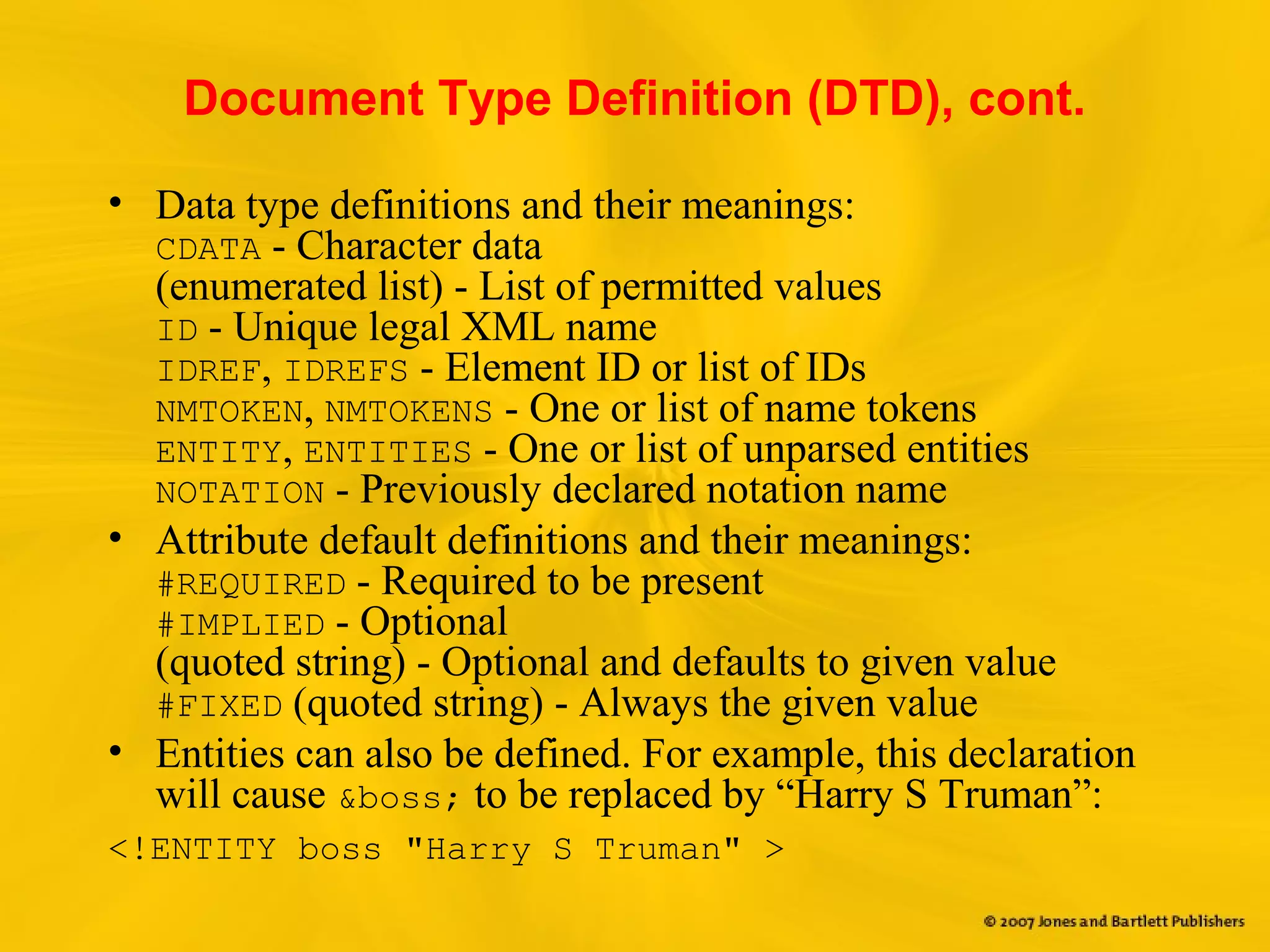

• Data type definitions and their meanings:
CDATA - Character data
(enumerated list) - List of permitted values
ID - Unique legal XML name
IDREF, IDREFS - Element ID or list of IDs
NMTOKEN, NMTOKENS - One or list of name tokens
ENTITY, ENTITIES - One or list of unparsed entities
NOTATION - Previously declared notation name
• Attribute default definitions and their meanings:
#REQUIRED - Required to be present
#IMPLIED - Optional
(quoted string) - Optional and defaults to given value
#FIXED (quoted string) - Always the given value
• Entities can also be defined. For example, this declaration
will cause &boss; to be replaced by “Harry S Truman”:
<!ENTITY boss "Harry S Truman" >

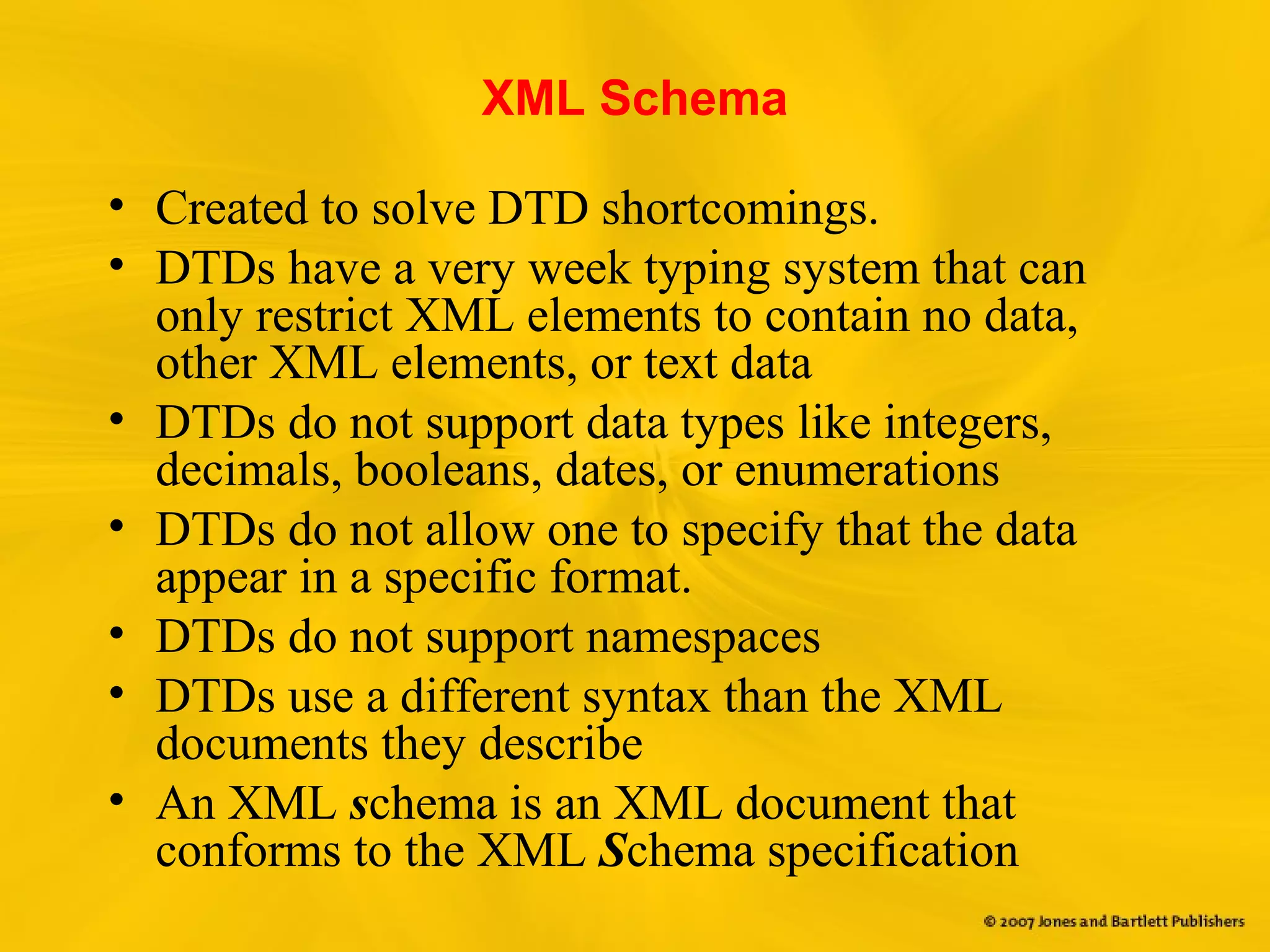

XML Schema
• Created to solve DTD shortcomings.
• DTDs have a very week typing system that can
only restrict XML elements to contain no data,
other XML elements, or text data
• DTDs do not support data types like integers,
decimals, booleans, dates, or enumerations
• DTDs do not allow one to specify that the data
appear in a specific format.
• DTDs do not support namespaces
• DTDs use a different syntax than the XML
documents they describe
• An XML schema is an XML document that
conforms to the XML Schema specification

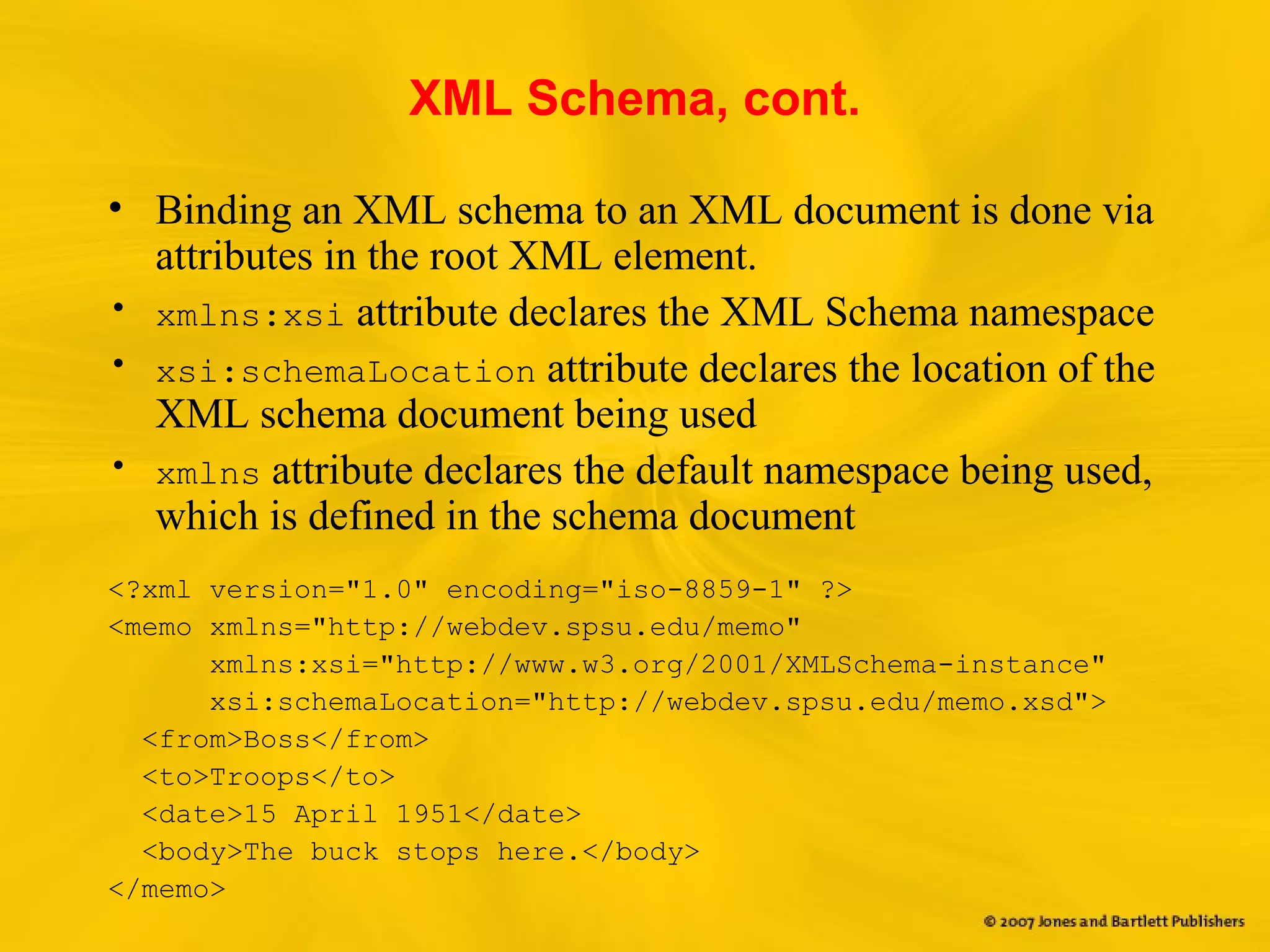

XML Schema, cont.
• Binding an XML schema to an XML document is done via
attributes in the root XML element.
• xmlns:xsi attribute declares the XML Schema namespace
• xsi:schemaLocation attribute declares the location of the
XML schema document being used
• xmlns attribute declares the default namespace being used,
which is defined in the schema document
<memo xmlns="http://webdev.spsu.edu/memo"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://webdev.spsu.edu/memo.xsd">
<from>Boss</from>
<to>Troops</to>
</memo>

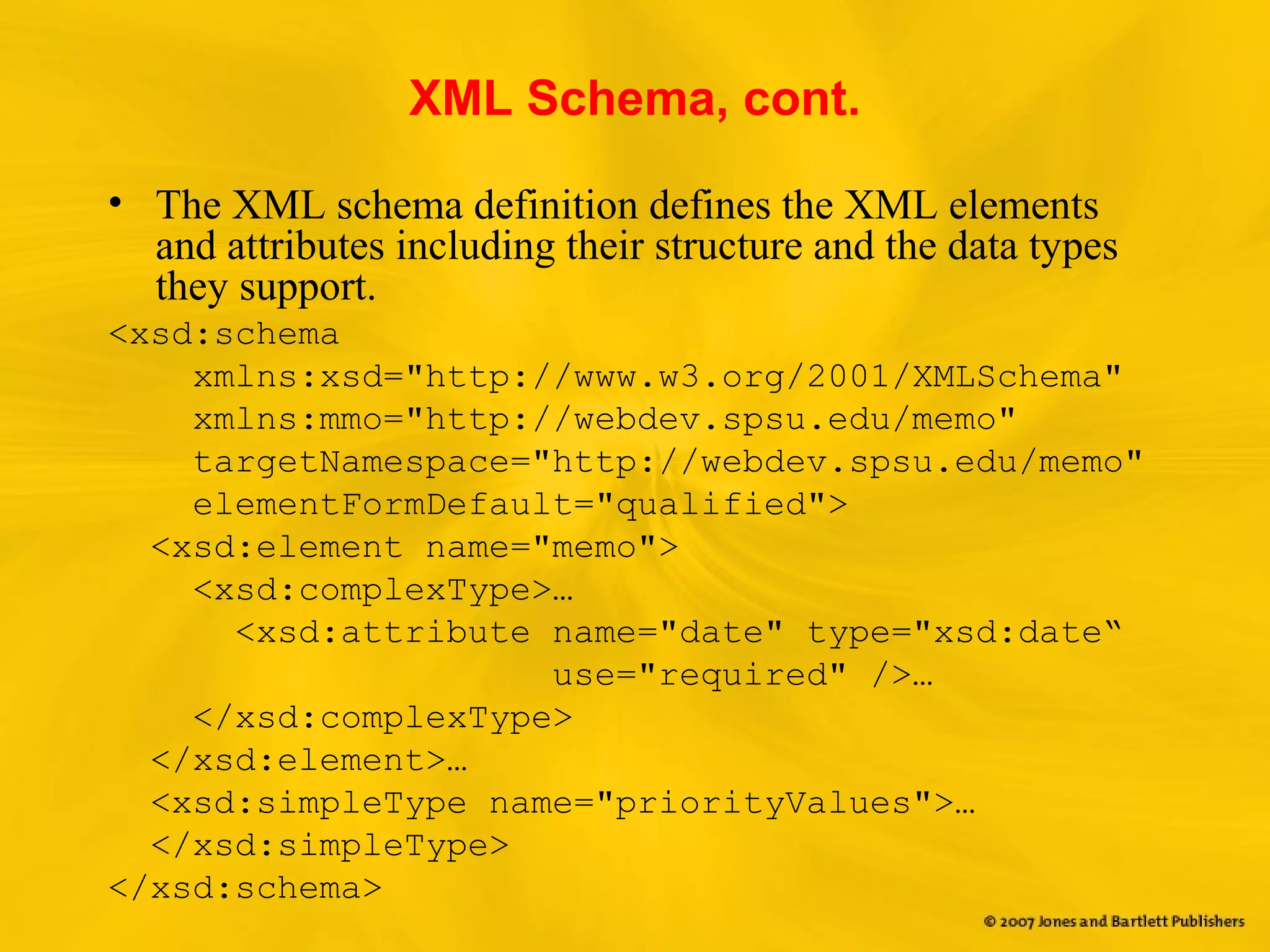

XML Schema, cont.
• The XML schema definition defines the XML elements
and attributes including their structure and the data types
they support.
<xsd:schema
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:mmo="http://webdev.spsu.edu/memo"
targetNamespace="http://webdev.spsu.edu/memo"
elementFormDefault="qualified">
<xsd:element name="memo">
<xsd:complexType>…
<xsd:attribute name="date" type="xsd:date“
use="required" />…
</xsd:complexType>
</xsd:element>…
<xsd:simpleType name="priorityValues">…
</xsd:simpleType>
</xsd:schema>

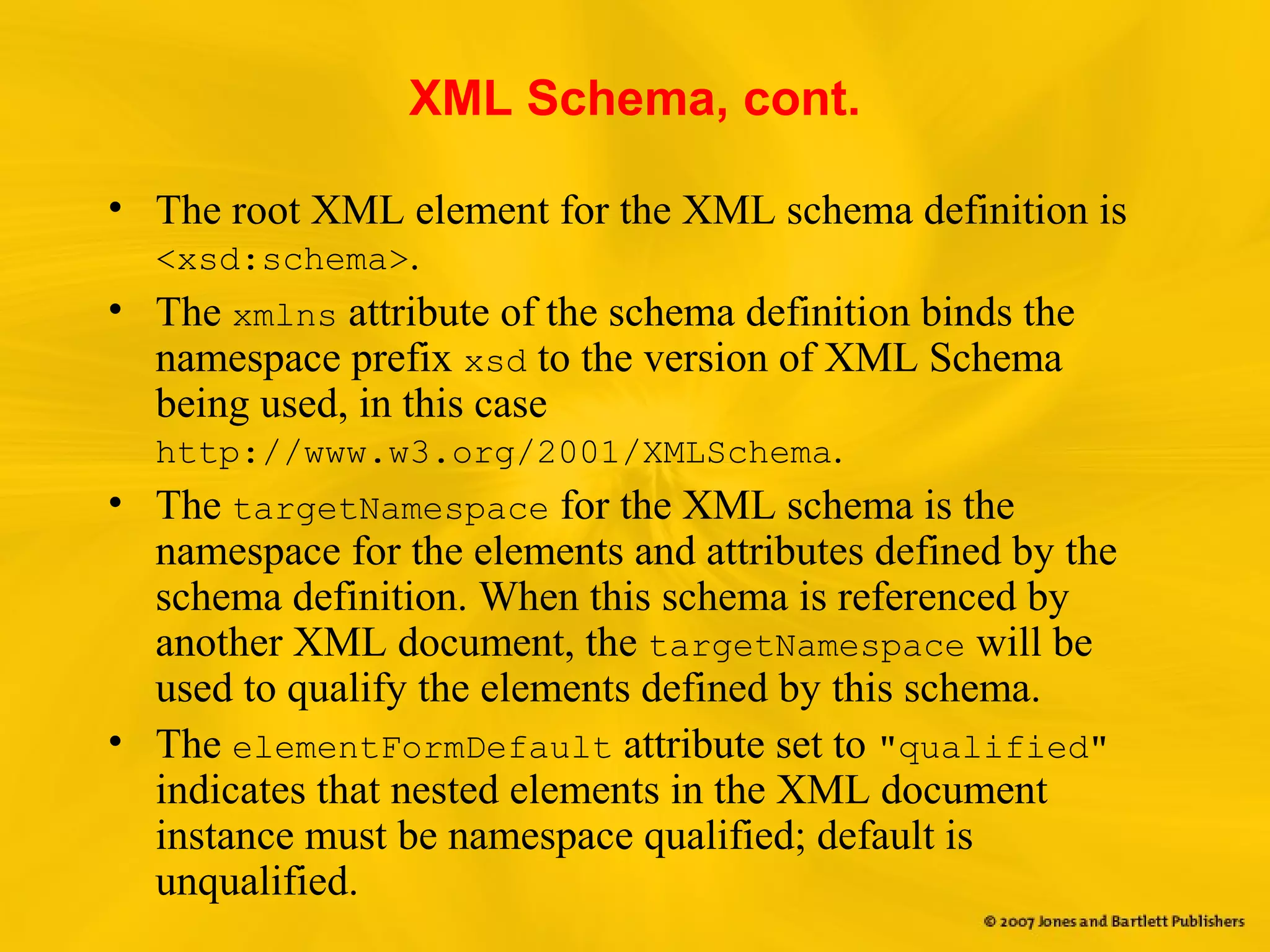

XML Schema, cont.
• The root XML element for the XML schema definition is
<xsd:schema>.
• The xmlns attribute of the schema definition binds the
namespace prefix xsd to the version of XML Schema
being used, in this case
http://www.w3.org/2001/XMLSchema.
• The targetNamespace for the XML schema is the
namespace for the elements and attributes defined by the
schema definition. When this schema is referenced by
another XML document, the targetNamespace will be
used to qualify the elements defined by this schema.
• The elementFormDefault attribute set to "qualified"
indicates that nested elements in the XML document
instance must be namespace qualified; default is
unqualified.

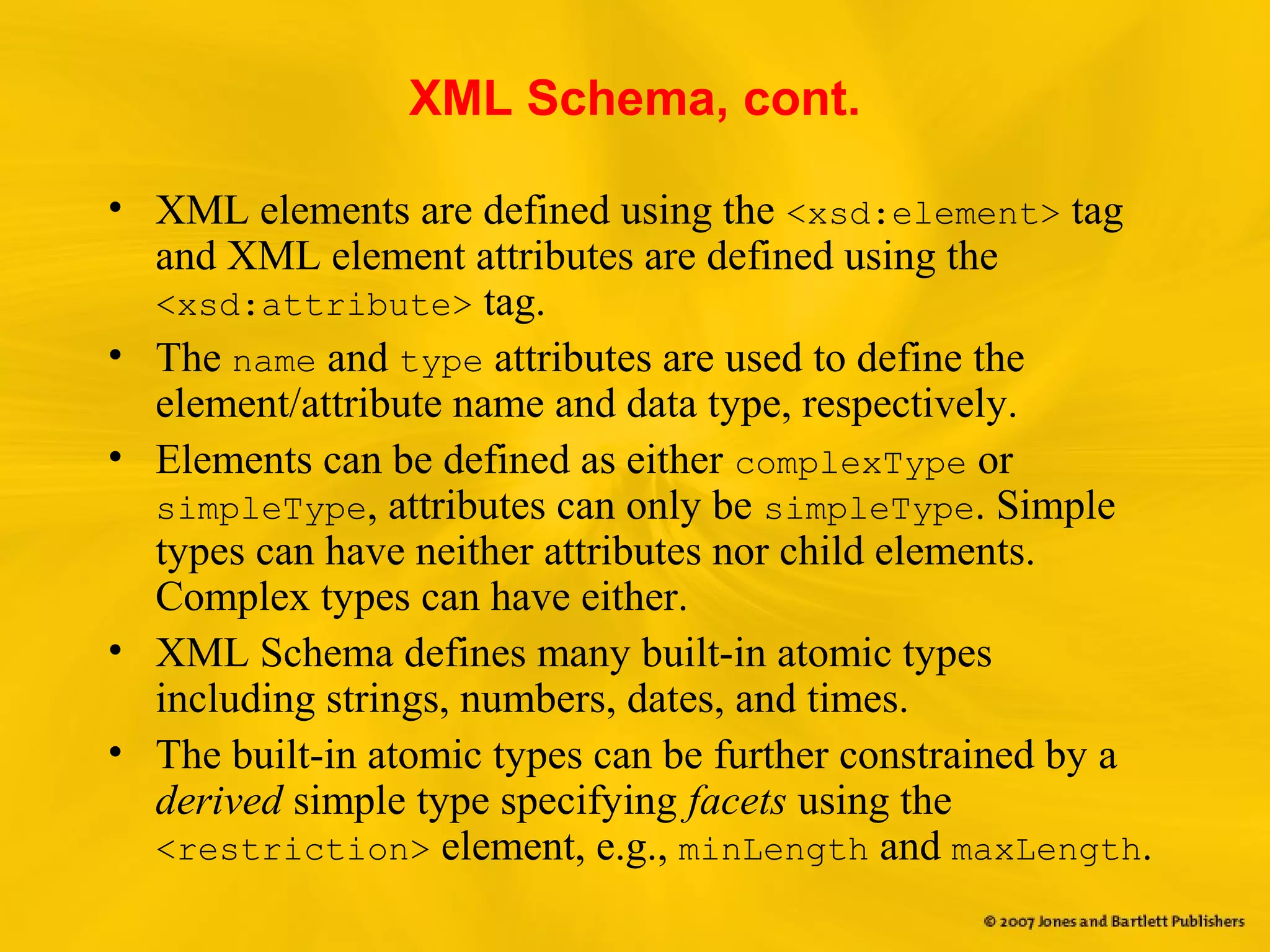

XML Schema, cont.
• XML elements are defined using the <xsd:element> tag
and XML element attributes are defined using the
<xsd:attribute> tag.
• The name and type attributes are used to define the
element/attribute name and data type, respectively.
• Elements can be defined as either complexType or
simpleType, attributes can only be simpleType. Simple
types can have neither attributes nor child elements.
Complex types can have either.
• XML Schema defines many built-in atomic types
including strings, numbers, dates, and times.
• The built-in atomic types can be further constrained by a
derived simple type specifying facets using the
<restriction> element, e.g., minLength and maxLength.

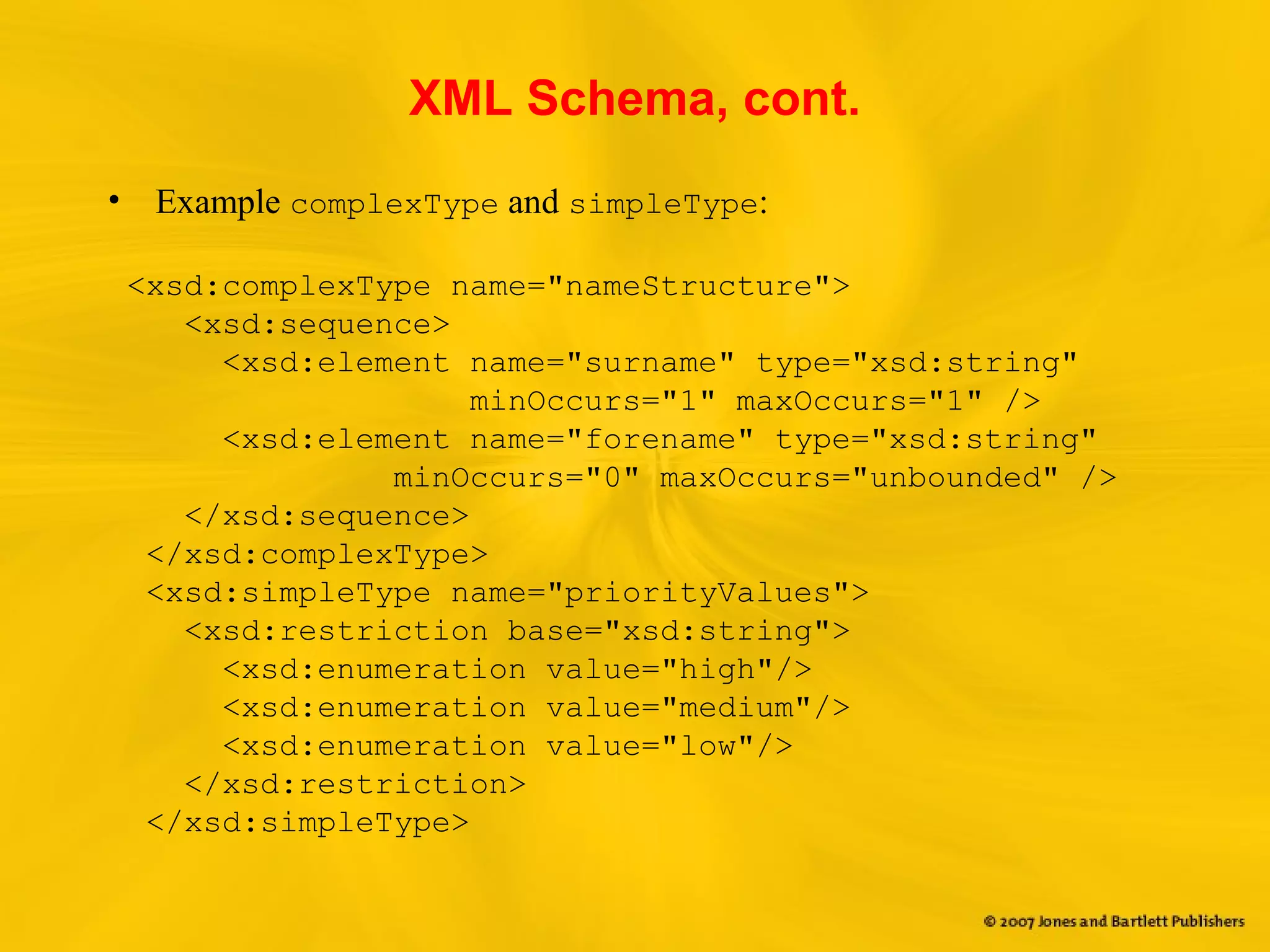

XML Schema, cont.
• Example complexType and simpleType:
<xsd:complexType name="nameStructure">
<xsd:sequence>
<xsd:element name="surname" type="xsd:string"
minOccurs="1" maxOccurs="1" />
<xsd:element name="forename" type="xsd:string"
minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
<xsd:simpleType name="priorityValues">
<xsd:restriction base="xsd:string">
<xsd:enumeration value="high"/>
<xsd:enumeration value="medium"/>
<xsd:enumeration value="low"/>
</xsd:restriction>
</xsd:simpleType>

Parsing XML
• XML parsers are software programs that know how to
read and manipulate XML documents.
• The most popular XML parser APIs today are the Simple
API for XML (SAX) and the Document Object Model
(DOM).
• DOM caches the parsed XML in memory, SAX does not.
• SAX sends events to registered listeners when it
encounters data while parsing an XML document, but does
not store the parsed data in memory. Listeners must cache
data if they want to keep it around.
• DOM parses the entire XML document into memory as a
hierarchical object model – a tree structure of objects
called nodes.
• SAX parsers tend to consume less memory and be faster
than DOM parsers. However, DOM provides the benefit of
being able to randomly access the parsed document.

Simple API for XML (SAX)
• SAX is an event-driven model where you provide objects with
callback methods (sometimes called listeners) that the parser invokes
as it reads data from an XML document. Access to the XML data is
provided by a SAX parser in a serial fashion. Meaning once a piece of
data is read and provided to a callback method, that data is not read
again.
• SAX interfaces with callback methods that have to be implemented by
the developer:
org.xml.sax.ContentHandler – The primary listener that you will
implement for most all applications that use SAX. Called by the parser
to notify the listener that data (content) was encountered.
org.xml.sax.ErrorHandler – Called when an error is encountered.
SAX parsers do not throw exceptions.
org.xml.sax.DTDHandler – Provides information about a DTD being
used
org.xml.sax.EntityResolver – Used to get external data defined by
an external entity
• org.xml.sax.helpers.DefaultHandler implements the methods
of all four interfaces so one only has to extend this class

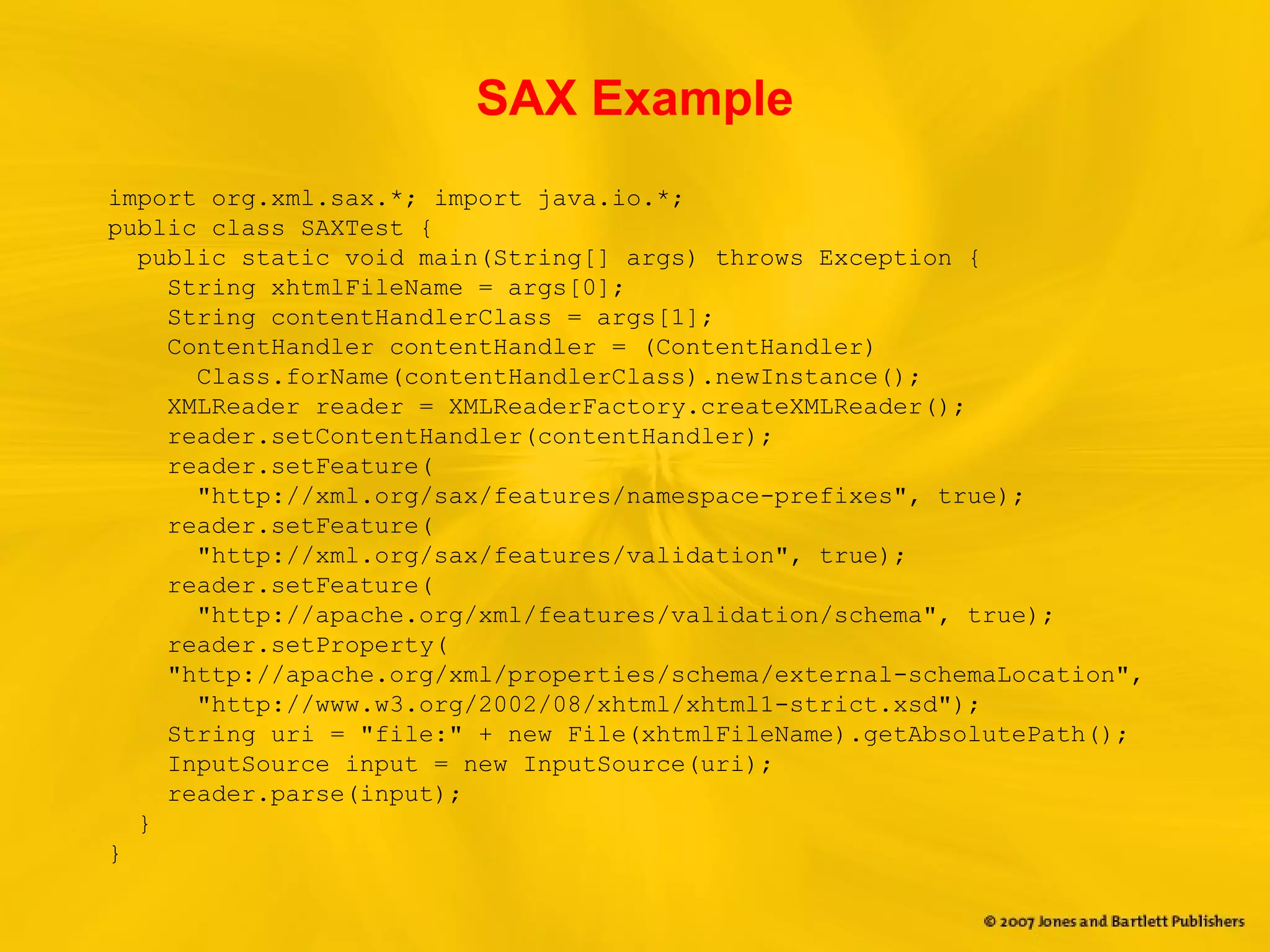

SAX Example
import org.xml.sax.*; import java.io.*;
public class SAXTest {
public static void main(String[] args) throws Exception {
String xhtmlFileName = args[0];
String contentHandlerClass = args[1];
ContentHandler contentHandler = (ContentHandler)
Class.forName(contentHandlerClass).newInstance();
XMLReader reader = XMLReaderFactory.createXMLReader();
reader.setContentHandler(contentHandler);
reader.setFeature(
"http://xml.org/sax/features/namespace-prefixes", true);
reader.setFeature(
"http://xml.org/sax/features/validation", true);
reader.setFeature(
"http://apache.org/xml/features/validation/schema", true);
reader.setProperty(
"http://apache.org/xml/properties/schema/external-schemaLocation",
"http://www.w3.org/2002/08/xhtml/xhtml1-strict.xsd");
String uri = "file:" + new File(xhtmlFileName).getAbsolutePath();
InputSource input = new InputSource(uri);
reader.parse(input);
}
}

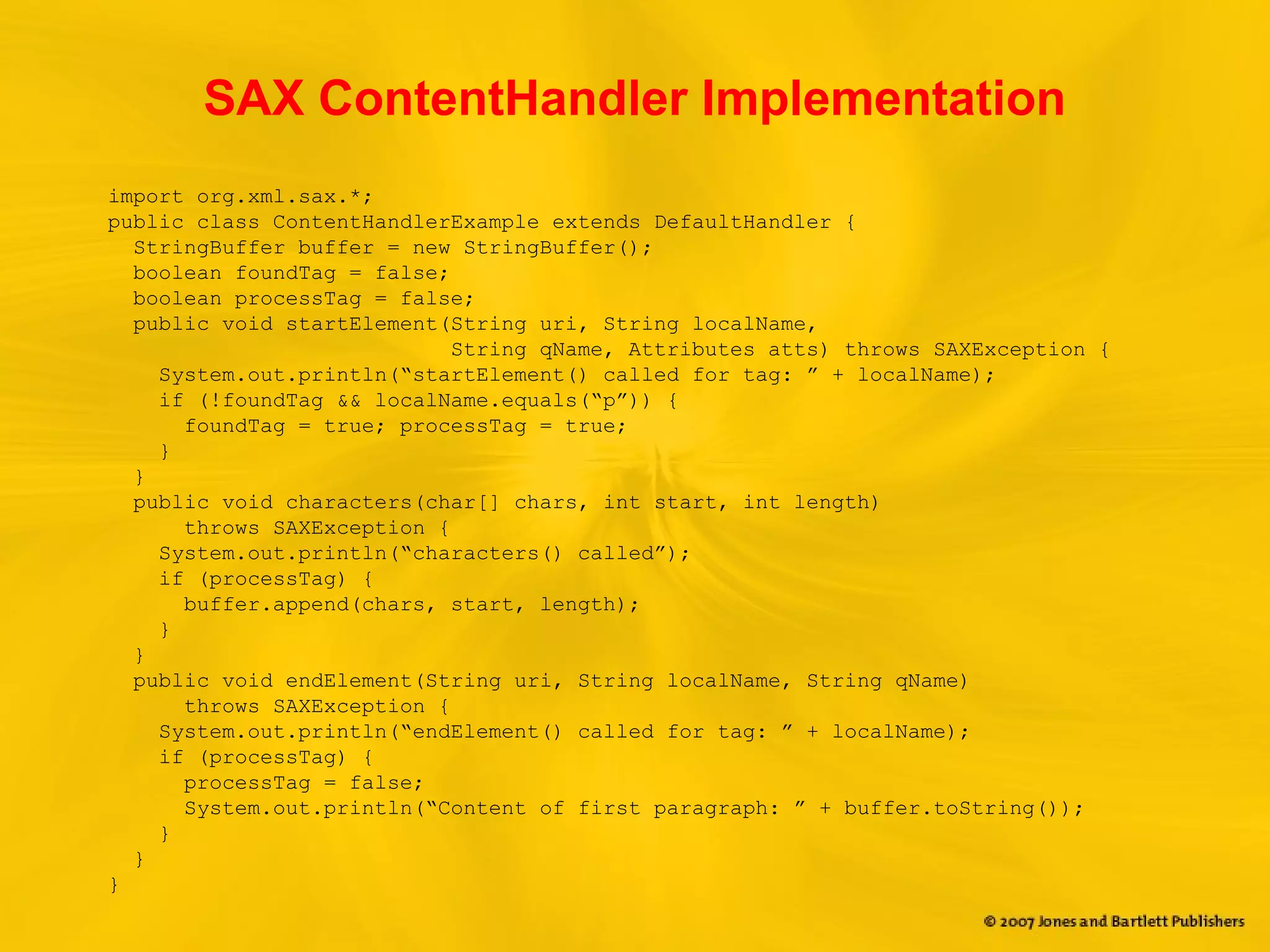

SAX ContentHandler Implementation
import org.xml.sax.*;
public class ContentHandlerExample extends DefaultHandler {
StringBuffer buffer = new StringBuffer();
boolean foundTag = false;
boolean processTag = false;
public void startElement(String uri, String localName,
String qName, Attributes atts) throws SAXException {
System.out.println(“startElement() called for tag: ” + localName);
if (!foundTag && localName.equals(“p”)) {
foundTag = true; processTag = true;
}
}
public void characters(char[] chars, int start, int length)
throws SAXException {
System.out.println(“characters() called”);
if (processTag) {
buffer.append(chars, start, length);
}
}
public void endElement(String uri, String localName, String qName)
throws SAXException {
System.out.println(“endElement() called for tag: ” + localName);
if (processTag) {
processTag = false;
System.out.println(“Content of first paragraph: ” + buffer.toString());
}
}
}

SAX Example: Input File and Output
<html xmlns="http://www.w3.org/1999/xhtml">
<head><title>XHTML Test</title></head>
<body>
<h1>Heading Content</h1>
First Paragraph Content
Second Paragraph Content
</body>
</html>
startElement() called for tag: html
characters() called
startElement() called for tag: head
startElement() called for tag: title
characters() called
endElement() called for tag: title
endElement() called for tag: head
characters() called
startElement() called for tag: body
characters() called
startElement() called for tag: h1
characters() called
endElement() called for tag: h1
characters() called
startElement() called for tag: p
characters() called
endElement() called for tag: p
Content of first paragraph: First Paragraph Content
characters() called
startElement() called for tag: p
characters() called
endElement() called for tag: p
characters() called
endElement() called for tag: body
characters() called
endElement() called for tag: html

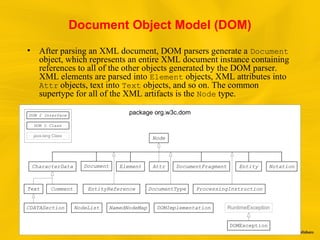

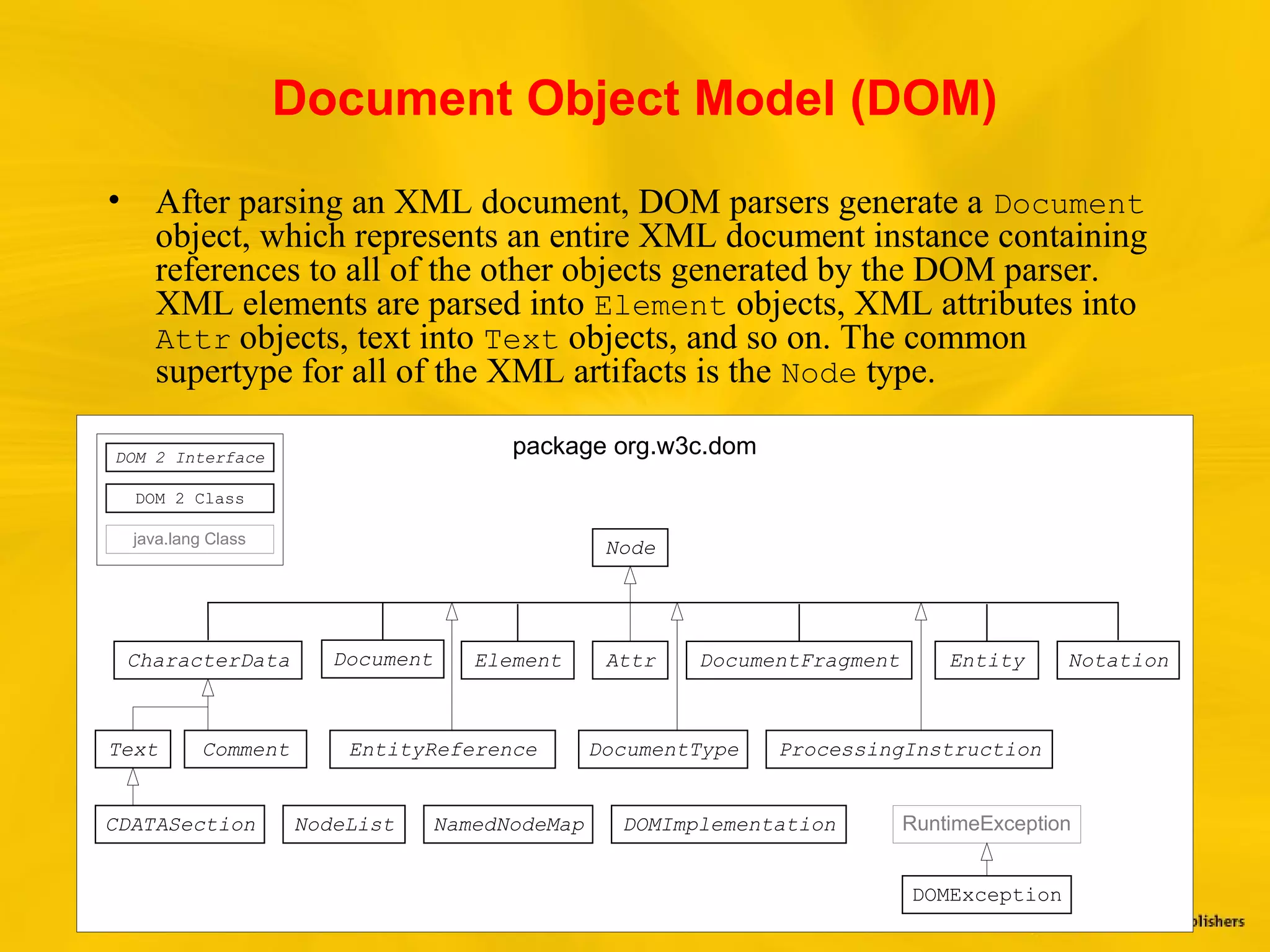

Document Object Model (DOM)
• After parsing an XML document, DOM parsers generate a Document
object, which represents an entire XML document instance containing
references to all of the other objects generated by the DOM parser.
XML elements are parsed into Element objects, XML attributes into
Attr objects, text into Text objects, and so on. The common
supertype for all of the XML artifacts is the Node type.
Comment
Node
Document ElementCharacterData
Text
Attr
DOM 2 Interface
DOM 2 Class
java.lang Class
DocumentFragment
EntityReference
Entity
DocumentType
Notation
CDATASection DOMImplementationNodeList NamedNodeMap
ProcessingInstruction
DOMException
RuntimeException
package org.w3c.dom

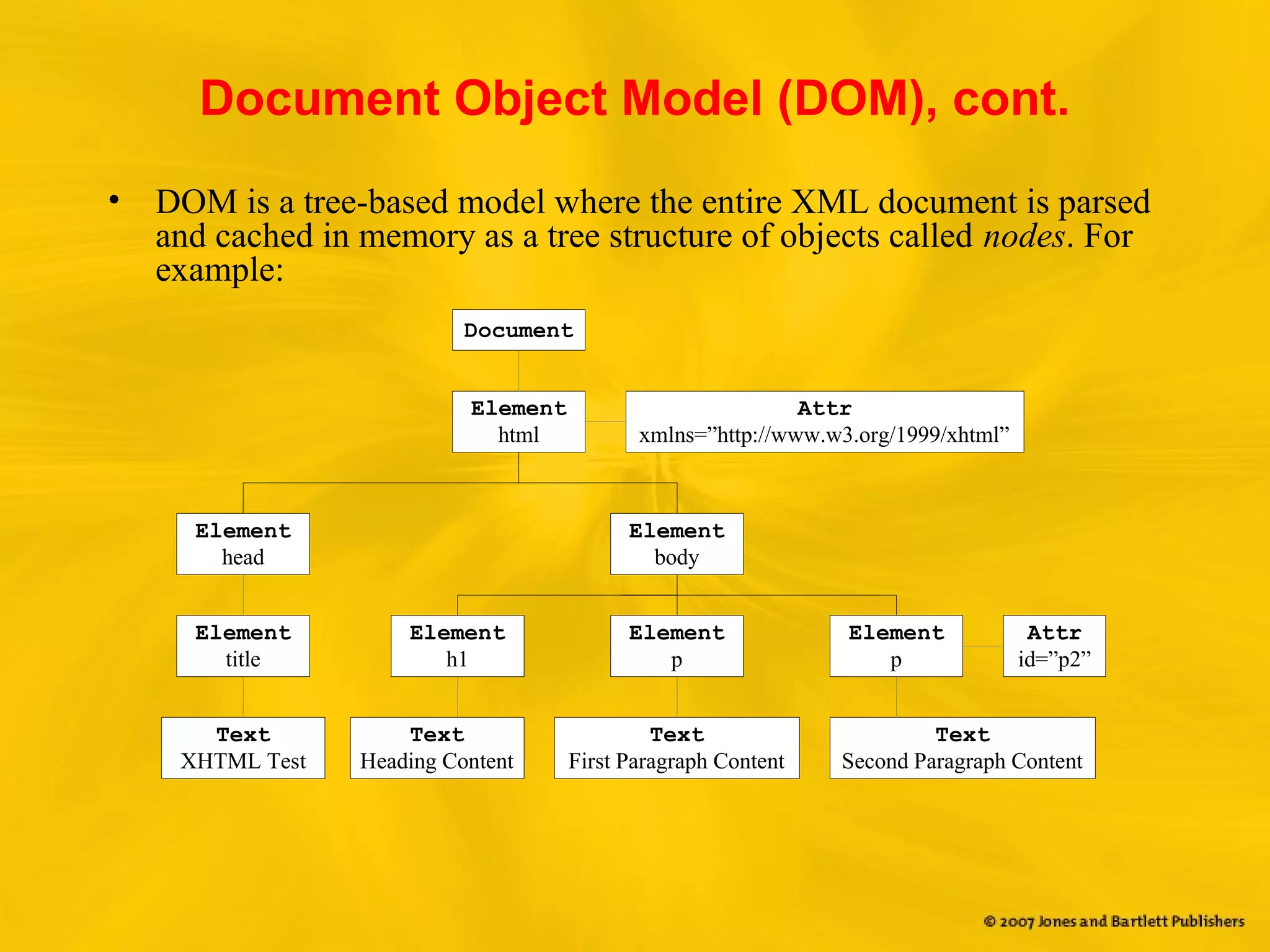

Document Object Model (DOM), cont.
• DOM is a tree-based model where the entire XML document is parsed
and cached in memory as a tree structure of objects called nodes. For
example:
Document
Element
html
Element
head
Element
title
Element
body
Element
p
Element
p
Element
h1
Text
XHTML Test
Text
Heading Content
Text
First Paragraph Content
Text
Second Paragraph Content
Attr
xmlns=”http://www.w3.org/1999/xhtml”
Attr
id=”p2”

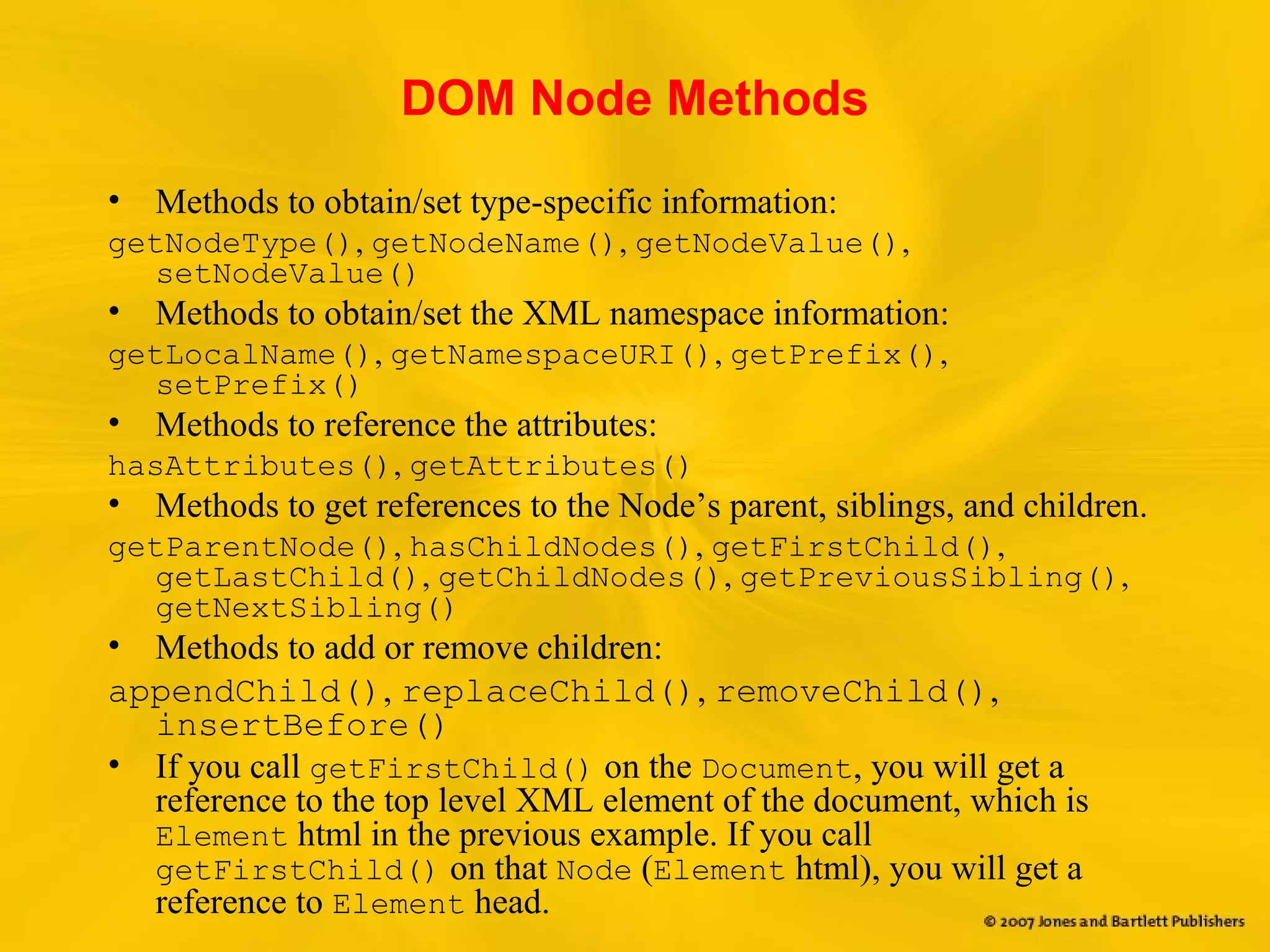

DOM Node Methods
• Methods to obtain/set type-specific information:
getNodeType(), getNodeName(), getNodeValue(),
setNodeValue()
• Methods to obtain/set the XML namespace information:
getLocalName(), getNamespaceURI(), getPrefix(),
setPrefix()
• Methods to reference the attributes:
hasAttributes(), getAttributes()
• Methods to get references to the Node’s parent, siblings, and children.
getParentNode(), hasChildNodes(), getFirstChild(),
getLastChild(), getChildNodes(), getPreviousSibling(),
getNextSibling()
• Methods to add or remove children:
appendChild(), replaceChild(), removeChild(),
insertBefore()
• If you call getFirstChild() on the Document, you will get a
reference to the top level XML element of the document, which is
Element html in the previous example. If you call
getFirstChild() on that Node (Element html), you will get a
reference to Element head.

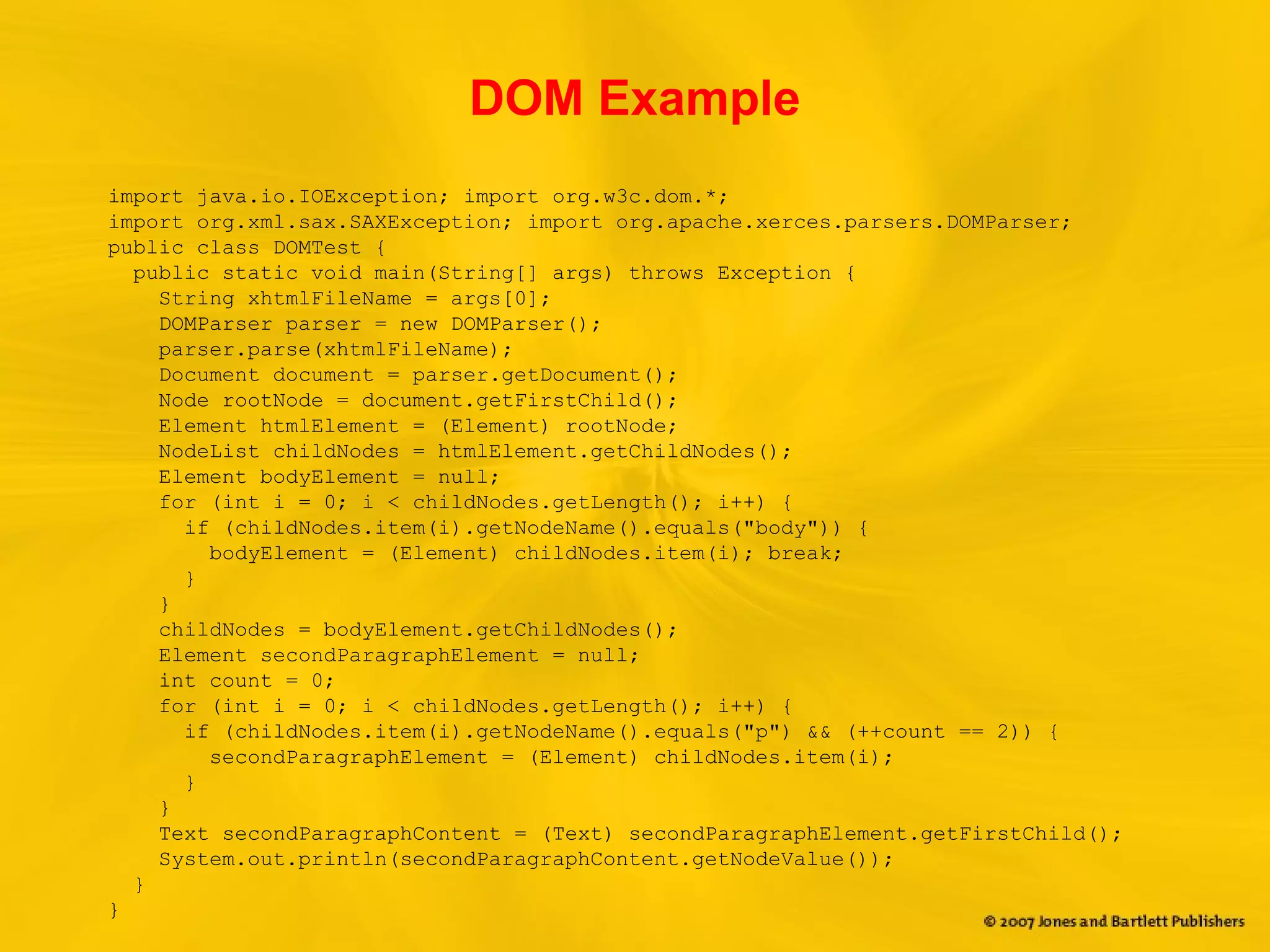

DOM Example
import java.io.IOException; import org.w3c.dom.*;
import org.xml.sax.SAXException; import org.apache.xerces.parsers.DOMParser;
public class DOMTest {
String xhtmlFileName = args[0];
DOMParser parser = new DOMParser();
parser.parse(xhtmlFileName);
Document document = parser.getDocument();
Node rootNode = document.getFirstChild();
Element htmlElement = (Element) rootNode;
NodeList childNodes = htmlElement.getChildNodes();
Element bodyElement = null;
for (int i = 0; i < childNodes.getLength(); i++) {
if (childNodes.item(i).getNodeName().equals("body")) {
bodyElement = (Element) childNodes.item(i); break;
}
}
childNodes = bodyElement.getChildNodes();
Element secondParagraphElement = null;
int count = 0;
for (int i = 0; i < childNodes.getLength(); i++) {
if (childNodes.item(i).getNodeName().equals("p") && (++count == 2)) {
secondParagraphElement = (Element) childNodes.item(i);
}
}
Text secondParagraphContent = (Text) secondParagraphElement.getFirstChild();
System.out.println(secondParagraphContent.getNodeValue());
}
}

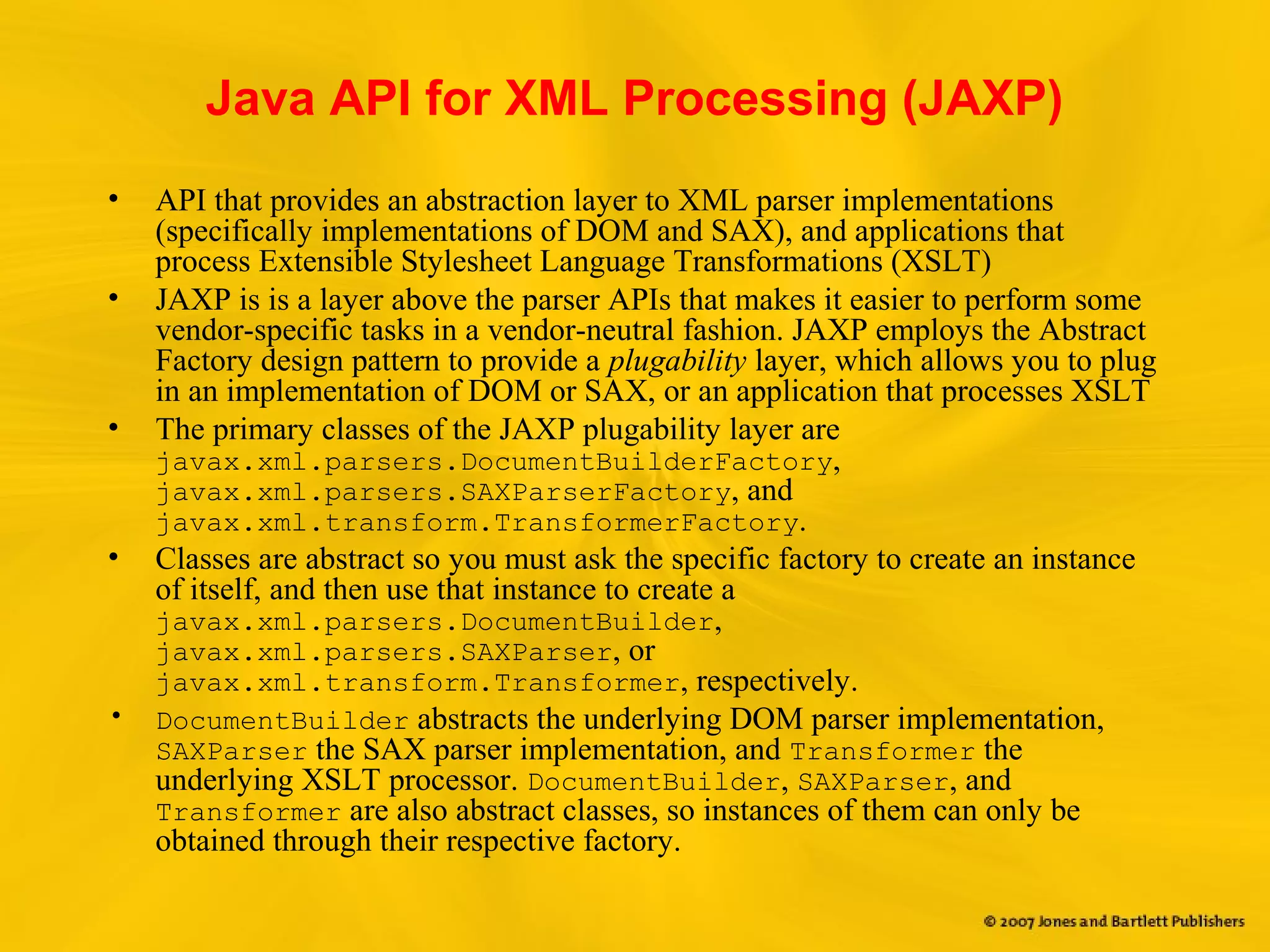

Java API for XML Processing (JAXP)
• API that provides an abstraction layer to XML parser implementations
(specifically implementations of DOM and SAX), and applications that
process Extensible Stylesheet Language Transformations (XSLT)
• JAXP is is a layer above the parser APIs that makes it easier to perform some
vendor-specific tasks in a vendor-neutral fashion. JAXP employs the Abstract
Factory design pattern to provide a plugability layer, which allows you to plug
in an implementation of DOM or SAX, or an application that processes XSLT
• The primary classes of the JAXP plugability layer are
javax.xml.parsers.DocumentBuilderFactory,
javax.xml.parsers.SAXParserFactory, and
javax.xml.transform.TransformerFactory.
• Classes are abstract so you must ask the specific factory to create an instance
of itself, and then use that instance to create a
javax.xml.parsers.DocumentBuilder,
javax.xml.parsers.SAXParser, or
javax.xml.transform.Transformer, respectively.
• DocumentBuilder abstracts the underlying DOM parser implementation,
SAXParser the SAX parser implementation, and Transformer the
underlying XSLT processor. DocumentBuilder, SAXParser, and
Transformer are also abstract classes, so instances of them can only be
obtained through their respective factory.

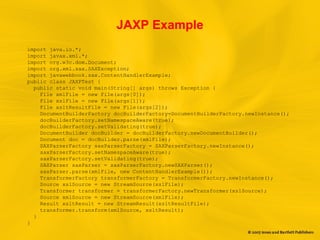

JAXP Example
import java.io.*;
import javax.xml.*;
import org.w3c.dom.Document;
import org.xml.sax.SAXException;
import javawebbook.sax.ContentHandlerExample;
public class JAXPTest {
File xmlFile = new File(args[0]);
File xslFile = new File(args[1]);
File xsltResultFile = new File(args[2]);
DocumentBuilderFactory docBuilderFactory=DocumentBuilderFactory.newInstance();
docBuilderFactory.setNamespaceAware(true);
docBuilderFactory.setValidating(true);
DocumentBuilder docBuilder = docBuilderFactory.newDocumentBuilder();
Document doc = docBuilder.parse(xmlFile);
SAXParserFactory saxParserFactory = SAXParserFactory.newInstance();
saxParserFactory.setNamespaceAware(true);
saxParserFactory.setValidating(true);
SAXParser saxParser = saxParserFactory.newSAXParser();
saxParser.parse(xmlFile, new ContentHandlerExample());
TransformerFactory transformerFactory = TransformerFactory.newInstance();
Source xslSource = new StreamSource(xslFile);
Transformer transformer = transformerFactory.newTransformer(xslSource);
Source xmlSource = new StreamSource(xmlFile);
Result xsltResult = new StreamResult(xsltResultFile);
transformer.transform(xmlSource, xsltResult);
}
}

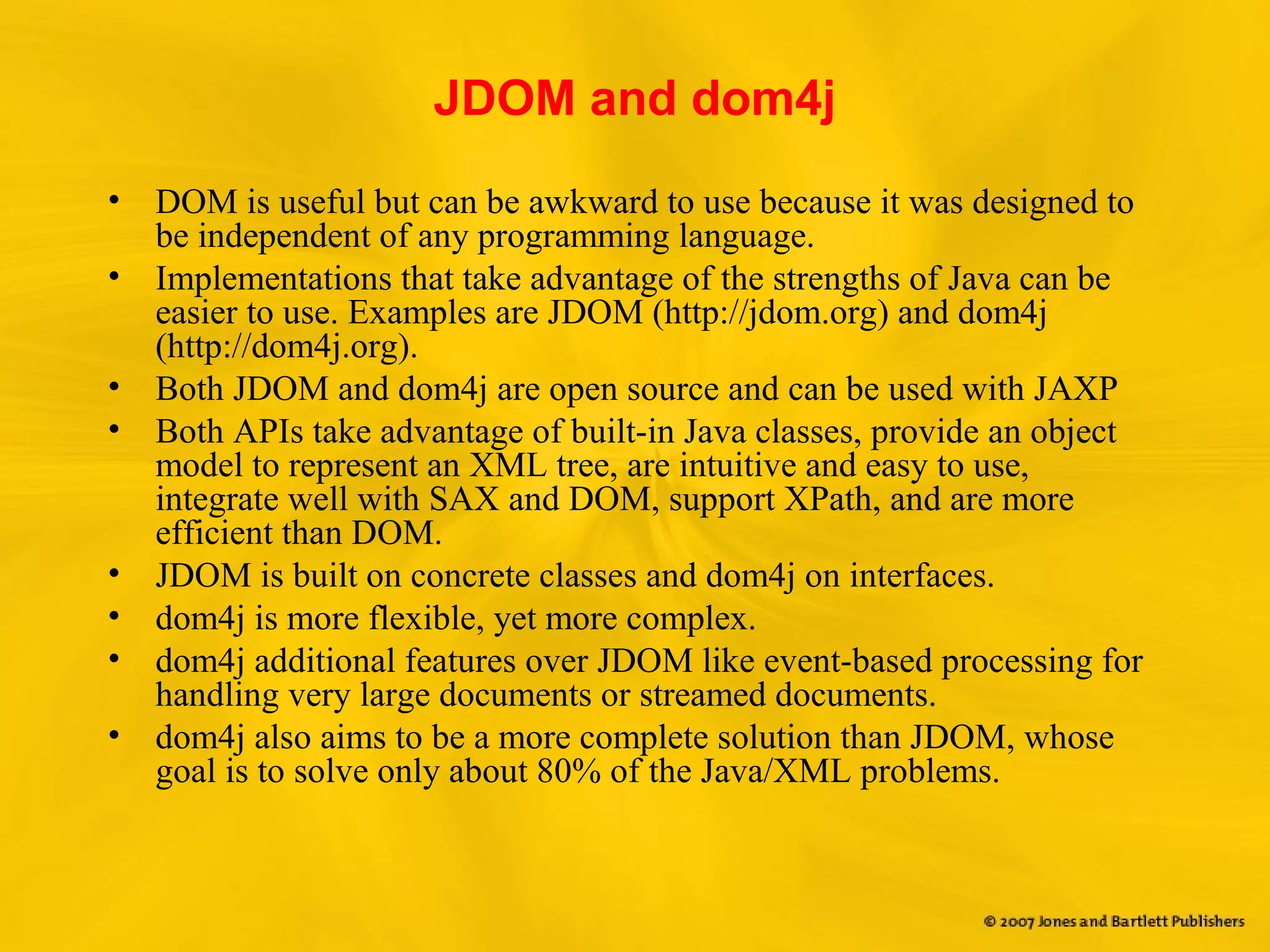

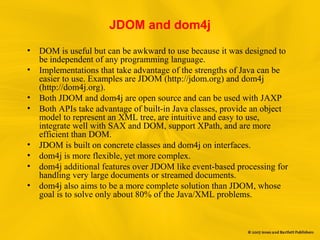

JDOM and dom4j
• DOM is useful but can be awkward to use because it was designed to
be independent of any programming language.
• Implementations that take advantage of the strengths of Java can be
easier to use. Examples are JDOM (http://jdom.org) and dom4j
(http://dom4j.org).
• Both JDOM and dom4j are open source and can be used with JAXP
• Both APIs take advantage of built-in Java classes, provide an object
model to represent an XML tree, are intuitive and easy to use,
integrate well with SAX and DOM, support XPath, and are more
efficient than DOM.
• JDOM is built on concrete classes and dom4j on interfaces.
• dom4j is more flexible, yet more complex.
• dom4j additional features over JDOM like event-based processing for
handling very large documents or streamed documents.
• dom4j also aims to be a more complete solution than JDOM, whose
goal is to solve only about 80% of the Java/XML problems.

Transforming XML Using XSLT
• Extensible Stylesheet Language Transformations (XSLT)
are part of the XML Stylesheet Language (XSL).
• An XSLT stylesheet, which is simply and XML document,
contains instructions on how an XML document should be
transformed by an XSLT processor. XSLT is a full
programming language, expressed as XML, designed
specifically for reformatting XML documents. There are
more than 50 XSLT elements and more than 200 attributes.
• XSL Transformations provide a way to translate the
semantic descriptions of an XML document to
presentational descriptions, e.g., translate XML to HTML.
• XSL Transformations allow XML data to be reordered,
permit the display of attributes, and allow elements to be
displayed in an order other than that in which they are
given in the XML document. XSL Transformations can
also add static data to the output, such as XHTML tags and
CSS style specifications.

XSLT, cont.
• Writing an XSLT stylesheet simply involves writing templates for
those elements that are to be a part of the output. The XSLT processor
traverses the supplied XML document tree looking for elements that
match these templates. Templates may include XML element and
attribute contents, other markup, such as XHTML tags, and other
literal and computed values. For example:
<xsl:stylesheet version="1.0"
xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
<xsl:template match="memo">
<xsl:apply-templates select="to/name" />
</xsl:template>
<xsl:template match="name">
<xsl:for-each select="forename">
<xsl:value-of select="."/><xsl:text> <xsl:text>
</xsl:for-each>
<xsl:value-of select="surname" />

</xsl:template>
</xsl:stylesheet>

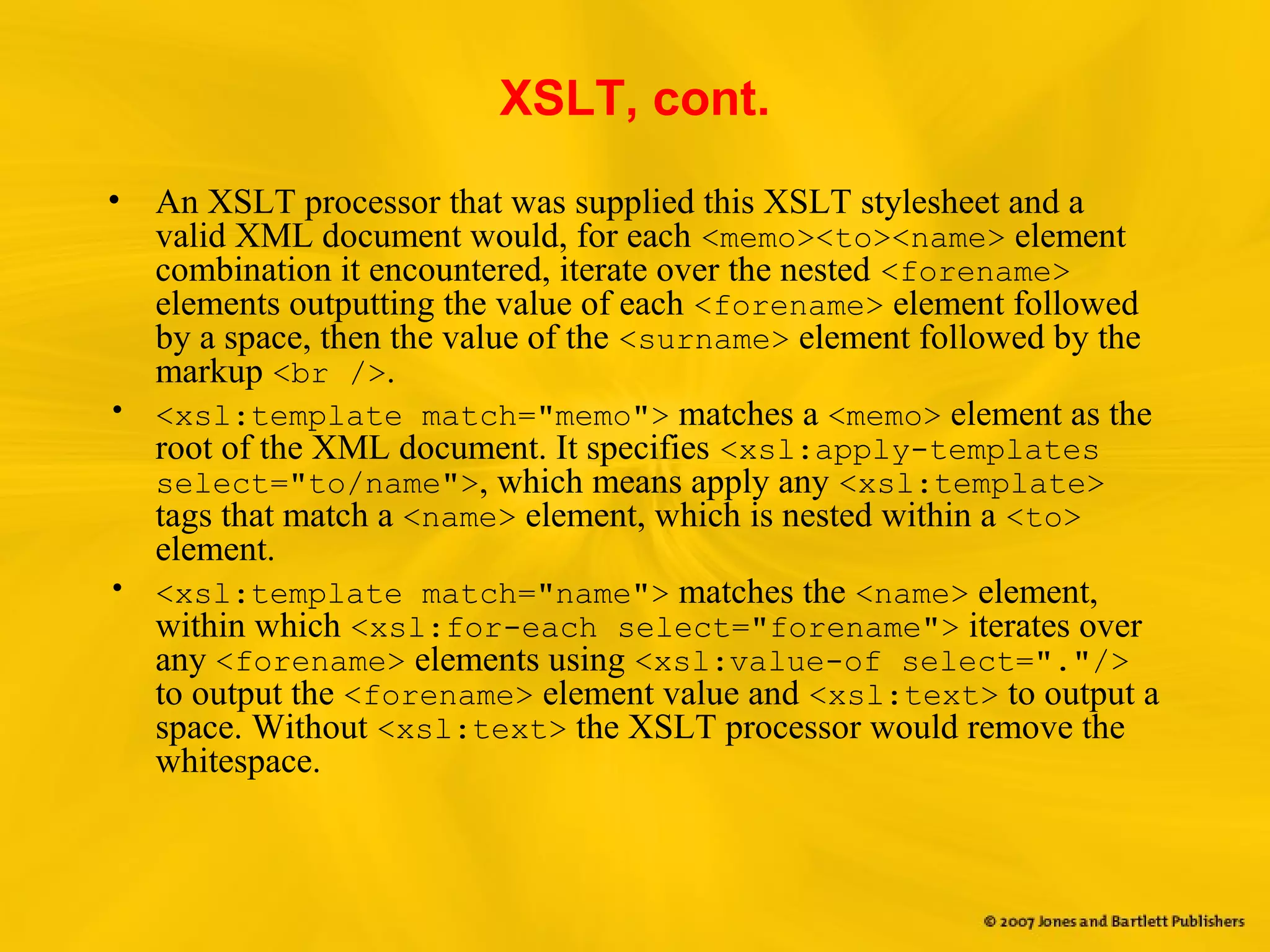

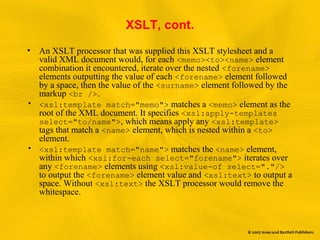

XSLT, cont.
• An XSLT processor that was supplied this XSLT stylesheet and a
valid XML document would, for each <memo><to><name> element
combination it encountered, iterate over the nested <forename>
elements outputting the value of each <forename> element followed
by a space, then the value of the <surname> element followed by the
markup .
• <xsl:template match="memo"> matches a <memo> element as the
root of the XML document. It specifies <xsl:apply-templates
select="to/name">, which means apply any <xsl:template>
tags that match a <name> element, which is nested within a <to>
element.
• <xsl:template match="name"> matches the <name> element,
within which <xsl:for-each select="forename"> iterates over
any <forename> elements using <xsl:value-of select="."/>
to output the <forename> element value and <xsl:text> to output a
space. Without <xsl:text> the XSLT processor would remove the
whitespace.

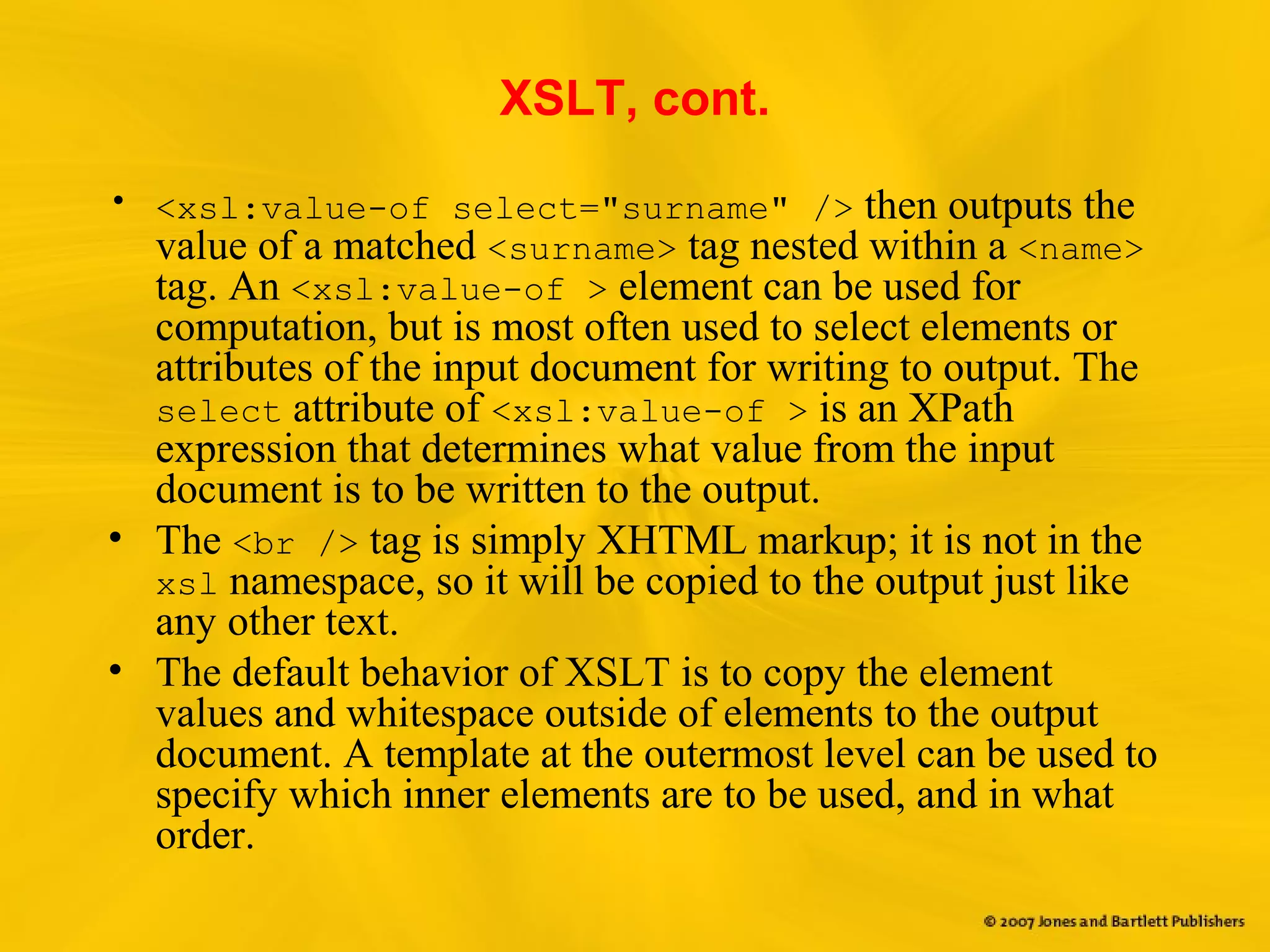

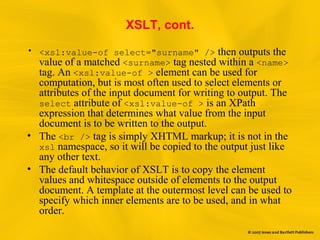

XSLT, cont.
• <xsl:value-of select="surname" /> then outputs the
value of a matched <surname> tag nested within a <name>
tag. An <xsl:value-of > element can be used for
computation, but is most often used to select elements or
attributes of the input document for writing to output. The
select attribute of <xsl:value-of > is an XPath
expression that determines what value from the input
document is to be written to the output.
• The tag is simply XHTML markup; it is not in the
xsl namespace, so it will be copied to the output just like
any other text.
• The default behavior of XSLT is to copy the element
values and whitespace outside of elements to the output
document. A template at the outermost level can be used to
specify which inner elements are to be used, and in what
order.

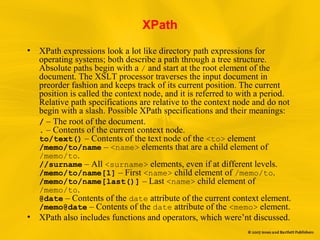

XPath
• XPath expressions look a lot like directory path expressions for
operating systems; both describe a path through a tree structure.
Absolute paths begin with a / and start at the root element of the
document. The XSLT processor traverses the input document in
preorder fashion and keeps track of its current position. The current
position is called the context node, and it is referred to with a period.
Relative path specifications are relative to the context node and do not
begin with a slash. Possible XPath specifications and their meanings:
/ – The root of the document.
. – Contents of the current context node.
to/text() – Contents of the text node of the <to> element
/memo/to/name – <name> elements that are a child element of
/memo/to.
//surname – All <surname> elements, even if at different levels.
/memo/to/name[1] – First <name> child element of /memo/to.
/memo/to/name[last()] – Last <name> child element of
/memo/to.
@date – Contents of the date attribute of the current context element.
/memo@date – Contents of the date attribute of the <memo> element.
• XPath also includes functions and operators, which were’nt discussed.

Ch2 neworder

More Related Content

What's hot

Viewers also liked

Similar to Ch2 neworder

Ch2 neworder
