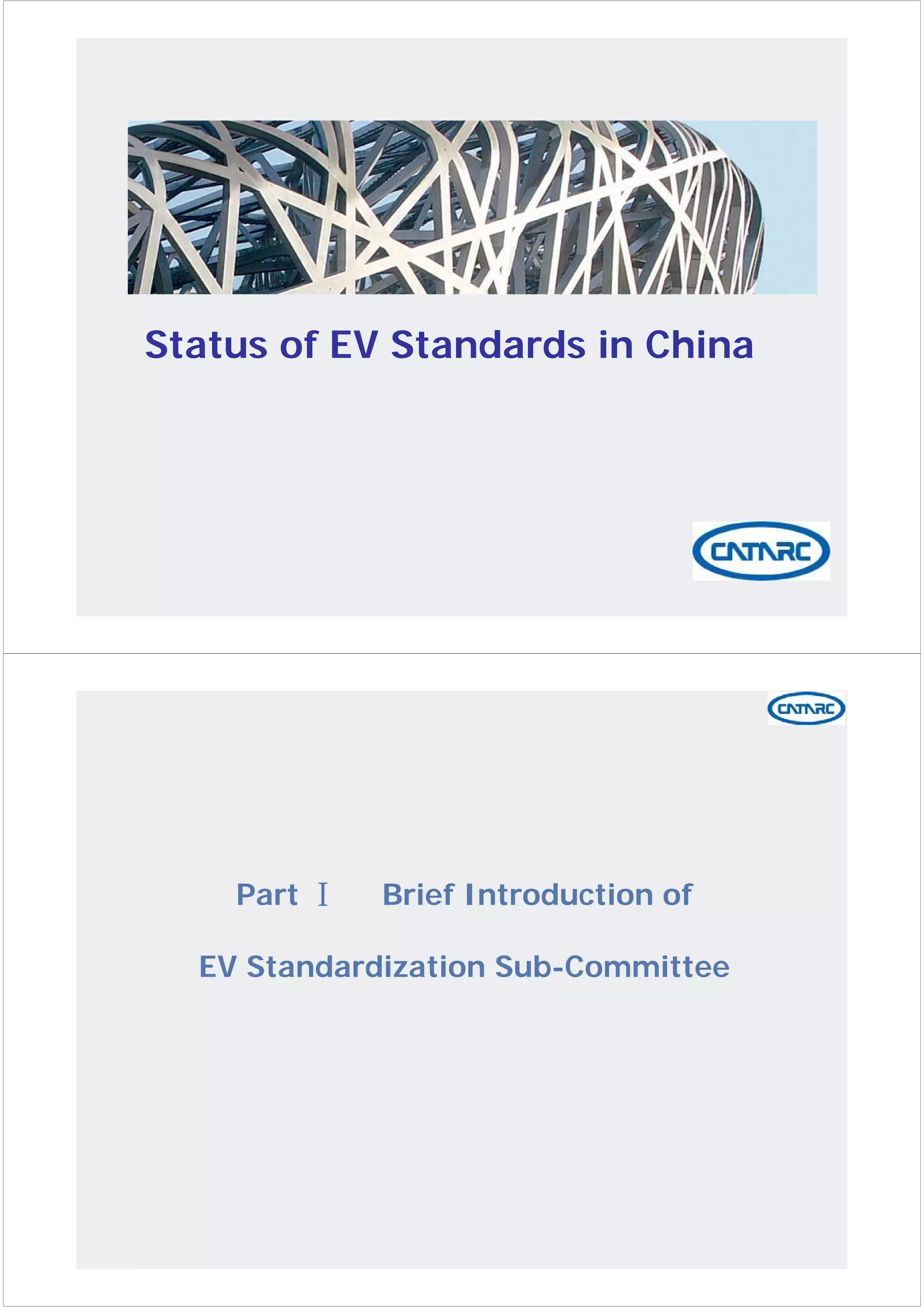

Status of EV Standards in China
Part Ⅰ Brief Introduction of
EV Standardization Sub-Committee
Electric Vehicle Charging Infrastructure
National
Standards
Industry
standards
SAC
MIIT
SAC/TC114/SC27
Secretariat: CATARC
NEA
CEC
MIIT
NEA/TC3
Secretariat: CEC
NEA
SAC/TC114/SC27
Secretariat: CATARC
Part Ⅰ Brief Introduction of EV Standardization Sub-Committee
EV/HEV
WG
Fuel cell vehicle
WG
Traction battery
WG
Electric machine
WG
2 kinds of full vehicle
standard
Key components
standard
Infrastructure
standard
Electric vehicle subcommittee
SAC/TC114/SC27
Electric vehicle standard
Introduction of electric vehicle subcommittee
Part Ⅰ Brief Introduction of EV Standardization Sub-Committee
 Founded by NTCAS at 1998, secretariat is located at CATARC.
 Guided by SAC and MIIT; Interface with ISO/TC22/SC21 and
IEC/TC69.
 Responsible for national electric vehicle standardization.
 37 committee members and 6 observers from electric vehicle
manufacture, traction battery company, electric machine
company, electric motorcycle company, inspection institute,
university and research institute, etc.
 4 work groups.
Summary
Part Ⅰ Brief Introduction of EV Standardization Sub-Committee
Part Ⅱ EV Standards System
Part Ⅱ EV Standards System
EV Standards in Use
No. SN Name Status
1
BEV and
key parts
GB/T18384.1-2001 EV Safety Requirement Part1: Energy Storage Active
2 GB/T18384.2-2001 EV Safety Requirement Part2: Function and protection Active
3 GB/T18384.3-2001 EV Safety Requirement Part3: electric shock protection Active
4 GB/T 4094.2-2005 Symbol of operator, indicator and signal of EV Active
5 GB/T 19596-2004 Electric vehicle Terminology Active
6 GB/T 18385-2005 Electric vehicle Power performance Test Procedure Active
7 GB/T 18386-2005
Electric vehicle Energy consumption and Range Test
procedure
Active
8 GB/T 18387-2008
30MHz
EV EMC Limit and Test Procedure Broad
band ,9kHz~30MHz
Active
9 GB/T 18388-2005 Electric vehicle Type Approval Test Procedure Active
10 GB/T 24552-2009
EV Windshield defrost and defog requirement and Test
procedure
Active
11 GB/T 19836-2005 Electric vehicle Instrument panel Active
12 QC/T 838-2010 Electric Bus with Ultra-Capacitor Active
Part Ⅱ EV Standards System
No. SN Name Status
13
HEV
GB/T 19751-2005 HEV Safety Requirement Active
14 GB/T 19750-2005 HEV Type Approval Test Procedure Active
15 GB/T 19752-2005 HEV Power Performance Test procedure Active
16 GB/T 19753-2005 Light Duty HEV Energy Consumption Test Procedure Active
17 GB/T 19754-2005 Heavy Duty HEV Energy Consumption Test procedure Active
18 GB/T 19755-2005 Light Duty HEV Emission Test Procedure Active
19 QC/T 837-2010 Classification of HEV Active
20 QC/T 894-2011
On Board Measurement Methods for Emissions from
Heavy-Duty Hybrid Electric Vehicles
Active
21
FCEV
GB/T 24554-2009 Fuel Cell Engine Performance Test Procedure Active
22 GB/T 24549-2009 Fuel Cell Electric vehicle Safety Requirement Active
23 GB/T 24548-2009 Fuel Cell Electric Vehicle Terminology Active
24 QC/T 816-2009 Specification of Hydrogen Refueling Vehicle Active
25 GB/T 26990-2011
Fuel cell electric vehicles - Onboard hydrogen system -
Specifications
Active
26 GB/T 26991-2011 Fuel cell electric vehicles - Maximum speed test method Active
27 QC/T 816-2009 Specification of mobile hydrogen refueling vehicles Active
EV Standards in Use
Part Ⅱ EV Standards System
No. SN Name Status
28
Energy
Storage
GB/Z18333.1-2001 Li-ion Battery Active
29 GB/Z18333.2-2001 Zinc-Air Battery Active
30 QC/T 741-2006 Ultra- Capacitor Active
31 QC/T 742-2006 Lead Acid Battery Active
32 QC/T 743-2006 Li-ion Battery Active
33 QC/T 744-2006 NiMH Battery Active
34 QC/T 840-2010 Battery Structure and Size Issued
35 QC/T 897-2011
Technical specification of Battery Management System for
Electric vehicles
Issued
36
Motor
and
Contro-
ller
GB/T18488.1-2006 Motor and its Controller Part1: Specification Active
37 GB/T18488.2-2006 Motor and its Controller Part2: Test Procedure Active
38 GB/T 24347-2009 DC/DC convertor Active
39 QC/T 896-2011 Interface of electrical machine system for electric vehicle Active
40 QC/T 893-2011
Failure classification and assessment of electrical machine
system for electric vehicle
Active
EV Standards in Use
Part Ⅱ EV Standards System
No. SN Name Status
41
Charging
&
Commu
nication
GB/T18487.1-2001 Conduct Charging System General Requirement Active
42 GB/T18487.2-2001 Connect Requirement of EV and DC Charger Active
43 GB/T18487.3-2001 AC/DC Charger (and Charger station) Active
44 GB/T 20234.1-2011
Connection set for conductive charging of electric vehicles
Part General requirements
Active
45 GB/T 20234.2-2011
Connection set for conductive charging of electric vehicles
Part 2:AC charging coupler
Active
46 GB/T 20234.3-2011
Connection set for conductive charging of electric vehicles
Part 3:DC charging coupler
Active
47 QC/T 895-2011 On-board conductive charger for electric vehicles issued
48 QC/T 839-2010 Electric System of Ultra-Capacitor Bus Active
49 QC/T 841-2010 Electric vehicle conductive charge coupler issued
50 QCT/842-2010
Communication Protocol between BMS and off board
Charger
issued
EV Standards in Use
Part Ⅱ EV Standards System
EV Standards in Use
Part Ⅱ EV Standards System
Status
Name
SN
No.
51
E-
motor
cycle
GB/T 24158-2009
Electric motorcycles and electric mopeds—General
specifications
Active
52
GB/T 24157-2009
Electric motorcycles and electric mopeds - Energy
consumption and range - Test procedures Active
53 GB/T 24156-2009
Electric motorcycles and electric mopeds—Power
performance—Test methods Active
54
QC/T 791-2007
Electric motorcycles and electric mopeds—Type Approval
Test Procedure Active
55
QC/T 792-2007
Electric motorcycles and electric mopeds—Motor and its
Controller Specification Active
56
GB 24155-2009
Electric motorcycles and electric mopeds - Safety
specifications Active
Up to now, national technical committee of auto standardization
(NTCAS) have organized and drafted 56 electric vehicle standards (38
national standards and 18 automotive industry standards) which have
been approved and released by standardization authorities.
Part Ⅱ EV Standards System
Released standards of electric vehicle in China
Progress of New Standards(to be issued)
Part Ⅱ EV Standards System
No
Item No name status
1
20091183-T-339 Light Duty HEV Energy Consumption Test Procedure Revised
2
20090040-T-339
General requirements for electric vehicle charging station
completed
3
20090040-T-339 Heavy Duty HEV Energy Consumption Test procedure Revised
4
20083096-T-339
Specifications for hydrogen fuel cell vehicles in
demonstration
completed
5
20083097-T-339
Hydrogen fuel cell vehicles Facilities for demonstration
Specifications
completed
6
20090044-T-339
The reliability test methods of electrical motor system for
electric vehicles
completed
7
20070544 -T-303 Battery electric passenger cars - Specifications completed
8
2009-1002T-QC
ultracapacitor Electric City Bus-Engineering Approval
Evaluation Program
completed
9
2010-1854T-QC
The reliability test methods for power train unit of light-
duty hybrid electric vehicles(ISG type)
completed
10
20110009-T-339
Fuel cell electric vehicles-Onboard hydrogen system-Test
methods
completed
11
20090041-T-339 Motor and its Controller Part1: Specification revised
12
20090042-T-339 Motor and its Controller Part2: Test Procedure revised
Part Ⅲ Research on Crash Safety
Standard of EV
Backgroud
 To provide safety vehicle product is the responsibility of
EV manufacturer
 Crash safety is the first challenge of EV manufacturer
 Variety differences between EV and conventional vehicle:
 The mass and dimension of electric motor is far less than
engine
 RESS and related system is located under seat or in trunk
 Potential dangerous of on-board high-energy RESS
 Potential injury to occupants from high-voltage circuit
Status of International EV Crash Std
State of Arts for EV Safety Std in China
No. title status
GB/T 18384.1 Safety Requirements for Electric Vehicles —
Part 1: RESS
Revising
GB/T 18384.2 Safety Requirements for Electric Vehicles— Part
2: Function Safety and Fault Defending
Revising
GB/T 18384.3 Safety Requirements for Electric Vehicles— Part
3: Protection against Electrical Shock
Revising
GB/T 19751-
2005
Safety Requirements for Hybrid Electric Vehicles Available
GB/T 24549-
2009
Safety Requirements for fuel cell Electric
Vehicles
Available
State of Arts for EV Safety Std in China
same
Over current specified by the
vehicle manufacturer; Short cut
on the circuit connecting the
traction battery
Over current
Breaker of
Traction Battery
same
prevent any short cut of the
power circuit
Prevention of
short circuit
>100Ω/V / 500Ω/V
N/A
Isolation
resistance
same
RESS cannot be thrown away
from vehicle
Protection
provided for third
party
same
RESS penetrate and electrolyte
spillage
Occupant
Protection
GB/T 19751-2005
GB/T 18384.1-2001
Std No.
Item
Plan & Development of EV Crash Safety

 The project was approved by SAC. The project code is
The project was approved by SAC. The project code is
20110008
20110008-
-T
T-
-339
339 and project name is
and project name is “
“The safety
The safety
specification of EV frontal crash test
specification of EV frontal crash test”
”

 In May 2011, the WG on EV Crash Safety was established
In May 2011, the WG on EV Crash Safety was established

 In March 2012, the second meeting discussing draft
In March 2012, the second meeting discussing draft

 Analysis the obtained technical data of EV crash test
Analysis the obtained technical data of EV crash test

 Further conduct the verification test for EV crash safety
Further conduct the verification test for EV crash safety

 Carry out and enhance the international communication &
Carry out and enhance the international communication &
cooperation
cooperation

 EV Crash Std is scheduled to be finished by end of 2012
EV Crash Std is scheduled to be finished by end of 2012
1、China has established EV Standard system
2、 56 Standards have been used in R&D, Demo and
industrialization
3、 In one to two years, the China EV standards will reach more
than 70
4、 Close cooperation among ministries and industries speed up
the EV standards work
5、 International cooperation , Sino-German, Sino-US and Sino-Japan
etc
6、 Participant WP29, ISO, IEC standard and regulation work
Summary
Thank you for attention!

More Related Content

What's hot

ENGHOSSAM kHAIRY
ENGHOSSAM kHAIRY ENGHOSSAM kHAIRY
ENGHOSSAM kHAIRY
hossam80

vss102_lewis_2015_o
vss102_lewis_2015_ovss102_lewis_2015_o
vss102_lewis_2015_o
Allan Lewis

Sustainable mining through usage of electric vehicles in underground mines
Sustainable mining through usage of electric vehicles in underground minesSustainable mining through usage of electric vehicles in underground mines
Sustainable mining through usage of electric vehicles in underground mines
Beroe Inc - Advantage Procurement

Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...
Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...
Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...
ijtsrd


What's hot (20)

Future Inspection of Overhead Transmission Lines
 Future Inspection of Overhead Transmission Lines Future Inspection of Overhead Transmission Lines
Future Inspection of Overhead Transmission Lines

Presentation on universal axel counter by cel
Presentation on universal axel counter by celPresentation on universal axel counter by cel
Presentation on universal axel counter by cel

CONCEPT AND WORKING OF WILD (Wheel Impact Load Detector)
CONCEPT AND WORKING OF WILD (Wheel Impact Load Detector)CONCEPT AND WORKING OF WILD (Wheel Impact Load Detector)
CONCEPT AND WORKING OF WILD (Wheel Impact Load Detector)

IRJET- Automatic Movable Railway Bridge & Energy Generation from Piezoelectri...
IRJET- Automatic Movable Railway Bridge & Energy Generation from Piezoelectri...IRJET- Automatic Movable Railway Bridge & Energy Generation from Piezoelectri...
IRJET- Automatic Movable Railway Bridge & Energy Generation from Piezoelectri...

RDSO Training
RDSO TrainingRDSO Training
RDSO Training

Sirius
SiriusSirius
Sirius

ENGHOSSAM kHAIRY
ENGHOSSAM kHAIRY ENGHOSSAM kHAIRY
ENGHOSSAM kHAIRY

vss102_lewis_2015_o
vss102_lewis_2015_ovss102_lewis_2015_o
vss102_lewis_2015_o

RDSO Training ppt
RDSO Training pptRDSO Training ppt
RDSO Training ppt

Sustainable mining through usage of electric vehicles in underground mines
Sustainable mining through usage of electric vehicles in underground minesSustainable mining through usage of electric vehicles in underground mines
Sustainable mining through usage of electric vehicles in underground mines

AJAY CHAUHAN ppt
AJAY CHAUHAN pptAJAY CHAUHAN ppt
AJAY CHAUHAN ppt

Rdso training ppt final report
 Rdso training ppt final report Rdso training ppt final report
Rdso training ppt final report

ILP Ireland CPD Webinar: ESBs public lighting works requirements
ILP Ireland CPD Webinar: ESBs public lighting works requirementsILP Ireland CPD Webinar: ESBs public lighting works requirements
ILP Ireland CPD Webinar: ESBs public lighting works requirements

Railway Accident Avoiding System: A Safety Measure
Railway Accident Avoiding System: A Safety MeasureRailway Accident Avoiding System: A Safety Measure
Railway Accident Avoiding System: A Safety Measure

advanced raiway security system based on zigbee communication for track fault
advanced raiway security system based on zigbee communication for track fault advanced raiway security system based on zigbee communication for track fault
advanced raiway security system based on zigbee communication for track fault

ADVANCED RAILWAY SECURITY SYSTEM (ARSS) BASED ON ZIGBEE COMMUNICATION FOR TRA...
ADVANCED RAILWAY SECURITY SYSTEM (ARSS) BASED ON ZIGBEE COMMUNICATION FOR TRA...ADVANCED RAILWAY SECURITY SYSTEM (ARSS) BASED ON ZIGBEE COMMUNICATION FOR TRA...
ADVANCED RAILWAY SECURITY SYSTEM (ARSS) BASED ON ZIGBEE COMMUNICATION FOR TRA...

Anti-Collision Device(ACD)
Anti-Collision Device(ACD)Anti-Collision Device(ACD)
Anti-Collision Device(ACD)

Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...
Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...
Arduino Based Vehicle Abnormal Behavior Detection System using Camera with SD...

automatic railway gate controll using ir sensor
automatic railway gate controll using ir sensorautomatic railway gate controll using ir sensor
automatic railway gate controll using ir sensor

Mainpro
MainproMainpro
Mainpro


Similar to EVS-1-08 (1).pdf

Project Dissertation -Standardization of BEV Battery Module for circular econ...
Project Dissertation -Standardization of BEV Battery Module for circular econ...Project Dissertation -Standardization of BEV Battery Module for circular econ...
Project Dissertation -Standardization of BEV Battery Module for circular econ...
Othman Laraqui

UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK
UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOKUPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK
UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK
iQHub

vss102_lewis_2013_o
vss102_lewis_2013_ovss102_lewis_2013_o
vss102_lewis_2013_o
Allan Lewis

EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION
EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATIONEV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION
EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION
iQHub


Similar to EVS-1-08 (1).pdf (20)

Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...
Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...
Patent Landscape Report on “Electric vehicles – Vehicle to Grid Technology” b...

First_SAE_Presentation-Bob_Galyen.pptx
First_SAE_Presentation-Bob_Galyen.pptxFirst_SAE_Presentation-Bob_Galyen.pptx
First_SAE_Presentation-Bob_Galyen.pptx

Project Dissertation -Standardization of BEV Battery Module for circular econ...
Project Dissertation -Standardization of BEV Battery Module for circular econ...Project Dissertation -Standardization of BEV Battery Module for circular econ...
Project Dissertation -Standardization of BEV Battery Module for circular econ...

Its bordeuax 2015_pr09_ombach_qualcom
Its bordeuax 2015_pr09_ombach_qualcomIts bordeuax 2015_pr09_ombach_qualcom
Its bordeuax 2015_pr09_ombach_qualcom

N-Viro Motive (GenSet Advantages)
N-Viro Motive (GenSet Advantages)N-Viro Motive (GenSet Advantages)
N-Viro Motive (GenSet Advantages)

hybrid electric truck document
hybrid electric truck documenthybrid electric truck document
hybrid electric truck document

86548526 installation-for-generator-set
86548526 installation-for-generator-set86548526 installation-for-generator-set
86548526 installation-for-generator-set

DATA DRIVEN ANALYSIS OF ENERGY MANAGEMENT IN ELECTRIC VEHICLES
DATA DRIVEN ANALYSIS OF ENERGY MANAGEMENT IN ELECTRIC VEHICLESDATA DRIVEN ANALYSIS OF ENERGY MANAGEMENT IN ELECTRIC VEHICLES
DATA DRIVEN ANALYSIS OF ENERGY MANAGEMENT IN ELECTRIC VEHICLES

A Comprehensive Review of Electric Vehicle Charging Station Topologies
A Comprehensive Review of Electric Vehicle Charging Station TopologiesA Comprehensive Review of Electric Vehicle Charging Station Topologies
A Comprehensive Review of Electric Vehicle Charging Station Topologies

Presentation chargiing station for electric vechile car(battery operated)
Presentation chargiing station for electric vechile car(battery operated)Presentation chargiing station for electric vechile car(battery operated)
Presentation chargiing station for electric vechile car(battery operated)

Review on Enhanced EV technology: Wireless charging system and performance im...
Review on Enhanced EV technology: Wireless charging system and performance im...Review on Enhanced EV technology: Wireless charging system and performance im...
Review on Enhanced EV technology: Wireless charging system and performance im...

UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK
UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOKUPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK
UPCOMING TRENDS IN EV CHARGING INFRASTRUCTURE AND FUTURE OUTLOOK

A Review on Electric Vehicle Powertrain System Components and the Challenges ...
A Review on Electric Vehicle Powertrain System Components and the Challenges ...A Review on Electric Vehicle Powertrain System Components and the Challenges ...
A Review on Electric Vehicle Powertrain System Components and the Challenges ...

vss102_lewis_2013_o
vss102_lewis_2013_ovss102_lewis_2013_o
vss102_lewis_2013_o

Control of Battery Charger for Electric Vehicles
Control of Battery Charger for Electric VehiclesControl of Battery Charger for Electric Vehicles
Control of Battery Charger for Electric Vehicles

Design and Analysis Of Hybrid Car Using Tubular Frame Chasis and Helium Gas
Design and Analysis Of Hybrid Car Using Tubular Frame Chasis and Helium GasDesign and Analysis Of Hybrid Car Using Tubular Frame Chasis and Helium Gas
Design and Analysis Of Hybrid Car Using Tubular Frame Chasis and Helium Gas

EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION
EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATIONEV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION
EV CHARGING CABLE – STANDARDS, TESTING, AND CERTIFICATION

IRJET- Development of an Electric Vehicle using PWM Control Technique
IRJET- Development of an Electric Vehicle using PWM Control TechniqueIRJET- Development of an Electric Vehicle using PWM Control Technique
IRJET- Development of an Electric Vehicle using PWM Control Technique

Electric 2 wheeler_Development
Electric 2 wheeler_Development Electric 2 wheeler_Development
Electric 2 wheeler_Development

Renewable energy and grid integration energy transition
Renewable energy and grid integration   energy transitionRenewable energy and grid integration   energy transition
Renewable energy and grid integration energy transition


More from Instansi

More from Instansi (20)

Heri Subagyo_Pupuk Kaltim_Manfaat Implementasi Sistem Manajemen Energi SNI IS...
Heri Subagyo_Pupuk Kaltim_Manfaat Implementasi Sistem Manajemen Energi SNI IS...Heri Subagyo_Pupuk Kaltim_Manfaat Implementasi Sistem Manajemen Energi SNI IS...
Heri Subagyo_Pupuk Kaltim_Manfaat Implementasi Sistem Manajemen Energi SNI IS...

Dewi Komalasari_BSN_SME-Persyaratan dengan pedoman penggunaan.pdf
Dewi Komalasari_BSN_SME-Persyaratan dengan pedoman penggunaan.pdfDewi Komalasari_BSN_SME-Persyaratan dengan pedoman penggunaan.pdf
Dewi Komalasari_BSN_SME-Persyaratan dengan pedoman penggunaan.pdf

Kristianto W_BSN_Dukungan SNI Dalam Meningkatkan Efisiensi Energi.pdf
Kristianto W_BSN_Dukungan SNI  Dalam Meningkatkan Efisiensi Energi.pdfKristianto W_BSN_Dukungan SNI  Dalam Meningkatkan Efisiensi Energi.pdf
Kristianto W_BSN_Dukungan SNI Dalam Meningkatkan Efisiensi Energi.pdf

EVS-06-33e.pdf
EVS-06-33e.pdfEVS-06-33e.pdf
EVS-06-33e.pdf

Battery Management System For Electric Vehicle Applications.pdf
Battery Management System For Electric Vehicle Applications.pdfBattery Management System For Electric Vehicle Applications.pdf
Battery Management System For Electric Vehicle Applications.pdf

ANSI_EVSP_Roadmap_May_2013.pdf
ANSI_EVSP_Roadmap_May_2013.pdfANSI_EVSP_Roadmap_May_2013.pdf
ANSI_EVSP_Roadmap_May_2013.pdf

SNI UNTUK DAYA SAING PRODUK DAN JASA.pdf
SNI UNTUK DAYA SAING PRODUK DAN JASA.pdfSNI UNTUK DAYA SAING PRODUK DAN JASA.pdf
SNI UNTUK DAYA SAING PRODUK DAN JASA.pdf

Tesis tentang Training Kompetensi
Tesis tentang Training KompetensiTesis tentang Training Kompetensi
Tesis tentang Training Kompetensi

Motivation at work Deck_HR Business Talks 18 January 2022.pdf
Motivation at work Deck_HR Business Talks 18 January 2022.pdfMotivation at work Deck_HR Business Talks 18 January 2022.pdf
Motivation at work Deck_HR Business Talks 18 January 2022.pdf

materi SNI dan CPPOB.pdf
materi SNI dan CPPOB.pdfmateri SNI dan CPPOB.pdf
materi SNI dan CPPOB.pdf

Smart City sesuai Standar ISO
Smart City sesuai Standar ISOSmart City sesuai Standar ISO
Smart City sesuai Standar ISO

Success story umkm_program_pembinaan_penerapan_sni-bsn_(2018)
Success story umkm_program_pembinaan_penerapan_sni-bsn_(2018)Success story umkm_program_pembinaan_penerapan_sni-bsn_(2018)
Success story umkm_program_pembinaan_penerapan_sni-bsn_(2018)

Menemukan ikigai dalam pekerjaan sehari hari
Menemukan ikigai dalam pekerjaan sehari hariMenemukan ikigai dalam pekerjaan sehari hari
Menemukan ikigai dalam pekerjaan sehari hari

ISO 37001 : Anti Bribery Management System Fraud & Bribery Concepts, Laws & R...
ISO 37001 : Anti Bribery Management System Fraud & Bribery Concepts, Laws & R...ISO 37001 : Anti Bribery Management System Fraud & Bribery Concepts, Laws & R...
ISO 37001 : Anti Bribery Management System Fraud & Bribery Concepts, Laws & R...

kebijakan pengembangan standar SNI
kebijakan pengembangan standar SNIkebijakan pengembangan standar SNI
kebijakan pengembangan standar SNI

pedoman adopsi internasional menjadi SNI
pedoman adopsi internasional menjadi SNIpedoman adopsi internasional menjadi SNI
pedoman adopsi internasional menjadi SNI

Pedoman Penulisan SNI
Pedoman Penulisan SNIPedoman Penulisan SNI
Pedoman Penulisan SNI

pedoman kaji ulang SNI
pedoman kaji ulang SNI pedoman kaji ulang SNI
pedoman kaji ulang SNI

Membangun UMKM Kuat
Membangun UMKM KuatMembangun UMKM Kuat
Membangun UMKM Kuat

Implementasi ISO 45005 di USAHID JAkarta
Implementasi ISO 45005 di USAHID JAkartaImplementasi ISO 45005 di USAHID JAkarta
Implementasi ISO 45005 di USAHID JAkarta


Recently uploaded

ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf
ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdfONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf
ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf
Kamal Acharya

Teachers record management system project report..pdf
Teachers record management system project report..pdfTeachers record management system project report..pdf
Teachers record management system project report..pdf
Kamal Acharya


Recently uploaded (20)

Quiz application system project report..pdf
Quiz application system project report..pdfQuiz application system project report..pdf
Quiz application system project report..pdf

ANSI(ST)-III_Manufacturing-I_05052020.pdf
ANSI(ST)-III_Manufacturing-I_05052020.pdfANSI(ST)-III_Manufacturing-I_05052020.pdf
ANSI(ST)-III_Manufacturing-I_05052020.pdf

2024 DevOps Pro Europe - Growing at the edge
2024 DevOps Pro Europe - Growing at the edge2024 DevOps Pro Europe - Growing at the edge
2024 DevOps Pro Europe - Growing at the edge

SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptxSLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx

"United Nations Park" Site Visit Report.
"United Nations Park" Site  Visit Report."United Nations Park" Site  Visit Report.
"United Nations Park" Site Visit Report.

ROAD CONSTRUCTION PRESENTATION.PPTX.pptx
ROAD CONSTRUCTION PRESENTATION.PPTX.pptxROAD CONSTRUCTION PRESENTATION.PPTX.pptx
ROAD CONSTRUCTION PRESENTATION.PPTX.pptx

Online book store management system project.pdf
Online book store management system project.pdfOnline book store management system project.pdf
Online book store management system project.pdf

Lesson no16 application of Induction Generator in Wind.ppsx
Lesson no16 application of Induction Generator in Wind.ppsxLesson no16 application of Induction Generator in Wind.ppsx
Lesson no16 application of Induction Generator in Wind.ppsx

ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf
ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdfONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf
ONLINE VEHICLE RENTAL SYSTEM PROJECT REPORT.pdf

Intelligent Agents, A discovery on How A Rational Agent Acts
Intelligent Agents, A discovery on How A Rational Agent ActsIntelligent Agents, A discovery on How A Rational Agent Acts
Intelligent Agents, A discovery on How A Rational Agent Acts

NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024
NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024
NEWLETTER FRANCE HELICES/ SDS SURFACE DRIVES - MAY 2024

Software Engineering - Modelling Concepts + Class Modelling + Building the An...
Software Engineering - Modelling Concepts + Class Modelling + Building the An...Software Engineering - Modelling Concepts + Class Modelling + Building the An...
Software Engineering - Modelling Concepts + Class Modelling + Building the An...

Dairy management system project report..pdf
Dairy management system project report..pdfDairy management system project report..pdf
Dairy management system project report..pdf

BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING
BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWINGBRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING
BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING

Electrical shop management system project report.pdf
Electrical shop management system project report.pdfElectrical shop management system project report.pdf
Electrical shop management system project report.pdf

The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...
The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...
The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...

Attraction and Repulsion type Moving Iron Instruments.pptx
Attraction and Repulsion type Moving Iron Instruments.pptxAttraction and Repulsion type Moving Iron Instruments.pptx
Attraction and Repulsion type Moving Iron Instruments.pptx

How to Design and spec harmonic filter.pdf
How to Design and spec harmonic filter.pdfHow to Design and spec harmonic filter.pdf
How to Design and spec harmonic filter.pdf

Teachers record management system project report..pdf
Teachers record management system project report..pdfTeachers record management system project report..pdf
Teachers record management system project report..pdf

RESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdf
RESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdfRESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdf
RESORT MANAGEMENT AND RESERVATION SYSTEM PROJECT REPORT.pdf


EVS-1-08 (1).pdf

  • 1. Status of EV Standards in China Part Ⅰ Brief Introduction of EV Standardization Sub-Committee
  • 2. Electric Vehicle Charging Infrastructure National Standards Industry standards SAC MIIT SAC/TC114/SC27 Secretariat: CATARC NEA CEC MIIT NEA/TC3 Secretariat: CEC NEA SAC/TC114/SC27 Secretariat: CATARC Part Ⅰ Brief Introduction of EV Standardization Sub-Committee EV/HEV WG Fuel cell vehicle WG Traction battery WG Electric machine WG 2 kinds of full vehicle standard Key components standard Infrastructure standard Electric vehicle subcommittee SAC/TC114/SC27 Electric vehicle standard Introduction of electric vehicle subcommittee Part Ⅰ Brief Introduction of EV Standardization Sub-Committee
  • 3.  Founded by NTCAS at 1998, secretariat is located at CATARC.  Guided by SAC and MIIT; Interface with ISO/TC22/SC21 and IEC/TC69.  Responsible for national electric vehicle standardization.  37 committee members and 6 observers from electric vehicle manufacture, traction battery company, electric machine company, electric motorcycle company, inspection institute, university and research institute, etc.  4 work groups. Summary Part Ⅰ Brief Introduction of EV Standardization Sub-Committee Part Ⅱ EV Standards System
  • 4. Part Ⅱ EV Standards System EV Standards in Use No. SN Name Status 1 BEV and key parts GB/T18384.1-2001 EV Safety Requirement Part1: Energy Storage Active 2 GB/T18384.2-2001 EV Safety Requirement Part2: Function and protection Active 3 GB/T18384.3-2001 EV Safety Requirement Part3: electric shock protection Active 4 GB/T 4094.2-2005 Symbol of operator, indicator and signal of EV Active 5 GB/T 19596-2004 Electric vehicle Terminology Active 6 GB/T 18385-2005 Electric vehicle Power performance Test Procedure Active 7 GB/T 18386-2005 Electric vehicle Energy consumption and Range Test procedure Active 8 GB/T 18387-2008 30MHz EV EMC Limit and Test Procedure Broad band ,9kHz~30MHz Active 9 GB/T 18388-2005 Electric vehicle Type Approval Test Procedure Active 10 GB/T 24552-2009 EV Windshield defrost and defog requirement and Test procedure Active 11 GB/T 19836-2005 Electric vehicle Instrument panel Active 12 QC/T 838-2010 Electric Bus with Ultra-Capacitor Active Part Ⅱ EV Standards System
  • 5. No. SN Name Status 13 HEV GB/T 19751-2005 HEV Safety Requirement Active 14 GB/T 19750-2005 HEV Type Approval Test Procedure Active 15 GB/T 19752-2005 HEV Power Performance Test procedure Active 16 GB/T 19753-2005 Light Duty HEV Energy Consumption Test Procedure Active 17 GB/T 19754-2005 Heavy Duty HEV Energy Consumption Test procedure Active 18 GB/T 19755-2005 Light Duty HEV Emission Test Procedure Active 19 QC/T 837-2010 Classification of HEV Active 20 QC/T 894-2011 On Board Measurement Methods for Emissions from Heavy-Duty Hybrid Electric Vehicles Active 21 FCEV GB/T 24554-2009 Fuel Cell Engine Performance Test Procedure Active 22 GB/T 24549-2009 Fuel Cell Electric vehicle Safety Requirement Active 23 GB/T 24548-2009 Fuel Cell Electric Vehicle Terminology Active 24 QC/T 816-2009 Specification of Hydrogen Refueling Vehicle Active 25 GB/T 26990-2011 Fuel cell electric vehicles - Onboard hydrogen system - Specifications Active 26 GB/T 26991-2011 Fuel cell electric vehicles - Maximum speed test method Active 27 QC/T 816-2009 Specification of mobile hydrogen refueling vehicles Active EV Standards in Use Part Ⅱ EV Standards System No. SN Name Status 28 Energy Storage GB/Z18333.1-2001 Li-ion Battery Active 29 GB/Z18333.2-2001 Zinc-Air Battery Active 30 QC/T 741-2006 Ultra- Capacitor Active 31 QC/T 742-2006 Lead Acid Battery Active 32 QC/T 743-2006 Li-ion Battery Active 33 QC/T 744-2006 NiMH Battery Active 34 QC/T 840-2010 Battery Structure and Size Issued 35 QC/T 897-2011 Technical specification of Battery Management System for Electric vehicles Issued 36 Motor and Contro- ller GB/T18488.1-2006 Motor and its Controller Part1: Specification Active 37 GB/T18488.2-2006 Motor and its Controller Part2: Test Procedure Active 38 GB/T 24347-2009 DC/DC convertor Active 39 QC/T 896-2011 Interface of electrical machine system for electric vehicle Active 40 QC/T 893-2011 Failure classification and assessment of electrical machine system for electric vehicle Active EV Standards in Use Part Ⅱ EV Standards System
  • 6. No. SN Name Status 41 Charging & Commu nication GB/T18487.1-2001 Conduct Charging System General Requirement Active 42 GB/T18487.2-2001 Connect Requirement of EV and DC Charger Active 43 GB/T18487.3-2001 AC/DC Charger (and Charger station) Active 44 GB/T 20234.1-2011 Connection set for conductive charging of electric vehicles Part General requirements Active 45 GB/T 20234.2-2011 Connection set for conductive charging of electric vehicles Part 2:AC charging coupler Active 46 GB/T 20234.3-2011 Connection set for conductive charging of electric vehicles Part 3:DC charging coupler Active 47 QC/T 895-2011 On-board conductive charger for electric vehicles issued 48 QC/T 839-2010 Electric System of Ultra-Capacitor Bus Active 49 QC/T 841-2010 Electric vehicle conductive charge coupler issued 50 QCT/842-2010 Communication Protocol between BMS and off board Charger issued EV Standards in Use Part Ⅱ EV Standards System EV Standards in Use Part Ⅱ EV Standards System Status Name SN No. 51 E- motor cycle GB/T 24158-2009 Electric motorcycles and electric mopeds—General specifications Active 52 GB/T 24157-2009 Electric motorcycles and electric mopeds - Energy consumption and range - Test procedures Active 53 GB/T 24156-2009 Electric motorcycles and electric mopeds—Power performance—Test methods Active 54 QC/T 791-2007 Electric motorcycles and electric mopeds—Type Approval Test Procedure Active 55 QC/T 792-2007 Electric motorcycles and electric mopeds—Motor and its Controller Specification Active 56 GB 24155-2009 Electric motorcycles and electric mopeds - Safety specifications Active
  • 7. Up to now, national technical committee of auto standardization (NTCAS) have organized and drafted 56 electric vehicle standards (38 national standards and 18 automotive industry standards) which have been approved and released by standardization authorities. Part Ⅱ EV Standards System Released standards of electric vehicle in China Progress of New Standards(to be issued) Part Ⅱ EV Standards System No Item No name status 1 20091183-T-339 Light Duty HEV Energy Consumption Test Procedure Revised 2 20090040-T-339 General requirements for electric vehicle charging station completed 3 20090040-T-339 Heavy Duty HEV Energy Consumption Test procedure Revised 4 20083096-T-339 Specifications for hydrogen fuel cell vehicles in demonstration completed 5 20083097-T-339 Hydrogen fuel cell vehicles Facilities for demonstration Specifications completed 6 20090044-T-339 The reliability test methods of electrical motor system for electric vehicles completed 7 20070544 -T-303 Battery electric passenger cars - Specifications completed 8 2009-1002T-QC ultracapacitor Electric City Bus-Engineering Approval Evaluation Program completed 9 2010-1854T-QC The reliability test methods for power train unit of light- duty hybrid electric vehicles(ISG type) completed 10 20110009-T-339 Fuel cell electric vehicles-Onboard hydrogen system-Test methods completed 11 20090041-T-339 Motor and its Controller Part1: Specification revised 12 20090042-T-339 Motor and its Controller Part2: Test Procedure revised
  • 8. Part Ⅲ Research on Crash Safety Standard of EV Backgroud  To provide safety vehicle product is the responsibility of EV manufacturer  Crash safety is the first challenge of EV manufacturer  Variety differences between EV and conventional vehicle:  The mass and dimension of electric motor is far less than engine  RESS and related system is located under seat or in trunk  Potential dangerous of on-board high-energy RESS  Potential injury to occupants from high-voltage circuit
  • 9. Status of International EV Crash Std State of Arts for EV Safety Std in China No. title status GB/T 18384.1 Safety Requirements for Electric Vehicles — Part 1: RESS Revising GB/T 18384.2 Safety Requirements for Electric Vehicles— Part 2: Function Safety and Fault Defending Revising GB/T 18384.3 Safety Requirements for Electric Vehicles— Part 3: Protection against Electrical Shock Revising GB/T 19751- 2005 Safety Requirements for Hybrid Electric Vehicles Available GB/T 24549- 2009 Safety Requirements for fuel cell Electric Vehicles Available
  • 10. State of Arts for EV Safety Std in China same Over current specified by the vehicle manufacturer; Short cut on the circuit connecting the traction battery Over current Breaker of Traction Battery same prevent any short cut of the power circuit Prevention of short circuit >100Ω/V / 500Ω/V N/A Isolation resistance same RESS cannot be thrown away from vehicle Protection provided for third party same RESS penetrate and electrolyte spillage Occupant Protection GB/T 19751-2005 GB/T 18384.1-2001 Std No. Item Plan & Development of EV Crash Safety   The project was approved by SAC. The project code is The project was approved by SAC. The project code is 20110008 20110008- -T T- -339 339 and project name is and project name is “ “The safety The safety specification of EV frontal crash test specification of EV frontal crash test” ”   In May 2011, the WG on EV Crash Safety was established In May 2011, the WG on EV Crash Safety was established   In March 2012, the second meeting discussing draft In March 2012, the second meeting discussing draft   Analysis the obtained technical data of EV crash test Analysis the obtained technical data of EV crash test   Further conduct the verification test for EV crash safety Further conduct the verification test for EV crash safety   Carry out and enhance the international communication & Carry out and enhance the international communication & cooperation cooperation   EV Crash Std is scheduled to be finished by end of 2012 EV Crash Std is scheduled to be finished by end of 2012
  • 11. 1、China has established EV Standard system 2、 56 Standards have been used in R&D, Demo and industrialization 3、 In one to two years, the China EV standards will reach more than 70 4、 Close cooperation among ministries and industries speed up the EV standards work 5、 International cooperation , Sino-German, Sino-US and Sino-Japan etc 6、 Participant WP29, ISO, IEC standard and regulation work Summary Thank you for attention!
