Mastering the Gap: From Information Extraction to Semantic Representation / 3rd European Semantic Web Conference, Budva, Montenegro. May 2006. http://eprints.soton.ac.uk/262737/ Semantic representation of multimedia information is vital for enabling the kind of multimedia search capabilities that professional searchers require. Manual annotation is often not possible because of the shear scale of the multimedia information that needs indexing. This paper explores the ways in which we are using both top-down, ontologically driven approaches and bottom-up, automatic-annotation approaches to provide retrieval facilities to users. We also discuss many of the current techniques that we are investigating to combine these top-down and bottom-up approaches.

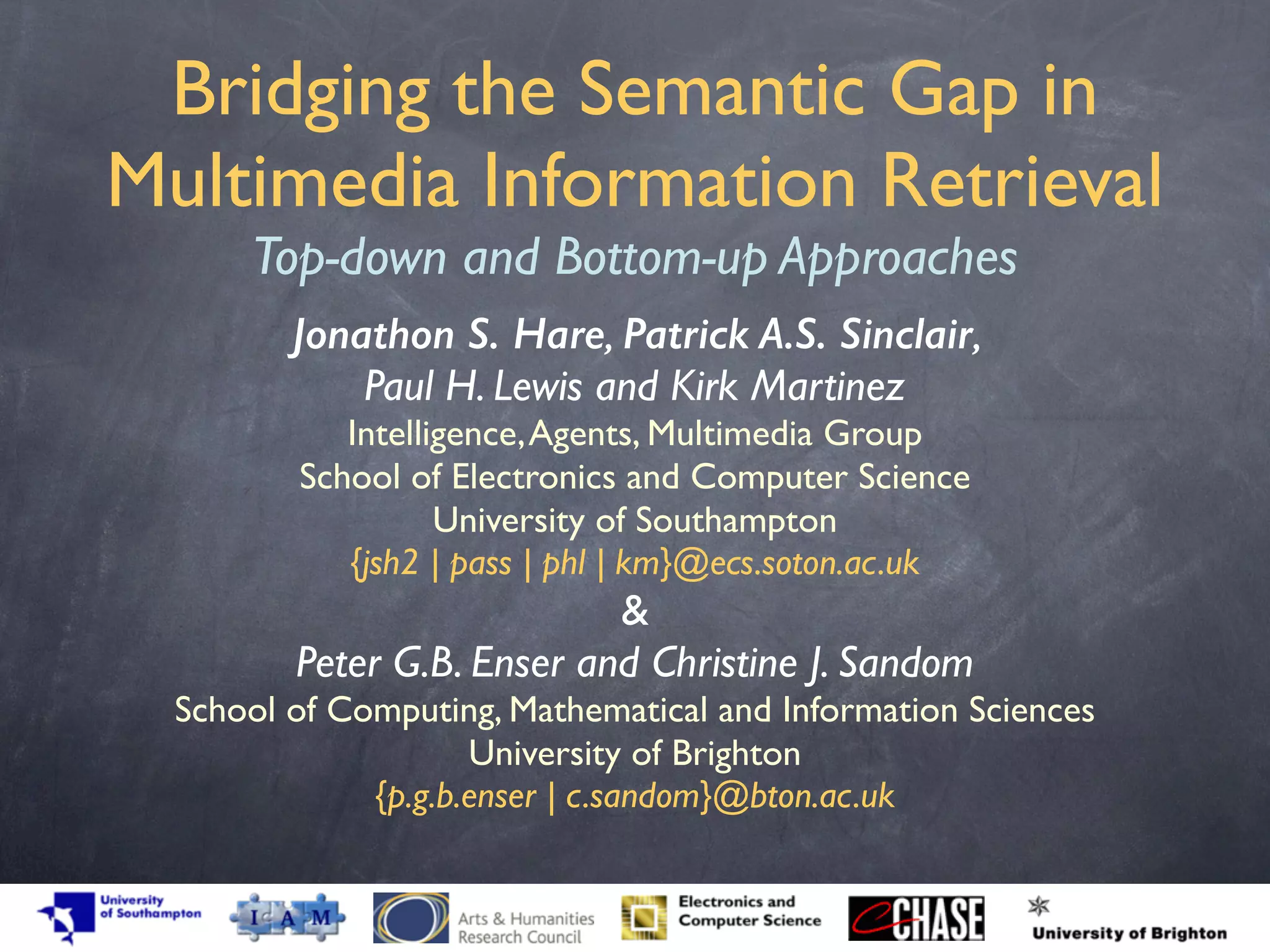

1. Bridging the Semantic Gap in
Multimedia Information Retrieval
Top-down and Bottom-up Approaches
Jonathon S. Hare, Patrick A.S. Sinclair,
Paul H. Lewis and Kirk Martinez
Intelligence,Agents, Multimedia Group
School of Electronics and Computer Science
University of Southampton
{jsh2 | pass | phl | km}@ecs.soton.ac.uk
&
Peter G.B. Enser and Christine J. Sandom
School of Computing, Mathematical and Information Sciences
University of Brighton
{p.g.b.enser | c.sandom}@bton.ac.uk

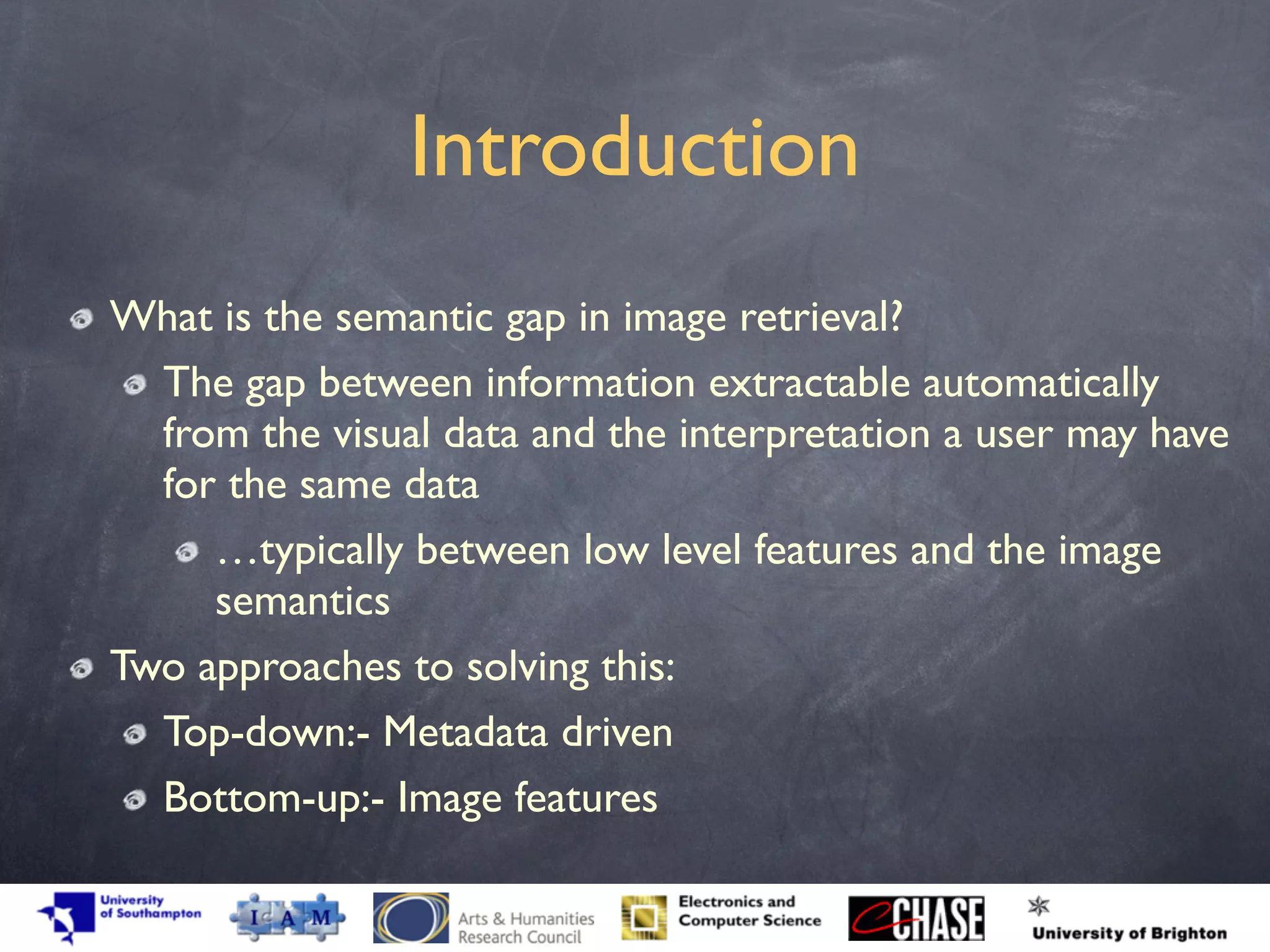

2. Introduction
What is the semantic gap in image retrieval?
The gap between information extractable automatically
from the visual data and the interpretation a user may have
for the same data
…typically between low level features and the image
semantics
Two approaches to solving this:
Top-down:- Metadata driven
Bottom-up:- Image features

3. Motivation
Hallmark of a good retrieval system is its ability to
respond to queries posed by a user
We have been collecting numerous real queries
for images from different collections in order to
investigate how we need to bridge the semantic
gap in order to answer the queries

4. Users’ queries should be
the driver
User queries may specify unique features
A member of parliament with a beard
May involve temporal or spatial facets
A 1950s fridge in the background
Particular significance
Bannister breaking the 4 min mile
The absence of features
GeorgeV’s Coronation but no procession or royals

5. Top-down Approaches
Ontologies can improve accuracy of retrieval
Simple keyword-based retrieval
Concept-based retrieval
Reasoning
Integration of different sources
Cultural heritage
Browsing and visualisation

6. Top-down Approaches
Browsing and visualisation

7. Poodle Demo

8. Issues
Manual annotation is expensive
Use of context to annotate
Keyword-based:
Problems if a predefined vocabulary is not used
Keyword-Concept matching is difficult!
Especially with inconsistent keywords
What if there is no metadata?

9. Bottom-up Approaches
Content-based Retrieval
In the past, content-based retrieval has been used
as a means to provide bottom-up searching of
(unannotated) image collections
For example, Query by Image Content
Paradigm
Demo...
However, it doesn’t tend to work well w.r.t to real
image searchers

10. Bottom-up Approaches
Auto-annotation
Lots of techniques proposed, using different descriptor
morphologies (global, region-based [segmented, salient, ...])
Co-occurrence of keywords and image features
Machine translation
Statistical, maximum entropy, ...
Probabilistic methods
Inference networks, density estimation, ...
Latent-spaces
Keyword propagation
Simple classifiers using low level features
Almost all of these techniques involve explicitly annotating the
media with a keyword, phrase or concept

11. The Auto-Annotation Process
Descripto
rs
Raw Media
Objects Labels
SKY
MOUNTAINS
TREES
Photo of
Yosemite valley
showing El Capitan and
Glacier Point with the
Half Dome in the
distance
Semantics
Inter-object relationships
sub/super
objects
other
contextual
information

12. Bottom-up Approaches
Semantic Spaces
Simple idea based on
factorisation and
dimensionality reduction
of a vector-space of
keywords/phrases/
concepts and visual
terms created from
feature-vectors
calculated from the
media
Doesn’t allow explicit
annotation, but does
provide search

13. Semantic Space Demo

14. Issues
The biggest problems come from:
Biased training data
Noisy/poor keywording, as with top-down
approaches
The semantic space should be able to cope
with this by learning from co-occurrence, but
this is difficult with keywords
Proper full-text captions would be better...
Image noise...

15. Image Noise
video/ss search for ‘cups’

16. Image Noise
Possible solution:Automatic Region-of-Interest Detection

17. Integration
Concept-augmented Semantic Spaces
Less clutter, better training
Better classifiers and auto-annotators
Safer annotation or classification using
ontological reasoning
e.g. image is either ‘horse’ or ‘foal’ according
to classifier.Which is safer?

18. Conclusions
Have discussed some techniques and issues with current
top-down and bottom-up techniques
Top-down techniques work well, but can’t help us find
metadata-less media
Bottom-up approaches allow us to locate media without
metadata, however performance is variable
Hopefully demo’s have illustrated where we are taking this
and how we are beginning to integrate both approaches

19. Any Questions?
