1. Non ISO File
Technique
8/24/2009 Endo12 1

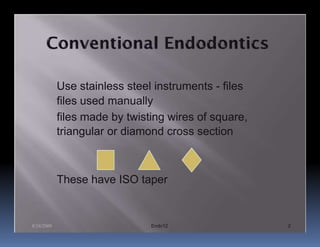

2. Use stainless steel instruments - files
files used manually
files made by twisting wires of square,
triangular or diamond cross section
These have ISO taper
8/24/2009 Endo12 2

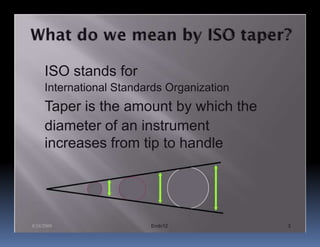

3. ISO stands for
International Standards Organization
Taper is the amount by which the
diameter of an instrument
increases from tip to handle
8/24/2009 Endo12 3

4. This is the taper set by the ISO
It is set at 0.02 per mm
This is commonly referred to
as
02 taper
8/24/2009 Endo12 4

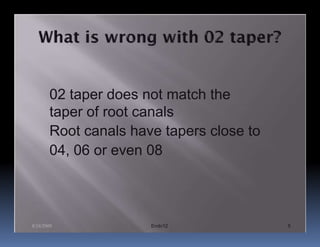

5. 02 taper does not match the
taper of root canals
Root canals have tapers close to
04, 06 or even 08
8/24/2009 Endo12 5

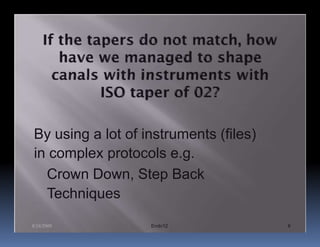

6. By using a lot of instruments (files)
in complex protocols e.g.
Crown Down, Step Back
Techniques
8/24/2009 Endo12 6

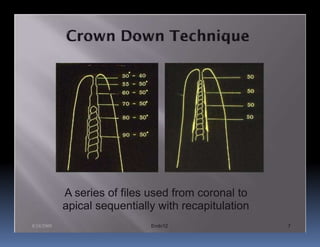

7. A series of files used from coronal to
apical sequentially with recapitulation
8/24/2009 Endo12 7

8. S/S instruments have to be
used in reciprocating action
i.e. rotate clockwise, then anti-clockwise
or in push - pull action
If these are rotated continually
in one direction, these fracture
Not very flexible
8/24/2009 Endo12 8

9. Push - pull action leads to
ledge formation in root canals
This action also pushes debris
into the canal causing
blockages
8/24/2009 Endo12 9

10. By using these files manually in
reciprocating action
i.e. Balanced Force Technique
But this is a very slow process
8/24/2009 Endo12 10

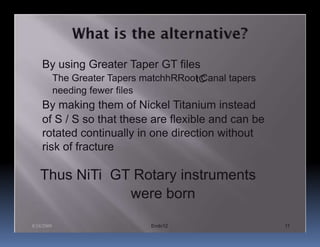

11. By using Greater Taper GT files
The Greater Tapers matchhRRoot Canal tapers
tC
needing fewer files
By making them of Nickel Titanium instead
of S / S so that these are flexible and can be
rotated continually in one direction without
risk of fracture
Thus NiTi GT Rotary instruments
were born
8/24/2009 Endo12 11

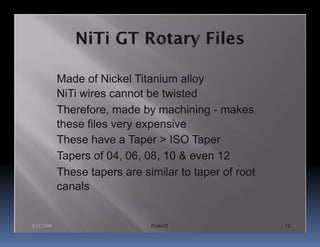

12. Made of Nickel Titanium alloy
NiTi wires cannot be twisted
Therefore, made by machining - makes
these files very expensive
These have a Taper > ISO Taper
Tapers of 04, 06, 08, 10 & even 12
These tapers are similar to taper of root
canals
8/24/2009 Endo12 12

13. 8/24/2009 Endo12 13

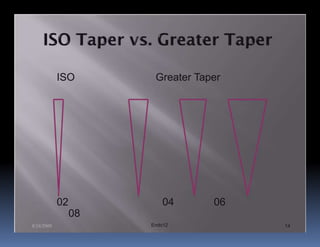

14. ISO Greater Taper
02 04 06
08
8/24/2009 Endo12 14

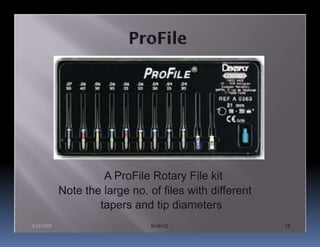

15. A ProFile Rotary File kit
Note the large no. of files with different
tapers and tip diameters
8/24/2009 Endo12 15

16. A ProFile
instrument
Cross-section is similar to that
of system GT with Triple U
Endo12
shape
8/24/2009 16

17. 06 taper
08 taper
10 taper
8/24/2009 Endo12 17

18. Invented by Dr. Stephen
Buchanan of USA in the
1980’s
Has revolutionised
Endodontic Practice
Used in rotating action
with special hand piece
with a low speed, high
torque motor
Now several designs and
brands available
8/24/2009 Endo12 18

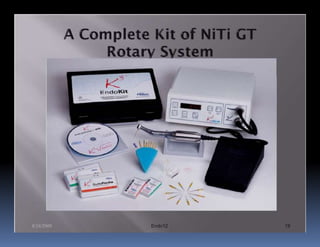

19. 8/24/2009 Endo12 19

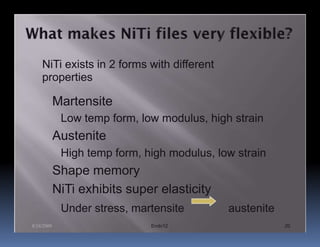

20. NiTi exists in 2 forms with different
properties
Martensite
Low temp form, low modulus, high strain
Austenite
High temp form, high modulus, low strain
Shape memory
NiTi exhibits super elasticity
Under stress, martensite austenite
8/24/2009 Endo12 20

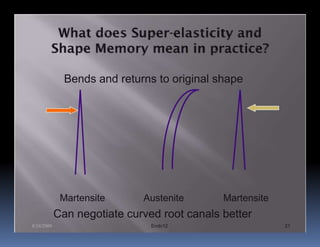

21. Bends and returns to original shape
Martensite Austenite Martensite
Can negotiate curved root canals better
8/24/2009 Endo12 21

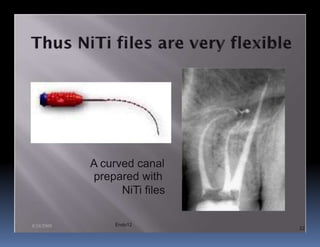

22. A curved canal
prepared with
NiTi files
8/24/2009 Endo12
22

23. System GT (Buchanan,Tulsa Dental)
ProTaper (Dentsply)
ProFile (Dentsply)
RaCe (Schotlander)
K3 (Sybron Kerr)
Quantec
FlexiMaster
8/24/2009 Endo12 23

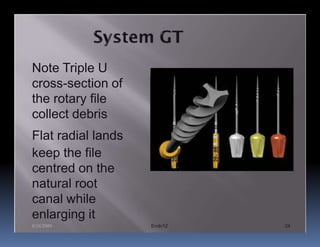

24. Note Triple U
cross-section of
the rotary file
collect debris
Flat radial lands
keep the file
centred on the
natural root
canal while
enlarging it
8/24/2009 Endo12 24

25. RaCe files have a
triangular cross-
section
8/24/2009 Endo12 25

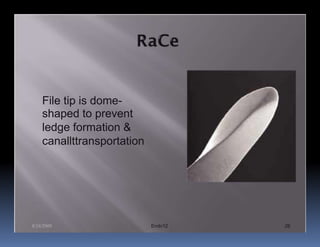

26. File tip is dome-
shaped to prevent
ledge formation &
canallttransportation
8/24/2009 Endo12 26

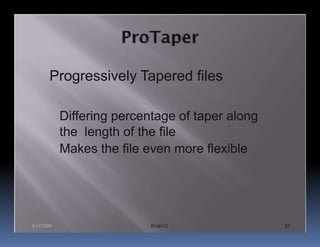

27. Progressively Tapered files
Differing percentage of taper along
the length of the file
Makes the file even more flexible
8/24/2009 Endo12 27

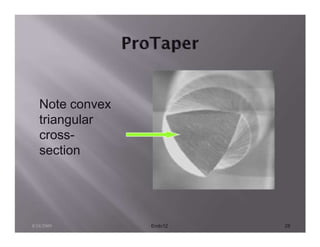

28. Note convex
triangular
cross-
section
8/24/2009 Endo12 28

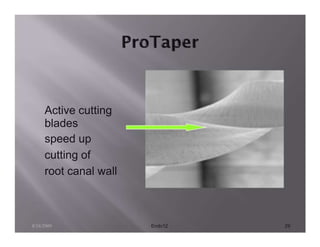

29. Active cutting
blades
speed up
cutting of
root canal wall
8/24/2009 Endo12 29

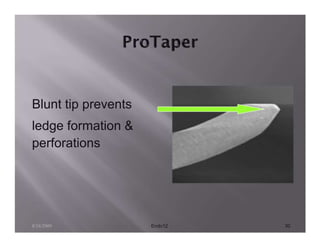

30. Blunt tip prevents
ledge formation &
perforations
8/24/2009 Endo12 30

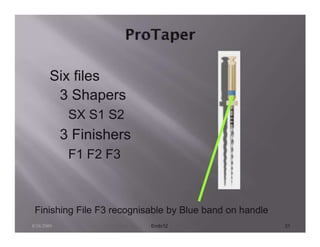

31. Six files
3 Shapers
SX S1 S2
3 Finishers
F1 F2 F3
Finishing File F3 recognisable by Blue band on handle
8/24/2009 Endo12 31

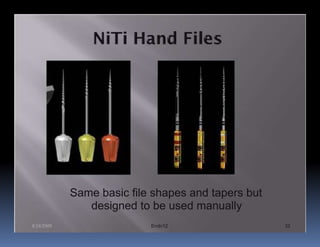

32. Same basic file shapes and tapers but
designed to be used manually
8/24/2009 Endo12 32

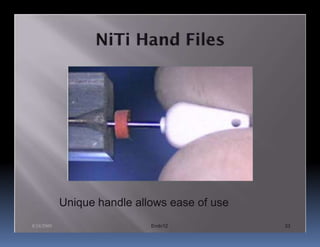

33. Unique handle allows ease of use
8/24/2009 Endo12 33

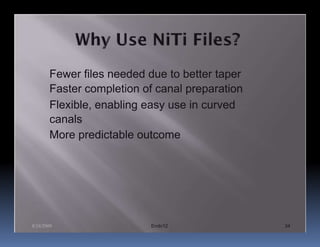

34. Fewer files needed due to better taper
Faster completion of canal preparation
Flexible, enabling easy use in curved
canals
More predictable outcome
8/24/2009 Endo12 34

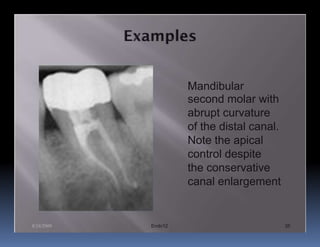

35. Mandibular
second molar with
abrupt curvature
of the distal canal.
Note the apical
control despite
the conservative
canal enlargement
8/24/2009 Endo12 35

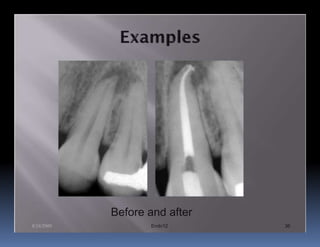

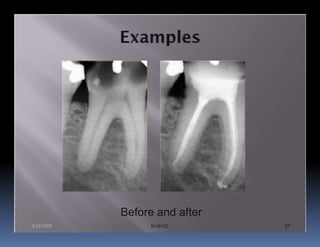

36. Before and after
8/24/2009 Endo12 36

37. Before and after
8/24/2009 Endo12 37
