Pontics




           Preeti kalia
      IInd year PG student
     Dept of Prosthodontics
A.E.C.S Maaruti College of Dental
            Sciences

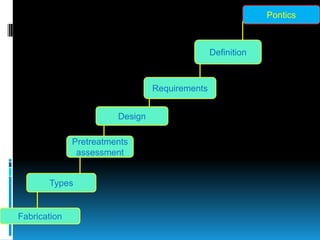

Pontics



                                                Definition



                                 Requirements


                        Design

              Pretreatments
               assessment


       Types


Fabrication

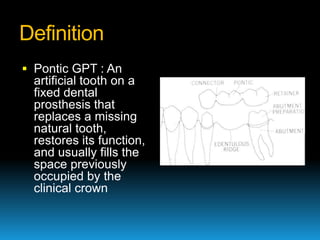

Definition
 Pontic GPT : An
  artificial tooth on a
  fixed dental
  prosthesis that
  replaces a missing
  natural tooth,
  restores its function,
  and usually fills the
  space previously
  occupied by the
  clinical crown

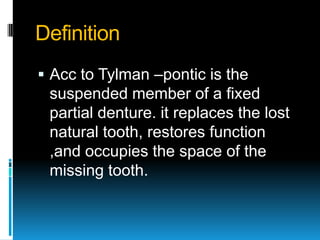

Definition
 Acc to Tylman –pontic is the
 suspended member of a fixed
 partial denture. it replaces the lost
 natural tooth, restores function
 ,and occupies the space of the
 missing tooth.

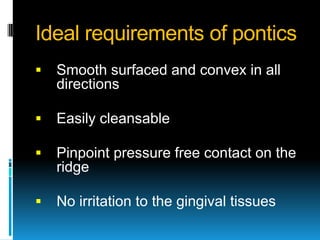

Ideal requirements of pontics
   Smooth surfaced and convex in all
    directions

   Easily cleansable

   Pinpoint pressure free contact on the
    ridge

   No irritation to the gingival tissues

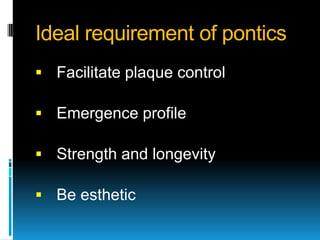

Ideal requirement of pontics
 Facilitate plaque control

 Emergence profile

 Strength and longevity

 Be esthetic
Ideal requirements of pontics
 Restore function

 No abutment overloading

 Color stable

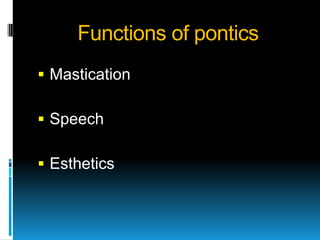

Functions of pontics
 Mastication

 Speech

 Esthetics

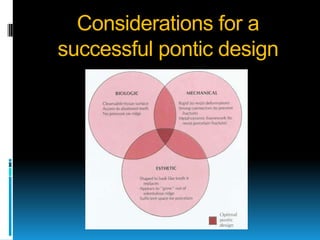

Considerations for a
successful pontic design

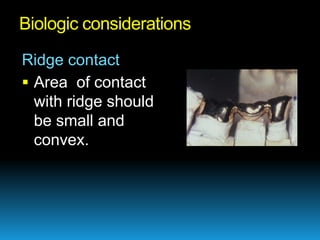

Biologic considerations

Ridge contact
 Area of contact
  with ridge should
  be small and
  convex.
Oral hygiene considerations
Pontic materials

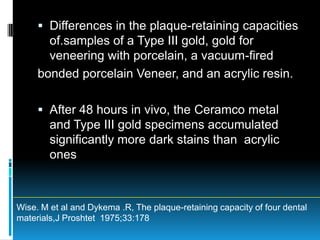

 Differences in the plaque-retaining capacities
       of.samples of a Type III gold, gold for
       veneering with porcelain, a vacuum-fired
     bonded porcelain Veneer, and an acrylic resin.

      After 48 hours in vivo, the Ceramco metal
       and Type III gold specimens accumulated
        significantly more dark stains than acrylic
        ones



Wise. M et al and Dykema .R, The plaque-retaining capacity of four dental
materials,J Proshtet 1975;33:178
Occlusal forces

 Reduce buccolingual width – 30%
  to lessen occlusal forces
 12% increase in chewing efficiency
 Pontics with normal occlusal widths
  – in the occlusal third area

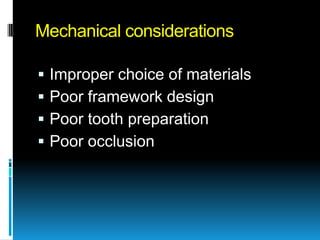

Mechanical considerations

   Improper choice of materials
   Poor framework design
   Poor tooth preparation
   Poor occlusion

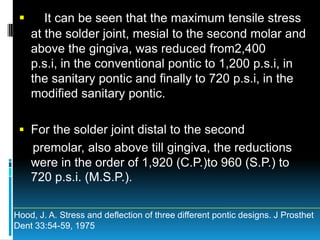

      It can be seen that the maximum tensile stress
     at the solder joint, mesial to the second molar and
     above the gingiva, was reduced from2,400
     p.s.i, in the conventional pontic to 1,200 p.s.i, in
     the sanitary pontic and finally to 720 p.s.i, in the
     modified sanitary pontic.

  For the solder joint distal to the second
     premolar, also above till gingiva, the reductions
     were in the order of 1,920 (C.P.)to 960 (S.P.) to
     720 p.s.i. (M.S.P.).

Hood, J. A. Stress and deflection of three different pontic designs. J Prosthet
Dent 33:54-59, 1975

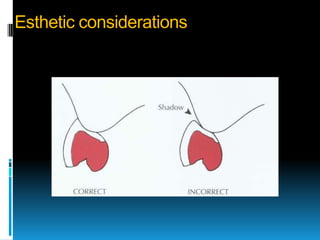

Esthetic considerations
Incisogingival length

 Root can be
  stained to
  simulate
  exposed
  dentine.
 Pink porcelain
  to simulate the
  gingival tissues

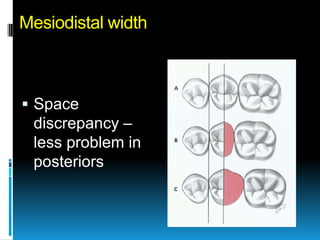

Mesiodistal width



 Space
 discrepancy –
 less problem in
 posteriors

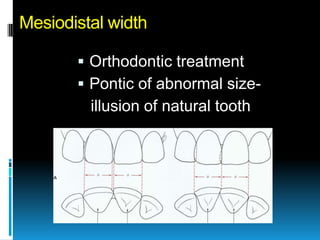

Mesiodistal width

        Orthodontic treatment
        Pontic of abnormal size-
         illusion of natural tooth

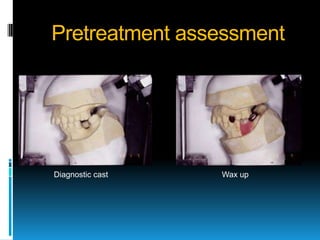

Pretreatment assessment




Diagnostic cast   Wax up

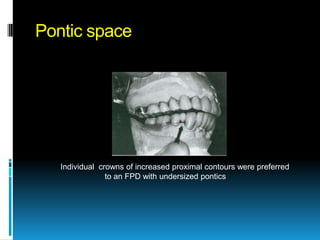

Pontic space




   Individual crowns of increased proximal contours were preferred
                to an FPD with undersized pontics
Residual ridge contour




   Food entrapment



                     Loss of residual ridge contour leading to
                      unesthetic open gingival embrasures
Residual ridge contour




      Class I defect.                   Class II defect.




                   Class III defect.
              Sieberts classification

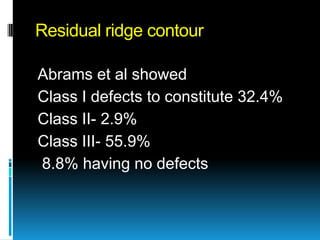

Residual ridge contour

Abrams et al showed
Class I defects to constitute 32.4%
Class II- 2.9%
Class III- 55.9%
8.8% having no defects

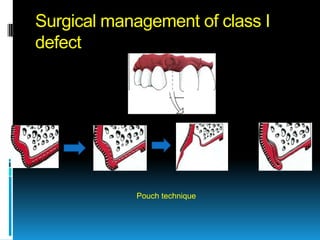

Surgical management of class I
defect




            Pouch technique

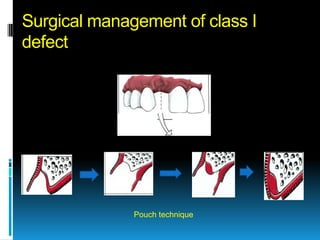

Surgical management of class I
defect




              Pouch technique
Surgical management of class II
and III defect




           Interpostional graft

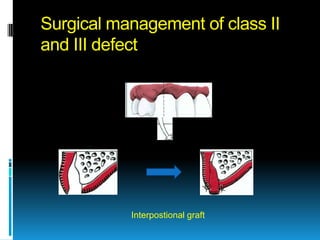

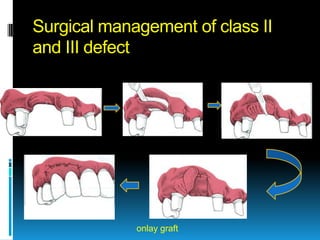

Surgical management of class II
and III defect




             onlay graft
Gingival architecture preservation
Classification
1. Depending on shape of surface
    contacting the ridge(Tylmann)
   Sanitary
   Modified sanitary
   Spheroidal
   Saddle
   Ridge lap
   Modified ridgelap
   Ovate

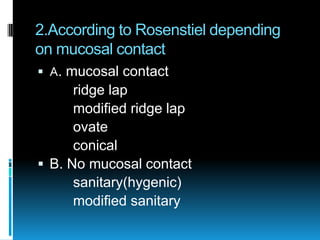

2.According to Rosenstiel depending
on mucosal contact
 A. mucosal contact
      ridge lap
      modified ridge lap
      ovate
      conical
 B. No mucosal contact
      sanitary(hygenic)
      modified sanitary

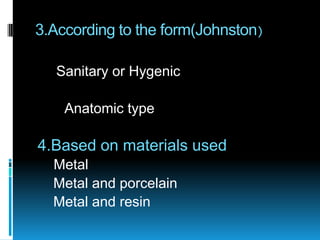

3.According to the form(Johnston)

   Sanitary or Hygenic

    Anatomic type

4.Based on materials used
  Metal
  Metal and porcelain
  Metal and resin

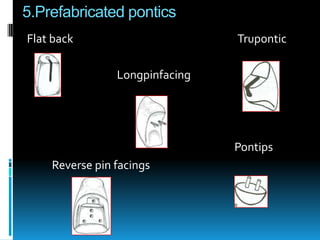

5.Prefabricated pontics
Flat back                       Trupontic

                Longpinfacing




                                Pontips
    Reverse pin facings

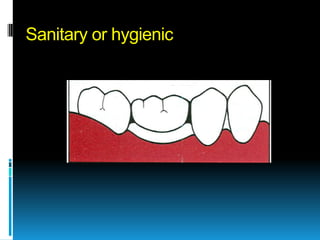

Sanitary or hygienic

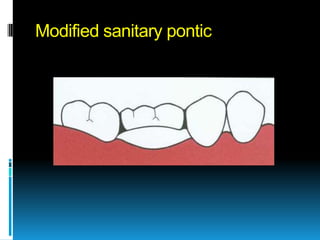

Modified sanitary pontic

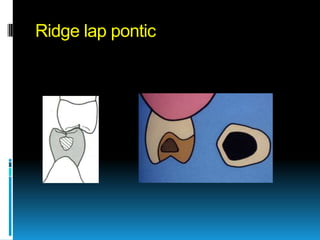

Ridge lap pontic

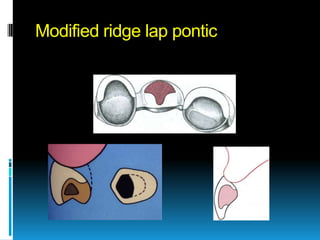

Modified ridge lap pontic

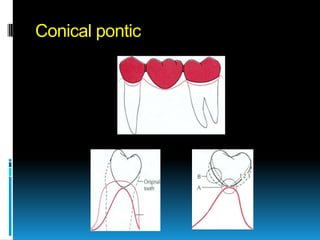

Conical pontic

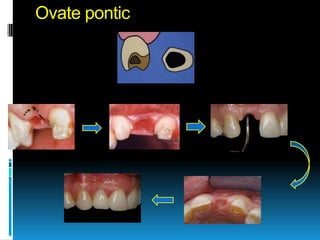

Ovate pontic

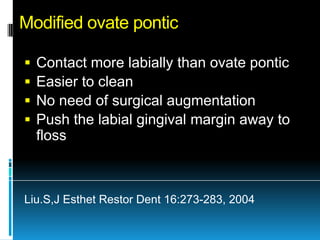

Modified ovate pontic

   Contact more labially than ovate pontic
   Easier to clean
   No need of surgical augmentation
   Push the labial gingival margin away to
    floss



Liu.S,J Esthet Restor Dent 16:273-283, 2004

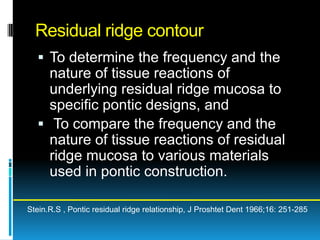

Residual ridge contour
   To determine the frequency and the
    nature of tissue reactions of
    underlying residual ridge mucosa to
    specific pontic designs, and
   To compare the frequency and the
    nature of tissue reactions of residual
    ridge mucosa to various materials
    used in pontic construction.

Stein.R.S , Pontic residual ridge relationship, J Proshtet Dent 1966;16: 251-285

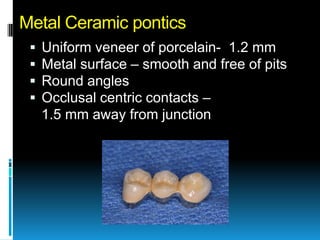

Metal Ceramic pontics
    Uniform veneer of porcelain- 1.2 mm
    Metal surface – smooth and free of pits
    Round angles
    Occlusal centric contacts –
     1.5 mm away from junction

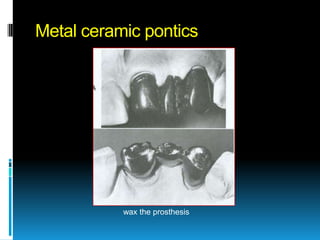

Metal ceramic pontics




           wax the prosthesis

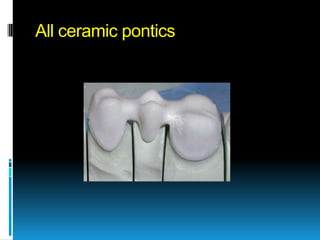

All ceramic pontics

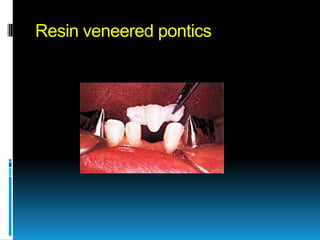

Resin veneered pontics
Fiber reinforced composite
resin pontics
Pontic fabrication

 All metal hygienic pontic
 Metal ceramic pontic

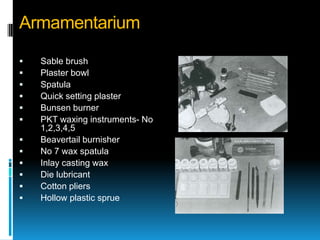

Armamentarium

   Sable brush
   Plaster bowl
   Spatula
   Quick setting plaster
   Bunsen burner
   PKT waxing instruments- No
    1,2,3,4,5
   Beavertail burnisher
   No 7 wax spatula
   Inlay casting wax
   Die lubricant
   Cotton pliers
   Hollow plastic sprue

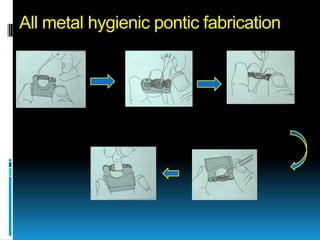

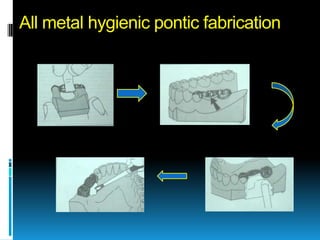

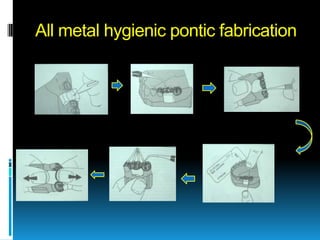

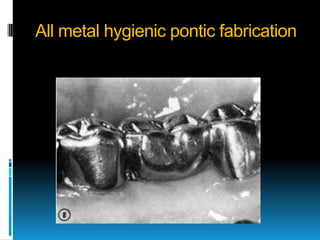

All metal hygienic pontic fabrication
All metal hygienic pontic fabrication
All metal hygienic pontic fabrication
All metal hygienic pontic fabrication
All metal hygienic pontic fabrication

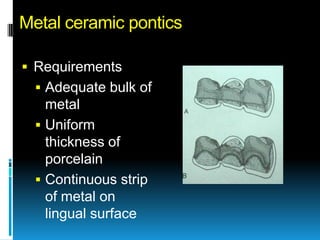

Metal ceramic pontics

 Requirements
   Adequate bulk of
    metal
   Uniform
    thickness of
    porcelain
   Continuous strip
    of metal on
    lingual surface

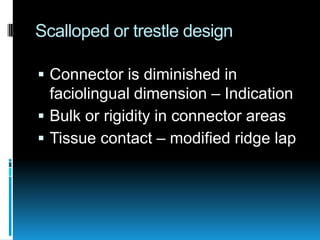

Scalloped or trestle design

 Connector is diminished in
  faciolingual dimension – Indication
 Bulk or rigidity in connector areas
 Tissue contact – modified ridge lap
Metal ceramic pontics

 To produce continuous contour and
  uniform thickness of porcelain –
  fabricate wax pattern to full contour
  and cut back
 Fabricate the copings – No 7 wax
  spatula
 Blue inlay wax stick – edentulous
  area

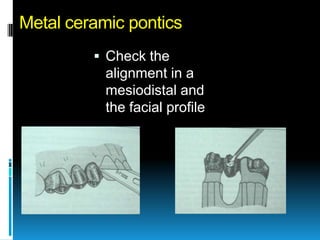

Metal ceramic pontics
          Check the
           alignment in a
           mesiodistal and
           the facial profile

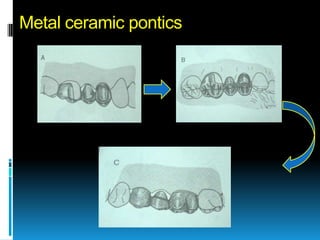

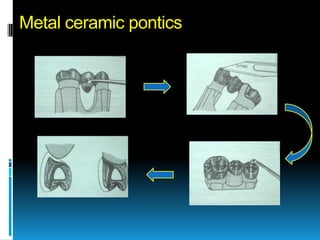

Metal ceramic pontics
Metal ceramic pontics

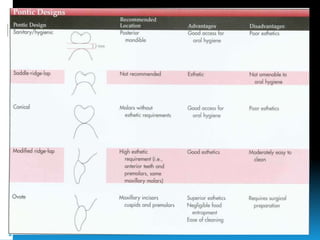

Available pontic systems
             Advantages      Disadvantages    Indications   Contraindications
Metal        Esthetics       Difficult if     Most          Long span with
ceramic      Biocompatible   abutment not     situations    high stress
                             metal ceramic
All metal    Strength        Non esthetic     Mandibular    Esthetics
             Straightforward                  molars,
             procedure                        under high
                                              bite force
Fibre        Conservative    Limited to short Esthetics     Long span
reinforced   with inlays     spans
all resin    Esthetics
Facings      Rarely used     Rarely used      Rarely used   Rarely used

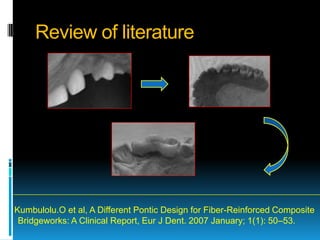

Review of literature




Kumbulolu.O et al, A Different Pontic Design for Fiber-Reinforced Composite
 Bridgeworks: A Clinical Report, Eur J Dent. 2007 January; 1(1): 50–53.
Review of literature




Kim.T.H.Yet al, Simulated tissue using unique pontic design, J
Prosthet Dent 2009;102:205-210

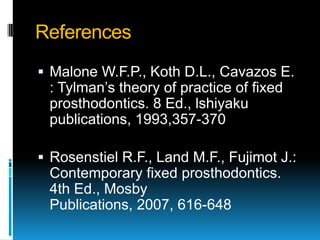

References
 Malone W.F.P., Koth D.L., Cavazos E.
 : Tylman’s theory of practice of fixed
 prosthodontics. 8 Ed., lshiyaku
 publications, 1993,357-370

 Rosenstiel R.F., Land M.F., Fujimot J.:
 Contemporary fixed prosthodontics.
 4th Ed., Mosby
 Publications, 2007, 616-648

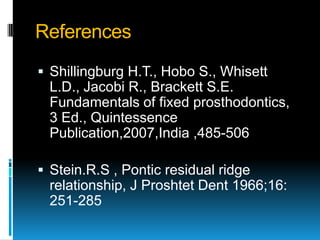

References
 Shillingburg H.T., Hobo S., Whisett
 L.D., Jacobi R., Brackett S.E.
 Fundamentals of fixed prosthodontics,
 3 Ed., Quintessence
 Publication,2007,India ,485-506

 Stein.R.S , Pontic residual ridge
 relationship, J Proshtet Dent 1966;16:
 251-285

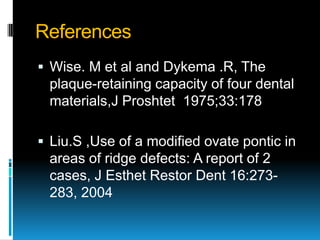

References
 Wise. M et al and Dykema .R, The
 plaque-retaining capacity of four dental
 materials,J Proshtet 1975;33:178

 Liu.S ,Use of a modified ovate pontic in
 areas of ridge defects: A report of 2
 cases, J Esthet Restor Dent 16:273-
 283, 2004

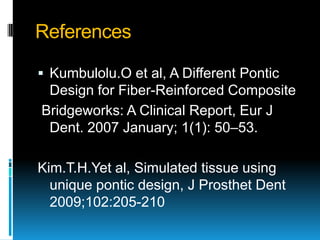

References

 Kumbulolu.O et al, A Different Pontic
 Design for Fiber-Reinforced Composite
Bridgeworks: A Clinical Report, Eur J
 Dent. 2007 January; 1(1): 50–53.

Kim.T.H.Yet al, Simulated tissue using
  unique pontic design, J Prosthet Dent
  2009;102:205-210

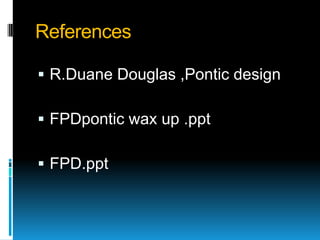

References

 R.Duane Douglas ,Pontic design

 FPDpontic wax up .ppt

 FPD.ppt

More Related Content

What's hot

Pontics in Fixed Partial Dentures
Pontics in Fixed Partial DenturesPontics in Fixed Partial Dentures
Pontics in Fixed Partial Dentures
Kelly Norton

Complex amalgam restorations
Complex amalgam restorationsComplex amalgam restorations
Complex amalgam restorations
Dr.Swarneet Kakpure

Obturation techniques
Obturation techniquesObturation techniques
Obturation techniques
Maulee Sheth

serial extraction
 serial extraction  serial extraction
serial extraction
Parth Thakkar

Space maintainers
Space maintainers Space maintainers
Space maintainers
ashwitha belludi

Single Complete Denture
Single Complete DentureSingle Complete Denture
Single Complete Denture
Dr. Anshul Sahu

Matrix bands
Matrix bandsMatrix bands
Matrix bands
Masuma Ryzvee

Retainer in FPD
Retainer in FPD Retainer in FPD
Retainer in FPD
Hind Tabbal

Chemo-mechanical Caries Removal
Chemo-mechanical Caries Removal Chemo-mechanical Caries Removal
Chemo-mechanical Caries Removal
Dr.Prashant Karasu

Rationale of endodontics
Rationale of endodonticsRationale of endodontics
Rationale of endodontics
alka shukla

Post and core
Post and corePost and core
Post and core
praveenprostho

Space maintainer
Space maintainerSpace maintainer
Space maintainer
Saeed Bajafar

Abutment selection in FPD
Abutment selection in FPDAbutment selection in FPD
Abutment selection in FPD
Dr. Anshul Sahu

Crown lengthening
Crown lengtheningCrown lengthening
Crown lengthening
Manu Bhaskaran

4.furcation involvement and its treatment
4.furcation involvement and its treatment4.furcation involvement and its treatment
4.furcation involvement and its treatment
punitnaidu07

Retention and Relapse in orthodontics
Retention and Relapse in orthodonticsRetention and Relapse in orthodontics
Retention and Relapse in orthodontics
Ekta Chaudhary

Over denture
Over dentureOver denture
Over denture
AHMED ELMESSINY

Full crown preparation
Full crown preparation  Full crown preparation
Full crown preparation
Nivedha Tina

Resin bonded fixed partial denture
Resin bonded fixed partial dentureResin bonded fixed partial denture
Resin bonded fixed partial denture
Azheen Mohamad Kharib

Furcation ppt
Furcation pptFurcation ppt
Furcation ppt
Azkah Qazi


What's hot (20)

Pontics in Fixed Partial Dentures
Pontics in Fixed Partial DenturesPontics in Fixed Partial Dentures
Pontics in Fixed Partial Dentures

Complex amalgam restorations
Complex amalgam restorationsComplex amalgam restorations
Complex amalgam restorations

Obturation techniques
Obturation techniquesObturation techniques
Obturation techniques

serial extraction
 serial extraction  serial extraction
serial extraction

Space maintainers
Space maintainers Space maintainers
Space maintainers

Single Complete Denture
Single Complete DentureSingle Complete Denture
Single Complete Denture

Matrix bands
Matrix bandsMatrix bands
Matrix bands

Retainer in FPD
Retainer in FPD Retainer in FPD
Retainer in FPD

Chemo-mechanical Caries Removal
Chemo-mechanical Caries Removal Chemo-mechanical Caries Removal
Chemo-mechanical Caries Removal

Rationale of endodontics
Rationale of endodonticsRationale of endodontics
Rationale of endodontics

Post and core
Post and corePost and core
Post and core

Space maintainer
Space maintainerSpace maintainer
Space maintainer

Abutment selection in FPD
Abutment selection in FPDAbutment selection in FPD
Abutment selection in FPD

Crown lengthening
Crown lengtheningCrown lengthening
Crown lengthening

4.furcation involvement and its treatment
4.furcation involvement and its treatment4.furcation involvement and its treatment
4.furcation involvement and its treatment

Retention and Relapse in orthodontics
Retention and Relapse in orthodonticsRetention and Relapse in orthodontics
Retention and Relapse in orthodontics

Over denture
Over dentureOver denture
Over denture

Full crown preparation
Full crown preparation  Full crown preparation
Full crown preparation

Resin bonded fixed partial denture
Resin bonded fixed partial dentureResin bonded fixed partial denture
Resin bonded fixed partial denture

Furcation ppt
Furcation pptFurcation ppt
Furcation ppt


Viewers also liked

Pontics in fpd
Pontics in fpdPontics in fpd
Pontics in fpd
Indian dental academy

29.preparing dentures for delivery
29.preparing dentures for delivery29.preparing dentures for delivery
Occlusion In Fixed Partial Denture
Occlusion In Fixed Partial DentureOcclusion In Fixed Partial Denture
Occlusion In Fixed Partial Denture
Self employed

Principles of tooth preparation
Principles of tooth preparationPrinciples of tooth preparation
Principles of tooth preparation
rakeshrakz

Pontics Design in fixed prosthodontics
Pontics Design in fixed prosthodonticsPontics Design in fixed prosthodontics
Pontics Design in fixed prosthodontics
Indian dental academy

Types of crown & bridges
Types of crown & bridgesTypes of crown & bridges
Types of crown & bridges
Dr. Yumna

pontics in FPD (prosthodontics)
pontics in FPD (prosthodontics)pontics in FPD (prosthodontics)
pontics in FPD (prosthodontics)
Karishma Ashok


Viewers also liked (7)

Pontics in fpd
Pontics in fpdPontics in fpd
Pontics in fpd

29.preparing dentures for delivery
29.preparing dentures for delivery29.preparing dentures for delivery
29.preparing dentures for delivery

Occlusion In Fixed Partial Denture
Occlusion In Fixed Partial DentureOcclusion In Fixed Partial Denture
Occlusion In Fixed Partial Denture

Principles of tooth preparation
Principles of tooth preparationPrinciples of tooth preparation
Principles of tooth preparation

Pontics Design in fixed prosthodontics
Pontics Design in fixed prosthodonticsPontics Design in fixed prosthodontics
Pontics Design in fixed prosthodontics

Types of crown & bridges
Types of crown & bridgesTypes of crown & bridges
Types of crown & bridges

pontics in FPD (prosthodontics)
pontics in FPD (prosthodontics)pontics in FPD (prosthodontics)
pontics in FPD (prosthodontics)


Similar to Pontics

Pontics Kashish
Pontics KashishPontics Kashish
Pontics Kashish
Kashish Manghani

pontics in the prosthetic dentistry
pontics in the prosthetic dentistry pontics in the prosthetic dentistry
pontics in the prosthetic dentistry
Atheer Ahmed

COMPONENTS OF FIXED PARTIAL DENTURE
COMPONENTS OF FIXED PARTIAL DENTURECOMPONENTS OF FIXED PARTIAL DENTURE
COMPONENTS OF FIXED PARTIAL DENTURE
Aamir Godil

PONTICS IN Fixed partial denture - Prodthodontics.pptx
PONTICS IN Fixed partial denture - Prodthodontics.pptxPONTICS IN Fixed partial denture - Prodthodontics.pptx
PONTICS IN Fixed partial denture - Prodthodontics.pptx
Aswitha Ganapathy

Components of Fixed Partial Denture
Components of Fixed Partial DentureComponents of Fixed Partial Denture
Components of Fixed Partial Denture
Aamir Godil

Effect of ferrule and post - journal club Effect of ferrule and post placemen...
Effect of ferrule and post - journal club Effect of ferrule and post placemen...Effect of ferrule and post - journal club Effect of ferrule and post placemen...
Effect of ferrule and post - journal club Effect of ferrule and post placemen...
Partha Sarathi Adhya

Unconventional fixed partial dentures
Unconventional fixed partial dentures Unconventional fixed partial dentures
Unconventional fixed partial dentures
EeshaMody

Ceramic inlays and onlays
Ceramic inlays  and onlaysCeramic inlays  and onlays
Ceramic inlays and onlays
Pooja Jayan

Post dr. hicham nuaimi
Post dr. hicham nuaimiPost dr. hicham nuaimi
Post dr. hicham nuaimi
Husham Al-noaimi

Pontic
PonticPontic
Pontic
QalamGroup

Cervical margin design
Cervical margin designCervical margin design
Cervical margin design
Aditi Ghai

Inlays & onlays (crown and bridge )
Inlays & onlays (crown and bridge )Inlays & onlays (crown and bridge )
Inlays & onlays (crown and bridge )
dentalcare3

Pontics in fpd
Pontics in fpdPontics in fpd
Pontics in fpd
Karishma Tyagi

Stainless steel crowns
Stainless steel crownsStainless steel crowns
Stainless steel crowns
mahesh kumar

Post and core ppt
Post and core pptPost and core ppt
Post and core ppt
Dr. M. Kishore

25. rpd denture bases+teeth
25. rpd denture bases+teeth25. rpd denture bases+teeth
25. rpd denture bases+teeth
shammasm

Fixed appliances
Fixed appliancesFixed appliances
Fixed appliances
Mohanad Elsherif

POST AND CORE (2).ppt
POST AND CORE (2).pptPOST AND CORE (2).ppt
POST AND CORE (2).ppt
Shruti Jumde

Post and core
Post and corePost and core
Post and core
Sana Khan

Principles of tooth preparation
Principles of tooth preparationPrinciples of tooth preparation
Principles of tooth preparation
Urvashi Sodvadiya


Similar to Pontics (20)

Pontics Kashish
Pontics KashishPontics Kashish
Pontics Kashish

pontics in the prosthetic dentistry
pontics in the prosthetic dentistry pontics in the prosthetic dentistry
pontics in the prosthetic dentistry

COMPONENTS OF FIXED PARTIAL DENTURE
COMPONENTS OF FIXED PARTIAL DENTURECOMPONENTS OF FIXED PARTIAL DENTURE
COMPONENTS OF FIXED PARTIAL DENTURE

PONTICS IN Fixed partial denture - Prodthodontics.pptx
PONTICS IN Fixed partial denture - Prodthodontics.pptxPONTICS IN Fixed partial denture - Prodthodontics.pptx
PONTICS IN Fixed partial denture - Prodthodontics.pptx

Components of Fixed Partial Denture
Components of Fixed Partial DentureComponents of Fixed Partial Denture
Components of Fixed Partial Denture

Effect of ferrule and post - journal club Effect of ferrule and post placemen...
Effect of ferrule and post - journal club Effect of ferrule and post placemen...Effect of ferrule and post - journal club Effect of ferrule and post placemen...
Effect of ferrule and post - journal club Effect of ferrule and post placemen...

Unconventional fixed partial dentures
Unconventional fixed partial dentures Unconventional fixed partial dentures
Unconventional fixed partial dentures

Ceramic inlays and onlays
Ceramic inlays  and onlaysCeramic inlays  and onlays
Ceramic inlays and onlays

Post dr. hicham nuaimi
Post dr. hicham nuaimiPost dr. hicham nuaimi
Post dr. hicham nuaimi

Pontic
PonticPontic
Pontic

Cervical margin design
Cervical margin designCervical margin design
Cervical margin design

Inlays & onlays (crown and bridge )
Inlays & onlays (crown and bridge )Inlays & onlays (crown and bridge )
Inlays & onlays (crown and bridge )

Pontics in fpd
Pontics in fpdPontics in fpd
Pontics in fpd

Stainless steel crowns
Stainless steel crownsStainless steel crowns
Stainless steel crowns

Post and core ppt
Post and core pptPost and core ppt
Post and core ppt

25. rpd denture bases+teeth
25. rpd denture bases+teeth25. rpd denture bases+teeth
25. rpd denture bases+teeth

Fixed appliances
Fixed appliancesFixed appliances
Fixed appliances

POST AND CORE (2).ppt
POST AND CORE (2).pptPOST AND CORE (2).ppt
POST AND CORE (2).ppt

Post and core
Post and corePost and core
Post and core

Principles of tooth preparation
Principles of tooth preparationPrinciples of tooth preparation
Principles of tooth preparation


Recently uploaded

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.
Kunj Vihari

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx
Dr. Dhwani kawedia

Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOWPune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Get New Sim

Physical demands in sports - WCSPT Oslo 2024
Physical demands in sports - WCSPT Oslo 2024Physical demands in sports - WCSPT Oslo 2024
Physical demands in sports - WCSPT Oslo 2024
Torstein Dalen-Lorentsen

Call Girls Lucknow 9024918724 Vip Call Girls Lucknow
Call Girls Lucknow 9024918724 Vip Call Girls LucknowCall Girls Lucknow 9024918724 Vip Call Girls Lucknow
Call Girls Lucknow 9024918724 Vip Call Girls Lucknow
nandinirastogi03

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Dr. Nikhilkumar Sakle

TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
Donc Test

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
NephroTube - Dr.Gawad

Breast cancer: Post menopausal endocrine therapy
Breast cancer: Post menopausal endocrine therapyBreast cancer: Post menopausal endocrine therapy
Breast cancer: Post menopausal endocrine therapy
Dr. Sumit KUMAR

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
NephroTube - Dr.Gawad

PARASITIC INFECTIONS IN CHILDREN peads.pptx
PARASITIC INFECTIONS IN CHILDREN peads.pptxPARASITIC INFECTIONS IN CHILDREN peads.pptx
PARASITIC INFECTIONS IN CHILDREN peads.pptx
MwambaChikonde1

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health
phuakl

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child
Bhavyakelawadiya

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
Kanhu Charan

Public Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public HealthPublic Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public Health
phuakl

Cervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptxCervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptx
LEFLOT Jean-Louis

Helminthiasis or Worm infestation in Children for Nursing students
Helminthiasis or Worm infestation in Children for Nursing studentsHelminthiasis or Worm infestation in Children for Nursing students
Helminthiasis or Worm infestation in Children for Nursing students
RAJU B N

Call Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls PuneCall Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls Pune
Mobile Problem

What is Obesity? How to overcome Obesity?
What is Obesity? How to overcome Obesity?What is Obesity? How to overcome Obesity?
What is Obesity? How to overcome Obesity?
Healthmedsrx.com

Call Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai
Call Girls In Mumbai +91-7426014248 High Profile Call Girl MumbaiCall Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai
Call Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai
Mobile Problem


Recently uploaded (20)

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx

Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOWPune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW
Pune Call Girls 7339748667 AVAILABLE HOT GIRLS AUNTY BOOK NOW

Physical demands in sports - WCSPT Oslo 2024
Physical demands in sports - WCSPT Oslo 2024Physical demands in sports - WCSPT Oslo 2024
Physical demands in sports - WCSPT Oslo 2024

Call Girls Lucknow 9024918724 Vip Call Girls Lucknow
Call Girls Lucknow 9024918724 Vip Call Girls LucknowCall Girls Lucknow 9024918724 Vip Call Girls Lucknow
Call Girls Lucknow 9024918724 Vip Call Girls Lucknow

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes

TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...
TEST BANK For Brunner and Suddarth's Textbook of Medical-Surgical Nursing, 14...

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad

Breast cancer: Post menopausal endocrine therapy
Breast cancer: Post menopausal endocrine therapyBreast cancer: Post menopausal endocrine therapy
Breast cancer: Post menopausal endocrine therapy

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad

PARASITIC INFECTIONS IN CHILDREN peads.pptx
PARASITIC INFECTIONS IN CHILDREN peads.pptxPARASITIC INFECTIONS IN CHILDREN peads.pptx
PARASITIC INFECTIONS IN CHILDREN peads.pptx

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health

Nutritional deficiency disorder in Child
Nutritional deficiency disorder in ChildNutritional deficiency disorder in Child
Nutritional deficiency disorder in Child

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro

Public Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public HealthPublic Health Lecture 4 Social Sciences and Public Health
Public Health Lecture 4 Social Sciences and Public Health

Cervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptxCervical Disc Arthroplasty ORSI 2024.pptx
Cervical Disc Arthroplasty ORSI 2024.pptx

Helminthiasis or Worm infestation in Children for Nursing students
Helminthiasis or Worm infestation in Children for Nursing studentsHelminthiasis or Worm infestation in Children for Nursing students
Helminthiasis or Worm infestation in Children for Nursing students

Call Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls PuneCall Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls Pune

What is Obesity? How to overcome Obesity?
What is Obesity? How to overcome Obesity?What is Obesity? How to overcome Obesity?
What is Obesity? How to overcome Obesity?

Call Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai
Call Girls In Mumbai +91-7426014248 High Profile Call Girl MumbaiCall Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai
Call Girls In Mumbai +91-7426014248 High Profile Call Girl Mumbai


Pontics

  • 1. Pontics Preeti kalia IInd year PG student Dept of Prosthodontics A.E.C.S Maaruti College of Dental Sciences
  • 2. Pontics Definition Requirements Design Pretreatments assessment Types Fabrication
  • 3. Definition  Pontic GPT : An artificial tooth on a fixed dental prosthesis that replaces a missing natural tooth, restores its function, and usually fills the space previously occupied by the clinical crown
  • 4. Definition  Acc to Tylman –pontic is the suspended member of a fixed partial denture. it replaces the lost natural tooth, restores function ,and occupies the space of the missing tooth.
  • 5. Ideal requirements of pontics  Smooth surfaced and convex in all directions  Easily cleansable  Pinpoint pressure free contact on the ridge  No irritation to the gingival tissues
  • 6. Ideal requirement of pontics  Facilitate plaque control  Emergence profile  Strength and longevity  Be esthetic
  • 7. Ideal requirements of pontics  Restore function  No abutment overloading  Color stable
  • 8. Functions of pontics  Mastication  Speech  Esthetics
  • 10. Biologic considerations Ridge contact  Area of contact with ridge should be small and convex.
  • 13.  Differences in the plaque-retaining capacities of.samples of a Type III gold, gold for veneering with porcelain, a vacuum-fired bonded porcelain Veneer, and an acrylic resin.  After 48 hours in vivo, the Ceramco metal and Type III gold specimens accumulated significantly more dark stains than acrylic ones Wise. M et al and Dykema .R, The plaque-retaining capacity of four dental materials,J Proshtet 1975;33:178
  • 14. Occlusal forces  Reduce buccolingual width – 30% to lessen occlusal forces  12% increase in chewing efficiency  Pontics with normal occlusal widths – in the occlusal third area
  • 15. Mechanical considerations  Improper choice of materials  Poor framework design  Poor tooth preparation  Poor occlusion
  • 16. It can be seen that the maximum tensile stress at the solder joint, mesial to the second molar and above the gingiva, was reduced from2,400 p.s.i, in the conventional pontic to 1,200 p.s.i, in the sanitary pontic and finally to 720 p.s.i, in the modified sanitary pontic.  For the solder joint distal to the second premolar, also above till gingiva, the reductions were in the order of 1,920 (C.P.)to 960 (S.P.) to 720 p.s.i. (M.S.P.). Hood, J. A. Stress and deflection of three different pontic designs. J Prosthet Dent 33:54-59, 1975
  • 18. Incisogingival length  Root can be stained to simulate exposed dentine.  Pink porcelain to simulate the gingival tissues
  • 19. Mesiodistal width  Space discrepancy – less problem in posteriors
  • 20. Mesiodistal width  Orthodontic treatment  Pontic of abnormal size- illusion of natural tooth
  • 22. Pontic space Individual crowns of increased proximal contours were preferred to an FPD with undersized pontics
  • 23. Residual ridge contour Food entrapment Loss of residual ridge contour leading to unesthetic open gingival embrasures
  • 24. Residual ridge contour Class I defect. Class II defect. Class III defect. Sieberts classification
  • 25. Residual ridge contour Abrams et al showed Class I defects to constitute 32.4% Class II- 2.9% Class III- 55.9% 8.8% having no defects
  • 26. Surgical management of class I defect Pouch technique
  • 27. Surgical management of class I defect Pouch technique
  • 28. Surgical management of class II and III defect Interpostional graft
  • 29. Surgical management of class II and III defect onlay graft
  • 31. Classification 1. Depending on shape of surface contacting the ridge(Tylmann)  Sanitary  Modified sanitary  Spheroidal  Saddle  Ridge lap  Modified ridgelap  Ovate
  • 32. 2.According to Rosenstiel depending on mucosal contact  A. mucosal contact ridge lap modified ridge lap ovate conical  B. No mucosal contact sanitary(hygenic) modified sanitary
  • 33. 3.According to the form(Johnston) Sanitary or Hygenic Anatomic type 4.Based on materials used Metal Metal and porcelain Metal and resin
  • 34. 5.Prefabricated pontics Flat back Trupontic Longpinfacing Pontips Reverse pin facings
  • 41. Modified ovate pontic  Contact more labially than ovate pontic  Easier to clean  No need of surgical augmentation  Push the labial gingival margin away to floss Liu.S,J Esthet Restor Dent 16:273-283, 2004
  • 42. Residual ridge contour  To determine the frequency and the nature of tissue reactions of underlying residual ridge mucosa to specific pontic designs, and  To compare the frequency and the nature of tissue reactions of residual ridge mucosa to various materials used in pontic construction. Stein.R.S , Pontic residual ridge relationship, J Proshtet Dent 1966;16: 251-285
  • 43.
  • 44. Metal Ceramic pontics  Uniform veneer of porcelain- 1.2 mm  Metal surface – smooth and free of pits  Round angles  Occlusal centric contacts – 1.5 mm away from junction
  • 45. Metal ceramic pontics wax the prosthesis
  • 49. Pontic fabrication  All metal hygienic pontic  Metal ceramic pontic
  • 50. Armamentarium  Sable brush  Plaster bowl  Spatula  Quick setting plaster  Bunsen burner  PKT waxing instruments- No 1,2,3,4,5  Beavertail burnisher  No 7 wax spatula  Inlay casting wax  Die lubricant  Cotton pliers  Hollow plastic sprue
  • 51. All metal hygienic pontic fabrication
  • 52. All metal hygienic pontic fabrication
  • 53. All metal hygienic pontic fabrication
  • 54. All metal hygienic pontic fabrication
  • 55. All metal hygienic pontic fabrication
  • 56. Metal ceramic pontics  Requirements  Adequate bulk of metal  Uniform thickness of porcelain  Continuous strip of metal on lingual surface
  • 57. Scalloped or trestle design  Connector is diminished in faciolingual dimension – Indication  Bulk or rigidity in connector areas  Tissue contact – modified ridge lap
  • 58. Metal ceramic pontics  To produce continuous contour and uniform thickness of porcelain – fabricate wax pattern to full contour and cut back  Fabricate the copings – No 7 wax spatula  Blue inlay wax stick – edentulous area
  • 59. Metal ceramic pontics  Check the alignment in a mesiodistal and the facial profile
  • 62. Available pontic systems Advantages Disadvantages Indications Contraindications Metal Esthetics Difficult if Most Long span with ceramic Biocompatible abutment not situations high stress metal ceramic All metal Strength Non esthetic Mandibular Esthetics Straightforward molars, procedure under high bite force Fibre Conservative Limited to short Esthetics Long span reinforced with inlays spans all resin Esthetics Facings Rarely used Rarely used Rarely used Rarely used
  • 63. Review of literature Kumbulolu.O et al, A Different Pontic Design for Fiber-Reinforced Composite Bridgeworks: A Clinical Report, Eur J Dent. 2007 January; 1(1): 50–53.
  • 64. Review of literature Kim.T.H.Yet al, Simulated tissue using unique pontic design, J Prosthet Dent 2009;102:205-210
  • 65. References  Malone W.F.P., Koth D.L., Cavazos E. : Tylman’s theory of practice of fixed prosthodontics. 8 Ed., lshiyaku publications, 1993,357-370  Rosenstiel R.F., Land M.F., Fujimot J.: Contemporary fixed prosthodontics. 4th Ed., Mosby Publications, 2007, 616-648
  • 66. References  Shillingburg H.T., Hobo S., Whisett L.D., Jacobi R., Brackett S.E. Fundamentals of fixed prosthodontics, 3 Ed., Quintessence Publication,2007,India ,485-506  Stein.R.S , Pontic residual ridge relationship, J Proshtet Dent 1966;16: 251-285
  • 67. References  Wise. M et al and Dykema .R, The plaque-retaining capacity of four dental materials,J Proshtet 1975;33:178  Liu.S ,Use of a modified ovate pontic in areas of ridge defects: A report of 2 cases, J Esthet Restor Dent 16:273- 283, 2004
  • 68. References  Kumbulolu.O et al, A Different Pontic Design for Fiber-Reinforced Composite Bridgeworks: A Clinical Report, Eur J Dent. 2007 January; 1(1): 50–53. Kim.T.H.Yet al, Simulated tissue using unique pontic design, J Prosthet Dent 2009;102:205-210
  • 69. References  R.Duane Douglas ,Pontic design  FPDpontic wax up .ppt  FPD.ppt
