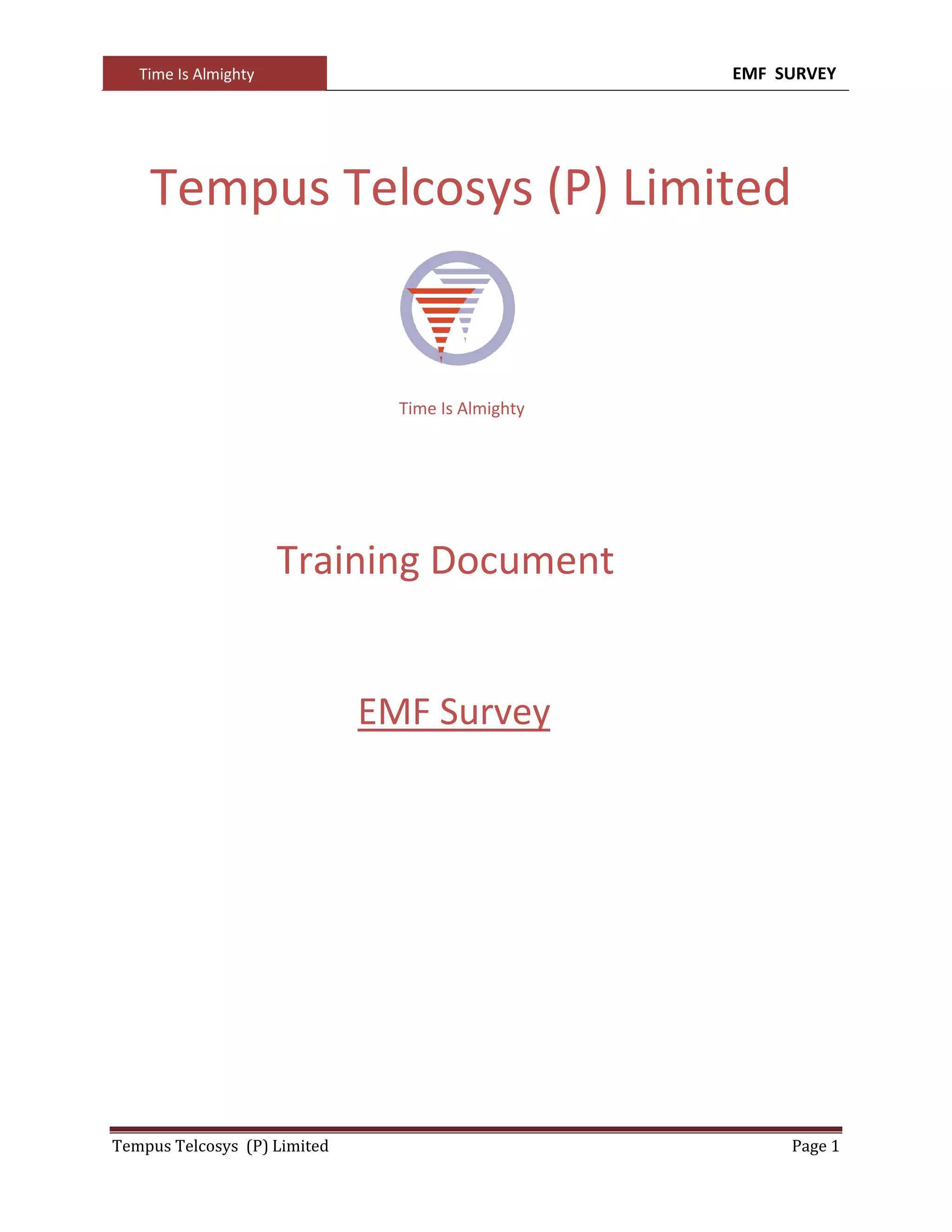

1. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 1
Tempus Telcosys (P) Limited
Time Is Almighty
Training Document
EMF Survey

2. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 2
Introduction
In the age of Cellular Mobile technology telecom industries are growing very fast due to its
demand, every year large number of users are using the mobile Phones this forces companies
to provide the coverage to there customers in a very discipline manner ,In order to provide the
coverage companies have competition to install new cell site, now a days we can see new cell
sites around us ,you can see large number of towers are installed on the building, due to this a
net of towers are created around us , these tower are highly radiative which are radiating the
EMF(Electromagnetic Magnetic Field wave), At some range it is harmful for the human body
.In this competitions companies are neglecting the rules and regulation of the TRAI(Telecom
Regularity Authority of India ),which causes harmful effect to the human being .TRAI have some
set of rules on basis of which companies have to installed the tower, and the transmission from
the tower should have a specifics range of EIRP(Effective Isotropic Radiated
Power).Government is responsible to check the EIRP ,for this government asked companies to
provide the report to the TRAI .The survey perform by the companies to provide this report to
the TRAI is called EMF Survey (Electromagnetic Field Survey).EMF Survey is perform to check
the value of EIRP across the BSS.
Definition
EMF Survey is perform to collect the EIRP (Effected Isotropic Radiated Power) ratio to know
about the strength of EMF signal across the BSS (Base Station Subsystem).
Need Of EMF Survey
This survey is performed to check the harmful effect cause due the high power radiation of the
EMF from the towers.

3. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 3
TRAI Guidelines:
Old Guideline:
 According to the TRAI (Telecom Regularity Authority of India) the survey area across the
nominal point should be of 20 meter.
 EIRP ratio (Effective Isotropic Radiated Power): According to TRAI the EIRP ratio should
be less than 1.
New Guideline:
 According to the TRAI (Telecom Regularity Authority of India) the survey area across the
nominal point should be of 60 meter.
 EIRP ratio (Effective Isotropic Radiated Power): According to TRAI the EIRP ratio should
be less than 0.5.
EMF Survey Tool Kit:
1. GPS
2. Laptop
3. Digital Camera
4. Magnetic Compass
5. Measuring Tape
6. Binocular
7. Writing material
8. EMF Tester/EMF Meter/Spectrometer

4. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 4
Procedures of EMF Survey
 With the help of GPS we have to reach at the nominal point.
 Collection of data :
o Site Id
o Site Name
o Site Add
o Lat, Long
o Antenna Height
o Tower Height
o RF cable length
o panoramic photos (0,30,90.120……..330 degree) 12 photos, sky should be 10% &
Cluster 90%.
o Calculate Firing angle/azimuth angle.
o Sector Photos(Sector A, Sector B, Sector C)/
o Site Photo
o To take adjacent photo if the G+1 building is present in the range of 60 meter.
o Detail of each G+1 building and cell site is Mandatory.
Calculation Method:
 There are two methods to calculate EIRP Ratio :
o Using EMF Tester and
o Using calculation sheet( Formulated excel sheet).

5. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 5
Collection of Adjacent Building Data /Details:
 In order to collect the adjacent building detail the building layout is
designed.
Fig.1
First adj Building
t
Second adj Building
Nominal Point
Third adj Building
B0,T0
B1
B2
B3
N
W E
S
1st
adjacent
tower T1
1st
adjacent
towerT2

6. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 6
Adjacent Building /Tower Data collection:
 Create this table after the data collection
Tower/Building Lat Long Height(m) No. of
Floor
Azimuth Distance
from
tower
B1
B2
B3
T1
T2
Table .1

7. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 7
Roof Top Layout (For Corner Details):
 In order to collect the Corner detail the Roof Top layout is designed.
Fig.2
A1 A2
A4 A3
Tower
SHELTER
R
DG
C1 C2
C4 C3
North

8. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 8
 Corner Data Collection Table:
Corner Distance from tower Corner Height
C1 A1
C2 A2
C3 A3
C4 A4
Table .2
 A1,A2,A2,A4 are the distance of corner from the tower.
 C1,C2,C3,C4 are corner points.
Signage Board
According to EIRP calculation various sign board is placed around Tower
A. Danger Sign Board: At tower where maximum EIRP ratio found.
B. Caution Sign Board: Around tower where EIRP ration is average.
C. Warning Sign Board: At the entrance of tower where EIRP ratio is low.

9. Time Is Almighty EMF SURVEY
Tempus Telcosys (P) Limited Page 9
Examples Of EMF Survey Report
1.
MP_JTRA002.xls
