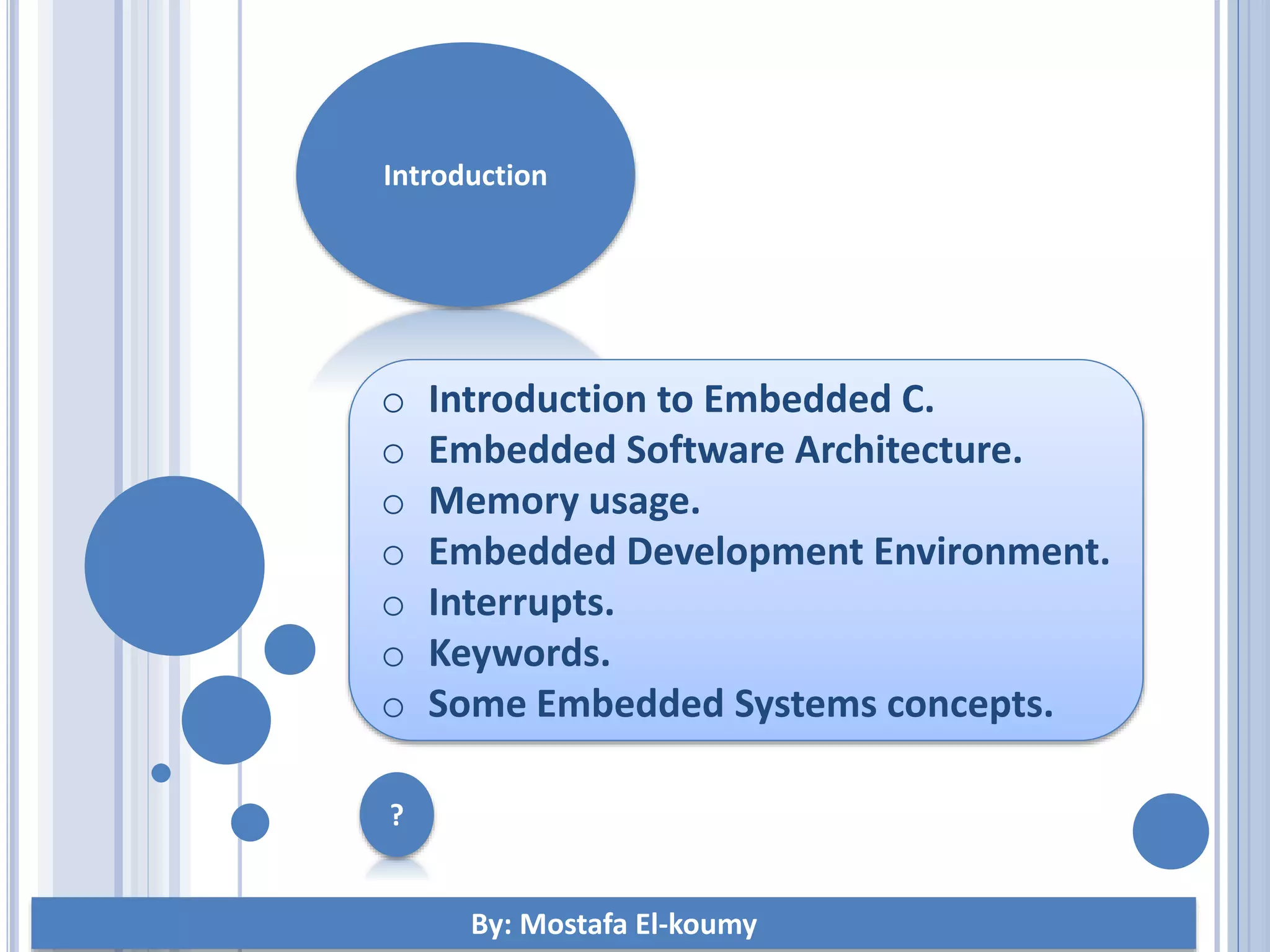

2. Introduction
?
o Introduction to Embedded C.
o Embedded Software Architecture.
o Memory usage.
o Embedded Development Environment.
o Interrupts.
o Keywords.
o Some Embedded Systems concepts.
By: Mostafa El-koumy
3. INTRODUCTION
Embedded Systems is all things around you which have
something called electronic brain to make some sort of
artificial intelligence.
Embedded C is a prober subset of C language suitable for
Embedded systems, it defines only a new concept of
writing software.
Using Embedded C, we should handle everything used in
the program like Memory Management, HW Registers,
interrupts, …. Etc.
By: Mostafa El-koumy
4. MISRA RULES
Motor Industry Software Reliability Association.
Collaboration between engineering consultancies which
seeks to promote best practice in developing
Automotive Systems and other embedded systems.
To this end MISRA publishes documents that provide
accessible information for engineers and management,
and holds events to permit the exchange of experiences
between practitioners.
URL : www.misra.org.uk
EX:
By: Mostafa El-koumy
7. CODE FLOW
All the code is running within infinite loop in main except:
Initialization code.
Interrupt handlers, interrupt service routines (ISR).
The other code runs normally
int main (void)
{
intitializeModule();
sei();
while(1){
startApplication();
}
return 0;
}
By: Mostafa El-koumy
10. MEMORY USAGE BY LINKER SCRIPT
The HW Registers
Stack space that grow down
Local variables
Functions return address
Heap Space that grow up
Zero default initialized variables
Initialized with value by developer
By: Mostafa El-koumy
I/O Addresses
Stack (grow down)
Heap (Grow up)
Un-initialized data
(.BSS)
Initialized data
11. DEVELOPMENT ENVIRONMENT
IDE which has
Text editor.
Cross compiler produce machine language
By: Mostafa El-koumy
13. DEVELOPMENT ENVIRONMENT
In circuit Debugger (ICD)
HW device connects to the microprocessor using JTAG/SWD
interface to support external control of the microprocessor
using debugger.
Restrictions of debugging capabilities is specified by the
microprocessor.
By: Mostafa El-koumy
14. DEVELOPMENT ENVIRONMENT
In circuit Emulator (ICE)
HW device used to debug embedded SW. it replaces the
microprocessor with control over all the aspects of it and it
usually emulate all the microprocessor family.
By: Mostafa El-koumy
17. INTERRUPTS
an interrupt is a signal to the processor emitted by
hardware or software indicating an event that needs
immediate attention. An interrupt alerts the processor
to a high-priority condition requiring the interruption of
the current code the processor is executing.
Interrupt sources
Internal peripherals.
External interrupts.
SW interrupts.
Exception thrown by processors.
By: Mostafa El-koumy
20. EMBEDDED KEYWORDS (INTERACTIVE)
Scope and life time with keywords:
Static local
Static global
Volatile
Const
Extern
register
By: Mostafa El-koumy
21. FUNCTIONS VS MACROS
Macros in completely text replacement so it increase the
code size and duplications.
Function is preferred.
By: Mostafa El-koumy
22. MACROS VS INLINE FUNCTIONS
In Inline functions Compiler substitute the function call
by function code like MACROS.
MACROS is supported by preprocessor so all the IDEs
supports it.
Inline is supported by some compilers.
Inline function performs type checking but MACROs not.
Inline function could be traced but MACROs not.
Some compiler disable inline function when the its code
is large.
