Eclipse Edje: A Java API for Microcontrollers
The Edje Project focuses on creating a software foundation for IoT devices, emphasizing API features for communication interfaces and peripheral management. It aims to enable resource-constrained devices with efficient performance and minimal footprint while providing development tools for easier deployment and application configuration. The project is part of the Eclipse IoT initiative, with ongoing partnerships and support for various hardware platforms.
More Related Content
Similar to Eclipse Edje: A Java API for Microcontrollers
![20260201 [FOSDEM] gomodjail - library sandboxing for Go modules.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/20260201fosdemgomodjail-librarysandboxingforgomodules-260201225659-76609ec4-thumbnail.jpg?width=640&height=640&fit=bounds)
Eclipse Edje: A Java API for Microcontrollers
- 1. © IS2T S.A.2016. All rights reserved. EDJE PROJECT The Software Foundation for IoT Devices https://projects.eclipse.org/projects/iot.edje

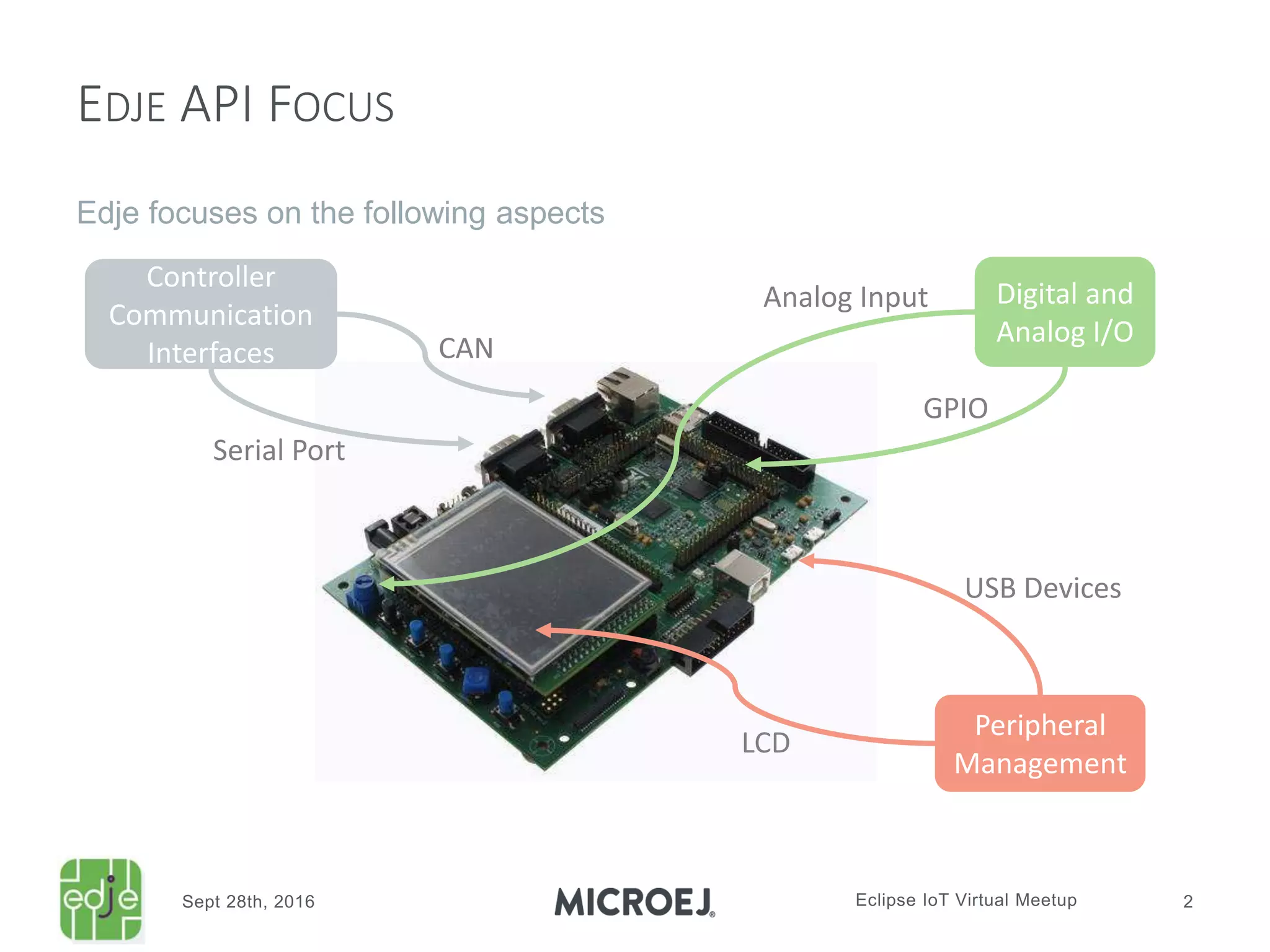

- 2. Edje focuses onthe following aspects EDJE API FOCUS Controller Communication Interfaces Serial Port CAN Digital and Analog I/O GPIO Peripheral Management LCD USB Devices Analog Input

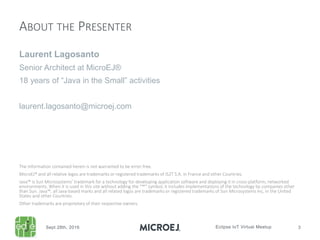

- 3. Laurent Lagosanto Senior Architectat MicroEJ® 18 years of “Java in the Small” activities laurent.lagosanto@microej.com ABOUT THE PRESENTER The information contained herein is not warranted to be error-free. MicroEJ® and all relative logos are trademarks or registered trademarks of IS2T S.A. in France and other Countries. Java™ is Sun Microsystems’ trademark for a technology for developing application software and deploying it in cross-platform, networked environments. When it is used in this site without adding the “™” symbol, it includes implementations of the technology by companies other than Sun. Java™, all Java-based marks and all related logos are trademarks or registered trademarks of Sun Microsystems Inc, in the United States and other Countries. Other trademarks are proprietary of their respective owners.
- 4. Independent Software Vendor,global player in the embedded IoT industry • http://www.microej.com/about • Software tool & runtime licenses • Professional services, training & consulting KEY FINANCIALS • $5M Series B funding end 2011 – $20M R&D total investment Offices in France, Germany, USA Expertise in embedded, virtualization, software engineering & process Partnerships with key IoT, silicon, embedded SW and HW (EMS) vendors ABOUT MICROEJ
- 5. PARTNERS & CONSORTIA– STRONG BUSINESS PARTNERS SERVICES HARDWARE SOFTWARE CLOUD ALLIANCES

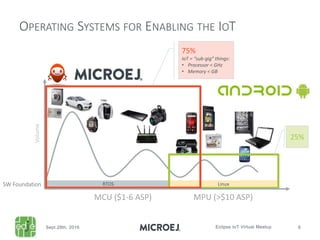

- 6. OPERATING SYSTEMS FORENABLING THE IOT RTOS Linux Volume 75% IoT = “sub-gig” things: • Processor < GHz • Memory < GB 25% SW Foundation MPU (>$10 ASP)MCU ($1-6 ASP)
- 7.
- 8. EDJE AND IOTINTRODUCTION

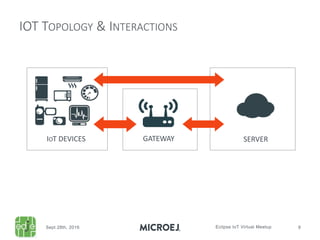

- 9. IOT TOPOLOGY &INTERACTIONS IOT DEVICES GATEWAY SERVER

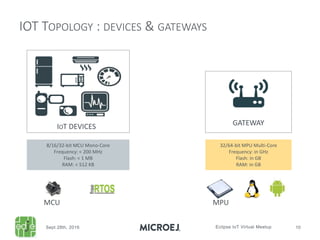

- 10. IOT TOPOLOGY :DEVICES & GATEWAYS 8/16/32-bit MCU Mono-Core Frequency: < 200 MHz Flash: < 1 MB RAM: < 512 KB 32/64-bit MPU Multi-Core Frequency: in GHz Flash: in GB RAM: in GB MCU MPU IOT DEVICES GATEWAY

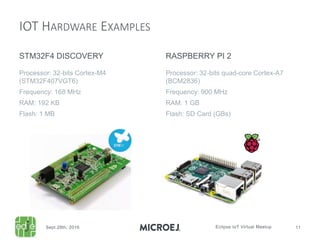

- 11. IOT HARDWARE EXAMPLES STM32F4DISCOVERY Processor: 32-bits Cortex-M4 (STM32F407VGT6) Frequency: 168 MHz RAM: 192 KB Flash: 1 MB RASPBERRY PI 2 Processor: 32-bits quad-core Cortex-A7 (BCM2836) Frequency: 900 MHz RAM: 1 GB Flash: SD Card (GBs)

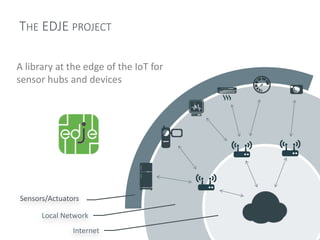

- 12. THE EDJE PROJECT Sensors/Actuators LocalNetwork Internet A library at the edge of the IoT for sensor hubs and devices
- 13. Performance matters Almost noboot time, instantly-on Power efficiency, last for months, years Size matters Cost-effectiveness is key : footprint Size of the package Versatility matters Plethora of protocols (to hardware, and to cloud services) Shorten time to market by reducing development time IOT : WHAT MATTERS FOR EDGE DEVICES ?

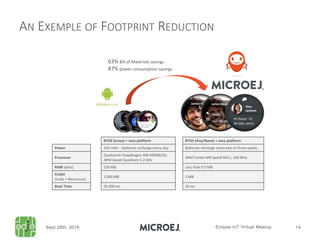

- 14. AN EXEMPLE OFFOOTPRINT REDUCTION James Bauer James Bauer Reply Call me later Alex Jackson Hi there! I’ll be late, sorry. RTOS (Linux) + Java platform RTOS (Any/None) + Java platform Power 410 mAh – batteries recharge every day Batteries recharge every two or three weeks Processor Qualcomm Snapdragon 400 MSM8226, ARM based Quadcore 1.2 GHz ARM Cortex-M4 based MCU, 100 MHz RAM (data) 256 MB Less than 0.5 MB FLASH (Code + Resources) 2,000 MB 2 MB Boot Time 35,000 ms 50 ms 63% Bill of Materials savings 87% power consumption savings
- 15. ROM (KB) Standard mode ROM(KB) Tiny mode** RAM (KB) Application Total: 36.1 36.1 Total: 27.2 27.2 See below (52.0) Resources Images uncompressed Fonts Strings Total: 836.9 803.0 16.7 17.2 Total: 836.9 803.0 16.7 17.2 MicroEJ Platform EDC MicroUI, MWT, Motion Total: 198.0 24.1 172.9 Total: 143.0 19.2 123.8 52.0 (application heap, stacks) MicroEJ Sandbox MicroEJ software core (VM) MicroEJ RAM optimizer (GC) Total: 29.1 15.2 13.9 Total: 29.1 15.2 13.9 BSP RTOS Driver & Low Level API UI drivers Total: 108.4 13.4 54.5 40.5 Total: 108.4 13.4 54.5 40.5 1.5 522 (2x frame buffers WQVGA) + 1 Total without Resources Total with Resources 371 KB 1.2 MB 307 KB 1.1 MB 606.5 KB 606.5 KB TYPICAL REAL APPLICATION FOOTPRINT (KB) WASHING MACHINE ON ARM CORTEX-M4 / GCC **Tiny mode available when MicroEJ application code is below 256KB of flash
- 16. A Hardware AbstractionJava API for the embedded systems • Peripheral management • Controller Communication Interfaces (Serial connection, CAN, SPI, I²C) • Digital and Analog I/O (GPIO, ADC, DAC) Scope • Target resource-constrained devices (MCU & low-cost MPUs) • Provide ready-to-use software packages for target hardware • Define a modular and easy to port framework Project Status • Eclipse IoT project • Proposal approved, entered Incubation phase • Initial code drop end of July EDJE PROJECT
- 17.
- 18. JavaSE List of minimumJava API The minimum execution environment provided by an Edje-compatible device Intersection between Java SE, Java SE Embedded, MicroEJ and Android EDJE DEVICE CONFIGURATION (EDC) JavaSE Embedded Android MicroEJ OS EDC

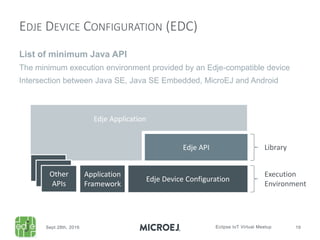

- 19. List of minimumJava API The minimum execution environment provided by an Edje-compatible device Intersection between Java SE, Java SE Embedded, MicroEJ and Android EDJE DEVICE CONFIGURATION (EDC) Edje Device Configuration Edje API Edje Application Library Execution Environment Application Framework Other APIs Other APIs Other APIs

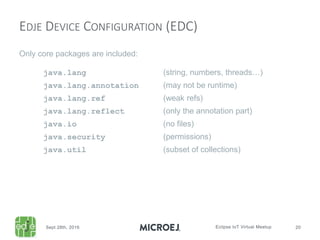

- 20. Only core packagesare included: java.lang (string, numbers, threads…) java.lang.annotation (may not be runtime) java.lang.ref (weak refs) java.lang.reflect (only the annotation part) java.io (no files) java.security (permissions) java.util (subset of collections) EDJE DEVICE CONFIGURATION (EDC)
- 21. These features areNOT included: • Network APIs • Storage APIs • Communication APIs • Graphics & User Interface Some may be added as Edje libraries, some don’t. Some may require native implementations, some don’t and can be downloaded. EDJE DEVICE CONFIGURATION (EDC)
- 22.
- 23. Edje focuses onthe following aspects EDJE API FOCUS Controller Communication Interfaces Serial Port CAN Digital and Analog I/O GPIO Peripheral Management LCD USB Devices Analog Input

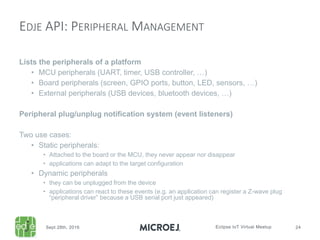

- 24. Lists the peripheralsof a platform • MCU peripherals (UART, timer, USB controller, …) • Board peripherals (screen, GPIO ports, button, LED, sensors, …) • External peripherals (USB devices, bluetooth devices, …) Peripheral plug/unplug notification system (event listeners) Two use cases: • Static peripherals: • Attached to the board or the MCU, they never appear nor disappear • applications can adapt to the target configuration • Dynamic peripherals • they can be unplugged from the device • applications can react to these events (e.g. an application can register a Z-wave plug “peripheral driver” because a USB serial port just appeared) EDJE API: PERIPHERAL MANAGEMENT

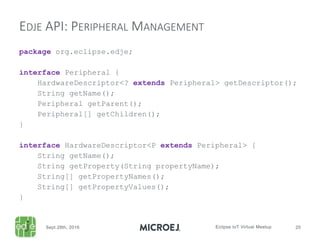

- 25. package org.eclipse.edje; interface Peripheral{ HardwareDescriptor<? extends Peripheral> getDescriptor(); String getName(); Peripheral getParent(); Peripheral[] getChildren(); } interface HardwareDescriptor<P extends Peripheral> { String getName(); String getProperty(String propertyName); String[] getPropertyNames(); String[] getPropertyValues(); } EDJE API: PERIPHERAL MANAGEMENT

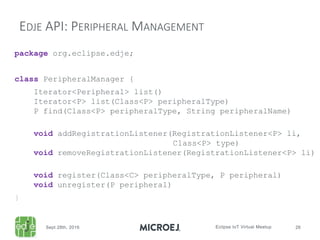

- 26. package org.eclipse.edje; class PeripheralManager{ Iterator<Peripheral> list() Iterator<P> list(Class<P> peripheralType) P find(Class<P> peripheralType, String peripheralName) void addRegistrationListener(RegistrationListener<P> li, Class<P> type) void removeRegistrationListener(RegistrationListener<P> li) void register(Class<C> peripheralType, P peripheral) void unregister(P peripheral) } EDJE API: PERIPHERAL MANAGEMENT

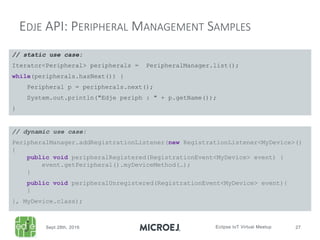

- 27. EDJE API: PERIPHERALMANAGEMENT SAMPLES // static use case: Iterator<Peripheral> peripherals = PeripheralManager.list(); while(peripherals.hasNext()) { Peripheral p = peripherals.next(); System.out.println("Edje periph : " + p.getName()); } // dynamic use case: PeripheralManager.addRegistrationListener(new RegistrationListener<MyDevice>() { public void peripheralRegistered(RegistrationEvent<MyDevice> event) { event.getPeripheral().myDeviceMethod(…); } public void peripheralUnregistered(RegistrationEvent<MyDevice> event){ } }, MyDevice.class);

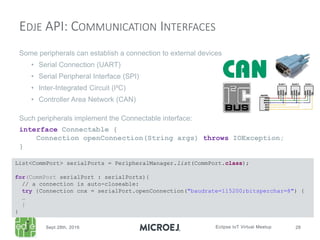

- 28. Some peripherals canestablish a connection to external devices • Serial Connection (UART) • Serial Peripheral Interface (SPI) • Inter-Integrated Circuit (I²C) • Controller Area Network (CAN) Such peripherals implement the Connectable interface: interface Connectable { Connection openConnection(String args) throws IOException; } EDJE API: COMMUNICATION INTERFACES List<CommPort> serialPorts = PeripheralManager.list(CommPort.class); for(CommPort serialPort : serialPorts){ // a connection is auto-closeable: try {Connection cnx = serialPort.openConnection("baudrate=115200;bitsperchar=8") { … } }
- 29. interface CommPort extendsPeripheral, Connectable { } interface CommConnection extends StreamConnection { int getBaudrate(); int setBaudrate(int baudrate); } interface BitsInput { int getLength(); int readBits(boolean signExtends) int readBits(int[] data, boolean signExtends) … } interface BitsOutput { … } EDJE API : COMM PORTS

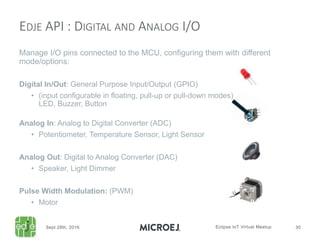

- 30. Manage I/O pinsconnected to the MCU, configuring them with different mode/options: Digital In/Out: General Purpose Input/Output (GPIO) • (input configurable in floating, pull-up or pull-down modes) LED, Buzzer, Button Analog In: Analog to Digital Converter (ADC) • Potentiometer, Temperature Sensor, Light Sensor Analog Out: Digital to Analog Converter (DAC) • Speaker, Light Dimmer Pulse Width Modulation: (PWM) • Motor EDJE API : DIGITAL AND ANALOG I/O
- 31. • A pinis identified by the port name and an ID • Port name can be • MCU specific EDJE API : DIGITAL AND ANALOG I/O PortAPortB
- 32. • A pinis identified by the port name and an ID • Port name can be • Board specific EDJE API : DIGITAL AND ANALOG I/O J1 J2 J3 J4

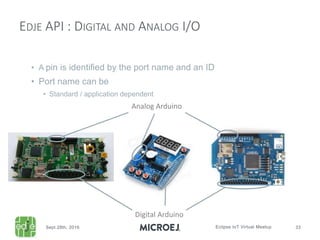

- 33. • A pinis identified by the port name and an ID • Port name can be • Standard / application dependent EDJE API : DIGITAL AND ANALOG I/O Digital Arduino Analog Arduino

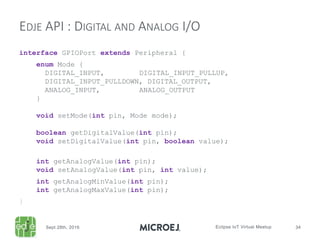

- 34. interface GPIOPort extendsPeripheral { enum Mode { DIGITAL_INPUT, DIGITAL_INPUT_PULLUP, DIGITAL_INPUT_PULLDOWN, DIGITAL_OUTPUT, ANALOG_INPUT, ANALOG_OUTPUT } void setMode(int pin, Mode mode); boolean getDigitalValue(int pin); void setDigitalValue(int pin, boolean value); int getAnalogValue(int pin); void setAnalogValue(int pin, int value); int getAnalogMinValue(int pin); int getAnalogMaxValue(int pin); } EDJE API : DIGITAL AND ANALOG I/O

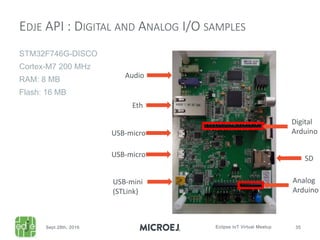

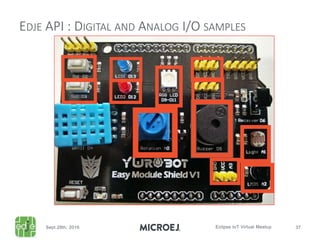

- 35. STM32F746G-DISCO Cortex-M7 200 MHz RAM:8 MB Flash: 16 MB EDJE API : DIGITAL AND ANALOG I/O SAMPLES Eth Audio USB-micro USB-micro USB-mini (STLink) SD Digital Arduino Analog Arduino

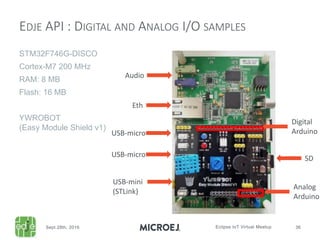

- 36. STM32F746G-DISCO Cortex-M7 200 MHz RAM:8 MB Flash: 16 MB YWROBOT (Easy Module Shield v1) EDJE API : DIGITAL AND ANALOG I/O SAMPLES Eth Audio USB-micro USB-micro USB-mini (STLink) SD Digital Arduino Analog Arduino
- 37. EDJE API :DIGITAL AND ANALOG I/O SAMPLES

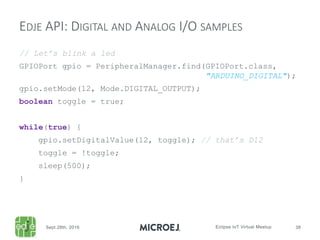

- 38. // Let’s blinka led GPIOPort gpio = PeripheralManager.find(GPIOPort.class, "ARDUINO_DIGITAL"); gpio.setMode(12, Mode.DIGITAL_OUTPUT); boolean toggle = true; while(true) { gpio.setDigitalValue(12, toggle); // that’s D12 toggle = !toggle; sleep(500); } EDJE API: DIGITAL AND ANALOG I/O SAMPLES

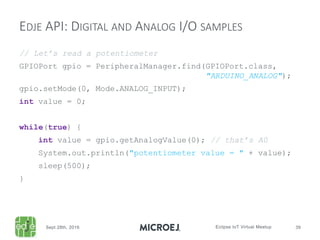

- 39. // Let’s reada potentiometer GPIOPort gpio = PeripheralManager.find(GPIOPort.class, "ARDUINO_ANALOG"); gpio.setMode(0, Mode.ANALOG_INPUT); int value = 0; while(true) { int value = gpio.getAnalogValue(0); // that’s A0 System.out.println("potentiometer value = " + value); sleep(500); } EDJE API: DIGITAL AND ANALOG I/O SAMPLES

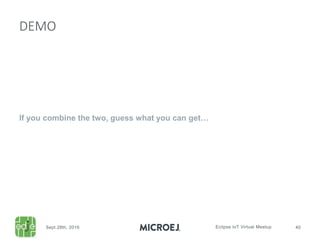

- 40. If you combinethe two, guess what you can get… DEMO
- 41.
- 42.
- 43. Initial code drop(July 21st) • Submitted after Legal review • In develop branch, not master • Draft API Scope: • Peripheral Management • Connection API • No actual peripheral APIs (no GPIO, no CommPort, …) WHAT IS AVAILABLE

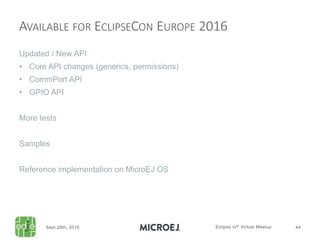

- 44. Updated / NewAPI • Core API changes (generics, permissions) • CommPort API • GPIO API More tests Samples Reference implementation on MicroEJ OS AVAILABLE FOR ECLIPSECON EUROPE 2016
- 45. Features • Peripheral Management •UART, USB CDC, GPIO, DAC, ADC Hardware • STM32F746G-DISCO • Cortex-M7 @ 200 MHz • RAM: 8 MB • Flash: 16 MB Platform • MicroEJ OS • FreeRTOS • STM32Cube REFERENCE IMPLEMENTATION: ON MICROEJ

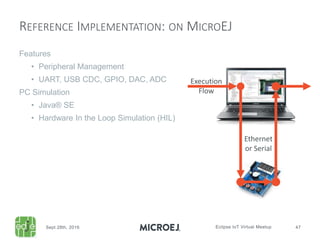

- 46. Features • Peripheral Management •UART, USB CDC, GPIO, DAC, ADC PC Simulation • Java® SE • Hardware In the Loop Simulation (HIL) REFERENCE IMPLEMENTATION: ON MICROEJ Execution Flow Ethernet or Serial

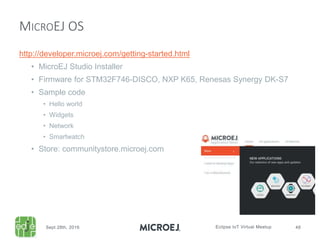

- 47. http://developer.microej.com/getting-started.html • MicroEJ StudioInstaller • Firmware for STM32F746-DISCO, NXP K65, Renesas Synergy DK-S7 • Sample code • Hello world • Widgets • Network • Smartwatch • Store: communitystore.microej.com MICROEJ OS
- 48. More API PWM SPI I2C CAN Watchdog More ReferenceImplementations Edje / MicroEJ / Other boards WHAT’S NEXT
- 49.

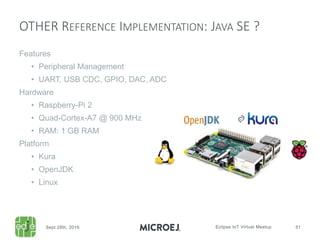

- 50. Features • Peripheral Management •UART, USB CDC, GPIO, DAC, ADC Hardware • Raspberry-Pi 2 • Quad-Cortex-A7 @ 900 MHz • RAM: 1 GB RAM Platform • Kura • OpenJDK • Linux OTHER REFERENCE IMPLEMENTATION: JAVA SE ?
- 51. THANK YOU FOR YOURATTENTION! https://projects.eclipse.org/projects/iot.edje
