1. © 2016 Boise State University 1
Kerry Rice, Jui-Long Hung, Yu-Chang Hsu, Brett E. Shelton
Department of Educational Technology
Boise State University
Educational Data Mining in Program
Evaluation: Lessons Learned
AECT 2016, Las Vegas

2. © 2016 Boise State University 2
MET
Ed. D.
Ed. S.
Graduate Certificates:
Online Teaching
Technology Integration Specialist
School Technology Coordinator
K-12 Online Teaching Endorsement

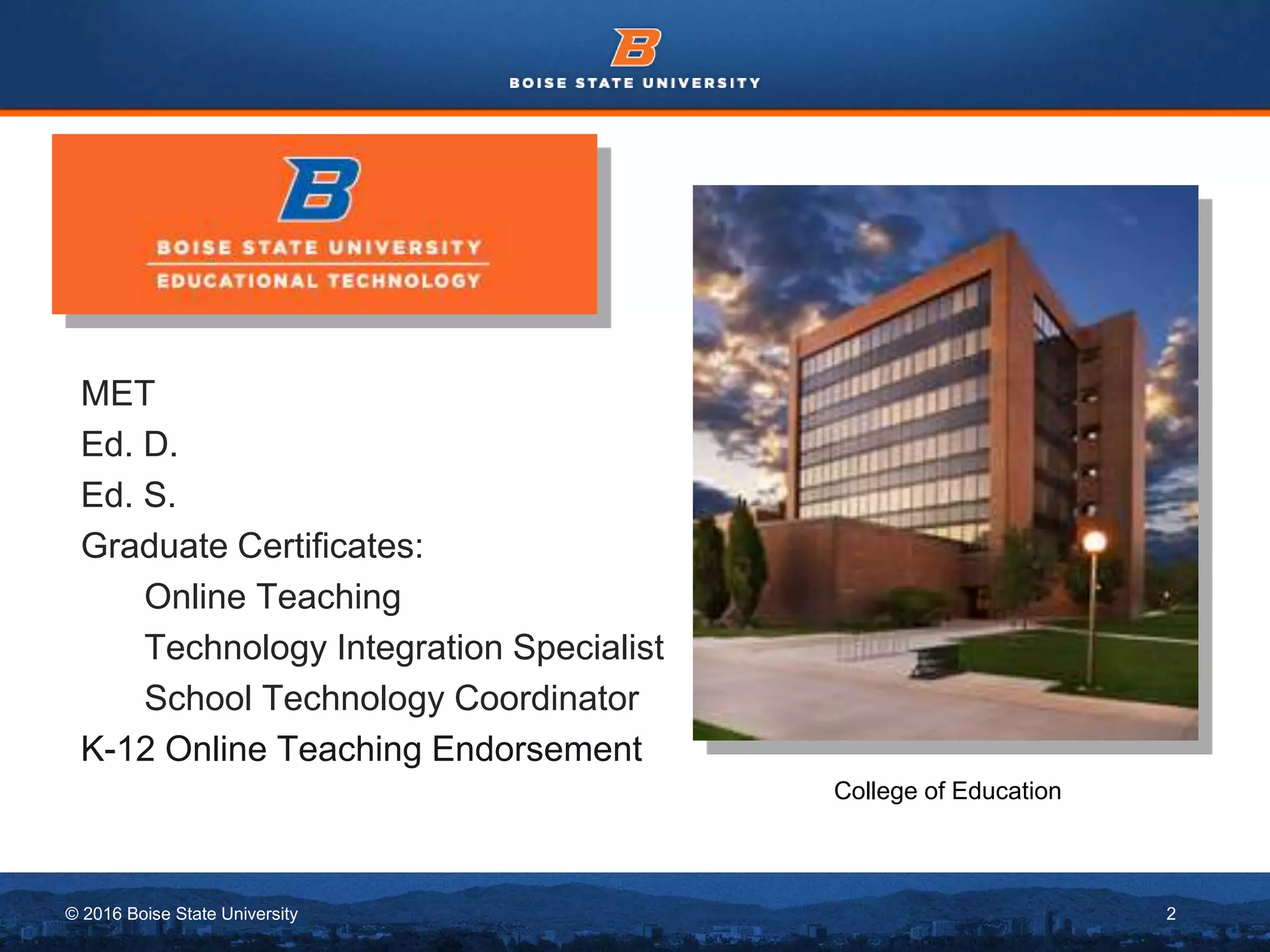

College of Education

3. © 2016 Boise State University 3
Go Broncos!

4. © 2016 Boise State University 4
Decision Tree
Analysis
(performance
prediction)
Cluster Analysis
(engagement)
Sequential
Association
Analysis (path
analysis)
Educational Data Mining Applications
Time Series
Analysis
(future
performance
prediction)

5. © 2016 Boise State University 5
Study #1: Teacher Training Workshops 2010
• Survey Data + Data
Mining + Student
Outcomes
• Research Goal:
– Program
improvement
– Satisfaction
– Impact on practice
• Blackboard
• 103 participants
• 31,417 learning logs
• Cluster Analysis;
Sequential Association
Analysis; Decision Tree
Analysis;

6. © 2016 Boise State University 6

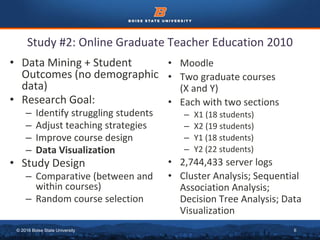

Study #2: Online Graduate Teacher Education 2010
• Data Mining + Student
Outcomes (no demographic
data)
• Research Goal:
– Identify struggling students
– Adjust teaching strategies
– Improve course design
– Data Visualization
• Study Design
– Comparative (between and
within courses)
– Random course selection
• Moodle
• Two graduate courses
(X and Y)
• Each with two sections
– X1 (18 students)
– X2 (19 students)
– Y1 (18 students)
– Y2 (22 students)
• 2,744,433 server logs
• Cluster Analysis; Sequential
Association Analysis;
Decision Tree Analysis; Data
Visualization

7. © 2016 Boise State University 7
• Data mining + Demographics +
Survey Data + Student
Outcomes
• Research Goal: Large scale
program evaluation
– Support decision making at the
course and institutional level
– Identify key variables and
relationships between teacher
and course satisfaction, student
behaviors, and performance
outcomes

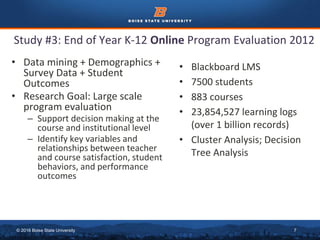

Study #3: End of Year K-12 Online Program Evaluation 2012
• Blackboard LMS
• 7500 students
• 883 courses
• 23,854,527 learning logs
(over 1 billion records)
• Cluster Analysis; Decision
Tree Analysis

8. © 2016 Boise State University 8

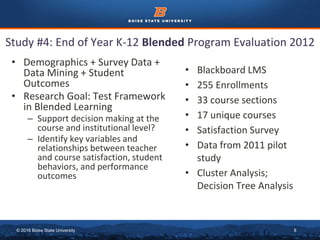

Study #4: End of Year K-12 Blended Program Evaluation 2012
• Blackboard LMS
• 255 Enrollments
• 33 course sections
• 17 unique courses
• Satisfaction Survey
• Data from 2011 pilot
study
• Cluster Analysis;
Decision Tree Analysis
• Demographics + Survey Data +
Data Mining + Student
Outcomes
• Research Goal: Test Framework
in Blended Learning
– Support decision making at the
course and institutional level?
– Identify key variables and
relationships between teacher
and course satisfaction, student
behaviors, and performance
outcomes

9. © 2016 Boise State University 9

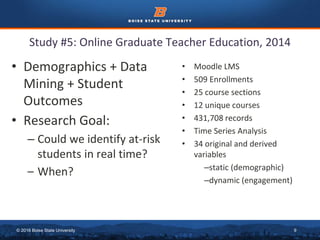

Study #5: Online Graduate Teacher Education, 2014
• Moodle LMS
• 509 Enrollments
• 25 course sections
• 12 unique courses
• 431,708 records
• Time Series Analysis
• 34 original and derived
variables
–static (demographic)
–dynamic (engagement)
• Demographics + Data
Mining + Student
Outcomes
• Research Goal:
– Could we identify at-risk
students in real time?
– When?

10. © 2016 Boise State University 10

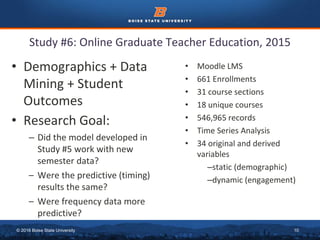

Study #6: Online Graduate Teacher Education, 2015
• Moodle LMS
• 661 Enrollments
• 31 course sections
• 18 unique courses
• 546,965 records
• Time Series Analysis
• 34 original and derived
variables
–static (demographic)
–dynamic (engagement)
• Demographics + Data
Mining + Student
Outcomes
• Research Goal:
– Did the model developed in
Study #5 work with new
semester data?
– Were the predictive (timing)
results the same?
– Were frequency data more
predictive?

11. © 2016 Boise State University 11
Variables - actual and derived
Engagement

12. © 2016 Boise State University 12

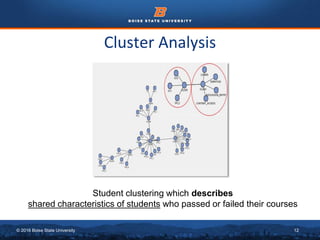

Cluster Analysis
Student clustering which describes
shared characteristics of students who passed or failed their courses

13. © 2016 Boise State University 13
Cluster Analysis:
Relative Participation Levels and Final Grades
• Average Time Spent
• Average Days Participated
• Average Frequency of Mouse Clicks
• Average Time Spent per Session
• Average Frequency of Mouse Clicks per Session
Participation Variables
(Engagement)

14. © 2016 Boise State University 14

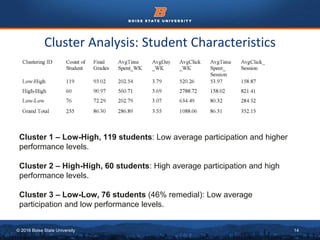

Cluster Analysis: Student Characteristics
Cluster 1 – Low-High, 119 students: Low average participation and higher
performance levels.
Cluster 2 – High-High, 60 students: High average participation and high
performance levels.
Cluster 3 – Low-Low, 76 students (46% remedial): Low average
participation and low performance levels.

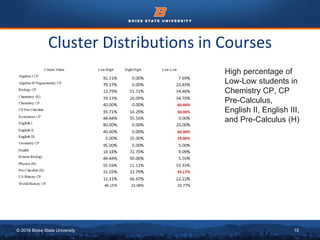

15. © 2016 Boise State University 15
Cluster Distributions in Courses
High percentage of
Low-Low students in
Chemistry CP, CP
Pre-Calculus,
English II, English III,
and Pre-Calculus (H)

16. © 2016 Boise State University 16

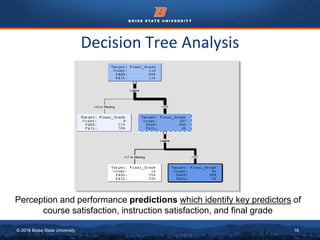

Decision Tree Analysis
Perception and performance predictions which identify key predictors of
course satisfaction, instruction satisfaction, and final grade

17. © 2016 Boise State University 17

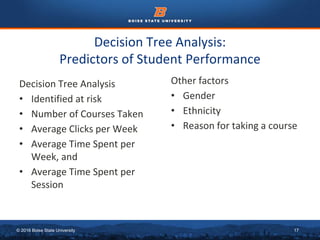

Decision Tree Analysis:
Predictors of Student Performance
Decision Tree Analysis
• Identified at risk
• Number of Courses Taken
• Average Clicks per Week
• Average Time Spent per
Week, and
• Average Time Spent per
Session
Other factors
• Gender
• Ethnicity
• Reason for taking a course

18. © 2016 Boise State University 18

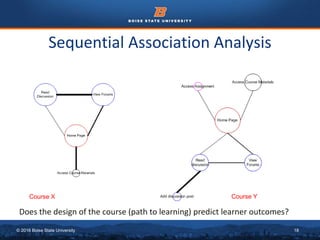

Sequential Association Analysis
Course X Course Y
Does the design of the course (path to learning) predict learner outcomes?

19. © 2016 Boise State University 19

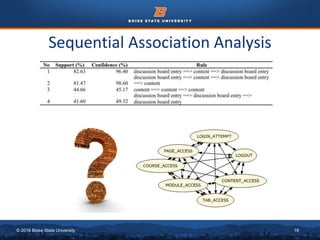

Sequential Association Analysis

20. © 2016 Boise State University 20
Time Series Analysis

21. © 2016 Boise State University 21

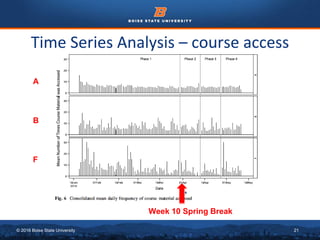

Time Series Analysis – course access
A
B
F
Week 10 Spring Break

22. © 2016 Boise State University 22

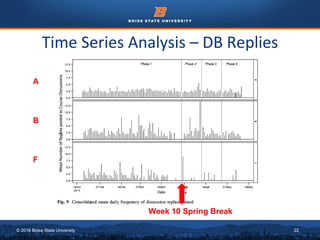

Time Series Analysis – DB Replies
A
B
F
Week 10 Spring Break

23. © 2016 Boise State University 23

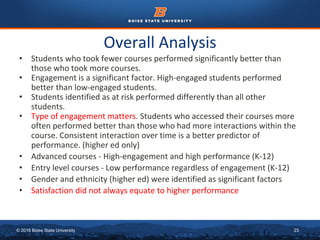

Overall Analysis
• Students who took fewer courses performed significantly better than
those who took more courses.
• Engagement is a significant factor. High-engaged students performed
better than low-engaged students.
• Students identified as at risk performed differently than all other
students.
• Type of engagement matters. Students who accessed their courses more
often performed better than those who had more interactions within the
course. Consistent interaction over time is a better predictor of
performance. (higher ed only)
• Advanced courses - High-engagement and high performance (K-12)
• Entry level courses - Low performance regardless of engagement (K-12)
• Gender and ethnicity (higher ed) were identified as significant factors
• Satisfaction did not always equate to higher performance

24. © 2016 Boise State University 24

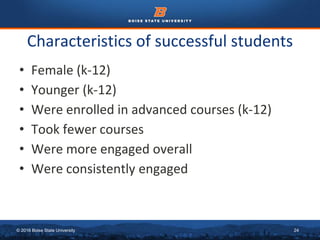

Characteristics of successful students
• Female (k-12)
• Younger (k-12)
• Were enrolled in advanced courses (k-12)
• Took fewer courses
• Were more engaged overall
• Were consistently engaged

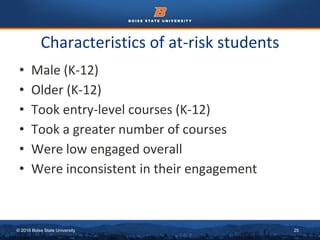

25. © 2016 Boise State University 25
Characteristics of at-risk students
• Male (K-12)
• Older (K-12)
• Took entry-level courses (K-12)
• Took a greater number of courses
• Were low engaged overall
• Were inconsistent in their engagement

26. © 2016 Boise State University 26

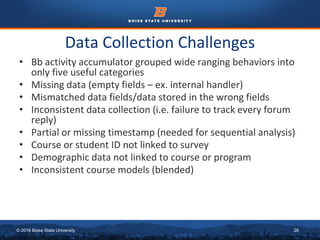

Data Collection Challenges
• Bb activity accumulator grouped wide ranging behaviors into
only five useful categories
• Missing data (empty fields – ex. internal handler)
• Mismatched data fields/data stored in the wrong fields
• Inconsistent data collection (i.e. failure to track every forum
reply)
• Partial or missing timestamp (needed for sequential analysis)
• Course or student ID not linked to survey
• Demographic data not linked to course or program
• Inconsistent course models (blended)

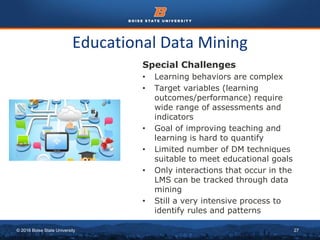

27. © 2016 Boise State University 27
Educational Data Mining
Special Challenges
• Learning behaviors are complex
• Target variables (learning
outcomes/performance) require
wide range of assessments and
indicators
• Goal of improving teaching and
learning is hard to quantify
• Limited number of DM techniques
suitable to meet educational goals
• Only interactions that occur in the
LMS can be tracked through data
mining
• Still a very intensive process to
identify rules and patterns

28. © 2016 Boise State University 28
References
•Hung, J. L., Rice, K., & Saba, A. (2012). An educational data mining model for online
teaching and learning. Journal of Educational Technology Development and Exchange,
5(2), 77-94.
•Hung, J. L., Hsu, Y.-C., & Rice, K. (2012). Integrating data mining in program
evaluation of K-12 online education. Educational Technology & Society, 15(3), 27-41.
•Rice, K., & Hung. J. (2015). Data mining in online professional development program:
An exploratory case study. International Journal of Technology in Teaching and
Learning, 11(1), 1-20.
•Shelton, B., Hung, J. L., & Baughman, S. (2015). Online graduate teacher education:
Establishing and EKG for student success intervention. Technology, Knowledge and
Learning.
•Rice, K., & Hung, J. L. (2015). Identifying variables important to the success of K-12
students in blended learning. Paper presented at the Northern Rocky Mountain
Educational Research Association Conference, Boise, Idaho.
•Shelton, B. E., Hung, J. L.., & Lowenthal, P. (under review). Predicting student success
by modeling student interaction in online courses.
