1. State Office for Surveying and Mapping
Rheinland-Pfalz, Germany
eCognition Image Analysis System
Malte Sohlbach
CAPIGI April 4.-6. 2011

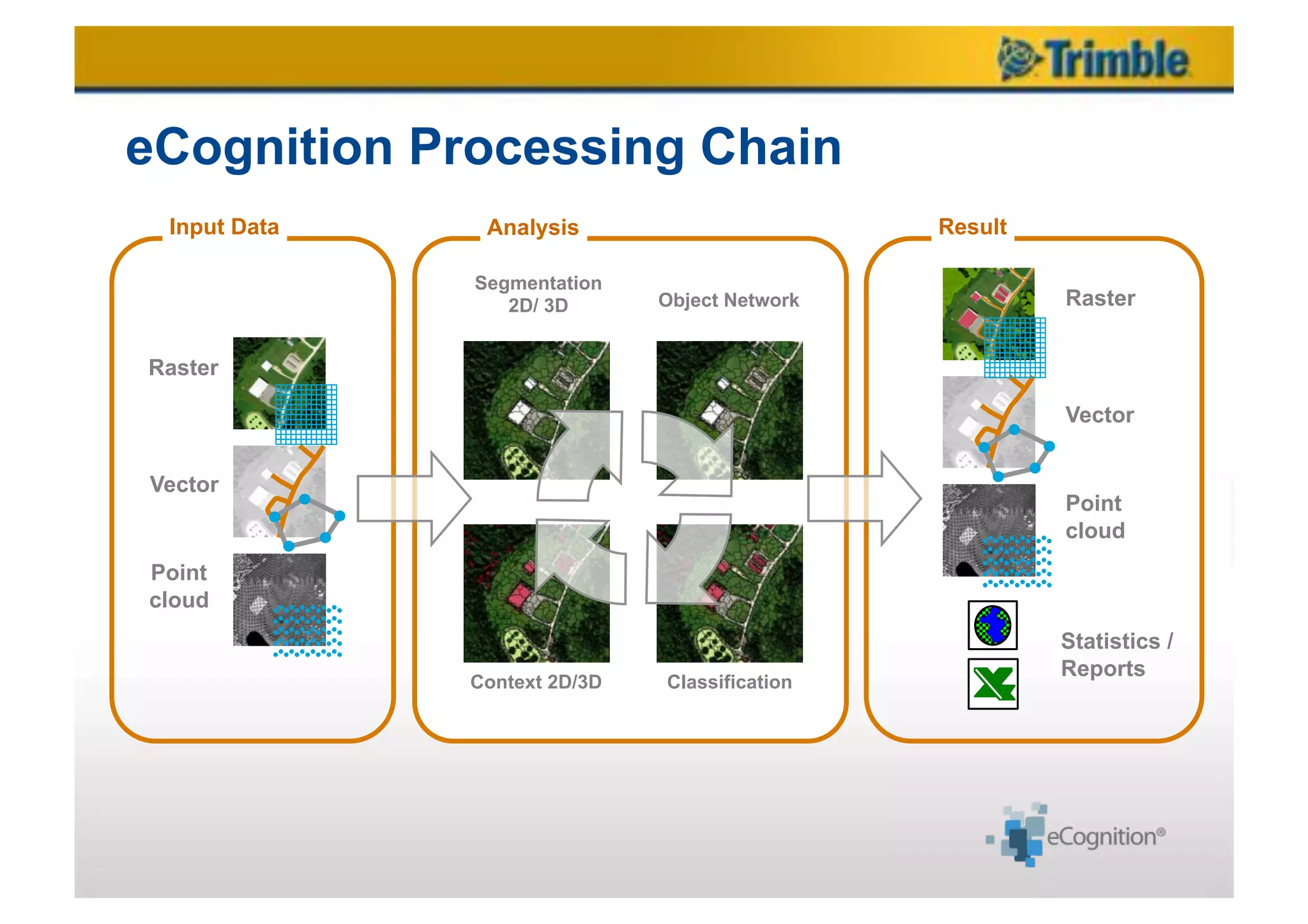

2. eCognition Processing Chain
Input Data Analysis Result
Segmentation
2D/ 3D Object Network Raster
Raster
Vector
Vector
Point
cloud
Point
cloud
Statistics /
Reports
Context 2D/3D Classification

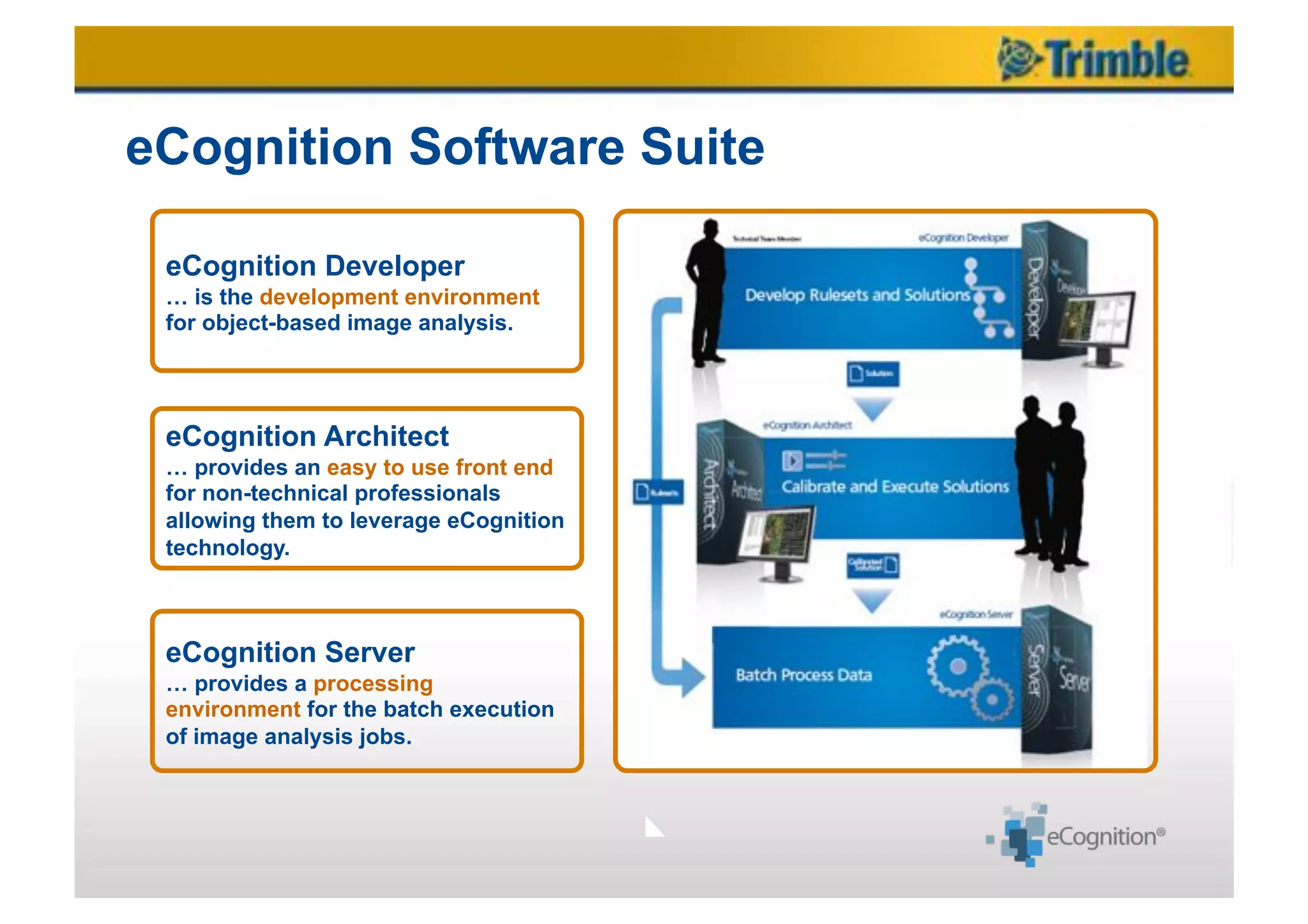

3. eCognition Software Suite
eCognition Developer
… is the development environment
for object-based image analysis.
eCognition Architect
… provides an easy to use front end
for non-technical professionals
allowing them to leverage eCognition
technology.
eCognition Server
… provides a processing
environment for the batch execution
of image analysis jobs.

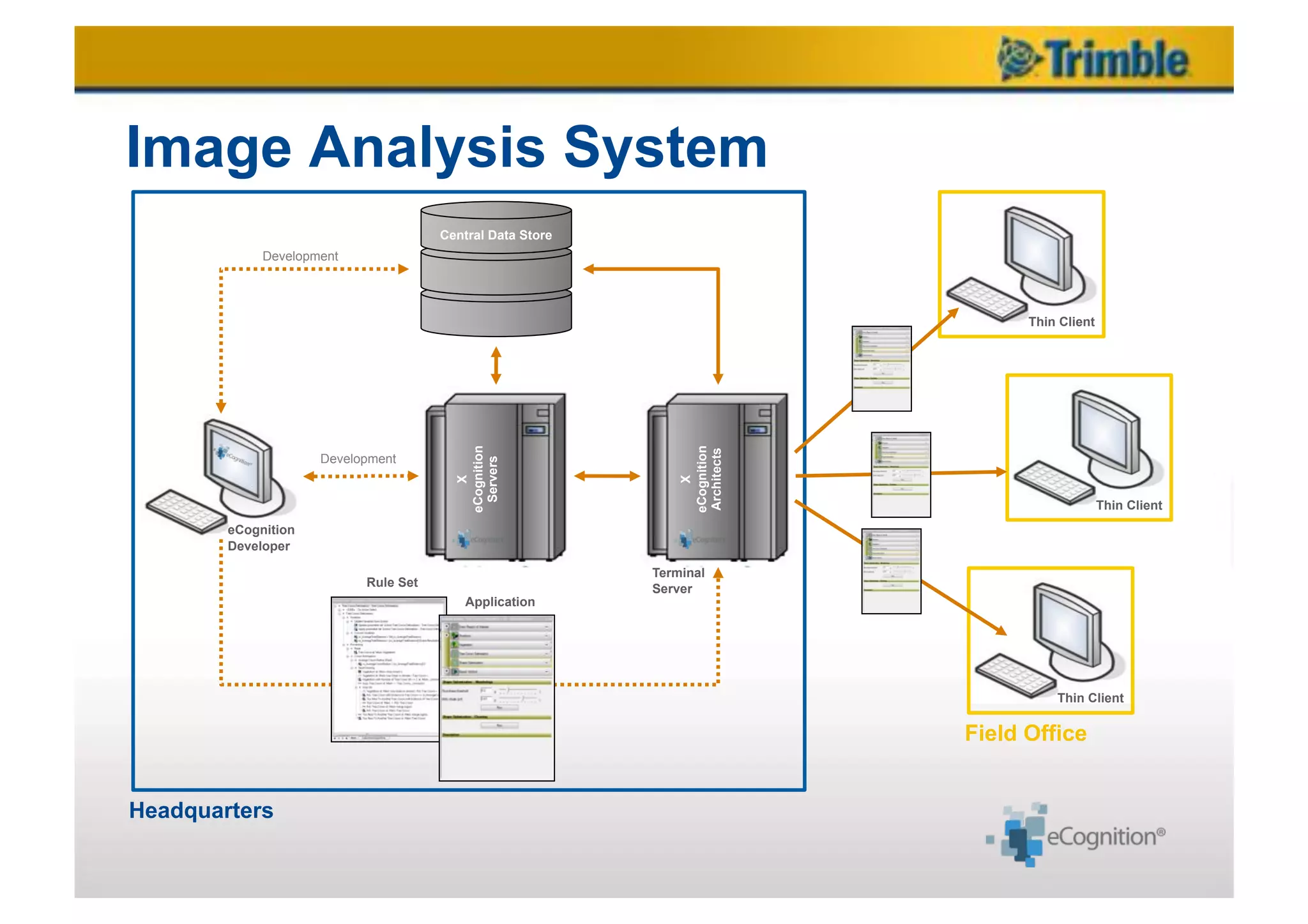

4. Image Analysis System
Central Data Store
Development
Thin Client
eCognition
eCognition
Architects
Development
Servers
X
X
Thin Client
eCognition
Developer
Terminal
Rule Set Server
Application
Thin Client
Field Office
Headquarters

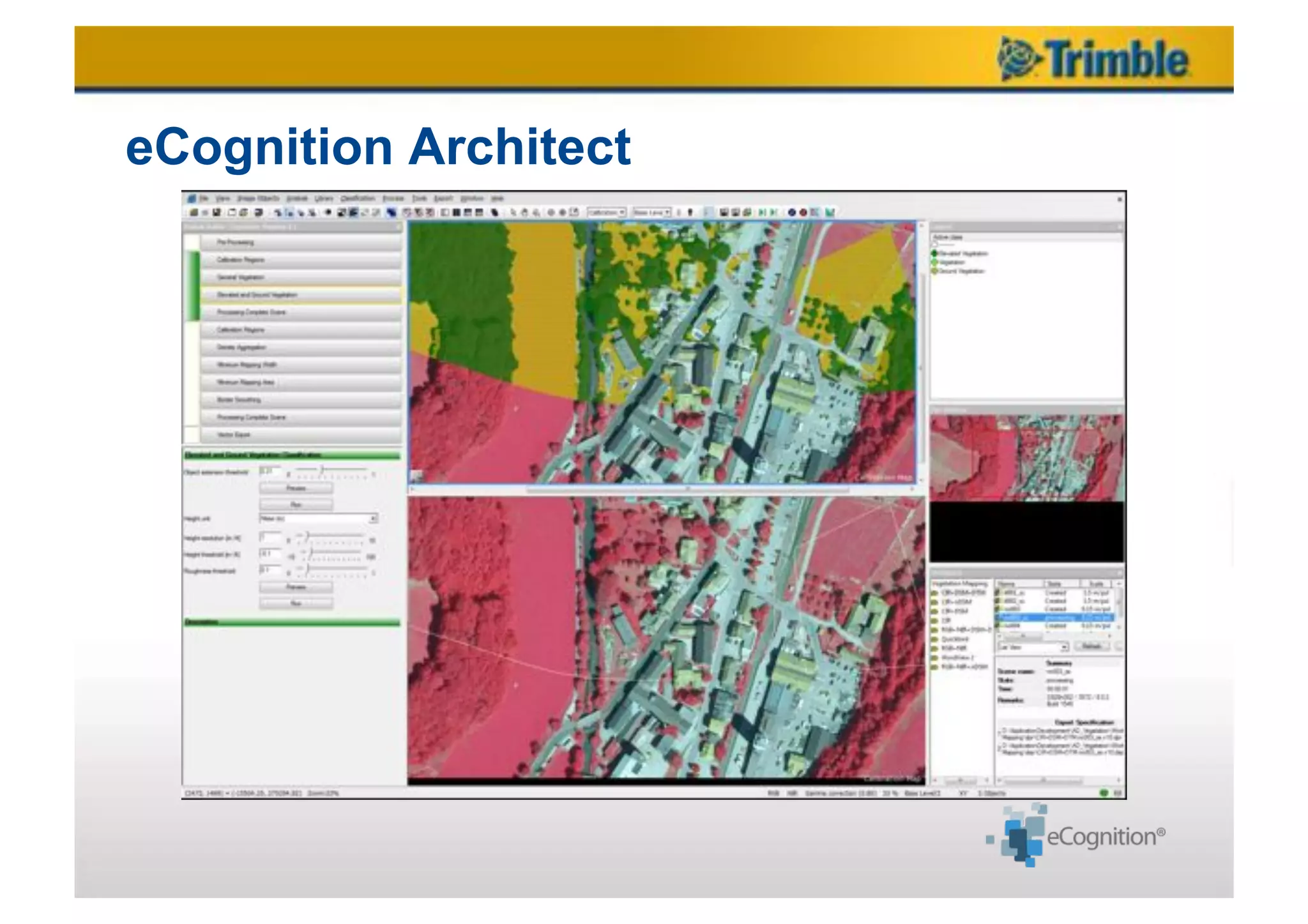

5. eCognition Architect

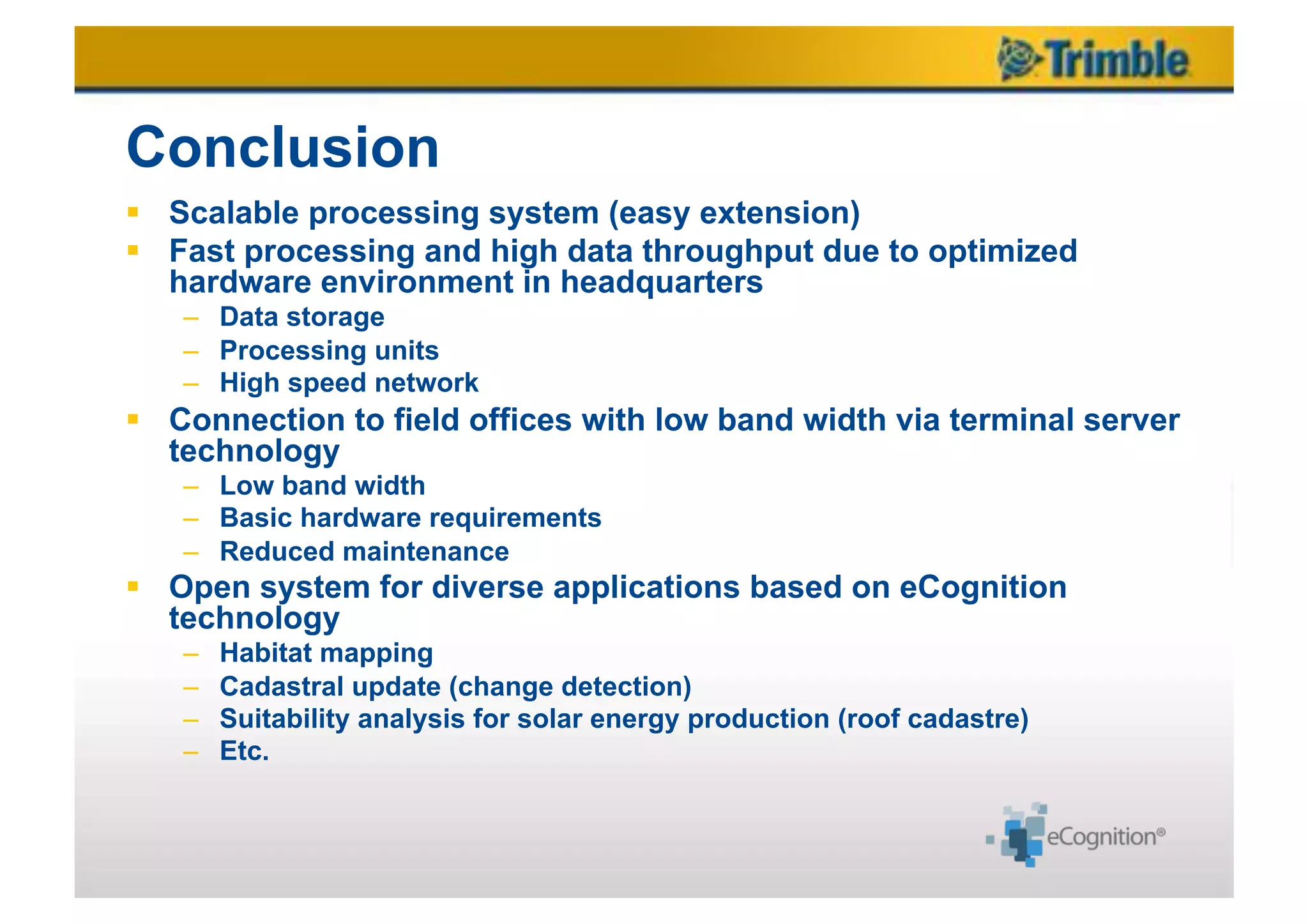

6. Conclusion
! Scalable processing system (easy extension)
! Fast processing and high data throughput due to optimized
hardware environment in headquarters
– Data storage
– Processing units
– High speed network
! Connection to field offices with low band width via terminal server
technology
– Low band width
– Basic hardware requirements
– Reduced maintenance
! Open system for diverse applications based on eCognition
technology
– Habitat mapping
– Cadastral update (change detection)
– Suitability analysis for solar energy production (roof cadastre)
– Etc.

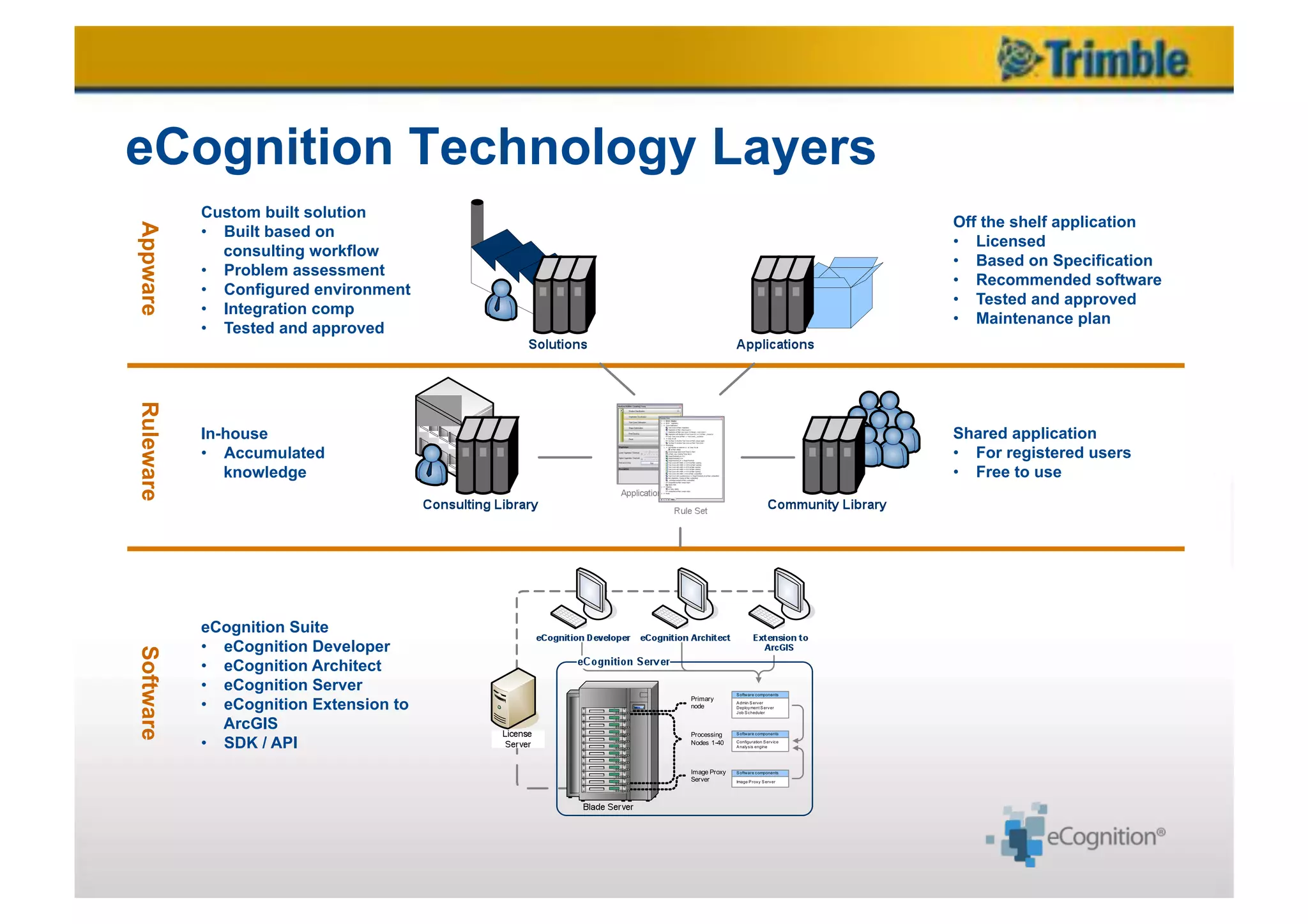

7. eCognition Technology Layers
Custom built solution
Off the shelf application
Appware
• Built based on
• Licensed
consulting workflow
• Based on Specification
• Problem assessment
• Recommended software
• Configured environment
• Tested and approved
• Integration comp
• Maintenance plan
• Tested and approved
Ruleware
In-house Shared application
• Accumulated • For registered users
knowledge • Free to use
eCognition Suite
• eCognition Developer
Software
• eCognition Architect
• eCognition Server
• eCognition Extension to
ArcGIS
• SDK / API

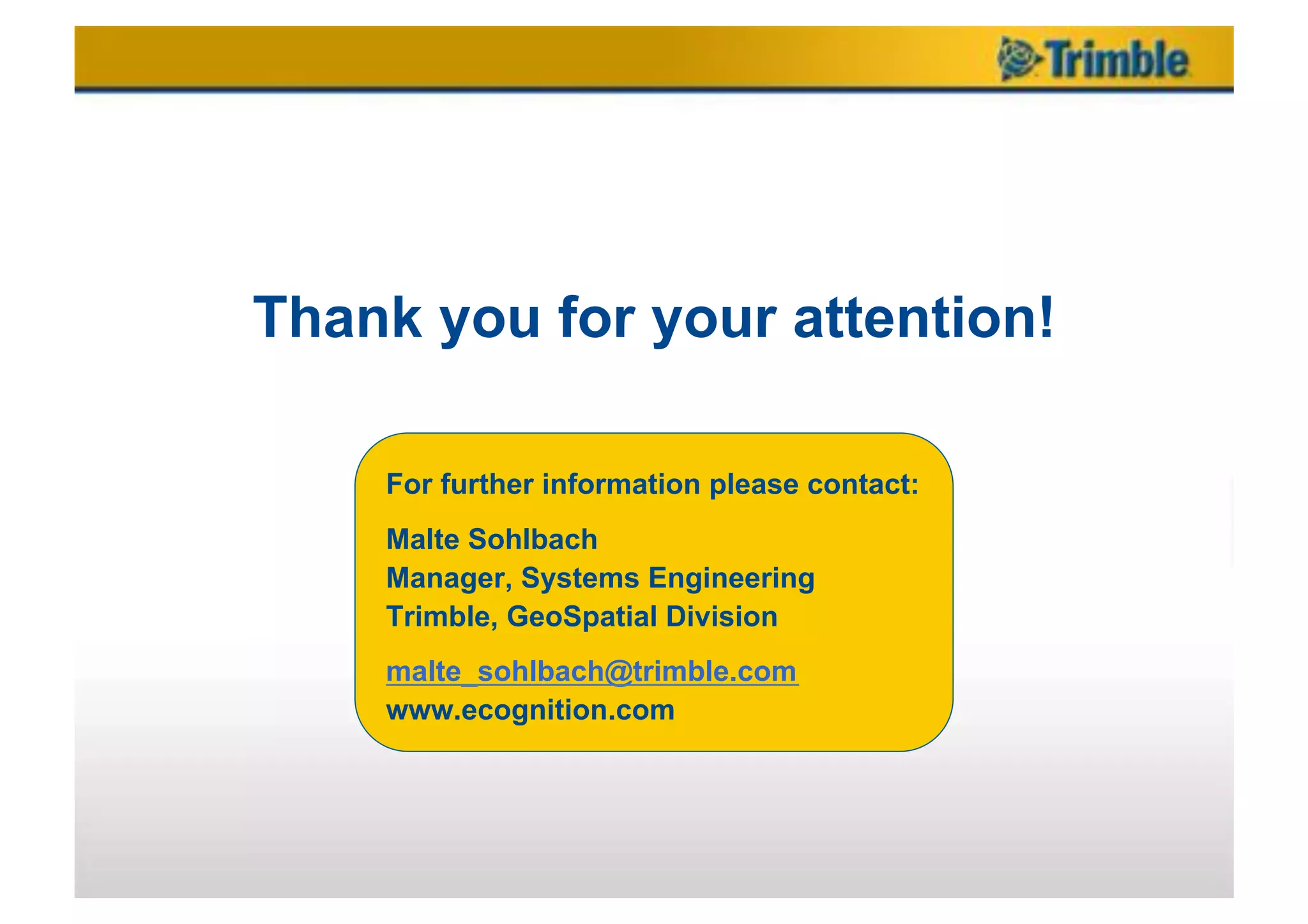

8. Thank you for your attention!
For further information please contact:
Malte Sohlbach
Manager, Systems Engineering
Trimble, GeoSpatial Division
malte_sohlbach@trimble.com
www.ecognition.com
