1. The document discusses principles of human cognition that can be utilized for automated image analysis, including context-driven and object-oriented thinking. 2. It describes a Cognitive Network Language (CNL) that allows programming through multiple choices, natural formulation, and directed local processing to evolve object hierarchies. 3. The document provides examples of context-driven image segmentation and analysis in various domains like cell biology, medical imaging, and earth observation.

1. Principles of Human Cognition Utilized for Automated Image Analysis Gerd Binnig 3.Nov.2009

2. I think therefore I am

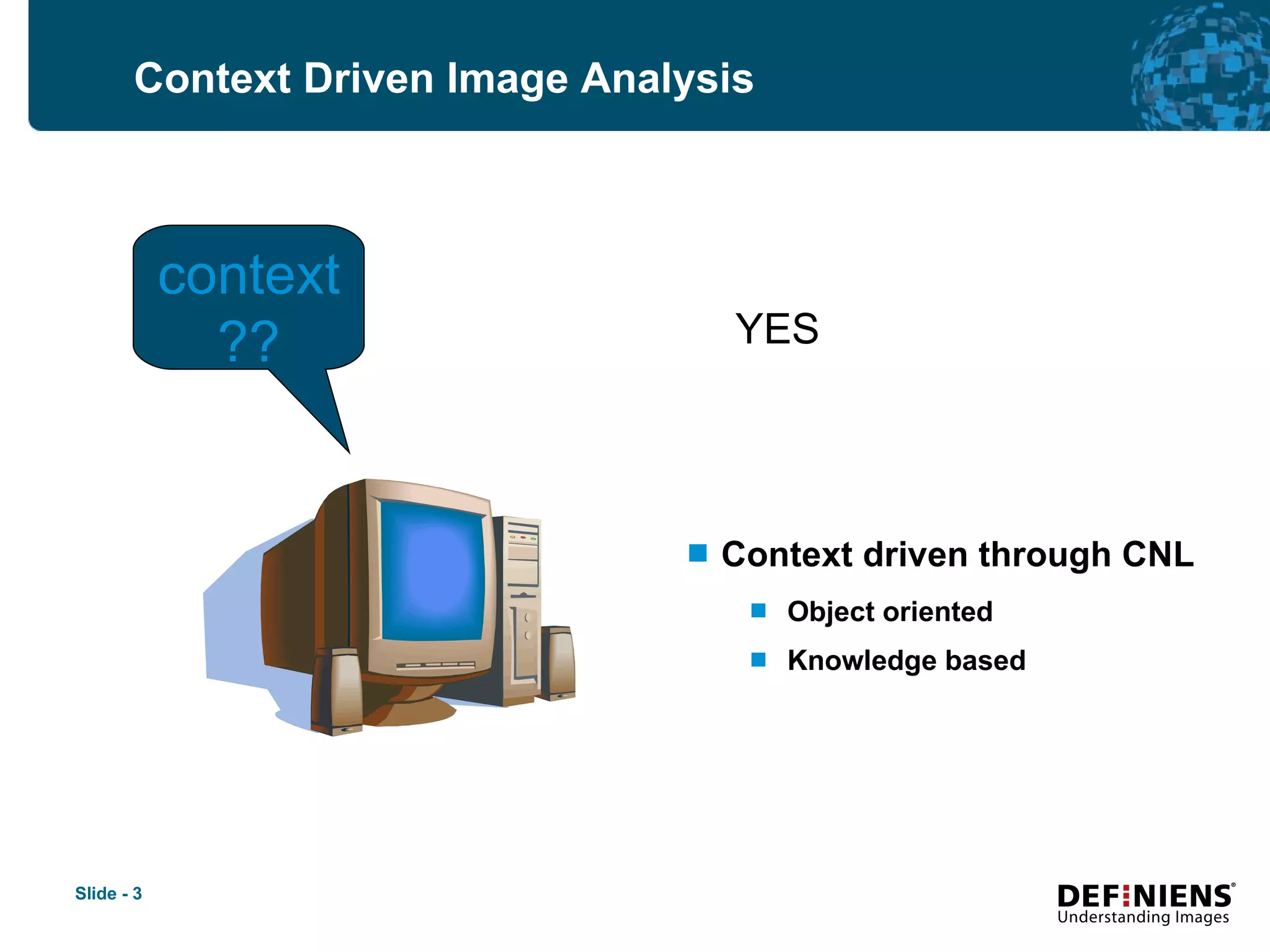

3. Context Driven Image Analysis Context driven through CNL Object oriented Knowledge based context ?? YES

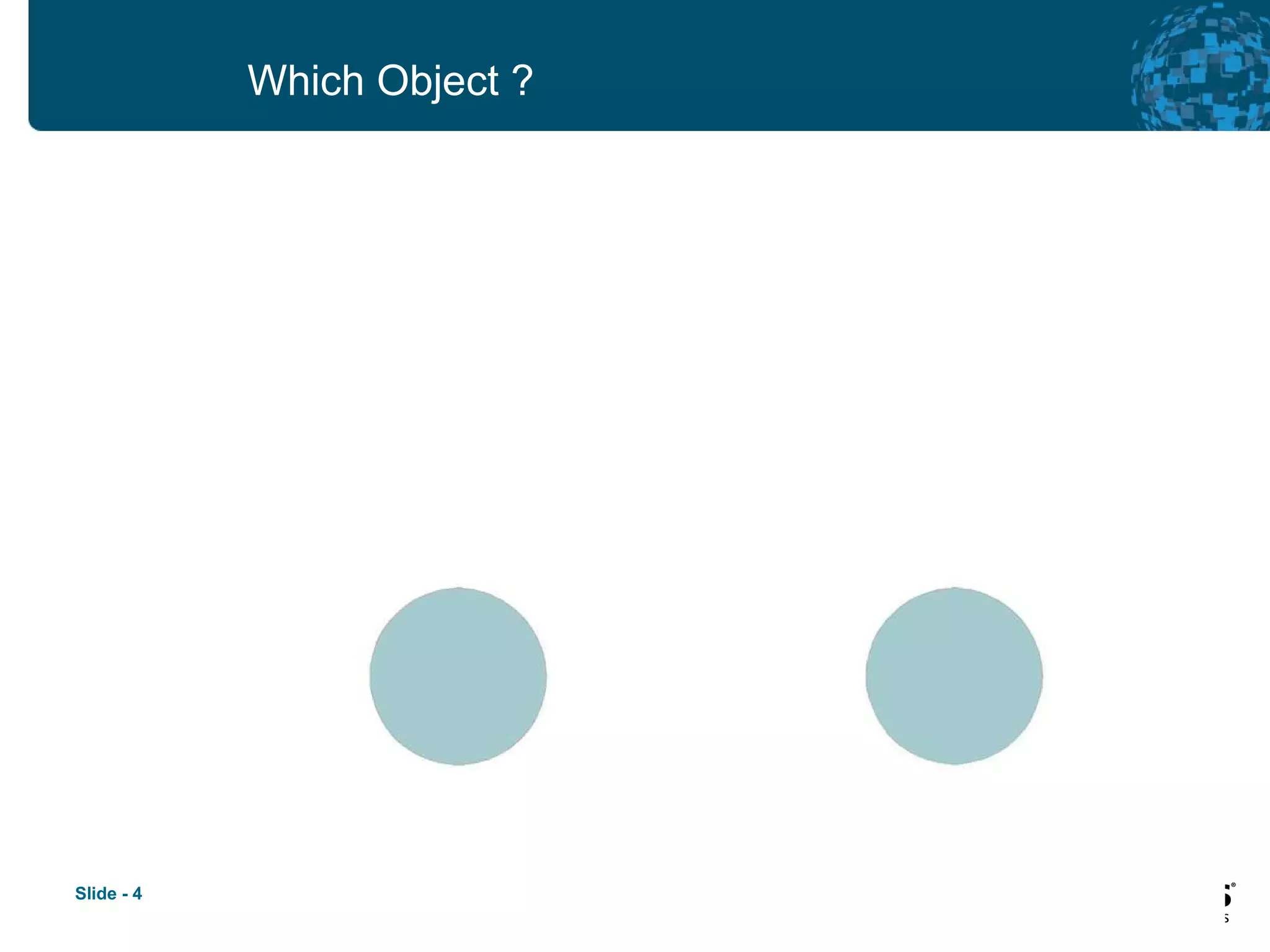

4. Which Object ?

5. Which Object ?

6. Context

7. Context

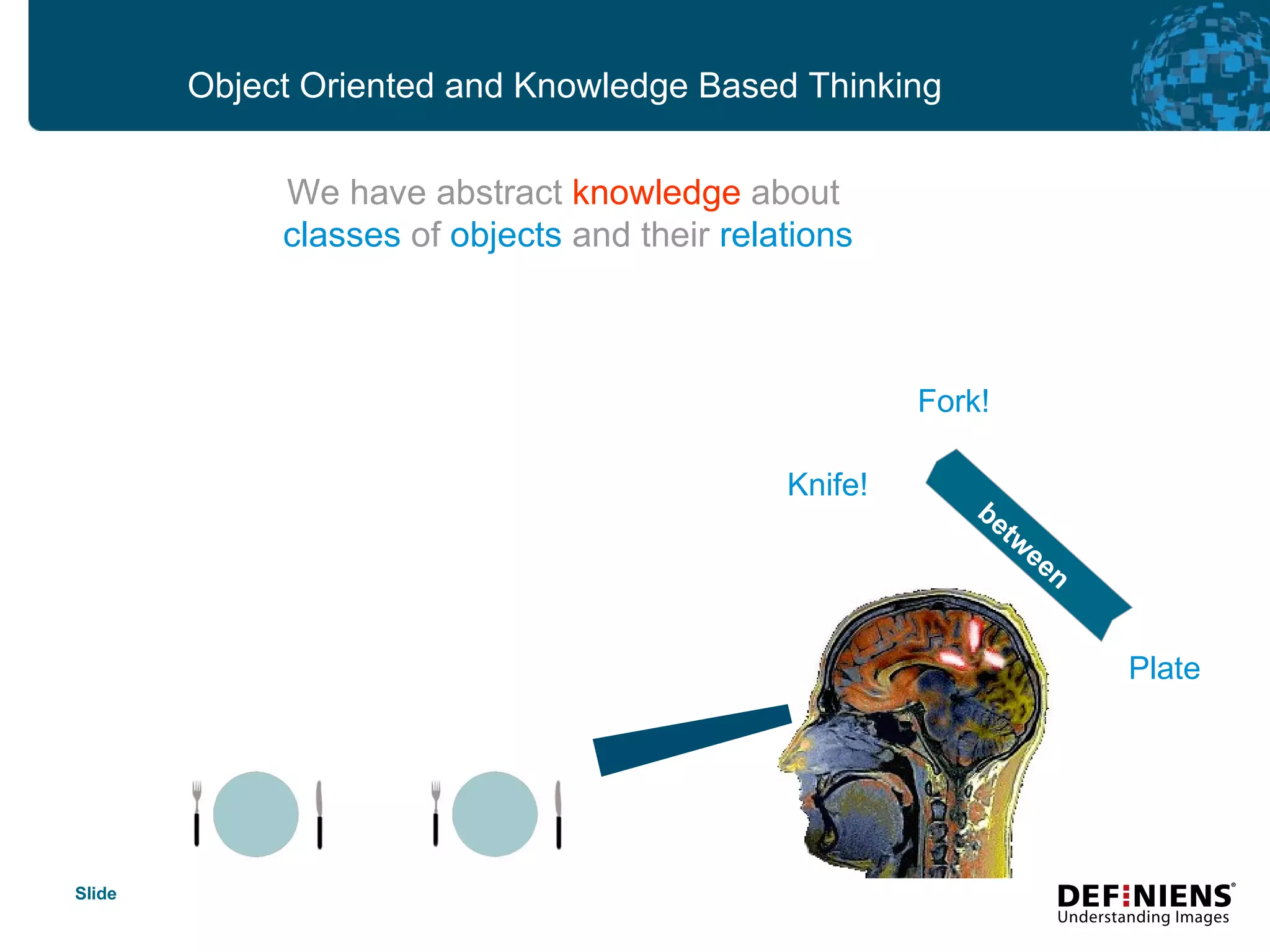

8. Object Oriented and Knowledge Based Thinking We have abstract knowledge about classes of objects and their relations Fork! Knife! Plate between

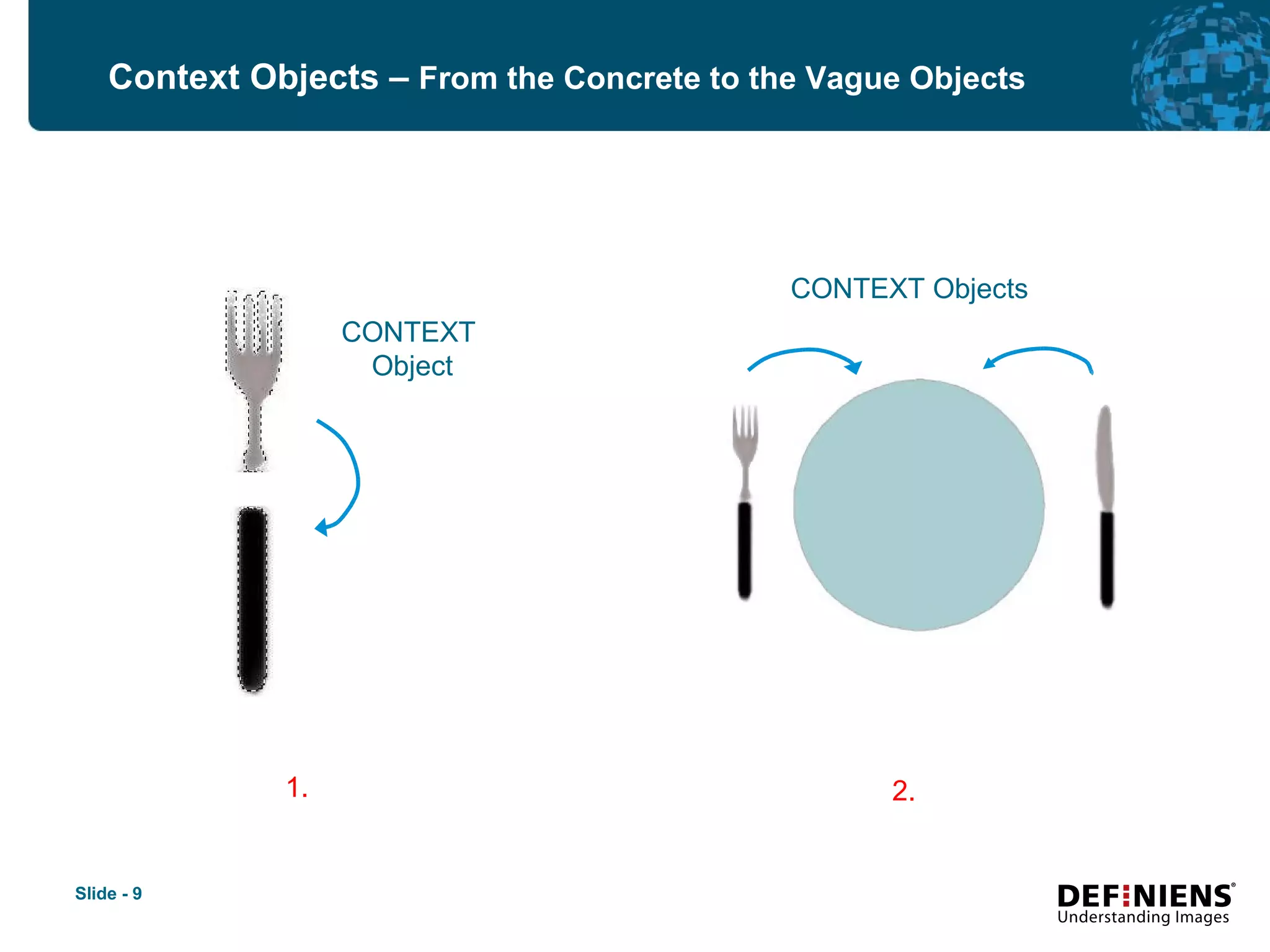

9. Context Objects – From the Concrete to the Vague Objects 1. CONTEXT Objects 2. CONTEXT Object

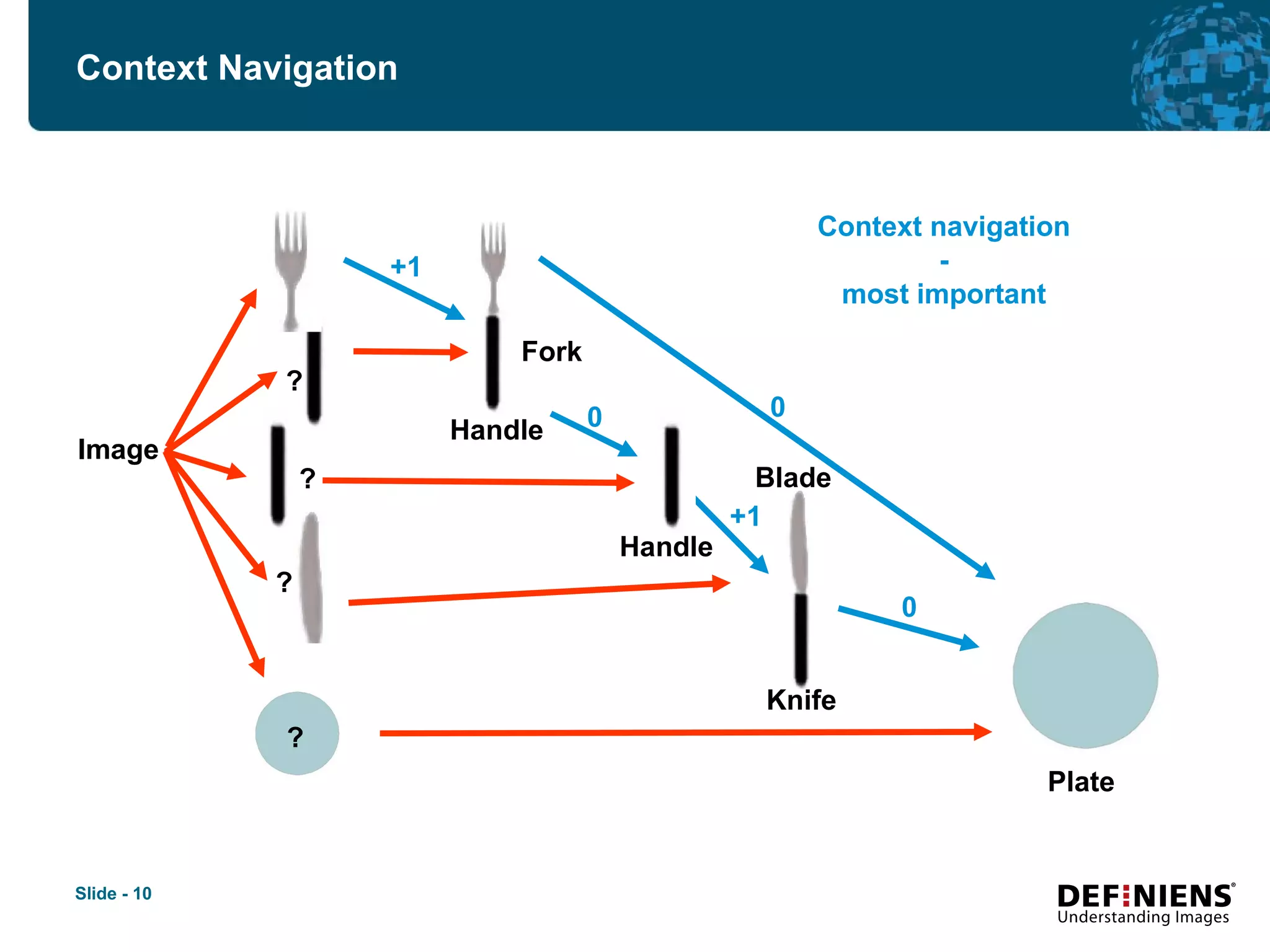

10. Context Navigation Image Plate ? ? ? ? Fork Handle Knife Context navigation - most important Handle Blade +1 0 +1 0 0

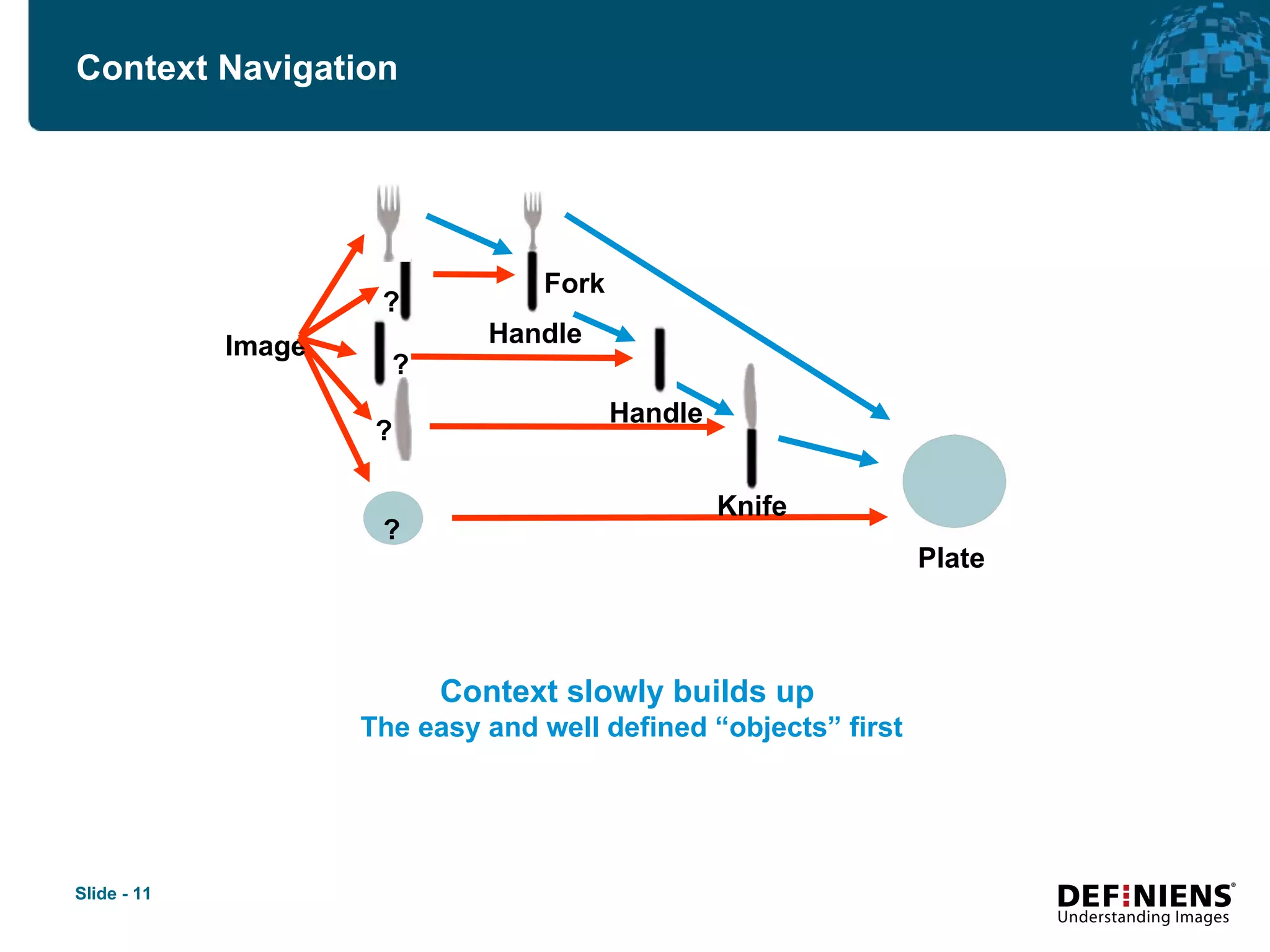

11. Context Navigation Context slowly builds up The easy and well defined “objects” first Image Plate ? ? ? ? Fork Handle Knife Handle

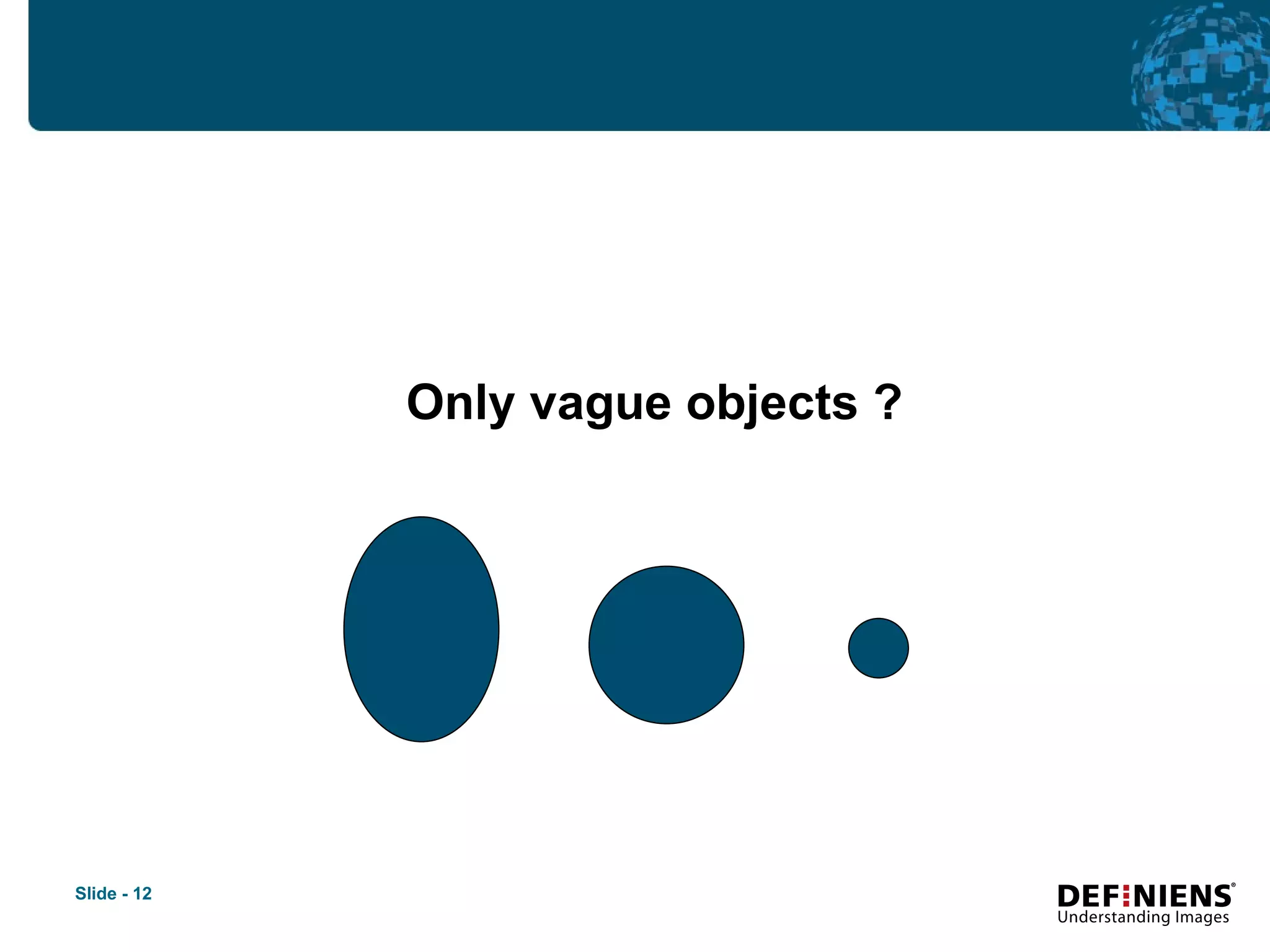

12. Only vague objects ?

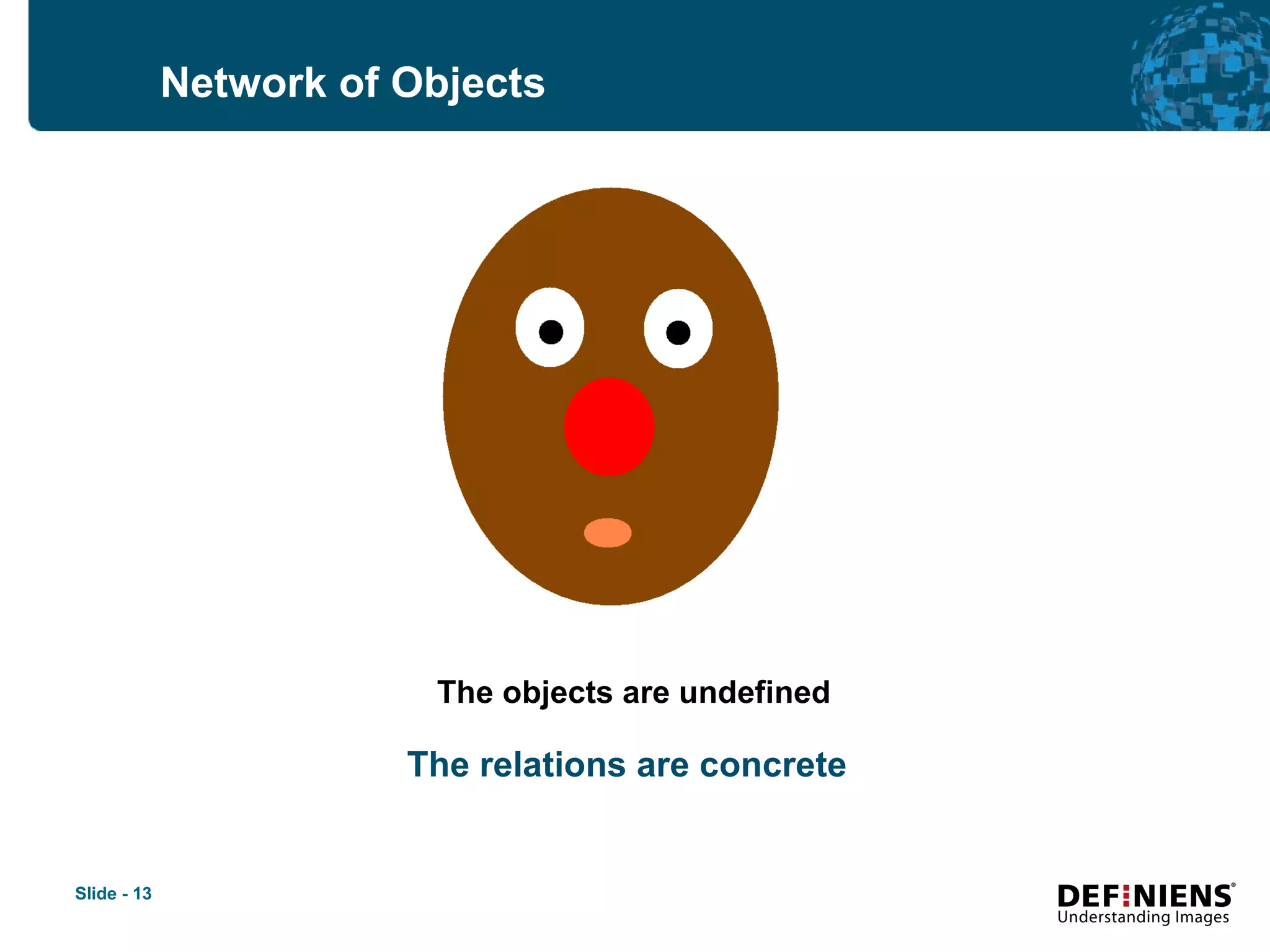

13. Network of Objects The objects are undefined The relations are concrete

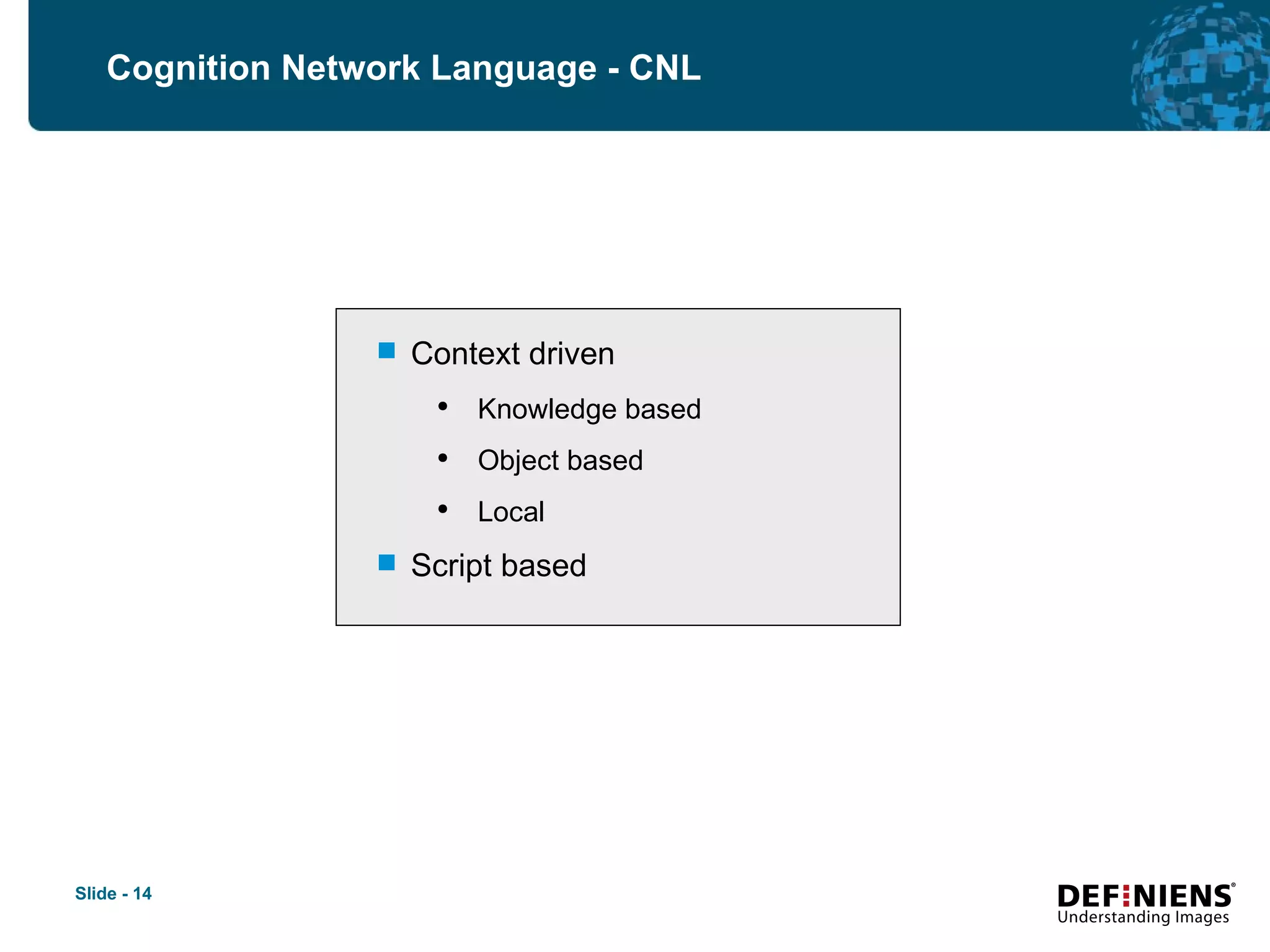

14. Cognition Network Language - CNL Context driven Knowledge based Object based Local Script based

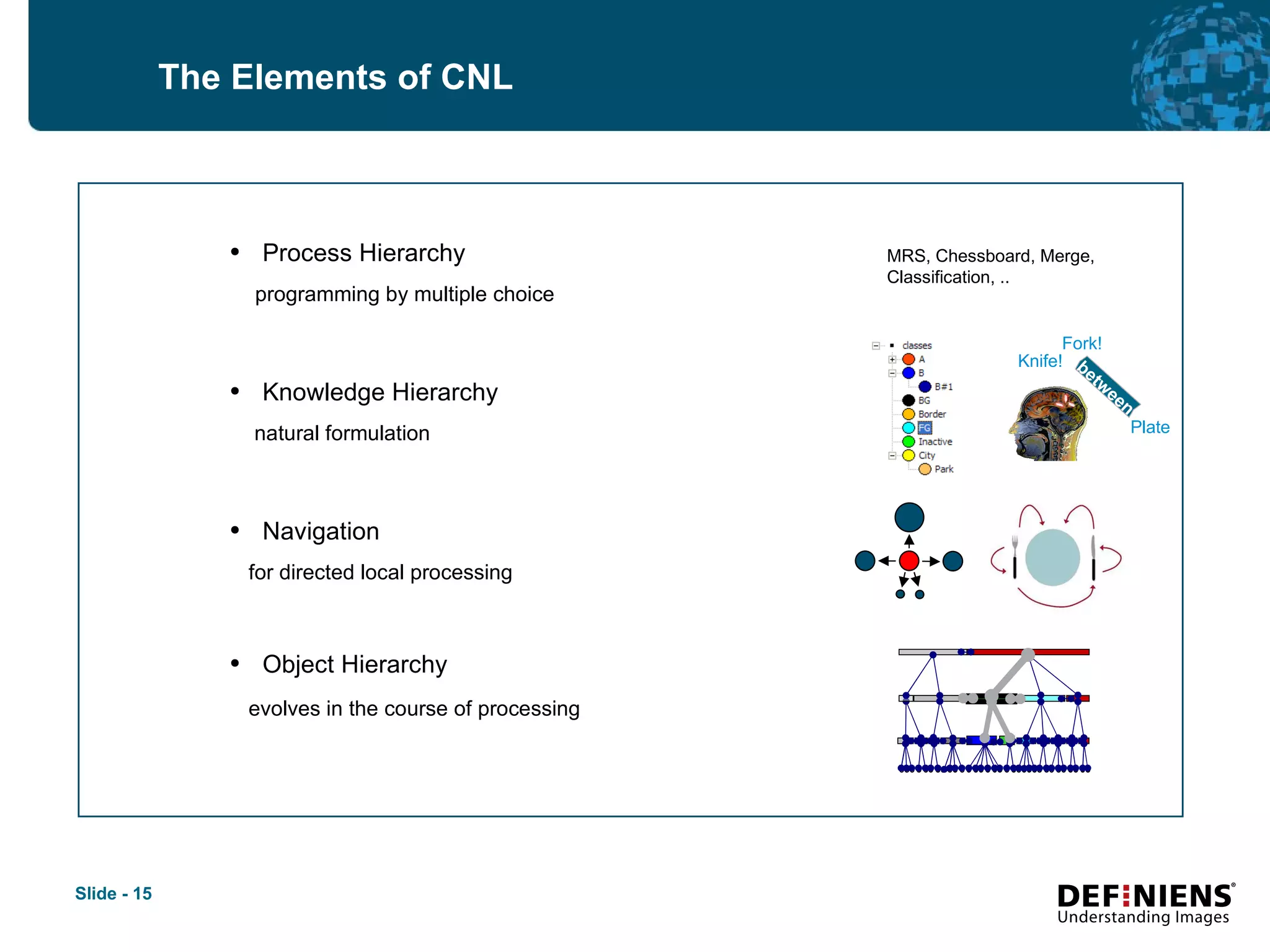

15. Process Hierarchy programming by multiple choice . Knowledge Hierarchy natural formulation . Navigation for directed local processing . Object Hierarchy evolves in the course of processing The Elements of CNL MRS, Chessboard, Merge, Classification, .. Fork! Knife! Plate between

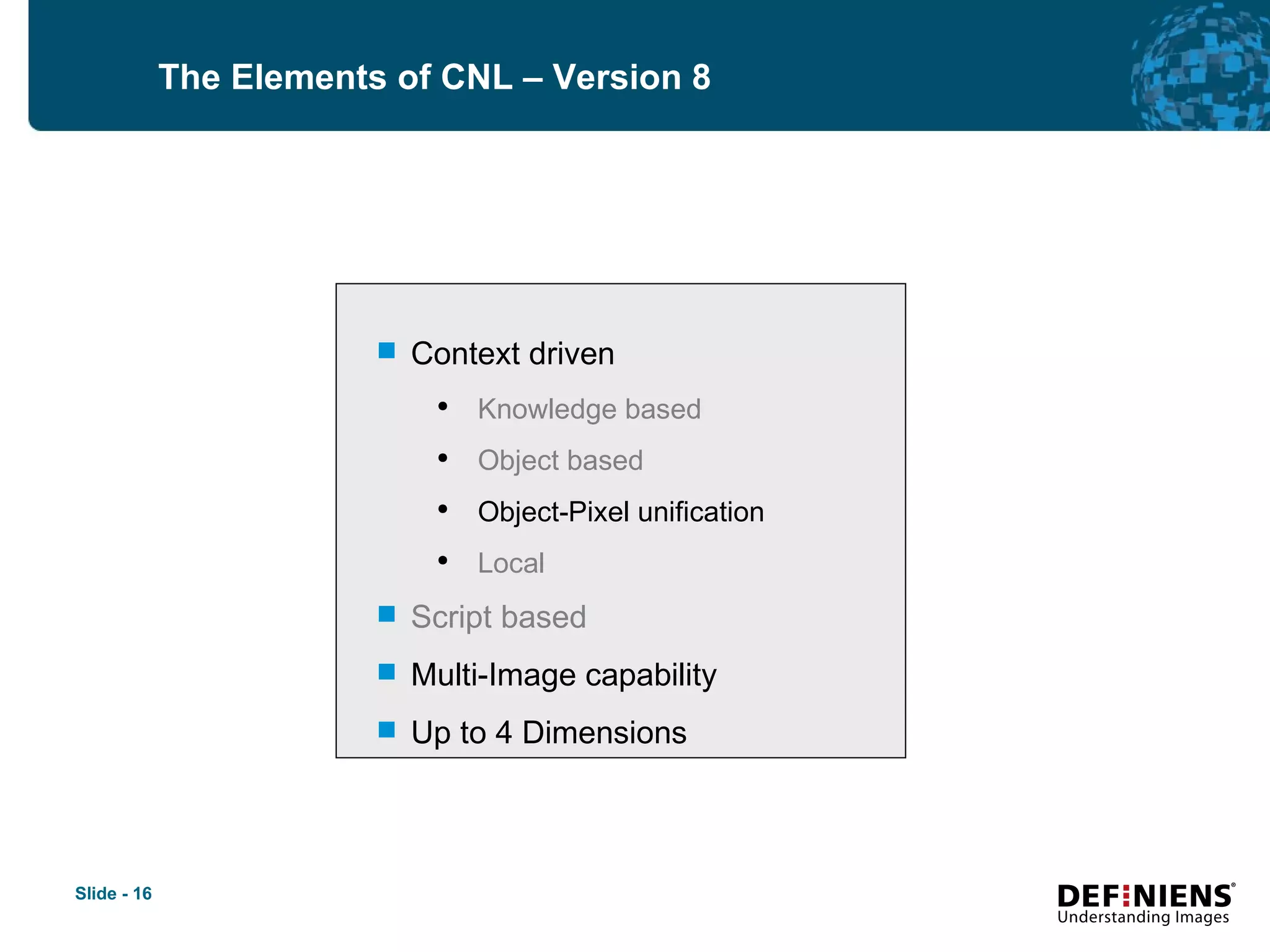

16. Context driven Knowledge based Object based Object-Pixel unification Local Script based Multi-Image capability Up to 4 Dimensions The Elements of CNL – Version 8

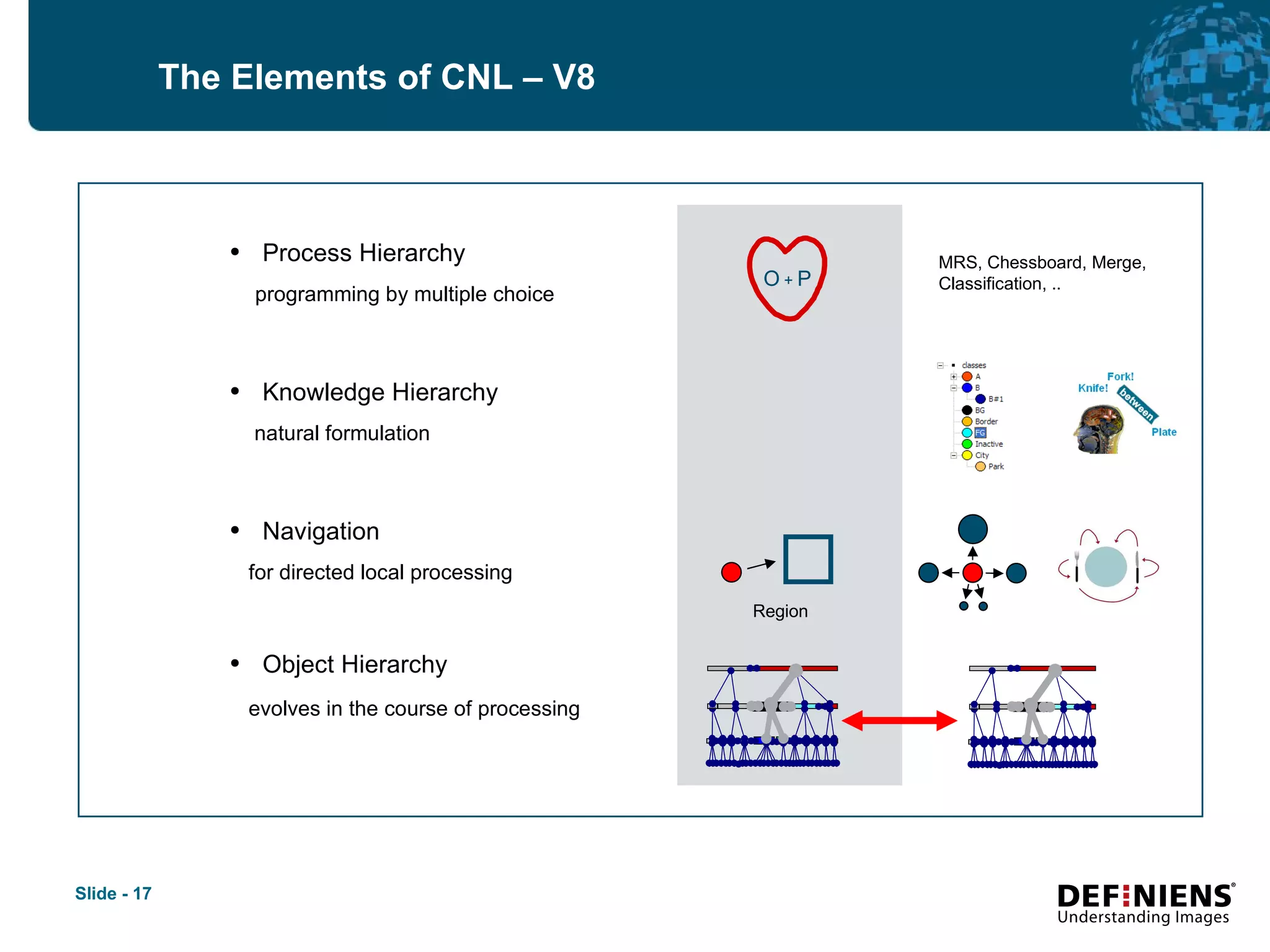

17. Process Hierarchy programming by multiple choice . Knowledge Hierarchy natural formulation . Navigation for directed local processing . Object Hierarchy evolves in the course of processing The Elements of CNL – V8 MRS, Chessboard, Merge, Classification, .. Region O + P

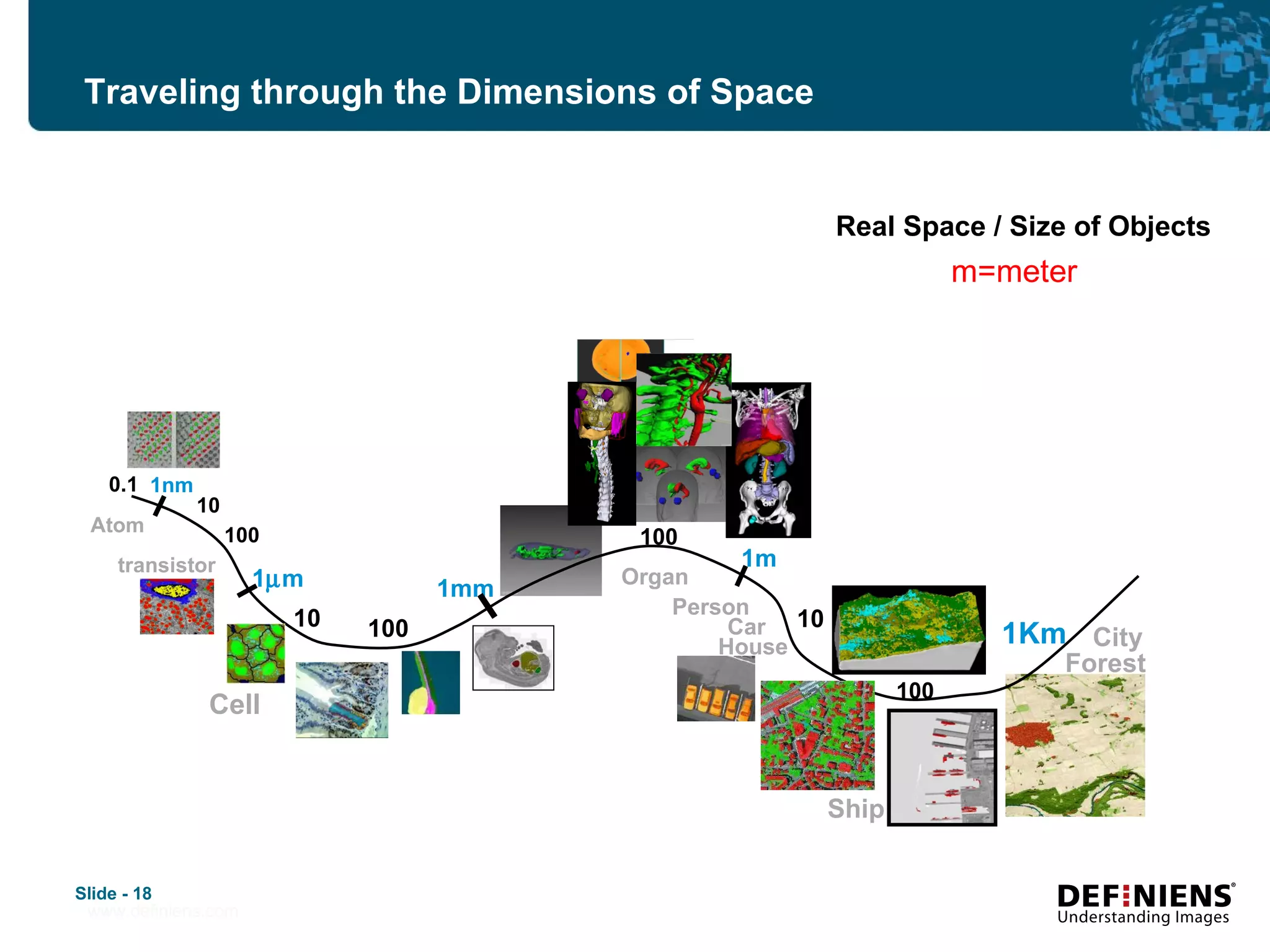

18. Real Space / Size of Objects www.definiens.com www.definiens.com 1nm 1  m 1mm 10 100 10 100 0.1 100 1m 10 1Km Atom transistor Organ Person Ship Car House City Cell Forest m=meter Traveling through the Dimensions of Space 100

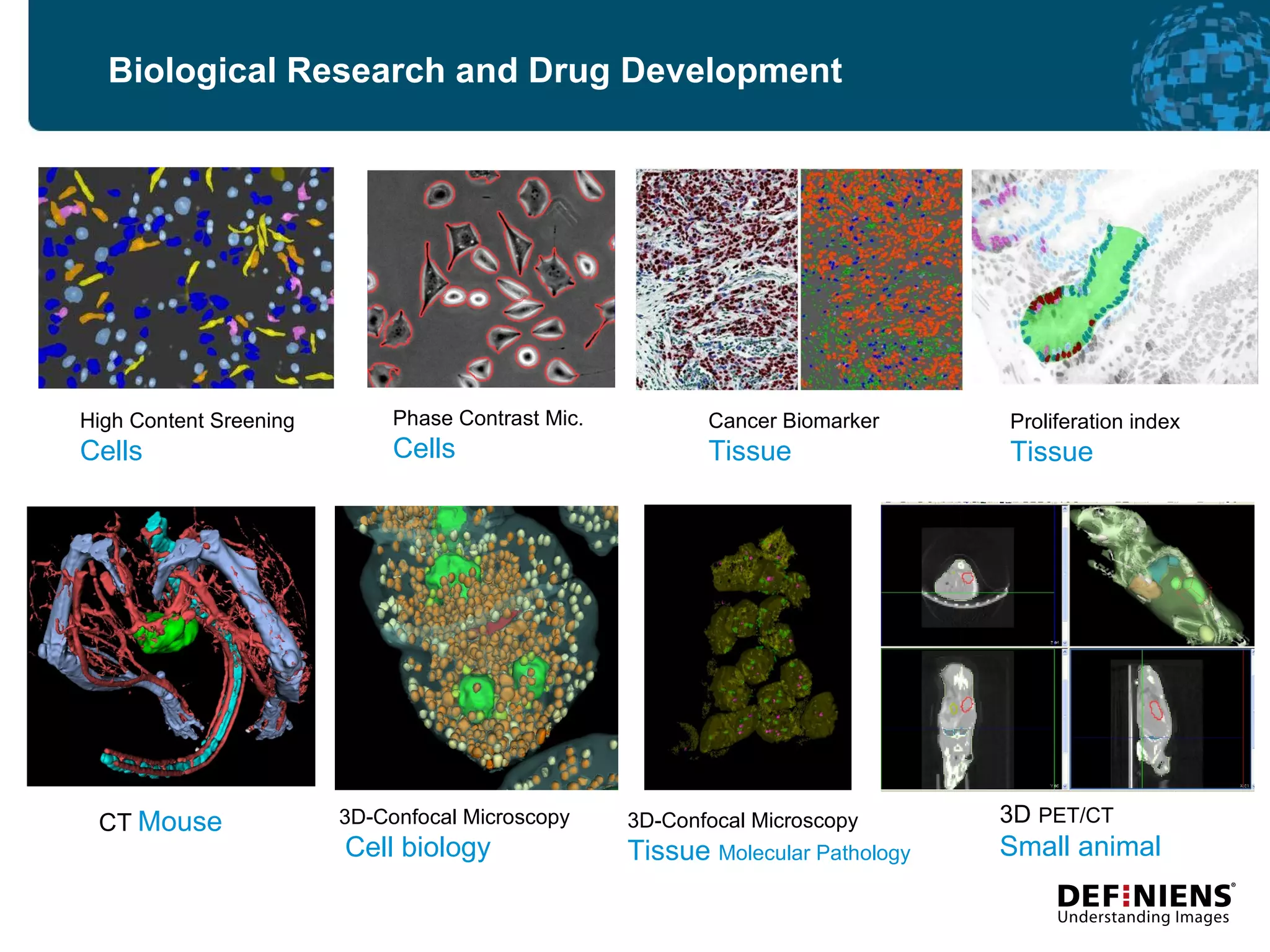

19. Phase Contrast Mic. Cells 3D-Confocal Microscopy Cell biology 3D-Confocal Microscopy Tissue Molecular Pathology 3D PET/CT Small animal Biological Research and Drug Development CT Mouse High Content Sreening Cells Proliferation index Tissue Cancer Biomarker Tissue

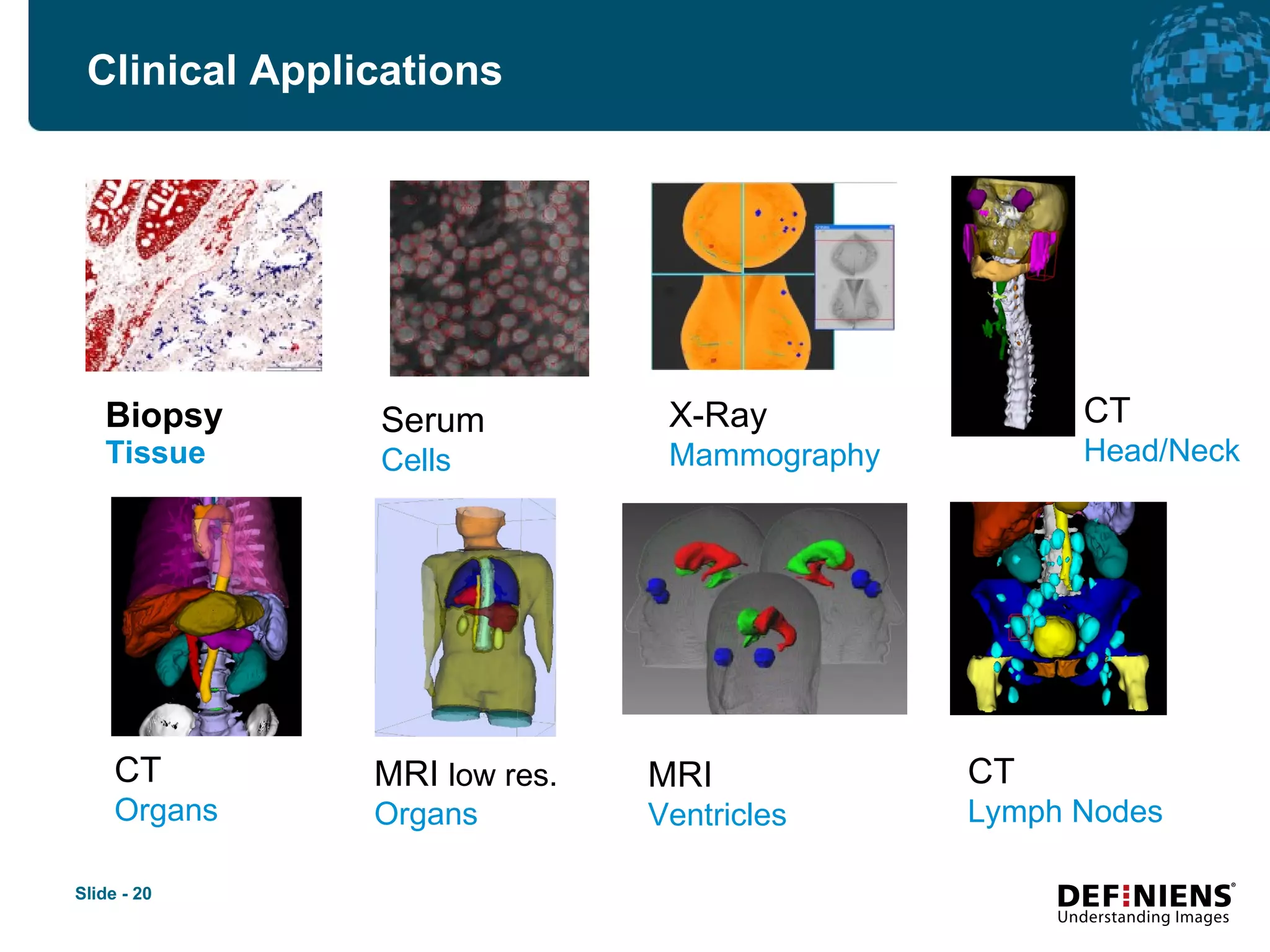

20. Biopsy Tissue Clinical Applications Serum Cells X-Ray Mammography CT Organs MRI low res. Organs CT Head/Neck MRI Ventricles CT Lymph Nodes

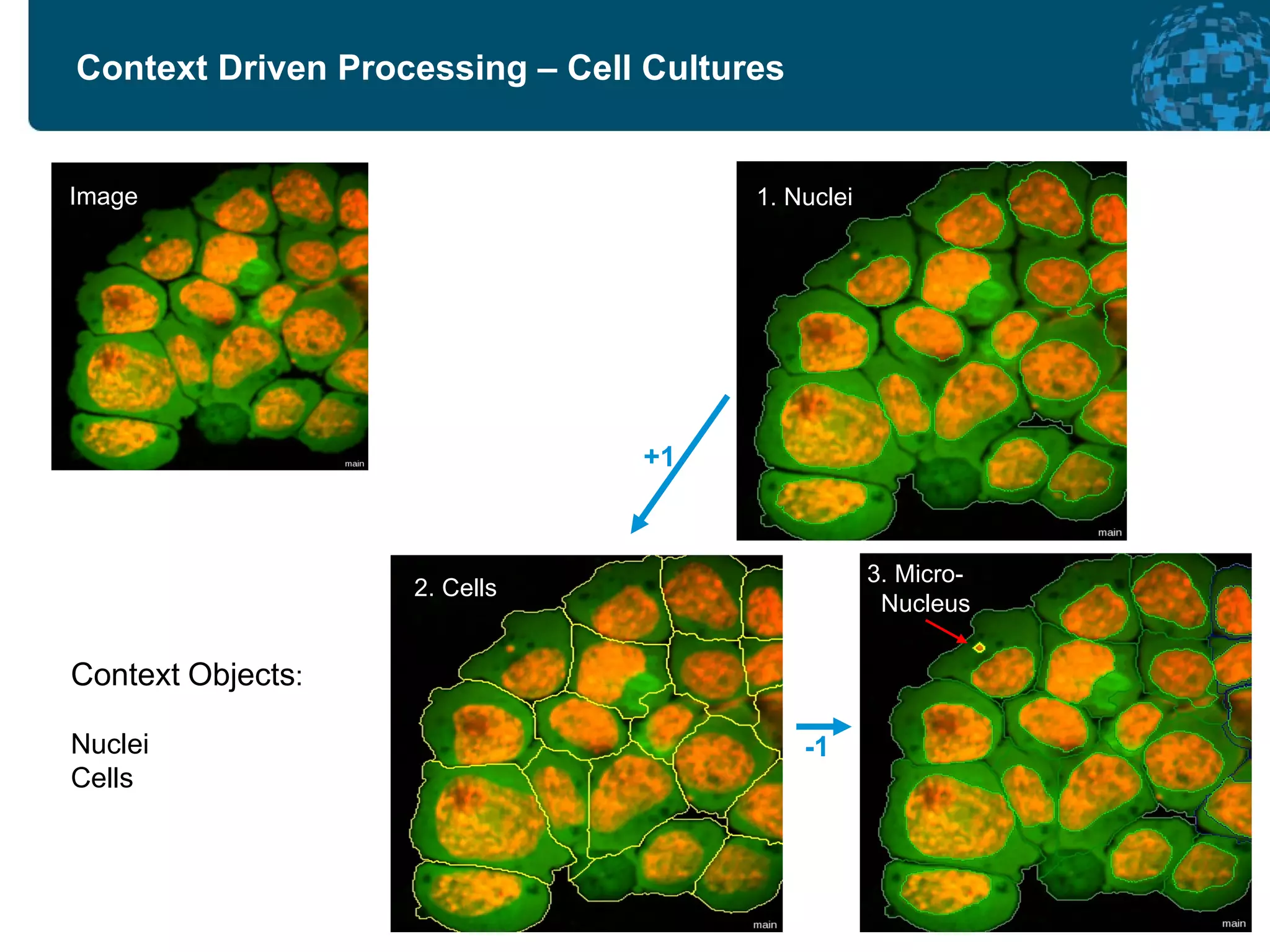

21. Context Driven Processing – Cell Cultures -1 +1 3. Micro- Nucleus Context Objects : Nuclei Cells 1. Nuclei 2. Cells Image

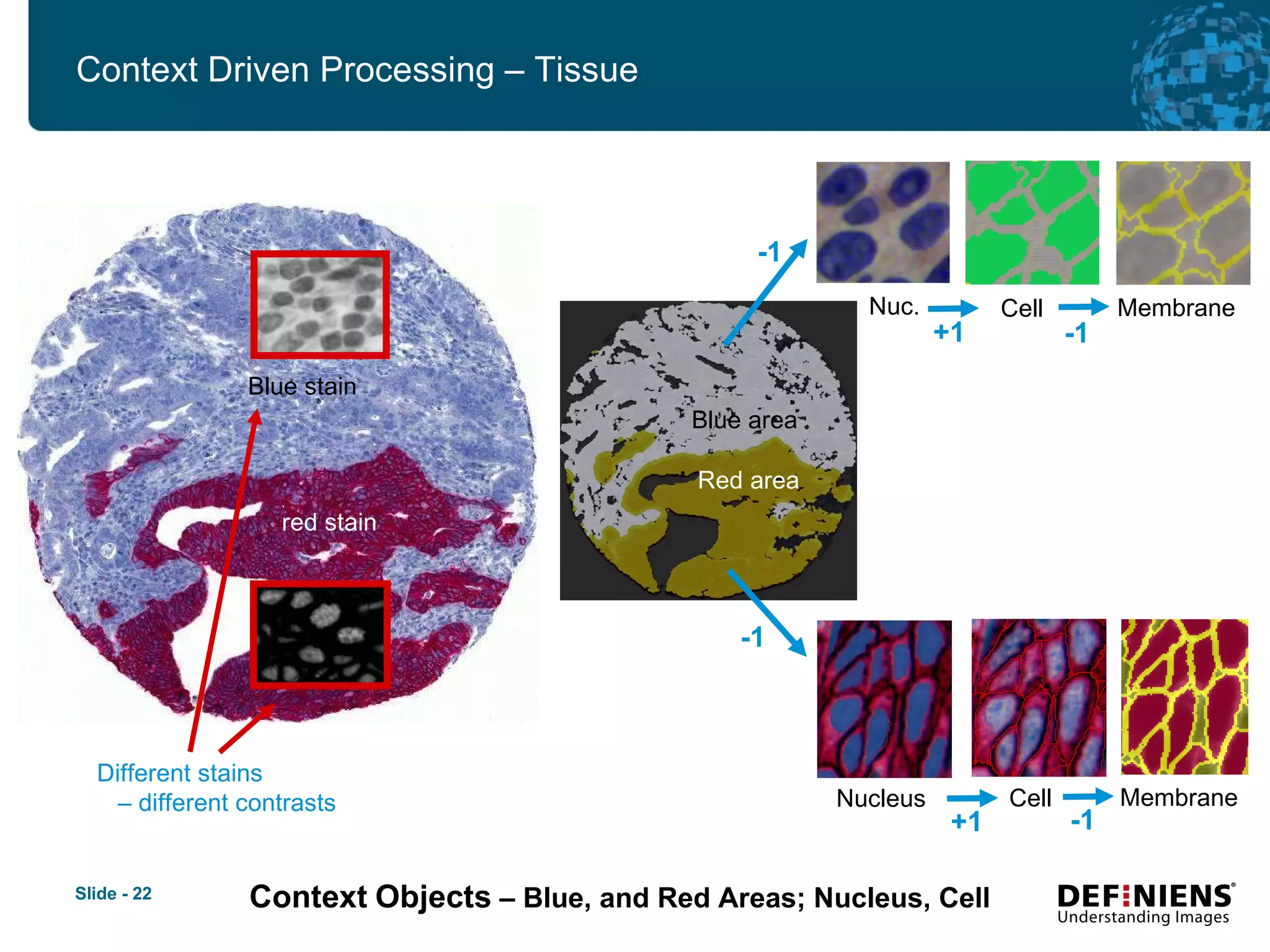

22. Context Objects – Blue, and Red Areas; Nucleus, Cell Blue stain red stain Different stains – different contrasts Blue area Red area -1 -1 Nucleus Cell Membrane +1 -1 Nuc. Cell Membrane +1 -1 Context Driven Processing – Tissue

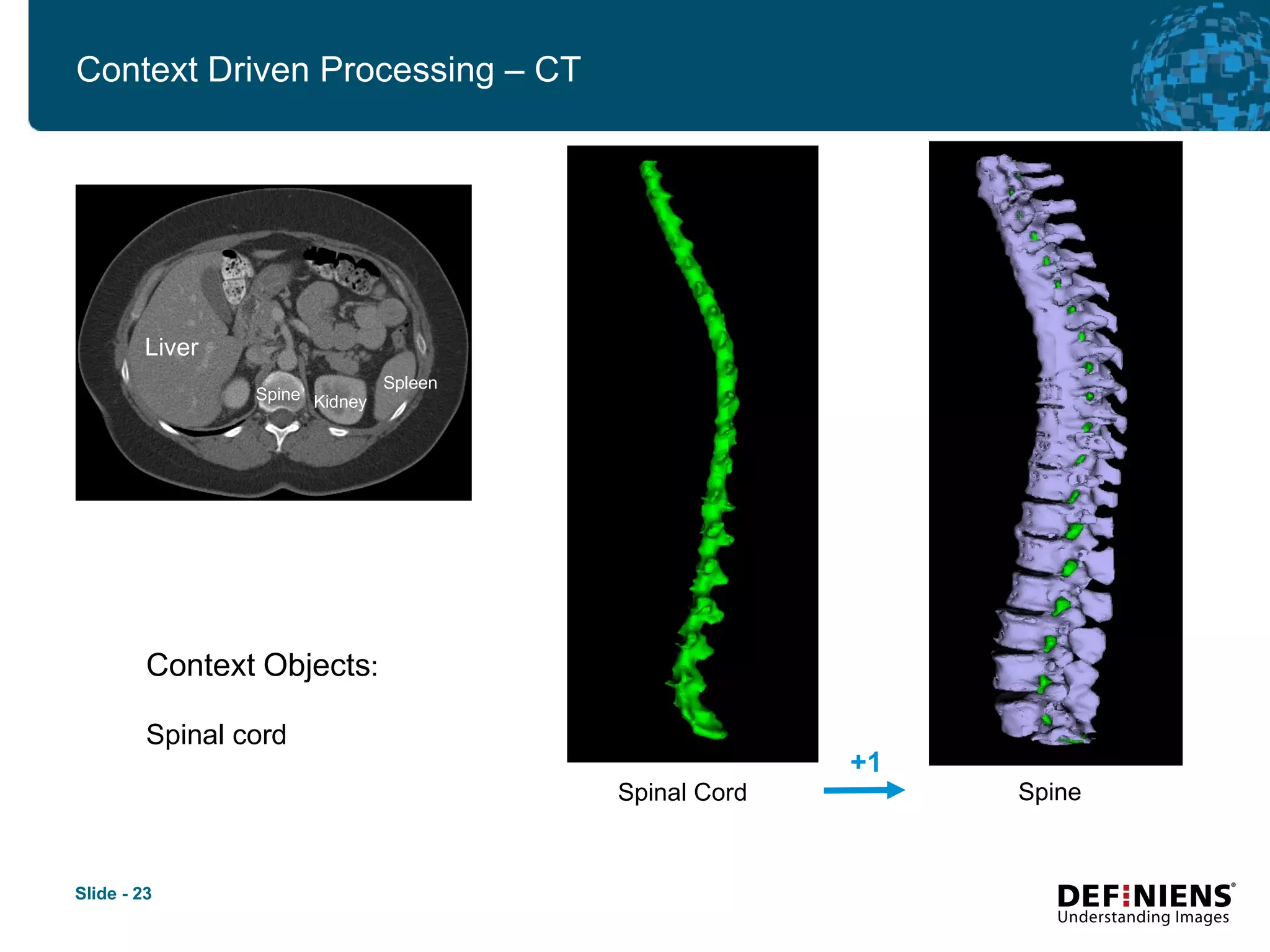

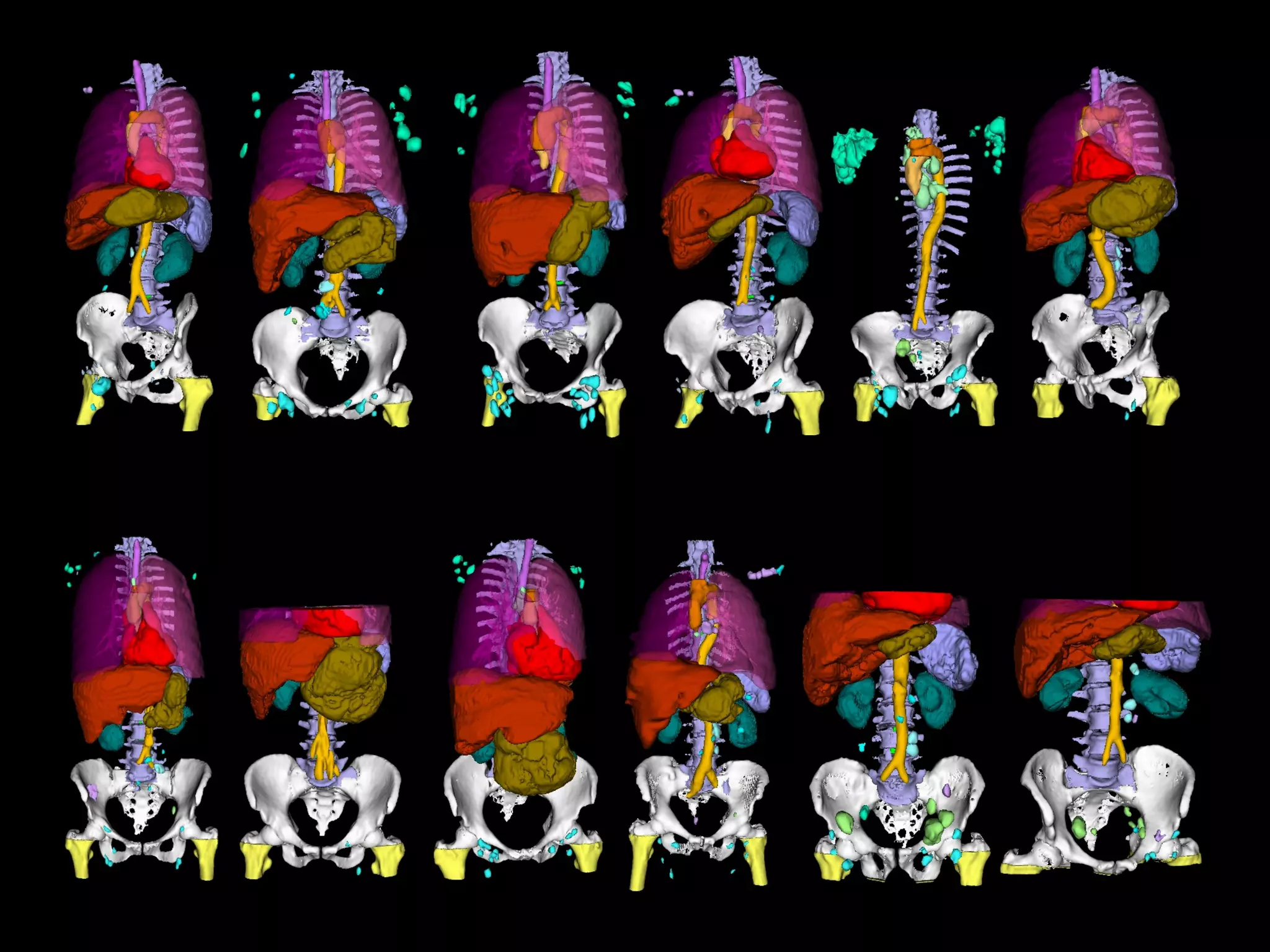

23. Spinal Cord +1 Context Driven Processing – CT Spine Context Objects : Spinal cord Liver Kidney Spleen Spine

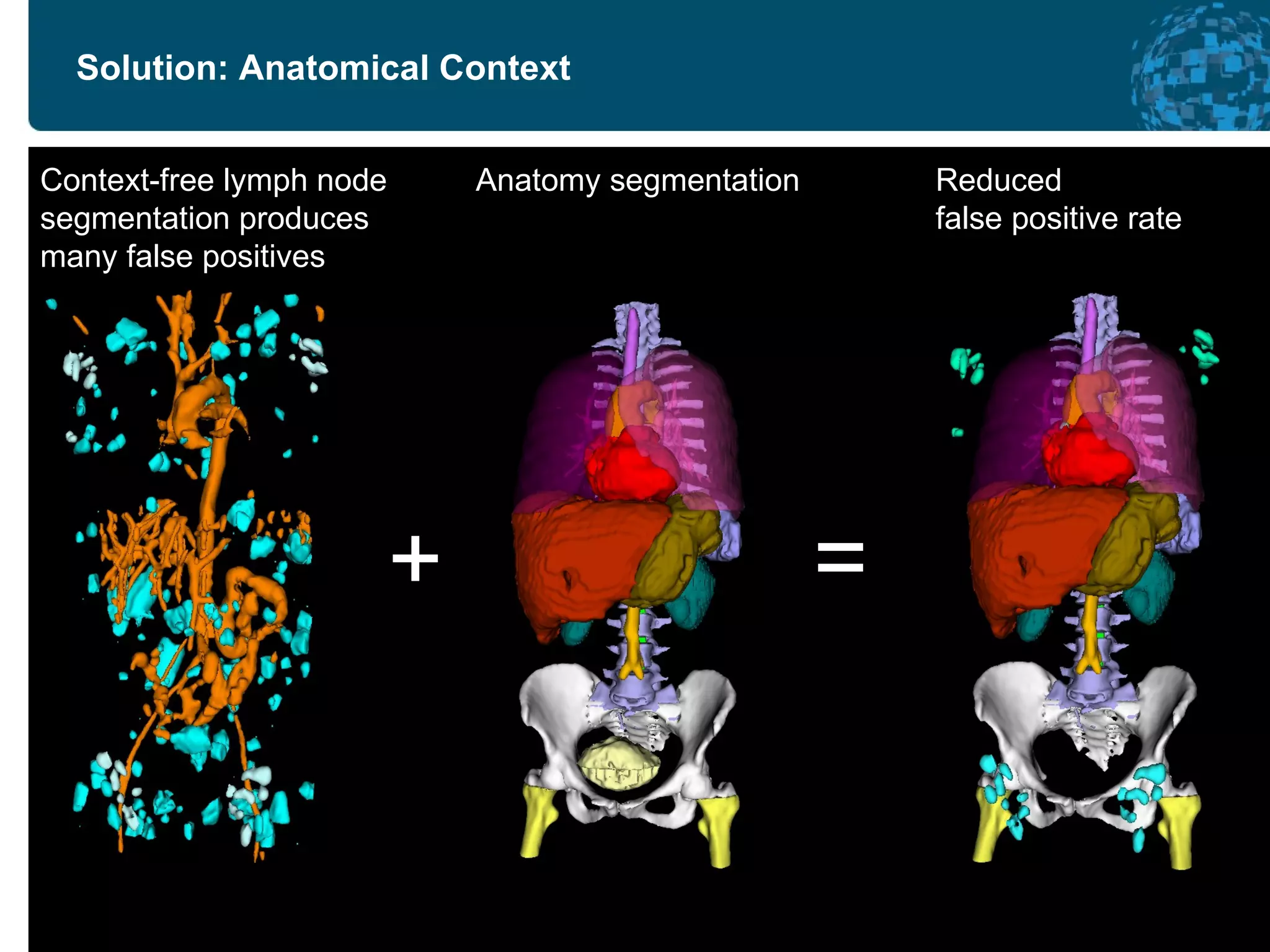

24. Solution: Anatomical Context Anatomy segmentation Context-free lymph node segmentation produces many false positives Reduced false positive rate + =

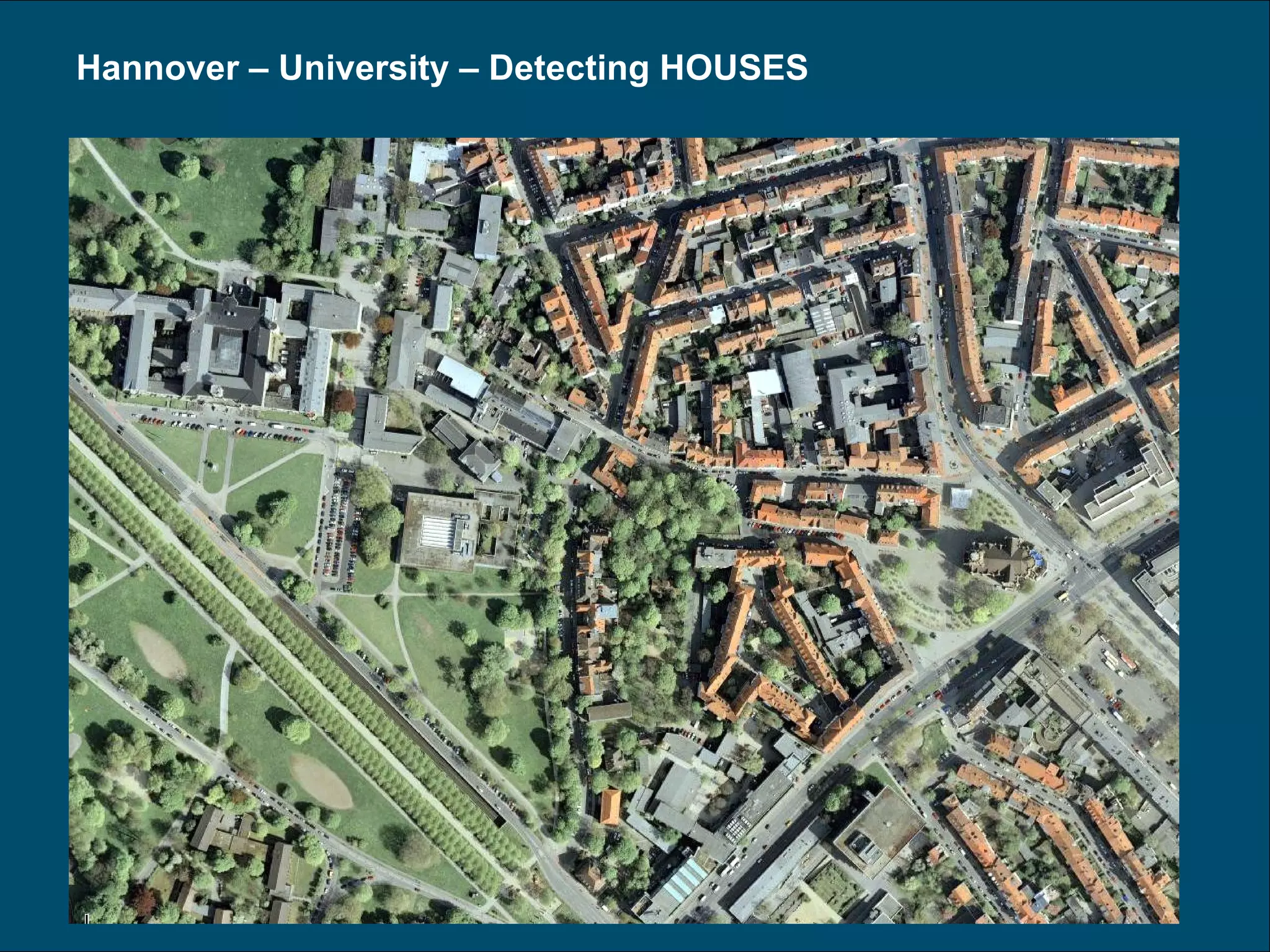

26. Hannover – University – Detecting HOUSES

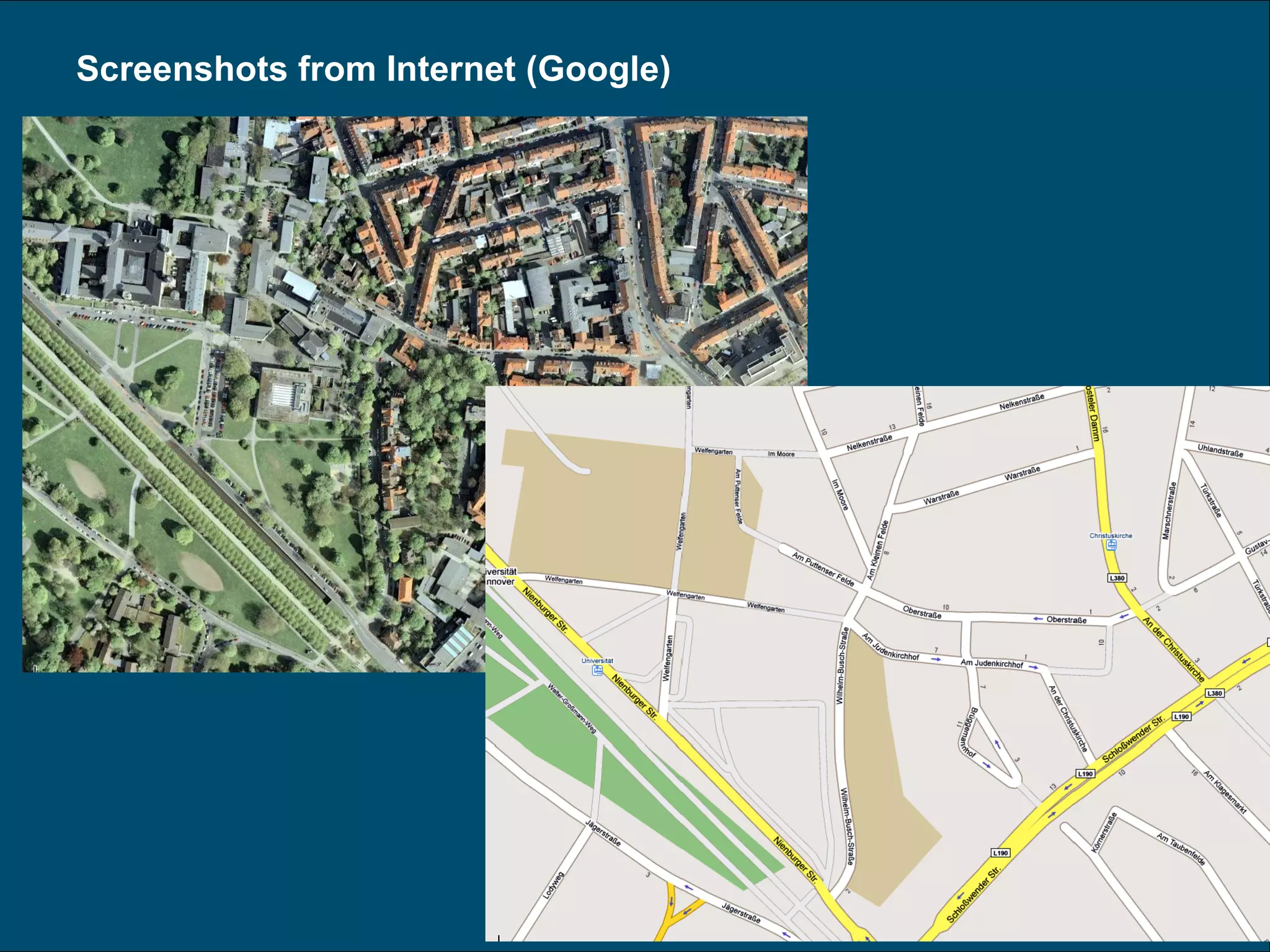

27. Screenshots from Internet (Google)

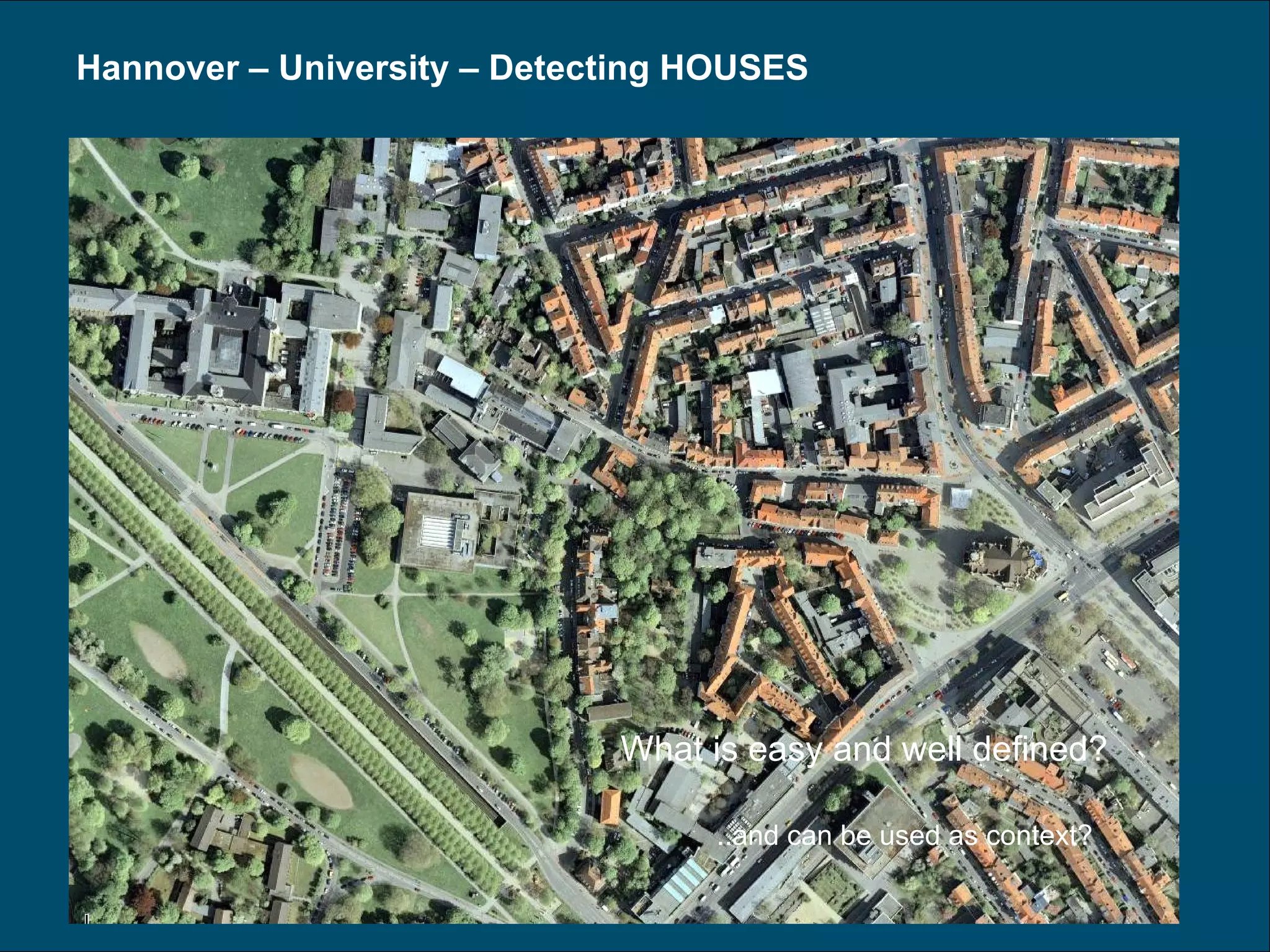

28. Hannover – University – Detecting HOUSES What is easy and well defined? ..and can be used as context?

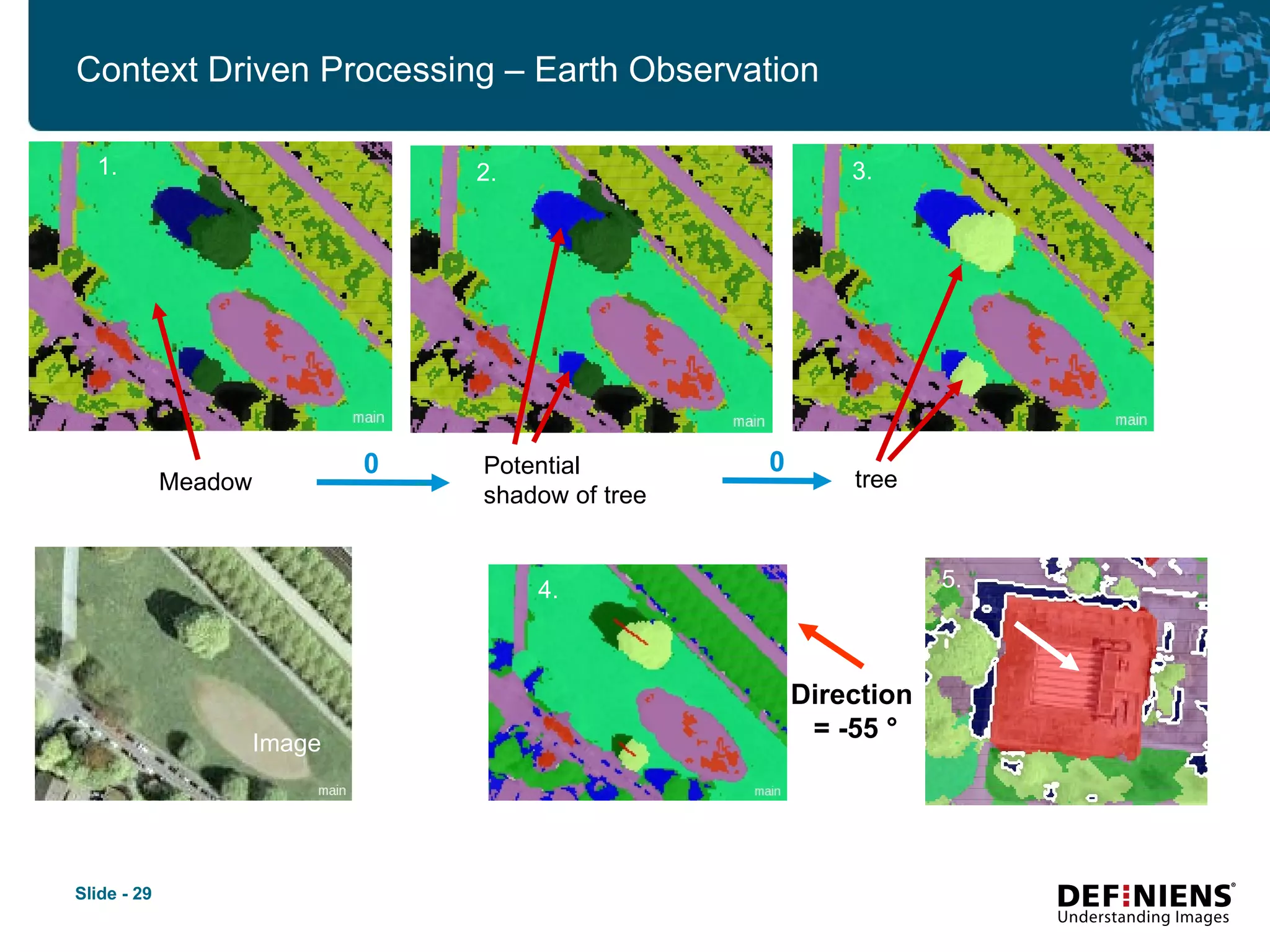

29. Meadow Potential shadow of tree 0 Context Driven Processing – Earth Observation 0 tree Direction = -55 ° Image 1. 2. 3. 4. 5.

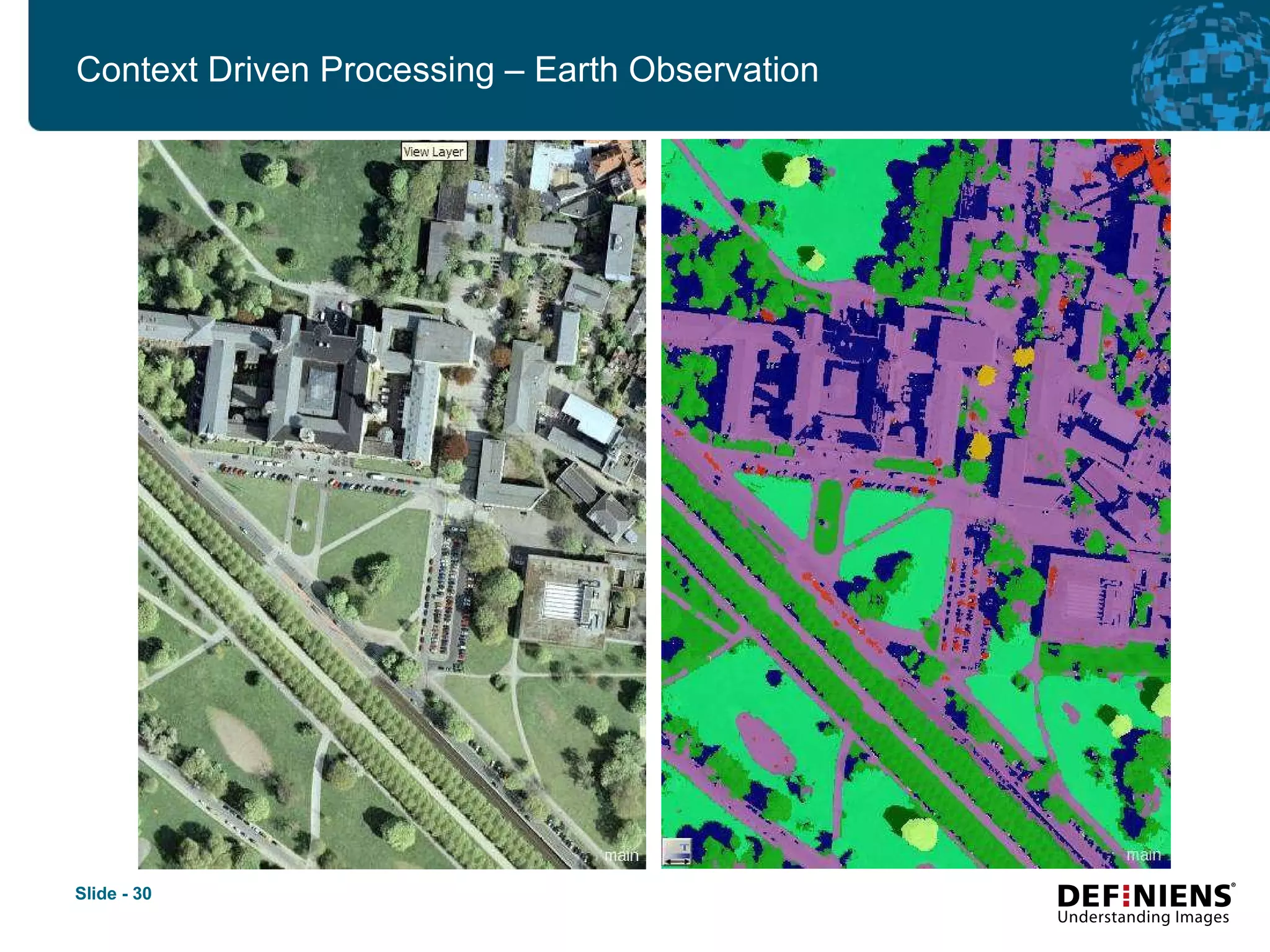

30. Context Driven Processing – Earth Observation

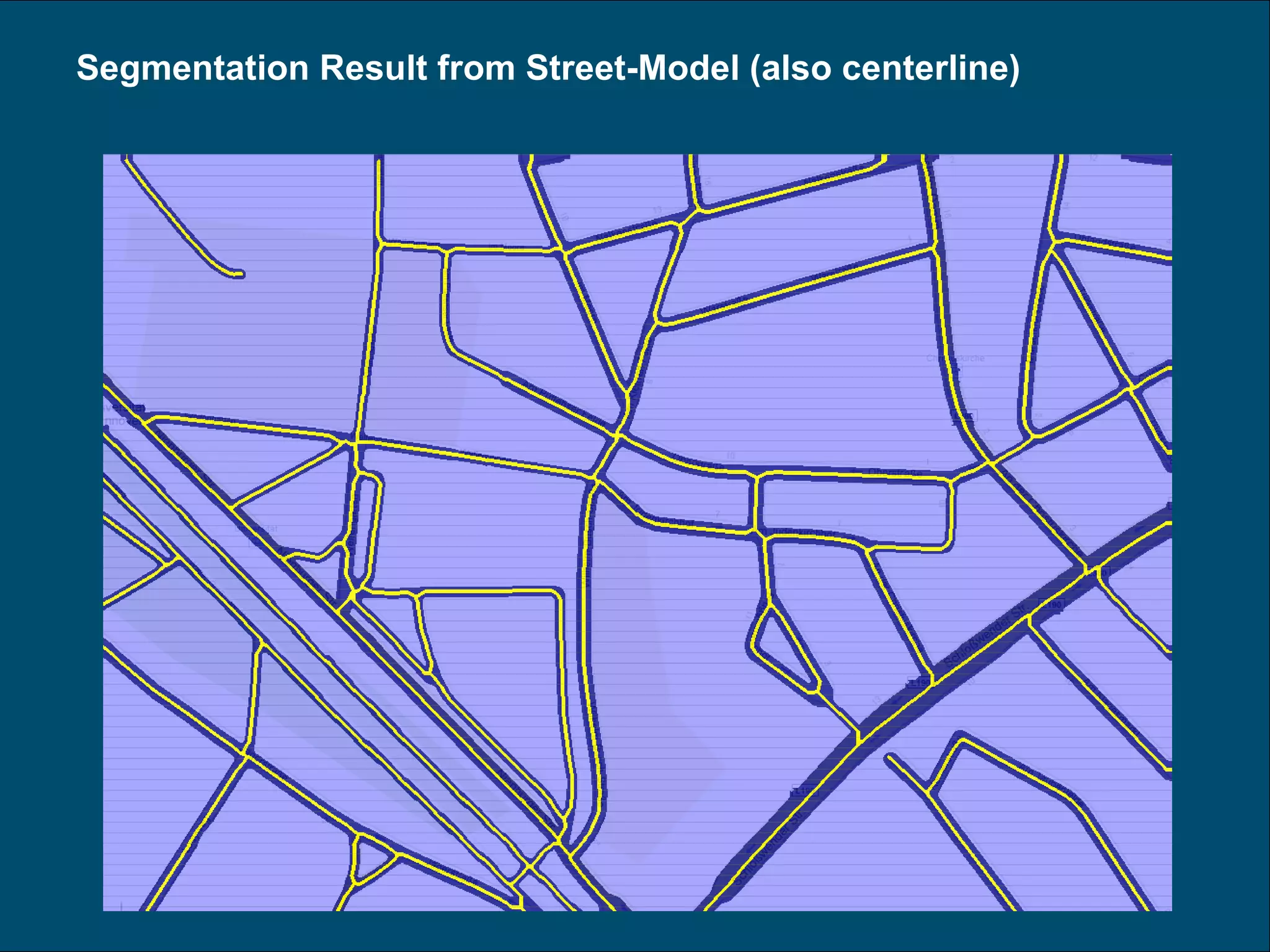

31. Segmentation Result from Street-Model (also centerline)

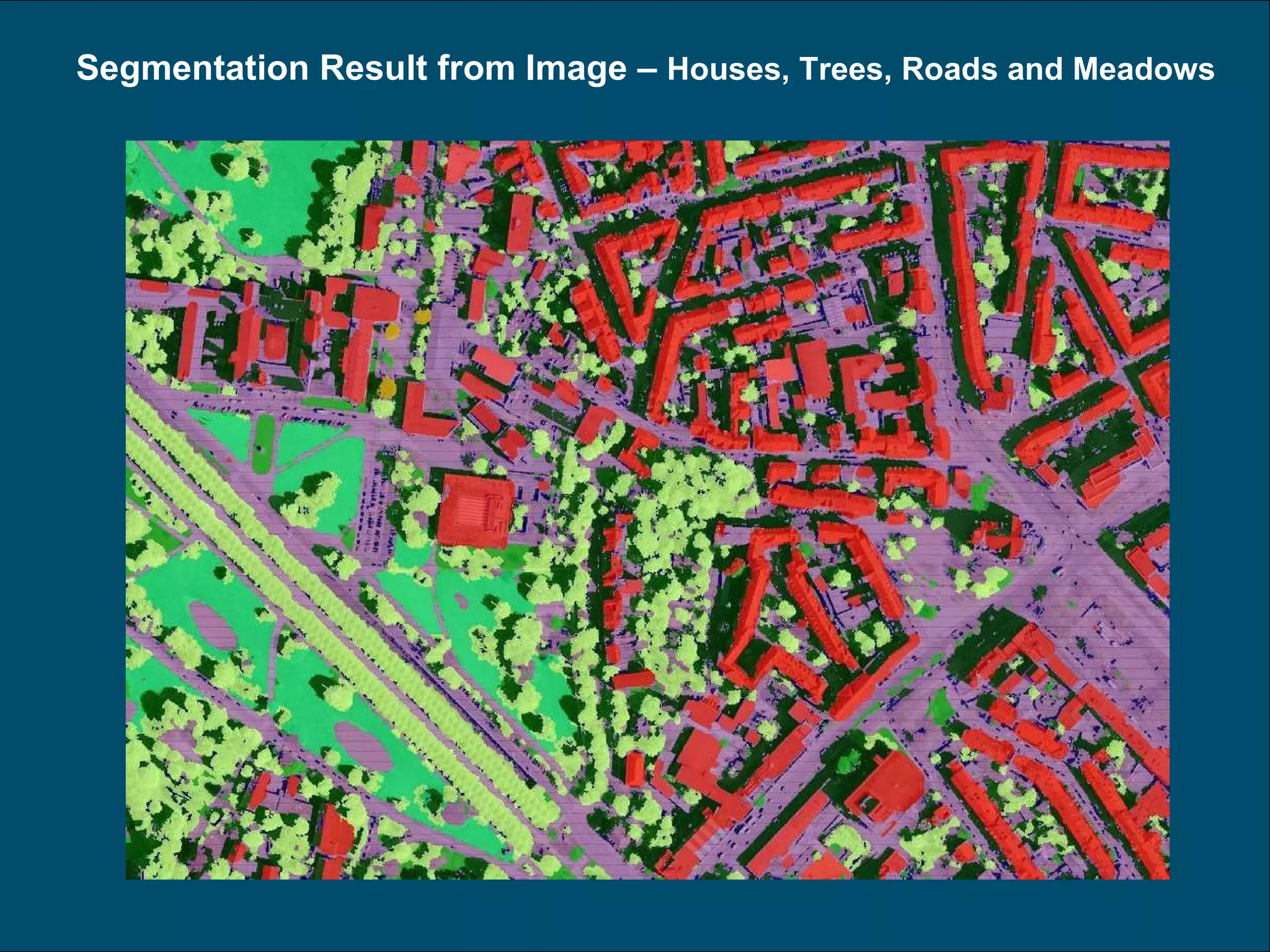

32. Segmentation Result from Image – Houses, Trees, Roads and Meadows

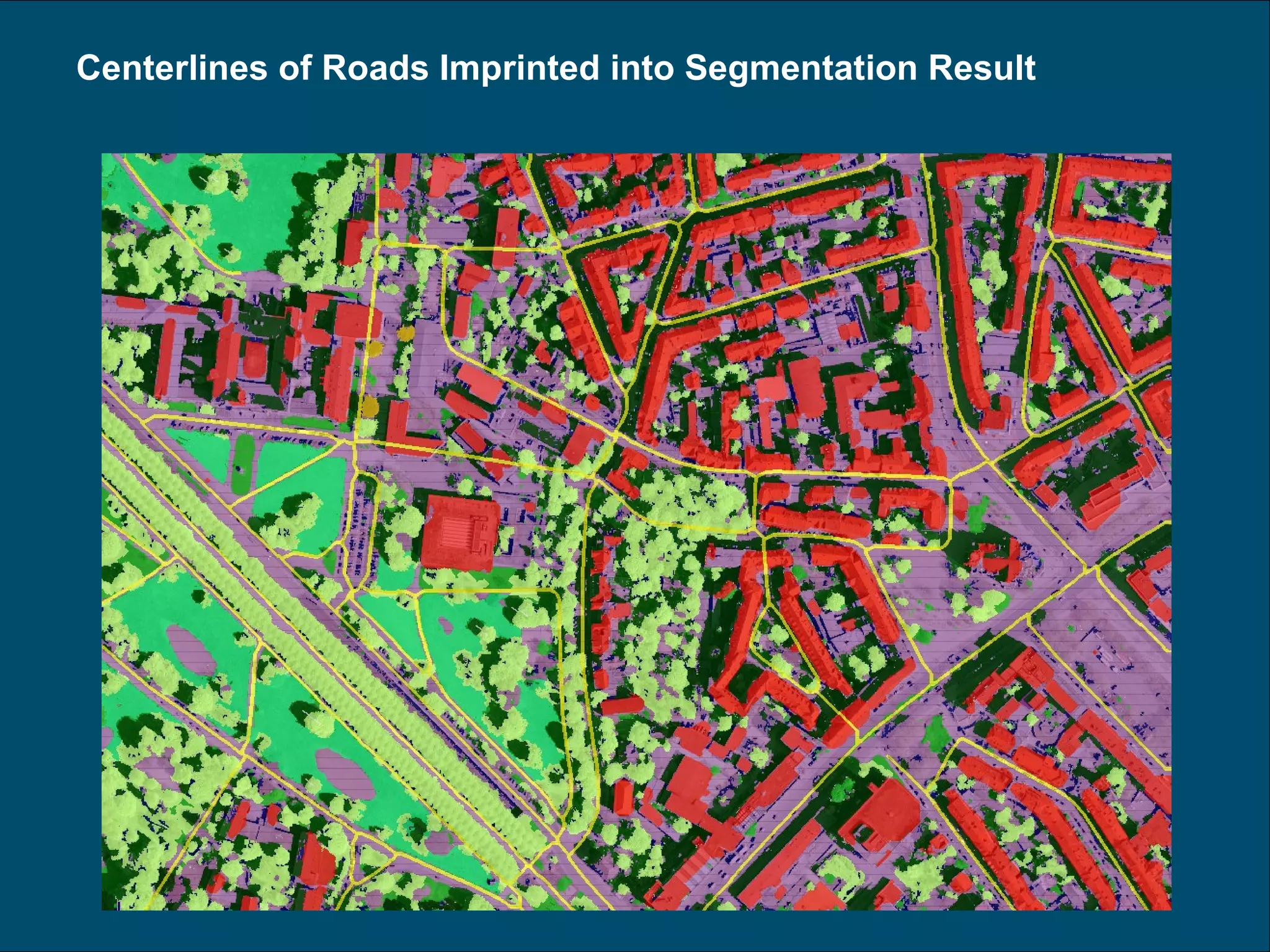

33. Centerlines of Roads Imprinted into Segmentation Result

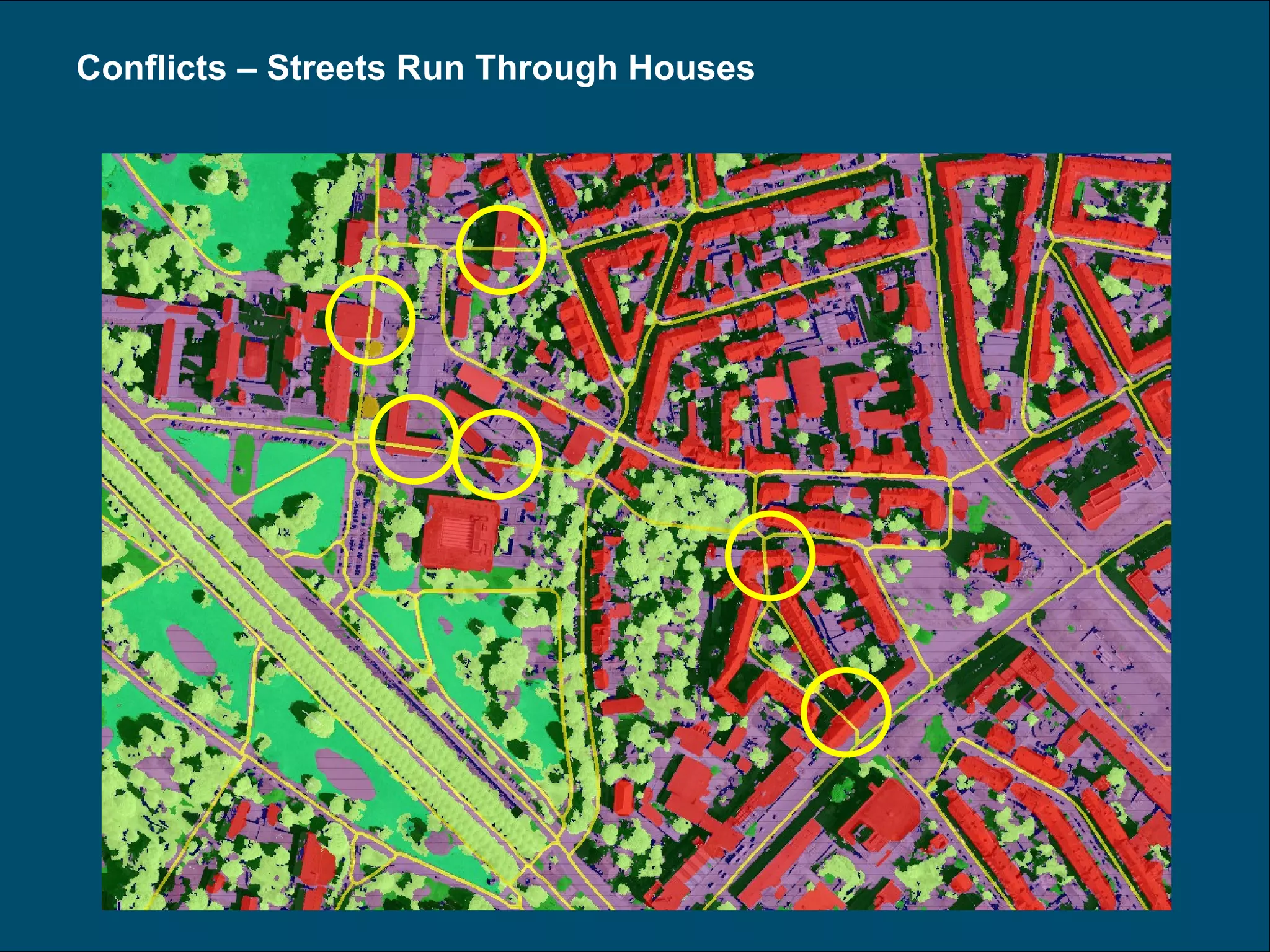

34. Conflicts – Streets Run Through Houses

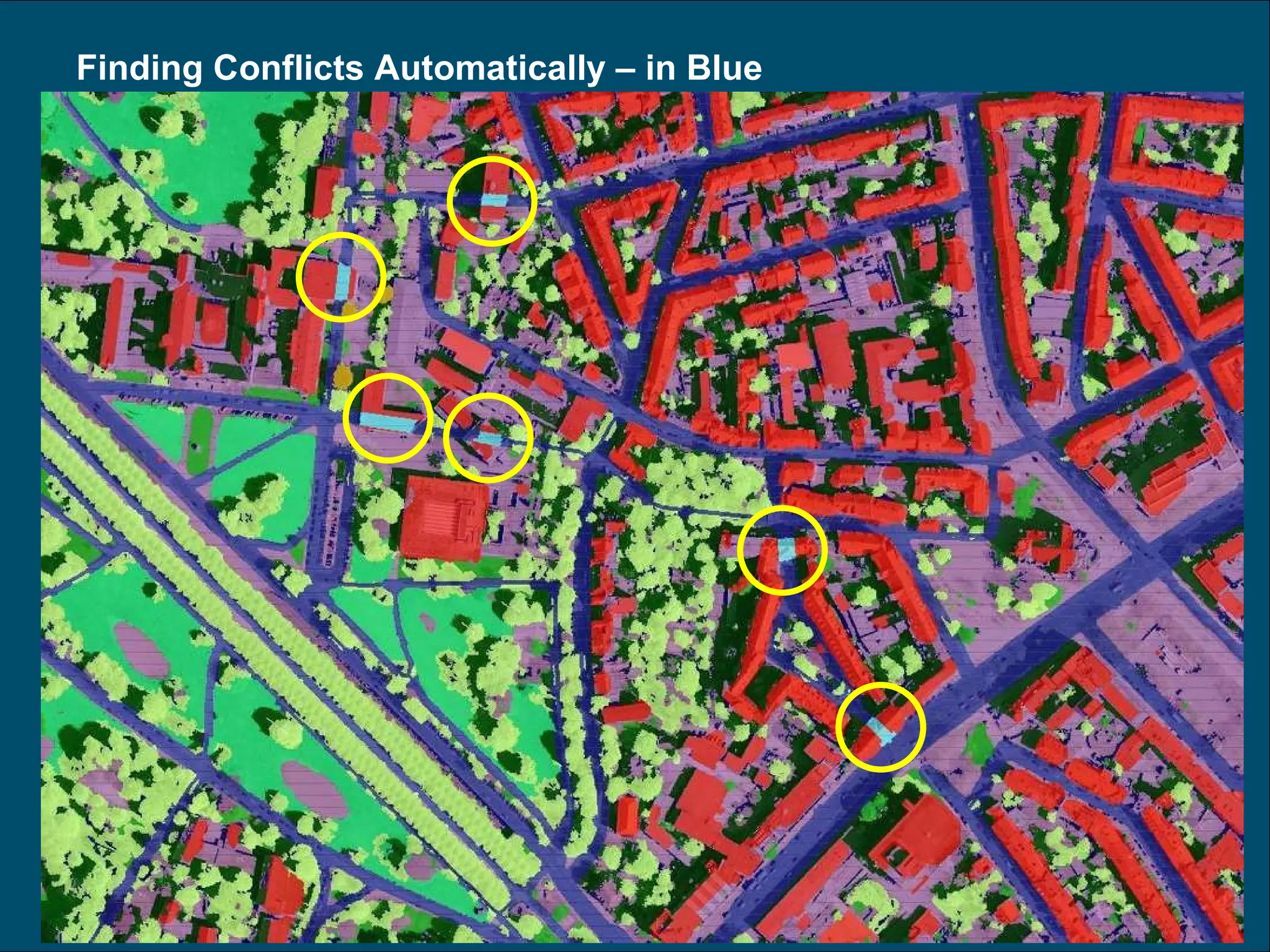

35. Finding Conflicts Automatically – in Blue

36. Demo

37. Different kind of context object

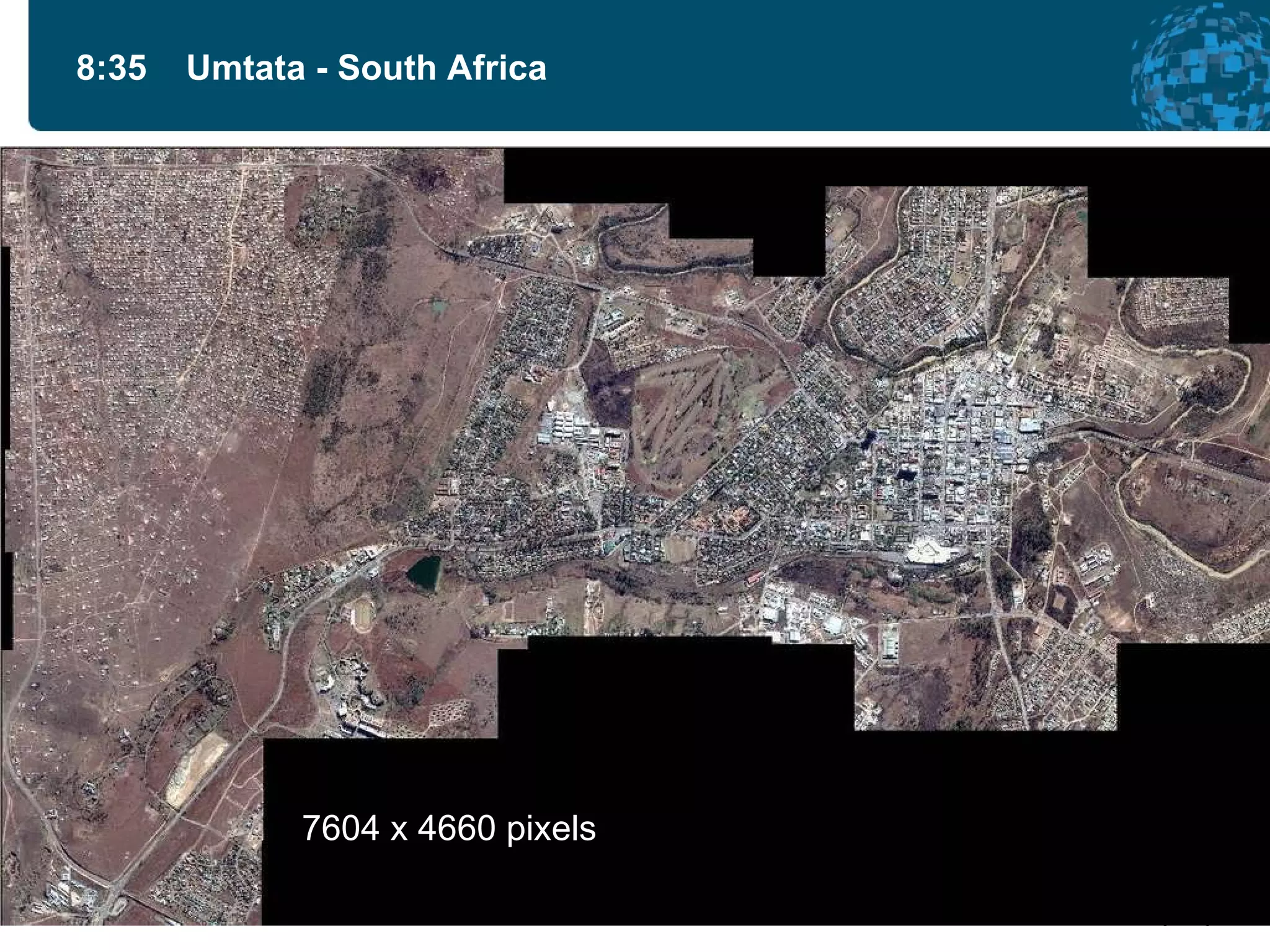

38. 8:35 Umtata - South Africa 7604 x 4660 pixels

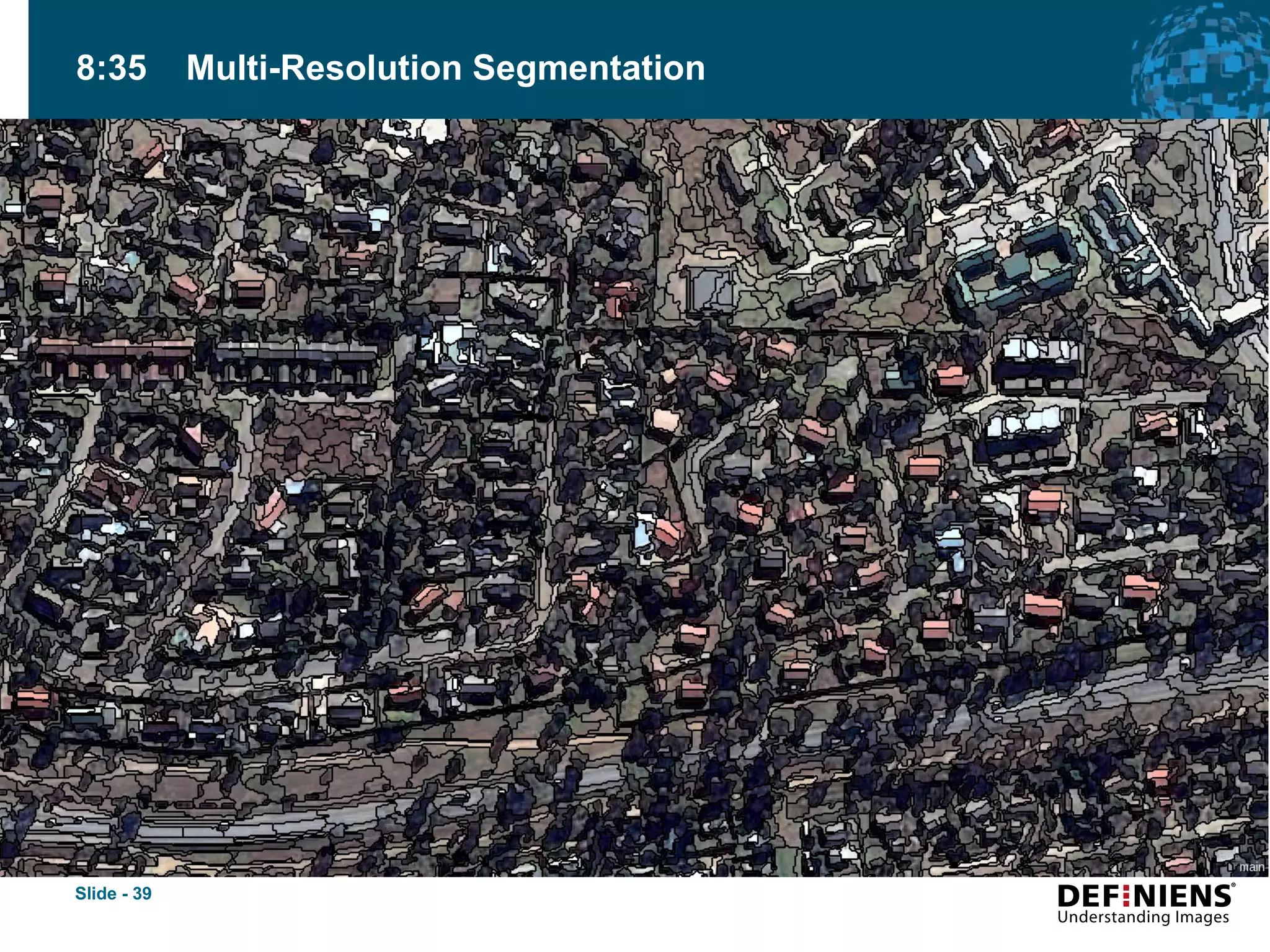

39. 8:35 Multi-Resolution Segmentation

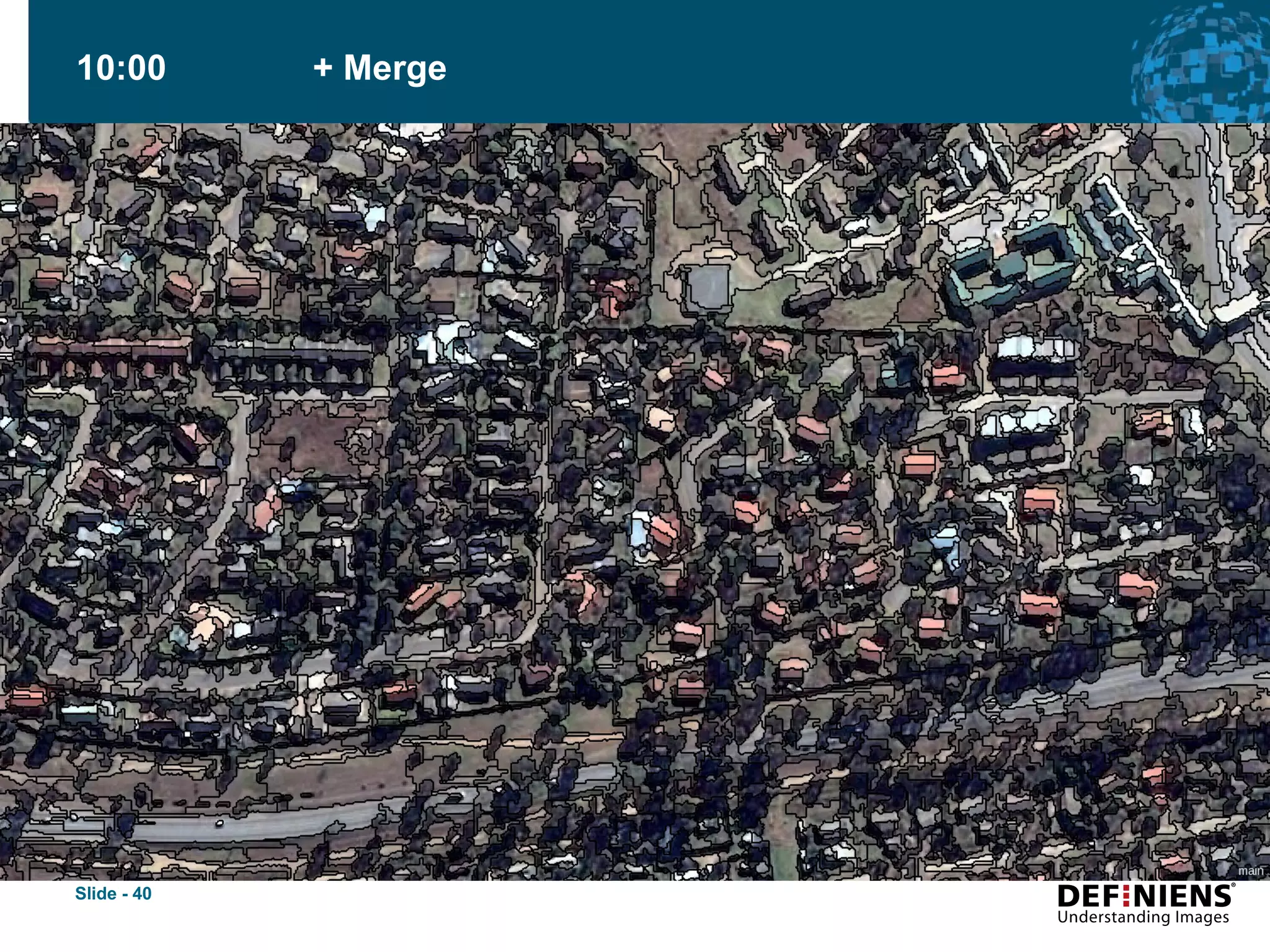

40. 10:00 + Merge

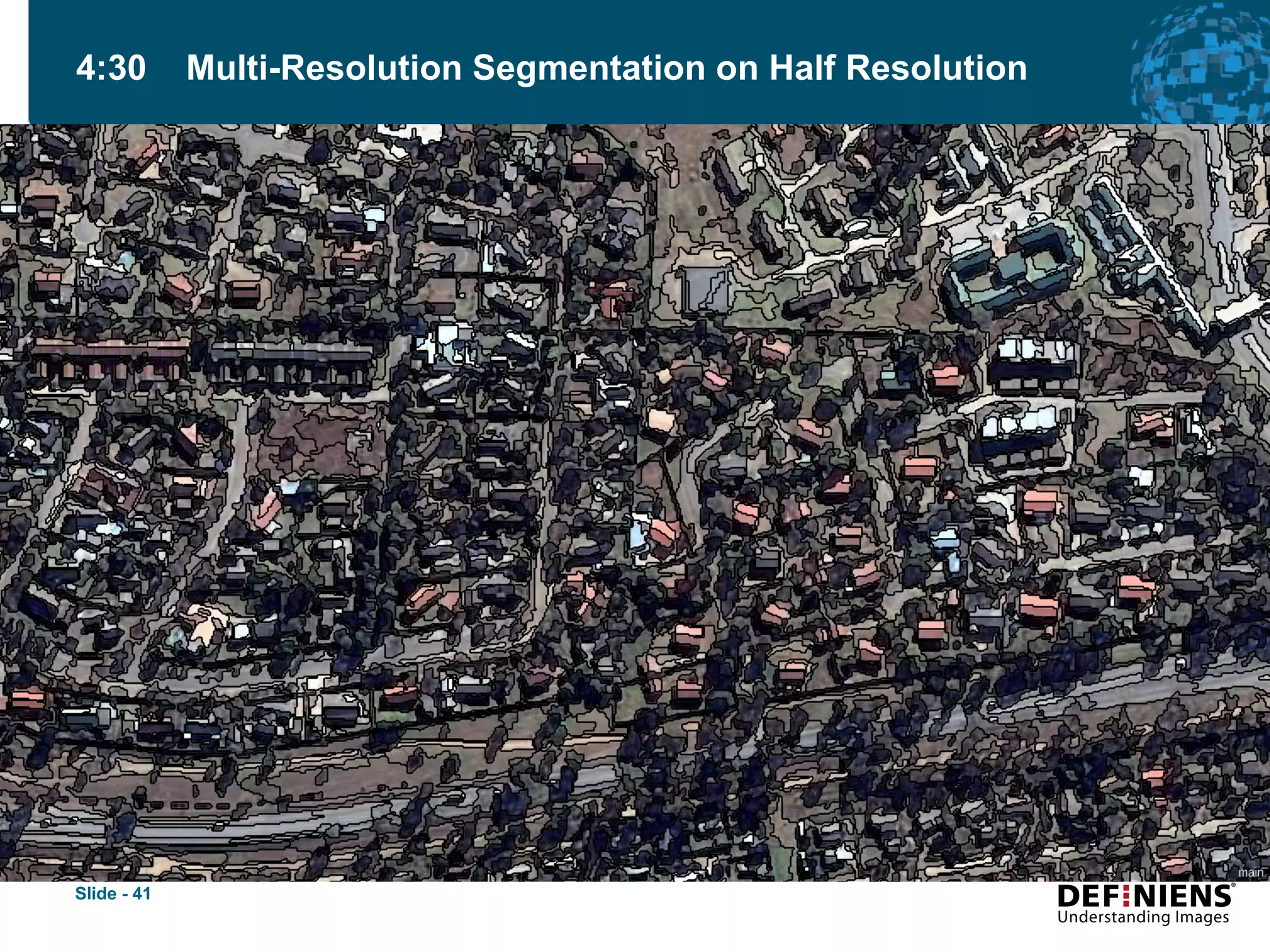

41. 4:30 Multi-Resolution Segmentation on Half Resolution

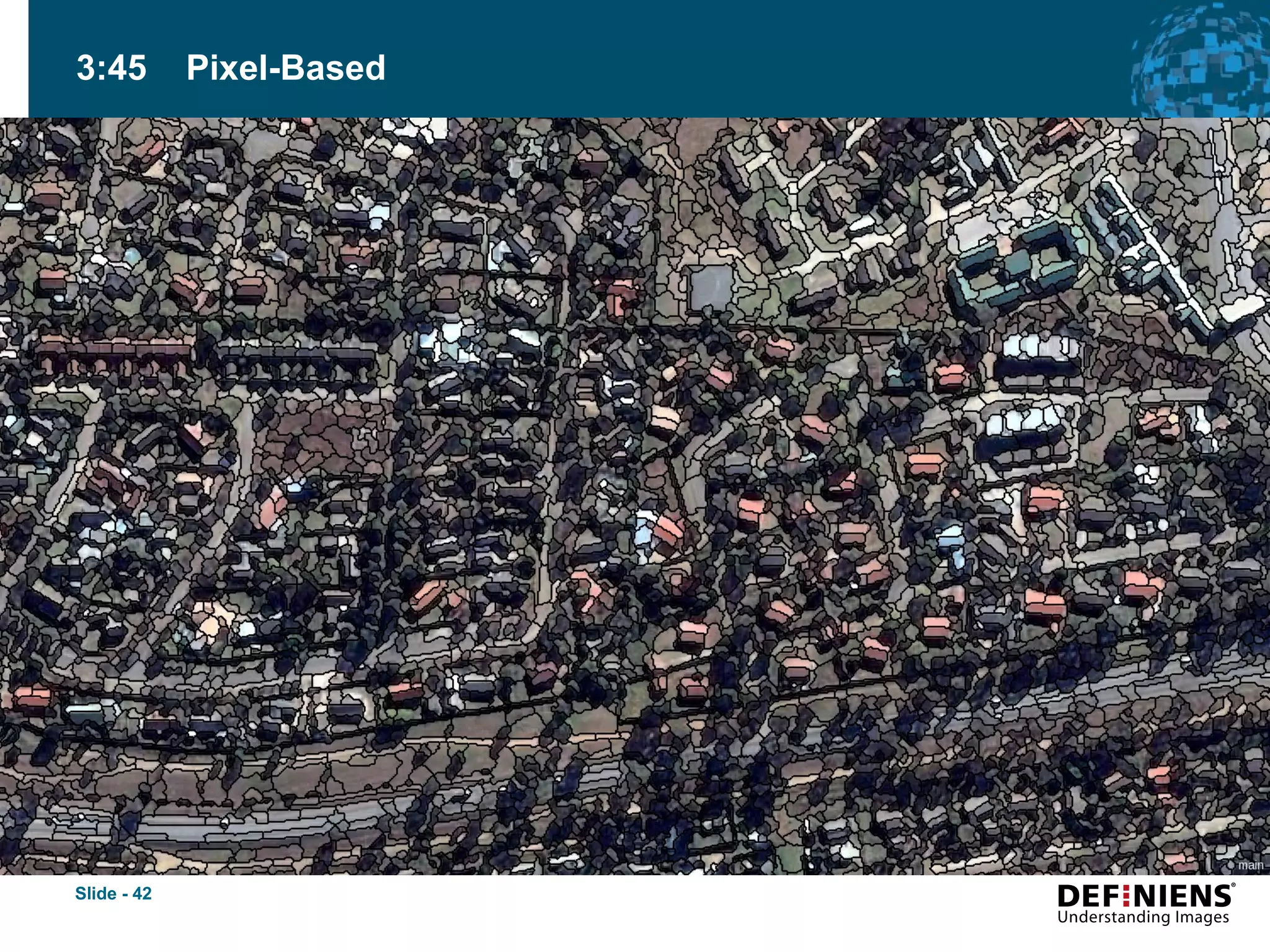

42. 3:45 Pixel-Based

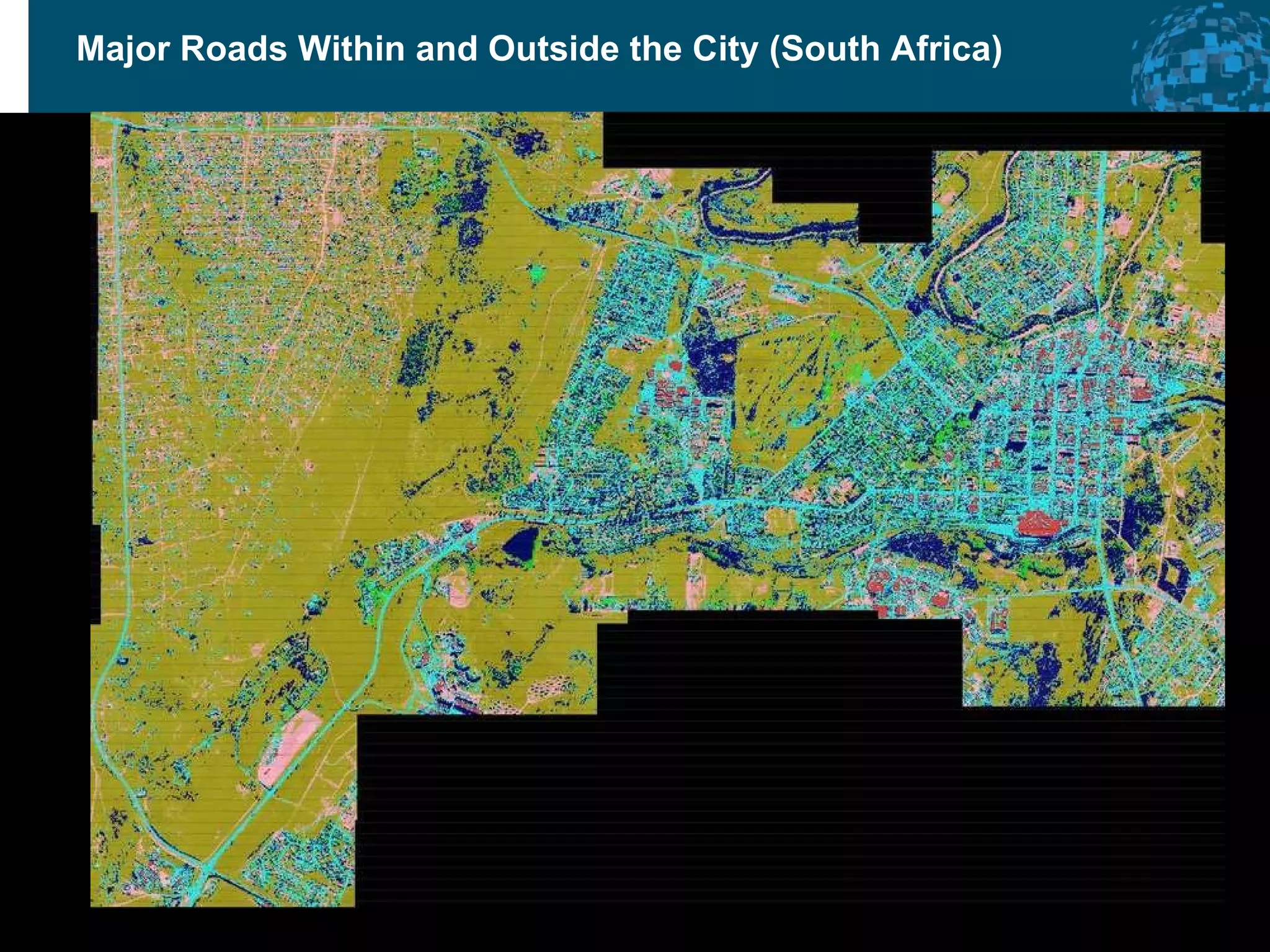

43. Major Roads Within and Outside the City (South Africa)

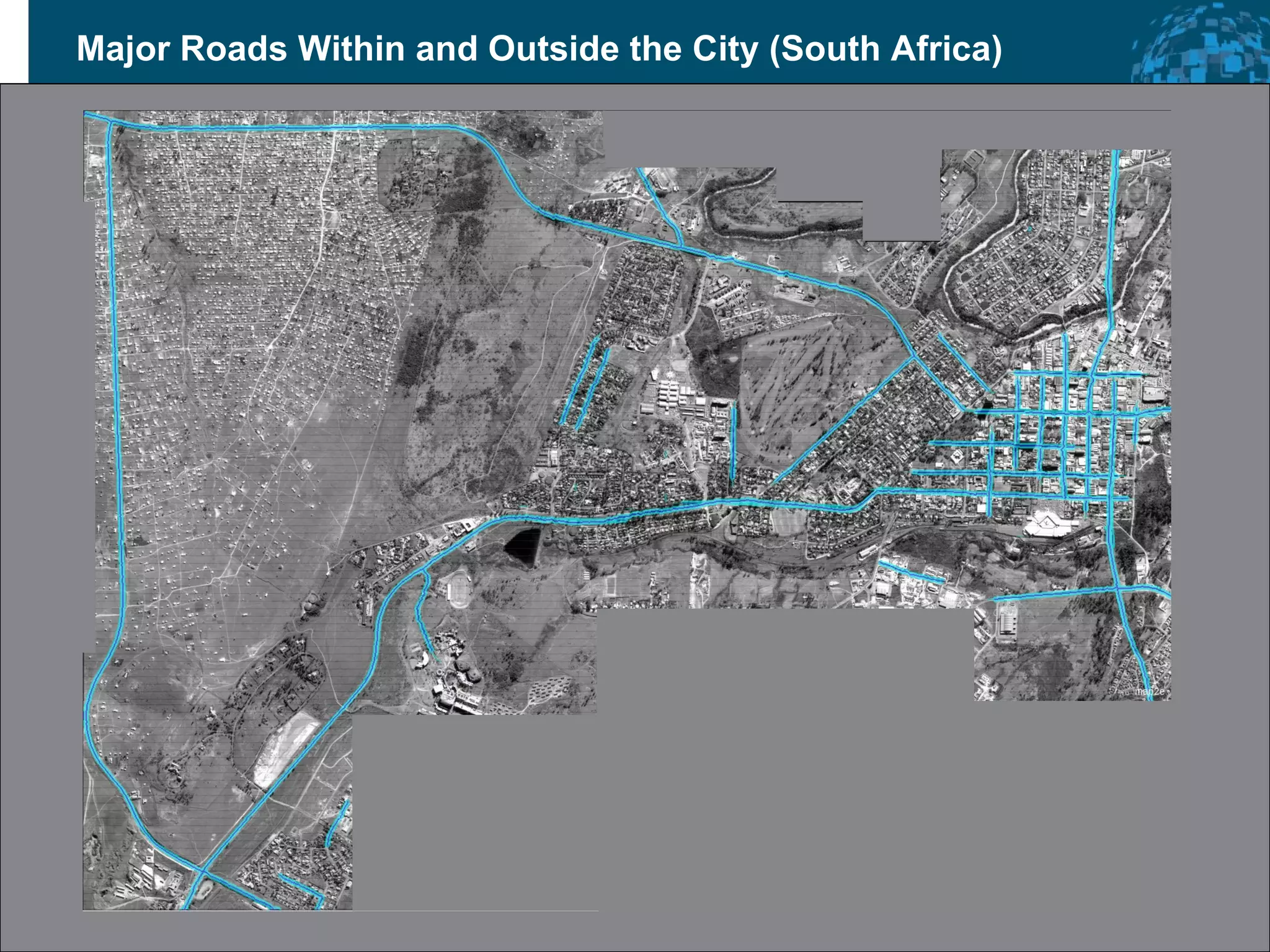

44. Major Roads Within and Outside the City (South Africa)

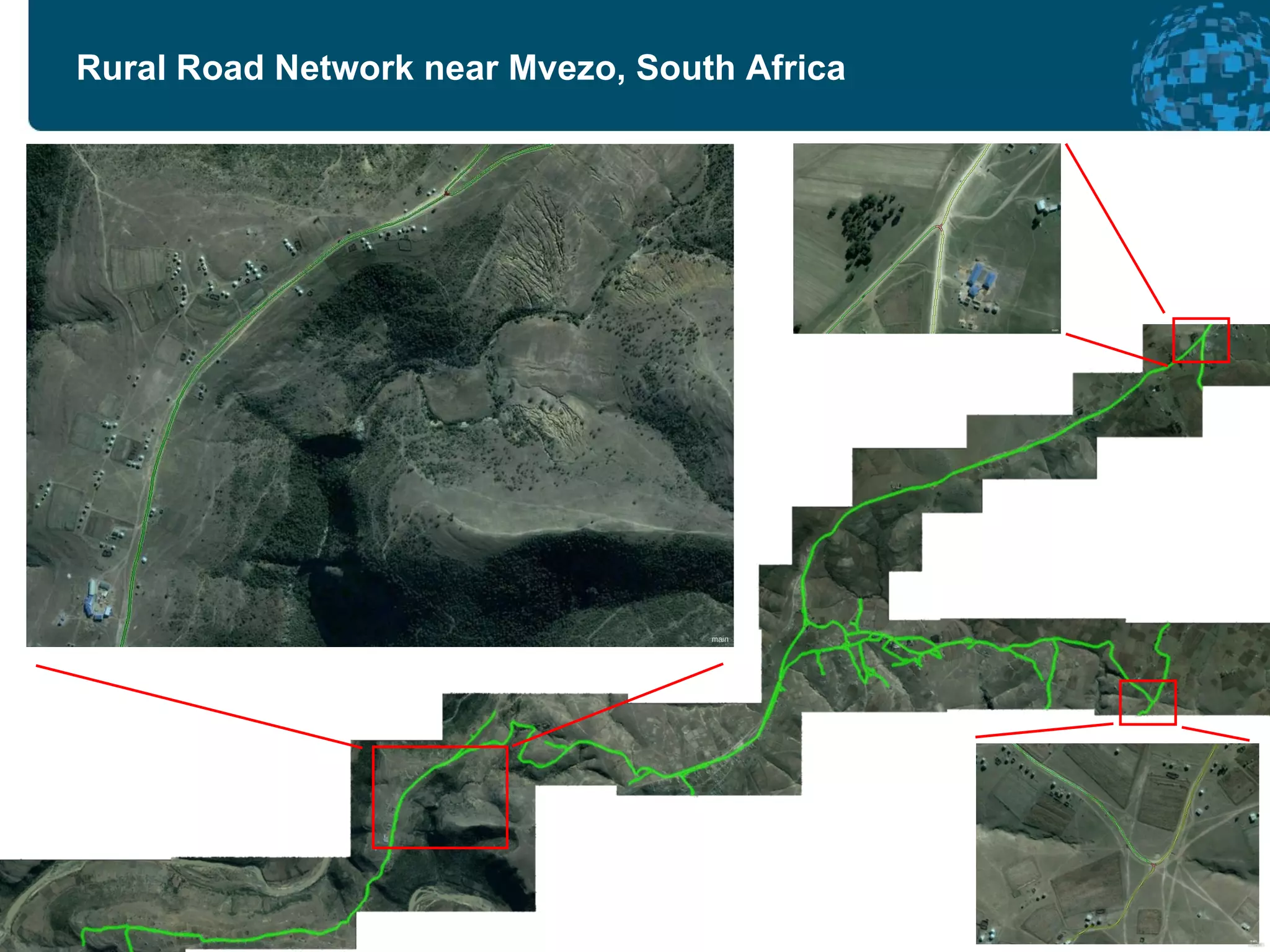

45. Rural Road Network near Mvezo, South Africa

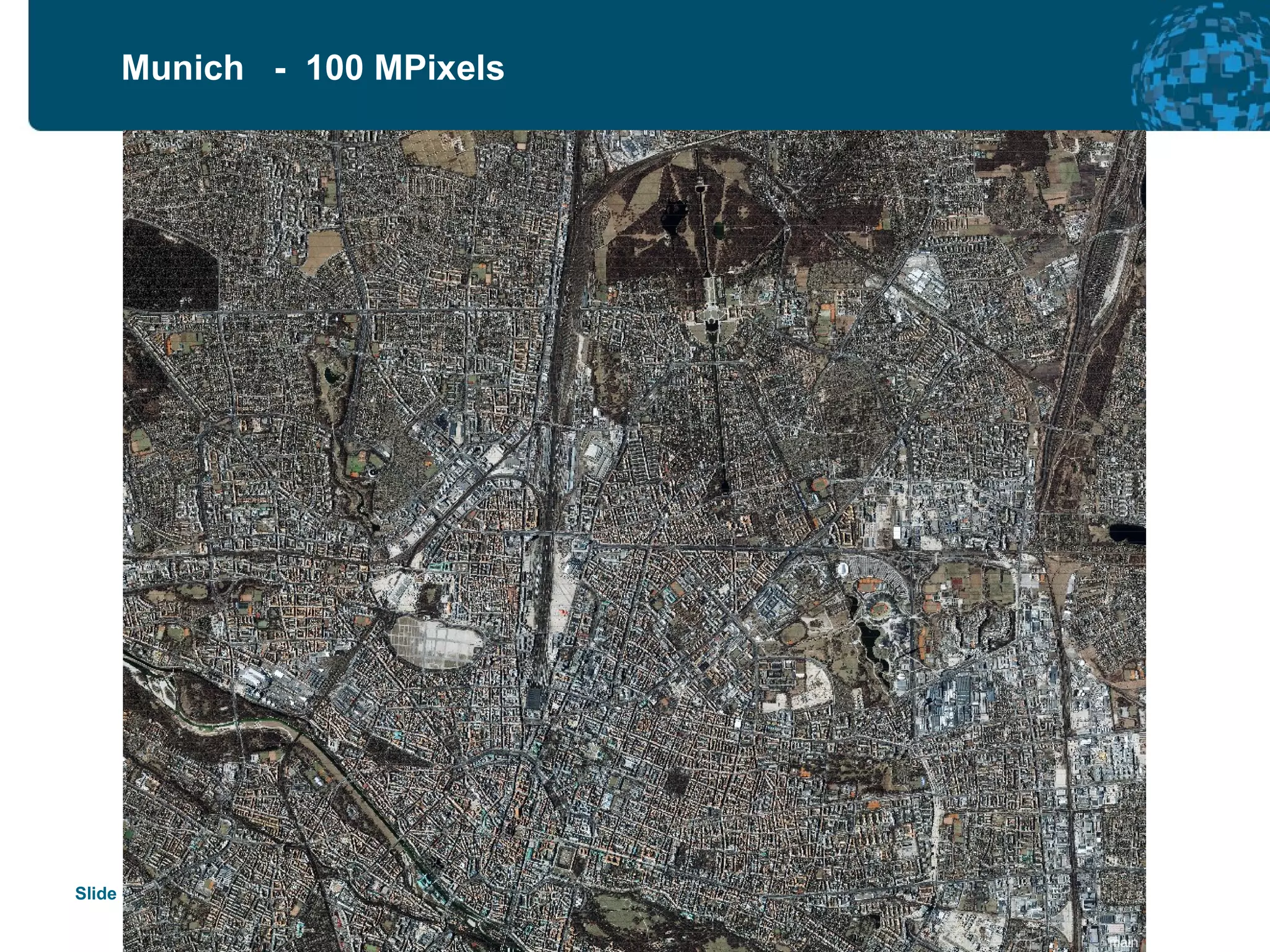

46. Munich - 100 MPixels

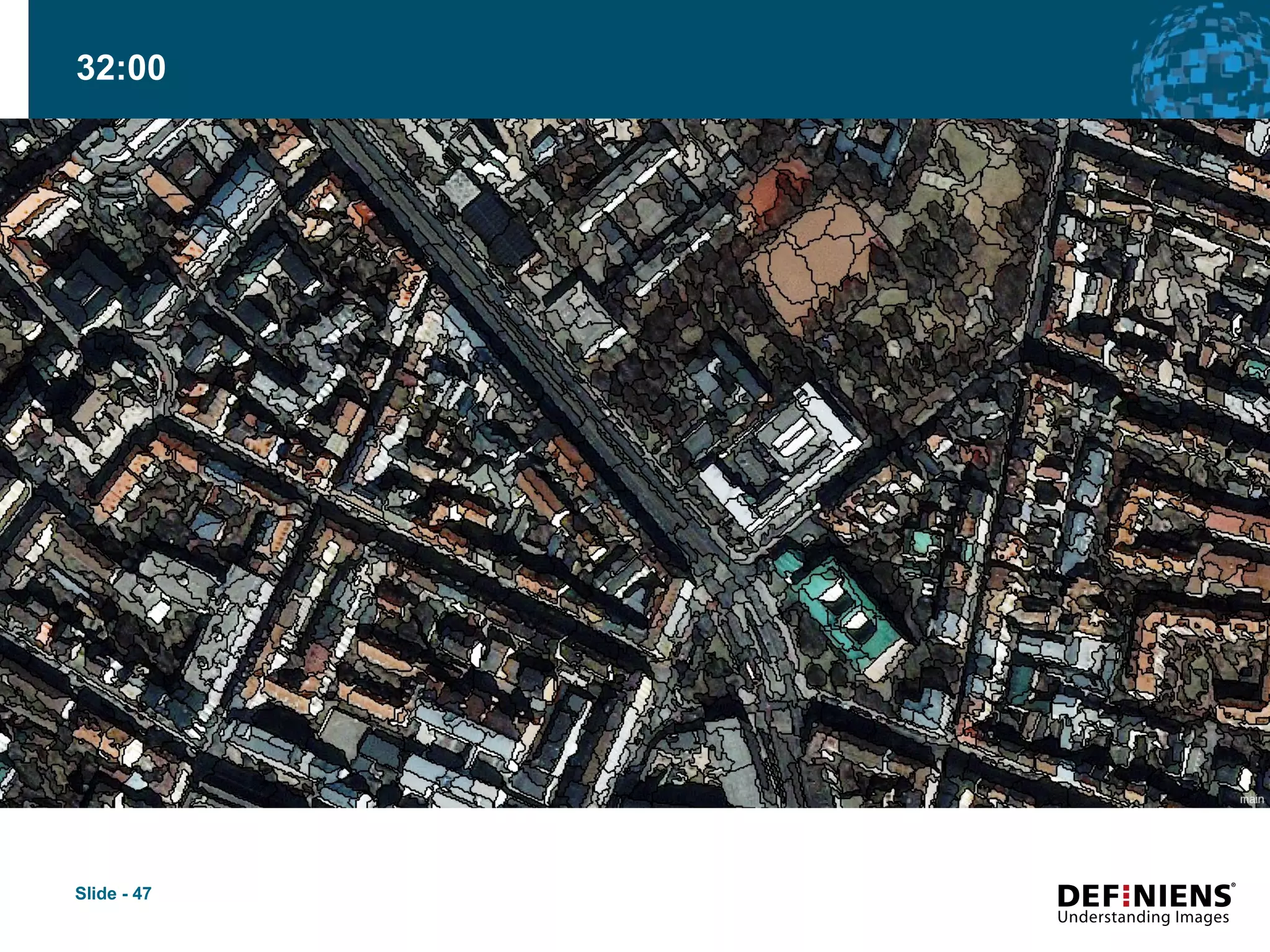

47. 32:00

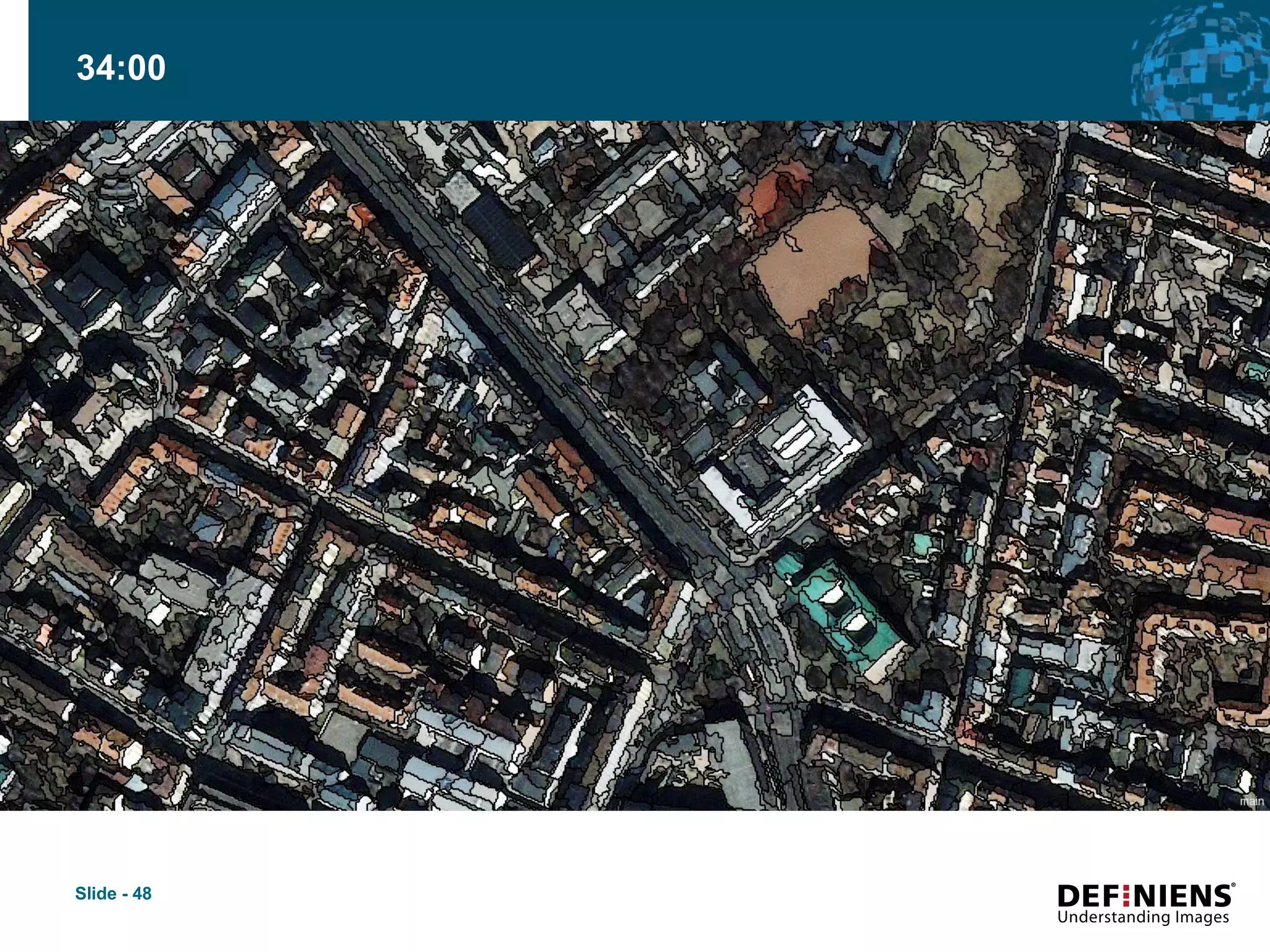

48. 34:00

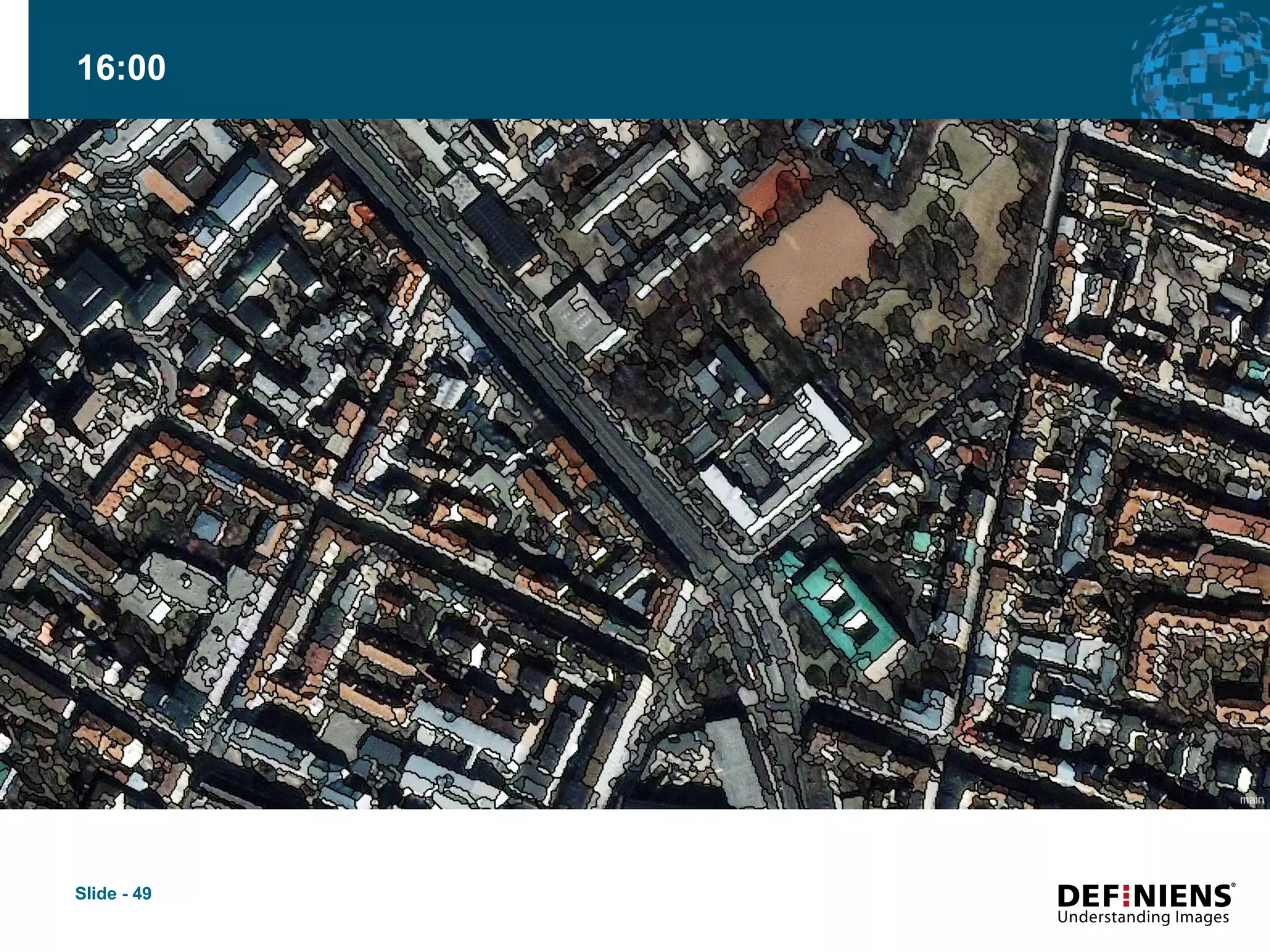

49. 16:00

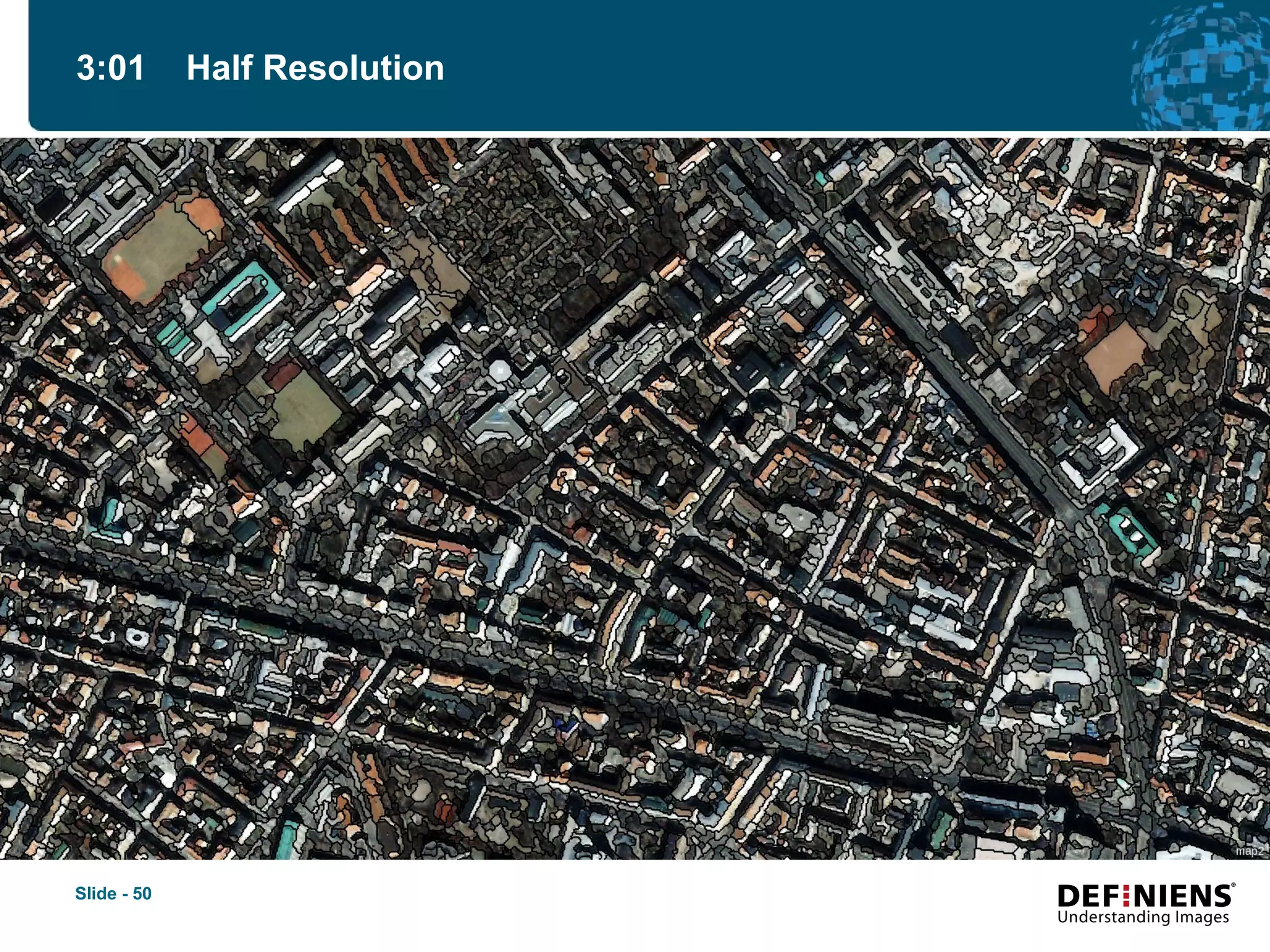

50. 3:01 Half Resolution

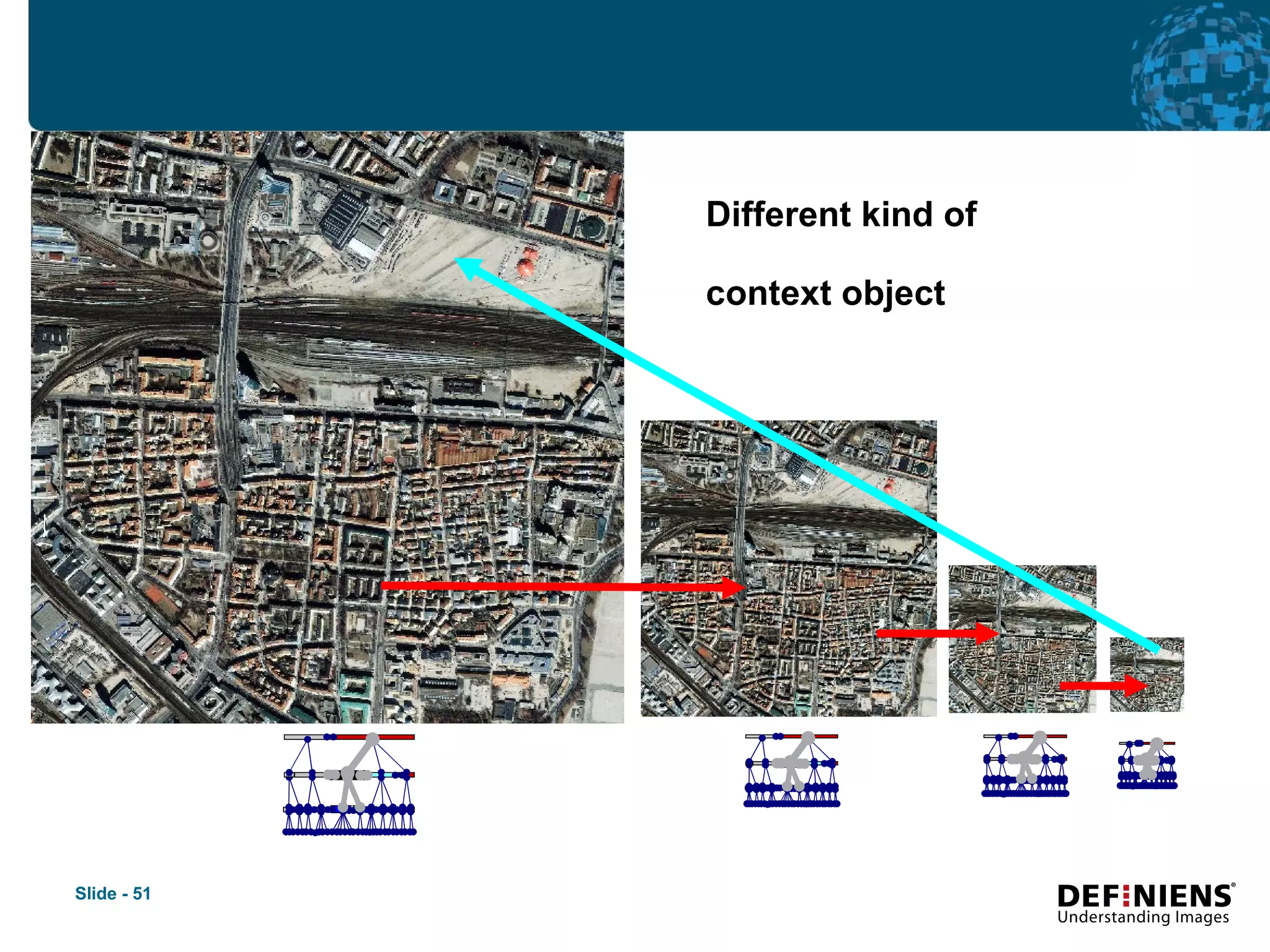

51. Different kind of context object

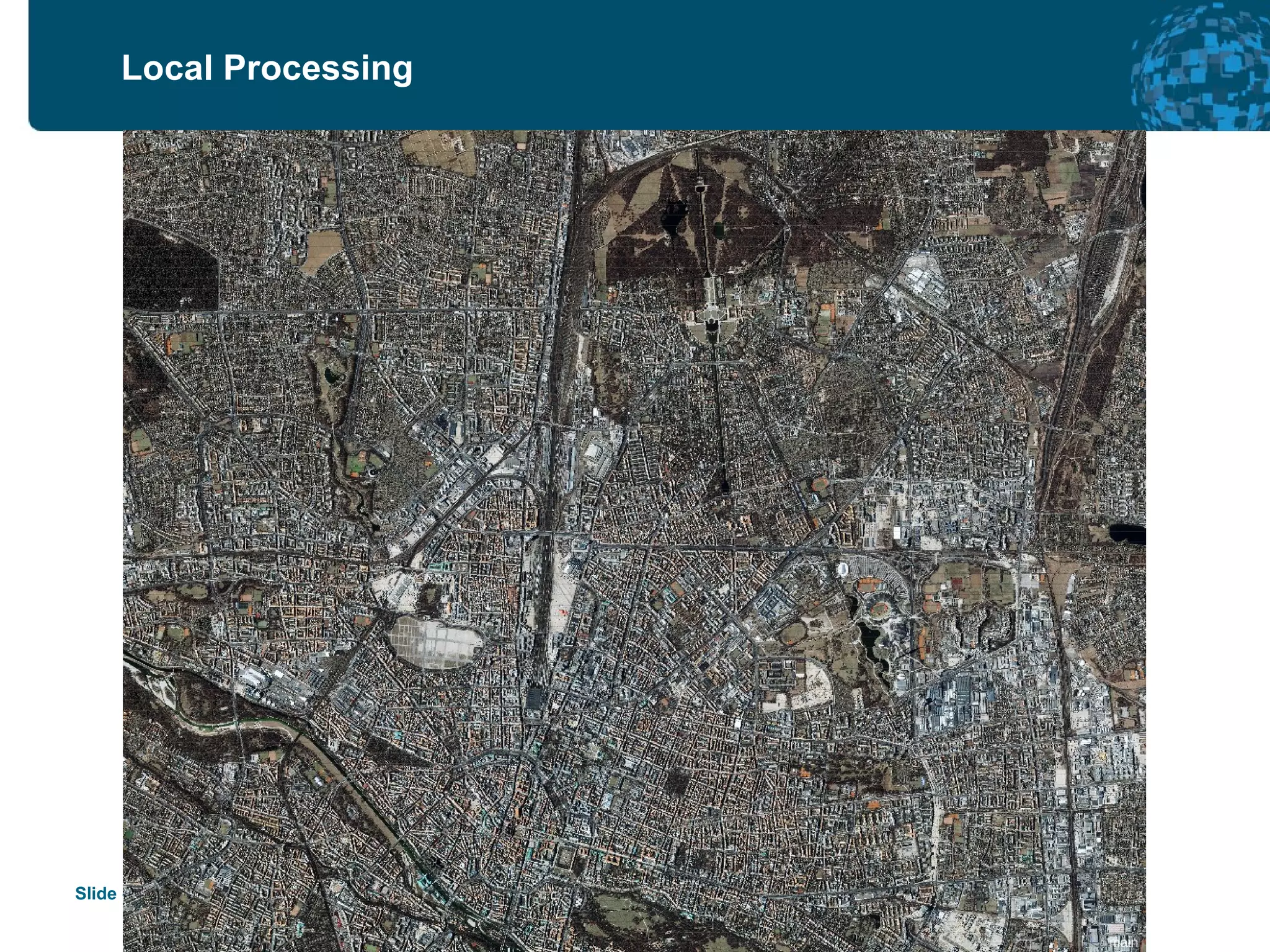

52. Local Processing

53. Local Processing

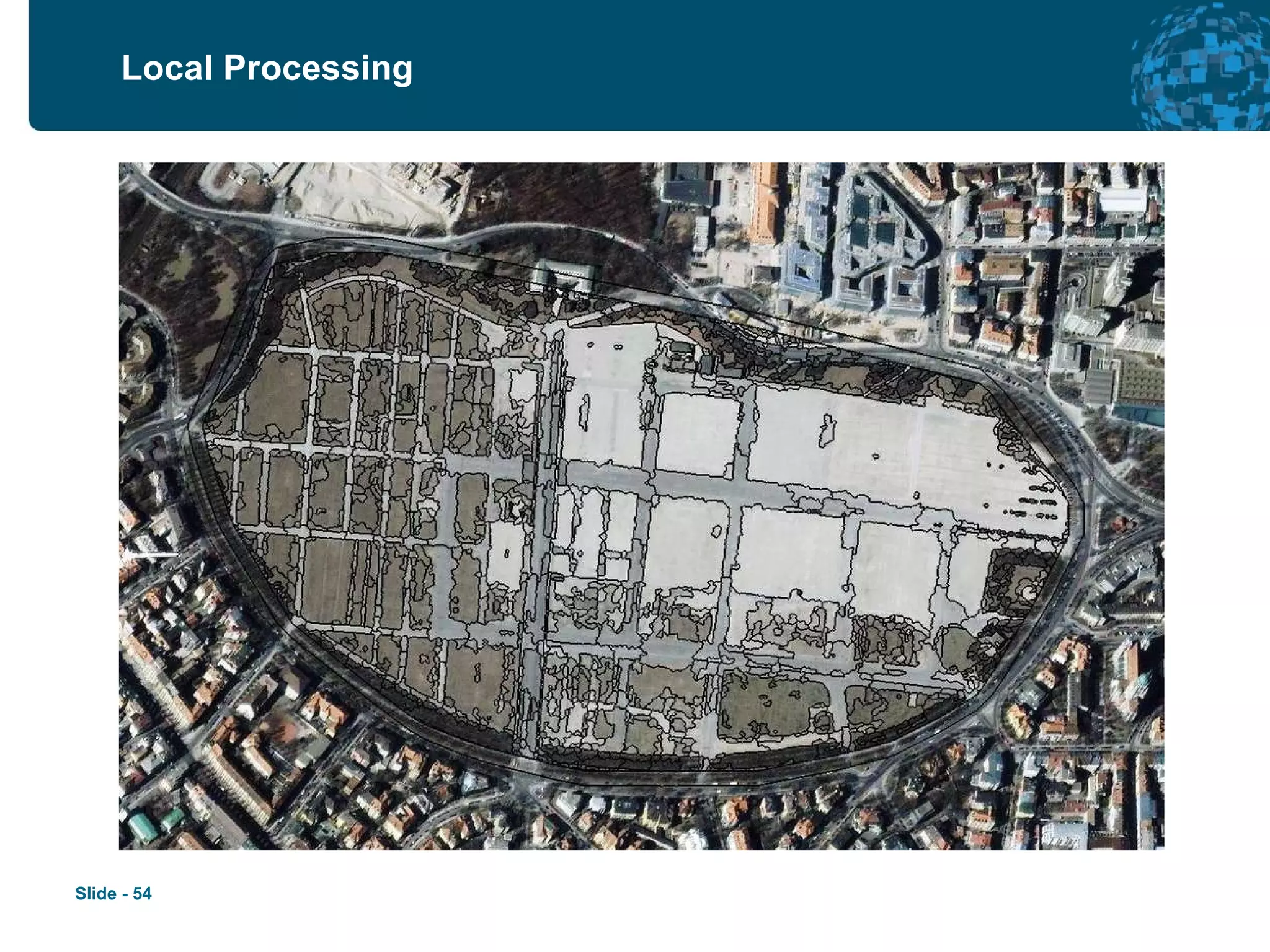

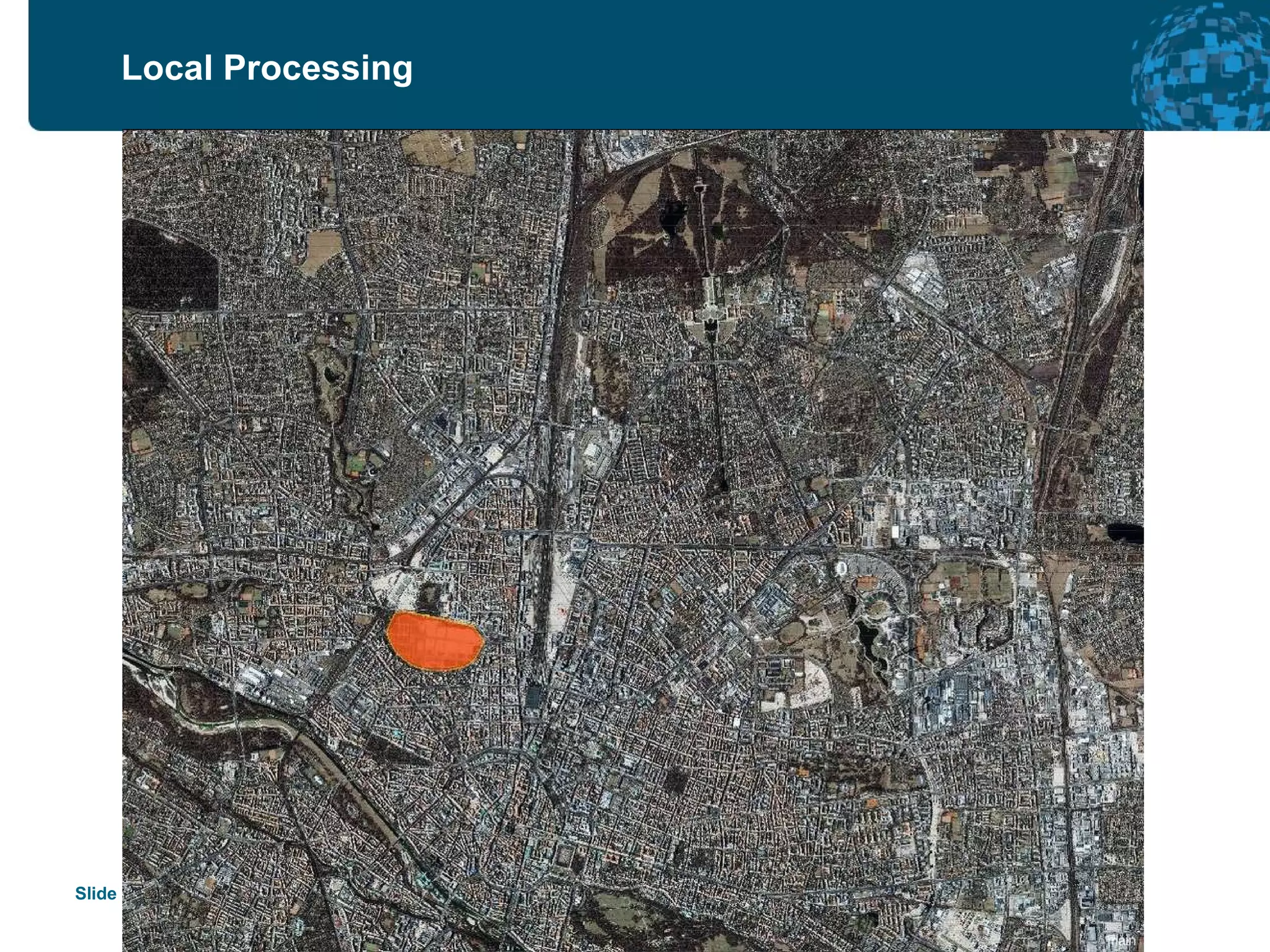

54. Local Processing

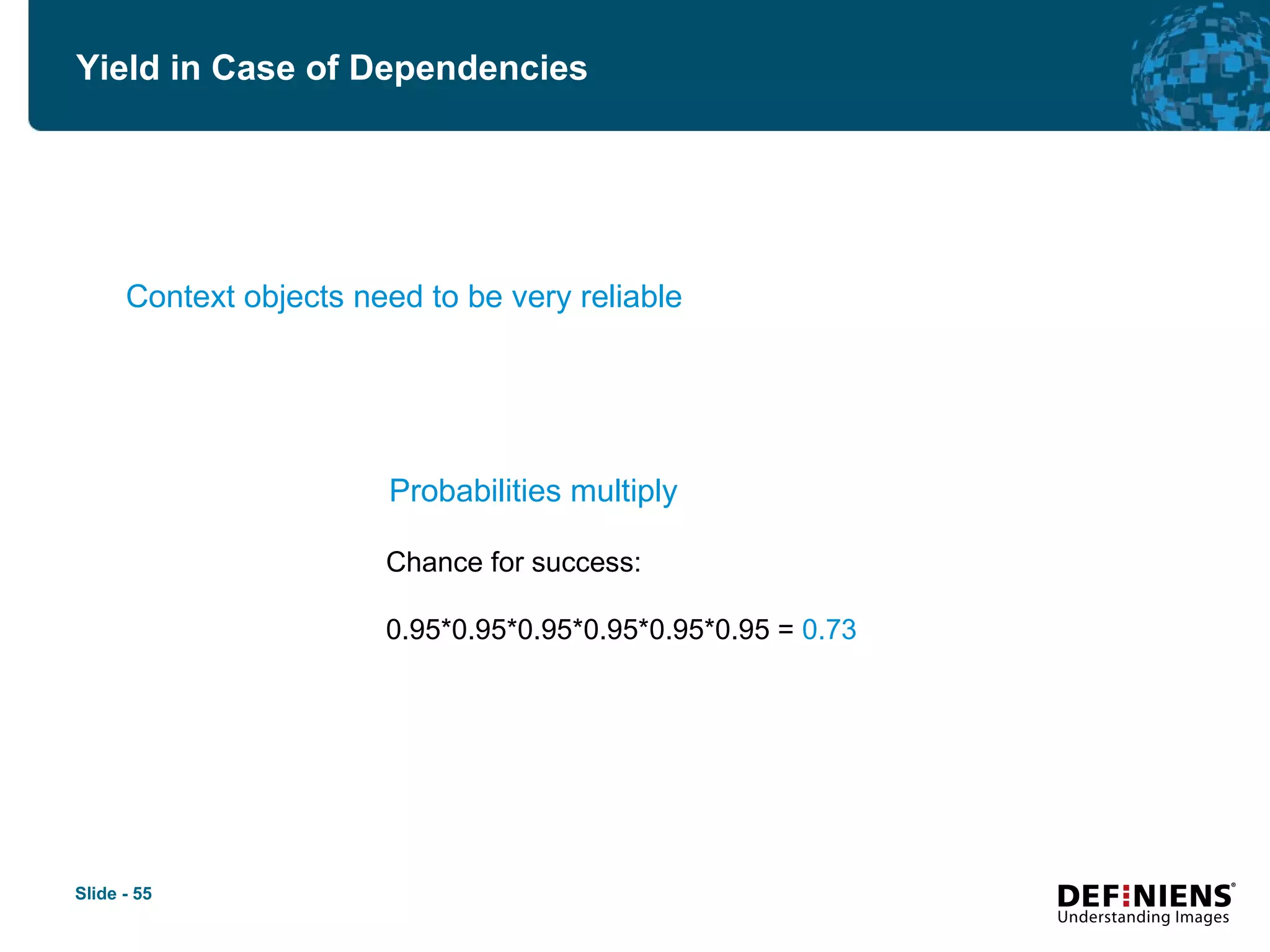

55. Yield in Case of Dependencies Context objects need to be very reliable Chance for success: 0.95*0.95*0.95*0.95*0.95*0.95 = 0.73 Probabilities multiply

59. From GIS to GIN (From geographic Information Systems to a gigantic Geographic Information Network)

60. From GIS to GIN A network of organizations, individuals, and autonomous machines

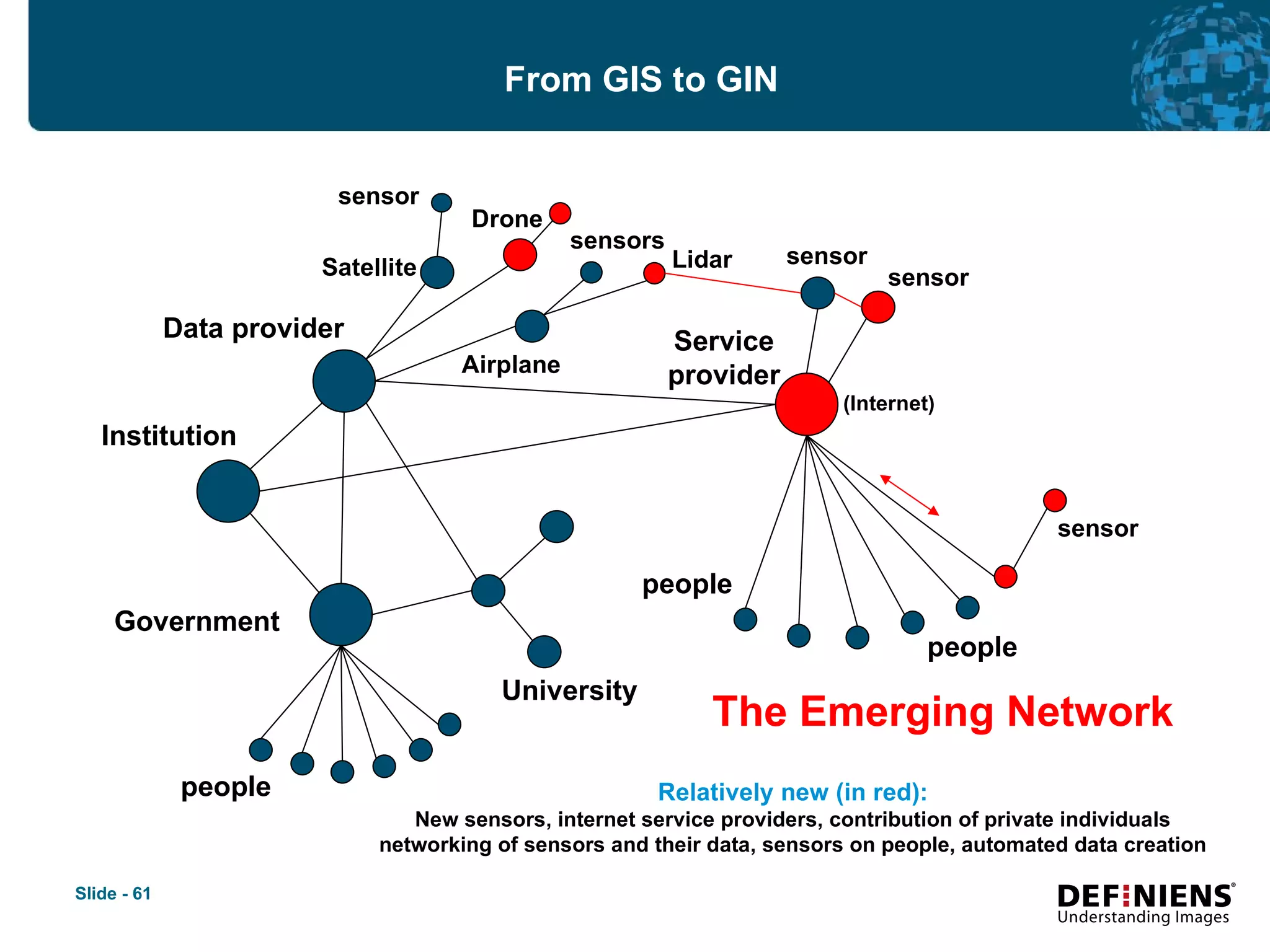

61. From GIS to GIN Data provider Government Institution University Satellite Service provider Airplane sensor sensors people people people Drone (Internet) sensor Lidar sensor sensor The Emerging Network Relatively new (in red): New sensors, internet service providers, contribution of private individuals networking of sensors and their data, sensors on people, automated data creation

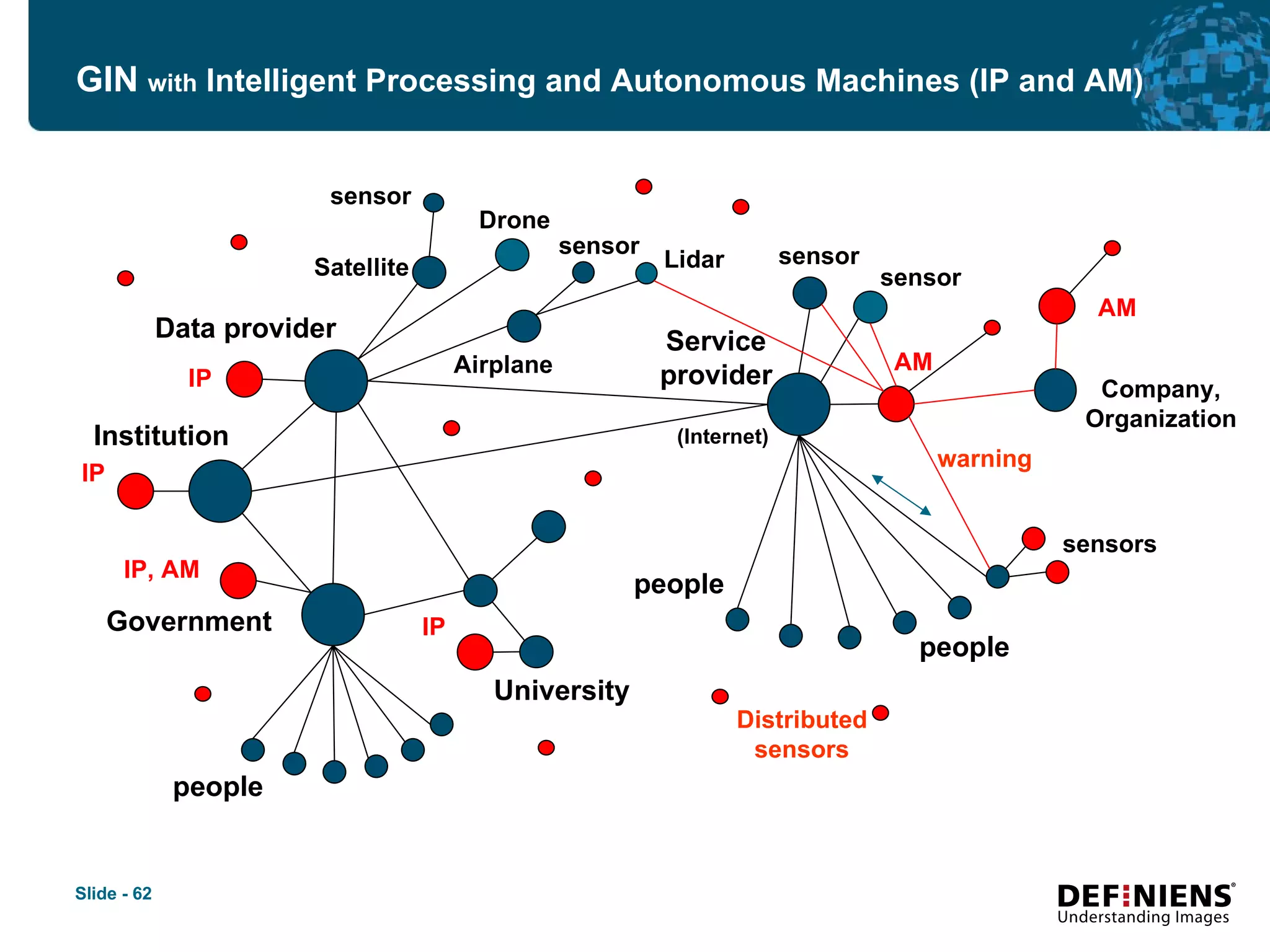

62. GIN with Intelligent Processing and Autonomous Machines (IP and AM) Data provider Government Institution University Satellite Airplane sensor sensor sensor sensor people people people sensors Drone Service provider (Internet) IP AM warning Lidar IP IP, AM IP Distributed sensors AM Company, Organization

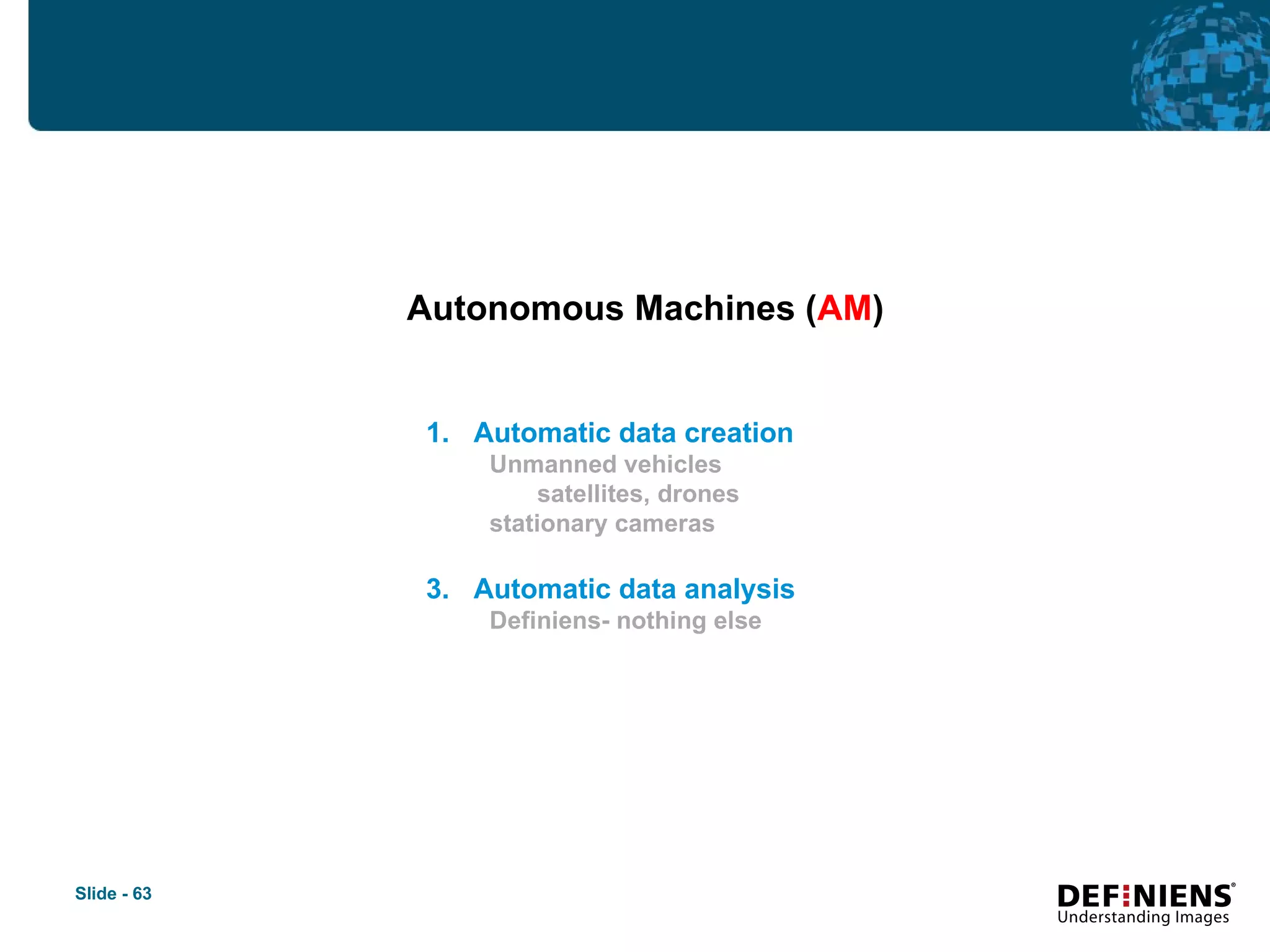

63. Autonomous Machines ( AM ) Automatic data creation Unmanned vehicles satellites, drones stationary cameras Automatic data analysis Definiens- nothing else

64. Statement: automated data analysis is possible Analysis gets better and better Analysis gets simpler and simpler Combination of different data

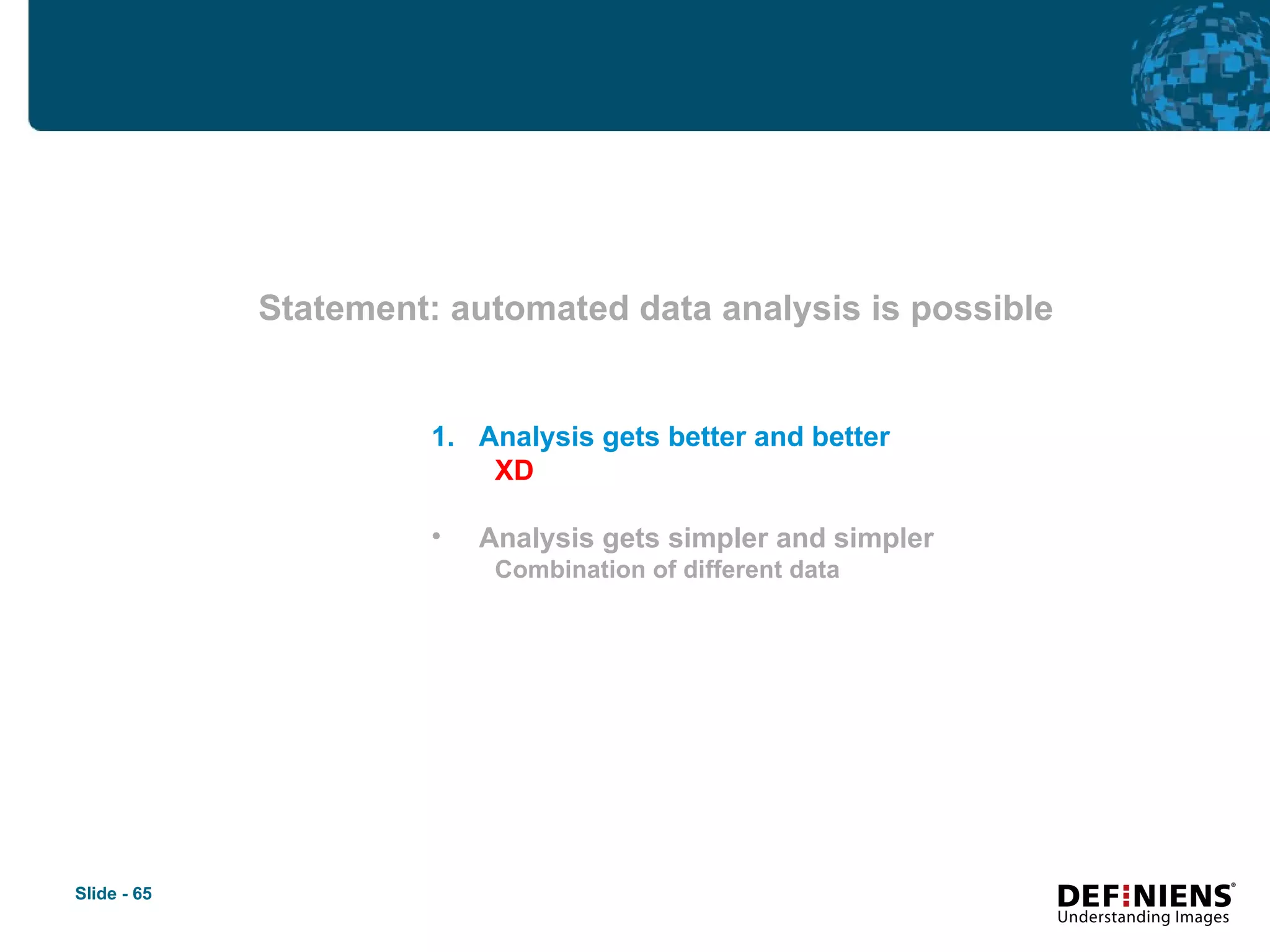

65. Statement: automated data analysis is possible Analysis gets better and better XD Analysis gets simpler and simpler Combination of different data

66. Statement: automated data analysis is possible Analysis gets better and better XD Analysis gets simpler and simpler Combination of different data

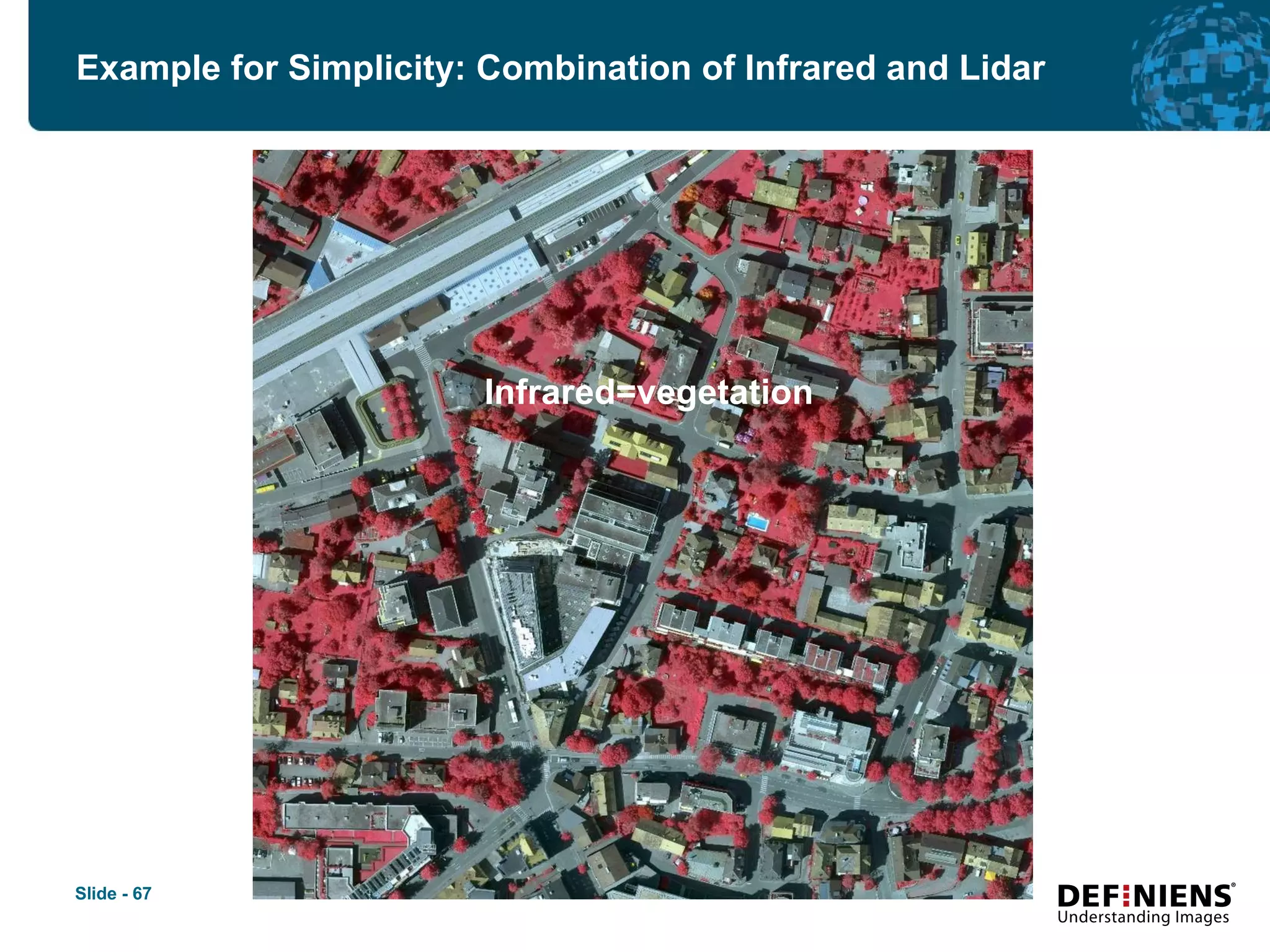

67. Example for Simplicity: Combination of Infrared and Lidar Infrared=vegetation

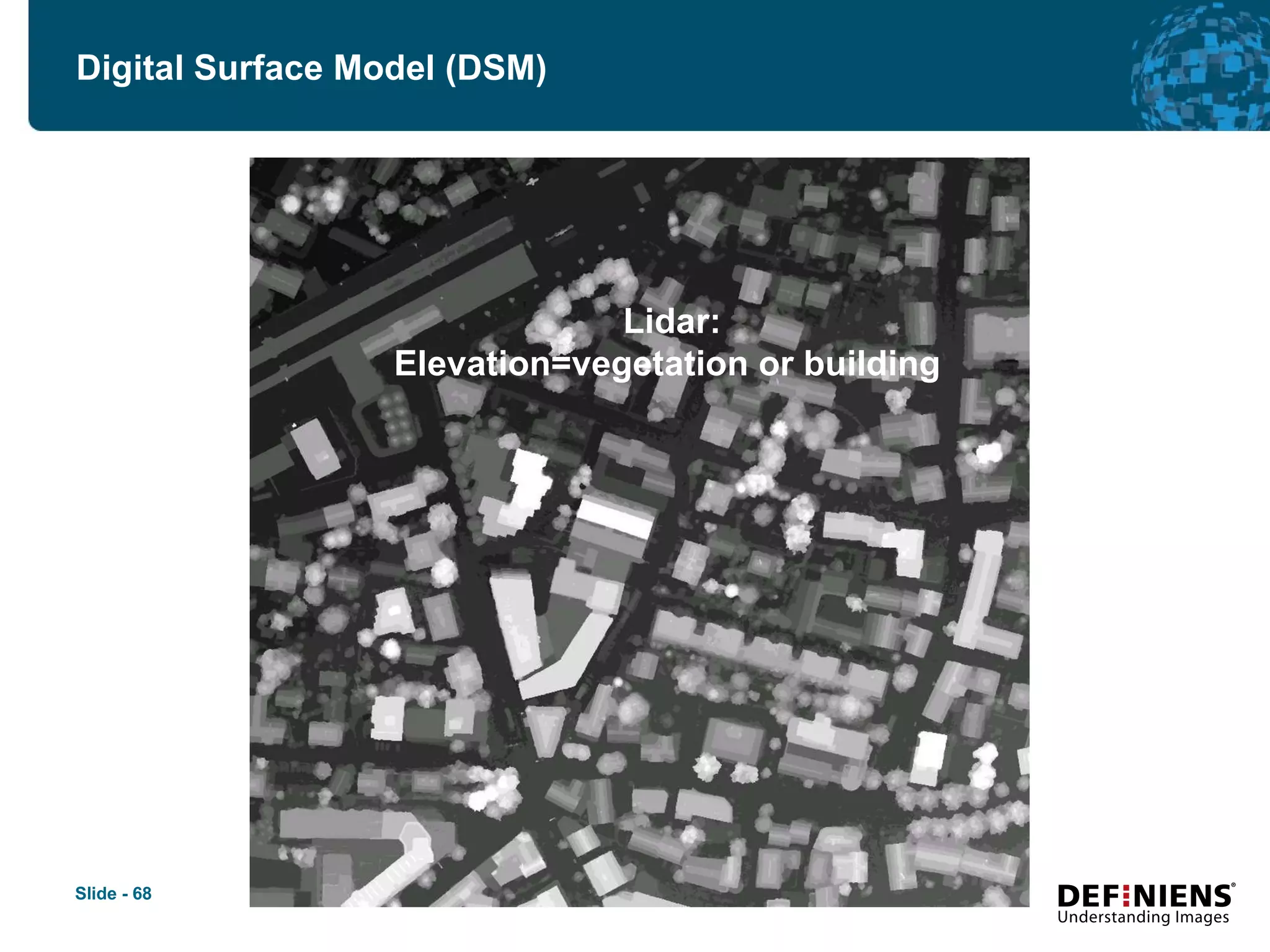

68. Digital Surface Model (DSM) Lidar: Elevation=vegetation or building

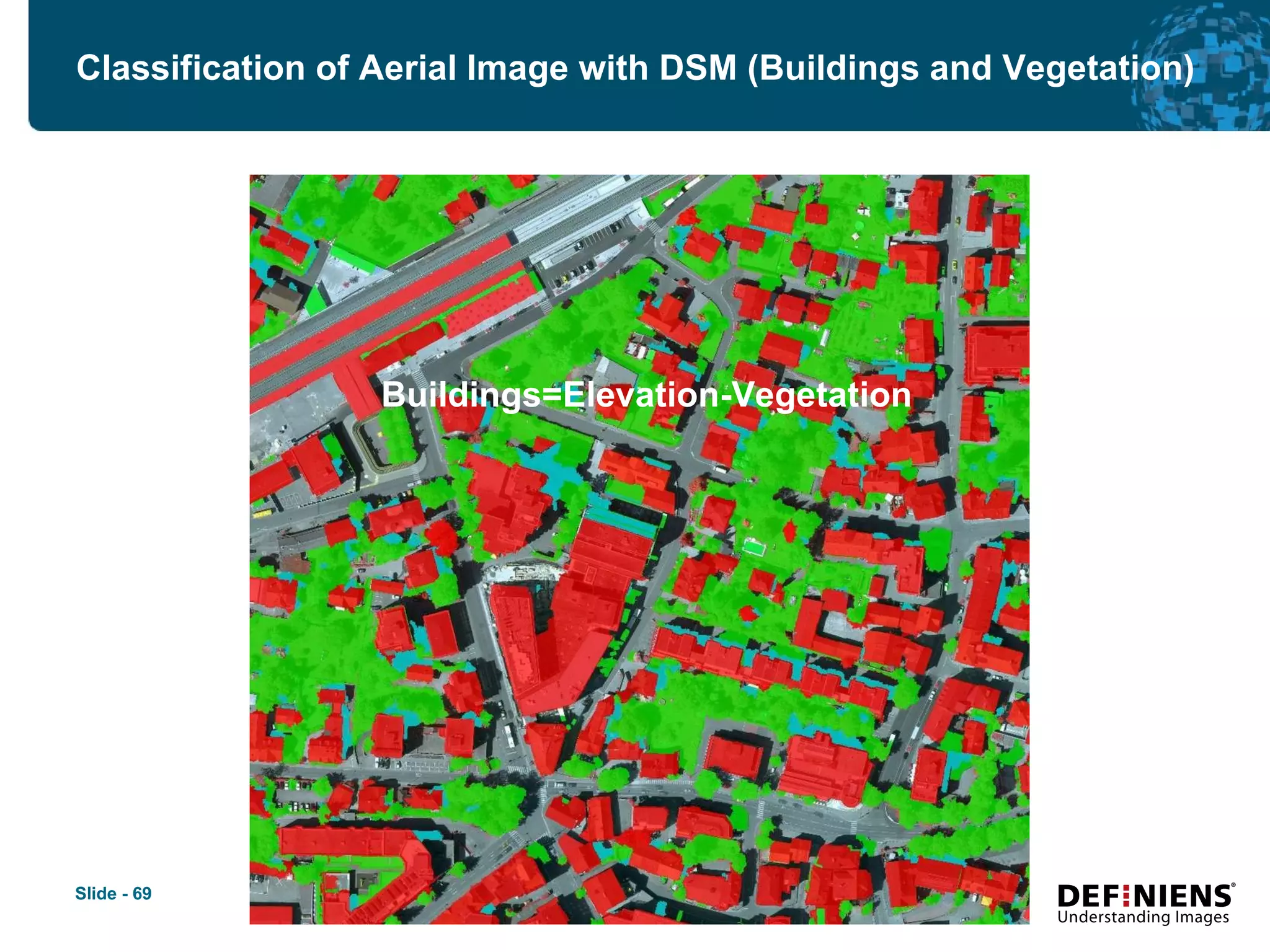

69. Classification of Aerial Image with DSM (Buildings and Vegetation) Buildings=Elevation-Vegetation

70. Intelligent automation is possible Consequences? … not only for image analysis

71. From GIS to GIN (geographic information network) A network of organizations, individuals, and autonomous machines

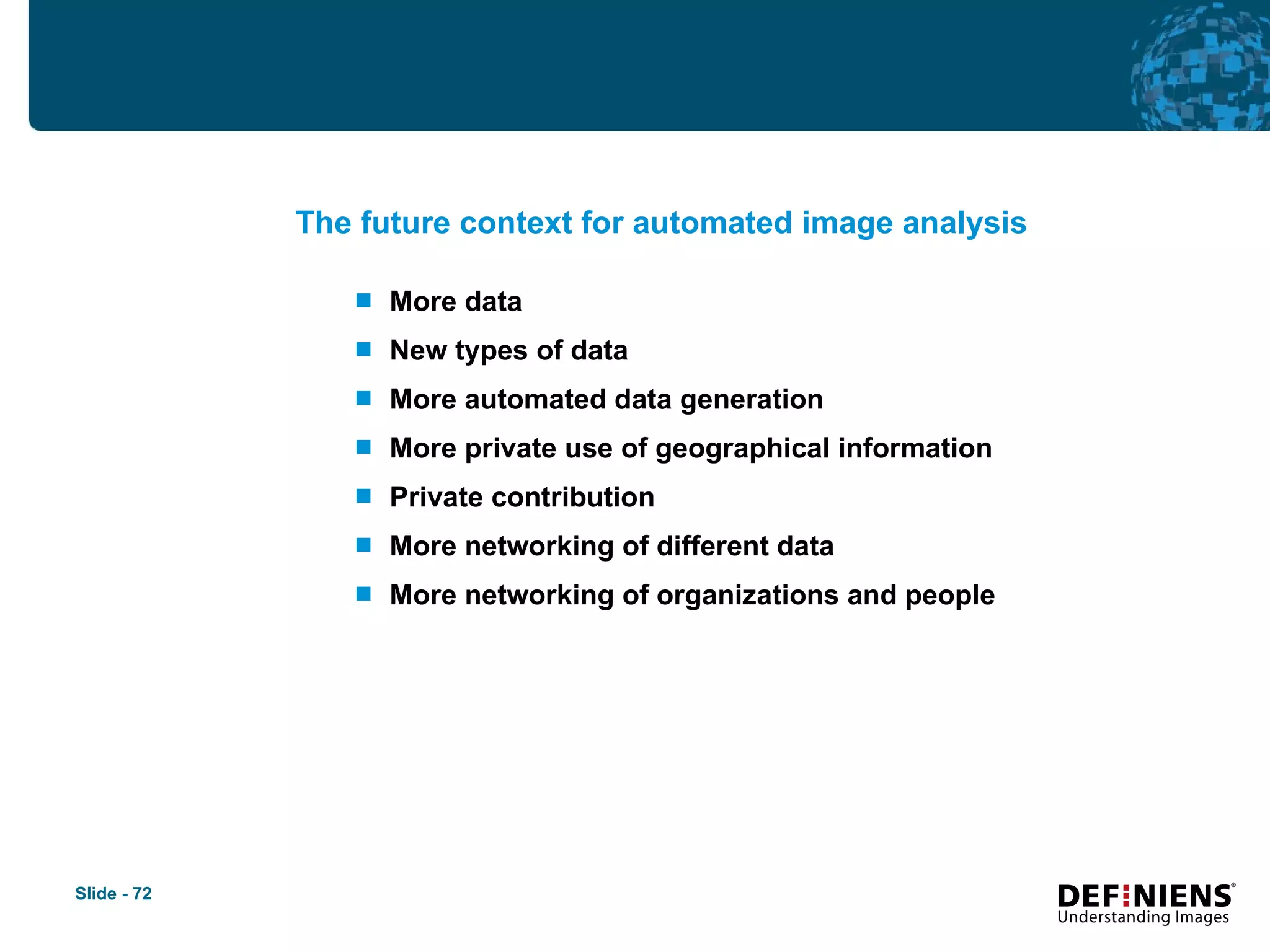

72. More data New types of data More automated data generation More private use of geographical information Private contribution More networking of different data More networking of organizations and people The future context for automated image analysis

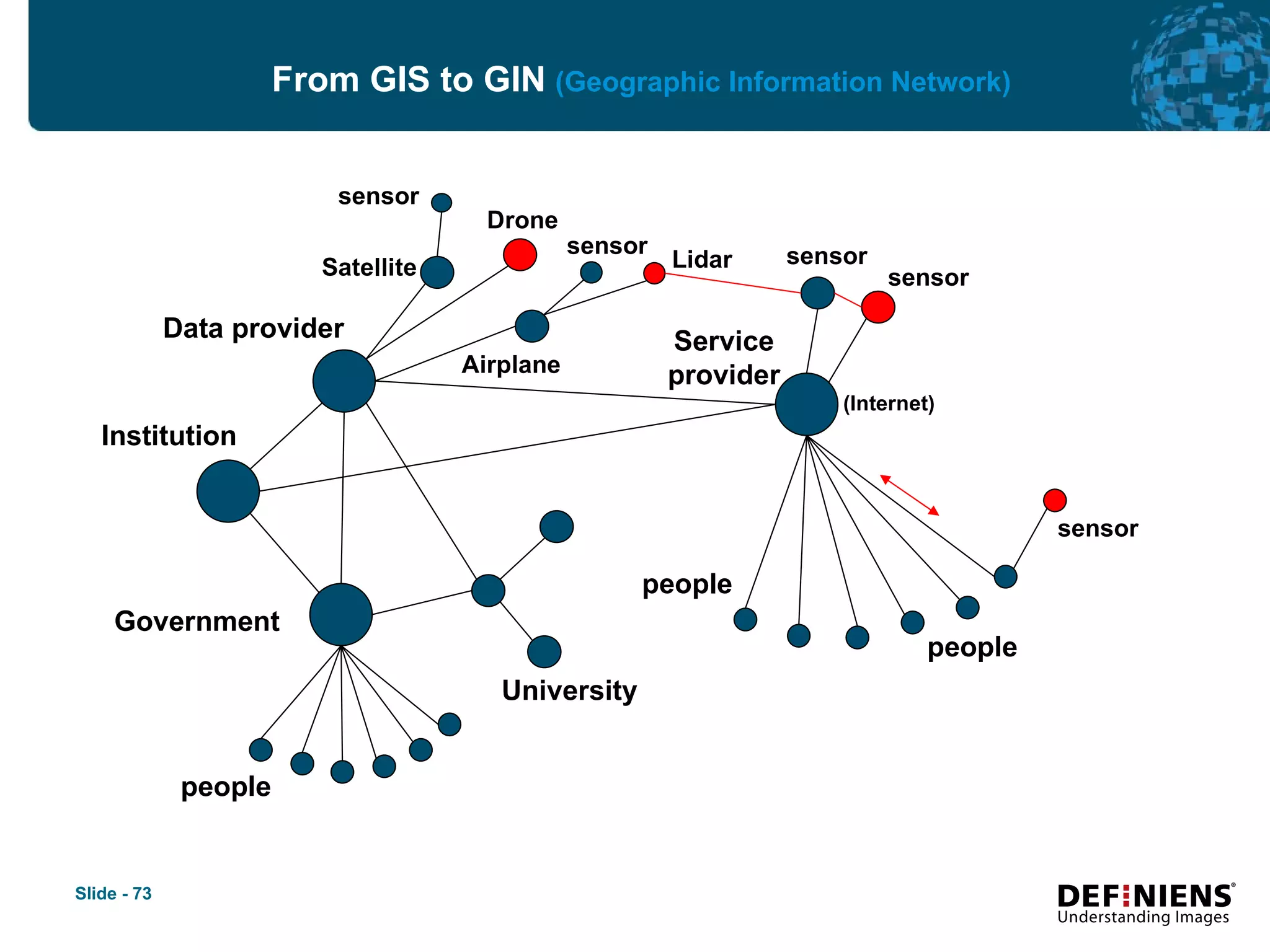

73. From GIS to GIN (Geographic Information Network) Data provider Government Institution University Satellite Service provider Airplane sensor sensor people people people Drone (Internet) sensor Lidar sensor sensor

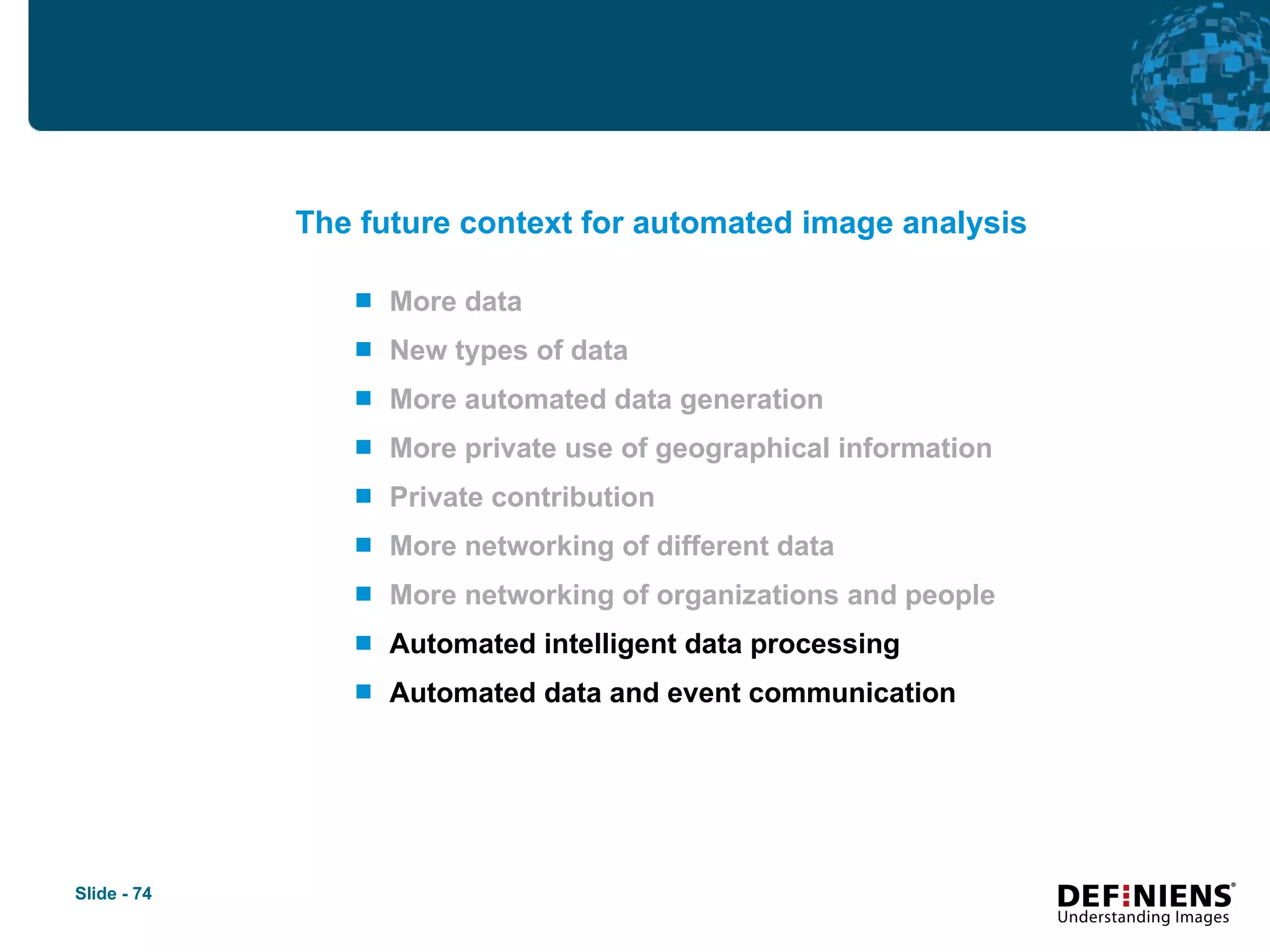

74. More data New types of data More automated data generation More private use of geographical information Private contribution More networking of different data More networking of organizations and people Automated intelligent data processing Automated data and event communication The future context for automated image analysis

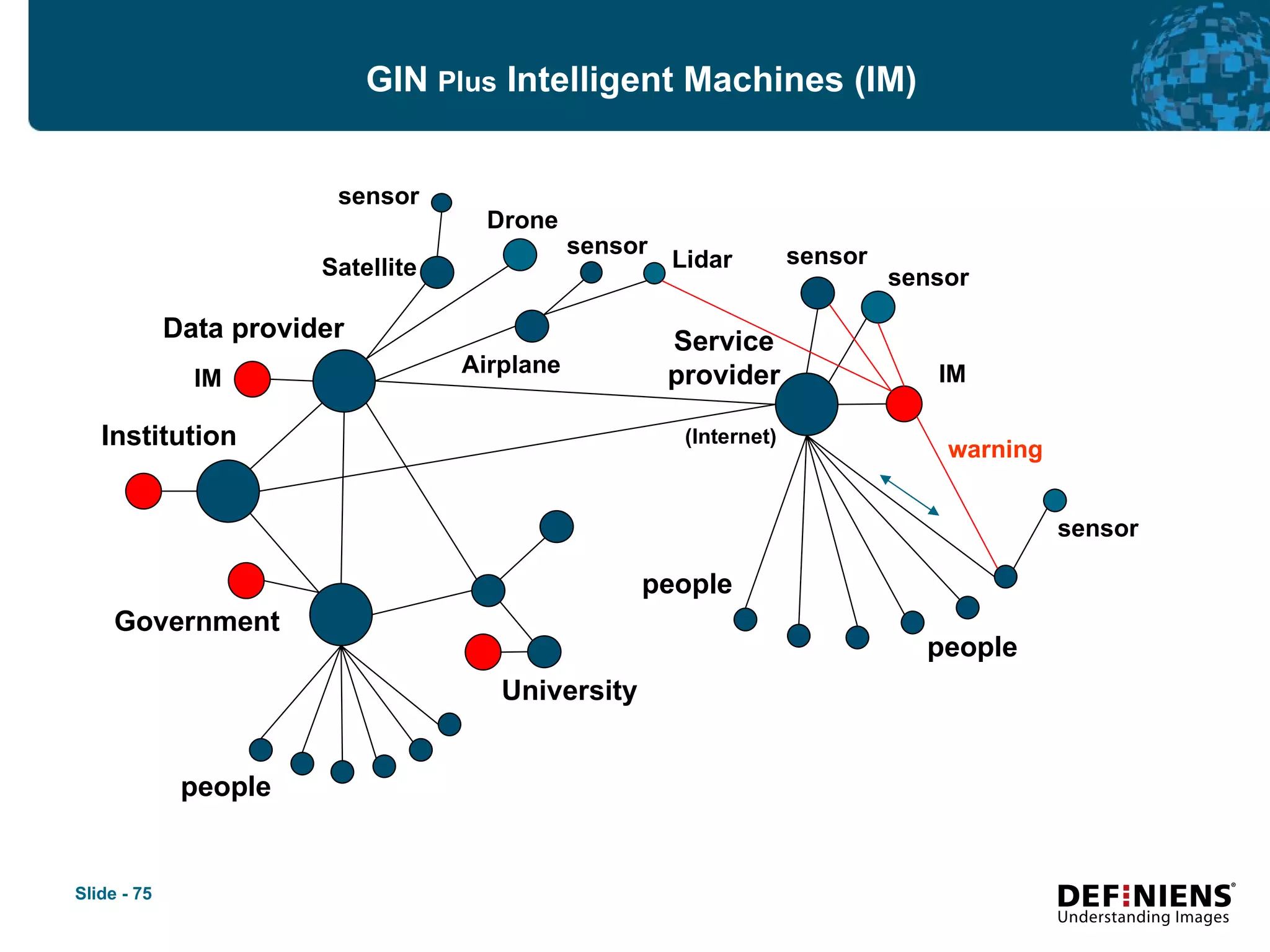

75. GIN Plus Intelligent Machines (IM) Data provider Government Institution University Satellite Airplane sensor sensor sensor sensor people people people sensor Drone Service provider (Internet) IM IM warning Lidar

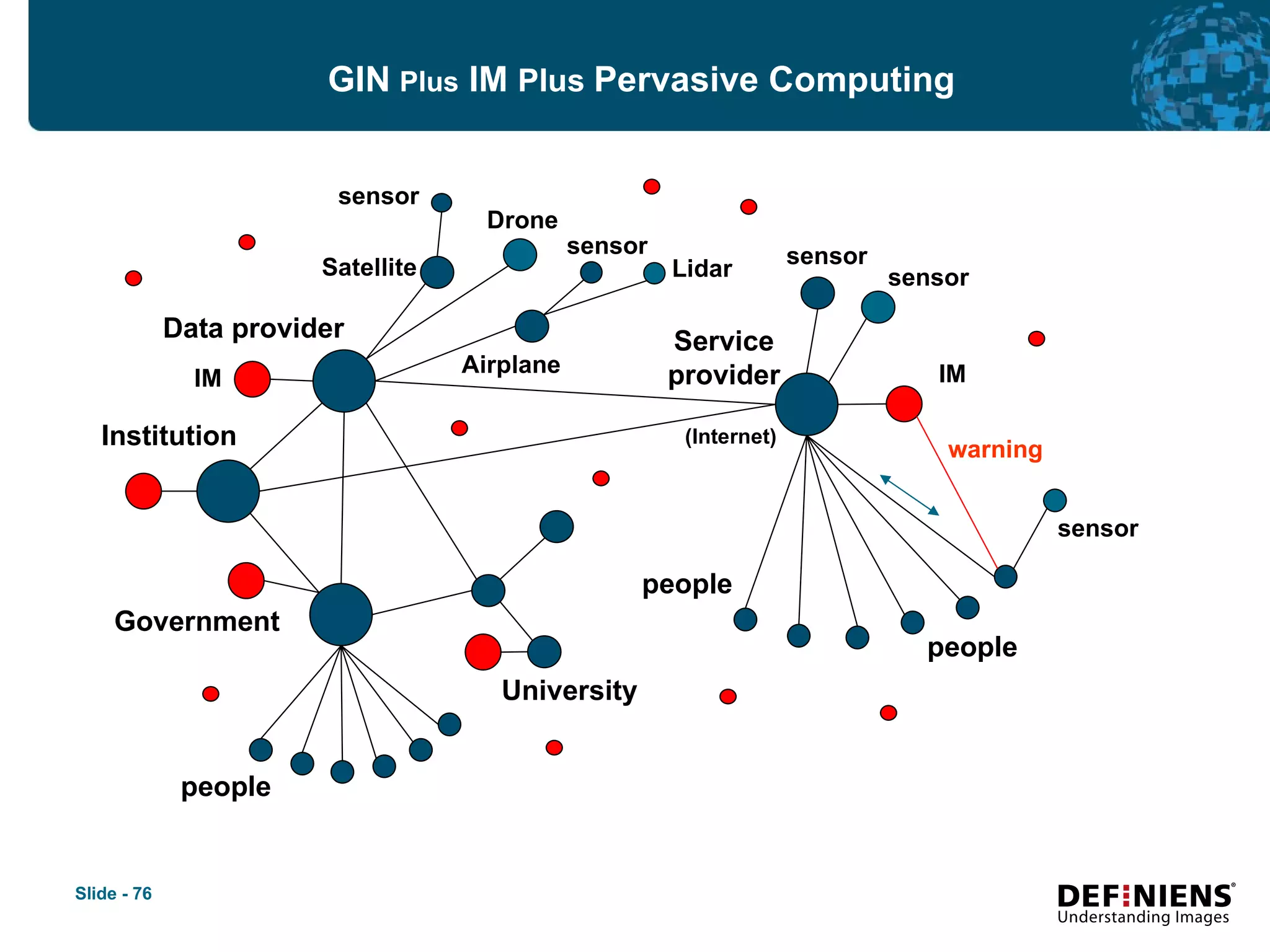

76. GIN Plus IM Plus Pervasive Computing Data provider Government Institution University Satellite Airplane sensor sensor sensor sensor people people people sensor Drone Lidar Service provider (Internet) IM warning IM

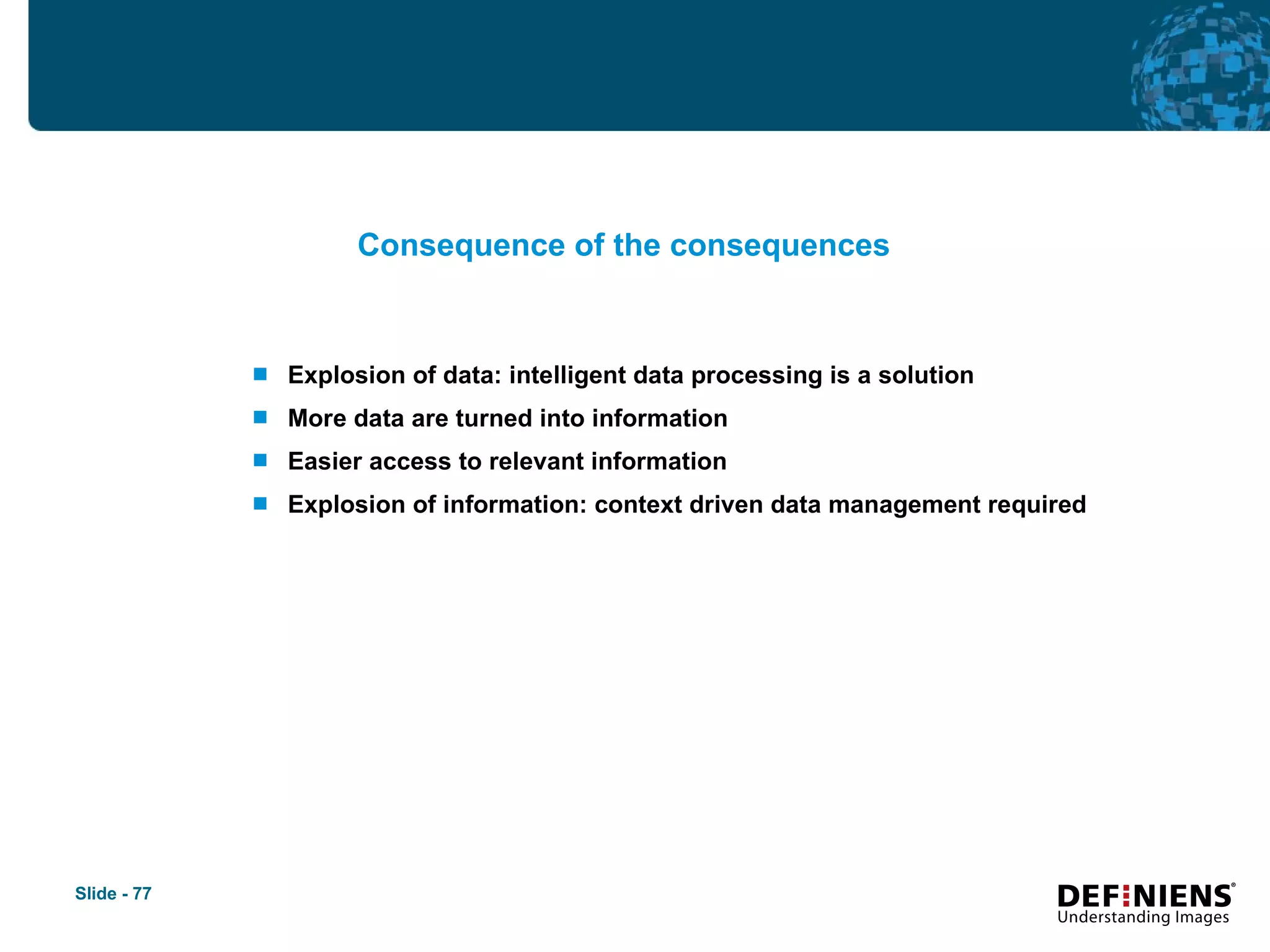

77. Explosion of data: intelligent data processing is a solution More data are turned into information Easier access to relevant information Explosion of information: context driven data management required Consequence of the consequences
