1. Mobile Data Collection
and Data Management in Modern Agriculture
Thinus Glitz
CLAAS Agrosystems GmbH & Co. KG

2. Agenda
Telematics harvesting machines
Documentation Co/ Pilot Systems
Precision Farming
Management Software
Manual data collection
Auto data collection
Data management
Graphic
Analyse
2 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

3. EASY
CLAAS bundled its electronic competence in one new brand – EASY
EASY.
Simply more.
3 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

4. EASY – on board
on board
Machine control and performance optimization directly from the cab.
4 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

5. EASY – on field
on field
Increased productivity directly in the field.
5 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

6. EASY – on track
on track
Machine monitoring and remote diagnostics.
6 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

7. EASY – on farm
on farm
Software solutions for agriculture operations.
7 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

8. Precision Farming & Monitoring
Monitoring
BILD neu und besser
… folgt

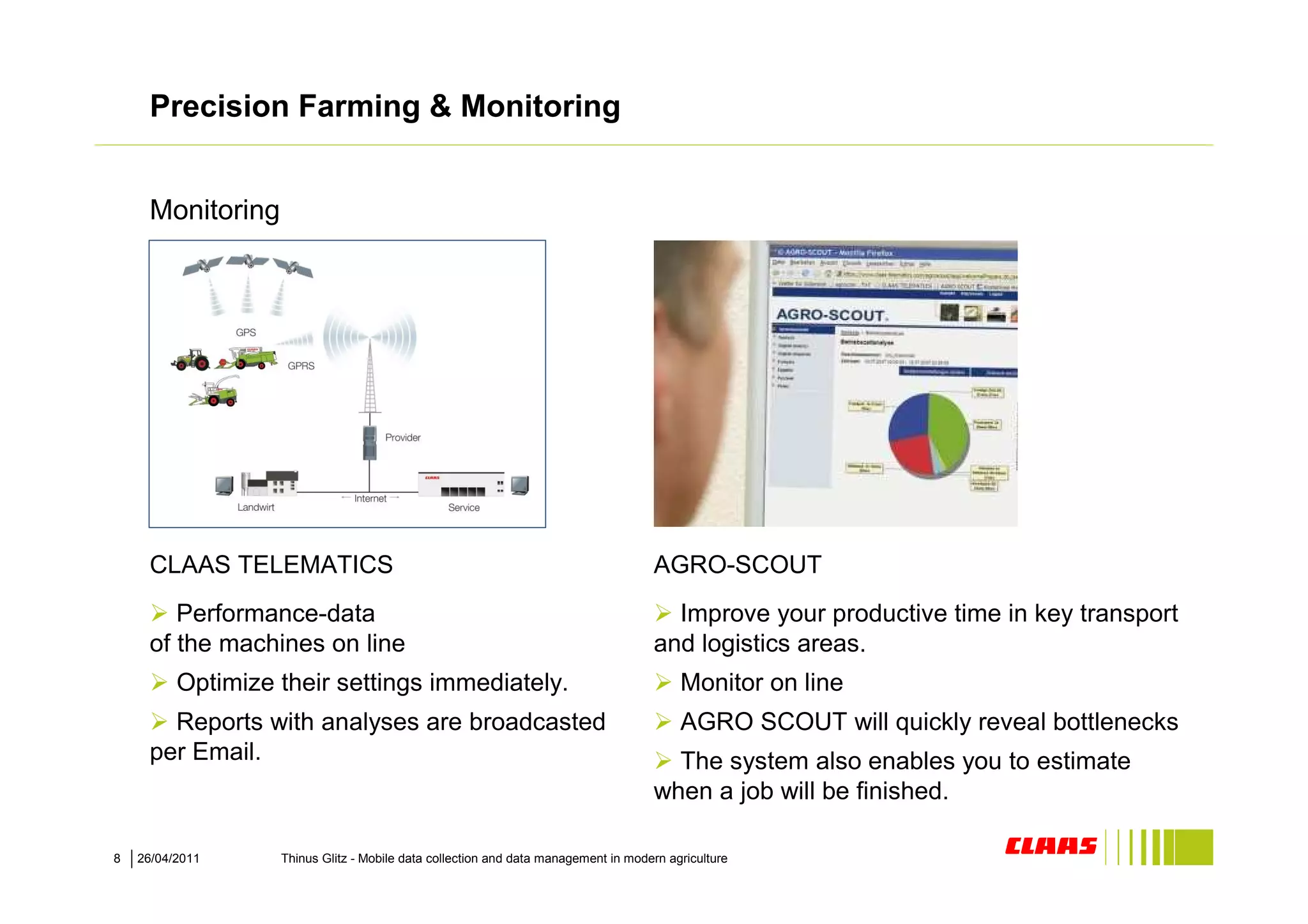

CLAAS TELEMATICS AGRO-SCOUT
Performance-data Improve your productive time in key transport
of the machines on line and logistics areas.
Optimize their settings immediately. Monitor on line
Reports with analyses are broadcasted AGRO SCOUT will quickly reveal bottlenecks
per Email. The system also enables you to estimate
when a job will be finished.
8 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

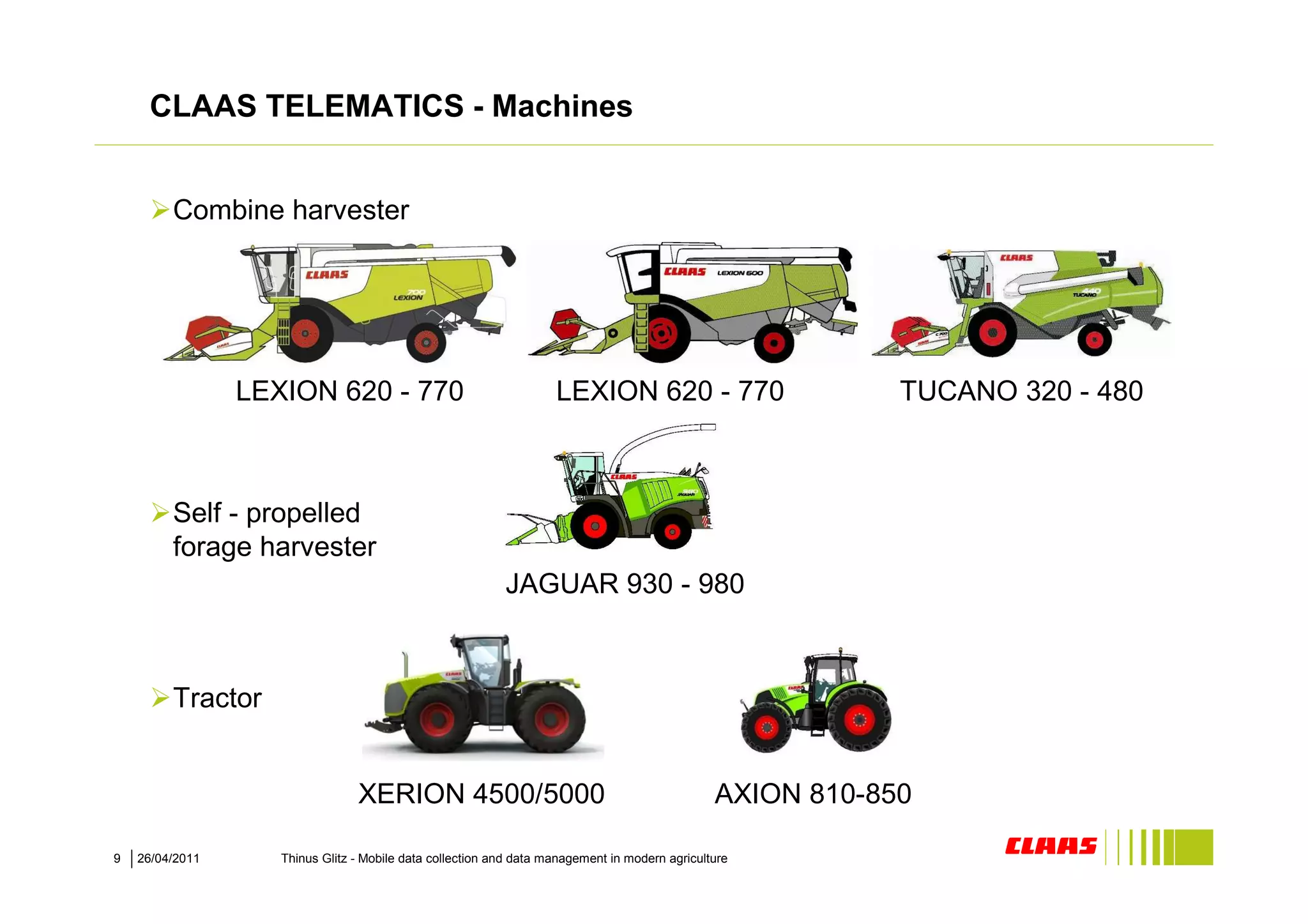

9. CLAAS TELEMATICS - Machines
Combine harvester
LEXION 620 - 770 LEXION 620 - 770 TUCANO 320 - 480
Self - propelled
forage harvester
JAGUAR 930 - 980
Tractor
XERION 4500/5000 AXION 810-850
9 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

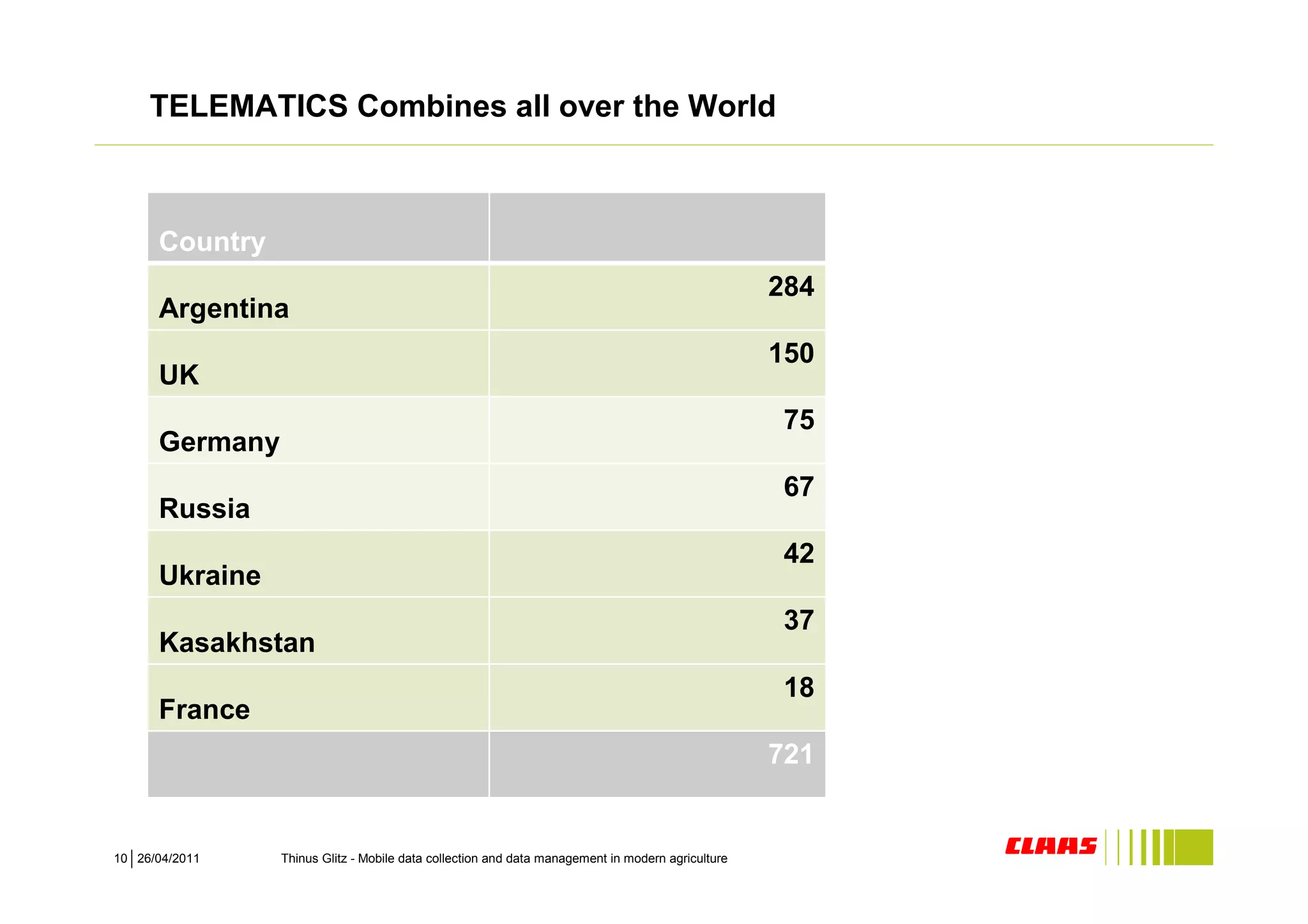

10. TELEMATICS Combines all over the World
Country
284
Argentina
150
UK
75
Germany
67
Russia
42
Ukraine
37
Kasakhstan
18
France
721
10 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

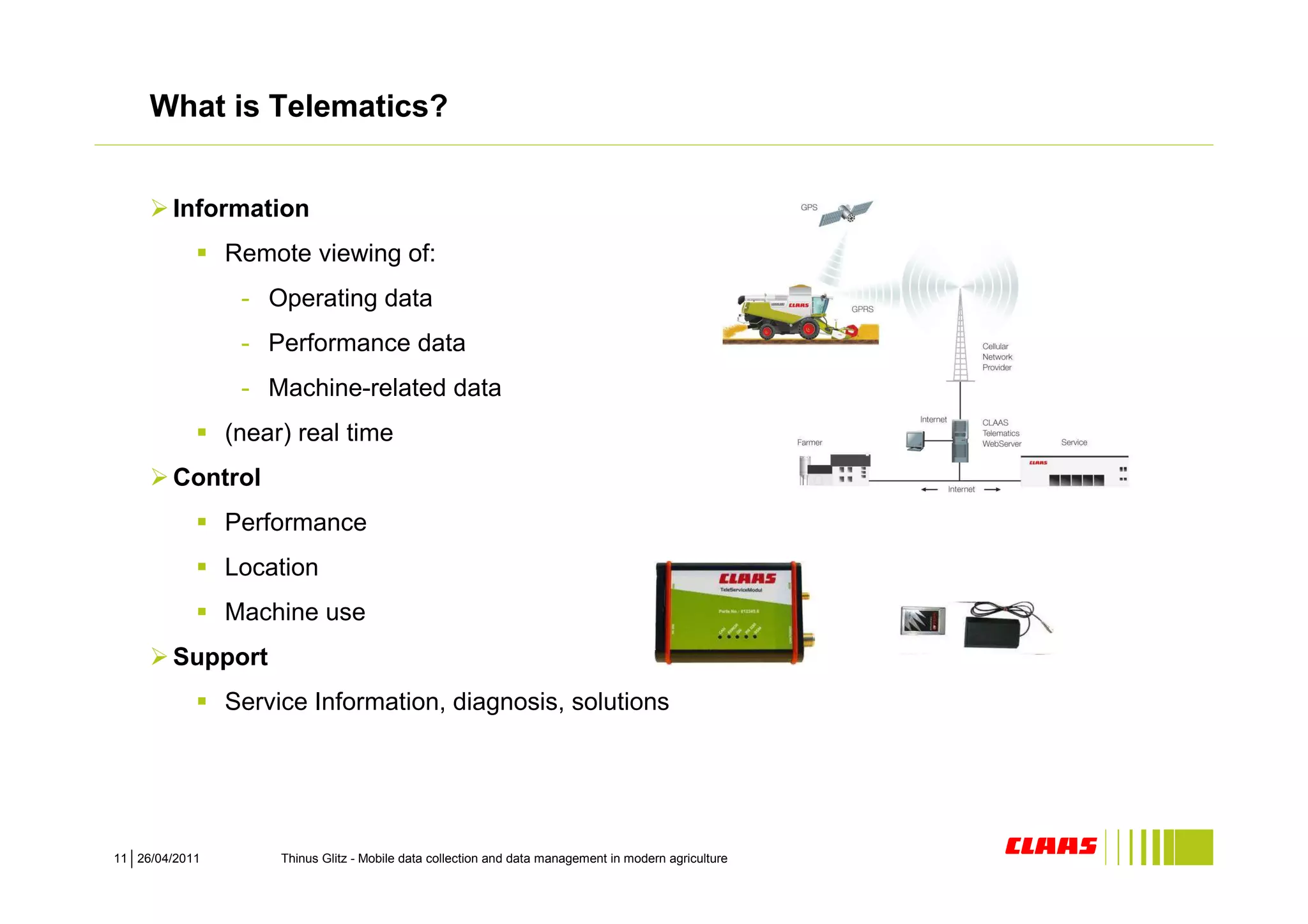

11. What is Telematics?
Information
Remote viewing of:
- Operating data
- Performance data
- Machine-related data
(near) real time
Control
Performance
Location
Machine use
Support
Service Information, diagnosis, solutions
11 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

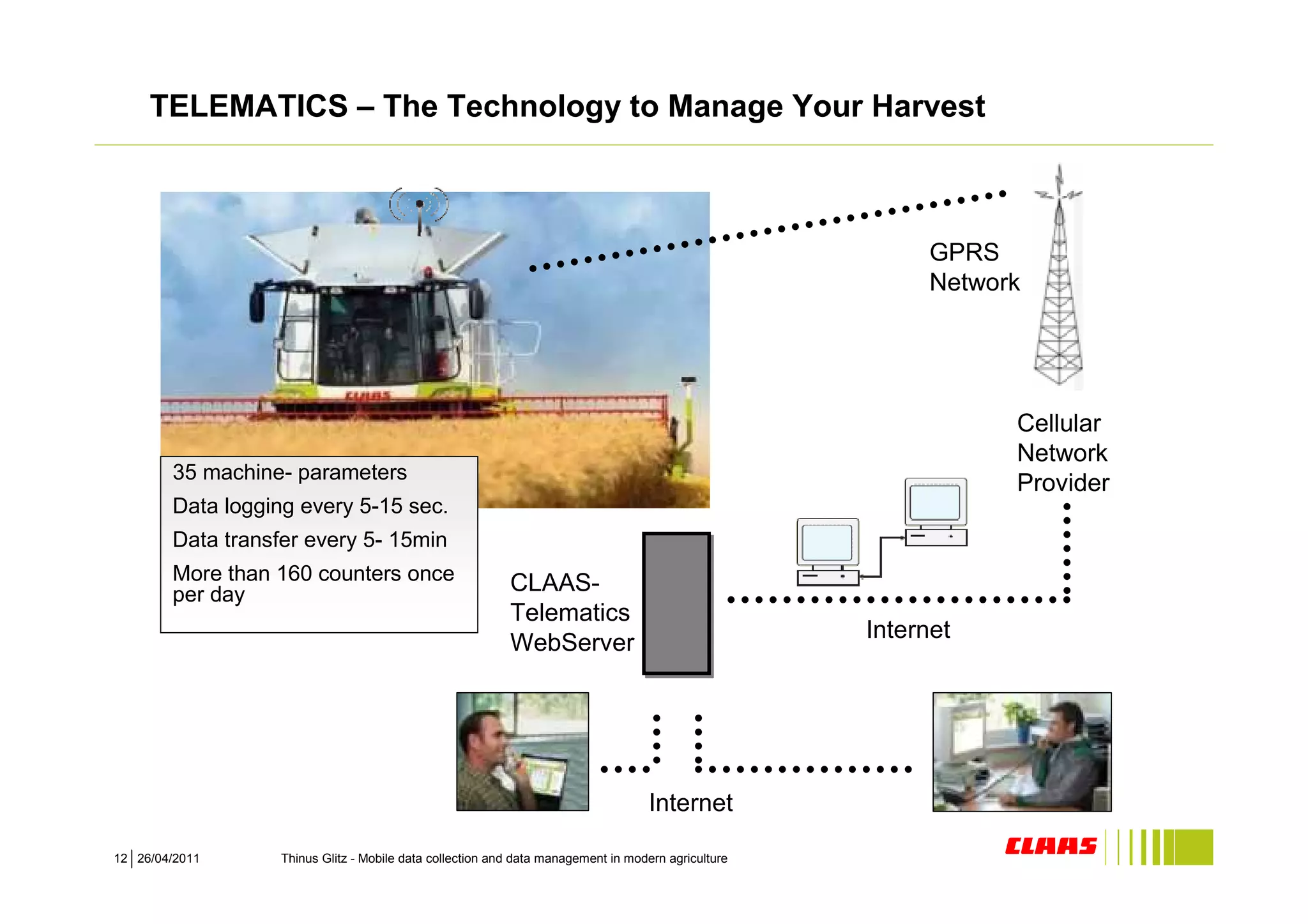

12. TELEMATICS – The Technology to Manage Your Harvest
GPRS
Network
Cellular
Network
35 machine- parameters
Provider
Data logging every 5-15 sec.
Data transfer every 5- 15min
More than 160 counters once CLAAS-
per day
Telematics
Internet
WebServer
Internet
12 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

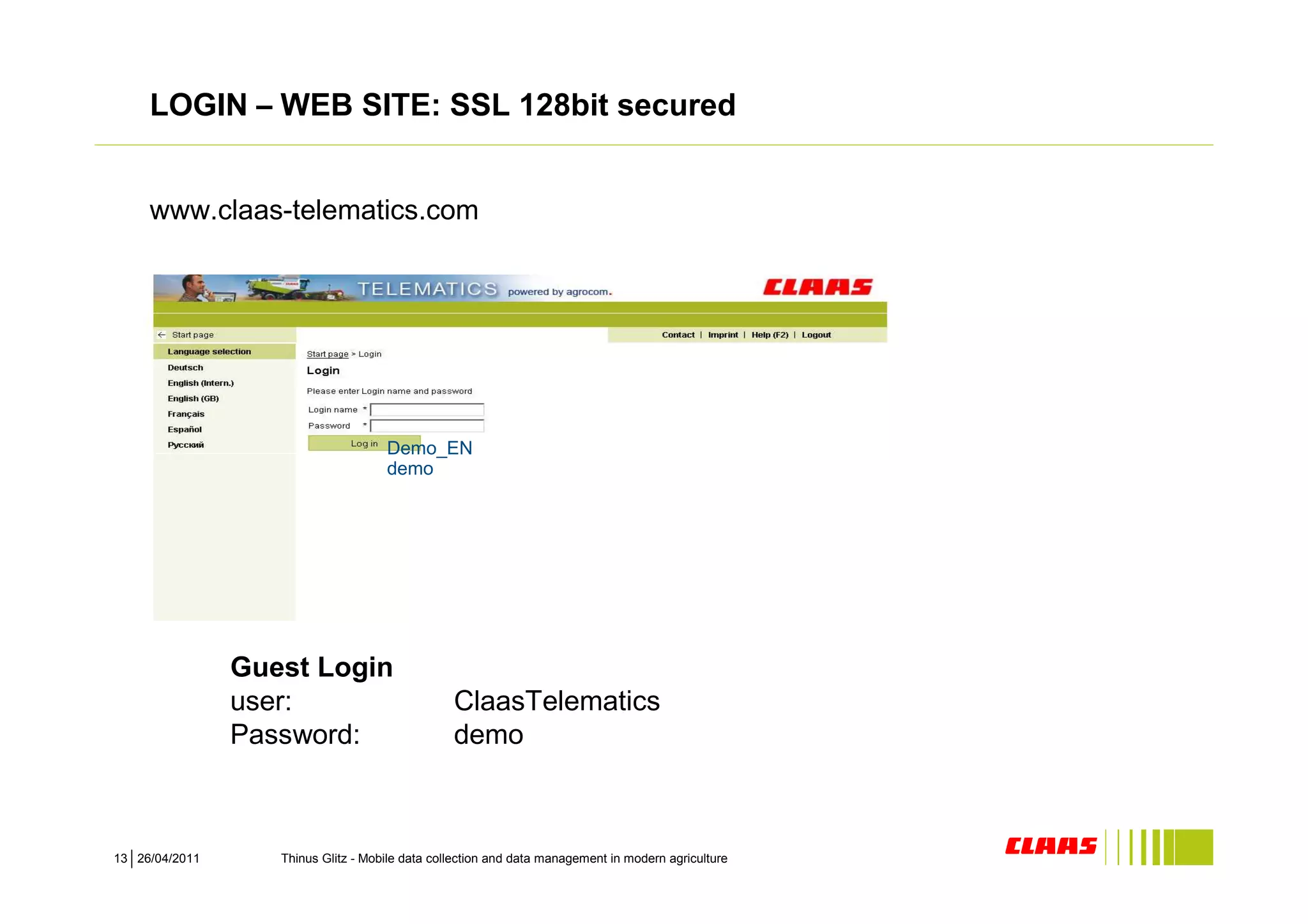

13. LOGIN – WEB SITE: SSL 128bit secured
www.claas-telematics.com
Demo_EN
demo
Guest Login
user: ClaasTelematics
Password: demo
13 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

14. Online Monitoring in the Web Browser
14 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

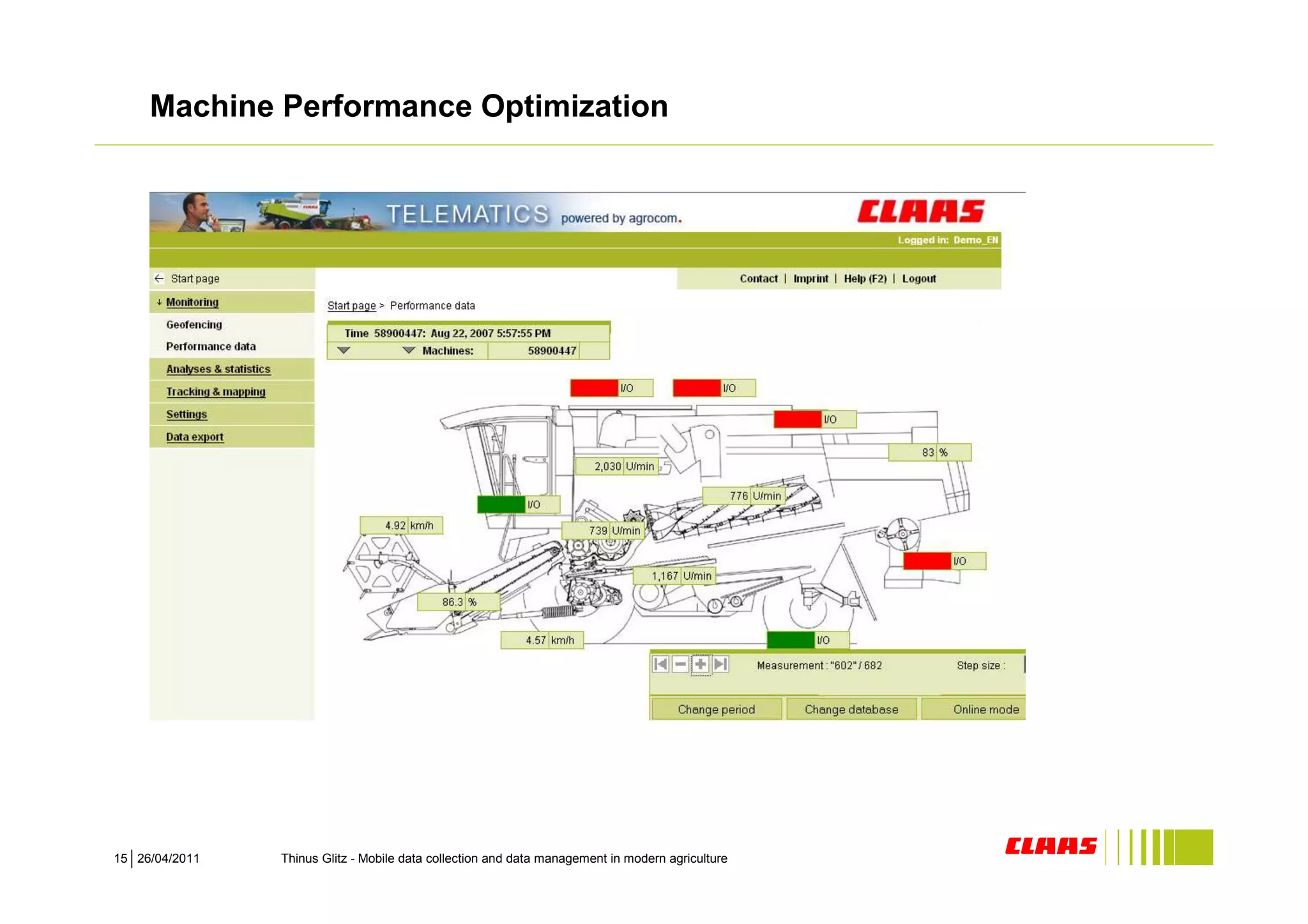

15. Machine Performance Optimization
15 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

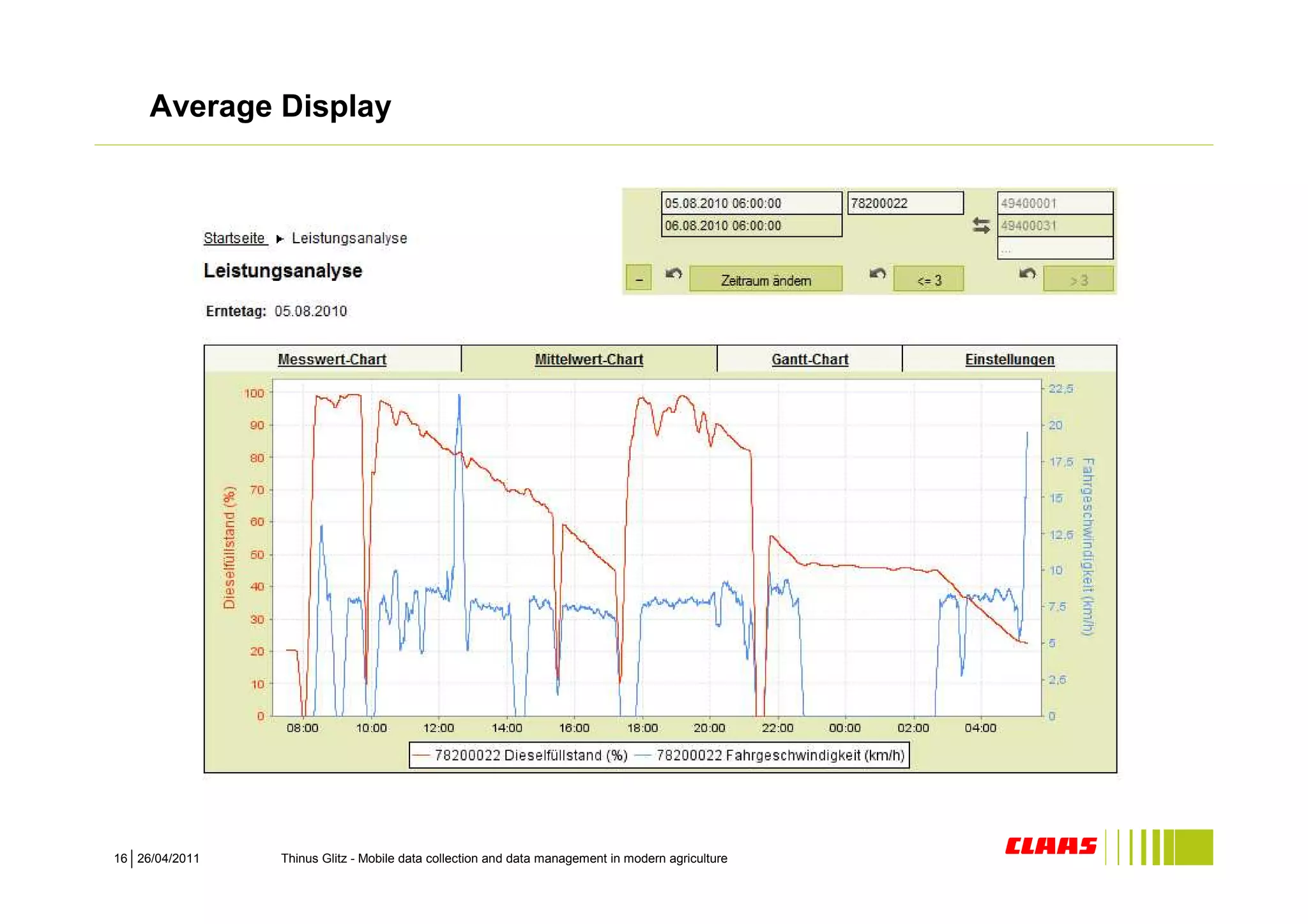

16. Average Display
16 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

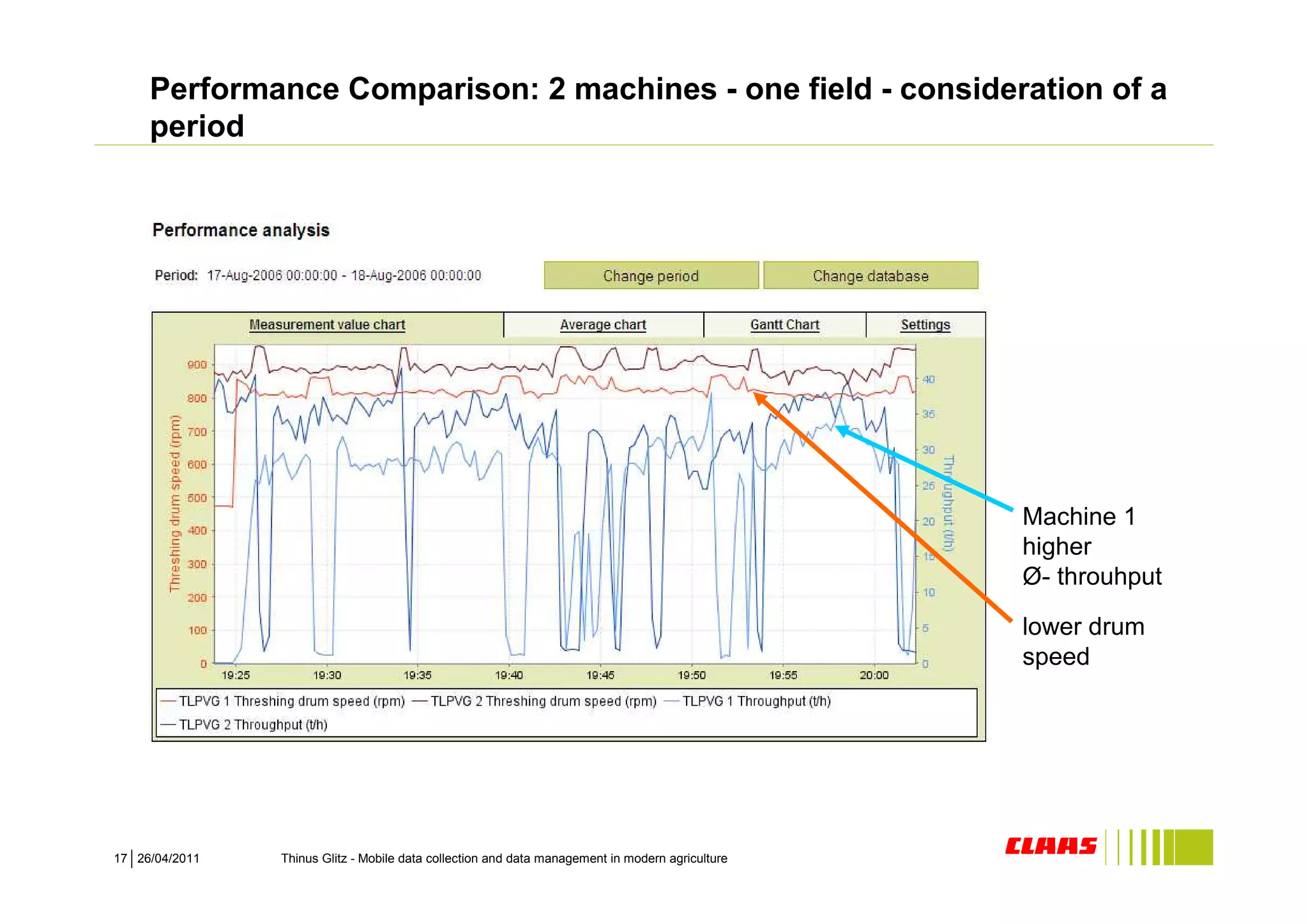

17. Performance Comparison: 2 machines - one field - consideration of a
period
Machine 1
higher
Ø- throuhput
lower drum
speed
17 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

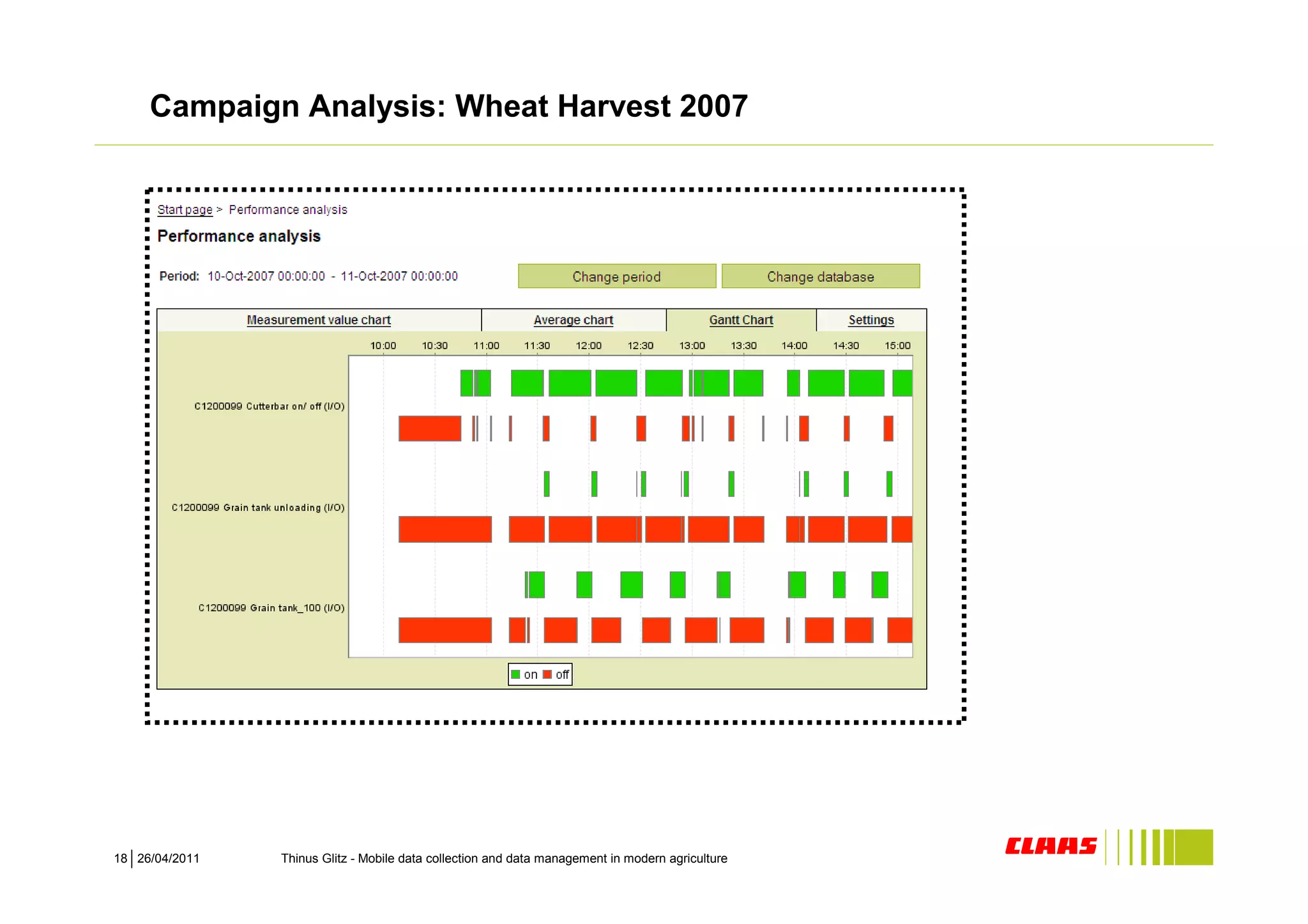

18. Campaign Analysis: Wheat Harvest 2007
18 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

19. Campaign analysis: Wheat Harvest 2007 two machines – one field
XXXXXX
Process time Turning time Waiting period
Machine 1: 62.3% 2.6% 8.3%
Machine 2: 52.8% 9.1% 10.8%
19 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

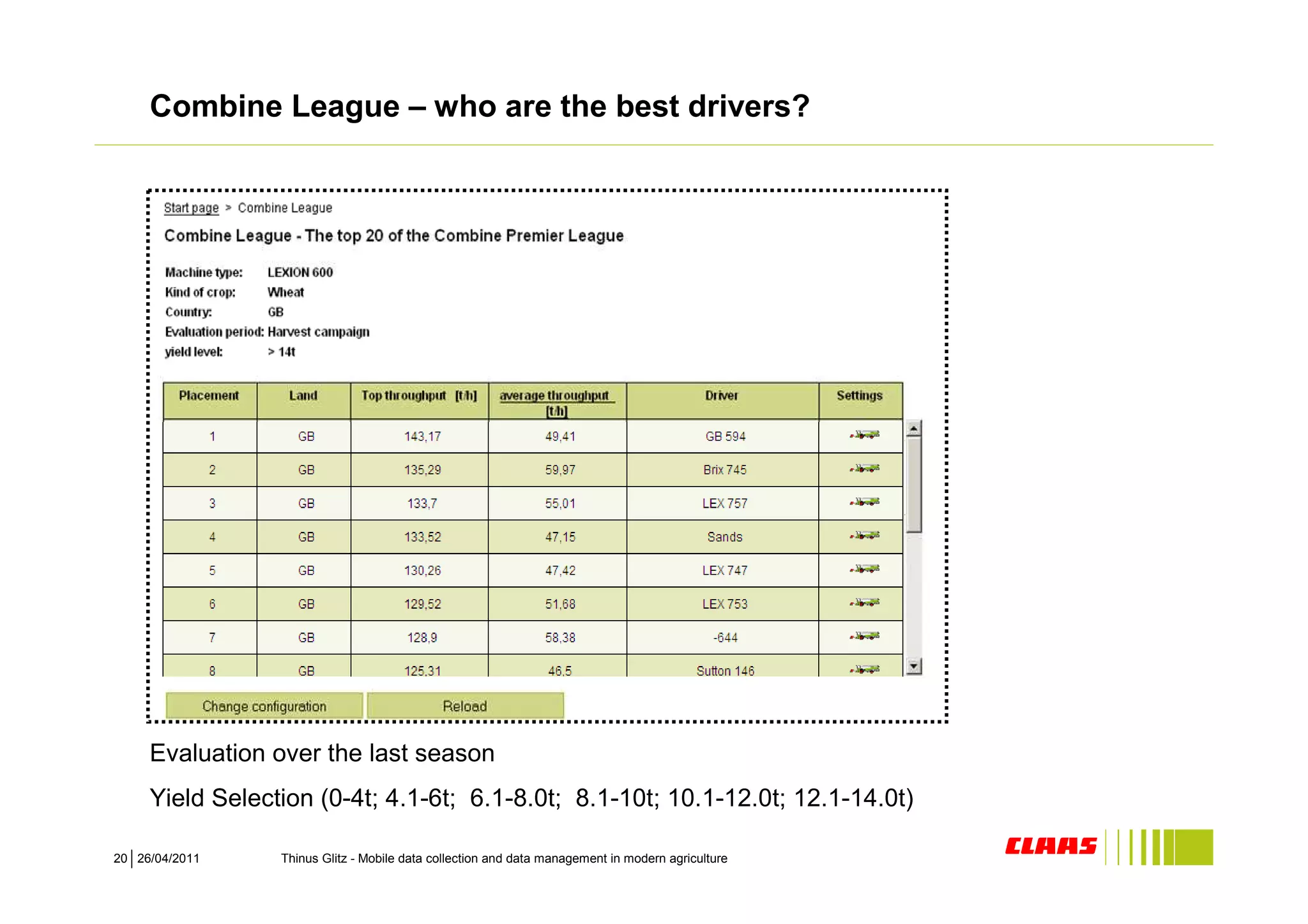

20. Combine League – who are the best drivers?
Evaluation over the last season
Yield Selection (0-4t; 4.1-6t; 6.1-8.0t; 8.1-10t; 10.1-12.0t; 12.1-14.0t)
20 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

21. Asset Monitoring with Road Navigation to the Machine
21 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

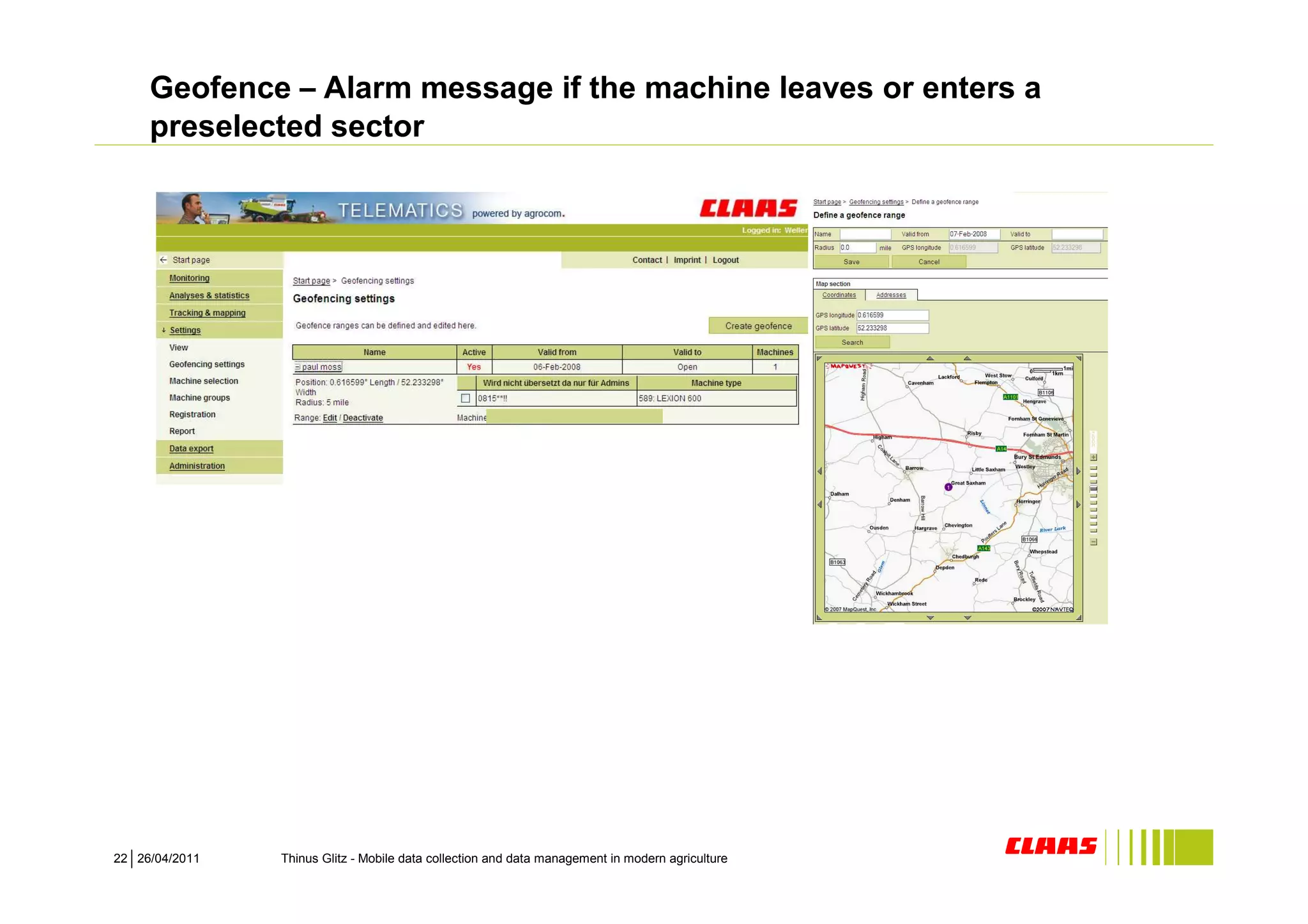

22. Geofence – Alarm message if the machine leaves or enters a
preselected sector
22 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

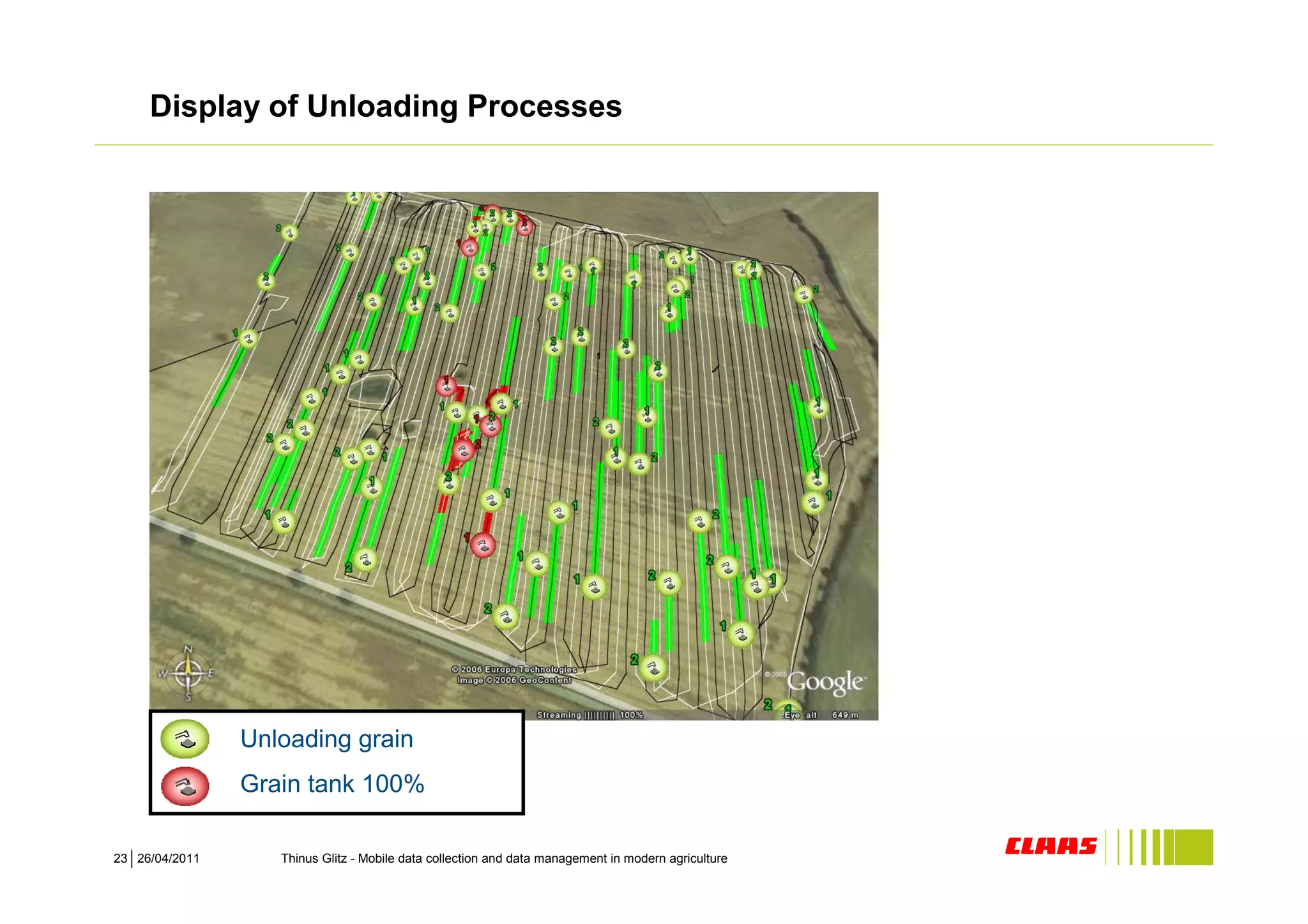

23. Display of Unloading Processes
Unloading grain
Grain tank 100%
23 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

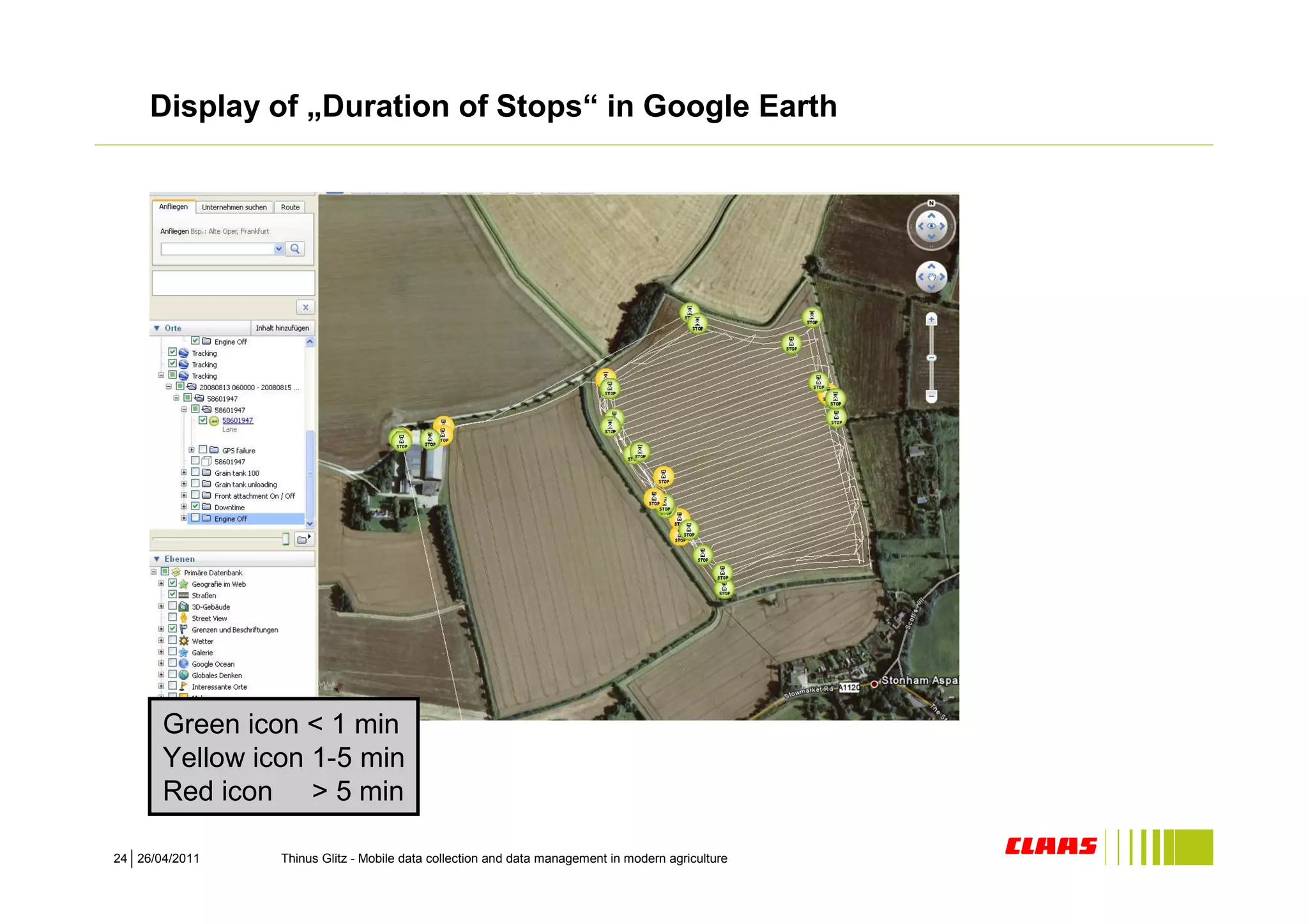

24. Display of „Duration of Stops“ in Google Earth
Green icon < 1 min
Yellow icon 1-5 min
Red icon > 5 min
24 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

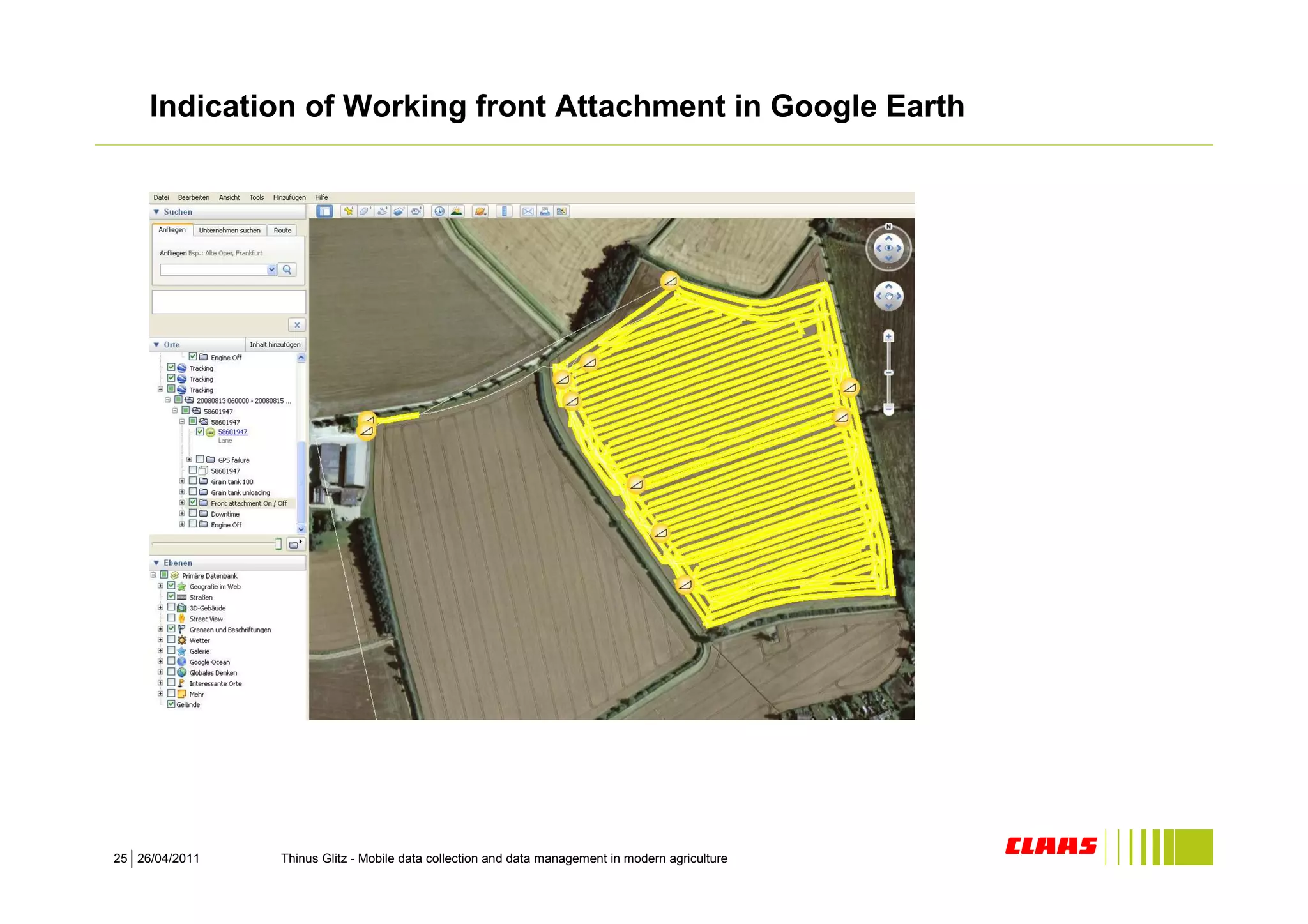

25. Indication of Working front Attachment in Google Earth
25 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

26. Indication of Loss off GPS Signal in GoogleEarth
26 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

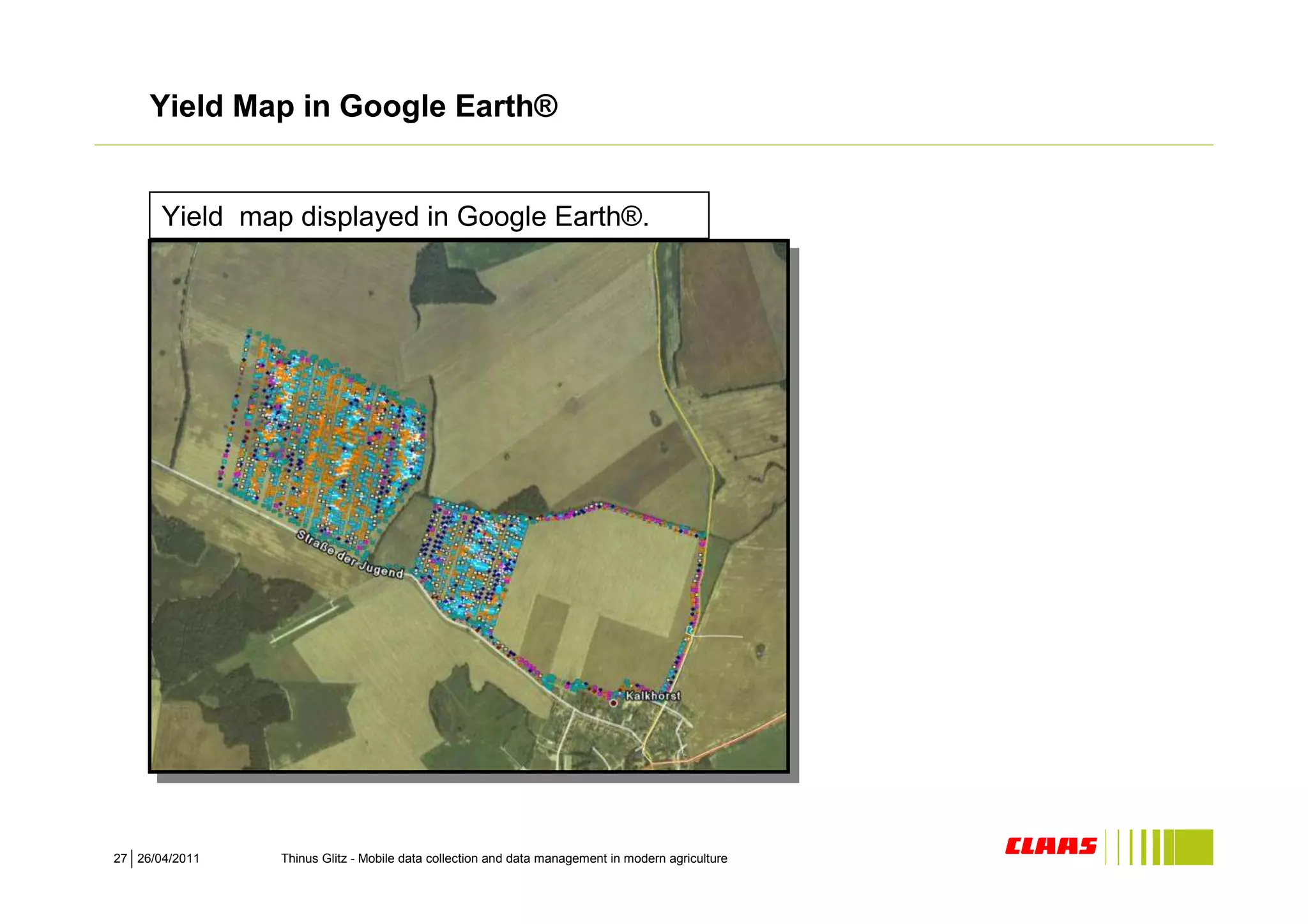

27. Yield Map in Google Earth®
Yield map displayed in Google Earth®.
27 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

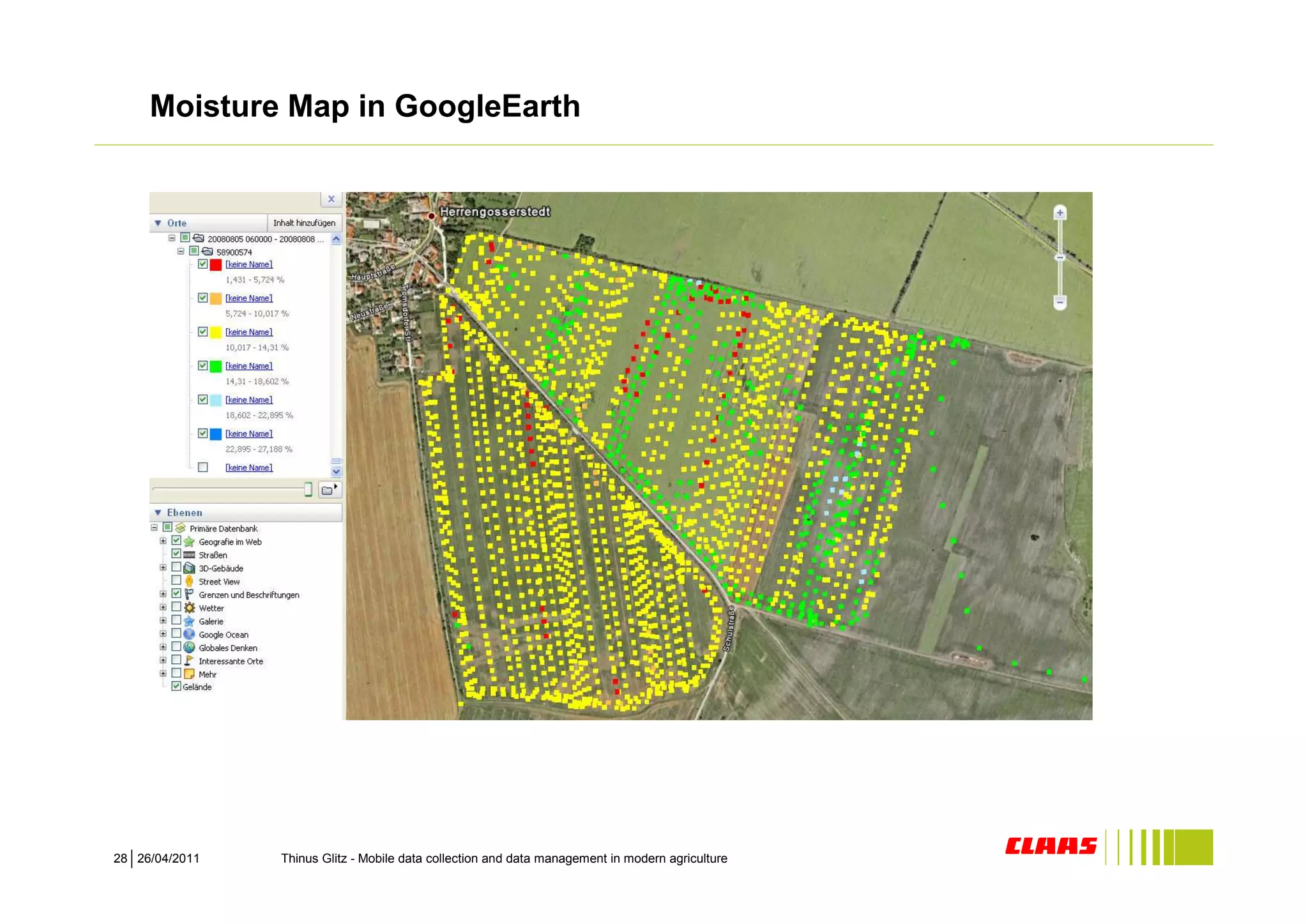

28. Moisture Map in GoogleEarth
28 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

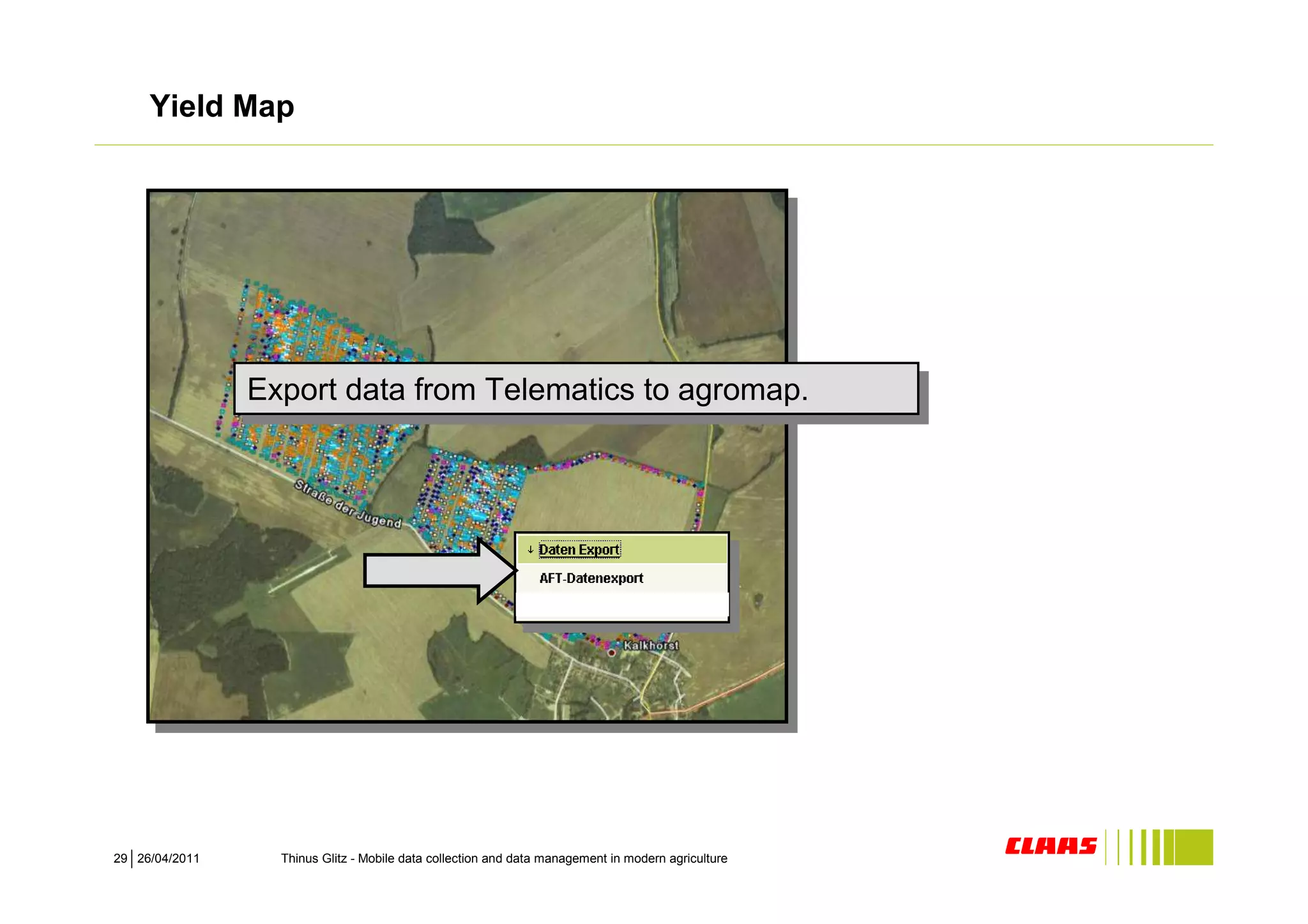

29. Yield Map
Export data from Telematics to agromap.
Export data from Telematics to agromap.
29 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

30. Remote Diagnostic via CDS 5000
30 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

31. Precision Farming
& Monitoring
31 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

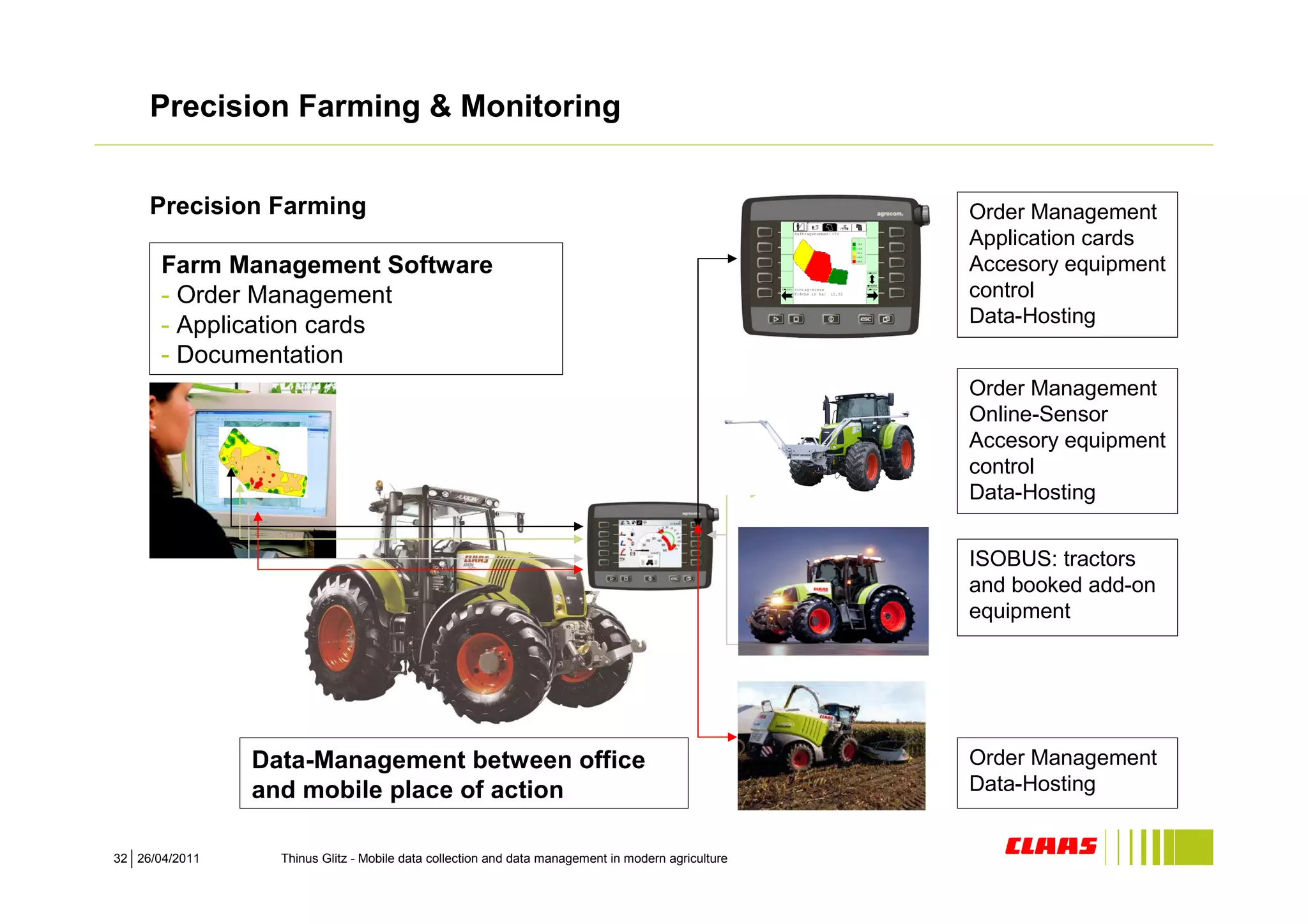

32. Precision Farming & Monitoring
Precision Farming Order Management
Application cards
Farm Management Software Accesory equipment
- Order Management control
- Application cards Data-Hosting
- Documentation
Order Management
Online-Sensor
Accesory equipment
control
Data-Hosting
ISOBUS: tractors
and booked add-on
equipment
Data-Management between office Order Management
and mobile place of action Data-Hosting
32 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

33. Data Management GPS Steering Systems
33 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

34. Data Management GPS Steering Systems
What can be done with the data management?
Documentation of applied area
Storage of reference lines according to a specific field
Storage of the field limits according to a specific field
Process planning in the PC software
What are the needs for data management?
Process documentation
Process planning before a campaign
Set up multiple machines
A-B line handling to be ready for Controlled Traffic
34 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

35. Data Management GPS Steering Systems
Transferring data from the terminal into
AGROCOM NET and AGROCOM MAP
Reference lines, field limits and applied lines
Job data: farm, field, driver, machine, crop
Working time and applied area
Transferring data back to the terminal
Reference lines, field limits
Job data: farm, field, driver, machine, crop
35 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

36. Management Software
36 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

37. Management Software
Cereals and Biogas
AGRO-NET AGRO-MAP AGRO-GPS AGRO-BIOGAS
MOBILBOX
Office
AGRO-LU FINANZ plus AUFTRAG plus HSC-Lohn
37 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

38. Management Software
Pig Management System
SUPERSAU SUPERSAU MULTIMAST
mobile edition
Management Software Cattle
SUPERKUH MUTTERKUH PRORIND AGRO-HIT
Rind
Sheep, Goat, Horse
MUTTERSCHAF SUPERZIEGE SUPERPFERD
38 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

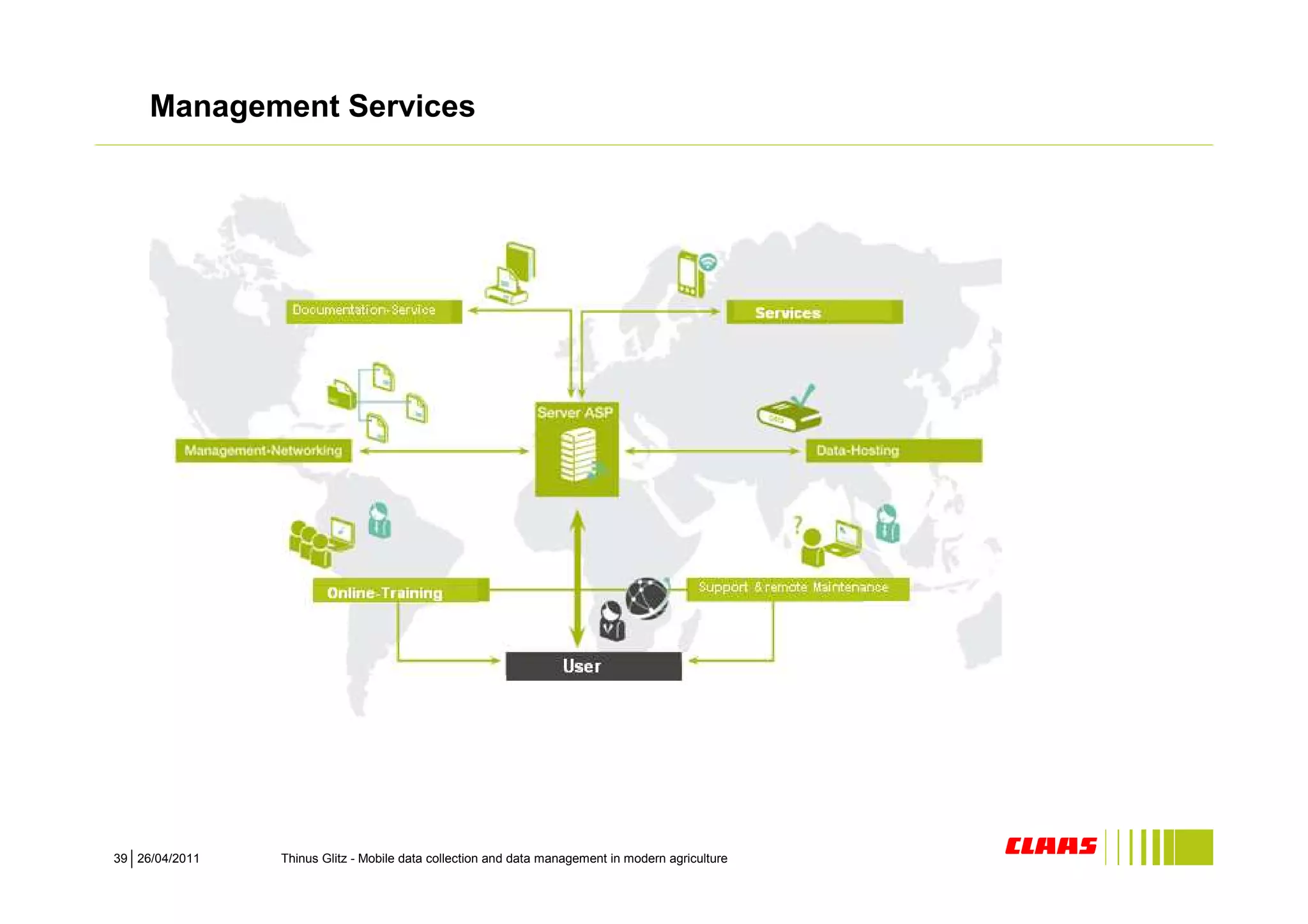

39. Management Services
39 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

40. Strategy

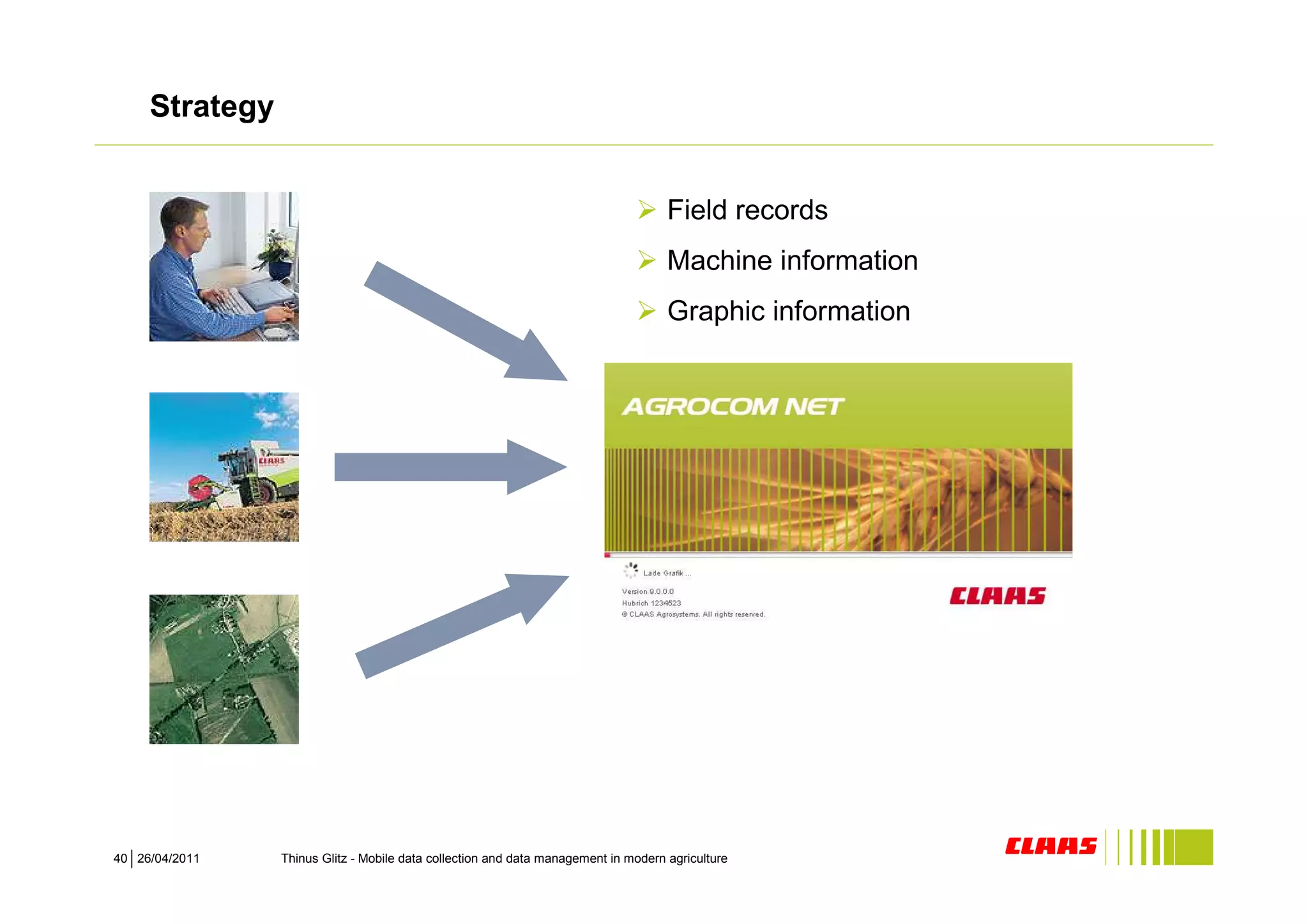

Field records
Machine information
Graphic information
40 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

41. Strategy
Everything in one programme
Competitors usually use several
programmes
One philosophy, one user interface, one
database
Wide spectrum of the market covered
from individual farm to agricultural holding
41 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

42. Main Points of AGRO – NET
Record keeping
Graphics area management
Evaluation and analyses
42 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

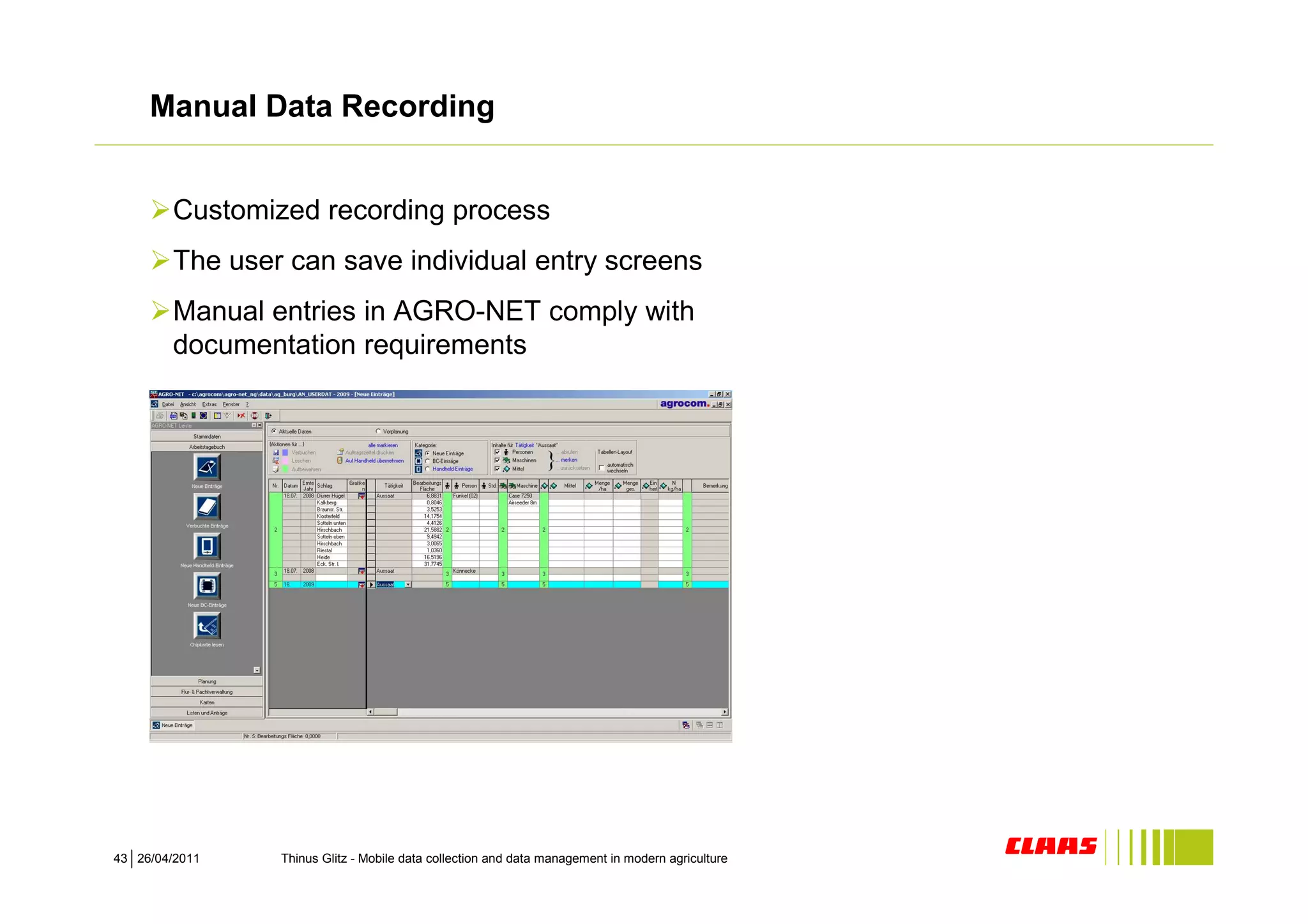

43. Manual Data Recording
Customized recording process
The user can save individual entry screens
Manual entries in AGRO-NET comply with
documentation requirements
43 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

44. Automatic Process Data Recording

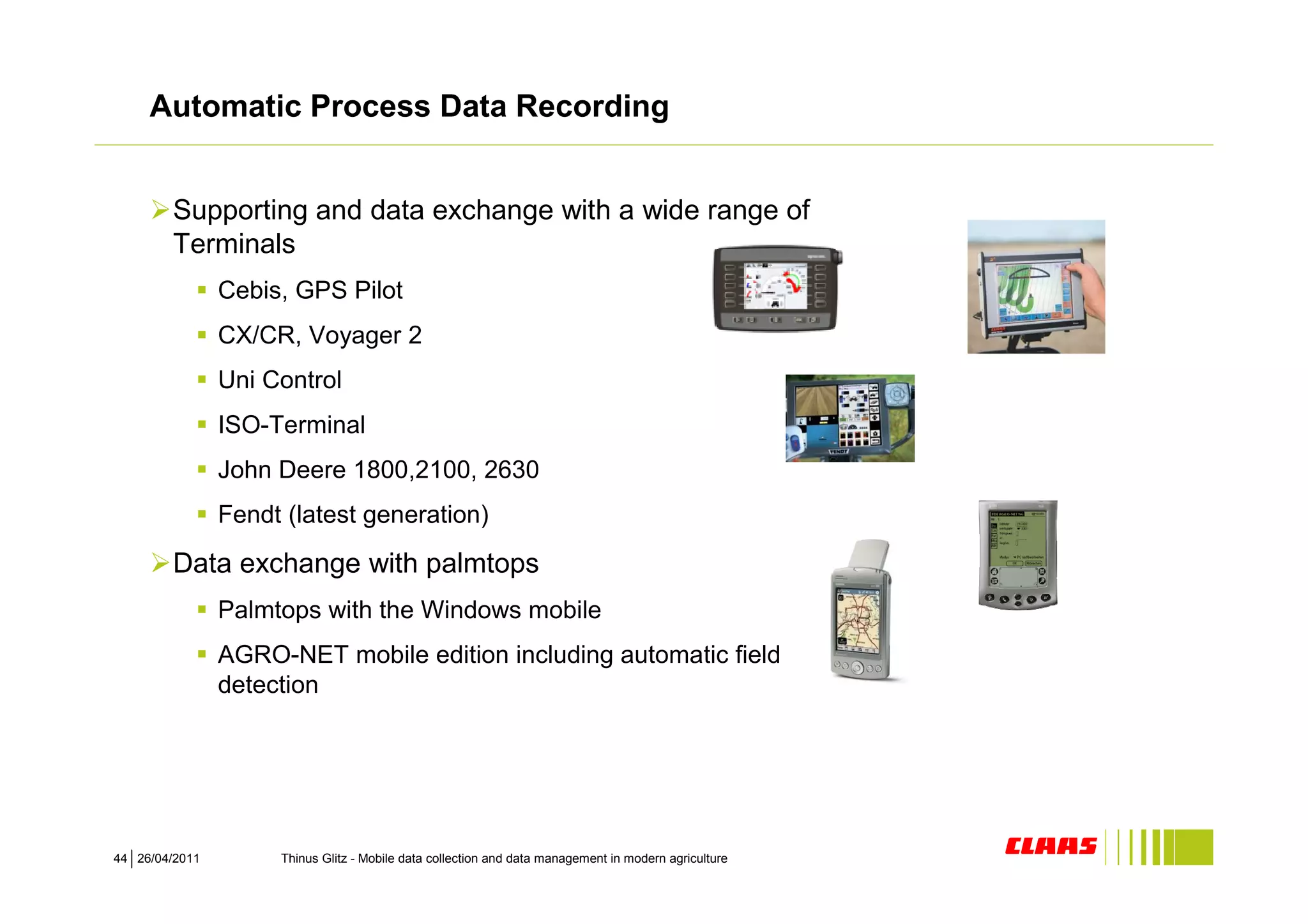

Supporting and data exchange with a wide range of
Terminals
Cebis, GPS Pilot
CX/CR, Voyager 2
Uni Control
ISO-Terminal
John Deere 1800,2100, 2630
Fendt (latest generation)
Data exchange with palmtops
Palmtops with the Windows mobile
AGRO-NET mobile edition including automatic field
detection
44 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

45. Data Management
How does it work in the AGRO NET management software?

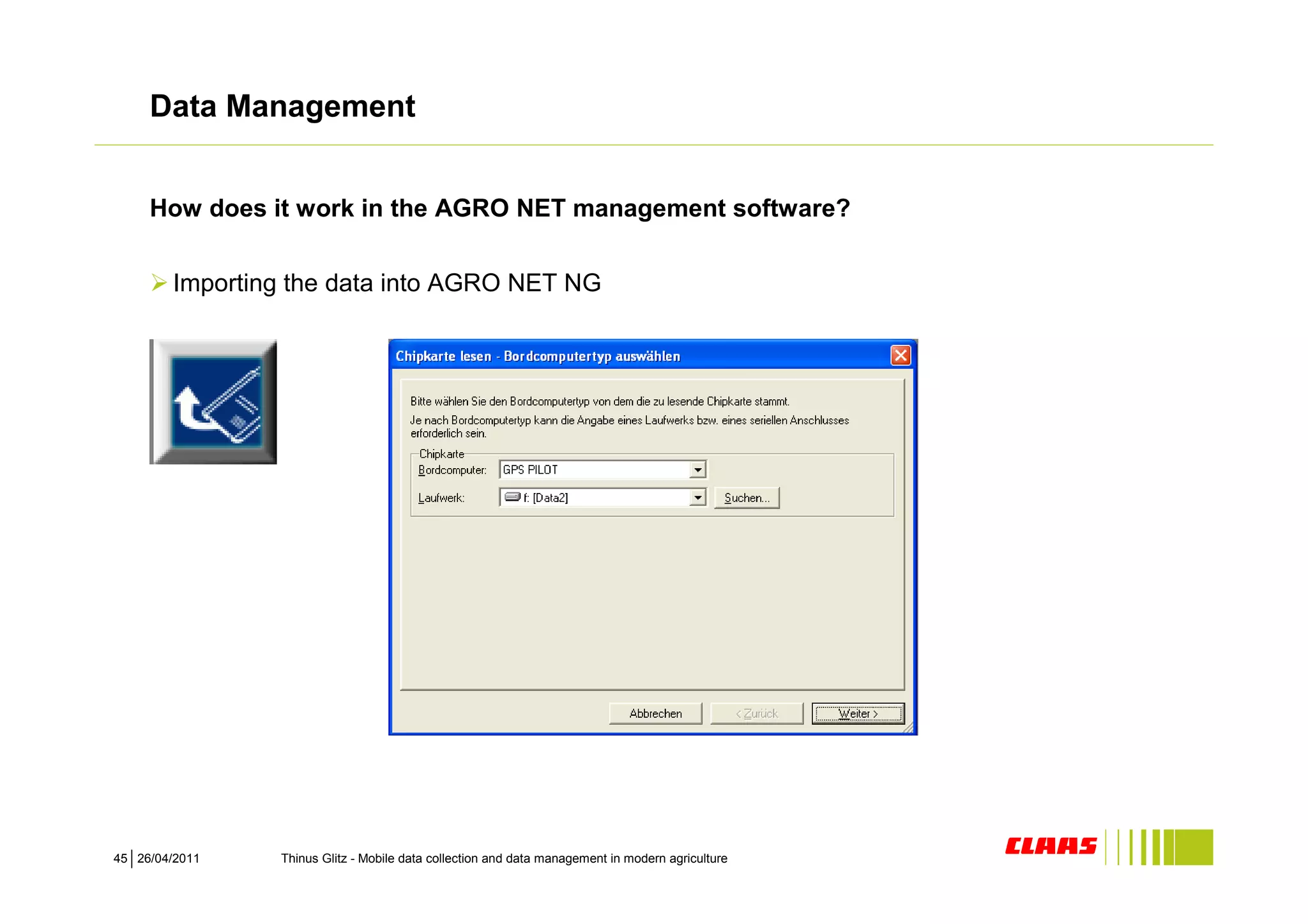

Importing the data into AGRO NET NG
45 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

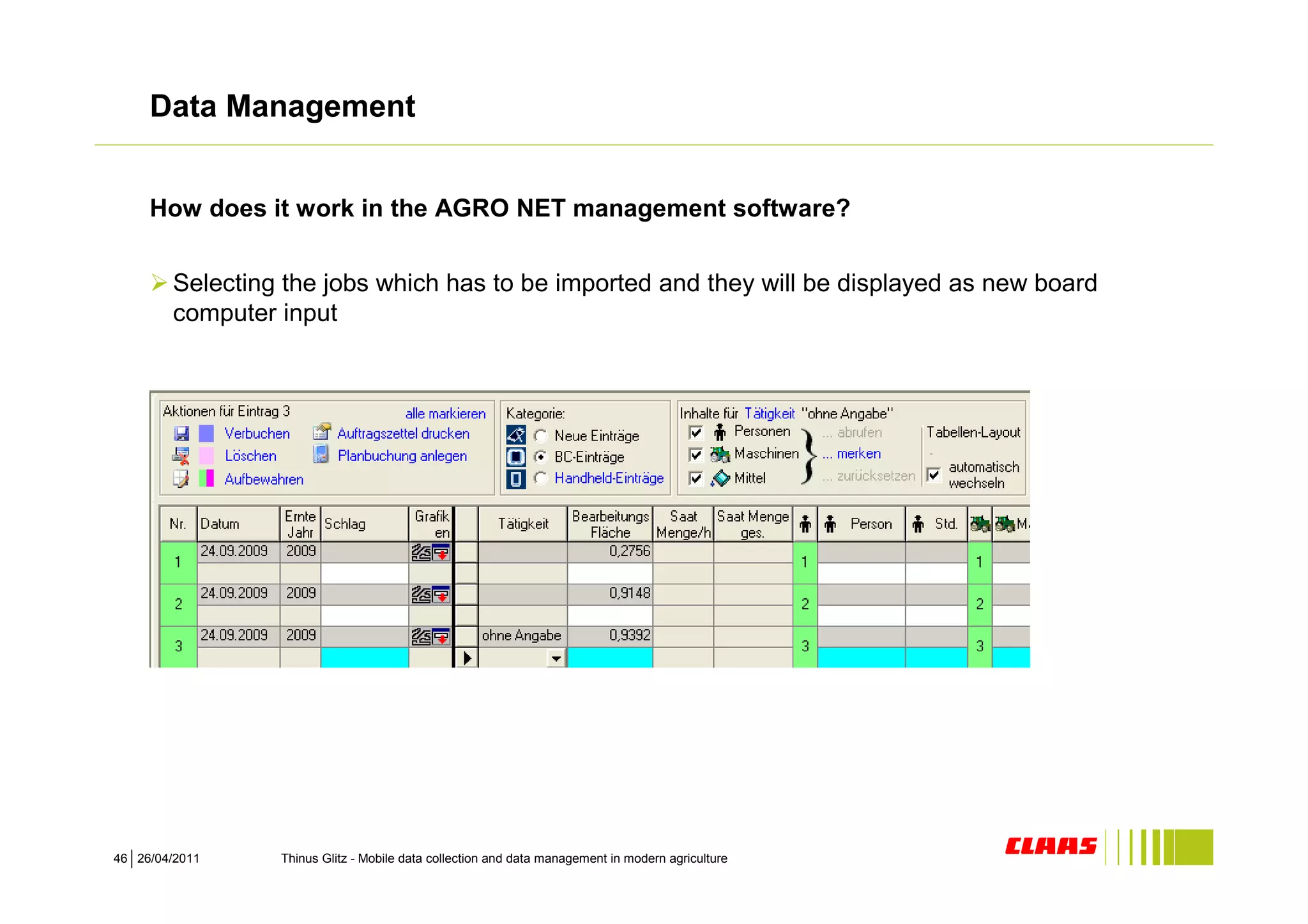

46. Data Management
How does it work in the AGRO NET management software?
Selecting the jobs which has to be imported and they will be displayed as new board
computer input
46 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

47. Data Management
How does it work in the AGRO NET management software?
Getting the lines of run and the reference line displayed in the graphics
driving
lines
reference
line
47 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

48. Data Management
How does it work in the AGRO NET management software?

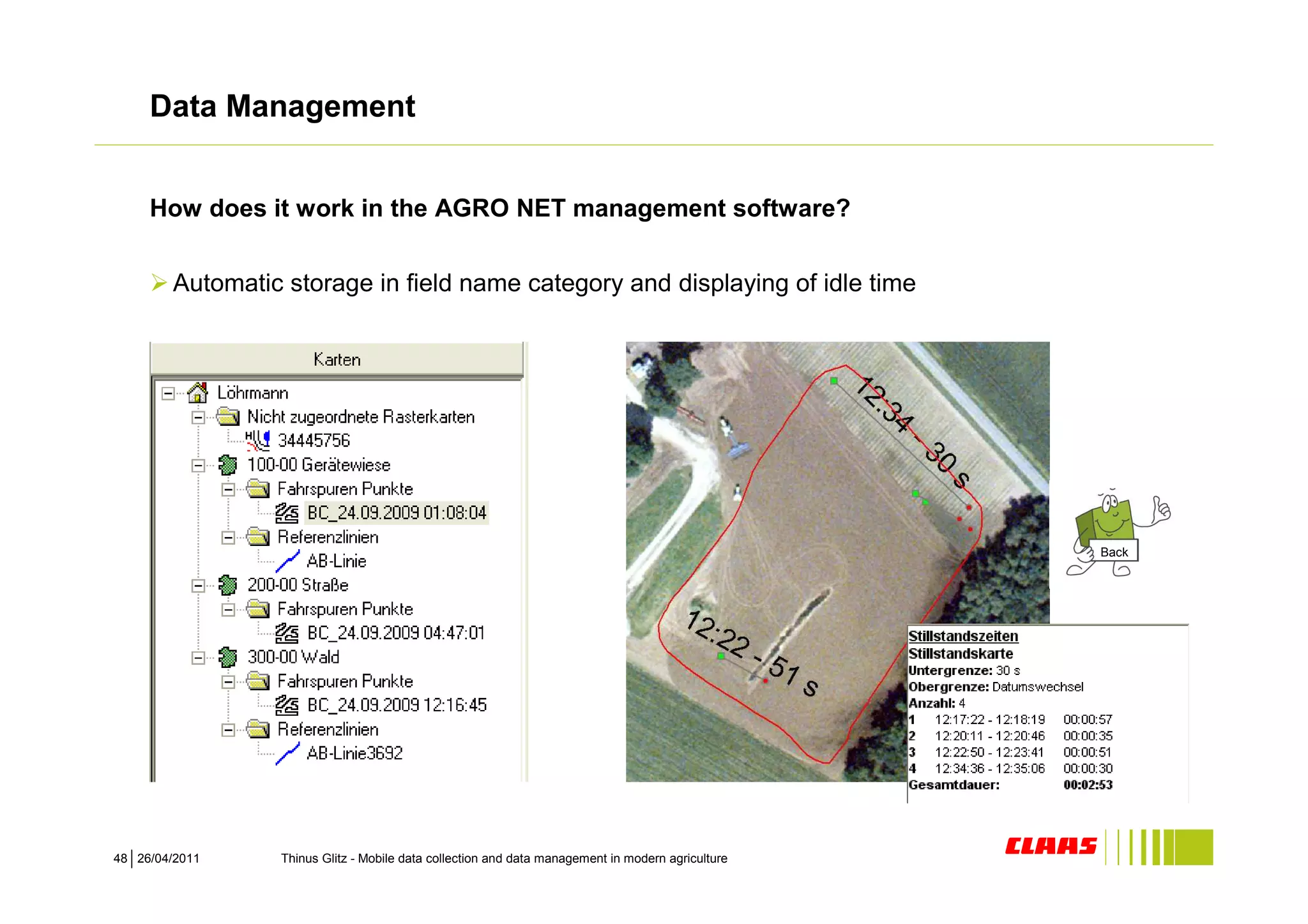

Automatic storage in field name category and displaying of idle time
Back
48 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

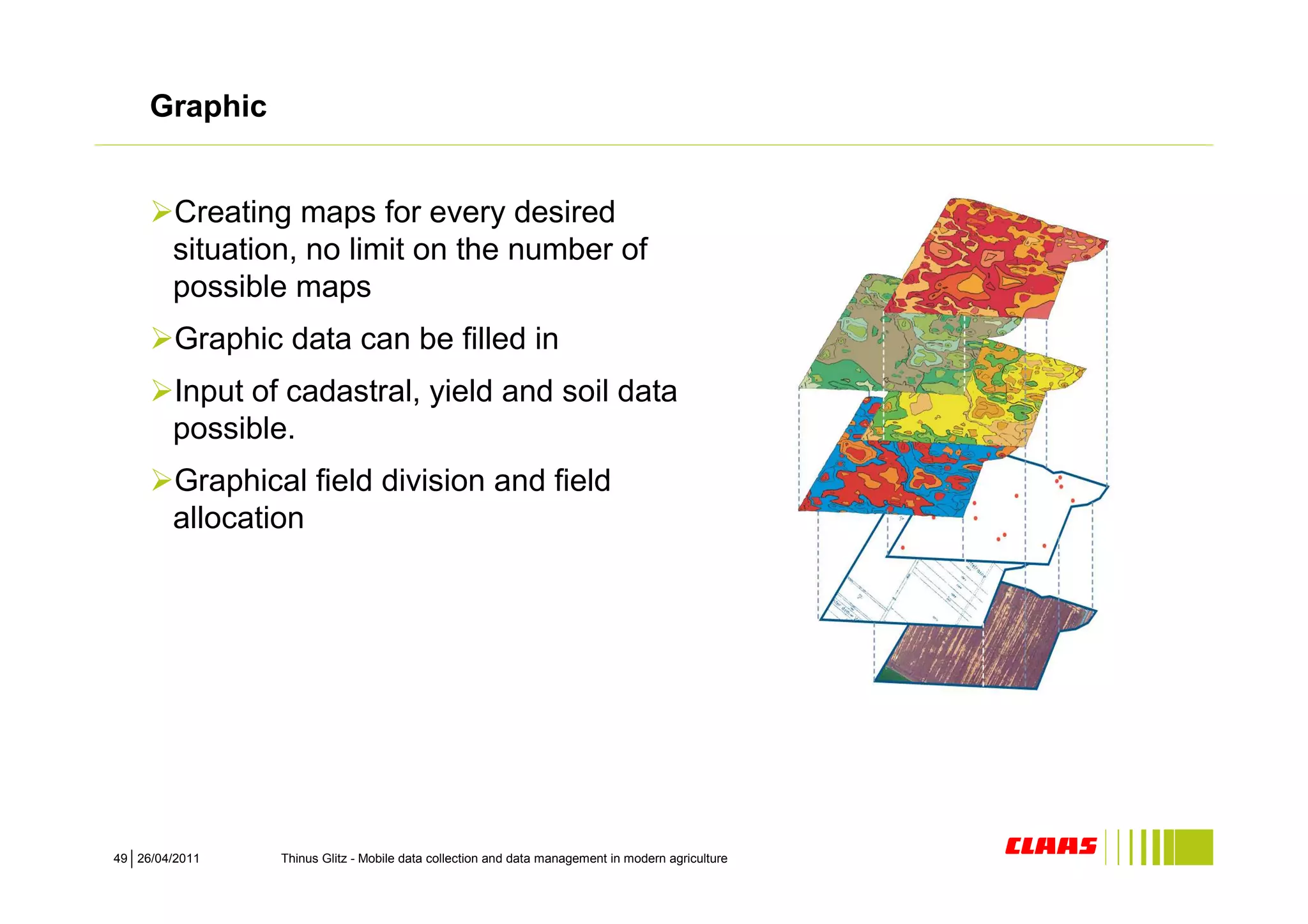

49. Graphic
Creating maps for every desired
situation, no limit on the number of
possible maps
Graphic data can be filled in
Input of cadastral, yield and soil data
possible.
Graphical field division and field
allocation
49 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

50. Graphic
“A picture is worth a thousand words.”
Farm buildings
Road
Forrest
Condition of
the field
50 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

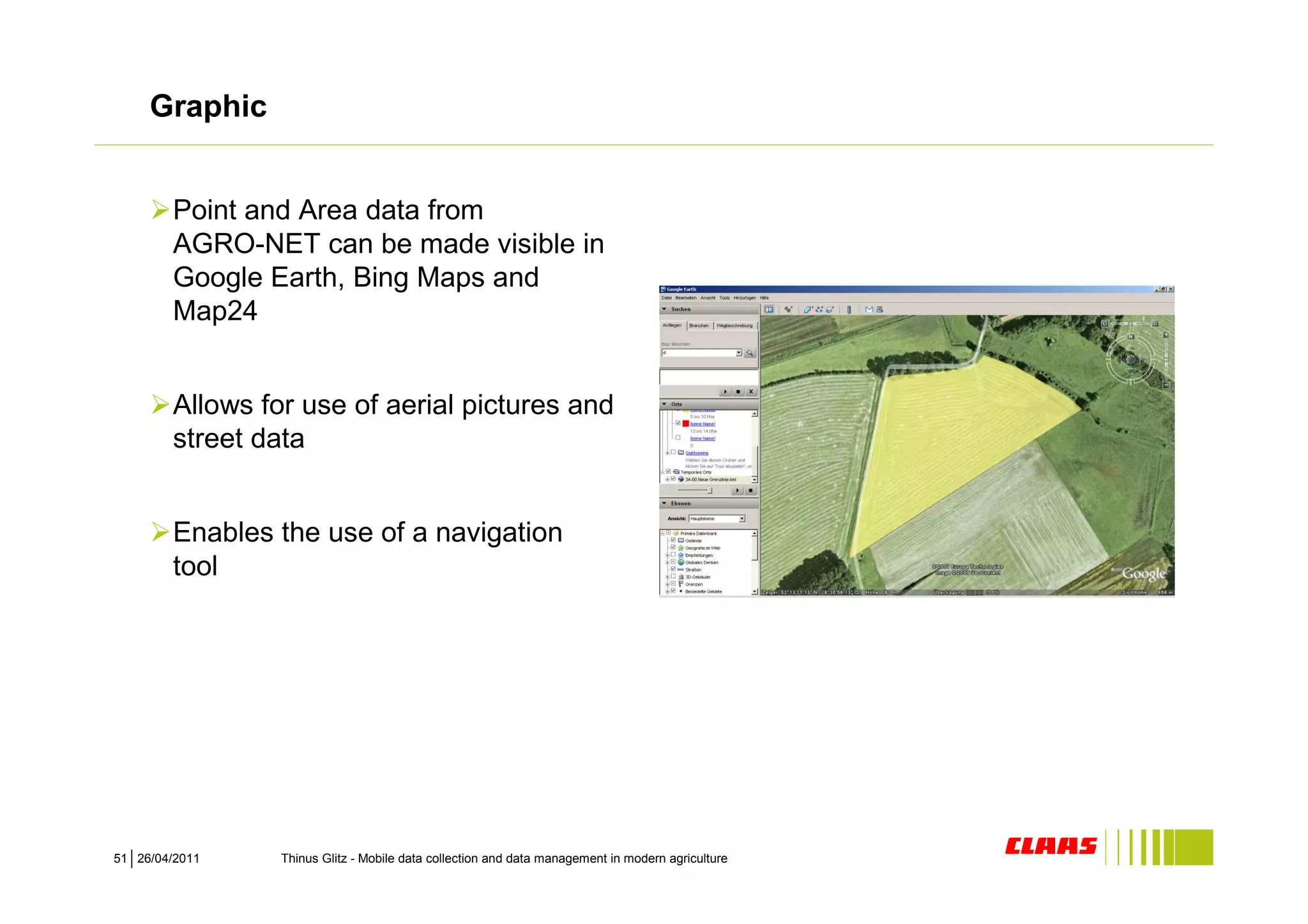

51. Graphic
Point and Area data from
AGRO-NET can be made visible in
Google Earth, Bing Maps and
Map24
Allows for use of aerial pictures and
street data
Enables the use of a navigation
tool
51 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

52. Graphic

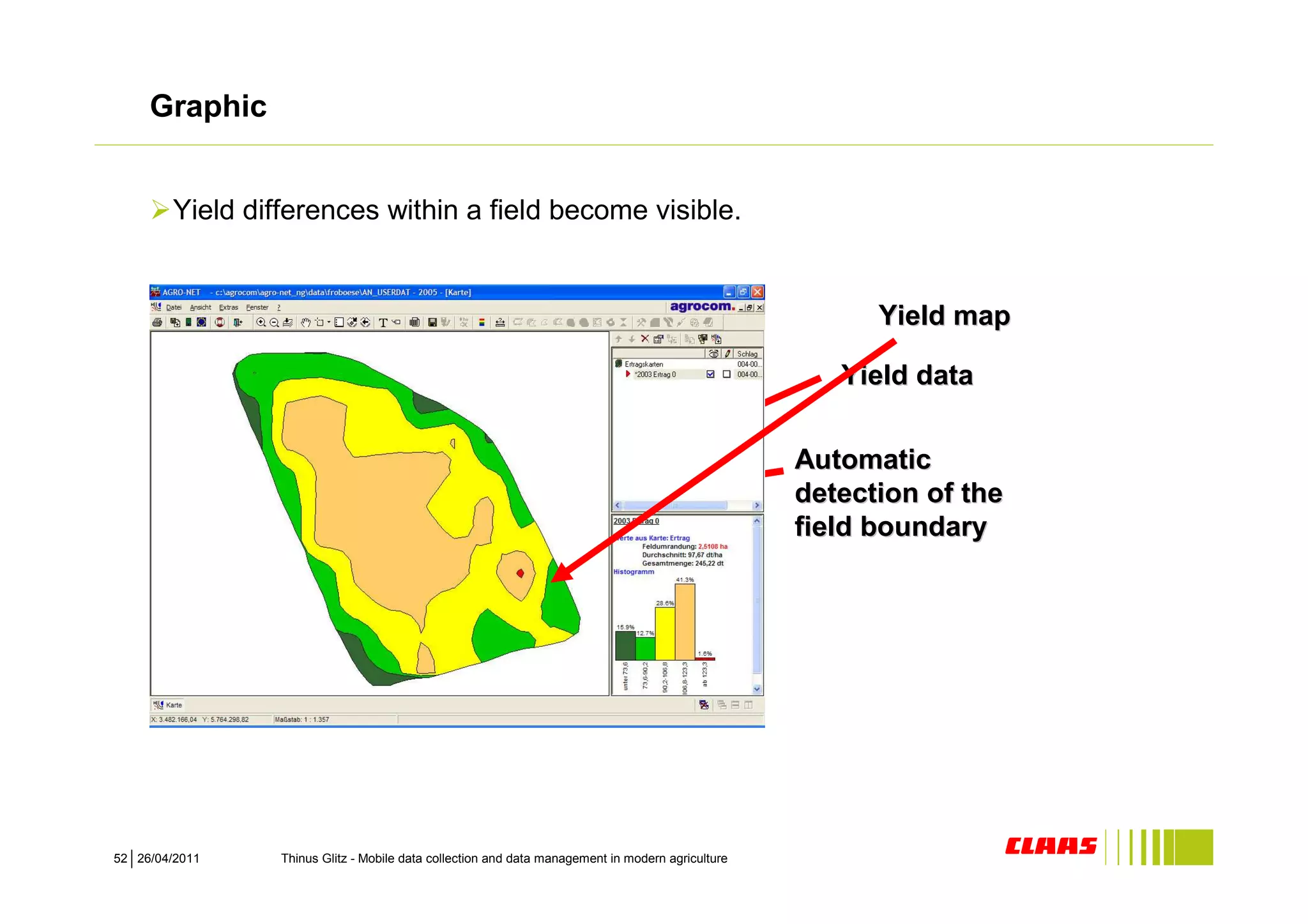

Yield differences within a field become visible.
Yield map
Yield data
Automatic
detection of the
field boundary
52 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

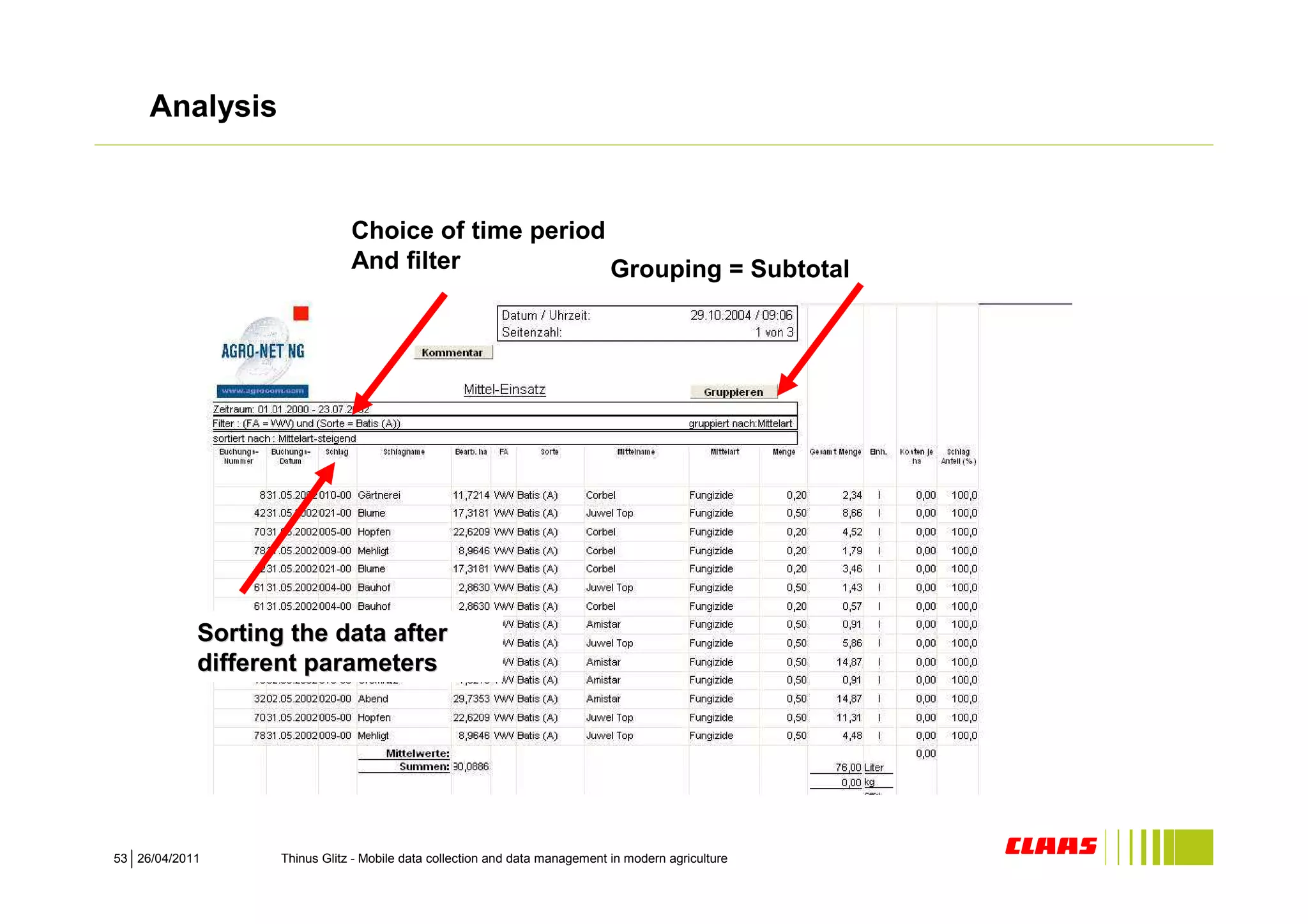

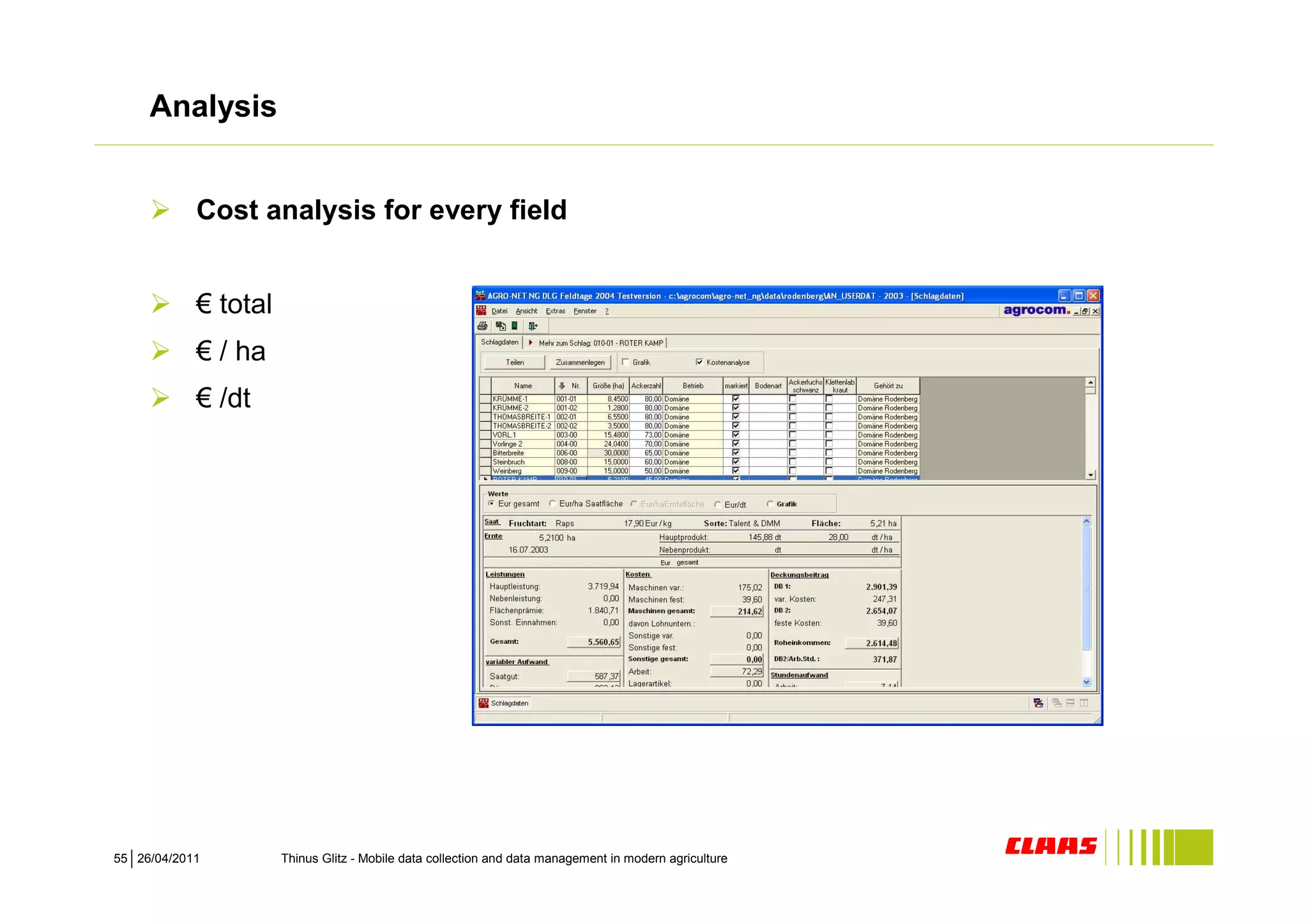

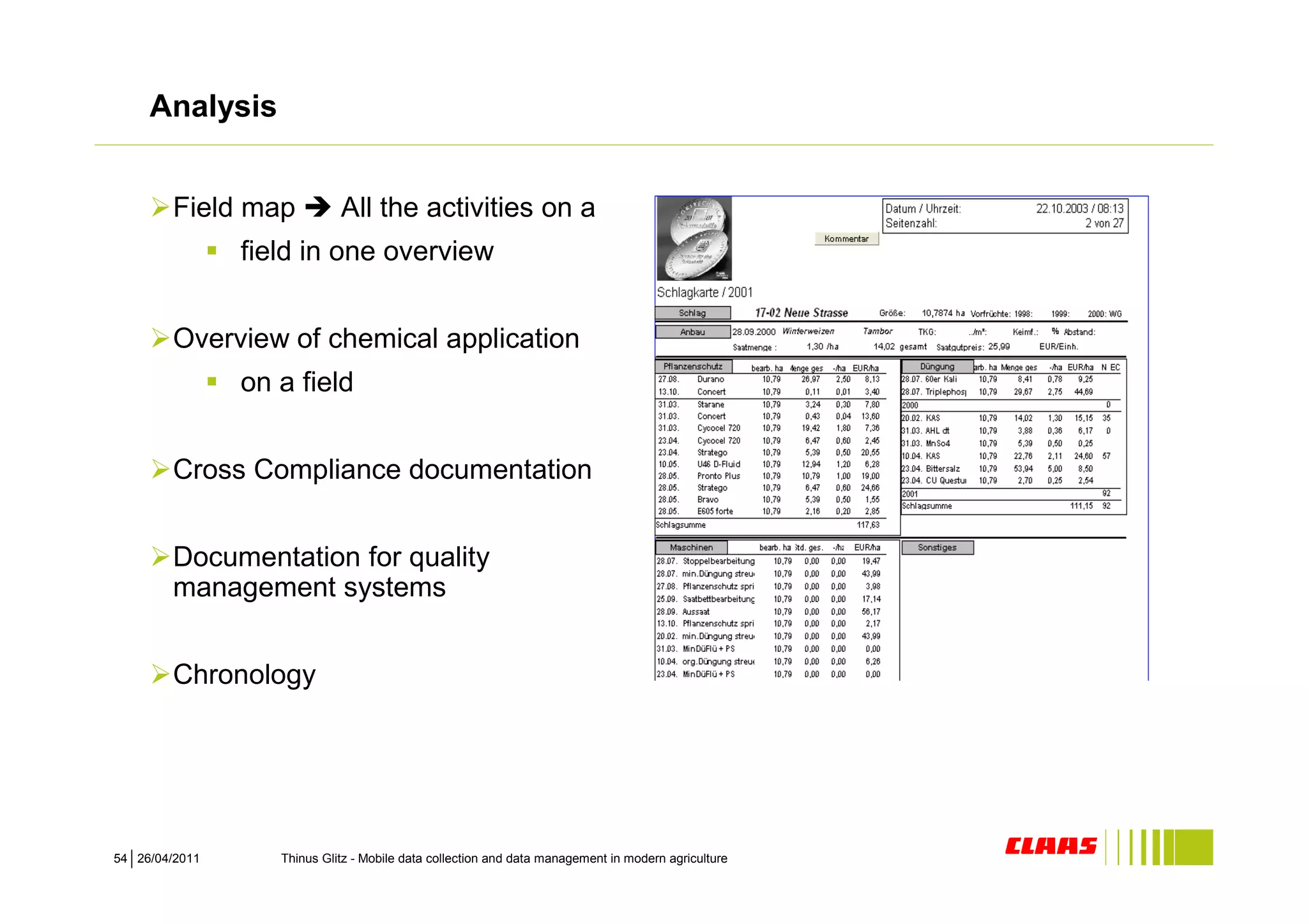

53. Analysis
Choice of time period
And filter Grouping = Subtotal
Sorting the data after
different parameters
53 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

54. Analysis
Field map All the activities on a
field in one overview
Overview of chemical application
on a field
Cross Compliance documentation
Documentation for quality
management systems
Chronology
54 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

55. Analysis
Cost analysis for every field
€ total
€ / ha
€ /dt
55 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture

56. Thank you for your attention.
CLAAS Agrosystems GmbH & Co. KG
Bäckerkamp 19 D-33330 Gütersloh
Telefon: +49 5241 3006-0
E-Mail: info@claas-agrosystems.com
56 26/04/2011 Thinus Glitz - Mobile data collection and data management in modern agriculture
