1. ECG
Fakhir
SIUT
22-Jan-2020

2. Leads
• 6 Limb Lead
• 6 Chest Leads
Looking at heart from different angles.

7. Rate

9. Rythm

10. 7 step approach to ECG rhythm
analysis
1. Rate
• Tachycardia or bradycardia?
• Normal rate is 60-100/min.
2. Pattern of QRS complexes
• Regular or irregular?
• If irregular is it regularly irregular or irregularly
irregular?

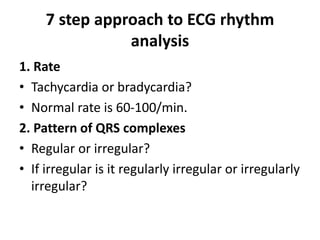

11. 7 step approach to ECG rhythm
analysis
3. QRS morphology
• Narrow complex: sinus, atrial or junctional origin.
• Wide complex: ventricular origin, or
supraventricular with aberrant conduction.
4. P waves
• Absent: sinus arrest, atrial fibrillation
• Present: morphology and PR interval may suggest
sinus, atrial, junctional or even retrograde from
the ventricles.

12. 7 step approach to ECG rhythm
analysis
5. Relationship between P waves and QRS complexes
• AV association (may be difficult to distinguish from
isorhythmic dissociation)
• AV dissociation
– complete: atrial and ventricular activity is always
independent.
– incomplete: intermittent capture.
6. Onset and termination
• Abrupt: suggests re-entrant process.
• Gradual: suggests increased automaticity.

13. 7 step approach to ECG rhythm
analysis
7. Response to vagal manoeuvres
• Sinus tachycardia, ectopic atrial
tachydysrhythmia: gradual slowing during the
vagal manoeuvre, but resumes on cessation.
• AVNRT or AVRT: abrupt termination or no
response.
• Atrial fibrillation and atrial flutter: gradual
slowing during the manoeuvre.
• VT: no response.

14. Narrow Complex (Supraventricular)
Tachycardia
ATRIAL – REGULAR
• Sinus tachycardia
• Atrial tachycardia
• Atrial flutter
• Inappropriate sinus tachycardia
• Sinus node re-entrant tachycardia

17. ATRIAL FLUTTER

18. Narrow Complex (Supraventricular)
Tachycardia
ATRIAL – IRREGULAR
• Atrial fibrillation
• Atrial flutter with variable block
• Multifocal atrial tachycardia

19. Atrial Fibrillation

20. Multifocal atrial tachycardia

21. Narrow Complex (Supraventricular)
Tachycardia
ATRIOVENTRICULAR
• Atrioventricular re-entry tachycardia (AVRT)
• AV nodal re-entry tachycardia (AVNRT)
• Automatic junctional tachycardia

22. Broad Complex Tachycardia (BCT)
REGULAR BCT
• Ventricular tachycardia
• Antidromic atrioventricular re-entry
tachycardia (AVRT).
• Any regular supraventricular tachycardia with
aberrant conduction — e.g. due to bundle
branch block, rate-related aberrancy
All regular BCTs should be considered to be VT until
proven otherwise

23. Ventricular Tachycardia

24. Broad Complex Tachycardia (BCT)
• IRREGULAR
• Ventricular fibrillation
• Polymorphic VT
• Torsades de Pointes
• AF with Wolff-Parkinson-White syndrome
• Any irregular supraventricular tachycardia
with aberrant conduction — e.g. due to
bundle branch block, rate-related aberrancy

25. Ventricular Fibrillation

28. Polymorphic VT

29. Torsades de Pointes

30. Bradycardia
P WAVES PRESENT
1. Every P wave is followed by a QRS complex
(= sinus node dysfunction)
• Sinus bradycardia
• Sinus node exit block
• Sinus pause / arrest

31. Bradycardia
P WAVES PRESENT
2. Not every P wave is followed by a QRS complex
(= AV node dysfunction)
• AV block: 2nd degree, Mobitz I (Wenckebach)
• AV block: 2nd degree, Mobitz II (Hay)
• AV block: 2nd degree, “fixed ratio blocks” (2:1,
3:1)
• AV block: 2nd degree, “high grade AV block”
• AV block: 3rd degree (complete heart block)

32. Mobitz Type I

33. Mobitz Type II

34. 3rd Degree Heart Block

35. What is This

36. Bradycardia
• P WAVES ABSENT
• Narrow complex: Junctional escape rhythm
• Broad complex: Ventricular escape rhythm

37. Axis

38. ECG Axis Interpretation
• Normal Axis = QRS axis between -30° and +90°.
• Left Axis Deviation = QRS axis less than -30°.
• Right Axis Deviation = QRS axis greater than +90°.
• Extreme Axis Deviation = QRS axis between -90°
and 180° (AKA “Northwest Axis”)

39. Methods of ECG Axis Interpretation
There are several complementary approaches to
estimating QRS axis, which are summarized
below:
• The Quadrant Method – (Lead I and aVF)
• Three Lead analysis – (Lead I, Lead II and aVF)
• Isoelectric Lead analysis
• Super SAM the Axis Man

43. Intervels

46. Cases
Sycope

47. Case 1: 20yo previously well with half
an hour of palpitations and
presyncope, resolved

48. Case 2: 80yo recurring presyncope
while sitting

49. Case 3: 25yo with exertional syncope

50. Case 4: 70yo history of cancer,
presents with shortness of breath.
Shortly after ECG patient collapsed

51. Case 5: 70yo unwell. After ECG patient
collapsed

52. Case 6: 60yo chest pain then syncope

53. Case 7: 60yo syncope, BP 70. First ECG
then post-cardioversion ECG

54. Case 7: 60yo syncope, BP 70. First ECG
then post-cardioversion ECG

55. Syncope
The 2018 ESC guidelines for the diagnosis and
management of syncope classifies syncope as
• Reflex (vasovagal, situational or carotid sinus)
• Orthostatic (drug-induced, volume depletion
or autonomic)
• Cardiac

56. Cardiac syncope
• arrhythmia
– bradycardia: sinus or AV conduction disease
– tachycardia: supraventricular or ventricular
• structural
– tamponade
– ACS
– aortic stenosis
– hypertrophic cardiomyopathy (HCM)
– cardiac mass
– prosthetic valve dysfunction
• cardiopulmonary
– PE
– aortic dissection
– pulmonary hypertension

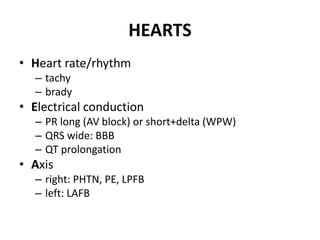

57. HEARTS
• Heart rate/rhythm
– tachy
– brady
• Electrical conduction
– PR long (AV block) or short+delta (WPW)
– QRS wide: BBB
– QT prolongation
• Axis
– right: PHTN, PE, LPFB
– left: LAFB

58. HEARTS
• R wave size/progression
– early R wave: RBBB, WPW type A, posterior MI, pulmonary
hypertension
– late R wave: cardiomyopathy
– high voltages: hypertrophy
– low voltages: pericardial effusion
• Tension (hypertrophy)
– aortic stenosis
– HCM
• ST/T wave changes
– inherited: ARVD, Brugada
– ischemic: ACS, PE, dissection

59. Back to the cases

60. Case 1: 20yo previously well with half
an hour of palpitations and
presyncope, resolved
HR/rhythm: NSR.
Electrical conduction: short PR with delta wave
in precordial leads.
Axis: normal.
R wave: early progression.
Tension: none.
ST/ T changes: mild anterior ST depression,
discordant to delta.
WPW. Referred for ablatation

61. Case 2: 80yo recurring presyncope
while sitting
“trifascicular block” HR/rhythm: sinus brady.
Electrical conduction: first degree AV block +
RBBB + LAFB.
Axis: left (from LAFB).
R wave: early (from RBBB)
Tension: none
ST/T wave changes: none
bifascicular block with first degree AV block.
Admitted for pacemaker

62. Case 3: 25yo with exertional syncope
HR/rhythm: borderline sinus tach
Electrical conduction: normal
Axis: normal
R wave: large voltages with deep inferolateral
Q waves
Tension: LVH
ST/T wave: no changes
POCUS: HCM

63. Case 4: 70yo history of cancer, presents with shortness
of breath. Shortly after ECG patient collapsed
HR/rhythm: sinus tach
Electrical conduction: normal
Axis: normal
R wave: small voltages
Tension: none
ST/T wave: no significance changes
POCUS: no pericardial effusion but RV>LV.
Patient arrested, achieved ROSC after tPA and
CT showed massive PE

64. Case 5: 70yo unwell. After ECG patient collapsed
HR/rhythm: NSR
Electrical conduction: RBBB
Axis: normal
R wave: normal size/progression
Tension: none
ST/T wave: V1-2 coved ST elevation
Diagnosis: Brugada. Patient had VF arrest
shortly after ECG, was cardioverted and
admitted for ICD

65. Case 6: 60yo chest pain then syncope
HR/rhytm: sinus bradycardia
Electrical conduction: normal
Axis: normal
R wave: normal size/progression
Tension: none
ST/T wave: anterior ST depression with T wave
inversion
No early R waves/right axis to suggest
pulmonary hypertension, no other features to
suggest PE.
Posterior leads showed ST elevation and cath
lab activated: occluded circumflex artery

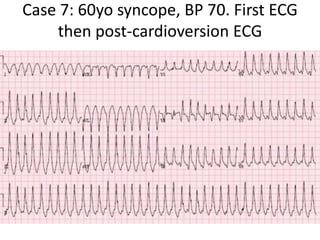

66. Case 7: 60yo syncope, BP 70. First ECG
then post-cardioversion ECG

67. Case 7: then post-cardioversion ECG
HR/rhythm: VT cardioverted into junctional rhythm
Electrical conduction: RBBB + LAFB
Axis: left (from LAFB)
R wave: RBBB superimposed on anterior Q and delayed R
wave progression
Tension: none
ST/T wave: diffuse ST depression with reciprocal elevation in
aVR. This pattern can be seen post-cardioversion, but this
patient also had anterior Q waves and a bifasicular block

68. Shukria and JazakAllah for listening
