- 1. 1 Newtec Proprietary – Unrestricted DVB-S2X PANEL SESSION DVB-S2X improvements

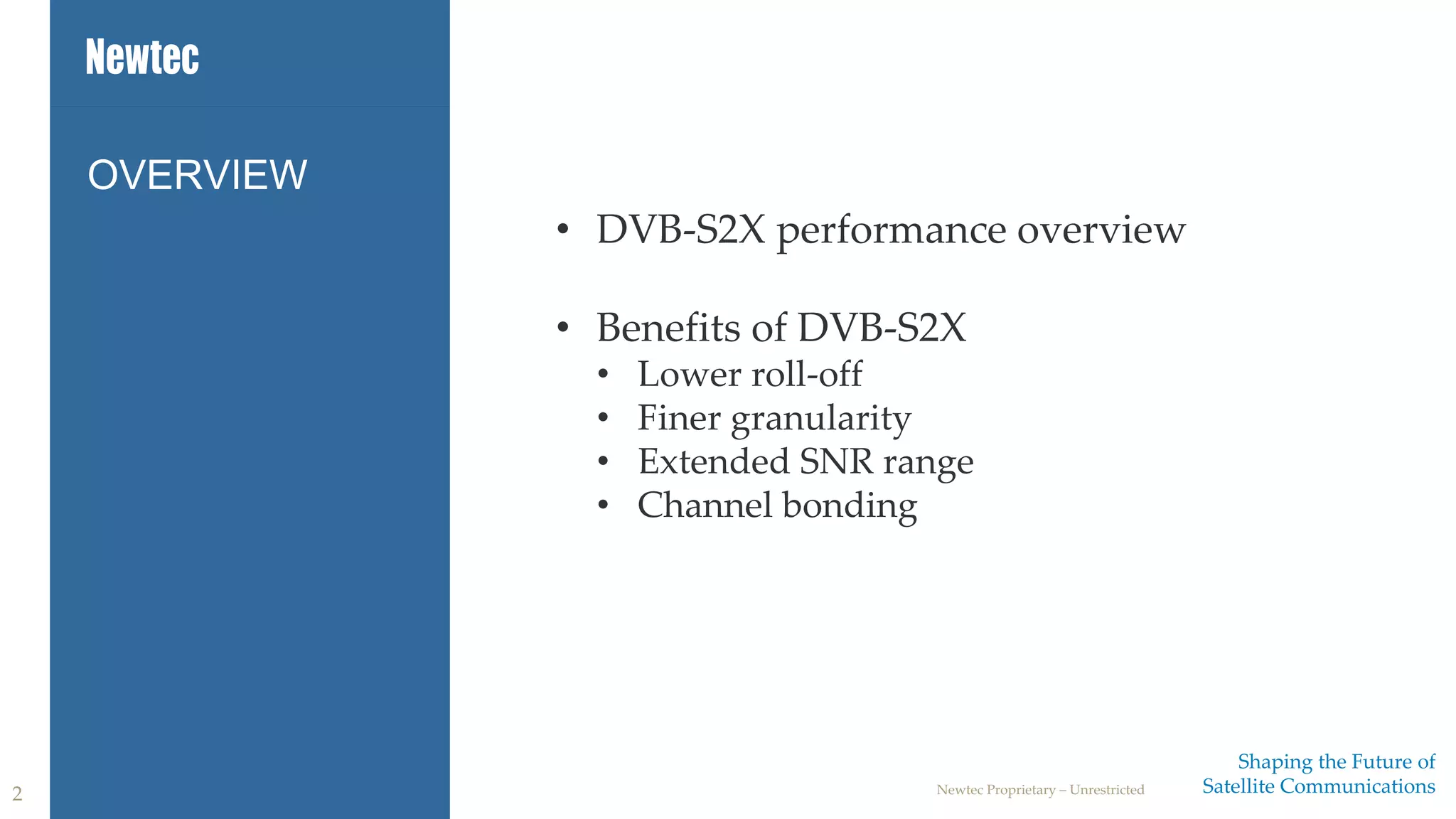

- 2. Shaping the Future of Satellite CommunicationsNewtec Proprietary – Unrestricted2 OVERVIEW • DVB-S2X performance overview • Benefits of DVB-S2X • Lower roll-off • Finer granularity • Extended SNR range • Channel bonding
- 4. 4 1dB 10%
- 5. 5 • Low roll-off allows to increase symbolrate within same bandwidth • Eg. increase symbol rate from 30 MBaud to 32.8MBaud (10% throughput increase) • Power loss of 0.4 dB can be fully recovered by applying predistortion at transmitter • DVB-S2X + predistortion = 10% more channels in DTH service 0.4dB power loss RO 20% RO 10% 20% 10% 36MHz 36MHz 30Mbaud 32.8Mbaud Advantage of Lower Roll-off
- 6. 6 Advantage of Finer MODCOD Granularity • Requested coverage (Egypt) • EIRP footprint definitions • DVB-S2 (27.5Mbaud; 25% RO) specific contours for 99.5% availability • DVB-S2X (33Mbaud, 10%RO) specific contours for 99.5% availabilility DVB-S2X 16% higher bitrate 44 dBW 46.5 dBW 8PSK 5/6 8PSK 3/4 Or smaller dishes !
- 7. 7 Advantage of Extended SNR range
- 8. 8 Advantage of Extended SNR range VL-SNR (Very Low Signal-to-Noise Ratio) • DVB-S2 minimal Es/No = -2.5dB • DVB-S2X minimal Es/No = -10dB • Why? • Link budget • Emission regulations -> adjacent satellites • How? • Traditional spreading = entire stream is spreaded • DVB-S2X spreading = only frames that require low Es/No
- 9. 9 Advantage of Extended SNR range Up to 51% efficiency improvement over DVB-S2
- 10. 10 Advantage of Channel Bonding • HDTV • channel ~ 8Mbps • 7 channels in 1 tpx (60Mbps) • UHDTV • channel ~ 16 Mbps • 3 channels in 1 tpx (60Mbps) • Bonding: 11 channels in 3 tpx 36MHz 60Mbps 36MHz 60Mbps 36MHz 60Mbps 9 UHDTV channels 11 UHDTV channels (+22%) Bond 3 TS into 1 large TS
