8T8R antenna technology can help address challenges for LTE TDD deployment, such as higher propagation loss at higher frequencies and high indoor loss. 8T8R uses 8 transmit and 8 receive antennas to provide improved coverage and capacity over 4T4R. It can boost cell capacity by up to 40% and improve indoor coverage. Huawei's new 8T8R antenna solution supports frequencies from 2300MHz to 2600MHz and 3300MHz to 3800MHz, enabling flexible network configuration through soft split and beamforming functions.

2. 2 Page 2
中国区 1页 赵毅
Industry Insights

3. 3 Page 3

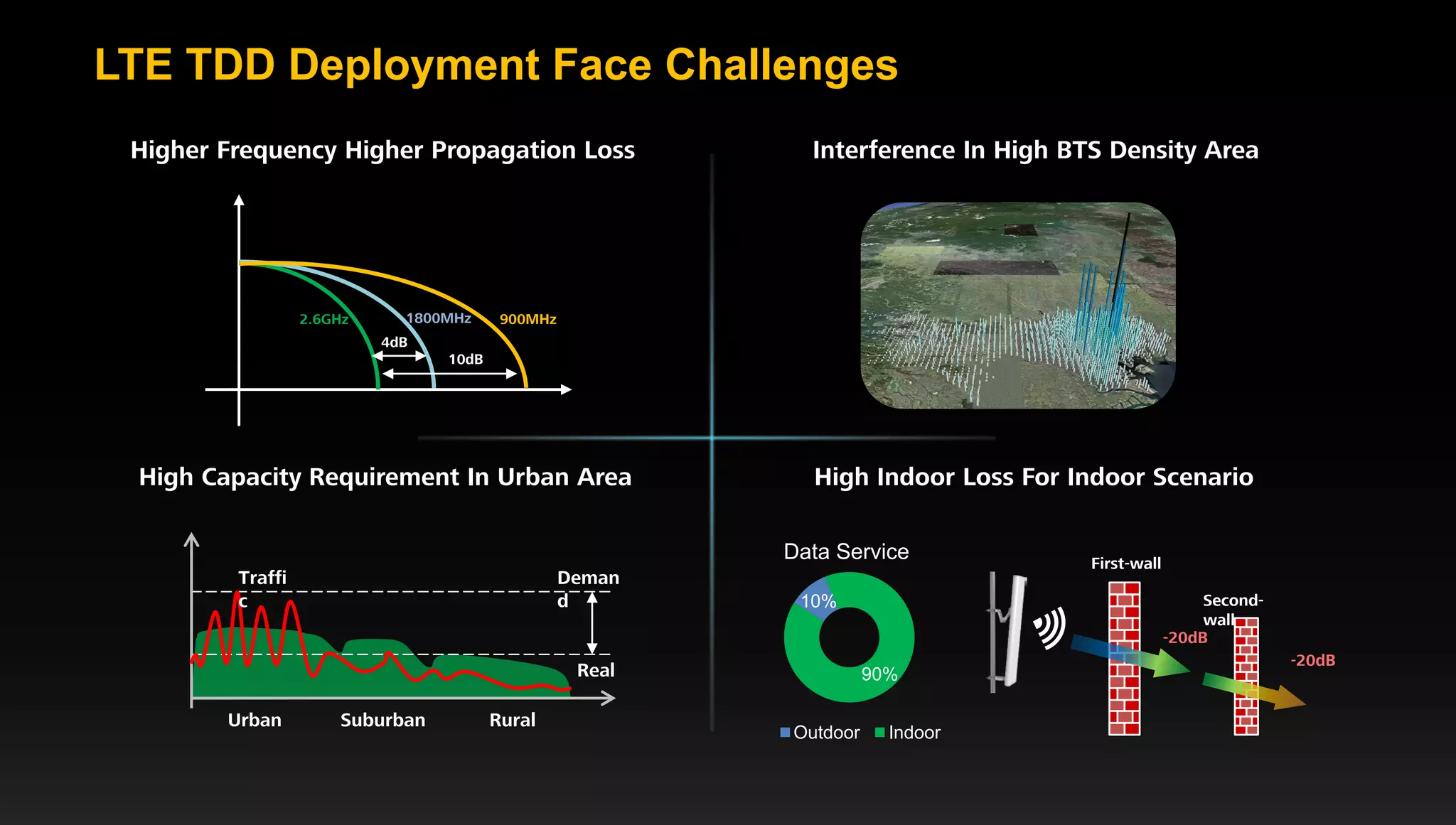

LTE TDD Deployment Face Challenges
Higher Frequency Higher Propagation Loss Interference In High BTS Density Area
High Capacity Requirement In Urban Area High Indoor Loss For Indoor Scenario
900MHz2.6GHz 1800MHz
4dB
10dB
Traffi
c
Deman
d
Real
Urban Suburban Rural
10%
90%
Data Service
Outdoor Indoor
First-wall
Second-
wall
-20dB
-20dB

4. 4 Page 4

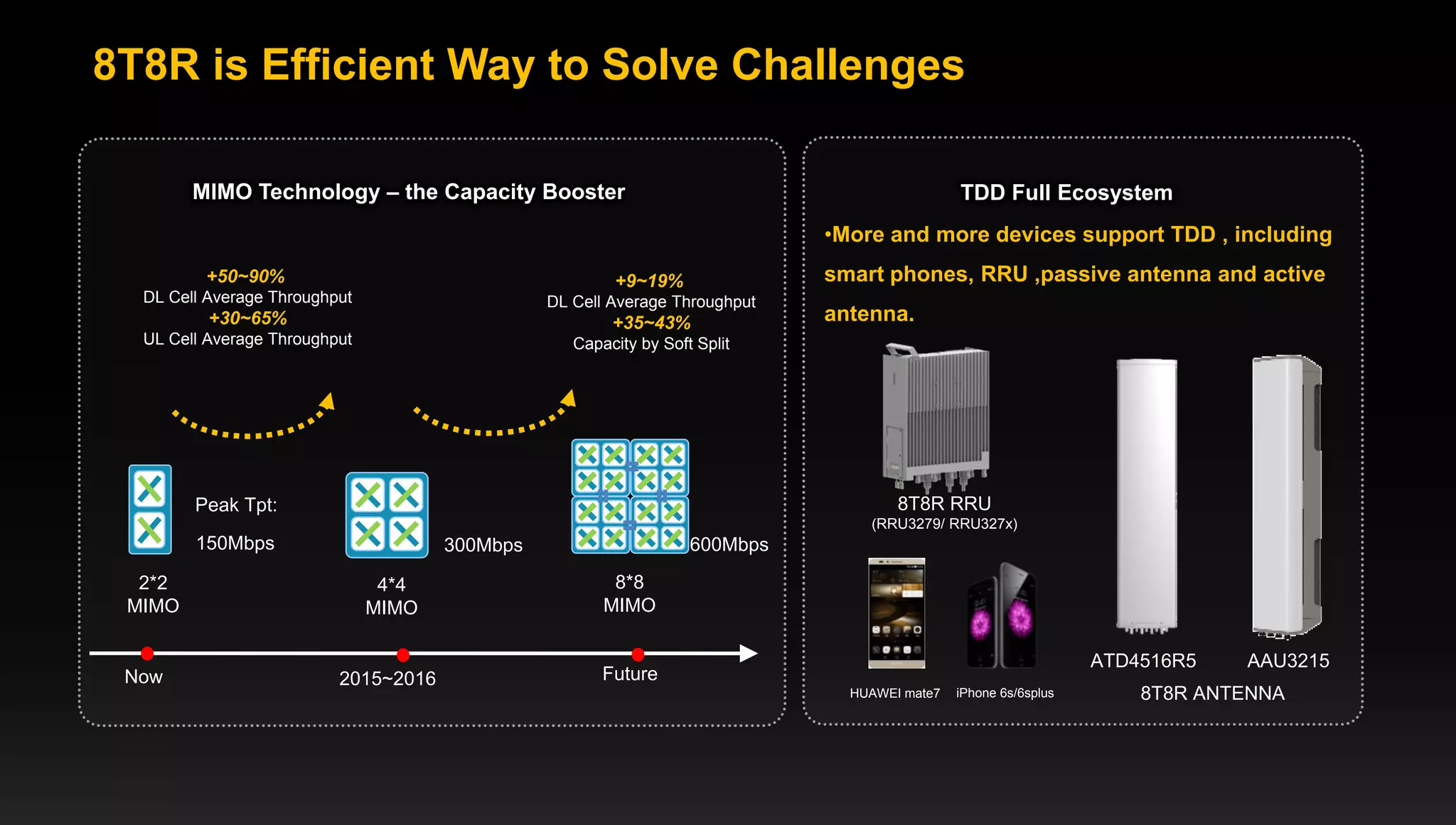

8T8R is Efficient Way to Solve Challenges
MIMO Technology – the Capacity Booster
2*2
MIMO
8*8
MIMO
4*4
MIMO
Now 2015~2016 Future
150Mbps 300Mbps 600Mbps
Peak Tpt:
+50~90%
DL Cell Average Throughput
+30~65%
UL Cell Average Throughput
+9~19%
DL Cell Average Throughput
+35~43%
Capacity by Soft Split
TDD Full Ecosystem
•More and more devices support TDD , including
smart phones, RRU ,passive antenna and active
antenna.
HUAWEI mate7 iPhone 6s/6splus
8T8R RRU
(RRU3279/ RRU327x)
AAU3215ATD4516R5
8T8R ANTENNA

5. 5 Page 5
8T8R With Better Performance Than 4T4R
Coverage Gain Interference Control
Capacity Gain Indoor Loss
4T4R
8R Diversity:
+3dB
8R IRC:
+2dB
+40% Cell Radius
8T8R
DL UL
4T4R
UL SINR
8T8R
UL SINR
35% ↑
Better SINR Better Throughput
4T4R
57.4% coverage probability
8T8R
80.1% coverage probability
8T8R vs. 4T4R
indoor
RSRP Coverage

6. 6 Page 6
中国区 1页 赵毅
Huawei Antenna Strategy

7. 7 Page 7
• Frequency Range (MHz)：2300-2400/2496-2690
• 65° Broadcast Beam：17.5/18
• Single Column Beam Width : 90°
• Downtilt(°)：2-12
• Size（mm）：1445 x 299 x 109
• Weight（Kg）：16
• Connector：9 x N-Female
• Already Available
8T8R Antenna Solution
2300-2600MHz 3300-3800MHz
• Frequency Range (MHz)：3300-3800
• 65° Broadcast Beam：17
• Single Column Beam Width : 78°
• Downtilt(°)：2-12
• Size（mm）：1100 x 259 x 135
• Weight（Kg）：13
• Connector：9 x N-Female
• Available in 2016 Q2

8. 8 Page 8

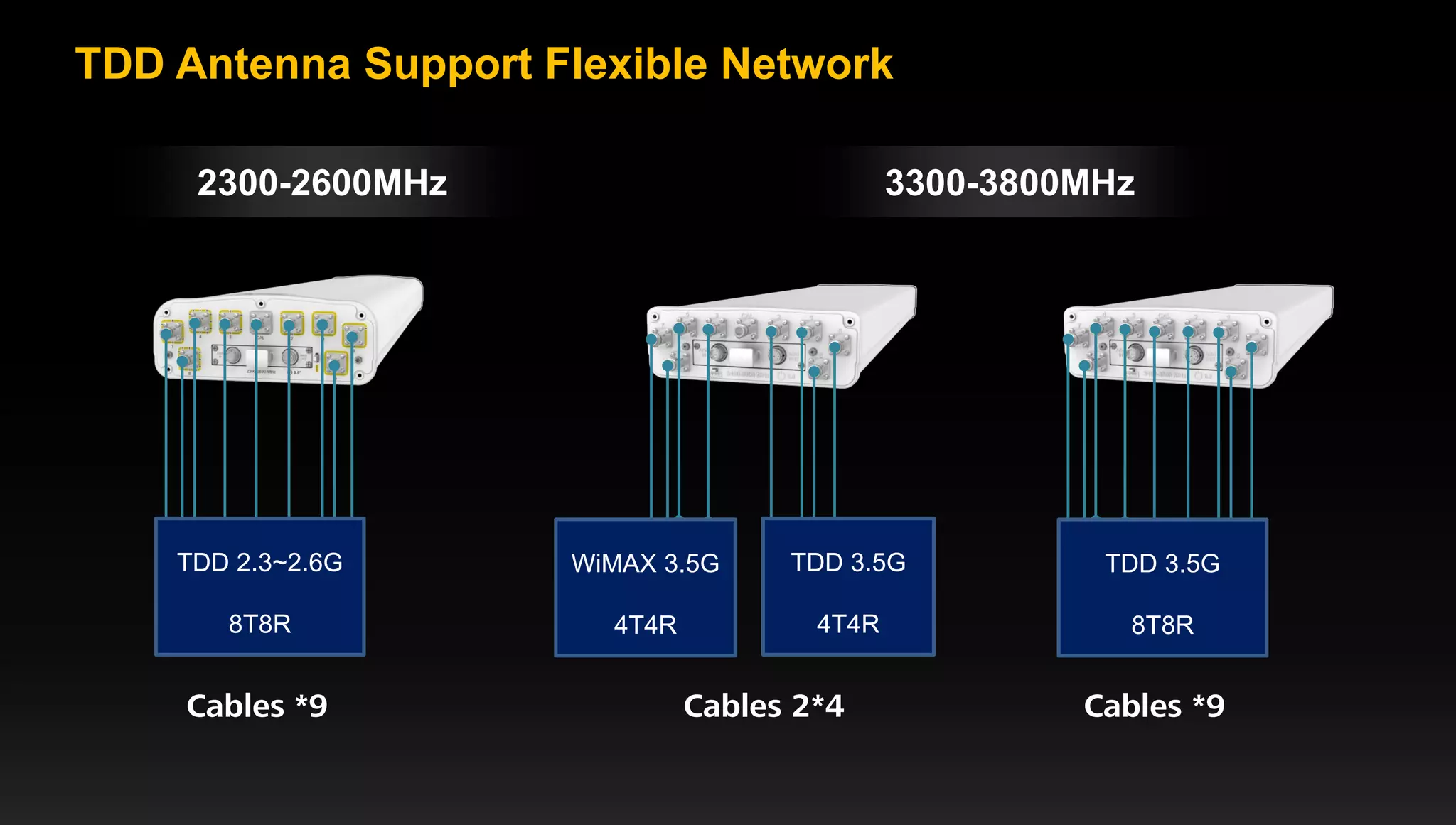

TDD Antenna Support Flexible Network
2300-2600MHz 3300-3800MHz
TDD 2.3~2.6G
8T8R
WiMAX 3.5G
4T4R
TDD 3.5G
4T4R
TDD 3.5G
8T8R
Cables *9 Cables 2*4 Cables *9

9. 9 Page 9
Soft Split
EasyBeam
Beamforming
Capacity
Efficiency
8T8R
Antenna
Feature of 8T8R Antenna

10. 10 Page 10

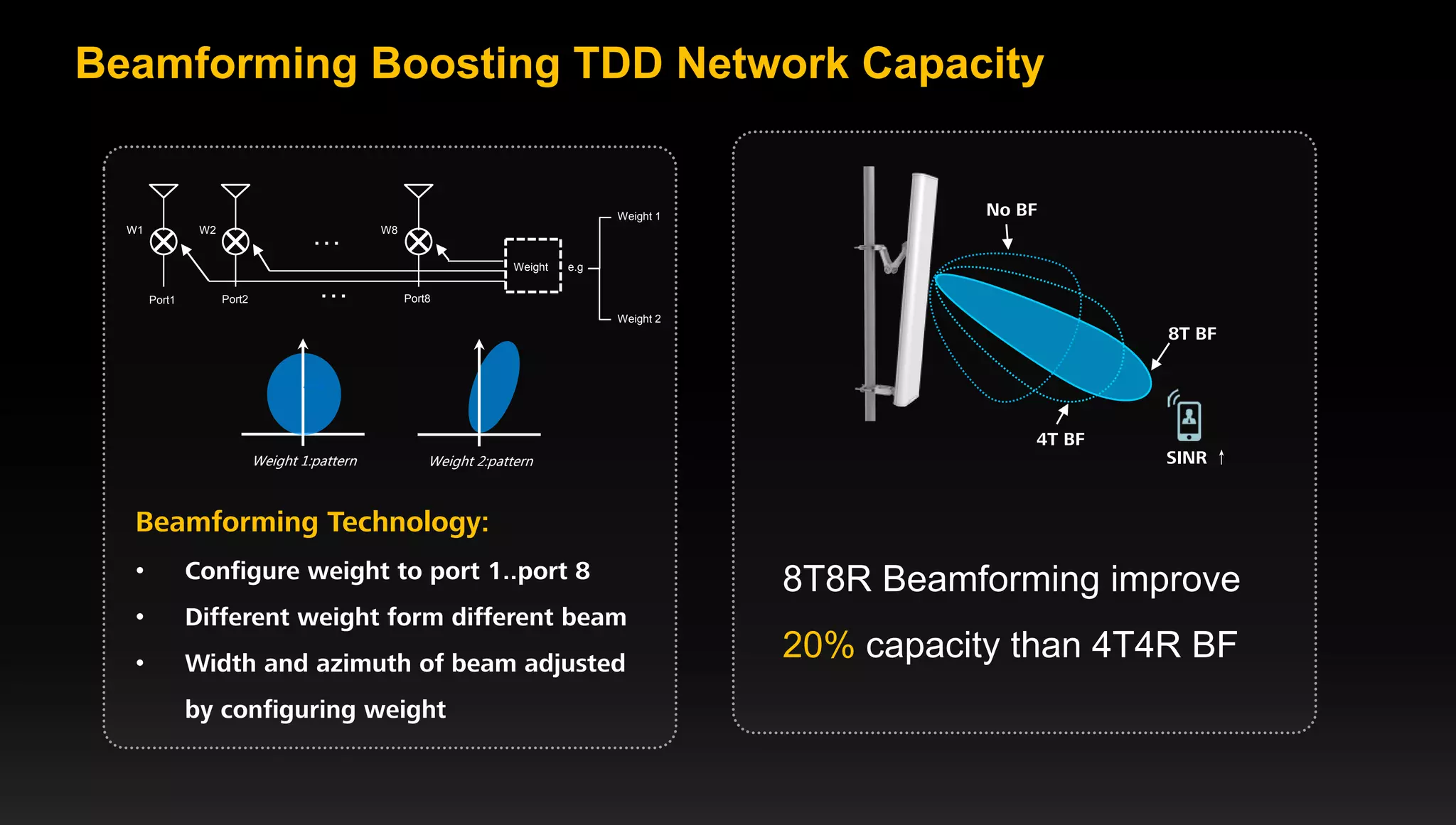

Beamforming Boosting TDD Network Capacity
Beamforming Technology:
• Configure weight to port 1..port 8
• Different weight form different beam
• Width and azimuth of beam adjusted
by configuring weight
8T8R Beamforming improve
20% capacity than 4T4R BF
Weight 1:pattern Weight 2:pattern
…
…Port1 Port2 Port8
W1 W2 W8
Weight e.g
Weight 1
Weight 2
8T BF
4T BF
No BF
SINR ↑

11. 11 Page 11

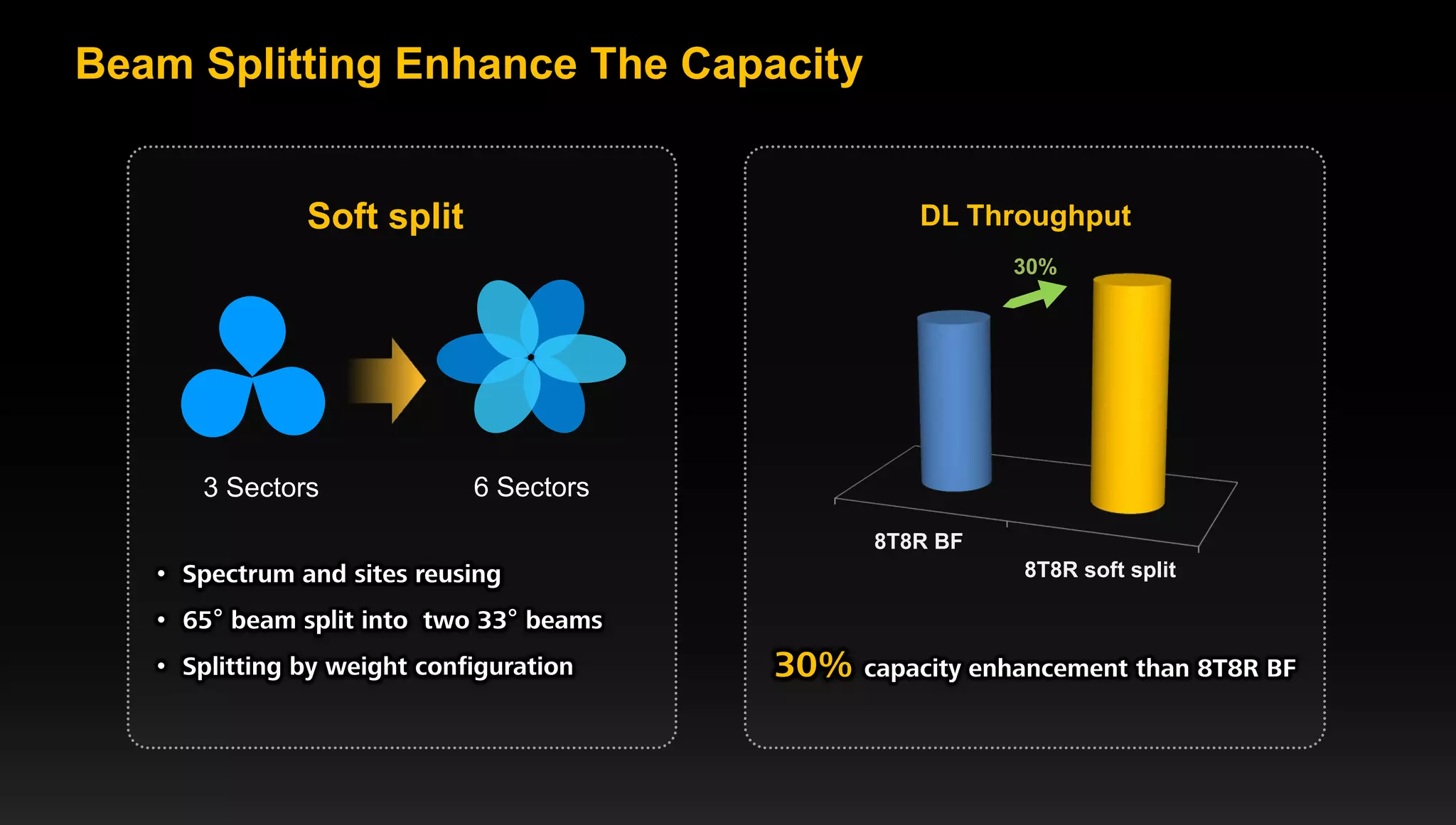

Beam Splitting Enhance The Capacity
6 Sectors3 Sectors
Soft split
• Spectrum and sites reusing
• 65° beam split into two 33° beams
• Splitting by weight configuration
8T8R BF
8T8R soft split
DL Throughput
30%
30% capacity enhancement than 8T8R BF

12. 12 Page 12
1
2
3

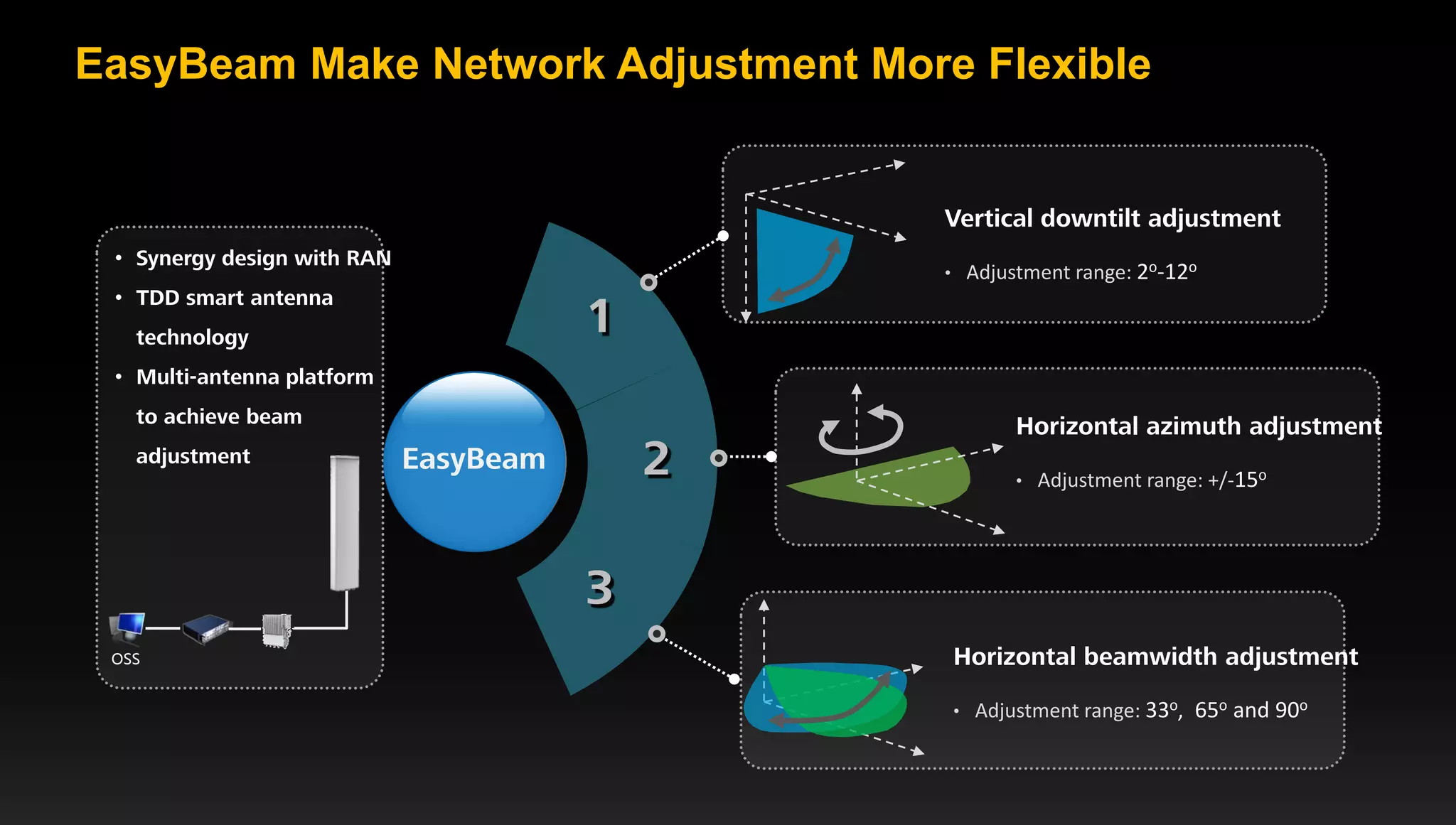

EasyBeam
Vertical downtilt adjustment
• Adjustment range: 2o-12o
Horizontal azimuth adjustment
• Adjustment range: +/-15o
Horizontal beamwidth adjustment
• Adjustment range: 33o, 65o and 90o
• Synergy design with RAN
• TDD smart antenna
technology
• Multi-antenna platform
to achieve beam
adjustment
OSS
EasyBeam Make Network Adjustment More Flexible
