- 1. Shiron Satellite Communications TrueBroadband Everywhere™
- 2. Proprietarily and confidential AboutShiron •Founded in 1996 - Headquarter: Petach Tikva, Israel. •ACM in inbound direction from 2002. •Pioneer and leader in DVB-S2 and bidirectional 8PSK deployment (from June, 2006). •Bi-directional ACM from 2007, based on bi-directional link management per VSAT. •16APSK deployment and implementation from February 2008. • First DVB-S2 network mass deployment with saturated transponder (16APSK). March 2008. •Industry leader in satellite resources efficiency. ACM plus 16APSK Outbound and 8PSK inbound. •Over 20.000 terminal delivered. •Working with leading satellite operators & service provider. Significant DVB-S2/DVB-S coverage in C&Ku bands.
- 3. Proprietarily and confidential Worldwideall time zone support centers: Israel, Venezuela, Colombia, Australia Sales offices: •Americas US, Miami Mexico, Mexico city Colombia, Bogota Venezuela, Caracas Brazil, Rio De Janeiro •EMEA, CIS & International Israel, Petach Tikva Russia, Moscow Nigeria, Repair Centers •APAC Australia, Melbourne Philippines, Manila About Shiron

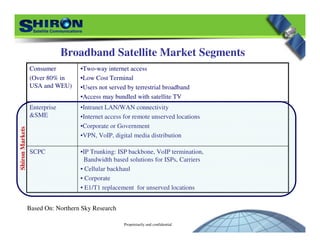

- 4. Proprietarily and confidential BroadbandSatellite Market Segments •IP Trunking: ISP backbone, VoIP termination, Bandwidth based solutions for ISPs, Carriers • Cellular backhaul • Corporate • E1/T1 replacement for unserved locations SCPC •Intranet LAN/WAN connectivity •Internet access for remote unserved locations •Corporate or Government •VPN, VoIP, digital media distribution Enterprise &SME •Two-way internet access •Low Cost Terminal •Users not served by terrestrial broadband •Access may bundled with satellite TV Consumer (Over 80% in USA and WEU) ShironMarkets Based On: Northern Sky Research
- 5. Proprietarily and confidential TRUEBroadband EverywhereTM • Multiservice and Beyond – Voice, Data, Video – Mobility • Cost-Efficient Backhauling – Cellular (CDMA, GSM) – WLL (Wi-MAX, Wi-Fi) • Proven Governmental Applications – Rural Telecommunications – Remote Education – Disaster Recovery – Emergency Services – Stationary and Mobile Deployment

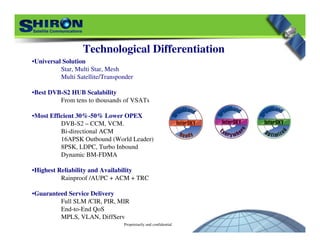

- 6. Proprietarily and confidential TechnologicalDifferentiation •Universal Solution Star, Multi Star, Mesh Multi Satellite/Transponder •Best DVB-S2 HUB Scalability From tens to thousands of VSATs •Most Efficient 30%-50% Lower OPEX DVB-S2 – CCM, VCM. Bi-directional ACM 16APSK Outbound (World Leader) 8PSK, LDPC, Turbo Inbound Dynamic BM-FDMA •Highest Reliability and Availability Rainproof /AUPC + ACM + TRC •Guaranteed Service Delivery Full SLM /CIR, PIR, MIR End-to-End QoS MPLS, VLAN, DiffServ

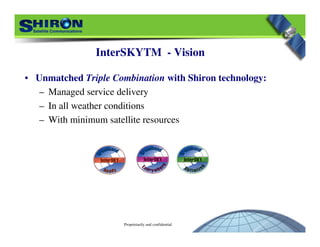

- 7. Proprietarily and confidential InterSKYTM- Vision • Unmatched Triple Combination with Shiron technology: – Managed service delivery – In all weather conditions – With minimum satellite resources

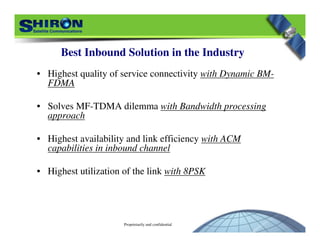

- 8. Proprietarily and confidential •Highest quality of service connectivity with Dynamic BM- FDMA • Solves MF-TDMA dilemma with Bandwidth processing approach • Highest availability and link efficiency with ACM capabilities in inbound channel • Highest utilization of the link with 8PSK Best Inbound Solution in the Industry

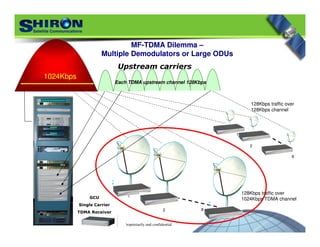

- 9. Proprietarily and confidential Upstreamcarriers 1024Kbps 128Kbps traffic over 1024Kbps TDMA channel 128Kbps traffic over 128Kbps channel 1 2 8 1 2 8 GCU Single Carrier TDMA Receiver MF-TDMA Dilemma – Multiple Demodulators or Large ODUs Each TDMA upstream channel 128Kbps 2

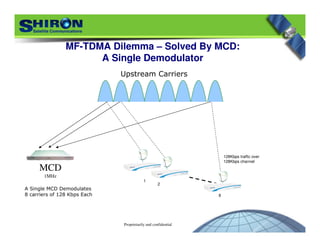

- 10. Proprietarily and confidential MF-TDMADilemma – Solved By MCD: A Single Demodulator Upstream Carriers 128Kbps traffic over 128Kbps channel 1 2 8 MCD 1MHz A Single MCD Demodulates 8 carriers of 128 Kbps Each
- 11. Proprietarily and confidential AdaptiveAccess Scheme •Shiron's InterSKY system offers the Adaptive Access Scheme utilizing patented Dynamic BM-FDMA technology. InterSKY's Access Scheme provides the superior combination of BoD + Clear Channel/Managed SCPC + Dynamic Random Access modes. •In contrast to MF-TDMA based systems, InterSKY Adaptive Access Schemes automatically maintain optimal satellite resources, while managing service availability. •MCD combined with BoD (Bandwidth of Demand), TRC (Traffic Rate Control) and APC (Automatic Power Control) allows an ACM (Adaptive Coding and Modulation) operation in inbound direction with a large dynamic range that can combat large rain fade and maintain the link connectivity with high availability. •Inbound ACM includes the following major components: MODCOD selection (QPSK, 3/4; 8PSK, 2/3 ; 8PSK, 8/9) Dynamic APC and BoD Dynamic TRC

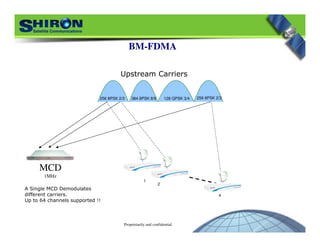

- 12. Proprietarily and confidential UpstreamCarriers 1 2 4 MCD 1MHz A Single MCD Demodulates different carriers. Up to 64 channels supported !! BM-FDMA 256 8PSK 2/3 128 QPSK 3/4384 8PSK 8/9 256 8PSK 2/3

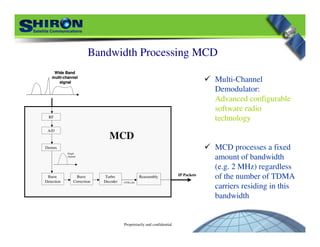

- 13. Proprietarily and confidential BandwidthProcessing MCD MCD RF A/D Demux Wide Band multi-channel signal Burst Detection Burst Correction Single channel Turbo Decoder ATM cells Reassembly IP Packets MCD RF A/D Demux Wide Band multi-channel signal Wide Band multi-channel signal Burst Detection Burst Correction Single channel Turbo Decoder ATM cells Reassembly IP Packets Multi-Channel Demodulator: Advanced configurable software radio technology MCD processes a fixed amount of bandwidth (e.g. 2 MHz) regardless of the number of TDMA carriers residing in this bandwidth
- 14. Proprietarily and confidential 16APSKOver Satellite – Multicarrier Case • InterSKY system enables to use more PEB (Power equivalent BW) than BW for 16APSK Outbound carrier by balancing with inbound channels. • Multicarrier operation uses linear mode and as result no distortion for amplitude modulation of 16APSK • Embedded equalizer in the modulator compensates for group delay and amplitude variations. • InterSKY system allows to work on the edges of transponder by management of satellite resources allocations - inbound on the edges and DVB-S2 carrier on the center of transponder Best Outbound Solution in the Industry
- 15. Proprietarily and confidential 16APSKOver Satellite – Saturated Transponder Case • InterSKY system allows to work with saturated transponder using : – Embedded equalizer in the modulator – Back-off according to the DVB-S2 standard – Taking into account the degradation – "ETSI TR 102 376 V1.1.1 (2005-02) Technical Report" in case of 16APSK and with dynamic predistortion the expected degradation is 1.5 dB and the required backoff is IBO = 1.0 dB ; OBO = 1.1 dB Best Outbound Solution in the Industry

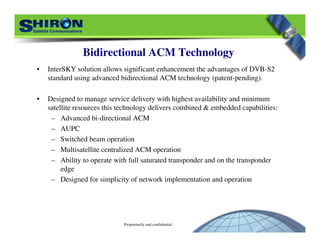

- 16. Proprietarily and confidential BidirectionalACM Technology • InterSKY solution allows significant enhancement the advantages of DVB-S2 standard using advanced bidirectional ACM technology (patent-pending). • Designed to manage service delivery with highest availability and minimum satellite resources this technology delivers combined & embedded capabilities: – Advanced bi-directional ACM – AUPC – Switched beam operation – Multisatellite centralized ACM operation – Ability to operate with full saturated transponder and on the transponder edge – Designed for simplicity of network implementation and operation

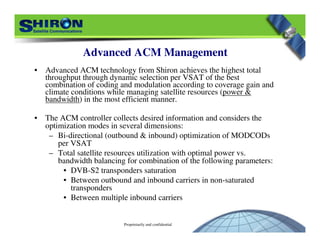

- 17. Proprietarily and confidential AdvancedACM Management • Advanced ACM technology from Shiron achieves the highest total throughput through dynamic selection per VSAT of the best combination of coding and modulation according to coverage gain and climate conditions while managing satellite resources (power & bandwidth) in the most efficient manner. • The ACM controller collects desired information and considers the optimization modes in several dimensions: – Bi-directional (outbound & inbound) optimization of MODCODs per VSAT – Total satellite resources utilization with optimal power vs. bandwidth balancing for combination of the following parameters: • DVB-S2 transponders saturation • Between outbound and inbound carriers in non-saturated transponders • Between multiple inbound carriers

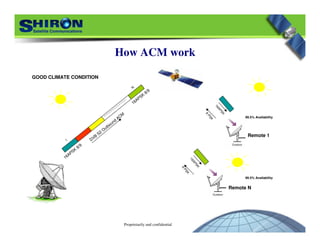

- 18. Proprietarily and confidential HowACM work Remote 1 Remote N 1 N DVB S2 Outbound ACM 16APSK 8/9 16APSK 8/9 16APSK 16APSK GOOD CLIMATE CONDITION 8 PSK 8 PSK 99.5% Availability 99.5% Availability
- 19. Proprietarily and confidential Remote1 Remote N 1 N DVB S2 Outbound ACM 16APK 8/9 16APSK 8/9 16PSK 16APSK GOOD CLIMATE CONDITION 8 PSK Q PSK BAD CLIMATE CONDITION 99.5% Availability 99.5% Availability How ACM work Order remote priority 1. APC 2. FEC 3. MOD 4. Data Rate (TRC)

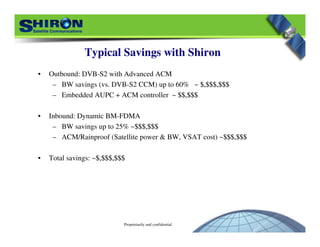

- 20. Proprietarily and confidential TypicalSavings with Shiron • Outbound: DVB-S2 with Advanced ACM – BW savings (vs. DVB-S2 CCM) up to 60% ~ $,$$$,$$$$,$$$,$$$ – Embedded AUPC + ACM controller ~ $$,$$$$$,$$$ • Inbound: Dynamic BM-FDMA – BW savings up to 25% ~$$$,$$$$$$,$$$ – ACM/Rainproof (Satellite power & BW, VSAT cost) ~$$$,$$$$$$,$$$ • Total savings: ~$,$$$,$$$$,$$$,$$$
- 21. Proprietarily and confidential GESACProject (Study Case) SUMMARY Country: Brazil Service: Internet with 6 different profile Sites: (Lot B): 5917 sites. Band: Ku Satellite: C1 Accelerated: SI Total capacity Inbound: 77,346 Mbps Total capacity Outbound: 152,872 Mbps Availability: 99.0%

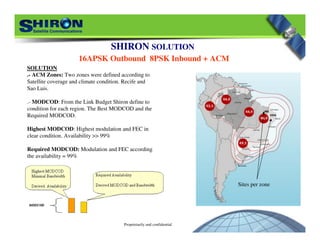

- 22. Proprietarily and confidential Sitesper zone SHIRON SOLUTION 16APSK Outbound 8PSK Inbound + ACM SOLUTION .- ACM Zones: Two zones were defined according to Satellite coverage and climate condition. Recife and Sao Luis. .- MODCOD: From the Link Budget Shiron define to condition for each region. The Best MODCOD and the Required MODCOD. Highest MODCOD: Highest modulation and FEC in clear condition. Availability >> 99% Required MODCOD: Modulation and FEC according the availability = 99%
- 23. Proprietarily and confidential SHIRONSOLUTION 16APSK Outbound 8PSK Inbound + ACM Zone 1 Mode 1 MODCOD:16APSK 0.667 BW : X/61 Availability: 97% Mode 1 Zone 2 Mode 2 MODCOD:8PSK 0.75 BW Ratio :X/67.5 Availability: 99% Tunja Zone 2 Mode 1 MODCOD:16APSK 0.667 BW Ratio :X/80 Availability: 92% Zone 1 Mode 1 MODCOD:16APSK 0.8 BW Ratio : X/96 Availability: 92% Zone 1 Mode 2 MODCOD:8PSK 0.833 BW Ratio :X/75 Availability: 99% Zone 1 Mode 1 MODCOD:16APSK 0.667 BW : X/61 Availability: 97% Mode 1 Zone 2 Mode 2 MODCOD:8PSK 0.75 BW Ratio :X/67.5 Availability: 99% Tunja Zone 2 Mode 1 MODCOD:16APSK 0.667 BW Ratio :X/80 Availability: 92% Zone 1 Mode 1 MODCOD:16APSK 0.8 BW Ratio : X/96 Availability: 92% Zone 1 Mode 2 MODCOD:8PSK 0.833 BW Ratio :X/75 Availability: 99%
- 24. Proprietarily and confidential SHIRONSOLUTION 16APSK Outbound 8PSK Inbound and ACM .- What mean Highest MODCOD Availability ? Is the % of time which the Outbound will be operating with the highest MODCOD. For this case, the Outbound will operate under 16APSK FEC 0.8 in 92% of the time. .- What mean Required MODCOD Availability ? Is the MODCOD use to guarantee the availability required to the network: 99%. For this case, the Outbound will operate under 8PSK FEC 0.8333 with bad climate condition, worst case. .- How long time the Outbound will operate in Highest MODCOD and in Required MODCOD ? To this case Highest MODCOD: 92% of the time. To this case Required MODCOD: 99%-92% = 7% of the time. .- What about the Inbound ? The analysis is similar but the Highest MODCOD supported is 8PSK FEC 0.833. .- What about the satellites Power and BW resources use ? Like 16APSK use less BW but more power resources from the satellite. The systems is designed to do the balance Power Vs BW between the Outbound and Inbound. The total power and BW used is balance.

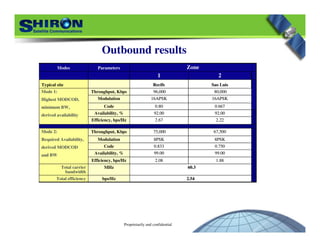

- 25. Proprietarily and confidential 21 60.3MHzTotalcarrier bandwidth Total efficiency 1.882.08Efficiency, bps/Hz Mode 2: Required Availability, derived MODCOD and BW 99.0099.00Availability, % 16APSK16APSKModulation 92.0092.00Availability, % 0.7500.833Code ZoneParametersModes 2.222.67Efficiency, bps/Hz 0.6670.80Code 80,00096,000Throughput, KbpsMode 1: Highest MODCOD, minimum BW, derived availability 2.54bps/Hz Modulation Throughput, Kbps Typical site 8PSK8PSK 67,50075,000 Sao LuisRecife 21 60.3MHzTotal carrier bandwidth Total efficiency 1.882.08Efficiency, bps/Hz Mode 2: Required Availability, derived MODCOD and BW 99.0099.00Availability, % 16APSK16APSKModulation 92.0092.00Availability, % 0.7500.833Code ZoneParametersModes 2.222.67Efficiency, bps/Hz 0.6670.80Code 80,00096,000Throughput, KbpsMode 1: Highest MODCOD, minimum BW, derived availability 2.54bps/Hz Modulation Throughput, Kbps Typical site 8PSK8PSK 67,50075,000 Sao LuisRecife Outbound results

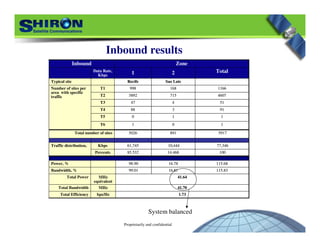

- 26. Proprietarily and confidential 41.64MHz equivalent TotalPower 115.8316.8199.01Bandwidth, % 41.70MHzTotal Bandwidth 115.6816.7898.90Power, % Total Efficiency 1.73bps/Hz 41.64MHz equivalent Total Power 115.8316.8199.01Bandwidth, % 41.70MHzTotal Bandwidth 115.6816.7898.90Power, % Total Efficiency 1.73bps/Hz 46077153892T2 1166168998T1 51447T3 101T6 Number of sites per area with specific traffic Traffic distribution, Total number of sites Typical site Inbound 77,34610,44461,745Kbps 110T5 Zone 91388T4 Sao LuisRecife 10014.46885.532Percents Data Rate, Kbps 5917 Total 8915026 21 46077153892T2 1166168998T1 51447T3 101T6 Number of sites per area with specific traffic Traffic distribution, Total number of sites Typical site Inbound 77,34610,44461,745Kbps 110T5 Zone 91388T4 Sao LuisRecife 10014.46885.532Percents Data Rate, Kbps 5917 Total 8915026 21 System balanced Inbound results

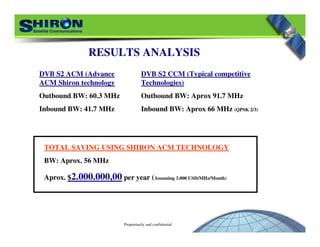

- 27. Proprietarily and confidential DVBS2 ACM (Advance ACM Shiron technology Outbound BW: 60.3 MHz Inbound BW: 41.7 MHz DVB S2 CCM (Typical competitive Technologies) Outbound BW: Aprox 91.7 MHz Inbound BW: Aprox 66 MHz (QPSK 2/3) RESULTS ANALYSIS TOTAL SAVING USING SHIRON ACM TECHNOLOGY BW: Aprox. 56 MHz Aprox. $2.000.000,00 per year (Assuming 3.000 USD/MHz/Month)
- 28. Proprietarily and confidential 16APSKvs. BW Cancellation (Case) 16APSK .- Space Segment: 36 MHz .- Band: Ku .- Satellite: C1 .- Availability: 99.0 % .- SHIRON: DVBS2 16 APSK Outbound 8 PSK Inbound. ACM both way. .- Transponder: Not saturated BW Cancellation .- Space Segment: 36 MHz .- Band: Ku .- Satellite: C1 .- Availability: 99.0 % .- BW Cancel: DVBS2. Best MODCOD in Outbound and inbound to get 25 dB Cancellation factor and availability. .- Transponder: Not saturated Scenario

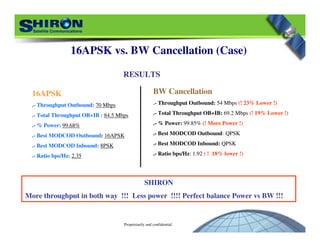

- 29. Proprietarily and confidential 16APSKvs. BW Cancellation (Case) 16APSK .- Throughput Outbound: 70 Mbps .- Total Throughput OB+IB : 84.5 Mbps .- % Power: 99.68% .- Best MODCOD Outbound: 16APSK .- Best MODCOD Inbound: 8PSK .- Ratio bps/Hz: 2.35 BW Cancellation .- Throughput Outbound: 54 Mbps (! 23% Lower !) .- Total Throughput OB+IB: 69.2 Mbps (! 19% Lower !) .- % Power: 99.85% (! More Power !) .- Best MODCOD Outbound: QPSK .- Best MODCOD Inbound: QPSK .- Ratio bps/Hz: 1.92 ( ! 18% lower !) RESULTS SHIRON More throughput in both way !!! Less power !!!! Perfect balance Power vs BW !!!
- 30.

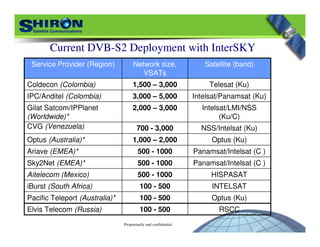

- 31. Proprietarily and confidential CurrentDVB-S2 Deployment with InterSKY HISPASAT500 - 1000Aitelecom (Mexico) INTELSAT100 - 500iBurst (South Africa) RSCC100 - 500Elvis Telecom (Russia) Optus (Ku)100 - 500Pacific Teleport (Australia)* Panamsat/Intelsat (C )500 - 1000Sky2Net (EMEA)* Panamsat/Intelsat (C )500 - 1000Ariave (EMEA)* Optus (Ku)1,000 – 2,000Optus (Australia)* NSS/Intelsat (Ku)700 - 3,000CVG (Venezuela) Intelsat/LMI/NSS (Ku/C) 2,000 – 3,000Gilat Satcom/IPPlanet (Worldwide)* Intelsat/Panamsat (Ku)3,000 – 5,000IPC/Anditel (Colombia) Telesat (Ku)1,500 – 3,000Coldecon (Colombia) Satellite (band)Network size, VSATs Service Provider (Region)
