Juniper bti packet optical training

The document provides an overview of wavelength division multiplexing (WDM) technology and Juniper's packet optical solutions. It discusses key optical transmission challenges like attenuation, dispersion, and nonlinearities. It also covers topics such as receive power, multiple wavelengths, amplifiers, ROADMs, transponders, and Juniper's integrated and disaggregated product portfolio including the MX series and BTI7000/7800 series. The training is intended to provide a high-level introduction to DWDM 101 and Juniper's end-to-end packet optical solutions.

Embed presentation

Download as PDF, PPTX
Juniper Confidential Juniper’s Packet Optical Training Andyes Kailani November, 2016
Juniper Confidential DWDM 101
Juniper Confidential Topics to Cover • What is WDM? • Optical Transmission Challenges • Grey and Colored Optics • Receive Power • Dispersion • Multiple Wavelengths • Amplifiers • ROADMs • Transponders and Muxponders
Juniper Confidential What is WDM? • With Wavelength division multiplexing (WDM) technology, several wavelengths, or light colors, can be simultaneously multiplexed over a strand of fiber. • No need to lay new fiber, the effective capacity of existing fiber plant can be increased by a factor 40, 96, and 128 • The term wavelength is used instead of the term frequency to avoid confusion with other uses of frequency. Wavelength is often used interchangeably with lambda and channel Transmitter Receiver Combiner (Mux) Separator (Demux)
Juniper Confidential Optical Transmission Challenges • Attenuation • decay of signal strength, or loss of light power, as the signal propagates through the fiber • Chromatic dispersion • spreading of light pulses as they travel down the fiber • Nonlinearities • cumulative effects from the interaction of light with the material through which it travels, resulting in changes in the lightwave and interactions between lightwaves
Juniper Confidential Gray and Colored Optics… 40km • Gray (850nm/1310nm/1550nm) • Colored Optics (WDM: 15xx nm) Router / Switch Router / Switch 2m Multi Mode QFX-SFP-10GE 850nm Single Mode CFP-100GBASE-ER4, CFP 100G PLUGGABLE TRANSCEIVER SMF 1550NM FOR 40KM TRANSMISSION 2m Multi Mode QFX-SFP-10GE 850nm 850nm – ~2dB/km 1310nm – ~0.5dB/km C-Band ~0.25dB/km 1530–1565 nm L-Band ~0.25dB/km 1565–1625 nm 850nm 1310nm L-BandC-Band DWDM
Juniper Confidential Receive Power 40km • Receiver needs to be able to distinguish 1 from 0 • 3 key parameters have to be within the tolerance of the receiver • Rx Power, Dispersion, and Optical Signal to Noise Ratio (OSNR) • dB : relative measurement • dBm : an absolute value -1 dBm -11 dBm Fiberloss = 0.25 dB/km x 40km = 10 dB Sample SFP Tx/Rx Spec Tx Power -1 to 2 dBm Rx Power -22 dBm Dispersion Tolerance 1600 ps/nm OSNR 20dB Site A Site B
Juniper Confidential Dispersion 40km • Not all the photons have exactly the same wavelength • Different wavelength photons will travel at a slightly different rate down the fiber • Causes pulse broadening which makes it difficult to discriminate 1 from 0 pulses Dispersion = 17 ps/nm/km x 40km = 680 ps/nm Sample SFP Tx/Rx Spec Tx Power -1 to 2 dBm Rx Power -22 dBm Dispersion Tolerance 1600 ps/nm OSNR 20dB 0 ps/nm 680 ps/nm 1 0 1 0 1 1 1 1 Site A Site B
Juniper Confidential Multiple Wavelengths • C-Band or L-Band is where we transport multiple wavelengths • Wavelengths are combined using Optical Mux/Demux Modules • 8-32ch, 40ch, 96ch • Spacing of the wavelengths or channels is usually 100GHz or 50GHz • Mux/Demux have insertion loss Sample SFP Tx/Rx Spec Tx Power -1 to 2 dBm Rx Power -22 dBm Dispersion Tolerance 1600 ps/nm OSNR 20dB Optical Mux Optical Demux -1 dBm -7 dBm -17 dBm -23 dBm 40km Site A Site B
Juniper Confidential Amplifiers • Amplifiers or EDFAs work in the C & L Bands, not the whole CWDM spectrum • Typically 3-types of Amplifiers • Post-Amp (Booster) – Lower gain with best output power • Pre-Amp – High gain with best receiver sensitivity • Line-Amp – Multi-stage combining Pre & Post amplifiers • EDFAs are not 100% efficient; amplify both the signal and the noise Post-Amplifier or Booster Line Amplifier Pre-Amplifier l EDFA The signal is amplified but Amplified Spontaneous Emissions (ASE) noise is also added. l Site A Site B
Juniper Confidential FOADMs • FOADM : Fixed Optical Add/Drop Multiplexor • Required manually patching at transit site • Manual adjust optical power is required 45km 10km 30km Pass Thru Add/Drop Drop Site A Site B Site C
Juniper Confidential ROADMs • ROADM : Reconfigurable Optical Add/Drop Multiplexor • Allows one to control which channels are add/dropped and which channels are passed thru • Power management and balancing to avoid non-linear effects 2-degree 3-degree 4-degree 45km 10km 30kmPass Thru Add/Drop Drop 2-degree Site A Site B Site C
Juniper Confidential Transponders and Muxponders Multiple Grey 10G waves Multiple Colored DWDM 10G waves 1:1 Multiple Grey 10G waves One Colored DWDM 100G wave n:1 Transponder Muxponder
Juniper Confidential Packet Optical Product Overview
Juniper Confidential Juniper/BTI End-to-End Solution Portfolio BTI7000 product line BTI7800 product line IP/Ethernet Platforms Optical Solutions ACX Series MX Series MX Integrated Transponders 10G DWDM 100G DWDM Network Management/Applicati ons proNX Service ManagerJunos Space/CSD SDN NorthStar SDN Controller proNX SLA Portal QFX Series

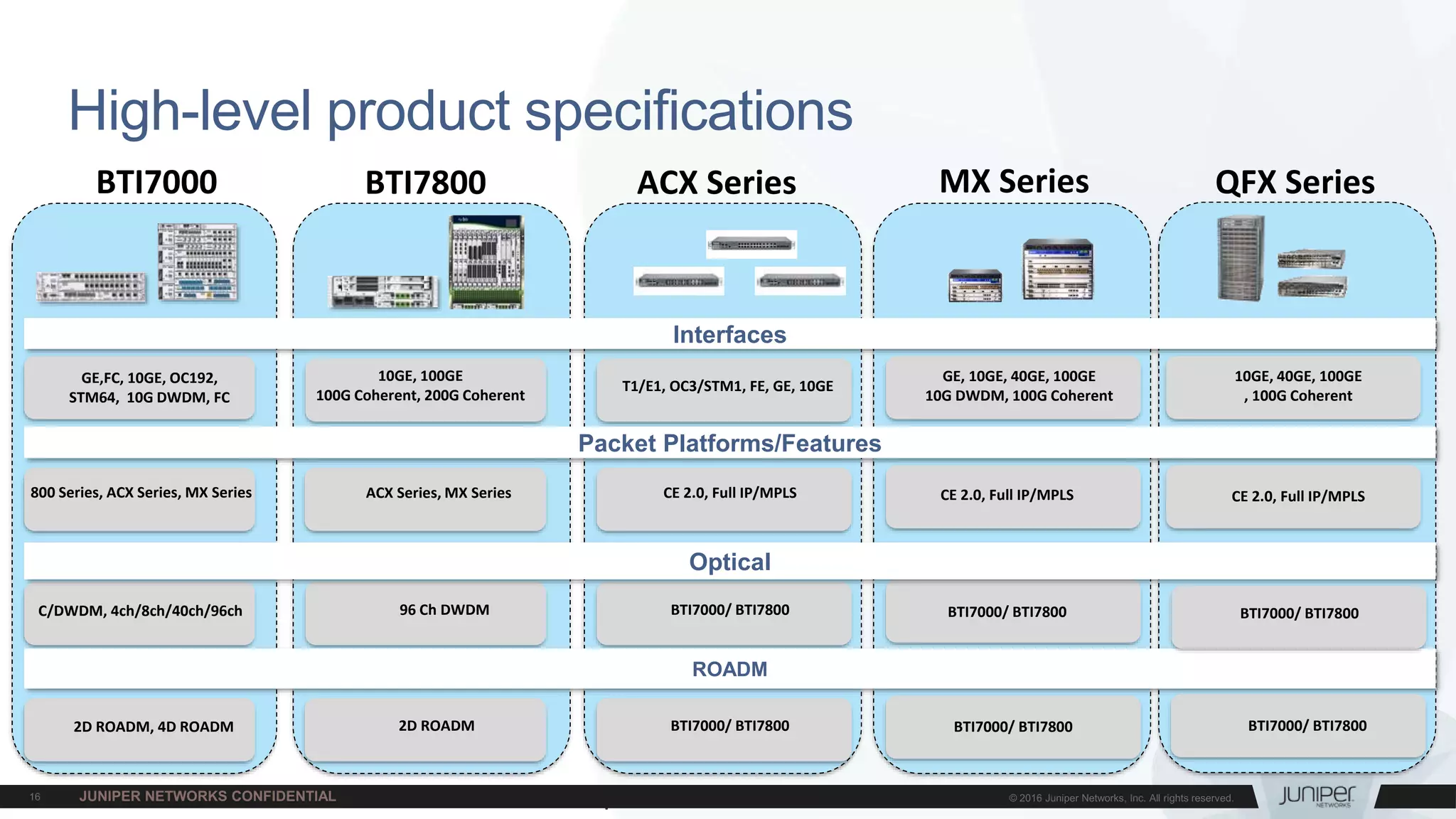

Juniper Confidential High-level product specifications GE,FC, 10GE, OC192, STM64, 10G DWDM, FC BTI7000 C/DWDM, 4ch/8ch/40ch/96ch 2D ROADM, 4D ROADM 800 Series, ACX Series, MX Series 10GE, 100GE 100G Coherent, 200G Coherent 2D ROADM ACX Series, MX Series 96 Ch DWDM BTI7800 T1/E1, OC3/STM1, FE, GE, 10GE BTI7000/ BTI7800 CE 2.0, Full IP/MPLS BTI7000/ BTI7800 ACX Series MX Series GE, 10GE, 40GE, 100GE 10G DWDM, 100G Coherent CE 2.0, Full IP/MPLS BTI7000/ BTI7800 BTI7000/ BTI7800 ROADM Optical Packet Platforms/Features Interfaces QFX Series 10GE, 40GE, 100GE , 100G Coherent CE 2.0, Full IP/MPLS BTI7000/ BTI7800 BTI7000/ BTI7800
Juniper Confidential Packet Optical Solution Options • IP/Ethernet aggregation function provided via ACX and MX platforms including Ethernet OAM, QoS, reliability, CE2.0 services • P2P, Mesh, Ring topologies IP/Ethernet • Integrated 10G DWDM: MX Series • Integrated 100G Coherent: MX Series • Disaggregated 10G : BTI800/ ACX/ MX + BTI7000 • Disaggregated 100G: ACX/MX + BTI7801/7802/7814 Optical • CSD for E2E service provisioning • PSM for E2E Optical domain management EMS/NMS • End-to-end network solutions capability • Solution flexibility: Integrated and Disaggregated solution options • Services flexibility, L2/L3 VPN services, IP services, • Open solutions enabling best of breed, interop and easy of integration Benefits 10G Disaggregated Solution MX Series MX Series MX Series BTI7800 ACX Series MX Series ACX Series BTI 7000 BTI 7000 BTI7800 100G Coherent DWDM Integrated Solution MX Series MX Series BTI7800 BTI7800 100G Disaggregated Solution BTI800 line BTI800 Lline

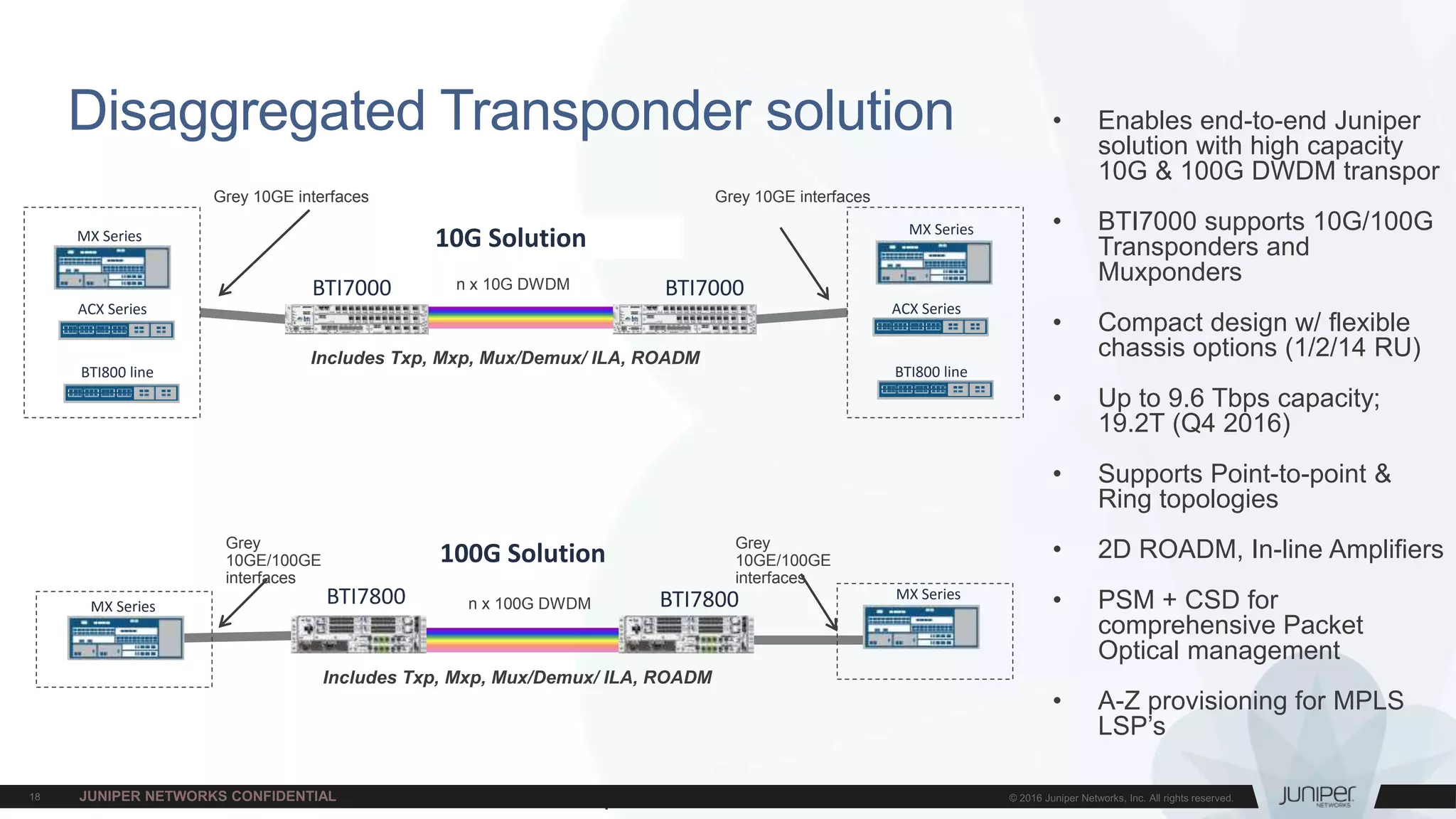

Juniper Confidential Disaggregated Transponder solution • Enables end-to-end Juniper solution with high capacity 10G & 100G DWDM transpor • BTI7000 supports 10G/100G Transponders and Muxponders • Compact design w/ flexible chassis options (1/2/14 RU) • Up to 9.6 Tbps capacity; 19.2T (Q4 2016) • Supports Point-to-point & Ring topologies • 2D ROADM, In-line Amplifiers • PSM + CSD for comprehensive Packet Optical management • A-Z provisioning for MPLS LSP’s 10G Solution BTI7000 BTI7000 BTI7800 BTI7800 100G Solution MX Series ACX Series BTI800 line MX Series ACX Series BTI800 line MX Series MX Series Includes Txp, Mxp, Mux/Demux/ ILA, ROADM Includes Txp, Mxp, Mux/Demux/ ILA, ROADM Grey 10GE/100GE interfaces n x 10G DWDM n x 100G DWDM Grey 10GE interfaces Grey 10GE interfaces Grey 10GE/100GE interfaces

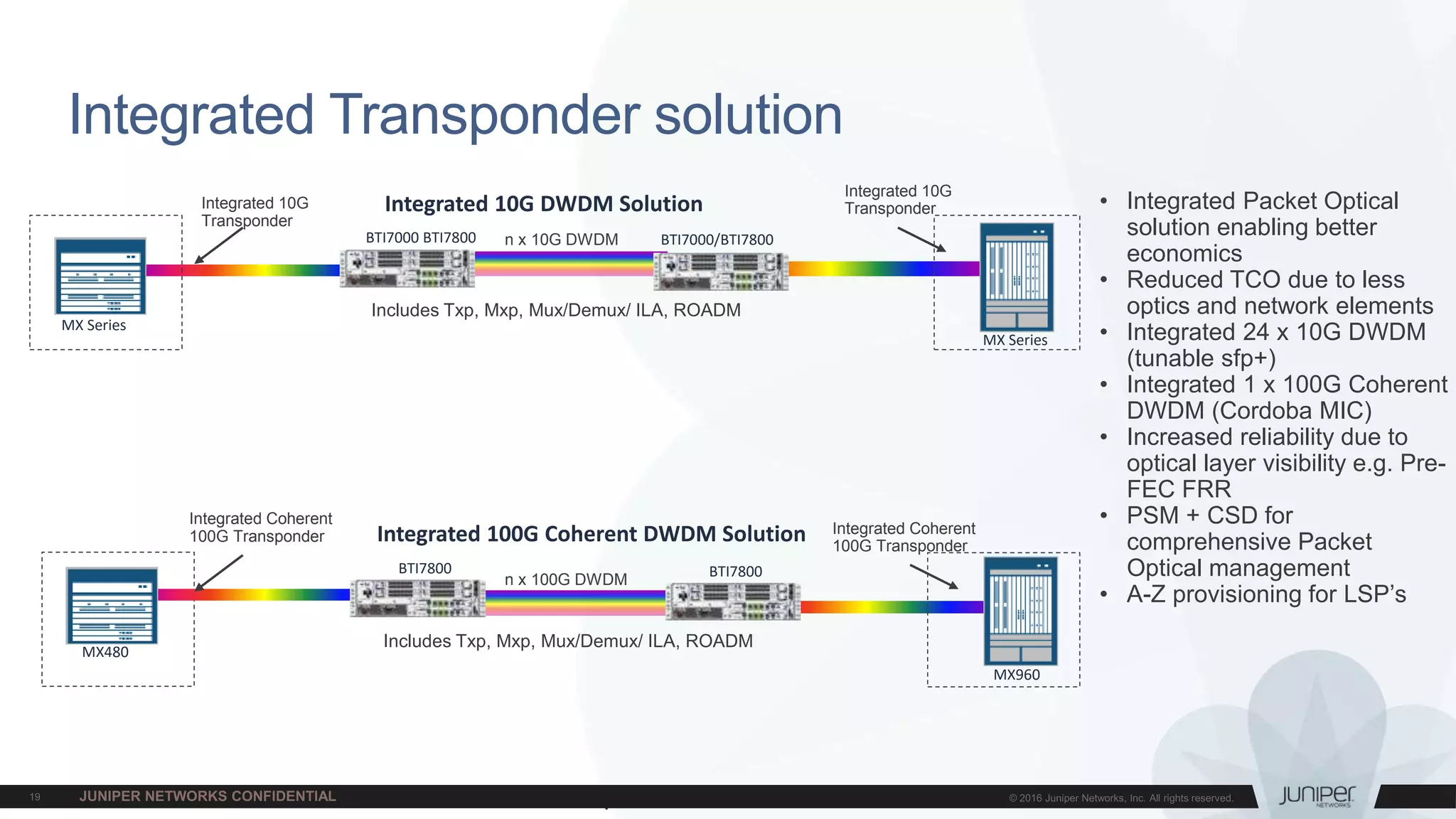

Juniper Confidential Integrated Transponder solution • Integrated Packet Optical solution enabling better economics • Reduced TCO due to less optics and network elements • Integrated 24 x 10G DWDM (tunable sfp+) • Integrated 1 x 100G Coherent DWDM (Cordoba MIC) • Increased reliability due to optical layer visibility e.g. Pre- FEC FRR • PSM + CSD for comprehensive Packet Optical management • A-Z provisioning for LSP’s MX480 BTI7800 BTI7800 Integrated 100G Coherent DWDM Solution BTI7000 BTI7800 BTI7000/BTI7800 Integrated 10G DWDM Solution MX Series MX Series MX960 Integrated Coherent 100G Transponder Integrated Coherent 100G Transponder Integrated 10G Transponder Integrated 10G Transponder Includes Txp, Mxp, Mux/Demux/ ILA, ROADM Includes Txp, Mxp, Mux/Demux/ ILA, ROADM n x 10G DWDM n x 100G DWDM

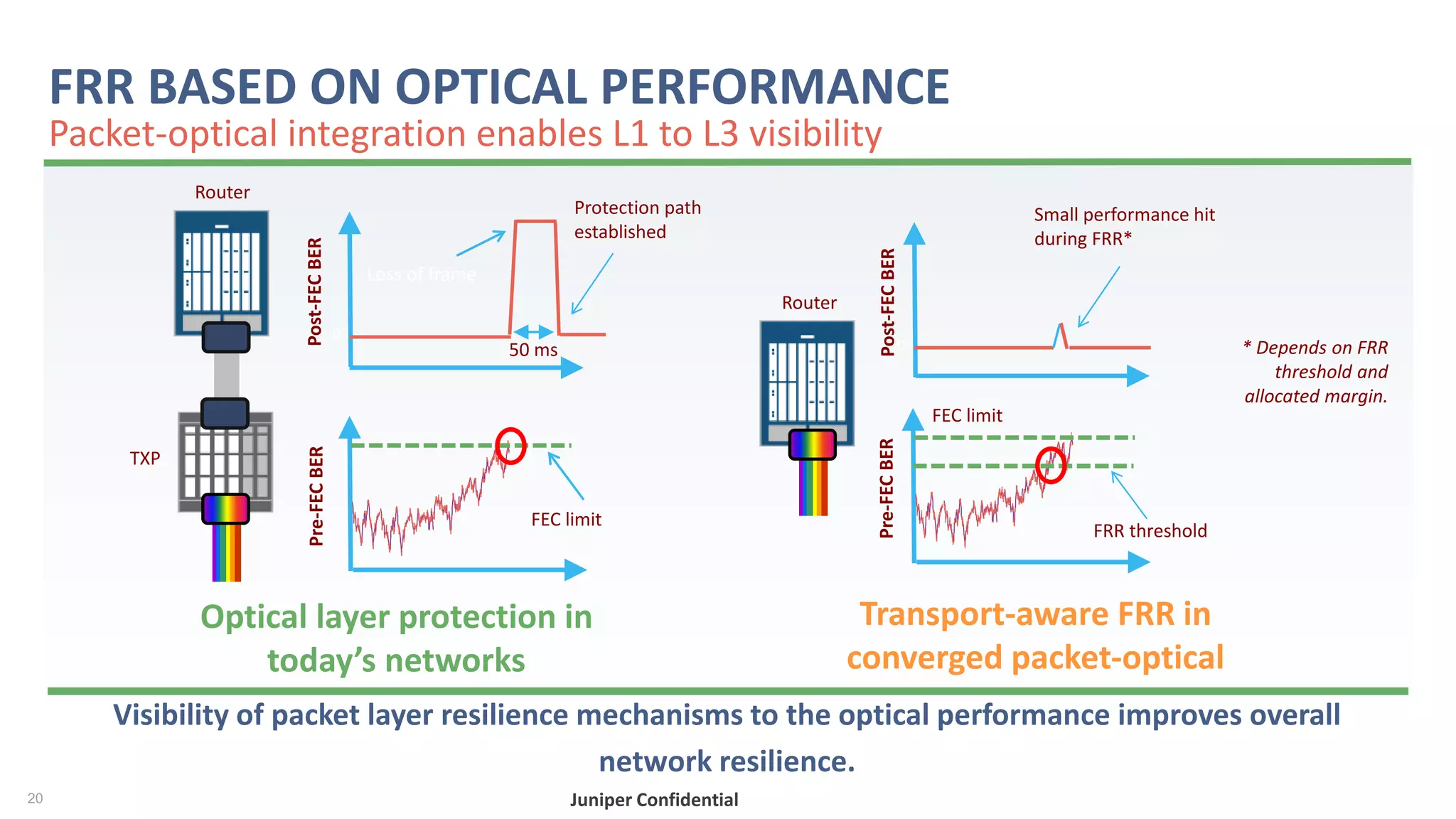

Juniper Confidential FRR BASED ON OPTICAL PERFORMANCE Packet-optical integration enables L1 to L3 visibility 50 ms TXP Router Post-FECBER 0 Loss of frame Protection path established Pre-FECBER FEC limit Optical layer protection in today’s networks Router Pre-FECBERPost-FECBER 0 Small performance hit during FRR* Transport-aware FRR in converged packet-optical networks FEC limit FRR threshold * Depends on FRR threshold and allocated margin. Visibility of packet layer resilience mechanisms to the optical performance improves overall network resilience.

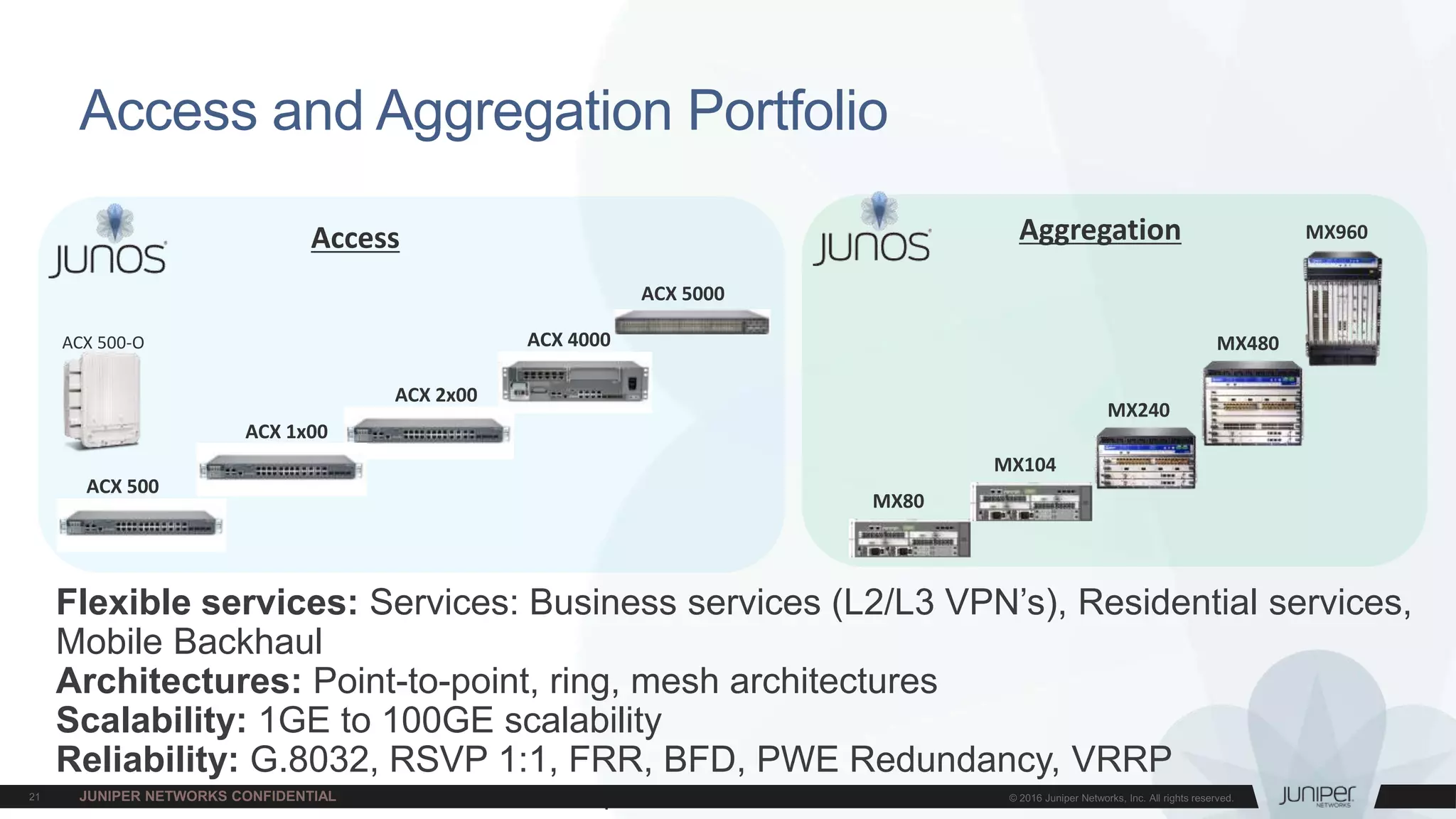

Juniper Confidential Access and Aggregation Portfolio MX960 MX480 Access ACX 4000 ACX 2x00 MX104 ACX 1x00 ACX 500 ACX 5000 Aggregation Flexible services: Services: Business services (L2/L3 VPN’s), Residential services, Mobile Backhaul Architectures: Point-to-point, ring, mesh architectures Scalability: 1GE to 100GE scalability Reliability: G.8032, RSVP 1:1, FRR, BFD, PWE Redundancy, VRRP MX240 MX80 ACX 500-O

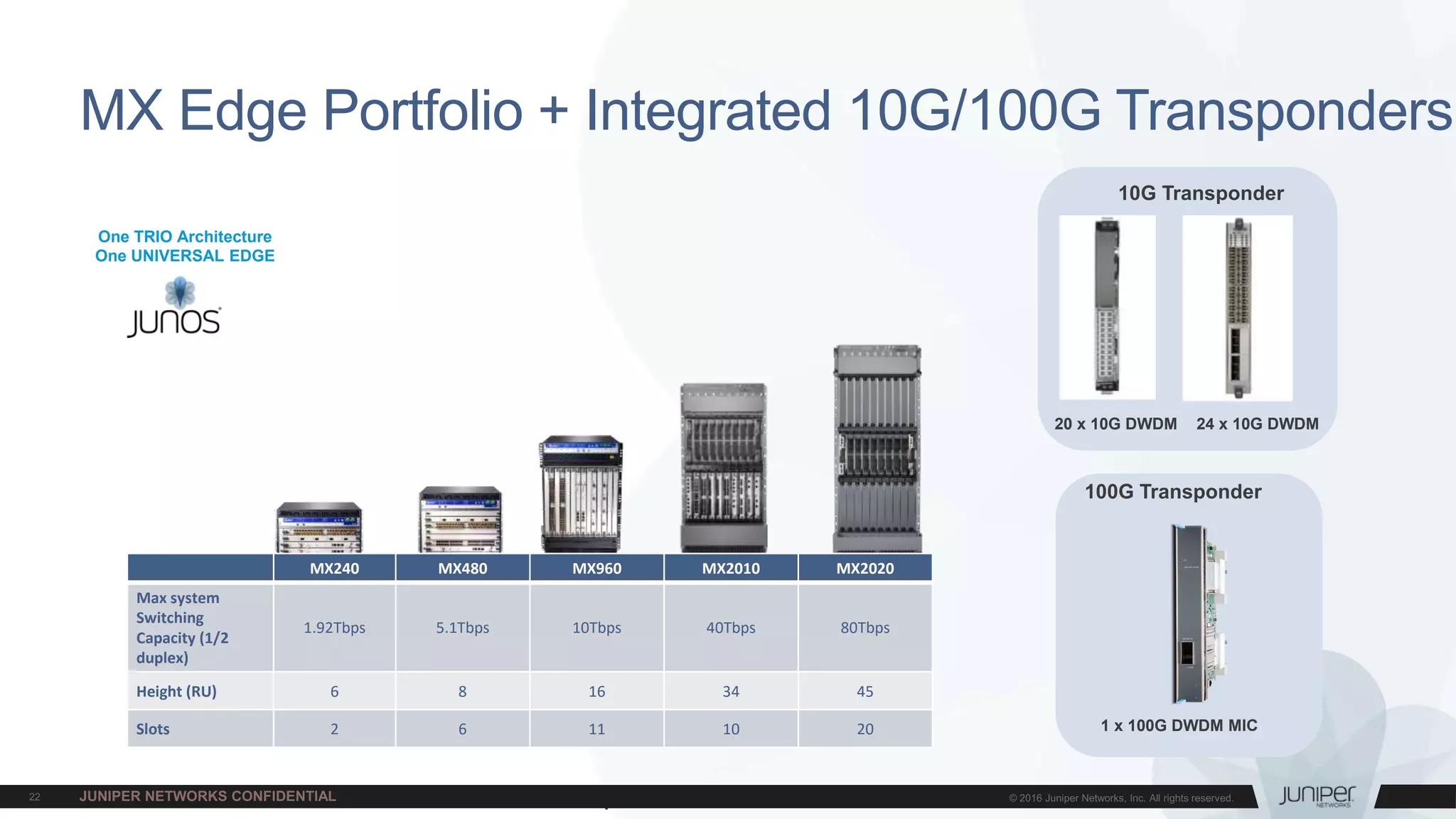

Juniper Confidential MX Edge Portfolio + Integrated 10G/100G Transponders One TRIO Architecture One UNIVERSAL EDGE MX240 MX480 MX960 MX2010 MX2020 Max system Switching Capacity (1/2 duplex) 1.92Tbps 5.1Tbps 10Tbps 40Tbps 80Tbps Height (RU) 6 8 16 34 45 Slots 2 6 11 10 20 1 x 100G DWDM MIC 100G Transponder 20 x 10G DWDM 10G Transponder 24 x 10G DWDM
Juniper Confidential 1 x 100G Coherent DWDM MIC 2nd Generation 100G Coherent Technology • 1 x 100G Coherent Interface Pluggable CFP2-ACO optics • Modulation Type: DP-QPSK • Tunability: 100 Channel (ITU-T C-band) • 1528.773 – 1568.362 • Spacing: 50GHz spacing • Rx Power range: -18 to 0 FEC Modes: • GFEC (G.709) • HG-FEC • SD-FEC CMD Tolerance • +/- 40,000 ps/nm OSNR (Typical): 14.2 dB Supported on MX240, MX480, MX960, MX2010, MX 2020 • Requires MPC3E or MPC3E-NG Distance: Up to 2000km Software Release: 15.1F5 TCFP2-100G-C Now Available MIC3-100G-DWDM
Juniper Confidential Juniper-BTI 7800 Series Portfolio Platform Scale Evolution From 400G to 1Tbps/Slot BTI 7802 400G per slot TODAY 800G per slot 1Tbps per slot BTI 7814 BTI 7801 Model Capacity (bps) Slot s 10GE Capacity 100GE Capacity Rank Units Multi-Chassis 7801 400Gbps 1 40 4 1 H/W Ready 7802 800Gbps 2 80 8 3 Yes 7814 5.6Tbps 14 560 56 14 Yes Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control

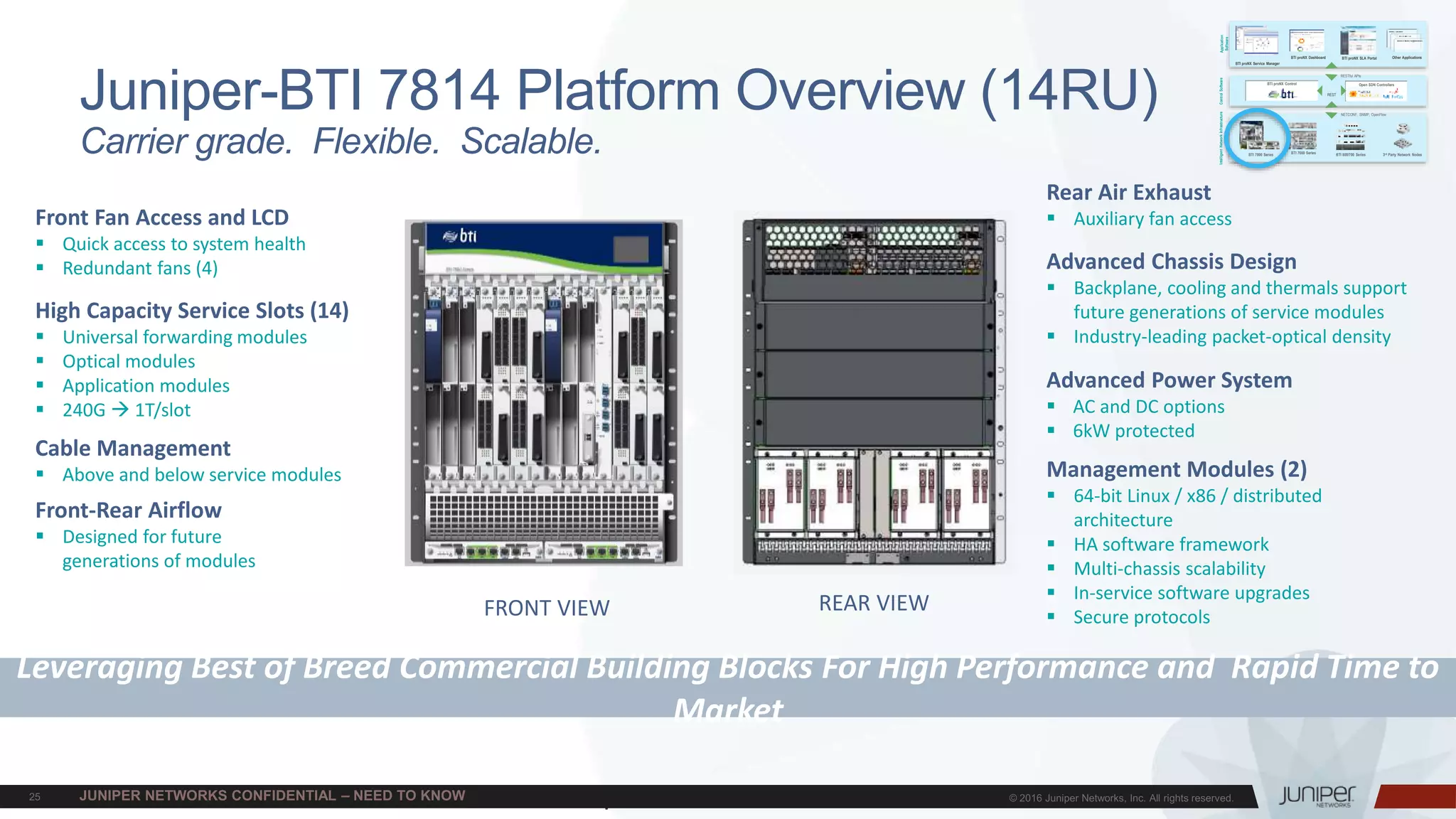

Juniper Confidential Juniper-BTI 7814 Platform Overview (14RU) Carrier grade. Flexible. Scalable. Leveraging Best of Breed Commercial Building Blocks For High Performance and Rapid Time to Market FRONT VIEW REAR VIEW Advanced Power System  AC and DC options  6kW protected Rear Air Exhaust  Auxiliary fan accessFront Fan Access and LCD  Quick access to system health  Redundant fans (4) Front-Rear Airflow  Designed for future generations of modules High Capacity Service Slots (14)  Universal forwarding modules  Optical modules  Application modules  240G  1T/slot Cable Management  Above and below service modules Management Modules (2)  64-bit Linux / x86 / distributed architecture  HA software framework  Multi-chassis scalability  In-service software upgrades  Secure protocols Advanced Chassis Design  Backplane, cooling and thermals support future generations of service modules  Industry-leading packet-optical density Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control
Juniper Confidential Juniper-BTI 7802 Platform Overview (3RU) Fan Power modules Management modulesPower (AC shown) CMM B CMM A CAP Cooling unit With air filter Slot 2 Slot 1 Fiber manager • Common software, management modules & forwarding modules • New chassis, fans & power supplies (AC and DC) • Supports multi-chassis up to 4; Slot capacity up to 1Tbps/slot • Ideal for colocation environments Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control

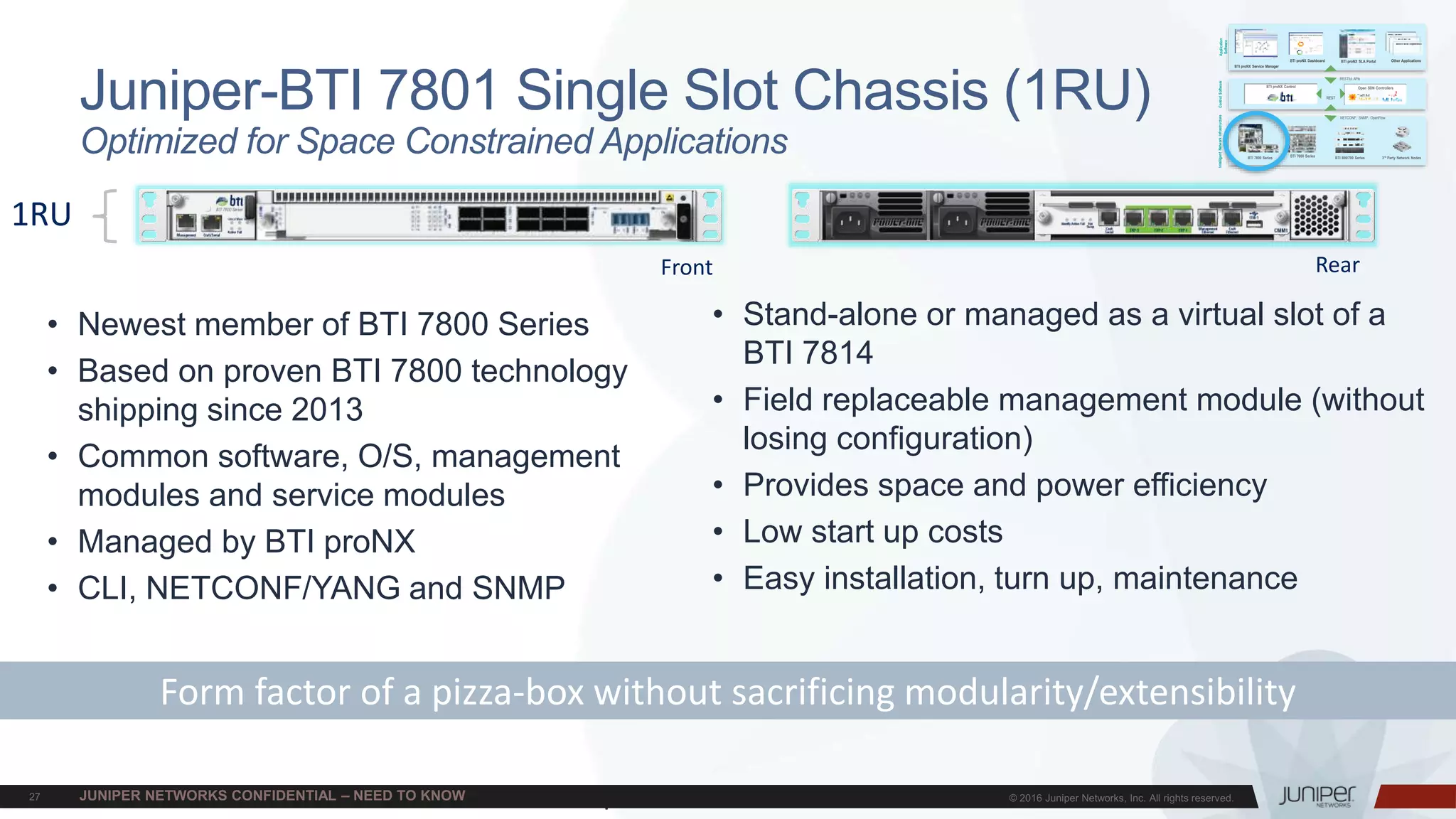

Juniper Confidential Juniper-BTI 7801 Single Slot Chassis (1RU) Optimized for Space Constrained Applications • Newest member of BTI 7800 Series • Based on proven BTI 7800 technology shipping since 2013 • Common software, O/S, management modules and service modules • Managed by BTI proNX • CLI, NETCONF/YANG and SNMP • Stand-alone or managed as a virtual slot of a BTI 7814 • Field replaceable management module (without losing configuration) • Provides space and power efficiency • Low start up costs • Easy installation, turn up, maintenance Form factor of a pizza-box without sacrificing modularity/extensibility 1RU Front Rear Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control
Juniper Confidential Universal Forwarding Modules (UFM) Flexibility Enabled by Universal Forwarding Modules • 14 Universal Slots – Transport and Packet Capable • Universal Forwarding Modules • BTI Interface Cards (BICs) – 12x 10G, 1x 100G • CLI, NETCONF, PSM & REST Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control

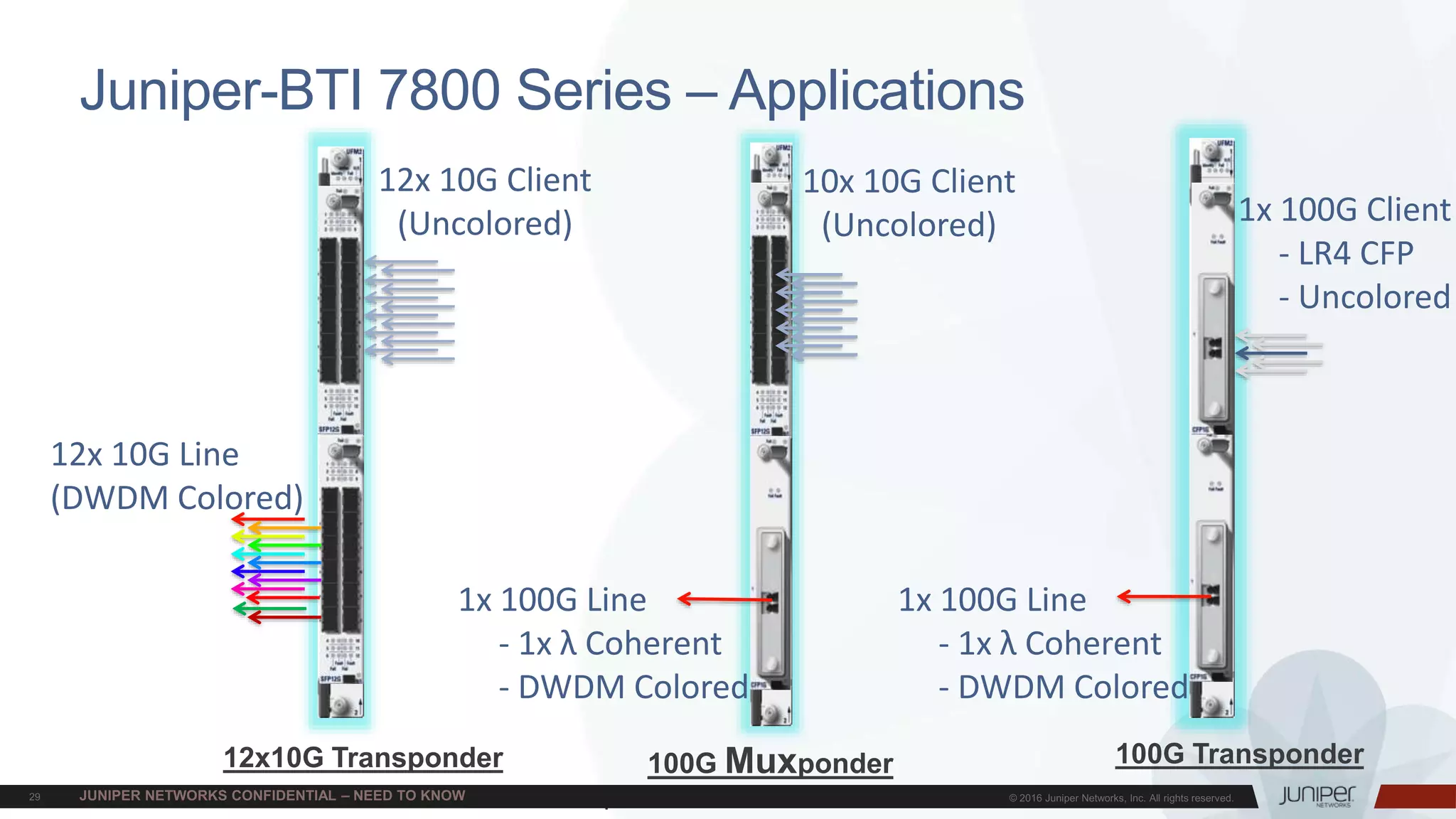

Juniper Confidential Juniper-BTI 7800 Series – Applications 12x 10G Client (Uncolored) 12x 10G Line (DWDM Colored) 10x 10G Client (Uncolored) 1x 100G Line - 1x λ Coherent - DWDM Colored 1x 100G Client - LR4 CFP - Uncolored 1x 100G Line - 1x λ Coherent - DWDM Colored 12x10G Transponder 100G Muxponder 100G Transponder

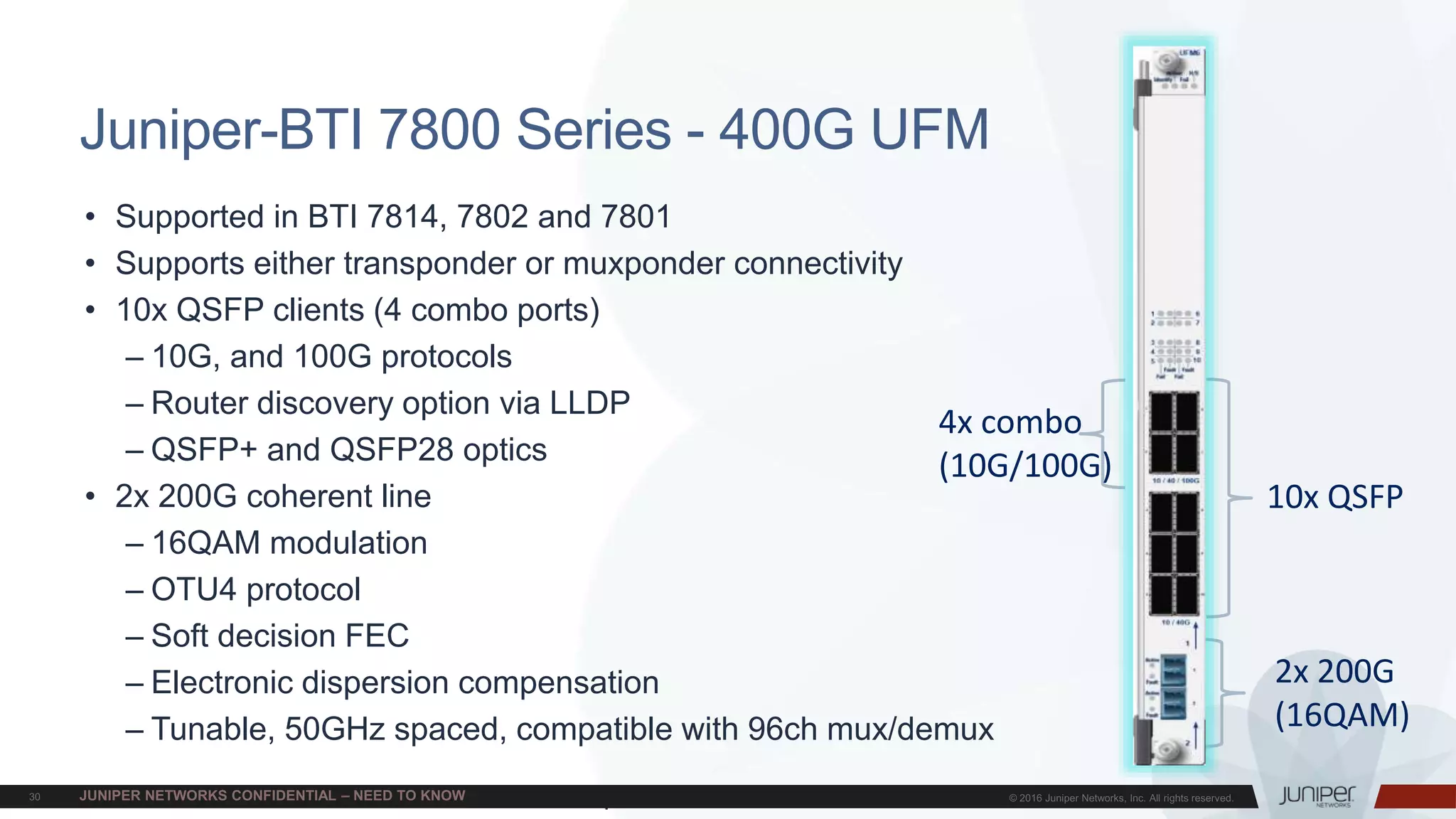

Juniper Confidential Juniper-BTI 7800 Series - 400G UFM • Supported in BTI 7814, 7802 and 7801 • Supports either transponder or muxponder connectivity • 10x QSFP clients (4 combo ports) – 10G, and 100G protocols – Router discovery option via LLDP – QSFP+ and QSFP28 optics • 2x 200G coherent line – 16QAM modulation – OTU4 protocol – Soft decision FEC – Electronic dispersion compensation – Tunable, 50GHz spaced, compatible with 96ch mux/demux 10x QSFP 2x 200G (16QAM) 4x combo (10G/100G)
Juniper Confidential Juniper BTI7000 Product Line Optical Portfolio Transponders Muxponders PacketVX ROADM Optical  Reclaim Fiber from legacy low rate SONET/SDH  GE / Fiber Channel Price Line svs  Sub-wavelength Services  Metro-E Infrastructure  Ethernet Business Services  Mobile Backhaul  Dynamic Optical Layer  10G/100G Wave Services  2.5G and 10G Wave Services  High Capacity Data Center Interconnect BTI7200 (7RU, 20 Service Slots) BTI7060 (2RU, 6 Service Slots) BTI7020 – (1RU, 2 Service Slots) Passive  Scalable from 6 to 60 service slots  Same software & management system
Juniper Confidential Scalability to address Growing Needs 7200706072007060 7060 7060 7060 7060 Compact | High Capacity | Scalable 7200 7200 Application Software ControlSoftwareIntelligentNetworkInfrastructure BTI proNX Service Manager BTI proNX Dashboard BTI proNX SLA Portal Other Applications RESTful APIs NETCONF, SNMP, OpenFlow BTI 7000 Series BTI 800/700 SeriesBTI 7800 Series 3rd Party Network Nodes REST Open SDN ControllersBTI proNX Control

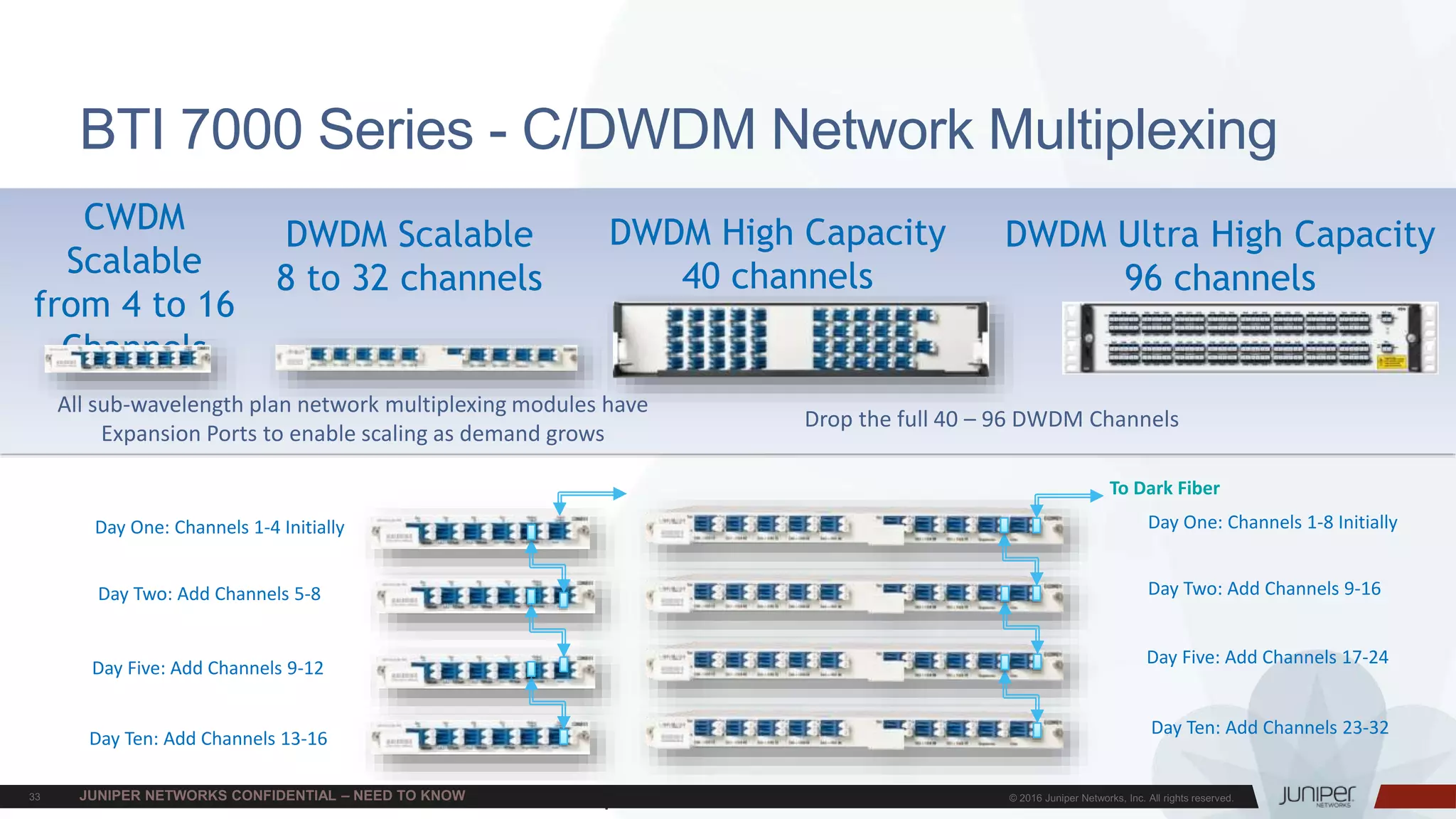

Juniper Confidential BTI 7000 Series - C/DWDM Network Multiplexing DWDM Scalable 8 to 32 channels DWDM High Capacity 40 channels All sub-wavelength plan network multiplexing modules have Expansion Ports to enable scaling as demand grows Drop the full 40 – 96 DWDM Channels CWDM Scalable from 4 to 16 Channels Day One: Channels 1-8 Initially Day Two: Add Channels 9-16 Day Five: Add Channels 17-24 Day Ten: Add Channels 23-32 Day One: Channels 1-4 Initially Day Two: Add Channels 5-8 Day Five: Add Channels 9-12 Day Ten: Add Channels 13-16 To Dark Fiber DWDM Ultra High Capacity 96 channels
Juniper Confidential Dual 2.5G Multiprotocol Transponder Client 1 Line 1 Client 2 Line 2 Client Line W Line P Transponders  High Capacity Transport Dual 10G Multiprotocol Transponder Dual 4G Multiprotocol Transponder ● ● ● 2.5G 4G 10G Line Rate Extend services across the WAN with high capacity connectivity over dedicated wavelengths BTI7000 Series 10G Transponders • Single Slot (1W x 1H) • 2 Multiprotocol Client XFP Ports – 10GE LAN PHY, WAN PHY, OC192, STM64, 10G FC • 2 10Gbps Line XFP Ports – 850nm, 1310nm, 1550nm, WDM • Client Mapping – Transparent – Section Regen (OC-192, STM-64 clients) – G.709 OTU2 • Network Configurations – Unprotected: supporting 2 clients – Protected: OTN 1+1 WAN protection – Regenerator for TPR, DTPR, MXP, PVX • Performance monitoring on all ports • FEC and enhanced FEC • In-band management: OTN GCC

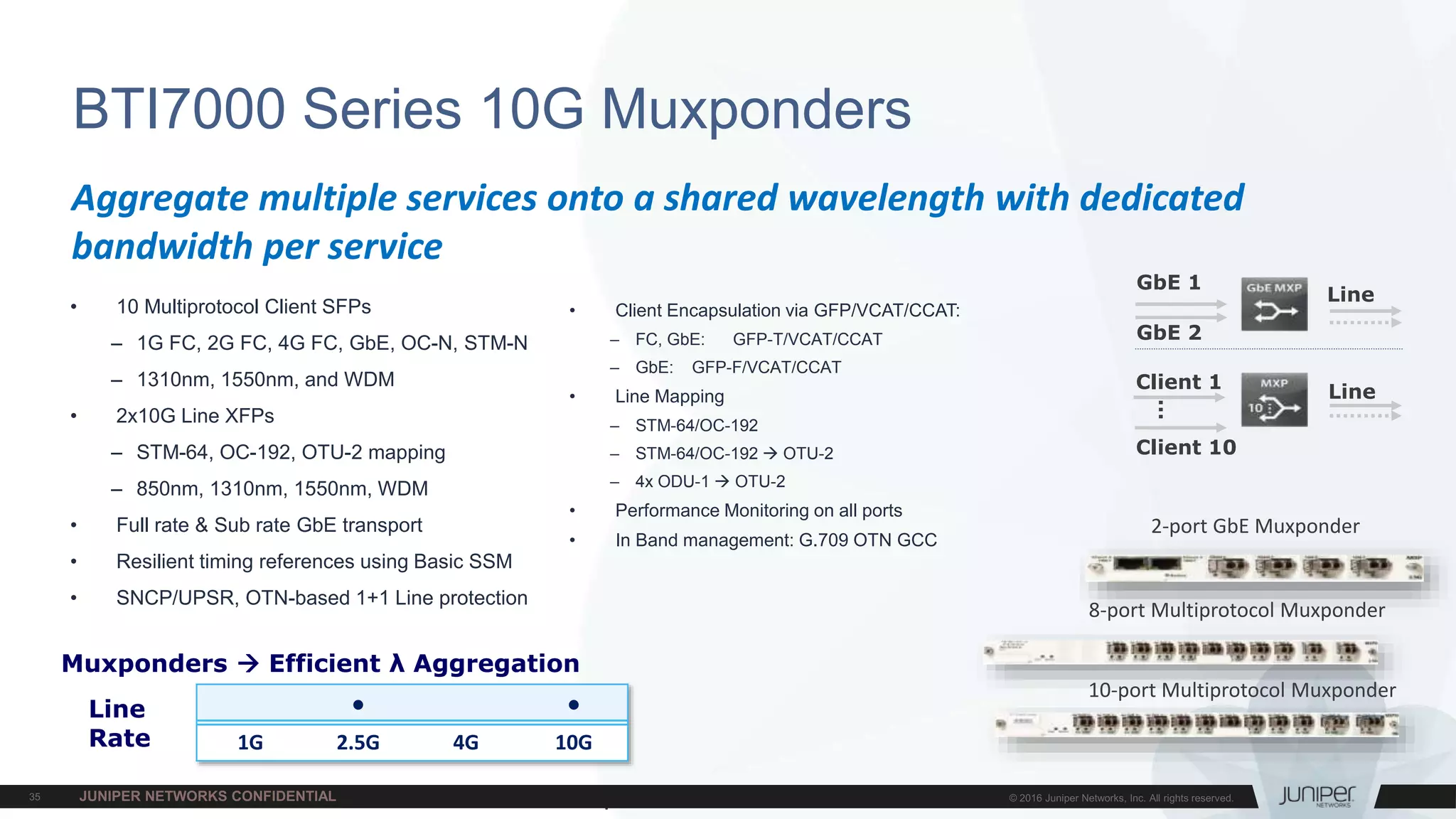

Juniper Confidential Client 1 Line GbE 1 GbE 2 … Client 10 Line 2-port GbE Muxponder 8-port Multiprotocol Muxponder 10-port Multiprotocol Muxponder ● ● 1G 2.5G 4G 10G Muxponders  Efficient λ Aggregation Line Rate Aggregate multiple services onto a shared wavelength with dedicated bandwidth per service BTI7000 Series 10G Muxponders • 10 Multiprotocol Client SFPs – 1G FC, 2G FC, 4G FC, GbE, OC-N, STM-N – 1310nm, 1550nm, and WDM • 2x10G Line XFPs – STM-64, OC-192, OTU-2 mapping – 850nm, 1310nm, 1550nm, WDM • Full rate & Sub rate GbE transport • Resilient timing references using Basic SSM • SNCP/UPSR, OTN-based 1+1 Line protection • Client Encapsulation via GFP/VCAT/CCAT: – FC, GbE: GFP-T/VCAT/CCAT – GbE: GFP-F/VCAT/CCAT • Line Mapping – STM-64/OC-192 – STM-64/OC-192  OTU-2 – 4x ODU-1  OTU-2 • Performance Monitoring on all ports • In Band management: G.709 OTN GCC
Juniper Confidential ProNX Service Manager and remote lab training
Juniper Confidential Agenda • PSM Intro • Lab Setup • PSM Configuration • Optical Service Management (DOL, BTI 7000, and BTI 7800) • Summary • Q & A
Juniper Confidential proNX Service Manager (PSM) Large Scale Deployments & Rapid Service Extensions • Packet-optical portfolio management – One system for end-to-end management – Fault, Configuration, Accounting, Performance, and Security (FCAPS) • Complementary Java and Web Clients • Open Interfaces (SNMP, REST) – OSS/BSS integration and Flow Thru Provisioning – Layered SDN Controller integration Analytics SDN Orchestrator Network Optimization Bandwidth On Demand
Juniper Confidential proNX Service Manager (PSM) Highly Intuitive User Experience • Auto-created Multi-Layer Network Topology • Point & Click management through complete network lifecycle – Devices, Cards, Ports, Amps, etc. • Point & Click activation of end-to-end connections and services – Path calculation & provisioning end-to-end – Optical: Dynamic ROADM & Static Optical connections – MEF Ethernet: Circuit monitoring, protection and route visualization – Pseudo Wire Services • Network and Service visualization end-to-end
Juniper Confidential Widely Deployed @ Scale Worldwide Leverage Industry Standard Components • Market-leading OS: Red Hat Enterprise Linux / CentOS • Bare Metal** or Virtualized deployment • Scales to many users, hundreds of elements, thousands of services • High Availability and Reliability through Clustering • Comprehensive Fault Management • Historical and Real-Time Performance Data Collection and Reporting • Centralized User Management and Single Sign On • Network OAMP functions: Upgrade, DB Backup/Restore, Logs
Juniper Confidential Service Activation and Visualization Connecting Multiple Layers • Links and Link-Status graphically displayed • ROADM, Layer-1 (OTN), Ethernet, PW, etc. services shown end-to-end • Complementary multi-layer views provided via Java and Web clients
Juniper Confidential High Availability Clustering Redundancy & Scale • Two or more instances clustered • Hot Standby solution • Simultaneous monitoring of full network OR segment by region/market/technology – User privileges can be unique between region/market • Instances can be geographically separated for regional access • One server instance can be used as backup when needed

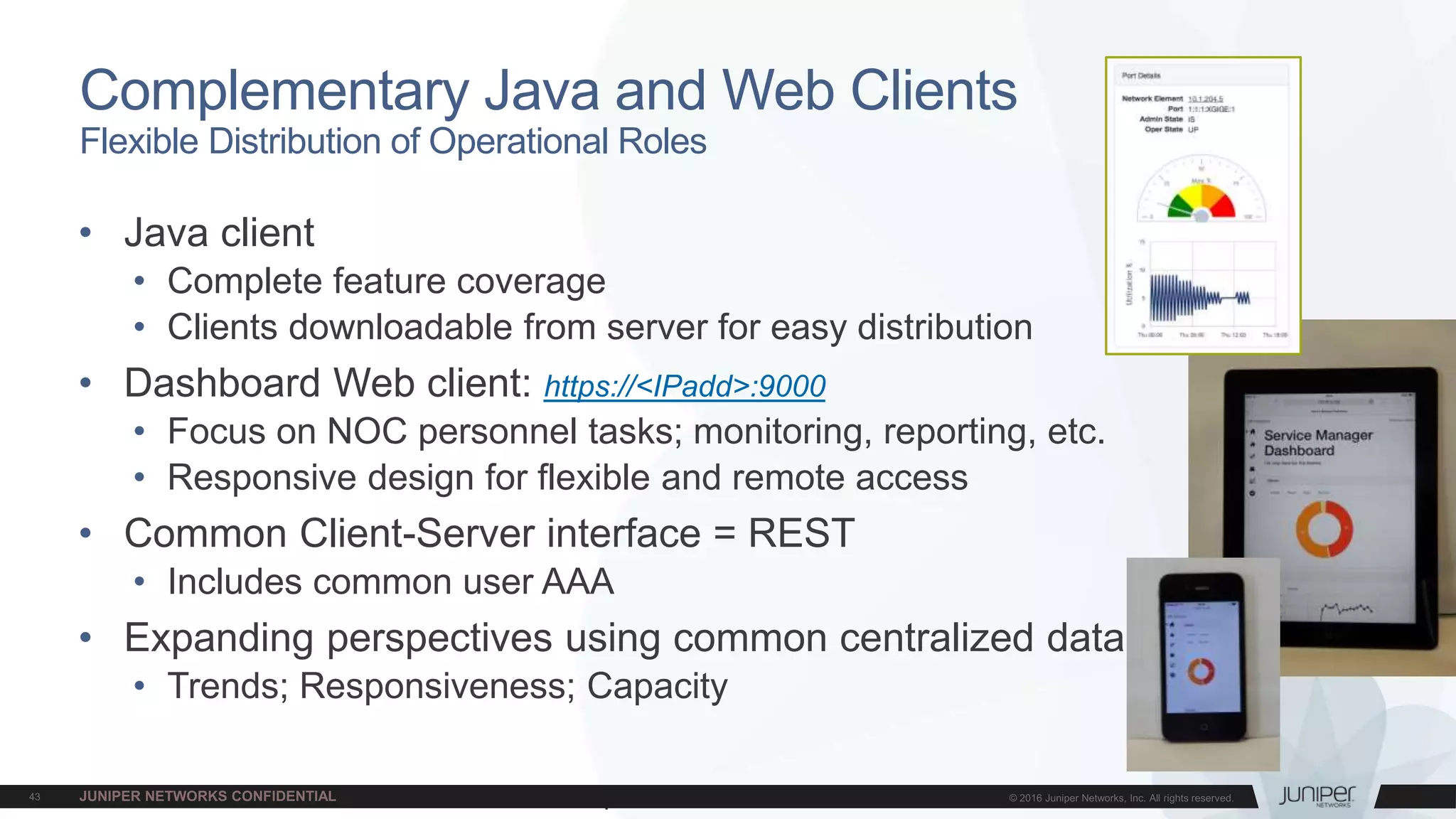

Juniper Confidential • Java client • Complete feature coverage • Clients downloadable from server for easy distribution • Dashboard Web client: https://<IPadd>:9000 • Focus on NOC personnel tasks; monitoring, reporting, etc. • Responsive design for flexible and remote access • Common Client-Server interface = REST • Includes common user AAA • Expanding perspectives using common centralized data • Trends; Responsiveness; Capacity Complementary Java and Web Clients Flexible Distribution of Operational Roles
Juniper Confidential PSM relative to existing Juniper applications Continuing PSM’s Architectural Evolution • Existing REST APIs are used to integrate these applications – eg. PSM native REST APIs, IETF draft-ietf-teas-yang-te-topo • Applications typically provide overlapping common capabilities – eg. HA, Security, Scheduling, Topology, Fault Management, etc. REST APIs NorthStar Controller proNX Service Manager (PSM) Connectivity Services Director End-to-end packet-optical management plus FCAPS management for legacy BTI components FCAPS management for all Juniper components IP services management LSP provisioning and optimization

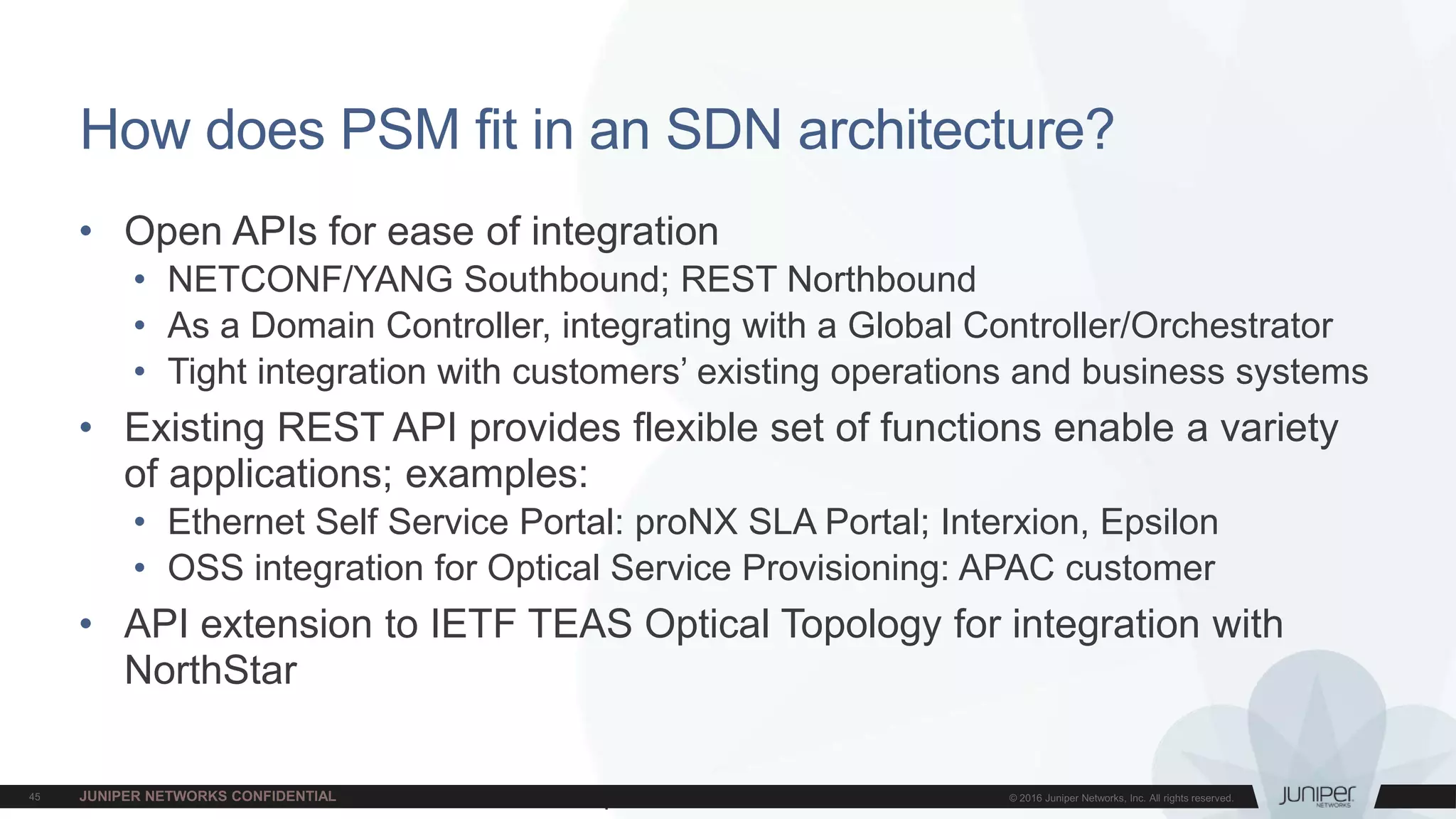

Juniper Confidential How does PSM fit in an SDN architecture? • Open APIs for ease of integration • NETCONF/YANG Southbound; REST Northbound • As a Domain Controller, integrating with a Global Controller/Orchestrator • Tight integration with customers’ existing operations and business systems • Existing REST API provides flexible set of functions enable a variety of applications; examples: • Ethernet Self Service Portal: proNX SLA Portal; Interxion, Epsilon • OSS integration for Optical Service Provisioning: APAC customer • API extension to IETF TEAS Optical Topology for integration with NorthStar

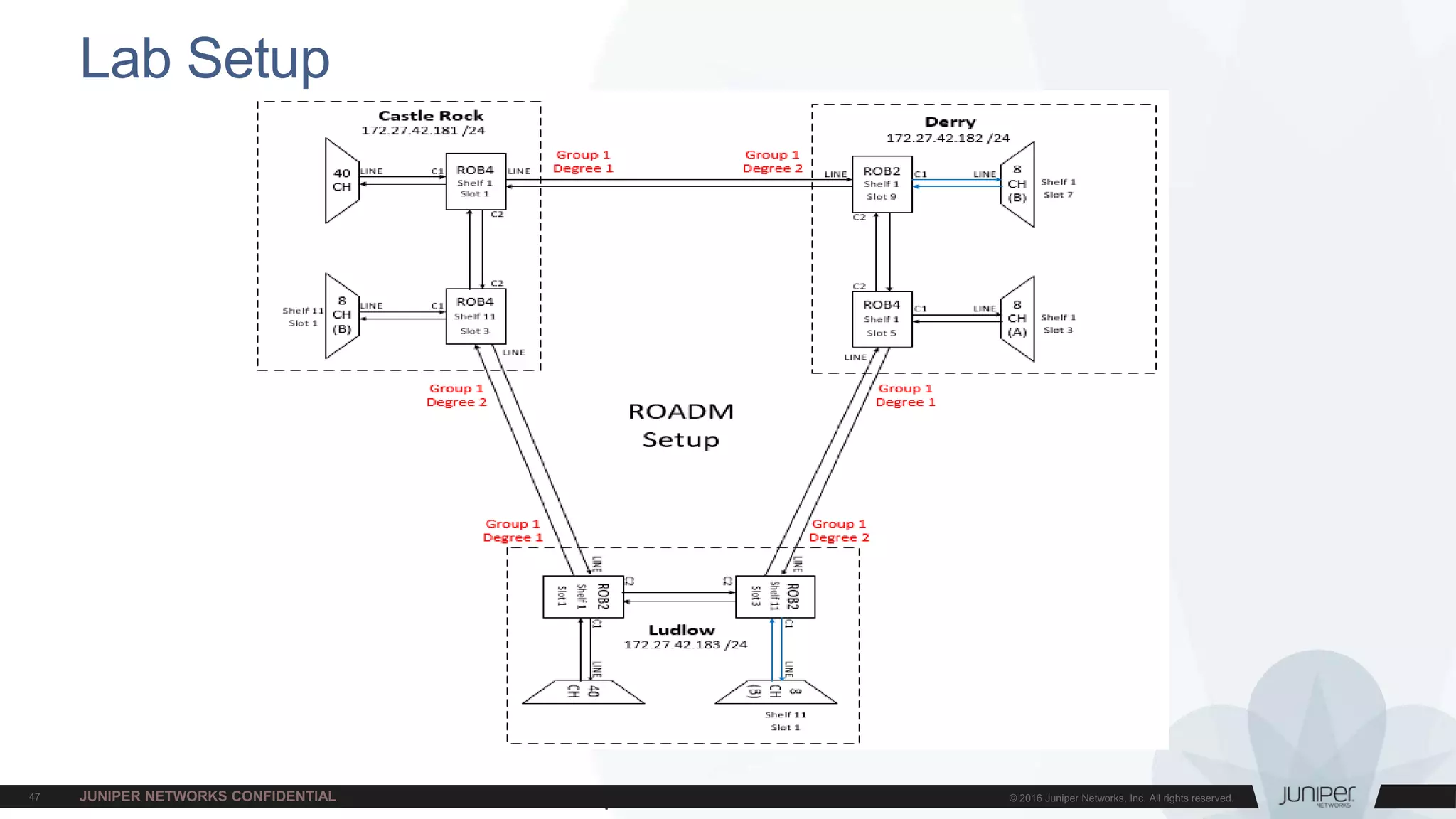

Juniper Confidential Lab Setup
Juniper Confidential Lab Setup
Juniper Confidential Transponder Setup

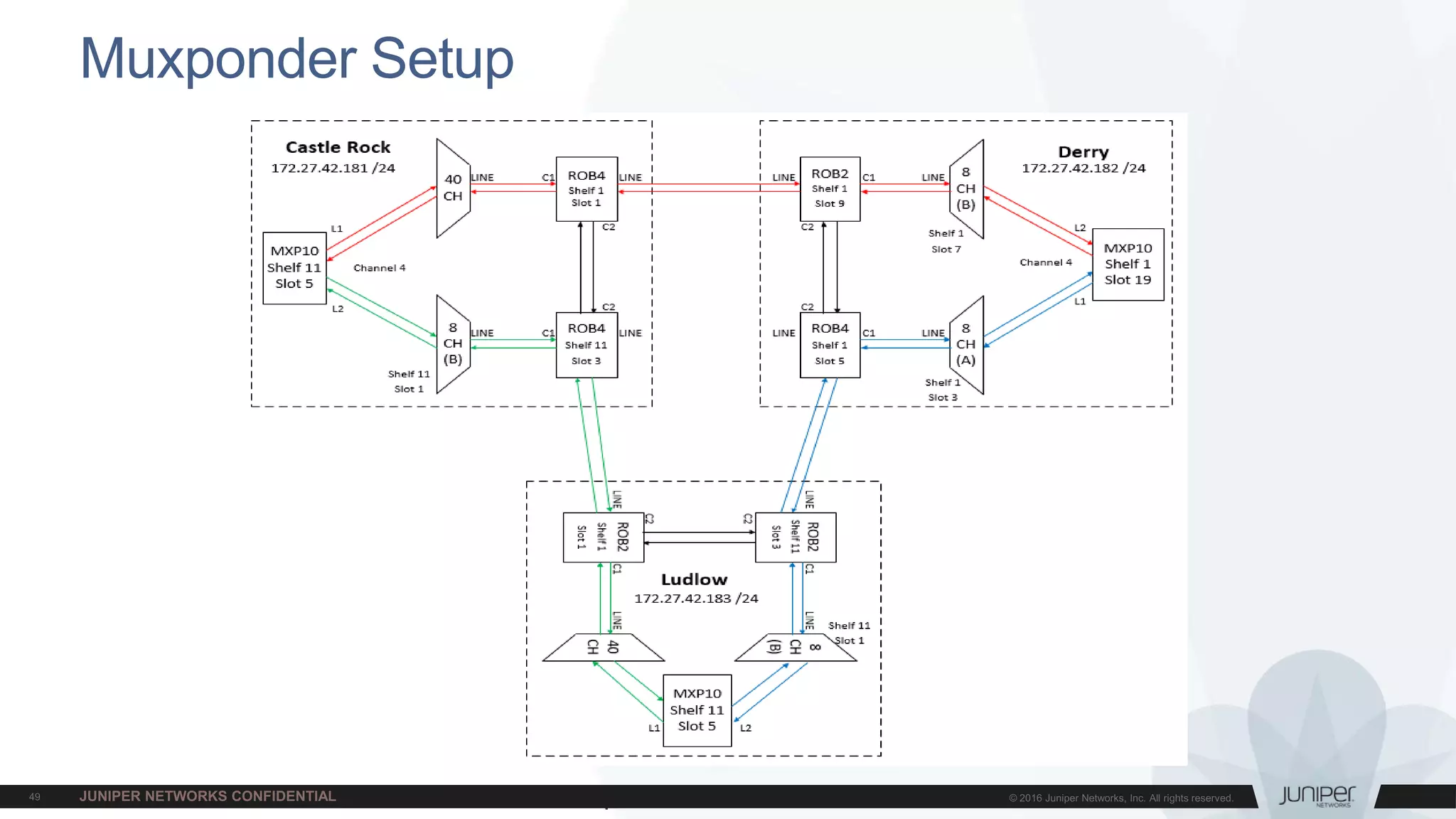

Juniper Confidential Muxponder Setup
Juniper Confidential 7800 Setup (100G)
Juniper Confidential ProNX Service Manager (PSM) Configuration
Juniper Confidential PSM Client Login and Interface

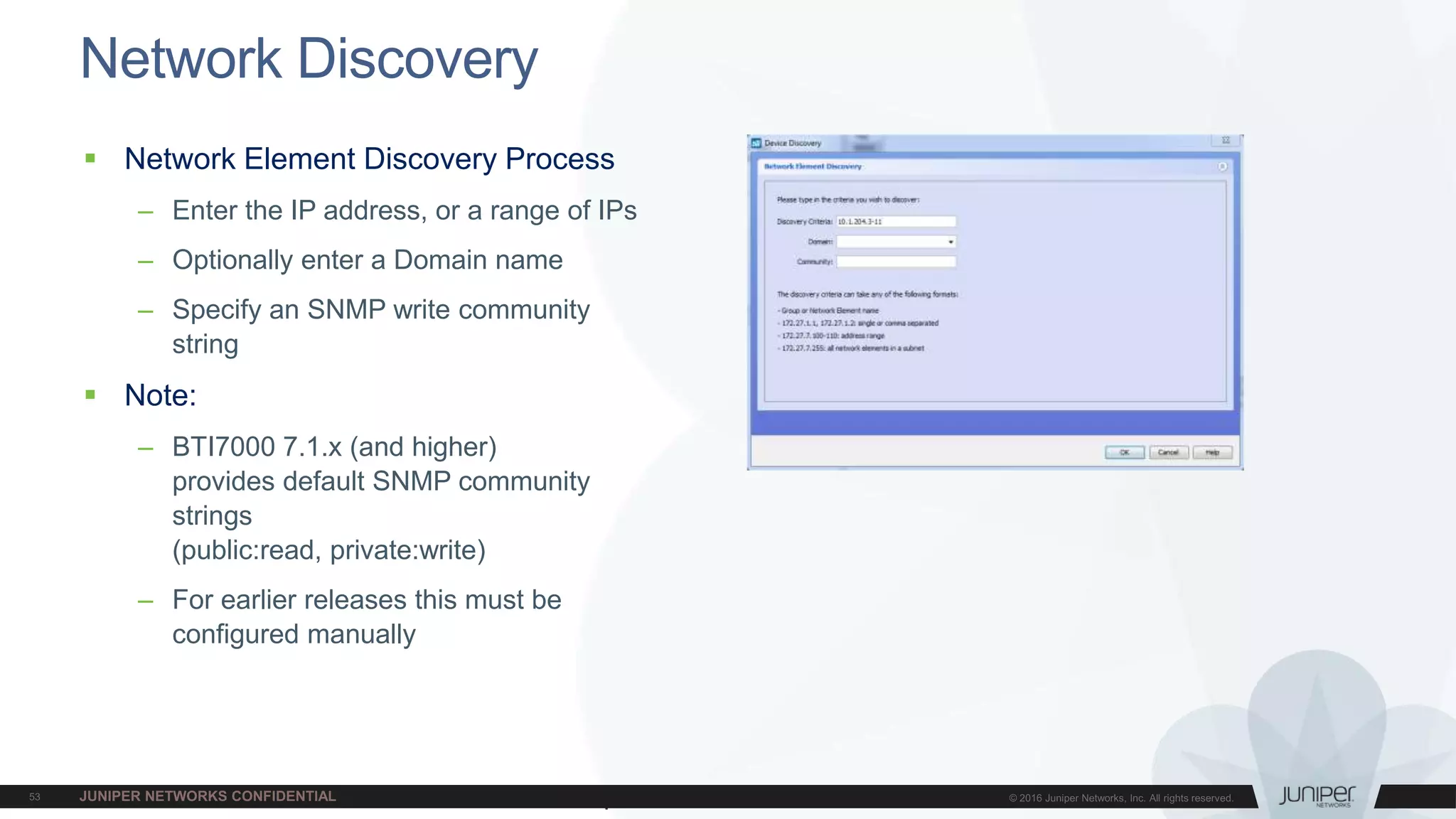

Juniper Confidential Network Discovery  Network Element Discovery Process – Enter the IP address, or a range of IPs – Optionally enter a Domain name – Specify an SNMP write community string  Note: – BTI7000 7.1.x (and higher) provides default SNMP community strings (public:read, private:write) – For earlier releases this must be configured manually

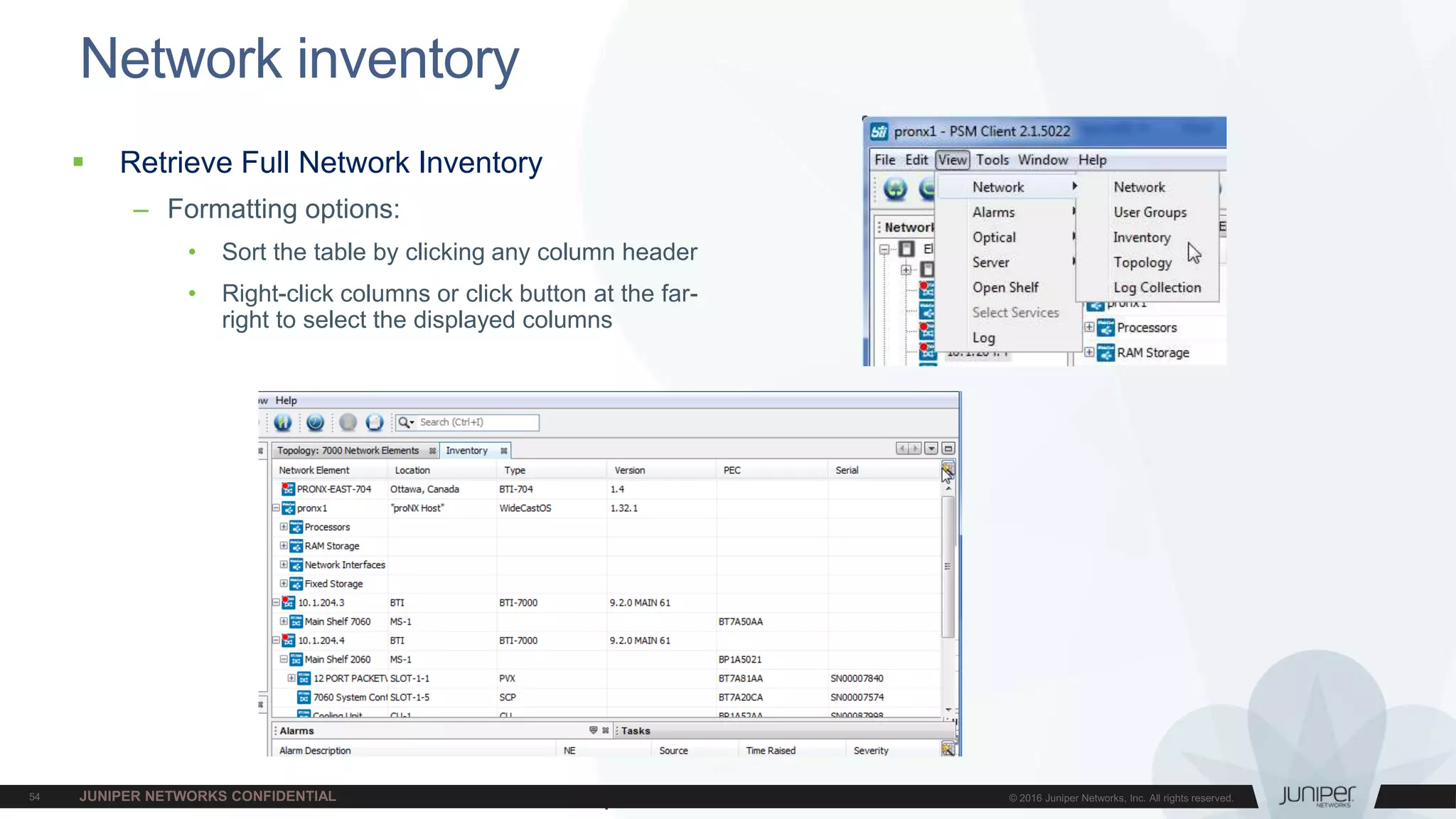

Juniper Confidential Network inventory  Retrieve Full Network Inventory – Formatting options: • Sort the table by clicking any column header • Right-click columns or click button at the far- right to select the displayed columns
Juniper Confidential Network Wide Logs  On-Demand log collection – Select ‘View->Network-> Log Collection – Add Filters (optional) – Click ‘Perform Query’ – Use buttons and text fields at the bottom to page through the collected logs

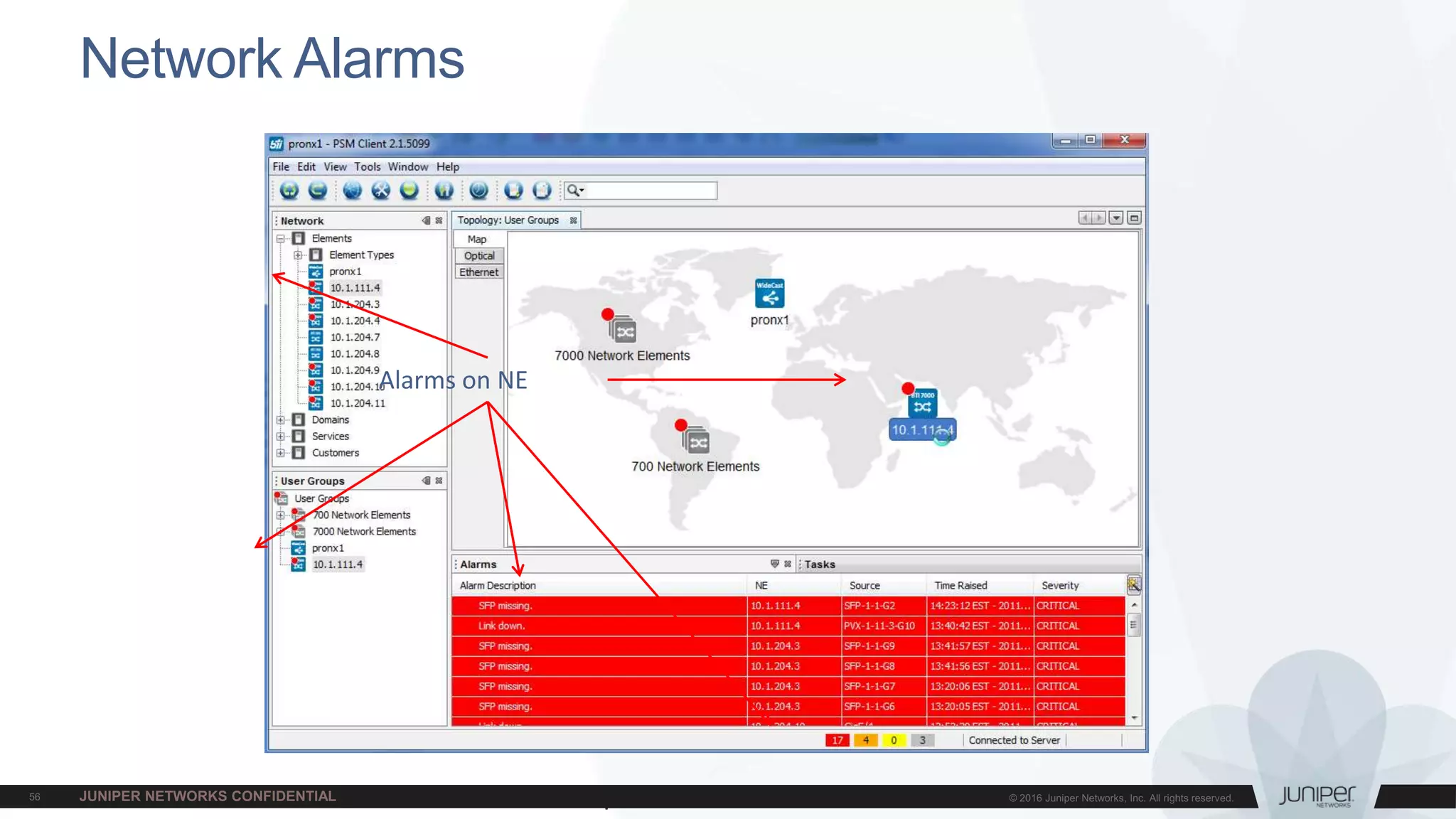

Juniper Confidential Network Alarms Alarms on NE
Juniper Confidential Network Alarm (Historical view)  View Historical Alarms – Select View > Alarms > Historical Alarms – Set filters and sorting options  Leaving all options blank retrieves everything – Click Perform Query
Juniper Confidential NE Upgrade Select ‘Software Upgrade’ from Right- click menu of Single network element, user group, or topology icon In Software Upgrade window:  Select FTP Server  Browse to the software file to upload from server to NEs  Options: – Check: Verifies upgrade file is valid – Check/Load: Also uploads file to NEs – Check/Load/Invoke: Also invokes upgrade – Check/Load/Invoke/Commit: Performs the full upgrade
Juniper Confidential Node Controller Configuration  You can configure NEs using the Node Controller from within PSM  First you configure PSM to point to the correct version of proNX 900  Once configured, PSM launches the correct version of proNX 900 if the version is installed locally

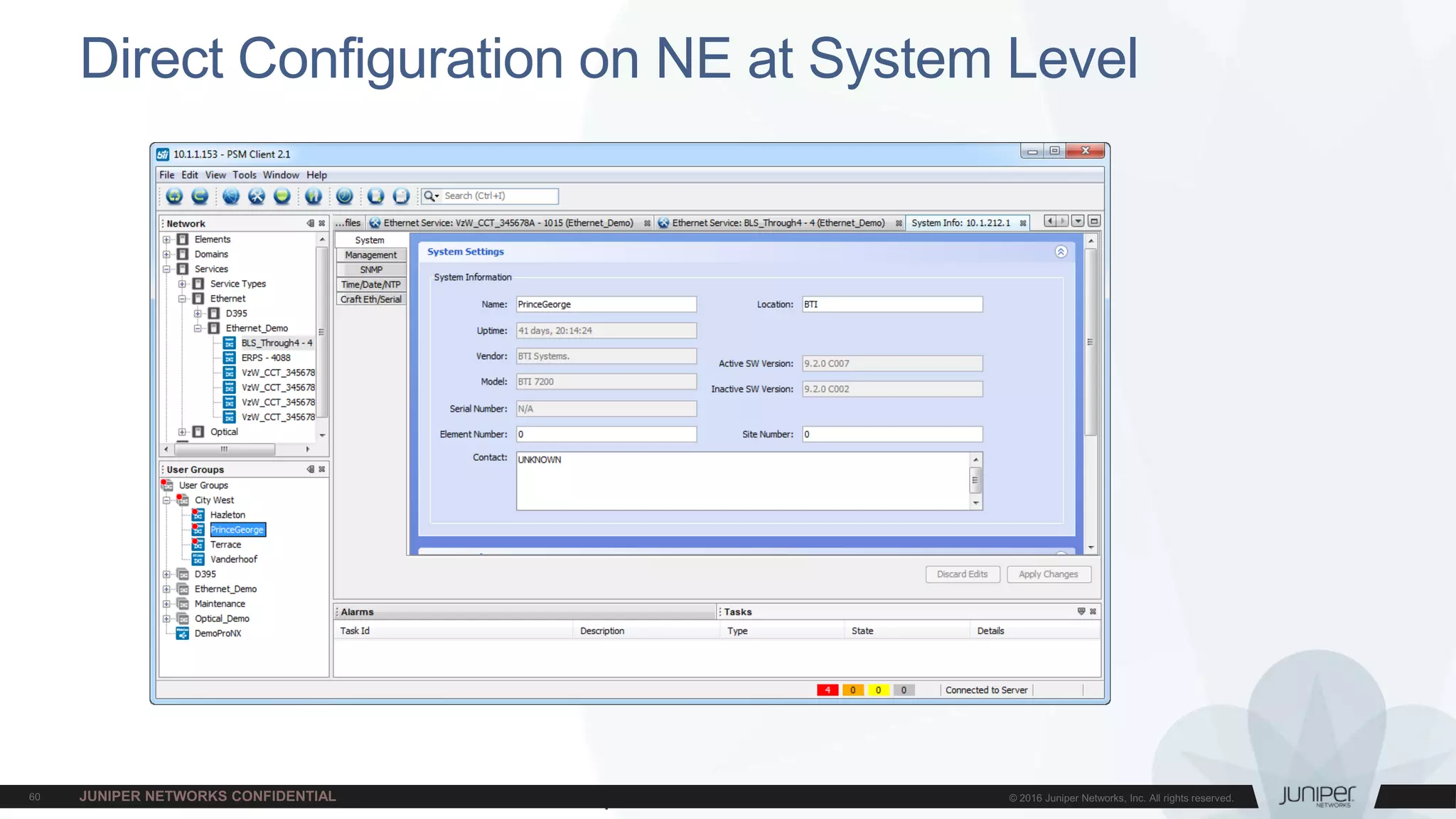

Juniper Confidential Direct Configuration on NE at System Level
Juniper Confidential Adding Customer  PSM allows you to add, modify and delete data about your customers. Including: – Company name – Company reference – A list of employees – Primary and maintenance contact, and – Notes
Juniper Confidential Optical Service Management (DOL, BTI 7000, BTI 7800)
Juniper Confidential Dynamic Optical Layer  DOL = Reconfigurable optical add/drop multiplexing, reach extension, and end-to-end service- and path- centric management. – Simplified operations and enhanced automation – Touchless and modular nature of the DOL architecture simplifies the design, installation, operation and optimization of service delivery networks. – 2 Degree/ 4 Degree ROADM-on-a-Blade (ROB) – DWDM Line Amplifier (DLA)
Juniper Confidential Optical Service Activation Activate new Optical Service  Activate service for customer sites  Activate multiple paths for services  View service details
Juniper Confidential Optical Service Activation (cont’d) Activate new Optical Service  Activate service for customer sites  Activate multiple paths for services  View service details

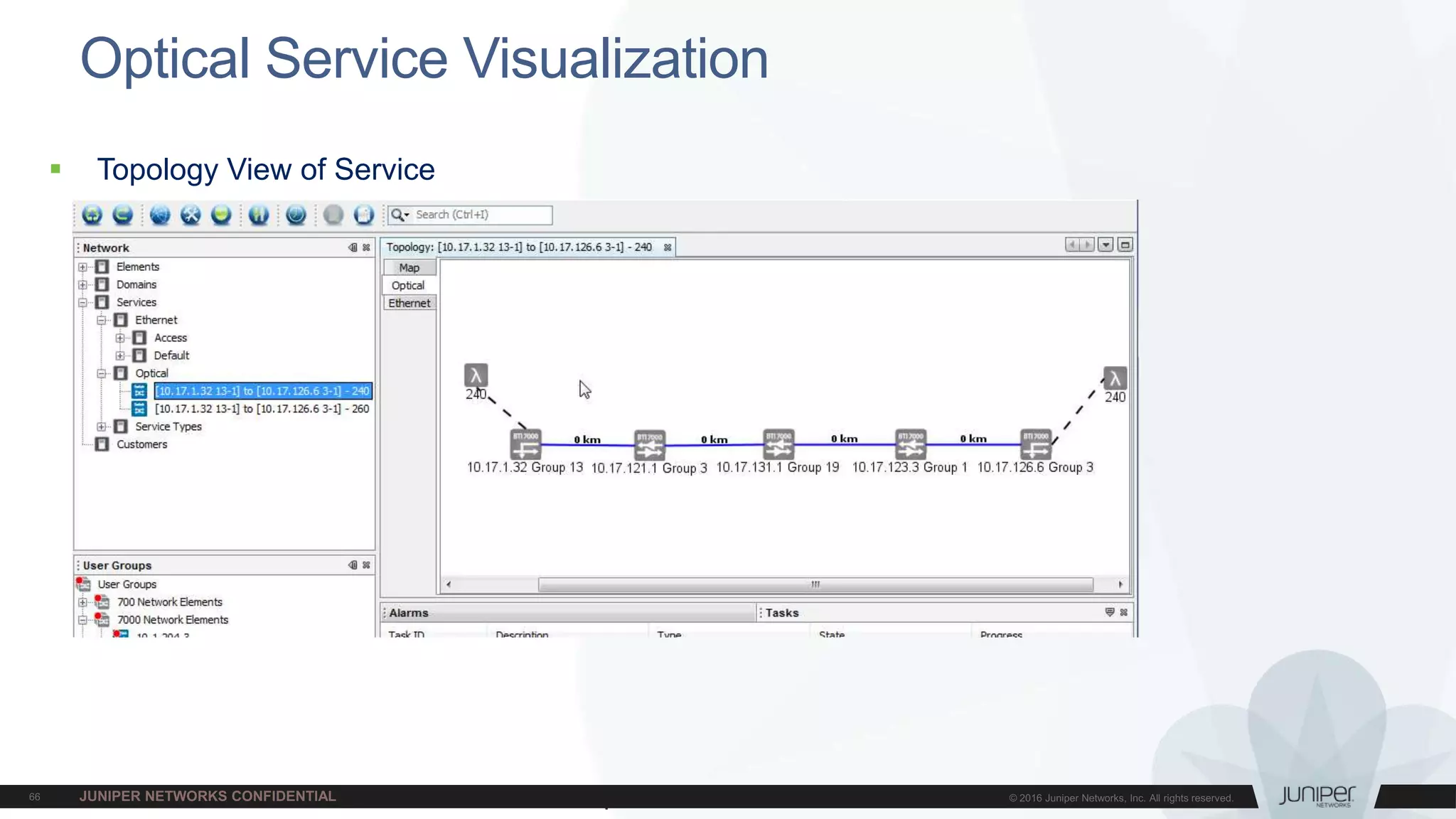

Juniper Confidential Optical Service Visualization  Topology View of Service
Juniper Confidential Optical Power PM Display  Provide a simple way to initiate or halt real-time PMs collection for an optical service  Optical PM data widget will be used to retrieve and display the current PM statistics – Example of OSC PM collection for a selected service – Example of Optical Data Widget for All channels on a port
Juniper Confidential Optical Power PM Display (cont’d)  Power level PMs for all Wavelengths/Services per Port – When viewing all channels, each port has a new tab, with each channel passing over that port shown in one graph
Juniper Confidential DTPR Provisioning (BTI 7000)
Juniper Confidential Creating Crossconnect using PSM (BTI 7000)
Juniper Confidential Setting Protection Group using PSM (BTI 7000)

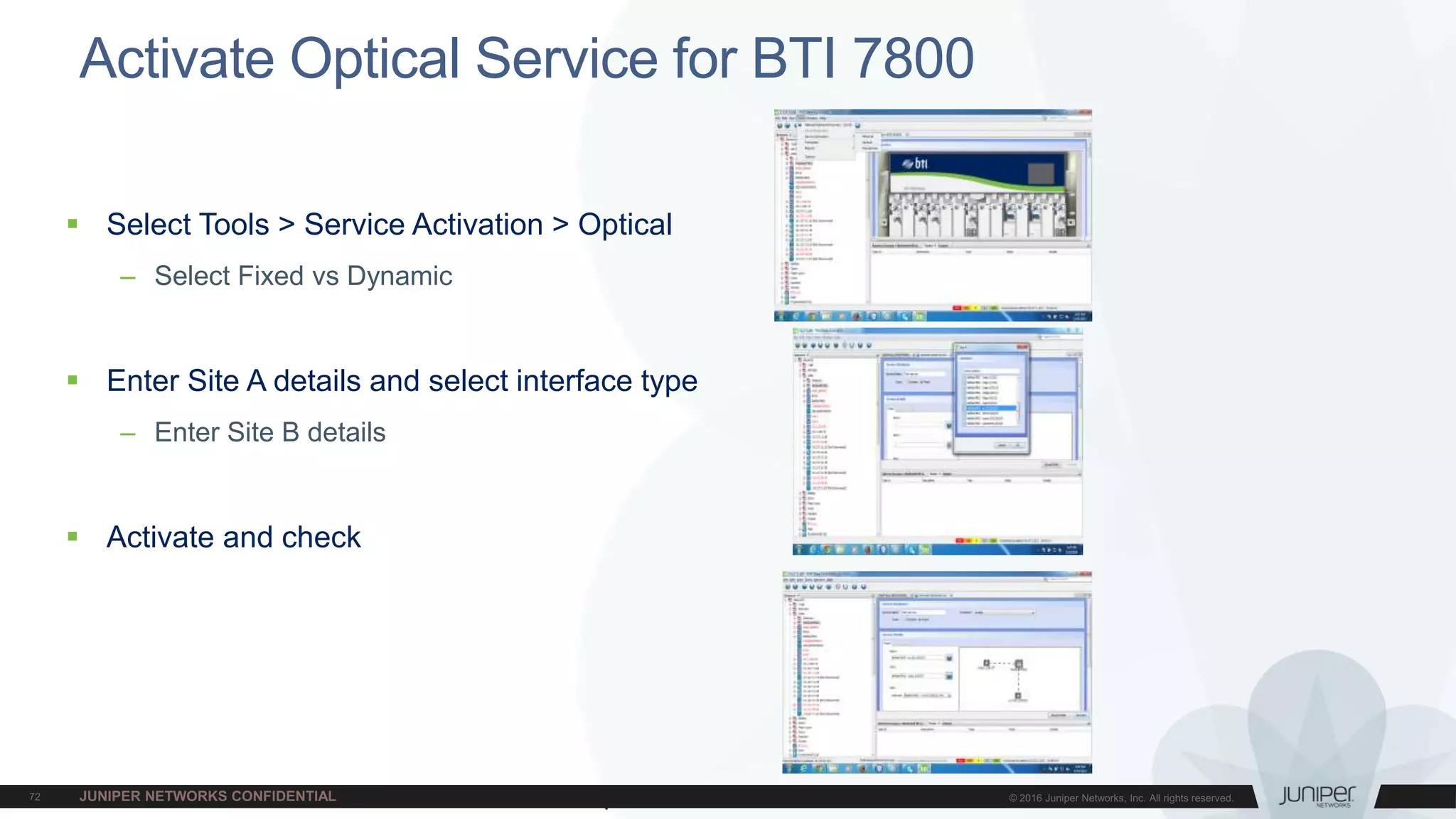

Juniper Confidential Activate Optical Service for BTI 7800  Select Tools > Service Activation > Optical – Select Fixed vs Dynamic  Enter Site A details and select interface type – Enter Site B details  Activate and check
Juniper Confidential Activate Optical Service for BTI 7800 (Cont’d)

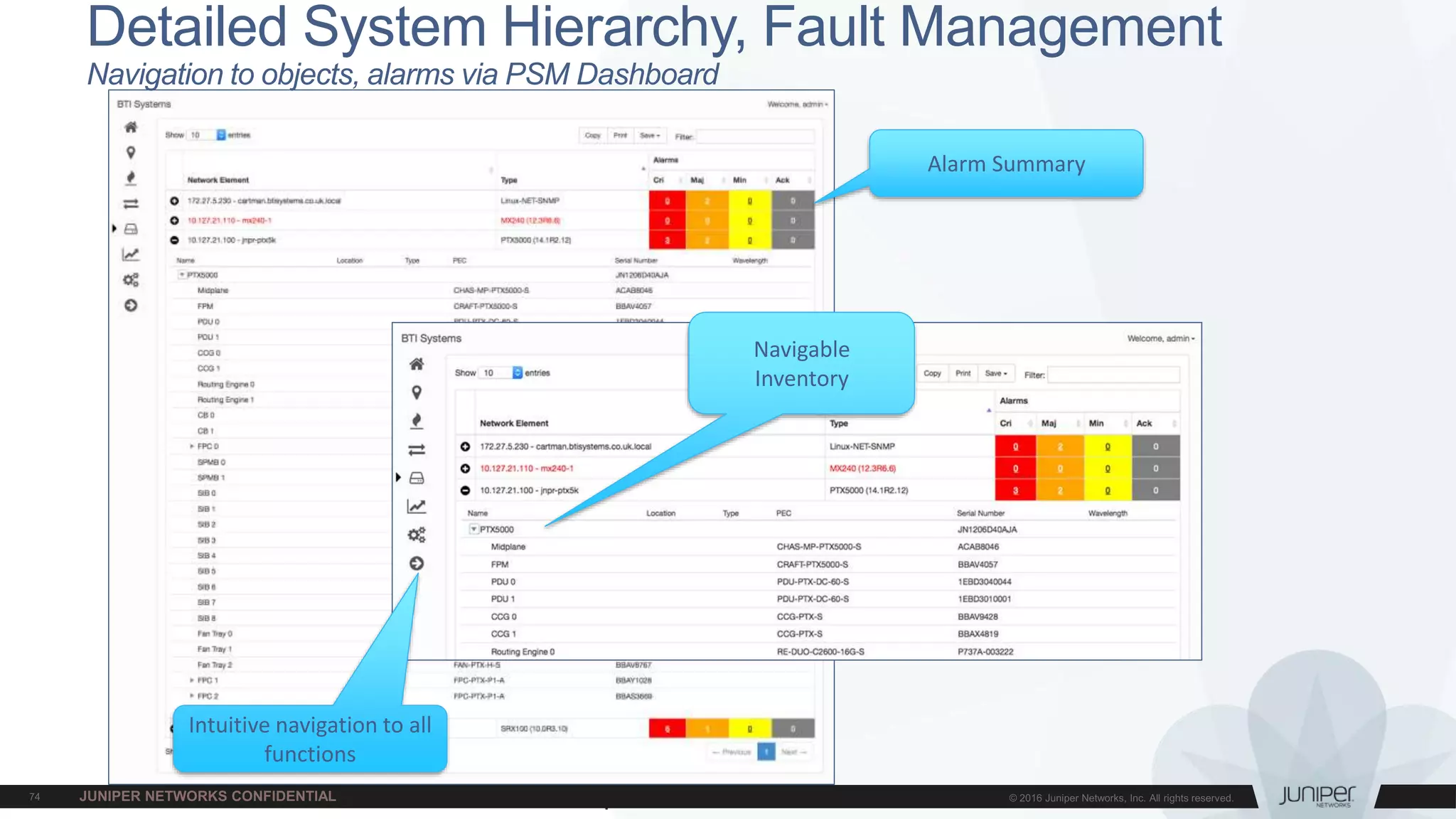

Juniper Confidential Alarm Summary Navigable Inventory Intuitive navigation to all functions Detailed System Hierarchy, Fault Management Navigation to objects, alarms via PSM Dashboard
Juniper Confidential • proNX Service Manager (PSM) = Comprehensive full service solution • Flexible deployment options to suit all customer needs • Scale, reliability, extensibility • Ease of integration with SDN and traditional architectures • Comprehensive plan for Juniper integration Summary
Juniper Confidential Recap of the first half of the BTI Workshop • Metro packet optical market for DCI and Service Provider are growing and Juniper is well positioned to help customers take advantage of the opportunities • We covered the primary solutions and best fit applications for Juniper’s Packet Optical Platforms • The BTI Series has a modular, flexible, pay-as-you-grow architecture, it supports a broad range of interfaces, including 10, 100, and 200Gbps • proNX software makes service deployment and management easy • Juniper provides a comprehensive packet + optical solution to beat the competition • Software licensing has been adjusted to reflect common Juniper pricing models and practices Optical transport technologies for high-bandwidth metro and DCI networking
Juniper Confidential Questions ?
Juniper Confidential Thank you
