1. Centralized + Unified Logging
Gabor Kozma / gabo@ustream.tv / @kozmag82

2. Everybody wants to write logs!
✓ Application Logs (frontend / backend)
➢ php, java, ruby, python, bash
✓ Access Logs
➢ apache, nginx, tomcat, jetty
✓ System Logs
➢ syslog, hardware error log
✓ Database Logs
➢ history, transaction

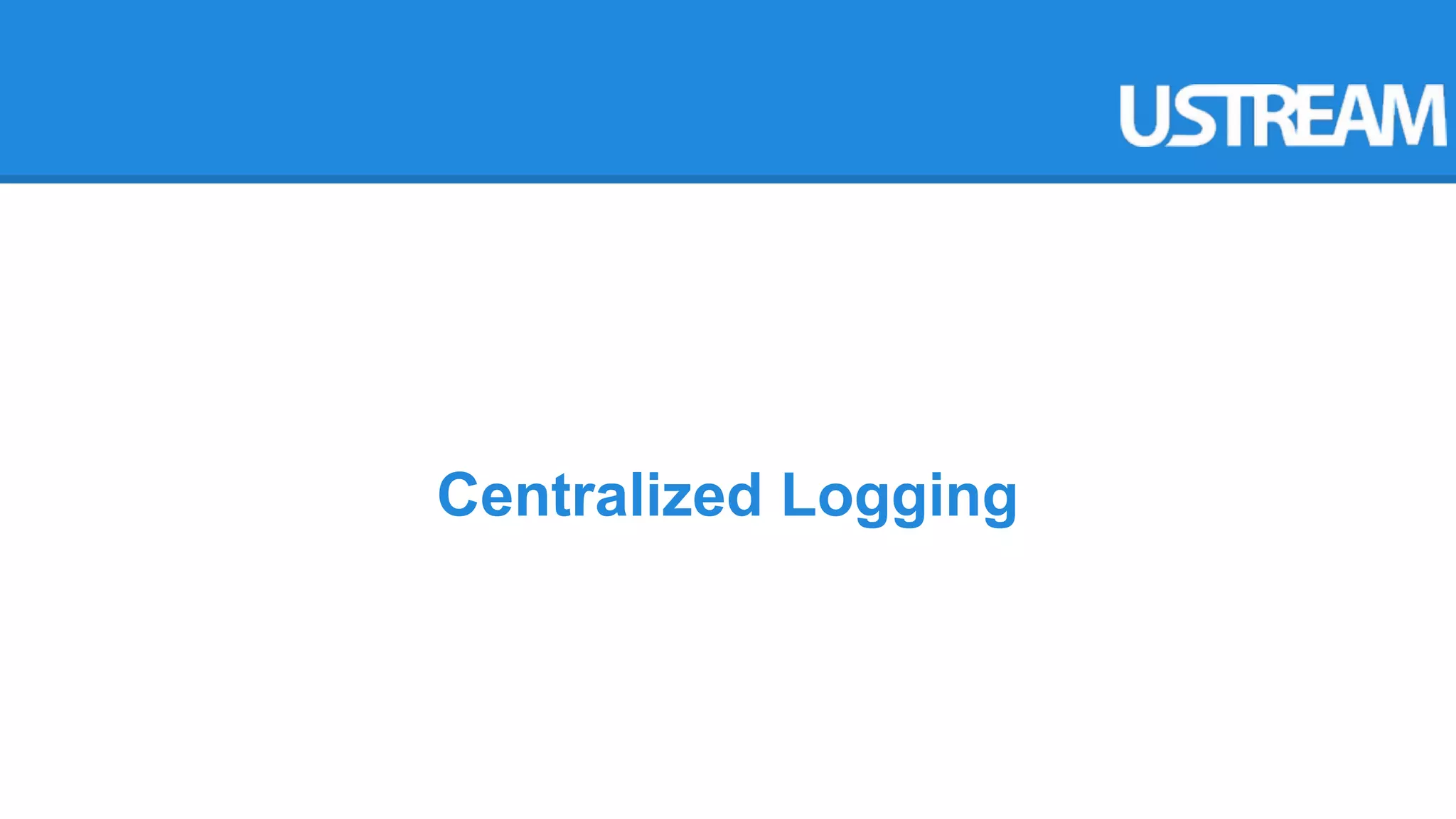

3. Centralized Logging

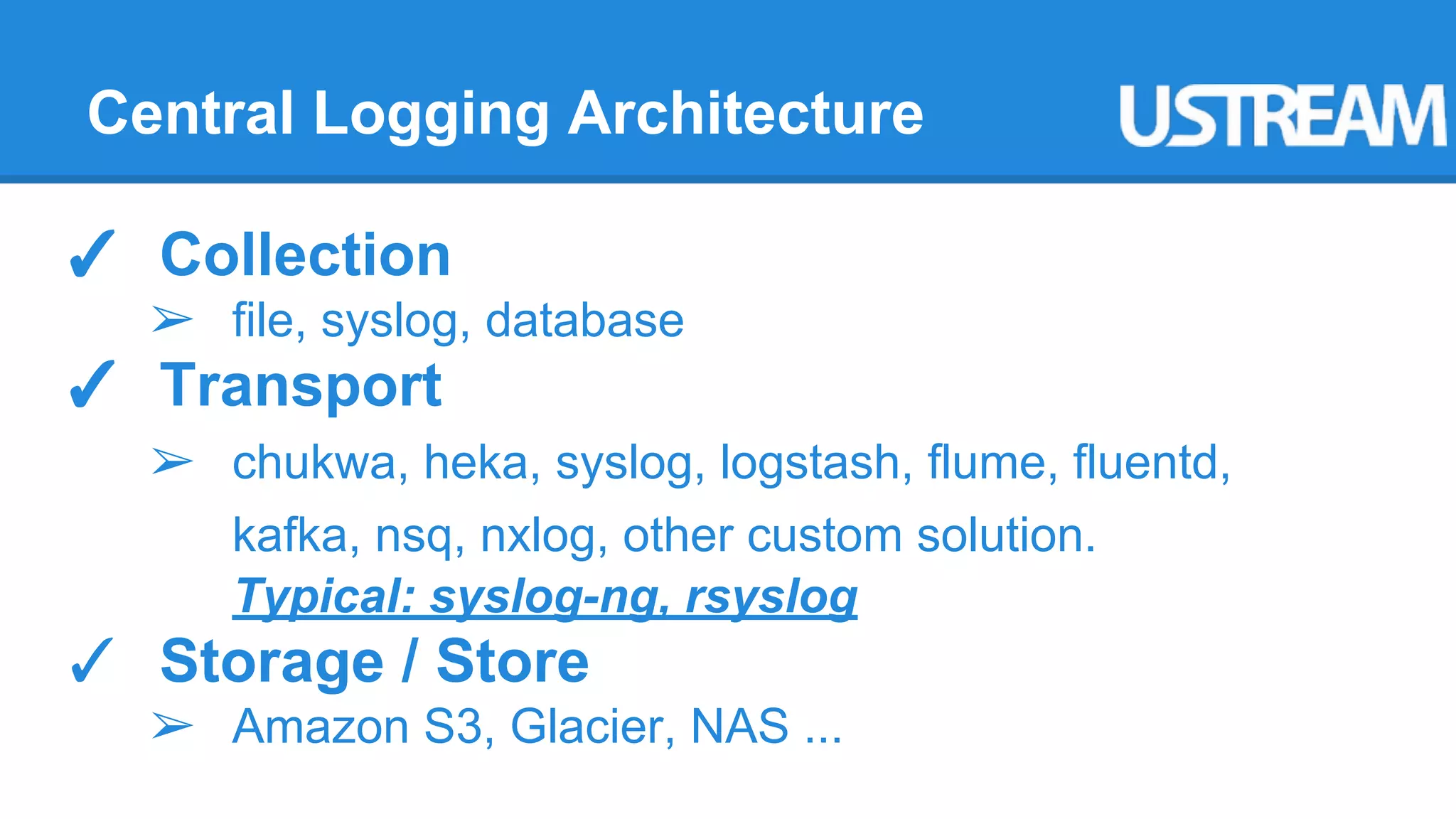

4. Central Logging Architecture
✓ Collection
➢ file, syslog, database
✓ Transport
➢ chukwa, heka, syslog, logstash, flume, fluentd,
kafka, nsq, nxlog, other custom solution.
Typical: syslog-ng, rsyslog
✓ Storage / Store
➢ Amazon S3, Glacier, NAS ...

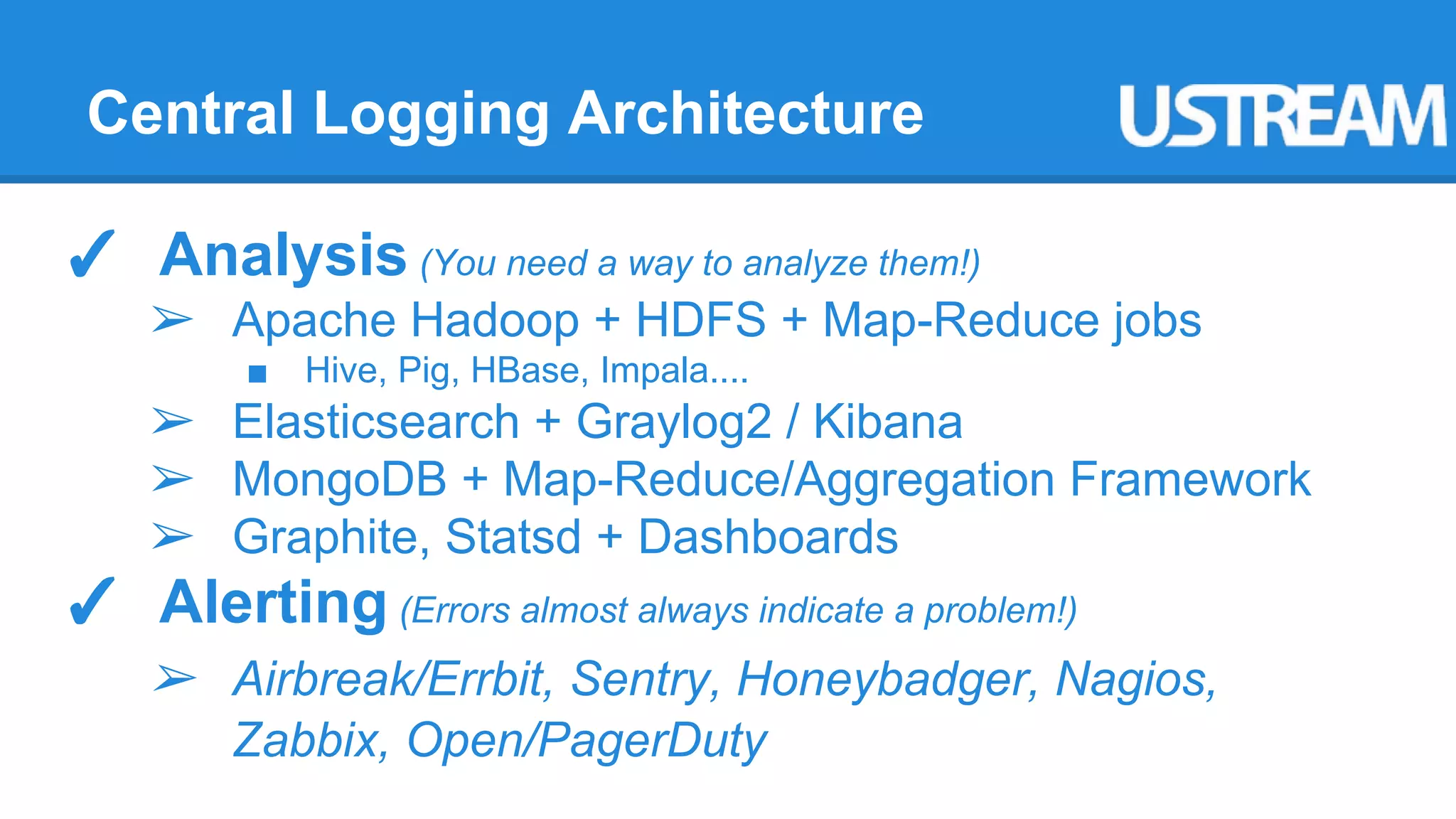

5. Central Logging Architecture
✓ Analysis (You need a way to analyze them!)
➢ Apache Hadoop + HDFS + Map-Reduce jobs
■ Hive, Pig, HBase, Impala....
➢ Elasticsearch + Graylog2 / Kibana
➢ MongoDB + Map-Reduce/Aggregation Framework
➢ Graphite, Statsd + Dashboards
✓ Alerting (Errors almost always indicate a problem!)
➢ Airbreak/Errbit, Sentry, Honeybadger, Nagios,
Zabbix, Open/PagerDuty

6. Unified Logging Layer

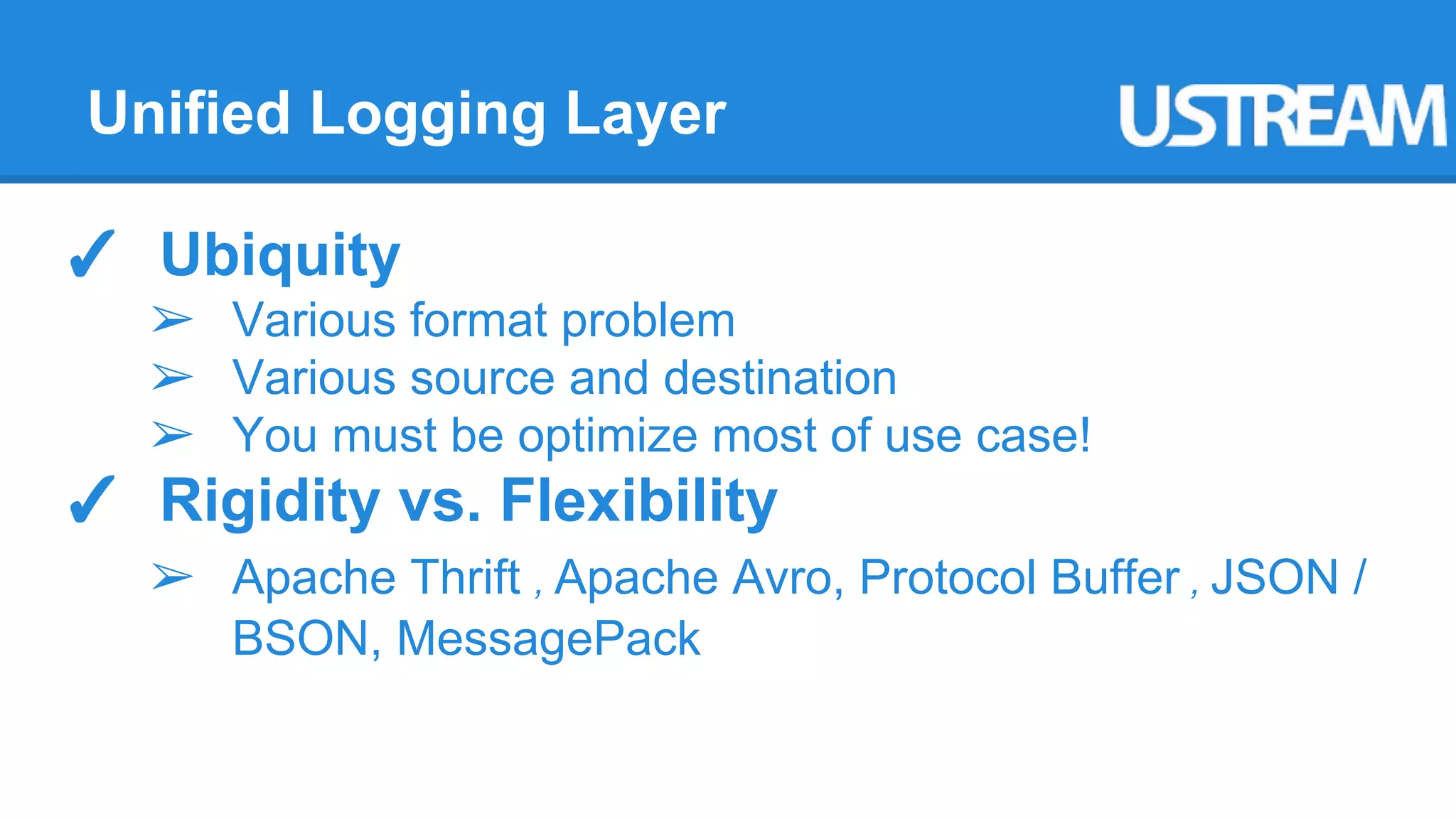

7. Unified Logging Layer
✓ Ubiquity
➢ Various format problem
➢ Various source and destination
➢ You must be optimize most of use case!
✓ Rigidity vs. Flexibility
➢ Apache Thrift , Apache Avro, Protocol Buffer , JSON /
BSON, MessagePack

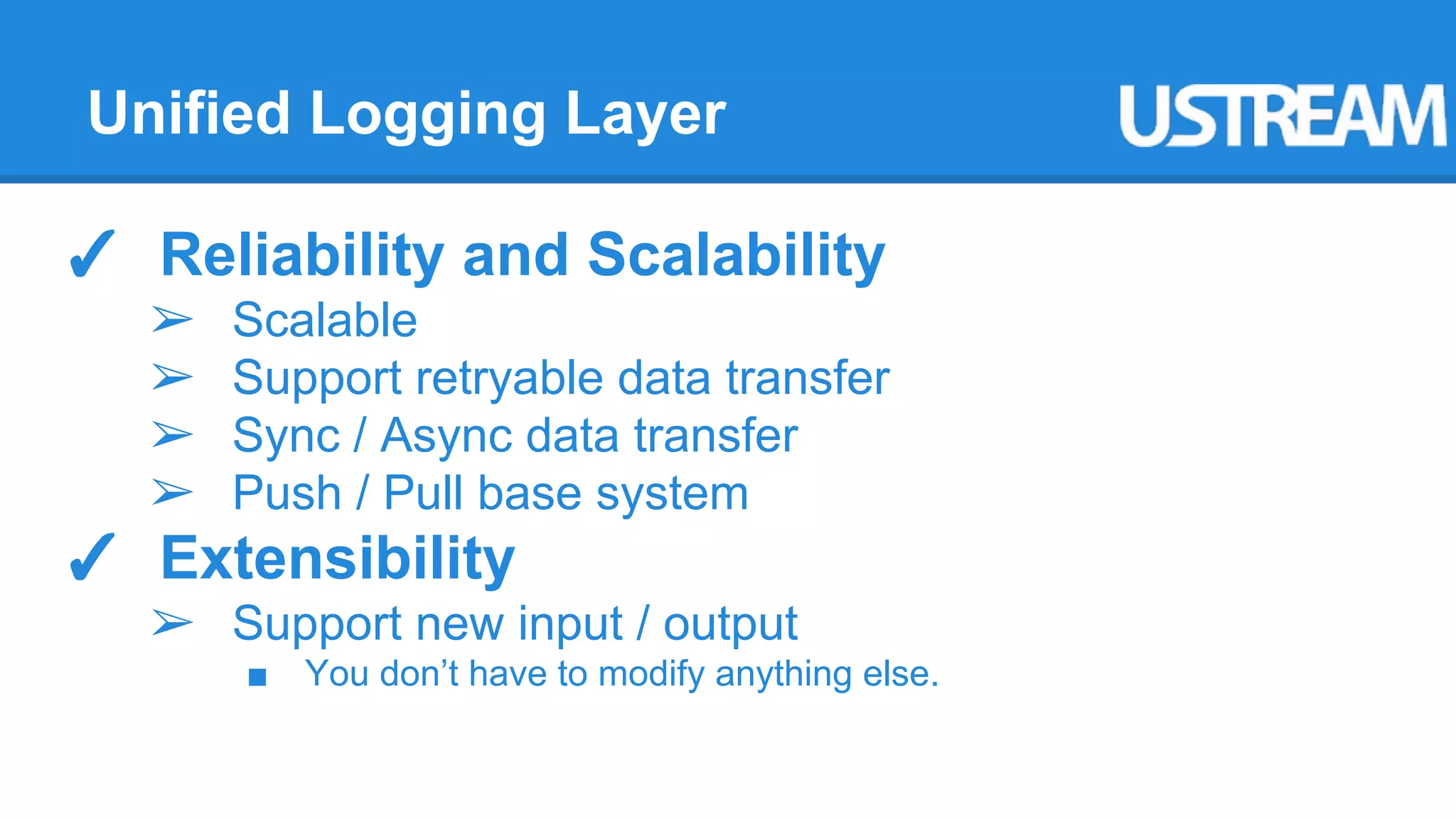

8. Unified Logging Layer
✓ Reliability and Scalability
➢ Scalable
➢ Support retryable data transfer
➢ Sync / Async data transfer
➢ Push / Pull base system
✓ Extensibility
➢ Support new input / output
■ You don’t have to modify anything else.

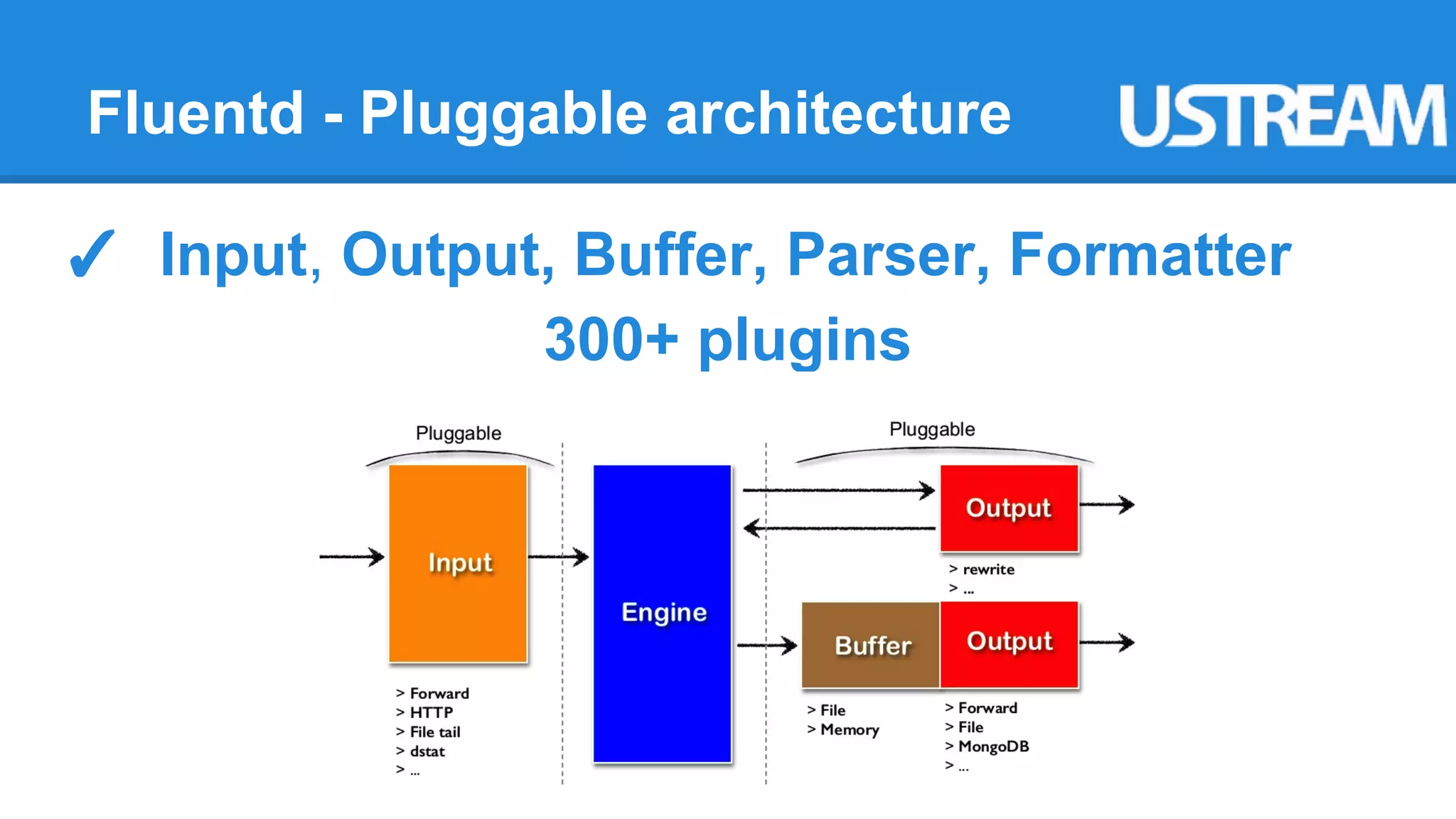

10. Fluentd - Pluggable architecture
✓ Input, Output, Buffer, Parser, Formatter
300+ plugins

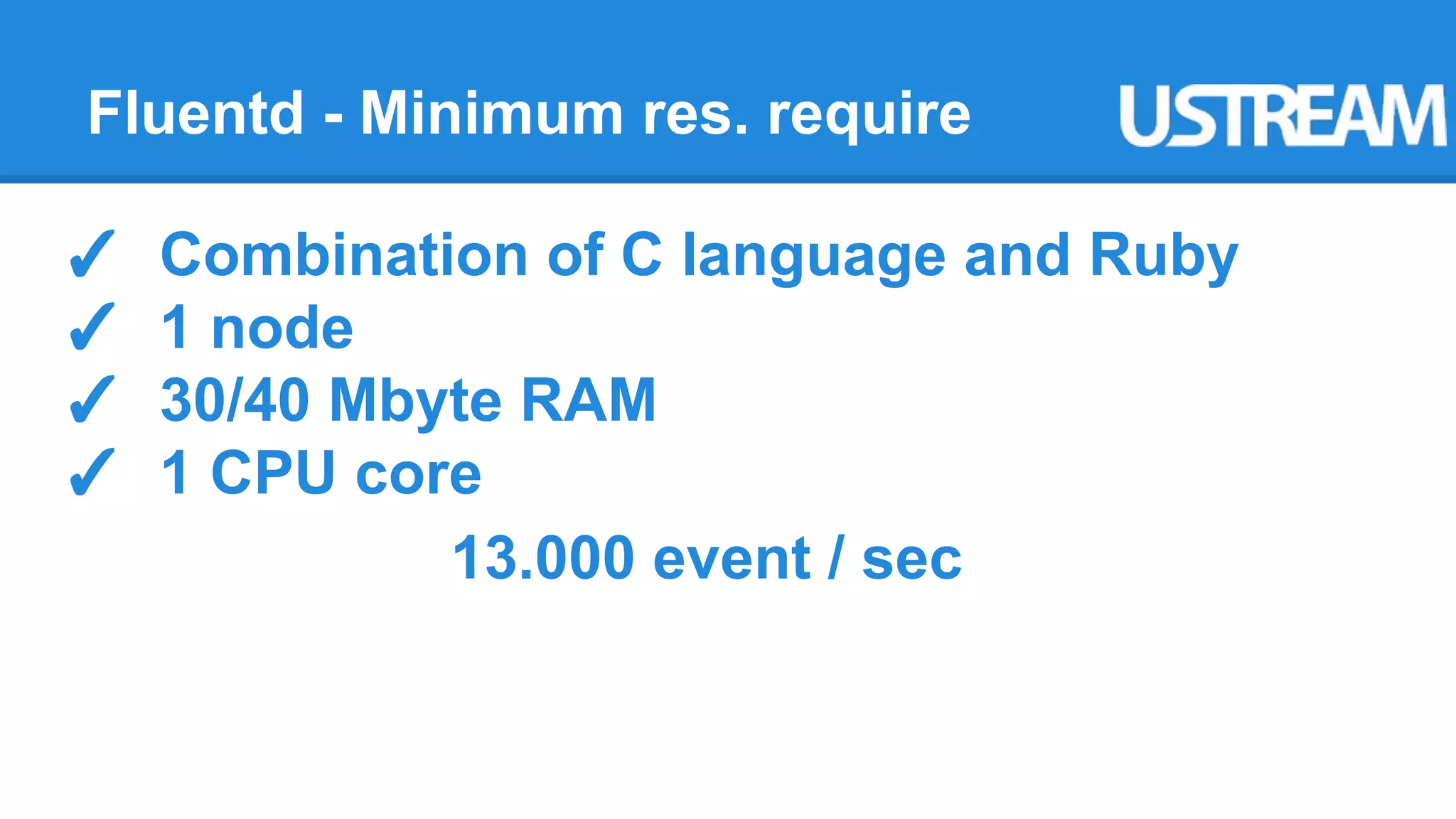

11. Fluentd - Minimum res. require
✓ Combination of C language and Ruby
✓ 1 node
✓ 30/40 Mbyte RAM
✓ 1 CPU core
13.000 event / sec

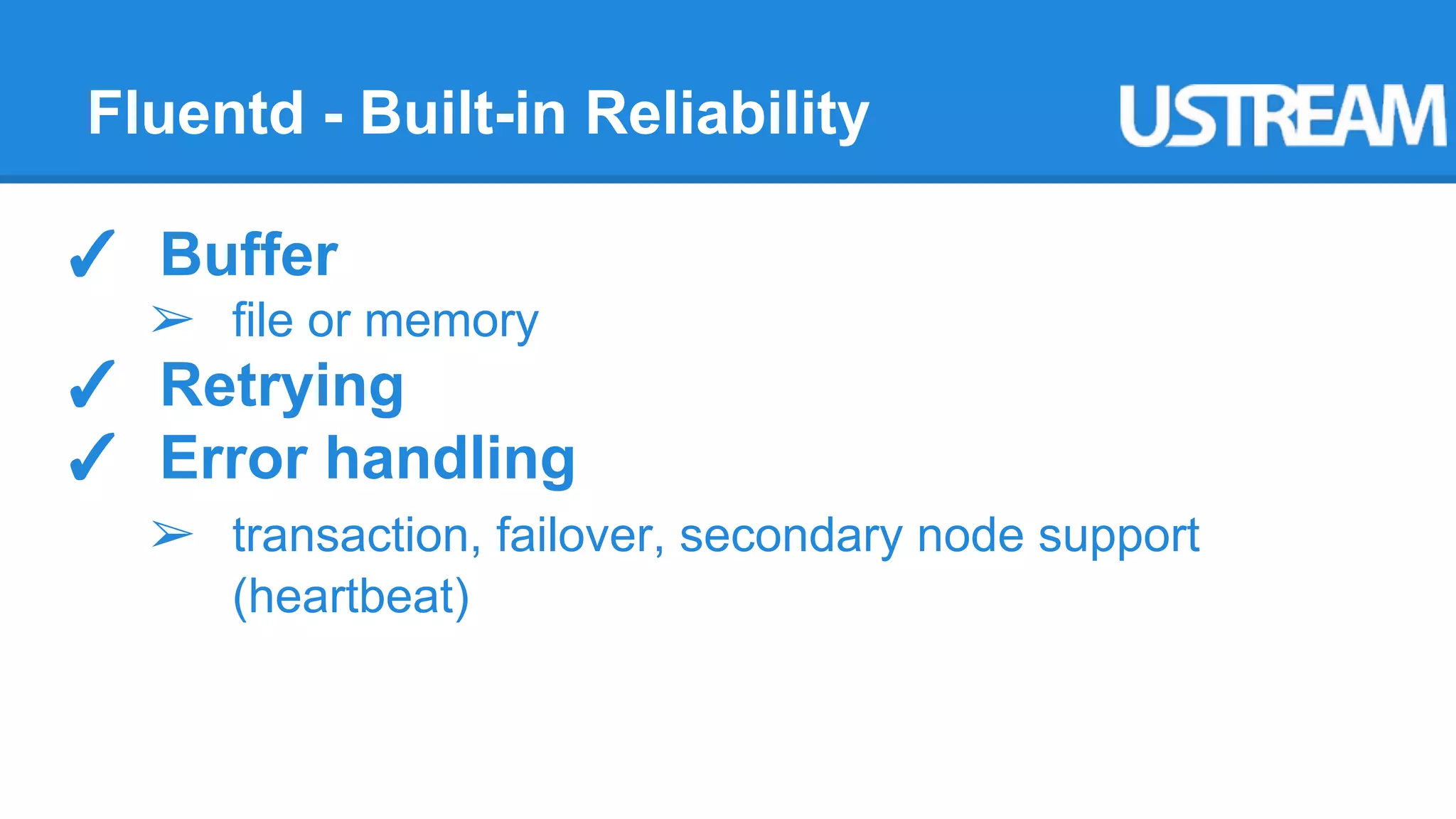

12. Fluentd - Built-in Reliability
✓ Buffer
➢ file or memory
✓ Retrying
✓ Error handling
➢ transaction, failover, secondary node support
(heartbeat)

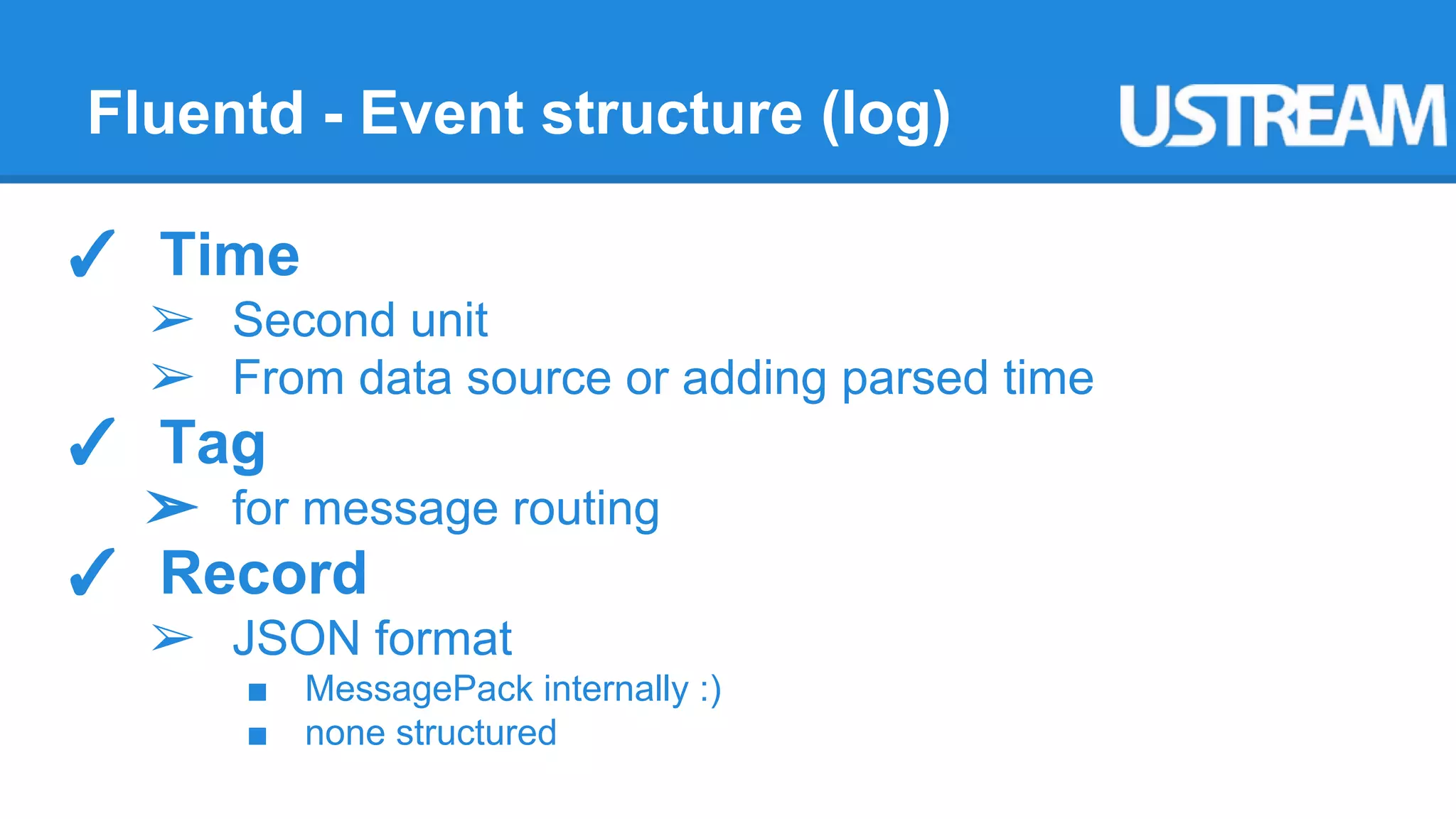

13. Fluentd - Event structure (log)
✓ Time
➢ Second unit
➢ From data source or adding parsed time
✓ Tag
➢ for message routing
✓ Record
➢ JSON format
■ MessagePack internally :)
■ none structured

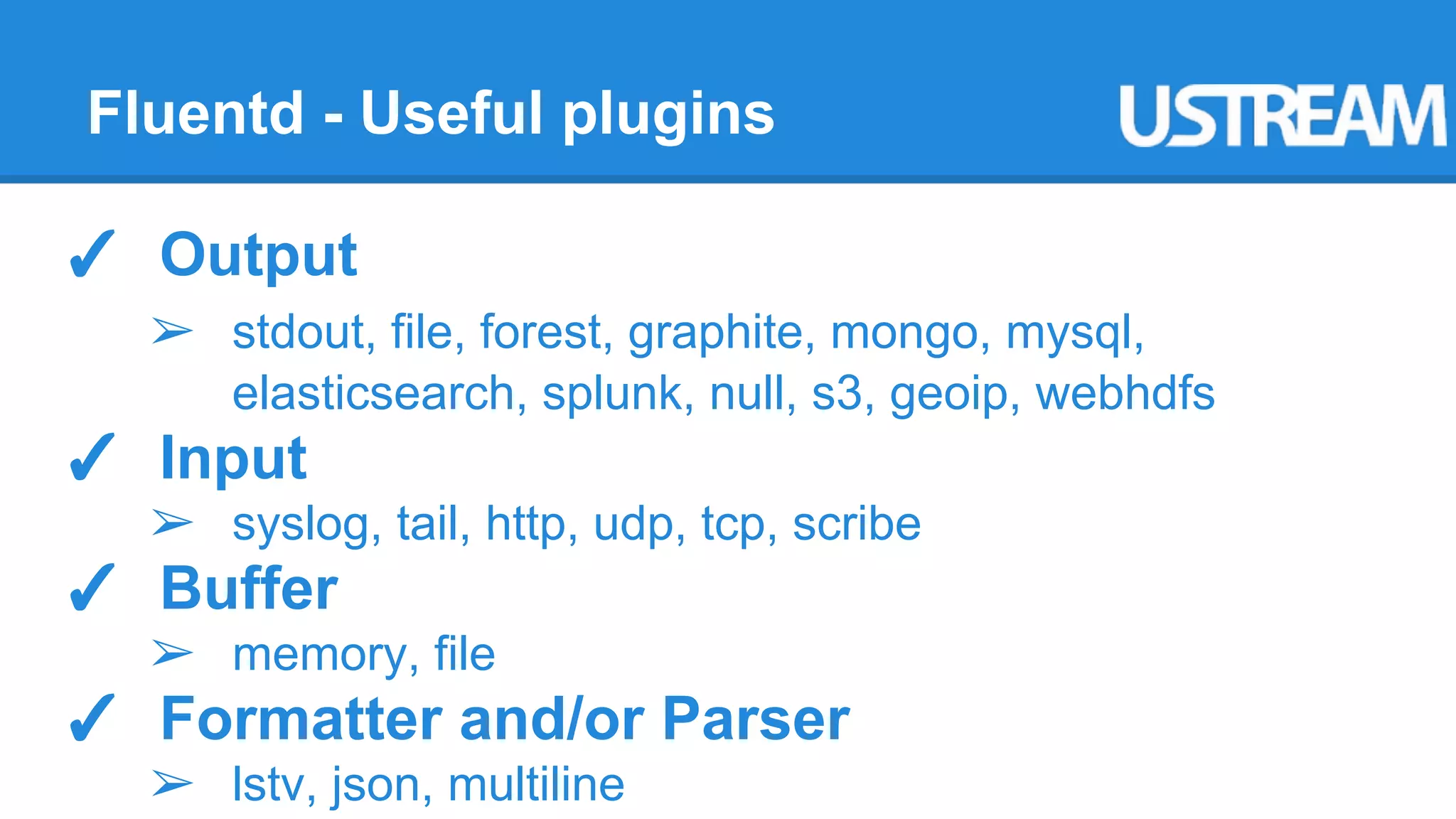

14. Fluentd - Useful plugins
✓ Output
➢ stdout, file, forest, graphite, mongo, mysql,
elasticsearch, splunk, null, s3, geoip, webhdfs
✓ Input
➢ syslog, tail, http, udp, tcp, scribe
✓ Buffer
➢ memory, file
✓ Formatter and/or Parser
➢ lstv, json, multiline

15. Examples

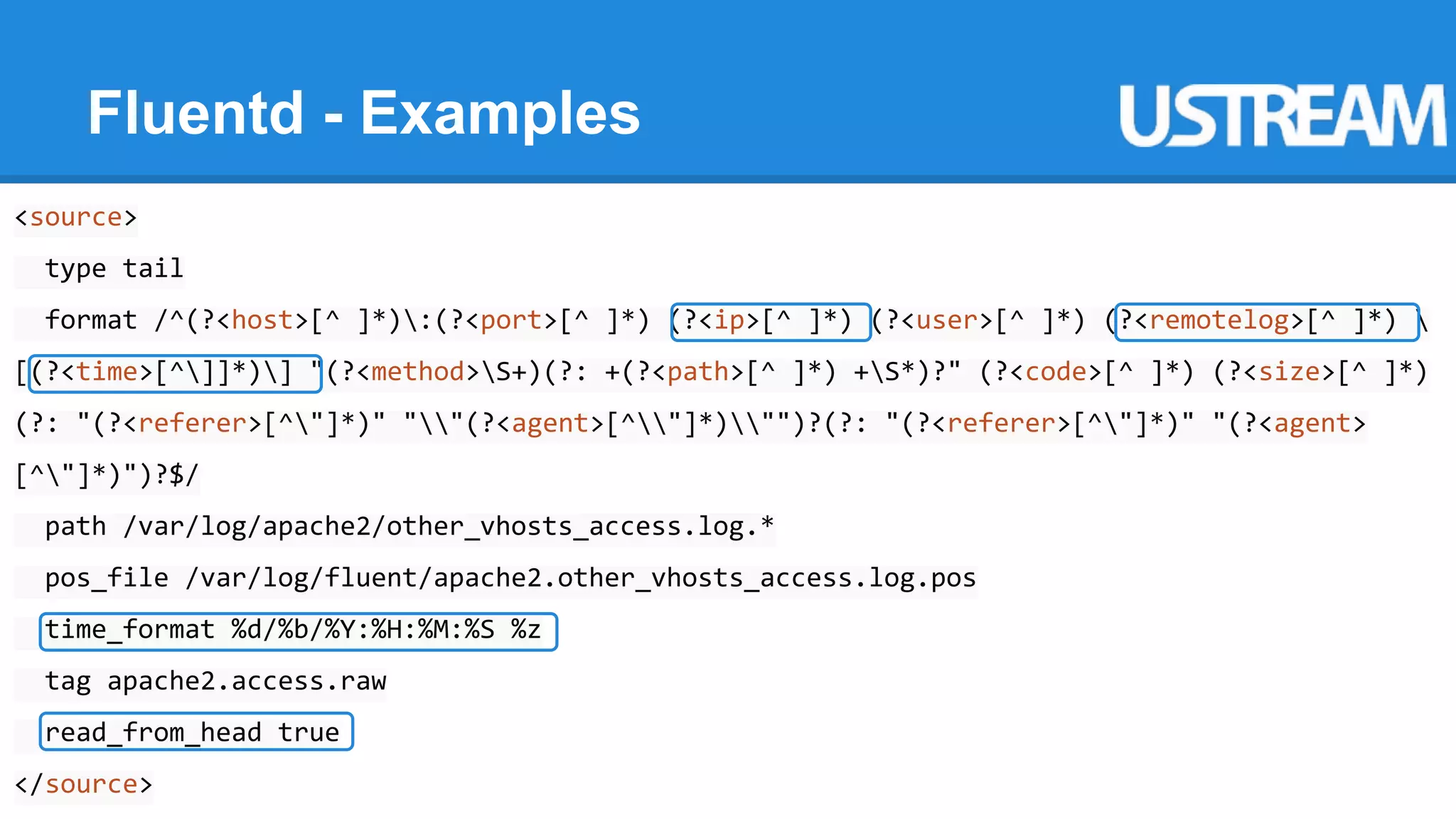

16. Fluentd - Examples
<source>
type tail
format /^(?<host>[^ ]*):(?<port>[^ ]*) (?<ip>[^ ]*) (?<user>[^ ]*) (?<remotelog>[^ ]*)
[(?<time>[^]]*)] "(?<method>S+)(?: +(?<path>[^ ]*) +S*)?" (?<code>[^ ]*) (?<size>[^ ]*)
(?: "(?<referer>[^"]*)" ""(?<agent>[^"]*)"")?(?: "(?<referer>[^"]*)" "(?<agent>
[^"]*)")?$/
path /var/log/apache2/other_vhosts_access.log.*
pos_file /var/log/fluent/apache2.other_vhosts_access.log.pos
time_format %d/%b/%Y:%H:%M:%S %z
tag apache2.access.raw
read_from_head true
</source>

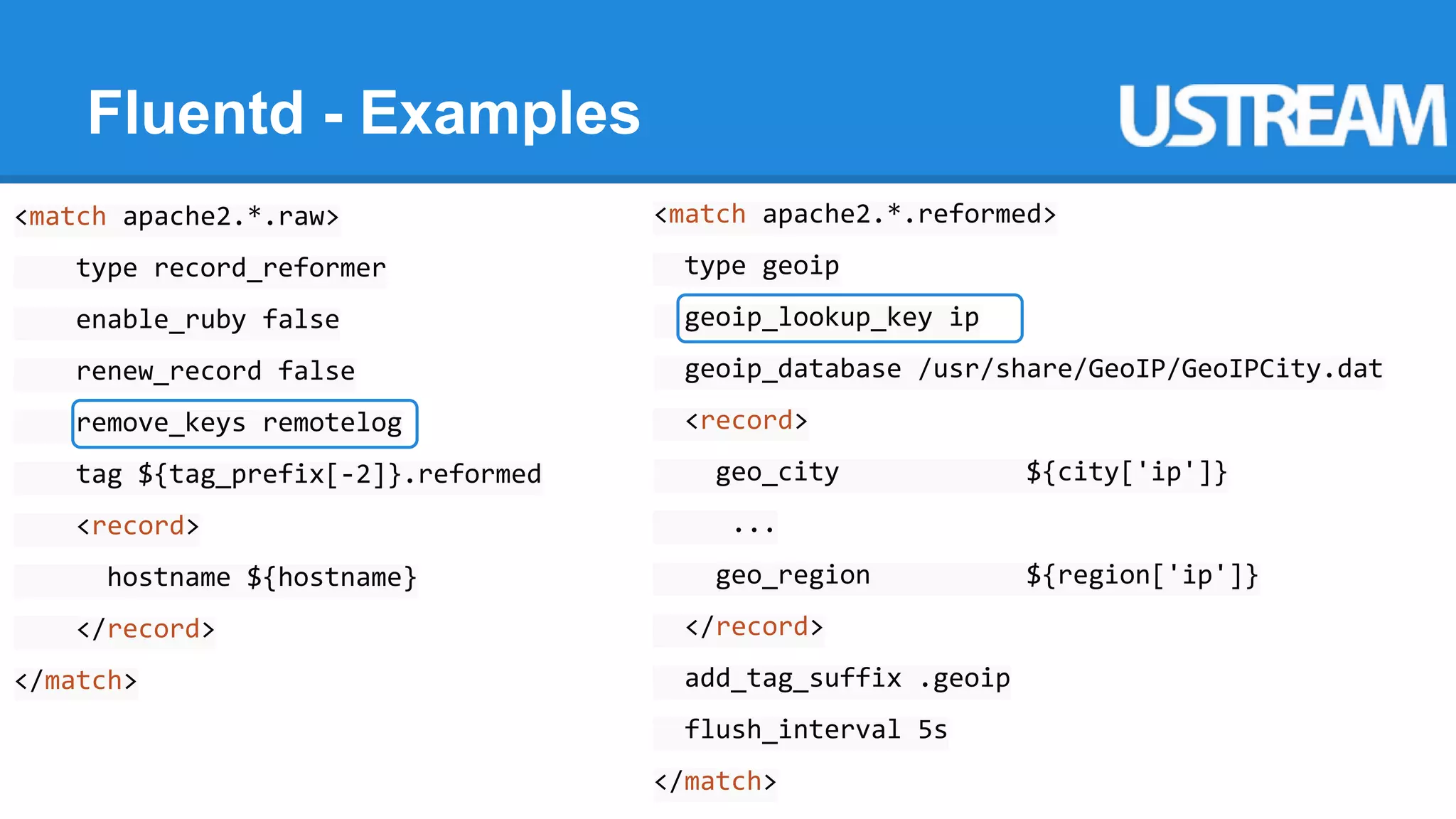

17. Fluentd - Examples
<match apache2.*.raw>
type record_reformer
enable_ruby false
renew_record false
remove_keys remotelog
tag ${tag_prefix[-2]}.reformed
<record>
hostname ${hostname}
</record>
</match>
<match apache2.*.reformed>
type geoip
geoip_lookup_key ip
geoip_database /usr/share/GeoIP/GeoIPCity.dat
<record>
geo_city ${city['ip']}
...
geo_region ${region['ip']}
</record>
add_tag_suffix .geoip
flush_interval 5s
</match>

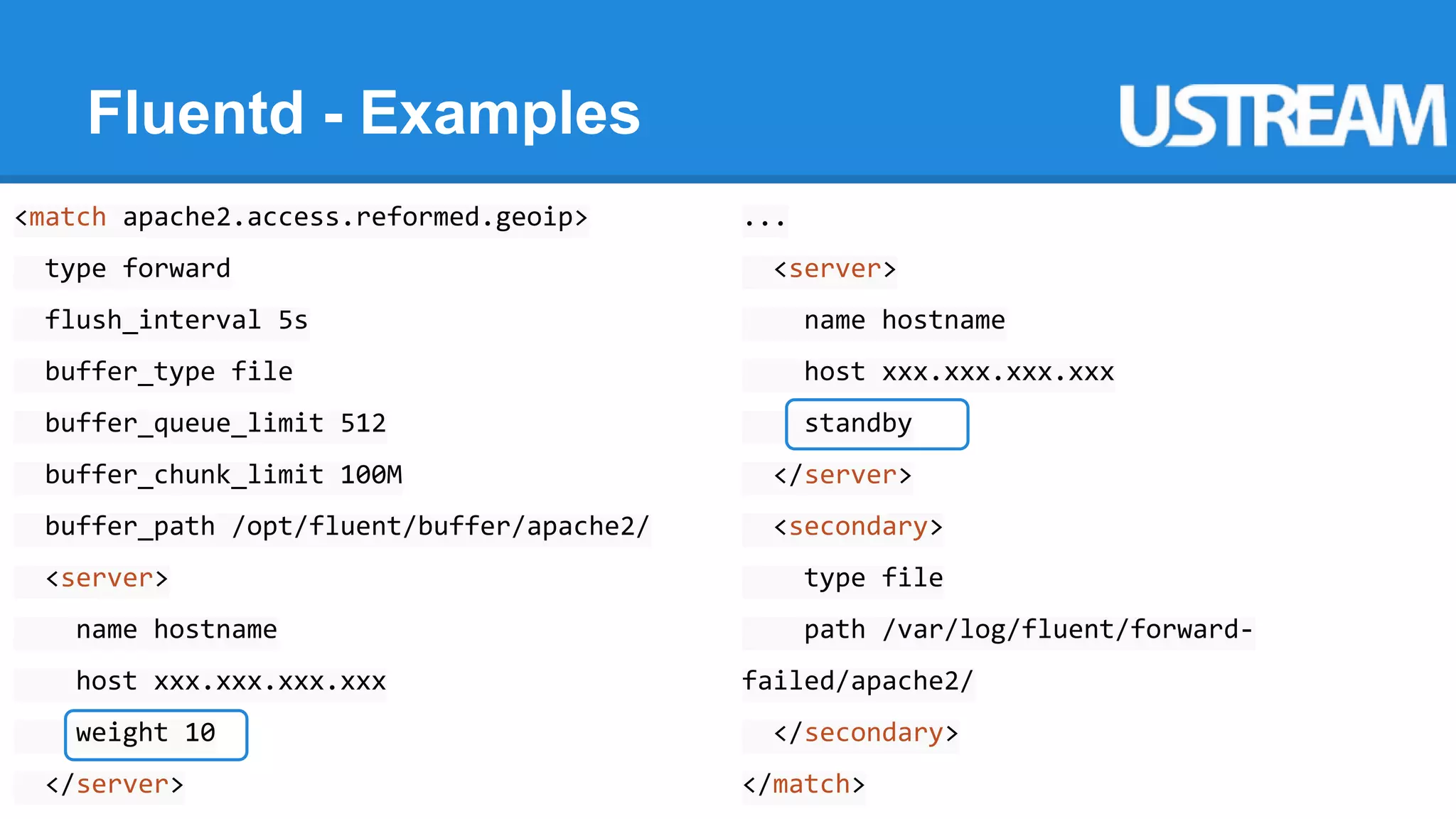

18. Fluentd - Examples
<match apache2.access.reformed.geoip>
type forward
flush_interval 5s
buffer_type file
buffer_queue_limit 512
buffer_chunk_limit 100M
buffer_path /opt/fluent/buffer/apache2/
<server>
name hostname
host xxx.xxx.xxx.xxx
weight 10
</server>
...
<server>
name hostname
host xxx.xxx.xxx.xxx
standby
</server>
<secondary>
type file
path /var/log/fluent/forward-failed/
apache2/
</secondary>
</match>

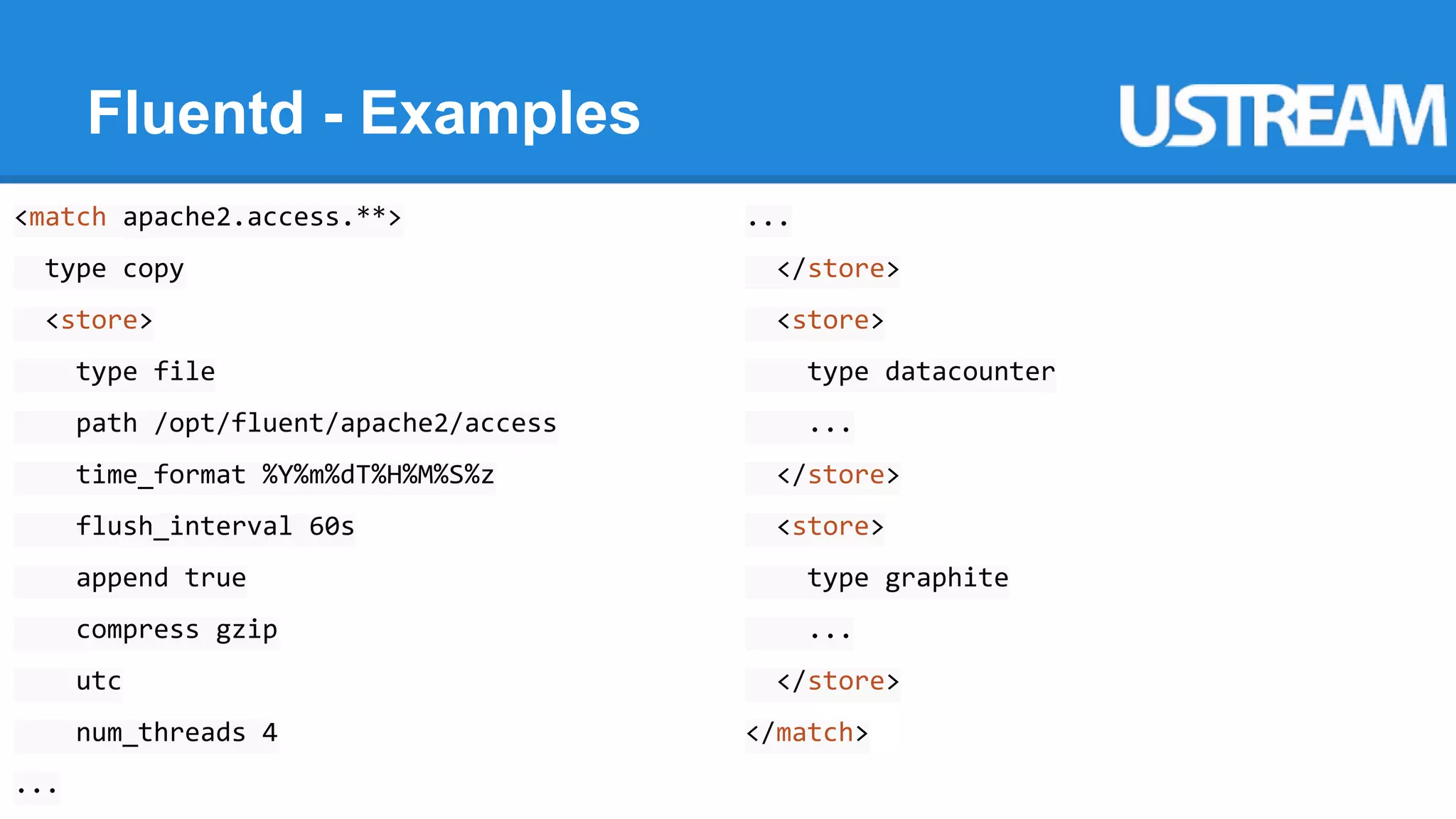

19. Fluentd - Examples
<match apache2.access.**>
type copy
<store>
type file
path /opt/fluent/apache2/access
time_format %Y%m%dT%H%M%S%z
flush_interval 60s
append true
compress gzip
utc
num_threads 4
...
...
</store>
<store>
type datacounter
...
</store>
<store>
type graphite
...
</store>
</match>

20. Fluentd - Testimonials

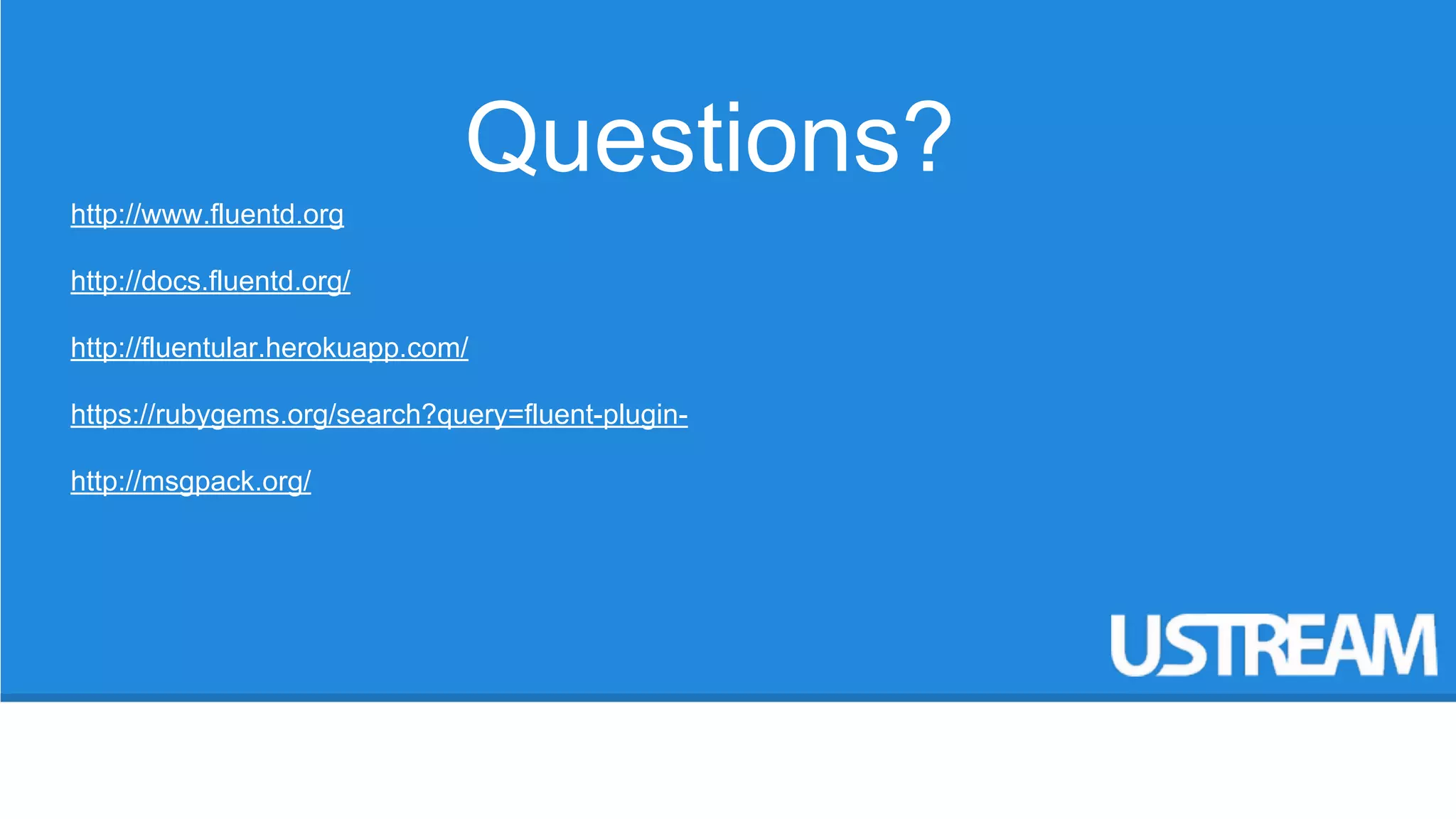

21. Questions?
http://www.fluentd.org
http://docs.fluentd.org/
http://fluentular.herokuapp.com/
https://rubygems.org/search?query=fluent-plugin-http://
msgpack.org/
