(presented at the AMIS Platform SIG session on October 1st 2015, Nieuwegein, The Netherlands) Creating and managing environments for development and r&d activities can be cumbersome. Quickly spinning up databases and web servers, using physical resources in a smart way, installing application components and having everything talk to each other can take a lot of time. This presentation introduces Docker - the key aspects of build, ship and run. It discusses the main concepts and typical actions. Next, it takes you by the hand and introduces you to Vagrant and Virtual Box for quickly provisioning VMs in which Docker containers run platform components, applications and microservices - all environments fine tuned using Puppet and interacting with Git(Hub). We start from zero on your laptop and end with local environments in which to develop, test and run various types of applications. The presentation spends some time on Oracle 's position regarding Docker and containers.

1. Lucas Jellema
AMIS Platform SIG - 1 October 2015
Introduction to
automated environment management
with Docker Containers
- for platform specialists and
developers

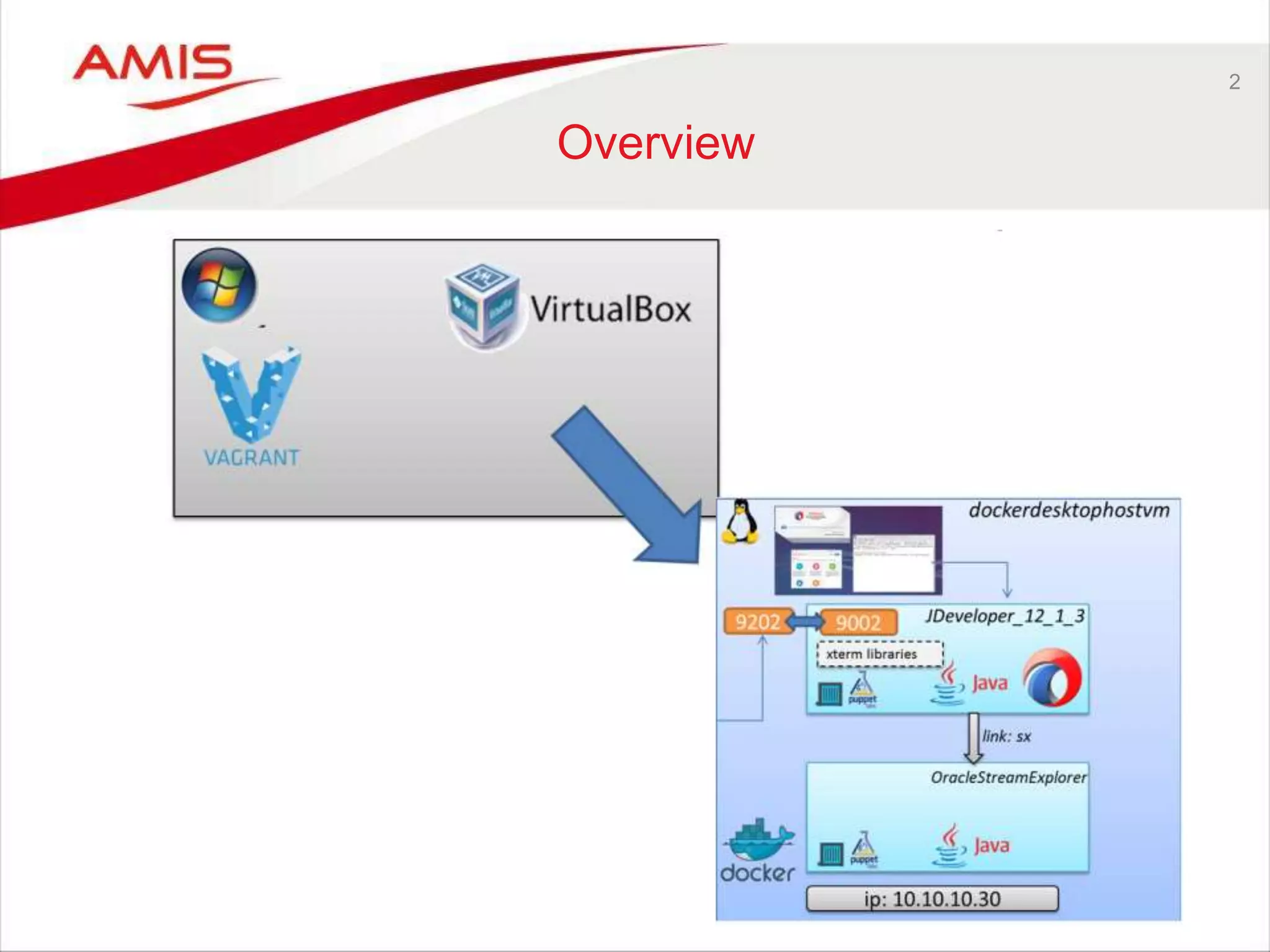

2. 2
Overview

3. 3
Overview
• Docker – what is behind the hype?
• A grasp on terminology such as Container, Build, Ship and Run
– Images, registry, micro services,
• Enough to participate in the discussion
• How to get started and going with Docker
– On Windows (or Mac OS)
• What can Docker mean to me
– In my personal R&D environment
– In my daily work situation
• What’s Oracle’s position regarding Docker?
• What is Docker’s current status and near by future
• Handson resulting in
– A Docker enabled environment
– Several containers running (Ubuntu, Wordpress, Oracle 11g XE DB, JDeveloper)
– A stepping stone for creating additionals containers and interdependencies

4. 4
What can Docker give us
(developers/platform specialists)
• An efficient way – in terms of work and physical machine resources – to
rapidly create, easily manage isolated environments
– That can be created and deleted easily
– That start and stop rapidly
– That can be exchanged simply
– That consume minimal system resources
• Use cases:
– Quickly try out some software (release) – without upsetting your laptop
– Easily create and distribute a complete training environment
– Prepare an environment for deployment to a cloud environment
– Locally construct and test a potentially complex environment that is then transfered
to a shared infrastructure
– Implement a micro services infrastructure
– Emulate/Test complex clusters on a single host

5. 5
Docker - Run

6. 6
Demo – Run our first container
dockerhost
port 80
IP 172.17.0.6

7. 7
Demo – Run a second container
based on same image

8. 8
Demo – two running NGINX
containers; port forwarding for one
port 80
port 80
port 90
IP 172.17.0.7
IP 172.17.0.6

9. 9
Demo: run container in
interactive mode using shell
dockerhost
/tmp/mynewfile.txt

10. 10
Demo: restart container and
attach to locate my file
dockerhost
/tmp/mynewfile.txt

11. 11
Final status demo: Running Multiple
Containers in a Single Linux Host
port 90 port 80
port 80
/tmp/mynewfile.txt
/var/lib/docker/aufs/diff/…
6af69dd33af4…/tmp/mynewfile.txt

12. 12
Run
• Docker Container runs Linux – as does the host
• Container is isolated - feels as
stand alone run time environment
– Directory structure, IP address, users and groups
• Shared resources with underlying host
(and therefore other containers)
– memory, CPU, host
• Light weight:
– Quick starting up and stopping
– Leverages underlying Linux, only adds what is different/additional
• Clusters of containers
– Dynamic adding/removing containers from clusters can be done very quickly (Google)
– Especially when containers are stateless
– (no shared session state in containers; possibly in joint cache, shared file system or
NoSQL database)
• Management tools – to monitor and manage individual containers and clusters
of containers (dynamically scale up/scale down)
Docker Host
Docker Container
Docker Container
• ip address
• directories & files
• users & groups
• process table

13. 13
When it walks and talks like a
Virtual Machine…
• Virtual Machine vs Container

14. 14
Containers vs Virtual Machines
• Containers do not run through a hypervisor
– They are logically isolated from the host and each other
– They run the same kernel as the host (i.e. Linux!)
• Containers share resources (the kernel) with host
– the rest of the OS can be unique per container (namespaces on host in mounts,
process table, network resources)
• Containers are based on images defined in a layered file system; all
containers based on the same image share the image definition
– Adding a copy-on-write file system layer
– 50 containers based on the same image require same file system resources as 1
container – until they start changing or creating files
• Containers start, stop, restart in seconds
• Containers do not have physical resources (memory, CPU) pre-allocated
– Resources are allocated at run time

15. 15
Docker is a high level API on
core Linux Kernel features
• Solaris Zones and Windows Server offer similar isolation capabilities

16. 16
Micro Services
• Architect the application into a set of collaborating services.
• Each service implements a set of narrowly, related functions.
• The services are elastic, resilient, composable, minimal, and complete.
• Services communicate using standard protocols such as HTTP/REST
• Services are developed
and deployed independently
of one another.
• Each service manages its own state

17. 17
Micro Services
• With Docker, each Micro Service is implemented with a single container
– The micro service is not just encapsulated functionality that needs to be deployed
onto some platform (such as an ESB or BPEL engine)
– instead it ships complete with the fully configured engine that runs in the
standardized container platform
• All you need to run is:
– Start container. Period.
Linux Host + Docker Engine

18. 18
A more complex network of
microservices…

19. 19
Micro Services and containers
• Containers can run on the same host
– Or on different hosts
• Containers can be run as a single node
– Or scale up to run as many nodes
• Containers can easily be replaced by other containers
– That can be connected to in the same way

20. dockerhost
my-little-container
my-tiny-container
my-data-container
Simple Docker UI
GUIs for monitoring & managing a
Docker runtime environment

21. 21
GUIs for monitoring & managing a
Docker runtime environment
• Dockland - Yet another docker web UI
– https://github.com/dynport/dockland
• Shipyard – a web UI for Docker
– https://github.com/ehazlett/shipyard
• DockerUI – Web interface to interact with the Docker Remote API
– https://github.com/crosbymichael/dockerui
• Simple Docker UI
– https://github.com/felixgborrego/docker-ui-chrome-app
• Panamax
– https://github.com/CenturyLinkLabs/panamax-ui

22. 22
Docker – Ship and Run

23. 23
Demo Ship
Run MySQL and Wordpress

24. 24
Running Wordpress instance
by pulling two public images
port 8080 port 80
dockerhostvm
IP: 10.10.10.29
Docker Hub

25. 25
Commit container as image
and push to registry
dockerhostvm
Docker Hub
/tmp/mynewfile.txt
Dockersig-trial:1.0

26. 26
Image published on public
Docker Hub registry

27. 27
Run container based on my
published image
dockerhostvm
Docker Hub
/tmp/mynewfile.txt
Dockersig-trial:1.0
Dockersig-
trial:1.0

28. 28
Containers in the world of
physical logistics

29. 29
Docker Containers Ship microservice –
app, libs, configuration, platform
ready to run on any Linux Host+Docker

30. 30
Docker Registry
• Images can be published to Public and Private Registries
– Docker Hub is the default registry
– Docker Hub contains official repositories from many projects and vendors
– Private Registries can be created in the cloud and on premises
• Containers can be started from such images

31. Public Docker
Registry
Docker Hub
31
Registry
push
Private
Docker
Registry
Docker Hub
push

32. 32
Docker &
Cloud
Public Docker
Registry
Docker Hub

33. 33
How to Ship a Stand-Alone
product?
• Create Installers + Configuration Instructions?
• Make your product success dependent on platform configuration and OS
settings?
• Ship as a container – everything set up and ready to run!
• For example:
– RubiconRed – Preferred way to deliver their tool MyST: as Docker Container (image)

34. 34
Docker – Build, Ship and Run

35. 35
Demo Build

36. 36
Demo run container after build

37. 37
Demo Build – slightly more
advanced Dockerfile

38. 38
Demo – run image created in
build process

39. 39
Building a Docker Container
• The Build Steps are prescribed in Dockerfile
– Could be called the container recipe
• Docker commands specify:
– Start from Base Image
– Perform commands such as ADD, COPY, RUN
that modify the starting situation
– The Build Context contains the contents of the folder on the Docker host that
contains the Dockerfile (including sub folders)
• This can become quite large
• During build – files can be downloaded over HTTP using standard wget (but not copied from the host outside
the build context)
• All files added to the container become part of its history (and increase the size)
– Specify the default CMD to run when the
container is started
– Optionally: tag the container as image, push it to registry and start one or more
containers from the new image

40. 40
Building a Docker Container
• Docker files specifies all build steps
– With fairly low level commands
• Start from base image - each step
in the Docker Script adds a layer
• A layer is
– A logical ‘savepoint’ in the container history
• That marks an intermediate ‘image’
– A physical directory somewhere on the Docker Host
Base Image
Ubuntu 14.04
FROM Ubuntu:14.04
COPY
RUN
WORKDIR
RUN
EXPOSE
CMD
COPY
RUN
RUN
Final

41. 41
Run a Docker Container
• When a Docker Container is run based on an image then all these
“physical” layers are combined into a “logical” read-only file system
– Union file system
– Copy-on-write
– Like a stack: higher layers may override lower layers
• A writable layer is added
for the running container
Base Image
Ubuntu 14.04
COPY
RUN
RUN
Base Image
Ubuntu 14.04
COPY
RUN
RUN
Writable Layer
run
Base Image
Ubuntu 14.04
COPY
RUN
RUN
Writable Layer
run

42. Standard
Image,
locally built
42
Build
• In addition to 10Ks of reusable images to start containers from
• There are a zilion Dockerfiles to leverage for building images
– Download script
– Add software packages and installers (because of license reasons)
– Tweak the script to fit your own needs
OR (preferably)
– Run the script, create a local image and then create your own Docker File that takes
this image as its starting point
Your Own
Dockerfile
Your Tweaked

43. 43
“Docker” Search results on
GitHub

44. 44
For example: build container
for Oracle WebLogic
• Clone from GitHub to
Docker host
– Dockerfile
– Shell scripts
– Supporting files
• Download RPMs for
– JDK 8
– WebLogic 12.1.3
• Docker Build
• Optionally use second
Docker file on top of
WebLogic image to
create a WLS Domain
Standard
Oracle WebLogic
Image,
locally built

45. 45
Build File for WebLogic
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY

46. 46
Build File for WebLogic (2)
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN

47. Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN
47
Turn container into image
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN
docker commit <container-id> weblogic:12.1.3-dev

48. 48
Build File for WebLogic Domain
weblogic:12.1.3-dev
Base Image
Oraclelinux:
7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN
Base Image
Weblogic:12.1.3-
dev
COPY
RUN
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN

49. 49
Build File for WebLogic Domain
(2)
Base Image
Weblogic:12.1.3-
dev
COPY
RUN
RUN
RUN
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN

50. 50
Tag container as reusable
Base Image
Weblogic:12.1.3-
dev
COPY
RUN
RUN
RUN
Base Image
Oraclelinux:7
RUN
COPY
RUN
COPY
COPY
COPY
RUN
RUN
RUN
RUN
RUN
docker commit <container-id> weblogic-basedomain:12.1.3
oraclelinux:7
weblogic:
12.1.3-dev
weblogic-
basedomain:12.1.3

51. 51
Build Microservice based on
WebLogic plus Custom App
Microservice:
custom app
oraclelinux:7
weblogic:
12.1.3-dev
weblogic-
basedomain:12.1.3
WLST deploy EAR
WLST config JMS
WLST config data sources Microservice:
database

52. 52
Automated Configuration
Management
• Use of Shell Scripting to create | compose | configure environments is not
exactly the latest fashion
• Declarative, automated configuration management
tools have us specify what we need and then
make that happen
– No scripting
– Cross platform
– Parametrized
– Leveraging public catalogs of
environment definitions

53. Container Build process
• Regular Docker Build
– From base image
– Add Puppet support
– Add Puppet Manifests &
Modules
• Start Container
– Optional: Map Volume from
host with large files
– Run Puppet to apply Manifests
– Stop Container, Tag as Image
dockerhostvm
Dockerfile
my-base-container
/files
/puppet
/files
volume
1
Very big files
Advanced Docker Container
Build using Puppet
2
3
4
5
4
21
3
/puppet Manifests/Modules
5

54. 54
Notes on
Using Puppet with Docker
• After applying Puppet – the container can be stopped, tagged and used as base
image for next Docker Build
– That could EXPOSE, ENV, CMD or ENTRYPOINT
• With some workarounds, Puppet apply can be made to run during Docker Build
(with RUN in Dockerfile)
– Less control over build context
– No Volume mapping from host
• There are Puppet Modules to use for automating the build pipeline of Docker
(leveraging the Docker API)
– To install Docker, build container, create and ship an image, run container
• What applies to Puppet by and large applies to similar tools such as Chef, Salt
and Ansible
• Puppet Modules are available for many Oracle Database & Fusion Middleware
configuration management tasks
– Oracle Database (EE, SE, XE)
– WebLogic, SOA Suite, OSB, BPM Suite, WLST
– JDK, Opatch, VirtualBox, GlassFish, Hudson, Maven

55. 55
Continuous Delivery in the
Container Era
• What if development team delivers the complete, runnable environment –
instead of fine grained artifacts that need to be deployed to an
environment?

56. 56
The Image is Delivered
• Source code is built into testable and deployable units
• When build and unit test is complete, a Docker Image is built
• This image is the unit of delivery
– It is independent of / unimpeeded by the run time platform

57. 57
Automated Workflow
• Source code commit triggers build, test, ship and deploy of Docker
Container
– For example: Docker Hub can be hooked into GitHub with build trigger

58. 58
Docker –
Concepts in Perspective
Dockerfile Image Docker Hub
Registry
Internet
Container
build
push
pull
run commit
Docker
Private
Registry
push
Text file
Size = ~ KB
Installation &
config instructions
Composed of many read-only layers
Typical size = ~ hundred(s) MB
Can have multiple versions (akin Git tags)
Shares the image’s read-only layers
1 private writeable layer (copy-on-write)
Initial size = 0 bytes
Can be stopped, started, paused, etc.
Free public hosting
Source: Sébastien Bonami, IT Engineering Student and David Lauzon, Researcher (DevOps 2015)

59. 59
Docker –
internal structure
Source: Sébastien Bonami, IT Engineering Student and David Lauzon, Researcher (DevOps 2015)
Docker
Daemon Container 1
Host OS Kernel
Docker
Storage
Backend Container 2 ...
Hardware
Setups & manage the Linux
containers.
Stores the image and container’s
data layers locally.

60. 60
Quick Docker Recap

61. 61
Image and Container Specifics
Container
Base Image
Ubuntu 14.04
COPY
RUN
RUN
Writable Layer
run
Container “state”
tag
remove
inspect
save
tar load …
pullregistry

62. 62
Image and Container Specifics
Container
Base Image
Ubuntu 14.04
COPY
RUN
RUN
Writable Layer
run
start
attach
(un)pause
kill
stop
restart
remove
inspect
logs
Container “state”
export
tar
…
Flattened, no
image details

63. 63
Container Details & Operations
Container
web
Container
db
link
docker run –d –it
<image-id> /bin/bash
Container
xxx
link
link
808080
/tmp/files
Shared Files
/data
/host_files
Docker
storage
/software
Shared Files
/repos/repos
1
2
3
4
1
2
3
4
2
4
–p 8080:80
-v /data -v /tmp/files:/host_files
-volumes-from xxx
--name web --link db:db1 –link xxx:web_xxx

64. 64
Run GUI applications
in Docker Container
Container
docker run –d –it
-v /tmp/.X11-unix:/tmp/.X11-unix
-e DISPLAY=$DISPLAY
<image-id> /bin/bash
/tmp/.X11-unix
/tmp/.X11-unix
dockerhost
GUI applications

65. 65
Docker and Windows
• Docker sits on Linux Containers
– Windows Server 2016 will have containers too – and Docker will sit on those as well
– However, today, Docker does not run on Windows

66. 66
Docker cannot run on Windows
- directly, without Linux VM
dockerhost
Container
Container
Container

67. 67
Vagrant to the rescue
dockerhost
Container
Container
Container

68. 68
Vagrant to the rescue
• Based on simple declarative definitions…
• Vagrant provisions environments through various providers
– VirtualBox, VMware, AWS
• Subsequently, provisioning (‘configuration management’) using shell
scripts, Chef, Anisble, Salt or Puppet
• Vagrant supports Docker
– Create Docker Host VM, Build | Run | Manage Container
• Vagrant makes host-container folder mapping and networking quite easy
dockerhost
Container

69. 69
Vagrant Docker Provisioning
• Vagrantfile defines the Container to run – including name and initial
command and also synched folders (i.e. host <=> container mapping)
• Dockerfile contains build recipe for the Container we want to build
• DockerHostVagrantfile describes the VM to be used as Docker Host
Vagrantfile
DockerHostVagrantfile
Dockerfile

70. 70
Vagrant Docker Provisioning
dockerhostvm
Vagrantfile
DockerHostVagrantfile
Dockerfile
my-little-container
build process
Docker Hub
ubuntu:14.04
/u01/readme.txt
Vagrant Boxes
ubuntu/trusty64

71. 71
Vagrant with Docker
Folder Mapping
dockerhostvm
Vagrantfile
DockerHostVagrantfile
my-little-container
/vagrant
/vagrant
/host_temp
/host_data
/var/lib
/docker
/docker_
generatedId

72. 72
Vagrant on Windows
– other options
• Boot2Docker
– a lightweight Linux distribution based on Tiny Core Linux made
specifically to run Docker containers.
It runs completely from RAM, weighs ~27MB and boots in ~5s
Windows or Mac host

73. 73
Vagrant on Windows
– other options
• Docker Toolbox (since August 2015) replaces Boot2Docker
– Contains Docker Client for Windows, Kitematic (Docker GUI, alpha release), Docker
Machine, Docker Engine and leverages Oracle VirtualBox
– Still uses Boot2Docker Linux Distribution to run containers
– Currently no support for Windows host-container folder mapping
– No support for GUI in containers

74. 74
Oracle and Docker
• Oracle Linux 6 and 7 Images
• WebLogic certified on Docker
– Official “Docker Build-scripts in GitHub to create images”
• Solaris Zones as Docker backend
• Participate in OCI
• Docker on Oracle Cloud??

75. 75
Open Container Initiative

76. 76
Summary
• Build
• Ship
• Run
• Docker – started in 2013
• Open Container Initiative

77. 77
Hands On
• Copy workshop resources from USB stick to c:docker_sig
• Install VirtualBox 5.0 and Vagrant 1.7.4
• Use vagrant up to build and run a simple Docker Container
– This will make Vagrant create the Linux Docker Host VM
• Use vagrant ssh to open a terminal in the Docker Host and start your
Docker adventures
– Manage containers and images
– Use link, port forwarding and volume configurations
• Use vagrant up to build a Docker Container with Puppet support; then
start the container and use Puppet to perform advanced configuration
• Run a container with an Oracle Database inside
• Run a container with a WebLogic Domain inside
• Bonus:
– Create Linux Desktop Docker Host VM (to run GUI applications in Docker Container)
