1. Dynamic Host Configaration Protocol (DHCP) Configaration

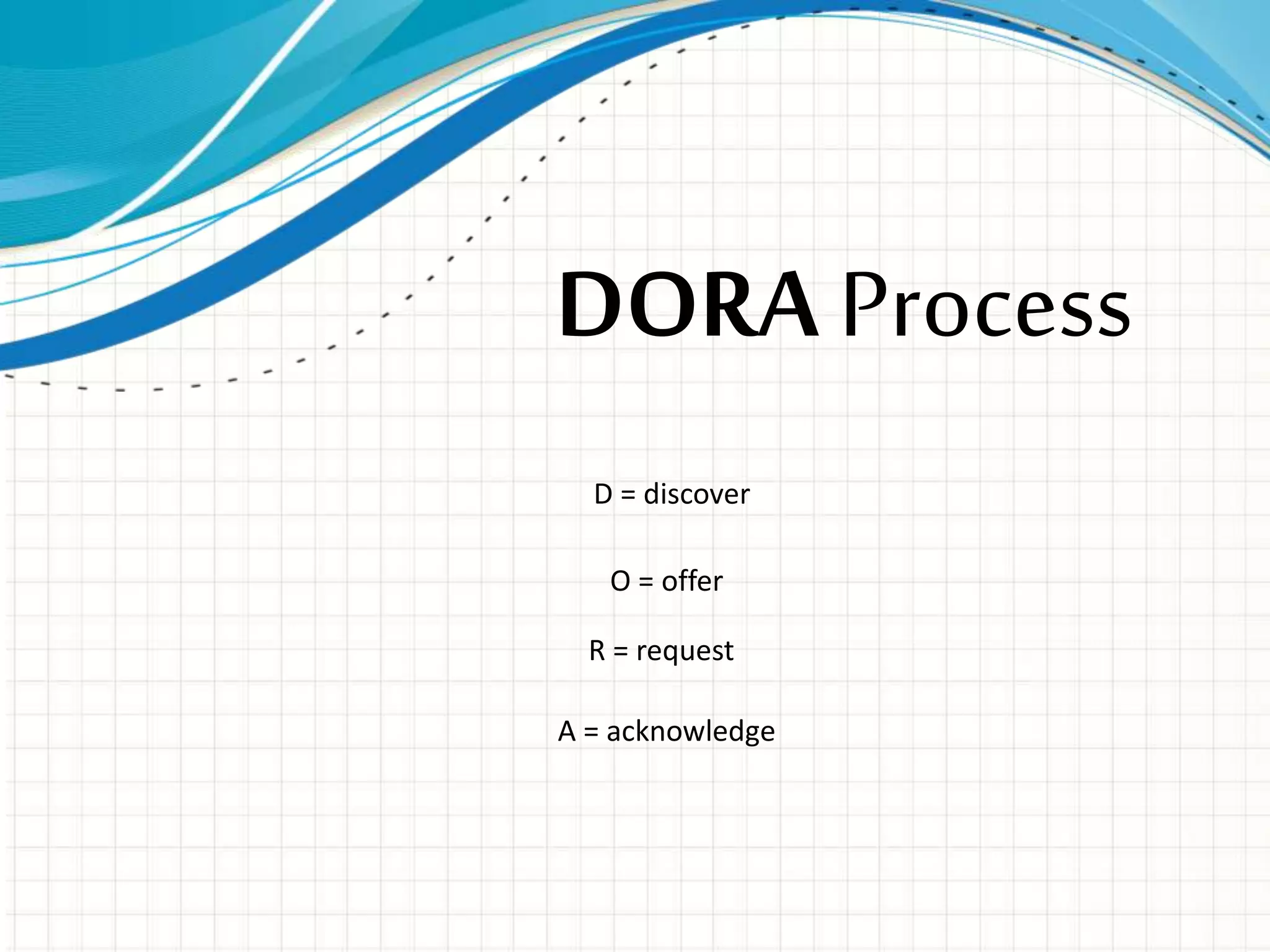

2. DORA Process
D = discover
O = offer
R = request
A = acknowledge

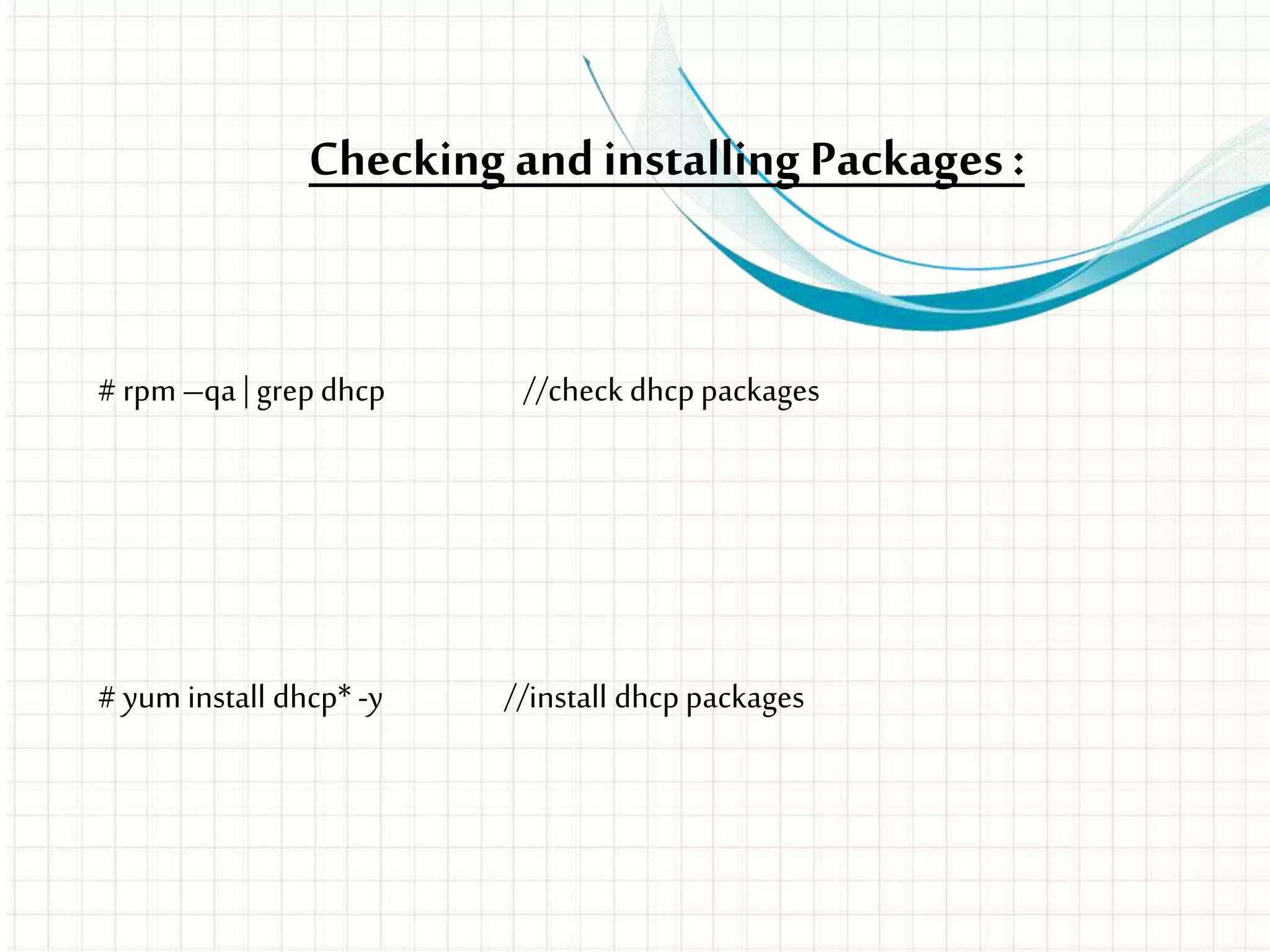

3. Checking andinstalling Packages:
# rpm–qa | grepdhcp //check dhcppackages
# yum install dhcp* -y //install dhcppackages

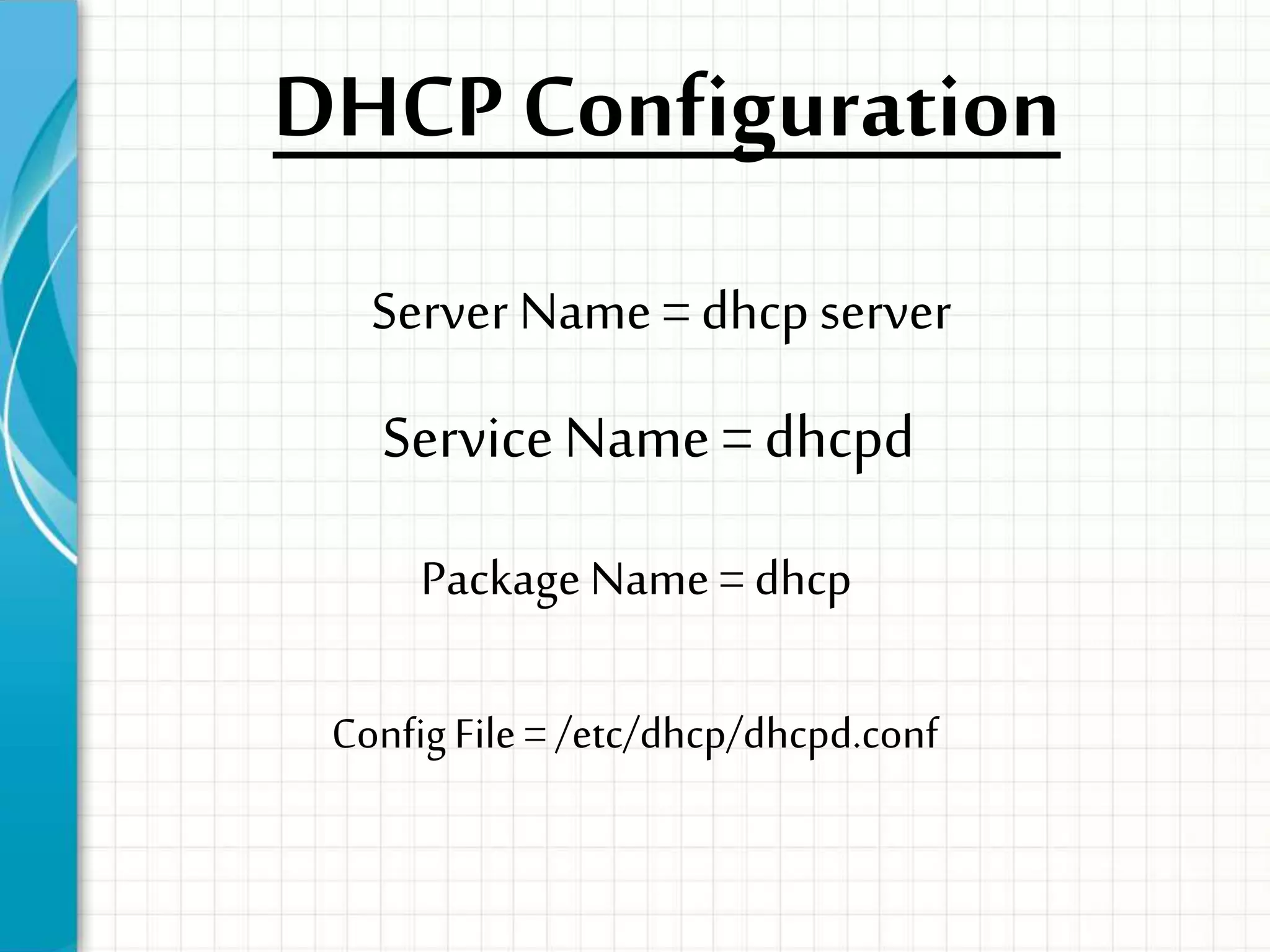

4. DHCP Configuration
Server Name =dhcpserver
Package Name = dhcp
ConfigFile= /etc/dhcp/dhcpd.conf
ServiceName =dhcpd

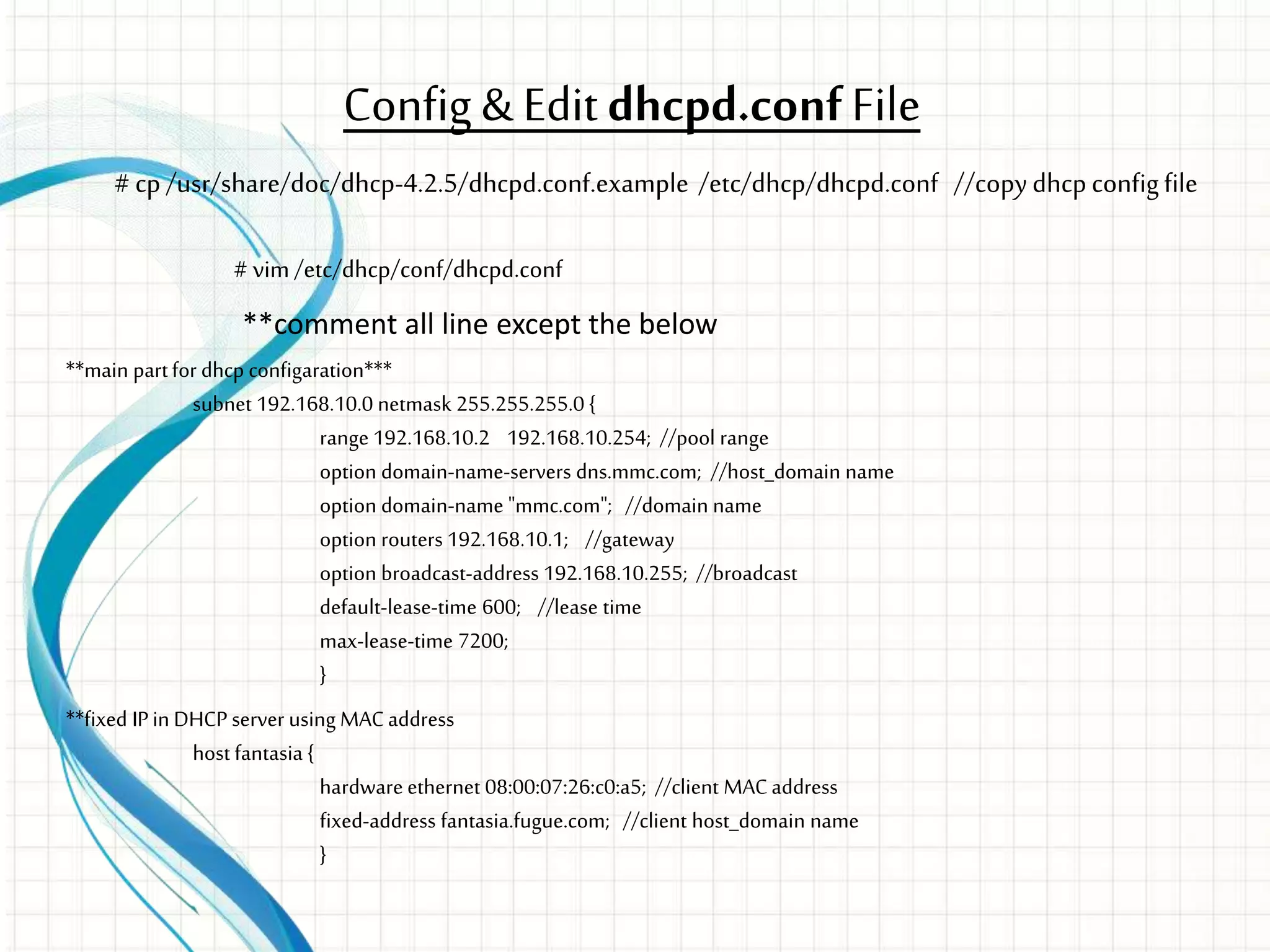

5. Config & Editdhcpd.confFile
# vim/etc/dhcp/conf/dhcpd.conf
**comment all line except the below
**main partfor dhcp configaration***

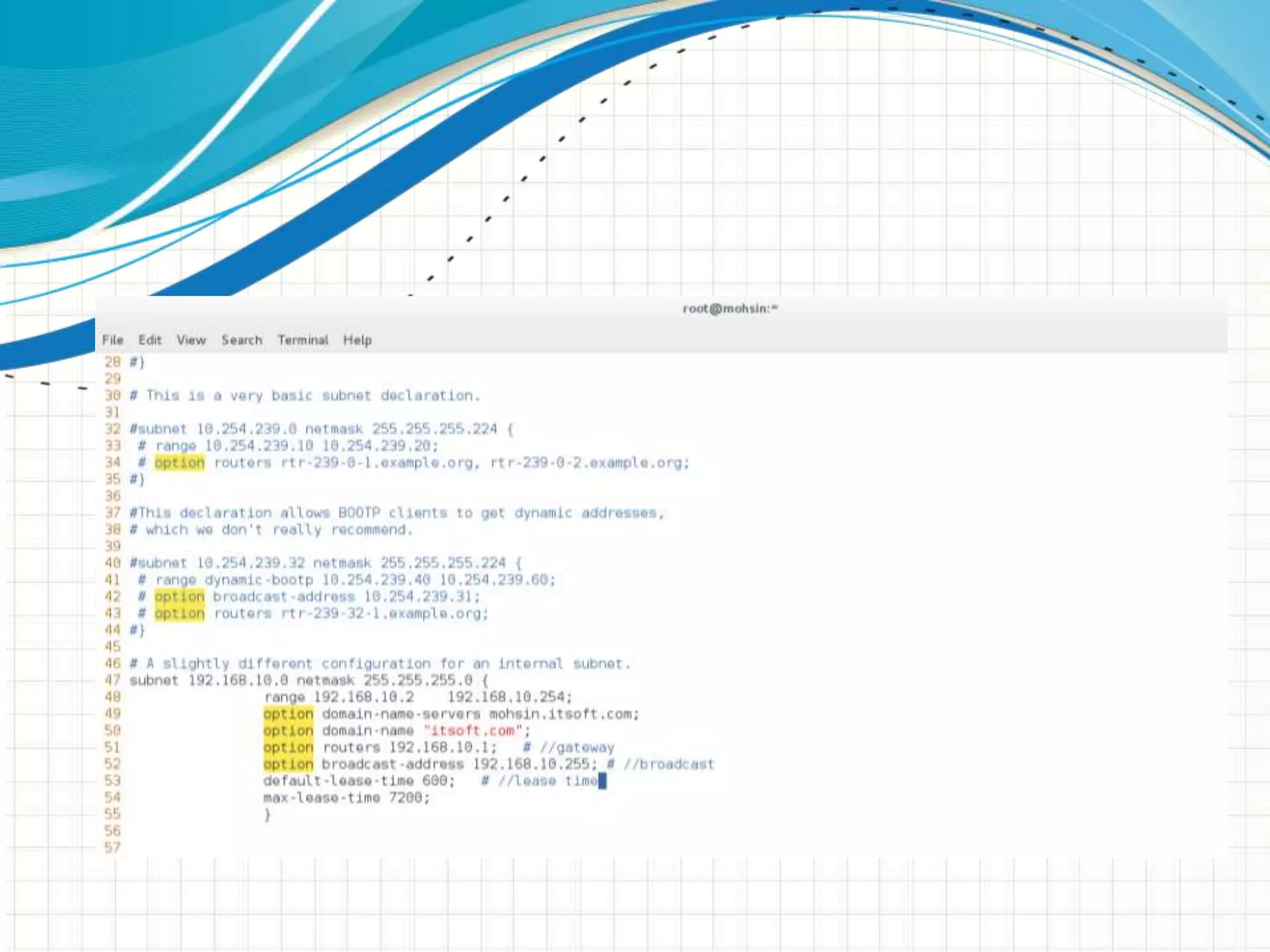

subnet 192.168.10.0 netmask 255.255.255.0 {
range 192.168.10.2 192.168.10.254; //pool range
option domain-name-servers dns.mmc.com; //host_domain name
option domain-name "mmc.com"; //domain name
option routers 192.168.10.1; //gateway
option broadcast-address 192.168.10.255; //broadcast
default-lease-time 600; //lease time
max-lease-time 7200;
}
**fixed IPin DHCP server using MACaddress
host fantasia {
hardware ethernet 08:00:07:26:c0:a5; //client MACaddress
fixed-address fantasia.fugue.com; //client host_domain name
}
# cp /usr/share/doc/dhcp-4.2.5/dhcpd.conf.example /etc/dhcp/dhcpd.conf //copydhcpconfigfile

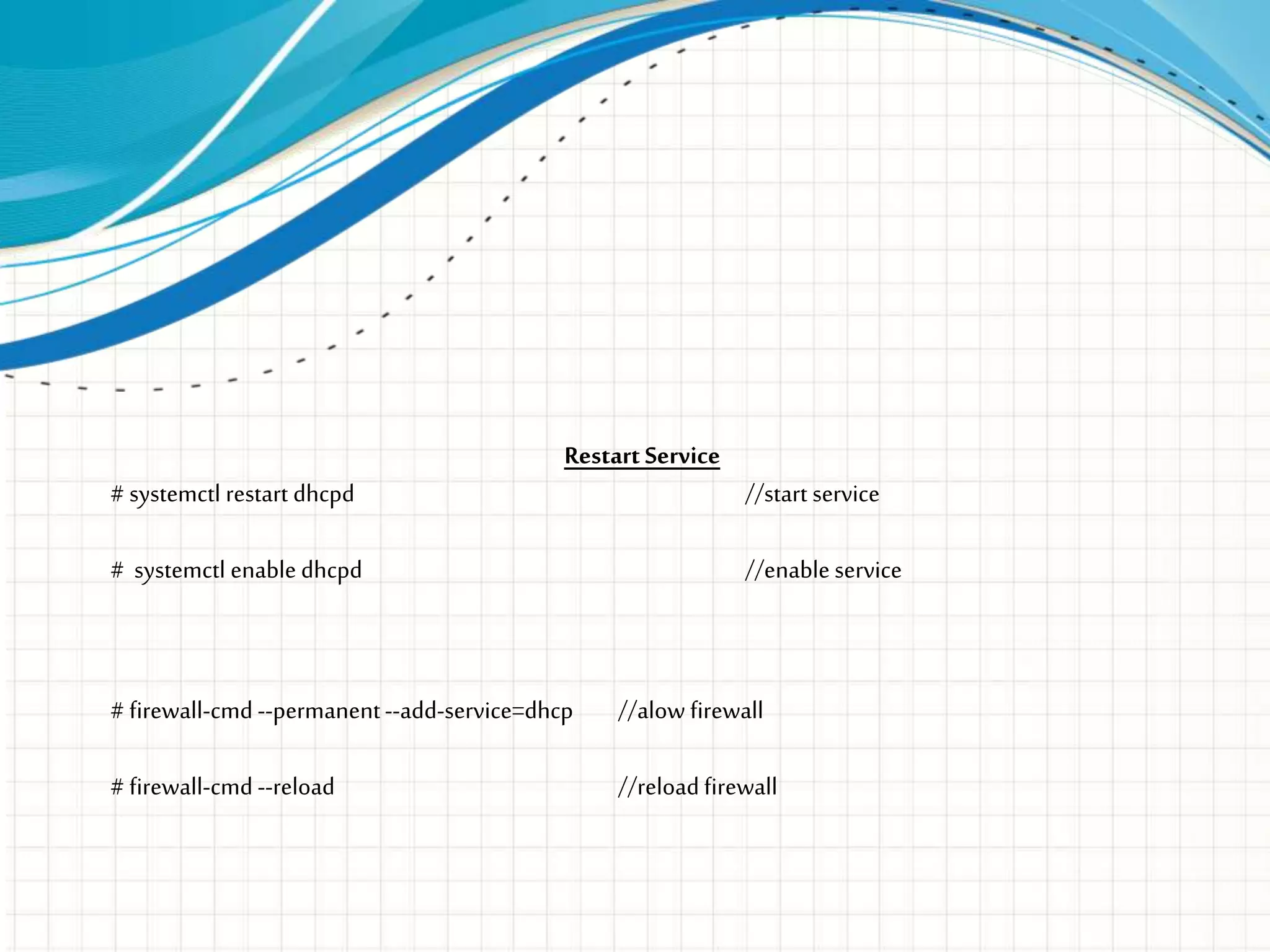

7. Restart Service
# systemctl restart dhcpd //start service
# systemctl enable dhcpd //enable service
# firewall-cmd --permanent--add-service=dhcp //alow firewall
# firewall-cmd --reload //reload firewall

8. QUESTIONS?

9. THANKYOU
