PMM is an open-source tool for managing and monitoring system metrics. It combines several open-source projects including Prometheus. To set it up, you first create a data container with Docker, then spin up the PMM server container linking it to the data container. You then configure the client and add Linux hosts to start monitoring the system through the PMM web UI.

1. 3 分鐘
架好監控系統
(PMM)
Adam Chen

2. Hello!
I am Adam Chen
I am here because I love to share.
AWSUG / HashiCorp UG
You can find me at @adaam
adam.cws [at] gmail.com
2

3. What is PMM?

4. PMM is Percona Monitoring
and Management.
An open-source tool for
managing and monitoring
system metrics.
4

5. PMM combine saveral open-source project
5

6. 6

7. Demo
Time
7

8. 1. Create data container
$ docker create
-v /opt/prometheus/data
-v /opt/consul-data
-v /var/lib/mysql
-v /var/lib/grafana
--name pmm-data
percona/pmm-server:latest /bin/true
8

9. 2.Spin up pmm-server
$ docker run -d
-p 80:80
--volumes-from pmm-data
--name pmm-server
--restart always
percona/pmm-server:latest
9

10. 3. Setup client
$ sudo pmm-admin config --server ${SERVER_IP_ADDRESS}
$ sudo pmm-admin add linux:metrics
10

11. 4. Start to monitor your system
✗ Connect to https://${SERVER_IP_ADDRESS} using
browser
✗ Or watch demo site https://pmmdemo.percona.com/
11

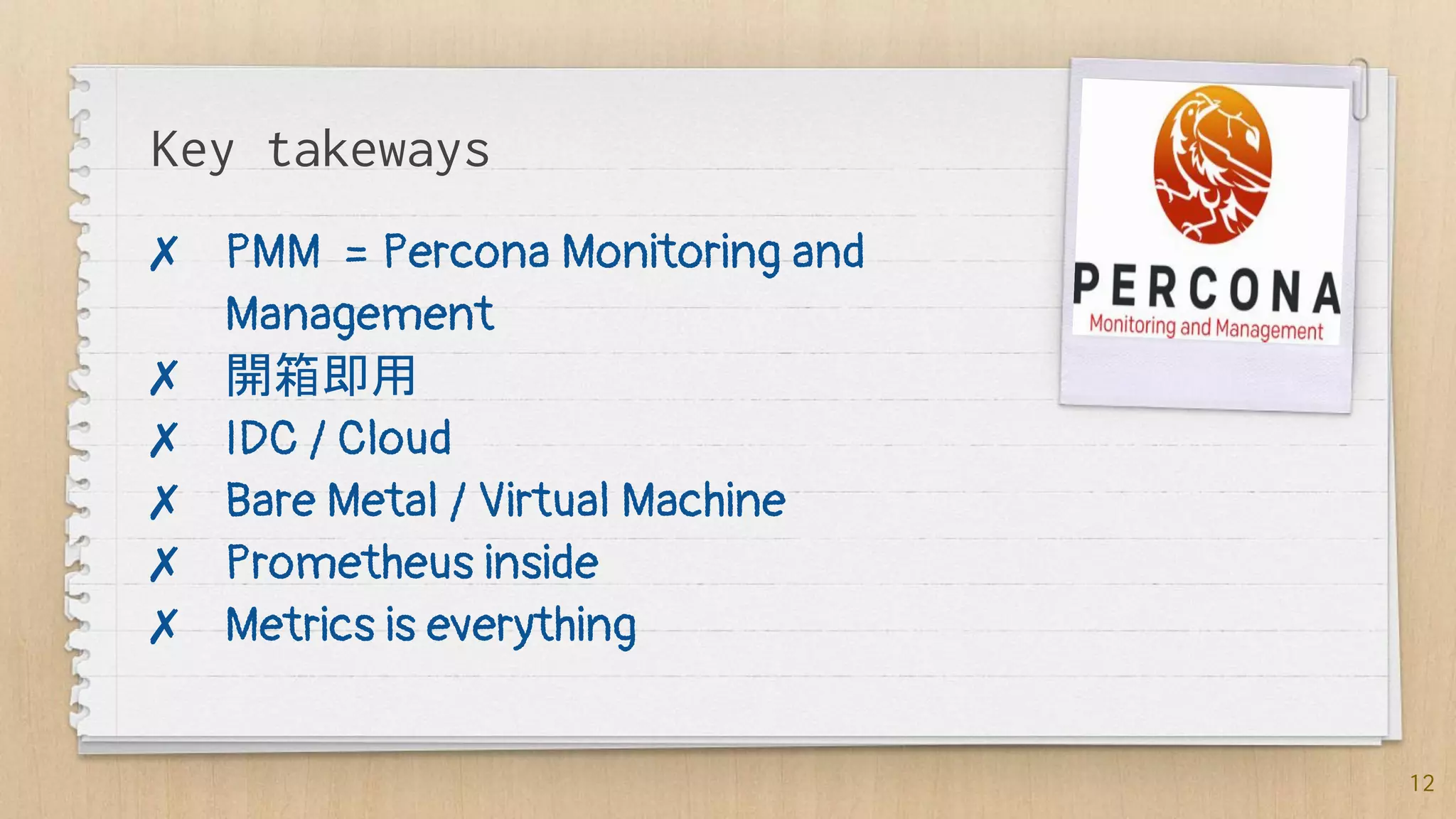

12. Key takeways
✗ PMM = Percona Monitoring and
Management
✗ 開箱即用
✗ IDC / Cloud
✗ Bare Metal / Virtual Machine
✗ Prometheus inside
✗ Metrics is everything
12

13. 13
Thanks!
Any questions?
You can find me at:
✗ @adaam
✗ adam.cws [at] gmail.com
