Developing Windows 10 Hosted Web Apps
- 1. Developing Windows 10 Hosted Web Apps Chris Dufour, ASP .NET MVP Software Architect Follow me@chrduf http://www.linkedin.com/in/cdufour

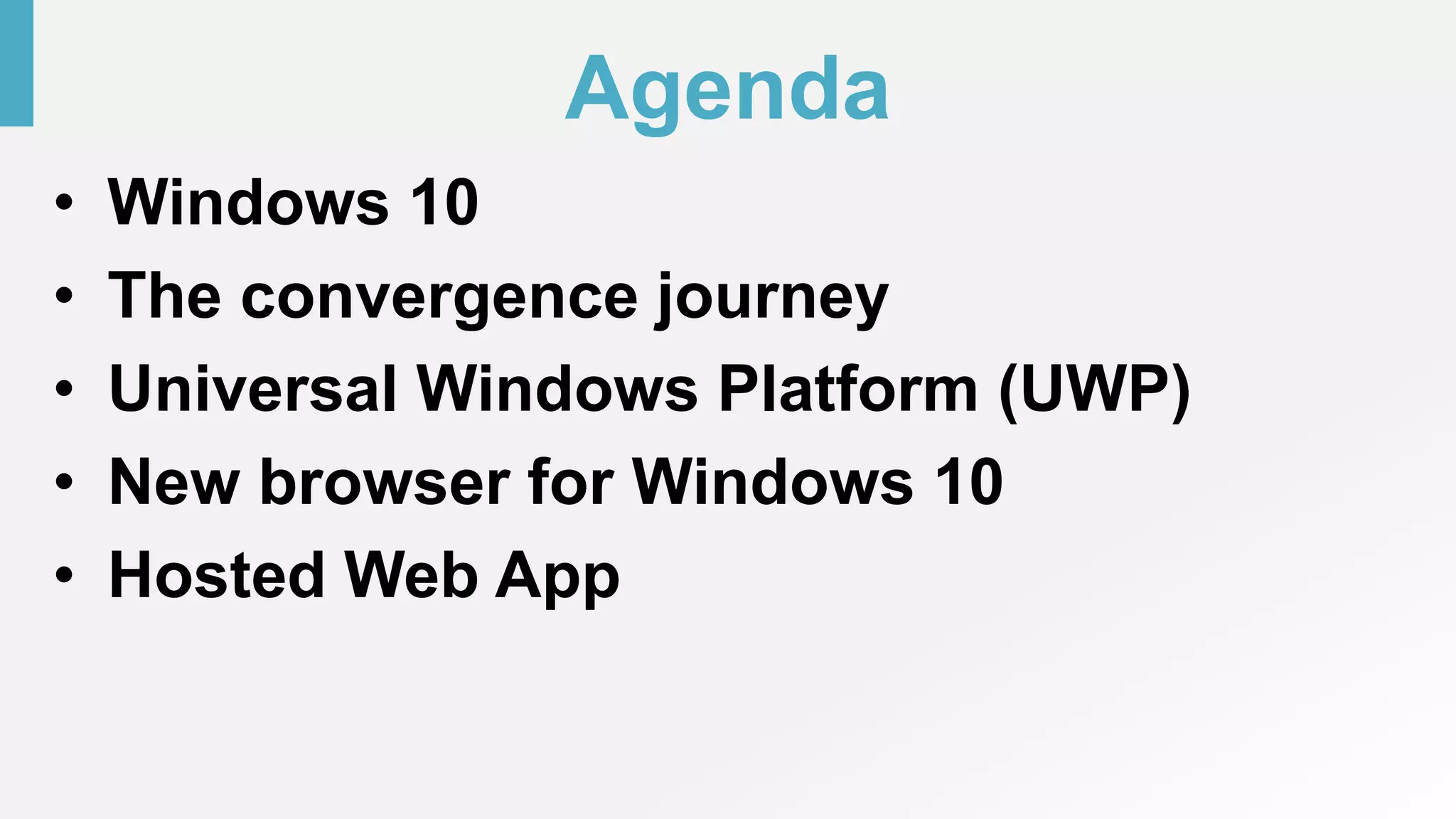

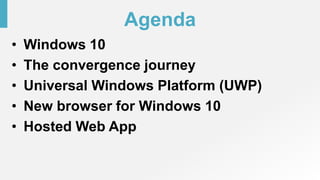

- 2. Agenda • Windows 10 • The convergence journey • Universal Windows Platform (UWP) • New browser for Windows 10 • Hosted Web App

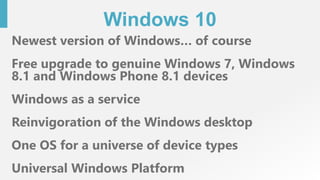

- 3. Windows 10 Newest version of Windows… of course Free upgrade to genuine Windows 7, Windows 8.1 and Windows Phone 8.1 devices Windows as a service Reinvigoration of the Windows desktop One OS for a universe of device types Universal Windows Platform

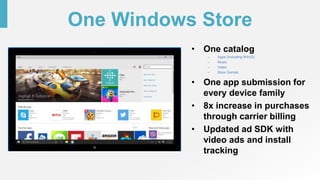

- 4. One Windows Store • One catalog – Apps (Including WIn32) – Music – Video – Xbox Games • One app submission for every device family • 8x increase in purchases through carrier billing • Updated ad SDK with video ads and install tracking

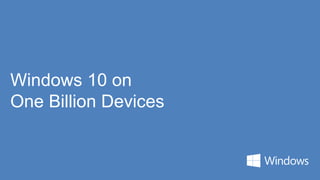

- 5. Windows 10 on One Billion Devices

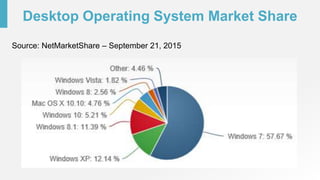

- 6. Desktop Operating System Market Share Source: NetMarketShare – September 21, 2015

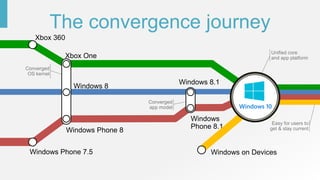

- 7. Easy for users to get & stay current Unified core and app platform The convergence journey Windows 10 Converged OS kernel Converged app model

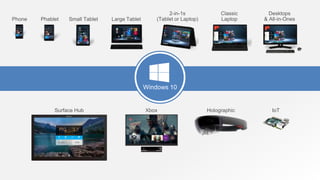

- 8. Phone Small Tablet 2-in-1s (Tablet or Laptop) Desktops & All-in-OnesPhablet Large Tablet Classic Laptop Xbox IoTSurface Hub Holographic Windows 10
- 9. One Store + One Dev Center Reuse Existing CodeOne SDK + Tooling Adaptive User Interface Natural User Inputs One Universal Windows Platform

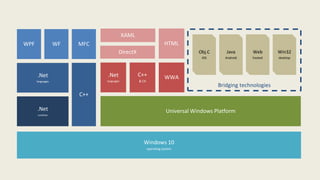

- 10. Windows 10 operating system Bridging technologies Win32 desktop Web hosted Java Android Obj.C iOS Universal Windows Platform WWAC++ & CX .Net languages HTML DirectX XAML C++ .Net languages MFCWFWPF .Net runtime
- 11. Introducing the Universal Windows Platform (UWP)

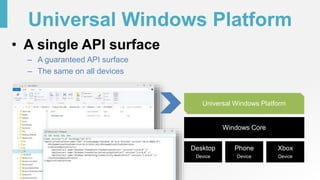

- 12. Universal Windows Platform • A single API surface – A guaranteed API surface – The same on all devices Phone Device Xbox Device Desktop Device Windows Core Universal Windows Platform

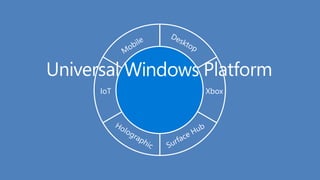

- 13. XboxIoT

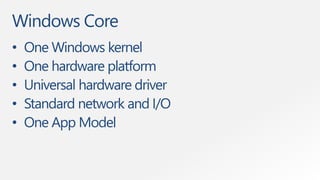

- 14. Windows Core • One Windows kernel • One hardware platform • Universal hardware driver • Standard network and I/O • One App Model
- 15. Apps don't target Windows 10, apps target the UWP

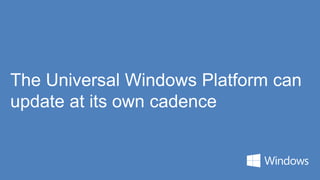

- 17. The Universal Windows Platform can update at its own cadence

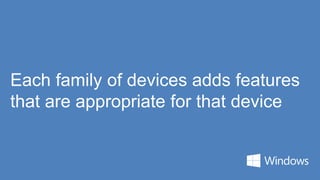

- 18. Each family of devices adds features that are appropriate for that device

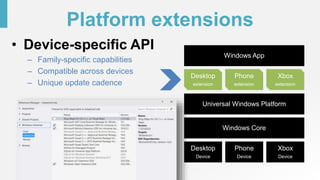

- 19. Platform extensions • Device-specific API – Family-specific capabilities – Compatible across devices – Unique update cadence Phone Device Xbox Device Desktop Device Windows Core Universal Windows Platform Windows App Phone extension Xbox extension Desktop extension
- 20. Extensions don't invalidate binaries on other devices

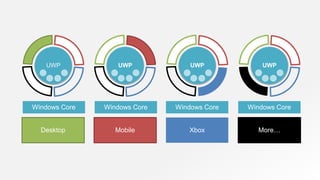

- 21. UWP Windows Core Windows Core Windows Core Windows Core UWP UWP UWP Desktop Mobile Xbox More…
- 22. Universal Windows Platform • One Operating System – One Windows core for all devices • One App Platform – Apps run across every family • One Dev Center – Single submission flow and dashboard • One Store – Global reach, local monetization Consumers, Business & Education
- 23. Microsoft Edge New browser for Windows 10
- 24. Trident 1995 3 41 2 5.5 65 7 84.x 9 2015 9 10 11

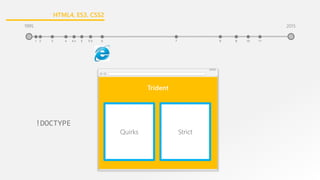

- 25. Trident !DOCTYPE 1995 3 41 2 5.5 65 7 84.x 9 2015 9 10 11 Quirks Strict 1995 HTML4, ES3, CSS2

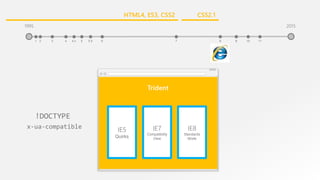

- 26. Trident IE5 Quirks IE7 Compatibility View IE8 Standards Mode x-ua-compatible !DOCTYPE 1995 3 41 2 5.5 65 7 84.x 9 2015 9 10 11 CSS2.1HTML4, ES3, CSS2

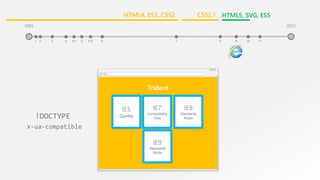

- 27. 3 Trident IE5 Quirks IE7 Compatibility View IE8 Standards Mode IE9 Standards Mode x-ua-compatible !DOCTYPE 1995 41 2 5.5 65 7 84.x 9 2015 9 10 11 CSS2.1 HTML5, SVG, ES5HTML4, ES3, CSS2

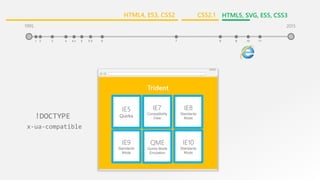

- 28. Trident IE5 Quirks IE7 Compatibility View IE8 Standards Mode IE9 Standards Mode QME Quirks Mode Emulation IE10 Standards Mode x-ua-compatible !DOCTYPE 1995 3 41 2 5.5 65 7 84.x 9 2015 9 10 11 CSS2.1 HTML5, SVG, ES5, CSS3HTML4, ES3, CSS2

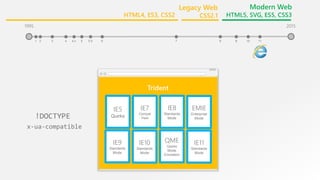

- 29. 1995 3 41 2 5.5 65 7 84.x Trident IE5 Quirks IE7 Compat View IE8 Standards Mode 9 IE9 Standards Mode IE10 Standards Mode QME Quirks Mode Emulation 2015 9 10 11 x-ua-compatible !DOCTYPE IE11 Standards Mode EMIE Enterprise Mode Legacy Web CSS2.1 Modern Web HTML5, SVG, ES5, CSS3HTML4, ES3, CSS2

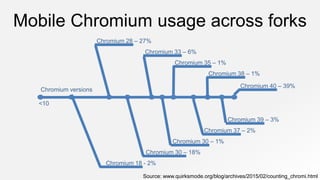

- 31. Mobile Chromium usage across forks Chromium versions <10 Chromium 18 - 2% Chromium 30 – 18% Chromium 30 – 1% Chromium 37 – 2% Chromium 39 – 3% Chromium 40 – 39% Chromium 38 – 1% Chromium 35 – 1% Chromium 33 – 6% Chromium 28 – 27% Source: www.quirksmode.org/blog/archives/2015/02/counting_chromi.html
- 33. What about IE? • IE11 will still be available for those cases where you need to access legacy web content, or for sites that use plug-ins such as ActiveX or Silverlight. • But for the modern web, for the most up to date features such as HTML5, ECMAScript 6 and CSS3 or 4, you’ll want to use Edge.
- 34. Hosted Web Apps

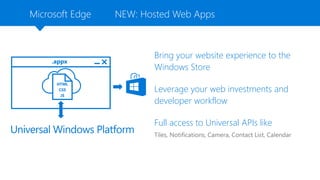

- 35. Microsoft Edge Bring your website experience to the Windows Store Leverage your web investments and developer workflow Full access to Universal APIs like

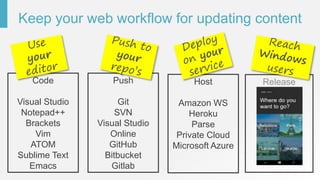

- 36. Keep your web workflow for updating content Code Visual Studio Notepad++ Brackets Vim ATOM Sublime Text Emacs Push Git SVN Visual Studio Online GitHub Bitbucket Gitlab Host Amazon WS Heroku Parse Private Cloud Microsoft Azure Release

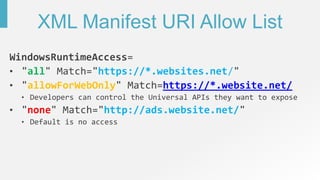

- 38. XML Manifest URI Allow List all https://*.websites.net/ allowForWebOnly https://*.website.net/ none http://ads.website.net/

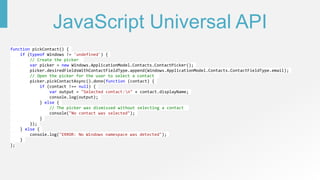

- 39. JavaScript Universal API function pickContact() { if (typeof Windows != 'undefined') { // Create the picker var picker = new Windows.ApplicationModel.Contacts.ContactPicker(); picker.desiredFieldsWithContactFieldType.append(Windows.ApplicationModel.Contacts.ContactFieldType.email); // Open the picker for the user to select a contact picker.pickContactAsync().done(function (contact) { if (contact !== null) { var output = "Selected contact:n" + contact.displayName; console.log(output); } else { // The picker was dismissed without selecting a contact console("No contact was selected"); } }); } else { console.log("ERROR: No Windows namespace was detected"); } };
- 40. Demo: Hosted Web App that uses Universal APIs

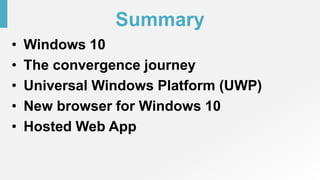

- 41. Summary • Windows 10 • The convergence journey • Universal Windows Platform (UWP) • New browser for Windows 10 • Hosted Web App
- 42. Resources • Windows Dev Center https://dev.windows.com • Hosted Web Apps https://microsoftedge.github.io/WebAppsDocs/en-US/win10/HWA.htm • Visual Studio https://www.visualstudio.com • Microsoft Virtual Academy http://www.microsoftvirtualacademy.com
- 43. Thank You
Editor's Notes
- Microsoft has been working to converge its client operating system and developer platforms for a long time. In Windows Phone 7, the operating system was based on Windows CE, a great operating system for small, handheld devices, but different from the OS on ‘big’ Windows. When Windows Phone 8 was launched, we swapped out Windows CE and base it on the Windows NT kernel instead, same as our PCs. We did a similar thing with Xbox One. But it wasn’t until Windows 8.1/Windows Phone 8.1 that we really delivered on a converged developer platform. You can build universal 8.1 apps that share a very high percentage of code and where you program against the same APIs. With Windows 10, we’ve taken that even further and for the first time allow developers to create a single app that can run across all devices running Windows 10. Windows 10 brings developers a unified core OS across all devices and a single app platform.
- So let’s take a look at the different ways you can build apps for Windows 10. <click> First of all there are the ‘traditional’ ways of building apps for Windows desktop, using tools such as WPF, MFC and full .NET. These are what we term ‘CWA’ (Classic Windows Apps) and are still a great way of building apps for Windows desktop. Although, note that we are working on some tools, called Project ‘Centennial’ that will allow CWAs to be packaged for distribution through the Windows Store – more on that later. <click> Then, we’ve got the new UWP, which is based on the Windows Runtime APIs that we used for building Windows Store apps in Windows 8.x and Windows Phone 8.1. Here you can use HTML and JavaScript to create universal Windows apps, or XAML and C#/VB or C++, or you can use DirectX and one of the many popular middleware packages to create games. And these all build upon the UWP APIs and can run across all Windows 10 devices. <click> Finally, we’ve got a number of bridging technologies. We want to enable developers to use whichever technologies they are comfortable with, and help them to create Windows apps. So we’ve got eh Windows Bridge for iOS, the Windows Bridge for Android, hosted Web Apps to help web sites to be discoverable through the Windows Store and to call UWP APIs, and a Bridge for classical Windows Apps. More on all of those soon.
- Before we talk some more about Microsoft Edge, let’s take a look at the history behind it. We released the first version of Internet Explorer in 1995 along with Windows 95.
- This was followed by a number of other versions until we got to IE6, which was the first version to have the dual engine, in other words the document type. At this time the goal was to maintain backwards compatibility with what we had before, and at the same time introduce new features. So this is where we introduced the DOCTYPE, which you can think of as a big IF inside your code. If you are in Quirks mode you get the new features, and if you are in Strict mode, you are compatible with what we had before.
- This was a time when the pace of change of the web was not as great as it is today. So we stuck with IE6 for quite a while, and then eventually released IE7 and then IE8. At that time it was considered OK for the browser to effectively support three different modes: the IE5 Quirks mode, IE7 mode and IE8 mode.
- With IE9, we introduced a fourth engine, supporting many new features such as HTML5, SVG, EcmaScript 5. By this time, your website code began to getting a little bit untidy, with if IE5…. If IE7… If IE8…. If IE9….
- But the approach now was the same as it had always been – provide backward compatibility with what had been before, but also introduce a new version supporting new features.
- And guess what, by the time we got to IE11, we realized that we had to do something. The approach we had been following has by now resulted in 8 engines inside IE and this approach is just not viable anymore.

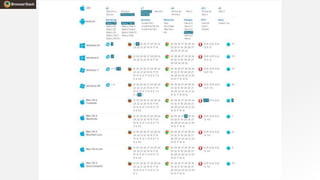

- At the same time, other approaches were being followed elsewhere in the industry. This table represents all the different browser versions, and in the same timeframe that IE went from IE 1 to IE 11, Chrome for example went through very many versions, from version 1 to version 40. The only difference is that with each new version, they removed support for the previous version. They did not support backwards compatibility, so that with the release of a new version, perhaps some feature from earlier gets removed, and some websites that used it get broken. But that’s considered OK and how the web should work with a modern browser.
- So this produced some issues as well. With IE we had problems, because the web developer had to support IE6, IE7, IE8 and so on. But with Chromium for example, a very widely used browser on the mobile side, they had their own problems. As you can see here, the number of different versions of chromium that are out there in the wild at any particular time can be high, as they could not control which versions of the browser is being used on all the different devices out there. So you get a lot of fragmentation. So this was a problem for IE, and a problem for all modern browser vendors.
- EdgeHTML – new rendering engine that’s always up to date. – we call it ‘Evergreen’. Chakra – engine for processing JavaScript Same engines used in JavaScript app Hosted web app – project Westminster Universal Windows Platform (UWP) app that packages your website for publishing to the Store
- Windows 10 provides a powerful new path for sites to become apps. With Windows 10, you can re-use your existing web site code and create an app that points directly to your URL. You don’t need to re-write your server code into packaged client code! You can access Universal Windows Platform APIs directly from the web code that came down from your server. And you can distribute the app you’ve made in the Windows Store.
