1. Getting Started
Developing Universal Windows Platform (UWP) Apps
Jaliya Udagedara
MVP (.NET)

2. Introduction
Extension SDKs
New XAML Controls
Agenda

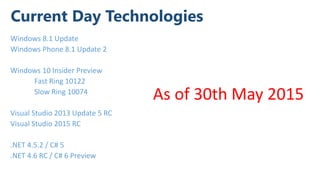

3. Current Day Technologies
Windows 8.1 Update
Windows Phone 8.1 Update 2
Windows 10 Insider Preview
Fast Ring 10122
Slow Ring 10074
Visual Studio 2013 Update 5 RC
Visual Studio 2015 RC
.NET 4.5.2 / C# 5
.NET 4.6 RC / C# 6 Preview
As of 30th May 2015

4. Introduction
Universal Windows Platform (UWP)

5. One Windows Platform
Windows 8.1 and Windows Phone 8.1
apps target an operating system
With Windows 10 apps targets one or
more device families
The set of APIs in the universal device
family is inherited by child device
families.

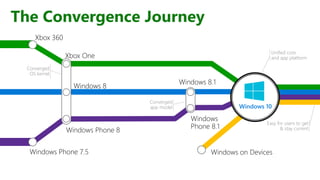

6. Easy for users to get
& stay current
Unified core
and app platform
The Convergence Journey
Windows 10
Converged
OS kernel
Converged
app model

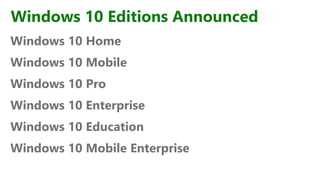

7. Windows 10 Editions Announced
Windows 10 Home
Windows 10 Mobile
Windows 10 Pro
Windows 10 Enterprise
Windows 10 Education
Windows 10 Mobile Enterprise

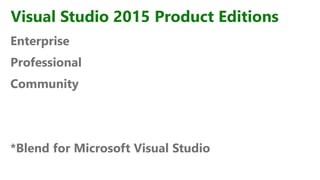

8. Visual Studio 2015 Product Editions
Enterprise
Professional
Community
*Blend for Microsoft Visual Studio

9. Developer Checklist
Installation
Windows 10 Insider Preview
• http://insider.windows.com/
Visual Studio 2015 RC
• http://www.visualstudio.com
The Visual Studio installer includes
the Windows 10 SDK
Extras
Microsoft Account
• Windows Developer License
Hyper-V (hardware dependent)
• Phone emulator

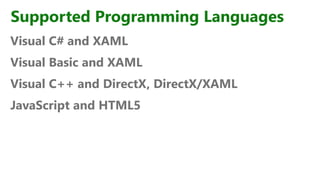

10. Supported Programming Languages
Visual C# and XAML
Visual Basic and XAML
Visual C++ and DirectX, DirectX/XAML
JavaScript and HTML5

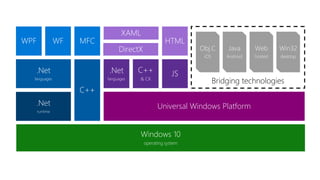

11. Windows 10
operating system
Bridging technologies
Win32
desktop
Web
hosted
Java
Android
Obj.C
iOS
Universal Windows Platform
JSC++
& CX
.Net
languages
HTML
DirectX
XAML
C++
.Net
languages
MFCWFWPF
.Net
runtime

12. Device Families
With Windows 10 apps targets one or more device
families not the Operating System

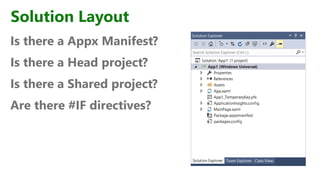

13. Solution Layout
Is there a Appx Manifest?
Is there a Head project?
Is there a Shared project?
Are there #IF directives?

14. Demo
UWP Apps

15. Extension SDKs

16. Shared Projects
Windows
Binary Phone
Binary

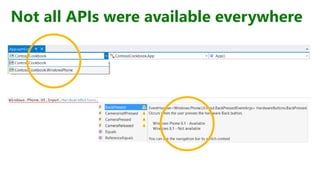

17. Not all APIs were available everywhere

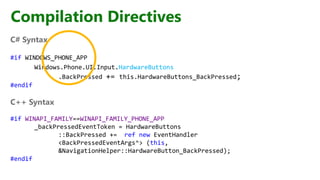

18. Compilation Directives
C# Syntax
#if WINDOWS_PHONE_APP
Windows.Phone.UI.Input.HardwareButtons
.BackPressed += this.HardwareButtons_BackPressed;
#endif
C++ Syntax
#if WINAPI_FAMILY==WINAPI_FAMILY_PHONE_APP
_backPressedEventToken = HardwareButtons
::BackPressed += ref new EventHandler
<BackPressedEventArgs^> (this,
&NavigationHelper::HardwareButton_BackPressed);
#endif

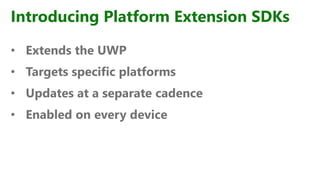

19. Introducing Platform Extension SDKs
• Extends the UWP
• Targets specific platforms
• Updates at a separate cadence
• Enabled on every device

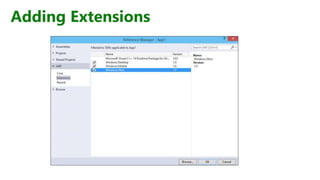

20. Adding Extensions

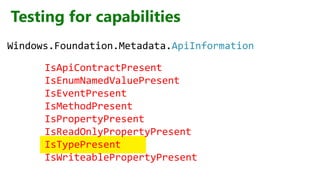

21. Testing for capabilities
IsApiContractPresent
IsEnumNamedValuePresent
IsEventPresent
IsMethodPresent
IsPropertyPresent
IsReadOnlyPropertyPresent
IsTypePresent
IsWriteablePropertyPresent
Windows.Foundation.Metadata.ApiInformation

22. Test capabilities at runtime
var ns = "Windows.Phone.UI.Input.HardwareButtons";
if (Windows.Foundation.Metadata.ApiInformation.IsTypePresent(ns))
{
Windows.Phone.UI.Input.HardwareButtons
.BackPressed += Back_BackPressed;
}

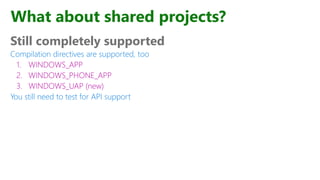

23. What about shared projects?
Still completely supported
Compilation directives are supported, too
1. WINDOWS_APP
2. WINDOWS_PHONE_APP
3. WINDOWS_UAP (new)
You still need to test for API support

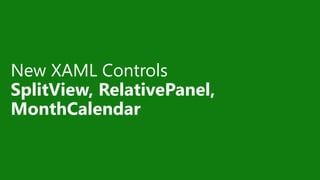

24. New XAML Controls
SplitView, RelativePanel,
MonthCalendar

25. Navigation Framework
The Frame
• Frame.Back/FrontStack
• CanGoBack()
• GoBack()
• CanGoForward()
• GoForward()
• Frame.Navigate(Type, Parameter)
• Navigating event
• Navigated event
• Frame.Get/SetNavigationState()
Frame
PageBackStack FrontStack

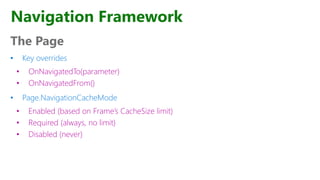

26. The Page
• Key overrides
• OnNavigatedTo(parameter)
• OnNavigatedFrom()
• Page.NavigationCacheMode
• Enabled (based on Frame’s CacheSize limit)
• Required (always, no limit)
• Disabled (never)
Navigation Framework

27. SplitView

28. Common behaviour, custom design
Your Windows App

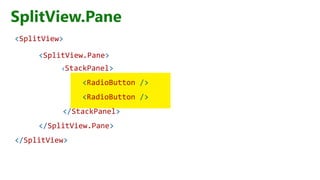

29. SplitView.Pane
<SplitView>
<SplitView.Pane>
<StackPanel>
<RadioButton />
<RadioButton />
</StackPanel>
</SplitView.Pane>
</SplitView>

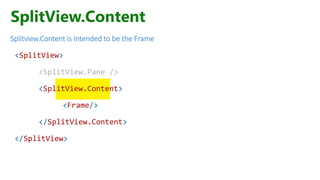

30. SplitView.Content
Splitview.Content is intended to be the Frame
<SplitView>
<SplitView.Pane />
<SplitView.Content>
<Frame/>
</SplitView.Content>
</SplitView>

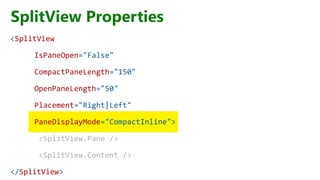

31. SplitView Properties
<SplitView
IsPaneOpen="False"
CompactPaneLength="150"
OpenPaneLength="50"
Placement="Right|Left"
PaneDisplayMode="CompactInline">
<SplitView.Pane />
<SplitView.Content />
</SplitView>

32. RelativePanel

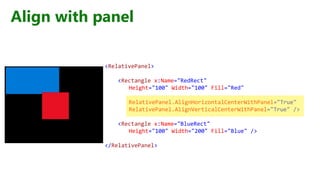

33. Align with panel
<RelativePanel>
<Rectangle x:Name="RedRect"
Height="100" Width="100" Fill="Red"
RelativePanel.AlignHorizontalCenterWithPanel="True"
RelativePanel.AlignVerticalCenterWithPanel="True" />
<Rectangle x:Name="BlueRect"
Height="100" Width="200" Fill="Blue" />
</RelativePanel>

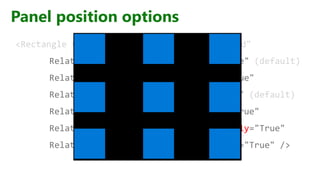

34. Panel position options
<Rectangle Height="100" Width="100" Fill="Red"
RelativePanel.AlignLeftWithPanel="True" (default)
RelativePanel.AlignRightWithPanel="True"
RelativePanel.AlignTopWithPanel="True" (default)
RelativePanel.AlignBottomWithPanel="True"
RelativePanel.CenterInPanelHorizontally="True"
RelativePanel.CenterInPanelVertically="True" />

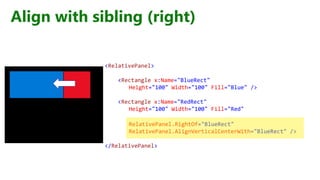

35. Align with sibling (right)
<RelativePanel>
<Rectangle x:Name="BlueRect"
Height="100" Width="100" Fill="Blue" />
<Rectangle x:Name="RedRect"
Height="100" Width="100" Fill="Red"
RelativePanel.RightOf="BlueRect"
RelativePanel.AlignVerticalCenterWith="BlueRect" />
</RelativePanel>

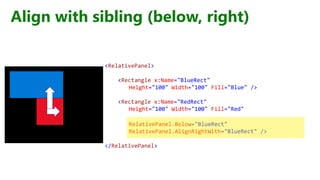

36. Align with sibling (below, right)
<RelativePanel>
<Rectangle x:Name="BlueRect"
Height="100" Width="100" Fill="Blue" />
<Rectangle x:Name="RedRect"
Height="100" Width="100" Fill="Red"
RelativePanel.Below="BlueRect"
RelativePanel.AlignRightWith="BlueRect" />
</RelativePanel>

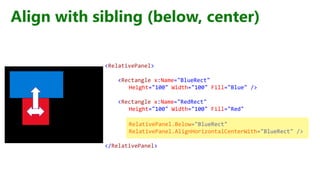

37. Align with sibling (below, center)
<RelativePanel>
<Rectangle x:Name="BlueRect"
Height="100" Width="100" Fill="Blue" />
<Rectangle x:Name="RedRect"
Height="100" Width="100" Fill="Red"
RelativePanel.Below="BlueRect"
RelativePanel.AlignHorizontalCenterWith="BlueRect" />
</RelativePanel>

38. Align with sibling (below, left)
<RelativePanel>
<Rectangle x:Name="BlueRect"
Height="100" Width="100" Fill="Blue" />
<Rectangle x:Name="RedRect"
Height="100" Width="100" Fill="Red"
RelativePanel.Below="BlueRect"
RelativePanel.AlignLeftWith="BlueRect" />
</RelativePanel>

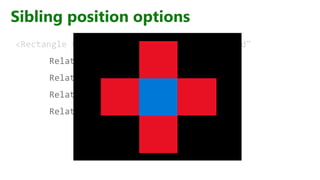

39. Sibling position options
<Rectangle Height="100" Width="100" Fill="Red"
RelativePanel.Above="BlueRect"
RelativePanel.RightOf="BlueRect"
RelativePanel.Below="BlueRect"
RelativePanel.RightOf="BlueRect" />

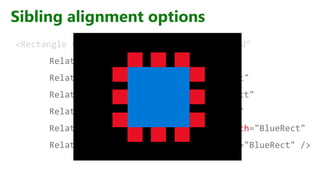

40. Sibling alignment options
<Rectangle Height="100" Width="100" Fill="Red"
RelativePanel.AlignTopWith="BlueRect"
RelativePanel.AlignRightWith="BlueRect"
RelativePanel.AlignBottomWith="BlueRect"
RelativePanel.AlignLeftWith="BlueRect"
RelativePanel.AlignHorizontalCenterWith="BlueRect"
RelativePanel.AlignVerticalCenterWith="BlueRect" />

41. Demo
SplitView and RelativePanel

42. More…
“A Developer's Guide to Windows 10 Preview” on Microsoft Virtual Academy
• Instructors
• Jerry Nixon - Microsoft Developer Evangelist
• ​Andy Wigley - Microsoft Developer Evangelist
“A Developer's Guide to Windows 10” on Microsoft Virtual Academy
• Instructors
• Jerry Nixon - Microsoft Developer Evangelist
• ​Andy Wigley - Microsoft Developer Evangelist
