A great api is hard to find
An API needs to be user friendly, secure, documented, versioned, and handle failures gracefully to be considered great. The document discusses how APIs have evolved from monolithic applications to microservices that decompose functionality. It also covers best practices for API design like using RESTful principles, supporting different interaction patterns, handling dates and errors properly, and using authentication standards like OAuth. Versioning approaches and ensuring APIs are well documented and fail gracefully are also emphasized as important characteristics of a great API.
More Related Content
Similar to A great api is hard to find
A great api is hard to find
- 1. A Great APIis Hard to Find Dan Diephouse MuleSoft @dandiep
- 2.
- 3. About MuleSoft • Connectanything to everything! • Publish APIs • Mediate services • Integrate applications • Load data • Over 100K dev community • 3200+ production deployments
- 4. The Impact ofAPIs

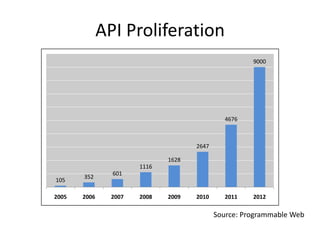

- 5. API Proliferation 9000 4676 2647 1628 1116 601 352 105 2005 2006 2007 2008 2009 2010 2011 2012 Source: Programmable Web

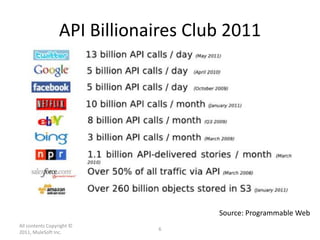

- 6. API Billionaires Club2011 Source: Programmable Web All contents Copyright © 6 2011, MuleSoft Inc.

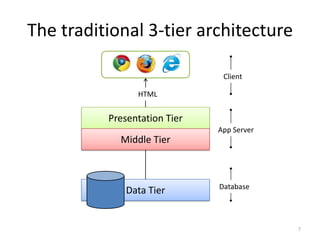

- 7. The traditional 3-tierarchitecture Client HTML Presentation Tier App Server Middle Tier Database Data Tier 7

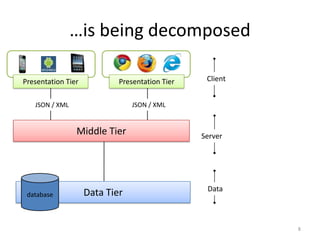

- 8. …is being decomposed PresentationTier Presentation Tier Client JSON / XML JSON / XML Middle Tier Server Data database Data Tier 8

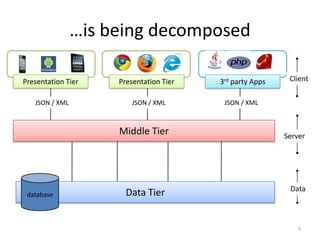

- 9. …is being decomposed PresentationTier Presentation Tier 3rd party Apps Client JSON / XML JSON / XML JSON / XML Middle Tier Server Data database Data Tier 9

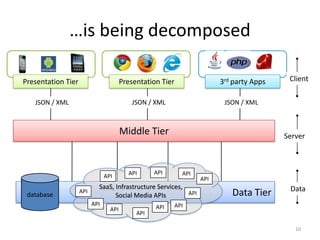

- 10. …is being decomposed PresentationTier Presentation Tier 3rd party Apps Client JSON / XML JSON / XML JSON / XML Middle Tier Server API API API API API SaaS, Infrastructure Services, Data database API Social Media APIs API Data Tier API API API API API 10

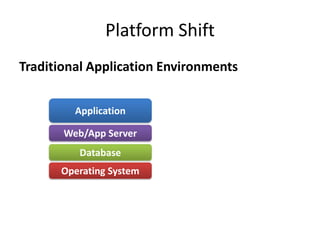

- 11. Platform Shift Traditional ApplicationEnvironments Application Web/App Server Database Operating System

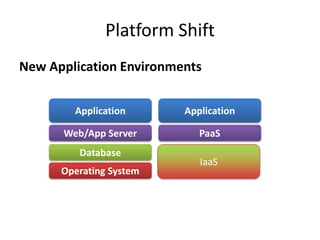

- 12. Platform Shift New ApplicationEnvironments Application Application Web/App Server PaaS Database IaaS Operating System

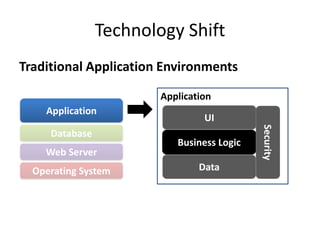

- 13. Technology Shift Traditional ApplicationEnvironments Application Application UI Security Database Business Logic Web Server Operating System Data

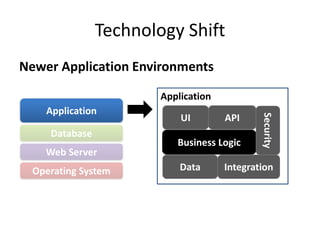

- 14. Technology Shift Newer ApplicationEnvironments Application Application Security UI API Database Business Logic Web Server Operating System Data Integration

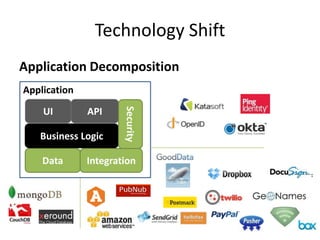

- 15. Technology Shift Application Decomposition Application Security UI API Business Logic Data Integration

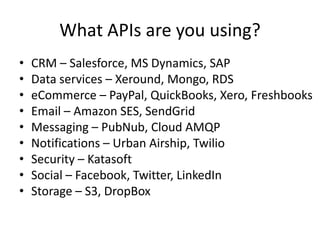

- 16. What APIs areyou using? • CRM – Salesforce, MS Dynamics, SAP • Data services – Xeround, Mongo, RDS • eCommerce – PayPal, QuickBooks, Xero, Freshbooks • Email – Amazon SES, SendGrid • Messaging – PubNub, Cloud AMQP • Notifications – Urban Airship, Twilio • Security – Katasoft • Social – Facebook, Twitter, LinkedIn • Storage – S3, DropBox

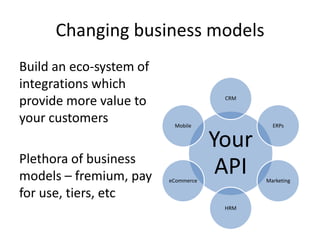

- 17. Changing business models Buildan eco-system of integrations which provide more value to CRM your customers Mobile ERPs Your Plethora of business models – fremium, pay eCommerce API Marketing for use, tiers, etc HRM
- 18.
- 19. A GREAT APIIS … USER FRIENDLY

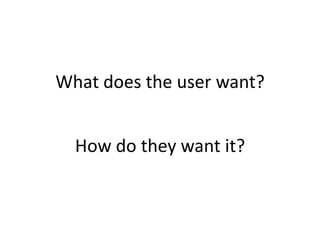

- 20. What does theuser want? How do they want it?
- 21. Sidebar: REST isawesome!

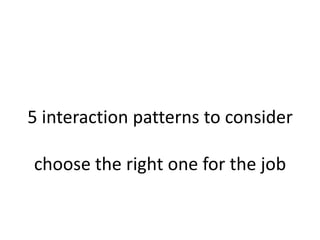

- 22. 5 interaction patternsto consider choose the right one for the job

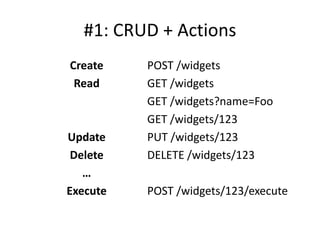

- 23. #1: CRUD +Actions Create POST /widgets Read GET /widgets GET /widgets?name=Foo GET /widgets/123 Update PUT /widgets/123 Delete DELETE /widgets/123 … Execute POST /widgets/123/execute

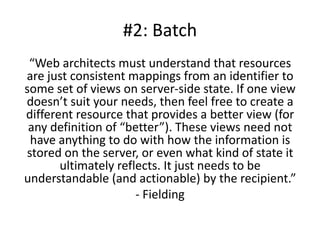

- 24. #2: Batch “Webarchitects must understand that resources are just consistent mappings from an identifier to some set of views on server-side state. If one view doesn’t suit your needs, then feel free to create a different resource that provides a better view (for any definition of “better”). These views need not have anything to do with how the information is stored on the server, or even what kind of state it ultimately reflects. It just needs to be understandable (and actionable) by the recipient.” - Fielding

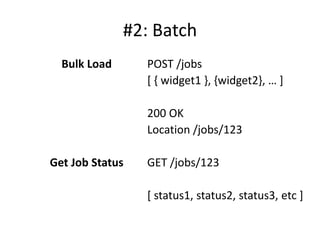

- 25. #2: Batch Bulk Load POST /jobs * , widget1 -, ,widget2-, … + 200 OK Location /jobs/123 Get Job Status GET /jobs/123 [ status1, status2, status3, etc ]

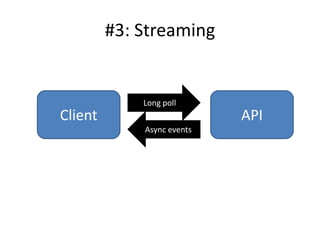

- 26. #3: Streaming Long poll Client API Async events

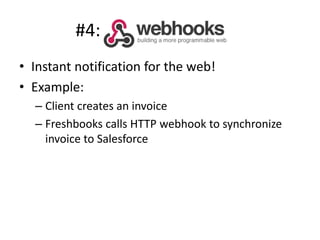

- 27. #4: • Instant notificationfor the web! • Example: – Client creates an invoice – Freshbooks calls HTTP webhook to synchronize invoice to Salesforce

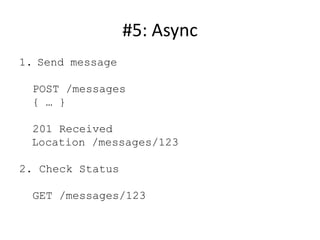

- 29. #5: Async 1. Sendmessage POST /messages { … } 201 Received Location /messages/123 2. Check Status GET /messages/123
- 30. A GREAT APIIS … CORRECT* * Except when it shouldn’t be

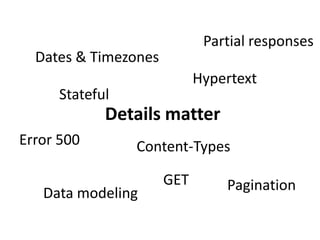

- 31. Partial responses Dates & Timezones Hypertext Stateful Details matter Error 500 Content-Types GET Pagination Data modeling
- 32. Data Types OrganizationServiceStub.AttributeCollection updateCollection= new OrganizationServiceStub.AttributeCollection(); OrganizationServiceStub.KeyValuePairOfstringanyType telephone = new OrganizationServiceStub.KeyValuePairOfstringanyType(); telephone.setKey("telephone1"); telephone.setValue("425-555-1212"); updateCollection.addKeyValuePairOfstringanyType(telephone);
- 33. Dates { createdAt : 124059811 … }

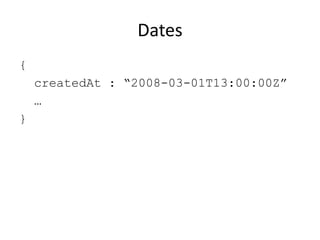

- 34. Dates { createdAt : “2008-03-01T13:00:00Z” … }
- 35.
- 36.
- 37. Hypertext GET /api/contacts 200 OK [ { “id” : “123” } ]

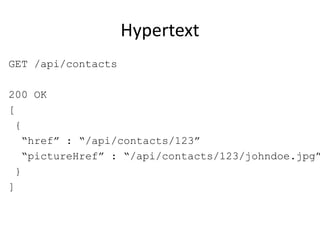

- 38. Hypertext GET /api/contacts 200 OK [ { “href” : “/api/contacts/123” “pictureHref” : “/api/contacts/123/johndoe.jpg” } ]
- 39. A GREAT APIIS … SECURE • A GREAT API IS…SECURE
- 40. Do you thinkyou’re special?

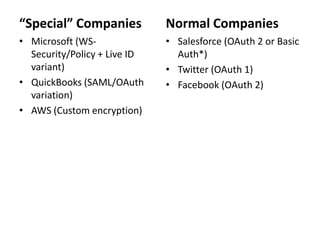

- 41. “Special” Companies Normal Companies • Microsoft (WS- • Salesforce (OAuth 2 or Basic Security/Policy + Live ID Auth*) variant) • Twitter (OAuth 1) • QuickBooks (SAML/OAuth • Facebook (OAuth 2) variation) • AWS (Custom encryption)

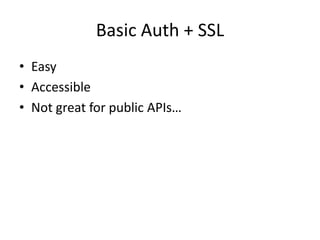

- 42. Basic Auth +SSL • Easy • Accessible • Not great for public APIs…

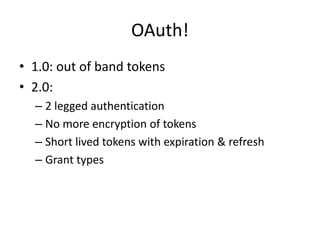

- 43. OAuth! • 1.0: outof band tokens • 2.0: – 2 legged authentication – No more encryption of tokens – Short lived tokens with expiration & refresh – Grant types
- 44.
- 45. A GREAT APIIS … DOCUMENTED

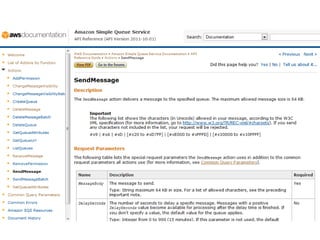

- 46. • TODO: screenshots – Amazon
- 47.
- 48.
- 50. A GREAT APIIS … VERSIONED
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.

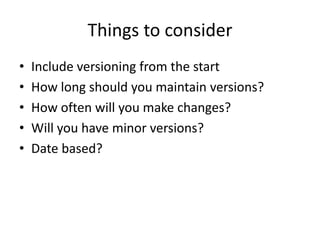

- 57. Things to consider • Include versioning from the start • How long should you maintain versions? • How often will you make changes? • Will you have minor versions? • Date based?

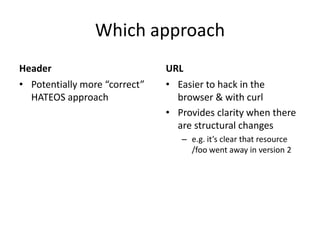

- 58. Which approach Header URL • Potentially more “correct” • Easier to hack in the HATEOS approach browser & with curl • Provides clarity when there are structural changes – e.g. it’s clear that resource /foo went away in version 2
- 59. A GREAT API… FAILS GRACEFULLY

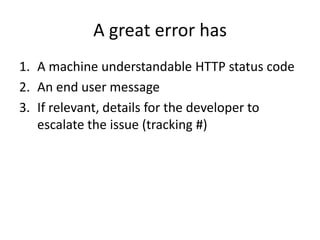

- 60. A great errorhas 1. A machine understandable HTTP status code 2. An end user message 3. If relevant, details for the developer to escalate the issue (tracking #)
- 61. POST /foo { …bad data … } 200 OK { “message” : “Invalid request” }
- 62. POST /foo { …bad data … } 400 Bad Request Content-Length: 0

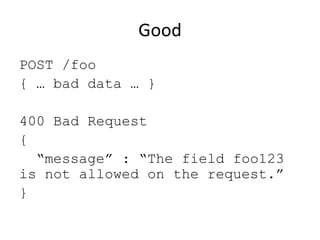

- 63. Good POST /foo { …bad data … } 400 Bad Request { “message” : “The field foo123 is not allowed on the request.” }

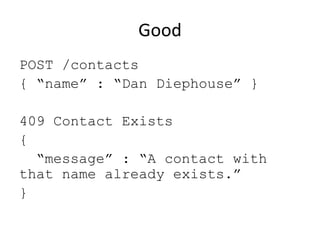

- 64. Good POST /contacts { “name”: “Dan Diephouse” } 409 Contact Exists { “message” : “A contact with that name already exists.” }

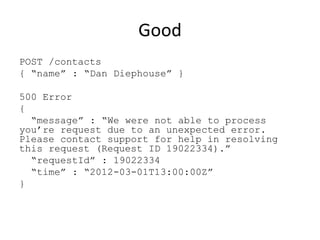

- 65. Good POST /contacts { “name”: “Dan Diephouse” } 500 Error { “message” : “We were not able to process you’re request due to an unexpected error. Please contact support for help in resolving this request (Request ID 19022334).” “requestId” : 19022334 “time” : “2012-03-01T13:00:00Z” }

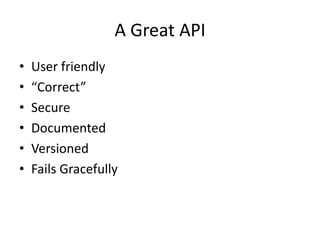

- 66. A Great API • User friendly • “Correct” • Secure • Documented • Versioned • Fails Gracefully
- 67. Questions? @dandiep dan.diephouse@mulesoft.com
Editor's Notes
- #3 Thanks for inviting me.Background in integration I live in San FranciscoI love wineI play the accordionI love building products and products need APIs.Currently focused on the problem of connecting everything together – how do we make it as simple as possible? How do we break down cloud silos?
- #5 Let’s talk about the impact of APIs and I don’t mean all the schwag we see around this conference. Look around, all these companies are focusing on APIs. It’s not just developers anymore, it’s everyone.How many of you integrate with more than one API?
- #6 Center of gravity shifting to the cloudRise of the composite appLess visibility and controlRapid innovation means middleware must adapt and support change
- #8 We’ll start around the early 2000s, where the traditional application looked something .HTML rendered by serverData tier maintained by db admins, run on premise
- #9 Presentation tier moves to client side – AJAX (Backbone, Ext, Sencha, Jquery, etc) and Mobile (iPhone, Android)Expectation now from consumers that you have a mobile appForces a shift – everything now has a REST API
- #10 People DEMAND an API and your business wants to monetize it Look at all the companies here around this…
- #11 Correspondingly, you want to use everyone else’s APIsYour application is no longer a database, it’s a composite application based on a number of different infrastructure services, social media APIs, etc
- #12 Simultaneously there is a platform shift, we’re moving from the 3 tier server to PaaS and IaaSHow many here deploy their applications on Heroku?
- #13 Building it themselves
- #14 Data is still important, but integration to external services is becoming just as important. Is all your data in the database? Or do you have it spread out over different services/datastore? There is no one DB to rule them all for example
- #15 Building it themselves
- #16 Building it themselves
- #20 The worst APIs are the ones that were designed without any thought. The ones that just expose whatever at random. They don’t worry about the how and why, but as any user knows, that’s the most important part.
- #22 This talk presupposes that REST is the way to go, so I figure I better say a few words on that. I really go to REST+JSON by default. You have to make a strong argument with me to go another way. I’m sure you know by now – REST stands for Representation State transfer. The simple way to explain it is that you have a set of nouns (widgets) and fixed set of verbs. REST has so many good things going for it-it is the language of the webit is scalableit is easy to get started – you just hit the URL in the browser or with Curl. No complicated libraries. You can also take it in pieces. it is universalit is evolvable – we can use URIs and data formats to build up a set of nouns The only thing about REST that is not great is that people easily screw it up. I’m sure people will say the same thing about me – because I’m advocating a kind of REST-lite approach. but as long as you’re concious of the downsides of leaving other stuff behind, you can do it.I think the market is bearing this out as well in terms of what we’re seeing from vendors and the services they produce.
- #24 Choose your nouns, not your verbs.For things that don’t fit, then put the action in the URI
- #25 A great API supports batch if your users need it. Don’t make people hit your API a million times to import a million rows.While there is also HTTP pipelineing, it has a couple challengeserrors returned in same order, which can add latencynot well supported by client libraries
- #27 I call this streaming because this is what Salesforce calls it, but by it I simply mean pub sub over HTTP-It gives up some of the advantages of REST (statefulness), but it gives you real time updates and reduces the # of requests the client needs to make-Difficult to implement for consumers as it’s uncommon-
- #28 “so simple you’ll think it’s stupid”
- #31 I can’t make you to write beautiful code, but I can try! So I will highlight a few problems if you don’t implement stuff correctly
- #33 MS Dynamics CRMno thought to data structuresTried to do a schemaless design in a schema – XML schema just deal well with that. Ended up with Arrayofstringtype and so on-would be better off with a schemaless JSON based design
- #34 Timezones!
- #35 Timezones!
- #38 Make your application hypertext. Then users can browse to different resources
- #42 AWS I will give a little bit of slack because pre-date everything – and at least it’s consistent and easy.
- #44 OAuth allows you to build an authentication mechanism which allows applications to act, not just usersIt is much more secure for 3rd party applications because you can track turn off access for invididual applications.
- #45 If anything use XML encryption. I completely get that there are valid use cases that WS-Security meets that other specs don’t, but crikey, it’s impossible for people to use, so don’t expect your API to catch on with it.
