1. Service Orientation
Why is it good for your business
By
Sastry Malladi
eBay Inc

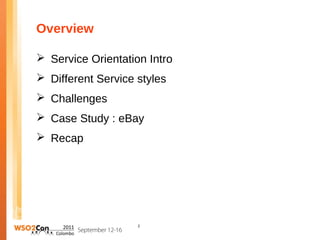

2. Overview
 Service Orientation Intro
 Different Service styles
 Challenges
 Case Study : eBay
 Recap
2

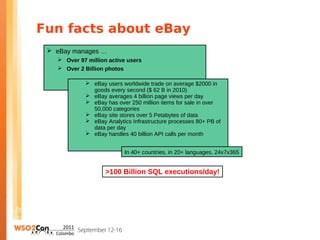

3. Fun facts about eBay
 eBay manages …
 Over 97 million active users
 Over 2 Billion photos
 eBay users worldwide trade on average $2000 in
goods every second ($ 62 B in 2010)
 eBay averages 4 billion page views per day
 eBay has over 250 million items for sale in over
50,000 categories
 eBay site stores over 5 Petabytes of data
 eBay Analytics Infrastructure processes 80+ PB of
data per day
 eBay handles 40 billion API calls per month
In 40+ countries, in 20+ languages, 24x7x365
>100 Billion SQL executions/day!

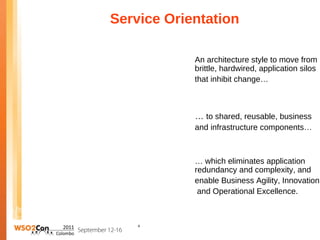

4. Service Orientation
An architecture style to move from
brittle, hardwired, application silos
that inhibit change…
… to shared, reusable, business
and infrastructure components…
… which eliminates application
redundancy and complexity, and
enable Business Agility, Innovation
and Operational Excellence.
4

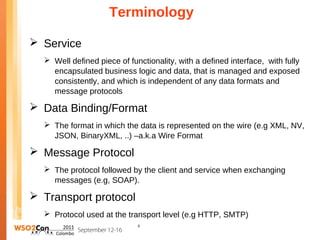

5. Terminology
 Service
 Well defined piece of functionality, with a defined interface, with fully
encapsulated business logic and data, that is managed and exposed
consistently, and which is independent of any data formats and
message protocols
 Data Binding/Format
 The format in which the data is represented on the wire (e.g XML, NV,
JSON, BinaryXML, ..) –a.k.a Wire Format
 Message Protocol
 The protocol followed by the client and service when exchanging
messages (e.g, SOAP).
 Transport protocol
 Protocol used at the transport level (e.g HTTP, SMTP)
5

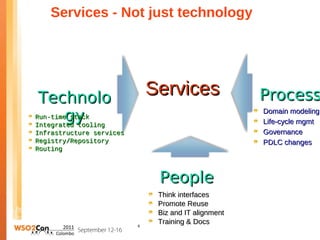

6. Services - Not just technology
Technolo
Services Process
gy
Run-time stack
Integrated tooling
Domain modeling
Life-cycle mgmt
Infrastructure services Governance
Registry/Repository PDLC changes
Routing
People
Think interfaces
Promote Reuse
Biz and IT alignment
6
Training & Docs

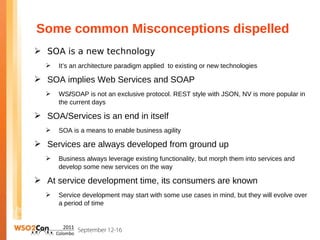

7. Some common Misconceptions dispelled
 SOA is a new technology
 It’s an architecture paradigm applied to existing or new technologies
 SOA implies Web Services and SOAP
 WS/SOAP is not an exclusive protocol. REST style with JSON, NV is more popular in
the current days
 SOA/Services is an end in itself
 SOA is a means to enable business agility
 Services are always developed from ground up
 Business always leverage existing functionality, but morph them into services and
develop some new services on the way
 At service development time, its consumers are known
 Service development may start with some use cases in mind, but they will evolve over
a period of time

8. Enabling possibilities
TOMMOROW
TODAY
FUTURE
8

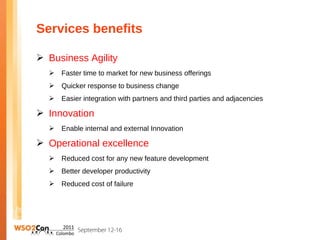

9. Services benefits
 Business Agility
 Faster time to market for new business offerings
 Quicker response to business change
 Easier integration with partners and third parties and adjacencies
 Innovation
 Enable internal and external Innovation
 Operational excellence
 Reduced cost for any new feature development
 Better developer productivity
 Reduced cost of failure

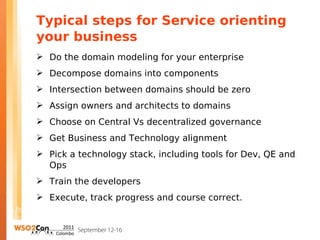

10. Typical steps for Service orienting
your business
 Do the domain modeling for your enterprise
 Decompose domains into components
 Intersection between domains should be zero
 Assign owners and architects to domains
 Choose on Central Vs decentralized governance
 Get Business and Technology alignment
 Pick a technology stack, including tools for Dev, QE and
Ops
 Train the developers
 Execute, track progress and course correct.

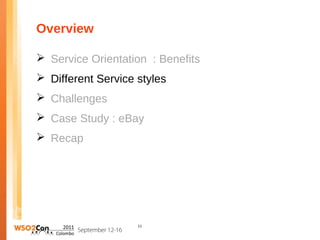

11. Overview
 Service Orientation : Benefits
 Different Service styles
 Challenges
 Case Study : eBay
 Recap
11

12. Different Service Styles
• SOA
• Formal Contract, interface (WSDL or other)
• Transport / Protocol agnostic (bindings)
• Arbitrary set of operations
• REST
• Based on Roy Fielding’s dissertation
• Web/Resource oriented
• Suits well for web based interactions
• Piggy backs on HTTP verbs : GET, POST, PUT,
DELETE
• No formal contract

13. Overview
 Service Orientation : Benefits
 Different Service styles
 Challenges
 Case Study : eBay
 Recap
13

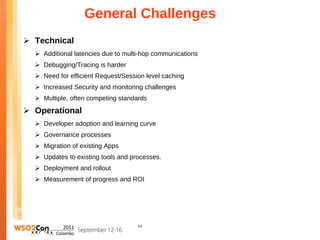

14. General Challenges
 Technical
 Additional latencies due to multi-hop communications
 Debugging/Tracing is harder
 Need for efficient Request/Session level caching
 Increased Security and monitoring challenges
 Multiple, often competing standards
 Operational
 Developer adoption and learning curve
 Governance processes
 Migration of existing Apps
 Updates to existing tools and processes.
 Deployment and rollout
 Measurement of progress and ROI
14

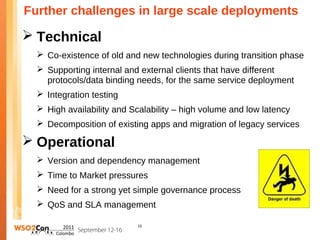

15. Further challenges in large scale deployments
 Technical
 Co-existence of old and new technologies during transition phase
 Supporting internal and external clients that have different
protocols/data binding needs, for the same service deployment
 Integration testing
 High availability and Scalability – high volume and low latency
 Decomposition of existing apps and migration of legacy services
 Operational
 Version and dependency management
 Time to Market pressures
 Need for a strong yet simple governance process
 QoS and SLA management
15

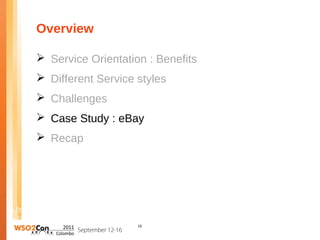

16. Overview
 Service Orientation : Benefits
 Different Service styles
 Challenges
 Case Study : eBay
 Recap
16

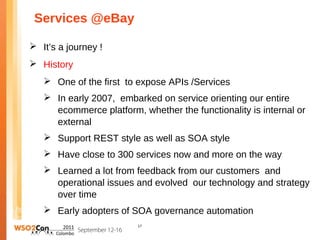

17. Services @eBay
 It’s a journey !
 History
 One of the first to expose APIs /Services
 In early 2007, embarked on service orienting our entire
ecommerce platform, whether the functionality is internal or
external
 Support REST style as well as SOA style
 Have close to 300 services now and more on the way
 Learned a lot from feedback from our customers and
operational issues and evolved our technology and strategy
over time
 Early adopters of SOA governance automation
17

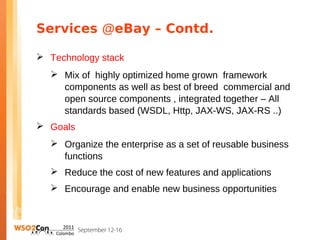

18. Services @eBay – Contd.
 Technology stack
 Mix of highly optimized home grown framework
components as well as best of breed commercial and
open source components , integrated together – All
standards based (WSDL, Http, JAX-WS, JAX-RS ..)
 Goals
 Organize the enterprise as a set of reusable business
functions
 Reduce the cost of new features and applications
 Encourage and enable new business opportunities

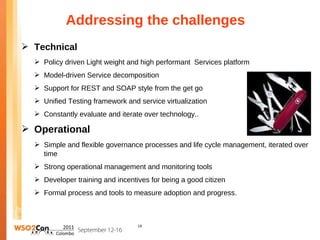

19. Addressing the challenges
 Technical
 Policy driven Light weight and high performant Services platform
 Model-driven Service decomposition
 Support for REST and SOAP style from the get go
 Unified Testing framework and service virtualization
 Constantly evaluate and iterate over technology..
 Operational
 Simple and flexible governance processes and life cycle management, iterated over
time
 Strong operational management and monitoring tools
 Developer training and incentives for being a good citizen
 Formal process and tools to measure adoption and progress.
19

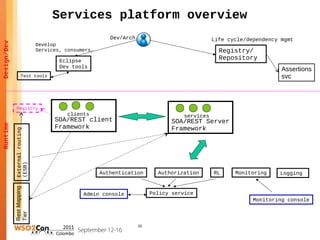

20. Services platform overview
Dev/Arch Life cycle/dependency mgmt
Design/Dev
Develop
Services, consumers, Registry/
Eclipse
Repository
Dev tools
Assertions
Test tools svc
Registry
clients services
SOA/REST client SOA/REST Server
Runtime
Framework Framework
External routing
(ESB)
Authentication Authorization RL Monitoring Logging
Rest Mapping
Admin console Policy service
Monitoring console
Tier
20

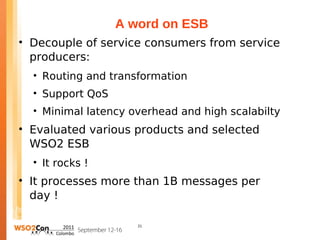

21. A word on ESB
• Decouple of service consumers from service
producers:
• Routing and transformation
• Support QoS
• Minimal latency overhead and high scalabilty
• Evaluated various products and selected
WSO2 ESB
• It rocks !
• It processes more than 1B messages per
day !
21

22. Service Layers and Taxonomy
 Defining a finite set of service layers and their
relationships
 Goals
 Provide a mechanism to build and layer services that have different
characteristics
 Enable service lifecycle management for services with different scopes of
impact
 Clearly establish guidelines on what functionality can be implemented in
which layers
 Define allowed access patterns between layers
 Enable better dependency and rollout management
22

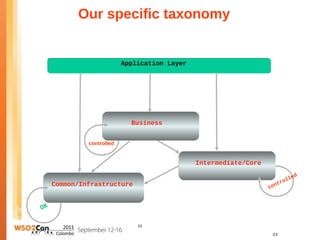

23. Our specific taxonomy
Application Layer
Business
controlled
Intermediate/Core
d
le
tr ol
Common/Infrastructure con
OK
23
23

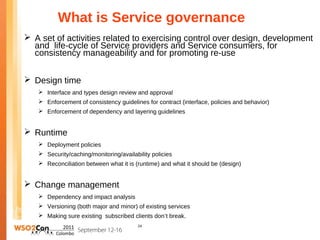

24. What is Service governance
 A set of activities related to exercising control over design, development
and life-cycle of Service providers and Service consumers, for
consistency manageability and for promoting re-use
 Design time
 Interface and types design review and approval
 Enforcement of consistency guidelines for contract (interface, policies and behavior)
 Enforcement of dependency and layering guidelines
 Runtime
 Deployment policies
 Security/caching/monitoring/availability policies
 Reconciliation between what it is (runtime) and what it should be (design)
 Change management
 Dependency and impact analysis
 Versioning (both major and minor) of existing services
 Making sure existing subscribed clients don’t break.
24

25. Governance process - Sample
Dev tools
Service Registry and Repository
Life cycle stages
Publish/discover
Proposed Approved Tested Deployed
Build
tools
Deployment Notify Notify Notify Notify
tools
Release
tools
External External External External
governance Governance Governance Governance
process process process process
25

26. Governance – Our journey
 We initially had an elaborate governance process
 After feedback from developers, we iterated and
eliminated this and made it a self service process
 Validation and Reporting
 Data from this repository is exported to runtime
ESB registry and SIF.
26

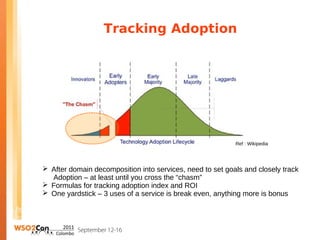

27. Tracking Adoption
Ref : Wikipedia
 After domain decomposition into services, need to set goals and closely track
Adoption – at least until you cross the “chasm”
 Formulas for tracking adoption index and ROI
 One yardstick – 3 uses of a service is break even, anything more is bonus

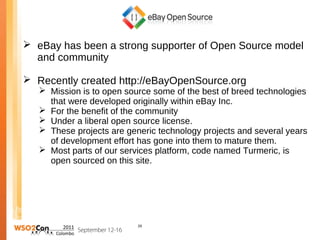

28.  eBay has been a strong supporter of Open Source model
and community
 Recently created http://eBayOpenSource.org
 Mission is to open source some of the best of breed technologies
that were developed originally within eBay Inc.
 For the benefit of the community
 Under a liberal open source license.
 These projects are generic technology projects and several years
of development effort has gone into them to mature them.
 Most parts of our services platform, code named Turmeric, is
open sourced on this site.
28

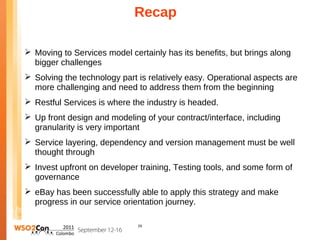

29. Recap
 Moving to Services model certainly has its benefits, but brings along
bigger challenges
 Solving the technology part is relatively easy. Operational aspects are
more challenging and need to address them from the beginning
 Restful Services is where the industry is headed.
 Up front design and modeling of your contract/interface, including
granularity is very important
 Service layering, dependency and version management must be well
thought through
 Invest upfront on developer training, Testing tools, and some form of
governance
 eBay has been successfully able to apply this strategy and make
progress in our service orientation journey.
29
