Design Patterns for Pods and Containers in Kubernetes - Webinar by zekeLabs
- 1. zekeLabs Learning made Simpler! www.zekeLabs.com Please find webinar recordings on www.edYoda.com
- 2. Design Patterns forPods and Containers on Kubernetes info@zekeLabs.com | www.zekeLabs.com | +91 7032051637

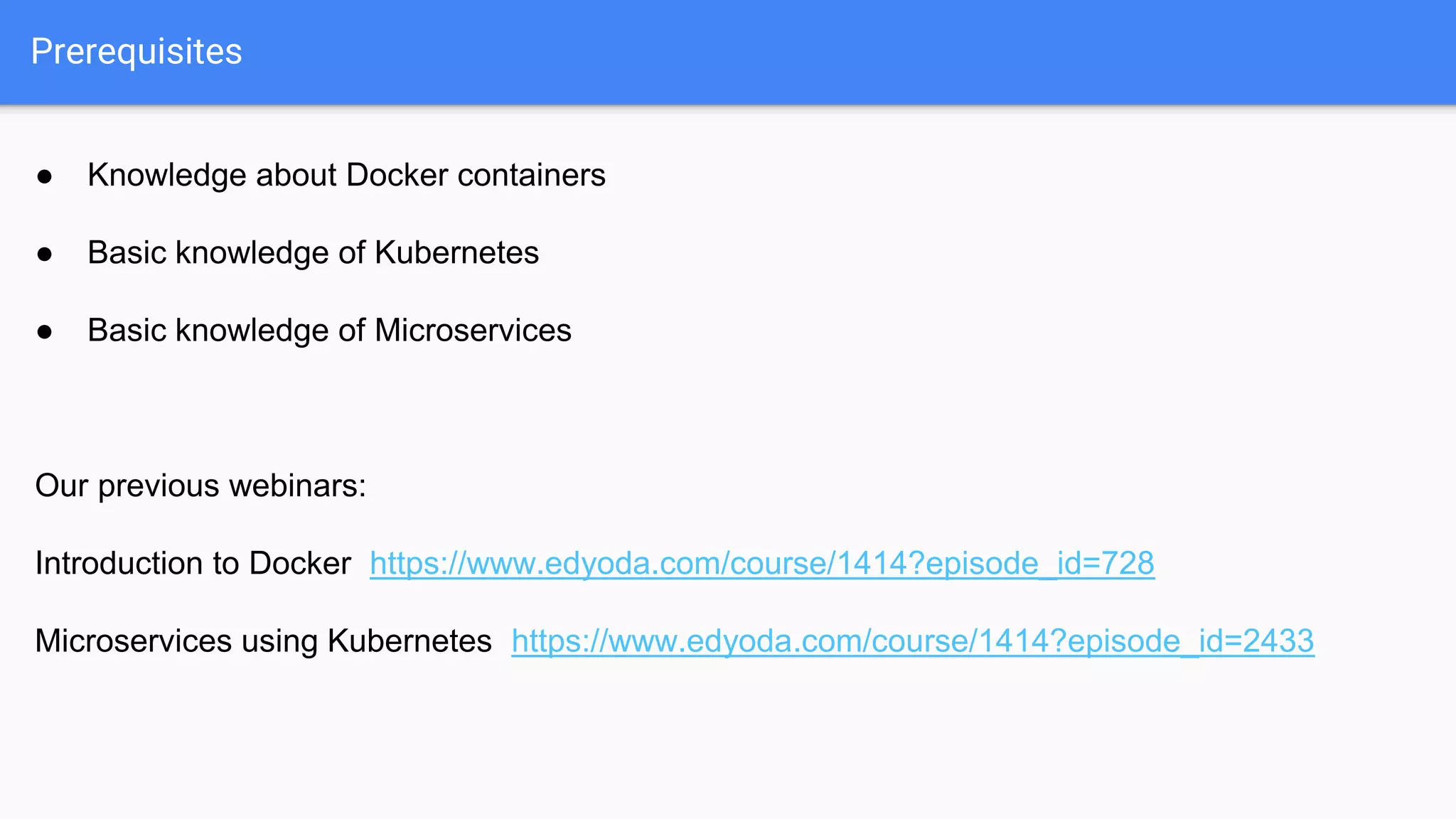

- 3. ● Knowledge aboutDocker containers ● Basic knowledge of Kubernetes ● Basic knowledge of Microservices Our previous webinars: Introduction to Docker https://www.edyoda.com/course/1414?episode_id=728 Microservices using Kubernetes https://www.edyoda.com/course/1414?episode_id=2433 Prerequisites

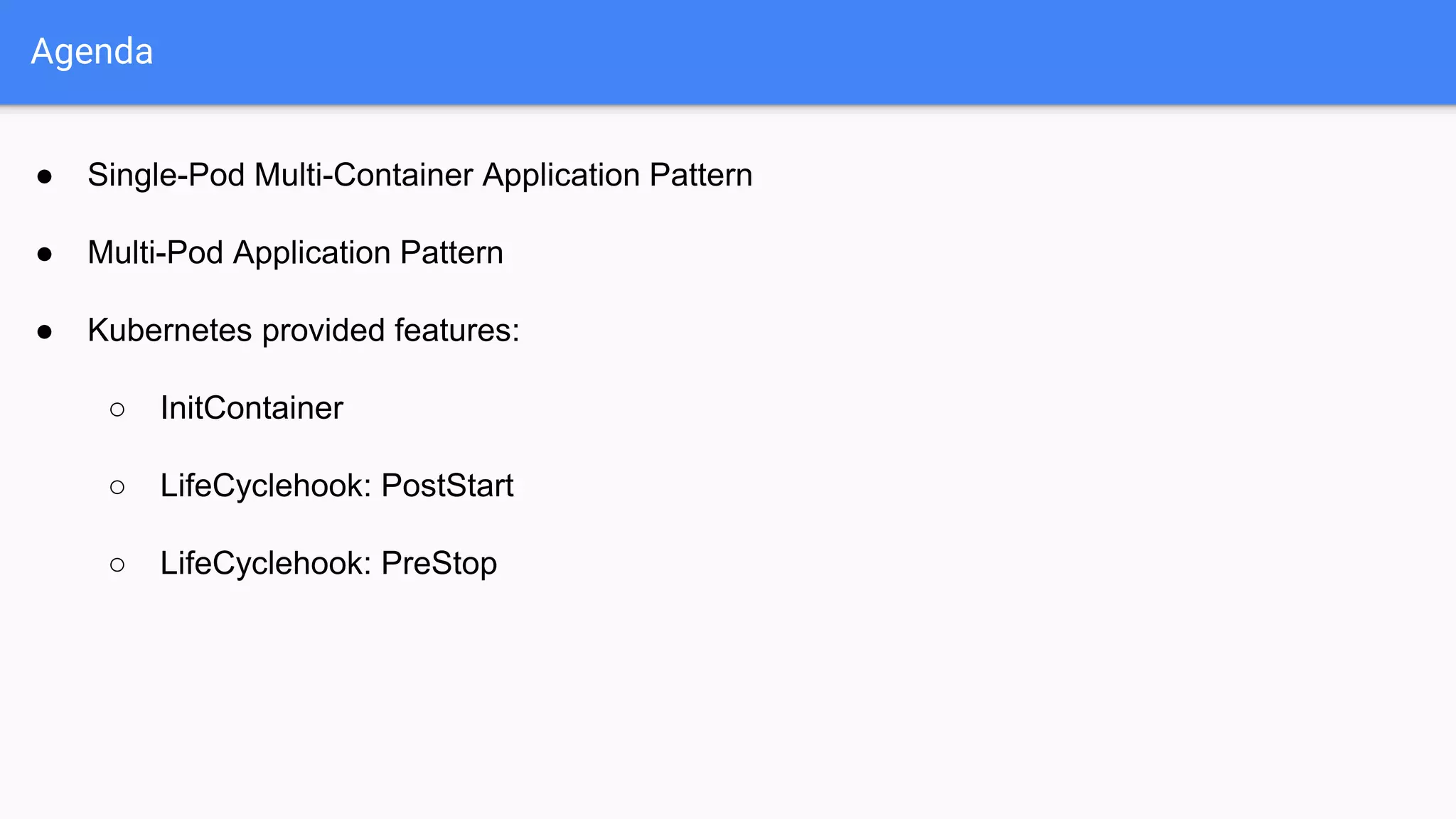

- 4. ● Single-Pod Multi-ContainerApplication Pattern ● Multi-Pod Application Pattern ● Kubernetes provided features: ○ InitContainer ○ LifeCyclehook: PostStart ○ LifeCyclehook: PreStop Agenda

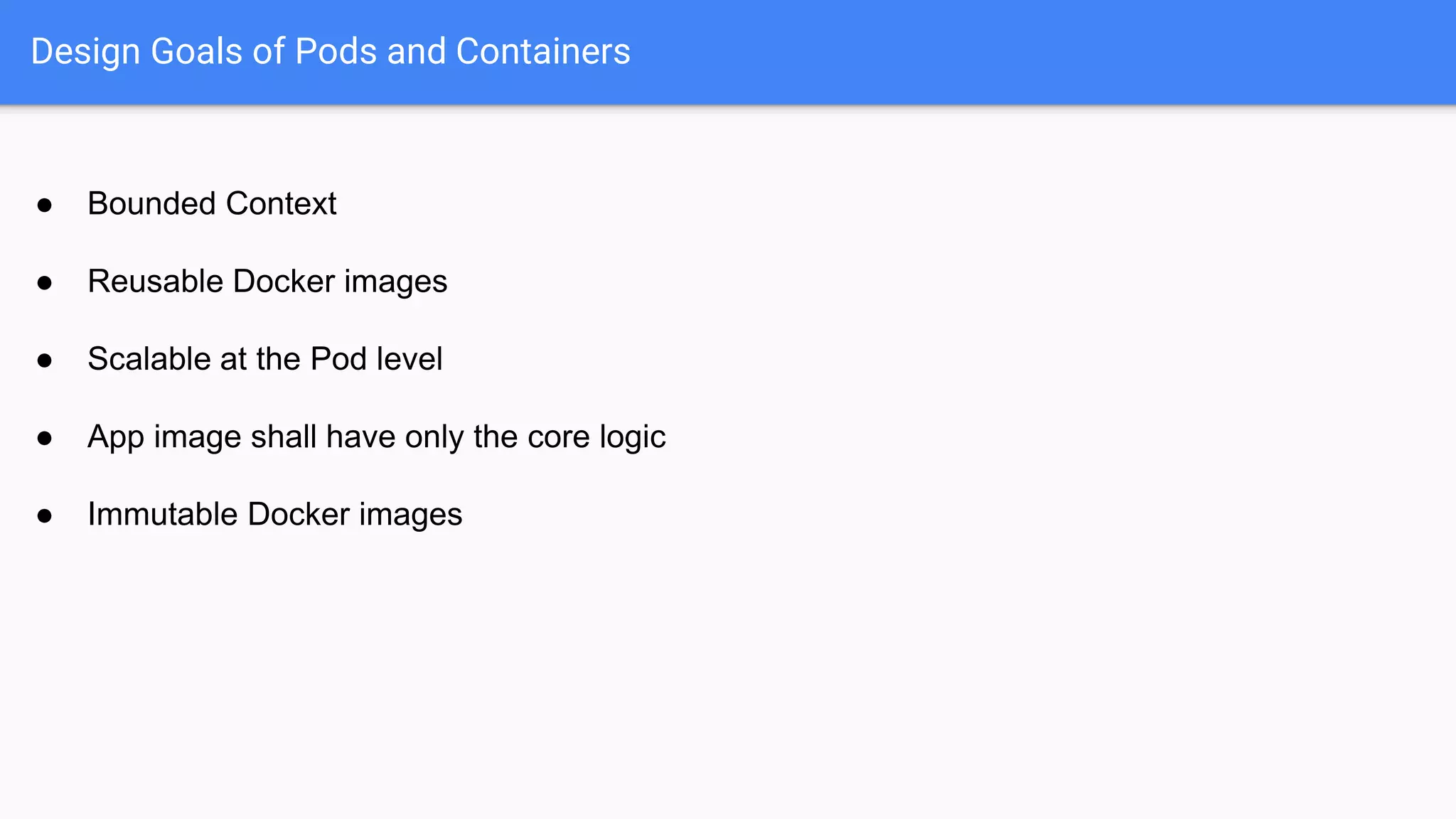

- 5. ● Bounded Context ●Reusable Docker images ● Scalable at the Pod level ● App image shall have only the core logic ● Immutable Docker images Design Goals of Pods and Containers

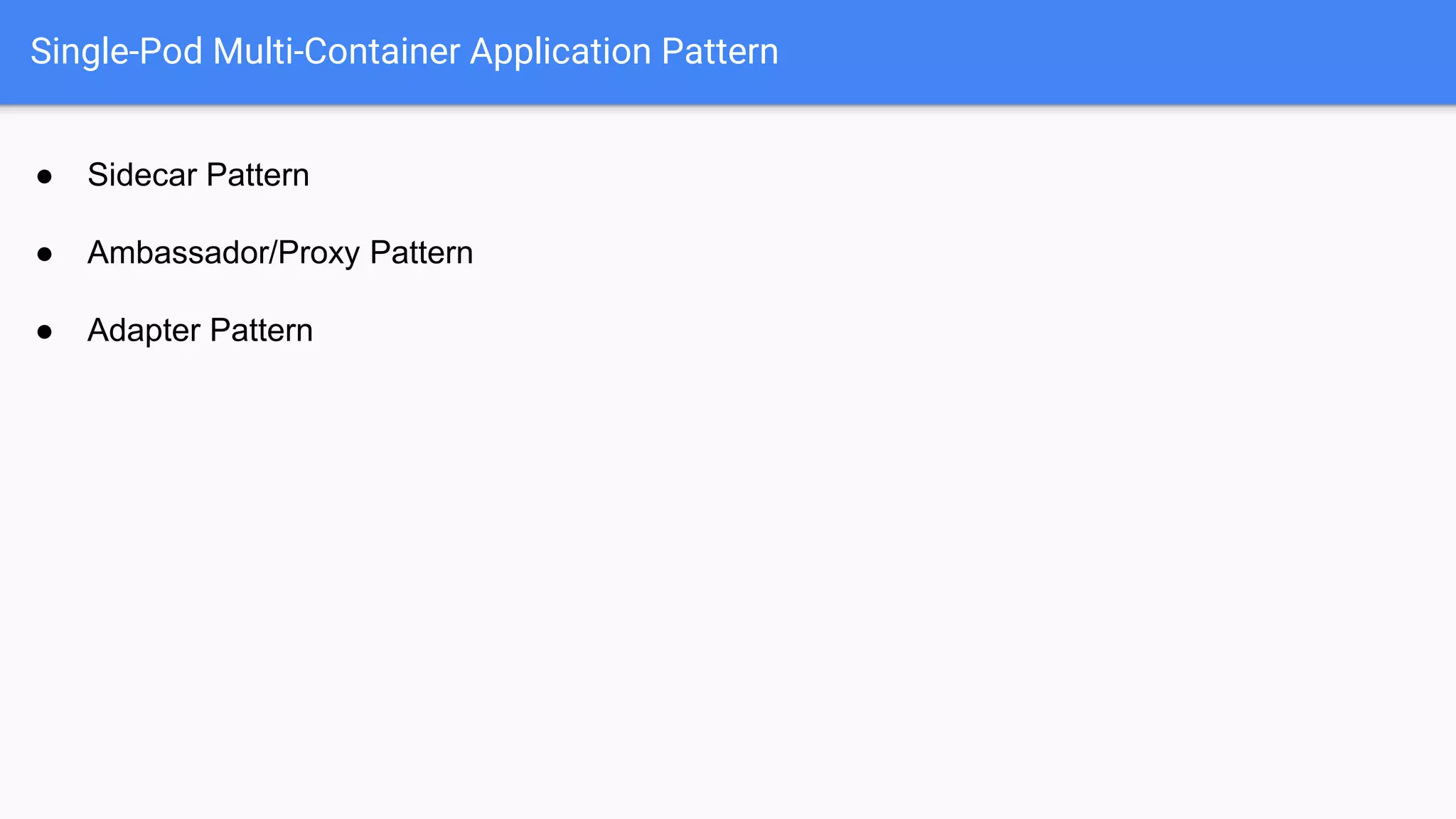

- 6. ● Sidecar Pattern ●Ambassador/Proxy Pattern ● Adapter Pattern Single-Pod Multi-Container Application Pattern

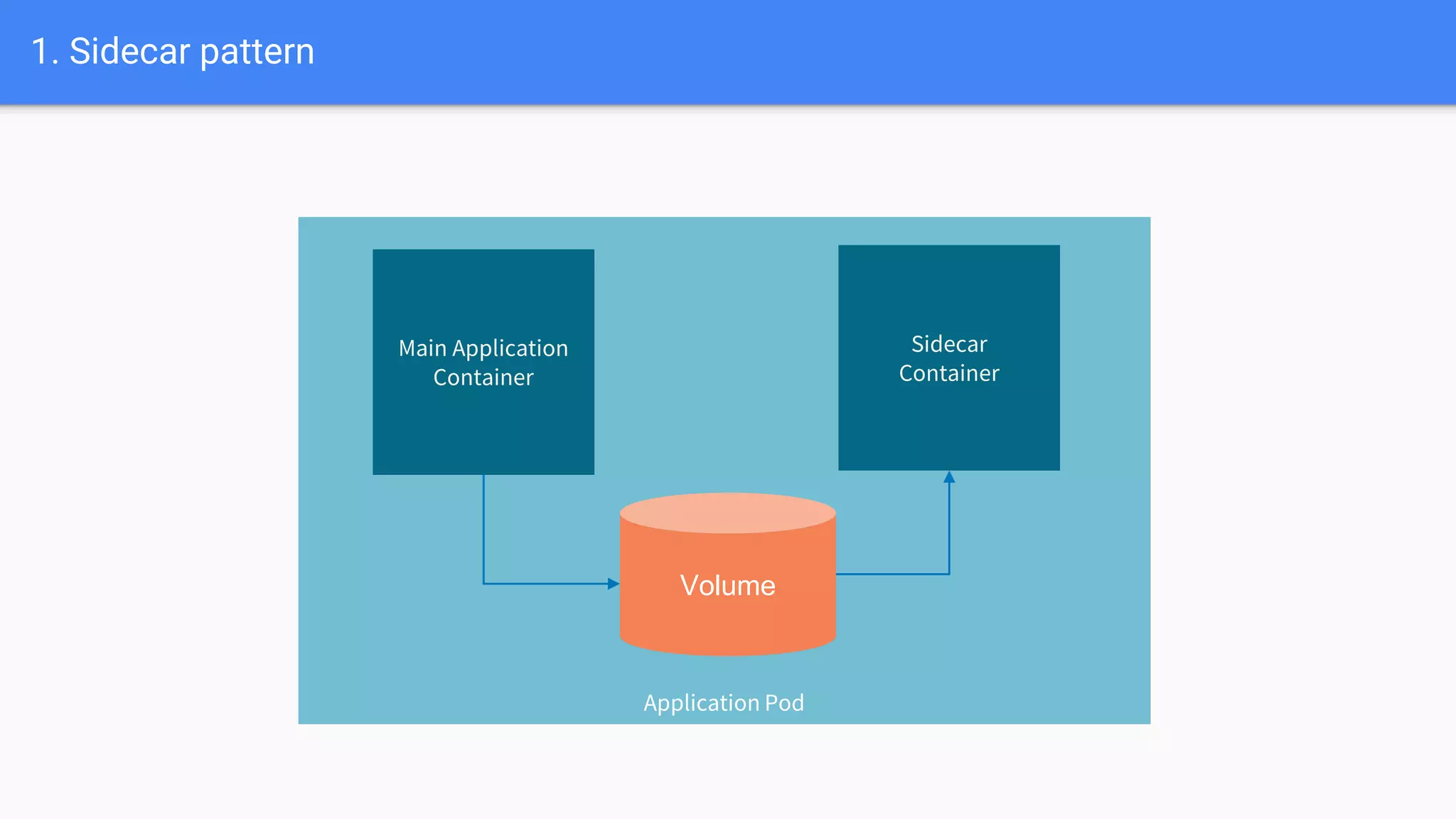

- 7. 1. Sidecar pattern ApplicationPod Main Application Container Volume Sidecar Container

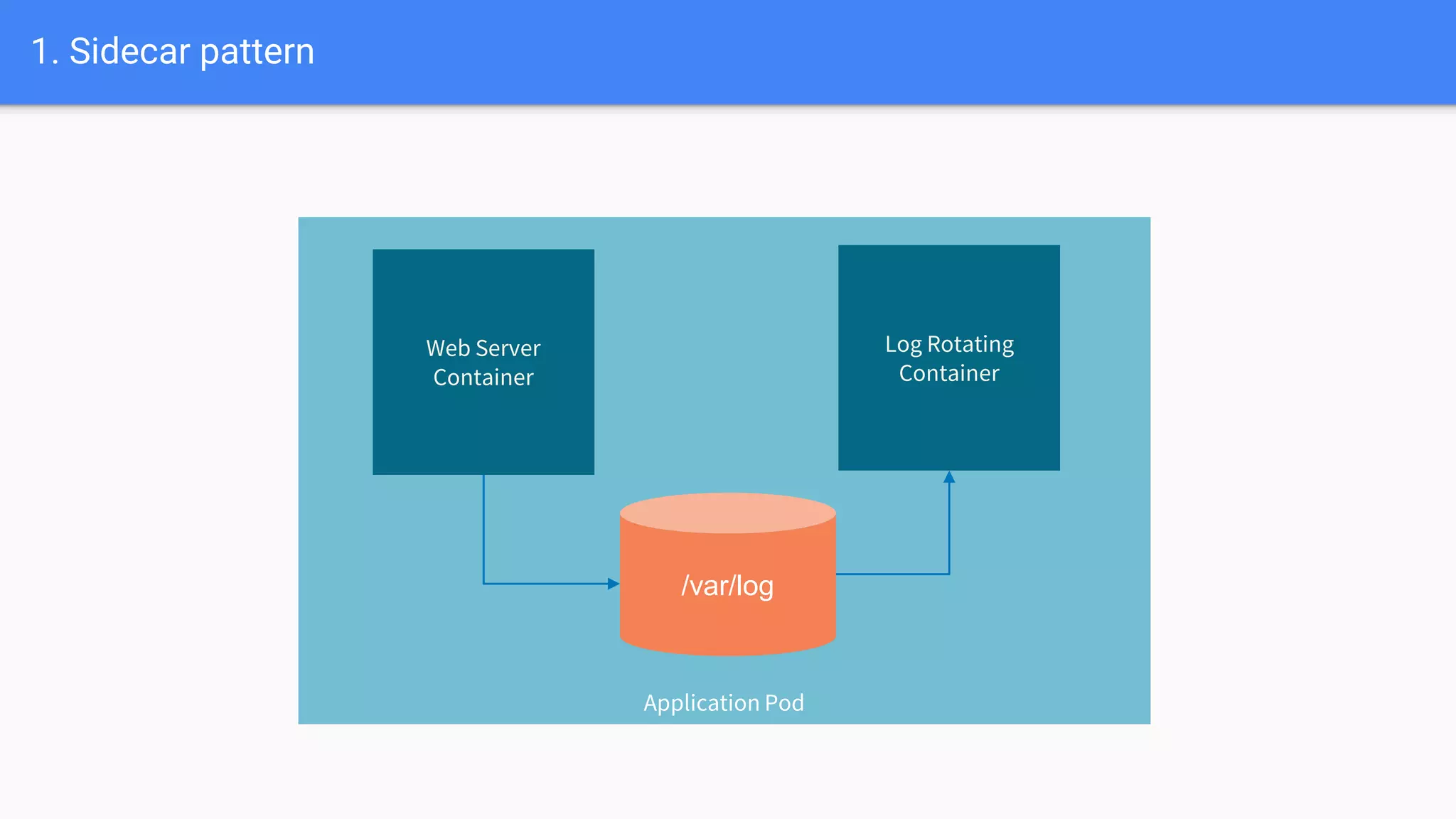

- 8. 1. Sidecar pattern ApplicationPod Web Server Container /var/log Log Rotating Container

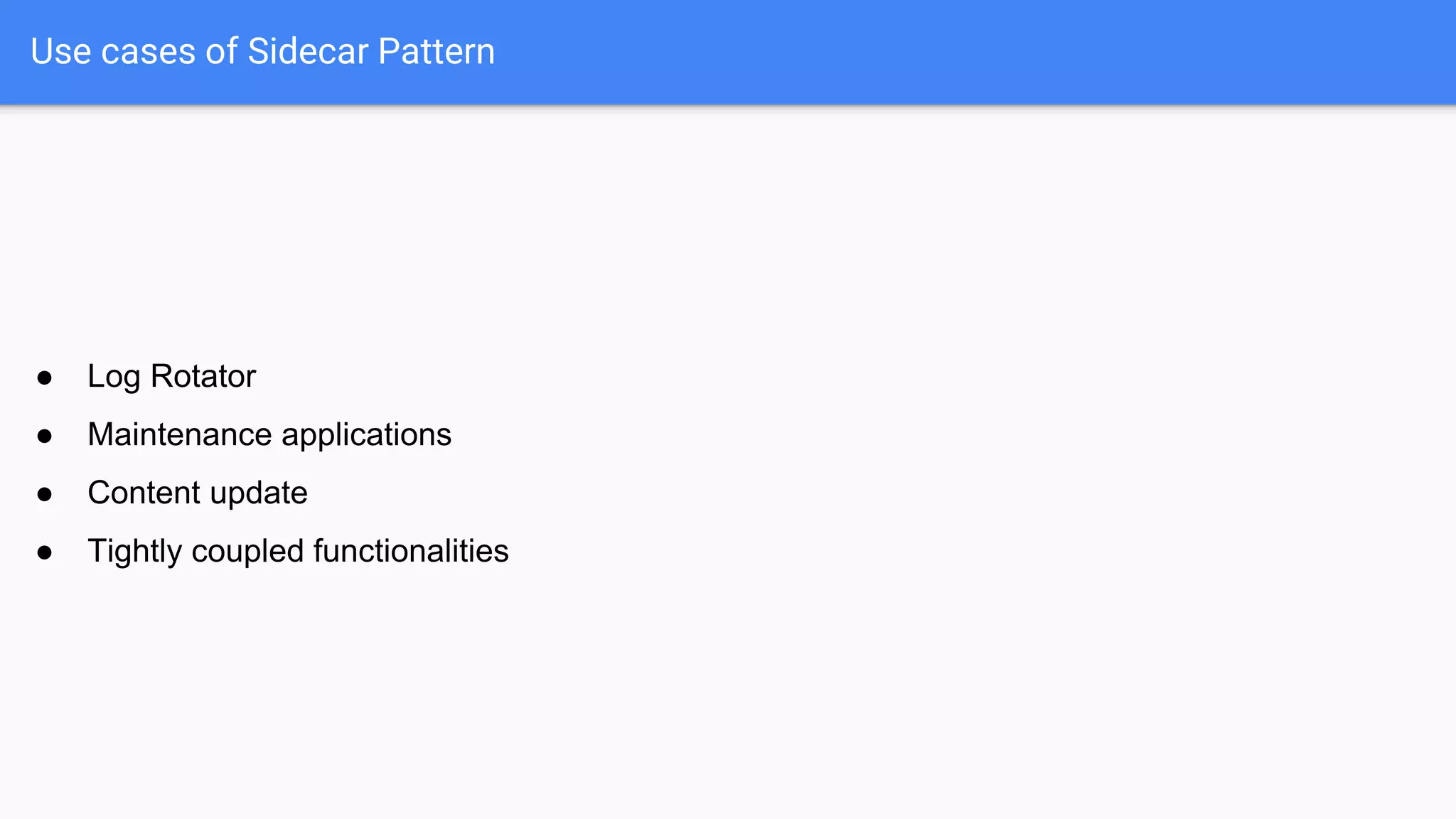

- 9. ● Log Rotator ●Maintenance applications ● Content update ● Tightly coupled functionalities Use cases of Sidecar Pattern

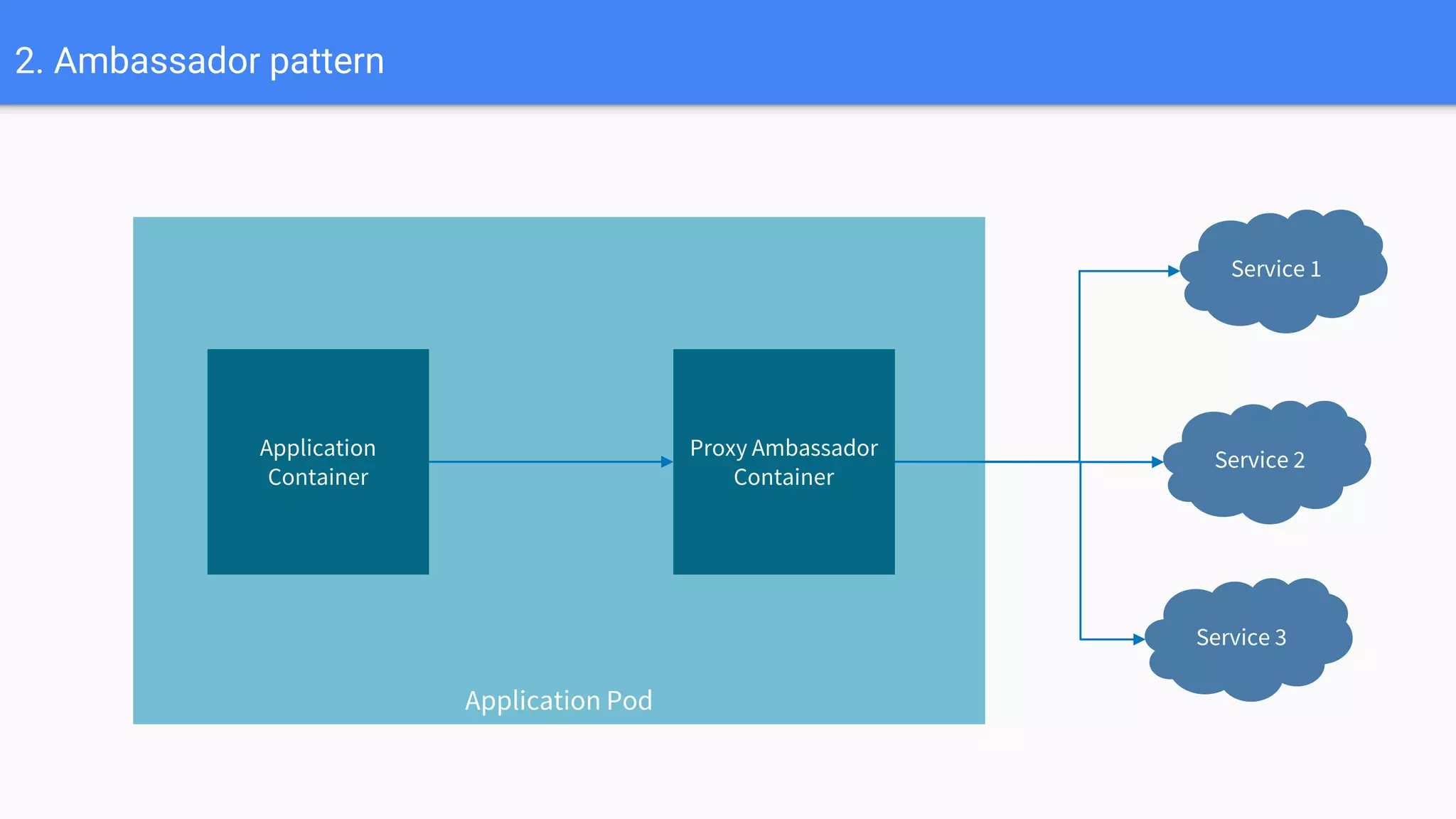

- 10. 2. Ambassador pattern Service1 Service 2 Service 3 Application Pod Application Container Proxy Ambassador Container

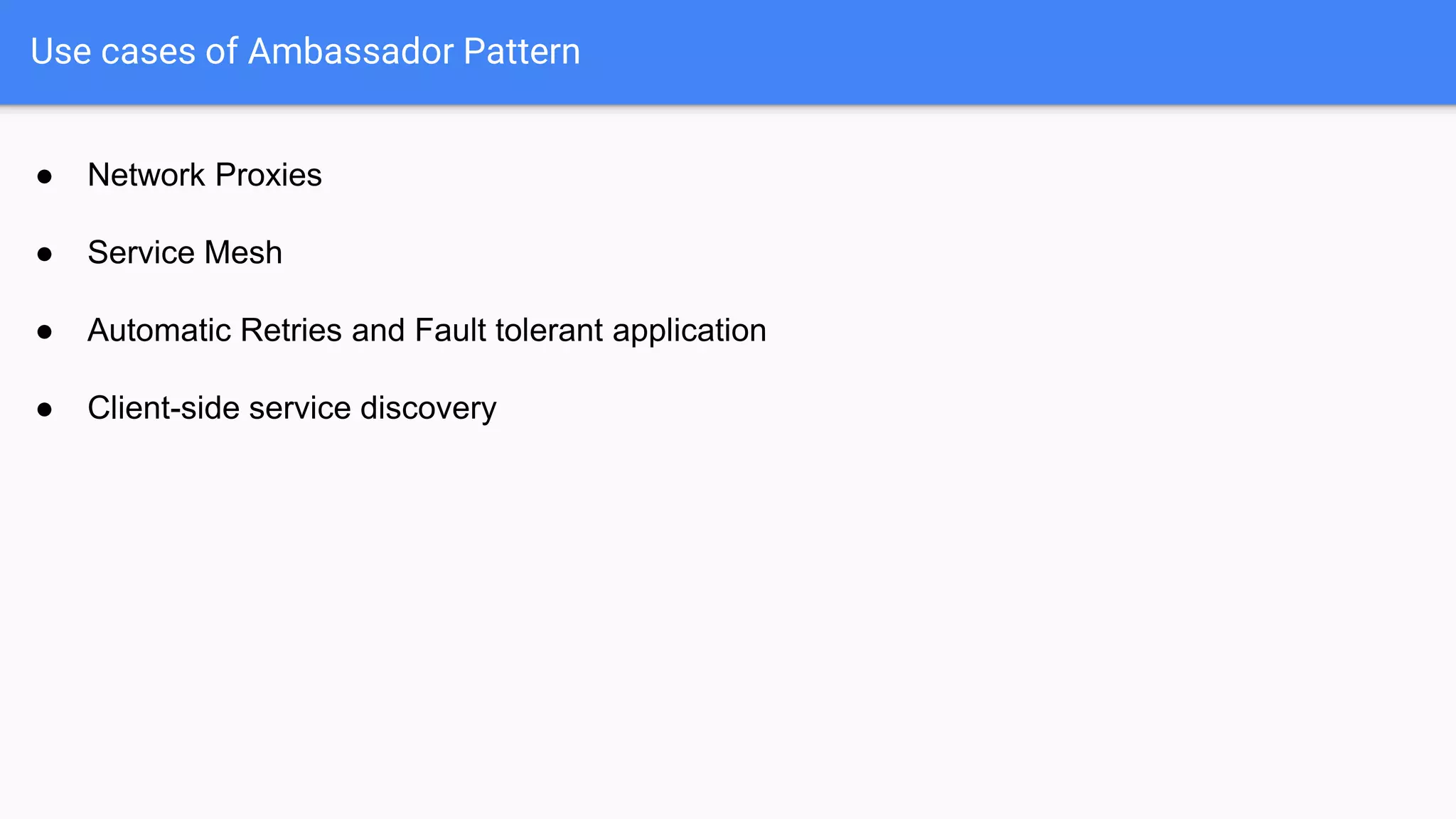

- 11. ● Network Proxies ●Service Mesh ● Automatic Retries and Fault tolerant application ● Client-side service discovery Use cases of Ambassador Pattern

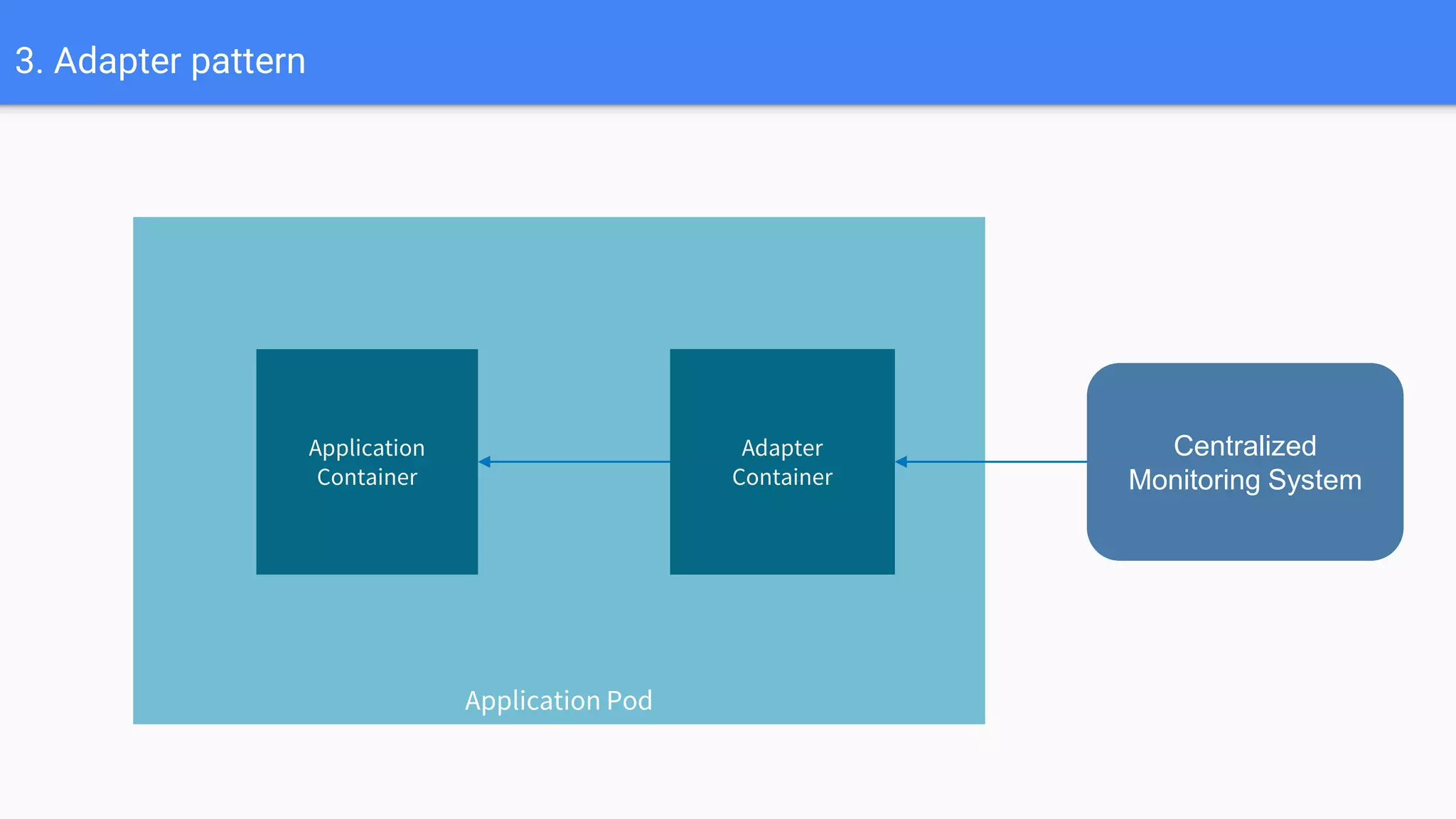

- 12. 3. Adapter pattern ApplicationPod Application Container Adapter Container Centralized Monitoring System

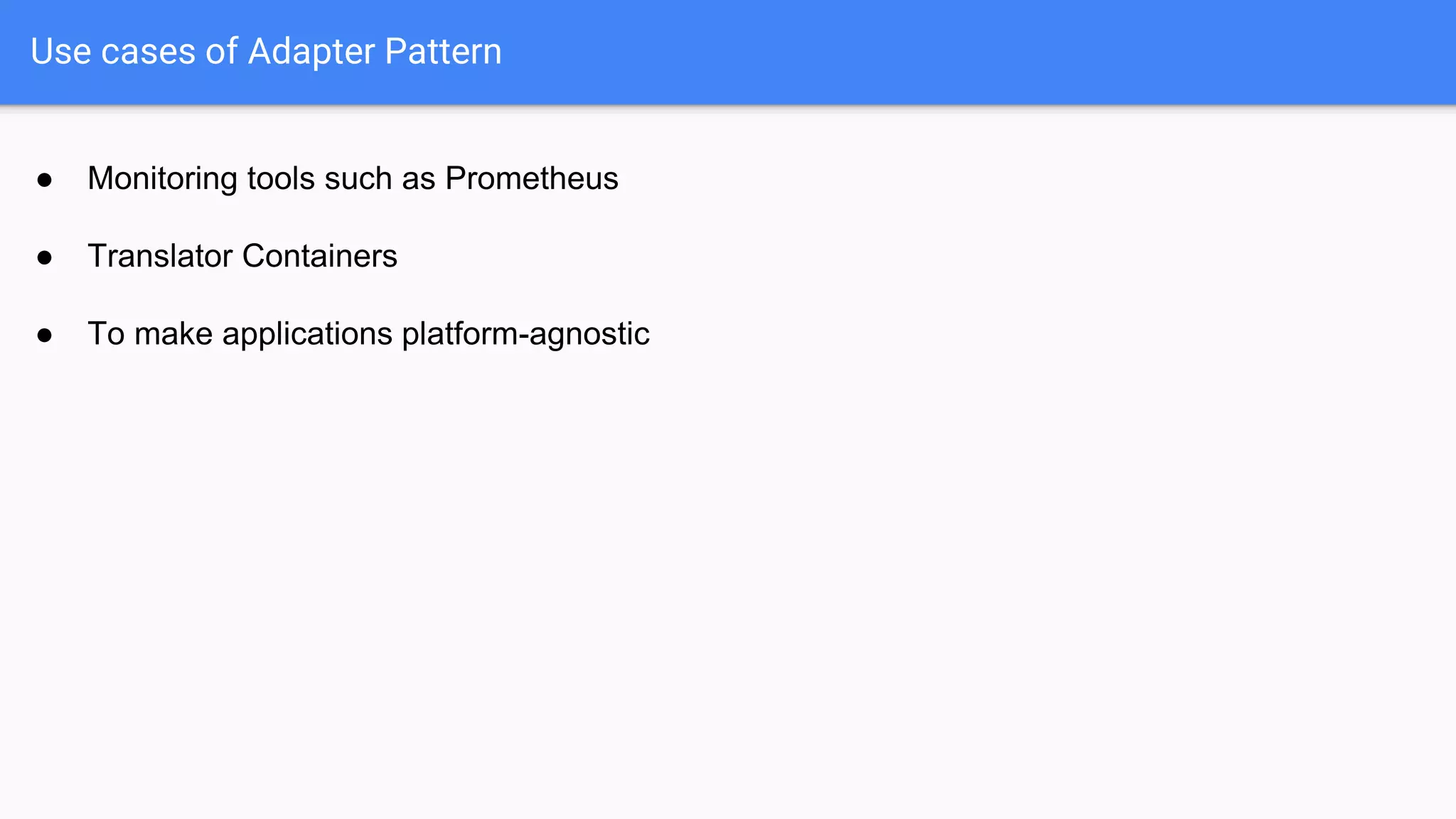

- 13. ● Monitoring toolssuch as Prometheus ● Translator Containers ● To make applications platform-agnostic Use cases of Adapter Pattern

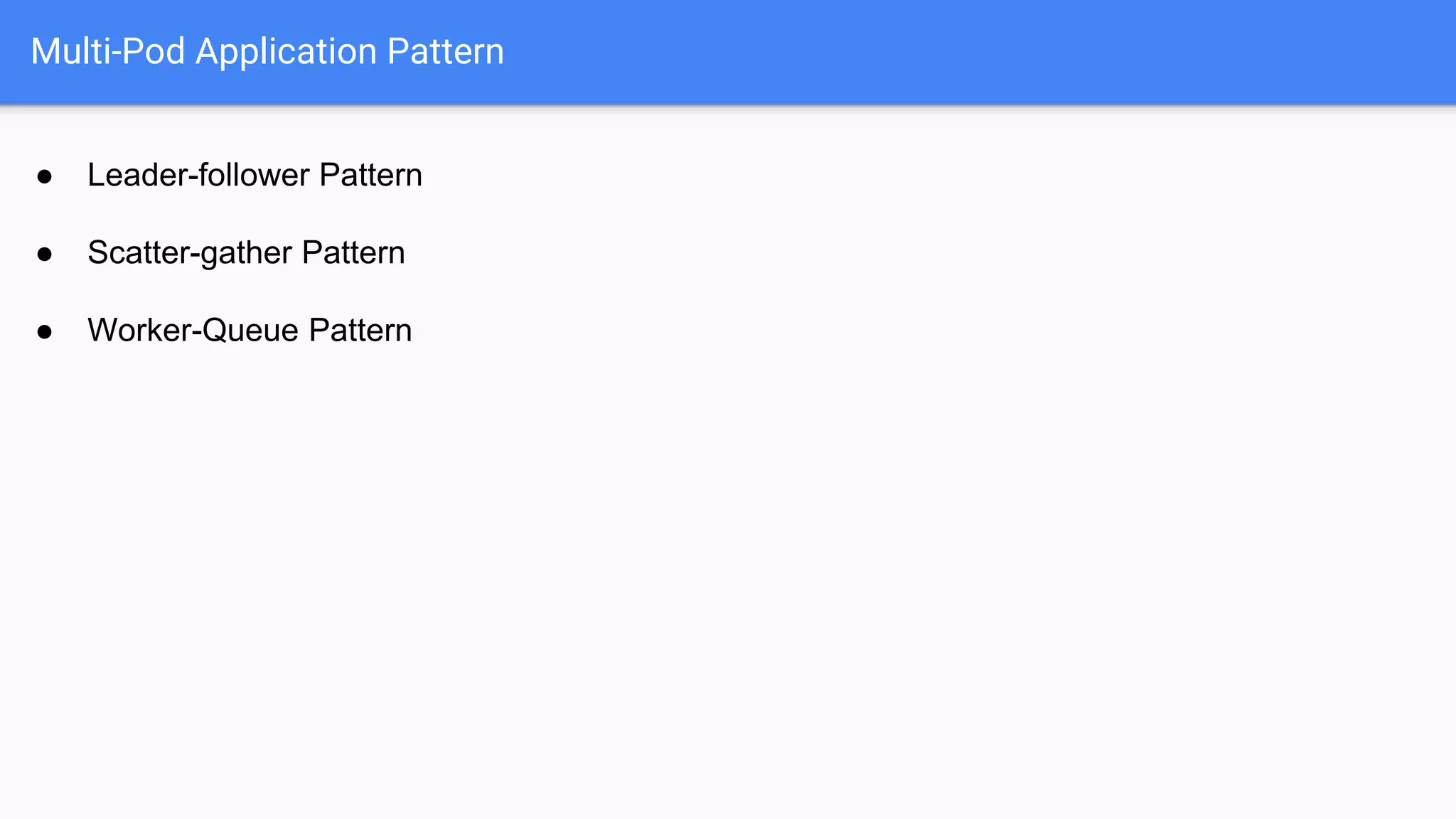

- 14. ● Leader-follower Pattern ●Scatter-gather Pattern ● Worker-Queue Pattern Multi-Pod Application Pattern

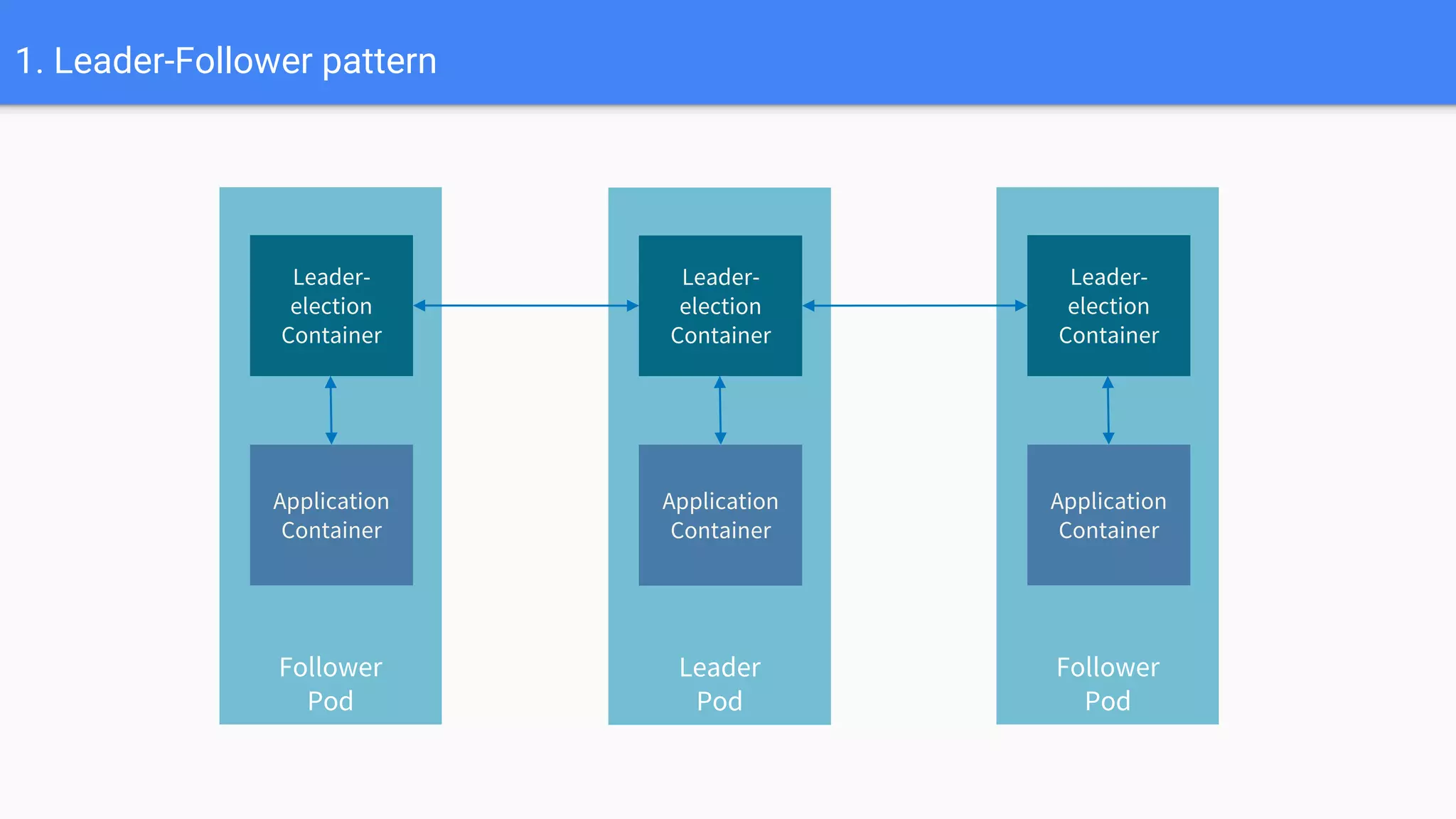

- 15.

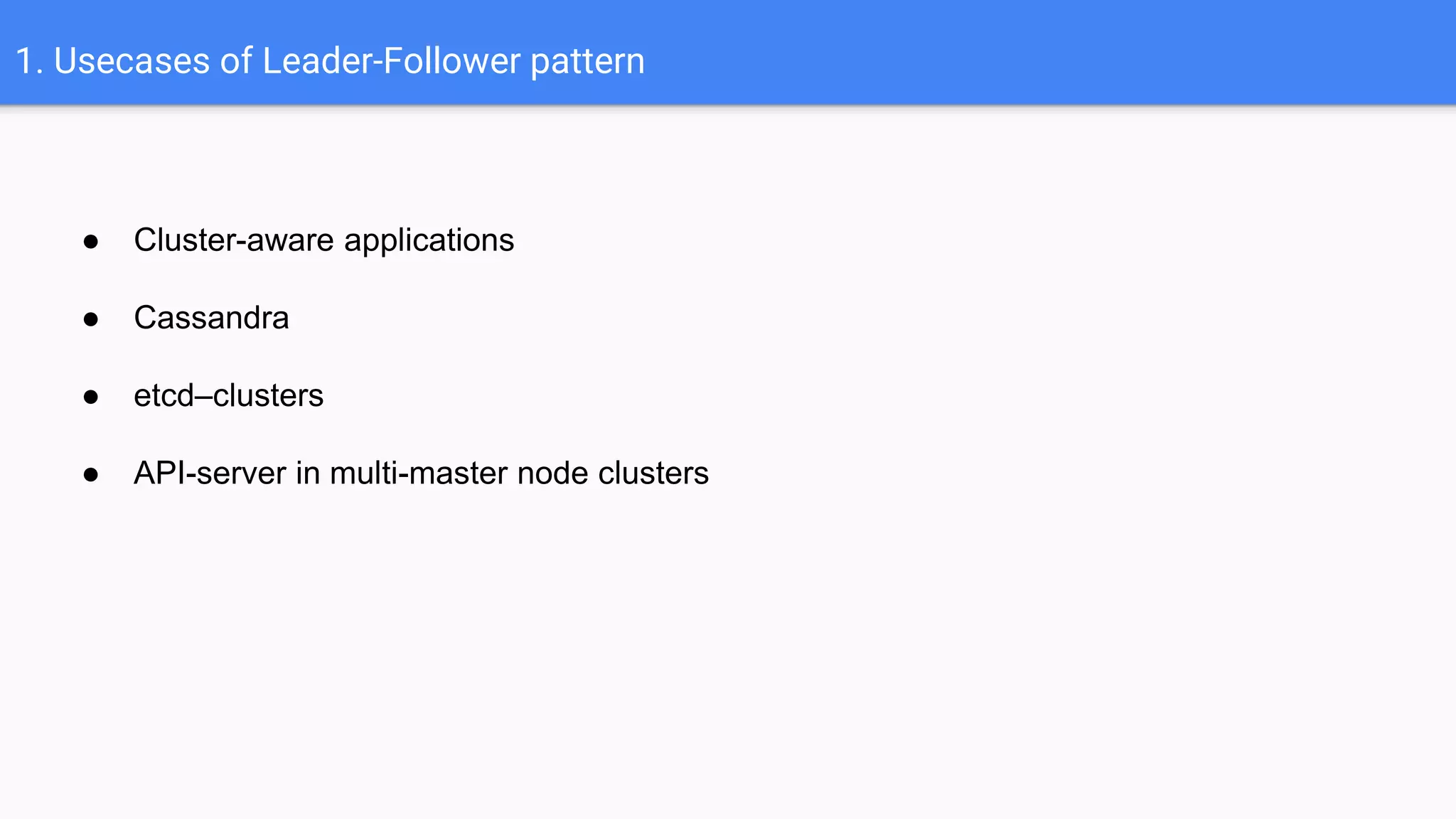

- 16. 1. Usecases ofLeader-Follower pattern ● Cluster-aware applications ● Cassandra ● etcd–clusters ● API-server in multi-master node clusters

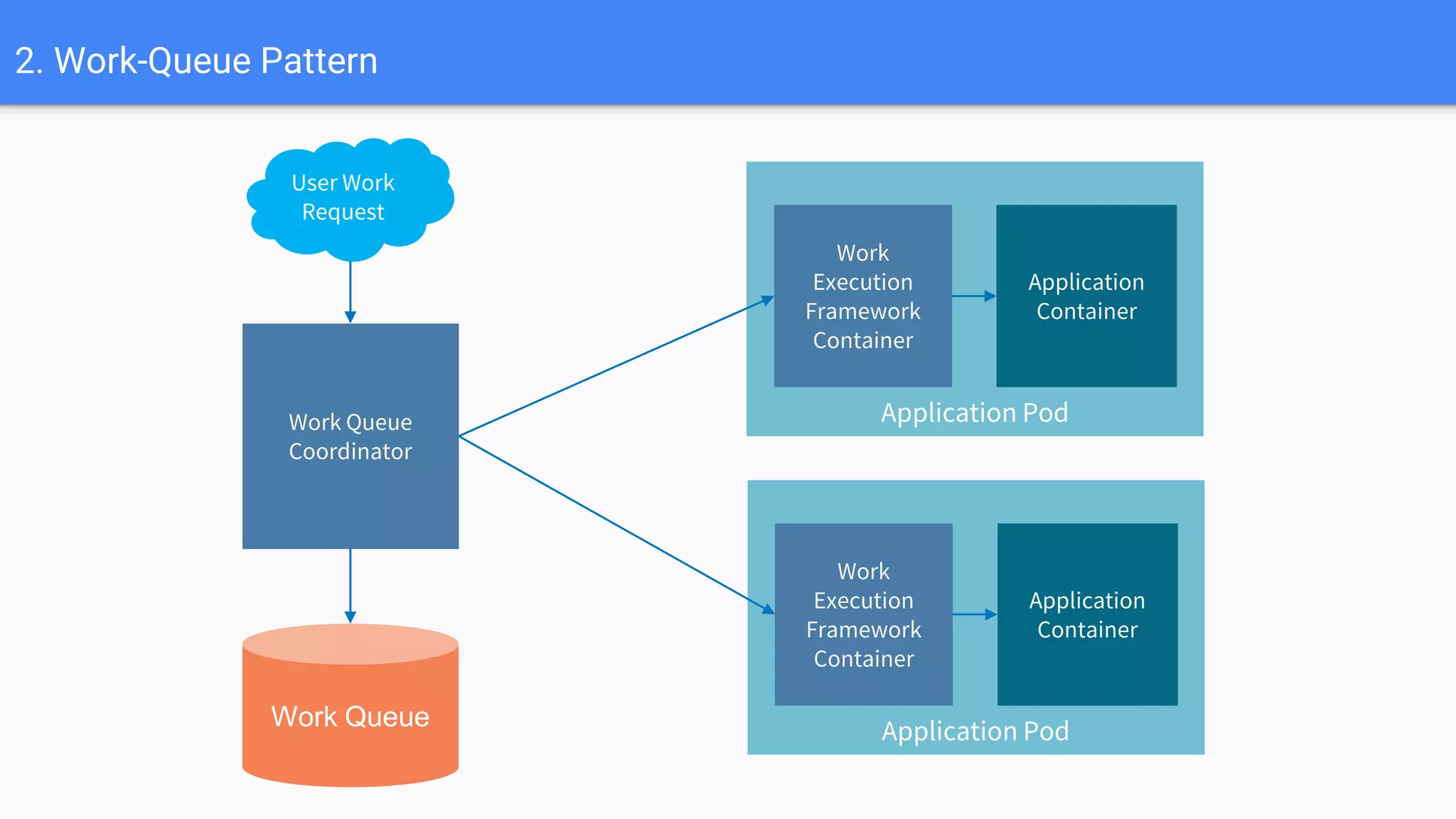

- 17. 2. Work-Queue Pattern ApplicationPod Work Execution Framework Container Application Container Application Pod Work Execution Framework Container Application Container Work Queue Coordinator Work Queue User Work Request

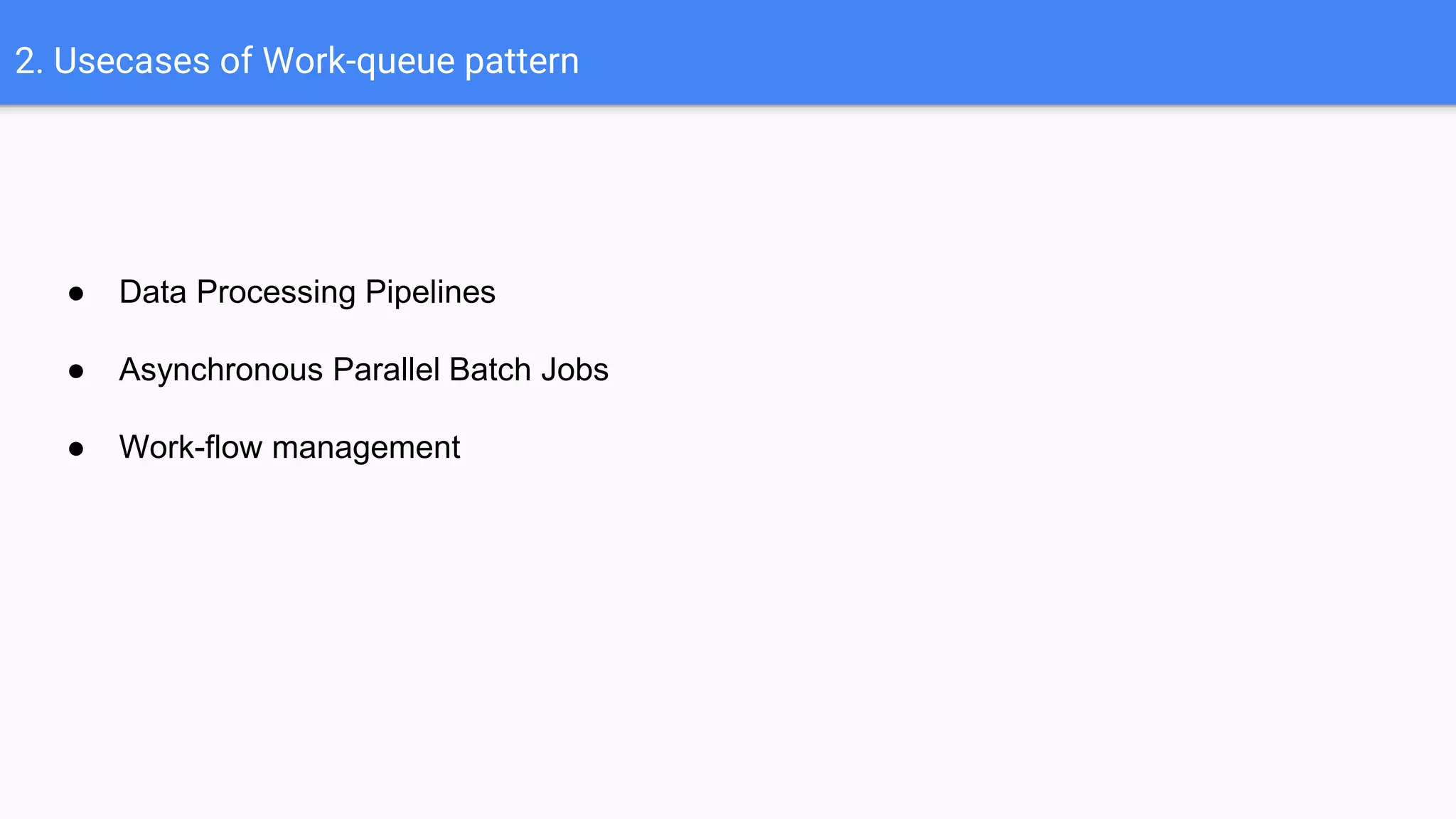

- 18. 2. Usecases ofWork-queue pattern ● Data Processing Pipelines ● Asynchronous Parallel Batch Jobs ● Work-flow management

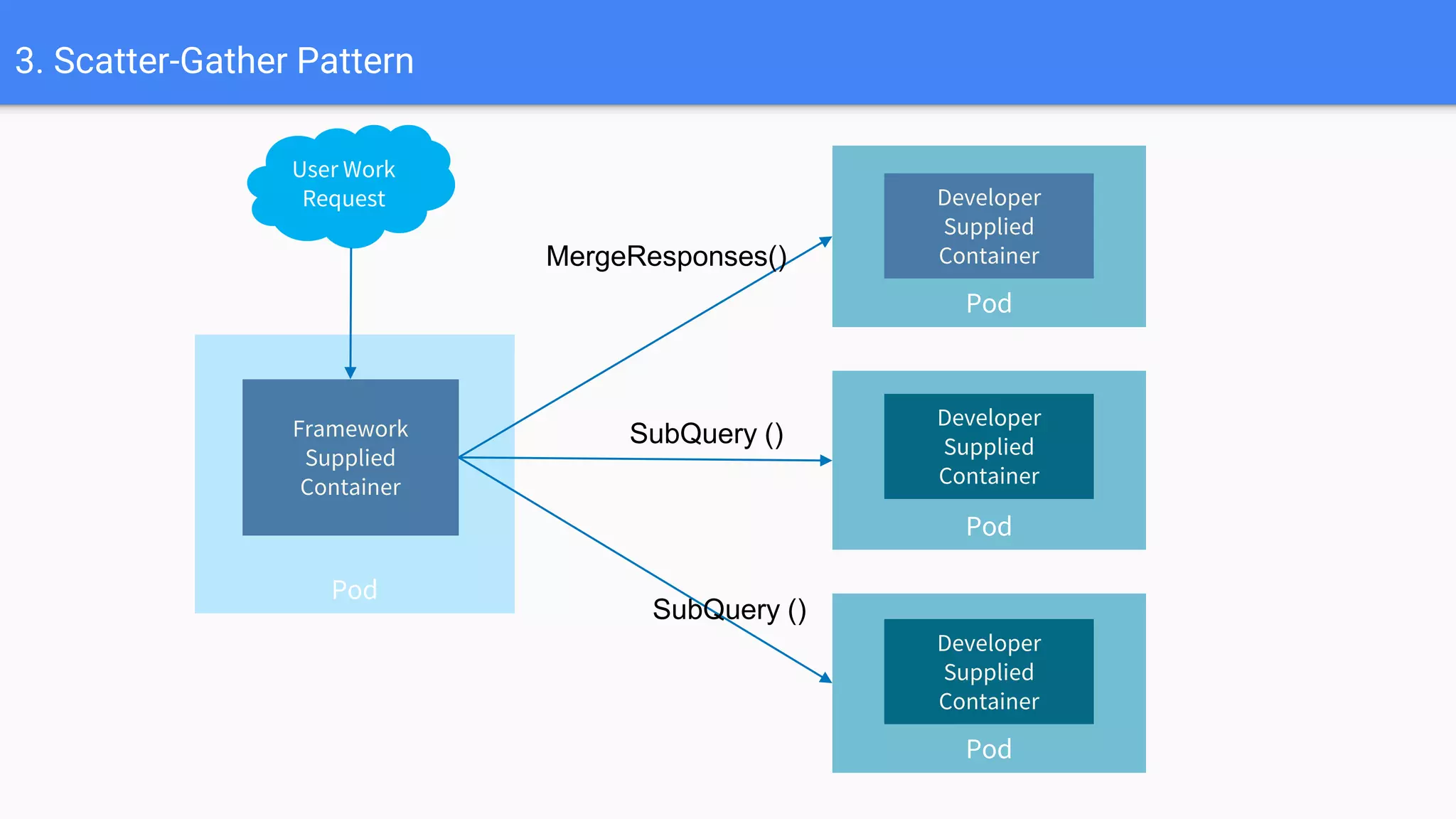

- 19. Pod 3. Scatter-Gather Pattern Pod Developer Supplied Container Framework Supplied Container UserWork Request Pod Developer Supplied Container Pod Developer Supplied Container SubQuery () SubQuery () MergeResponses()

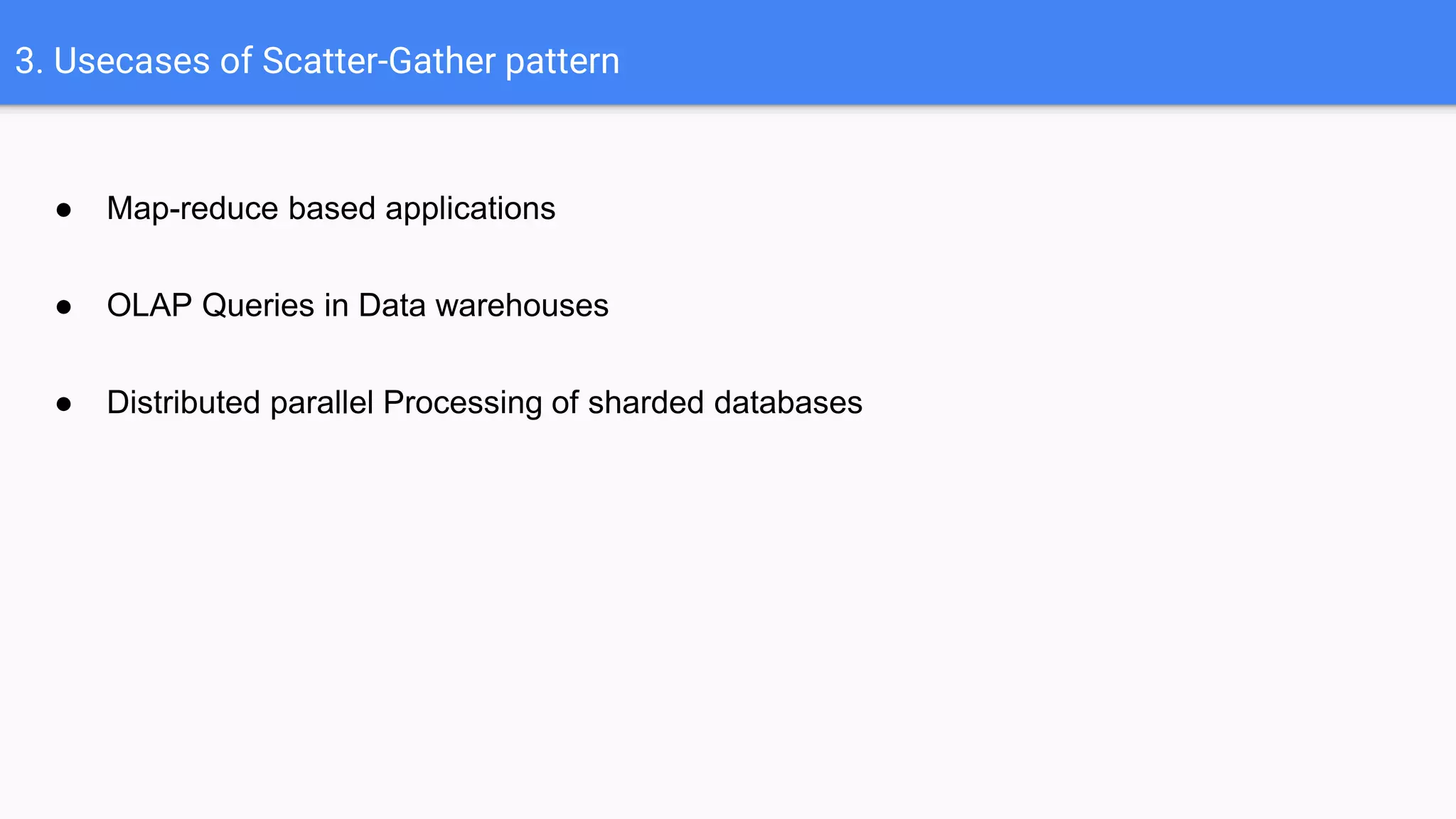

- 20. 3. Usecases ofScatter-Gather pattern ● Map-reduce based applications ● OLAP Queries in Data warehouses ● Distributed parallel Processing of sharded databases

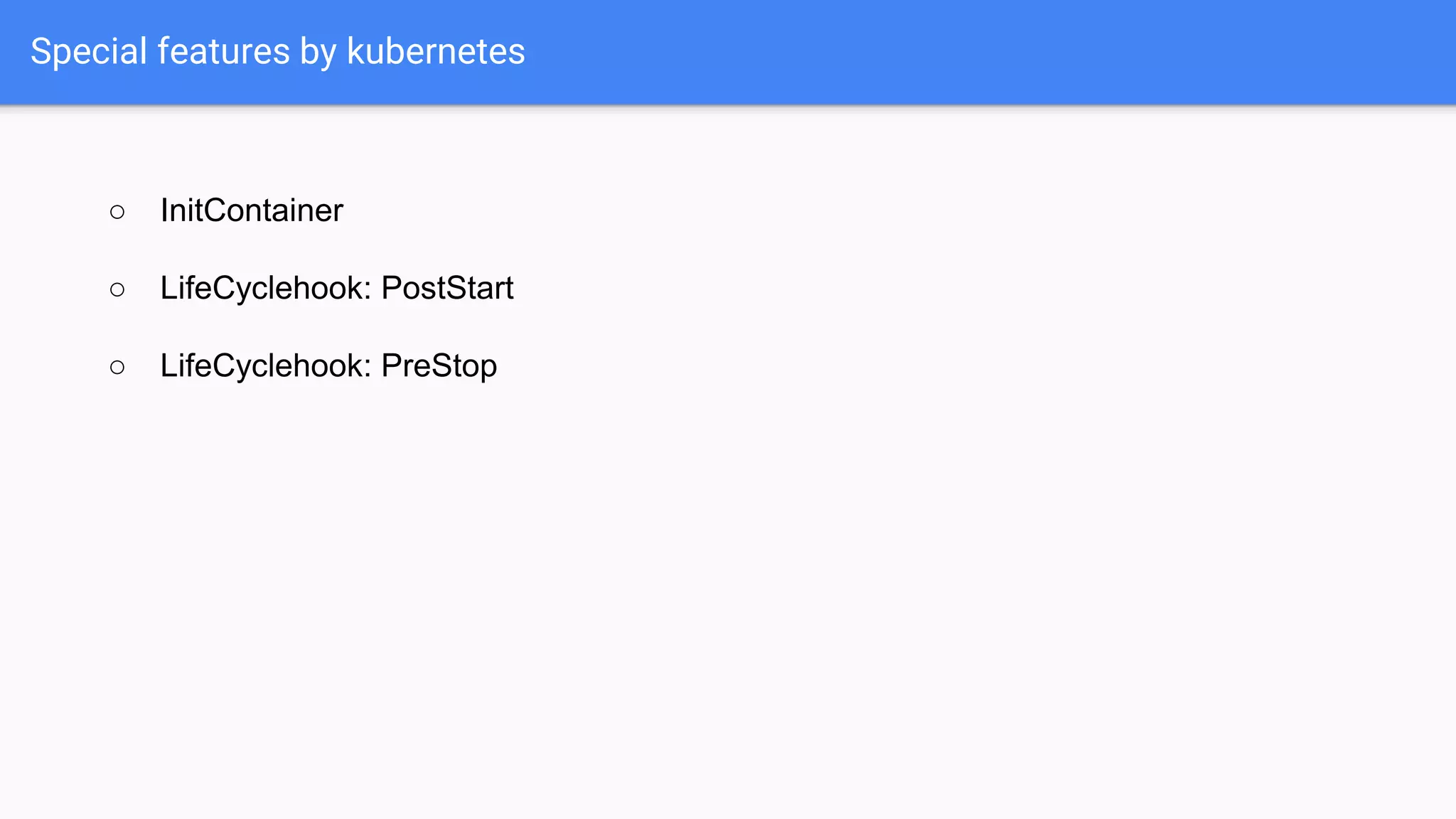

- 21. ○ InitContainer ○ LifeCyclehook:PostStart ○ LifeCyclehook: PreStop Special features by kubernetes

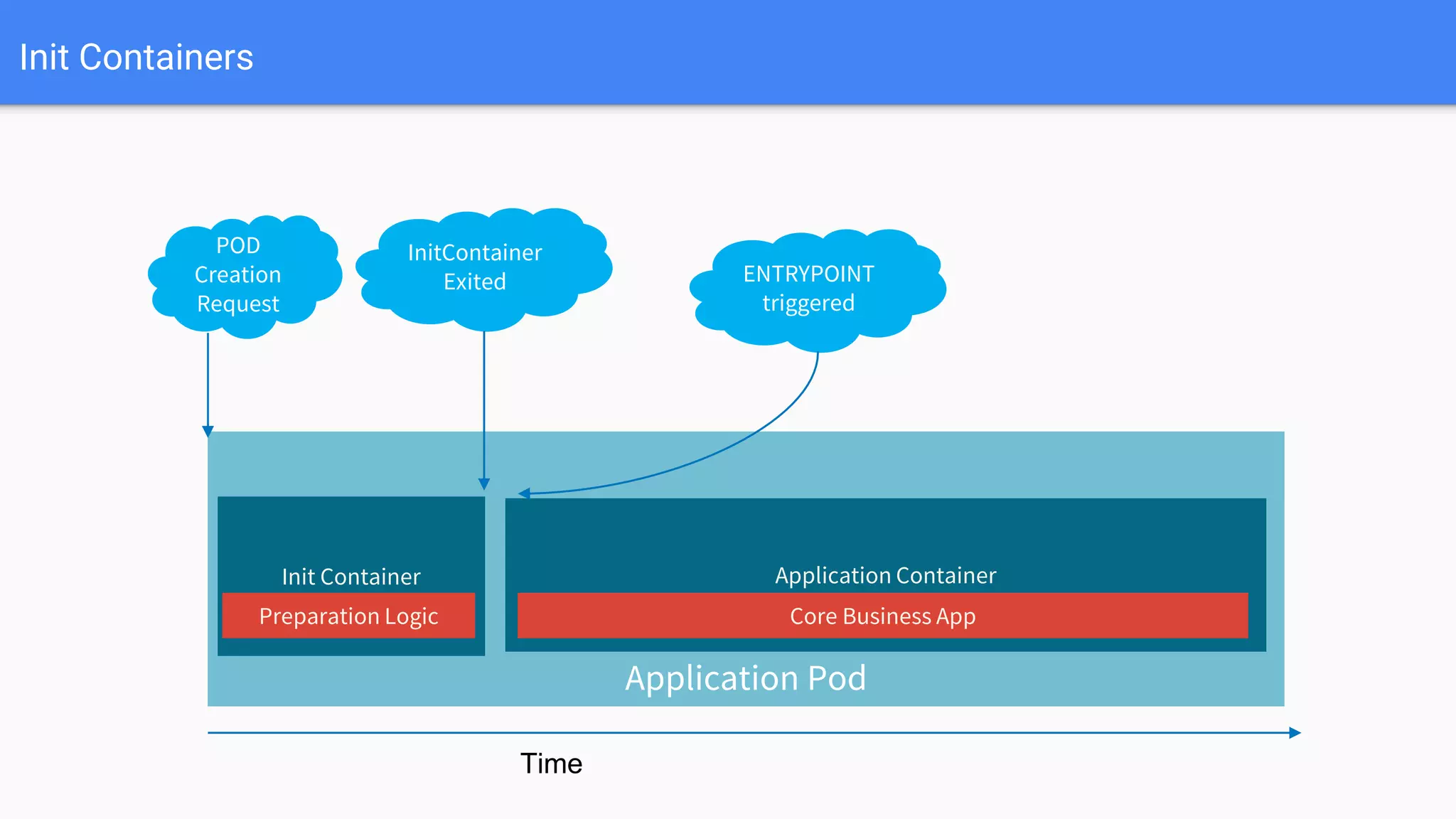

- 22. Init Containers Application Pod ApplicationContainerInit Container Core Business App Time POD Creation Request InitContainer Exited ENTRYPOINT triggered Preparation Logic

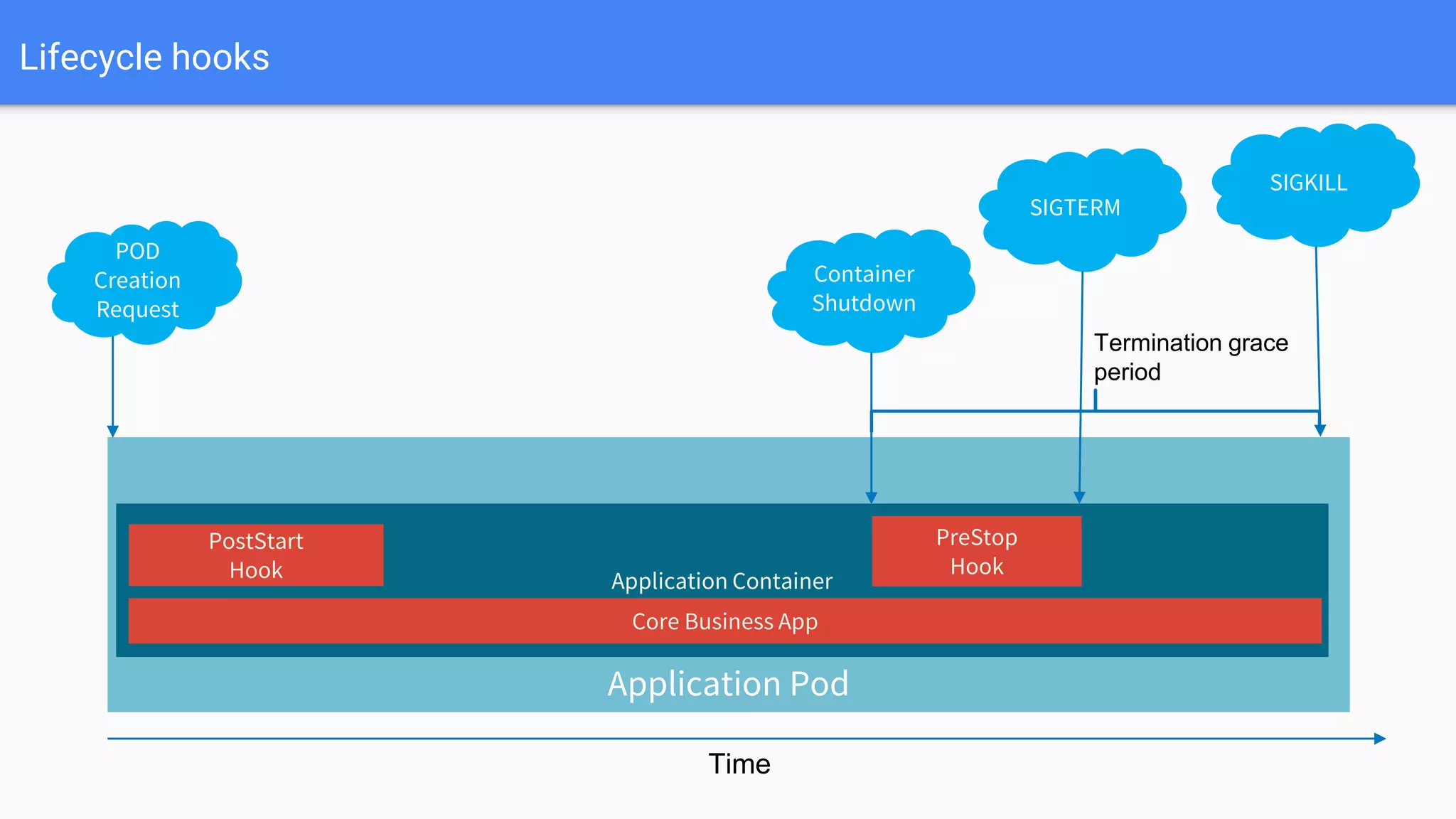

- 23. Lifecycle hooks Container Shutdown Application Pod ApplicationContainer PreStop Hook PostStart Hook Core Business App Time POD Creation Request SIGKILL Termination grace period SIGTERM

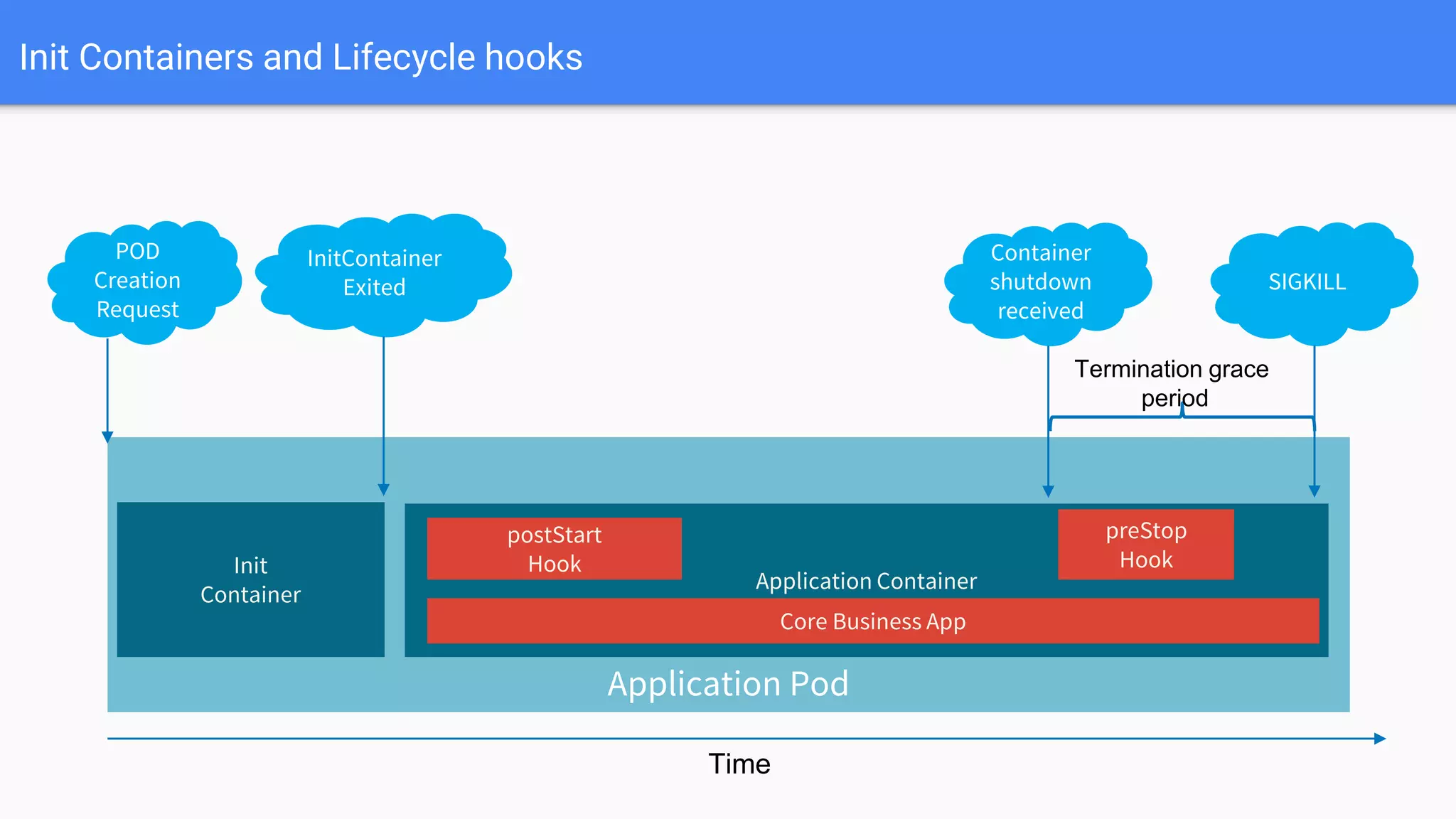

- 24. Init Containers andLifecycle hooks Container shutdown received Application Pod Application Container Init Container preStop Hook postStart Hook Core Business App Time POD Creation Request InitContainer Exited SIGKILL Termination grace period
- 25. Visit : www.zekeLabs.comfor more details THANK YOU Let us know how can we help your organization to Upskill the employees to stay updated in the ever-evolving IT Industry. Get in touch: www.zekeLabs.com | +91-7032051637 | info@zekeLabs.com
