This document discusses microservices, containers, Kubernetes, Google Kubernetes Engine (GKE), and service meshes. It provides an overview of each technology and how they can be combined for a microservices architecture. Specifically, it explains how containers package applications and dependencies, Kubernetes provides orchestration of containers, GKE manages Kubernetes clusters on Google Cloud, and service meshes like Istio provide traffic management and visibility across microservices.

1. MicroServices with
Containers, Kubernetes &
ServiceMesh
Akash Agrawal | 11-10-2019

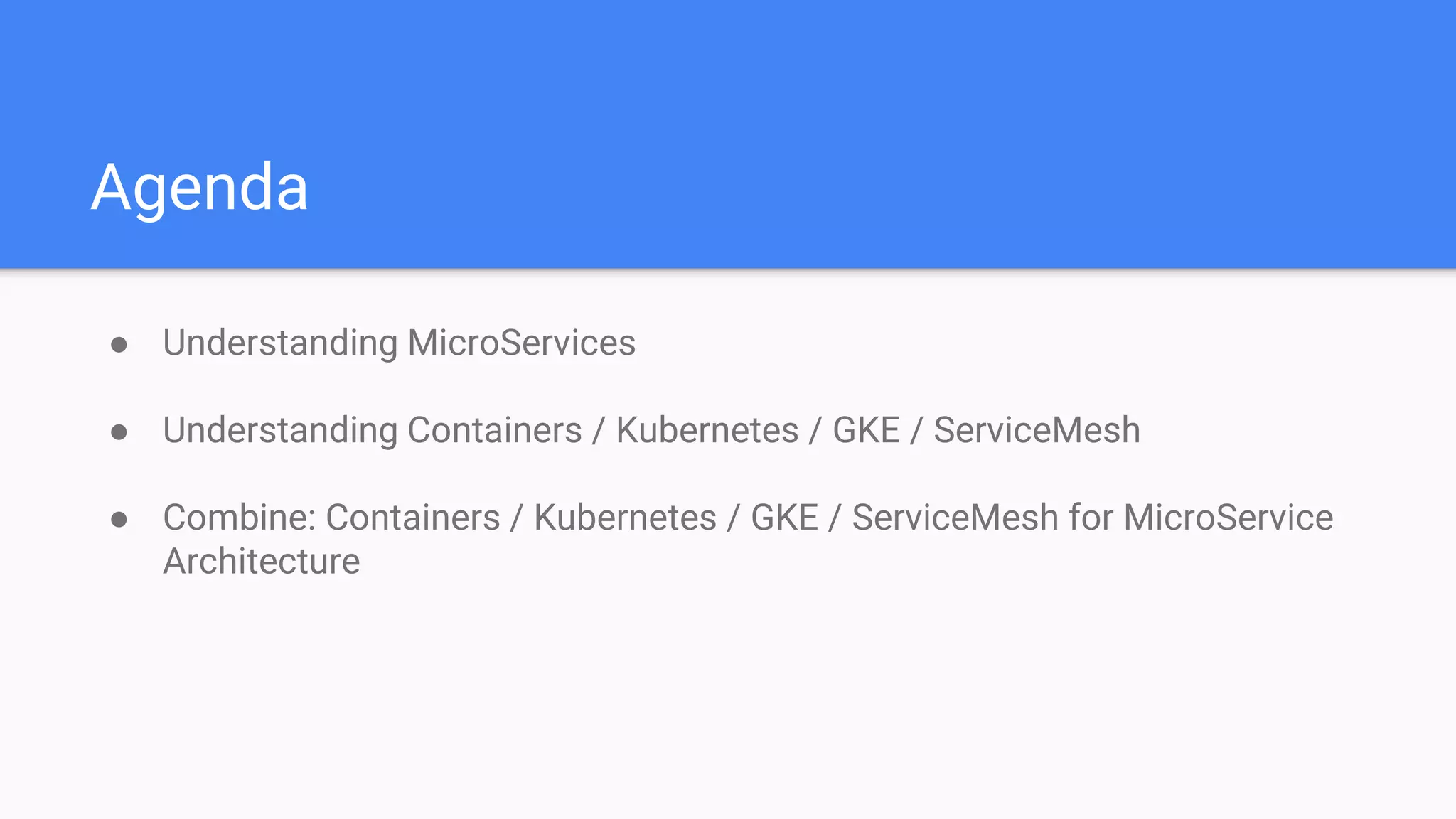

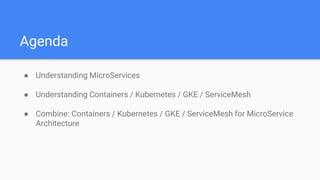

2. Agenda
● Understanding MicroServices
● Understanding Containers / Kubernetes / GKE / ServiceMesh
● Combine: Containers / Kubernetes / GKE / ServiceMesh for MicroService
Architecture

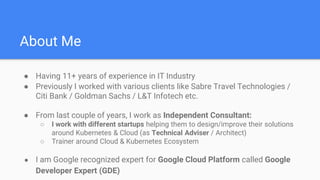

3. About Me
● Having 11+ years of experience in IT Industry
● Previously I worked with various clients like Sabre Travel Technologies /
Citi Bank / Goldman Sachs / L&T Infotech etc.
● From last couple of years, I work as Independent Consultant:
○ I work with different startups helping them to design/improve their solutions
around Kubernetes & Cloud (as Technical Adviser / Architect)
○ Trainer around Cloud & Kubernetes Ecosystem
● I am Google recognized expert for Google Cloud Platform called Google
Developer Expert (GDE)

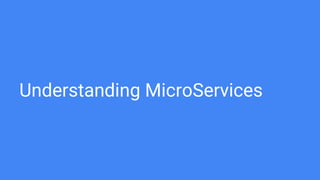

4. Understanding MicroServices

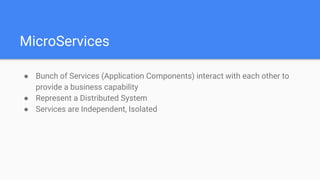

5. MicroServices
● Bunch of Services (Application Components) interact with each other to
provide a business capability
● Represent a Distributed System
● Services are Independent, Isolated

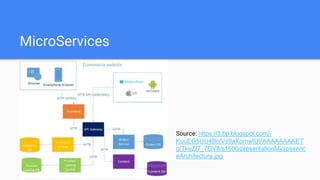

6. MicroServices
Source: https://3.bp.blogspot.com/-
KuuEG5UU4Bc/Vs9aXomwtUI/AAAAAAAAET
g/TkeZI7_7GV8/s1600/presentationMicroservic

7. 12 Factor Applications
● Website: https://12factor.net/
● Define the guidelines for building Applications in MicroService Architecture
Codebase Port Binding
Dependencies Concurrency
Config Disposability
Backing Services Dev/Prod Parity
Build/Release/Run Logs
Process Admin Process

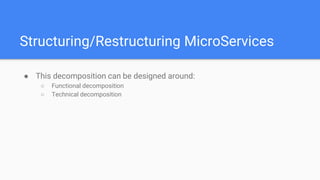

8. Structuring/Restructuring MicroServices
● This decomposition can be designed around:
○ Functional decomposition
○ Technical decomposition

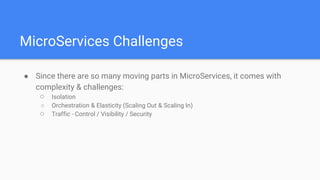

9. MicroServices Challenges
● Since there are so many moving parts in MicroServices, it comes with
complexity & challenges:
○ Isolation
○ Orchestration & Elasticity (Scaling Out & Scaling In)
○ Traffic - Control / Visibility / Security

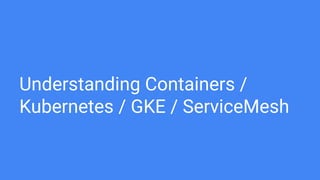

10. Understanding Containers /
Kubernetes / GKE / ServiceMesh

11. Containers
● Kind of Sandbox
● Package your application & it’s dependencies (application dependencies)
● Container Images, Containers, Container Runtime
● Built around Linux features like namespace, shared kernel etc.
● Container Runtimes: Docker, Rkt etc.

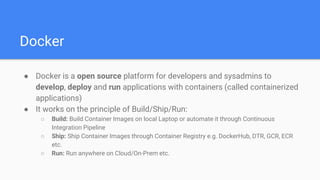

12. Docker
● Docker is a open source platform for developers and sysadmins to
develop, deploy and run applications with containers (called containerized
applications)
● It works on the principle of Build/Ship/Run:
○ Build: Build Container Images on local Laptop or automate it through Continuous
Integration Pipeline
○ Ship: Ship Container Images through Container Registry e.g. DockerHub, DTR, GCR, ECR
etc.
○ Run: Run anywhere on Cloud/On-Prem etc.

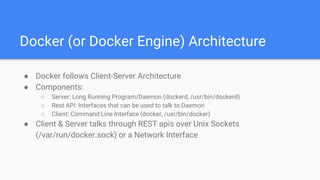

13. Docker (or Docker Engine) Architecture
● Docker follows Client-Server Architecture
● Components:
○ Server: Long Running Program/Daemon (dockerd, /usr/bin/dockerd)
○ Rest API: Interfaces that can be used to talk to Daemon
○ Client: Command Line Interface (docker, /usr/bin/docker)
● Client & Server talks through REST apis over Unix Sockets
(/var/run/docker.sock) or a Network Interface

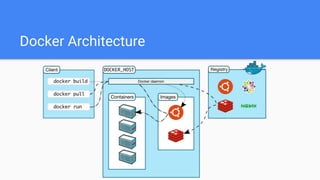

14. Docker Architecture

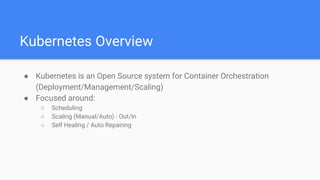

15. Kubernetes Overview
● Kubernetes is an Open Source system for Container Orchestration
(Deployment/Management/Scaling)
● Focused around:
○ Scheduling
○ Scaling (Manual/Auto) - Out/In
○ Self Healing / Auto Repairing

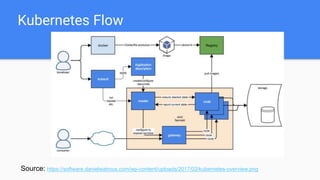

16. Kubernetes Flow
Source: https://software.danielwatrous.com/wp-content/uploads/2017/02/kubernetes-overview.png

17. Kubernetes Resources/Objects
● Pod (Single/Multi Container Pod)
● Service (ClusterIP/NodePort/LoadBalancer)
● Controller Objects:
○ ReplicaSet
○ Deployment
○ StatefulSet
○ Job
○ ...

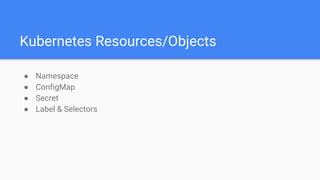

18. Kubernetes Resources/Objects
● Namespace
● ConfigMap
● Secret
● Label & Selectors

19. Kubernetes Components
● Control Plane (Master Node) Components:
○ API Server
○ Scheduler
○ Controller Manager
○ Etcd
● Data Plane (Worker Node) Components:
○ Kubelet
○ Kube-Proxy
○ Others
■ Container Runtime

20. Kubernetes Components
Source: https://carltsuis-blog.readthedocs.io/en/latest/kubernetes/components-of-k8s.png

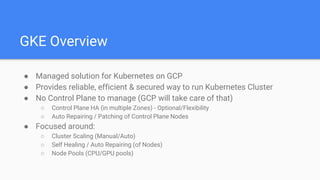

21. GKE Overview
● Managed solution for Kubernetes on GCP
● Provides reliable, efficient & secured way to run Kubernetes Cluster
● No Control Plane to manage (GCP will take care of that)
○ Control Plane HA (in multiple Zones) - Optional/Flexibility
○ Auto Repairing / Patching of Control Plane Nodes
● Focused around:
○ Cluster Scaling (Manual/Auto)
○ Self Healing / Auto Repairing (of Nodes)
○ Node Pools (CPU/GPU pools)

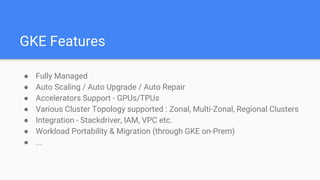

22. GKE Features
● Fully Managed
● Auto Scaling / Auto Upgrade / Auto Repair
● Accelerators Support - GPUs/TPUs
● Various Cluster Topology supported : Zonal, Multi-Zonal, Regional Clusters
● Integration - Stackdriver, IAM, VPC etc.
● Workload Portability & Migration (through GKE on-Prem)
● ...

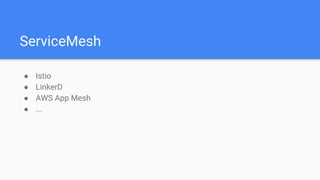

23. ServiceMesh
● Istio
● LinkerD
● AWS App Mesh
● ...

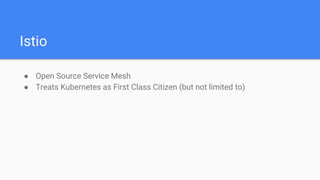

24. Istio
● Open Source Service Mesh
● Treats Kubernetes as First Class Citizen (but not limited to)

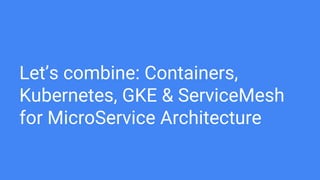

25. Let’s combine: Containers,
Kubernetes, GKE & ServiceMesh
for MicroService Architecture

26. Akash Agrawal
LinkedIn : akash-agrawal-58a97813
Twitter : @akkiagrawal29
Thanks
