Introduction to container mangement
This document provides an overview of container management and Kubernetes concepts. It discusses delivery and deployment methods like classic deployment, containers, virtualization, and container orchestration. It then covers Kubernetes components like etcd, the control plane, and nodes. It outlines cluster administration tasks and best practices for cluster usage. Finally, it provides examples of Kubernetes resource types like pods, replica sets, and deployments.
More Related Content
![[Lakmal] Automate Microservice to API](https://cdn.slidesharecdn.com/ss_thumbnails/lakmalautomatemicroservicetoapi-210512215049-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Introduction to container mangement
Introduction to container mangement
- 1.

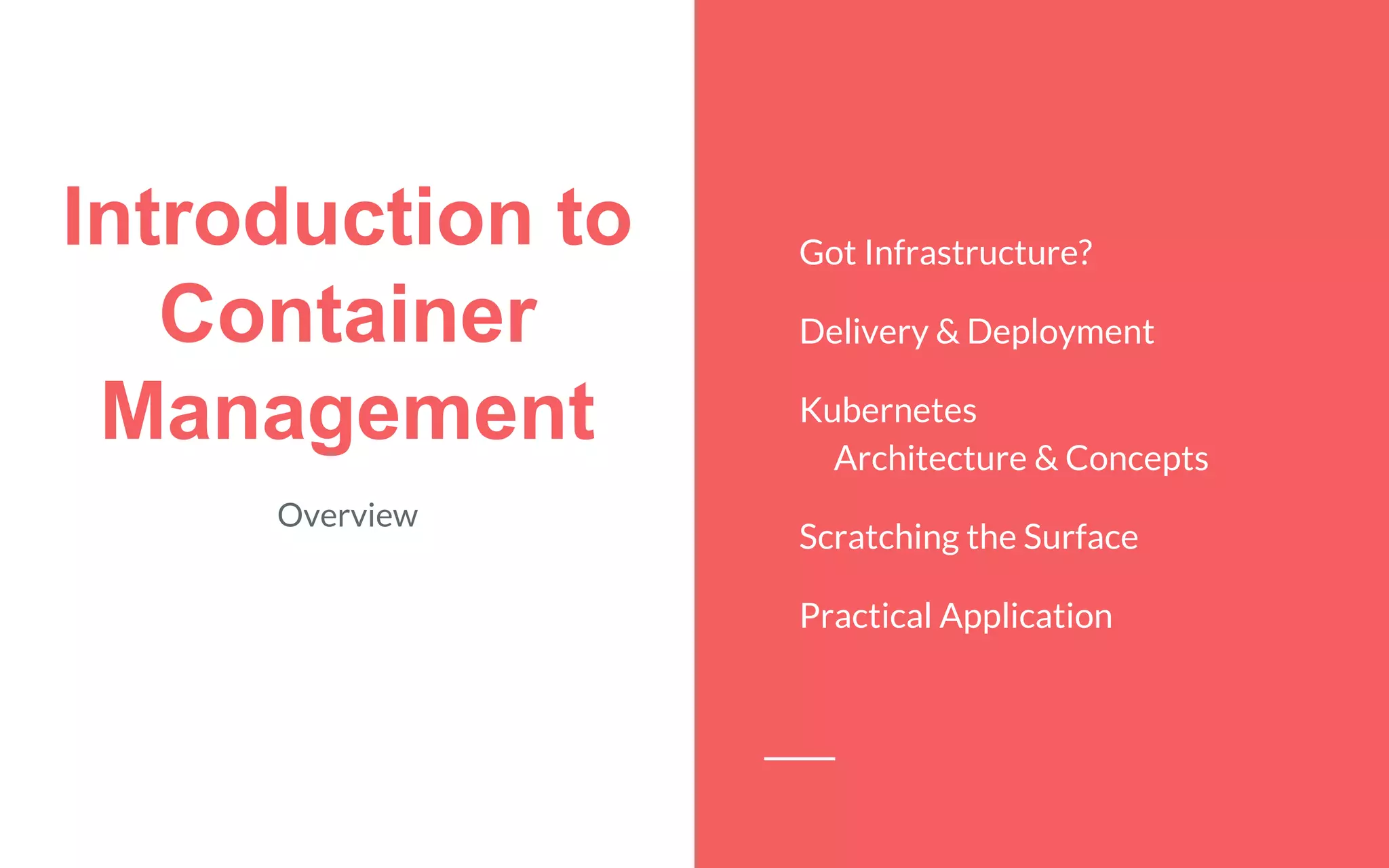

- 2. Introduction to Container Management Overview Got Infrastructure? Delivery& Deployment Kubernetes Architecture & Concepts Scratching the Surface Practical Application
- 3.

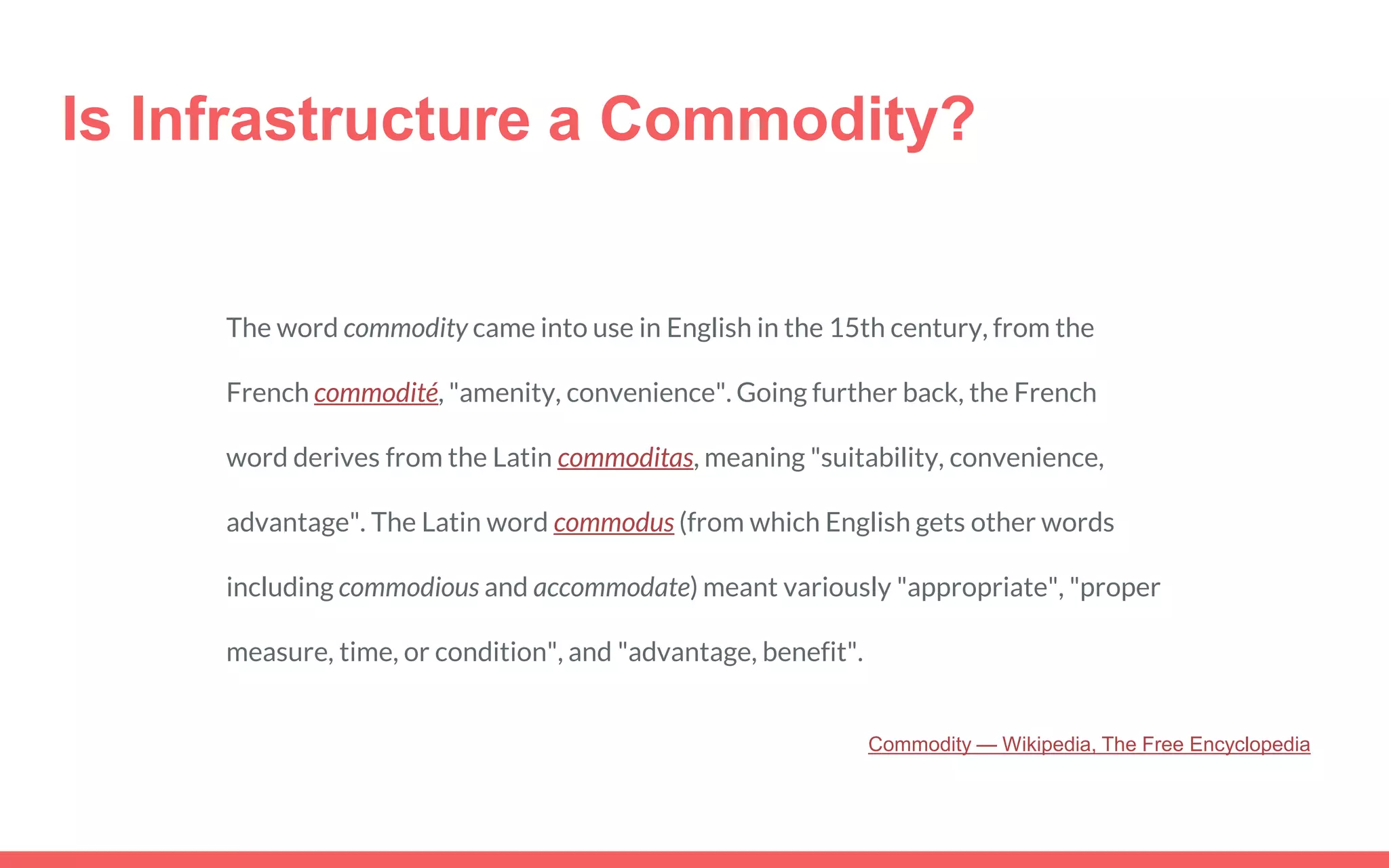

- 4. Is Infrastructure aCommodity? The word commodity came into use in English in the 15th century, from the French commodité, "amenity, convenience". Going further back, the French word derives from the Latin commoditas, meaning "suitability, convenience, advantage". The Latin word commodus (from which English gets other words including commodious and accommodate) meant variously "appropriate", "proper measure, time, or condition", and "advantage, benefit". Commodity — Wikipedia, The Free Encyclopedia

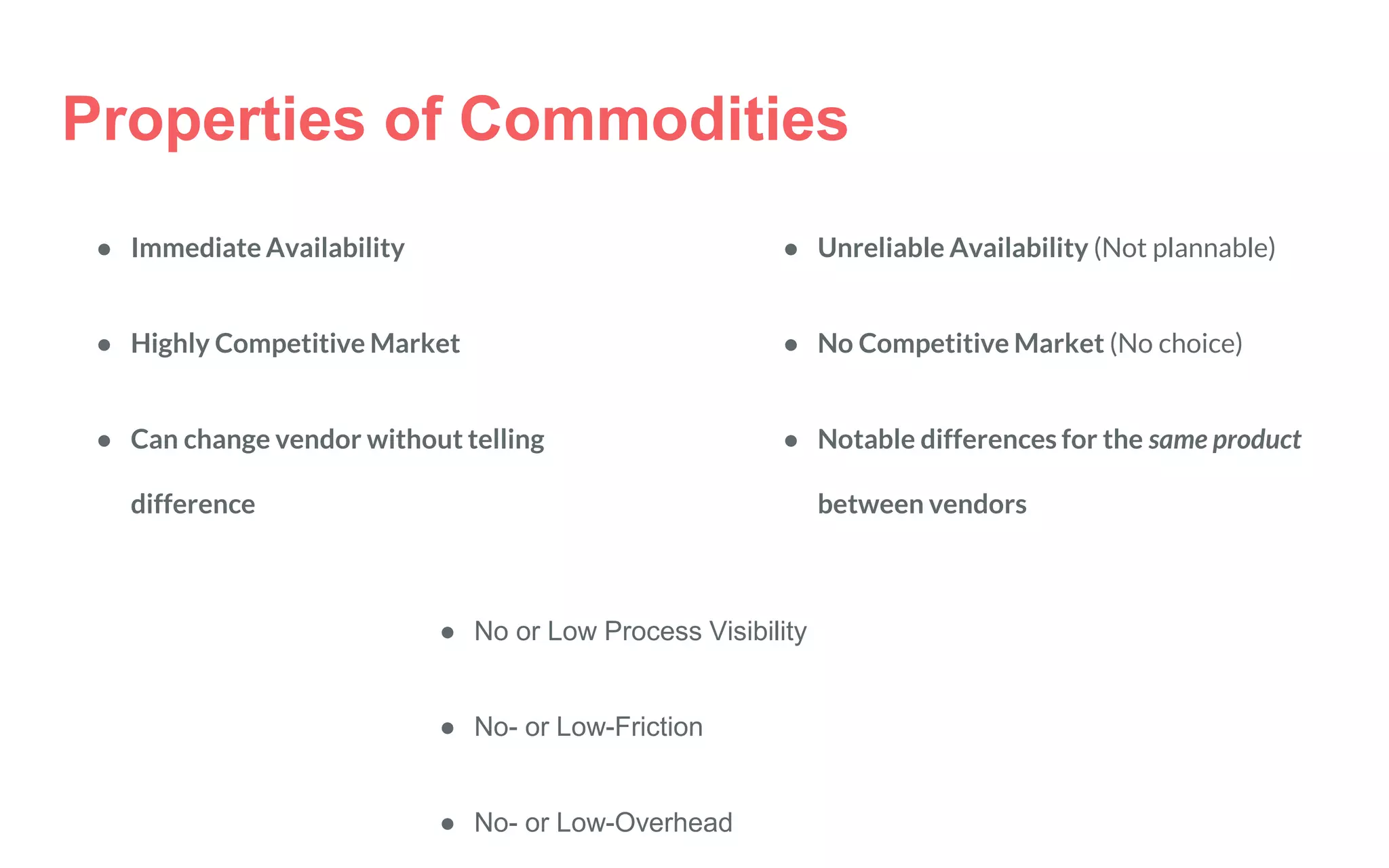

- 5. Properties of Commodities ●Immediate Availability ● Highly Competitive Market ● Can change vendor without telling difference ● Unreliable Availability (Not plannable) ● No Competitive Market (No choice) ● Notable differences for the same product between vendors ● No or Low Process Visibility ● No- or Low-Friction ● No- or Low-Overhead

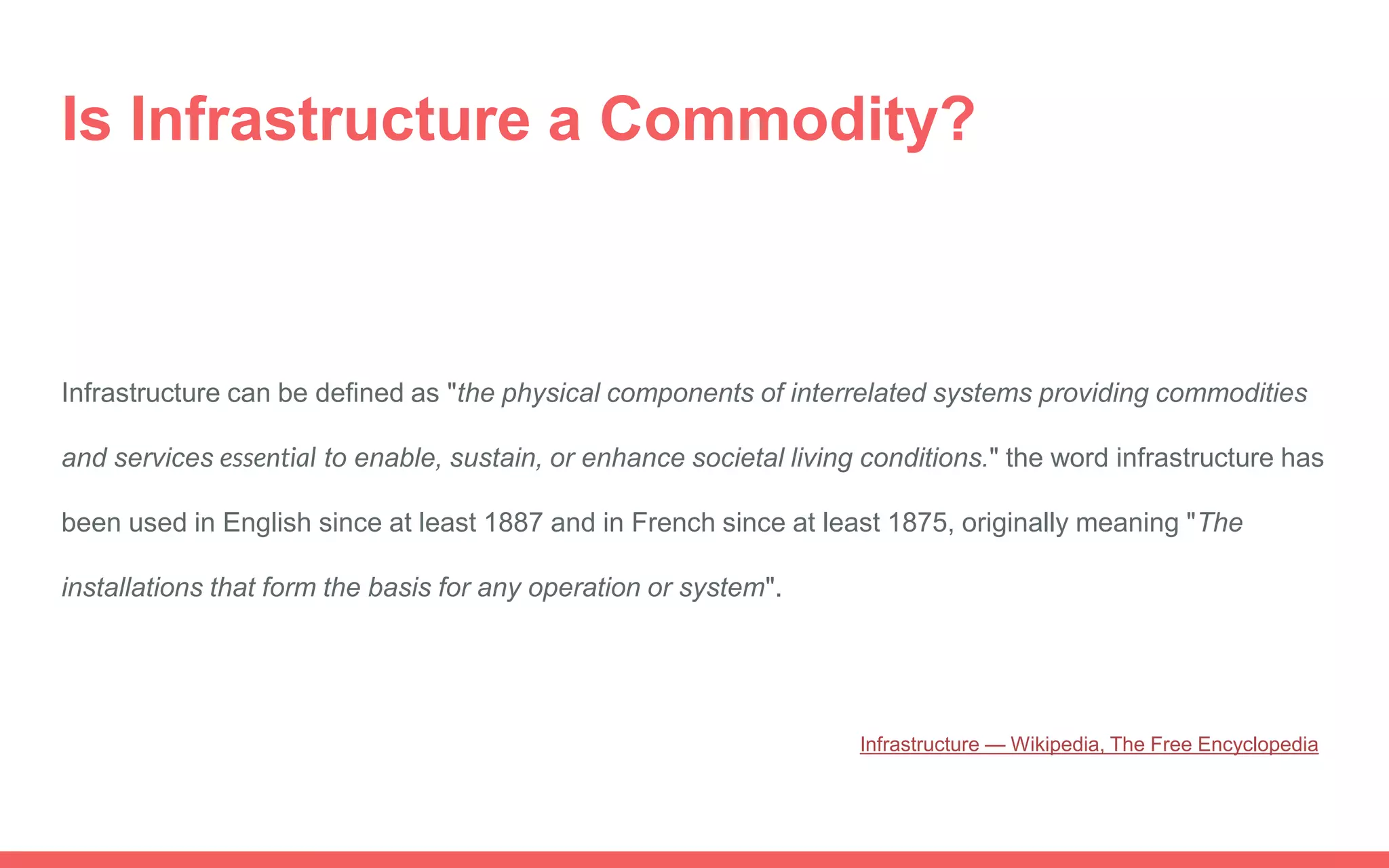

- 6. Infrastructure can bedefined as "the physical components of interrelated systems providing commodities and services essential to enable, sustain, or enhance societal living conditions." the word infrastructure has been used in English since at least 1887 and in French since at least 1875, originally meaning "The installations that form the basis for any operation or system". Is Infrastructure a Commodity? Infrastructure — Wikipedia, The Free Encyclopedia
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.

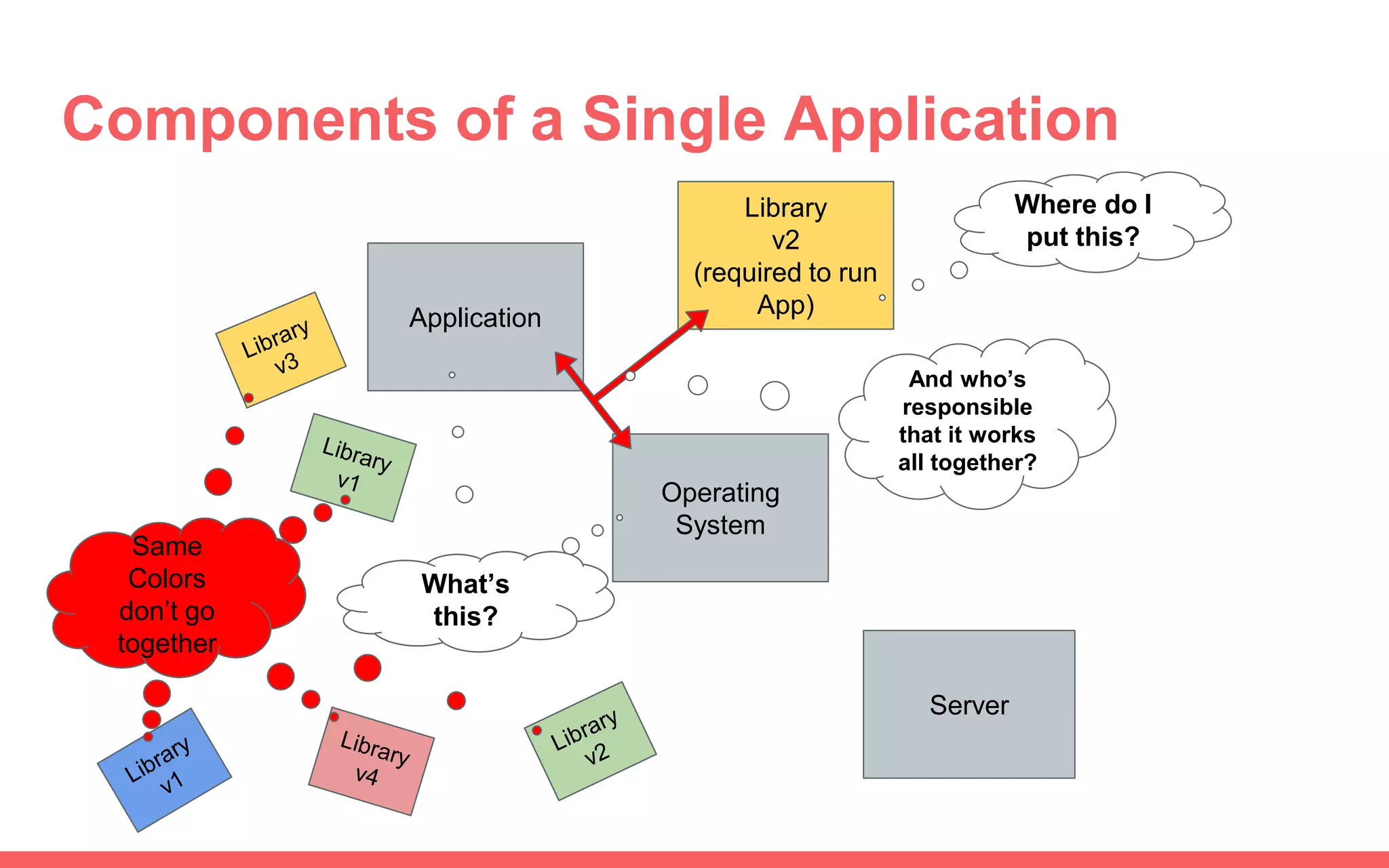

- 13. Components of aSingle Application Application Server Operating System What’s this? Library v2 (required to run App) Where do I put this? And who’s responsible that it works all together? Same Colors don’t go together

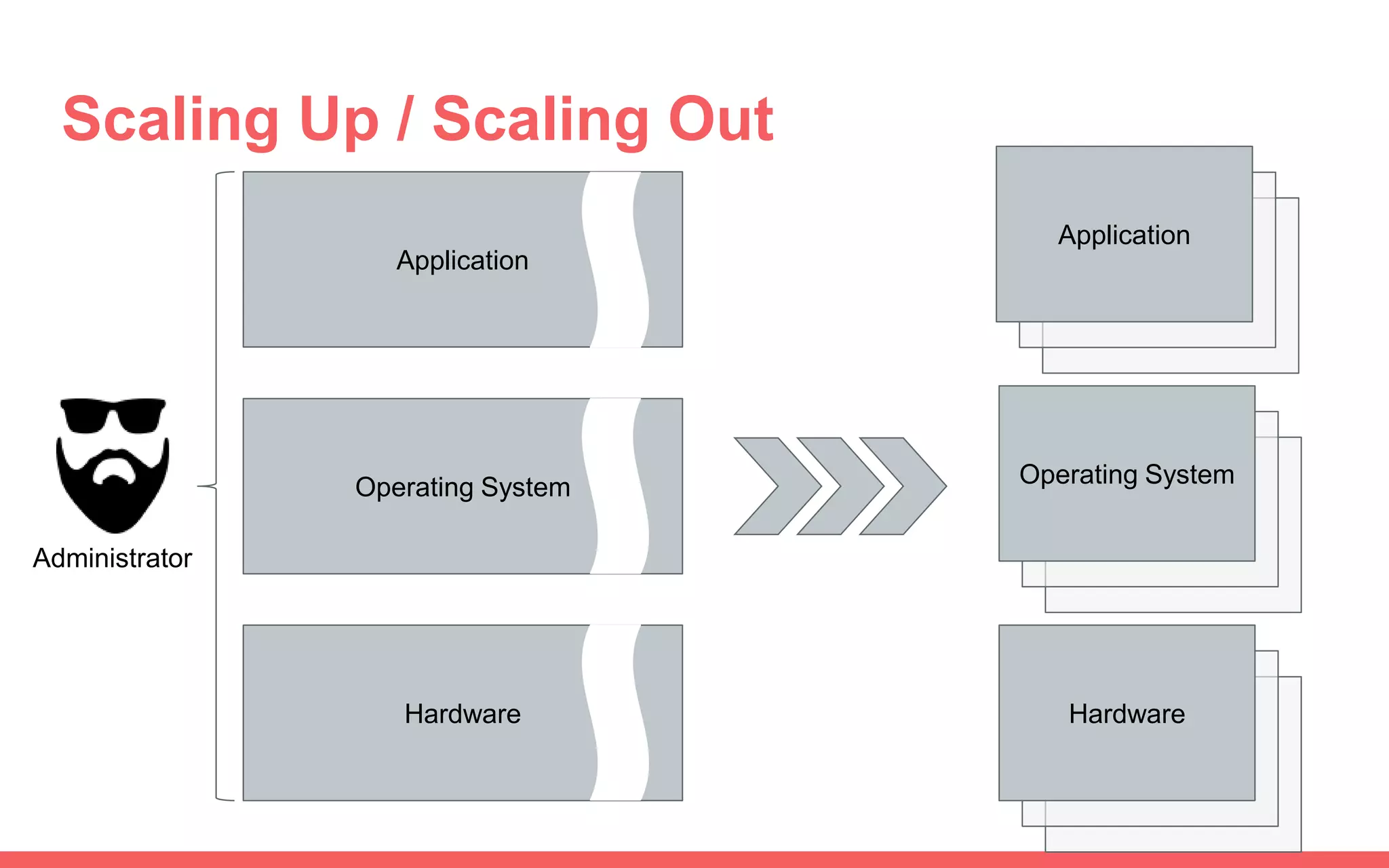

- 14. Scaling Up /Scaling Out Application Operating System Hardware Administrator Operating System Application Hardware

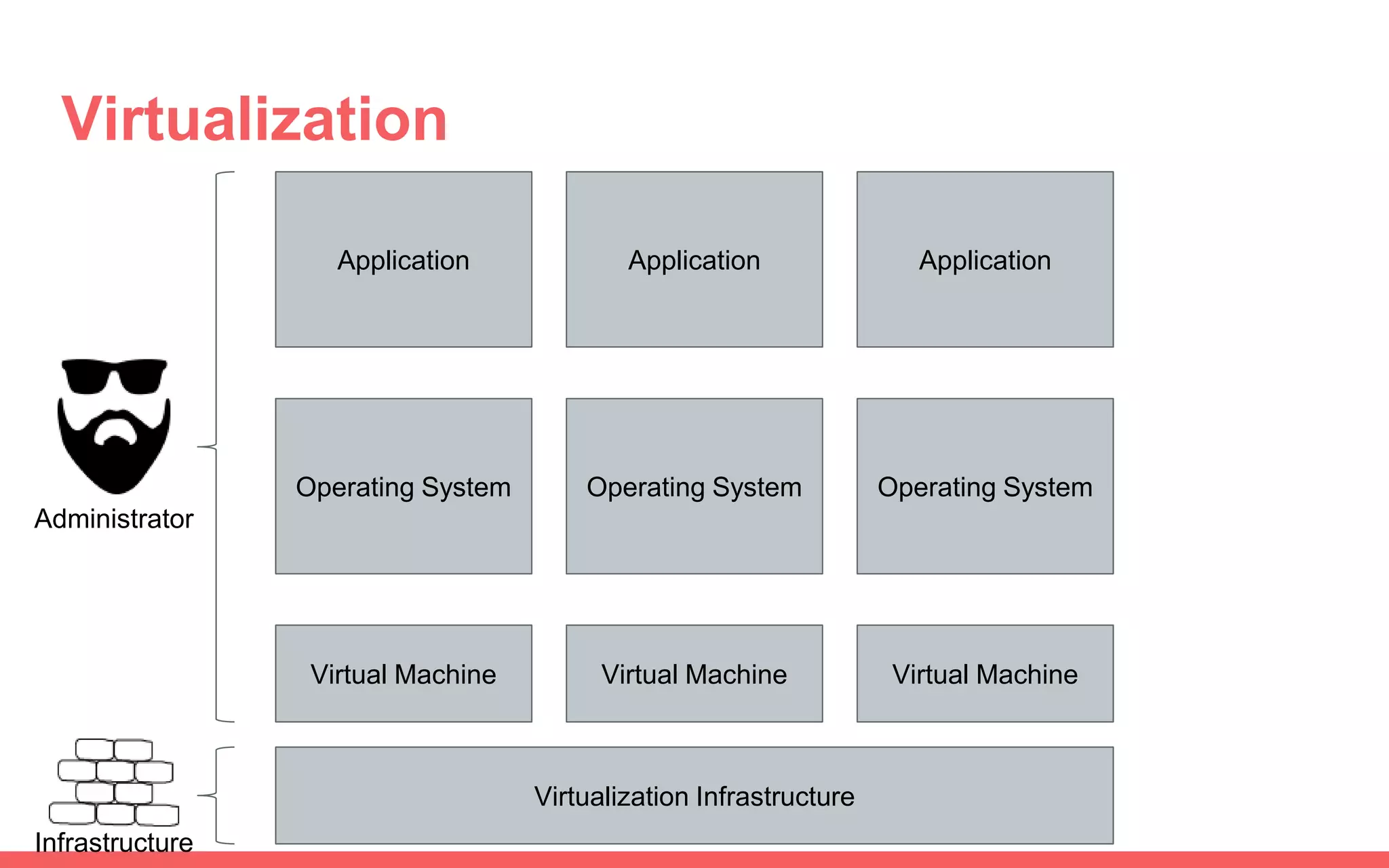

- 15. Virtualization Application Operating System Virtual Machine VirtualizationInfrastructure Application Operating System Virtual Machine Application Operating System Virtual Machine Administrator Infrastructure

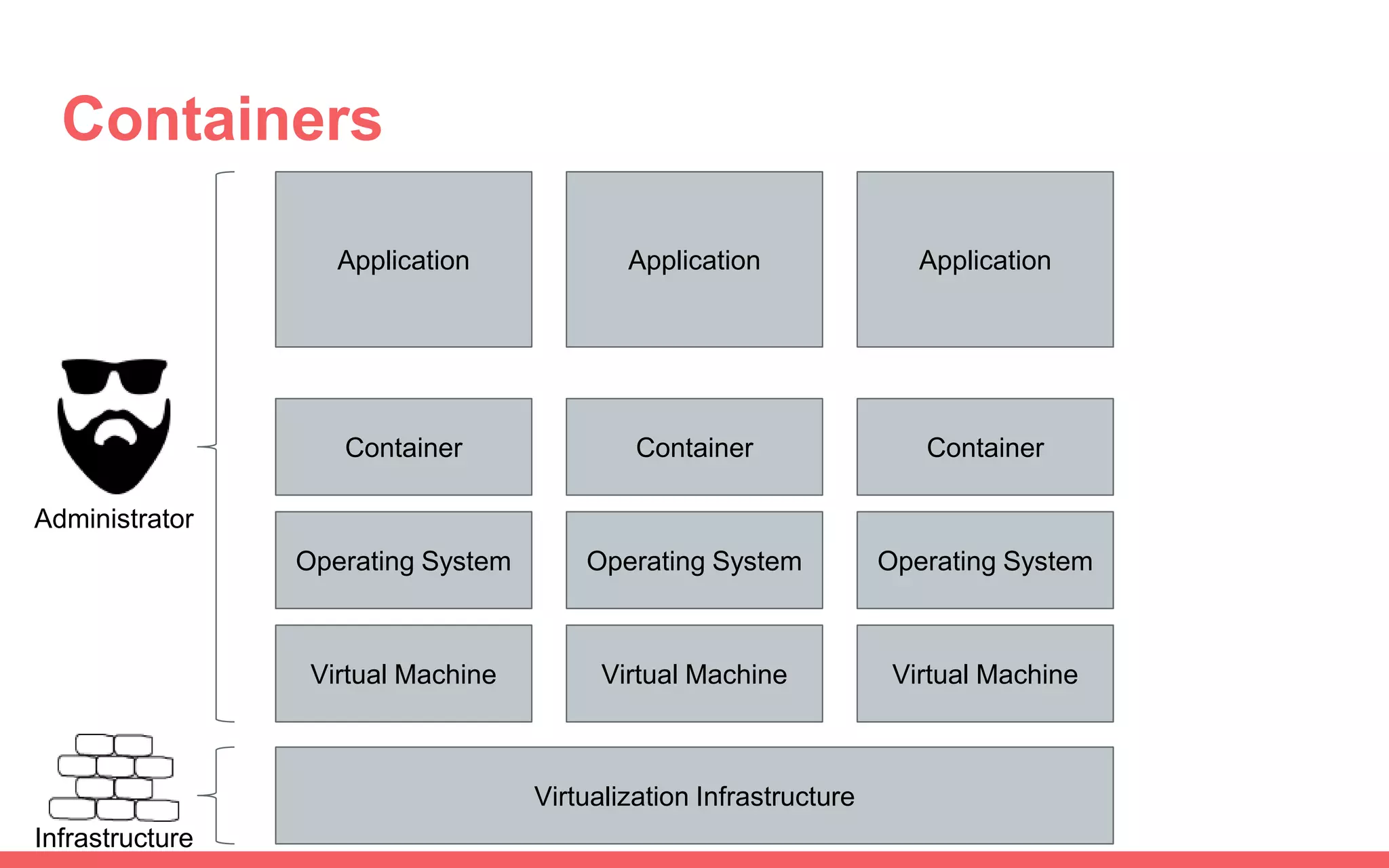

- 16. Containers Application Container Virtual Machine Virtualization Infrastructure Application VirtualMachine Application Virtual Machine Operating System Container Operating System Container Operating System Administrator Infrastructure

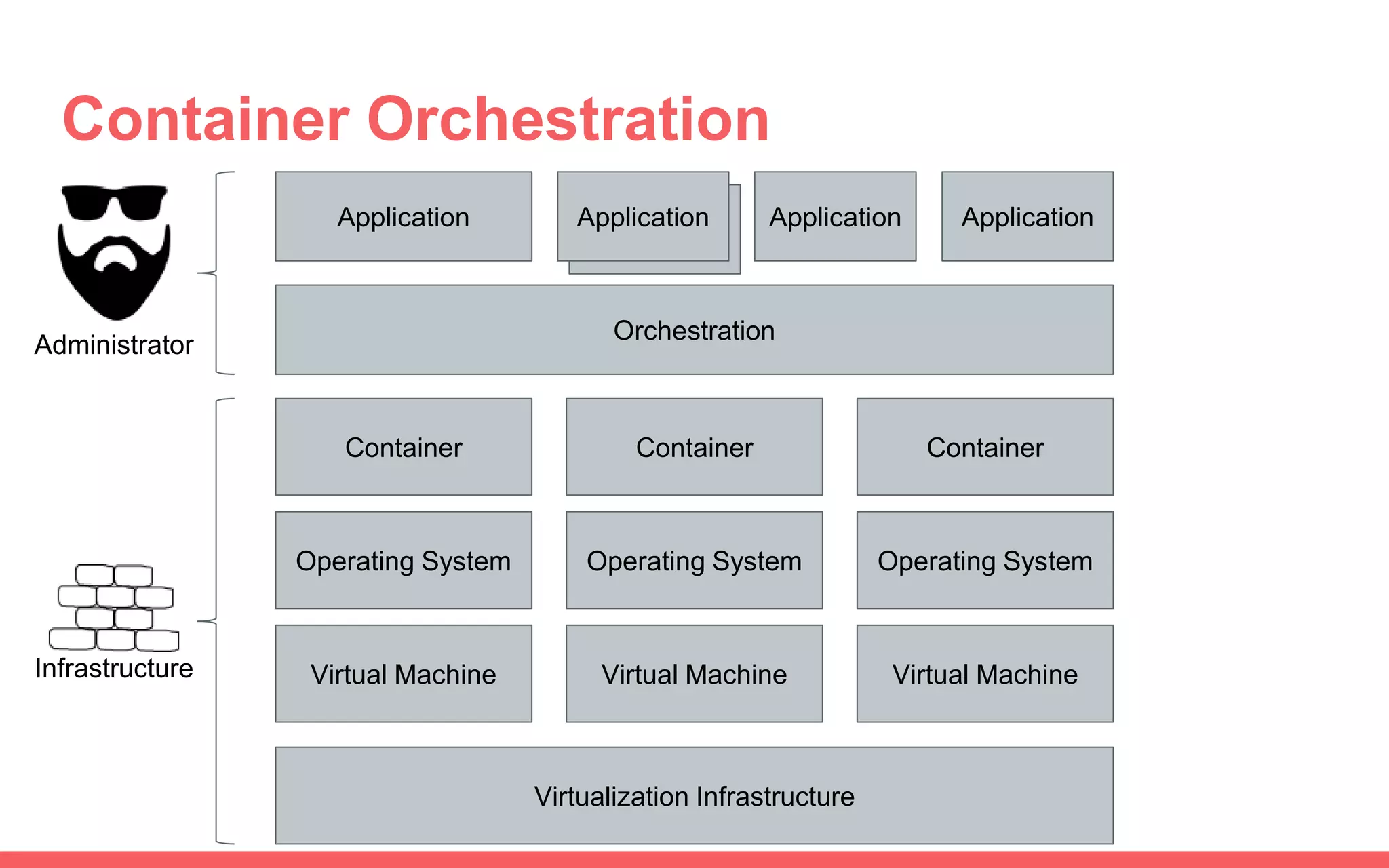

- 17. Application Container Orchestration Application Container Virtual Machine VirtualizationInfrastructure Virtual MachineVirtual Machine Operating System Orchestration Application ApplicationApplication Container Operating System Container Operating System Administrator Infrastructure

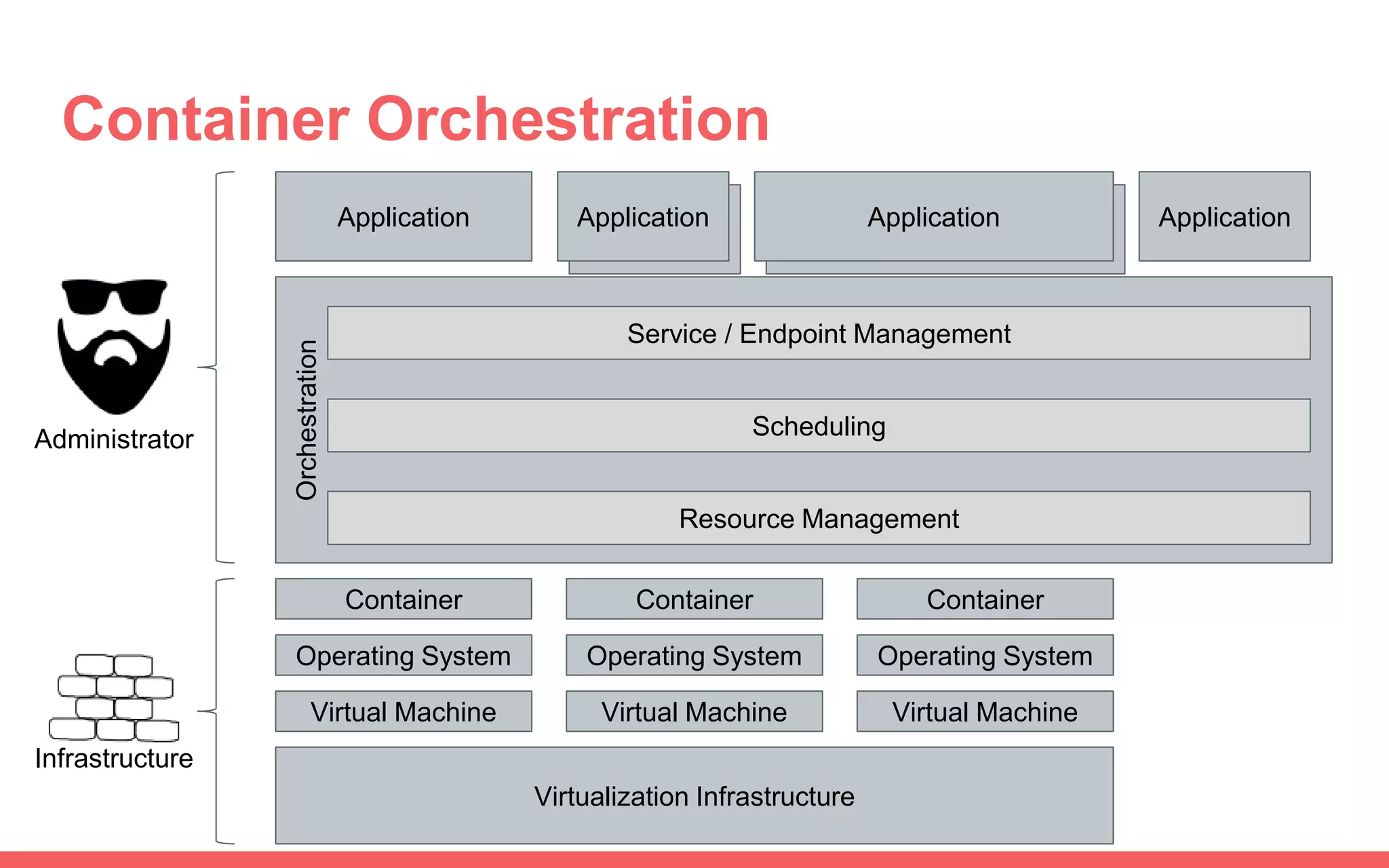

- 18. Application Container Orchestration Virtualization Infrastructure VirtualMachine Virtual MachineVirtual Machine Application Application Container Container Container Operating System Operating System Operating System Orchestration Service / Endpoint Management Scheduling Resource Management Administrator Infrastructure ApplicationApplicationApplication
- 19.
- 20.

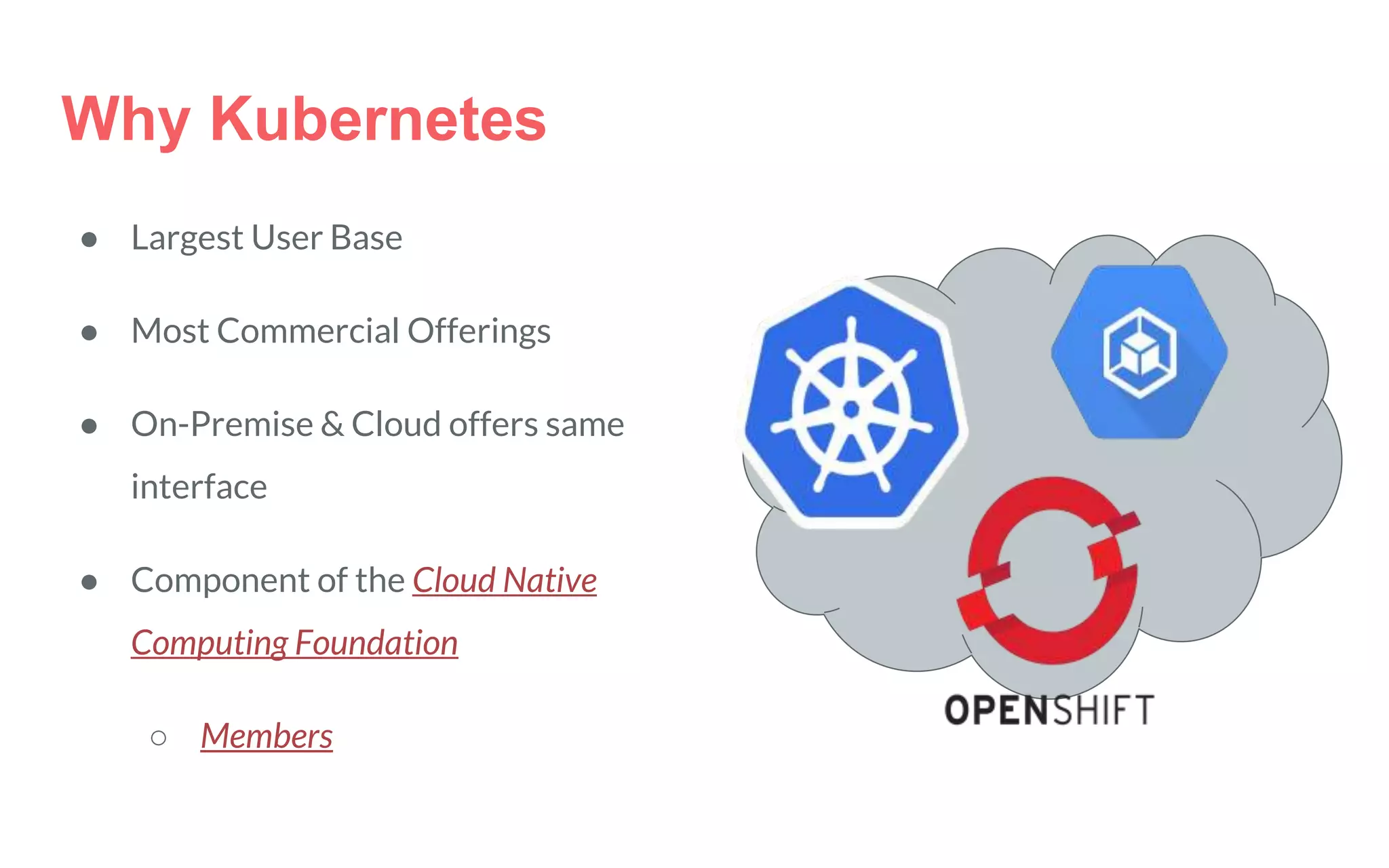

- 21. Why Kubernetes ● LargestUser Base ● Most Commercial Offerings ● On-Premise & Cloud offers same interface ● Component of the Cloud Native Computing Foundation ○ Members

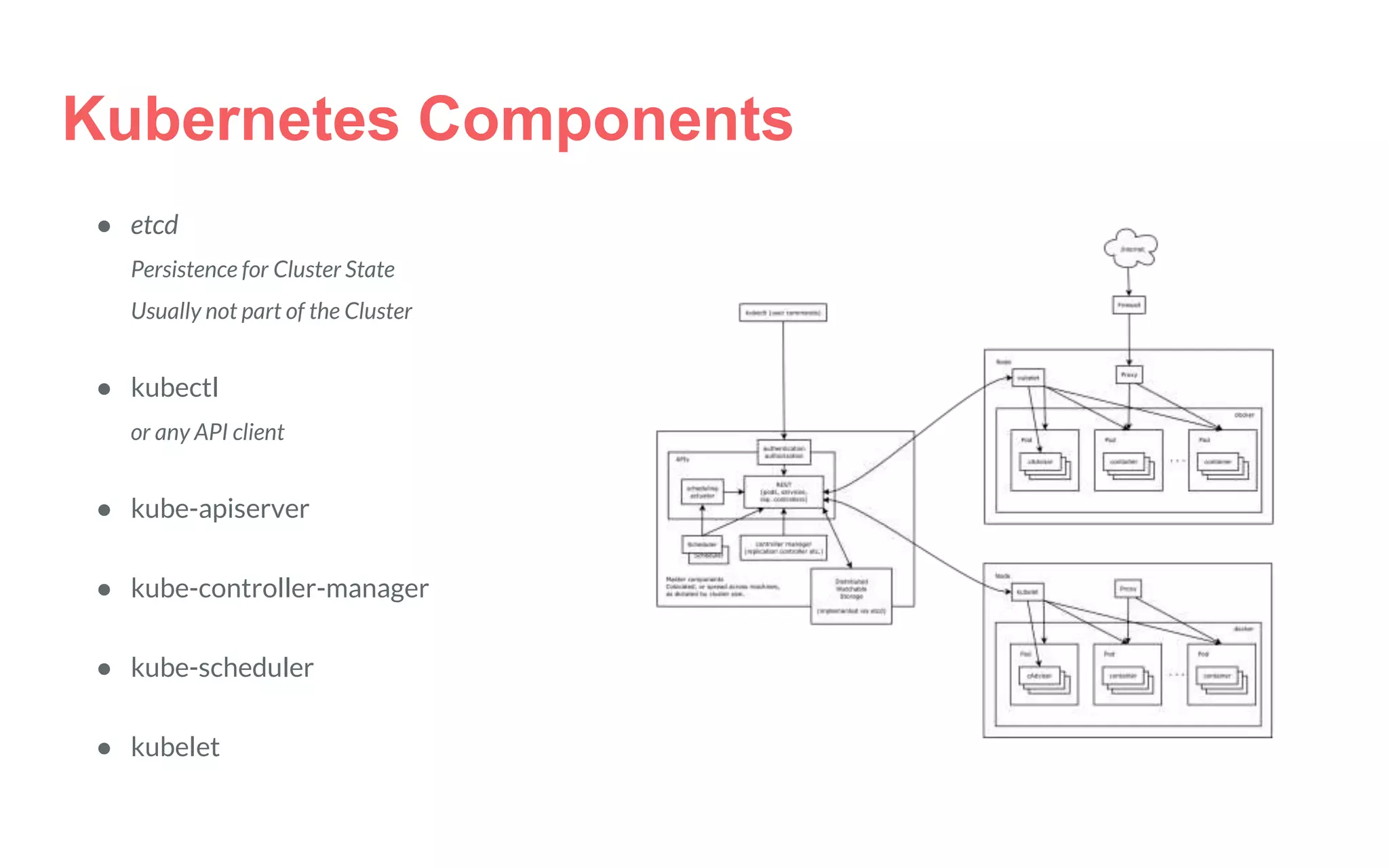

- 22. Kubernetes Components ● etcd Persistencefor Cluster State Usually not part of the Cluster ● kubectl or any API client ● kube-apiserver ● kube-controller-manager ● kube-scheduler ● kubelet

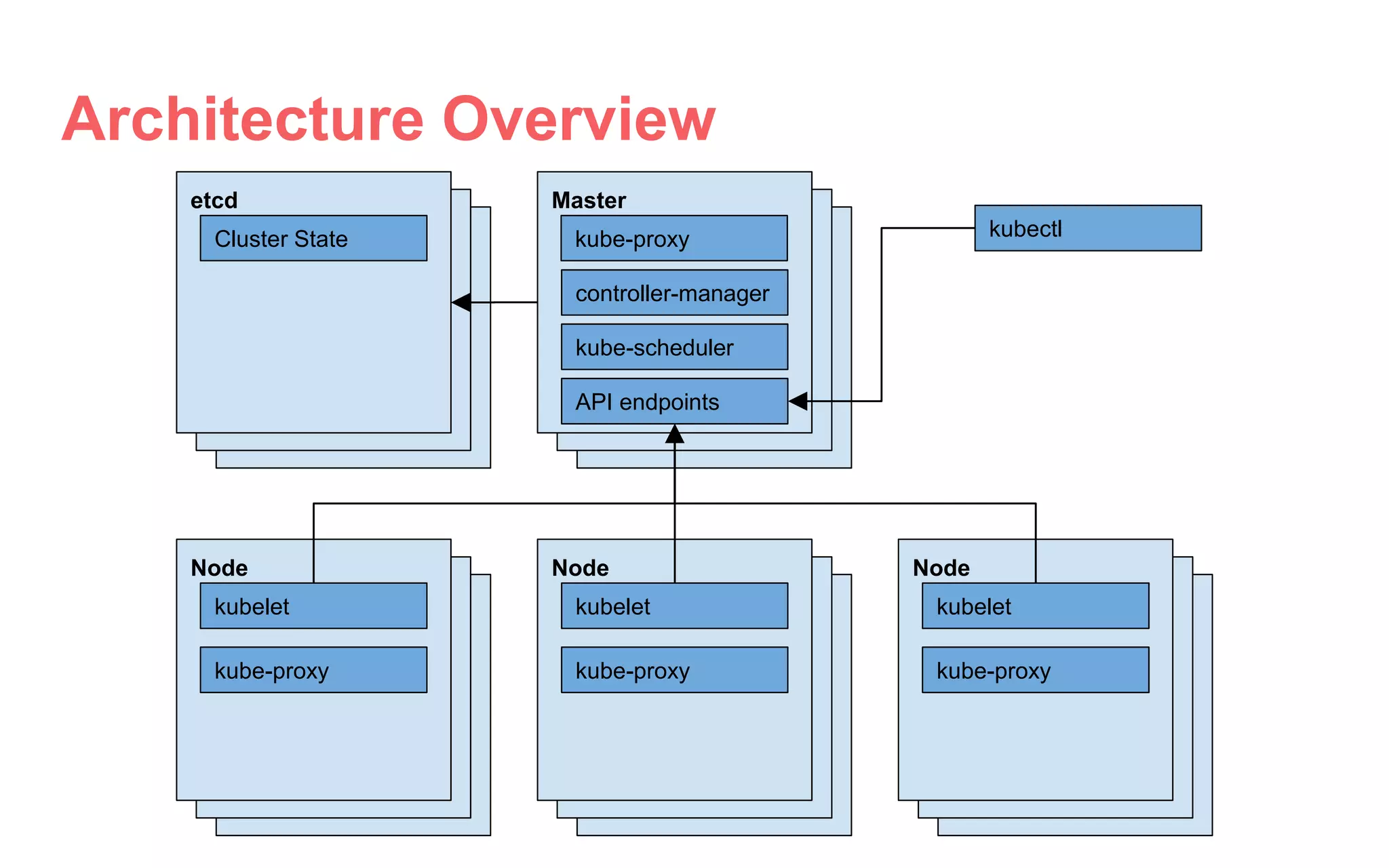

- 23. Architecture Overview etcd Cluster Statekubectl Master kube-scheduler controller-manager API endpoints kube-proxy Node kubelet kube-proxy Node kubelet kube-proxy Node kubelet kube-proxy

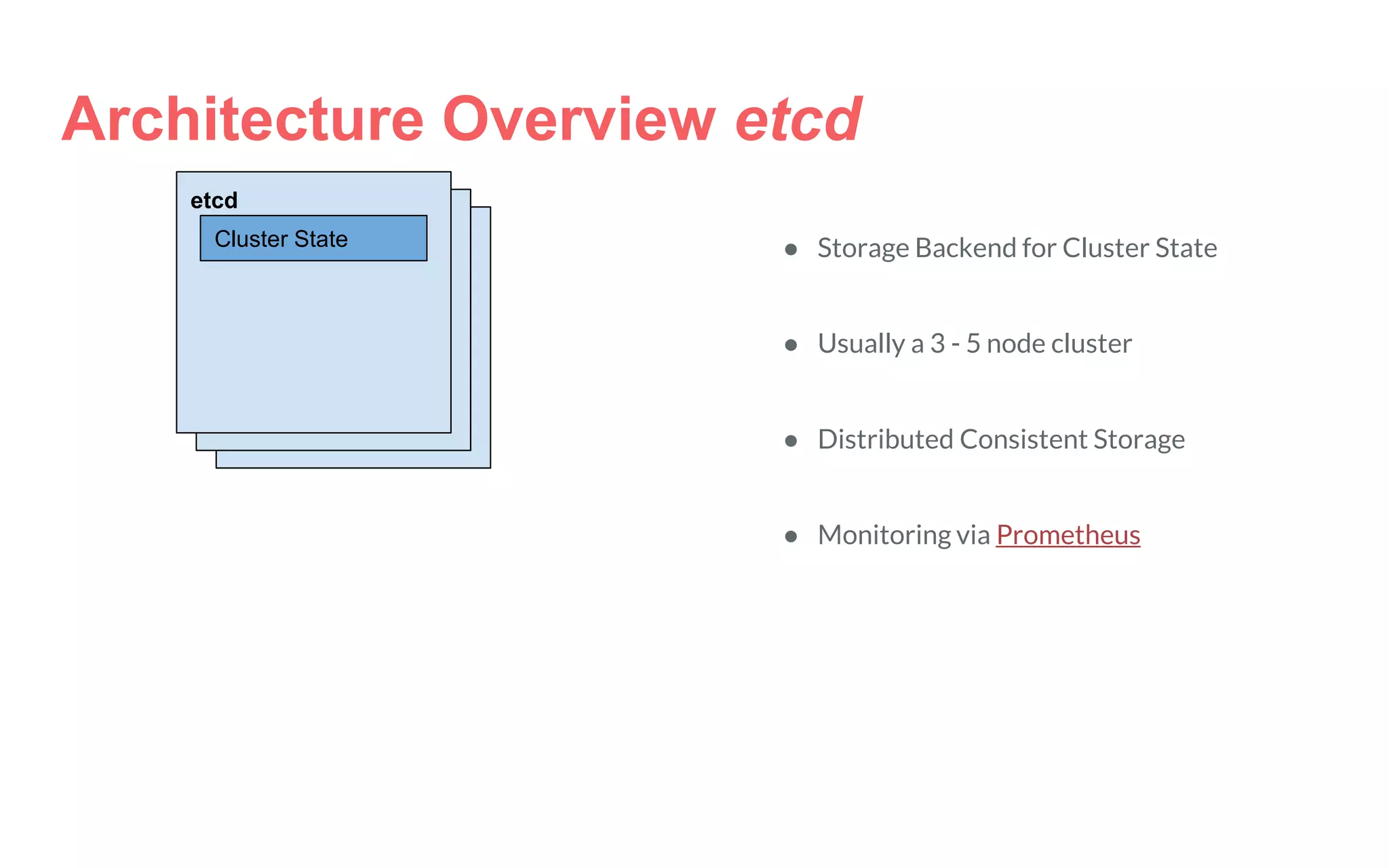

- 24. Architecture Overview etcd etcd ClusterState ● Storage Backend for Cluster State ● Usually a 3 - 5 node cluster ● Distributed Consistent Storage ● Monitoring via Prometheus

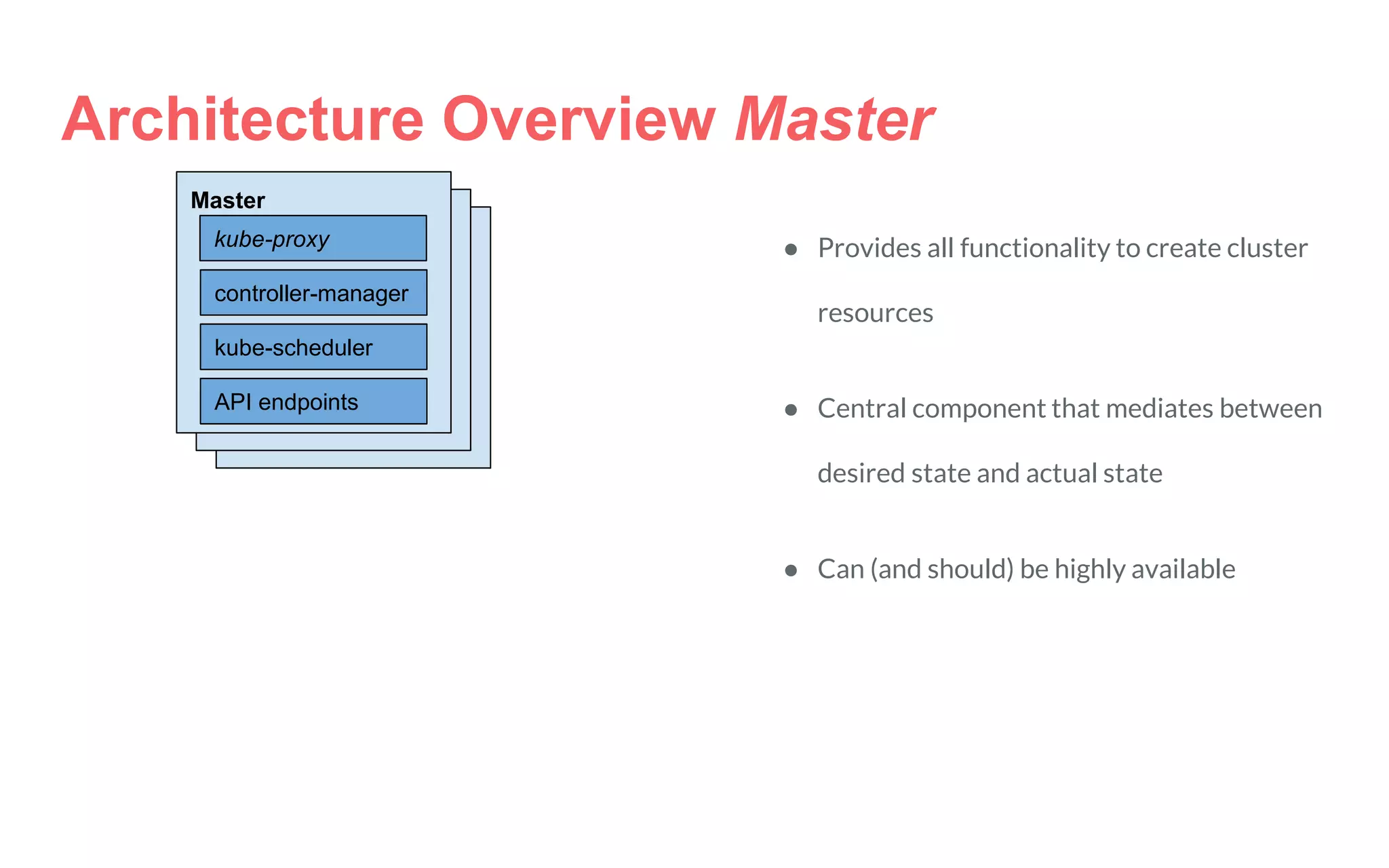

- 25. Architecture Overview Master Master kube-scheduler controller-manager APIendpoints kube-proxy ● Provides all functionality to create cluster resources ● Central component that mediates between desired state and actual state ● Can (and should) be highly available

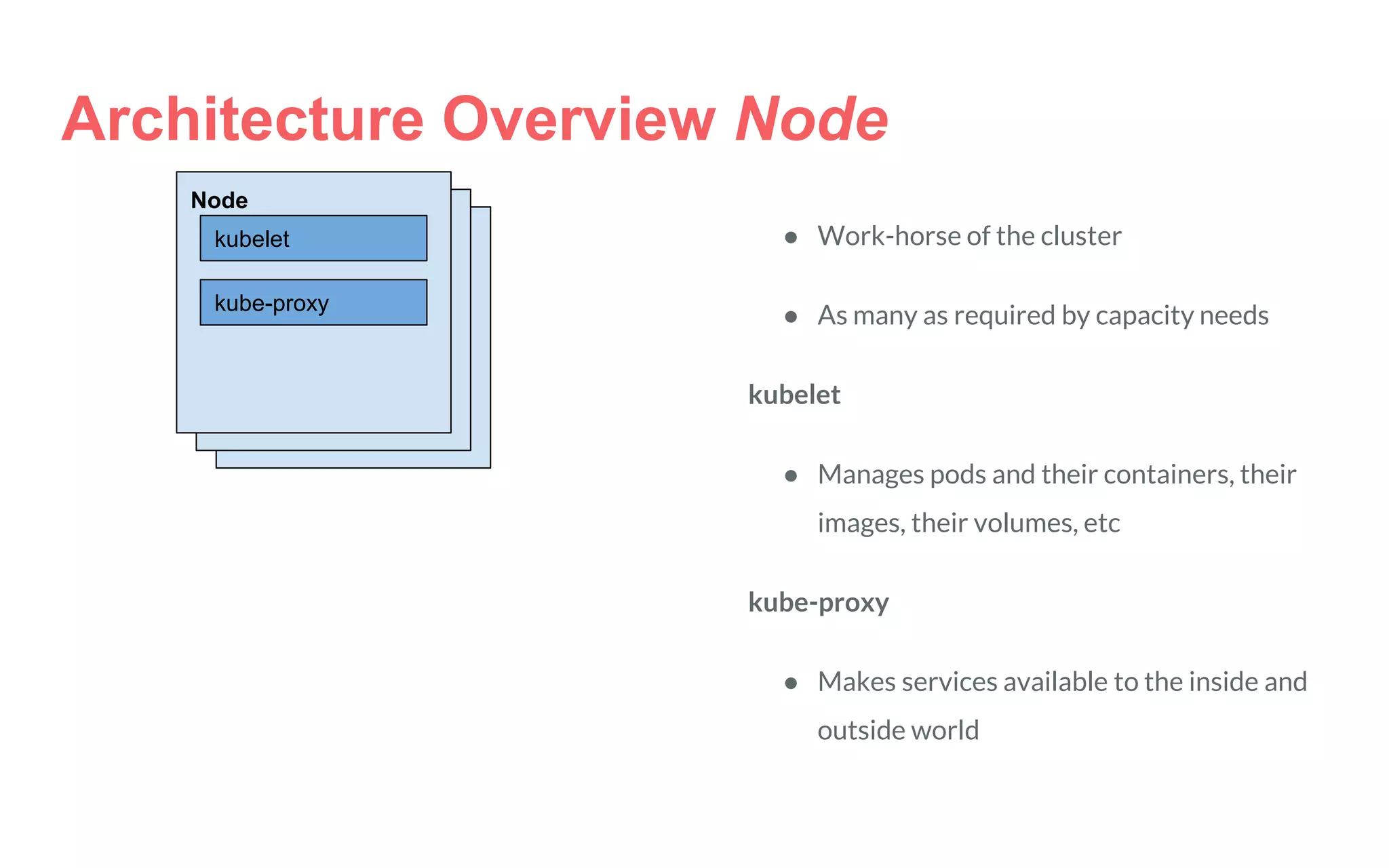

- 26. Node kubelet kube-proxy Architecture Overview Node ●Work-horse of the cluster ● As many as required by capacity needs kubelet ● Manages pods and their containers, their images, their volumes, etc kube-proxy ● Makes services available to the inside and outside world

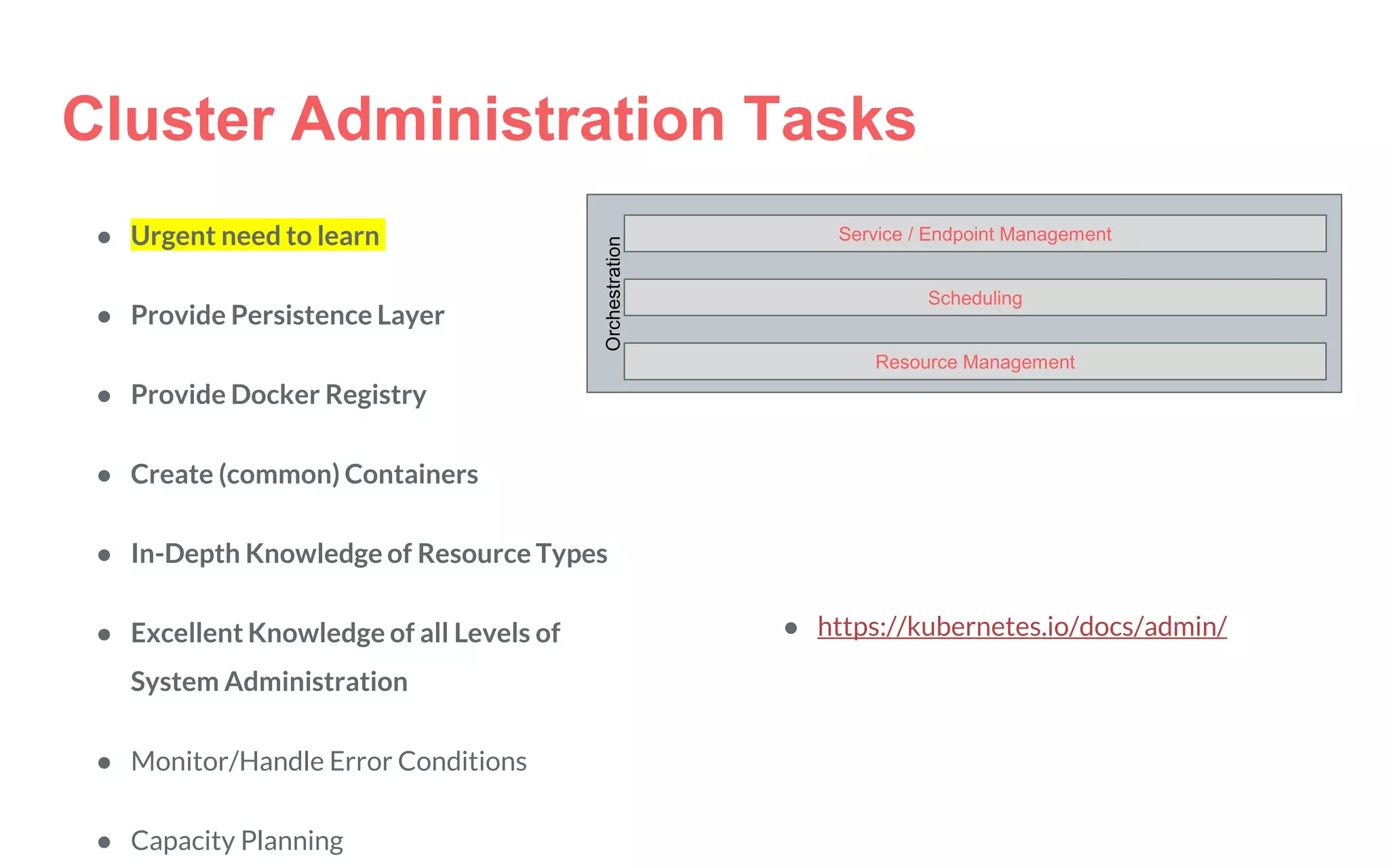

- 27. Orchestration Service / EndpointManagement Scheduling Resource Management Cluster Administration Tasks ● Urgent need to learn ● Provide Persistence Layer ● Provide Docker Registry ● Create (common) Containers ● In-Depth Knowledge of Resource Types ● Excellent Knowledge of all Levels of System Administration ● Monitor/Handle Error Conditions ● Capacity Planning ● https://kubernetes.io/docs/admin/

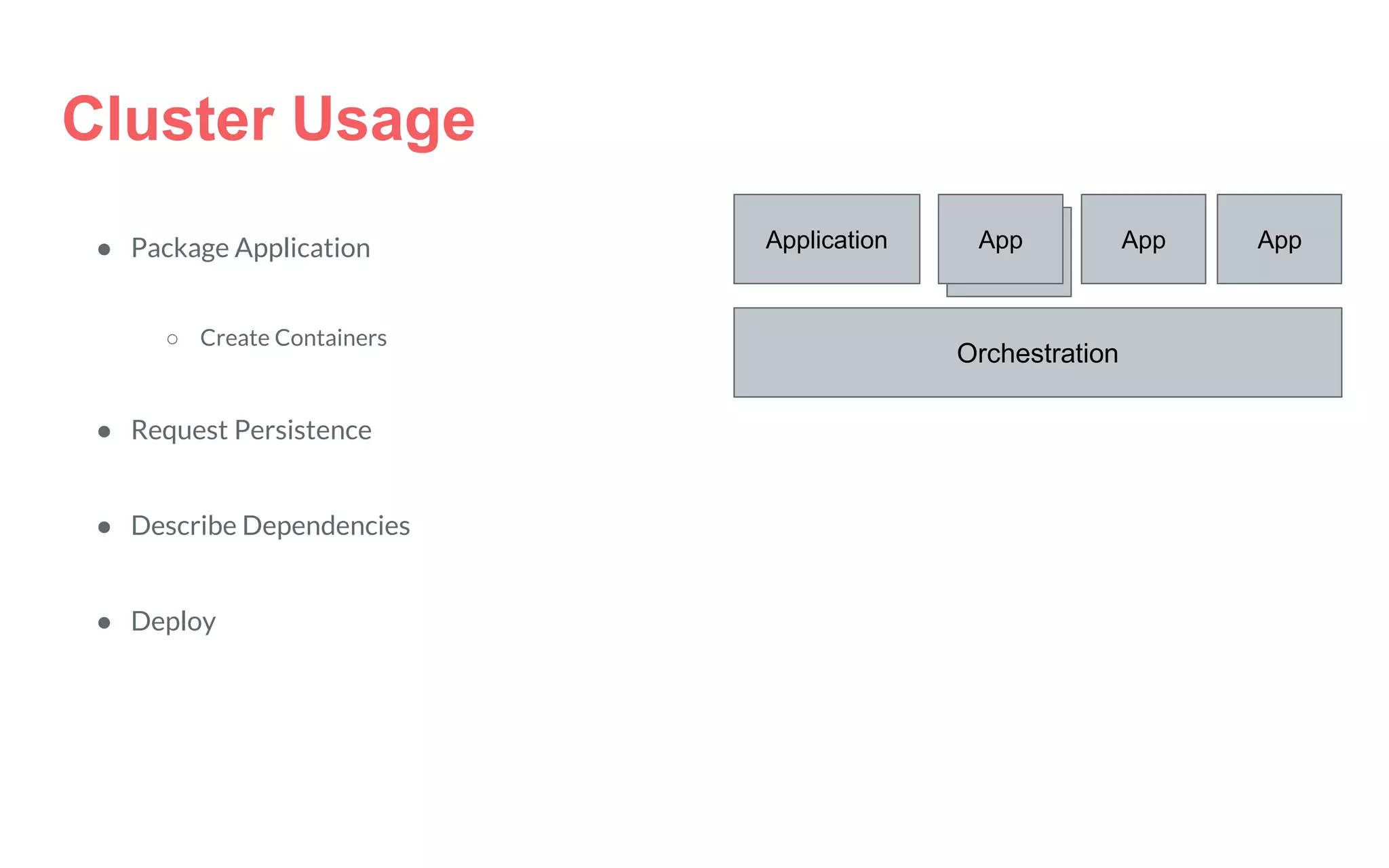

- 28. Cluster Usage ● PackageApplication ○ Create Containers ● Request Persistence ● Describe Dependencies ● Deploy Orchestration Application Applicati on App AppApp
- 29. Cluster Usage BestPractices Configuration files must be stored in version control before being pushed to the cluster When defining configurations, specify the latest stable API version (currently v1). Write your configuration files using YAML rather than JSON Group related objects together in a single file where this makes sense Don’t specify default values unnecessarily Put an object description in an annotation to allow better introspection
- 30.

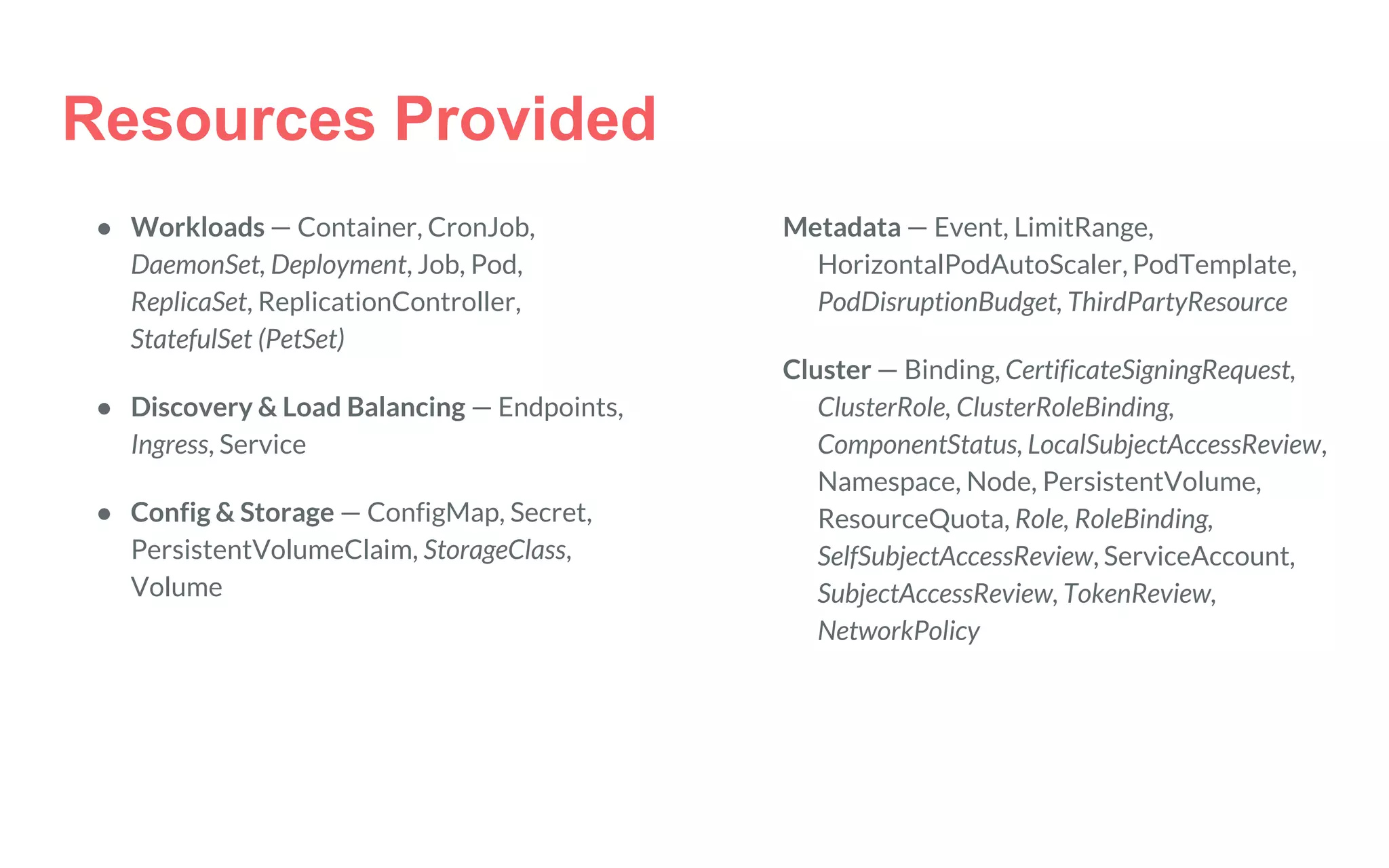

- 31. Resources Provided ● Workloads— Container, CronJob, DaemonSet, Deployment, Job, Pod, ReplicaSet, ReplicationController, StatefulSet (PetSet) ● Discovery & Load Balancing — Endpoints, Ingress, Service ● Config & Storage — ConfigMap, Secret, PersistentVolumeClaim, StorageClass, Volume Metadata — Event, LimitRange, HorizontalPodAutoScaler, PodTemplate, PodDisruptionBudget, ThirdPartyResource Cluster — Binding, CertificateSigningRequest, ClusterRole, ClusterRoleBinding, ComponentStatus, LocalSubjectAccessReview, Namespace, Node, PersistentVolume, ResourceQuota, Role, RoleBinding, SelfSubjectAccessReview, ServiceAccount, SubjectAccessReview, TokenReview, NetworkPolicy

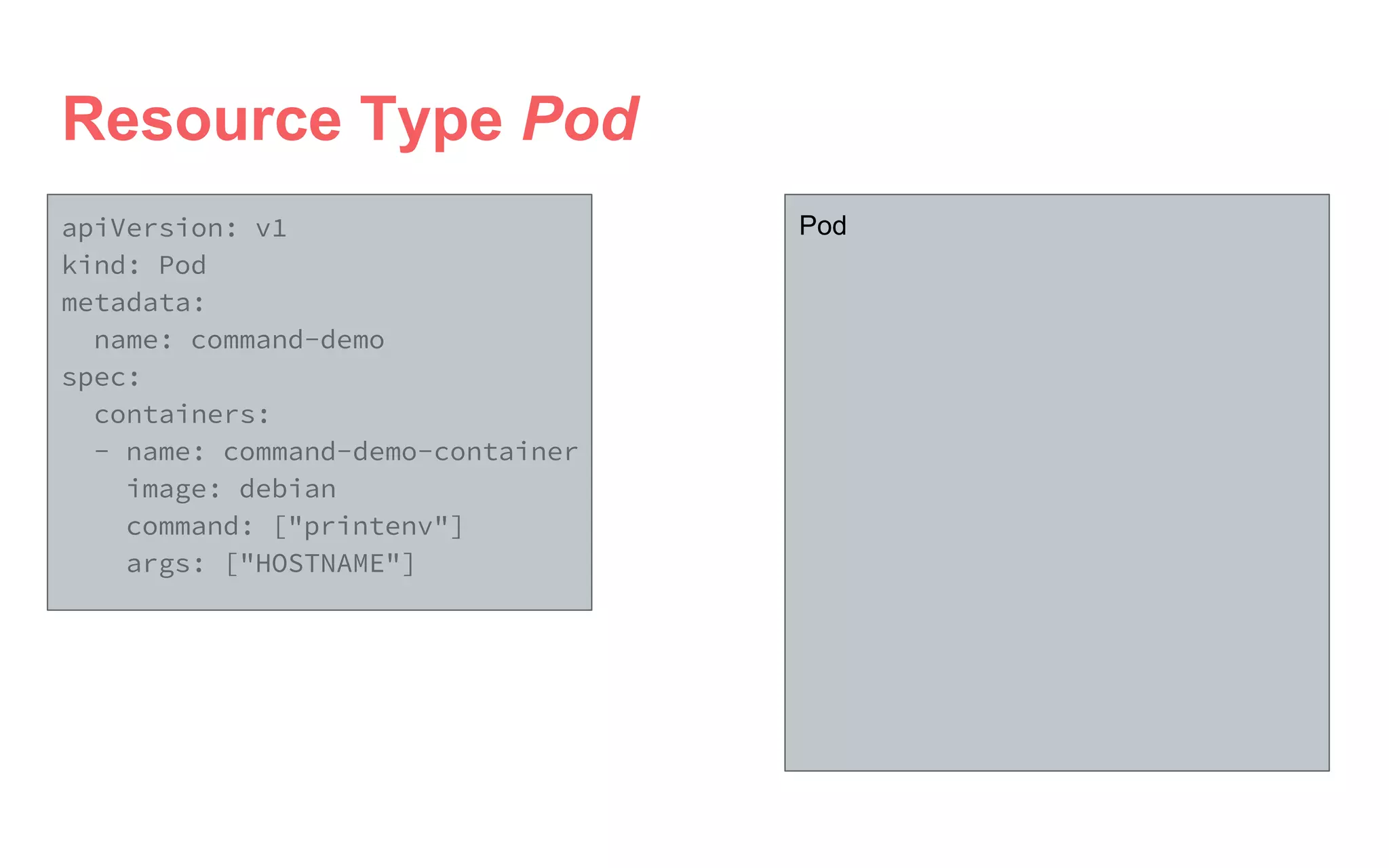

- 32. apiVersion: v1 kind: Pod metadata: name:command-demo spec: containers: - name: command-demo-container image: debian command: ["printenv"] args: ["HOSTNAME"] Resource Type Pod Pod

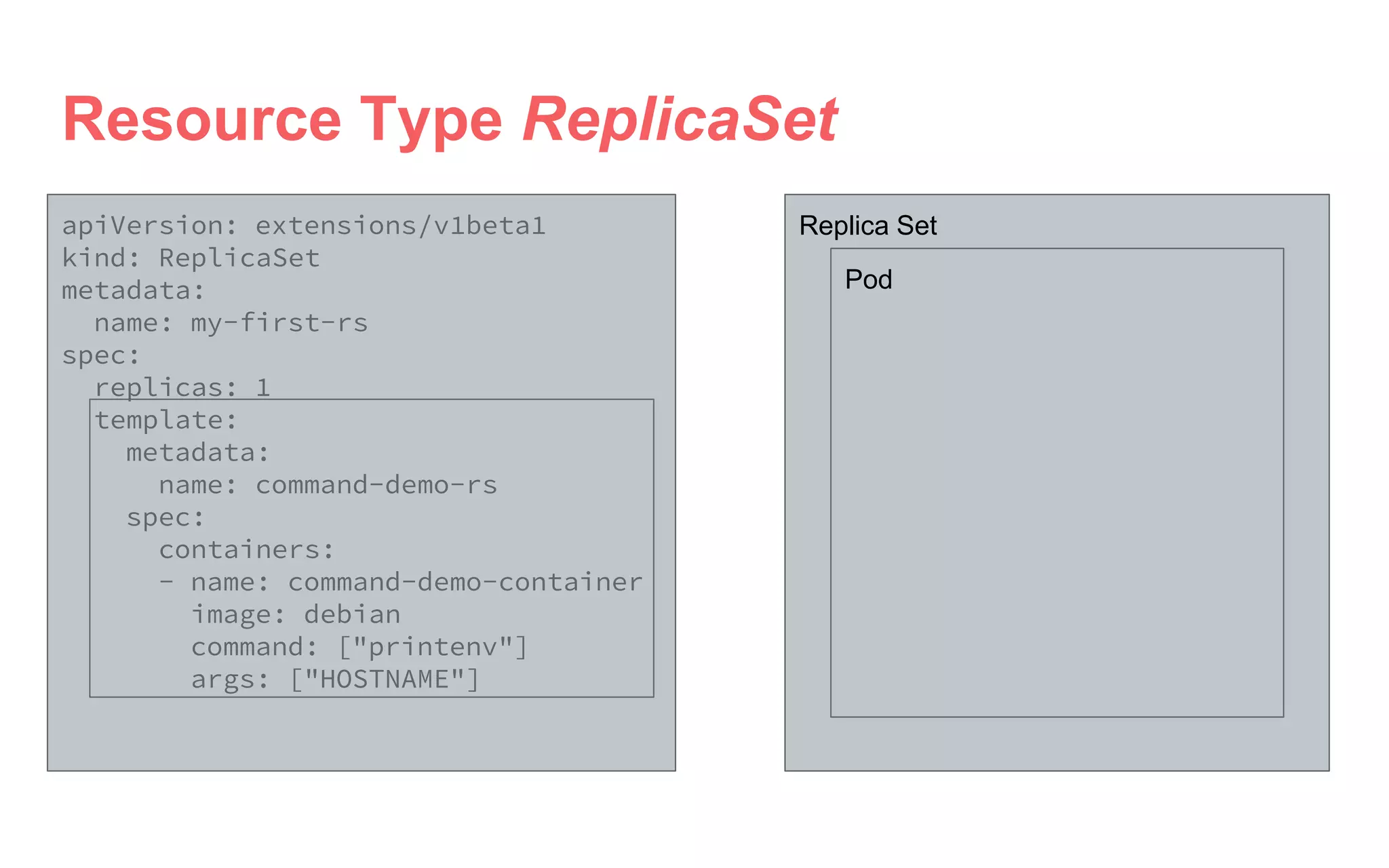

- 33. apiVersion: extensions/v1beta1 kind: ReplicaSet metadata: name:my-first-rs spec: replicas: 1 template: metadata: name: command-demo-rs spec: containers: - name: command-demo-container image: debian command: ["printenv"] args: ["HOSTNAME"] Resource Type ReplicaSet Replica Set Pod

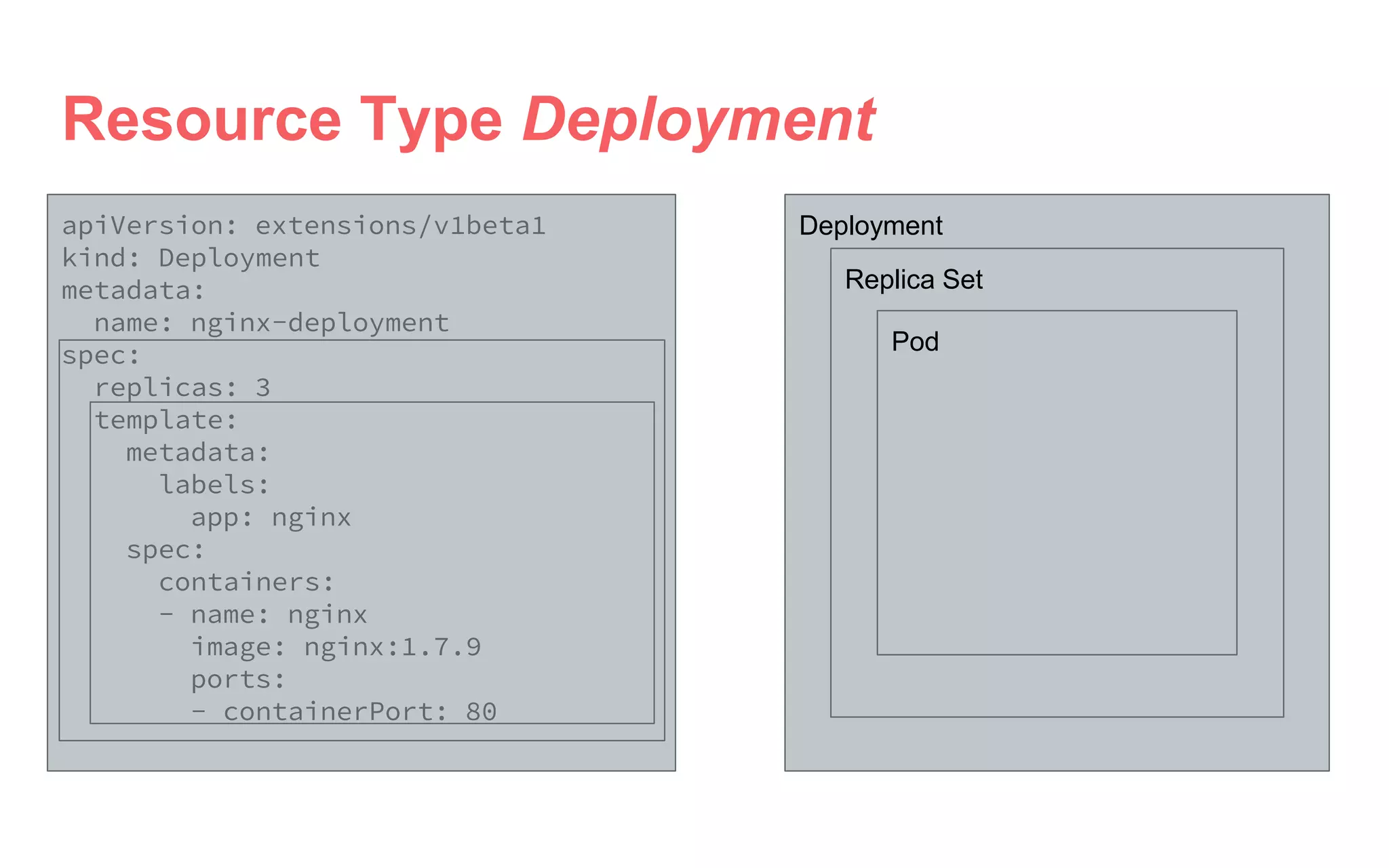

- 34. apiVersion: extensions/v1beta1 kind: Deployment metadata: name:nginx-deployment spec: replicas: 3 template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Resource Type Deployment Deployment Replica Set Pod
- 35.
- 36.
- 38.
Editor's Notes
- #9 Typically when you need to deploy a software people see this being delivered like this. You have a friendly person and she gives you one nice package. You sign it and are all the happier. You are done. Find a supported OS version Install dependencies (Libraries) Install Application Discover some dependencies kill functionality of another application Remove Application Remove Dependencies Find new Server Start over Installing new Application Discover uninstallation of dependencies removed a vital function of old application ...
