Aks pimarox from zero to hero
- 1. Sensitivity: Regular EXPERT TEAMPAAS & SERVERLESS
- 2. Sensitivity: Regular Work: InSpark– Principal Consultant Twitter: @Johanbiere Blog: talkingazure.com Work: InSpark – Consultant Twitter: @vworlddotnl Blog: vWorld.nl
- 3. Sensitivity: Regular AKS FROMZERO TO HERO 03-10-2019 INSPARK
- 4.

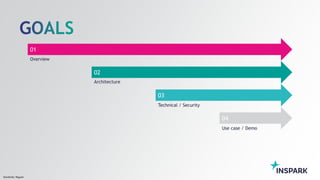

- 5. Sensitivity: Regular Overview Architecture Technical /Security Use case / Demo 01 02 03 04

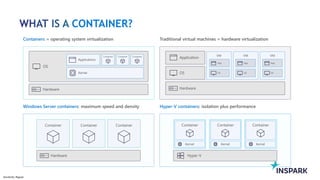

- 6. Sensitivity: Regular CONTAINER? Containers =operating system virtualization Traditional virtual machines = hardware virtualization Windows Server containers: maximum speed and density Hyper-V containers: isolation plus performance OS Kernel Applications Container Container Container Hardware Hardware Container Container Container Hyper-V Container Kernel Container Kernel Container Kernel Hardware OS Application VM VM VM App OS App OS App OS

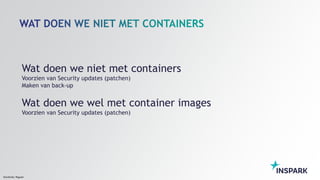

- 7. Sensitivity: Regular Wat doenwe niet met containers Voorzien van Security updates (patchen) Maken van back-up Wat doen we wel met container images Voorzien van Security updates (patchen)
- 8. Sensitivity: Regular Developers • ‘write-once,run-anywhere’ apps • Microservice architectures • Veel flexibeler dan Virtual Machines • Consistentie Operations • Portability, Portability, Portability • Standarisatie development, QA, and prod environments • Veel schaalbaarder • Beheerbaar op grote schaal DevOps

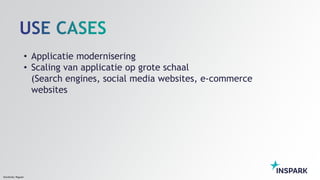

- 9. Sensitivity: Regular • Applicatiemodernisering • Scaling van applicatie op grote schaal (Search engines, social media websites, e-commerce websites
- 10. Sensitivity: Regular ❖ Opensource container runtime ❖ De Foundation voor containers ( AKS, ARO) ❖ Format (image) om containers te maken ❖ Mac, Windows & Linux support ❖ Portability

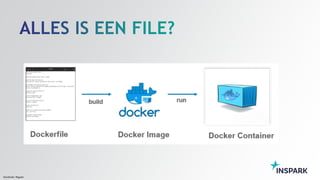

- 11.

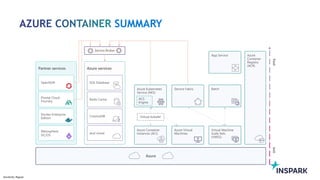

- 12. Sensitivity: Regular SUMMARY IaaSPaaS Azure services SQLDatabase Redis Cache CosmosDB And more! Partner services OpenShift Pivotal Cloud Foundry Docker Enterprise Edition Mesosphere DC/OS Azure Azure Container Registry (ACR) Service Broker Azure Kubernetes Service (AKS) ACS Engine Batch Azure Container Instances (ACI) Azure Virtual Machines Virtual Machine Scale Sets (VMSS) Service Fabric Virtual kubelet App Service

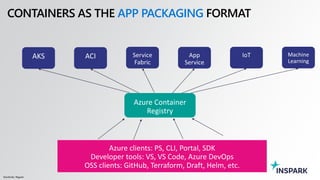

- 13. Sensitivity: Regular CONTAINERS ASTHE APP PACKAGING FORMAT …

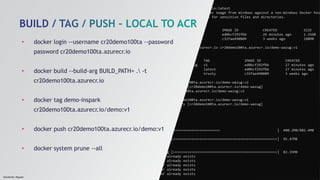

- 14. Sensitivity: Regular • dockerlogin --username cr20demo100ta --password password cr20demo100ta.azurecr.io • docker build --build-arg BUILD_PATH= . -t cr20demo100ta.azurecr.io • docker tag demo-inspark cr20demo100ta.azurecr.io/demo:v1 • docker push cr20demo100ta.azurecr.io/demo:v1 • docker system prune --all
- 15. Sensitivity: Regular DEMO +BUILD IMAGE DEVOPS

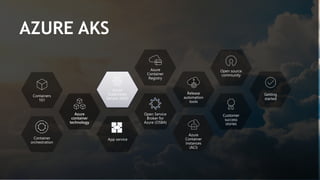

- 16. Sensitivity: Regular AZURE AKS Containers 101 Azure container technology Container orchestration Azure Kubernetes Service(AKS) App service Azure Container Registry Open Service Broker for Azure (OSBA) Release automation tools Open source community Customer success stories Getting started Azure Container Instances (ACI)

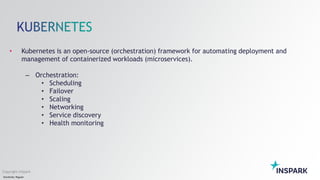

- 17. Sensitivity: Regular Copyright InSpark •Kubernetes is an open-source (orchestration) framework for automating deployment and management of containerized workloads (microservices). – Orchestration: • Scheduling • Failover • Scaling • Networking • Service discovery • Health monitoring

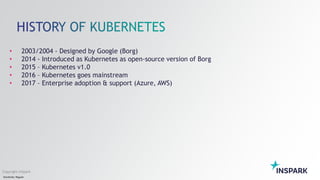

- 18. Sensitivity: Regular Copyright InSpark •2003/2004 - Designed by Google (Borg) • 2014 - Introduced as Kubernetes as open-source version of Borg • 2015 – Kubernetes v1.0 • 2016 – Kubernetes goes mainstream • 2017 – Enterprise adoption & support (Azure, AWS)

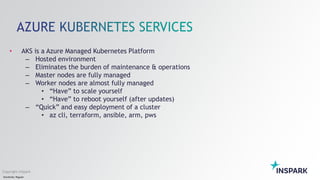

- 19. Sensitivity: Regular Copyright InSpark •AKS is a Azure Managed Kubernetes Platform – Hosted environment – Eliminates the burden of maintenance & operations – Master nodes are fully managed – Worker nodes are almost fully managed • “Have” to scale yourself • “Have” to reboot yourself (after updates) – “Quick” and easy deployment of a cluster • az cli, terraform, ansible, arm, pws

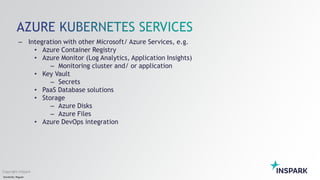

- 20. Sensitivity: Regular Copyright InSpark –Integration with other Microsoft/ Azure Services, e.g. • Azure Container Registry • Azure Monitor (Log Analytics, Application Insights) – Monitoring cluster and/ or application • Key Vault – Secrets • PaaS Database solutions • Storage – Azure Disks – Azure Files • Azure DevOps integration

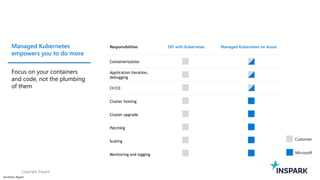

- 21. Sensitivity: Regular Copyright InSpark ResponsibilitiesDIY with Kubernetes Managed Kubernetes on Azure Containerization Application iteration, debugging CI/CD Cluster hosting Cluster upgrade Patching Scaling Monitoring and logging Customer Microsoft Managed Kubernetes empowers you to do more Focus on your containers and code, not the plumbing of them
- 22.
- 23.
- 24.
- 25.
- 26.

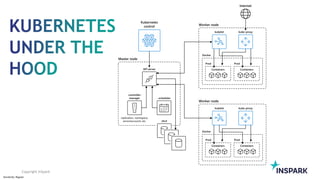

- 27. Sensitivity: Regular Copyright InSpark Kubernetes control APIserver replication, namespace, serviceaccounts, etc. -controller- manager -scheduler etcd Master node Worker node kubelet kube-proxy Docker Prod Prod Containers Containers Worker node kubelet kube-proxy Docker Prod Prod Containers Containers Internet

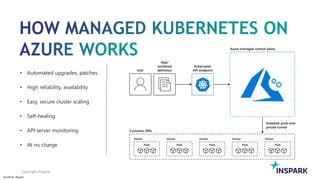

- 28. Sensitivity: Regular Copyright InSpark APIserver Controller ManagerScheduler etcd Store Cloud Controller Self-managed master node(s) • Automated upgrades, patches • High reliability, availability • Easy, secure cluster scaling • Self-healing • API server monitoring • At no charge Customer VMs App/ workload definitionUser Docker Pods Docker Pods Docker Pods Docker Pods Docker Pods Schedule pods over private tunnel Kubernetes API endpoint Azure managed control plane

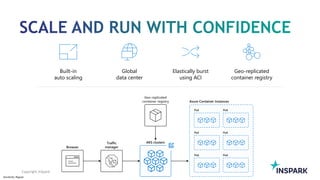

- 29. Sensitivity: Regular Copyright InSpark Built-in autoscaling Global data center Geo-replicated container registry Elastically burst using ACI Browser Traffic manager Geo-replicated container registry AKS clusters Azure Container Instances Pod Pod Pod Pod Pod Pod

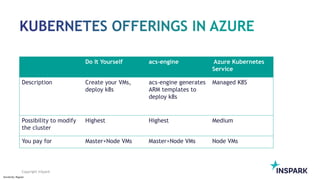

- 30. Sensitivity: Regular Copyright InSpark DoIt Yourself acs-engine Azure Kubernetes Service Description Create your VMs, deploy k8s acs-engine generates ARM templates to deploy k8s Managed K8S Possibility to modify the cluster Highest Highest Medium You pay for Master+Node VMs Master+Node VMs Node VMs
- 31.
- 32.

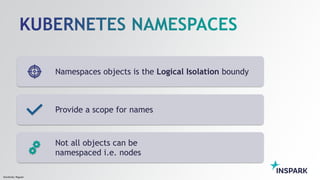

- 33. Sensitivity: Regular Namespaces objectsis the Logical Isolation boundy Provide a scope for names Not all objects can be namespaced i.e. nodes
- 34.
- 35.
- 36.
- 37.

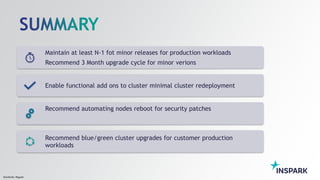

- 38. Sensitivity: Regular Maintain atleast N-1 fot minor releases for production workloads Recommend 3 Month upgrade cycle for minor verions Enable functional add ons to cluster minimal cluster redeployment Recommend automating nodes reboot for security patches Recommend blue/green cluster upgrades for customer production workloads
- 39.
- 40.
- 41. Sensitivity: Regular DEMO –AZURE MONITOR
- 42.
- 43. Sensitivity: Regular Copyright InSpark 1.Kubernetes Developer authenticates with AAD 2. The AAD token issuance endpoint issues the access token 3. Developer performs action w/ AAD token. Eg.kubectlcreate pod 4. Kubernetes validates token with AAD and fetches the Developer’s AAD Groups Eg.Dev Team A, App Group B 5. Kubernetes RBAC and cluster policies are applied 6. Request is successful or not based on the previous validation

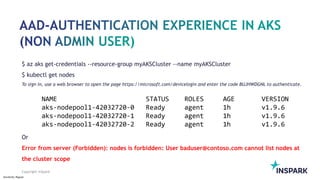

- 44. Sensitivity: Regular Copyright InSpark $az aks get-credentials --resource-group myAKSCluster --name myAKSCluster $ kubectl get nodes To sign in, use a web browser to open the page https://microsoft.com/devicelogin and enter the code BUJHWDGNL to authenticate. Or Error from server (Forbidden): nodes is forbidden: User baduser@contoso.com cannot list nodes at the cluster scope
- 45.
- 46.

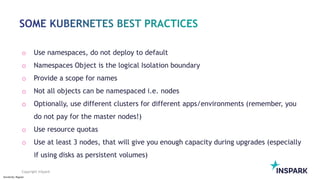

- 47. Sensitivity: Regular Copyright InSpark oUse namespaces, do not deploy to default o Namespaces Object is the logical Isolation boundary o Provide a scope for names o Not all objects can be namespaced i.e. nodes o Optionally, use different clusters for different apps/environments (remember, you do not pay for the master nodes!) o Use resource quotas o Use at least 3 nodes, that will give you enough capacity during upgrades (especially if using disks as persistent volumes)
- 48. Sensitivity: Regular Copyright InSpark •You can use AAD-based access to Azure Files • Managed Disks encrypted with Storage Service Encryption More information: https://docs.microsoft.com/mt-mt/azure/aks/concepts-storage

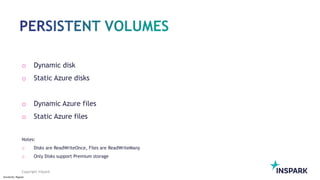

- 49. Sensitivity: Regular Copyright InSpark oDynamic disk o Static Azure disks o Dynamic Azure files o Static Azure files Notes: o Disks are ReadWriteOnce, Files are ReadWriteMany o Only Disks support Premium storage
- 50.
- 51.
- 52.

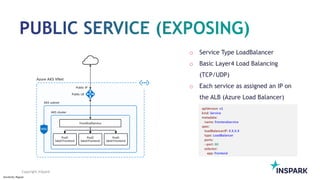

- 53. Sensitivity: Regular Copyright InSpark oService Type LoadBalancer o Basic Layer4 Load Balancing (TCP/UDP) o Each service as assigned an IP on the ALB (Azure Load Balancer)

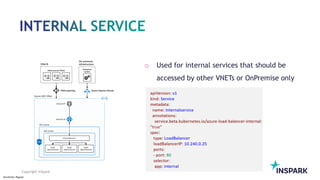

- 54. Sensitivity: Regular Copyright InSpark oUsed for internal services that should be accessed by other VNETs or OnPremise only
- 55. Sensitivity: Regular Copyright InSpark oIngress is a Kubernetes API that manages external access to the services in the cluster o Supports HTTP and HTTPs o Path and Subdomain based routing o SSL Termination o Save on public IP-addresses o Ingress controller is a daemon, deployed as a Kubernetes Pod, that watches the Ingress Endpoint for updates. Its job is to satisfy requests for ingresses.
- 56.
- 57.

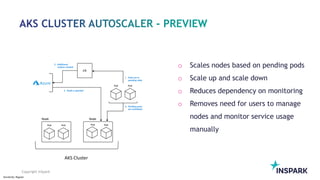

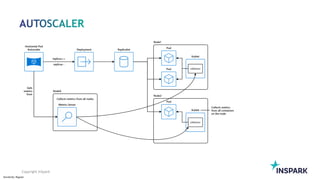

- 58. Sensitivity: Regular Copyright InSpark oScales nodes based on pending pods o Scale up and scale down o Reduces dependency on monitoring o Removes need for users to manage nodes and monitor service usage manually
- 59.
- 60.

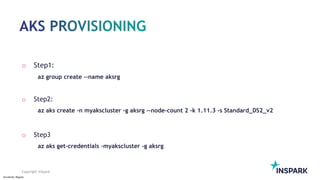

- 61. Sensitivity: Regular Copyright InSpark oStep1: az group create -–name aksrg o Step2: az aks create -n myakscluster -g aksrg --node-count 2 -k 1.11.3 -s Standard_DS2_v2 o Step3 az aks get-credentials –myakscluster -g aksrg
- 62.
- 63. Sensitivity: Regular DEMO +HOMEWORK AKS HTTPS://AKSWORKSHOP.IO/

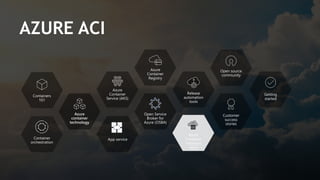

- 64. Sensitivity: Regular AZURE ACI Containers 101 Azure container technology Container orchestration Azure Container Service(AKS) App service Azure Container Registry Open Service Broker for Azure (OSBA) Release automation tools Open source community Customer success stories Getting started Azure Container Instances (ACI)

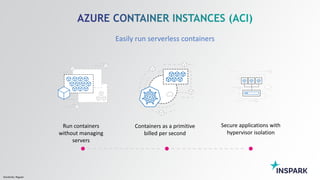

- 65. Sensitivity: Regular Easily runserverless containers Containers as a primitive billed per second Secure applications with hypervisor isolation Run containers without managing servers

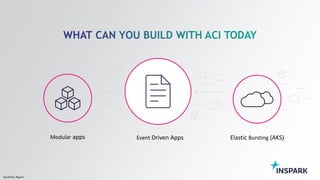

- 66. Sensitivity: Regular Elastic Bursting(AKS)Event Driven AppsModular apps
- 67.

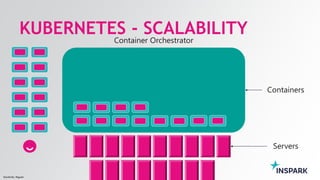

- 68. Sensitivity: Regular KUBERNETES -SCALABILITY
