The document discusses the key factors considered in AASHTO flexible pavement design: pavement performance, traffic, roadbed soils, materials of construction, environment, drainage, and reliability. Pavement performance is measured by present serviceability index (PSI) on a scale of 0 to 5. Traffic is considered in terms of estimated single axle loads (ESALs). Roadbed soils are characterized by properties like CBR, R-value, and resilient modulus (Mr). Materials are assigned structural numbers (SN) based on properties. Drainage and environment affect Mr. Reliability ensures the design survives the design life with a given level of probability. The design process involves determining layer SNs from properties then thickness to achieve a

1. Design considerations for the
AASHTO Flexible Pavement Design
Pavement performance
Traffic
Roadbed soils (subgrade material)
Materials of construction
Environment
Drainage
Reliability
The following factors are considered in the pavement thickness
design.

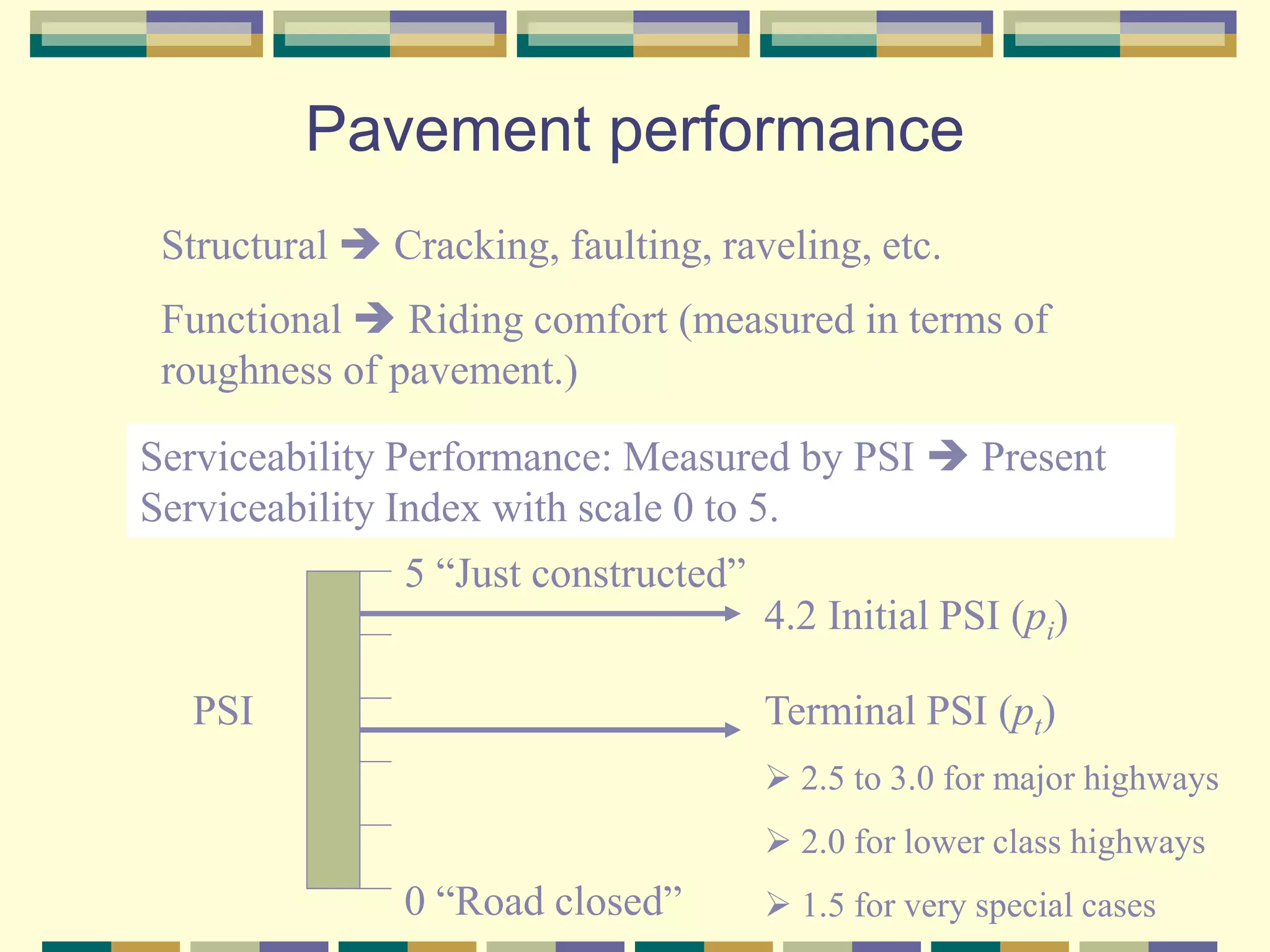

2. Pavement performance
Structural  Cracking, faulting, raveling, etc.
Functional  Riding comfort (measured in terms of
roughness of pavement.)
Serviceability Performance: Measured by PSI  Present
Serviceability Index with scale 0 to 5.
0 “Road closed”
5 “Just constructed”
4.2 Initial PSI (pi)
Terminal PSI (pt)
 2.5 to 3.0 for major highways
 2.0 for lower class highways
 1.5 for very special cases
PSI

3. Traffic
 In the AASHTO flexible pavement design, traffic is considered in terms of
ESAL for the terminal PSI (Table 20.13 for pt = 2.5.)
 You must assume the structural number of the pavement. So, you must
check if the final SN3 is similar to the assumed SN. Higher SN means stronger
pavement, thus the impact of traffic on pavement deteriorations is less.

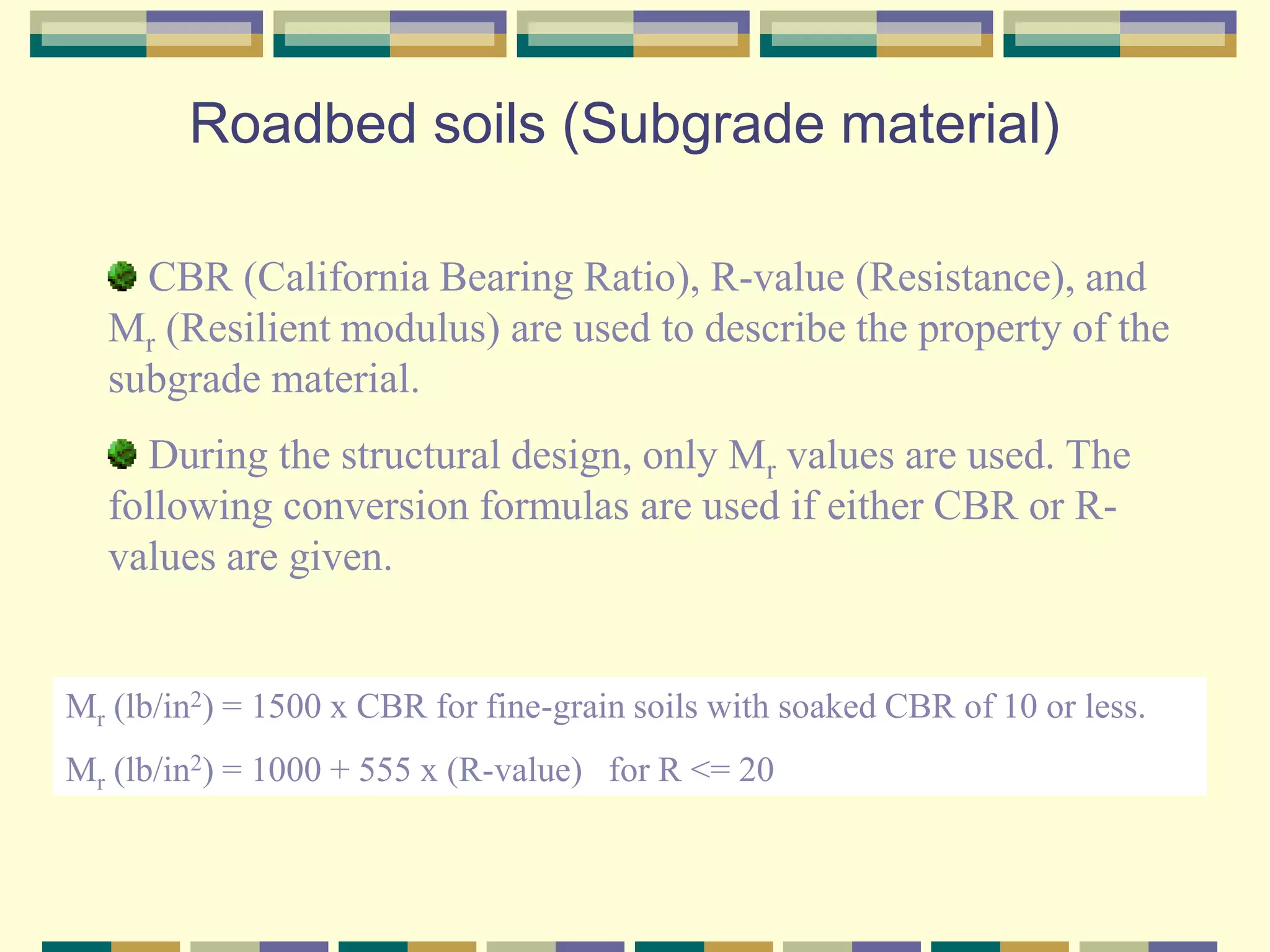

4. Roadbed soils (Subgrade material)
CBR (California Bearing Ratio), R-value (Resistance), and
Mr (Resilient modulus) are used to describe the property of the
subgrade material.
During the structural design, only Mr values are used. The
following conversion formulas are used if either CBR or R-
values are given.
Mr (lb/in2) = 1500 x CBR for fine-grain soils with soaked CBR of 10 or less.
Mr (lb/in2) = 1000 + 555 x (R-value) for R <= 20

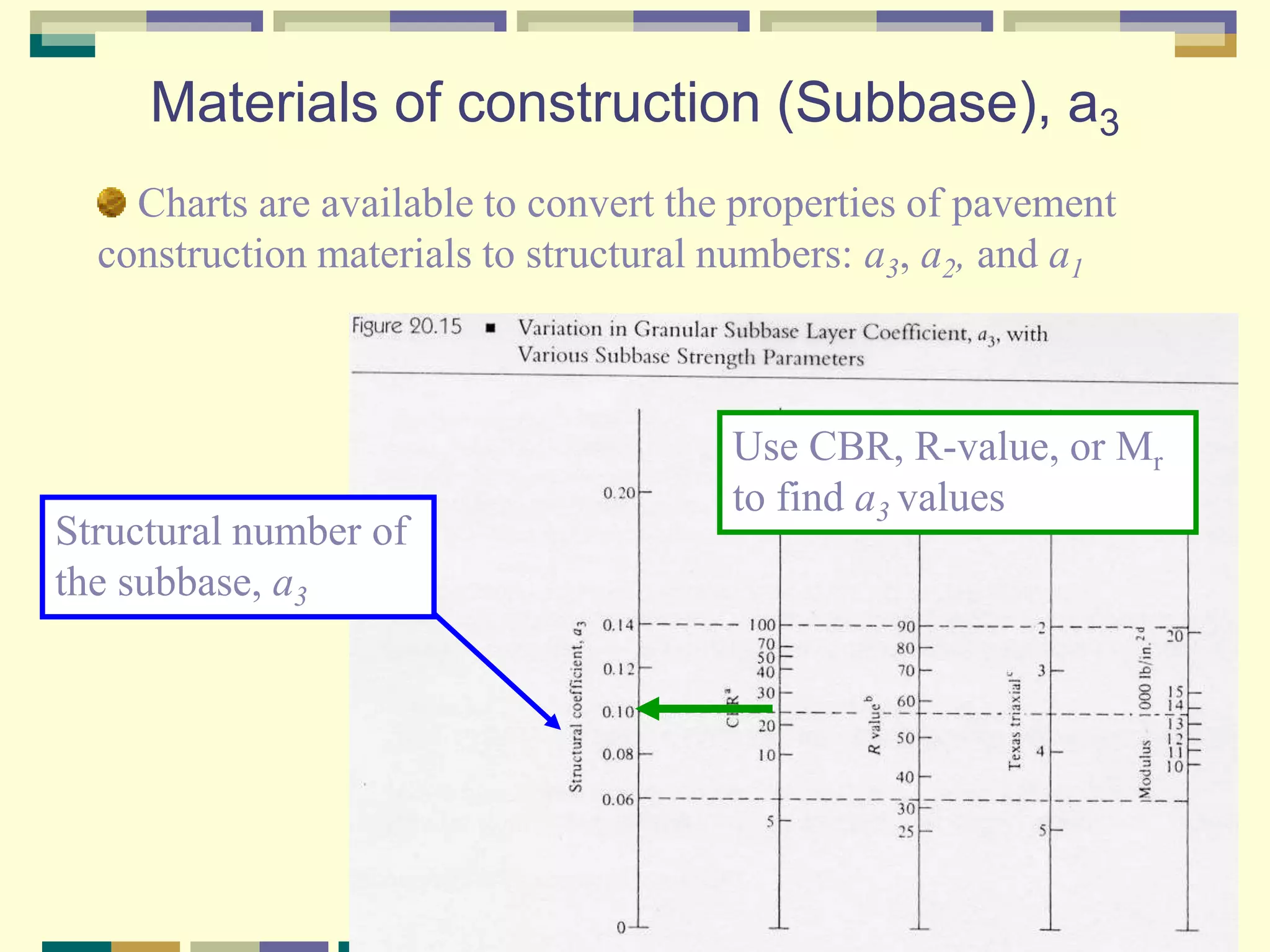

5. Materials of construction (Subbase), a3
Charts are available to convert the properties of pavement
construction materials to structural numbers: a3, a2, and a1
Structural number of
the subbase, a3
Use CBR, R-value, or Mr
to find a3 values

6. Materials of construction (Base course), a2
Base!
Structural number of
the base course, a2
Use CBR, R-value, or Mr
to find a2 values

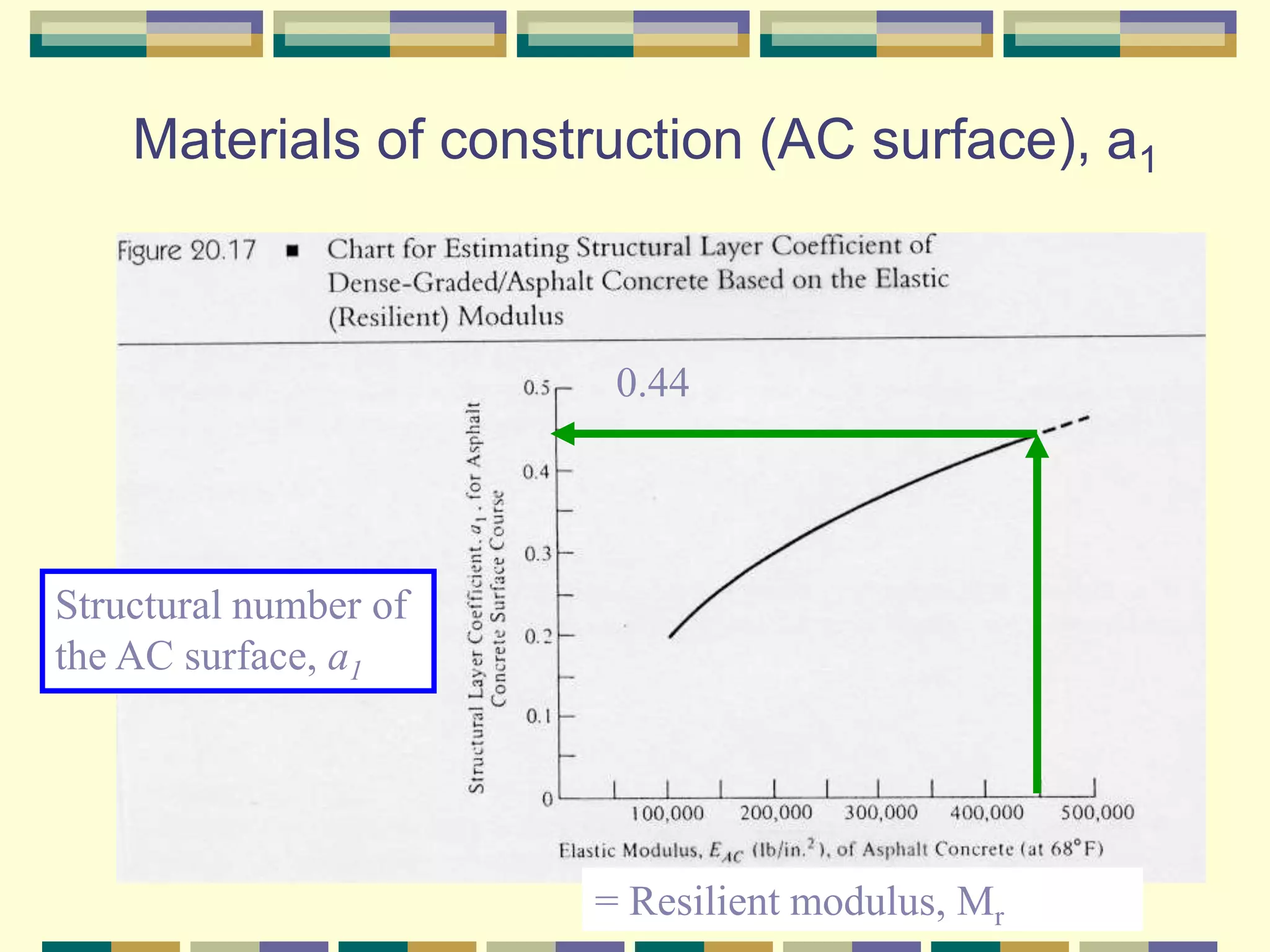

7. Materials of construction (AC surface), a1
= Resilient modulus, Mr
Structural number of
the AC surface, a1
0.44

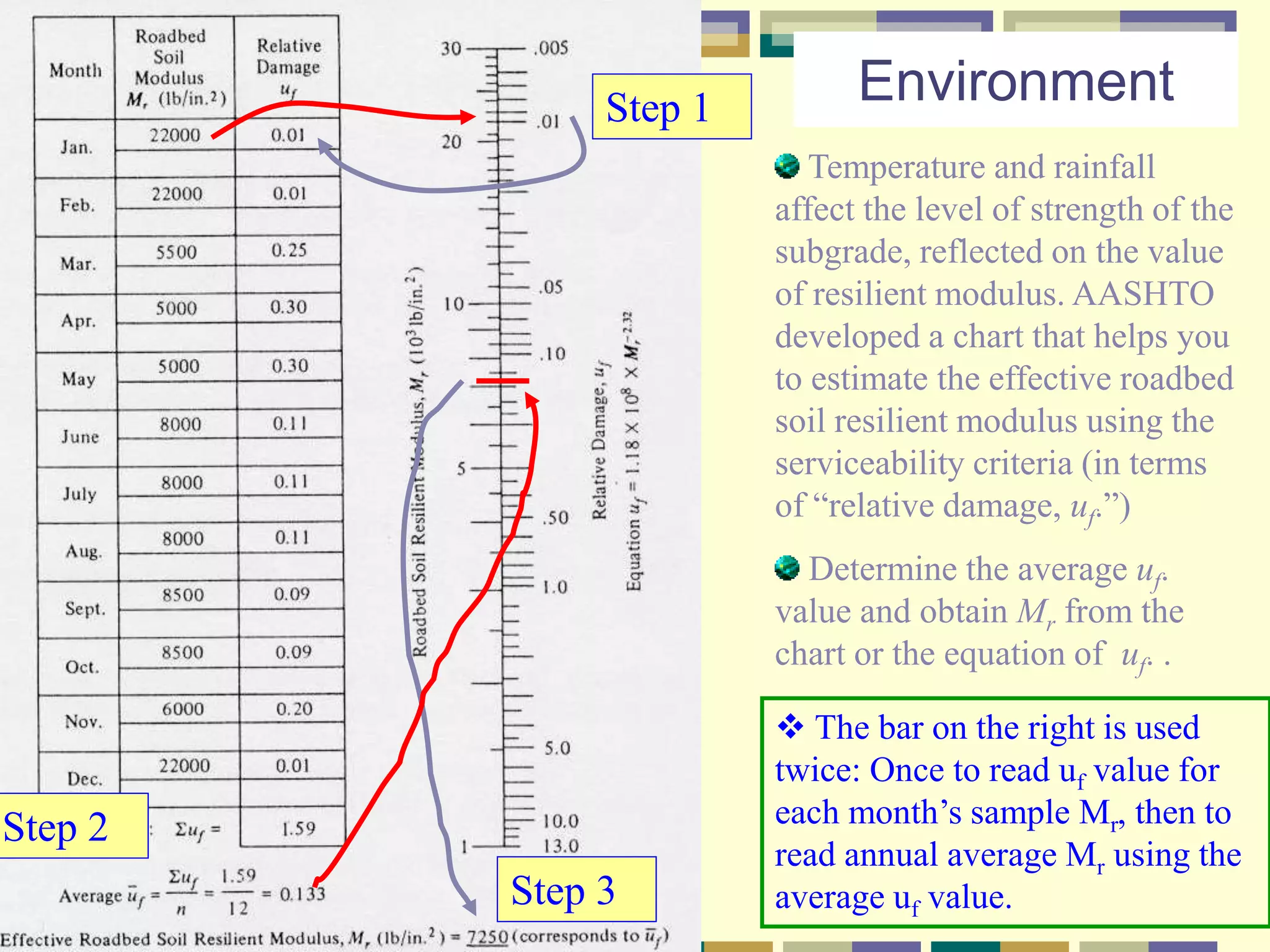

8. Environment
Temperature and rainfall
affect the level of strength of the
subgrade, reflected on the value
of resilient modulus. AASHTO
developed a chart that helps you
to estimate the effective roadbed
soil resilient modulus using the
serviceability criteria (in terms
of “relative damage, uf.”)
Determine the average uf.
value and obtain Mr from the
chart or the equation of uf. .
 The bar on the right is used
twice: Once to read uf value for
each month’s sample Mr, then to
read annual average Mr using the
average uf value.
Step 1
Step 3
Step 2

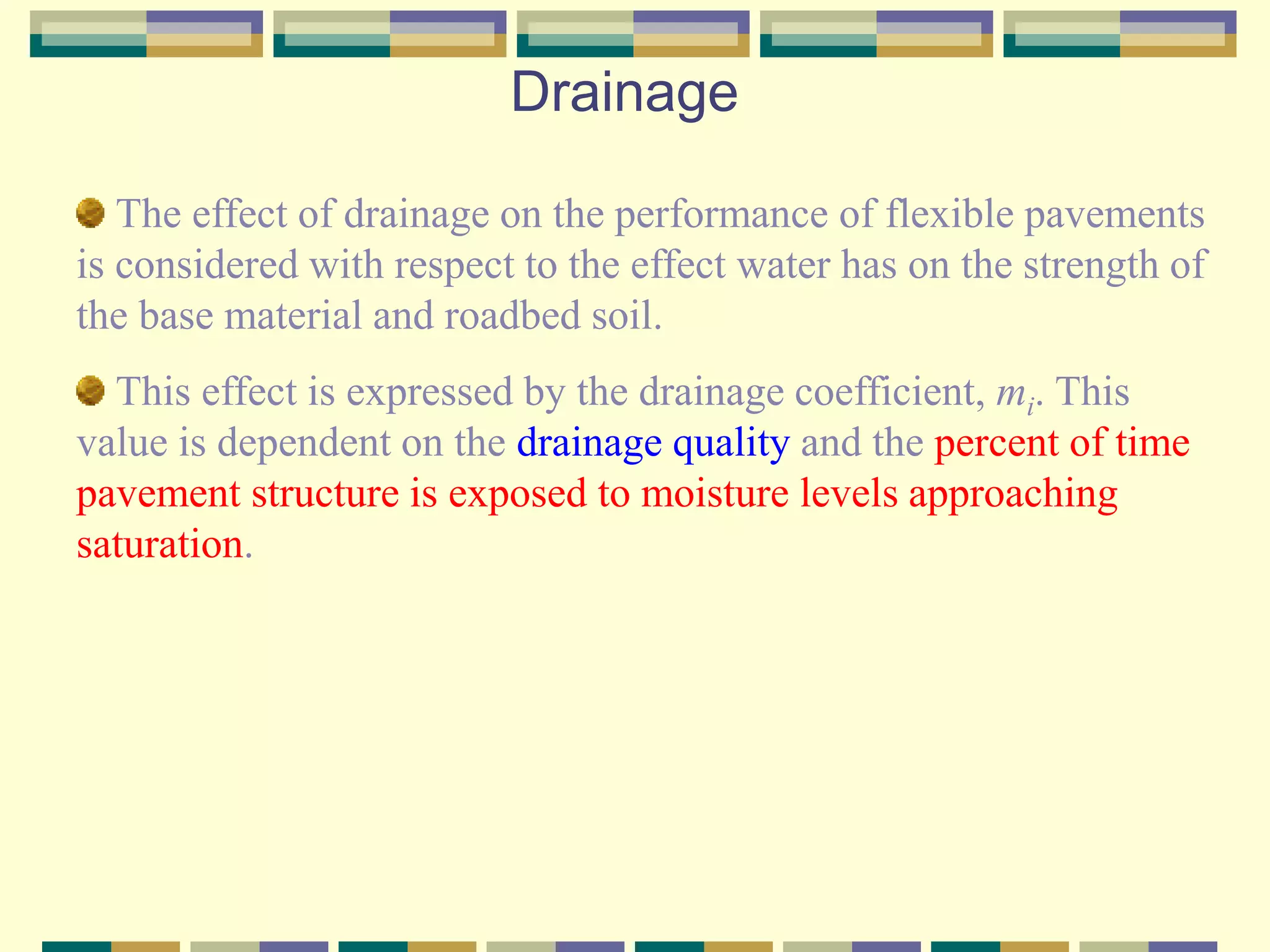

9. Drainage
The effect of drainage on the performance of flexible pavements
is considered with respect to the effect water has on the strength of
the base material and roadbed soil.
This effect is expressed by the drainage coefficient, mi. This
value is dependent on the drainage quality and the percent of time
pavement structure is exposed to moisture levels approaching
saturation.

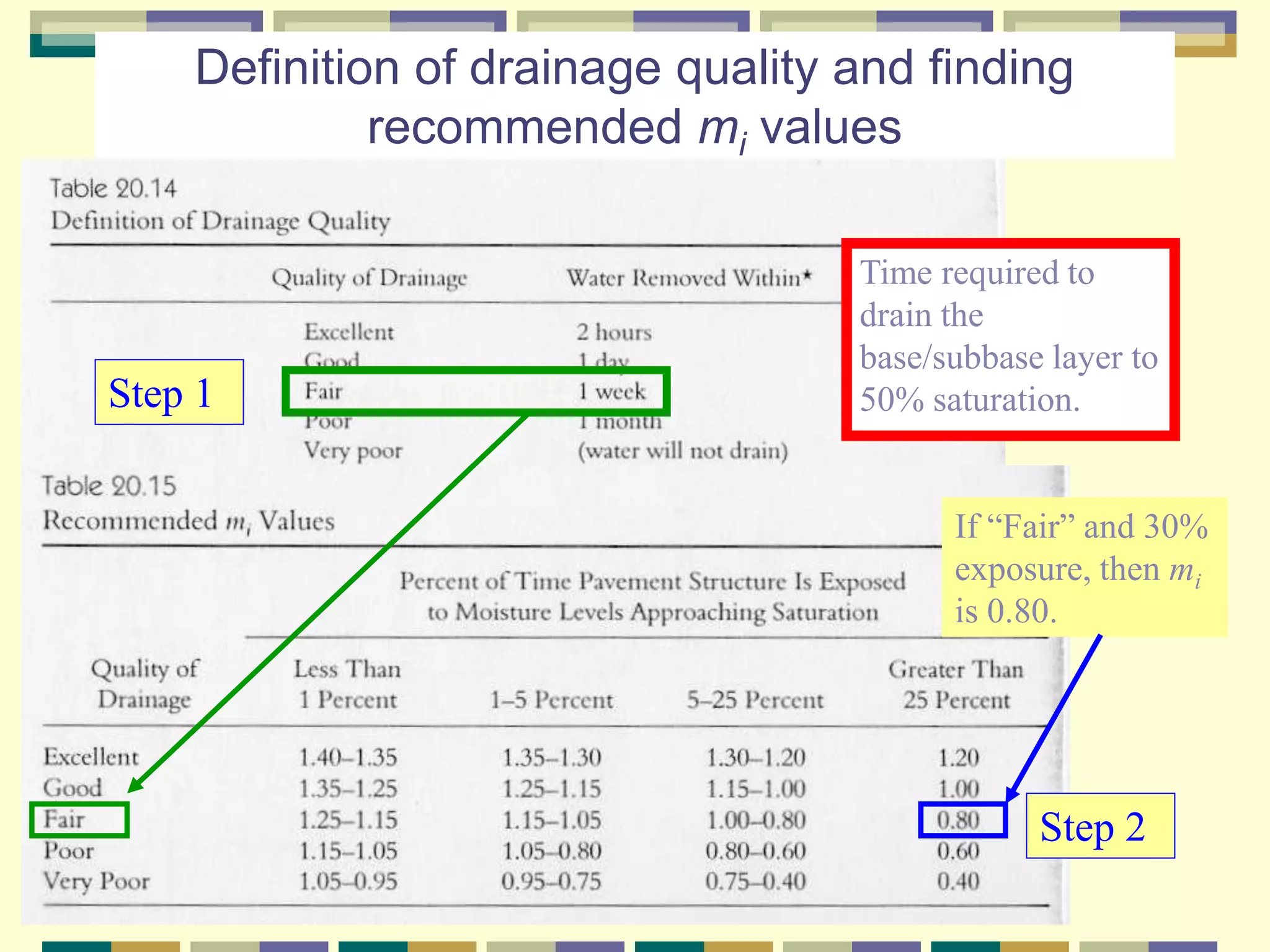

10. Definition of drainage quality and finding
recommended mi values
Time required to
drain the
base/subbase layer to
50% saturation.
If “Fair” and 30%
exposure, then mi
is 0.80.
Step 1
Step 2

11. Reliability
The reliability factor (FR) is computed using:
The Reliability design level (R%), which determine assurance levels that
the pavement section designed using the procedure will survive for its
design period (it is a z-score from the standard normal distribution
the standard deviation (So) that accounts for the chance variation in the
traffic forecast and the chance variation in actual pavement performance
for a given design period traffic, W18.
oRR SZF 10log
SD, So
Flexible
pavements
0.40-0.5
Rigid
pavements
0.30-0.40
Why do we have a negative sign here? Are ZR values
negative? Why not ZRSo! Well the clue is in Eq. 20-13 and
the bell curve shown below.
One-sided Z-
score is used
here.
SurviveFail

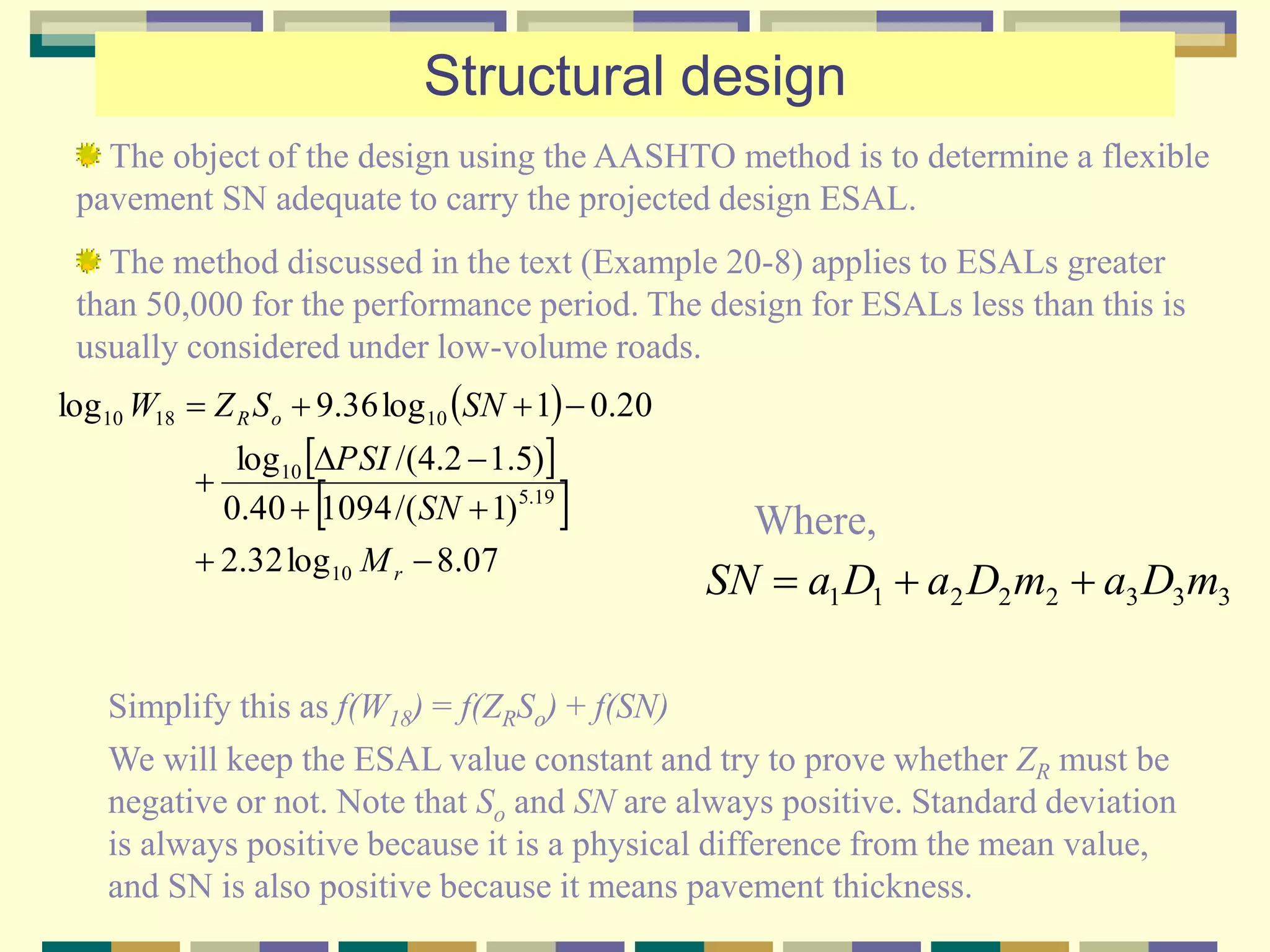

12. Structural design
The object of the design using the AASHTO method is to determine a flexible
pavement SN adequate to carry the projected design ESAL.
The method discussed in the text (Example 20-8) applies to ESALs greater
than 50,000 for the performance period. The design for ESALs less than this is
usually considered under low-volume roads.
 
 
 
07.8log32.2
)1/(109440.0
)5.12.4/(log
20.01log36.9log
10
19.5
10
101810





r
oR
M
SN
PSI
SNSZW
Simplify this as f(W18) = f(ZRSo) + f(SN)
We will keep the ESAL value constant and try to prove whether ZR must be
negative or not. Note that So and SN are always positive. Standard deviation
is always positive because it is a physical difference from the mean value,
and SN is also positive because it means pavement thickness.
33322211 mDamDaDaSN 
Where,

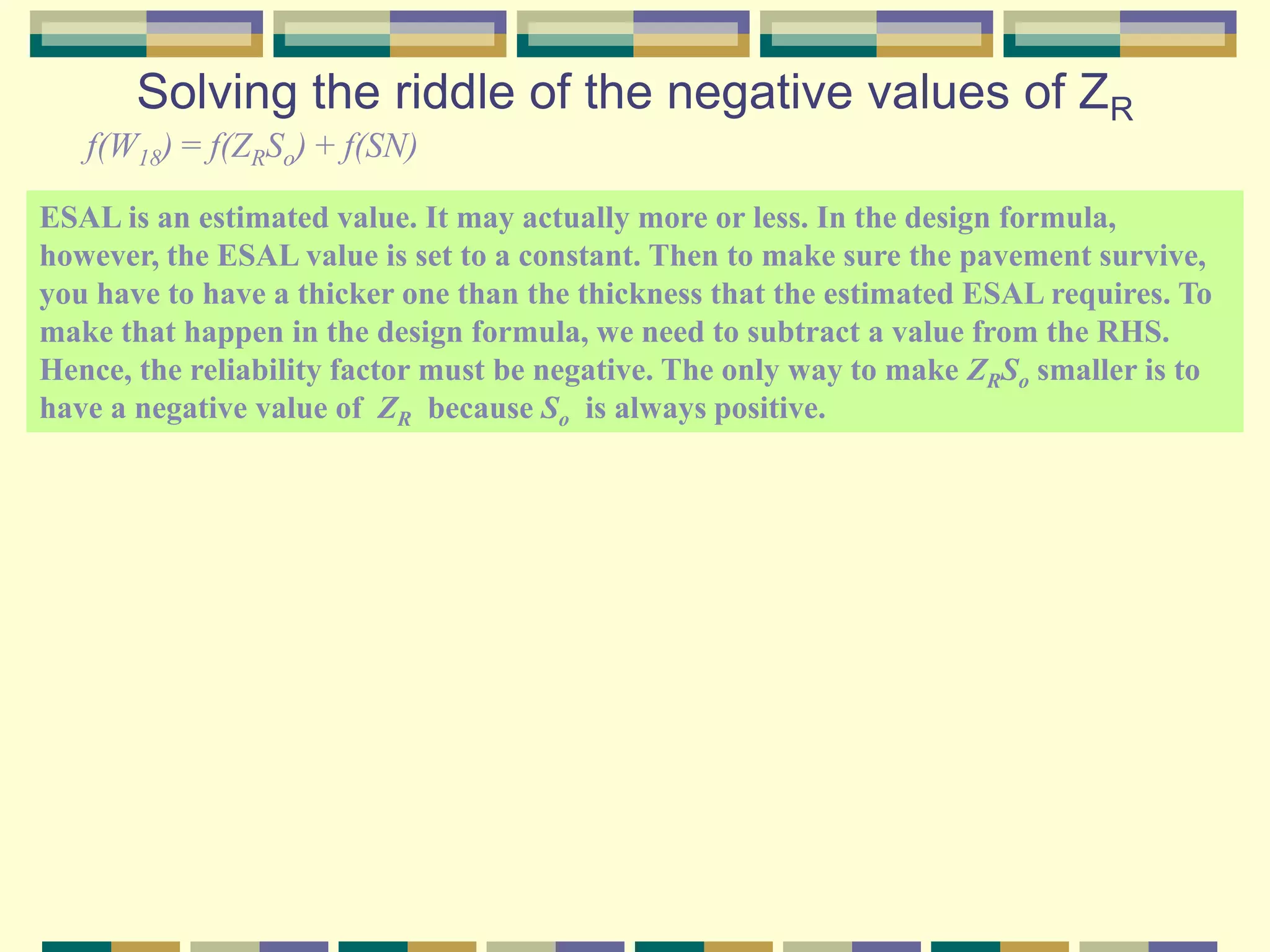

13. Solving the riddle of the negative values of ZR
f(W18) = f(ZRSo) + f(SN)
ESAL is an estimated value. It may actually more or less. In the design formula,
however, the ESAL value is set to a constant. Then to make sure the pavement survive,
you have to have a thicker one than the thickness that the estimated ESAL requires. To
make that happen in the design formula, we need to subtract a value from the RHS.
Hence, the reliability factor must be negative. The only way to make ZRSo smaller is to
have a negative value of ZR because So is always positive.

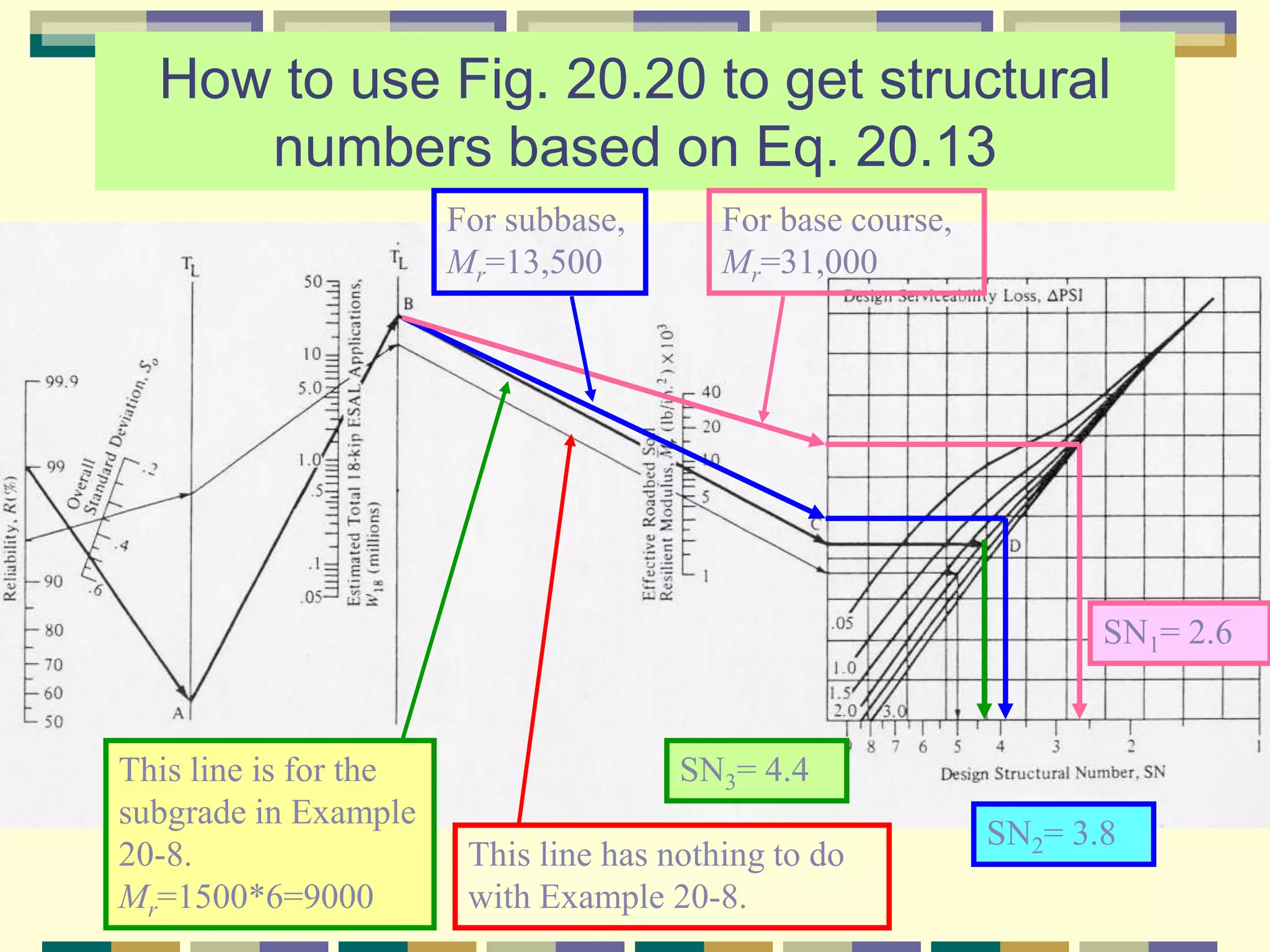

14. How to use Fig. 20.20 to get structural
numbers based on Eq. 20.13
This line has nothing to do
with Example 20-8.
This line is for the
subgrade in Example
20-8.
Mr=1500*6=9000
SN3= 4.4
For subbase,
Mr=13,500
For base course,
Mr=31,000
SN2= 3.8
SN1= 2.6

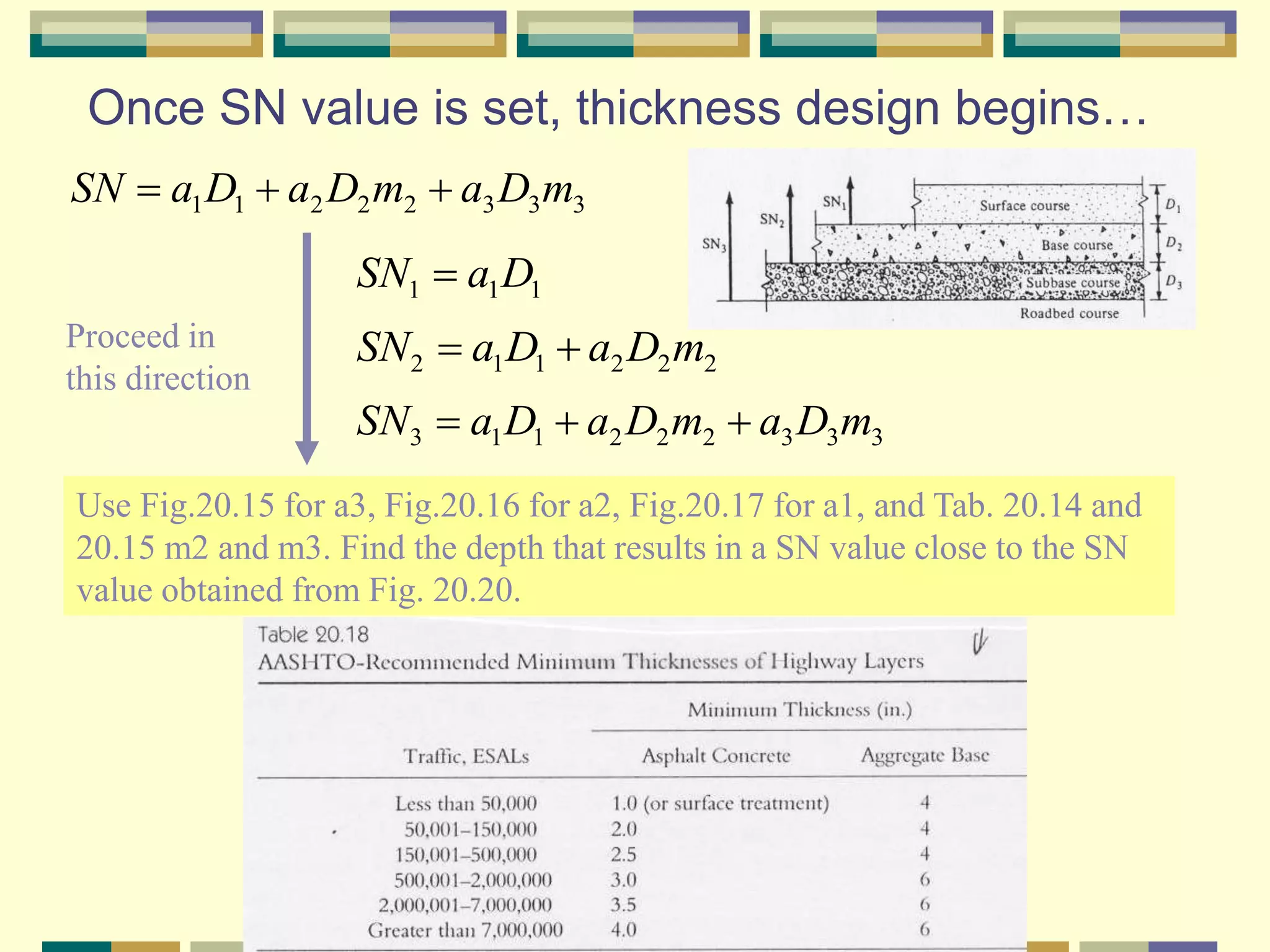

15. Once SN value is set, thickness design begins…
33322211 mDamDaDaSN 
111 DaSN 
222112 mDaDaSN 
333222113 mDamDaDaSN 
Proceed in
this direction
Use Fig.20.15 for a3, Fig.20.16 for a2, Fig.20.17 for a1, and Tab. 20.14 and
20.15 m2 and m3. Find the depth that results in a SN value close to the SN
value obtained from Fig. 20.20.

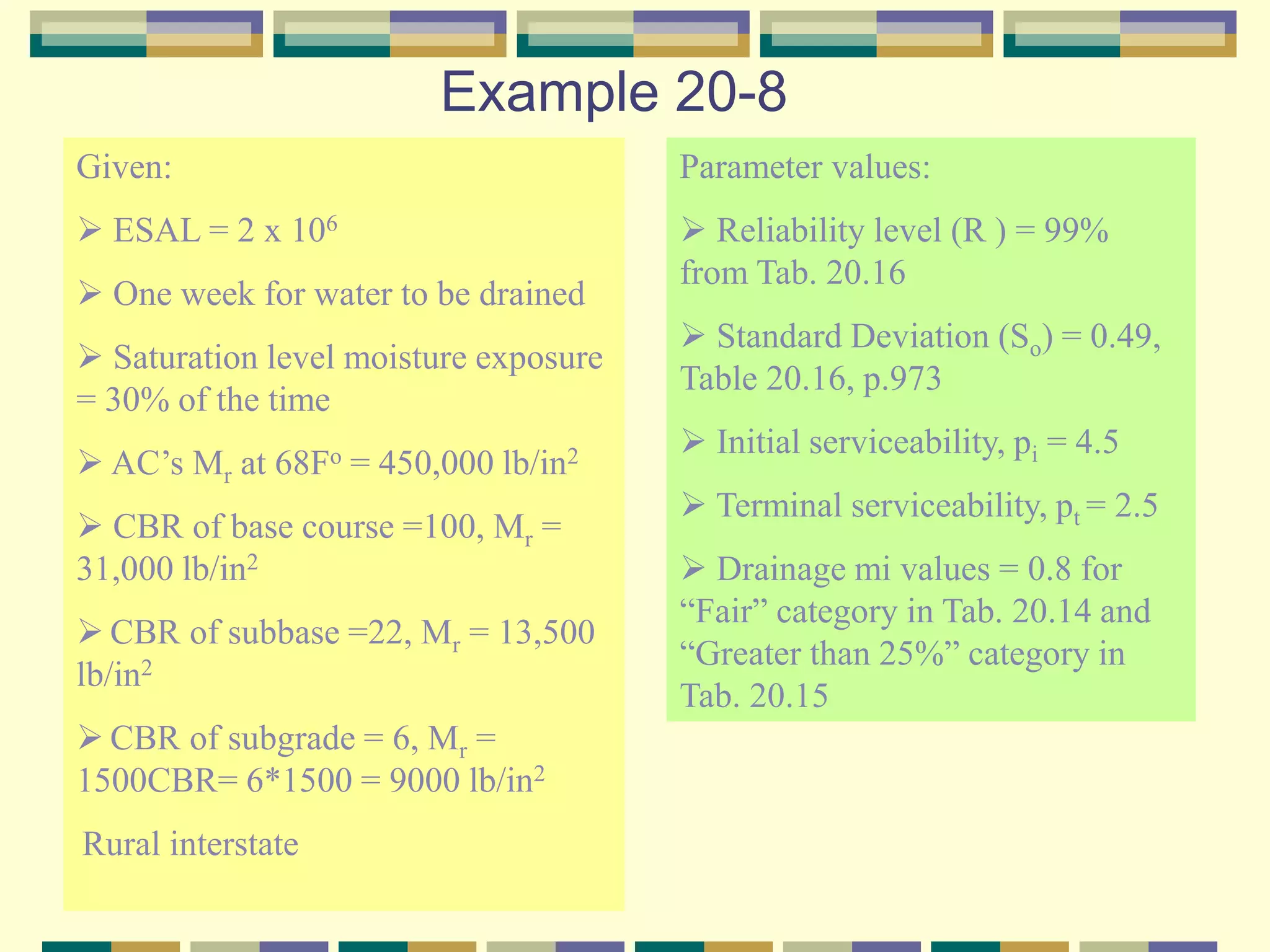

16. Example 20-8
Given:
 ESAL = 2 x 106
 One week for water to be drained
 Saturation level moisture exposure
= 30% of the time
 AC’s Mr at 68Fo = 450,000 lb/in2
 CBR of base course =100, Mr =
31,000 lb/in2
 CBR of subbase =22, Mr = 13,500
lb/in2
 CBR of subgrade = 6, Mr =
1500CBR= 6*1500 = 9000 lb/in2
Rural interstate
Parameter values:
 Reliability level (R ) = 99%
from Tab. 20.16
 Standard Deviation (So) = 0.49,
Table 20.16, p.973
 Initial serviceability, pi = 4.5
 Terminal serviceability, pt = 2.5
 Drainage mi values = 0.8 for
“Fair” category in Tab. 20.14 and
“Greater than 25%” category in
Tab. 20.15
